Notes: One of the most exciting oscillator modules we've seen in a long time, taking a unique approach to a complex VCO. Based around two thru-zero triangle core oscillators with a wealth of timbre shaping options.

Supplier notes:
Brenso is Frap Tools' primary analog source of articulated waveforms whose degree of entanglement can be precisely set by the musician.

Its concept developed from a reflection on the very meaning of the word 'complex,' which comes from the Latin verb plector, literally meaning 'to braid', or 'to weave.' The purpose of Brenso is to update the usual approach to 'complex oscillator' by offering many threads to be woven together, rather than a pre-defined plait of controls and waveforms: this to improve clarity, manageability and offer more sonic options to the artist.

Brenso consists of three sections: two for sound generation (yellow and green), and one for sound processing (white and red).

The generation sections allow control over the two triangle-core oscillators, which can be modulated from external sources and can modulate each other's frequency too. The frequency modulation can be any combination of exponential and/or linear through zero.

The processing section is composed of a waveshaping section (white) and a last stage of amplitude modulation (red): the first provides further degrees of modulation using two parallel wave-shapers and includes PWM, blends these two with a mixer and everything is passed into a wave folder with symmetry control and a dedicated clock input with shapeable nonlinear behavior.

The result of this is passed into an amplitude modulation section (red) which can be unbalanced (AM) or balanced (RM).

The white section modulations inputs are semi-normalled by a timbre bus, which is semi-normalled to the green sine wave.

Every oscillator has a button that locks its coarse frequency to the current value. From this moment on, every twist of the 'Coarse' knob will be ineffective (but The Fine knob is still available, from small adjustments).

BRENSO's oscillators are exceptionally stable and provide rich harmonic content. This happens thanks to the two thru-zero triangle cores, which guarantee the most playable behavior and the best response to audio-rate modulation.

You won't need to find a sweet spot because BRENSO is calibrated to sound 'as expected' in any setting.

Many controls allow for complex and detailed FM sound shaping. It is possible to set the amount of exponential and linear thru-zero FM independently per each oscillator and control their amount of 'deviation' through two separate knobs or CV inputs.

(The green oscillator can also work at sub-audio rate, and can therefore become a super complex LFO.)

BRENSO's 'complex' signal path is expanded on the front panel and grouped in four 'modulation buses': two for modulating frequencies, one for modulating timbre and one for AM and RM.

The green oscillator is always the semi-normalled modulator, but any other source can be used.

The timbre modulation section has been designed from scratch and offers a versatile blend of two wavefolders, a waveshaper, and a PWM circuit.

A dedicated VCA controls the global amount of modulation to be sent to each modulation section, but the semi-normalization can be broken anytime.

An analog circuit was designed from scratch that, when excited by an external trig, opens the wavefolder above its maximum level and then closes it down with a non-linear slope, whose length can be manually regulated.

This solution can generate percussive tones with a very organic decay.

HP : 30

Notes: Loop is a high fidelity looper with four unique recording modes and an intuitive user interface. It can capture up to five minutes of audio with reverse, and half-speed playback accessible. Each recording can use one of four modes: Sound on Sound, Dub, Replace, and Infinite (i.e. Frippertronics). Whether you're looking for minimal part layering, or full blown ambient soundscapes, Loop will take your patch for a ride.

High fidelity audio - 24-bit, 48kHz with five minutes of recording time
Four recording modes: Sound on sound, Dub, Replace, and Frippertronics
Intuitive interface
Half speed and reverse playback

Tech Specs:
Width: 2HP
Depth: 42mm

Notes: mBrane is a 4 channel midi to CV interface based on opensource Yarns. The device includes a 1.5m 3.5mm TRS to Midi male cable (Type B). This is the brand new Rev1.1 of the device which now features PSImidi which allows ANY type of TRS midi cable to be used on the input. Type A or B, male or female, all will work.

Running firmware 1.5
Multichannel MIDI to CV/Gate conversion

Yarns is a MIDI interface providing up to 4 channels of very accurate CV/Gate conversion, which can be assigned to up to 4 voices.

In single voice mode, note, velocity, modulation and aftertouch (or other CC) CV are produced, along with a gate, a trigger, and a clock/reset output.

In two voices mode, two channels of note, modulation or aftertouch CV are produced, along with two gates, and clock/reset outputs.

Finally, in four voices mode, four pairs of CV/Gate outputs are provided.

Each voice has a built-in digital LFO to interpret modulation wheel messages as a vibrato; can respond to pitch-bend messages; or can be smoothed with a glide/portamento control - no need for a dedicated module and patches to get the right response from a MIDI keyboard!

Monophonic and polyphonic

The 2 and 4-voice modes are available both in a "polyphonic" and "multitimbral" flavour. The former receives chords from one single MIDI channel and dispatches them to the voices; while the later provides independent monophonic parts - which can be addressed to different MIDI channels, keyboard ranges, or even velocity levels.

Various note priority modes (low, high, last) and polyphonic allocation schemes (voice-stealing, random, cyclic) allows you to fine-tune the CV/Gate conversion to your playing style.

With sequencing and note transformation...

Each part can generate sequences either through an arpeggiator/euclidean sequencer combo; or with a SH-101 style sequencer with step-by-step recording, storing up to 64 notes. The module can sync to an external MIDI clock, and generate a clock/reset output at any subdivisions of the MIDI clock.

...and even more advanced features.

Other unique features include support for microtunings (either through standard MIDI messages or from a selection of historical tunings or indian ragas), just intonation, and an audio output mode which can transform one, two, or four of the CV outputs into simple digital oscillators.

Notes: Delta-V is a fully analogue dual-channel function generator, featuring a dedicated VCA and LFO cycle switch for each channel. It packs a great deal of functionality in only 10HP, and will surely find use in almost every patch.

Generate envelopes, slew gates and signals, or run LFOs with precise control over attack and decay times. Using the SHAPE knob, Delta-v can create a wide range of envelopes, from very snappy exponential curves for percussion to logarithmic thumps for bass lines.

If VCA's input is unpatched, the module outputs a regular voltage envelope. When an audio signal is patched into the VCA input, the output signal becomes the audio signal amplified by the envelope.

Sending other envelopes or an LFO to VCA input lets you modulate those modulators, quickly creating complex control voltages that go beyond the usual attack-decay envelope.

Combine this with the SUM output, which sums the two channels, and the attenuverters, which can quickly attenuate or invert the signal, and you have a whole array of signal processing capabilities.

The TRIGGER input fires a Attack-Decay envelope, while the SLEW input will affect the rate of change of the signal.

The trigger for channel 1 and 2 can be linked together, so you can fire two envelopes with one patch cable.

Each channel has an End of Cycle output, (EOC) this outputs a short trigger at the end of each envelope cycle.

The output voltage ranges from -10 to +10 volts, set with handy output attenuverters.

The CYCLE switch starts looping the envelope, creating LFO's that go up to audio rate, and that can also be used as an interesting sound source.

There are many ways to utilise Delta-V.

Challenge yourself to explore new, unconventional territories!


Width: 10HP
Depth: 27MM
Power: +12V 70 MA
Power: -12V 70 MA
Power 5V: 0 MA

Notes: uBurst

This is a new build of the micro version of Mutable Instruments Clouds. The module retains all the functions of the original Clouds, taking up significantly less rack space.

These modules use tall bushing potentiometers to offer a more stable feel.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.

Notes: User-friendly mid/side processing module. Tweak the stereo image or split a stereo signal into mid and side elements then route out to other modules for further processing before summing back together. Powerful.

Supplier's Notes:
Minsk is a stereo image processor. It is a hybrid tool that combines digital and analog processing to facilitate advanced mid/side (M/S) manipulation of a stereo signal pair. It allows for separate treatment of the mid and side components, which affects the depth and width of the auditory scene. Minsk offers both manual and voltage control of the stereo width, as well as two dimension effects for enhancing the existing stereo image or creating a faux stereo image based on the stereo or mono input source. Minsk is especially handy during the preparation of a vinyl release or before a club concert, because it can eliminate out-of-phase low-end frequencies (high pass filter at 300Hz with the filter slope 12dB/oct, 50Hz with the filter slope 24dB/oct).

Dimensions:
6 HP

Current Draw:
140 mA +12V
40 mA -12V
0 mA 5V

Notes: Now available in Intellijel's 1U format, the Milky Way is Endorphin.es's stereo effect module, featuring 16 programs: reverbs, delays, chorus, flanger, compressor and more. Versatile.

Supplier's Notes:
Tasty multi-effects module in Intellijel's 1U format. Eight stereo effect programs include meta CV scanning along with Airways and Darkwaves banks borrowed from the Blck_Noir and Grand Terminal modules.

Supplier's Notes:
Milky Way is a stereo FX module already know from the Blck_Noir and the Grand Terminal. It offers 8 types of effects.


simple and effective 6hp stereo FX module
8 types of effects available with meta CV scanning, 2 famous Airways and Darkwaves banks (more banks coming soon)
volume control with VCA
Airways:

Hall Reverb
Shimmer Reverb
Stereo Room Reverb
Plate Reverb
Spring Reverb
Ping-Pong Delay
Tape Echo Delay
Chorus
Darkwaves:

Gated Reverb
Spring Reverb
Ping-Pong Delay
Flanger
Ring Modulator
Overdrive
Compressor
Freezer
Power consumption: 117mA at +12 V and 12mA at -12 V

Depth: 42mm

HP : 22

Notes: Erica Synths Black Mixer is compact, high quality audio mixer with bonus features - mute switch on each input and three buffered outputs. This allows you to add audio signals to your mix instantly and in exactly right level, plus you can send signals to several post-mixer devices simultaneously, for example, split the output signal to LP and HP VCFs and create advanced bandpass and notch filters.

Technical specifications:
Max input level: -10V - +10V
Mixer gain: 1
Power consumption : +8mA, -8mA
Module width: 6HP
Module depth: 25mm

Notes: Analogue goodness awaits with the four-pole Low Pass Filter. Thanks to CV control over resonance and frequency, the Low Pass Filter can go from squelching leads to dynamic sweeps in an instant. In addition, 1V/Oct tracking allows it to double as a musical sine wave oscillator. Bring analog warmth to your system today in a compact, yet stand out package.

Tech Specs:
Width: 14HP
Depth: 38mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

Notes: The Erica Synths Black Ring-Xfade is an extremely versatile module for sound shaping. It consists of two unconventional ringmodulators/waveshapers, a crossfader that works both for audio and CV and a VCA. Unlike conventional ringmodulator that works only with a signal present on both signal and carrier inputs, the Black Ring-Xfade passes through the signal without alteration, if no carrier is present, but low level signals on the carrier input result in unique waveshaping. Add the crossfader between two ringmodulators (or as a separate unit) topped up with the VCA, and you have an amplitude modulation powerplant in 10HP!

Ring1 CV; Ring2 CV
These are the ringmodulator carrier (CV level) level controls. Unlike conventional ringmodulator, this one passes signal unaltered, if RING CV is turned down. With increasing Ring CV level a slight waveshaping turns into proper ringmodulation.

Xfade
This is a manual Crossfade control. This fades smoothly between signals patched into XFADE IN1 and XFADE IN2. The XFADE CV is added to the knob position.

Coupling
Set the Crossfader mode - AC is optimized for use with the audio signals, DC - for control voltages (but it will work fine with audio, as well).

Ring 1; Ring 2
The green LEDs give visual feedback on signal levels, applied to XFADE IN1 and XFADE IN2 respectively.

Vol CV
Select the VCA CV response. A 0-10V setting is intended for use with the envelope generator, a -5V - +5V setting - for nice tremolos with a LFO.

Xfade IN1; Xfade IN2
These are the Crossfader inputs. They are normalled to the Ringmodulator ouputs, so, if nothing is patched here, you can crossfade between two ringmodulated signals.

Xfade CV
This is the Crossfader CV input. The CV is added to the XFADE knob setting.

VOL CV
This is the VCA CV input. The VCA is post-crossfade - it controls the amplitude of a resulting signal after the crossfader. It will also work with low frequency control voltages applied to the XFADE Ins - nice for designing unconventional modulations.

Ring1 Out; Ring2 Out
These are the ringmodulator outputs.

Xfade Out
This is the Crossfader output and the main output of the module.

Ring2 In; Ring2 CV
These are the second Ringmoduator signal and carrier inputs respectively. These two are normalled to the RING1 inputs, and if no signal is patched here, the duplicate the first Ringmodulator. Interesting trick is to set RING CVs at different levels and crossfade between two ringmodulator signals.

Ring1 IN; Ring1 CV
These are the first Ringmoduator signal and carrier inputs respectively.

Fade L; Fade R
The red LEDs indicate the crossfader position.

Xfade CV LVL
This is a crossfade CV level attenuator. By adjusting it you can control a span of fading between inputs.

Specs:
Audio level 10Vptp
CV level (full span) -5V - +5V
Power consumption +38mA, -32mA
Module width 10HP
Module depth 35mm

Notes: Sample | Hold is a two channel analog sample and hold circuit for the 1U format. S|H provides ultra low droop while maintaining an imperceptibly fast acquisition time. Generate perfect-pitch sequences from white noise, give your audio a lo-fi downsampling, and more with this handy utility circuit.

Two independent sample and hold circuits

Channel 1 is normalled to Channel 2

Ultra low droop, useful for perfect pitch sampling

LED voltage indicators

Ability to downsample audio signals

Input Range: +12V

Tech Specs

Width: 10HP

Depth: 38mm

Power Consumption: +12V=5mA, -12V=5mA, +5V=0mA

Front Panel: Ships in Intellijel format.

Notes: Running Order is a two track trigger sequencer. It can be a precise master clock or manipulate incoming clock signal and works great in use as a sub-sequencer/divider in your Eurorack environment.

Zero-jitter clock generation: less than 50 microseconds internal clock jitter
101 style 1/16th note input mode (step/rest) with manual or CV controllable amount of triggers repeats when the active trigger step happens
Euclidean mode enabled for each track where we set Euclidean total steps amount in the circle and then amount of triggers happening in that circle.
Per step trigger probability in 101 mode and global probability in Euclidean mode.
Separate synchronization (reset) inputs, sync for track 1 is normalled to sync track 2
Clock divider for incoming external clock allows to quickly obtain various musical divisions on the fly incl. triplets of course, but more importantly tuplets mode allows you to stretch desired amount of triggers happening into a single bar
Separate mute buttons for each track
8 patterns of triggers sequences stored in the module and recalled on the next power up
Available in 3U / 6HP version

Power consumption:
30 mA +12V
10 mA -12V
0 mA 5V

Dimensions
22 HP
26mm deep with power ribbon cable connected

Notes: The Z8000 Matrix Sequencer is a modulation source like no other: The 16 knobs of the Z8000 are accessed by ten sequencers with their own clock, direction and reset inputs. The ten sequencers are as follows:

Four 4 step CV sequencers on the horizontal.
Four 4 step CV sequencers on the vertical.
One 16 step CV sequencer on the horizontal.
One 16 step CV sequencer on the vertical.

The Z8000 can simultaneously modulate up to 10 CV parameters poly-rhythmically, with unprecedented motion complexity. One knob affects all 10 CV outputs! Imagine modifying 10 parameters from one knob. With its 30 gate and clock inputs and 10 CV outputs one can only imagine the possibilities, and all clock inputs can even be driven at audio rates! The Z8000 pairs well with the Trigger Riot and Circadian Rhythms and using it with the QuantiZer extends its capabilities as a high-precision 1V/Oct note sequencer.

Introduced in 2017, a new version of the Z8000 maintains the original circuitry but adds output range adjustment switches on the back and Tiptop's new colored look, which helps highlight the sections, on the front.

Size: 28HP
Depth: 15mm
Power: +12V 70ma / -12V 10ma

Notes: Make quick changes to signal routing manually or with CV control. Any audio or CV signal can be routed via two outputs in series, parallel or reverse series. Quick, clever and easy to use.

Supplier's Notes:
Signal flow is an essential concept in modular synthesis: the path taken by audio or control voltages (CVs) may be long or short, branching or linear, intuitive or highly complex.

While the patch programmability of a modular system is its greatest strength, it can also be a weakness: quick experimentation is often hampered by the need to repatch the synthesiser to change the signal flow.

Pivot 2 offers a unique solution: a compact, fully voltage controlled variable signal router. At the turn of a single knob, any signal can be routed through two external modules in series, parallel or reverse series, as well as any combination in between.

Experiment with patching wavefolders before, after or alongside filters, shuffle multiple delay lines, precisely dial in two-stage audio compression or easily control intricate feedback patches.

Looking beyond the basic signal routing application, Pivot 2 will also function as a complementary pair of counter-acting linear voltage controlled amplifiers (VCAs), a voltage controlled crossfader or a voltage controlled panner.

Analogue voltage controlled send/return router.
Seamless transitions from series, through parallel on to reverse series effect routing.
Also functions as a complementary VCA pair, voltage controlled crossfader or panner.
Impedance-compensated outputs with dual-colour LEDs.
Premium mounting hardware: black screws, black nylon washers and matching hex key.
High-quality components and assembly; designed and made in Belgium.

4 HP | +12: 60 mA, -12: 60 mA

Notes: Erica Synths Black VC Clock is the beating heart of your modular system.

The beating heart of your modular system in 10HP.

This module generates several clock signals simultaneously and has some more advanced features like tap tempo, shuffle and divide, both for controlled rhythmic music production and for experiments with high level of uncertainty. You may also find the adjustable and even random duty circle of shuffling and random clock outputs interesting. Bonus feature - the module can be used as a performance time stopwatch.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, design and usability was prioritised over module width. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

Max input level: -10V - +10V
Clock signal level: 0 - +5V
Clock rate: 30 - 400BPM
CV input level (full sweep): -5V - +5V
Power consumption: 40mA@+12V, 5mA@-12V
Module width: 10HP
Module depth: 25mm

Notes: The 2hp VCA is a dual, linear VCA. It uses the renowned 2164 SSM architecture, giving it extremely low distortion and high quality audio outputs. With a CV input attenuator, and DC-coupled inputs this is your new go-to module for voltage controlled amplification of audio or CV.

Notes: Tetrapad is a versatile, multi-dimensional, touch-sensitive control surface for Eurorack. Each of its four pads use force sensing resistors to respond to both the vertical position of your finger and its pressure. Four push encoders and a shift function give you even more tactile control over your modular system.

Tetrapad operates in numerous modes - each of which configures the module to perform a specific control task. Through these modes, Tetrapad can emulate a bank of faders; a voltage storage device; a finger drumming surface; a chord generator; an 8-key keyboard; four independent LFOs; or an 8-switch panel. The chosen mode determines what type of signal (CV, note, trigger, gate, etc.) is sent from each of Tetrapad's eight independent outputs, while its multitude of multi-coloured LEDs keep you informed of exactly what's happening within each mode.

Tetrapad automatically remembers how you've configured each of its modes and retains these settings when powered off. By default, Tetrapad automatically saves these settings every minute, or whenever you change modes. This makes Tetrapad ideal for live performance, since you know it will always power up with your configurations intact.

Notes: The EVEN VCO is a voltage-controlled oscillator that offers stability and high precision tuning over 10 octaves. A redesigned temperature compensation circuit maintains the oscillator stable against voltage and temperature drops.

Specifications:

Current needs: +12V: 36mA, -12V: 26mA
Width: 8 HP
Depth: 22mm, (28mm DIY) including power connector
Aluminium, heat-treated front panel.
Designed, kits prepared and completed modules assembled in Barcelona.

Notes: This new device is a powerful new CV controlled effects unit for your electronic music setup and pairs extremely well with the KOMA Field Kit.

- Looper
- Frequency Shifter
- Sample Rate Reducer/Bitcrusher
- Digital Delay
- Analogue Spring Reverb
- 4 Channel VCA Mixer
- 4 Step Mini Sequencer
- Envelope Generator

All of this, combined with the new 4 Channel CV Interface which allows you to route four CV signals throughout the device, means an incredible control over sound and timbre and a great addition to your mobile performance rig.

The Field Kit FX is built up from 7 separate functional blocks all focused on mangling and changing incoming audio and CV signals. They are designed to operate together as a coherent addition to our Field Kit Electroacoustic Workstation or alternatively together with other pieces of music electronics with the ability to use control voltage signals.

Notes: Erica Synths Cowbell module is an extended, modular version of Yocto (808) cowbell. For more sonic versatility we have added Tune and Decay controls, as well as Tune CV with an attenuator for nice vibratos.

Features
Manually and CV controlled tune
Decay control
Manual trigger
Accent input
Module width - 6HP
Module depth - 35mm
The module is developed in collaboration with the French company e-licktronic.

Technical specifications:

Decay range: 120ms - 1100ms
Audio output level: -5...+5V
CV level (full span): -5V - +5V
Trigger level: 5V
Trigger time: 1ms
Accent CV level: 10V
Power consumption: 14mA@+12V / 10mA@-12V
Module width: 6 HP
Module depth: 40 mm

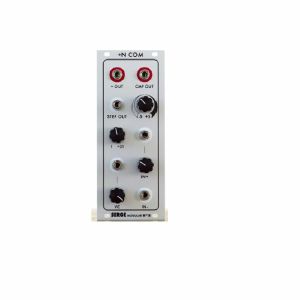

Notes: The Serge Divide by N Comparator (NCOM) is a rare, much sought-after and very essential Serge module covering a number of functions: comparator, voltage-controlled pulse divider, and voltage-controlled staircase generator.

The #N COMPARATOR consists of two sections - a comparator (right side) and a voltage-controlled pulse divider (left side). The #N output of the pulse divider sends out a pulse on every N-th comparator pulse where N is a number from 1 to 31. N can be (pre-)set with the divider's control knob (1 #N) and can by changed with a control voltage. The VC knob (attenuator)on the bottom of the left side determines how much effect the control voltage has on "N". In addition, the divider generates a staircase waveform with N steps. This can be used to produce whole-tone steps when run into the 1V/Oct input of a VCO or as a stepped control voltage to change for instance the cutoff of a filter.

The comparator provides a number of useful "housekeeping functions": Logical decisions (if the +input is greater than the -input, the output will be high, otherwise low), Level detection (whenever a variable waveform crosses the theshold, a pulse is generated ), Pulse width modulation or Rectifying a waveform (e.g. a sine or triangle wave).

Notes: Updated version of a truly pioneering Eurorack module that introduced DSP effects to the format. Still sounds great, still versatile, still excellent value.

Supplier's notes:
Back in 2008, the original Z5000 was not only the world's first Eurorack DSP effects module but also the first Tiptop Audio module released. It brought voltage controlled digital effects to Eurorack for the first time and the Z5000 was eventually replaced by the Z-DSP open source platform. Now, years later with over a decade of experience developing audio effects for Eurorack signals we are introducing a totally new version of the Z5000: a compact stereo 8HP multi effect with voltage controlled parameters, VC analogue clock generator driving the DSP chip and 24 of our creme de la creme reverbs, delays, modulation, harmonization and pitch modulated effects. A number of programs in the Z5000 combine more than one effect, in series or parallel, that represent studio techniques from the early days till modern times often leaning toward the more experimental side.

Notes: Inspired by our ADDAC701 VCO waveform mixing section, our new VC Signal Router also updates our legacy X-Fade/Panner to a stereo configuration that also allows 4 quadrant mixing.

Featuring two dedicated X-faders and a stereo VCA that can also be used as a third X-Fader. All controls have their own CV inputs and dedicated Attenuverters for precision control.

4 quadrant mixing is achieved by using the stereo Master as a X-fader between left and right channels, this way you can plug 4 audio sources and sweep/crossfade between each and any of them using the 3 x-faders. Plug any 4 sources (4 waveforms of a VCO, 4 LFOs, 4 envelopes...) and sweep through morph through or have them all mixed together.

For other configuration types Left and Right X-fader channels can be routed through the Master stereo VCA or sent directly to the outputs. A stereo Direct input can also be routed through the Master VCA or sent straight to the outputs.

The Mono Sum output always mix Left and Right outputs together allowing the possibility to use the module as a peculiar 6 channel mono mixer.

It can be used for both Audio or CV Signals.

Tech Specs:
8HP
4.5 cm deep
40mA +12V
40mA -12V

Notes: Mix up to four stereo channels in just 4hp, or chain multiple modules together to add channels. Inputs are normalled for mono operation. Simple, compact and high quality at a reasonable price.

Supplier's Notes:
4xSt.Mixer is 4 HP quad stereo mixer.

Right inputs are normalled to Left inputs for easy mono operation

Several 4xSt.Mixers can be chained together or with other HN stereo modules via sockets on the back side

65 mA +12V
50 mA -12V
35 mm deep

Notes: The Mankato Filter is a four-pole lowpass filter with positive and negative outputs at every pole, giving you slopes of 6 dB/oct, 12 dB/oct, 18 dB/oct, and 24 dB/oct simultaneously. The negative slope outputs allow you to use the Mankato as a quadrature sine oscillator with 8 available phases. The Mankato will self-resonate from subaudio to superaudio, and responds to one volt per octave through its unattenuated control inputs. When resonating, the 6dB/oct outputs are slightly hotter than the others and can be driven to lightly saturate at full resonance. The signal inputs are DC coupled, which allows you to use the Mankato as a voltage-controlled slew limiter at very low cutoff frequencies.

Notes: Dnipro serve up a solid option for generating modulation signals: knob recording, LFOs or loopable random modulation, all syncable to a clock signal. Nice touches include tap tempo and slew.

Supplier's Notes:
Krait is flexible 3-channel modulation source for eurorack system. Each channel can be either a Knob Recorder, LFO or loopable Random Generator.
The module is designed to be in solid sync with your beats, so in order to work, Krait should receive steady external clock pulse. However, LFO will work without clock. All settings and waveforms will be autosaved and reloaded after power off.

Knob Recorder:

Can record pot turns, up to 8 bars loops possible.

LFO:

Tap tempo LFO with morphable waveforms and phase offset. Sync it to your beats.

Random Generator:

Syncable random with portamento and possibility to freeze and loop 16 steps.

Technical details:

6 HP

70 mA +12V

12mA -12V

0 mA 5V

42 mm deep

Voltage ranges: +5-5v, 0v+5v

Notes: 'Vintage' black panel version of Doepfer's updated frequency shifter module, offering weird and wonderful effects by shifting all frequencies by a fixed amount. Unique sound, not to be confused with pitch shifting.

Supplier's Notes:
Module A-126-2 is a fully analog frequency shifter for audio signals. A frequency shifter is an audio processing unit that shifts each frequency of the incoming audio signal by the same frequency. If the shifting frequency is e.g. 200Hz an incoming audio frequency of 1000 Hz becomes 1200 Hz, 2000Hz becomes 2200 Hz, 3000 Hz becomes 3200 Hz and so on. Pay attention that this is different from pitch shifting where all frequencies are shifted proportional (e.g. 1000>1200Hz, 2000>2400Hz, 3000>3600Hz) !
The frequency range of the internal quadrature VCO is about 8 octaves (about 20Hz ... 5kHz). If required an external quadrature VCO can be used.

The module is equipped with these controls, inputs and outputs:

Frequ. 1: first manual control of the shifting frequency (factory setting: coarse, range about 20Hz - 5 kHz)

Frequ. 2: second manual control of the shifting frequency (factory setting: fine)

by means of internal jumpers the sensitivity of Frequ.1 and 2 can be swapped (i.e. Frequ.1 = fine and Frequ.2 = coarse)

the relation between coarse and fine control is about 25:1 (corresponding to about 8 octaves to 1/3 octave)

FCV In (socket) and FCV (small control without knob): control voltage input with attenuator for the external voltage control of the shifting frequency

Mix: manual control of the up/down shift panning unit, fully CCW = down shift, fully CW = up shift, in between a mixture of down and up

Mix CV In (socket) and Mix CV (small control without knob): control voltage input with attenuator for the mixing unit for external voltage control of the up/down mixing

Audio In (socket), Level (small control without knob) and Overload (LED): audio input with attenuator, typ. audio in level = 1Vpp, the level control has to be adjusted so that the overload LED just begins to light up a bit, when the LED is fully on clipping/distortion occurs, when the LED is permanently off the input level is too low and the signal-to-noise ratio increases

Audio Out (socket): audio output of the frequency shifter

Squelch (small control without knob): controls the squelch function: fully CCW (Env.) the output VCA is controlled by the envelope signal, which is derived from the audio input signal, fully CW (open) the output VCA is permanently open (no squelch function), in between the squelch intensity can be adjusted

Quadrature VCO Outputs (sockets Sin and Cos): outputs of the internal quadrature oscillator, about 12Vpp level (+6V/-6V)

Ext. Inputs Sin and Cos (sockets): required when an external quadrature VCO (e.g. A-143-9 with a wider frequency range or A-110-4 with thru zero feature or A-110-6 with different waveforms) is used instead of the internal quadrature VCO, the levels of the external VCO should be about 10Vpp (8...10Vpp are OK) and the signals have to be symmetrical around zero Volts, the sockets are normalled to the internal quadrature VCO (i.e. the sockets are equipped with switching contacts that interrupt the internal connection as soon as a plug inserted)

VCA ext. CV (socket): used when an external control voltage (e.g. from an envelope generator) should be used to control the output VCA instead of the internal squelch unit, the socket is normalled to the output of the squelch control (i.e. the socket is equipped with a switching contact that interrupts the internal squelch connection as soon as a plug inserted). From about +8V external control voltage the VCA is fully open.

Internal terminals (pin headers, e.g. for a DIY breakout module):

envelope follower output

dome filter output 1

dome filter output 2

ring modulator 1 output

ring modulator 2 output

Up shift output

Down shift output

Notes: Great value from this versatile six-channel function generator, suitable for LFOs, envelopes, slew limiting and much more. A versatile module at a good price.

Supplier's Notes:
This modules is a 6 channels function generator, each channel has an attenuverter to set the output gain, there are 2 extra outputs with mixed signals (channels 1+2+3 and 4+5+6) for complex CV

-With no signal plugged in the input, channel will self-oscillate generating an LFO of i4,8V

-With gate/trigger signals in the input, channel is an AR envelope generator

-With an stepped CV signal plugged in the input, the channel acts as a slew limiter

min attack/decay time:
0,3 milliseconds in fast mode
13 milliseconds in slow mode

max LFO length:
1" in fast mode
1'20" in slow mode

max attack/decay length:
13" in fast mode
3'00" in slow mode (approx)

18 HP
159 mA +12V
153 mA -12V

Notes: Bleeding Hearts Eurorack Modular Device

(Random Sequencer, Rhythm Generator, Destroyer, and Filter)

The Bleeding Hearts is a device that starves, bit crushes, splatters, and filters audio sources like no other. Feeding a gate signal to the Bleeding Hearts enables a whole new world of strange and random analog-generated movement. Each position of the 8-step sequencer can bleed into each other and interact with the destruction effect, creating gated and filtered splatters, glitches, and crunches that move to the beat of your patch.

Designed and assembled in Seattle, Washington. Includes a limited 1-year warranty, if registered within 30 days of purchase.

20hp, 42mm deep.

Notes: The 'Stereo Sum' is a unity gain summing mixer that features four stereo input pairs summed as pairs to two independent mix outs or all as a single combined mix. It is a useful utility for efficiently combining outputs of multiple stereo sources, such as the MEGA-TANG and Jumble Henge mixers or multiple MFX returns. The inputs accept stereo or mono signals (via normalisation) which can be audio or CV (module is DC coupled) and the top mixer's outputs are normalised to the bottom mixer section meaning if the upper output is left unpatched the two upper inputs will be added to the lower output.

Stereo input pairs

Stereo inputs. Can be used with audio or CV (inputs are DC coupled).

Left ins normalised to Right for mono signals.

Stereo mix output 1

Stereo mix output. Normalised to bottom mixer section if ouput is left unpatched.

Stereo input pairs

Stereo inputs. Can be used with audio or CV (inputs are DC coupled).
Left ins normalised to Right for mono signals.

Stereo mix output 2

Final stereo mix output.

Technical specifications

Power: +12V 8ma / -12V 8ma
Size: 4HP
Depth: 32mm

Notes: Wonderland is an 8×8 active patchbay/matrix mixer/switcher for both audio and control voltages. It features:

8 inputs (1 through to 8), each with micro-attenuators (which can be set with a small screwdriver)
8 buffered inverted outputs (A through to H) which are 180o out of phase with the inputs
8 buffered normal outputs (A through to H) which are in phase with the inputs
A switch matrix of 64 push on/push off switches
Any of the 8 inputs can be patched to any of the 8 outputs simply by pressing the corresponding switches. A patched signal will appear at both normal and inverted outputs simultaneously.

A single input can be patched to a single output. A single input can be patched to multiple outputs. Multiple inputs can be patched to a single output. Multiple inputs can be patched to multiple outputs.

Each input features a micro-attenuator which can be set with a small screwdriver. This space saving feature allows you to reduce the volume of an incoming signal without having to resort to external attenuators. If you add many inputs to one output you will of course cause clipping (which may or may not be desirable!), the micro-attenuators are your on-board way around this. I find it useful to leave the micro-attenuators set to 50% (which is how they come pre-set at delivery). Of course, their size is a little bit of a compromise, but they are a useful feature nonetheless. Wonderland’s sister module Looking Glass includes full size input attenuators as well as LED status indicators.

Product Specifications
12V draw
30mA

5V draw
0mA

-12V draw
31mA

Depth
35mm

Width
18HP

Notes: ADDAC809 is a dynamic CV operated I/O router that allows one source (Audio or CV) to be routed through 2 different chains (of one or more modules) before being sent to an output.
Six routing patterns are allowed:

1. IN > OUT
2. IN > CHAIN A > OUT
3. IN > CHAIN B > OUT
4. IN > CHAIN A > CHAIN B > OUT
5. IN > CHAIN B > CHAIN A > OUT
6. IN > > OUT
A practical example is to have an audio source, a delay and a looper.
And the question: should the delay be placed before or after the looper? Sometimes you may need the delay to be before the looper as you may want to sample the audio with the delay or sample the pure audio source and apply the delay afterwards.
This small utility module solves this issue on the fly without having to repatch anything.

INPUTS & OUTPUTS

TO CHAIN B: Connect to your Chain B input
FROM CHAIN B: Connect to your Chain B output
TO CHAIN A: Connect to your Chain A input
FROM CHAIN A: Connect to your Chain A output
INPUT: Connect to your Input Source
OUTPUT: Connect to your Output Source

ROUTING PATTERNS

There are 2 ways to address the six routing patterns:

Buttons: using the frontpanel push buttons and/or dedicated trigger inputs to latch between 2 states.
BYPASS: Chooses between Pattern 1 and any other pattern
PARALLEL: Chooses between Pattern 6 and any other pattern
ORDER: Chooses the order A before B or B before A
DUAL/SINGLE: Chooses to use a Dual (A>B or B>A) or Single chain (A or B)
CV: The dedicated CV input expects a 0 to +5v input and allows to jump to the precise routing pattern using a specific voltage interval in increments of approx. 0.83V:

Pattern 1: 0v to 0.83v
Pattern 2: 0.83v to 1.66v
Pattern 3: 1.66v to 2.5v
Pattern 4: 2.5v to 3.33V
Pattern 5: 3.33v to 4.16V
Pattern 6: 4.16v to 5V

Tech Specs:

Width: 12 HP
Depth: 55mm
Current: 80mA +12V / 30mA -12V

Notes: Motion Pictures

(Delay And Reverb)

Motion Pictures combines lush delay and reverb with intuitive, powerful controls within a 10HP module. Choose between a crisp digital delay or a warm analogue delay and pair it with a spacious, large-hall stereo reverb. Delay and reverb levels can be adjusted independently, allowing you to use them separately or together. The delay time can be controlled using a knob, tap tempo, or CV. You can even send opposing CV signals to the tap tempo and delay time for glitchy, pitch-bending, rhythmic effects. Additionally, CV control extends to the feedback, delay, and reverb levels, providing greater flexibility. Motion Pictures offers rich ambient sounds in a compact design, combining delay and reverb in one module to optimize rack space while preserving sonic depth.

Notes: The VCZIII voltage controlled oscillator modules are Feedback's latest creation and are based on the VCOs of one of the most revered analogue instruments, the famous British pin matrix synth released in 1969.

The VCZIII series VCO is a result of the collaboration of Feedback modules and CMS-LAB and is a modern re-creation of those temperamental, organic and beautiful sounding VCOs from 1969 but with enhancements and adaptations to the Eurorack needs of 21st century.

There are two type of VCOs, VCZIII A based on VCO1 with variable shape SINE & SAW waveforms, VCZIII B based on VCO2 & VCO3 with variable TRIANGLE & PULSE waveforms.

Also, each VCO comes in two versions, one with normal fine tune potentiometers and one with precision multiturn potentiometer.

THIS VERSION IS WITH BOURNS MULTITURN FINE TUNE POTENTIOMETER.

Tech specs:

- 12HP width
- 35mm depth behind front panel including the power connector
- standard 10 pin euro power +12V / -12V
- power consumption +12V 50mA , -12V 30mA

Notes: Easily connect your modular system to the rest of your setup with Out, a compact 2HP stereo line output and headphone module. Despite its small size, it includes everything you need for clear, convenient listening.

The top section features stereo modular-level inputs with LED indicators for quick level monitoring. From there, the signal is routed to both a stereo line output and a dedicated headphone jack, each with independent volume control. Whether you're sending your modular through external effects, recording into an interface, or just monitoring with headphones, Out keeps things simple and efficient.

Notes: Black edition of Hexinverter's 808-inspired drum bundle. Kick, clap, snare and hat modules recreate the iconic sounds of Roland's legendary analogue drum machine, all updated with modular features.

Supplier's Notes:
Introducing four re-issues of classic Hexinverter drum modules - the Mutant Bass Drum, Mutant Snare, Mutant Clap and Mutant Hihats! These modules are perfect for anyone with a taste for classic TR808/909 sounds, but with a greatly expanded tonal range with voltage control over parameters and, of course, optional high distortion!

Notes: Introducing the HATS808, a drum module that brings the classic TR-808 closed and open hi-hat sounds to the Eurorack modular synth format. This module includes features like independent accent levels, a high-powered gain stage, dual input pulse-shaper, and adjustable Filter Q and VC-Q knobs for additional tuning.
The HATS808 uses six analogue square wave oscillators to create its signature sizzling sound, maintaining the unique metallic character of the original. The original "choke" circuitry is fully implemented but can be disabled if needed. The high-powered gain stage allows for further sound harmonization through distortion and clipping. The dual pulse-shaper circuit ensures consistent sound quality from any pulse source, making the HATS808 an easy and powerful addition to any modular synth setup.

TR-808 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 14mm
Power: +12V 30ma / -12V 25ma

Notes: The 411 is a quadruple linear VCA, mixer, and multiple for audio and CV.

It consists of four linear VCAs with semi-normalled inputs and CV inputs, -6 dB attenuation switches, a mixed output, and an unpatched output.

The 411's architecture allows to use it in many ways, for example:

Processing four signals independently;
Modulating one signal with four CVS and sending it to four different destinations;
Mixing up to four signals and modulating them with the same CV;
Mixing two audio signals and modulating them with a modulated CV...

Key Features

Four DC-Coupled Linear VCAs

The 411 has four linear VCAs perfect for modulating audio signals and control voltages.

Semi-Normalled Signal and Control Inputs

The signal inputs and the CV inputs have cascaded semi-normalled connections. Every signal patched to an input also feeds the following ones, allowing for infinite combinations of sources and modulations.

Mixed and Unpatched Outputs

The 411 features an All output and an Unpatched output, just like the popular 321 module. The All output mixes the four sections, while the Unpatched only those whose local output is not going anywhere.

-6 dB Switches

The switches halve the CV input, allowing the 411 to work with both 0-5 and 0-10 voltages.

Open by Default

The VCAs are designed so that they stay open even if nothing is patched to the inputs.

Specifications:

Size: 6 HP
Depth: 38 mm

Current draw: 35 mA @ +12 V / 25 mA @ -12 V
Recommended warmup time: 30 min
Audio Input impedance: > 45 KO
CV Input Impedance: > 40 KO
Output impedance: ~ 100 O
Global CV offset per section: -20 to 20 mV
Frequency response: DC to 30 KHz
Harmonic distortion (THD+N): < 0.1%

Notes: Four-part probabilistic rhythm crossfader

Confundo Funkidos is a rhythm crossfader and mute utility. Patch two pairs of rhythms to the left and right inputs, then use the CV-controllable crossfader and three Curve algorithms to fade between them and combine them in different ways. Each channel has a mute switch which can be used to bring a voice in and out of a patch at will. Tap the Burn button for some instant fills, and your percussion performances will never be the same.

New to the second version is the addition of four Accent outputs. Accent patterns are generatively created using the rhythms at the inputs, adding a new, dynamic dimension to even the simplest of trigger sequences. The Accent jacks output high or low gates, which can be used with dedicated percussion modules or as modulation sources in a patch.

The Burn functionality has also been expanded, with the addition of a potentiometer for more versatile and hands-on fill creation. Even the Mute switches have been expanded with three positions: each channel can output triggers but not receive Burn fills or output accents when set to the middle position.

If you want to liven up your percussion system with a completely unique and hands-on utility, Confundo Funkidos brings modular performance to a whole new level.

Size and Power
12HP Eurorack
+12v: 55mA
-12v: 15mA
Confundo from Latin confundo - "to blend"

Funkidos agitation disease - from Flemish fonck "agitation" with suffix dos for "two"

"Second blended agitation"

What's in the box?

Module
Power cable

Nosie Engineering no longer include screws with newly packaged modules, but Bulk screws are available for purchase separately.

Notes: Touch and Pressure Controller 2HP - Herzlich Man-Machine Interface Micro MMI - passive modular controller for Eurorack systems

The Man-Machine Interface, or MMI, is a passive touch and pressure sensitive controller which allows the user to direct CV and audio signals at will. The MMI consists of three input/output jacks, and five body contact surfaces in glorious gold.

The zig-zag body contacts correspond to the input/output jacks, with the top zig-zag connecting to the top jack, the middle zig-zag connecting to the middle jack, and the lower zig-zag connecting to the lower jack. The spiral patterns in between the zig-zags are comprised of the two adjacent jacks, so the upper spiral is comprised of the upper and middle jack, while the lower spiral is comprised of the middle and lower jack.

In order to operate the MMI, the user can touch any two points with their fingers, patch cables, a piece of fruit or vegetable, or any other conductive substance or object, in order to complete the connection. The degree of contact made with the MMI, and the resistance of the object completing the circuit, will determine the output that is sent along the circuit. For instance, if a user were to patch a VCO into the top jack, and patch the MMI into a filter in the middle jack, the VCO will be sent to the filter when the topmost zig-zag and lower zig-zag are connected by two fingers, for instance.

But how about the spirals? The spirals offer a way to make a connection with one finger. Using the example from before, the connection will instantly complete when the user touches the upper spiral pattern. Using this principle, it becomes possible to use the MMI in unusual and interesting ways, such as a rudimentary keyboard, a drum controller, a switch and any other number of weird and exciting purposes.

It is also possible to combine several MMI - using two different MMI, it is possible to reach across one zig-zag to another zig-zag, in order to make a different connection, or to place a particularly long vegetable across all the contacts just to see what will happen. The MMI is an unusual patching system for the experimental musician, and lends itself well to all manner of experimentation and weird instruments.

The MMI can bleed a tiny bit of signal when using sharp VCO waves like square waves, while other sounds like sine waves will have softer responses. This can easily be corrected with amplification or attenuation as needed.

The Micro MMI takes up 2HP and is skiff friendly, and is also suitable for installing in external boxes as a passive control unit. You can combine any number of MMI to create increasingly complex keyboard-like arrangements, drum pad matrixes or advanced switch systems.

Dimensions
2 HP
10 mm deep

Current Draw
Module does not draw current

Notes: Drawing inspiration from the MMI Maxima, the MMI Helios is intended as a middle ground between the gestural control surface of the Maxima and the fingertip control of the smaller MMI.

Less density, but a much higher degree of patch control is the key point of the Helios, which complements other MMI devices very well, and can be joined with other Helios (Helii?) to form larger and creative control surfaces.

The design is greatly simplified compared to the original MMI, with only two I/O jacks - either can function as input and output, and their interaction with each other is determined by touching both plates simultaneously to form a connection, or in cooperation with other MMI devices.

Available in a "right" and "left" version - one is an exact mirror image of the other, which makes it suitable for having two units adjacent to one another.

Dimensions
8 HP

Notes: *** Updated to v3 in February 2024 with improved hardware and circuitry ***

The Omen is a dual LPG with a bit more than you might be used to. This module was born out of the realisation that it was possible to make far more interesting LPG designs than the standard we've become so accustomed to.

In a convergence of old-school LPG design and more modern components, the Omen boasts two -6dB resonant filters, custom built vactrols, built in CV attenuation and no less than three cutoff modes per filter. Filter 1 is soft and light, imparting a gentle, naturally gated touch of filtering on your sound, while Filter 2 is darker and more resonant, and can turn downright growly and distorted when left wide open.

Designed to give you as many creative options as possible, the Omen has the unique ability to function as either two discrete LPG, or as one 4-pole resonant LPG. When plugging a signal in to Input 1, and with no signal plugged into Input 2, the output will be present at both Output 1 and Output 2, with Output 2 producing the signal as it passes through both filters. Tweaking both filters independently will generate a wide array of soft and sometimes harsh tones, ranging from Buchla bongos to early synthesis brass and organ sounds. There is much to love here.

CV is similarly handled, by plugging in only one CV source, it will act on both channels - this is useful for creating musically similar outputs as well as when using the dual filter operation. However, the dual filter mode greatly benefits from having two CV inputs: use an envelope in CV1 to act as a VCA, and an LFO in CV2 to create tremolo, for instance.

Using custom designed, hand built vactrols, care has been taken to mitigate the less desirable aspects of passive LPGs - in most modules, the user can expect zero bleed through on the LPG channels, and signal attenuation is minimal even with the 4-pole filter settings engaged. Of course, many of the natural features of vactrols remain, such as subtle memory effect when engaging the vactrol for long periods.

Finally, you receive maximum blinkenlights as LED's on the front panel simulate the action of the vactrols, so you'll always know what's going on under the hood. No collection of fancy LPG's is complete without the Omen.

Dimensions
4 HP
36 mm deep

Current Draw
Module does not draw current

Notes: The SD909 adapts the iconic TR-909 snare drum and noise generator for use in the Eurorack modular synthesizer format. Tiptop painstakingly tested the module in their lab to sound like a fresh machine coming off of the assembly line back in the 80s. On top of the original circuit, Tiptop have added new features that expand the palette of what can be produced with this analogue circuit.

The sound of the SD909 consists of two main sections: the binary noise generator and two modulated triangle oscillators. The oscillators provide the low end punch while the noise makes up the upper sonic spectrum, resulting in a combination that makes the 909 snare sound so rich. In the SD909 module, the noise generator and oscillators are variable and voltage-controllable, pushing the circuit beyond its original boundaries, offering new sounds and many variations of the original tone. The panel also has markings to guide setting the knobs to reproduce the vintage snare sound of the original machine.

Just like the other drums in this series, the SD909's high-powered output gain stage allows further enhancement of the sound through distortion and clipping. Tiptop have designed a dual pulse-shaper circuit on each gate input so you can trigger your SD909 with Trigger/Gate signals from step sequencers, clock dividers, or any other pulse/clock sources. Also, the SD909 is equipped with access to the MIXZ MixBus, matching the rest of the Tiptop line of percussive modules.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 46mm
Power: +12V 35ma / -12V 30ma

Notes: Super Sawtor is the module designed to produce unison like waveforms from the incoming signal. The best results are achieved using sawtooth, triangle or sine waveforms as an input signal. Unison spread has been tuned to give almost the same type of harmonics smearing as the famous Roland JP80X0 Supersaw oscillator. Thus feeding the Super Sawtor with a sawtooth waveform will result in a typical Supersaw output.

Though having some common features with sawtooth animators, Super Sawtor gives that vivid tension of the Supersaw waveform, which is different to imitation of the multiple oscillators sound most sawtooth animators capable of doing. The main difference is in the approach used: sawtooth animators tend to recreate continuously moving phase shift of the slightly detuned / drifting oscillators; super Sawtor in its turn creates additional pitched shifted harmonics to the input signal, which gives a different sonic character compared to sawtooth animators.

It is also should be mentioned that Super Sawtor is a completely analogue circuit free of aliasing.

No external modulation sources are required for proper operation of the module. However the user can add changes and modulation to the manually set "Spread" amount by using "Cv" input and adjusting "Cv" knob to the desired degree.

Specifications:
Input level: -5v... + 5v (can also accept inputs ranging from [-2.5v... +2.5v] To [-15v...+15v] Using onboard trimmers)
Output level: averages around -5v ... + 5v
Output impedance: 1 kohm
Module depth: 3 cm or 1,5"
Power consumption: +85 /-85 ma at +/-15 VDC through dotcom standard 6 pin mta-100 connector for dotcom format
+45 /-45 ma at +/-15 VDC through MOTM standard 4 pin mta-156 connector
+45 /-45 ma at +/-12 VDC through euro standard 10 pin connector
4HP

Notes: Another clever one from Knobula, this chord-based sequencer/arpeggiator adds versatile harmonic options to your creative process. Pair it with the Poly Cinematic module for best results.

Supplier's Notes:
Generate extraordinary chords without using a keyboard.

Chord Pilot introduces a whole new take on the task of chord creation and performance offering 192 chord memories, a strummer, an arpeggiator and an 8 step chord progression sequencer, all in one compact 12hp package.

Knobula have thrown away the music theory rule book and instead offer a module that encourages the curious mind to discover alternative musical pathways, whether for generative patches or for EDM riffs.

To generate a new chord, Chord Pilot uses a series of controls that alter the width and spread of 'fingers' over a virtual keyboard before conforming them into a variety of musical moods from the pure and harmonious to the terrifying and cacaphonic.

Like all Knobula products, Chord Pilot has been designed primarily with performance in mind, to inpsire by experimentation, to lose yourself in the moment, and to occassionaly generate impossibly hard to play super chords.

With the ability to store and transfer chords in sets of eight, Chord Pilot makes a great companion module for Poly Cinematic, but it is equally at home serving any poly synth with a midi input.

Discover Chord Pilot, your guide, navigator and explorer to a whole new universe of musical harmony, and beyond.

Notes: A pair of ADDAC213Cs can be used in standalone to send/receive 8 CV or audio signals between different points inside the same case or as an expansion to the main pair of Eurorack Bridge modules, the ADDAC213As.

Standalone use:

Two ADDAC213C modules can be connected to each other with the use of a single ribbon cable and then used inside a case to carry signals between distant points without the need for long cables. Less clutter, less spaghetti, more space of your fingers on those knobs!

ADDAC213Cs always come in pairs. A single pair can send & receive up to 8 CV or audio signals between different points in your case at the same time.

Do you have modules that you often use together in different areas of your case? Would you prefer that each row's cables don't mingle with cables from other rows? Grab yourself a pair of ADDAC213s.

As an Expansion to an ADDAC213A:
Each ADDAC213C connected to the backside of an ADDAC213A adds 8 more channels to the main bridging functionality of the ADDAC213A.
Up to 2 ADDAC213C can be connected to an ADDAC213A module, expanding the bridging between two difference cases to a total of 24 channels.

If you're looking for a simple one-cable bridge between your various cases, then look no further than the ADDAC213A.
Between the ADDAC213A pair and the ADDAC213B, your cases never looked so elegantly connected together!
Check ADDAC213A for more information:
https://www.addacsystem.com/en/products/modules/addac200-series/addac213a

Price is for a pair of modules (2 modules) including two 50cm ribbon cables, only one is used to connect the two ADDAC213C together but two are necessary when connecting the two ADDAC213C to two ADDAC213A.

Comes with a 50cm ribbon cable. Custom sizes are available upon request.

Mechanical:
. Format: 1U Eurorack
. Width: 22HP
. Depth: 2.5 cm

Electrical:
Passive / Does not draw current
Ribbon Cable: 50cm or 100cm ribbon cable (custom sizes available upon request)

Notes: Module A-147-4 is a dual voltage controlled LFO (Low Frequency Oscillator). Each LFO has the five waveforms triangle, sine, rising and falling sawtooth, as well as rectangle available. The rectangle output features manually adjustable pulsewidth and pulsewidth modulation by means of an external control voltage. The core waveform is triangle. The other waveforms are derived from triangle by means of waveform converters. The frequency of each LFO can be adjusted manually and modulated by means of an external control voltage with associated attenuator and polarity switch. By means of a jumper the basic frequency range of each LFO can selected: about 0.02 Hz (~ 50 seconds) ... 2.5kHz or about 0.0017 Hz(~ 600 seconds) ... 220Hz. That way each LFO can be used also as a VCO with a max. frequency of about 2.5kHz. Each LFO features a reset input which can be used to reset the triangle signal.

The module has these controls and in/outputs available:

Control F : manual control of the frequency, for each LFO the frequency range can be selected by means of a jumper from two values (see technical notes)

frequency coverage of control F in the high frequency range: about 0.075 Hz (~ 13 seconds) ... 1,4kHz

frequency coverage of control F in the low frequency range: about 0.007 Hz (~ 140 seconds) ... 125Hz

Control CV: attenuator for the signal applied to the CV socket, by means of a jumper a small positive voltage can be applied to the switching contact of the /CV/ socket, as long as no patch cable is connected to /CV/ socket the CV control then works as fine control for the frequency

Switch CV Pol.: polarity switch for the signal applied to the socket /CV/

Control PW/PM: combined control for manual and CV control of the rectangle pulsewidth:

when no patch cable is connected to socket /P/ the control is used to adjust the pulsewidth (PW) manually

when a patch cable is connected to socket /P/ the control works as attenuator for the external CV signal with a basic pulsewidth of 50:50.

Socket /CV/: frequency control voltage input, in the factory the module is adjusted so that the sensitivity of this input is exactly 1V/octave when the CV control is fully CW.

Socket /R/: reset input, according to the associated jumper the reset input is edge triggered or level controlled (see technical notes for details)

Socket /P/: pulsewidth control voltage input

Sockets with waveform symbol: output of the waveform in question (triangle, sine, rising and falling sawtooth, rectangle)

The output voltage ranges are about -5V ... +5V (10Vpp), except the rectangle output

For the rectangle output one can choose by means of a jumper if the range is about -5V ... +5V or 0...+10V.

LED: visual control of the LFO (triangle)

The inputs of the module are labelled with white characters on black background (in the text included into two slashes). The outputs are labelled with black characters.
Technical notes and special features:

The basic frequency range of each LFO can be selected by means of a jumper. The settings correspond to two different capacitor values for the VCO circuit. The relation between the two ranges is about 1:11. When the upper range is selected frequencies from about 0.02 Hz up to 2.5kHz can be generated. For the lower range the values are about 0.0017 Hz ... 220Hz. To obtain these full frequency ranges external control voltages are required. With the frequency control F only the frequencies mentioned above are possible.

Apart from that the range for the manual control F can be reduced to obtain a finer resolutuion. For this a jumper has to be removed. The range of control F is then reduced to about 1:4.5 only.

In the factory the starting voltage of the triangle output after a reset is adjusted to 0V, i.e. the triangle starts from 0V with the rising slope after a reset. By means of a trimming potentiometer the starting voltage can be adjusted to another value (e.g. to -5V).

Another jumper is used to set the reset behaviour to edge triggered or level controlled. When set to edge triggered the rising edge of reset signal is used for the reset (independent of the duration of the "high" state of the reset signal). When set to level controlled the triangle output remains at the starting voltage as long as the reset signal is "high". Only when the reset signal turns "low" the triangle starts.

Dimensions
8 HP
45 mm deep

Current Draw
80 mA +12V
70 mA -12V

Notes: Part of Xaoc's range of modular mixing tools, the Bohumin 1966 is a commander module for Ostrawa stereo mixer modules, adding a second stereo aux bus, voltage control and manual attenuators with clickless mutes

Supplier's notes:
Bohumin [bo'xumin] is an expander for Xoac Deives' Ostrawa full stereo mixer module. By connecting to Bohumin, Ostrawa gains a second full stereo AUX bus with voltage control over the amount of the effect on each channel. Bohumin features manual attenuators for stereo returns of both AUX A and AUX B, as well as four gate inputs for automated clickless muting of each stereo input channel. Please note that Bohumin is not compatible with Ostrawa's sister module Praga. Similarly, Praga's expander Hrad cannot be connected to Ostrawa. However it is possible to chain any combination of Ostrawas and Pragas, and each of them may have its corresponding expander attached.

Technical details

10hp, skiff friendly
Power drawn from Ostrawa: +50mA/-40mA

Notes: Vortex 6 us a polyphonic 6-voice wavetable oscillator inspired by the hardware design and sound of the PPG Wave 2.2, and it is the only oscillator of this type that uses true 8-bit vintage audio converters from the '80s. Dozens of wavetables are provided internally, and user tables can be loaded via an SD card. VORTEX6 has built-in vibrato, glide, and six wavetable-scrolling envelopes, all with CV. The ART-in jack and a built-in voice manager take care of incoming notes and distribute them to audio, gate, and velocity outsieither through per-voice 3.5mm jacks or the Polytip jacks. Together with OCTOPUS, one or more OCTOSTAGES, OCTOPASS, and OCTOGAIN, along with a few Polytip patch cables, it forms the world's first complete six-voice polyphonic modular synth. Alternatively, VORTEX6 can be patched to discrete mono modules or use its voice mix-out for paraphonic soundscapes with up to 12 oscillators in detune mode.

Size: 20HP - Depth: 40mm

Power: +12V 190mA / -12V 50mA

Notes: The SetonixSynth Marsupial is a new dual filter design based around the re-issued AS3350 filter IC, originally used in rare synths such as the Synton Syrinx, Crumar Spirit and Rhodes Chroma but never widely utilized. Normalization between the control inputs and a Series/Parallel switch makes it simple to dial in a huge variety of unique and musical filter sounds.

Current draw: 36mA @ +12V; 35mA @ -12V

Eurorack width/depth: 8hp; 25mm
