Notes: 'Pamela's PRO Workout' is a compact programmable clocked modulation source for your Eurorack modular system. It provides 8 highly editable outputs producing various control voltage signals correlated and synced to a BPM based master clock.

Each output can provide everything from simple clocked triggers, complex rhythmic waveforms, quantised melodic patterns to random chaos with direct and assignable CV control over numerous parameters. These features together with a quick and easy to use interface provide almost limitless synced modulation possibilities in a tiny space.

Building on the original 'Pamela's Workout' & 'Pamela's NEW Workout' the evolved 'PRO' Pam maintains the precursor's form factor and intuitive workflow but improves and adds many new features with upgraded hardware, more CV inputs, a new full colour hi res display and rewritten software adding many new enhancements like micro grid timings and cross output modulations.

Through optional expander modules more CV input and outputs can be added with support for external non euro equipment through Midi and Din Sync outputs. Please enjoy your next generation PRO workout!

Size: 8HP
Power: +12v 60ma / -12v 10ma
Depth: 32mm (approx with power header)
Outputs: 0-5v buffered low impedance. 12 bit res. 3.8khz max update freq.
Inputs: CV 0v-5v / Clock, Run - rising edge 700mV min.

Notes: A typically clever approach to modulation from Make Noise, the MultiMod takes a control signal and modifies it into eight related outputs, adjustable by phase and timing. Hugely versatile.

Supplier's Notes:
With MultiMod...from one control signal, we create many.

In a modular synthesiser, it is easy to create complex results via complex means - patching an elaborate network of independent control signals, for example. This can be very powerful but also cumbersome to set up, and potentially difficult to control in a meaningful way. MultiMod represents a new approach: it takes a single control signal and copies it 8 times, not unlike a simple mult, except that it allows you to modify those copies by weighted adjustment of their relative phase and speed. The result is modulation that is related to the source, but not identical at each destination.

Phase sets the spacing of the signal copies in time, weighted by channel, with each progressive channel getting more out of phase from the original signal and from each other. Spread allows for varispeeding the copies by different amounts, with each getting progressively faster or slower than the original Signal. Time determines the range of time captured at the input and therefore also the depth of modulation across copies of the input signal when Phase and Spread are manipulated. MultiMod also includes Tempo, Hold, and Reset features, and a variety of Read Shapes for temporal rearrangement of input signals.

When the input is not patched, MultiMod generates an LFO that is copied eight times and manipulated in the same ways.

MultiMod is built with the latest DSP hardware which offers eight high resolution outputs, with signal input and output ranges approaching the upper limits of the analogue eurorack modular system. All I/O is capable of a 20V range at +/-10V, greatly exceeding the typical 0-5V CV input ranges on typical digital modules.

Specifications

Width: 10hp
Max depth (incl power cable): 39mm

Power:
195mA @+12V
10mA @-12V

Notes: Another iconic Buchla module gets the Eurorack reissue treatment courtesy of TipTop. The 242t is the brand's unique voltage-controlled clock and trigger module, generating pulses based on a 4x12 matrix.

Supplier's Notes:
The Buchla and Tiptop Audio 242t Programmable Pulser is a reissue of the time-event-based generator from the 1970s 200 series. At its center is the Pulser, a voltage-controlled clock oscillator with a wide frequency range, extending up to audio frequencies, numerous outputs, and start/stop controls. The Pulser drives a programmable matrix with three rows of up to 12 stages: (A), (B), and (C). Stages are activated using the X/Y coordinate controls, and the total number of stages can be set using the (n) row. Clock and Reset inputs allow the 242t to sync with other devices, while the Reset input can also be used to control the number of stages with external pulses.

Notes: Tiptop's reissues of iconic Buchla modules continue with the 285 frequency shifter. Edgy, twangy harmonic modulation with ring mod options and stereo operation via sum and difference outputs.

Supplier's Notes:
The 285t combines two sets of functions: the top section features a frequency shifter, while the lower section includes both balanced modulation and classic ring modulation, all with voltage control. The frequency shifter can shift incoming audio using either its internal oscillator or external audio. Both SUM and Difference outputs are available simultaneously for analogue stereo widening effects and more.

As Tiptop Audio continues its aural odyssey of preserving and transforming the hallmark engineering prowess of Don Buchla's namesake synthesizer modules, the 285t brings a constellation of blistering sonic-contouring tools to your Eurorack array. Like its predecessor, the Tiptop Audio Buchla 285t is a menagerie of modulation madness, offering variable degrees of ring, frequency, and amplitude styles of modulation. Plus, its dyad of modulation sub-modules operates independently, with dedicated audio and CV I/O for each, functionally giving you the sum of performance possibilities you'd get with two modules, all in one instrument. Suffice it to say: Sweetwater's synthesists commend Tiptop Audio on capturing the electric magic of Don Buchla's imaginative engineering while transposing it for the world of Eurorack to experience. For a constellation of timbral sculpting and summitting heretofore unknown peaks of daring synthesis exploration, the Tiptop Audio Buchla 285t Frequency Shifter module is your key. Discover what awaits at the fringes of Eurorack possibility!

Note: This module is not compatible with Buchla system voltages. CV signals require a distinct connectivity configurations. Please contact your Sweetwater Sales Engineer with any questions or concerns regarding compatibility or use in your Eurorack case.

Type: Frequency Shifter
Depth: 1.77" (45mm)
HP Size: 18HP
Power Usage: +12V/70mA, -12V/40mA
Power Supply: Requires Eurorack Case and Power Supply
Manufacturer Part Number: 285t

Notes: The MCO MK II is a highly versatile digital VCO and voice module inspired by 90s/00s digital synths shrunk into just 6HP.

It offers a broad collection of unique, high-quality synth voices, each with extensive, customizable parameters. These parameters can be directly controlled or modulated through assignable internal and external sources. Certain per-voice parameters support audio-rate modulation, including FM, sync, and DSP. Each voice also supports up to four-voice chords, external-triggered envelopes, multiple LFOs, and dual audio outputs for comprehensive desktop like synth functionality.

Voices include a multi dimensional wavetable oscillator based on the original MCO, a complex additive synthesis engine, a multi mode 'JP' type digi-synth, a lush virtual analog implementation, a fully featured vocoder, a bass synth for both kicks and sub sonic tones and finally arebirth and porting of our discontinued SID GUTs chip voice.

Each voice includes factory presets as well as the ability to store and recall user presets. All state is preserved across power cycles.

The MCO is designed to be familiar, quick and easy to use with a high resolution colour display and a rich visual user interface.

A USB-C connection allows for easy firmware updates, user wavetables upload and device config backup and restore. Axon expander modules are also supported to increase CV control options.

Notes: A super impressive offering from Xaoc, the Samarkanda is a quad delay module designed for hands-on, real-time performance. Dial in everything from loops to stereo delays, resonators, modulation effects and much more.

Supplier's Notes:
Xaoc Devices Samarkanda is a digital quad delay module with extensive patching capabilities and a lot of flexibility for signal mangling. It can be used as four entirely independent delays, a dual stereo delay, a complex/multi-tap or multi-channel delay, a quad/polyphonic resonator, dual chorus, dual flanger, reverb, looper (with sound on sound!), and granulator, or any combination of those. You can reverse the delayed signal, hold it, squeeze and stretch it beyond all recognition and still go back to the original piece of audio captured in the buffer! The internal lossless normalization (the signal doesn't leave the digital domain) combined with top-notch components (including 24-bit AKM converters and 32-bit internal processing) are responsible for high sound quality. Samarkanda has been conceived in the truly modular spirit. Not only can you control almost all its features remotely with CV/gates, but the external feedback path gives you the opportunity to process the delayed signal with other modules.

Samarkanda offers a wide range of delay times beginning at a mere 0.5ms and reaching up to 15 seconds per channel. That means that, by stacking its four channels, you can achieve up to one minute delay! There are two operating modes switchable individually for each channel. Analogue delivers pitch changes that resemble classic analogue tape and BBD delays. When you combine it with the looping Hold function, you can play Samarkanda with any 1V/octave CV source. By using the Sync function you can even loop single wave cycles. The Digital mode gives you a granular buffer-scrubbing effect (no pitch change) across the whole delay time range. You can seamlessly switch back and forth between modes without losing any information. You can use Samarkanda for multiple tasks at the same time - from four independent delay lines through any combination of channels processing the same signal up to a quad behemoth. You can also use the linking feature for ease of operation (the first channel in the chain acts as the main control source for the others).

As most settings operate on a per-channel basis, you can freely combine different features (such as analog/digital behaviour, delay time range, reverse and hold functions, etc.) in a configuration of your choosing. You can synchronize each of its channels separately to a different source, either via the Sync input, or by using the tap-tempo functionality (with multiplication and division galore). Should you ever get lost, the Purge button comes in handy when/if things start to spiral out of control!

Notes: The brilliant Perkons drum machine comes to Eurorack. A single hybrid drum voice with digital sound engine and analogue filter/overdrive, the Perkons Voice is flexible and supremely powerful.

Supplier's Notes:
Erica Synths Perkons Voice is a eurorack incarnation of the percussion voices from the PERKONS HD-01 Drum machine. Like on the drum machine, the module has hybrid architecture, featuring a digital sound engine followed by an analogue multimode filter and overdrive. Users can select among 13 sound generation algorithms and save up to 99 presets that can be recalled easily. Tune and Patch CV inputs are configurable for various CV settings and are tuned to 1V/oct. Module also features a 4-voice poly overlap mode and samples on the "Rompler" engine can be easily replaced.

Specifications:

Audio output: 10Vptp
CV levels configurable: -5V - +5V
Power consumption: +59mA, -30mA
Module width: 14HP
Module depth: 35mm

Notes: A spin-off from the brilliantly experimental Strega synth, the Bruxa module offers a different type of 'Time/Filter Experiment' designed to warp and twist sounds from other modules. Excellent creative stuff.

Supplier's Notes:
Check Make Noise's website for content and pictures!

The Bruxa music synthesiser module is an audio alchemical experiment. Spill your sound into time, and let it decay through the filters to hear the results.

Bruxa is a collaboration between Make Noise and Alessandro Cortini. Inspired by Cortini's music and sonic experimentations, Bruxa embodies the seen and unseen, the sign and magic, the alchemy of sound. It is a new evolution of Tony and Alessandro's original prototype circuits which eventually became the Strega's Time/Filter Experiment. It is a multi-tap delay line with over a dozen unique feedback paths and multiple filters within those feedback paths aligned to allow for accumulation of noise, saturation and signal degradation.

While Strega is a complete synthesiser in a tabletop form factor, Bruxa is a Eurorack module designed to be used as one part of a Eurorack modular synthesiser. You will discover a number of differences in layout, signals, and sound. Living inside the Eurorack modular system, Bruxa encourages you to patch your own sound and modulation sources, yielding results surprisingly distinct from Strega.

Echoverb signal processor which shares origins with Strega
Well tuned to work nicely in a Eurorack modular system
All analogue dry signal path blended with digital/ analogue hybrid signal processor
Analog CV inputs with wide range capable of audio rate modulation
Time control with massive, smoothly variable range
Linear FM input with attenuator allows for fluttering of Time
Absorb and Filter controls dramatically shape the echo tone and reflections
New unique CV outputs for use in self-patching or mutual patching with other modules
Pairs well with DPO, STO, MATHS, Prss Pnt, modDemix and more!

Specs:

Width: 18hp
Max Depth (incl. power cable): 48mm

Power:
140mA @ +12V
90mA @ -12V

Notes: Meet Stardust, a cosmic tape looper.

The foundation of Stardust is a stereo looper with all the essential controls to record and manipulate sound, while supporting click-less looping transitions, an ultra-low noise floor, and high-fidelity audio hardware. However, getting the perfect loop is only half of the equation, Stardust also focuses on the texture and vibe of your recordings. Dial in a classic tape machine style warmth with wow & flutter/tape hiss controls, or take Stardust to new horizons with DSP effects. And, much like the tape-machines it takes it's inspiration from, Stardust can splice and rearrange its loops at the twist of a knob.

With an impressive set of front panel controls, the ability to save, recall, or export recordings, load samples via an included USB flash drive, and a host of configurable settings via our web editor Narwhal, Stardust is a comprehensive looper device.

Power Consumption: +12V=201mA, -12V=13mA, +5V=0mA

Notes: The Quad VCA is a compact and feature packed module that is sure to find its way it almost all of your patches. In addition to being used for standard VCA duties it can also be used as a mixer and signal booster.

Features:

- Manual LEVEL control per VCA which is convenient when using the module as a mixer or for biasing when CV modulating the VCA with a bipolar LFO.
- Dedicated CV attenuators with dual colour LEDs for monitoring bipolar CV signals.
- Continuously adjustable response from linear to exponential per VCA.
- Each CV input is normalled to the adjacent one for cascaded control.
- Each output is normalled to the mix input of the adjacent one which allows you to use adjacent sets as submixes or the fourth output can be used as a master mix output when none of the other outputs are patched.
- Each VCA has a boost switch that increases the output level by approximately +6dB (double).

Notes: Multi-model stereo delay with reverb, featuring tape, bucket brigade and crossfading digital models, plus saturation, filters, internal modulation plus tons of CV control. Vibey as hell.

Supplier's Notes:
It's all gone a bit wobbly

Intellijel's design goal for Sealegs was to create the warmest, most musical and organic delay module possible - something that would sweeten and enhance any audio one chose to feed into it. As such, great care has gone into modelling the most distinctive and desirable sonic characteristics of three different types of delay circuits: Tape; Bucket Brigade, and Crossfading Digital.

A plethora of onboard controls enable you to dial in exactly the sound you want; synced or un-synced delays times (for both left and right channels); a built-in modulator with seven morphing waveshapes, a Wow & Flutter emulation, and an envelope follower; plus dedicated low- and high-pass filters; built-in hiss & crackle noises; per-model colour controls; a spacious reverb; and a re-configurable signal flow through the unit. In addition, attenuverted modulation inputs abound - ensuring the delay ebbs and flows with your musical needs.

Features
Three Unique delay models with per-model "Color", modulation behaviour, and saturation/limiting
Three Stereo configurations (PONG, L/R, Time/Width)
Built-in modulator with multiple, morphing wave shapes
Lush, routable 1970s-inspired reverb
Noise control to introduce hiss and crackle.
Highpass and lowpass filters for filtered repeats
Input drive with level trim
Per-model Freeze functionality for holding the delay contents and looping
Delay times up to 6 sec (L channel) and 8 sec (R channel, Width adds 33% to Time)
9 CV inputs (with attenuverters)
Stable external clock syncing (or tap tempo)
96 kHz, 32-bit stereo floating point processing

Size: 20HP
Depth: 29mm
Power: 116mA @ +12V 10mA @ -12V

Notes: The legendary Buchla 259 complex oscillator gets the officially licensed Eurorack treatment from TipTop Audio. One of the most versatile and characterful VCOs ever made, with endless cross-modulation options and wave shaping features. Iconic.

Supplier's Notes:
The 259t is the largest and most complex analogue oscillator from Don Buchla's legendary 200 modular synthesiser. The 259 originated the concept of the "Complex Oscillator" in the 1970s and has been reissued by Buchla and Tiptop Audio in Eurorack format. The module consists of two oscillators, called the Modulator and Principal, with a middle section that provides voltage control over the internal modulation paths between the two oscillators, resulting in highly complex timbres. Additionally, the principal oscillator passes through multiple unique voltage-controlled waveshapers and crossfaders for further signal processing. The module's pitch can be controlled with 1V/OCT or via its internal auto-tuner and ART control to create precisely pitched notes.

Notes: The MFX is a compact 6HP Eurorack stereo digital audio multi effects processor.

It offers 14 different full featured effects programs plus a number of metering utilities.
Inspired by ALM's favourite classic hardware effects processors, the MFX incorporates DSP technologies from the dawn of digital effects in the 70s to the present day. This combines with ALM character and uniqueness to form a highly useful, fun and practical Eurorack effects module.

Reshape sounds with the distortion and dynamics engines. Bend time, space and pitch with multiple feature rich reverb and delay engines. Modulate signals with the flexible panner, frequency shifter, and range of ensemble effects. Fracture sounds with the one of a kind granular and glitch engines. Check signals and tune oscillators with various utilities.

The MFX user interface is designed to be familiar, quick and easy to use. Each program contains a wide range of controllable parameters both directly editable or freely assigned to CV or clocked control. Additionally, each program includes factory presets as well as the ability to store and recall user presets. All states are preserved across power cycles.

Effect Program List

Digi-PCM Echo
Feature rich digital delay taking inspiration from early prime time rack delay units with added modern features.

Tape-Tech Echo
Tape style delay with a digital pitch shifter bolted on.

Crumbular Echo
More experimental granular style echo.

Ursa Minor Echoverb
Emulation of the classic Ursa Major 'Space station' providing more delays and reverb type effects.

Pocket PL8 Reverb
Emulation of very early digital style reverbs with a dense metallic sound.

Almicon Reverb
Emulation of 80s studio style reverb great for bright rooms and vast synthetic spaces.

Quaidra Reverb
Emulation of a popular 90s rack reverb. Excels at creating airy, atmospheric reverbs.

TY-50 Compressor
Flexible modern compressor great for adding punch, smoothing transients or as a clean mix bus compressor.

Transient Shaper
Fast acting dynamics processor for reshaping the attack and release envelope of any sound.

TH-30 Distortion
A versatile distortion program with distortion types ranging from analog style saturation to intense digital wavefolding.

2051 Bit Corrupter
Real-time audio buffer designed to imitate malfunctioning digital audio equipment.

Modulating Panner
Clock-syncable mono or stereo auto-pan with an additional scan mode that cross fades between 2 input signals. Use for VCA, Panner, crossfader, tremolo type effects.

Ring + Freq Modulator
Pair of classic modulation effects in stereo, tailored towards otherworldly and dissonant sounds.

Ensembles Ensemble
Simulation of classic chorus and ensemble effects. An added digital pitch shifter takes the effect beyond traditional chorus circuits.

Utilities
Simple oscilloscope and VCO tuner.

Technical Specifications

Supply: +12V 50mA Max / -12v 15mA
Size: 6 HP
Depth: 32mm
16 Bit / 44.1Khz Stereo processing

Notes: The MATHS music synthesizer module is an analogue computer designed for musical purposes. Amongst other things, it will allow you to:

Features

Generate a variety of linear, logarithmic, or exponential triggered or continuous functions

Integrate an incoming signal

With no signal applied, generate a variety of linear, logarithmic, or exponential functions

Add, subtract and OR up to 4 signals

Generate analogue signals from digital information (Gate / Clock)

Generate digital information (Gate / Clock) from analogue signals

Delay digital (Gate / Clock) information

If the above list reads like science rather than music, here is the translation:

Voltage Controlled Envelope or LFO as slow as 25 minutes and as fast as 1khz

Apply Lag, Slew or Portamento to control voltages

Change the depth of modulation and modulate backwards!

Combine up to 4 control signals to create more complex modulations

Musical Events such as Ramping up or Down in Tempo, on command

Initiating Musical events upon sensing motion in the system

Musical note division and / or Flam

Perfect for modulating the DPO and just about anything else

Page for Classic version of MATHS

Specifications

Width: 20hp
Max Depth
(incl. power cable): 32mm
Power:
60mA@ +12V
50mA @ -12V

Notes: The 'HPO' is an affordable super slim and skiff friendly no frills stereo headphone driver output for your modular synthesiser. Includes a volume control and ability to double up a mono signal into stereo. A great use for that left over 2hp in a skiff or larger system.

Give loved ones, friends and acquaintances a break from your musical 'genius', the HPO offers a solitary cell for focused creativity impregnable from undeserving non-believers.

Notes: *** Firmware update- February 2025 ***

Hermod+OS2.00

Again, a major firmware upgrade packed with exciting new features. This update offers a wealth of new creative tools and improvements.

Audio tuner

4 internal automation per track - MOD, MOD2, MOD3, MOD4

Automation per track : 7 (4x modulations + pitchbend + aftertouch + sustain

***

Parisian sequencer specialists Squarp turn up the goods once again with the updated Hermod+ module. Huge sequencing power for both MIDI and CV, with a range of monophonic and polyphonic features to get the most out of your sound sources.

Supplier's Notes:

Hermod+ adds so much to your system.

Based on the established Hermod workflow and keeping the same form factor, Hermod+ offers a lot of new features, and a refined, more playful interface with extended connectivity.

Record CV/Gate, MIDI notes and modulations on 16 polyphonic tracks. Compose melodic variations across 16 patterns per track, and take advantage of the advanced step sequencer and the new effects to gain efficiency and creativity in studio and on stage.

8 CV/Gate and 8 MIDI tracks

Hermod+ offers 8 CV/Gate tracks (that can also output midi) and adds 8 dedicated MIDI tracks for your extra gear.

CV inputs

Record, edit and loop analogue modulations or CV/Gate using the 4 CV inputs, and use them to synchronize Hermod+ to an incoming analogue clock.

Record live

With an improved resolution of 96ppqn, record and playback your CV/Gate or MIDI performance seamlessly without any noticeable note shifting, for up to 16 bars per pattern.

Polyphonic step composer

The revisited piano-roll now allows intuitive polyphonic editing. Edit or program chords, melodies and rhythms using the 16 built-in pads for a quick and playful composition process.

Automation

Program or record automated modulations (CV and/or MIDI) for each track, in addition to midi aftertouch, pitchbend and sustain voices.

Dynamic effects

Add up to 8 real-time CV/MIDI effects per track. All effects are non-destructive, so they can be edited at any given time to add some variations to a performance.

Advanced ModMatrix

Use the modulation matrix to link incoming CV or CC messages to effect parameters. Each modulations can be attenuverted and offsetted.

Playable song mode

Build your song structures using up to 16 sequences per project. Play them into a predefined order or launch them manually for improvised performances.

Synchronized project swap

Quickly save and recall your projects on the SD card. Project loading can now be done in sync, without interrupting your performance.

Boosted connectivity.

The missing link between your eurorack system and the rest of your studio.

Editing made simple.

Fluid workflow with a redesigned Step mode

Step mode is where you can edit notes, modulations and gate events. Hermod+ offers quick ways to write melodies and rhythms. Zoom in and out to visualize and edit portions of your track precisely and break free from rigid grid sequencing.

The re-designed piano roll editor makes the vertical and horizontal scrolling easier and faster, while the new "row edit" feature allows for quick chords and drum patterns programming.

Create modulation curves by programming them directly on Hermod+ or by recording incoming signals, and send those curves via CV or MIDI to other parts of your system.

Versatile interface.

Polymorphic layouts for perfect integration

Hermod+ can adapt its voice layout to any patching scenario. Depending on your needs, any track can become a modulation output, a monophonic CV/Gate track, a polyphonic MIDI track...

For a track of CV/Gate note + velocity + aftertouch, or for a polyphonic CV/Gate track, simply group voices using the desired layout.

Take advantage of the 8 dedicated MIDI tracks, that can record and be programmed independently from the 8 CV/Gate tracks. Up to 8 real-time effects per track with creative parameters and generative features. Hermod+ is the canvas, the paint and the brush of your setup.

Specifications

Sequencer
Tracks: 8 CV/Gate + 8 MIDI
Patterns: 16 per track
Recording resolution: 96ppqn
Track length: 1/16 note to 16 bars
Automation per patterns: modulation + pitchbend + aftertouch + sustain

Projects
Amount of projects: unlimited
Tempo: 10 to 280 BPM
Global transpose track: yes
Double project architecture: yes
Song chain length: 64 sequences

Piano roll
Zoom min: /4 (1 step = 1/4 note = 1 beat)
Zoom max: X8 (1 step = 1/128 note)
Note/gate width: 1/32 (1/512 note) to 8 bars
Maximum polyphony per step: 24
Row edit (polyphony editing): yes
Note pitch: C0 to C10
Note velocity: 0 to 127

Synchonization clock speed
Max input rate: 1/96 = 24ppqn
Max output rate: 1/96 = 24ppqn

Input
MIDI: TRS type A + USB host + USB device
CV: 4x [-5V to +5V]

Output
MIDI: TRS (type A) + USB host + USB device
CV: 8x [-5V to +5V]
GATE: 8x [0V / +5V]
Dedicated Clock port
Dedicated Reset port for transport

Power
Note: the use of your eurorack +5V rail is configurable with a switch on the back of Hermod+
Consumption (using +5V rail): -12V 20mA, +12V 20mA, +5V 820mA (add up to +500mA when attaching a controller on USB host)
Consumption (not using +5V rail): -12V 20mA, +12V 400mA (add up to +220mA when attaching a controller on USB host)

Hardware
Width: 26HP
Depth: 20mm
Weight: 285gr (0.63lbs)
CV inputs resolution: 16-bit
CV outputs resolution: 16-bit
Display: OLED 58 x 16mm
SD card: microSD high speed (provided)
CPU: ARM 480MHz

Notes: A true legend of modular synthesis, Make Noise's Maths is arguably the definitive Eurorack function generator. Based on analogue computing circuits, Maths draws on Buchla-style techniques to offer countless ways of generating and processing modulation signals.

Supplier's Notes:
The MATHS music synthesizer module is an analogue computer designed for musical purposes. Amongst other things, it will allow you to:

Features

Generate a variety of linear, logarithmic, or exponential triggered or continuous functions

Integrate an incoming signal

With no signal applied, generate a variety of linear, logarithmic, or exponential functions

Add, subtract and OR up to 4 signals

Generate analogue signals from digital information (Gate / Clock)

Generate digital information (Gate / Clock) from analog signals

Delay digital (Gate / Clock) information

If the above list reads like science rather than music, here is the translation:

Voltage Controlled Envelope or LFO as slow as 25 minutes and as fast as 1khz

Apply Lag, Slew or Portamento to control voltages

Change the depth of modulation and modulate backwards!

Combine up to 4 control signals to create more complex modulations

Musical Events such as Ramping up or Down in Tempo, on command

Initiating Musical events upon sensing motion in the system

Musical note division and / or Flam

Perfect for modulating the DPO and just about anything else

Specifications
Width: 20hp
Max Depth
(incl. power cable): 32mm

Power:
60mA@ +12V
50mA @ -12V

Notes: Row Power is a clean, regulated, and protected power solution for Eurorack systems. Row Power 45 provides enough power for two to three typical Eurorack rows (typically up to about 312HP):
+12V @ 2.0A maximum, 1.5A recommended
-12V @ 1.4A maximum, 1.2A recommended
+5V @ 1.5A maximum, 1.2A recommended

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying bus cables or the Bus Stick. For custom power systems, the Row Power 45 has a set of easily soldered holes for using large gauge wire or MTA156 connectors to connect to distribution bus boards.

Multiple Row Power modules can be powered from a single power brick by daisy-chaining with an inexpensive barrel cable. The Row Power 45 can also be daisy-chained to 4ms Company's Pod enclosures. Each power supply is independently regulated and protected for ultra-low cross-talk between rows/pods.

The Row Power 45 is compatible with the 4ms Row Power Shield. This device (sold separately) attaches to the back of the Row Power 45 and monitors the amount of current being drawn, as well as the voltages of the power rails. The information is sent over Bluetooth to be displayed on a phone or tablet.

Electrical and Mechanical Specifications

Module Size:
4 HP Eurorack format module

Power Output:
Maximum average load under normal conditions: +12V @ 2.0A, -12V @ 1.4A, +5V @ 1.5A
Maximum average load under any condition: +12V @ 1.5A, -12V @ 1.2A, +5V @ 1.2A
Powered by laptop-style DC power supply: 2.1mm barrel, positive center, 15V-20V.

Included with the Row Power 45:
16-to-16 pin power cable
2 M3 Knurlie screws

Notes: PRO Expanders:

Extra Pam Outputs.

ALM034-EX

PPEXP1 & PPEXP2 are two expander modules for Pamela's PRO Workout that both offer additional dedicated fixed clock, Din Sync & MIDI clock outputs.

Extend Pam as a master to clock external gear with super solid dedicated MIDI & Din Sync clock outputs. The Din Sync clock (x24) and Run outputs can also be patched into a 2nd Pam to easily sync it.

Use the extra fixed clocked gate outputs to free up Pam's main outputs for unique sequencing or complex modulation duties.

Connects directly to and is powered by the 'MIDI-EX' expander header on rear of Pamela's PRO Workout.

Only a single output expander is supported at any time but either can be used alongside an AXON-1 CV input expander.

A MIDI adapter cable and a Din Sync adapter cable are both available for connecting to 5 pin 'Din' type connectors. The PPEXP 1 includes a MIDI Din adapter cable.

Technical Specifications

Power: Additional approx +12V 40mA (PPEXP1) / 20mA (PPEXP2)
Size: 4HP & 2HP
Depth: 32mm

Notes: A rock-solid all-rounder of a VCO, the Cycle 5 is a triangle-core oscillator with morphable wave shapes as well as conventional sine, triangle, saw and pulse outputs. Switchable octaves and 5th transposition make the module even more user friendly.

Supplier's Notes:
A small Eurorack oscillator that packs a punch: that's the best way to summarise Cycle 5.

At its heart lies a refined high-stability triangle core voltage controlled oscillator (VCO), with performance matching or exceeding that of much bigger and costly oscillator modules.

Instead of a coarse frequency knob, a 7-position octave switch is provided. This in combination with a perfect fifth transposition switch and factory pitch tuning, makes Cycle 5 an exceptionally straightforward and musical VCO to use: simply centre the fine tune knob, and the module will be instantly tuned to reference C.

Meanwhile, its dual precision volt per octave inputs add a great deal of versatility. For example, one could be used for pitch sequencing and the other as a generic exponential FM input, or both sequenced together for transposition effectsithe dual inputs serving as a built-in precision adder.

Sporting all the classic waveforms, ranging from sine wave, triangle, saw and square/saw, as well as a hard sync input and low frequency oscillator (LFO) mode, Cycle 5 makes for a real workhorse VCO. The novel trigonometric waveshaper results in a very clean sine wave, ideal for sub bass duty.

Cycle 5's highlight however, is its vari-wave feature. By adjusting the vari-wave knob, the waveform on the matching output will smoothly morph from sine, to triangle, saw, square and finally a very narrow pulse. The vari-wave parameter can be CV controlled, up to audio frequencies for some intense timbres.

Equally at home as a modest modulation companion to big VCOs, as being in the spotlight in miniature or polyphonic systems, Cycle 5 might just be the most multi-talented tiny analogue oscillator yet.

6 HP | +12: 75 mA, -12: 70 mA

Notes: Freaky stereo digital delay from the Eurorack gods at Make Noise. Typically creative stuff, packed full of interesting features for creating complex echoes, modulating sounds and generating loops.

Supplier notes:
The Mimeophon music synthesiser module is a stereo, multi-zone colour audio repeater by Make Noise and soundhack, coded by Tom Erbe.

The Mimeophon (from Greek mimeo (repeat/copy) and phon (sound)) is a modern take on various historical sound copying, echo and repeating devices. It allows for Stereo modulations of Time, Space and Timbre of Mono or Stereo sound sources. The Mimeophon is capable of modulating and morphing time scales of repeated sound from micro-sound to note to phrase length while also colouring and spatializing the repeats.

Notes: Part of TipTop's exceptional series of Eurorack-format Buchla modules, the 264t provides four sample-and-hold circuits, plus a logic circuit designed to control polyphonic patches. Deceptively simple but surprisingly creative, like most Buchla modules.

Supplier's Notes:
Four independent sample-and-hold circuits, plus a specialized logic circuit for expediently implementing polyphonic patches.

Sample-and-hold's are essentially one-cell analog memories. They are useful for "remembering" the instantaneous value of a control voltage (a detected envelope, for example), for generating equally spaced steps from a constant slope input (as from a 281t envelope generator), and for converting any continuously changing voltage (a random voltage, for instance) into a series of discrete values.

The 264's sample-and-hold circuits have two operating modes: sample and track. In the sample mode, the value of the input is sampled and applied to the output whenever a pulse is received. The output remains at this value until the next pulse arrives. The track mode diers in that an input is applied to the output for the duration of the pulse. The output tracks the input until the end of the pulse and remains at a constant value until the next pulse.

To use the 264t as four independent channels set the separate/common switch to separate. A single CV can be set to all four channels by setting the operate/common to common and plug CV in the the back jack on the with right side.

The Model 264t includes a polyphonic adaptor, which performs the logic necessary to implement four-voice polyphony. Facilities are incorporated for fine tuning and f.m. modulating the oscillators; light emitters display the adaptor's operation.

Specifications:

Size: 18 HP - Depth: 45mm
Power: +12V 60mA / -12V 30mA

Notes: Great value from Xaoc's pingable dual VCA, capable of creating organic, acoustic-style decay curves which replicate the dynamics of real-life instruments. Ideal for processing audio as well as CV.

Supplier's Notes:
Xaoc Devices Lublin is a high-quality dual VCA module with exponential CV inputs. On top of that, its two identical channels feature additional inputs for pinging. These inputs use an elaborate analogue circuit to model the dynamic behaviour of vactrols, allowing you to trigger a carefully crafted gain response that mimics the natural decay of plucked and struck acoustic instruments. Unlike lowpass gate modules though, Lublin reduces gain while retaining the full frequency bandwidth, so it is perfect for harmonically rich signals, like our Odessa additive VCO. The vactrol-like behaviour is just a starting point as the envelope may be varied within a wide range using a switch (natural, shortened and prolonged response) and a potentiometer, so you are not stuck with one decay characteristic. Therefore, you can use it not only to create bongos, but also for fat compressed kicks! The built-in gain control circuit (saturating CV instead of the audio signal) prevents distortion from excessive amplification. Lublin is DC-coupled, so you can use it to process CV as well as audio signals.

Width 6HP, Depth 33mm (including cable bracket)
40mA/-20mA

Notes: The hands-on control of hardware meets the versatility of software. Bridging the gap between Eurorack and VCV Rack, the MetaModule includes over 160 built-in modules plus access to over 200 third-party options.

Supplier's Notes:
The MetaModule puts real knobs and jacks on virtual software modules. Step back from the computer and make music with hardware, while keeping the flexibility and expandability of software.

The MetaModule comes with over 160 built-in modules from 4ms Company, Befaco, HetrickCV, NonlinearCircuits, and Scanner Darkly, plus clones of popular classics such as the Mutable Instruments eurorack modules, fun physical modeling algorithms, and lots of handy utilities.

All of the included modules are also available on the computer using the free program VCV Rack. Whether you make patches on VCV Rack and transfer them to the MetaModule, or if you just create patches directly on the MetaModule, there are plenty of creative modules to inspire new ways to make music.

MetaModule Plugins

If the 160+ built-in module aren't enough, you can load more modules as plugins. Already there are over 200 modules in third-party plugins from Bogaudio, Valley, ChowDSP, NANO Modular, and the list is growing. 4ms have an SDK available to make it easy for VCV Rack plugin developers to convert their plugin to a MetaModule plugin. 4ms' licensing terms are non-restrictive: developers are welcome to distribute their plugin in any way they wish, commercially or not.

Mapping Knobs and Jacks

The MetaModule has 12 knobs that can be mapped to virtual knobs. Each knob can be mapped to up eight virtual knobs, and each mapping can have a different range and offset. You also can save a group of mappings as a Knob Set and switch between Knob Sets with the encoder. You also can map the 8 inputs and 8 outputs to virtual module jacks. Also, the MetaModule is a USB MIDI host, so you also can map MIDI CC, note, gate, and other parameters to knobs and jacks.

Expanders

There are lots of ways to customize your MetaModule. A Wifi expander allows you to wirelessly transfer patches from your computer. Add eight more knobs with the Knob expander, or buttons with the Button expander. A CV/Audio expander adds more high-resolution inputs and outputs, and the Gate In/Out expander adds not only gate jacks but also TRS MIDI and I2C.

Under the Hood

There are six CV/Audio inputs, two gate inputs, and six CV/Audio outputs. The CV/Audio jacks are all 24-bit, 48kHz DC-coupled, -10V to +10V. A USB-C jack accepts MIDI devices and thumb drives. Patches and plugins can be loaded via a USB drive or microSD Card, and internal flash memory lets you save patches you always want to come back to.

The processor is more advanced than anything 4ms has used in the past, and is among the most powerful processors found in Eurorack. Startup time and latency are blazingly fast.

Modules

160 built-in modules
Over 200 3rd-party module plugins available so far, and the ecosystem is growing
Create patches using VCV Rack or directly on MetaModule

Patches

Patches are loaded from microSD Card, USB drive, or via the Wifi expander
Patches can be optionally saved onto internal flash memory
Create patches using VCV Rack or directly on MetaModule
Patches can be given a name and description

Mappings

Map each physical knob to up to 8 virtual knobs
Set range and offset for each mapping, including inverted control
Knob mappings are grouped into Knob Sets, and changing Knob Sets can be done quickly without menu-diving
Map physical jacks to virtual jacks, seamlessly making splits/mults
Add or edit modules, cables, and mappings in real-time while the patch is playing
Create alias names for mappings like "Kick Drum Level"

Interface

Simple, intuitive graphical interface lets you zoom in on details, or zoom out to get a big picture
Patch View displays the patch as faceplates and cables, with knobs, buttons, and lights animating in real-time
Knob Set View simplifies the display, showing only the mapped knobs for the current Knob Set
Module View shows just one module and lists the names of each jack, knob, and control legibly
Mapping View lets you adjust details of a knob mapping
Adjust styles and visual preferences to your liking
Save, rename, duplicate, and delete patches
Firmware updater and plugin loader read from microSD Card or USB drive

Hardware

12 Knobs
8 CV/Audio outputs, 24-bit 48kHz, -10V to +10V, DC-coupled
6 CV/Audio inputs, 24-bit 48kHz, -10V to +10V, DC-coupled
2 Gate inputs
USB-C jack: MIDI Host or MSC (External drive) Host
microSD Card slot
Internal Flash RAM for additional patch storage
Dual-core 800MHz Cortex-A7 plus Cortex-M4 co-processor
512MB DDR3 533MHz RAM
Bare-metal operation for fast startup and low latency

26hp

Notes: 3xMIA is a 6-channel attenuverting mixer/offset/scale/polarizer.

3 blocks of 2-channel attenuverting mixers, using dual concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.

With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.

DC coupled, so it can be used for audio, CV, or both at the same time.

80 mA +12V
80 mA -12V
35 mm Depth
6 HP wide

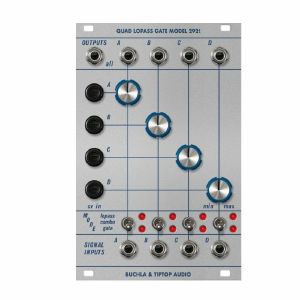

Notes: Tiptop bring the iconic low-pass gate to their range of Buchla reissues. The 292t offers four channels which can be mixed or treated individually, with adjustable modes for low-pass filtering, VCA or the classic low-pass gate combo.

Supplier's Notes:
The 292t is a reissue of Don Buchla's low-pass gate from the 1970s, adapted for the Eurorack modular format. The module consists of four independent low-pass gates (LPGs) and retains the natural, percussive sounds of the original, all of which can be manipulated in real time using control voltages. The 292t allows you to mix up to four sounds from their individual outputs or through a summed output, functioning as a mixdown. Each channel can operate in one of three modes: a low-pass filter with a variable cutoff, a VCA with controllable gain, or a combination of both, producing Buchla's classic low-pass gate effect.

Notes: AXON-2 is an 8HP expander module for the SQUID SALMPLE, MFX and Pamela's PRO Workout that like the AXON-1 provides 4 additional freely assignable CV inputs but additionally adds manual offset controls and 2 additional 'performance' buttons.

The addition of AXON-2 increases the Squid, MFX or Pam PRO's total number of CV inputs by 4, greatly increasing the possibilities for vast modular manipulation. Each of the CV inputs includes an offset for hands on control over parameters assigned to CV. Per assignment digital attenuation and offset via the host module is also available for fine tuning the modulation or control over parameters.

The AXON-2's large buttons are great for controlling select functions in a live performance environment or adding convenient quick navigation shortcuts when making edits. The buttons functionality and assignability are dependent on the host module. See respective manuals for details.

NOTE: AXON-2 support requires the latest firmware be installed for Pam Pro (120 or newer), Squid (187 or newer) and MFX (105 or newer).

Features
4 Additional freely assignable CV inputs for the SQUID SALMPLE, MFX or Pamela's PRO Workout
Manual offset knob controls
Two Assignable performance buttons for mutes, tap tempo, navigation, etc (dependant on module)
Powered directly from the module, no additional power header required
Made in England
Skiff friendly
Technical Specifications
Power: Additional approx 10mA on +12V

Size: 8HP

Depth: 38mm

Notes: The ‘Pip Slope’ (rev II) is a compact envelope and function generator. It supports both Attack/Decay and Attack/Sustain/Decay type envelopes with both direct and voltage control of Attack and Decay times. Envelope shapes can be morphed between exponential, linear and logarithmic type slopes. Envelopes can be made to loop, repeating infinitely or decreasing with time or amplitude for echo and bouncing ball type effects. An ‘End of Cycle’ trigger output further extends the envelopes functionality for both clocking and burst or fill type effects.

The improved Pip Slope adds a number of new features and updates over the original Pip whilst keeping the same size. Improvements include increased output resolution, finer control of fast envelopes, a new morphing shape control, switchable 5v or 8v maximum envelope level, additional loop modes and an additional trigger output.

Features:
Compact envelope and function generator in 4HP.
Trigger and gate inputs.
Voltage and direct control of attack and release times.
Snappy or super long envelope times – ranging approx 1ms to 7 minutes per stage.
Optional self looping ability with 3 different loop modes: Decreasing amplitude, decreasing time, and regular loop.
Shape control that morphs the envelope shape from logarithmic to linear to exponential curves.
End of Slope trigger output that fires a trigger at the end the envelope or loop cycle.
Selectable 5v or 8v max envelope level output.
Reverse polarity protection.
Skiff friendly.
Designed and Made in the UK.

Technical Specifications
Supply: +12V 30mA / -12V 10mA
Size: 4HP
Depth: 38mm

Notes: An updated version of the excellent Batumi quad LFO, version II introduces performance updates plus compatibility with the new Poti II expander. Original Poti I breakout functions are now included in the Batumi II.

Supplier's Notes:
Xaoc Devices presents Batumi II - a greatly improved and enhanced new iteration of the modern day classic that is/was the original Batumi, preserving its layout and form factor. The premise remains the same: four LFO's with individual outputs for sine, assign and rectangle waves. The channels can operate independently or they can be linked - phase shifted, divided or multiplied (new mode alert) with regard to the first channel. Multiple major and minor improvements have been implemented, e.g. when synced to an external clock source, each channel's frequency slider selects a clock division for that channel's outputs.

Xaoc Devices have managed to incorporate the features of the original expander into Batumi II (sync mode switching and assign waveform selection) without changing the size of the module which opened up new possibilities for the new optional expander. The Poti II expander for Batumi II adds multi destination inputs for sine wavefolding, assign output waveform selection or rectangle pulse modulation with the destination set for each channel independently. Poti II also features frequency input attenuation as well as sine and assign output attenuation. All adjustments may be performed separately for each individual channel or for all channels simultaneously.

The Batumi II software has been rewritten from scratch to ensure best performance. The hardware has also been updated to allow for V/oct tracking and stable operation up to audio rates (more powerful CPU, precise, wideband converters, antialiased waveforms).

-4 LFO's
- redesigned from scratch - both the hardware and software
- new waveforms for the assign output (including random)
- new frequency multiplication mode
- all features of the Poti expander incorporated into the main module
- very wide frequency range well into audio rate
- 1V/oct tracking = so can be used as 4 VCO's
- in the Phase/Divide/Mult modes the random waves at the ASGN output follow the values available in the master/A channel
- 10HP
- +90/-50mA

Notes: A visit to the Hainbach Studio Complex two years ago, led to a collaboration that would result in what is perhaps Joranalogue's finest design yet. United by a common passion for vintage test gear, the Joranalogue team joined forces with artist and YouTube sensation Hainbach.

Collide 4 builds upon on the lock-in amplifier concept, and brings it into the Eurorack world. These atomic age physics research instruments are known for their raw power when used in musical applications. Soon, any synthesist can experience this for themselves, at a fraction of the size and weight of a vintage unit, and with full voltage control.

The result is a wholly new kind of synth voice and audio processor, unlike any other. It's a perfect union of Hainbach's extensive experience in exploring the deepest musical realms contained within vintage test equipment, and profound knowledge of audio design and production.

'Quadrature spectral computer' is how you could describe this new kind of musical generator and processor. The sound? Quite simply: it's smashing!

Specs

Modern, fully analogue re-imagining of the lock-in amplifier concept, expanded to new heights.
Pingable variable bandwidth filter with self-oscillation capability.
Pre- and post-filter gain stages, for a total of up to 130 dB of amplification!
Through-zero sine/cosine quadrature oscillator.
Hilbert transform network for use as a frequency shifter.
Dual ring modulators with output lowpass filters.
Extensive output section, including magnitude and phase analogue computing outputs.
Unique X/Y quadrature topology, ideal for stereo use.
Handsome (and useful) signal level/overload LED indicator.
CV control over everything, with temperature compensation and excellent volt/octave pitch tracking.
20 HP, 30 mm deep. Over 600 components, yet a fraction of the weight and size of a vintage Model 124A lock-in amplifier unit.

Notes: Module A-124 is a special 12dB multimode filter using the "strange" filter circuit of the "EDP Wasp" (an analog synthesizer with black/yellow case built end of the seventies, manufactured by the UK company "Electronic Dream Plant" with Chris Huggett und Adrian Wagner). This design "abuses" digital inverters as analog operational amplifiers leading to distortions and other "dirty" effects that generate the specific sound of this filter. The filter is equipped with a band pass output and a combined low/notch/high pass output. For this output a control knob defines the relation between low and high pass signal. If both signals appear at the same level (i.e. middle position of the Mix knob) one obtains a notch filter. Otherwise the low or high pass signal predominates. The module does not feature self-oscillation in contrast to most of the other filters of the A-100 system.

Inputs: Audio In, CV In (2x)
Outputs: Bandpass Out, Low/Highpass Mix-Out
Controls: Audio and CV attenuator, Frequency, Resonance, LP/HP Mix

The function and operation of this module is very similar to the module SEM VCF A-106-5. But the sound of both filters is very different! The only functional difference is the position of the sockets and controls, and the function of the controls CV2 (A-124: normal attenuator, A-106-5: polarizer).

- 3U Eurorack module, 8HP wide, 45mm deep
- Current draw 30mA

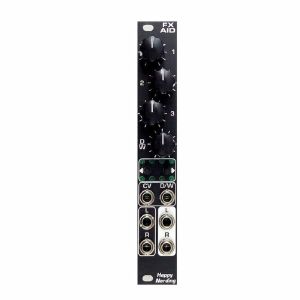

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other user selected Happy Nerding effects in any order. Also the possibility to run freely available third party effects will be added too.

Reflashing procedure is quite easy: playing 40 sec long "wav" file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

Please note the reverse CV operation of the Dry/Wet control: positive CV crossfades from Wet to Dry, and negative CV crossfades from Dry to Wet.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 150 Hz or brought up to 48 kHz.

80 mA +12V
30 mA -12V
45 mm deep

Notes: Highly sought-after utility tool that always sells out quickly. Full colour display gives visualisation as an oscilloscope, spectral analyser, spectograph, tuner and more. Waveform and clock generator options too.

Supplier's Notes:
The Ultimate Eurorack Utility Module (and a whole lot more!)

The DATA is a digital platform for testing, measurement, and signal generation in Eurorack modular synthesis systems. It is a modular tool kit, with functions applicable to any system and style.

Use the DATA's scope to view the interactions between your control voltages and audio signals, allowing you to master your modules by understanding their voltage ranges, control shapes, and parameter responses. Use the DATA's dual waveform generator to dial in a precisely scaled LFO for CV control, or use the waveform's frequency "note mode" to effortlessly make dyads (two note chords). Use the DATA's clock program as a master clock or to divide or multiply an incoming clock signal, sending four different clock outs to gate modules directly or as control to sequencers.

The possibilities of the DATA are basically unlimited; with the included microSD you can update the DATA's firmware and we can continue to refine and create new programs.

Notes: The shorter and wider brother to the popular Triatt module!

The four handy knobs can act as active attenuators (unipolar) or attenuverters (bipolar) depending on the setting of the two-position switches above each one.

Each input is normalled to a precision +5V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 v or -5 to +5 v depending on the position of the mode switch.

- 2 modes for each channel
- 5v normalled to each input
- With external signals it acts as active/buffered attenuator/attenuverter/mixer
- Each output normalled to mix into the adjacent channel on the right making it possible to do sub mixes in groups of 2, 3 or all four channels.

Notes: Module A-130-2 is the slim version of module A-132-3 and offers essentially the same features. But the distances between the controls are smaller and rubberized small-sized knobs are used. In return the front panel has 4 HP only which is half the width of the A-132-3. The module is primarily planned for applications where only limited space is available.

The module is composed of two identical voltage controlled amplifiers (VCA). Each VCA has a manual gain control (also named Initial Gain) and a control voltage input with attenuator. The character of the control scale can be switched to linear or exponential. All inputs and outputs are DC coupled. Consequently the VCAs can be used to process both audio and control voltages (e.g. for voltage control of the level of LFO or envelope signals). The signal input has no attenuator available but is capable to process up to 16Vpp signals (i.e. -8V...+8V) without distortion. For the processing of higher levels an external attenuator (e.g. A-183-1) is recommended.

The amplification range is 0...1. Even with a higher external control voltage the amplification remains at 1 (kind of "amplification clipping" at 1).

Controls (for each of both units):

- Gain: manual gain control (Initial Gain) in the range 0...1
- CV: attenuator for the CV input
- Lin/Exp: switches the VCA characteristic to linear or exponential, in center position the VCA is off (mute function)

Inputs and outputs (for each of both units):

- CV: control voltage input, min. +5V required for max. amplification (1) with CV control fully CW and Gain fully CCW
- In: signal input, max. 16Vpp (+8V...-8V) without distortion
- Out: signal output

Notes: The Stereo I/O 1U is an all-in-one audio input/output module designed to bridge the gap between your Eurorack system and line-level devices. Whether you want to process external audio with your modules, monitor your patch with headphones, or connect your system to mixers or interfaces with line level - Stereo I/O 1U has got you covered.

Audio I/O allows you to effectively interface your Eurorack modular system to the balanced line-level world (+4 dBu). You can send and return to rack mount/desktop fx units, patch to external line-level instruments like synths and drum machines, interface to a DAW and much more.

The rear-mounted 3-pin CHAIN IN connector allows you to sum (in parallel) other audio sources to go from Eurorack level to the BAL LINE OUTPUTS. This could be from modules like the Mixup 3U, Xfade 1U, Stereo Mix 1U, and XY I/O 1U. You could also use this to connect with the 3-pin headers on the Palette and 7U cases audio i/o boards.

The rear-mounted 3-pin CHAIN OUT connector allows you to directly connect the level-shifted BAL LINE IN to the inputs of other compatible devices such as the Mixup 3U, Outs 3U, Stereo Mix 1U, XY IO 1U, and Headphones v2 1U. You could also connect the to the TRS jacks of the Palette and 7U cases audio i/o boards.

Dual Balanced ins and outs for the studio or the road. Interface your rack with the balanced line level world; send and return to pedals or desktop FX units; patch in and out of your DAW, external synths, drum machines and other line-level instruments.

A space-friendly, feature-rich, highly flexible solution for all your stereo line level input and output needs. Includes a dedicated headphone jack/volume and a clever cue bus for monitoring signals outside of the main output or to add a 2nd source to the main outputs.

Notes: A cousin to the more complex Pressure Points, the PRSS PNT offers a single touch-sensitive copper pad which generates up to four channels of CV and gate signals based on the placement of your finger.

Supplier's Notes
The PrssPnt music synthesiser module is a controller in which several signals are generated by touching the printed copper wire at the bottom of the instrument. Touching PrssPnt, you become part of the circuit, generating a total of four simultaneous signals (two CV, two Gate).

The basic function of PrssPnt will be familiar to anyone who has used Pressure Points or 0-CTRL. It could be seen as a single "souped-up" channel of one of these devices. Since it is a single channel, the tuned voltage outputs are not relevant, and instead are replaced with more playable sensitivity controls and alternate pressure and gate outputs.

Features:

Momentary Gate output remains high as long as it is being pressed
Toggled Gate output goes high and low with each successive press of the plate: press it to make it go high, press it again to make it go low
Pressure output generates a positive control signal proportional to the amount of Pressure applied, further tailored by the Sensitivity Panel Control
Smooth Touch Function recreates the useful patch of sending a Pressure Output through a carefully tuned slew limiter for extended function generation
Turning up the Slew amount will allow for larger than life functions with very long decay to be generated by hand.
All four outputs available simultaneously

Specifications:

Width: 4hp
Max Depth (incl. power cable): 30mm
Power:14mA @+12V / 0mA @-12V

Notes: A characteristically unique take on mixing from Buchla, with six mono inputs and a built-in mic/guitar pre-amp. Each channel can be cued to a monitor mix, while the first and last channels also include voltage-controlled panning.

Supplier's Notes:
The Tiptop 207t is a modern reimagining of the classic Don Buchla 207 Mixer/Preamplifier from the 1970s 200 Series. This stereo mixer comes with a built-in preamp that allows you to boost external instruments and microphones, making it a versatile tool for any modular setup. The 207t also features a six-channel mixer with a variety of signal routing options, including the ability to route channels to the monitor and L&R signal outputs, with per-channel control over loudness and panning.

Each channel has a Mon switch that sends the channel's signal to the monitor outputs, which are always full-volume and summed to mono, making it useful for basic monitoring applications or rudimentary mixing. The Prog switch sends the signal to the L&R signal outputs, with loudness controlled by the Level Adjustment slider and panning determined by the Channel Assignment knobs. The first and sixth channels offer voltage control of panning; these channels are hard-panned when no CV is applied.

The preamp section features a 1/4" input and multiple gain settings, making it suitable for use with external line level instruments, electric guitars, or dynamic microphones. The continuous amplification control provides added flexibility for your audio needs. Finally, the Expansion In is a stereo input that sums to the left and right main outputs, which is great for chaining multiple 207t modules or adding another stereo source at the final output.

While the 207t's functionality may be simple, it is an essential part of any 200t system, serving as the glue that holds everything together. The Tiptop 207t is a fantastic mixer/preamp option that delivers quality sound and reliable performance.

Buchla 207t Features

Mixer/preamp module based on Don Buchla's original 207 design
Six-channel mixer with per-channel level control and panning
Voltage-controllable panning on channels 1 and 6
Manual panning on channels 2-4
Program switches can act as channel mutes for main outputs
Mon switches route signal (in mono) to Monitor output
Expansion input useful for stereo chaining and more
Re-designed preamp for high audio fidelity
Preamp suitable for use with external instruments, electric guitars, dynamic microphones, and more

Eurorack module
28hp wide

Notes: Eight channels of audio and CV sampling with real-time editing and processing. Does basic sampling well but quickly gets creative and weird.

Supplier's notes:
The 'Squid Salmpler' is a Eurorack 8 channel audio & CV sampler. It is designed for immediate real time sampling, editing and mangling within a modular context.

Taking influence from early hardware samplers, The Squid Salmple focuses on usability and instinctive operation, incorporating a proven Pamela's Workout style user interface for minimal screen dependence and a fun, hands on experience.

With support for sampling and playback for both audio and CV, as well as CV control of all parameters, on-the-fly bank loading and saving to USB, The Squid Salmple brings a unique take on old school sampling into the modular realm.

The Squid Salmple comes with a USB Stick containing approximately 90 banks of original carefully curated royalty free samples. This includes a wide range of sounds from classic drum machines and weird synths to field recordings and CV modulations. Banks are provided by both ALM and some of our favourite artists and friends including Mumdance, Solid Blake, Russell Haswell, Lauren Flax, Dave Burraston (NYZ), Sue Zuki, Dungeon Acid, Sasha Lewis and Andrew Duff.

Notes: Erica Synths Pico OUTPUT module is just what you need to monitor your music on headphones and have standardized connection to mixing desks.

Features

Stereo input
High quality headphones amplifier
3,5mm headphones output jack
Headphones volume control
3,5mm stereo line output jack
The 3,5mm stereo output jack in this module allows you to connect the Pico System directly to virtually any speaker system or line input. Even in your car!

With Pico Series we challenged ourselves - can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can.

Technical specification:

Input level: 10Vptp
Power consumption: +20mA, -7mA
Module width: 3HP
Module depth: 35mm

Notes: Successor to the excellent Metropolis, the Metropolix is a performance-focussed step sequencer with some really neat features, including modulation and sub-sequences in Loopy mode.

Supplier's Notes:
The Intellijel Metropolix is a unique and powerful Eurorack format musical sequencer. With an abundance of hands-on, tactile controls and a wealth of modulation possibilities (both internal and external) you can quickly and easily create infectiously musical sequences that are never boring. Even the simplest riff can be brought to life with seemingly endless options to create variations or real-time manipulations. Equally at home in the studio or a live improvised performance, the Metropolix is sure to become a staple source of fresh ideas and killer riffs in your creative process.

Width: 34HP
Depth: 25mm
Power: 95mA @ +12V 10mA @ -12V

On first blush, it appears to be a simple 8-stage sequencer - but there is far more functionality than first meets the eye:

There are two tracks (TRK 1 and TRK 2) that are variants of the single master pitch/gate sequencer, which is programmed via the PITCH sliders, PULSE COUNT and GATE TYPE switches. Each track interprets the master sequence in a variety of ways - creating complementary sequence variations that enable you to generate counterpoint, polyrhythms, and all manner of sonic movement (both subtle and extreme). Each of these tracks has its own playback ORDER, sequence LENgth, clock DIVision, SWING amount, SLIDE time, and track GATE lengths. Other track-based sequence variables are accessible from the TRACK MENU, and include Pitch Slider inversion; sequence note range; track transposition; and more. In addition, Tracks 1 & 2 both have multiple lanes of per-stage playback parameters, including: GATE override; PITCH override; RATCHet count; PROBability of playback; ACCUMulating transposition, and a dedicated CV lane. Each stage also has a SKIP feature, and a pitch SLIDE option.

8 separate and individual MODulation lanes are accessed via the MOD button. Each MOD lane has 8-stages of modulation values and its own playback ORDER, LENgth, and clock DIVision; and each lane is routable to one of Metropolix' two assignable outputs or to dozens of internal destinations, allowing for some sophisticated and powerful self-modulation.

A trio of AUX inputs allows for external modulation of user-assignable sequencer parameters for even greater variation, while two assignable CTRL knobs give you direct access to the parameters you want to adjust most frequently during a performance. With dedicated Pitch/Gate outputs for both Track 1 and Track 2; two totally user-assignable outputs (A and B); and internal MOD routing, Metropolix features a wealth of patching opportunities.

Metropolix also features a Loopy mode, allowing you to instantly play back short sub-sequences, or even "play" the stage buttons directly (like a 'keyboard').

Metropolix stores up to 64 preset configurations (in 8 banks of 8 presets), and all live settings are stored in EPROM, ensuring that your Metropolix will always power up exactly as you left it - even if you haven't saved them to a preset. By default presets can change all the structural (menu-based) elements of your sequencer without overwriting the front panel controls, but full recall is also available.

The operation of the Metropolix is optimized for live performance and jamming, with quick access to all the most important performance parameters, and the ability to greatly affect your sequences with a single slider or switch.

Notes: Small and efficient MIDI to CV courtesy of Intellijel's 1U series. Works in conjunction with an Intellijel case or the MIDI IN Jacks 1U module to give you Pitch, Velocity, Mod, CC, Gate, Trig, Clock and Reset.

Supplier's Notes:
The MIDI 1U system provides all the essentials to control and sync your Eurorack modular from your computer, mobile, or hardware MIDI device with a minimum of fuss. Several of the module's most important features can be changed using the two front panel buttons, with full configuration capabilities offered via the Intellijel Config app, which is available for both Mac and Windows. The connectivity, feature set, expandability, and compact size make the MIDI 1U system ideal for integrating your modular gear with the rest of your rig.

Intellijel's MIDI 1U system comprises several elements, which work together to provide flexible, programmable MIDI-to-CV conversion to your Eurorack modules: The system comprises two mandatory components, and one optional component:

MIDI 1U module - This 14HP 1U module receives MIDI from an attached, external MIDI input connector (7U case, Palette case, or MIDI IN Jacks 1U module), and extracts (by default) Pitch, Velocity, Mod, CC, Gate, Trig, Clock and Reset messages i sending the proportional voltages to individual 3.5mm jacks for patching.If desired, the CC and MOD jacks may be configured to respond to either Channel Aftertouch or High Resolution CC, and the Reset jacks can be configured as a Run jack, instead. Additionally, MIDI 1U features an alternate Dual Mode, which maintains the Clock & Reset functionality, but uses the other six jacks to transmit Pitch, Velocity and Gate messages derived from two separate MIDI channels.
MIDI input connector - the MIDI 1U module does not have its own MIDI input jack. This enables you to use the MIDI/USB inputs built-in to your Intellijel 7U Performance Case or Palette Case. If you don't own one of these cases, you can purchase the MIDI IN Jacks 1U module to connect an external MIDI device.
MIDI Expander 1U module - This optional 14HP 1U module connects to the MIDI 1U module and adds an additional eight 3.5mm CV outputs. These outputs are fully programmable using the Intellijel Config app, and greatly expand MIDI 1U's ability to control your entire Eurorack system.

Width: 14HP
Depth: 14mm
Power: 34mA @ +12V
2mA @ -12V

Notes: A big deal even by Xaoc's prolific and eclectic standards. Fully analogue VCO based on the none-more-old-school fonction d'onde formantique, implemented with extensive CV control. Transcendent waveforms indeed.

Supplier's Notes:
Sofia is a fully analogue voltage-controlled oscillator (VCO) based on an original waveforming principle. It features a modern, well-calibrated, temperature compensated triangle core and two elaborate waveshaping and modulating sections. The sound is a mixture of a warm, saturated base tone and two ripple components. Besides its main output, Sofia offers access to individual components of the sound plus a multitude of modulation inputs allowing for extensive self-patching and animation of the waveform. To better understand the device, it is strongly advised to read through the entire manual before using the module.

Sofia implements and extends the classic computer music method for synthesis of formant sounds called FOF (fonction d'onde formantique), which uses a combination of simple, time-domain components (decaying sinusoidal waves) to achieve desired spectral characteristics.

In Sofia, two of such ripple elements are added on top of a slightly saturated sinusoidal base tone. Each new cycle of the base tone spawns a new pair of ripple elements. The ripples' density and decay rate may be adjusted over a wide range. Additionally, the elements may be warped so that their density accelerates or decelerates within the cycle. Finally, their basic waveform may be switched from sine-like to square-like for additional richness.

Despite the seemingly divergent frequencies present in the signal, it remains strictly harmonic due to how all elements are waveshaped from the core tone and therefore phase coherent. Thus, Sofia is not a complex oscillator in the Buchla sense; however, it goes beyond the traditional set of primary waves and wavetables, hence the name.

Analogue VCO with complex waveforms
Extended FOF synthesis
3 frequency control inputs
8 parameter control inputs
6 signal outputs

24hp, 30mm deep
Current draw: +90mA/-80mA
Reverse power protection

The high quality Coal Mine black panels are available for all of Xaoc Devices modules. Sold separately. Ask your favourite retailer.

Notes: Dual 1 x 4 buffered mult (one audio or cv signal in with multiple buffered outputs).

The output of the first mult is normalled to the input of the second mult to create a 1×8 buffered mult.

Notes: Mojave is a granular sandstorm. Drawing its inspiration from vast swaths of desert in the American Southwest, Mojave is a live granular processor that uses microscopic bits of audio to create beautifully crafted sonic landscapes.

The core of Mojave's sound design palette is a unique set of melodic and rhythmic controls that presents each grain in a compositional context. Generate clock-synced granular arpeggios, or envelope your sound in rich harmonic swirls with the turn of a knob. All microsound settings can be easily accessed via individual knobs letting you tailor each grain, and effortlessly construct dunes of sound. Mojave is not exclusive to modular signals either; become the wind itself by using the onboard microphone to sift through and manipulate acoustic audio.

And, just like Nautilus, Mojave's internal settings can be configured via the USB drive and the Narwhal web app. Whether you are constructing pebbles or sandstone monuments, Mojave is the perfect balance between exploratory sound design and harmonious sublimity.

Live granular processor and stochastic event generator
Onboard high quality MEMS microphone
Configurable Dune CV/Gate output
Firmware updates & alternate firmware via the USB Drive
Based on the Daisy platform

Tech Specs

Width: 14HP
Depth: 28mm
Power Consumption: +12V= 167mA, -12V=13mA, +5V=0mA

Notes: Erica Pico INPUT module is just what you need to interface your modular system with external synths or even your mp3 player or mobile phone.

It boosts external signal to modular synth signal level.

With the Pico Input, line signals from, for example, a synthesizer, drum-computer, audio interface or smartphone can be raised to modular level. The module delivers up to 40 dB of gain. Thanks to its two channels, users can comfortably process mono as well as stereo material.

The Pico Input comes equipped with two signal paths. Each signal path features an audio input, a volume potentiometer and an output. Up to 40 dB of amplification are available. Using jumpers on the circuit board, it is possible to dampen the maximum gain to 20 dB. The module's first input is a stereo jack, meaning the user can connect a smartphone or tablet without any adapter cables. In this case, incoming signals are distributed internally to both channels.

Notes: Excellent value here. Analogue filterbanks tend to be pricy affairs but Erica's Resonant FB gives you all that creative control of dynamic equalisation with the convenience of digital control.

Supplier's Notes:
The Graphic Resonant Filterbank (FB) is a ten-band analogue filterbank with digital control over each bands' boost or cut. Each band can be controlled individually via CV or manually, while complex control configurations turn the filterbank into an unconventional multimode filter and even an instrument in its own right when played with various resonance settings. The Expander module (works exclusively with the Graphic Resonant Filterbank and is available separately) provides hands-on adjustment of boost and cut for all bands.

Specifications:

Audio signal amplitude: 10Vptp
Bandpass filter frequencies: 29Hz,61Hz,115Hz,218Hz,411Hz,777Hz, 1,5kHz, 2,8kHz, 5,2kHz,11kHz +-10%
CV input amplitude (configurable): -10V - +10V
Number of presets: 128
Panel width: 20HP
Module depth: 30mm
Power consumption (with EXP): 138(145)mA@+12V,50mA@-12V

Notes: USB socket for charging/powering peripheral devices.

This tiny but handy module connects the USB A connector to the +5V bus on the Intellijel TPS series powered busboards. Allowing 1A or more of current to be supplied to USB devices such as lamps, phone chargers, and usb powered musical devices.

It connects to the bus via supplied two-pin cable.

*Compatible with the TPS30 MAX and TPS80 busboards. TPS30MINI board requires an adapter.

Notes: Collabing with YouTube sensation Andrew Huang, Endorphin.es offer up this impressive multipurpose processor module. Building blocks of stereo filtering, compression, reverb and more offer huge creative potential.

Supplier's Notes:
In collaboration with Andrew Huang, based on his modern music production techniques, Endorphin.es developed a creative audio processor with multiple blocks that can be moved around in order to achieve different flavours for sound design.

Processing unit without fixed structure: intuitively create astonishing and ephemeral timbres, from atmospheric rumbles to heavy or distorted textures.
Creative stereo effect processor with delay, reverb, filter and distortion with quickly explorable routing chain with single button press.
New generation ARM Cortex - M7 processor with 96 kHz 32 bit internal processing.
Lush hall and whooshing reverse reverbs with audio freeze and pre-delay.
Sidechain audio ducking envelope available both internally and externally with additional one knob single band compressor.
Tap delay with maximum delay time up to 2.5 seconds, external clock input with onboard clock divider and 1v/oct time control.
8x oversampled distortion algorithm.
Pre- and post - VCA, tone and volume controls with extra gain.

Power consumption:
135 mA +12V
35 mA -12V
0 mA 5V

Dimensions:
16 HP
26 mm deep with power ribbon cable connected.
