Tags: Utility module

Notes: The 'HPO' is an affordable super slim and skiff friendly no frills stereo headphone driver output for your modular synthesiser. Includes a volume control and ability to double up a mono signal into stereo. A great use for that left over 2hp in a skiff or larger system.

Give loved ones, friends and acquaintances a break from your musical 'genius', the HPO offers a solitary cell for focused creativity impregnable from undeserving non-believers.

Notes: The 'S.B.G' is a compact utility module intended for the interfacing of guitar effect pedals with your eurorack modular system.

It provides both attenuation and amplification of audio signals for level matching together with a crossfade control to conveniently adjust the wet/dry mix of a processed signal. The module also offers regulation of outgoing CV signals for safer use of pedal expression inputs.

Technical Specifications:

Supply: +/-12V (Reverse voltage protection)
Current Draw: ~30ma
Size: 4 HP
Depth: 22mm (including power header)

Notes: The Mutant Brain is the central nervous system connecting your modular analogue eurorack system to MIDI gear, especially for percussion, polyphonic notes and sync duties! It packs 16 eurorack compatible outputs into a tiny, super affordable 8HP package.

The 4 CV outputs and 12 Gate/Trig outputs are all universally reconfigurable. Triggers, gates, clock divisions and sync signals, polyphonic keyboard playing, velocity, sequencer transport, LFOs - you name it!

Configuring your patch is easy - just assign each output as you like in the Mutant Brain Surgery configuration utility, then send the MIDI SysEx file to the module and forget about it - the Mutant Brain remembers it all for you.

Hexinverter supply a convenient download pack of pre-configured, ready to use Mutant Brain patches for some select sequencing and drum machine devices on the market today, easily turning those sequencers and drum machines into a modular control powerhouse!

Designed with live and studio performance in mind, the Mutant Brain does away with wasted panel space and complex menu-diving interfaces, while freeing you from the limited "auto-learn" type MIDI interface. An auto-learn interface sometimes doesn't play well with the limitless combinations of different gear setups which today's modular performers play live with.

4 CV Outputs (0V to 8V) can be

Notes (Mono or Polyphonic, V/Oct or V/Hz)
Pitch Bend, Velocity or Aftertouch
MIDI CC values (LFOs, modulation, etc.)
Fixed Voltage Values
12 GATE Outputs (0 to 5V) can be

Note Gates and Triggers
Drum Triggers, Retriggers
MIDI Transport (Start, Stop, Run, Resets)
MIDI Clock Ticks (Divisions)
CC Value Above/Below Threshold
Each GATE output has an adjustable trigger length between 1 and 120ms

Dimensions
8 HP
38 mm deep

Current Draw
19 mA +12V
4 mA -12V

Notes: Erica Pico INPUT module is just what you need to interface your modular system with external synths or even your mp3 player or mobile phone.

It boosts external signal to modular synth signal level.

With the Pico Input, line signals from, for example, a synthesizer, drum-computer, audio interface or smartphone can be raised to modular level. The module delivers up to 40 dB of gain. Thanks to its two channels, users can comfortably process mono as well as stereo material.

The Pico Input comes equipped with two signal paths. Each signal path features an audio input, a volume potentiometer and an output. Up to 40 dB of amplification are available. Using jumpers on the circuit board, it is possible to dampen the maximum gain to 20 dB. The module's first input is a stereo jack, meaning the user can connect a smartphone or tablet without any adapter cables. In this case, incoming signals are distributed internally to both channels.

Notes: The Listen IO is a simple module which gets signals in and out of a Eurorack system by converting to and from normal modular levels. The top section converts any external signal to modular levels by providing up to 30x gain (+30dB), allowing you to use table-top synthesizers, keyboards, phones/tablets, computers, toys, microphones, etc. in your patches. The bottom section does the opposite: modular signals are converted to normal line level signals. The bottom two jacks can be used as line outs or as headphone jacks, so you and a friend can listen in stereo at the same time.

Each section has two inputs and outputs for use with a stereo signal or two mono signals. An LED bar graph for each output shows the signal level and clipping.

Notes: The MFX is a compact 6HP Eurorack stereo digital audio multi effects processor.

It offers 14 different full featured effects programs plus a number of metering utilities.
Inspired by ALM's favourite classic hardware effects processors, the MFX incorporates DSP technologies from the dawn of digital effects in the 70s to the present day. This combines with ALM character and uniqueness to form a highly useful, fun and practical Eurorack effects module.

Reshape sounds with the distortion and dynamics engines. Bend time, space and pitch with multiple feature rich reverb and delay engines. Modulate signals with the flexible panner, frequency shifter, and range of ensemble effects. Fracture sounds with the one of a kind granular and glitch engines. Check signals and tune oscillators with various utilities.

The MFX user interface is designed to be familiar, quick and easy to use. Each program contains a wide range of controllable parameters both directly editable or freely assigned to CV or clocked control. Additionally, each program includes factory presets as well as the ability to store and recall user presets. All states are preserved across power cycles.

Effect Program List

Digi-PCM Echo
Feature rich digital delay taking inspiration from early prime time rack delay units with added modern features.

Tape-Tech Echo
Tape style delay with a digital pitch shifter bolted on.

Crumbular Echo
More experimental granular style echo.

Ursa Minor Echoverb
Emulation of the classic Ursa Major 'Space station' providing more delays and reverb type effects.

Pocket PL8 Reverb
Emulation of very early digital style reverbs with a dense metallic sound.

Almicon Reverb
Emulation of 80s studio style reverb great for bright rooms and vast synthetic spaces.

Quaidra Reverb
Emulation of a popular 90s rack reverb. Excels at creating airy, atmospheric reverbs.

TY-50 Compressor
Flexible modern compressor great for adding punch, smoothing transients or as a clean mix bus compressor.

Transient Shaper
Fast acting dynamics processor for reshaping the attack and release envelope of any sound.

TH-30 Distortion
A versatile distortion program with distortion types ranging from analog style saturation to intense digital wavefolding.

2051 Bit Corrupter
Real-time audio buffer designed to imitate malfunctioning digital audio equipment.

Modulating Panner
Clock-syncable mono or stereo auto-pan with an additional scan mode that cross fades between 2 input signals. Use for VCA, Panner, crossfader, tremolo type effects.

Ring + Freq Modulator
Pair of classic modulation effects in stereo, tailored towards otherworldly and dissonant sounds.

Ensembles Ensemble
Simulation of classic chorus and ensemble effects. An added digital pitch shifter takes the effect beyond traditional chorus circuits.

Utilities
Simple oscilloscope and VCO tuner.

Technical Specifications

Supply: +12V 50mA Max / -12v 15mA
Size: 6 HP
Depth: 32mm
16 Bit / 44.1Khz Stereo processing

Notes: Use the Stereo Line In 1U system to bring external audio into your modular system for processing. The system works with balanced +4 dBu professional audio products and with -10dbV unbalanced gear.

The Stereo Line In 1U system comprises two components:

The Stereo Line In 1U module:
Either a Stereo In Jacks 1U module, or a case with built-in 14" audio jacks, such as Intellijel's Palette or 7U cases (with a 2nd generation Audio Jacks board).

Width: 12HP
Depth: 38mm
Power: 18mA @ +12V
12mA @ -12V

Notes: 2HP narrow version of the A-180 multiples module. It is a passive signal splitter suitable for audio or CVs. Two sets of four jacks are interconnected, by placing a solder bridge you can connect all eight jacks.

Dimensions
2 HP
18 mm deep

Current Draw
Module does not draw current

Notes: Mutes goes above and beyond basic muting by allowing you to split groups of signals to multiple destinations, making it great for FX dub performing and varied signal routing.

You also get a three position switch giving you: MOMENTARY signal pass through (it springs back to the centre when released); OFF (or muted) in the centre; and ON to the right. We've also added vactrols to the circuit giving the switching a pleasing decay for both audio and modulation as well a totally click free muting. This module can add mutes to anything, your mixer, module inputs or outputs, modulation signals, sequencers, gate sources and more.

Mutes was developed by Befaco on behalf of DivKid.

50 mA +12V
32 mm deep
O 4.29 (14 Votes) Average Rating

Notes: The 333 is a summing and distribution module for Eurorack modular systems.

It is composed of three identical sections, the red, yellow and green, each of those featuring three inputs summing amplifier with three independently buffered outputs.

Derived directly from the CGM creative mixer series, the sum section is DC coupled, allowing the sum of control voltages as well as audio signals.

With an extremely low tolerance in both sum and output sections, it is suitable also for summing quantized voltages like the ones coming out from the quantized outputs of the SAPEL.

In case CVs or audio signals are particularly hot, the 6dB attenuator might be helpful to reduce exactly by 50% the incoming signals.

Red and yellow output are also normalled to the 1st jack socket of the yellow and green input: in this way this module can also work as a 1 to 9 buffered multiple.

Notes: Clever four-channel utility module designed to make it easier to achieve perfect oscillator tracking and transpose CV signals. Also includes some neat quantising and portamento features.

Supplier notes:
The CalTrans solves issues encountered when playing tonal music with a modular system: tracking problems, curves unrelated to Volt per octave ratio, limited octave range, cumbersome transpose, ...

The CalTrans corrects and expands the range of troublesome VCOs and brings V/Oct tracking to anything that oscillates.

Besides calibration, the CalTrans offers live play features. Each channel can be quantized and any combination of them transposed jointly.

A pair of rotary encoders with detent allow an precise selection of octaves and semitones.

VCOs whose tracking doesn't go high enough to follow the leader will see their pitch repositioned in their highest possible octave so that the global harmony is unaffected.

You can add a pinch of portamento and glissando to each channel and save the whole in user presets.

Notes: The Stereo Mixer 1U provides a convenient way to combine your mono and stereo sources into a single stereo mix. There is level control over the first two channels and, using a rear connector, you can chain multiple Stereo Mixer 1U's together into a hidden 3rd stereo channel without using up channels on the front panel. The chain i/o connectors are fully compatible with the Mixup connectors so you are able to mix 1U and 3U mix chains together as needed.

The Stereo Mixer 1U is a versatile, expandable audio mixer for the Intellijel 1U format. It has two pairs of front panel inputs, each with its own level control, and a mixed output pair. For each input pair, the left channel is normalled to the right channel, for mono operation.

Using 3-pin Link connectors on the back panel, you can chain multiple Stereo Mix 1U's together in series, giving you the ability to mix together even more inputs, or to create sub-mixes for routing audio around larger systems. You can also these same connectors to patch Intellijel's Mixup and XY IO 1U modules to these back-panel chains, and you can connect them directly to the 14" audio jacks on an Intellijel Palette Case, a 7U case with 2nd-generation Audio Jacks Board, an Outs module, or a v2 Headphones 1U.

Stereo Mix 1U is designed specifically for audio (and not for CV mixing), it's AC-coupled, and uses audio-grade, logarithmic attenuators for a smooth, even response across the entire volume range.

Width: 16HP
Depth: 25mm
Power: 17mA @ +12V
23mA @ -12V

Notes: Module A-185-2 is a precision control voltage adder/buffer. Precision means that the amplification of the inputs without attenuators is exactly 1.00 and is suitable to add control voltages for the pitch control of VCOs (e.g. from keyboard + sequencer 1 + sequencer 2). Summing resistors matched to 0.1% are used to obtain an accuracy of 0.1% for the added voltages.

The module is equipped with four CV inputs: one with attenuator and three without attenuator. Each input is normalled to +1 V (i.e. if no plug is inserted the input contributes 1 V to the sum appearing at the output).

The input with attenuator can be used for common modulations (e.g. from an LFO, ADSR, Theremin, Pitch-Bender) for all VCOs connected to the output. The Lev.1 control is used to adjust the depth of the modulation, the first switch selects the polarity of the modulation. If no signal is connected to the first socket the attenuator works as a (fine) tuning knob because a voltage in the range 0...+1V (right position of the switch) or 0...-1V (left position of the switch) is added to the CV output.

The inputs without attenuators are planned to add control voltages coming out of keyboards, sequencers, Midi-to-CV interfaces, ribbon controllers or other CV sources that follow the 1V/oct standard. For example the CV of a keyboard can be used to transpose the CV coming from a sequencer, or the CV of a slow sequencer can be used to transpose the CV from a fast sequencer.

Each input is equipped with a three-position switch that determines if the corresponding voltage is added (right position), subtracted (left position) or if the input has no effect (centre position). If no plug is inserted the corresponding switch works as an octave switch for the lower three sections as the default 1 V are added or subtracted to the output voltage according to the switch position. The first switch can be used to add a variable voltage to the sum output. The variable voltage is adjusted with the Lev.1 control and the knob works then as kind of a (fine) tuning control.

The module is equipped with 4 outputs: three non-inverting and one inverting ouput. An internal jumper can be used to connect the non-inverted or inverted output to the CV line of the A-100 bus. That way the module can used to control several VCOs that are connected to the same bus board as the A-185-2 (same functionality as A-185-1).

Notes: Erica Synths Pico OUTPUT module is just what you need to monitor your music on headphones and have standardized connection to mixing desks.

Features

Stereo input
High quality headphones amplifier
3,5mm headphones output jack
Headphones volume control
3,5mm stereo line output jack
The 3,5mm stereo output jack in this module allows you to connect the Pico System directly to virtually any speaker system or line input. Even in your car!

With Pico Series we challenged ourselves - can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can.

Technical specification:

Input level: 10Vptp
Power consumption: +20mA, -7mA
Module width: 3HP
Module depth: 35mm

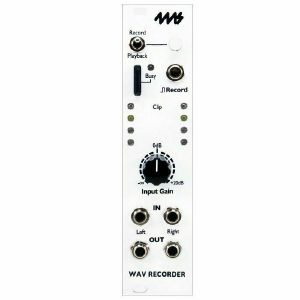

Notes: The WAV Recorder from 4ms Company is a high fidelity, two-channel stereo audio recorder with basic playback features. Accepting a wide range of input signals, from line-level to modular-level, the WAV Recorder stores audio onto a microSD card in lossless .wav format up to 96kHz/24-bit. The trigger jack can be used for capturing rhythmic loops or synchronizing multiple WAV Recorder modules for multi-track recording. In Playback mode, the trigger jack or button plays the most recent recording. A simple file/folder navigation system can be used to browse the folders on the card for playing back .wav files. A Gain knob allows for up to +20dB of boost, and an LED Signal Meter indicates clipping and the signal level.

Notes: An extremely useful module to have if you want to interface other equipment with your AE modular. The most important job is to prevent a CV outside the 0 to +5 volts range from entering the AE system as this would damage it.

Module power consumption: 0.2 mA

Inputs
I/O 1 - 3.5mm jack socket - mono signal sent to I/O patch socket 1
I/O 2 - 3.5mm jack socket - signal sent to I/O patch socket 2
I/O 3 - 3.5mm jack socket - mono signal sent to I/O patch socket 3
I/O 4 - 3.5mm jack socket - signal sent to I/O patch socket 4
They are labelled I/O as you can also send the signal input into the AE patch in/outs (in the AE system's usual location for outputs) and out to your external equipment via these sockets

If a stereo 3.5mm plug is used into sockets 1 or 3, the signals are output on patch in/outs 1/2 and 3/4 respectively.

Outputs
I/O 1 - This will output the signal from the I/O 1 3.5mm socket above, or send one to it.
I/O 2 -This will output the signal from the I/O 2 3.5mm socket above, or send one to it.
I/O 3 - This will output the signal from the I/O 3 3.5mm socket above, or send one to it.
I/O 4 - This will output the signal from the I/O 4 3.5mm socket above, or send one to it.
Mult - A passive mixing/ splitter with no connections to main module circuits.

Controls
AUD/DC Switch - 1 for each 3.5mm socket - selects audio signal or CV type signal. For the AE this means a CV is 0 volts to 5V, with 0 as the base, for audio it "rotates" around 2.5 volts but still is 0 to 5 volts. If things are quite as expected, try the switch in the other position.

Notes: The A-138d primarily is used for crossfading between two modular signals. On the other hand you can used it for inserting stompboxes or other effects into your modular system. Both the inputs and the mix output are available twice, like a mini-multiples e.g. for using the input signal also for other applications, kind of like a Thru.

Crossfader: With the crossfading control CF you blend manually between the inputs In 1 and In 2. The Mute switch allows for muting one of the two signals, independent on the crossfader position.

Effect insert: The signal at input In1 is emitted at the FX Send output and can be attenuated with the Atten. control because the modular system works with much higher levels.

The effect unit's output is inserted to the FX Return input socket and its level can be boosted with the Amp. control. The processed signal is available at the bottom in 2 socket.

Use the CF control to blend between the original signal and the effect signal and to mute switch for quick muting e.g. of the effect return signal.

Notes: This module connects via 3 pin cable to the Intellijel Pedal I/O 1U module.

It provides the 1/4" TS interface for connecting guitar pedals or instruments.

Dimensions: 8 HP
44 mm deep

Module is a 1U tile.

Current Draw: Module does not draw current

Notes: Simple but effective output module, converts stereo instrument-level signal to balanced XLR outs. Ideal for live use but just as good for avoiding unwanted hum in the studio.

Supplier's notes:
Whether it's in the studio or on a live stage, keeping audio interconnections free from unwanted hum and interference can be a challenge. Balanced lines are the proven solution to this problem.

Conventional balanced output solutions often rely on transformers providing galvanic isolation to mitigate the effects of ground loops. Unfortunately, these components are bulky, expensive and colour the sound (often unfavourably, especially in the low end).

Instead, Transmit 2 (or TX2 for short) takes a fully solid-state approach. Offering a stereo pair of XLR balanced outputs, it ensures that the sonic clarity of your carefully planned modular system is not lost in its interface to the outside world.

Engineered to provide massive headroom while retaining extremely low noise and distortion, Transmit 2's circuitry incorporates low-impedance design practices, radio-frequency (RF) filtering and premium balanced drivers to provide transformer-like interconnect performance in a compact and affordable module. And thanks to the electrostatic (ESD) and phantom power discharge protection, it's rugged enough to survive the rigours of performing on the road.

Adjusting the main output level is a breeze thanks to the dual peak-responding LED meters. A high-end headphone amplifier is included as well, controlled by a separate level knob. It can deliver the voltage and current required to power practically any headphones, regardless of the impedance or driver technology. This 3.5 mm stereo socket can function as an auxiliary stereo line output or even drive small passive speakers, making Transmit 2 an all-round flexible answer to all your output needs.

Notes: Delta-V is a fully analogue dual-channel function generator, featuring a dedicated VCA and LFO cycle switch for each channel. It packs a great deal of functionality in only 10HP, and will surely find use in almost every patch.

Generate envelopes, slew gates and signals, or run LFOs with precise control over attack and decay times. Using the SHAPE knob, Delta-v can create a wide range of envelopes, from very snappy exponential curves for percussion to logarithmic thumps for bass lines.

If VCA's input is unpatched, the module outputs a regular voltage envelope. When an audio signal is patched into the VCA input, the output signal becomes the audio signal amplified by the envelope.

Sending other envelopes or an LFO to VCA input lets you modulate those modulators, quickly creating complex control voltages that go beyond the usual attack-decay envelope.

Combine this with the SUM output, which sums the two channels, and the attenuverters, which can quickly attenuate or invert the signal, and you have a whole array of signal processing capabilities.

The TRIGGER input fires a Attack-Decay envelope, while the SLEW input will affect the rate of change of the signal.

The trigger for channel 1 and 2 can be linked together, so you can fire two envelopes with one patch cable.

Each channel has an End of Cycle output, (EOC) this outputs a short trigger at the end of each envelope cycle.

The output voltage ranges from -10 to +10 volts, set with handy output attenuverters.

The CYCLE switch starts looping the envelope, creating LFO's that go up to audio rate, and that can also be used as an interesting sound source.

There are many ways to utilise Delta-V.

Challenge yourself to explore new, unconventional territories!


Width: 10HP
Depth: 27MM
Power: +12V 70 MA
Power: -12V 70 MA
Power 5V: 0 MA

Notes: An expander module for Rossum's powerhouse Assimil8or sampler module, the Locutus provides MIDI in, out and thru connections over 5-pin DIN sockets, letting you take full control of the module alongside other MIDI gear.

Supplier's notes:
Locutus is designed to interface Assimil8or with MIDI instruments, controllers, and sequencers to provide multichannel modulation and new polyphonic possibilities.

Locutus includes a special cable to connect to the Assimil8or CPU behind the panel.

Locutus is 6 HP wide and 25mm deep.

More pricing and availability information is coming soon.

Locutus is on display in the MIDI Association booth #9901 at NAMM 2023 where Locutus and Assimil8or will be performing with a Rossum SP-1200 Reissue, an Oberheim OB-X8, and other new and vintage MIDI-equipped instruments.

MIDI Association booth #9901 is dedicated to the MIDI@40 Lifetime Achievement Award winners, including Rossum Electro-Music co-founder Dave Rossum.

From the MIDI Association: "At Saturday's anniversary celebration, lifetime achievement awards will be presented to (or posthumously honour) legendary music industry innovators who created the modern music production environment of synths, drum machines, and sequencers, including Bob Moog, Don Buchla, Ikutaro Kakehashi, Tsutomu Katoh, Roger Linn, Tom Oberheim, Alan Pearlman, Dave Rossum, and Dave Smith."

Notes: Those, who own Moog Mother 32 know, that it requires -5V - +5V on 1V/oct input to operate in full range, while the eurorack standard is 0V - +10V. So, to control Moog Mother 32 from a eurorack sequencer you need to bias a sequencer output for 5 volts down. And vice versa, Moog Mother 32 sequencer outputs -5V - +5V on 1V/oct output, and, if you wish to control some eurorack VCO from Moog Mother 32, you need to bias it 5 volts up. This is exactly what MSCALE does: it has two sections, upper one adds 5V to the input voltage, other subtracts 5V form the input voltage.

Of course, the module is not limited for use with Moog Mother 32 only. You can use it as a regular eurorack precision voltage scaler.

Features:
Precision scaler to adapt Moog Mother 32 1V/oct to
Moog to eurorack section
Eurorack to Moog section
High precision, high temperature stability
Skiff friendly, compact design

Dimensions
3 HP
25 mm deep

Current Draw
6 mA +12V
6 mA -12V

Notes: Module A-134-2 contains two identical voltage controlled crossfader units.

Each unit has two voltage controlled amplifiers (VCAs) with opposite control behaviour available. The outputs of the two VCAs are mixed together to obtain a common output. The behaviour of the control voltage inputs can be chosen with an internal jumper:

Symmetrical mode: If the corresponding jumper is not set both VCAs of the crossfader have the same 50% amplification with zero CV. If the applied CV becomes positive the amplification of VCA1 decreases and those of VCA2 increases in the same way. A negative CV has the opposite result. The CV voltage range to obtain the maximum/minimum positions of the crossfader is about -2.5....+2.5V. This mode is useful for bidirectional (i.e. positive and negative) control voltages, for example LFO or joy stick (adjusted to 0V CV in centre position).

Asymmetrical mode: If the corresponding jumper is set VCA2 is fully closed and VCA1 has full 100% amplification with zero CV. If the applied CV becomes positive the amplification of VCA1 decreases and those of VCA2 increases in the same way. The CV voltage range to obtain the maximum/minimum positions of the crossfader is about 0...+5V. A negative CV has no function in this mode. This mode is useful for unidirectional (i.e. only positive) control voltages, for example ADSR, ribbon controller or Theremin control voltage.

The CV input of the upper unit (CV1) is normalled to the CV input of the lower unit (CV2). I.e. if no plug is inserted to CV2 the CV input of the upper unit (CV1) also controls the lower unit.

The second signal input of the upper unit (In1B) is normalled to the first signal input of the lower unit (In2A). I.e. if no plug is inserted into In2A the signal In1B is used as the first signal input of the second unit.

As the inputs and outputs are DC coupled the module can be used for both audio and control voltage signal processing.

Notes: WAYOUT8 is a patchbay module for Eurorack systems used to group your DAW inputs and outputs, or manage signals going from one case to another. Wayout8 is grounded, meaning that even if nothing is plugged into the inputs your outputs are still grounded and will not pick up noise. The module is made so it can be mounted two ways, with outputs on the left or right, whichever is the most ergonomic placement in your case. All eight channels are passive so they do not modify your signals and can be used for audio and CV Gate. No power is required.

Notes: This small utility is the pedal's lover best friend, it allows 2 diferent chains of pedals to be independently connected to your synth.

The Send channels attenuate the synth level to instrument level.

The Return channels amplify the signal from instrument to synth level.

Specs:
- Width: 4 HP
- Depth: 3 cm
- Max current: 10mA

Notes: Economically priced module for connecting one foot controller and one double foot switch for control A-100 functions by means of the feet. For example, the frequency of a filter or the loudness can be controlled by a foot controller, but even other parameters like LFO frequency, modulation depth, phasing, pitch or any other voltage controlled parameter. The gate outputs controlled by the double foot switch can be used e.g. to trigger an envelope generator or to start/stop a sequencer. Even a single foot switch can be used if only one gate signal is required.

A special application of the A-177-2 is the usage within a Trautonium replica. The foot switches can be used to switch the mixtures of the subharmonic oscillator A-113. The foot controller can be used to control the overall loudness in combination with a VCA.

A-177 is compatible with the foot controllers FP5 and double foot switch VFP2. The Foot controller and double foot switch are not included with the module. If you want to use another foot controller or foot switch it has to be compatible to FP5 or VFP2.

If the foot controller FP5 is used the CV output range is about 0...+8V. The gate output levels are 0/+12V in combination with the VFP2 (foot switch not operated = 0V, foot switch operated = +12V).

Notes: Motion MTR allow you to mix, attenuate and invert signals while having clear visual feedback of their levels.

Each channel can function as:

Audio level control with VU meter
CV attenuator with voltage meter
CV inverter with voltage meter
Each input is normalled to 10v, so you can
use each of them to generate fixed voltages.
Also, the outputs of channels 1 and 2 are summed into Out 3 to be used as a mixer.
Patch it wildly to make it work as an attenuverter with offset, as a mixer, a VU meter or a combination of them all!
This module is our first collaboration with Robin Vincent from Molten modular.

Specs

Current Draw: +12v: 110 mA -12v: 43 mA
Width: 6HP
Depth: 30mm including power connector
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.
Idea by Robin Vincent

Notes: A comprehensive solution for stereo signals in Eurorack, the Enhance 2 offers stereo and mid/side processing with tons of CV control. Balance, widen and sculpt frequency bands.

Supplier's Notes:
Moving from mono to stereo sound: a logical progression for any synthesist looking to expand their sonic palette. Making use of two audio channels, rather than just one, quite literally adds another dimension to the capabilities of a synthesiser.

Unfortunately, controlling stereo signals can be a challenge within a modular system. This realisation led to the development of Enhance 2: a convenient yet high-fidelity tool for stereo enhancement. It can be used to adjust balance, width and spectral content, while also opening up a world of mid/side processing; all under voltage control and in just 8 HP.

The primary stereo parameters are balance (moving the sound left or right) and width (making it narrower or wider). The balance circuit uses a true constant-power gain law, while the width stage allows for seamless transitions from pure mono to extra-wide stereo.

In addition, tone control is provided by a pair of unique, wide-ranging mid/side voltage controlled tilt filters with selectable corner frequency. These make 'cleaning up' a muddy-sounding mix straightforward, but also provide unique binaural effects when modulated.

Mid/side processing encodes the stereo signals into one containing only the mono material (mid), and another containing the differences between both channels (side). Apart from the internal tilt filters, mid/side outputs also enable external signal processing such as compression or reverberation. An integrated mid/side decoder returns the results back to standard stereo. And at all times, a LED bar phase meter ensures that phase correlation can be easily maintained.

Stereo field modulation, mid/side equalisation and beyond; Enhance 2 brings true analogue stereo control to the Eurorack world.

8 HP
+12: 70 mA, -12: 70 mA

Notes: The Control Voltage Processor from Verbos Electronics GmbH is a suite of control voltage processing possibilities divided into 3 sections in a slim 18HP package. The lower 2 sections are DC coupled mixers that allow mixing, inverting, offsetting, scaling, multiplying, dividing, crossfading or a combination of these functions. The top section is a voltage controlled slewing processor with independent control of Positive and Negative slew rate, with some unique tricks. The Positive and Negative slew, or Rise and Fall rates if you like, have reversing attenuators. The slopes can be blended from linear to RC curves (starting all slides fast and ending slow, like a proper "East Coast" Portamento) without a change in speed. It can be triggered like an AD envelope and has a Gate out that goes high when the CV out is below 100mV. Of course it can loop by patching the Gate out to the Trigger in. The Bounce control adds a unique flare of overshoot to CV changes, a bit like the effect of stopping a tape reel from turning and then letting it go. The combination of multiple voltage processors offers the user the functions of analogue computer.

Notes: Sewastopol is a multifunction Eurorack module designed for easy interfacing of external gear to your modular environment. It can export line and professional level audio, import audio from instruments and electroacoustic transducers, and analyse the incoming audio to generate voltages and triggers to control your modular system.

This is a second, vastly improved revision to the original 2014 Sewastopol, featuring a completely redesigned preamplifier circuit, better ergonomics and various other improvements.

Notes: The Pedal I/O JACKS 1U Module allows you to patch standard 1/4? TS cables to and from your guitar/instrument pedals.

This module only works when connected to a Pedal I/O 1U module via ribbon cable.

Notes: Att 1U Passive Variable Signal Attenuator

This passive attenuator has a 100K linear potentiometer that is DC coupled. Perfect for adding attenuators to those 1U/3U modules without.

Width: 6HP
Depth: 18mm

Notes: VU meter for eurorack.

BLINKS is a VU meter for eurorack with 24 RGB leds per channel, function is pretty easy, it has 2 inputs, one for each led column (no output).

PATT button changes the led pattern ( 6 patterns to choose ).

SENS button changes the input sensitivity, cycling in 7 steps.

Long pressing the PATT button enters the color scheme selection.

Long pressing SENS button enters the brightness adjustment. Most probably you'll prefer the lowest setting.

The module has a 5v regulator in case you don't have 5v in you eurorack PSU. A jumper in the back select if the led board would be powered by the 5v rail or the internal regulator (which works with the +12v rail)

Up to 3 stereo signals can be connected to a buffered input using the rear headers.

Easy DIY with only a few components, the led board is already assembled.

5v not indispensable
+5v: 30 mA (on lowest brightness)
+12v: 4mA (or ~40mA if 5v rail is not used)

Notes: The ADDAC213B is the second pair of modules from ADDAC's Eurorack Bridge system.

A pair of ADDAC213Bs can be used in standalone to send/receive 8 CV or audio signals between different points inside the same case or as an expansion to the main pair of Eurorack Bridge modules, the ADDAC213As.

Two ADDAC213B modules can be connected to each other with the use of a single ribbon cable and then used inside a case to carry signals between distant points without the need for long cables. Less clatter, less spaghetti- more space of your fingers on those knobs!

ADDAC213Bs always come in pairs. A single pair can send & receive up to 8 CV or audio signals between different points in your case at the same time. The modules can be installed in normal position or a 180 degree position to fit any need.

As an Expansion to an ADDAC213A.

Each ADDAC213B connected to the backside of an ADDAC213A adds 8 more channels to the main bridging functionality of the ADDAC213A.

Up to 2 ADDAC213B can be connected to an ADDAC213A module, expanding the bridging between two difference cases to a total of 24 channels.

If you're looking for a simple one-cable bridge between your various cases, then look no further than the ADDAC213A.

Between the ADDAC213A pair and the ADDAC213B, your cases never looked so elegantly connected together!

Each module can be installed in normal position or at 180 degrees.

Comes with a 50cm ribbon cable. Custom sizes are available upon request.

Mechanical:
. Format: Eurorack
. Width: 3 HP
. Depth: 2.5 cm

Electrical:
Passive / Does not draw current
Ribbon Cable: 50cm or 100cm ribbon cable

Notes: Sono Abitus is a high-quality output module. It has a stereo pair of Eurorack-level 1/8" inputs that feed a pair of 14" TRS jacks for line output and a 14" headphone output. The headphone output and line outputs have separate level controls, making it easy to monitor while performing or recording.

Size and power:
4 HP

+12v: 50mA

-12v: 50mA

+5v: 0mA

Sono -- from Latin: "to make a noise"

Abitus -- from latin: "way out, exit"

"Make noises exit"

Notes: STMix is a four-channel stereo mixer in 28hp and 1U format. It can work independently or as an expansion of Befaco's Hexmix module via the six-pin connector located in the back. The module is designed under the Intellijel 1U format.

Features

Four channels stereo inputs with volume control.
AC Coupled inputs to improve audio performance.
Output clipping LED indicators.
Connector at the back to interface with the Hexmix module.
1U Intellijel format

Specs:

Current needs: +12V: 30mA, -12V: 30mA
Width: 28 HP
Depth: 20mm (including power connector)
Aluminium, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

Notes: 1/4" TRS Jack Panel For Stereo Line In 1U Module

If you don't own an Intellijel case with built-in compatible 14" jacks, then you need to purchase a Stereo Line In Jacks 1U module, which connects via ribbon cable to the Stereo Line In 1U module to provide 14" TRS input jacks for interfacing with other studio or stage gear.

Width: 8HP
Depth: 39mm

Notes: Welcome to the DROID X7 expander. The X7 gives you USB and MIDI connectivity for your master and also four gate outputs with modular levels.

You can process incoming and generate outgoing MIDI streams, both via classical DIN cables and via USB. Both the in and the out direction support polyphony with eight or even more voices in parallel.

For size reasons the X7 uses 3.5 mm TRS jacks for MIDI instead of the classical DIN jacks. But it comes with two DIN to TRS adapters, so you are free to use either form factor.

As a bonus feature, the X7 provides super fast loading of DROID patches via USB - without any need for putting the SD card in and out anymore.

Here are some examples of what you can do with the X7:

Attach an external keyboard to your modular.
Use an external hardware sequencer for playing melodies and beats in your modular.
Use an external MIDI controller to influence your DROID patch.
Do the same with a MIDI controller app on your tablet or phone (via USB).
Use your modular for playing polyphonic music and beats on your hardware synths or software synth plugins in your DAW, tablet or phone.
Connect two DROIDs (both with X7) and exchange real time CVs and triggers.
Use the four additional gate outputs on the X7 for sending clocks, gates and triggers and free your valuable CV outputs for other things.
Access the SD card in your master just like a USB stick for direct access to it via your PC, Mac, phone or tablet.
Alternatively load new patches to your master via MIDI sysex from your PC - and get your new patch ideas up and running in less than a second.

Dimensions
4 HP
23 mm deep

Current Draw
94 mA +12V
0 mA -12V
0 mA 5V

Notes: Voltage control is the basic tenant of modular synthesis: parameters may be modulated by changing control voltages (CVs), simply by plugging in a patch cable. However, during patching it's common to encounter incompatible voltage ranges, with signal outputs and inputs having different amplitudes and sensitivities.

An indispensable utility module, Bias 2 provides a compact yet precise solution to quickly interface signals between modules within a Eurorack modular system, without interrupting your creativity.

Comprising of two independent sections, each with dual inputs and dual outputs, its carefully selected combination of normalised reference voltages and amplification/attenuation factors makes it a breeze to convert between the most common signal ranges: -5 to +5 V, 0 to +5 V and 0 to +10 V.

Precision comes standard on Bias 2, with meticulously engineered analogue signal paths providing absolutely transparent performance for any Eurorack signal: CV, audio or gates/triggers.

Beyond the voltage conversion application, Bias 2 is a true all-rounder, capable of functioning as a pair of dual input unity gain mixers, -6 and +6 dB audio gain stages or a multi-output fixed voltage source.

2 HP | +12: 20 mA, -12: 20 mA

Notes: Wonderland is an 8×8 active patchbay/matrix mixer/switcher for both audio and control voltages. It features:

8 inputs (1 through to 8), each with micro-attenuators (which can be set with a small screwdriver)
8 buffered inverted outputs (A through to H) which are 180o out of phase with the inputs
8 buffered normal outputs (A through to H) which are in phase with the inputs
A switch matrix of 64 push on/push off switches
Any of the 8 inputs can be patched to any of the 8 outputs simply by pressing the corresponding switches. A patched signal will appear at both normal and inverted outputs simultaneously.

A single input can be patched to a single output. A single input can be patched to multiple outputs. Multiple inputs can be patched to a single output. Multiple inputs can be patched to multiple outputs.

Each input features a micro-attenuator which can be set with a small screwdriver. This space saving feature allows you to reduce the volume of an incoming signal without having to resort to external attenuators. If you add many inputs to one output you will of course cause clipping (which may or may not be desirable!), the micro-attenuators are your on-board way around this. I find it useful to leave the micro-attenuators set to 50% (which is how they come pre-set at delivery). Of course, their size is a little bit of a compromise, but they are a useful feature nonetheless. Wonderland’s sister module Looking Glass includes full size input attenuators as well as LED status indicators.

Product Specifications
12V draw
30mA

5V draw
0mA

-12V draw
31mA

Depth
35mm

Width
18HP

Notes: Xer Dualis is a compact analogue four-channel stereo mixer. Each channel has left and right inputs, a level control, and a mute.

Want to use mono signals? No problem! The left inputs normal to the right ones. On the stereo pair output, XD features a simple meter and a clip indicator to keep your mix clean. Xer Dualis is a compact and performable choice whether you need a submixer for a large system or an easy way to mix all the elements of a portable case together.

Notes: Based on similar circuits to the legendary Maths module, the CH.SVR ('channel saver' is a three-part function generator module based around sum/offset/attenuversion features. Great value for an accessible entry point to CV signal processing.

Supplier's Notes:
The Ch.Svr music synthesiser module is a small utility module, offering several channels of signal-processing that will be useful in just about any modular system. As a condensation/extension of the sum/offset/attenuversion aspects of MATHS, it continues the great tradition of sculpting the control signals we use to sculpt our sound signals.

Features:

Scale, amplify, attenuate, or invert an incoming signal using Channels 1 or 2
Generate DC offsets when Channel 1 or 2 is unpatched
Crossfade between two signals, or attenuate one signal, using Channel 3
SUM and INVerted Sum Bus for addition, subtraction, mirroring, inversion etc.
Individual Channel Outputs for Channels 1 and 2 allow independent use of all three channels
Anywhere you need more subtle modulation, Ch.Svr is there for you... now all your eurorack slivers may have subtle and intentional modulation they deserve!

Specifications:

Width: 6hp
Max Depth (incl. power cable): 30mm
Power: 20mA @+12V / 10mA @-12V

Notes: WAYOUT8 is a patchbay module for Eurorack systems used to group your DAW inputs and outputs, or manage signals going from one case to another. Wayout8 is grounded, meaning that even if nothing is plugged into the inputs your outputs are still grounded and will not pick up noise. The module is made so it can be mounted two ways, with outputs on the left or right, whichever is the most ergonomic placement in your case. All eight channels are passive so they do not modify your signals and can be used for audio and CV Gate. No power is required.

Size: 6HP
Depth: 10mm
No Power Required

Notes: Punch is the ultimate VCA-DECAY module for Eurorack

Specially designed to generate dynamic percussive sounds but also capable of basslines, leads, envelopes and more. The VCA has a built in voltage controlled Decay envelope that can be turned from smooth to more aggressive exponential responses and can be activated with triggers, gates or cv's.

Punch features two modes per channel to play, with a dedicated switch control: "vintage style drum machine mode" and "dynamic cv mode"

Punch is capable of creating AM sounds with control voltage on the "amount"

Each envelope can be inverted via dedicated switches on the front panel.

If you use an inverted envelope alongside the accent input you can create ducking effects like side-chain compression..

INSTALLATION:
* Disconnect your synth from the power source.
* Double check polarity from the ribbon cable, unfortanetly if you damage the module by powering in the wrong direction it will not be covered by the warranty.
* After connecting the module check again you have connected the right way, the red line should be on the -12V.

Notes: Test your modules safely without reaching into your case! The TST has two keyed 16-pin headers on the front of the module so you can plug and unplug quickly and easily. Two 16-pin plugs are included to shield the power pins when the module is not in use. It also has LEDs to indicate the power status on each rail.

Please note: Use this module at your own risk. You will be exposing electricity to the front of your modular system. Be careful not to dangle patch-cables, etc. on the exposed pins. This may damage modules and your power supply. Be smart and safe!

Features and Specifications:
Two 16-pin connectors and plugs on the front side of the module
LED indicator for each rail
Module width: 3HP
Module depth: 5mm
Current draw:
+12V: 1mA
-12V: 1mA
+5V: 1mA
Includes keyed power cable, 2.5mm and 3mm screws

Notes: Most musicians use their feet as an extension of their playing, either pushing piano pedals, sustain pedals, guitar pedals.

However, feet have been underrated while using modulars. In the past ADDAC released a series of modules using sustain and expression pedals for triggering or controlling signals to help breaking the ice. While these are small and still useful for simple uses, ADDAC wanted to create something more specific this time.

This new solution features 5 footswitches and 5 inputs for external expression pedals with independent controls for each.

The aim was to save HP rack space and so created an external floor pedal with all the footswitches and controls, keeping the module HP to the minimum possible featuring only the 10 outputs and the connector to the external floor pedal.

There are many expression pedals in the market and although the most common one is the TRS pedal there are 2 other standards: RTS and TS.

All five ADDAC311 inputs expect TRS pedals, if you're looking into buying one choose a TRS pedal.

If you already have other pedals channel 4 features jumpers that can be switched in order to be used with a RTS pedal.

Channel 5 features a jumper that can be switched in order to be used with a TS pedal.

External expression pedals are required for their outputs to work.

External expression pedals are not included

Notes: ADDAC710 is a dual channel Isolated DI box and is all about keeping the sound coming from your Modular free from any undesired noisy interferences, making sure that what you're getting from your outputs is what your Modular is actually producing. It provides galvanic electrical isolation between the Modular system and external sources preventing impedance mismatch and ground loop induced hum. ADDAC's 710 circuit is designed around a unity 1:1 type Low-cost Audio Transformer operating in the 20 Hz to 20 KHz range, this impedance matching transformer provides two fully balanced outputs (via XLR connectors). ADDAC710 is a low-cost alternative to the ADDAC800X High-End Outputs module, we redesigned the original circuit using a smaller low-cost transformer that also reduced its depth allowing it to fit shallow Eurorack cases.

There are two independent channels on the module with:

Audio Input

LIFT/FLOAT/GND toggle switch
Signal overload warning led
XLR Output

The LIFT/FLOAT/GND 3-way switch lets you choose between lift, ground or floating ground.
In the LIFT position (left) the module circuit will be "lifted" to ground through a 100R resistor and a 10nF capacitor.
In the FLOAT position (middle) Ground will not be shared leaving ins and outs grounds completely apart from each other fully isolating both signals. in the GND position (right) Ground will be shared between inputs and outputs, here no isolation is used.
Any of these three positions may be the best form of avoiding ground loops or any other undesired interference occurring between your modular and the sound system you're plugging it into. Try out which one of these options will work best in any given situation.

Tech Specs:

6HP
4 cm deep
40mA +12V
40mA -12V

The importance of using Audio Transformers
Applying a transformer balanced output isolation has lots of advantages over other less expensive ways for dealing with ground loop issues. This method provides the chance to set a very simple and clean circuit in which the signal transfer process develops smoothly and humming free. The transformer is a device that performs both signal balancing and high-to-low (or vice-versa) impedance conversion, while rejecting straggled DC voltage and Radio Frequency Interference from signal passing through a magnetic bridge. In a transformer, two (or more) coils (called windings) of insulated wire wound around a magnetic metal core allow for its input(s) and output(s) not to be physically connected together. When an AC signal passes through the input winding (the primary), a perfectly related AC signal appears on the output winding (the secondary). This way, by the fact that signal flows via inductive coupling between the two windings of the transformer, this module presents a most accurate electrical isolation between its input and output. A same number of windings on each coil guarantees that there's no gain loss when audio signal passes from the primary to the secondary windings. Furthermore, since these two windings are insulated from each other, the transformer will electrically isolate ADDAC710 from any other device, preventing hum problems coming from an outsider ground. Being a low-cost transformer the frequency response curve is not as linear as our 800X, still the -0.2dB attenuation at 50Hz feels negligible.

Phantom Power

+48V Phantom Power is NOT needed for the module to operate.
In any case having Phantom Power ON won't influence the module operation.

Notes: This 1u version will be functioning as its 3u counterpart but with four channels.

More info to follow.

Notes: 2TONE is a dual bass-treble tone control, that is a quite useful companion for the MIXCONSOLE, to shape the overall spectrum of individual signal paths.

Notes: For anyone who has ever struggled with finding their way around a Eurorack synthesiser on a dark stage or a dimly lit studio, Dim 2 presents an illuminating experience. In just 4 HP, it provides a complete solution to upgrade your modular system with a pair of dimmable console lights.

The high-efficiency PWM dimmers run at high frequency, ensuring flicker-free and noise-free operation. Additionally, extensive line filtering keeps your Eurorack power supply happy and clean.

Not limited to just manual control, both dimmers also feature control voltage (CV) inputs, turning the connected lamps from simple light sources to voltage controlled audio-visual spectacles.

While the use of the included BNC LED lamps is recommended in order to keep power consumption low, halogen lamps may be used as well. Provided your power supply is beefy enough, up to 6 W of power may be drawn from each output. This even makes it possible to drive 12 V LED strips, truly making your patches shine bright.

4 HP | +12: 150 mA, -12: 5 mA | JORD2
