Notes: If you can code it, you can make it.

The patch.Init() is ElectroSmith's exploratory modular interface for the Daisy Patch Submodule. Open-source both in hardware and firmware, the patch.Init() is the perfect jumping off point for your next modular DSP project. From ethereal reverbs, glitchy processors, comprehensive samplers, and complex oscillators, the patch.Init() can be any module you need it to be. Looking to create your own commercial module? The front panel design is completely open-source (MIT). Just create your interface, add the Patch Submodule to the back, and you are off to the races with industry leading specs in an accessible, affordable package.

The patch.Init() comes with x1 Daisy Patch Submodule.

Check out the Patch Submodule here.

Get the Design Files here.

Eurorack development platform for the Daisy Patch Submodule

High Fidelity Daisy architecture: 24-bit, 96kHz sample-rate, 64MB SDRAM, STM32 H7 processor

Stereo I/O

Utilitarian design, with code-matching front panel parameter names

Tech Specs

Width: 10HP

Depth: 31mm

Power Consumption*: +12V=90mA, -12V=5mA, +5V=0mA

*Power consumption is firmware dependent

Notes: ST Amp is a 1U stereo amplifier designed to boost your external signals into modular levels. The module is designed under the Intellijel 1U format and uses the same pinout, making it fully compatible with the Intelljel case's rear connectors.

Features

Stereo amplifier and signal booster.
Three selectable gain modes: x1, x5 and x10
Level meter LEDs
Fully compatible with Intellijel's 7U and Palette cases.
1U Intellijel format.

Specs

Current needs: +12V: 30mA, -12V: 30mA
Width: 10 HP
Depth: 37mm (including power connector)
Aluminium, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

Notes: STMix is a four-channel stereo mixer in 28hp and 1U format. It can work independently or as an expansion of Befaco's Hexmix module via the six-pin connector located in the back. The module is designed under the Intellijel 1U format.

Features

Four channels stereo inputs with volume control.
AC Coupled inputs to improve audio performance.
Output clipping LED indicators.
Connector at the back to interface with the Hexmix module.
1U Intellijel format

Specs:

Current needs: +12V: 30mA, -12V: 30mA
Width: 28 HP
Depth: 20mm (including power connector)
Aluminium, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

Notes: Typically creative stuff from Frap Tools, the Bagai offers analogue sample and hold, but crushing and down sampling, but its combination of six interlinked, CV-controlled sections is capable of much more.

Supplier's Notes:
bagai / ba'ga?i / s.m. [modenese dialect, from a late Latin bagagium 'baggage', formed after the late Latin baga, deriving presumably from the Anglo-Saxon bag (see ancient French bague, Provencal bagua, 'bundle'), whose root may be traced down to the Indo-European *pac, 'to tie,' from which also 'package,' 'pact'] - 'thing,' 'thingamabob.' A term used when the actual name of a thing or a person does not come to mind.

A module that is at the same time a clock burst, S&H, audio bitcrush, or fluctuating random voltage generator is indeed a bit elusive to describe in a single word. Even if one tries, some aspects will always be missing.

Why bother, then? Let's just call it "that thingamabob," or better, "that bagai."


Bagai is an analogue sample and hold, bitcrusher, and downsampler for Eurorack systems, also capable of generating clock bursts, fluctuating random voltages, and coloured noise.

It consists of six highly intertwined sections:

A clock with straight and random outputs (yellow)

An analogue noise generator with variable colour (grey)

A bipolar fluctuating random voltage generator (white) with variable rate

A sample and hold the circuit (orange) with selectable time scale, slow for modulation, or fast for audio sampling up to 48 kHz.

An 8-bit quantized version of the orange S&H circuit with variable bit depth (red)

A clock burst section (green).

By default, it outputs bipolar random voltages and triggers. The voltages are fluctuating, stepped, and quantized with selectable bit depth. The clocks are straight, randomized, or "burst."

Once you start patching, you can use it as a S&H, audio downsampler, and bitcrusher, with a sample rate of 48 kHz.

All its major parameters are voltage controllable.

It belongs to the same family as Sapel, with the following differences.

Sample and Hold with an 8-Bit Quantiser

Bagai features two stepped S&H circuits with open input (semi-normalled by default to an analogue noise source).

The quantized one has a LSB selector that defines its bit depth, from 1 to 8 bits.
Random Triggers & Clock Bursts

Besides the well-known "main," "more than," and "less than" modes, Bagai also features a clock burst circuit that creates super fast and unpredictable streams of gates that you can combine with the main clock or to any other trigger you want.

Voltage-Controllable Bitcrusher

When used with audio signals, the 8-bit quantized S&H becomes a warm bitcrusher effect with voltage-controllable bit depth!

Dynamic Downsampler

Bagai's internal clock can switch to an audio rate mode going up to 34 kHz. Patching audio signals into the S&H input will transform Bagai into an analog audio downsampler.

Open Signal Path

Lots of semi-normalled connections allow you to use Bagai in infinite ways: cross-patching has never been this fun.

Start and Stop Controls

You can control both the main clock and the clock bursts via external gates. The main clock also features a button to manually hold it.

Analogue Noise

At Bagai's core is a thermal noise generator that feeds the S&H circuit, creating random voltage streams. The noise output features a knob that changes its colour, emphasizing the high or low frequencies.

Fluctuating random voltages and Global Rate of Change

The feature that was so loved on Sapel, now bipolar and with extended range!

Clock generators: 1
Clock range: ~0.05-75 Hz / ~0.025-34 kHz
Fluctuating random voltage circuits: 1
Fluctuating random voltage type: Bipolar (extended range)
Quantized random voltage circuits: 1 Bipolar
Quantization approach: Fixed source amplitude, variable bit depth (1-8 bit)
Unquantized S&H circuits: 1
Unquantized S&H type: Bipolar
S&H source: Built in Thermal noise or any external signal
Random clocks: 1 section with Simultaneous More than, less than, and burst
Probability distribution: On the fluctuating random voltage
Burst Section: 1
Noise Sources: With tone control
Noise Generators: 1 built in thermal noise

Specifications:

Size: 12 HP
Depth: 38 mm

Current draw: 190 mA @ +12 V / 90 mA @ -12 V
Recommended warmup time: 30 min
CV input impedance: >90 KO
Clock input impedance: >100 KO (on positive pulses), ~30 KO (clamping negative pulses)
Built-in clock frequency (1): ~TBA- >70 Hz
Clock output (period): ~2 ms
Clock output (amplitude): ~10 V
Sampling glitch: filtered
Noise output level: 10 dBU RMS
Noise output tolerance: +/-3 dB

Notes: Module A-130-2v is composed of two identical voltage controlled amplifiers (VCA). Each VCA has a manual gain control (also named Initial Gain) and a control voltage input with attenuator. The character of the control scale can be switched to linear or exponential. All inputs and outputs are DC coupled. Consequently the VCAs can be used to process both audio and control voltages (e.g. for voltage control of the level of LFO or envelope signals). The signal input has no attenuator available but is capable to process up to 16Vpp signals (i.e. -8V...+8V) without distortion. For the processing of higher levels an external attenuator (e.g. A-183-1) is recommended.

The amplification range is 0...1. Even with a higher external control voltage the amplification remains at 1 (kind of "amplification clipping" at 1).

Controls (for each of both units):

Gain: manual gain control (Initial Gain) in the range 0...1
CV: attenuator for the CV input
lin/exp: switches the VCA characteristic to linear or exponential, in center position the VCA is off (mute function)
Inputs and outputs (for each of both units):

CV: control voltage input, min. +5V required for max. amplification (1) with CV control fully CW and Gain fully CCW
In: signal input, max. 16Vpp (+8V...-8V) without distortion
Out: signal output

A-130-2v is the slim version of module A-132-3 and offers essentially the same features. But the distances between the controls are smaller and rubberized small-sized knobs are used. In return the front panel has 4 HP only which is half the width of the A-132-3. The module is primarily planned for applications where only limited space is available.

Power consumption: 30mA at +12V and 30mA at -12V

Depth: 50mm

HP : 4

Notes: The Serge GTO is a newly designed, complex multi-functional module which can be patch programmed to provide various slew and sample functions both for audio and CV signals, but also act as a (dual) oscillator or filter or bitcrusher or ... It is one of the essential Serge modules. The GTO is an offspring of the famous Serge SSG.

The Smooth section will place a positive and negative slew on input voltage transitions for lag effects, voltage controlled portamento and for low frequency filter applications. In Cycle-mode (cycle jack patched to the input), the Smooth side “will oscillate yielding a voltage controlled triangle wave LFO. A high level into the HOLD input will enable the Smooth Function to be used as a track-and-hold circuit with voltage controlled slew rate.

The Stepped function can be used as a sample-and-hold with voltage controlled slew rate limiting. In Cycle mode, a pulse applied to the Sample input will generate complex staircase waveforms for control voltage applications and for use as audio signals.

Each side has a temperature-compensated 1V/Oct input for use as an oscillator with a frequency range of up to 20kHz (left) and 8kHz (right). Each side tracks over 5 or 6 octaves.

The Coupler is an internal comparator which compares the output levels of the Smooth and the Stepped Generators. This output is useful for generating complex control voltages or random voltages.

Dimensions:
18 HP
25 mm deep

Current draw:
45 mA +12V
40 mA -12V

Notes: Think of the MFD like a tiny DJ mixer: two stereo inputs, one stereo output, with the option to cue either input and crossfade between the two. A simple idea very well executed.

Supplier's Notes:
Inspired by DJ mixers, the MFD allows you to cue and crossfade between signals. Ideal for live performance as well as jamming out ideas in the studio.

Supplier's Notes:
The 'MFD' is a 2-channel stereo crossfader designed for live DJ-style mixing and jamming in Eurorack. Two mono or stereo inputs are mixed to a single stereo output via direct or voltage control. Additional Cue controls provide preview monitoring of either input pre-mix via dedicated Cue switches and an output.

Voltage control over the crossfade and DC coupling allow for further creative uses such as a high quality stereo VCA or as a mix processor for either stereo audio signals or CV.

The MFD is designed to have very low noise and cross bleed and employs equal power crossfading for smooth constant level blending between signal sources.

Features:

Two channel stereo crossfader with voltage control.
Approx equal power crossfading.
Cue output switches for direct monitoring of either stereo input (pairing well with HPO for headphone monitoring).
Can be used as a high quality stereo VCA.
DC coupled for use with both audio and CV.
Skiff friendly with reverse power protection.
Two year warranty.
Made in England.

Ideal For:

Smoothly blending and monitoring 'tracks' or 'scenes' during a live set.
High quality VCA use for stereo based sources.
Voltage controlled crossfading and mixing of both CV and Audio signals.
Other advanced uses including audio rate modulation, stereo panning effects and a CV controlled FX send.

Technical Specifications

Supply: +12V 70mA / -12V 70mA

Size: 6HP

Depth: 32mm

Notes: Add-on for the Krait module.

Ewa was created as a lovely partner for the Krait module, a syncable 3-channel modulation source. Paired with Ewa, Krait will get new useful abilities, such as 3 freely routable cv inputs, endless encoder for smooth editing without value jumps, dedicated clock menu button and clock and reset outputs.

Each CV input can be used to record external cv source in Record mode. Beside that you can route any input to any parameter of the LFO and Random too. With Ewa now it is easy to modulate LFO rate or Random slew for example. CV inputs are bipolar and react to the signals between -5 +5 voltages.

Additionally a dedicated clock menu button and clock output can make Krait as a clock source for other modules in your system that need sync.

Technical details

4 hp

20 mA +12V

12mA -12V

0 mA 5V

42 mm deep

CV input voltage ranges: +5-5v, 0v+5v

To use Ewa, you need to install firmware 2.0 on Krait.

Notes: Packed with powerful features while maintaining intuitive playability, Strymon's Magneto module is a stereo multi-head tape delay that also functions as a looper, phrase sampler, vintage spring reverb unit, phase-aligned clock multiplier, chaotic oscillator, zero latency sub-oscillator and more, with extensive CV I/O.

Turn simple monophonic signals into complex orchestrations. Create new oscillator tones using self-oscillation. Add rich stereo dimension to your sound, and enjoy the inherent warmth and sweet, subtle distortion characteristics of magnetic tape. Magneto transforms even the smallest rack into a fully expressive, immersive instrument.

To capture the full experience and complexity of a vintage tape echo machine, every last tape system attribute was relentlessly studied and faithfully recreated. From the sought-after natural saturation and soft clipping of magnetic tape when driven hard, to hands-on real-time controls for tape age, tape crinkle, and mechanical wow and flutter, Magneto delivers a rich multi-head delay experience that adds life and vibe to your sound.

Every function, control, gain stage, and signal path component in Magneto works together to respond musically and smoothly, even during the wildest live modular improvisations. All this is combined with a luxurious spring reverb to take the sound of your modular setup to a new level, and your sonic explorations into far-out territories.

Not only does Magneto deliver the warm, luscious delay signals that tape delays are known for, it is also capable of a high degree of saturation. Turn up the Record Level knob to send a hot signal to the record head for any amount of tape saturation you desire. Turn up the Tape Age control for warmer repeats. Add some truly beautiful Spring Reverb. Magneto adds organic heart and soul to the sound of your modular.

The effect of the Low Cut and Tape Age knobs are explored, followed by the mechanical 'deterioration' of the machine with the Crinkle and Wow and Flutter controls. The Speed knob is put to use for sonic enhancement.

In a typical digital effect the dry signal gets converted to digital, causing conversion noise and latency. Signals are often attenuated before combining digital dry and wet, with makeup gain amplifying the conversion noise. To avoid this scenario, Strymon have equipped Magneto with a completely analog dry path. Why go to all this trouble? Because the improvements in dynamic range and reduction in noise are so dramatic.

Strymon have outfitted Magneto with the powerful Analog Devices SHARC ADSP-21369 processor, which provides a 366 MHz core instruction rate, and an incredible 2.4 Gigaflops of peak performance. Thanks to this high-powered technology platform within Magneto, we had the freedom to craft our processor-intense tape echo algorithms without compromise.

Notes: A handy combination of two of Serge's most recent designs:

The GATE (left side) is an enhanced redesign of the classic Serge Gates which can be used as a linear or exponential VCA or ring modulator or some interesting combination of these.

The VCFX 2023 is a newly designed Serge filter that is essentially a Bandpass, but also offers a Lowpass output.

Serge NEW GATES / VCFX 2023 for eurorack:

Designed by Serge Tcherepnin 2023
Eurorack format (3U), 18 hp
Power consumption: 24mA @ +12V, 24mA @ -12V
(NEW) Skiff-friendly: < 25mm (1")

Notes: A powerful utility module:

The 2+2 Mixer (left side) is a combo of two DC coupled 2-channel mixers with a sum out. For audio or CV purposes.

The Dual VCA is the audiophile and distortion friedly VCA taken from the Stereo Mixer. It has a special exponential response that imitates the behavior of the early Serge VCAs and allows massive amplification and overdrive. Beware - the resulting signal can get very high amplitudes (up to 16Vpp) and allows squaring of a sine or triangle wave.

Serge 2+2 Mixer / Dual VCA for eurorack:

Designed for audio performance
Eurorack format (3U), 18 hp
Power consumption: 55mA @ +12V, 50mA @ -12V
(NEW) Skiff-friendly: < 25mm (1")

Notes: 3xMIA is a 6-channel attenuverting mixer/offset/scale/polarizer

3 blocks of 2-channel attenuverting mixers, using dual concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.

With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.

DC coupled, so it can be used for audio, CV, or both at the same time.

80 mA +12V
80 mA -12V
35 mm Depth
24HP wide

Notes: The perfect pairing of a virtual analogue kick drum and side chain compressor. Designed as a single, easy-to-control module, Kickain revolutionizes your kick drum workflow by managing low-frequency artifacts and transients. The result? A cleaner, tighter mastering-standard mix featuring a truly powerful kick drum.

Spectral Compression

Kickain offers two spectral compressor modes that intelligently EQ the mix to fit around the triggered drum sound, adjusting continuously thousands of times a second. This optimizes the kick's loudness without intrusive 'pumping,' ensuring tracks sound tighter and richer in the low end.

Reverb

A 24-bit stereo drum room simulator, linked to the decay envelope, provides ambient reflections or explosive bass drops.

Notes: A Low Pass Gate (LPG) can be a low pass filter, a VCA or a combination of both. This means both the harmonic content and volume can be controlled simultaneously which resembles the behaviour of many instruments: the louder, the more harmonics.

The A-101-2's mode of operation is set with a switch: left position is low pass, right is VCA and the combo mode is in the centre. Alternatively, you can activate the modes with gate signals which is the reason for two gate inputs; this is very interesting in combination with clock dividers or trigger sequencers.

- Gate 1 high & gate 2 low = low pass mode
- Gate 1 low & gate 2 high = VCA mode
- Both Gate 1 & 2 high = combo mode

The A-101-2 has an aggressive sound, compared to other LPGs and its resonance goes up to self-oscillation which not many LPGs offer. The oscillation is rather dirty and far from being a sine wave.

3U Eurorack module, 8HP wide, 50mm deep.

Notes: Really nice take on an arpeggiator module here. Four-channel design features editable arpeggio patterns, CV control and transposition. Real-time performance meets customisable melody generation.

Supplier's Notes:
Four-channel arpeggiator with customizable patterns and CV control

Opp Ned is a four-channel arpeggiator designed for creating patterns that can be modified with CV. Opp Ned ships with 12 of Noise Engineering's favourite arps, including tetrads, major, pentatonic major, minor third, and pentatonic minor, but you can edit and save custom arpeggios to twelve memory slots. Recall your custom arpeggios manually or with CV using the Ptn input. If you ever want to restore the factory arps, just head to the Noise Engineering Customer Portal.

The transpose input makes it easy to combine Opp Ned with external sequencers, too!

Arps have never been easier than with Opp Ned.

Features

Size and Power
8HP Eurorack
+12v: 60mA
-12v: 10mA

Opp from Norwegian Opp for "Up"
Ned from Norwegian Ned "down"
"Ups and downs"

What's in the box

Module
Power cable

*** Noise Engineering no longer include screws with newly packaged modules. Bulk screws are available for purchase. ***

Notes: Saturation is a sound designer's best friend. As applying saturation to a sound can make it sound warm, rich and defined. But without any other processing the opposite can happen; making the sound harsh, destroyed and undefined. An often used technique in music production is to saturate specific parts of the spectrum, adding harmonics to enrich the sound but not lose its original quality.

Wyvern takes this technique and makes it a creative sound design tool. When deconstructed Wyvern is built out of a specific chain: Filter EQ, Saturation, VCA, Dual Filter, Dry/Wet Balance. Different combinations of these stages can be used for a variety of sound design and patch situations. And it is all in stereo, so you can apply it to your final mix and stereo signals with ease too!

The Filter EQ stage has a high-shelf, low-shelf and bell curve to boost or diminish parts of the spectrum. When the gain is set to a minimum the EQ curves turn into low-pass, high-pass and notch respectively. A Resonance control puts emphasis on a certain frequency, or it can be used to make Wyvern scream. This is then sent to a Saturation stage. The Drive control sets the amount of Saturation of one of the three

Saturation types

Soft clipping puts more emphasis on the third harmonic and compresses the sound.

Hard clipping puts emphasis on odd harmonics. Finally an Allpass distortion adds phase shifts and distortion. The Saturation stage also has a level control which can be used to decrease the gain after saturation is applied and can function as a unipolar VCA. The Saturation stage is also accompanied with a clip indicator led and a boost switch to scale input signal correctly or simply add more or less harmonics.

The Post-Saturation stage is a high-pass and low-pass combo. Allowing you to select a frequency band from the previous stages. Along with a balance control to adjust the balance between the dry and wet signal.

Whether you are looking to destroy your sound or go for subtle analogue warmth; Wyvern has got you covered. Even when not used for saturation alone. It can be a Stereo Tone Controller, EQ, Filter, VCA and Phaser, all and anything in between. Making it a very fun and powerful sound design tool!

Features

- Filter EQ with Low-shelf, High-shelf, Bell, Low-pass, High-pass and Notch curves.
- Resonance to add emphasis on a frequency or to make it scream.
- Soft clipping, Hard clipping and Allpass distortion for a variety of flavors.
- Boost switch and clip indicator led to set Saturation scale.
- Level and VCA to adjust level while Saturation amount remains the same.
- High-pass and Low-pass combo to select a part of the spectrum.
- Dry/wet control to dial in the right amount of processed signal.
- Gain with increased and adjustable center detent position.
- V/oct tracking with temperature compensation.

165mA @ +12V // 150mA @ -12V

Notes: Pressure Points is a controller module, an analog sequencer that is played by hand. Touching the gold plated copper wires (aka Touch Plates), you become part of the circuit, generating a gate signal (Gate OUT), a control signal proportional to the amount of pressure applied (Press OUT) and the 3 Tuned Voltages for the activated Stage.

Notes: Revised take on the excellent Benjolin dual oscillator and filter from Rob Hordijk, featuring the 'rungler' stepped CV generator and extensive output options.

Supplier's Notes:
Benjolin V2 - Rob Hordijk's latest revision of the classic Benjolin. The core of the Benjolin continues to be two oscillators, the rungler (stepped CV generator), and a multimode filter.

This latest revision adds:

Reworked oscillator and filter sections

All levels are adjusted to eurorack standards

Two different steps modes (8/16 and 127)

Double and single clock rate

Externally clockable

External filter input with blend control

Notes: PRO Expanders:

Extra Pam Outputs.

ALM034-EX

PPEXP1 & PPEXP2 are two expander modules for Pamela's PRO Workout that both offer additional dedicated fixed clock, Din Sync & MIDI clock outputs.

Extend Pam as a master to clock external gear with super solid dedicated MIDI & Din Sync clock outputs. The Din Sync clock (x24) and Run outputs can also be patched into a 2nd Pam to easily sync it.

Use the extra fixed clocked gate outputs to free up Pam's main outputs for unique sequencing or complex modulation duties.

Connects directly to and is powered by the 'MIDI-EX' expander header on rear of Pamela's PRO Workout.

Only a single output expander is supported at any time but either can be used alongside an AXON-1 CV input expander.

A MIDI adapter cable and a Din Sync adapter cable are both available for connecting to 5 pin 'Din' type connectors. The PPEXP 1 includes a MIDI Din adapter cable.

Technical Specifications

Power: Additional approx +12V 40mA (PPEXP1) / 20mA (PPEXP2)
Size: 4HP & 2HP
Depth: 32mm

Notes: Get the most signal attenuation in the smallest 3U package possible! The ATT module features three independent IN - Attenuate - OUT circuits in one 2HP module. Works great for attenuating both audio and CV signals. Completely passive, so no current draw on your power supply.

Notes: Tap into the world of precise signal processing with the 2HP Eurorack-compatible Precision Rectifier. This compact but powerful module is a must-have for anyone who wants to modify their audio signals with the utmost precision. Not only does it provide rectified solid wave, but it also provides dedicated outputs for the positive half-wave as well as the inverted negative half-wave of the input signal. Perfect for experimental sound designers and creative synth users.

Compact format

At just 2HP, this Precision Rectifier offers a powerful feature extension for your Eurorack system without taking up a lot of space.

Versatile signal processing

Get access to rectified full wave to fully modify your input signal, ideal for dynamic effects and creative signal paths.

Dedicated Half-Wave Outputs

In addition to full-wave rectification, the module offers separate outputs for the positive half-wave and the inverted negative half-wave. This special feature allows you to play with the original character of the input signal and create unique sound textures.

Precise signal processing

The Precision Rectifier is designed for the highest level of accuracy, so you can count on clear and precise signal processing, no matter how complex your requirements are.

Notes: This module is divided between 3 functions, a 3 channel mixer, with 3 knobs the the singal together, this then passes in a dual analogue filter, a resonant 24db LPF and a non resonant 18db HPF, passing from there into a built in VCA.

Notes: Want to smooth out attack and release on your signals, but don't want to sacrifice too much space in your case?

Quadar is an analogue 4 channel slew rate limiter that can be used as an attack/release envelope generator. Send in any signal to independently control the attack time and release time with the A and R knobs.

Technical Specs:
- 3U x 6HP x 25 mm deep
- Current Draw: 10mA @ 12V, 10mA @ -12V

What's in the box:
- 1x Quadar module
- 1x Power cable
- 2x Mounting screws

Notes: Muxlicer is a sequential signal processor designed for add a huge range of special functions to your modular setup in the minimum space.

Muxlicer is divided in three main blocks: Digital Step Controller, Gate Generator and Analog Switch (a.k.a. Mux/DeMux).

The module is designed with high "function to HP ratio" philosophy, to have maximum flexibility in minimum space.

Notes: Four channel voltage controlled Clock Divider/Multiplier with master Tap Tempo. Each channel can be synced to the tap tempo, to the channel above, or to an external clock. Each channel also has a reset jack.

With a Tap Tempo button and five sync'ed clock outputs, the QCD is a versatile head-of-the-chain "Master" clock module, and/or a complex rhythmic pattern generator.

Notes: Dual 1x5 Passive Multiple

Two rows of 1 x 5 Passive Multing

Notes: This is a 4 mono channels expansion. Several of these modules can be added to provide more channels. Every channel features:
- Mono input
- Vactrol Gate (plug a CV into the GATE IN to modulate the volume of a channel, just like a classic VCA. When nothing is plugged in the GATE IN, the gate is normalled to fully open)
-SEND A control (switchable PRE/POST, in PRE mode the signal is present regardless to the channel volume control but only if the channel switch is in ON position)
-SEND B control (post-fader)
-PAN control (only affects the master bus)
-VOLUME control (affects the master, cue and POST sends, does not affect PRE-fader send)
-ON/OFF/CUE switch: ON - channel is routed to the master bus
OFF - channel is muted
CUE - channel is routed to the cue bus

13 mA +12V
8 mA -12V

Notes: Alan (micro Turing Machine) Shift Register Based Sequencer

The randomness of the Music Thing Modular Turing Machine, shrunk down to 6HP. Alan retains all of the same functionality as the original including the connectors for the expanders.

While this module has little to do with the original Turing Machine (by Alan Turing), it is a shift register based sequencer. You cannot program this sequencer, instead it builds random sequences that can be locked in.

Alan comes tested, calibrated and ready to bring random voltages.

The After Later Audio panel is black and gold and made from FR4. The package will include a power/ribbon cable and a one year warranty.

Notes: Clouds

This is a new build of a Mutable Instruments Clouds. This module is identical to the now discontinued factory made Clouds. This module loads parasites 2.01 Firmware by default.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.

Notes: This is a new build of a micro sized Mutable Instruments Plaits called Knit.

These modules use tall bushing potentiometers to offer a more stable feel.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.

Width: 6HP
Depth: 25mm
Height: 3U
Power Consumption: 12V: 50mA -12V: 5mA

Notes: Proper creative stuff with this one. Lush, characterful stereo reverb with CV control, distortion, pitchshifting, a freeze button and more. Oh, and it's got user-customisable DSP firmware for good measure.

Supplier's Notes:
Desmodus Versio is Noise Engineering's take on a synthetic-tail generator reverb. In only 10hp, it features true stereo in and out, seven CV-controlled parameters, and three reverb modes. Desmodus Versio's feedback control sets the length of reverberation, from short echoes through infinite regenerations.

At its max, the reverb ducks when it receives input, useful for creating sidechain ducking and atmospheres for percussion. The different reverb modes offer even more sound options with clean, distorted, and pitch-shifting shimmer settings. The FSU button acts as a freeze and also creates some noise to stimulate the reverb when there is no external input.

Desmodus Versio isn't just a reverb, though: it's a DSP platform. Its firmware can be changed via USB, so users can load future firmwares onto it or develop their own with upcoming open-source support.

With Desmodus Versio, Noise Engineering continues their tradition of supporting conservation:a portion of proceeds from every Desmodus Versio sold goes to Bat Conservation International. Find out why bats are not only cool but also an important part of our ecosystem at Bat Conservation International's website, batcon.org.

Notes: The Ultimate Eurorack Utility Module (and a whole lot more!)

The DATA is a digital platform for testing, measurement, and signal generation in Eurorack modular synthesis systems. It is a modular tool kit, with functions applicable to any system and style.

Use the DATA's scope to view the interactions between your control voltages and audio signals, allowing you to master your modules by understanding their voltage ranges, control shapes, and parameter responses. Use the DATA's dual waveform generator to dial in a precisely scaled LFO for CV control, or use the waveform's frequency "note mode" to effortlessly make dyads (two note chords). Use the DATA's clock program as a master clock or to divide or multiply an incoming clock signal, sending four different clock outs to gate modules directly or as control to sequencers.

The possibilities of the DATA are basically unlimited; with the included microSD you can update the DATA's firmware and we can continue to refine and create new programs.

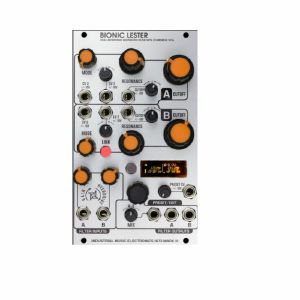

Notes: Incredibly powerful two-channel filter module capable of much more than just filtering. State-variable digital filters with built-in VCAs designed to overdrive beautifully. Sounds great.

Supplier's notes:
BIONIC LESTER MARK III is a 2-channel 2-pole state-variable digital filter with an unusual amount of good sonic character. The filter mode is continuously variable under manual or CV control, smoothly fading from lowpass to bandpass to highpass to notch to allpass with a single motion. The resonance stops just short of self-oscillation. A digital VCA controls the amplitude and the distortion of the input signal pre-filter. The filters have independent inputs and outputs, and an additional Mix output with balance control. The filter design was initially inspired by the best of late-1990s "virtual analog" filters and has gone far beyond.

The audio input controls have dual behavior. When the control (or CV input) is turned from zero position to the center, it operates as a simple gain control for that input. When turned past the center position towards the maximum, the signal will begin to soft-clip, adding hard clipping as the maximum is approached. This smooth and subtle distortion adds violence to otherwise unremarkable input material, generating additional harmonic content for the filter to process. The digital VCA that controls the gain and distortion functions is aware of the input signal's zero crossing, eliminating "clicking" noises when the gain is modulated.

Each filter section has three CV inputs. The first is a high-speed input hardwired to the filter's cutoff frequency, appropriate for snappy envelopes and slow moving voltages alike. The other two inputs (one with attenuverter control) are freely assignable to any of the filter parameters (cutoff, resonance, mode, gain), storable in a preset. The Mark III preset system stores eight fully programmed panel setups, instantly recalling everything under the harshest demands of performance. The Morph mode allows smooth fading between all of these presets.

Activate Filter B's LINK control for patch-free routing of the filter's control or audio signal. You can achieve dual-peak resonance, cable-free series routing, cascaded 4-pole filtering (with two stages of distortion), and full stereo using only one set of filter controls. The input normalization, LINK settings, and parallel mix output further reduce cable clutter while rapidly patching an elaborate signal flow.

The controls are arranged for maximum tweakability and minimum cable interference, with metal-shaft potentiometers attached to the panel on the large knobs. The Mark III OLED display displays the cutoff frequency in Hertz, resonance amount, and filter type morph. The CV inputs process all input voltages between -10 to +10 volts. Panel size is 15HP.

Notes: VCO:

- Tune: manual tune control (with an internal jumper the range can be set to ~ +/-1 half an octave or ~ +/-2.5 octaves)
- Oct: range switch -1 / 0 / +1 octave
- Mod: modulation depth (attenuator wired to the Mod. socket)
- Dest: switch that is used to address the modulation to frequency modulation (position FM) or pulsewidth modulation (positon PM), in centre positon no modulation
- PW: manual pulsewidth control for rectangle waveform, PW can be also modulated by the Mod. input as mentioned above
- Wave: waveform switch (sawtooth / off / triangle), the sum of the waveform chosen by this switch and the rectangle is fed into the VCF (to turn the rectangle off the PW control has to be set fully CCW or fully CW)
- 1V/Oct. (socket): external CV input for VCO frequency (1V/octave)
- Access to internal bus CV (via jumper, optional, please remove the bus jumper if this feature is not used to avoid unwanted frequency modulation as then the unused CV line of the bus works as a kind of antenna)
- Triangle core VCO, frequency range about 32Hz ... 8kHz

Balance unit:

- The balance unit is made of two VCAs which are controlled by the sum of manual Balance control and the balance CV input in the opposite direction.
- The audio input of VCA1 is hard-wired to the VCO output, audio input 2 is connected to the socket Ext.In.
- The output of the balance unit is used as audio input for the VCF
- Bal.: manual balance control, fully CCW the internal VCO is used, fully CW the external signal (Ext.In) is used, at centre position both signals have about the same level
- CV Bal.: CV input for balance (range about 0...+5V)
- Ext. In: external audio input for VCA2, about 5 Vpp level required for similar loudness as the internal VCO
- This socket is normalled to the internal VCO suboctave f/2 signal (rectangle with half the frequency), if no external signal is applied the suboctave signal is used as the second signal for the balance unit

VCF:

- 24 dB low pass
- Frq: manual frequency control
- FM1: frequency modulation depth (attenuator wired to the VCF FM1 socket, the socket is normalled to the internal Envelope signal and then FM1 controls the modulation depth of the internal envelope applied to the filter)
- FM2 (socket) : second CV input for VCF without attenuator (about 1V/octave), can be used e.g. for VCF tracking by connecting the same CV which is used also for the VCO frequency
- Res: manual resonance control (up to self oscillation)
- If the VCO is turned off (waveform switch = centre position, pulsewidth control = fully CCW or CW) and the VCF resonance is set to maximum the module can be used as a sine oscillator, the tracking at socket VCF FM2 is about 1V/octave (not as precise as the VCO but much better than most other filters)
- ~ 11 octaves frequency range (~ 10 Hz ... 20kHz)

VCA:

- Gain: manual amplitude control (initial gain), can be used to open the VCA without envelope signal
- VCA (switch): used to switch between gate and envelope as control signal for the VCA, in centre position the VCA is not controlled by envelope or gate
- Note: when gate is used the VCA is controlled directly by the gate signal (i.e. hard on/off), this may lead to clicking noise under certain conditions (especially with low VCO/VCF frequencies)
- Special control scale: exponential scale in the range from about -20dB to -80/90dB, linear scale from about -20dB to 0dB
- Remark: this special control scale results in a loudness behaviour that is a bit different from pure linear or exponential VCAs
- Out: audio output of the module (= VCA output)

Envelope:

- Gate (socket): Gate input (min. +5V), can be normalled to the bus gate signal by means of a jumper
- Att: manual control for Attack
- D/R: manual control for Decay/Release
- Env. (switch): used to switch between A/D, ADSR and A/R mode of the envelope generator, in centre position (ADSR) the sustain level is fixed to about 50%
- Envelope (socket): envelope output (about +10V)
- CVT (socket): CV input for time control, by means of two internal jumpers one can select which time parameters are controlled by the CVT input (e.g. A only or D/R only or A/D/R) and in which direction (i.e. if an increasing CVT shortens or stretches the time parameter in question)
- Envelope LED display
- Attack time range: ~ 1ms ... 5 sec (can be extended by using the CVT input)
- Decay/Release time range: ~ 1ms ... 15 sec (can be extended by using the CVT input)

Notes: The Row Power 25 is a clean, regulated, and protected power supply module for Eurorack systems. It requires a barrel-style power brick (15V - 20V DC) and supplies power to modules via flying bus cables, direct connection, and/or bus boards.

The Row Power 25 provides 25W of power for any Eurorack modules (typically 4-10 modules*):

+12V @ 1.4A maximum, 1.0A recommended
-12V @ 0.8A maximum, 0.5A recommended
+5V @ 1.0A maximum, 0.8A recommended

*number of modules can vary depending on each module's power consumption.

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying-bus cables or the Bus Stick.

Multiple Row Power modules can be powered from a single power brick by daisy-chaining with an inexpensive barrel cable. The Row Power 25 can also be daisy-chained to Pods. Each Row Power and Pod will be independently regulated and protected for ultra-low cross-talk between rows.

Notes: Terci Ruina combines three classic distortions in 4 hp. Distortions are reinterpreted in classic NE style and routed through each other for complete sonic annihilation of any sound. Patch in and out anywhere in the signal chain to pick the best sound for your purpose (because modular). Looking for a pretty distortion? This is probably not your module. Unapologetically gross and dirty.

Notes: Module A-118-2 is the slim version of module A-118-1 and offers essentially the same features as the A-118-1. But the distances between the controls are smaller and rubberized small-sized knobs are used. In return the front panel has 4 HP only which is half the width of the A-118-1. The module is primarily planned for applications where only limited space is available. The functional difference between A-118-1 and A-118-2 is the additional T&H/S&H unit which is not included in the A-118-1.

The module generates the signals white noise, colored noise, continuous random voltage and stepped random voltage (derived from the continuous random voltage by means of a S&H/T&H unit).

The noise signal is generated 100% analog by amplification of the noise of a transistor. White and colored noise are usually used as audio sources. The random voltages are normally used as control voltages (e.g. for filter frequency or any other voltage controlled parameter).
The A-118-2 gives you the ability to mix the relative amounts of Red (low frequency component) and Blue noise (high frequency component) in the colored noise output.

For the continuous random voltage the rate of change (Rate) and amplitude (Level) of the random voltage can be adjusted. The continuous random voltage is derived from the colored noise signal by low pass filtering. Consequently the settings of the controls for the colored noise (Blue, Red) affect the behavior of the random voltage! A dual color LED (red = positive / yellow = negative output voltage) indicates the continuous random voltage.

The continuous random voltage is used as source for the S&H/T&H unit. The type of operation can be set to S&H (sample and hold) or T&H (track and hold). When T&H is chosen the output signal follows the input signal (= continuous random voltage) as long as the Clock input is "high". As soon as the clock signal changes to "low" the last voltage is stored. When S&H is chosen the input signal (= continuous random voltage) is sampled at the rising edge of the Clock signal.

For the Clock signal a "digital" signal (e.g. Clock, Gate, rectangle output of an LFO) is required. It does not work with slowly changing continuous CV signals. Another dual color LED (red = positive / yellow = negative output voltage) indicates the stepped random voltage.

Controls:

Blue: share of the high frequencies in the the colored noise output
Red: share of the low frequencies in the the colored noise output
Rate: rate of change of the continuous random voltage
Level: amplitude of the continuous random voltage
TH/SH: switches between T&H and S&H

Inputs and outputs:

RND: continuous random voltage output (with LED display)
TH/SH: stepped random voltage output (with LED display)
Clk: Clock input of the S&H/T&H unit
C Noise: colored noise output
W Noise: white noise output

Important notes:

After power on it takes a few minutes until the two noise signals and the random signals are generated. The module is not faulty when after power on the signals do not appear immediately!

The S&H/T&H function is realized by pure analog circuitry (electronic switch followed by a holding capacitor and buffer). Consequently the output voltage drifts a bit in the holding state because the capacitor is discharged by parasitic resistors. The drift depends also upon environmental conditions like humidity or temperature.

Dimensions
4 HP
40 mm deep

Current Draw
20 mA +12V
20 mA -12V

Notes: Module A-145-4 is a simple quad LFO (Low Frequency Oscillator). Not a very "exciting" module, just a bread-and-butter device and a simple demon for work. Virtually in every modular system several LFOs are required for modulation purposes. The module contains four simple LFOs with the waveforms triangle and rectangle. A dual colour LED (red = positive / yellow = negative output voltage) indicates the triangle output of each LFO. The frequency range can be chosen for each LFO individually by means of a jumper between about 50 Hz ... 0.04 Hz (about 20 seconds, jumper removed) and about 2Hz ... 0.002 (about 8 minutes, jumper installed).

The module can be treated as a slimmed version of the quad LFO A-143-3 as it has similar features available. But the distances between the controls are smaller and rubberized small-sized knobs are used. In return the front panel has 4 HP only which is less than one third of the A-143-3. The module is primarily planned for applications where only limited space is available. The functional difference compared to the A-143-3 are the missing sawtooth outputs and frequency range switches.

Notes: Erica Pico VC EG is versatile looping AD/ASR envelope generator with voltage control over attack and decay times. It has automatic Trigger/Gate detection, as well as "drone mode" - at full CW setting of the Decay knob, the envelope is full open. In the LOOP mode you can re-trigger envelopes for even more interesting modulations.

Features

AD/ASR envelope
Automatic Trigger/Gate detection
Manual and voltage control over
Attack and Decay time
Manual trigger button
Input protection against over-voltage
Protection against reverse PSU connection
Output amplitude 0V - 10V
Attack time 5ms - 1s
Decay time 5ms - 50s
CV level (Full span) -5V - +5V
Power consumption +17MA, -13MA
Module width 3 HP
Module depth 35 mm

Notes: One of the most impressive granular synthesis approaches in Eurorack, combining looping and granular effects with buffer sizes up to five minutes. Hugely creative and powerful dual-module setup.

Supplier's Notes:
There's a long history behind the granular concept and many reinterpretations of it's core principles, this is ADDAC's take on it.

In a loose description digital Granular refer to pieces of sound files being played at the same time with slight or completely different parameters originating what is commonly referred to as granular clouds. Normally there's a buffer size from which the granular engine snips it's pieces from and plays them according to the parameters set. This buffer size is normally small in size where grains are so small that can reach the hearing spectrum and be heard as a sort of ever changing complex wavetable, this is the principle behind granular synthesis.

ADDAC have added the possibility of long buffer sizes up to 5 minutes, allowing "softer" approaches to the granular principle using it as an effect that can generate from "accidental" effects like slight "stutters" to extreme processing and transformation of any incoming audio signal.

This module is conceptually deep but easy to grasp and operate as all controls are in its dedicated panel, all jack inputs and outputs have its own separate panel to allow no compromise when playing it's controls.

There are three main sections in this module:
Looper Engine: The Looper is where all the Real-Time recording happens. The audio input feeds the recording buffer, multiple controls allow to record and play loops into a list so that any sample in the list can be accessed at ay time and more acting as a standard looper
Granular Engine: The Granular acts upon the buffer of whatever LOOP is selected.
Output Mix The output mix allow individual control for the Dry Input, Looper Volume and Grains Volume.
Besides these main sections there's also a simple strip down MENU mainly used to LOAD and SAVE Banks, no Menu diving guaranteed.

For more detailed info, please refer to the User's Guide.

Audio Specs:
Audio input: Stereo, 16bit 44.1Khz
Audio output: Stereo, 16bit 44.1Khz

Tech Specs:
32HP + 13HP
4.5cm deep
240mA +12V
70mA -12V

Notes: The Jumble Henge is a 16 input stereo spectral mixer with a unique patch-based mixing interface in a compact space. Each input has a carefully tuned resonant analog filter and a unique fixed pan value, providing each sound its own space within the mix. There is a Mix control to adjust the depth of the filtering and a clean external stereo input for chaining with another mixer or extra sound source. Jumble Henge is a space efficient solution for creating rich stereo mixes from a number of both mono and stereo sources.

INPUTS
Vertical and horizontal patch position determines a source's spectral and stereo placement in the mix respectively.

Aside from centred inputs, every input sits in its own unique pan position, helping to keep a separation between sounds but building a complete stereo image when combined.

The centre right inputs of the top two rows are normalised to the centre left inputs. - i.e if just a left input is patched it will be effectively panned center.

Towards the highs the panning becomes wider - as the human ear better pinpoints direction at higher frequencies, whereas the lows remain more centred for a tighter, more focused sound.

MIX CONTROL
Mix control for the overall depth of the filters applied to the inputs. Note: a slight volume increase occurs near the centre of the dial.

EXTERNAL INPUT
An additional clean stereo input pair for chaining with another mixer or additional source. Right input normalised to left input to accomodate mono sources.

OUTPUTS
Stereo mix output, the sum of all 16 inputs.

Jumble Henge was designed in collaboration with Worng Electronics and is based on the 'SoundStage'.

Technical Specifications

Supply: +12V 70mA / -12V 70mA

Size: 8HP

Depth: 38mm

Notes: Want some distorted drums or thicken up the final mix but you are short in rack space? Pico Drive is the answer! Pico Drive is combined wavefolder overdrive module that features manually adjustable Gain and Drive level, CV control over Gain and Drive adds more expression, while built in limiter prevents output signal to run into undesired clipping.

Features:
Manual Gain and Drive controls
CV control over Gain and Drive
Wavefolder
Output signal limiter
Input and output protection against undesired overvoltage

Technical specifications:
Audio output level: -5...+5V
CV level (full span): -5V - +5V
Power consumption: 29mA @ +12V, 29mA @ -12V
Module width: 3HP
Module depth: 35mm

Notes: Complex digital oscillator with unison detune, programmable 3x4 modulation matrix mixer and external input. Intricate arrangements of phase distortion, thru-zero frequency modulation, and complex oscillation are instantly morphable and recallable through a voltage-controlled preset manager. Suitable for genre-targeted sequenced basslines, synthesis of stone, glass, and steel tones, and simulation of the acoustic properties of industrial machinery.

The Hertz Donut Mark III's main oscillator shapes its timbre by distorting the phase of a waveform lookup ramp, offering a linear growth of brass overtones from a simple sine wave whilst performing with exceptional clarity under heavy frequency modulation. The simulated resonance peak familiar to enthusiasts of phase distortion is also present and continuously controllable. The beloved "fractal" distortion from previous iterations of Hertz Donut is simultaneously available. The three waveform parameters operate in a modeless timbre space fully morphable under preset and shared manual/CV control, exhibiting stunning spectral evolutions that are intensified through the module's internal modulation bus. The fold knob is assignable to control one of the three parameters at a time, with the CV input also assignable to any of the three.

Two sinusoidal modulation operators are mixed to four modulation destinations with an external audio input. The operators may be locked to several precise frequency ratios of the main oscillator, or set to be otherwise subordinate. The three sources may modulate each other's frequencies, or the amount of phase or fractal distortion. A plethora of control voltage inputs allow full control of the patch, reacting within a +/- 10V range. The first operator has a calibrated 1v/oct control voltage input and fine tune control, for use as an independent oscillator augmented by the modulation bus. The modulation mix is placed under the influence of a master control, so that a single knob and CV input control the degree of modulation in the entire module. Each sound that you design will have a unique and intense behavior of this modulation control.

The preset manager stores 8 entire panel/menu states for instant recall under manual or voltage control. The control can also cause the creation of elegantly randomized preset data. The preset manager can be placed into a morphing mode where it assumes control of the various parameters, smoothly fading between entire panel states and generating very complicated sounds that are not easily described.

The unison detune function mixes in a nearly identical copy of the sound with slightly offset frequency, or optionally in octave or fifth intervals. The Hertz Donut operates at 96khz for a minimum of sampling byproducts, able to consistently and competently generate ornate digital beauty and jagged swaths of sonic mayhem. The auxiliary output presents the output of one or both modulation operators, also with optional unison applied. The nearby mix output is an analog sum of the Main and Aux outputs, facilitating parallel FM algorithm construction. Perfect, genuine, complete, crystalline, pure.

Specs:

Main oscillator with resonant, phase, and fractal distortions (CV and manual knob destinations selectable)
8 octave tuned CV response (1V/octave)
2x sinusoidal modulation operators with frequency interval lock or free operation
External thru-zero FM input
4x3 modulation matrix mixer with master amount control
128x32 OLED display providing realtime note, frequency, and modulation information, as well as menu access to deep settings
All parameters may be placed under control of morphing preset manager with 8 onboard presets (nonvolatile)
96 kHz sampling rate

Notes: Black Stereo Mixer is just what you need, if your setup has several nowadays gaining popularity modules with stereo inputs or outputs, like Black Hole DSP, Erica Fusion Delay, MI Clouds or some other. In order to save rack space, we designed compact mixer with lot of cool, performance oriented features.

In order to save rack space, we designed a compact mixer with a lot of cool, performance oriented features.

Check out also the Black Pre-fade Listen Expander that is a satellite module to Erica Synths Black Stereo Mixer!

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Notes: Stmix is a compact 4 channel stereo mixer with an Auxilliar input. This input will allow us to chain a few of them or to insert an extra fifth input.

This module is compatible with Befaco's Hexmix system, and can be internally connected to hexmix module to add the output of STMIX to your main mix.

Specs

Current needs: +12V: 8mA, -12V: 10mA
Width: 6 HP
Depth: 20mm (including power connector)
Aluminiun, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

Notes: The Listen Four is a four channel stereo mixer with line, modular, and headphone outputs. Two mono channels with Pan knobs and two stereo channels with dual inputs provide optimal compatibility with both stereo and mono signals. The Listen Four can be daisy-chained to other Listen modules to create a larger mixer with sub-mix outputs.

Notes: The Stereo Triggered Sampler can record high quality stereo files, while simultaneously playing two different stereo files. A maximum of 600 samples can be loaded from the removable/swappable microSD card, in a variety of formats up to 96kHz/32-bit/stereo WAV. All sample parameters (1V/oct pitch, sample file selection, length, and start position) are CV controllable.

600 Samples:
A maximum of 600 samples can be loaded at once, arranged into banks of 10 samples each. Samples and banks can be re-arranged on the fly using the simple on-board Edit features. Newly recorded samples can be instantly played back and re-pitched, reversed, chopped up, etc... the result of which can even be bounced down and re-recorded to as a new sample! Sample files are limited to 4GB each, which is over 6 hours at 44k/16b/stereo.

Two Stereo Playback Channels:
Each playback channel has a knob and CV jack for Sample File selection, as well as a Start Position knob and CV jack for controlling where in the sample playback will begin. The Length knob and CV jack determine how much of the sample is played back: from tiny grains, to percussive hits, to longer loops... or just the entire file. These are powerful tools for re-arranging a sample, joining multiple samples, and creating dynamically re-sized loops within a larger sample. Combined with the Play Trigger jack and the 1V/oct jack, the STS can be two complete multi-timbral pitch-tracked stereo voices!
There's also a Reverse button and jack for backwards playback, and an End Out jack for synchronizing loops, or cascading sample playback with other events.

Looping and Sync:
Looping is easy: just hold the PLAY button down for two seconds to toggle loop or one-shot. The loop timing clock will output from the End Out jack. Or, send a clock into the Play Trig jack to sync the loop to external timing.

Stereo Recording:
Whether you patched 47 modules to create the ultimate percussive blast, or you want to capture your four hour ambient performance, recording high-quality .wav files on the STS is simple. Just hit the REC button or fire a trigger and a new stereo .wav file will be created on the SD card. Do as many takes as you need: the STS never deletes your files. Re-ordering or re-arranging samples into banks is easy, even without a computer.
You can even fill a bank with 10 different variations and immediately use them for playback.
By default the STS records at 44.1kHz/16-bit, with an option for 24-bit (a future update may increase the sample rate to 96kHz)

Easy sample loading:
Using a computer is completely optional with the STS, since samples can be recorded directly to the module and placed into the bank of your choosing. But for users with large existing sample banks, the intuitive automatic bank loading features make dragging and dropping your entire sample library a snap. You never have to rename your files again!

Notes: The Falistri is a fully analogue multi-purpose movement manager designed to generate and edit voltages to easily accomplish any patch.

The module can be divided into two big parts: in the upper two-thirds of the panel take place two specular function generators, while the lower third is composed of a dual cascaded frequency divider, a linear slew limiter, and a four-quadrant multiplier.

Key features:

Two Function Generators: Envelopes, LFOs, Oscillators
Adjust the Shape Without Changing the Time
Exclusive Shapes per Stage
Trig Buttons: Play Those Envelopes!
Three Play Modes (Voltage-Selectable)
Interacting Functions: Quadrature Mode
All the Outputs, Everywhere
Cascaded Frequency Dividers
Four-Quadrant Multiplier
Linear Slew Limiter

Size 18 HP
Depth 38 mm

Current draw
170 mA @ +12 V
170 mA @ -12 V

Notes: To add some space to your compositions and nuances in sound design Erica Synths Dual FX module brings you two identical sections of 8 custom effects with two adjustable and CV controllable parameters.
Dual FX combines two Spin FV-1 chips in one module, each filled with eight custom effect programs with two adjustable and CV controlled parameters per effect and analogue dry/wet circuit. All parameter settings can be saved with the effect and recalled instantly during the performance. Also the output of the first FX section is normalised to the second input so creating huge layers of effects is easy.

FX:

Mono delay
Stereo delay
Hi-pass delay
Big reverb
Saturated reverb
Stalker reverb
Ripper
Dual pitch shifter

Technical specs:

Audio output level: -5...+5V
CV level (full span): -5...+5V
Power consumption: 118mA@+12V, 61mA@-12V
Module width: 10HP
Module depth: 45mm

Notes: The BF-22 VCF is a dual Hi/Low-pass filter inspired by the Sallen-Key filter from the early MS-20.

DISCLAIMER: This filter brings to your modular system the character of early MS-20 sound: Kick-ass-rocking-dirty screams! It inherited not only it's amazing sound, also MS-20 noise floor. If noise floor is an issue for you, this might not be your filter.

Features:

Dual-channel Sallen-Key Filter. Inspired by the early MS-20
High and Lowpass operation.
Two CV inputs per channel with a dedicated atenuverter for the first one.
CV controlled resonance.
The first channel can be linked to the second one with the "Link" switch.

Specifications:

Current needs: +12V: 40mA, -12V: 20mA
Width: 17 HP
Depth: 30mm (including power connector)
Aluminiun, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona.
