Notes: For anyone who has ever struggled with finding their way around a Eurorack synthesiser on a dark stage or a dimly lit studio, Dim 2 presents an illuminating experience. In just 4 HP, it provides a complete solution to upgrade your modular system with a pair of dimmable console lights.

The high-efficiency PWM dimmers run at high frequency, ensuring flicker-free and noise-free operation. Additionally, extensive line filtering keeps your Eurorack power supply happy and clean.

Not limited to just manual control, both dimmers also feature control voltage (CV) inputs, turning the connected lamps from simple light sources to voltage controlled audio-visual spectacles.

While the use of the included BNC LED lamps is recommended in order to keep power consumption low, halogen lamps may be used as well. Provided your power supply is beefy enough, up to 6 W of power may be drawn from each output. This even makes it possible to drive 12 V LED strips, truly making your patches shine bright.

4 HP | +12: 150 mA, -12: 5 mA | JORD2

Notes: The Flexshaper is a highly versatile module when it comes to modify evolving voltages in other directions and levels.

Five settings allow you to fold/expand/clip/compress/invert partially or completely any CV or audio signal.

The module can act as an envelope-shaping tool, frequency multiplier, waveshaper, clipper, distortion, limiter, curve changer, and more.

Five CV inputs offer limitless control over the placement of the voltage points for dynamic signal sculpting.

Birth of the product

The idea of the Flexshaper comes from a feature in the Oberheimr Matrix synthesizers called Tracking Generator.

This signal processor was part of the modulation matrix and meant to be virtually inserted between modulation sources and destinations in order to change the shape of the controlling signal.

The Flexshaper applies the same concept using the same 5 shaping points. However, it goes beyond Oberheim's implementation on two main aspects:

It goes fast enough to process signals at full audio rate
The 5 points are dynamically adjustable (CV) in real-time
Besides, the Flexshaper can process adequately bipolar and unipolar Eurorack signals, even changing them one another.

Dimensions
6 HP
21 mm deep

Current Draw
6 mA +12V
7 mA -12V
32 mA 5V

Notes: Mixer & CV/clock-controlled Switcher

Focused versatility seems an oxymoron when describing the features that led to the design of the Mixwitch.

With only a pinch of mixing, inverting and controlled switching, Klavis Electronics brew up a plethora of combinations and uses.

This is voltage processing magic!

The Mixwitch design comes from a frustration with attenuvertors (bipolar attenuators-inverters) whose off (neutral) position is difficult to retrieve, especially in live situations.

Klavis went for a digitally-controlled analogue path where polarity inversion would be at the touch of a button. So, the usefulness of attenuating/inverting can be realized by turning the pot down, swiftly pressing the inversion button and reopening the level. The zero level is where you expect it, with the pot full down.

Once a clean polarity control was established, a mute function was added, offering the benefit of pre-adjusted pot settings ready to be activated at will.

The next step was to bring something extra, useful and creative. There are plenty of analogue switches controlled by a clock; but arbitrarily selecting an input with a voltage is less known. Having both control capabilities combined with Klavis' specific mixer features creates a unique fusion: welcome to the Mixwitch!

Dimensions
8 HP
25 mm deep

Current Draw
39 mA +12V
24 mA -12V
0 mA 5V

Notes: Programmable Volt/Octave CV calibrator and transposer

Clever four-channel utility module designed to make it easier to achieve perfect oscillator tracking and transpose CV signals. Also includes some neat quantising and portamento features.

The CalTrans solves issues encountered when playing tonal music with a modular system: tracking problems, curves unrelated to Volt per octave ratio, limited octave range, cumbersome transpose, ...

The CalTrans corrects and expands the range of troublesome VCOs and brings V/Oct tracking to anything that oscillates.

Besides calibration, the CalTrans offers live play features. Each channel can be quantized and any combination of them transposed jointly.

A pair of rotary encoders with detent allow an precise selection of octaves and semitones.

VCOs whose tracking doesn't go high enough to follow the leader will see their pitch repositioned in their highest possible octave so that the global harmony is unaffected.

You can add a pinch of portamento and glissando to each channel and save the whole in user presets.

Firmware 1.17 offers:
* User editable input scaling to match sources that don't generate perfect 1V per octave signals.
* Complete rewrite of the main processing with higher precision.
* ... and the unavoidable fixes and tweaks ;-)

The updated user manual 1.4 is much expanded with operations described in exquisite details :-)
.. and a version 1.5 corrects a mistake in the input calibration description and eases the reading elsewhere.

Dimensions
6 HP
36 mm deep

Current Draw
44 mA +12V
8 mA -12V
0 mA 5V

Notes: The music-making essentials

Whether you're a beginner producer, an experienced music maker, or anyone in between, unlock your full creative potential with a MIDI controller that breaks down all the barriers between you, your DAW, and your perfect sound.

Find joy in your workflow

Find the right sound faster than ever. Customise your mix in real-time. Finish that track with ease. Music-making shouldn't feel like work; KeyLab Essential removes barriers and puts the joy back into your workflow.

Your DAW, upgraded

Your favourite synth sounds, your DAW transport, and your mixing desk all in one. Enjoy next-level control over your sounds & DAW projects, seamless communication with Analog Lab, and a bundle of pro creative software to supercharge your sound.

Quickly inspire new ideas

KeyLab Essential doesn't just help you play & navigate your projects - it's also built to inspire. Summon catchy melodies, curious rhythms, and moving chord sequences with its array of creative features, and see where it can take your sound.

That quality feeling

You want the feeling of a premium instrument, the flexibility of a top-class controller, and the ease-of-use of a beginner keyboard. KeyLab Essentials sensitive controls, hybrid synth-feel keybed, and smart layout puts it all at your fingertips.

Your keys to creativity
However you choose to make music, KeyLab Essential has all the creative answers - before you've even thought of the questions. This controller fits right into your setup to become an extension of your creative identity.

Control any DAW

Enjoy plug-and-play connectivity and ready-mapped controls with your DAW of choice. KeyLab Essential doesn't just feature familiar MCU & HUI compatibility; it also has custom scripts for major DAWs for next-level integration.

Customize your workflow

KeyLab Essential easily adapts to your creative needs; recall your favourite 'liked' presets from Analog Lab, navigate your custom-made playlists, activate custom User programs for your own control assignments, and more.

At one with Analog Lab

Turn Analog Lab into a hardware synth and get hands-on with your sound thanks to KeyLab Essential's seamlessly mapped controls. Adjust sound parameters, tweak FX, and browse presets without ever needing to touch your computer.

Main Features

Premium Keybed quality:

49-note velocity-sensitive keyboard with hybrid synth-piano feel

Pads & controls:

1 clickable encoder
9 rotary encoders
9 x 30mm faders
8 transport switches
4 command switches
1 modulation wheel & bend wheel
8 touch & pressure-sensitive pads

Display control:
2.5" LCD display with contextual buttons
Real-time feedback on tweaks and controls

Smart features:
Multi-mode arpeggiator
Chord mode
Scale mode
Hold function
Semitone transpose

Software integration:
Seamless integration with Analog Lab V: select sounds, browse presets, smart-assigned controls
Custom DAW scripts for FL Studio, Logic Pro, Ableton Live, Cubase, Bitwig Studio
Also compatible with MCU/HUI control
Up to 6 user presets for a totally customizable experience

Included Software titles & services:
Analog Lab V software with 2000+ sounds
Ableton Live Lite
Native Instruments' The Gentleman
UVI Model D
2-month Loopcloud subscription
Melodics subscription for 40 lessons

Connectivity
USB-C connects to computers and MIDI Control Center
MIDI 5-pin DIN output for connection to external instruments, gear
Control input for pedal: sustain, expression, or footswitch
USB-C powered

Platform specifications

Windows:
Win 10+ (64bit)
4 GB RAM
4 cores CPU, 3.4 GHz (4.0 GHz Turbo-boost)
3GB free hard disk space
OpenGL 2.0 compatible GPU
ARM processors not supported on Windows

Apple
Mac OS 11+
4 GB RAM
4 cores CPU, 3.4 GHz (4.0 GHz Turbo-boost) or M1 CPU
3GB free hard disk space
OpenGL 2.0 compatible GPU

Required configuration
Works in Standalone, VST, AAX, Audio Unit, NKS (64-bit DAWs only).

Work with ASC
An elegant and simple solution to help you install, activate, and update your Arturia software instruments.

What's in the box
Box content
KeyLab Essential Unit
USB-A to USB-C cable
Registration card

Dimensions for 49 keys
Size : 31.1 x 9.45 x 2.76 inches (790 x 240 x 70mm)
Weight : 6.1 lbs. (2.76 Kg)

Notes: Introducing our new FX50 coaxial studio monitors.
Keeping true to the original keyhole design, the FX enclosure has been updated with a complex radius front baffle, which not only looks pretty cool, it improves cabinet defraction.
(CEILING AND WALL MOUNTABLE FOR DOLBY ATMOS SETUP)

Coaxial driver
Mounted in the center of the woofer is a 30mm silk dome tweeter in a coaxial configuration. Using this technology (unique in its price range) makes it a point source device, meaning that all the sound emanates from a single point not points that are 10" apart. This is crucial for improving off-axis response, but also allows for a more compact footprint cabinet.
Other benefits using coaxial studio monitors are sound clartiy and imaging.

Boundary compensation DIP switches
Sometimes the spaces where we mix aren't the most forgiving acoustically (especially if you're in a home studio).
The FX series monitors come equipped with boundary control EQ switches, that allow you to compensate for spaces that may not have been tuned or just need to be adjusted due to their proximity to the wall behind them. There is also a guide conveniently printed on the rear panel to show how the DIP switches work, and a more detailed explanation in the user guide.

Class D and DSP powered
The FX50 is a Class-D bi-amplified studio monitor.Class-D benefits are clean, reliable power, more headroom, less power consumption and heat.
We have a standalone powerful DSP integration. The digitally controlled crossover makes each speaker more consistent.
The new FX series is truly a 21st Century reference monitor at home in any recording studio.

LED indicator on front baffle
The illuminated LED on the front panel is not only a status indicator, displaying whether the FX monitor is on, off or in standby, but also acts as an alignment beacon which allows you to properly align your speakers to your ear level.

Is This The Most Cost Effective Dolby Atmos Speaker Solution?
Read what Pro Tools Expert think about the FX50 as your next rear or height channels. For larger rooms we would recommend using our FX80 studio monitor.

A Coaxial Monitor for the 21st Century
The Fluid Audio Coaxial speaker design is notably different from traditional coaxial designs. Coaxial studio monitors in the 50's and 60's placed the high frequency driver behind the woofer, porting the high frequency through the woofer's voice coil opening. This design effectively used the woofer's cone as the wave guide, or horn. Since the woofer's cone is constantly moving (sometimes dramatically as it plays bass frequencies), there is a significant amount of Intermodulation distortion and audible smearing that happens as the high frequency radiates off the woofer's cone.

The coaxial design of the Fluid Audio FX series places the high frequency device in front of the woofer, secured to a fixed post. The tweeter is mounted in a hard plastic wave guide that allows the high frequencies to flow uninterrupted, so there is no audio smearing from the woofer's movements. By using the on-board DSP, 48 and 36db per octave Linkwitz-Riley slopes not only perfectly blend the low and high frequencies, but are also used to filter out acoustic anomalies inherent in coax designs (as the tweeter does not have a full size baffle to radiate from.) In addition to these unique benefits, users get all the other known benefits of a coaxial driver Symmetrical off-axis response (which creates a bigger, more even and consistent sweet spot) and that of being a point source device, which allows better phase coherence between drivers resulting in extremely realistic imaging. Whether upright or laid on its side, the Fluid Coaxial design will perform identically making studio positioning easier and more user friendly.

Specification
5" paper cone woofer
1" silk dome tweeter
Frequency response: 49Hz 22KHz (+/- 3db)
Crossover frequency: 2.9KHz
Low-frequency amplifier power: 50 watts
High-frequency amplifier power: 40 watts
Signal-to-noise: 89dB (typical A-weighted)
Polarity: Positive signal at + input produces outward LF one displacement
Input impedance: 20 k ohms balanced, 10 k ohms unbalanced
Max SPL : 102 dB Max SPL
Power: 100V 240V~50/60 Hz
Protection: RF interference, output current limiting, over temperature, turn-on/off transient, subsonic filter, external mains fuse
Cabinet: Vinyl-laminated MDF
Size (single monitor): 9.2" x 6.9" x 9.1" , 234mm x 176mm x 230mm
Weight (each): 8.37 lbs / 3,8 kg

Notes: Unlimited tone. For all.

An entire rig right in your pocket

TONEX ONE puts IK's revolutionary AI Machine Modeling technology on any size pedalboard, enabling you to perform with the world's most sought-after tones in more ways than ever before. It truly makes unlimited tone accessible to all.

Ultra-compact and powerful, TONEX ONE stores up to 20 hyper-realistic modelled amps, cabs and stomps from a nearly infinite supply, so you can add it anywhere in your rig. You can even load models of your own gear captured with the included TONEX software. Effortlessly fit multiple units on your board for truly limitless tone possibilities.

Small size, huge sound

TONEX ONE packs the same incredible responsiveness and dynamics as TONEX Pedal, but in a mini format that saves space and travels anywhere. You can fine-tune presets on the fly using the onboard gain/volume and 3-band EQ, then adjust FX levels like noise gate, compression and stereo reverb to complement any live venue. With auto save you can quickly adjust settings on the fly without the need of a computer.

Any rig, any size

Designed to fit any pedalboard and small enough to chain multiple pedals, TONEX ONE gives you the freedom to build the perfect fly rig or enhance your existing pedalboard. Use two pedals to create a killer stereo rig or place multiple pedals in series for tone stacking and boosting lead and rhythm tones.

The right connections

TONEX ONE is simple to use and connects to any type of guitar or bass rig including real amps, PA systems and FRFR (Full Range, Flat Response) Cabs. Toggle the "no cab" option for direct connection to cabinets and speaker emulators. Or activate the cab for consistent, pristine miked cabinet tones night after night. Experience rich, cranked amp tones at any volume level, perfect for in-ear monitors or where controlling stage volume is essential.

Your gear forever and always

It's never been easier to make a virtual version of your amps and pedals. Capture your rig with the included TONEX SE software and use it across the entire TONEX Ecosystem including TONEX ONE, TONEX Mac/PC, TONEX Pedal, TONEX ONE and TONEX iOS. TONEX makes it easy to always have your gear collection on hand to play live or in the studio.

Infinite tones on tap

TONEX ONE keeps you inspired no matter where your musical journey unfolds. Store up to 20 presets from the included 200 premium Tone Models or download over 25,000 Tone Models (and counting!) from ToneNET. Add more tones with IK Signature Collections or explore hundreds of ever-expanding Tone Partner collections that feature a variety of rare, vintage and modern amps and pedals.

Ready for the road

TONEX ONE delivers not only jaw-dropping tones and essential effects, but also the right connectivity and controls that make it easy to sound your best at any gig or performance.

AMP / RIG: Load up to 20 presets with 3 playable slots to use any time. You can load any combination of pedal, amp and whole-rig models.

STEREO / MONO: Mono input and TRS stereo and dual mono output. The TRS output also doubles as a headphone out for silent playing.

TWO PERFORMANCE MODES: Select between two performance modes: Dual A/B or Stomp (On/Off) operating modes.

CUSTOMIZABLE MICRO-KNOB COLORS: Choose from custom colours to assign and save to any preset for visual identification during live performances. You can also turn off the light for more formal settings.

IR LOADER: Load any custom IR or use IK's VIR cabinets to fully customize your sound.

EFFECTS / UTILITY: Includes an onboard tuner, noise gate, EQ, compressor and 5 stereo reverbs including: hall, room, plate and 2 spring reverbs.

Your tone in the limelight

TONEX ONE makes it easy to perform and stand out on stage with micro knobs that can be customized using any of the available LED colours. Choose colours to identify different Tone Models, to match your pedalboard aesthetics or to identify different TONEX ONE units on a single pedalboard. The micro knob lights also do double duty when engaging the onboard tuner, which has two selectable modes: Thru and Mute.

Specs

Total Presets: 20
Presets / bank: 2 Presets (A/B Mode), 1 Presets (Stomp Mode)
Bank Controls: Mode Selection (A/B or Stomp)
Onboard IR: VIR multi-IR cab emulation, Custom IR loader
Controls: Bass / Gate, Mid / Comp, Treble / Reverb, Vol / Gain, A/B or Bypass

Effects: Reverb, Compressor, Noise Gate, Bass / Mid / High EQ
Outputs: 1 x 1/4" mono / stereo / headphone
Assignable Colours: 9
Impulse Response: VIR multi-IR Cabinets, Custom IR Loader
Premium Tone Models: 212
Included Software: TONEX SE, AmpliTube 5 SE
Audio Interface: 24-bit/44.1 kHz
Connection: type USB-C

Size & Weight

48 mm / 1.89" W
94 mm / 3.7" D
53 mm / 2.09" H
160 g / 0.35 lbs

Power Source: 9V DC, 120 mA (not included)

Notes: Express Yourself with Yamaha

By incorporating decades of expertise in developing musical technologies, the YDM Series of dynamic microphones provides an exciting new addition to the Yamaha audio line-up that spans the entire input to output signal chain.

Custom-designed Capsule

Encased in a sleek metal body, the YDM Series microphones feature custom-designed capsules that flawlessly capture your sound so you hear crystal-clear audio on the other end.

The YDM707 is equipped with a super-cardioid capsule that captures a wider frequency range and rejects unwanted background sounds even more efficiently.

Insulator that Reduces Handling Noise

YDM Series microphones are equipped with an advanced insulator Yamaha's proprietary materials that reduce vibrations from handling noise and other external sources, allowing you to concentrate on your performance.

A Refined Grip that's Instrumental

Taking cues from our experts in musical instrument design, the YDM Series microphones follow a refined design that incorporates the flowing curves of a wind instrument. The top and bottom of the grip are accented with silver rings, giving it a distinctive design.
The grip is not only beautifully designed; it has also been optimized through repeated prototype tests to ensure a comfortable fit.

YDM Series Grille

For some performers, mic drop moments are unavoidable. Whether from epic monologues or mishaps, replacement grilles are sold separately so you can keep your microphone looking like new.

Accessories

In addition to the microphone holder, a 5/8" to 3/8" inch threaded adapter and a microphone pouch are also included.

Microphone Unit: Dynamic
Polar Pattern: Super Cardioid
Frequency Response: 60 Hz - 18 kHz
Sensitivity: 1.8 mV/Pa (-54 dB)
Output Impedance: 300 Ohm
Connector: XLR
Dimensions (Microphone Only): 51 x 184 mm
Weight (Microphone Only): 285 g
Included Accessories: Microphone Holder, 5/8" to 3/8" threaded adapter, Microphone pouch

Notes: The only Speaker you will ever need with an unbelievable 100hrs of battery life!

Experience the culmination of 12 Minirig light years of evolution in design and functionality with the groundbreaking Minirig 4. Explore more details in the specs below!

Minirig 4 Bluetooth speakers come with an audio cable, USB-C charger cable, case, and a whole lot of bass. All delivered in recycled & recyclable packaging!

Technical specifications

Dimensions: W = 101.6mm H = 73mm
Weight: 563g
Driver: Custom 70mm with neodymium magnet
Button x3: Power/volume/pairing/and more
Frequency response: 60Hz - 18000Hz
Battery life max volume: 5 Hours
Battery life average use: 30 Hours
Battery life low volume: 100 Hours
Charge time (standard, 4.5W): 6 hours
Charge time (fast USB-C PD, 30W): 1.5 hours
Powerbank function: Yes
USB-C Power Delivery: Yes (up to 30W)
Amplifier power: 1 x 50Wrms
Bluetooth: 5.0 with AAC, hands-free calling, linkup mode & wireless stereo
Bluetooth Receiver Mode: Yes (line out / headphones)
Bluetooth Range: >10-30 meters line-of-sight
Audio input/output: 2 x 3.5mm mini jack socket
Construction: Anodised aluminium and High Impact ABS
Weatherproofing: Splash resistant
Additional features: Volume control, Balance control, Accelerometer, microphone, 5x addressable RGB LEDs, USB-C PD capable, OTA updatable
App: IOS, Android and Chrome (PC/MAC)

Notes: The legendary Minirig gets an update and a fresh new laser red colour scheme. The go-to option for portable speakers, featuring up to 100-hour battery life, serious bass and Bluetooth connectivity. Hard to beat.

Supplier's Notes:
The only Speaker you will ever need with an unbelievable 100hrs of battery life!

Experience the culmination of 12 Minirig light years of evolution in design and functionality with the groundbreaking Minirig 4. Explore more details in the specs below!

Minirig 4 Bluetooth speakers come with an audio cable, USB-C charger cable, case, and a whole lot of bass. All delivered in recycled & recyclable packaging!

Technical specifications

Dimensions: W = 101.6mm H = 73mm
Weight: 563g
Driver: Custom 70mm with neodymium magnet
Button x3: Power/volume/pairing/and more
Frequency response: 60Hz - 18000Hz
Battery life max volume: 5 Hours
Battery life average use: 30 Hours
Battery life low volume: 100 Hours
Charge time (standard, 4.5W): 6 hours
Charge time (fast USB-C PD, 30W): 1.5 hours
Powerbank function: Yes
USB-C Power Delivery: Yes (up to 30W)
Amplifier power: 1 x 50Wrms
Bluetooth: 5.0 with AAC, hands-free calling, linkup mode & wireless stereo
Bluetooth Receiver Mode: Yes (line out / headphones)
Bluetooth Range: >10-30 meters line-of-sight
Audio input/output: 2 x 3.5mm mini jack socket
Construction: Anodised aluminium and High Impact ABS
Weatherproofing: Splash resistant
Additional features: Volume control, Balance control, Accelerometer, microphone, 5x addressable RGB LEDs, USB-C PD capable, OTA updatable
App: IOS, Android and Chrome (PC/MAC)

Notes: Generation four of the excellent Minirig features genre-defining sound quality and impressively rock-solid build. Still the best portable speaker around.

Supplier's Notes:
The only Speaker you will ever need with an unbelievable 100hrs of battery life!

Experience the culmination of 12 Minirig light years of evolution in design and functionality with the groundbreaking Minirig 4. Explore more details in the specs below!

Minirig 4 Bluetooth speakers come with an audio cable, USB-C charger cable, case, and a whole lot of bass. All delivered in recycled & recyclable packaging!

Technical specifications

Dimensions: W = 101.6mm H = 73mm
Weight: 563g
Driver: Custom 70mm with neodymium magnet
Button x3: Power/volume/pairing/and more
Frequency response: 60Hz - 18000Hz
Battery life max volume: 5 Hours
Battery life average use: 30 Hours
Battery life low volume: 100 Hours
Charge time (standard, 4.5W): 6 hours
Charge time (fast USB-C PD, 30W): 1.5 hours
Powerbank function: Yes
USB-C Power Delivery: Yes (up to 30W)
Amplifier power: 1 x 50Wrms
Bluetooth: 5.0 with AAC, hands-free calling, linkup mode & wireless stereo
Bluetooth Receiver Mode: Yes (line out / headphones)
Bluetooth Range: >10-30 meters line-of-sight
Audio input/output: 2 x 3.5mm mini jack socket
Construction: Anodised aluminium and High Impact ABS
Weatherproofing: Splash resistant
Additional features: Volume control, Balance control, Accelerometer, microphone, 5x addressable RGB LEDs, USB-C PD capable, OTA updatable
App: IOS, Android and Chrome (PC/MAC)

Notes: The wildly popular Minirig is presented here in 'ultra black' colourway. Fourth-gen model features loud performance and up to five hours' battery life.

Supplier's Notes:
The only Speaker you will ever need with an unbelievable 100hrs of battery life!

Experience the culmination of 12 Minirig light years of evolution in design and functionality with the groundbreaking Minirig 4. Explore more details in the specs below!

Minirig 4 Bluetooth speakers come with an audio cable, USB-C charger cable, case, and a whole lot of bass. All delivered in recycled & recyclable packaging!

Technical specifications

Dimensions: W = 101.6mm H = 73mm
Weight: 563g
Driver: Custom 70mm with neodymium magnet
Button x3: Power/volume/pairing/and more
Frequency response: 60Hz - 18000Hz
Battery life max volume: 5 Hours
Battery life average use: 30 Hours
Battery life low volume: 100 Hours
Charge time (standard, 4.5W): 6 hours
Charge time (fast USB-C PD, 30W): 1.5 hours
Powerbank function: Yes
USB-C Power Delivery: Yes (up to 30W)
Amplifier power: 1 x 50Wrms
Bluetooth: 5.0 with AAC, hands-free calling, linkup mode & wireless stereo
Bluetooth Receiver Mode: Yes (line out / headphones)
Bluetooth Range: >10-30 meters line-of-sight
Audio input/output: 2 x 3.5mm mini jack socket
Construction: Anodised aluminium and High Impact ABS
Weatherproofing: Splash resistant
Additional features: Volume control, Balance control, Accelerometer, microphone, 5x addressable RGB LEDs, USB-C PD capable, OTA updatable
App: IOS, Android and Chrome (PC/MAC)

Notes: Record case for 7" singles

For 100 x 7" vinyl records
Convenient separation with lid and box
High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
Interior with felt cover
Aluminium profile frames 22mm with rounded edges
Hinged, chromium plated case handle
2 high-quality butterfly locks
Rubber feet
Branded hardware
Made in Europe

Technical specifications

Aluminium profile frames: 22 mm
Case handle: 1 pc/pcs
Lock: Butterfly lock: 2 pc/pcs
Transport aid: Rubber feet
Use of brands: Branded hardware
Material: Plywood multi-layer glued, 7 mm
Colour: Black, laminated
Inside dimensions: 22 cm x 18,5 cm x 17,5 cm

Dimensions:

Width: 21 cm
Depth: 24,5 cm
Height: 38,5 cm
Weight: 2,40 kg

Review: Van Halen's sophomore album, Van Halen II, receives the deluxe treatment here with this limited, numbered, 180 gram 45 rpm Audiophile SuperVinyl UltraDisc One-Step 2xLP box set. Originally released in 1979, the album showcases the band's electrifying blend of hard rock and heavy metal, propelled by Eddie Van Halen's revolutionary guitar work and David Lee Roth's charismatic vocals. With classics like 'Dance the Night Away' and 'Beautiful Girls,' the album captures the band at the peak of their powers. Remastered for vinyl with meticulous attention to detail, this deluxe edition offers audiophiles a pristine listening experience, making it a must-have for collectors and fans alike.

Notes: Upgraded version of HumminGuru's excellent S-Duo stylus cleaner is now rechargeable with a built-in battery and features storage for the rubber supports, drying pads and water dropper. Same effective 110 kHz ultrasonic cleaning frequency.

Supplier's Notes:
2-in-1 Ultrasonic Record Stylus Cleaner and Digital Pressure Gauge

Rechargeable | Portable | Effortless

To enjoy the best audio sound, proper and regular record cleaning becomes very essential, but keeping the stylus clean is just as important. Even though ultrasonic cleaning has proven to be a very effective and economical way to remove contaminants with minimum risks of damage, applying ultrasonic technology in stylus cleaning is not a typical method, and such products are rarely found in the existing market. HumminGuru S-DUO Pro, an ultrasonic cleaner specifically designed for record stylus, defines a new way to enhance the cleaning performance and overall experience.

HumminGuru S-DUO Pro is a compact and portable device that combines ultrasonic cleaning and a digital pressure gauge in one place for the care of the record stylus. With a smartly-designed 2-in-1 feature, it does both steps of stylus cleaning and vertical downforce measuring in one go. The entire process is effortless and takes users less than a minute to complete. Its easy and quick operation, along with its convenient use, storage, and portability, make the stylus cleaning experience seamless and pleasurable.

Ultrasonic Cleaning: Highly Effective and Safe

It is acknowledged that the stylus tip is very delicate and tiny. Unlike those stylus cleaners that utilize motor vibration to clean the stylus with a short-hair brush pad, HumminGuru S-DUO Pro uses ultrasonic technology to better protect and extend the life of the stylus with no existence of abrasion. Cleaning the stylus in the ultrasonic bath with water completely avoids physical contact and thus it is risk-free to the surface of the stylus.

HumminGuru S-DUO Pro utilizes 110kHz ultrasonic cleaning frequency, which creates much smaller cavitation bubbles that effectively remove dust, grime, and hardened dirt off the stylus tip. The ultrasonic frequency selection is carefully matched with an optimal amount of electrical power to ensure safe and efficient cleaning. It is 100% safe to clean a stylus with a bonded diamond tip, as the cleaning process does not damage the adhesive in the water.

By default, the ultrasonic cleaning process takes only 20 seconds, and requires the use of 3-4 drops of distilled water (i0.3ml). After the cleaning is complete, the provided dust-proof drying pads can be used to absorb any remaining water on the stylus tip and housing, ensuring that the stylus is ready for use. For users who prefer to use any type of cleaning solution in addition to water, it is advisable to consult the manufacturer of the stylus cartridge for specific advice and guidelines.

The combination of a short cleaning time, minimal water usage, and the use of drying pads makes the HumminGuru S-DUO Pro a safe, efficient, and quick tool for maintaining the cleanliness and performance of the record stylus.

High Compatibility with Different Cartridges

HumminGuru S-DUO Pro is designed with high compatibility in mind, ensuring it can accommodate a wide range of cartridges. This is made possible through the inclusion of provided stylus rubber supports (3 types), which can be easily attached onto the water basin.

Aluminum Digital Pressure Gauge: Precise & Reliable

Setting the correct tracking force of the stylus is also an essential step for ensuring the playback result and the life of the valuable records and cartridge. The digital pressure gauge is cleverly incorporated into the HumminGuru S-DUO Pro device that makes the setup more convenient, faster, and easier for users. With the feature of a bi-directional LCD display, users can simply flip the device around and measure the vertical downforce right after the ultrasonic cleaning.

Furthermore, it offers convenient features to ensure accurate measurements. Firstly, the scale will automatically reset to zero when switching from the ultrasonic cleaning mode, or users can simply touch the gauge icon button once to reset it to zero before each use. This ensures that the gauge starts from a consistent baseline for precise measurements.

Secondly, a 5g mass weight is included with the product to maintain accuracy. Users can periodically check the scale by placing the weight on it to verify that it measures the expected weight accurately. This allows for regular calibration and helps ensure precise weighing results.

Lastly, the calibration function further enhances accuracy by allowing users to calibrate the gauge if needed. This feature ensures that the readings remain accurate over time and can be adjusted if any discrepancies are detected.

Rechargeable

HumminGuru S-DUO Pro is equipped with a rechargeable feature, eliminating the need for disposable batteries. This not only offers convenience and cost-effectiveness but also contributes to sustainability by reducing waste.

Review: Outside In decided to highlight Ray Angry's exceptional talent as a top pianist with the new album Three. Solo piano, a tradition that runs through jazz greats like Art Tatum to Keith Jarrett, is the perfect platform to showcase Angry's brilliance so in the fall of 2022 he visited Reservoir Studios, sat at the Steinway piano, and played for two hours straight. The result was an extraordinary torrent of music, blending classical, jazz, and pop, all unique to Ray. Now the best of it is served up in this bumper box set with a deluxe booklet with writings by Questlove and Black Thought.

Notes: 2-track trigger sequencer/euclidean generator module - 6HP

Running Order is a two track trigger sequencer. It can be a precise master clock or manipulate incoming clock signal and works great in use as a sub-sequencer/divider in your Eurorack environment.

Zero-jitter clock generation: less than 50 microseconds internal clock jitter
101 style 1/16th note input mode (step/rest) with manual or CV controllable amount of triggers repeats when the active trigger step happens
Euclidean mode enabled for each track where we set Euclidean total steps amount in the circle and then amount of triggers happening in that circle.
Per step trigger probability in 101 mode and global probability in Euclidean mode.
Separate synchronization (reset) inputs, sync for track 1 is normalled to sync track 2
Clock divider for incoming external clock allows to quickly obtain various musical divisions on the fly incl. triplets of course, but more importantly tuplets mode allows you to stretch desired amount of triggers happening into a single bar
Separate mute buttons for each track
8 patterns of triggers sequences stored in the module and recalled on the next power up
also available in 1U / 22HP version

Power consumption:
30 mA +12V
10 mA -12V
0 mA 5V

Dimensions
6 HP
30 mm deep

Notes: Are you tired of trying to fit all of your favourite delays onto your already overflowing pedalboard? Did you constantly have trouble choosing just one pedal to serve as the catalyst of your echo-centric musings? Had you wished that a pedal company would give you more bang for your buck by merging multiple classic delay effects into one simple little box?

Well hold on to your whammy bar, because your problems are solved now that you've found the new Silos Multi-Generational Time Reflection Device! EQD have taken a digital delay, an analogue delay, and a tape delay and merged them all together as one pedal with six presets, a tap-tempo, and user assignable expression control.

It all started when EQD founder Jamie Stillman was admiring his three favourite delay pedals from his personal collection and began ruminating on their vast differences. This sparked an ambitious foray into uncharted territory in finding a way to assemble them all together as one uncomplicated unit. After months of tinkering, his mission was accomplished and the Silos was born. With just four knobs, one three-way switch, one Save/Recall button, and two footswitches, he made the impossible possible and now your guitar playing shall reap the rewards!

Each of the three modes offers up to one second of delay time which allows it to be a longer delay than EQD's other delay pedals. From noon and back is 500 milliseconds to zero, which has its own character. From 500 milliseconds to one second of delay time, it's an entirely different beast. Dial them in for shorter delay times where they really excel and add loads of atmosphere and vibes. Push them further for rhythmic delays that are perfect for strumming and adding extra ambiance for your riffs. And the tap tempo is truly precise and responsive so you can lock in your rate quickly within the first revolutions.

Notes: The SAMPLYR module is a sample player module, that plays sample files from a microSD card.

The samples are simple 8-bit mono WAV files. Features of the module are:

CV control for pitch with 1V/octave
Gate input
NO (practical) LENGTH LIMIT for the sample playback, because the module plays the samples directly from the memory card
Sample is displayed on the included OLED display
For each sample, following playback parameters can be edited: Sample start/end, loop start/end, loop crossfade, transpose/tune, all this settings are visible in the display and are saved per sample
Different loop modes can be selected: Oneshot, Reverse, Loop forward/reverse/alternating, loop hold (loop remains playing when gate goes to off)
Editing of the different parameters is accomplished with an endless encoder and a small menu
CV control for playback start, loop start, loop length, reverting playback, sample selection
Six buttons can be used for quick switching between six samples of the current folder
Additionally to the audio output, the SAMPLYR provides trigger outputs for loop start point, loop end point, playback end; by this, certain other operations can be triggered at these specific points, e.g. synchronizing to the loop points.

...and all this in a 1 unit AE module!

The sample files are organized as simple folders on the micro SD card named "A"..."Z" and per folder files named "0....wav, 1....wav, ..."

Included with the module is a micro-SD card with some demo samples; and each buyer will receive an update for the factory samples, made by the sound designer "empty vessel" exclusively for the SAMPLYR module (provided as download later this year).

The SAMPLYR module is of course not a hi-fi, high quality sampler module due to its 8-bit design. It has the flavour of the early samplers like EMU II, Fairlight CMI IIx, Ensoniq Mirage... The typical, recommended sample rate is 16000 Hz. these samples can be pitched up by approx. 1 1/2 octaves max.

Beyond the 8-bit resolution, the samples can be also encoded as uLaw and aLaw; in this case, the resolution is true 10 bits. For converting your existing samples, the open-source audio editor "Audacity" is great for the conversion and editing process.

Note: The SAMPLYR module is a sample player only; it doesn't offer recording of audio.

Notes: The 1-row QUICKSWAP CASE for AE Modular is the high-end case for AE Modular. It is based on a sturdy metal chassis with a beautiful matte black powder coating and - allows to plug in AE modules without any screws, which is a key feature of this case! The design makes sure that the modules sit firmly inside the case and the bus connection is established automatically by the integrated bus board, so need for the separate bus cable known from the standard AE cases. Rearranging your modular system can't be easier!

This case is developed by Kyaa, a 3rd party AE module developer; Tangible Waves is producing the case.

With a connector kit, another QUICKSWAP CASE of same width can be attached at certain angles, depending on the connector - and the power supply is linked between the cases, also via the connector.

Other utilities, like a handle for carrying a folded case, are coming soon.

Please note: This rack does not include the Master or Power module.

To connect the case to power you have the following options:

Install the Master Module
Install the Power Module
Connect to another, already powered QUICKSWAP CASE
Connect to another AE case via the RACKLINK module kit

*** Please note: the modules are not included, they are shown for demonstration purposes only. ***

Review: The Moon and the Melodies, a collaboration between Cocteau Twins and ambient pioneer Harold Budd, stands as a unique gem in both artists' discographies. Originally released in 1986, this ethereal album is now being reissued on vinyl, remastered from the original tapes by Robin Guthrie. Unlike anything else the Cocteau Twins ever produced, this record blends their dreamlike soundscapes with Budd's serene, improvisational piano work. The result is an atmospheric journey, at once intimate and expansive. Tracks like 'Sea, Swallow Me' shine with Elizabeth Fraser's otherworldly vocals, intertwined with Guthrie's shimmering guitar and Raymonde's grounding bass, creating a sound that feels both familiar and entirely unique. Instrumentals like 'Memory Gongs' and 'The Ghost Has No Home' highlight Budd's delicate piano, enhanced by the band's signature ambient textures. The album is a study in contrasts, vocal tracks sit alongside instrumentals, each contributing to a cohesive yet diverse listening experience. For fans, this reissue is a chance to revisit a pivotal moment in the evolution of dream pop and ambient music. The album's enduring appeal is evident in its continued influence in social media. The Moon and the Melodies remains a shining light that can happen when artists from different realms come together to create something truly timeless.

Review: Joni Mitchell's Ladies of the Canyon is one of the great albums that captures the essence of the late '60s counterculture with poetic grace and introspective depth. Released in 1970, the record blends folk, pop, and jazz influences while showcasing Mitchell's unique artistry. Iconic tracks like 'Big Yellow Taxi,' 'Woodstock,' and 'The Circle Game' highlight her sharp lyrical wit and melodic inventiveness. Overall, the music paints vivid portraits of life in Laurel Canyon and celebrates themes of love, loss, and social change. Mitchell's ethereal vocals and intricate guitar work make Ladies of the Canyon an essential listen that cemented her legacy as a pioneering singer-songwriter.

Notes: The Mutant Rimshot is a fully analogue rimshot and clave generator inspired by the rimshot found in the legendary 909 drum machine; a triple bridged-T oscillator coupled with a state variable filter. The clave sound (not a feature of the original 909 rimshot) is achieved by using just one of the oscillators.

Features

Three oscillator modes

Rimshot HI mode brings classic rimshot sounds
Rimshot LO gives a lower pitch range; try playing with the filter on this setting to get low tom and kickdrum sounds.
CLV (Clave) mode uses just one of the oscillators to give you a brighter, higher percussive sound.
A switch on the back lets you select between original and extended pitch modes. Original mode can give you rimshots exactly modelling that of classic machines (in Hi mode), whereas extended mode gives a wider range of pitch, at the expense of classic accuracy.

Three filter modes

Use the lowpass or highpass filter modes for classic sounding rimshots
Highpass and bandpass can give a wider range of clave and rimshot sounds, as well as completely different percussive elements (especially when turning the resonance up!)
VCF IN lets you blend the clave or rimshot with other sounds. Try adding some filtered noise for a more acoustic sounding rimshot, or for pseudo-snare type sounds.

Novel decay and filter mod controls

The MOD DECAY envelope controls the decay of the VCA envelope
The VCF MOD attenuverter allows you to modulate the filter cutoff with the MOD DECAY envelope
Alternatively, a switch on the back lets you modulate the filter cutoff with the pitch-controlled internal VCO, for filter FM style percussive hits.

Technical specifications

Width: 8HP | Depth: 30mm
Current draw: +45mA, -50mA @ 12V

Notes: Module A-121d is a special dual multimode filter which can be used for parallel or serial organized dual mono filters. Even stereo applications are imaginable. The filters are based on two special circuits: one with highpass and bandpass outputs, the other with lowpass and bandpass outputs. It's a new filter design that is not used so far in any other A-100 filter module.

We attached great importance to the usability of the manual controls and CV inputs for dual filter applications: for the filter frequencies of both filters a common control (Frequ.) and a difference control (Delta, filter spread) are available. For both parameters even CV inputs are available (FCV, DCV). The resonance (Q1, Q2), the sensitivity of the individual frequency control input (FCV1, FCV2) and the level of the audio input (In1, In2) are adjusted by means of the individual controls for each filter.

The module has a simple audio mixing unit available with the inputs Mx1 and Mx2, and the output MxO. Provided that the mixer inputs are open bandpass 1 and bandpass 2 are normalised to the sockets Mx1 and Mx2. All other filter types are realized by connecting the other filter outputs (H1 = highpass 1, L2 = lowpass 2) to the mixer inputs.

Controls:
Frequ.: master frequency control for both filters
Delta: controls the difference between the frequencies of the two filters manually (frequency spread), at centre position the frequencies are about the same
Q1 / Q2: resonance controls for filter 1 and 2
FCV1 / FCV2: attenuators for the individual frequency control inputs FCV1 (filter 1) and FCV2 (filter 2)
In 1 / In 2: attenuators for the audio inputs of filter 1 and 2

Sockets:
Mx1 / Mx2: audio inputs of the mixer, Mx1 is normalised to bandpass 1 (B1), Mx2 is normalised to bandpass 2 (B2)
MxO: audio output of the mixer
In1 / In2: audio input of filter 1 and 2 (In2 is normalised to In1)
H1: highpass output filter 1
L2: lowpass output filter 2
B2: bandpass output filter 2
DCV: control voltage input for frequency spread (Delta)
FCV1 / FCV2: individual frequency control inputs, processed by the attenuators FCV1 and FCV2, socket FCV2 is normalised to socket FCV1
FCV: common frequency control input for both filters (~ 1V/oct)

Triangle symbols indicate the normalising of sockets (B1>Mx1, B2>Mx2, In1>In2, FCV>FCV2). The four outputs are inverse labelled.

Technical note:
Ex factory the module is adjusted so that the resonance of the two filters does not reach self-oscillation. If desired the filters can be modified by the user by means of two trimming potentiometers so that self-oscillation is possible.

Dimensions
8 HP
41 mm deep

Notes: Part of a limited edition series designed through the LAB M50x website, this take on the popular ATH-M50x features a subtle blue and orange colour scheme. Also available in wireless Bluetooth format.

Supplier's Notes:
Limited Edition ATH-M50x

The LAB M50x Has Landed!

In January 2024, Audio Technica launched the LAB M50x website, inviting fans to participate in the creation of the latest limited edition M50x models.

From thousands of submissions, Sergio Gamarra Melgar, a DJ from Bolivia was selected by the fans from 3 finalists as creating the winning design.

ATH-M50x: Most Popular Studio & Everyday Headphones

The M50x are one of Audio Technica's most acclaimed audio solutions and their best-selling headphones. Based on the ATH-M50, the M50x include an upgraded detachable cable for convenience and versatility, perfect for the studio or when you're out on the move.

Enjoy passive noise isolation through the comfortable ear cups designed to keep you in the zone, while their large aperture drivers deliver the industry-loved sound signature.

Engineered to deliver a superior sound experience at an affordable price, the M50x have been widely acclaimed online by professionals and casual listeners. From everyday listening and commuting to studio recording, you're in great hands with the M50x, with build quality and coveted sound engineering that's praised by audio experts and professionals year after year.

With 60 years of Japanese audio design, Audio-Technica is loved by many of the world's biggest artists, vocalists and musicians and the M50x headphones remain one of Audio Technica's most popular innovations to date. Whether you're a music industry veteran or you're looking to start recording at home, the ATH-M50x are an excellent choice of headphones for listening back to or monitoring your audio performance. Either from your computer/audio receiver or plugged directly into your microphone for monitoring (as with the AT2020 or AT2020USB+ microphones), the ATH-M50x headphones deliver stunning sound design.

Rated highly for their professional-grade comfort, foldable versatility, strong construction and excellent sound design, the ATH-M50x are an exquisite choice as your audio daily drivers. Whether it's travel, your daily commute or working and studying at home, you'll love their all-day comfort and immersive sound design. Offering passive noise isolation through circumaural design contours, these M50x headphones provide a high-quality audio experience, helping you to boost your concentration and productivity at work and allowing you to meditatively switch off on your commute.

Specifications

Headphones

Type: Closed-back dynamic
Driver Diameter: 45mm
Frequency Response: 15 - 28,000 Hz
Maximum Input Power: 1,600 mW @ 1KHz
Sensitivity: 99 dB
Impedance: 38 ohms
Weight : 285g without cable/connector
Cable: 1.2m-3m coiled, 3m straight, 1.2m straight cables
Cable - Detachable: Yes
Connector: Gold-plated stereo 1/8" (3.5 mm) connector with strain relief
Magnet: Neodymium
Voice Coil: CCAW (Copper-clad aluminium wire)
Folding/collapsible: Yes

Accessories Included:

Screw-on 1/4" adapter, pouch

Notes: ***B-STOCK: Slight surface marks ***


Designed to be a highly customizable connection matrix, 3DVCA packs a boat load of utility into a small 6HP package. Four VCAs share the three macro controls: X, Y, and Z. As a group, they shape incoming and outgoing signals and emulate the coordinates of a point in 3 dimensional space. This allow the VCAs to work together in a mono, stereo, or quad configuration and accomplish a variety of mixing, crossfading, and panning functions.

3DVCA is designed to be used in the following functions:

Quad monophonic crossfader
Dual stereo crossfader
Stereo balancer
Stereo VCA
Mono to stereo panner
Unity mixer with up to eight inputs
Quadraphonic panner

Each output has a dedicated SUM input which allows an external signal to be automatically mixed into the output signal. This allows 3DVCA to daisy chain both with other mixers and other 3DVCAs. For example, you can create a full mono, stereo, or quadraphonic mix by plugging the output of each 3DVCA into the sum inputs of the next 3DVCA in the chain. Using this method, a set of 3DVCAs can create a fully voltage controlled and decentralized mixer which ties together anything from a small skiff to a monster synth.

When 3DVCA works as a crossfader or panner, the X and Y parameters follow an equal-power curve that keep output signals at the same volume no matter how many inputs are mixed together. This is in contrast to the Z parameter which follows a linear curve to always behave predictably with external modulation sources. All inputs are fully DC coupled in order to work with modulation speed signals as well as static DC voltage sequences; this means that 3DVCA can handle any sort of signal that you throw at it. All op amps in the device employ rail-to-rail inputs and outputs to enable the largest headroom when mixing many different signals together.

Whether you need to maximize your mixing functionality in the smallest possible footprint or have the most control over every aspect of your system, 3DVCA provides a ton of functionality in any system. Enter a higher dimension of sound with the Mystic Circuits 3DVCA.

Dimensions
6 HP
30 mm deep

Current Draw
45 mA +12V
45 mA -12V

Notes: The legendary Kaoss Pad returns as part of Korg's DIY Nu:Tekt range. Simple to build, easy to use and infinitely customisable for those who want to go deep. Great value.

Supplier's Notes:
Build your KAOSS

Discover the Nu:Tekt NTS-3 KAOSS Pad: the iconic KAOSS Pad reimagined in a build-it-yourself format. This compact, customizable DIY effects unit integrates Korg's legendary KAOSS touch interface with up to 4 simultaneous effects. It offers intuitive controls, extensive effect customization via logueSDK, and versatile connectivity. Perfect for dynamic performances, it's designed for musicians and DIY enthusiasts seeking to explore new sonic territories with ease and creativity.

Build-it-yourself creativity

The NTS-3 KAOSS Pad goes beyond the boundaries of conventional effects units. It's a playground for creativity, offering up to four simultaneous effects with extensive editing options. From essential filters and compressors to imaginative delays and reverbs, the NTS-3 KAOSS Pad opens up a universe of creative possibilities. The ability to work with individual effects or combine them seamlessly, along with the freedom to tweak each parameter, makes it a perfect tool for live performances and studio sessions alike.

Embracing the essence of KAOSS products, the NTS-3 KAOSS Pad features user-friendly controls and adaptable connectivity, packaged in a performance-ready design. The XY pad is at the heart of its interface, enabling dynamic control over effects, rhythm, and depth, enhancing your performance with a fresh, tactile approach.

Customise the KAOSS

The NTS-3 KAOSS Pad isn't just about sound; it's about making your mark. With an open development API and logueSDK, you can dive into creating unique effects, while the included Librarian application allows for easy management of your custom creations. The physical customization options, including reversible side panels and 3D schematics, mean you can even add a personal touch to your performance hardware.

Seamless integration and effortless DIY assembly
The Nu:Tekt NTS-3 KAOSS Pad is meticulously designed for straightforward integration into any musical setup, offering advanced connectivity with Sync IN/OUT and MIDI In/Out ports. But what truly sets it apart is its effortless DIY assembly process. Emphasizing the joy of building your own gear, the NTS-3 can be assembled quickly and safely, with no soldering required. This ease of assembly ensures that you can start exploring its vast sonic possibilities in less than 20 minutes, making it a delight for both seasoned musicians and DIY beginners.

Specifications

Effect: 35
Filter: 5
Modulation: 6
Delay: 4
Reverb: 5
Other: 5 (looper, grainshifter, vinyl break)
Mastering: 7
OSC: 3
Performance programs: 200 programs (more than 100 preload, 100 user programs)

Input/output jacks:

Headphone / AUDIO OUT jack (3.5 mm stereo mini-phone jack), AUDIO IN jack (3.5 mm stereo mini-phone jack), SYNC OUT jack (3.5 mm TRS mini-phone jack, 5V output level), SYNC IN jack (3.5 mm TRS mini-phone jack, 20V maximum input level), USB port (Type-C),

Power supply: USB bus power mode
Current consumption: 500 mA or less
Dimensions (W × D × H): 104 × 101 × 39 mm
Weight: 119 g/4.20 oz

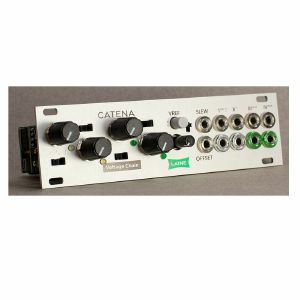

Notes: Catena is a control voltage powerhouse, packing in four channels of attenuation and offsets, two VC slew engines, half and full wave rectification, input voltage doubling and switchable voltage reference sources with an external offset input. As well as the standard cascading offset and polarisation utilities, the module can act as a percussive envelope generator or sidechain ducker, slow lag or glide control, waveshaper and mixer. Four channels of attenuators or attenuvertors are chained together, running from left to right, with an additional alternative mode per channel. The channel functions are chosen using a three-way slide switch above each control pot. Alternative modes use attenuvertion at the preamp stage allowing the modified signal to be polarised.

Alternative Modes

CH 1: Percussive Slew

CH2: Lazy Slew

CH 3: Half Wave Rectification (with gain boost)

CH 4: Full Wave Rectification

VREF Control

With no CV input patched, each channel generates +-5V or +-10V depending on the attenuvertor and VREF Switch position. The switch toggles between +5V and +10V precision voltage references. All Inputs and outputs soft clip at +-10V.

Slew Controls

CH 1 & 2 in the alt (slew) modes can have the slew response switched between tight and loose. There is further CV control via the CV input jack.

Offset Control
The pot controls the additional VREF amount added to CH 2, 3 & 4. With a CV input patched the pot controls an external signal input amount.CH 1 can also be offset by shifting a jumper on the rear panel.

Signal Doubler

Instead of unity gain as per the other channels, CH 4 doubles the input gain of a patched signal, but keeps any chained or offset signals at unity gain.

Mixer

High quality OPA op amps are used throughout, and Catena will happily serve as a mixer for 1-4 channels of audio. A five channel mixer is also possible by adding an audio signal to the offset jack.

Specifications

Intellijel 1U format
Width 28HP
Depth 34mm
Power requirements ~80mA +12V/~80mA -12V
Control voltage range +-10V
Impedance Input 100K / Output 1K

Review: The Complete Sound Work Shop Heritage box set is an extraordinary tribute to Piero Umiliani's prolific career, gathering his entire output on the Sound Work Shop label into an unparalleled 17-CD collection. Housed in faithful reproductions of the original album covers, this set is complemented by a 72-page booklet featuring rare photographs, insightful essays by Maurizio Corbella and Niccolo Galliano, and a comprehensive discography and tracklist. For the first time, Umiliani's extensive contributions to Italian jazz, film scores, and library music are showcased in one collection. His work at the Sound Work Shop studio, which he opened in 1968, played a crucial role in shaping the sound of Italian popular music. The studio was a hub of creativity where Umiliani explored a vast array of genres, from funk and psychedelic rock to avant-garde and electronic music. This collection reveals Umiliani's genius not just as a composer, but as a producer and visionary who controlled every aspect of his music's creation and distribution. The box set is a comprehensive portrait of a modern musician whose influence on Italian music during the 1970s remains indelible, making this collection essential for historical reasons.

Notes: Catena is a control voltage powerhouse, packing in four channels of attenuation and offsets, two VC slew engines, half and full wave rectification, input voltage doubling and switchable voltage reference sources with an external offset input. As well as the standard cascading offset and polarisation utilities, the module can act as a percussive envelope generator or sidechain ducker, slow lag or glide control, waveshaper and mixer. Four channels of attenuators or attenuvertors are chained together, running from left to right, with an additional alternative mode per channel. The channel functions are chosen using a three-way slide switch above each control pot. Alternative modes use attenuvertion at the preamp stage allowing the modified signal to be polarised.

Alternative Modes

CH 1: Percussive Slew

CH2: Lazy Slew

CH 3: Half Wave Rectification (with gain boost)

CH 4: Full Wave Rectification

VREF Control

With no CV input patched, each channel generates +-5V or +-10V depending on the attenuvertor and VREF Switch position. The switch toggles between +5V and +10V precision voltage references. All Inputs and outputs soft clip at +-10V.

Slew Controls

CH 1 & 2 in the alt (slew) modes can have the slew response switched between tight and loose. There is further CV control via the CV input jack.

Offset Control

The pot controls the additional VREF amount added to CH 2, 3 & 4. With a CV input patched the pot controls an external signal input amount.CH 1 can also be offset by shifting a jumper on the rear panel.

Signal Doubler

Instead of unity gain as per the other channels, CH 4 doubles the input gain of a patched signal, but keeps any chained or offset signals at unity gain.

Mixer

High quality OPA op amps are used throughout, and Catena will happily serve as a mixer for 1-4 channels of audio. A five channel mixer is also possible by adding an audio signal to the offset jack.

Specifications

Intellijel 1U format
Width 28HP
Depth 34mm
Power requirements ~80mA +12V/~80mA -12V
Control voltage range +-10V
Impedance Input 100K / Output 1K

Notes: The SD909 adapts the iconic TR-909 snare drum and noise generator for use in the Eurorack modular synthesizer format. Tiptop painstakingly tested the module in their lab to sound like a fresh machine coming off of the assembly line back in the 80s. On top of the original circuit, Tiptop have added new features that expand the palette of what can be produced with this analogue circuit.

The sound of the SD909 consists of two main sections: the binary noise generator and two modulated triangle oscillators. The oscillators provide the low end punch while the noise makes up the upper sonic spectrum, resulting in a combination that makes the 909 snare sound so rich. In the SD909 module, the noise generator and oscillators are variable and voltage-controllable, pushing the circuit beyond its original boundaries, offering new sounds and many variations of the original tone. The panel also has markings to guide setting the knobs to reproduce the vintage snare sound of the original machine.

Just like the other drums in this series, the SD909's high-powered output gain stage allows further enhancement of the sound through distortion and clipping. Tiptop have designed a dual pulse-shaper circuit on each gate input so you can trigger your SD909 with Trigger/Gate signals from step sequencers, clock dividers, or any other pulse/clock sources. Also, the SD909 is equipped with access to the MIXZ MixBus, matching the rest of the Tiptop line of percussive modules.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 46mm
Power: +12V 35ma / -12V 30ma

Notes: The larger model in M-Audio's Forty series, the Eighty features an eight-inch woofer for impressive bass response, plus Bluetooth for quick streaming from devices. Voice modes can be customised to the user's taste, with Flat and Hype settings for quick comparisons across different sonic profiles.

Supplier's Notes:
The Forty Series brings pristine audio to life with built-in DSP that provides precise crossover and customisable equalisation to deliver sound quality above and beyond the analogue filtering currently available in monitors at this price point.

M-Audio Forty Series: Experience your sound

Designed for every beat-maker, producer, DJ, mix engineer, content creator and party starter out there. The M-Audio Forty Series is a perfect choice for the new generation of creators.

For the producer hustle

Whether you're laying down heavy beats, tracking powerful lead guitar riffs, or crafting euphoric electronic adventures, the Forty Sixty and Forty Eighty monitors are clever production partners. Enjoy detailed and customisable sound that invites every element of your track to come to life. With these monitors, what you hear in your studio will sound outstanding in the club, on streaming platforms, and everywhere in between.

DJ Essentials

The Forty Series monitors are built to handle deep bass lines and crisp highs so you can keep track of your mix and deliver the smoothest transitions and fattest double drops with absolute precision. Whether you're practicing your set or throwing a party, your mix will sound tight and dynamic, giving you the confidence to push your mix to the max.

Precision sound engineering

Mix engineers are familiar with the importance of precision and clarity, and that's exactly where the Forty Series delivers. With professional-grade Burr-Brown analogue-to-digital conversion and DSP processing, you'll hear every detail of your mix. These monitors create a clean and accurate representation of your sound, so you can make informed decisions and craft mixes that translate perfectly from car systems to club systems.

The creator's workhorse

For content creators, consistent sound quality is everything. Whether you're producing a podcast, editing a video, or streaming, the Forty Series monitors deliver crystal-clear audio that ensures your content sounds professional. The precise DSP crossover helps you pick up every detail, ensuring your audience hears exactly what you intended.

Party with Bluetooth

Throwing a house party or just want to kick back and jam? The Forty Series allows you to do just that with Bluetooth 5.0 true wireless stereo (TWS) audio streaming. Simply connect any device and fill your space with rich sound. No cables, no hassle - just seamless and immersive sound that keeps the party going.

Instant listening modes

A lot of time and precision goes in to delivering a perfected final mixdown, but music is enjoyed outside of a perfectly treated acoustic room. To address this, M-Audio designed a simple front panel button that allows you to easily switch from a ruler-flat mix reference to HYPE mode that emulates a mix common in ear buds and car stereos. Beyond that, experiment with a custom mode where you can specifically define all parameters of your sound with the M-Audio Studio Control App.

Tailor your sound with the M-Audio Studio Control app

The M-Audio Studio Control App gives you the power to shape your sound as you see fit. Access customizable presets and a 5-band EQ to tweak your output to match your room, and your preferences via the front panel Instant Listening Modes. Rear panel trim control lets you dial in your XLR and TRS analogue inputs to ensure you can integrate these monitors seamlessly into any studio setup.

Weight & dimensions

Product only

Weight (lbs): 22 lbs
Weight (kg): 10 kg
Imperial (in): 10" W x 11.5" D x 15" H
Metric (cm): 24.5 W x 29.2 D x 38.1 H

Product in box

Weight (lbs): 28.2 lbs
Weight (kg): 12.79 kg
Imperial (in): 16.4" W x 14.2" D x 19.9" H
Metric (cm): 41.66 W x 36.1 D x 50.55 H

In the box

Forty Eighty studio monitor 5FT (1.5M)
AC power Cable
Foam Isolation Pad
Quickstart Guide

Notes: Reverse-engineered from the original machine, the BD909 is an identical recreation of the original all-analogue drum circuit of the TR-909. Tiptop have added additional controls and synthesis features that turn this classic circuit into a chest-pounding analog bass drum laboratory - all tightly packed into an 8HP module. The BD909 sound differs from the BD808 in that the main sonic energy is centered in the mid to low frequency range (as opposed to the low frequency range of the BD808). This frequency range gives the needed headroom allowing your bass lines to deeply fill up the low end while the kick drum rides on top - creating a clear and punchy mix.

The BD909 includes all the controls found in the original: Attack, Decay, Tune Decay, Accent, and Level. Tiptop have gone beyond that and added controls that further increase the palette of sound this circuit is capable of. First off, a tuning control knob has been added for the oscillator and included its own CV input and attenuator that let you tune the 909 kick with your bass lines. Next, control knobs have been added for the tuning attack and extending tuning decay. Each one affects the other, allowing for intuitive and interactive sound shaping, opening Z8000 up numerous "sweet spots" and provides the ability to center the energy peak at different parts of the sound. Finally, Tiptop have offered additional punch and distortion by giving complete control over the internal waveshaper, which allows you to overload the waveform manually or with voltage control.

Beginning with the classic and pure sound of the 909 kick, these additional functions greatly expand the BD909's flexibility and let it create powerful analogue bass drums that range from soft and smooth to punchy and aggressive - and everything in between.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 36mm
Power: +12V 34ma / -12V 21ma

Notes: Introducing the CYMBL909, part of Tiptop's new series of drum modules that brings those classic percussion sounds into the modular synth world, instantly turning your system into a self-contained music machine.

CYMBL909 is a dual voice module containing the TR-909's original Crash and Ride circuits adapted for use in Eurorack modular synthesizer format and was designed to sound like a fresh machine coming out of the assembly line back in the 80's. On top of the original, Tiptop have added some great new features that expand the sound palette of what can be produced with these two voice circuits.

The original circuits use a combination of low-fi 6-bit sound samples that pass through a series of analogue elements that provide envelope and filtering to the source sound. The CYMBL909 module adds manual and voltage control of the sample's analogue tuning section creating tones which range from heavy industrial at the low end, to the original crash/ride sound at the mid range, and bright hats-like sounds at the top end. Modulating the tune with an envelope, CV sequencer, or LFO makes interesting sound bending effects, which can be applied either in or out of sync with the triggering of the sounds.

Just like the other drums in this series, the CYMBL909 high-powered output gain stage allows you to further enhance the sound through distortion and clipping. Tiptop have designed a dual pulse-shaper circuit on each gate input so you can trigger your CYMBL909 with trigger/gate signals from step sequencers, clock dividers or any other pulse/clock.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 46mm
Power: +12V 60ma / -12V 40ma

Notes: Emulate the nostalgic sounds of old audio equipment with the 2hp Lo-Fi. Finding inspiration in quirks and happy accidents found in audio devices of the past, Lo-Fi can take any sound and give it the magic of tasteful degradation.

Lo-Fi carries two degradation modes: Analog and Digital. In the analogue mode, control the amount of wow and flutter for anything from subtle to dynamic pitch fluctuations, tickle the sonic spectrum with ASMR hiss and crackles, and warm up the coldest sounds with tape compression and saturation. In digital mode, dial in BitCrush amount, sample-rate reduction, and the wildest distortion in 2hp to cover your sound in digital crunch, or emulate blown out speakers.

With CV control over each function, and an ultra-crisp audio pass through, take your patch from hi-fi to lo-fi at a moment's notice. Get reel with the 2hp Lo-Fi!

Tech Specs: Width: 2HP, Depth: 45mm, Power Consumption: +12V=82mA -12V=4ma +5V=0mA

Notes: Swarm is a hyper-oscillator capable of an array of patch-filling sounds. Create super-saws, tonal noise hurricanes, and thick bass and lead lines.

Swarm is comprised of a large set of oscillators (up to 88 voices!). Control the number of available oscillators with the Voices control, and dial in the desired amount of pitch variance across the voices with detune. Take Swarm's oscillators from a rich thickening of sound to atonal chaos in the turn of a knob! Swarm also provides macro pitch control with the Freq knob, which also tracks 1v/oct through its CV input. A waveform toggle is also available for switching between sawtooth and pulse waveforms, expanding the timbral palette Swarm offers! Design pumping trance leads, minimoog style basslines, and more with Swarm!

Tech Specs:

Width: 2HP
Depth: 45mm
Power Consumption: +12V=82mA -12V=4ma +5V=0mA

Notes: Swarm is a hyper-oscillator capable of an array of patch-filling sounds. Create super-saws, tonal noise hurricanes, and thick bass and lead lines.

Swarm is comprised of a large set of oscillators (up to 88 voices!). Control the number of available oscillators with the Voices control, and dial in the desired amount of pitch variance across the voices with detune. Take Swarm's oscillators from a rich thickening of sound to atonal chaos in the turn of a knob! Swarm also provides macro pitch control with the Freq knob, which also tracks 1v/oct through its CV input. A waveform toggle is also available for switching between sawtooth and pulse waveforms, expanding the timbral palette Swarm offers! Design pumping trance leads, minimoog style basslines, and more with Swarm!

Tech Specs: Width: 2HP, Depth: 45mm, Power Consumption: +12V=82mA -12V=4ma +5V=0mA

Notes: Elevate your vinyl care with Secret Chord Analogue's Record Restore Box Set. This comprehensive kit provides all you need for pristine LP cleaning and protection. Featuring application and drying tools for Secret Chord's top-rated cleaning fluid, bid farewell to dust, dirt, and grime. Independently tested by industry experts, this advanced formula stands among the world's best. Say goodbye to static electricity and shield your collection from microscopic particles effortlessly. Select the ideal box set size to match your record collection, and replenish anytime with individual items available for separate purchase.

Cleans up to 28x 12" records

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Erica Synths Bass Drum is developed in collaboration with the French company e-licktronick and it's our take on analogue bass drum circuits adapted for modular systems. Massive, punchy sound, Accent & CV control over key parameters of the module make it distinctively expressive in live performances.

Features
Pitch
Tune
Tune Depth controls
CV control with attenuators over Pitch, Decay and Drive
Manual trigger
Accent for better expression

Dimensions
14 HP
30 mm deep

Current Draw
60 mA +12V
30 mA -12V

Notes: Emulate the nostalgic sounds of old audio equipment with the 2hp Lo-Fi. Finding inspiration in quirks and happy accidents found in audio devices of the past, Lo-Fi can take any sound and give it the magic of tasteful degradation.
Lo-Fi carries two degradation modes: Analog and Digital. In the analogue mode, control the amount of wow and flutter for anything from subtle to dynamic pitch fluctuations, tickle the sonic spectrum with ASMR hiss and crackles, and warm up the coldest sounds with tape compression and saturation. In digital mode, dial in BitCrush amount, sample-rate reduction, and the wildest distortion in 2hp to cover your sound in digital crunch, or emulate blown out speakers.

With CV control over each function, and an ultra-crisp audio pass through, take your patch from hi-fi to lo-fi at a moment's notice. Get reel with the 2hp Lo-Fi!

Tech Specs: Width: 2HP, Depth: 45mm, Power Consumption: +12V=82mA -12V=4ma +5V=0mA

Review: The Queen I Collector's Edition is a comprehensive and remastered look at Queen's groundbreaking 1973 debut album. This x6CD + 1xLP box set presents 63 tracks, including 43 newly remixed versions, demos, live recordings and alternate takes, making it the most complete version of Queen I to date. For the first time, a Queen album has been given a full stereo remix, allowing listeners to experience the album the way the band originally intended. Key highlights include the restored running order, featuring the song 'Mad the Swine', which was left off the original 1973 release. CD1 delivers the 2024 remix of Queen I, while other discs offer demos from De Lane Lea Studios, unreleased sessions and backing tracks. CD5 features rare BBC recordings and CD6 presents live performances, including Queen's first-ever show at London's Imperial College in 1970 and tracks from their legendary Rainbow Theatre concert in 1974. The set is beautifully packaged with a 108-page book containing handwritten lyrics and rare memorabilia, alongside four photo prints and a fold-out poster. For Queen fans and collectors, this expanded edition provides an in-depth look at the band's early sound, showcasing their energy, creativity and unmistakable talent from the very start of their career.

Review: Green Day's American Idiot is the much-loved band's seminal 2004 album, capturing the perennial angst and disillusionment of a generation, currently enjoying its 20th birthday although its politically charged punk rock remaining as relevant as ever. This anniversary edition enriches the original with unreleased demos, live performances, and alternate takes to offer a deeper insight into the album's creation. Tracks like 'Holiday' and 'Boulevard of Broken Dreams' still resonate, while the added material highlights the band's creative process.
