Synth modules

Notes: Pressure Points is a controller module, an analog sequencer that is played by hand. Touching the gold plated copper wires (aka Touch Plates), you become part of the circuit, generating a gate signal (Gate OUT), a control signal proportional to the amount of pressure applied (Press OUT) and the 3 Tuned Voltages for the activated Stage.

Notes: The MATHS music synthesizer module is an analogue computer designed for musical purposes. Amongst other things, it will allow you to:

Features

Generate a variety of linear, logarithmic, or exponential triggered or continuous functions

Integrate an incoming signal

With no signal applied, generate a variety of linear, logarithmic, or exponential functions

Add, subtract and OR up to 4 signals

Generate analogue signals from digital information (Gate / Clock)

Generate digital information (Gate / Clock) from analogue signals

Delay digital (Gate / Clock) information

If the above list reads like science rather than music, here is the translation:

Voltage Controlled Envelope or LFO as slow as 25 minutes and as fast as 1khz

Apply Lag, Slew or Portamento to control voltages

Change the depth of modulation and modulate backwards!

Combine up to 4 control signals to create more complex modulations

Musical Events such as Ramping up or Down in Tempo, on command

Initiating Musical events upon sensing motion in the system

Musical note division and / or Flam

Perfect for modulating the DPO and just about anything else

Page for Classic version of MATHS

Specifications

Width: 20hp
Max Depth
(incl. power cable): 32mm
Power:
60mA@ +12V
50mA @ -12V

Notes: Dual 1 x 3 buffered mult (one audio or cv signal in with multiple buffered outputs).

The output of the first mult is normalled to the input of the second mult to create a 1×6 buffered mult

Notes: Cylonix and Intellijel have collaborated to bring you a very sophisticated and deeply complex Wavetable VCO. At the core of this module is very powerful FPGA board that he has pushed to the absolute max of its capabilities and crammed full of features. We wanted to create a module that really worked well in the modular context so there are a lot of modulation and control possibilities.

CHORDS
Oscillator 1 can be operated in a CHORD mode, which runs 8 copies of the oscillator in parallel with adjustable detuning, leading to very fat, rich waveforms. The oscillators have extensive modulation capabilities including audio rate (98KHz) Frequency and Phase Modulation (FM and PM) via external sources. Nonlinear combination processes allow the outputs of the two oscillators to interact to generate complex timbres and sonic textures.
There are 64 user selectable chords.

WAVEFOLDER
The SHAPESHIFTER module also includes the analog wave folder circuitry from
module to add analog warmth and metallic rasps to the digital oscillator output.
External signals can also be patched in.

PRESETS
The module includes a sophisticated preset mode where panel settings can be stored. There are 12 user-programmable preset slots and another 52 volatile slots that can be used as a scratchpad. These scratchpad slots are initialized to interesting presets on module powerup. The capabilities of the preset mode is not limited to mere passive storage of settings, however. In this mode the user can also step through, or sequence, the settings, either in order or randomly in response to pulses input to the external sync input. This gives the user the ability to generate complex sequences of sounds. The preset mode also allows the user to morph between the current panel settings and a preset providing a very powerful real-time performance tool.

SYNC
8 Different sync modes: HARD, SOFT, REV, HOLD, BUMP, 2=1, 1=2, OFF
with the ability to internally sync to a sub oscillator

PULSE
User selectable modes for the PULSE output: OR, AND, XOR, GLCH, +OSC1, EOC, +OSC2, -OSC2

MOD A modes: (audio rate modulation)
COMBO IN, SHAPE IN, PHASEMOD, VOCODER

MOD B options (all with CV control)

-Combo modes for OSC1 and OSC2:
NORMAL, RING, MIN, PONG, INLV, AND, XOR, GLCH
-Waveform TILT
-Chord mode overdrive
-Delay depth and FB
-Percussive mode decay time

Notes: Dual 4-way passive mult (one audio or cv signal in with multiple unbuffered outputs)

On the back of the pcb is a pair of solder points marked as "link". You can connect these (with a solder blob or small jumper wire) to turn the mult into a single 8 channel Mult instead of 2 x 4 channel.

Notes: Introducing the BD808, part of our new series of drum modules that brings analog percussion into the modular synth world, instantly turning your system into a self-contained music machine. Its small size, minimalist design, and modern production methods have allowed us to bring the world's most famous bass drum sound generator back at a very low cost. The real thing is here again.

The BD808 is the Roland TR-808's Bass Drum circuit adapted for use in Eurorack format and tuned to sound like a machine that comes fresh off the original 80's assembly line. The adaptation to modular format has allowed us to add some special features like independent Accent levels, a high-powered gain stage, dual-input pulse-shaper, and extended decay - all without compromising the signature sound of the TR-808.

A widely used technique with TR-808 machines is to run the drum sounds through outboard amplifiers to add gain and then pass the sound through just about anything to generate additional harmonics caused by clipping and distortion. In the BD808, we have already included this high-powered output gain stage capable of producing signals up to 20Vpp, extending from the original palette of sounds and allowing you to get an assorted array of harmonized bass drums ranging from sharp attacks to crushed tones using this simple yet effective technique! On the inputs, we have also designed a dual pulse-shaper circuit so you can trigger your BD808 with Trigger/Gate signals from step sequencers, clock dividers, or any other pulse/clock sources. This saves you the need to shape the pulses sent to the module and ensuring the same stable sound at its peak power, regardless of differences in your pulse source.

All these little, but unique, features make integrating this legendary sound generator into your modular easy, unleashing the power of real analog drums and making those speaker cones shake.

Notes: The Buff Mult is a buffered multiple with LED indicators to show positive and negative voltages. Using wide bandwidth opamps, it functions as a dual 1-to-3 or a single 1-to-6 mult for audio, video, or CV signals.

Notes: The VCA Matrix from 4ms is a playable 4x4 matrix of 16 VCAs.

Four CV or audio inputs can be routed in any amount/combination to four outputs, using the 16 CV control jacks, Level knobs, and Mute buttons.

Notes: The Spectral Multiband Resonator from 4ms Company is an innovative resonant filter which can process audio like a classic filter bank, ring like a marimba when plucked/struck, vocode, re-mix tracks, harmonize, output spectral data, quantize audio to scales, and much more...
A gorgeous ring of colored lights displays the frequency of each filter, as well as the levels and current scale selection(s).

At a glance, the SMR works like a normal six-band graphic EQ: six frequency band-pass filters are mixed together using sliders. Resonance/Q is variable, which changes the "ringy-ness" or width of the bands.

But here's where comparison stops. The frequency of each channel is treated like a note in a scale, and the six bands form a chord. Spin the Rotate knob and the "notes" circle around the scale, rotating back to the bottom once they've reached the top. Adjust Spread and the distance (interval) between each note changes. Triggers for up/down motion, CV inputs for sequencing and scale selection allow for flexible control with external modules. Morph, which automatically cross-fades between frequencies, together with variable Slew allows rhythmic clocks drive the SMR as a variable-speed evolving resonant filter.

At maximum Resonance/Q, the SMR can be struck like a gong or marimba by inputting clocks or triggers. The frequency of each channel is quantized to a scale: beautiful chords, ethereal tones and eerie ambiance flows easily. With lower resonance, the SMR can pull out particular frequency bands, and sweep these across the spectrum.

Two 1V/octave Frequency jacks allow for tracking even and/or odd bands and creating floating melodies over evolving chord bases, or complex percussive membrane sounds.

Save your settings into one of six storage banks, and recall on the fly. On startup, the SMR instantly jumps to the last saved settings. The color scheme of the lights can be adjusted, so if you prefer all white lights on your modular, you can have that (or all red, or rainbows, pastels, etc..)!

Advanced features:
- Program your own scale. The frequency of each of the 20 notes can be assigned by setting the octave, the semi-tone, and coarse and fine micro-tone. Up to 11 scales can be saved permanently in the user bank
- Adjust color scheme of the LEDs. Pick a pre-programmed color scheme or create your own using the sliders to set Red/Green/Blue values. Custom color schemes can be saved permanently
- Save your settings in one of six parameter banks. Note position, scale and bank selection, Q value, Lock settings and color scheme can be saved and recalled on the fly. On startup, the SMR loads settings from the last saved bank.
- Optional alternative filter type for a more exponential decay when plucked and different timbral qualities. Freq jacks no longer track 1V/oct in this mode.
- Slider LEDs can be assigned to display level for each channel (combination of slider position and CV on the jack), or clipping for each channel.

Notes: This module allows you to interface your Eurorack modular system to the pro balanced line level world (+4 dBu). You can send audio out to rack mount/desktop FX units, patch to external line-level instruments like synths and drum machines, interface to a DAW, and much more.

Features:

1 x Eurorack modular level signals to Balanced TRS 1/4? output path
Uses a high quality THATCorp balanced line driver IC
Output path steps a nominal Eurorack level (10 Vpp) down to +4 dBu with up to +6 dB gain.

Notes: The shorter and wider brother to the popular Triatt module!

The four handy knobs can act as active attenuators (unipolar) or attenuverters (bipolar) depending on the setting of the two-position switches above each one.

Each input is normalled to a precision +5V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 v or -5 to +5 v depending on the position of the mode switch.

- 2 modes for each channel
- 5v normalled to each input
- With external signals it acts as active/buffered attenuator/attenuverter/mixer
- Each output normalled to mix into the adjacent channel on the right making it possible to do sub mixes in groups of 2, 3 or all four channels.

Notes: USB socket for charging/powering peripheral devices.

This tiny but handy module connects the USB A connector to the +5V bus on the Intellijel TPS series powered busboards. Allowing 1A or more of current to be supplied to USB devices such as lamps, phone chargers, and usb powered musical devices.

It connects to the bus via supplied two-pin cable.

*Compatible with the TPS30 MAX and TPS80 busboards. TPS30MINI board requires an adapter.

Notes: The Circadian Rhythms is moving modular synthesizer technology another step forward by gluing all the pieces of a system together. Each module or voice can now be programmed to play straight from an intelligent, eight-channel, 512-step master trigger sequencer made for composers looking to make music on the modular. Building on the sequencing concept of step programing multi-channel patterns of musical phrases can be repeated, looped, chained, muted and manipulated on the fly in real-time, and most importantly, all of this is done through a simple, clearly labeled interface. Using an array of multicolor illuminated buttons and innovative grid views provides a highly functional live performance sequencer with a beautiful glowing appearance of the programmed music that will look amazing on stage for both performer and crowd. As a master controller, the heart of the modular synthesizer, Circadian Rhythms generates high precision clock and reset signals for all the other sequencers and devices in the system to align with and can also act as a high precision bridge for DAW synchronization.

Views - Unlike most hardware sequencers that have a single static display of a timeline, Circadian Rhythms offers four different horizontal views of the timeline and two unique vertical views that scale from macro to micro. Switch between viewing 64 steps at once or all 8 channels side by side instantly. Stretch gates over multiple patterns to drive envelopes or use Zoom view to move a single hit back a few milliseconds in time to get the right feel all from the same interface.

LED Grid Built for Quick Access - Built around 72 buttons set as a multi-color illuminated 8x9 array, Circadian Rhythms displays both note data and settings in a clear and precise manner. It takes only one click to switch to vertical view and the grid turns into a set of programming and realtime playing functions like Mutes, Loops, Swing, Fills, Copy and Pate, Grouping, Randomizing, Manual trigger entry drum machine style and many many more. Activate any of those functions with only a button press or two.

Clock - Inside the CR ticks an extremely precise clock with jitter and latency measured in mere microseconds for the ultimate feel of groove. The four modes of clock sync make interfacing with other modules, hardware or software simple. Whether driving a large Eurorack system or synced to a DAW, the groove always remains tight.

SyncBus Technology - The Tiptop Audio designed SyncBus enables the CR to connect to any number of other SyncBus devices with the highest possible level of synchronization. A SyncBus master directly injects its core clock and running status into every connected unit so they work seamlessly as one device. Hook up two CRs to make a 16 channel device or add a Trigger Riot (or three) to the mix for further experimentation. Plus, the connection is done behind the panel so no need to patch anything together.

Under The Hood - When state of the art chip technology, musically driven firmware, and professionally engineered hardware design all come together in one electronic device, the result is a music sequencer with unparalleled specifications. Starting with a powerful, precise sequencing engine that has superb feel for the groove, add internal functions that automatically balance performance and smooth user interface operation, and finish with outstanding low power consumption placing minimal stress on power supplies even at maximum output, Circadian Rhythms has a design focused on the requirements of the most dedicated musicians and composers. Long time pros will immediately feel a machine made for their needs, while the newcomers can instantly dive into next level programming and performance.

Notes: 'Beast's Chalkboard' is dual channel stepped voltage source and adder for your eurorack modular synthesizer system. It primarily is intended as a dual octave switcher for VCO's but has many other uses including sequence transposition, FM ratio creation, buffered CV distribution and VCO calibration.

Technical Specifications:

Supply: +/-12V (Reverse voltage & polyfuse protection)
Current Draw: ~30ma
Size: 6 HP
Depth: 22mm (including power header)
Offset Error: +/- 10mV

Notes: The 'S.B.G' is a compact utility module intended for the interfacing of guitar effect pedals with your eurorack modular system.

It provides both attenuation and amplification of audio signals for level matching together with a crossfade control to conveniently adjust the wet/dry mix of a processed signal. The module also offers regulation of outgoing CV signals for safer use of pedal expression inputs.

Technical Specifications:

Supply: +/-12V (Reverse voltage protection)
Current Draw: ~30ma
Size: 4 HP
Depth: 22mm (including power header)

Notes: 'O/A/x2' is a dual channel attenuverter with each channel also including a bipolar voltage offset and LED monitoring. The module is primarily intended for fine grain flexible 'editing' of control signals (i.e changing the phase, level and DC offset of an LFO signal) but also has uses with audio signals such as attenuation, inversion and mixing.

Technical Specifications:

Supply: +/-12V (Reverse voltage protection)
Current Draw: ~50ma
Size: 4 HP
Depth: 32mm (including power header)

Notes: 'Akemie's Castle' is a dual voltage controlled oscillator with authentic 4 Operator digital FM using 'new-old-stock' Yamaha IC's for audio signal generation.

Each of the 4 operators feature independent waveform selection, frequency multiplier and level control via direct panel operation and voltage control. Operators can be combined in various ways across both oscillators, which together with independent feedback control on each VCO, offer an extremely wide palette of sounds.

Oscillator A also features a chord mode providing a range of up to 5 voice chords and voltage controlled inversion.

Notes: 'Tangle Quartet' is a high quality quad linear voltage controlled amplifier (VCA) providing individual level control of 4 signal inputs with both individual outputs and a combined 'mix' output (for non patched outputs) . Control signal inputs and associated attenuation controls allow for voltage control of signal levels. Control inputs are normalised to 5v thus providing manual mix control in the absence of control signals.

Technical Specifications:

Supply: +/-12V (Reverse voltage protection)
Current Draw: ~80ma
Size: 8 HP
Depth: 32mm (including power header)

Notes: Full-featured triangle core VCO/LFO

The Dixie II+ is a larger variant of the classic Dixie II. Using the same great triangle core oscillator, it adds a number of features to make it even more versatile with only a modest increase in size. The Dixie II+ makes a great primary oscillator for a modular system, or a great companion the Rubicon.

Notes: The Intellijel/Cylonix RAINMAKER eurorack-format module provides a high-quality (96KHz sampling rate with 32-bit internal processing) stereo rhythmic delay and stereo comb resonator effect.

The stereo rhythm delay has 16 taps, each with its own resonant 2nd-order filter and granular pitch shifter. The filters have independently adjustable resonance and cutoff frequency, and can be set to either lowpass, bandpass, highpass or bypass operation. The filters are also capable of self-oscillation, enabling modal synthesis techniques. The granular pitch shifters have a range of 15 semitones up or 16 semitones down. Each tap can repeat at a rate value set in tap#'s in order to create regenerating echo effects. The feedback signal has a lowpass/highpass tone control and its own pitch shifter. The tap delay times can range from 0.1 millisecond up to a maximum of 20 seconds. The overall delay times can be set with the rotary encoder, the tap tempo button, or synced to an external clock.

The stereo comb resonator section has 64 time-delayed taps which are summed together. This produces a deep comb filter or resonating effect. At large comb sizes (long time delays) a multiple echo effect is produced. The density of the resonator can be varied from 2 to 64 taps. The tap with the longest delay time is fed back to the input. High feedback levels, with short comb sizes, produce "Karplus-Strong" types of plucked string sounds. The relative timing of the 64 taps are set according to one of 16 different preset patterns, which provide different resonator timbres or echo rhythms. The comb size can be set either with the rotary encoder, an external clock or through a transposable 1v/oct input voltage.

The Rainmaker module has extensive voltage control capabilities. Direct voltage control is available for the delay feedback level and tone, the global pitch shift for all delay taps, the comb resonator size, and comb feedback level. There are two assignable modulation inputs, which can be assigned to different parameters in each preset. A trigger input with assignable functionality can trigger built-in types of noise bursts, freeze the delay buffer, reverse the delay, randomize parameters, mute taps, and much more.

Notes: The Polaris is a 4-stage cascaded OTA filter designed by David Dixon. It builds on the lineage of the Dr. Octature and Atlantis filters, but with a totally revised core and resonance control. Along with dedicated LP, HP and BP outputs it features a configurable MULTI output capable of an unprecedented 27 different filter modes.

With drive turned down the Polaris is capable of buttery smooth filtering, and the cutoff control range has been fine-tuned for playability. With the drive dialled up and the new asymmetric multi distortion circuit engaged it creates a more aggressive sound. Not content to be just a filter, the Polaris's AP phaser mode combined with frequency modulation can be used to achieve a phaser effect.

With so much versatility in a modest size, the Polaris is an ideal filter for a starter system and an excellent addition to the tonal palette of a larger modular.

Notes: Two independent Contour Envelope Generators in a single 12hp wide Eurorack module. These are very accurate replicas of the Model D contour generators, with identical circuitry and component values running on the correct +9.3V and -10v supply voltages of the original; so they exactly replicate the original envelope response along with all of it eccentricities. Extra features include manual trigger buttons and envelope status LED's.

The contour generators played a larger part in the sound of the Model D than many people realise. There are two factors that make them unique, firstly the exponential slope when is used in conjunction with the (near) linear slope of the original VCA which is responsible for the famous Model D "punch". Secondly, the re-trigger behaviour is quite unique, multiple retriggering increases the output level so that either the volume increases incrementally, or the filter opens incrementally with each extra key press.

AJH Synth have added independent Decay switches for each individual Contour Generator rather than the shared switch on the original synthesiser, these switches change the Contour response from AD (switch up) to ADSD mode (switch down).

Notes: Gritty drum voice module based on new old stock Yamaha FM synthesis chips, also capable of a decent range of synth tones. User-friendly knobby interface with a decent range of CV inputs for modulation.

Supplier's notes:
'Akemie's Taiko' is an authentic complete FM synthesis based drum voice created using original Yamaha IC's. It builds on the same technology used in the mighty Akemie's Castle but in a more complete triggered voice form featuring both signal generation and envelope shaping.

The module provides CV and direct control over a number of FM parameters including algorithm selection, operator release envelopes, ratios, waveforms & feedback. This gives a massive range of unique sounds.

The voice is able to track 1 volt per octave allowing it to be used for melodic lines as well as percussion. Also optional 'frequency ramps' can be enabled for additional audio effects.

The drum voice includes a trigger input as well as accent and choke trigger inputs to add further expressive and rhythmic control.

Notes: Two control sections provide a sweepable cut or boost to a selectable upper and lower frequency band. The module has two ac-coupled audio inputs, one of which has an attenuation control for basic mixing, and a single audio output.

The 'PE-1' is inspired by the EQ circuits used in early 'Portastudio' type 4 track tape mixers. Warm up a digital source, fine control a live performance, extend a mixer, tweak a feedback loop - there are many uses for this great sounding EQ.

Features:
- Provides +/-12db of boost and cut across 2 selected frequency bands
- Dual input with single attenuation control
- Reverse polarity protection.
- Skiff friendly
- Designed and made in the UK

Notes: Announcing the Dual Looping Delay from 4ms Company, designed by Gary Hall!

The 4ms Dual Looping Delay (or DLD) is an advanced audio processor for creative synthesis. Not a tape or analog emulation but a modern crystal-clear digital delay, the DLD combines features of delay, looping, and sample-tight synchronization for powerful and dynamic sound capture and modification. The DLD is designed to integrate seamlessly with modular time-base and sequencing devices such as the 4ms Quad Clock Distributor (QCD), etc.

What is a "Looping Delay"?
Modern looping devices grew directly from hardware digital delays of the late 70s and early 80s. A looping delay, modelled on units such as the classic Lexicon PCM42, has the very long storage times associated with dedicated looping, but without triggered record and playback functions.

By default, a looping delay records and plays continuously, though recording can be suspended at any time with Infinite Repeat. Sustain of delays and loops is mainly accomplished with regeneration, allowing an organic, evolving approach to sound creation as new material replaces old, more or less gradually. The 4ms Dual Looping Delay also provides advanced clock input and output facilities that allow for locking delayed and looped material with sequencers and rhythm devices of all descriptions.

The 4ms Dual Looping Delay is conceived and designed by Gary Hall. Implemented and manufactured by 4ms Company

Notes: Belgrad is an all-analogue voltage controlled filter module which - on par with our other modules - brings something new to the table. While it can be used as a traditional VCF for "academic" subtractive synthesis, we guarantee countless hours of exciting timbral explorations thanks to its unique character, flexibility, and features. The most prominent feature is that it offers a multitude of frequency responses with two resonant peaks.

- Eurorack synth compatible
- 14HP, skiff friendly
- Current draw: +45mA / -42mA
- Reverse power protection

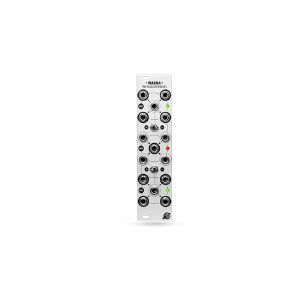

Notes: Warna is a very useful utility module that helps you to manage control voltages in the system. Crammed in just 6 hp, there are five normalled sections: two buffered mults, two inverters, and a summing mixer. Each multiple routes the input signal to separated outputs without loss in voltage. Warna is designed for unity gain - if you apply a specific voltage to any input, it remains the same on the respective outputs. Inverters are hardwired to mults and invert the polarity of the signal applied to them. Both mults are also normalled to the mixer section via inputs. Patching anything to these inputs breaks the normalization.

The top and the bottom section both are buffered 1-in-4 multiples. The input can be inverted with a switch, i.e. its polarity will be changed by 180 degrees. Four inverted copies are then available at the outputs, meaning you can use these two sections as inverter. Bi-polar LEDs display whether the signal is positive or negative: yellow = negative, red = positive. The centre section is a four-input summing stage with amplification factor 1, a so-called unity-gain mixer. The multiples are normalized to the mixer which can be deactivated by patching.

Notes: Trim is a 2 channel passive attenuator. It features two individual channels of attenuation.

Notes: Mult is a 2 input, 6 output signal splitter. Channel 1 is normalled to channel 2 when no cable is present, allowing the user to split an input signal six ways, or two input signals with three outputs each.

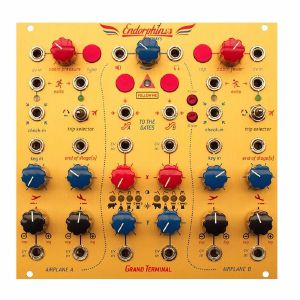

Notes: The Grand Terminal is a digital multipurpose module. Its two function generators can be used as envelopes, LFOs or VCOs. The 2 filter channels individually offer 8 modes of operation, and combined with its mixing and routing capabilities and a multi effects unit, it is not only a complete back end of a synth voice, but can also be used as a synthesizer voice, stereo filter bank or general purpose sound effects processor.

The Grand Terminal is based on an ARM M4 DSP, audio resolution 48 kHz/16Bit. Its two filter channels can be used in parallel or serial, and there is a link mode for stereo operation. The Audio inputs have individual trimmable gain stages to integrate the Grand Terminal into different production environments. There's a soft clipping feature in order to prevent unwanted distortion. Gate A is normalized to Gate B for easy parallel processing.

Each of the filters can be set to any of 8 filter types, which are: Transistor Ladder Filter (Low Pass), Diode Ladder Filter (Low Pass), Vactrol Low-Pass Gate, Resonant Vactrol Low-Pass Gate, State Variable Low-Pass Filter, State Variable High-Pass Filter, State Variable Band-Pass Filter, Comb Filter. The filter can be controlled in 2 parameters manually as well as via CV. The outputs of this section can also be controlled in Volume and Pan position. At this stage, the unit is designed to distort in the upper third of the gain control setting.

The built-in multi effects processor features eight algorithms which can be altered in 2 crucial parameters and a possibility to crossfade between the dry and the effected signal. Its algorithms are: Hall Reverb, Shimmer Reverb, Room Reverb, Spring Reverb, Ping-Pong Delay, Tape Delay and Chorus. At the end of the audio path, there's a Master Volume Control as well as one Mono and one Stereo output.

The two function generators can operate as AD or AR envelopes. All time parameters can be set between 1 ms and 10 seconds, manually as well as via CV. The envelopes can be individually set to loop and then act as LFOs or VCOs (following V/Oct for about 6,5 octaves). They also feature End-of-Stage Outputs.

When used in connection to the Gateway, all controls which are normally set by jumpers on the back of the module are accessible from the Gateway's front panel.

Notes: Samara is a "Swiss Army Knife" type of module, intended to serve the most common voltage and audio signal processing purposes such as attenuation, offsetting, mixing, inverting, and even basic waveshaping. Samara features four channels, each with two inputs and an attenuator, additional switchable offset generators, four voltage level and polarity indicators, two adders with switchable scale, and a precision four-channel processor that selects minimum and maximum voltage.

Notes: The 2hp VCA is a dual, linear VCA. It uses the renowned 2164 SSM architecture, giving it extremely low distortion and high quality audio outputs. With a CV input attenuator, and DC-coupled inputs this is your new go-to module for voltage controlled amplification of audio or CV.

Notes: Brst is a voltage controlled burst generator and trigger delay. Upon receipt of a gate signal, Brst will output a stream of triggers. Knobs and CV inputs give the user control over speed and the number of repetitions. Whether you're generating bouncing balls, crafting IDM drum beats, or humanizing a clock signal, Brst will prove an indispensable addition to your rack.

Notes: PERC features 256 percussion sounds with tight attacks and a bright harmonic spectrum. This collection is specifically focused on shorter percussive samples and includes material such as multi-layer drum & percussion hits, chopped & processed loops, synthesized FM strikes, mallet and bell tones, sampled drum machines, various toms and hand drums, obscure noise boxes, sampled old-school game chips and much more. PERC makes full use of ONE's snappy character.

All samples on the card are available for playback at 48k, 64k and 96k for maximum versatility in pitch control while maintaining latencies of as low as 0.25 ms.

Design by: Glitchmachines
Type: One Shot
Character: Percussive

Only compatible with the Tiptop Audio One Digital Audio Flux Eurorack Module.

Notes: This useful module is a Bipolar Mixer, DC voltage source and Linear DC coupled VCA.

- With no input to channel 1 the Input 1 pot becomes a voltage source with a range of +/- 6V.
- The control pot and input for channel 4 can be switched to become an offset control and/or a second CV input for the VCA.
- Input 3 has 2x gain, so it can amplify lower level CV's too.
- All inputs are bipolar, which means that either non-inverted or inverted version of the input signal can be added to the mix depending upon the Input control being turned clockwise (non-inverting) or anti-clockwise (inverted). The 12'o'clock position is zero.

Notes: This is a simple 1U module designed to allow the monitoring of a system using headphones. However, if your cat isn't easily scared, the headphone jack doubles as a TRS stereo line level output. Simply connect the signal that you want to monitor to the 1/8? jacks, plug in your headphones, and adjust the volume as desired.

Notes: The Shifty is essentially a combination of four sample and hold stages, a sequential gate and sequencer controller. This collection of functions allows for some specific and useful utility application.

One of the primary uses for Shifty is to take a monophonic sequence source and route each new note of the sequence to up to four different synthesizer voices in a specific pattern. In this way you can create pseudo polyphonic sequences since each voice can be triggered to play and sustain while the next voice int the sequence gets triggered. Another term for this is hocketing.

The other main application of the Shifty is to function as an Analog Shift Register. In this mode each new gate input received causes the current set of pitches to be shifted to new output locations as a new one is added and the oldest one is replaced. This can be an interesting way to create chords that are up to four stacked notes when used with a pitch sequence source that has a harmonious series of notes (e.g. a pentatonic scale works really well). Even just using two of the outputs will yield very interesting melodic interplay and is an excellent way to make a simple sequence much more complex and interesting.

In a more basic way the Shifty could be used as a simple Sample/Track and Hold module or as a sequential gate.

Notes: Dual 1 x 4 buffered mult (one audio or cv signal in with multiple buffered outputs).

The output of the first mult is normalled to the input of the second mult to create a 1×8 buffered mult.

Notes: TouellSkouarn Strakal Brulu is a handmade distortion and fuzz module. The great sound is due to the new-old-stock east-German germanium transistors.

Very characteristic for the module's sound if the feedback that is coupled to the feedback. The more fuzz, the more feedback - the Strakal Brulu 2 can get pretty nasty and it screams a lot at high fuzz settings and low input level. The fuzz amount can be voltage controlled, with an inverse attenuator. Input and output levels can also be set separately.

Notes: Delay is a flexible, full-featured delay audio processor. CV over all parameters provides dynamic access to its nuanced controls. The feedback path ranges from slapback to infinity, allowing for wild permutations of the original signal.

With delay times from milliseconds to nearly two seconds, Delay is sure to find a use in every patching situation. Add subtle echo to a melodic line, or crank up the feedback and hear a bed of layered sounds to bury your listeners in.

Notes: The Morphagene music synthesizer module is a next generation tape and microsound music module that uses Reels, Splices and Genes to create new sounds from those that already exist. Search between the notes to find the unfound sounds.

A few of the Morphagene's most basic uses: Splice recorded audio and jumble it using ORGANIZE. Manipulate playback speed and direction with Vari-Speed. Granularize with Gene-Size and Slide. Layer or Stagger Genes using MORPH. Undertake iterative music processes by recording manipulations and overdubs into new Splices, like having two machines (one for Playback and modulations, one for Record). Process sound in real time using Time Lag Accumulation. Utilize envelope following CV OUT and EOSG Trigger to engage Morphagene in conversation with the rest of your modular system. Stretch and squash sound with Clock input.

Features
New revision Morphagene firmware MG204 adds great functionality.
Voltage control over all sound manipulation parameters
Stereo I/O with Input Gain Selection, works with line- or modular-level signals
Recording Reel can be up to 2 minutes 54 seconds long
Record/ create up to 99 Splices per Reel
SD Card stores multiple Reels
Sound On Sound allows for layering sounds
Playback and Recording independent, like having two machines
Vari-Speed range 12 semitones up and 26 down, over 3 octaves
24-bit codec, creates 48k 32bit WAV files
Back up Reels on computer with SD Card
Share and download Reels at freesound.org! [see how]
includes blank SD Card

Specifications
Width: 20hp
Max Depth
(incl. power cable): 45mm
Power:
165mA @ +12V
20mA @ -12V

Notes: Loquelic Iteritas Percido is an extension of the original Loquelic Iteritas. Like Loquelic Iteritas, it is a digital VCO with interpretations of three classic synthesis algorithms involving dual pitch control parameterized by four tone controls. LIP adds an envelope that can be shaped, modulated, and routed to pitches and tone controls, making it into a stand-alone voice.

Notes: Killer physical modelling module collab from two of the biggest names in their respective fields of hardware and software. Generates a huge range of percussion instruments plus synths and bass tones.

Supplier's notes:
Plonk uses a technique known as physical modelling to synthesize, with great realism, the way in which sound is produced by acoustic instruments. The Plonk module is, itself, focused primarily on creating percussive sounds - both pitched and un-pitched; natural and unnatural; acoustic-sounding or totally electronic.

Plonk does this by breaking sound creation into two distinct elements - the exciter and the resonator. The exciter is a mathematical model of the device used to strike a particular surface. Plonk, because it's percussion oriented, has two types of exciters: one modelled on a mallet, and the other providing a noise source. The resonator is a virtualization of the object being struck, which vibrates, resonates and creates the body of a sound. Plonk offers several types of resonators: beam; marimba; drumhead; membrane; plate; and string.

Plonk provides numerous parameters that let you shape, mould and design both the exciter and the resonator, thus enabling you to synthesize the sound of striking or scraping almost any type of object - real or imagined. In this way, Plonk can accurately model the sounds of kicks, snares, toms, cymbals, claps, tablas, congas and all manner of traditional percussion instruments. It can also model pitched percussive instruments, like vibes, marimbas, and even bass or guitar-like tones. Of course, it additionally excels at modelling instruments that heretofore never existed.

Best of all, the sounds created by Plonk are not static - any sound you design can respond dynamically to velocity, as well as four different modulation inputs. This means the sound of Plonk can change completely from note-to-note (or strike-to-strike). Because of this, Plonk is actually a duophonic (2-voice) module, which lets the sound of one note decay naturally when a second note (possibly employing an entirely different set of modelling values) is struck. Thus, hitting a new note does not choke the sound of the previously struck note (unless you want it to, of course)!

Plonk stores up to 128 patches in its internal memory, and ships with many presets programmed by professional sound designers and composers. You may overwrite these patches if you wish, and banks of patches may be transferred via MIDI System Exclusive over Plonk's built-in mini-USB port to facilitate offline storage by programs or websites that support this capability.

Plonk was developed in cooperation with Montreal-based Applied Acoustics Systems - physical modelling pioneers, and the creators of Tassman, Lounge Lizard, String Studio, Ultra Analog, Chromaphone and numerous other plugins. It is with great pleasure that Intellijel brings the potential of this physical modelling technology to a hands-on, CV-laden device capable of the sort of dynamic control and sonic exploration that modular synthesists demand.

Notes: The Stereo Triggered Sampler can record high quality stereo files, while simultaneously playing two different stereo files. A maximum of 600 samples can be loaded from the removable/swappable microSD card, in a variety of formats up to 96kHz/32-bit/stereo WAV. All sample parameters (1V/oct pitch, sample file selection, length, and start position) are CV controllable.

600 Samples:
A maximum of 600 samples can be loaded at once, arranged into banks of 10 samples each. Samples and banks can be re-arranged on the fly using the simple on-board Edit features. Newly recorded samples can be instantly played back and re-pitched, reversed, chopped up, etc... the result of which can even be bounced down and re-recorded to as a new sample! Sample files are limited to 4GB each, which is over 6 hours at 44k/16b/stereo.

Two Stereo Playback Channels:
Each playback channel has a knob and CV jack for Sample File selection, as well as a Start Position knob and CV jack for controlling where in the sample playback will begin. The Length knob and CV jack determine how much of the sample is played back: from tiny grains, to percussive hits, to longer loops... or just the entire file. These are powerful tools for re-arranging a sample, joining multiple samples, and creating dynamically re-sized loops within a larger sample. Combined with the Play Trigger jack and the 1V/oct jack, the STS can be two complete multi-timbral pitch-tracked stereo voices!
There's also a Reverse button and jack for backwards playback, and an End Out jack for synchronizing loops, or cascading sample playback with other events.

Looping and Sync:
Looping is easy: just hold the PLAY button down for two seconds to toggle loop or one-shot. The loop timing clock will output from the End Out jack. Or, send a clock into the Play Trig jack to sync the loop to external timing.

Stereo Recording:
Whether you patched 47 modules to create the ultimate percussive blast, or you want to capture your four hour ambient performance, recording high-quality .wav files on the STS is simple. Just hit the REC button or fire a trigger and a new stereo .wav file will be created on the SD card. Do as many takes as you need: the STS never deletes your files. Re-ordering or re-arranging samples into banks is easy, even without a computer.
You can even fill a bank with 10 different variations and immediately use them for playback.
By default the STS records at 44.1kHz/16-bit, with an option for 24-bit (a future update may increase the sample rate to 96kHz)

Easy sample loading:
Using a computer is completely optional with the STS, since samples can be recorded directly to the module and placed into the bank of your choosing. But for users with large existing sample banks, the intuitive automatic bank loading features make dragging and dropping your entire sample library a snap. You never have to rename your files again!

Notes: The Quad VCA is a compact and feature packed module that is sure to find its way it almost all of your patches. In addition to being used for standard VCA duties it can also be used as a mixer and signal booster.

Features:

- Manual LEVEL control per VCA which is convenient when using the module as a mixer or for biasing when CV modulating the VCA with a bipolar LFO.
- Dedicated CV attenuators with dual colour LEDs for monitoring bipolar CV signals.
- Continuously adjustable response from linear to exponential per VCA.
- Each CV input is normalled to the adjacent one for cascaded control.
- Each output is normalled to the mix input of the adjacent one which allows you to use adjacent sets as submixes or the fourth output can be used as a master mix output when none of the other outputs are patched.
- Each VCA has a boost switch that increases the output level by approximately +6dB (double).
