Synth modules

Notes: The Jumble Henge is a 16 input stereo spectral mixer with a unique patch-based mixing interface in a compact space. Each input has a carefully tuned resonant analog filter and a unique fixed pan value, providing each sound its own space within the mix. There is a Mix control to adjust the depth of the filtering and a clean external stereo input for chaining with another mixer or extra sound source. Jumble Henge is a space efficient solution for creating rich stereo mixes from a number of both mono and stereo sources.

INPUTS
Vertical and horizontal patch position determines a source's spectral and stereo placement in the mix respectively.

Aside from centred inputs, every input sits in its own unique pan position, helping to keep a separation between sounds but building a complete stereo image when combined.

The centre right inputs of the top two rows are normalised to the centre left inputs. - i.e if just a left input is patched it will be effectively panned center.

Towards the highs the panning becomes wider - as the human ear better pinpoints direction at higher frequencies, whereas the lows remain more centred for a tighter, more focused sound.

MIX CONTROL
Mix control for the overall depth of the filters applied to the inputs. Note: a slight volume increase occurs near the centre of the dial.

EXTERNAL INPUT
An additional clean stereo input pair for chaining with another mixer or additional source. Right input normalised to left input to accomodate mono sources.

OUTPUTS
Stereo mix output, the sum of all 16 inputs.

Jumble Henge was designed in collaboration with Worng Electronics and is based on the 'SoundStage'.

Technical Specifications

Supply: +12V 70mA / -12V 70mA

Size: 8HP

Depth: 38mm

Notes: Unusual output and mastering module, inspired by studio and radio mastering tools but fitting into just 6hp. Includes multi-band compression, mid/side stereo processing and brickwall limiting.

Supplier's Notes:
Golden Master is a multiband processor module in Eurorack format. Inspired from the studio mastering and radio loudness units from the 90's, this tool is a game changer for everyone who performs live with a Eurorack synthesizer.

The whole magic of Eurorack lies in its raw sound and simple analog mixes - processing through the Golden Master brings instant punch and sound pressure, as well as controlling the overall volume.

Power consumption: 135mA at +12V and 25mA at -12V
Depth: 30 mm (with ribbon cable connected)
HP : 6

Notes: Three-band isolator with stereo inputs and outputs, splitting the signal into highs, mids and lows then allowing you to control level and frequency via CV for some clever sound sculpting and modulation.

Supplier's Notes:
Katowice is a stereo variable-band isolator that allows the user to manipulate a selected range of frequencies. It is the first module in a series of upcoming Xaoc Devices products designed specifically for processing stereo signals.

Katowice splits the stereo input signal into three bands: low, middle, and high. While the knobs and CV inputs define the center frequency and bandwidth of the mid band, the low and high bands are automatically adjusted so that the sum of all three is a complete signal. All three bands are passed through high quality VCAs and their stereo outputs are available separately for further processing. A stereo mixdown signal is also available.

Katowice may be used as a crossover network, a parametric EQ, DJ-style kill filter, or other band-selective applications, including multiband compression and stereo enhancement.

TECHNICAL DETAILS:
Eurorack synth compatible
10hp, skiff friendly
Current draw: +100mA / -100mA
Reverse power protection

Notes: 1U version of the excellent Golden Master, a surprisingly creative little output module which combines radio-style multi-band compression with brickwall limiting and mid-side stereo processing.

Supplier's Notes:
Golden Master is a multiband processor module in Eurorack format. Inspired from the studio mastering and radio loudness units from the 90's, this tool is a game changer for everyone who performs live with a Eurorack synthesizer.

The whole magic of Eurorack lies in its raw sound and simple analog mixes - processing through the Golden Master brings instant punch and sound pressure, as well as controlling the overall volume.

Features:

instantly improve your raw Eurorack mixes to sound balanced and powerful on stage or wherever you are
96 kHz 16 bit digital audio stereo processing
3-band compressor with intuitive adjustment and brickwall limiter
mid/side stereo field processing
Power consumption: 125mA at +12 V and 12mA at -12 V

Depth: 42mm

HP : 22

Notes: KR is based off of the concept of a guitar tonestack: you get a gnarly drive on the top and a super clean two-band shelving EQ with switchable midpoint after that. There are separate ins and outs, too, so if you want to EQ a thing and distort the other thing at the same time you can!

Kith Ruina's inspiration comes from the world of guitar amps. A drive into an EQ is an extremely common configuration for shaping guitar tone, and we find that it works extremely well for synths as well. A grungy drive into a pristine EQ gives excellent tone control, and with separate ins and outs for the two sections KR can be configured to fit into any patch you throw at it.

Notes: Excellent value here. Analogue filterbanks tend to be pricy affairs but Erica's Resonant FB gives you all that creative control of dynamic equalisation with the convenience of digital control.

Supplier's Notes:
The Graphic Resonant Filterbank (FB) is a ten-band analogue filterbank with digital control over each bands' boost or cut. Each band can be controlled individually via CV or manually, while complex control configurations turn the filterbank into an unconventional multimode filter and even an instrument in its own right when played with various resonance settings. The Expander module (works exclusively with the Graphic Resonant Filterbank and is available separately) provides hands-on adjustment of boost and cut for all bands.

Specifications:

Audio signal amplitude: 10Vptp
Bandpass filter frequencies: 29Hz,61Hz,115Hz,218Hz,411Hz,777Hz, 1,5kHz, 2,8kHz, 5,2kHz,11kHz +-10%
CV input amplitude (configurable): -10V - +10V
Number of presets: 128
Panel width: 20HP
Module depth: 30mm
Power consumption (with EXP): 138(145)mA@+12V,50mA@-12V

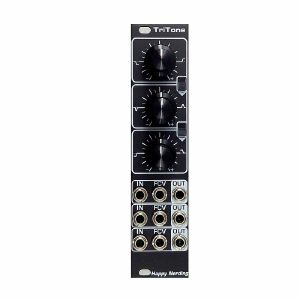

Notes: TriTone is a three section EQ plus saturator. Inner knobs control frequency and outer knobs control +- gain. All these sections Hi Shelf, Band Pass and Low Shelf are having + 20 db of gain and 30 db of reduction. Each section can work independently or they can be serially connected by the switches. Middle input in each section accepts CV for its frequency, so all three sections can be individually FMed by the external CVs.

If the inputs are fed with the modular level signals (+- 5V), then there is little room for "plus" EQ gains before saturation starts. In this case the input level should be attenuated first, if saturation is not desired and much "plus" gain is needed. Otherwise saturation drastically enriches the tone and the module works like very flexible overdrive FX.

When the switches are set to upper positions, then all three sections work independently. With the maximum gain reduction (CCW position) of the upper section (Hi Shelf) it becomes a useful kind of Low Pass filter. On the contrary - maximum gain reductions of the lower section (Low Shelf) makes it a High Pass filter.

Please note the internal routing done by the switches: the output of the uppers section is added to the input of the subsequent lower section. If nothing is connection to this lower sections' input, then only the upper section's output is processed. This makes it a 3 band EQ with the switches set to lower position. Having separated inputs opens up more possibilities over ordinary EQs.

6 HP, 45 mm deep
55 mA +12V
65 mA -12V

Notes: TriTone is a three section EQ plus saturator. Inner knobs control frequency and outer knobs control +- gain. All these sections Hi Shelf, Band Pass and Low Shelf are having + 20 db of gain and 30 db of reduction. Each section can work independently or they can be serially connected by the switches. Middle input in each section accepts CV for its frequency, so all three sections can be individually FMed by the external CVs.

If the inputs are fed with the modular level signals (+- 5V), then there is little room for "plus" EQ gains before saturation starts. In this case the input level should be attenuated first, if saturation is not desired and much "plus" gain is needed. Otherwise saturation drastically enriches the tone and the module works like very flexible overdrive FX.

When the switches are set to upper positions, then all three sections work independently. With the maximum gain reduction (CCW position) of the upper section (Hi Shelf) it becomes a useful kind of Low Pass filter. On the contrary - maximum gain reductions of the lower section (Low Shelf) makes it a High Pass filter.

Please note the internal routing done by the switches: the output of the uppers section is added to the input of the subsequent lower section. If nothing is connection to this lower sections' input, then only the upper section's output is processed. This makes it a 3 band EQ with the switches set to lower position. Having separated inputs opens up more possibilities over ordinary EQs.

6 HP, 45 mm deep
55 mA +12V
65 mA -12V

Notes: This Expander module provides hands-on adjustment over all bands' boost and cut without the need to select bands via pushbuttons on the Graphic Resonant Filterbank module. This makes sound design with the Graphic Resonant Filterbank much easier.

NB! The Expander works exclusively with the Graphic Resonant Filterbank!

Notes: The Golden Master from Endorphin.es is a multi-band processor that takes inspiration from studio mastering and radio loudness units from the 1990s. It gives control over the EQ, compression, and mid/side processing of incoming audio.

Thanks to the 16-bit/96kHz audio fidelity, you'll get incredible processing power. It features three bands - low, medium, and high - each handling a distinct portion of the audio spectrum. These controls feature a single knob that both boosts and cuts signals. Set the overall loudness limit of your sounds, and the brickwall limiter ensures all your sounds stay in check. This multi-band effect is the perfect end-of-chain module, ensuring that anything you throw at it sounds dynamic and full.

Multi-band processor inspired by mastering tools from the 1990s: adds punch and dynamics to your sound

Compression, EQ, and mid/side processing

Three frequency bands with +7 db boost and -20 db cut

Brickwall limiter sets upper limit of signals

16-bit/96kHz audio I/O with 32 bits internal processing

Enhance/mute buttons

Available in 1U / 22HP version

Power consumptions:

135 mA +12V
25 mA -12V
0 mA 5V

Dimensions:
6 HP
30 mm deep

Notes: This module is designed to generate a multitude of aggressive, punchy, violent and absolutely bonkers variations of the original unprocessed sound.

Transform any clean sound into a distorted monster, using 2x drive stages per channel with a wide range of distortion flavors ranging from subtle saturation to extreme fuzz.

Process two channels at the same time and create balanced and smooth or raw and rough transitions between them.

Allow the kick drum and bass line to coexist effectively in the mix, avoiding conflicts in the low-frequency range with env. follower and sidechain.

Shape any sound with 3 band adaptable EQ.

Function as a signal generator as well, this module can be pushed into self-oscillation at any frequency even with no input.

Add sub-octave tones to melodies and bass lines.

Preserve the dynamic range and clarity of the sound through parallel processing, ensuring that the original characteristics are not lost even when applying heavy distortion.

Add character, flexibility and madness to any source that sparks your imagination.

Notes: This module is designed to generate a multitude of aggressive, punchy, violent and absolutely bonkers variations of the original unprocessed sound.



Transform any clean sound into a distorted monster, using 2x drive stages per channel with a wide range of distortion flavors ranging from subtle saturation to extreme fuzz.



Process two channels at the same time and create balanced and smooth or raw and rough transitions between them.



Allow the kick drum and bass line to coexist effectively in the mix, avoiding conflicts in the low-frequency range with env. follower and sidechain.

Shape any sound with 3 band adaptable EQ.

Function as a signal generator as well, this module can be pushed into self-oscillation at any frequency even with no input.

Add sub-octave tones to melodies and bass lines.



Preserve the dynamic range and clarity of the sound through parallel processing, ensuring that the original characteristics are not lost even when applying heavy distortion.



Add character, flexibility and madness to any source that sparks your imagination.

Notes: T-spectrum takes the concept of merging modulation sources and destinations into a single module.

T-spectrum is a spectral processor, an organic sound sculpting tool transforming drastically what passes through it.

The powerful modulation engine lets you hear frequency bands dance, smoothly or frantically. Bring life to your patches with free running or resettable custom drawn modulations.

Maximum automation recording length of 20s for each parameter.

MODE allows to change between 1/2/4/16 (max) bands

FREQ moves the filter initial frequency

SPREAD changes the bandpass filters Q peak

TILT moves the selected peaks around the spectrum.

The integrated touch lightstrip controllers can drive four parameters with looping or one-shot recording playback mode on each track with global RESET input.

Secondary distorted output.

Current draw: 150 mA (+12 V) / 20 mA (-12 V)
Width: 8 HP
Depth: 34 mm

Notes: The uTONE is a bass-treble tone control, that is a quite useful tool to shape the overall spectrum of individual signal paths.

Please note: These micro modules need a carrier, like the uBASE module. They cannot be mounted directly into an AE case.
