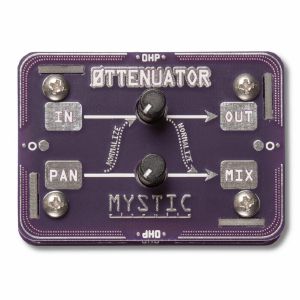

Notes: Two interconnected attenuators that can perform a variety of mixing functions without taking space or power in the rack. Mix, pan or use each attenuator separately. The 0ttenuator does all kinds of useful tasks throughout the rack.

The 0ttenuator can:

Mix two signals together
Send one signal to two places
Attenuate two signals separately
Be advised that even when the knobs are all the way up there is a little bit of signal loss.

Whether you need some extra utilities for your studio behemoth or you need to save space on the road, 0HP gives you options. These modules come as a small circuit board mounted to a colourful piece of laser cut plexiglass, with a small chance to get one of Mystic Circuits' fabulous rare colors. With a robust line of modules planned in the future, full DIY kits and an open hardware license we aim to make modular synthesis accessible and fun for the veteran and new user alike.

Disclaimers
Since the modules are passive, some signal loss and distortion should be expected.

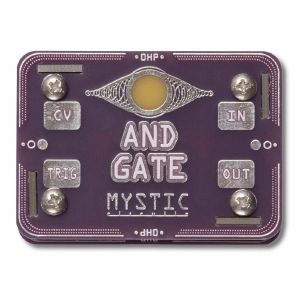

Notes: The 0HP VCA/ AND acts like a faucet: When a high control voltage is present, the input is allowed to flow to the output. When there is a low control voltage, the flow is restricted and nothing is present at the output. Using a high speed optocoupler, the module accepts audio at all inputs so audio-rate amplitude modulation is possible for pseudo-ring modulation effects. When used with gates at both the input and the CV input, the module acts as a logical AND gate (an AND gate outputs a high voltage when both of the inputs are high.) A built in trigger converter outputs spike whenever the main output transitions from low to high.

Whether you need some extra utilities for your studio behemoth or you need to save space on the road, 0HP gives you options. Mystic Circuits' modules come as a small circuit board mounted to a colorful piece of laser cut plexiglass, with a small chance to get one of their fabulous rare colours. With a robust line of modules planned in the future, full DIY kits and an open hardware licence we aim to make modular synthesis accessible and fun for the veteran and new user alike.

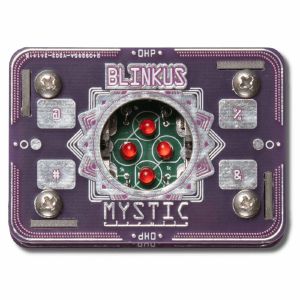

Notes: The Blinkus is a cluster of LEDs that behaves kind of like a ring modulator. Every input is also an output and all inputs clamp each other to create weird wobbly cross-breeds of each other at the outputs. Oh yeah, and it blinks.

This is definitely one of Mystic Circuits' more experimental 0HPs but it isn't just a gag. The module has four jacks that all function as either inputs or outputs where all of the inputs clamp each other in different ways for each output. This means that you can have three voltage sources combined to one output, one voltage source can be turned into three different outputs, and and two inputs can create two different output signals. Each output is a weird wobbly version of all of the inputs, anything from ring modulated distortion to bizarre modulation shapes and logic gate functions.

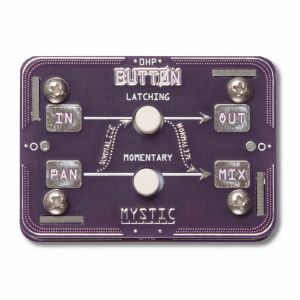

Notes: The 0HP Butt0n from Mystic Circuits is a deceptively useful yet simple entry into the 0HP modular line. Two buttons that work in tandem to create a variety of switching behaviours. Use either the latching or momentary button to activate or deactivate two connected signals. Some clever routing also allows the latching button to change the momentary button from normally open to normally closed. Similar signal paths to Mystic Circuits' 0ttenuator module allow both channels to be used separately, two signals to be mixed together or one signal to be sent to two destinations.

Notes: Dont let the name fool you, this module is quite a bit more than just an envelope. ePatch in a gate and your output will behave as a normal sustain- release envelope, staying high while the gate is high and slowly decaying once it goes low. Patch in audio and you have an envelope follower, extracting amplitude data from whatever signal is coming in. Patch in any positive control voltage and you have a slew, adding glide whenever the incoming voltage falls. All three modes boast voltage control over the release/ response time and can use the on board input mult to either daisy chain multiple envelopes or to extract amplitude data from an audio input and then send the audio somewhere else. Possibly Mystic Circuits' most useful 0HP module yet.

Whether you need some extra utilities for your studio behemoth or you need to save space on the road, 0HP gives you options. Mystic Circuits' modules come as a small circuit board mounted to a colorful piece of laser cut plexiglass, with a small chance to get one of Mystic Circuits' fabulous rare colours. With a robust line of modules planned in the future, full DIY kits and an open hardware licence we aim to make modular synthesis accessible and fun for the veteran and new user alike.

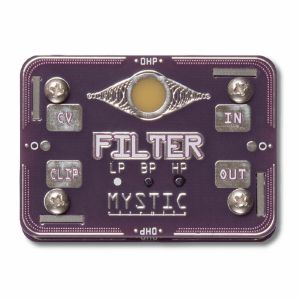

Notes: An audio filter in a tiny package! A blend between Mystic Circuits' "AND - gate" and their "Vactrol Low Pass Gate" circuits, the cutoff frequency can be modulated at audio rate. It also features a voltage controlled clipping circuit which allows for further wave shaping. The response of this circuit is much faster than that of the Vactrol Low Pass Gate, so it will react to very plucky envelopes and even triggers.

Whether you need some extra utilities for your studio behemoth or you need to save space on the road, 0HP gives you options. Mystic Circuits' modules come as a small circuit board mounted to a colorful piece of laser cut plexiglass, with a small chance to get one of their fabulous rare colors. With a robust line of modules planned in the future, full DIY kits and an open hardware license we aim to make modular synthesis accessible and fun for the veteran and new user alike.

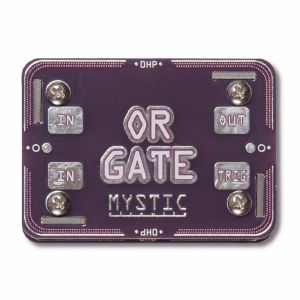

Notes: The 0HP OR Gate can be used to combine different signals, usually gate or clock signals. The output will give a high voltage whenever a high voltage is present at either of the inputs. This can be useful for combining multiple different gate sources together to trigger the same module, such as using a gate sequencer and a burst generator on a drum module to get drum fills. This module can also process fluctuating voltages, outputting the maximum of the two inputs (the highest of the input voltages above 0). The built in trigger converter outputs a spike whenever the main output transitions from low to high.

Whether you need some extra utilities for your studio behemoth or you need to save space on the road, 0HP gives you options. Mystic Circuits' modules come as a small circuit board mounted to a colorful piece of laser cut plexiglass, with a small chance to get one of Mystic Circuits' fabulous rare colours. With a robust line of modules planned in the future, full DIY kits and an open hardware licence, Mystic Circuits aim to make modular synthesis accessible and fun for the veteran and new user alike.

Notes: Use these black cables with the 1010music logo on either end of the jack to connect your 1010music eurorack modules to other modules that also use stereo minijack connections. This is a TRS cable with male 3.5mm minijacks on either end. It is available in two lengths: 30cm/11.75" and 60cm/23.5". These cables can be used for connections between any two 1010music modules, and to any other modules that use a compatible mapping of MIDI signals to stereo minijack connectors.

Weight: 0.04 lbs
Dimensions: 4 × 3.5 × 0.25 in
Length: 30 cm / 11.75"
Pack size: single

Notes: Use these black cables with the 1010music logo on either end of the jack to connect your 1010music eurorack modules to other modules that also use stereo minijack connections. This is a TRS cable with male 3.5mm minijacks on either end. It is available in two lengths: 30cm/11.75" and 60cm/23.5". These cables can be used for connections between any two 1010music modules, and to any other modules that use a compatible mapping of MIDI signals to stereo minijack connectors.

Weight: 0.04 lbs
Dimensions: 4 × 3.5 × 0.25 in
Length: 60 cm / 23.5"
Pack size: 5 Pack

Notes: You can now update your Bitbox mk1 or mk2 with a black faceplate. Now you can have an all black rack and have digital sampling capabilities. This is just the faceplate.

Give your module a facelift

These replacement faceplates are designed for use with the module in the traditional orientation with the screen on top. These are the same faceplates used when manufacturing our modules, but now in black. They are anodized aluminium with a bead blasted finish.

Swapping out a faceplate is easy to do, and requires a small wrench or pliers. Here are the steps to replace a faceplate:

Remove the module from the rack.
Use a small wrench or pliers to remove the small round nuts around each of the mini jacks. Note that these nuts have a notch on the top side of them. This notch fits into a specialized tool that can be used to remove these nuts more easily.
Gently tug on the four knobs to pull them off.
Use a small wrench or pliers to remove the hex nuts from the knob stems.
Remove the washers from the knob stems.
Gently pull up on the faceplate and it will slide off easily.
Place the new faceplate on the module.
Replace the washers on the knob stems.
Use a small wrench or pliers to replace the hex nuts on the knob stems.
Use a small wrench or pliers to replace the small round nuts around each of the mini jacks. Note that the notch should be on the top side of the nuts, the side away from the faceplate.
Look at the underside of the knobs and the post that they rest on. You will see that the knobs are keyed. Line up the flat edge of the hole in the knob with the flat edge of the post, and then push the knob onto the post. If you have the knob aligned properly, it should go on with moderate pressure. If it seems to require more force, please check the alignment.

Weight: 0.19 lbs
Dimensions: 5.5 × 5 × 0.25 in
Touchscreen product: bitbox, fxbox, synthbox, toolbox

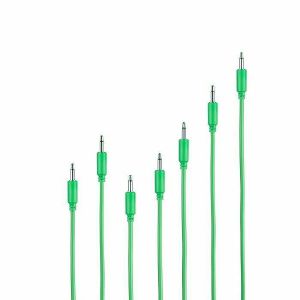

Notes: Plug in and play with the 2hp Patch Cables! Available in multiple sizes and bundles, these 2hp color-certified green cables will bring the pop to your system in a sleek, tiny package. Designed to work with 2hp's tiny modules, the 2hp Patch Cables will comfortably fit into the most crowded corners of your system, big or small!

Sleek, tiny package

Lunchbox cables

Notes: Plug in and play with the 2hp Patch Cables! Available in multiple sizes and bundles, these 2hp color-certified green cables will bring the pop to your system in a sleek, tiny package. Designed to work with 2hp's tiny modules, the 2hp Patch Cables will comfortably fit into the most crowded corners of your system, big or small!

Sleek, tiny package

Lunchbox cables

Notes: Plug in and play with the 2hp Patch Cables! Available in multiple sizes and bundles, these 2hp color-certified green cables will bring the pop to your system in a sleek, tiny package. Designed to work with 2hp's tiny modules, the 2hp Patch Cables will comfortably fit into the most crowded corners of your system, big or small!

Sleek, tiny package

Lunchbox cables

Notes: Looking to expand your Lunchbox? Look no further! 2hp's Flying Bus Cable is the perfect addition to your ever expanding modular meal. Carrying 8 power slots, expanding your system is a breeze by simply inserting the Flying Bus cable into the extra slot of your Lunchbox power. Did somebody say seconds?!

Flying Bus Cable

8 Slots

Malleable for easy cable management

Double your Lunchbox's modular possibilities

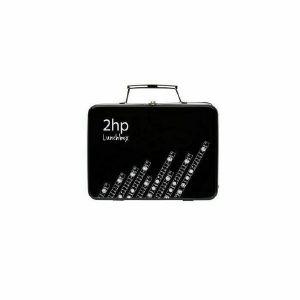

Notes: This 42HP case comes fully powered and ready to go with a latchable lid. Whether you're in the studio, on a plane, or performing at your next modular picnic, Eurorack has never been so portable.

2HP are also selling four powerful systems packed in the new Lunchbox case:

Picnic Basket, Synth Voice, Drum Machine, and Effects Box.

These systems are sure to become the bread and butter of your creative process.

Available as a standalone case (powered/unpowered), full of modules, and as a lunchbox for your lunch!

Notes: Plug in and play with the 2hp Patch Cables! Available in multiple sizes and bundles, these 2hp color-certified green cables will bring the pop to your system in a sleek, tiny package. Designed to work with 2hp's tiny modules, the 2hp Patch Cables will comfortably fit into the most crowded corners of your system, big or small!

Sleek, tiny package

Lunchbox cables

Notes: 10-conductor ribbon cable with three 10-pin connectors and a 16-pin connector on one end (20" total length), for connecting more than 2 modules in a Pod.

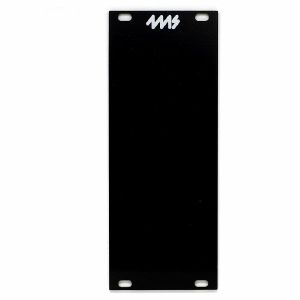

Notes: 4ms blank panel - 10HP width. Black coloured PCB material with 4ms logo.

Notes: 16-conductor ribbon cable with four 16-pin connectors (20" total length), for connecting more than 2 modules in a Pod.

Notes: 4ms blank panel - 1HP width. Black coloured PCB material with 4ms logo.

Notes: 4ms blank panel - 2HP width. Black coloured PCB material with 4ms logo.

Notes: Jumper cable for connecting two Listen 4, Listen 4Q, or Listen IO modules & for daisy-chaining multiple Listens to create a larger mixer. Also used for connecting a WAV Recorder to a Listen module in order to record directly from the Listen's main mix. See the Listen module manuals for details and examples.

One cable connects two modules. By adding more cables you can create a chain between multiple modules.

Specifications:

1x3 pin female header
Pin Spacing: 0.1" (2.54mm)
Total length: 4.38" (111mm)

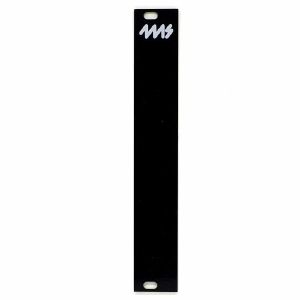

Notes: 4ms blank panel - 4HP width. Black coloured PCB material with 4ms logo.

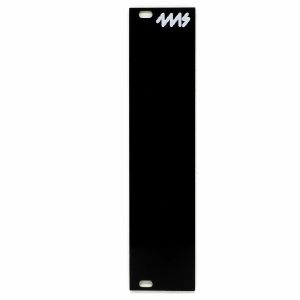

Notes: 4ms blank panel - 6HP width. Black coloured PCB material with 4ms logo.

Notes: 4ms blank panel - 8HP width. Black coloured PCB material with 4ms logo.

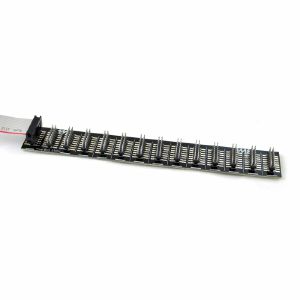

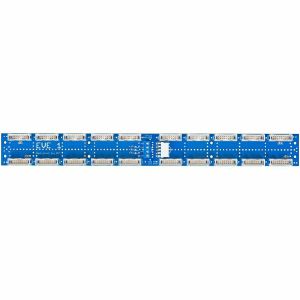

Notes: Bus Sticks are low-profile, small footprint power distribution boards for powering up to 13 modules using un-shrouded headers. Simply connect to a Row Power module using the included cable. Attaches to your case using adhesive pads (included) or by drilling and screwing.

Notes: Bus Sticks are low-profile, small footprint power distribution boards for powering up to 13 modules using shrouded (keyed) headers. Simply connect to a Row Power module using the included cable. Attaches to your case using adhesive pads (included) or by drilling and screwing.

Notes: Flying Bus (male pin) are passive power distribution cables that work with the Row Power to distribute power to your modules.

Can be daisy-chained if extra headers are needed. One 14" flying bus cables with 7 male header pins.

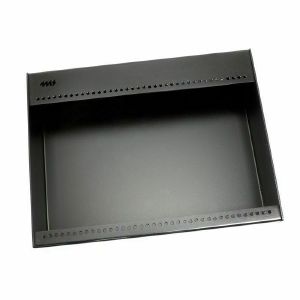

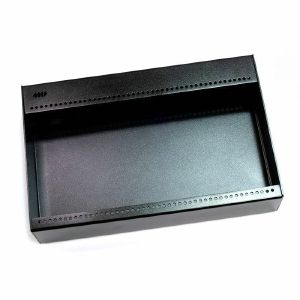

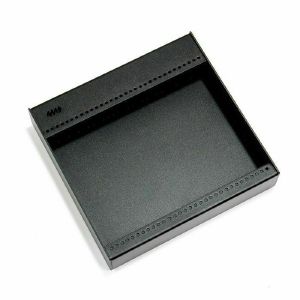

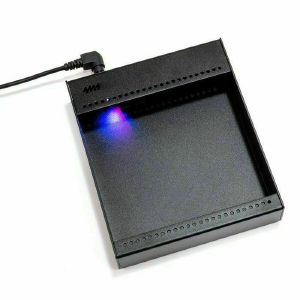

Notes: Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod20 is 20HP with 1.34" (34mm) of available module depth. The built-in power supply has two power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick. If you already have a powered Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain powered Pods.

The Pod20 includes ten (10) M3x8mm stainless steel screws and is compatible with M3 Knurlies.

Notes: Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod20 Unpowered is 20HP with 1.34" (34mm) of available module depth. No power supply is included, you must supply your means of powering modules with a DIY power supply or a front-facing module such as the Row Power. Two holes on the rear face are plugged with removable plastic plugs, and can be used for DIY applications.

Notes: Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod26 is 26HP with 1.34" (34mm) of available module depth. The built-in power supply has two power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick. If you already have a powered Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain powered Pods.

The Pod26 includes ten (10) M3x8mm stainless steel screws and is compatible with M3 Knurlies.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod26 is 26HP with 1.34" (34mm) of available module depth. The built-in power supply has two power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick. If you already have a powered Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain powered Pods.

The Pod26 includes ten (10) M3x8mm stainless steel screws and is compatible with M3 Knurlies.

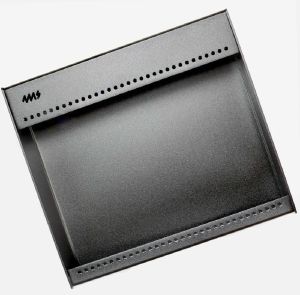

Notes: Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod26 Unpowered is 26HP with 1.34" (34mm) of available module depth. No power supply is included, you must supply your means of powering modules with a DIY power supply or a front-facing module such as the Row Power. Two holes on the rear face are plugged with removable plastic plugs, and can be used for DIY applications.

Notes: Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod32 is 32HP with 1.34" (34mm) of available module depth. The built-in power supply has two power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick. If you already have a powered Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain powered Pods.

The Pod32 includes ten (10) M3x8mm stainless steel screws and is compatible with M3 Knurlies.

Notes: Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod32 Unpowered is 32HP with 1.34" (34mm) of available module depth. No power supply is included, you must supply your means of powering modules with a DIY power supply or a front-facing module such as the Row Power. Two holes on the rear face are plugged with removable plastic plugs, and can be used for DIY applications.

Notes: Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod34X is 34HP wide and has extra room to fit even the deepest modules (2.16" / 55mm of available module depth). The built-in power supply has four power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

This Pod requires a power brick (not included).

Or, if you already have a Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain power supplies.

Pods are a perfect way to get started in Eurorack, or add a couple more modules to your monster system!

Made from 100% anodized aluminum, Pods are light, tough and perfect for on-the-go set ups. The power supply can handle up to 1.4A of +12V, which is plenty of juice for even the most modern digital modules. (Or if you prefer to DIY your power supply, Pods are also available unpowered)

Each Pod typically will house one or two modules, but three or more can be accommodated using a multi-power cable accessory.

Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Pods can even daisy- chain with the 4ms Row Power system making them a convenient outboard mini-skiff. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!

Basic Features:

34 HP Eurorack modular space
Standard M3 threaded holes
100% lightweight anodized aluminum
Built-in Power supply
Red, White, and Blue LED power indicators

Includes:
34HP Pod, black anodized aluminum
Extra deep (2.16"/55mm) fits virtually every Eurorack module
Built-in power supply with four Eurorack power headers
M3 x 8mm pan-head screws, stainless steel (10)
Adhesive rubber feet (4)
Does not include barrel cable or power brick
Power Supply:
Four 16-pin Eurorack power shrouded headers
+12V max 1.4A
-12V max 0.65A
+5V max 1.0A
Power input: Two barrel jacks for daisy-chaining
15V-20VDC, 2.1mm positive tip
Exterior dimensions:
Width: 177.3mm (6.98")
Height: 159.5mm (6.28")
Depth: 57mm (2.24")
Interior dimensions:
Max module depth: 55mm (2.16")
Module width: 34HP
Weight:
0.3 kg = 10 oz

Notes: Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod34X is 34HP wide and has extra room to fit even the deepest modules (2.16" / 55mm of available module depth). No power supply is included, you must supply your means of powering modules with a DIY power supply or a front-facing module such as the Row Power. Two holes on the rear face are plugged with removable plastic plugs, and can be used for DIY applications.

Pods are a perfect way to get started in Eurorack, or add a couple more modules to your monster system!

Made from 100% anodized aluminum, Pods are light, tough and perfect for on-the-go set ups. Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!

Basic Features:

34 HP Eurorack modular space
Standard M3 threaded holes
100% lightweight anodized aluminum

Exterior dimensions:
Width: 177.3mm (6.98")
Height: 159.5mm (6.28")
Depth: 57mm (2.24")
Interior dimensions:
Max module depth: 55mm (2.16")
Module width: 34HP
Weight:
0.3 kg = 10 oz

Notes: The Pod40X is 40HP with 2.00" (51mm) of available module depth. The built-in power supply has four power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick. If you already have a powered Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain powered Pods.

The Pod40 includes ten (10) M3x8mm stainless steel screws and is compatible with M3 Knurlies.

Notes: The Pod40X Unpowered is 40HP with 2" (51mm) of available module depth. No power supply is included, you must supply your means of powering modules with a DIY power supply or a front-facing module such as the Row Power. Two holes on the rear face are plugged with removable plastic plugs, and can be used for DIY applications.

Notes: The Pod48X is 48HP with 2.00" (51mm) of available module depth. The built-in power supply has four power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick. If you already have a powered Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain powered Pods.

The Pod48X includes ten (10) M3x8mm stainless steel screws and is compatible with M3 Knurlies.

Notes: The Pod40X Unpowered is 48HP with 2" (51mm) of available module depth. No power supply is included, you must supply your means of powering modules with a DIY power supply or a front-facing module such as the Row Power. Two holes on the rear face are plugged with removable plastic plugs, and can be used for DIY applications.

Notes: Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod60 is 60HP with 1.34" (34mm) of available module depth. The built-in power supply has four power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick. If you already have a powered Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain powered Pods.

The Pod60 includes twenty (20) M3x8mm stainless steel screws and is compatible with M3 Knurlies.

Notes: Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod60 Unpowered is 60HP with 1.34" (34mm) of available module depth. No power supply is included, you must supply your means of powering modules with a DIY power supply or a front-facing module such as the Row Power. Two holes on the rear face are plugged with removable plastic plugs, and can be used for DIY applications.

Notes: Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod64X is 64HP with 2.16" (55mm) of available module depth. The built-in power supply has four power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick, or a barrel cable to daisy-chain to a Pod or Row Power that's already powered.

Pods are a perfect way to get started in Eurorack, or add a couple more modules to your monster system!

Made from 100% anodized aluminum, Pods are light, tough and perfect for on-the-go set ups. The power supply can handle up to 1.4A of +12V, which is plenty of juice for even the most modern digital modules. (Or if you prefer to DIY your power supply, Pods are also available unpowered)

Each Pod64X typically will house up to six modules, but more can be accommodated using a multi-power cable accessory.

Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Pods can even daisy- chain with the 4ms Row Power system making them a convenient outboard mini-skiff. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!

Basic Features:

64 HP of Eurorack modular space
Extra room for deep modules
Standard M3 threaded holes
100% lightweight anodized aluminum
Built-in Power supply
Red, White, and Blue LED power indicators

Includes:

64HP Pod, black anodized aluminum
Built-in power supply with six Eurorack power headers
Extra deep (2.16"/55mm) fits virtually every Eurorack module
M3 x 8mm pan-head screws, stainless steel (20)
Adhesive rubber feet (4)
Does not include barrel cable or power brick
Power Supply:

Four 16-pin Eurorack power shrouded headers
+12V max 1.4A
-12V max 0.67A
+5V max 1.0A
Power input: Two barrel jacks for daisy-chaining
15V-20VDC, 2.1mm positive tip
Exterior dimensions:
Width: 329.7mm (12.98")
Height: 159.5mm (6.28")
Depth: 57mm (2.24")
Interior dimensions:
Max module depth: 55mm (2.16")
Module width: 64HP
Weight:
0.5 kg = 17 oz

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod64X is 64HP with 2.16" (55mm) of available module depth. The built-in power supply has four power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick, or a barrel cable to daisy-chain to a Pod or Row Power that's already powered.

Pods are a perfect way to get started in Eurorack, or add a couple more modules to your monster system!

Made from 100% anodized aluminum, Pods are light, tough and perfect for on-the-go set ups. The power supply can handle up to 1.4A of +12V, which is plenty of juice for even the most modern digital modules. (Or if you prefer to DIY your power supply, Pods are also available unpowered)

Each Pod64X typically will house up to six modules, but more can be accommodated using a multi-power cable accessory.

Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Pods can even daisy- chain with the 4ms Row Power system making them a convenient outboard mini-skiff. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!

Basic Features:

64 HP of Eurorack modular space
Extra room for deep modules
Standard M3 threaded holes
100% lightweight anodized aluminum
Built-in Power supply
Red, White, and Blue LED power indicators

Includes:

64HP Pod, black anodized aluminum
Built-in power supply with six Eurorack power headers
Extra deep (2.16"/55mm) fits virtually every Eurorack module
M3 x 8mm pan-head screws, stainless steel (20)
Adhesive rubber feet (4)
Does not include barrel cable or power brick
Power Supply:

Four 16-pin Eurorack power shrouded headers
+12V max 1.4A
-12V max 0.67A
+5V max 1.0A
Power input: Two barrel jacks for daisy-chaining
15V-20VDC, 2.1mm positive tip
Exterior dimensions:
Width: 329.7mm (12.98")
Height: 159.5mm (6.28")
Depth: 57mm (2.24")
Interior dimensions:
Max module depth: 55mm (2.16")
Module width: 64HP
Weight:
0.5 kg = 17 oz

Notes: Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod64X Unpowered is 64HP with 2.16" (55mm) of available module depth. No power supply is included, you must supply your means of powering modules with a DIY power supply or a front-facing module such as the Row Power. Two holes on the rear face are plugged with removable plastic plugs, and can be used for DIY applications.

Pods are a perfect way to get started in Eurorack, or add a couple more modules to your monster system!

Made from 100% anodized aluminum, Pods are light, tough and perfect for on-the-go set ups. Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!

Basic Features:

64 HP Eurorack modular space
Standard M3 threaded holes
100% lightweight anodized aluminum

Includes:

64HP Pod, black anodized aluminum
M3 x 8mm pan-head screws, stainless steel (20)
Adhesive rubber feet (4)
Unpowered: requires you to provide your own Eurorack power system
Exterior dimensions:
Width: 329.7mm (12.98")
Height: 159.5mm (6.28")
Depth: 57mm (2.24")
Interior dimensions:
Max module depth: 55mm (2.16")
Module width: 64HP
Weight:
0.42 kg = 14.9 oz

Notes: Right angle 2.1mm barrel plug (5.5mm outer diameter, positive tip). Short barrel to barrel cable for daisy-chaining Row Powers and/or Pods. Cable is 11" long (centre of tip to centre of tip), suitable for two Pods next to each other or in front/behind each other. Also compatible with Row Power modules.

Both ends of the cable have a right-angle plug.

Notes: Large sized spring reverb tank, Accutronics 9BB2C1B with 3×2 springs and medium decay (1.75 - 3 seconds).

Notes: Medium sized spring reverb tank, Type 8 Accutronics 8BB2C1B with 3×1 springs and medium decay (1.75 - 3 seconds).

Input impedance 190 Ohm, output impedance 2575 Ohm. Input connector insulated, output connector grounded.

Notes: The ACL EVE 1 busboard is used to distribute the operating voltages of a power supply unit to supply up to 20 modules in a Eurorack case.

It was developed with the aim of achieving the lowest possible electrical contact resistance between the power supply unit and the modules connected to it.

This is reflected in minimal potential differences between the power supply unit and between all connection terminals of the modules and the terminals, which almost completely eliminates any couplings between modules and the resulting interference.

This is achieved by a six-layer sandwich design in which each voltage supplied by the power supply unit has its own complete layer for distribution to the module connection terminals, i.e. +12V, -12V and +5V each have the complete surface of the bus board available as copper surface, while the ground even has three layers available, resulting in an extremely low resistance of the ground bar (ground). The arrangement of the layers is like a sandwich, there is almost no influence between e.g. the +5V rail on which often disturbing digital modules are connected and ground or the +/- 12V rails. In addition, there are 4 buffer capacitors with 22uF and 100nF each for the +12V and -12V rail, which are arranged as parallel connected packets with 22uF and 100nF each at the outer ends left and right. These capacitors are Ultra Low ESR MLCC types.

Furthermore, a CV and a gate bus are available up to four times (two at the top and two at the bottom, each bridged by a jumper). These are consequently shielded from each other and from the voltage bars and thus cannot influence each other or other voltage bars (+/- 12V, +5V) by crosstalk, which further rounds off the "low-noise design".
