Back catalogue: Studio Equipment

Notes: Cursus Iteritas Percido is the second module in the Percido line of powerful synth voices. Similar to its predecessor the Loquelic Iteritas Percido, CIP takes the original Cursus Iteritas and adds the same musical envelope from LIP with attenuverter-controlled routing to every knob. With the inclusion of the performance-oriented Master Blaster and CV outputs, CIP is a powerhouse of incredibly versatile synthesis in 24 HP.

Features:

Size and power:
24 HP
+12v: 105mA/60mA(if +5v on)
-12v: 60mA
+5v: 0ma/75ma (if +5v on)
Curses - series, from Latin cursus "series"

Iteritas - repetitiousness - from Latin itero "repeat" with suffix -tas "state of being"

Percido - from Latin danger

Dangerous repetitousness series

Notes: Hybrid additive phase-modulation voice on a swappable oscillator platform

Debel Iteritas Alia is a hybrid additive phase-modulation voice inspired by classic and experimental synth sounds from across the decades. Three synthesis algorithms range from classic FM plucks and basses to all-out additive anarchy. DIA features a two-parameter envelope with a huge range of shapes and timing, making it easy to dial in the exact sound you want. With CV over every parameter, a dedicated envelope output, and an absolutely massive timbral range, Debel Iteritas Alia is a powerhouse synth voice in a compact package.

DIA is available on Noise Engineering's 10HP Alia oscillator platform. Buy an Alia module and use the included USB cable to connect to the Noise Engineering Customer Portal to check out any other Alia firmware, free of charge, any time.

Width: 10HP
Depth: 22mm

Notes: Proper creative stuff with this one. Lush, characterful stereo reverb with CV control, distortion, pitchshifting, a freeze button and more. Oh, and it's got user-customisable DSP firmware for good measure.

Supplier's Notes:
Desmodus Versio is Noise Engineering's take on a synthetic-tail generator reverb. In only 10hp, it features true stereo in and out, seven CV-controlled parameters, and three reverb modes. Desmodus Versio's feedback control sets the length of reverberation, from short echoes through infinite regenerations.

At its max, the reverb ducks when it receives input, useful for creating sidechain ducking and atmospheres for percussion. The different reverb modes offer even more sound options with clean, distorted, and pitch-shifting shimmer settings. The FSU button acts as a freeze and also creates some noise to stimulate the reverb when there is no external input.

Desmodus Versio isn't just a reverb, though: it's a DSP platform. Its firmware can be changed via USB, so users can load future firmwares onto it or develop their own with upcoming open-source support.

With Desmodus Versio, Noise Engineering continues their tradition of supporting conservation:a portion of proceeds from every Desmodus Versio sold goes to Bat Conservation International. Find out why bats are not only cool but also an important part of our ecosystem at Bat Conservation International's website, batcon.org.

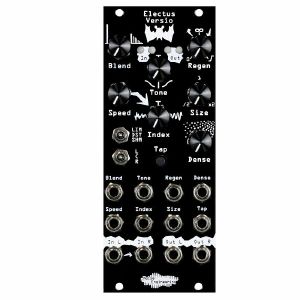

Notes: Desmodus's Aggressive Reverb/Delay Counterpart.

Not quite a reverb, not quite a delay, it's Desmodus's more aggressive clocked counterpart. More distortion, more in-your-face atmospheres, and synced delays for creating your tails in a whole new way. Use Electus Versio as a spacey clocked delay, as a reverb that starts with some synced echoes, or as a completely new way to create evolving spaces.

Notes: Desmodus's Aggressive Reverb/Delay Counterpart.

Not quite a reverb, not quite a delay, it's Desmodus's more aggressive clocked counterpart. More distortion, more in-your-face atmospheres, and synced delays for creating your tails in a whole new way. Use Electus Versio as a spacey clocked delay, as a reverb that starts with some synced echoes, or as a completely new way to create evolving spaces.

Notes: Stereo formant filter with wavefolding, saturation, and a tap-tempo LFO

Fala Versio is a stereo formant filter designed with pure musicality in mind. Rather than creating classic vowel shapes, Fala gives the sounds it shapes a vocal quality while retaining the musicality of the sound. Fala's signal chain features up to 24 bandpass filters, post-filter saturators, three allpass filters, a pre-filter wavefolder, and a suite of dynamics-control utilities. Fala makes it fun to make nice or gnarly tones, and easy to morph between them.

Fala also features a built-in clockable stereo LFO with sine or noise oscillators to modulate the filters and to bring some panning animation into your patches.

Whether you want resonant, vocal tones or uniquely modulated filth, Fala Versio is the perfect tool to take your patches to new timbral spaces.

Already own a Versio? Try Fala and all the Versio firmwares now at the Firmware Swap app for free. Overlays will be available in January 2025.

Size and power:
10 HP
+12v 125 mA
-12v 10 mA
Fala - from Portuguese falar: "to speak"

Versio - from Latin: "versatile"

"Versatile speech"

What's in the box?

Module
Power cable
Micro USB cable

Noise Engineering no longer include screws with newly packaged modules, but Bulk screws are available for purchase separately.

Notes: Stereo formant filter with wavefolding, saturation, and a tap-tempo LFO

Fala Versio is a stereo formant filter designed with pure musicality in mind. Rather than creating classic vowel shapes, Fala gives the sounds it shapes a vocal quality while retaining the musicality of the sound. Fala's signal chain features up to 24 bandpass filters, post-filter saturators, three allpass filters, a pre-filter wavefolder, and a suite of dynamics-control utilities. Fala makes it fun to make nice or gnarly tones, and easy to morph between them.

Fala also features a built-in clockable stereo LFO with sine or noise oscillators to modulate the filters and to bring some panning animation into your patches.

Whether you want resonant, vocal tones or uniquely modulated filth, Fala Versio is the perfect tool to take your patches to new timbral spaces.

Already own a Versio? Try Fala and all the Versio firmwares now at the Firmware Swap app for free. Overlays will be available in January 2025.

Size and power:
10 HP
+12v 125 mA
-12v 10 mA
Fala - from Portuguese falar: "to speak"

Versio - from Latin: "versatile"

"Versatile speech"

What's in the box?

Module
Power cable
Micro USB cable

Noise Engineering no longer include screws with newly packaged modules, but Bulk screws are available for purchase separately.

Notes: Quad random, highly controllable, quantized-voltage generator and generative CV sequencer

Gamut Repetitor is a four-channel random quantized voltage generator with looping, range, key, and scale settings. It features a built-in quantizer with 27 scales grouped across a selection of three CV-controllable switches, so it's easy and fun to generate patterns you'll love. The trigger outputs can simply pass through the input trigger or they can generate random triggers for more modular merrymaking.

Patching GR is as simple as sending in a trigger pattern and turning Length up. Then you can use the built-in quantizer, key, and range controls to change the way voltages are generated. Once you hear something you like, turn the Length down to a sequence length you like (up to 32) and loop away!

Size and Power

10HP Eurorack
+12v: 55mA
-12v: 15mA
Gamut from medieval Latin: "a complete scale of musical notes; the compass or range of a voice or instrument."

Repetitor from Latin repetito with suffix -tor to make the noun: "thing which repeats"

"Thing which repeats all the things"

What's in the box
Module
Power cable

*** Noise Engineering no longer include screws with newly packaged modules. Bulk screws are available for purchase. ***

Notes: Quad random, highly controllable, quantized-voltage generator and generative CV sequencer

Gamut Repetitor is a four-channel random quantized voltage generator with looping, range, key, and scale settings. It features a built-in quantizer with 27 scales grouped across a selection of three CV-controllable switches, so it's easy and fun to generate patterns you'll love. The trigger outputs can simply pass through the input trigger or they can generate random triggers for more modular merrymaking.

Patching GR is as simple as sending in a trigger pattern and turning Length up. Then you can use the built-in quantizer, key, and range controls to change the way voltages are generated. Once you hear something you like, turn the Length down to a sequence length you like (up to 32) and loop away!

Size and Power

10HP Eurorack
+12v: 55mA
-12v: 15mA
Gamut from medieval Latin: "a complete scale of musical notes; the compass or range of a voice or instrument."

Repetitor from Latin repetito with suffix -tor to make the noun: "thing which repeats"

"Thing which repeats all the things"

What's in the box
Module
Power cable

*** Noise Engineering no longer include screws with newly packaged modules. Bulk screws are available for purchase. ***

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Loquelic Iteritas Percido is an extension of the original Loquelic Iteritas. Like Loquelic Iteritas, it is a digital VCO with interpretations of three classic synthesis algorithms involving dual pitch control parameterized by four tone controls. LIP adds an envelope that can be shaped, modulated, and routed to pitches and tone controls, making it into a stand-alone voice.

Notes: Really nice take on an arpeggiator module here. Four-channel design features editable arpeggio patterns, CV control and transposition. Real-time performance meets customisable melody generation.

Supplier's Notes:
Four-channel arpeggiator with customizable patterns and CV control

Opp Ned is a four-channel arpeggiator designed for creating patterns that can be modified with CV. Opp Ned ships with 12 of Noise Engineering's favourite arps, including tetrads, major, pentatonic major, minor third, and pentatonic minor, but you can edit and save custom arpeggios to twelve memory slots. Recall your custom arpeggios manually or with CV using the Ptn input. If you ever want to restore the factory arps, just head to the Noise Engineering Customer Portal.

The transpose input makes it easy to combine Opp Ned with external sequencers, too!

Arps have never been easier than with Opp Ned.

Features

Size and Power
8HP Eurorack
+12v: 60mA
-12v: 10mA

Opp from Norwegian Opp for "Up"
Ned from Norwegian Ned "down"
"Ups and downs"

What's in the box

Module
Power cable

*** Noise Engineering no longer include screws with newly packaged modules. Bulk screws are available for purchase. ***

Notes: Four-channel arpeggiator with customizable patterns and CV control

Opp Ned is a four-channel arpeggiator designed for creating patterns that can be modified with CV. Opp Ned ships with 12 of Nosie Engineering's favourite arps, including tetrads, major, pentatonic major, minor third, and pentatonic minor, but you can edit and save custom arpeggios to twelve memory slots. Recall your custom arpeggios manually or with CV using the Ptn input. If you ever want to restore the factory arps, just head to the Noise Engineering Customer Portal.

The transpose input makes it easy to combine Opp Ned with external sequencers, too!

Arps have never been easier than with Opp Ned.

Features

Size and Power
8HP Eurorack
+12v: 60mA
-12v: 10mA

Opp from Norwegian Opp for "Up"
Ned from Norwegian Ned "down"
"Ups and downs"

What's in the box

Module
Power cable

*** Noise Engineering no longer include screws with newly packaged modules. Bulk screws are available for purchase. ***

Notes: Roucha Legio is a 12 dB /octave state-variable stereo multimode filter available on the Legio DSP+oscillator platform.

Noise Engineering received tons of requests for NE filters over the years, and Roucha Legio is their first dedicated release. The filter features lowpass, bandpass, and highpass settings and tracks frequency via the dedicated encoder and extremely accurate 1v/8va CV input. Roucha Legio's CV-controlled resonance parameter can go from clean to acidy-squelchy for bassline joy. Add CV for filter sweeps that will knock your socks off. Of course, because it's a Noise Engineering module, there's a Fold knob. Add wavefolding to the signal chain before, after, or both before and after the filter.

Noise Engineering have made it easy to carry out dramatic buildups and cuts with Roucha Legio. Just tap the encoder to bypass; tap again to turn the filter on again. Want to automate it? Send a gate into the Bypass input. The filter will remain bypassed as long as a high gate is present.

Roucha Legio is also a DSP and oscillator platform: users can change the firmware on any Legio module, 100% free, to any other firmware in the Legio series.

Dimensions
6 HP
38 mm deep

Current Draw
140 mA +12V
22 mA -12V

Notes: Multi-operator phase-modulation platform oscillator ideal for lovers of drone

Toros Iteritas Alia is a multi-operator, three-algorithm phase-modulation oscillator. Taking inspiration from Nosie Engineering's favourite things about FM synthesizers and doing away with complicated interfaces and mysterious controls, Toros prioritizes immediacy and, of course, epic sounds.

The unique Blendex controls allow the user to route each oscillator to be a PM for the next oscillator in the algorithm or direct to the output. Fine-tune the output for your needs with the frequency controls that constrain the range to span a minor third, an octave, or two octaves. Dial in and morph between anything from dark and noisy to tonal to sub-shaking sounds with ease with the completely CV-able interface.

Designed with drones in mind, Toros is the perfect tool for long, evolving textures and dark drones - or big, clangorous tones if that suits your patch better.

Toros Iteritas Alia is available on Noise Engineering's 10HP Alia oscillator platform. Buy an Alia module and use the included USB cable to connect to the Firmware Swap app and check out any other Alia firmware, free of charge, any time. More info can be found on the World of Alia page here.

Hotswappable overlays are coming in January, so you can easily panel your module to match your firmware, no assembly required.

Size and Power
10HP Eurorack
+12v:100mA
-12v: 15mA
Toros - perforated lizard - from Latin Torosaurus "foundation" with suffix -lus "small"

Iteritas - repetitiousness - from Latin itero "repeat" with suffix -tas "state of being"

Alia - supreme, from Latin alia

"Lizards reign supreme, as always"

What's in the box?

Module
Power cable
Micro USB cable

Noise Engineering no longer include screws with newly packaged modules, but Bulk screws are available for purchase.

Notes: Multi-operator phase-modulation platform oscillator ideal for lovers of drone

Toros Iteritas Alia is a multi-operator, three-algorithm phase-modulation oscillator. Taking inspiration from Nosie Engineering's favourite things about FM synthesizers and doing away with complicated interfaces and mysterious controls, Toros prioritizes immediacy and, of course, epic sounds.

The unique Blendex controls allow the user to route each oscillator to be a PM for the next oscillator in the algorithm or direct to the output. Fine-tune the output for your needs with the frequency controls that constrain the range to span a minor third, an octave, or two octaves. Dial in and morph between anything from dark and noisy to tonal to sub-shaking sounds with ease with the completely CV-able interface.

Designed with drones in mind, Toros is the perfect tool for long, evolving textures and dark drones - or big, clangorous tones if that suits your patch better.

Toros Iteritas Alia is available on Noise Engineering's 10HP Alia oscillator platform. Buy an Alia module and use the included USB cable to connect to the Firmware Swap app and check out any other Alia firmware, free of charge, any time. More info can be found on the World of Alia page here.

Hotswappable overlays are coming in January, so you can easily panel your module to match your firmware, no assembly required.

Size and Power
10HP Eurorack
+12v:100mA
-12v: 15mA
Toros - perforated lizard - from Latin Torosaurus "foundation" with suffix -lus "small"

Iteritas - repetitiousness - from Latin itero "repeat" with suffix -tas "state of being"

Alia - supreme, from Latin alia

"Lizards reign supreme, as always"

What's in the box?

Module
Power cable
Micro USB cable

Noise Engineering no longer include screws with newly packaged modules, but Bulk screws are available for purchase.

Notes: 8-input, 8-output sequential/addressable switch with manual, trigger, and CV control, plus three grouping options, multiple switching directions, and randomization.

Vice Virga is an 8-input, 8-output sequential/addressable switch with a plethora of features and extensive patchability. Vice Virga can be configured as a single 8-channel switch, two 4-channel switches, or four 2-channel switches. Equal parts automated patch arranger and performance tool, Vice Virga has loads of switching control options. Whether you want to chain sequencers, swap outputs on an oscillator, remix a trigger pattern, or mix up every connection in a patch just to see what happens, Vice Virga can do it!

Features:

Size and power:
8HP Eurorack
+12v: 40mA
-12v: 20mA
Vice i from Latin for "alternately"

Virga i from Latin for "switch"

"Alternating Switch"

Notes: Ohm Force's genre-defining 'shaper' distortion plugin comes to Eurorack in this neatly designed module. Over 100 distortion programs in full stereo, with plenty of hands-on control and extensive CV modulation options.

Supplier's Notes:
Time to get away with murder

From the plugin that redefined distortions forever

111 different distortions and shapers in one single 14hp module

Full stereo

Advanced performer modes

Back on Eurorack

Ohmicide Eurorack is an adaptation of the legendary distortion plugin that defined the now well populated category of "shaper" effects. Amongst the numerous things that made it a hallmark plugin was the carefully crafted distortion library covering all things known and many more unknown. All of those 111 distortions are now ready to burn your finger tips in a remarkably versatile module delivering huge sonic possibilities. ant let you change the texture of your VCOs, drums and samples in subtle or brutally unsubtle ways. Use all sorts of distortions, including bitcrusher, freezer, filtering and jellyfish variety.

Wiggle. Listen. Drool.

With a routing redesigned for Eurorack you'll need little learning to go straight to soundscape heaven (or hell, preference may vary). Shape the frequencies you want with the XOVER and the two Low Pass Filters. Explore the impact on all of your sounds, from mono VCO to stereo drums loops. Cycle through TYPE to find a fit or get nice surprises then tweak BIAS and MOD to explore new forms of madness.

It's alive

Ohmicide Eurorack features CV for all of its parameters including four with attenuverters. It also has automatic gain staging that is essential to the distortion delivering texture, not just loudness. And for your live experience we incorporated a performer mode that let you store and even automate preset switching. Ohmicide is lovingly crafted based on decades of experience in distortions. It's a module to lose yourself in for long sessions of sound exploration - or simply to get uniquely aggressive leads and drones.

Specifications:

Width: 14HP
Depth: 26mm
+12V: 120mA
-12V: 10mA
+5V: 0mA

Audio

Sample Rate: 48kHz
Hardware audio converters bit-depth: 24-bit
Internal processing bit-depth: 32-bit floating point
True Stereo Audio
High fidelity Texas Instruments Burr-Brown audio converters

Controls

Knob resolution: 16-bit (65536 distinct values)
CV inputs
Voltage: +5V (0..5V compatible)
Resolution: 16-bit (65536 distinct values)

Memory

Current distortion type, screen contrast and saver mode, TYPE and FAM CV +5V or 0..5V options
16 sequences
8 steps, each step being a snapshot of all knobs and switches
All knob options
Sequence length
Step reset mode

USB Port

Type: Micro-B
The USB port is only used to update the module firmware.

Notes: Hugely powerful multi-engine synth module, offering up to eight voices and eight oscillators, sample playback, custom wavetables and much more. Ultra versatile.

Supplier's Notes:
8 full voice polyphonic, multipart, multi engine synthesizer module with sample playback, sweet reverb and chorus.

Create pads, basslines, riffs and drums. All in one module.

Group voices into parts and assign each voice a different engine or parameter settings to create complex patches.

Features:

Big Sound

Lots of computing power to deliver rich sounding engines, in an 8 voice package.
One voice can have 8 oscillators depending on the engine, which means up to 64 oscillators at the same time!

Polyphonic

Coral features 8 full voices with independent filter, amplifier and modulation envelopes per voice.
Individual FX sends and individual parameter can be set per voice!

Multiengine

Different sound engines can be assigned to each voice from the 10 available.
New engines will be available through firmware updates.

Multipart

The 8 voices can be freely split into different parts. Every single parameter (filter, envelope settings, engine, FX sends, pan, etc.) can be independently set for each part or voice to create complex patches out of the box.

Sample playback

CORAL supports almost any kind of wav file: 16, 24 and 32 bit mono and stereo files, no limit to playback time!
Add overdrive to your samples, sculpt them using the filter and envelopes, pitch them up and down in tune and even modulate the sample file or folder in real time using the CV inputs or CC MIDI commands!

Custom wavetables

You can load any wavetable .wav file to the SD card for the Wavetable engine. The wavetable can be morphed in 3 dimensions. Use our OXI Wave APP to create and edit 3D wavetables.

MIDI Integration

Control any part's parameter via MIDI CC, from FXs sends to sample selection.
Combine it with CV signals for a killer compact combo.

Effects

Space engine to create deep atmospheres and rich ensemble chorus.
Every effect send can be set per voice

Notes: End-of-chain stereo effects are on tap with this compact and powerful module, built around a large central control knob for quick hands-on tweaking of effects like DJ-style filtering, reverb, and loops.

Supplier's Notes:
The Best Eurorack Performance FX Module

Meta is the all-in-one solution for creating smooth transitions, exciting drops, and other creative live performance effects.

Meta controls are easy to understand and use. Its feature-rich compact size saves you space and time setting up various modules or expensive effects hardware.

This is the perfect performance effect module for you.

Designed for Performance by Performers

OXI Meta is designed to be easily operated with one hand, and the effects algorithm is built to work specifically for transitions between tracks, building up a drop, intros, or outros with effects like a DJ filter, risers, loopers, and more.

The Solution for Transitions in Eurorack

OXI Meta is an end-of-chain effects processor with a highly performative interface in only 6 HP. Blend your songs and build tension like a professional without all the expensive, bulky gear.

Effect Scenes Breakdown

Meta FX Scenes were crafted and tested to deliver premium level FX- with simplicity, but also allowing to tweak enough to fit your taste and technical needs.

Space

Send your mix into the outer realms with this reverb effect.

Choose from two types of reverbs, a classic long tail reverb with tone and filter control or an experimental reverb from shimmery to deep/black-hole textures.

Riser

One of the most effective ways to create tension for drops and transitions. The OXI Meta riser features two modes both with a high-pass filter & reverb. Mode 1 adds noise and mode 2 adds a Shepard tone-style effect.

DJ filter

A DJ style filter is must have for any live performer. OXI Meta provides you with a high-pass and low-pass filter for the ultimate in transitions.

Loop

Loop small sections of audio in forward or reverse order to create head-nodding breaks and rhythms.

Delay

A high-pass or low-pass clockable delay algorithm with a splash of reverb wash to help glue this classic effect into the mix.

Gater-roller

A unique dual gater effect for exciting audio. Turn the knob right for a gater with division control and built-in high-pass filter, or go left with a snare roll build up with reverb and built-in high-pass filter.

Technical specifications

Width: 6 Hp
Depth: 22 mm
Audio: 24bit, 48KHz

Power consumption:

+12 V: 110 mA
-12 V: 20 mA
+5 V: 0 mA

Notes: Dual-channel CV recorder, capable of unlocking some interesting modulation options. Record up to 1,014 seconds of CV signal per channel, then play back and manipulate.

Supplier's Notes:
This is a high-resolution dual-channel recording interface for your signals mainly focused on recording control voltages. You can record from 1014 sec at 172Hz up to 4 sec at 44.1kHz of signal on each channel, change the playback speed and scan through the recorded CV.

There is a dedicated attenuverter pot for your incoming signals. When nothing is patched to the input you can use the input pot as an offset/cv generator and record pot movements into the module.

It's possible to save, load your signals and settings on the SD card up to 16GB of space.

There are 4 different recording modes to choose from to make more complex signals to prepare your live performances.

MENUS
You can navigate through the menu by pressing SELECT BUTTON (Holding SELECT plus rotating ENCODER you can scroll the menu too)
Pressing ENCODER you can go inside the selected menu, each menu fuction can be changed by rotating ENCODER plus pressing SELECT.
1. Channel: Switch channels 1 & 2 on the OLED display (Holding SELECT for 3 seconds you can swicth channels too)

2. Display: Switch display (live or playback)
a) Live: Live signal monitoring from DAC output
b) Playback: Recorded signal displayed on the OLED

3. Play: Select modes either loop or 1 shot
a) Loop: The playback of the signal will play in loop until STOP is pressed.
b) One shot: The playback of the signal will stop when it reaches the end or if STOP is pressed

4. REC: Select manual, sync, manual mult and sync mult
a) Manual: Pressing REC will start recording, pressing REC again will finish recording, automaticly will start playing.
b) Manual mult: Pressing REC will start recording, pressing REC again will finish recording, automaticly will start playing.
(If PLAY is pressed during recording, or trigger is received to PLAY input recording proccess will be paused, pressing PLAY again or receiving a trigger to PLAY input jack will continue recording)
c) Sync: Pressing REC will wait for a trigger from REC trigger input to start recording, when a second trigger is received to REC input again will finish recording
d) Sync mult: Pressing REC will wait for a trigger from REC trigger inputto start recording, when a second trigger is received to REC input again will finish recording (If PLAY is pressed during recording, or trigger is received to PLAY input recording proccess will be paused, pressing PLAY again or receiving a trigger to PLAY input jack will continue recording)

5. Record Sampling: Select between different sample rate modes and time length of recording

6. Play direction: 3 different play modes can be selected. Forward, backward, pendulum

7. CV Range: Change the offset of the incoming signal from -5/+5V or 0/10V, it can also change the offset of the recorded signal

8. File Load: Loads signals saved on the SD card

9: File Erase: Erases signals saved on the SD card

10: File Save: Saves and names signals on the SD card

Notes: Etna is an advanced triple-control Analogue Multimode Morphing Filter & Digital Control, that has been meticulously designed for precise and dynamic sound shaping. It allows for rapid or smooth transitions between diverse filter settings, known as snapshots.

Each snapshot comprehensively defines all of the filter's parameters, which can be adjusted either swiftly or gradually. These transitions are controlled through an applied voltage or clock and triggers, with the flexibility to use up to eight distinct stages for creating complex filtering effects in various audio applications.

In addition to its morphing capabilities, Etna incorporates analog controls that enable real-time, expressive modifications to the parameters of each saved snapshot. This enhancement not only enriches the morphing process but also provides a tactile, live experience that adds significant depth and nuance to the audio output, making it a powerful tool for both studio and live performance settings.

The response of each filter has been designed with top-end components, incorporating Q and passband compensation. This enables its use as three multimode filters, with all necessary analog control.

Dimensions: 20 HP
Power consumption: 165mA@+12V, 88mA@-12V

Notes: Reverb. Well...kind of.

Welcome to Aurora, a spectral reverb capable of a wide palette of sounds: from lush caverns and whale songs, to alien textures you've never created before. And likely, will invoke a hunger for exploration you felt when you first touched a modular synth.

Aurora uses a phase vocoder audio engine which separates the input signal's time and pitch domains. By blurring these signals you can achieve beautiful time-stretched tails, or cybernetic metallic effects.

Since Aurora's sonic response is entirely dependent on the input signal, no two patches will sound alike, lending itself to an infinite world of surprise and discovery.

Discovery. It's why we are all here.

A portion of all Aurora proceeds will help the fight against shrinking ice caps and dwindling polar bear populations.

Tech Specs

Width: 12HP
Depth: 22mm
Power Consumption: +12V=215mA, -12V=5mA, +5V=0mA

Notes: If we're honest we don't really understand fractals. Something to do with maths, apparently. But that doesn't really matter because we do understand this sequencer module, which is ideal for randomly twisting and morphing sequences.

Supplier notes:
Bloom is a fractal sequencer capable of generating infinitely evolving melodies with a host of musical features.

At its core is a powerful 32 step sequencer with two independent channels and an intuitive interface. What makes the Bloom come alive are its fractal algorithms which can transform existing sequences into powerful melodies, or even generate new patterns altogether. The base sequence is known as the Trunk and can be programmed by hand, or automatically generated with the Mutate function. Once a Trunk sequence is in place, fractal transformations are only a knob turn away by using the Branch and path controls. Each new Branch adds a complete variation to the base sequence and Path determines its passage through the set of recursively generated sub-sequences, offering a unique take on the melody with each turn of the knob.

Bring your sequencing to life with Bloom.

Notes: Glitchy business with this digital module based on the sound of scratched CDs, buggy software and failing hardware. Stereo in and out with up to five minutes sampling time.

Supplier's Notes:
Data Bender is a circuit bent digital audio buffer. It is inspired by the ways in which audio equipment can fail. The sounds of skipping CDs, software bugs, and defective tape machine playback are all accessible. The audio buffer can hold up to five minutes of stereo audio, providing a sonic canvas capable of infinite surprises and discovery.

Notes: Record. Mangle. Destroy.

Nebulae is a granular sampler and DSP platform. Its phase vocoder audio engine provides elastic audio, which can be time stretched, granularized, and mangled to no end. With independent control over pitch and speed, and granular controls such as overlap, window, and density, finding new sonic territory is only a knob turn away. Nebulae can use live audio input, a recorded buffer, or audio files as the source material for its powerful audio manipulations. The live input buffer can record up to five minutes of stereo audio at 48kHz, 24 bit. In addition, up to 75 MB of stereo audio can be loaded simultaneously through the USB port. No naming convention or special formatting necessary; just plug and play.

Nebulae lives a double life as an open source DSP platform with an extensive library of off the shelf alternate instruments. You can turn the module into a lush reverb, spectral delay, or tape-style looper simply by loading a new file onto the flash drive. Do you want to tweak one aspect of an existing instrument, even the default functionality? No problem. No prior coding knowledge is necessary to tweak and refine existing firmware to your liking or start with one of our templates. Alternate firmware files can be written with Pure Data, Csound, SuperCollider, and even bare-bones C programs.

Notes: Meet Stardust, a cosmic tape looper.

The foundation of Stardust is a stereo looper with all the essential controls to record and manipulate sound, while supporting click-less looping transitions, an ultra-low noise floor, and high-fidelity audio hardware. However, getting the perfect loop is only half of the equation, Stardust also focuses on the texture and vibe of your recordings. Dial in a classic tape machine style warmth with wow & flutter/tape hiss controls, or take Stardust to new horizons with DSP effects. And, much like the tape-machines it takes it's inspiration from, Stardust can splice and rearrange its loops at the twist of a knob.

With an impressive set of front panel controls, the ability to save, recall, or export recordings, load samples via an included USB flash drive, and a host of configurable settings via our web editor Narwhal, Stardust is a comprehensive looper device.

Power Consumption: +12V=201mA, -12V=13mA, +5V=0mA

Notes: ***B-STOCK: Box damaged, product in perfect working order***


Meet Stardust, a cosmic tape looper.

The foundation of Stardust is a stereo looper with all the essential controls to record and manipulate sound, while supporting click-less looping transitions, an ultra-low noise floor, and high-fidelity audio hardware. However, getting the perfect loop is only half of the equation, Stardust also focuses on the texture and vibe of your recordings. Dial in a classic tape machine style warmth with wow & flutter/tape hiss controls, or take Stardust to new horizons with DSP effects. And, much like the tape-machines it takes it's inspiration from, Stardust can splice and rearrange its loops at the twist of a knob.

With an impressive set of front panel controls, the ability to save, recall, or export recordings, load samples via an included USB flash drive, and a host of configurable settings via our web editor Narwhal, Stardust is a comprehensive looper device.

Power Consumption: +12V=201mA, -12V=13mA, +5V=0mA

Notes: Very nice little physical modelling voice, serving up to eight notes of polyphony via stereo outputs. Plucked strings, tuned percussion, an excellent prepared piano mode and more.

Supplier notes:
Surface is a multi-timbral physical modeling voice. Its output ranges from plucked strings and marimbas, all the way to FM drums.

Each model features stereo outputs and up to eight unique voices that can be active at a time.

Notes: Analogue discrete Synthvoice with two VCOs, three SUB-VCOs, Wavefolder, Noise, Ring Modulator, two loopable ADRS, two LFOs/VCOs, MIXER, 24db Lowpass VCF, VCAOur new Eurorack flagship hits stores this summer. Very compact (pre-patched) discrete synth voice module with excellent analogue technology for endless soundscapes at a reasonable price.

Two discrete VCOs with highly stable tracking

Three analogue Suboscillators (3/4-1/2-1/4 with SQUARE, SAW, TRI) + Gravity Mix -Sync

Wavefolder (VCO 1 TRI WAVE)

White Noise

XOR Ringmodulator

Discrete VCA

24dB LP VCF with overdrive

Dual analogue LFO (one also usable as VCO) with incredible range and keytracking -Two superfast and punchy analog ADSR sections with LOOP function and four TRG outputs (End of ATT, End of DEC)

Mixer section with Master level -Glide presets and huge Patchfield to communicate with other Eurorack Modules.

Screwed metal shaft potentiometer

Rackspace: 36TE
Depth: 25mm

Notes: The only module named after a Swedish botanist? Possibly. Relentless synth innovator Dave Rossum pushes the boundaries again with a state-variable stereo filter offering through-zero frequency modulation. Sounds complicated. Sounds good.

Supplier notes:
Following in the tradition of Evolution and Morpheus, LINNAEUS represents yet another Dave Rossum innovation in filter technology.

LINNAEUS is a stereo state-variable filter that provides the unique ability to linearly modulate its resonant frequency through zero into negative frequency, while maintaining stability. With extensive voltage control of nearly every parameter, Linnaeus lets you manipulate the filter's natural response curve in new ways, to create both subtle and dramatic timbral effects. And with a "one-knob-per-parameter" interface, LINNAEUS inspires sonic creativity that invites (and rewards) real-time interaction.

LINNAEUS's cutoff/resonant frequency is exponentially voltage controllable from sub-audio to ultrasonic frequencies, while its resonant gain (Q) is exponentially voltage controllable from 0dB to greater than 60dB.

LINNAEUS's channel output response characteristics are independently and continuously variable from Lowpass, through Bandpass, Highpass and Notch, to Low and High Shelving characteristics. Voltage control of the response characteristics are independently selectable for each of the two channels.

The linear thru-zero modulation is provided by an integrated modulation oscillator and/or an External Linear FM modulation input.

The voltage-controllable modulation oscillator can track the filter's exponential frequency or operate independently. The modulation oscillator's output waveform is continuously variable from Off through Sine, Triangle, and Sawtooth, to Square. The modulation oscillator output is summed with the external linear FM input and applied to the modulation index VCA, which controls the linear thru-zero modulation index from zero to 8X. The modulation index is, of course, also voltage controllable.

Notes: *** Free software update available as a free download, along with updated documentation, at the Mob of Emus product page on the Rossum Electro-Music website***

A lot to unpack here. Six-channel multipurpose oscillator/noise source/modulation generator with quantisation, trigger generators and even more. Seriously powerful all-round digital goodness.

Supplier's Notes:
Mob of Emus is a powerful music and sound design tool that packs an enormous amount of creative power into an amazingly compact 16HP module.

Mob of Emus gives you six channels of oscillators, noise sources, cyclical and 1-shot modulators (including LFOs, envelopes, and various other shapes), sample and hold waveshapes, slow random modulators, triggers, rhythm patterns, and quantization (of both internal and external signals) in pretty much any combination (well, any combination of six channels, anyway).

In addition to being able to independently program the function of each individual channel, Mob of Emus' Hex Mode provides a macro control layer that allows you to control all of its channels simultaneously (while maintaining the relationships of each channel's independent programming).

What's more, Mob of Emus' "harmonic" control structure makes it extremely easy to combine its oscillators into rich additive timbres, to combine its LFOs into stacked harmonic low frequency modulation waves, and to create modulation sources and triggers with intricate polyrhythmic patterns.

With an external trigger input, six CV inputs that can operate in six different control modes, six independent outputs, and an assignable mix output, Mob of Emus can operate as the heart of an almost unlimited variety of patches. And its 8 real-time controls will give you immediate hands-on access to a channel's (or all six channels') key parameters, inviting (and rewarding) exploration and improvisation.

Mob of Emus features include:

Six channels that can function independently or can be further controlled by a Hex Mode macro layer that lets you control all six simultaneously. Channels can be:
Wide-range digital oscillators
Noise sources
Cyclical and 1-shot modulators (including LFOs, envelopes, and various other shapes)
Sample and hold waveshapes
Slow random modulators
Triggers
Rhythm patterns
Quantizers (of both internal and external(!) signals)
Six CV inputs that can function in six different control modes
Eight real-time controls for immediate access to key channel parameters
Six individual channel outputs and an assignable mix output
The ability to store and recall 12 user presets
And much more.

Mob of Emus is 16HP wide and 25mm deep.

Power requirements (max): 130mA +12V, 25mA -12V. Reverse polarity protected.

As of March 2021, there has been a been a small bug fix to the recent software update for Mob of Emus.

The update fixes a bug where holding the Channel Selector Buttons for a short time to select a single channel and deselect any others was not working correctly.

The update fixes a bug where some Hex Mode parameters were not ignored when Hex Mode was set to off.

The update introduces a feature allowing users to double-click and hold the Hex button to reset all Hex Mode parameters and set Hex Mode to on.

Rossum Electro-Music made a change to the behavior of the LEDS when using the utility 'Display Software Revision'

Notes: A powerful utility module:

The 2+2 Mixer (left side) is a combo of two DC coupled 2-channel mixers with a sum out. For audio or CV purposes.

The Dual VCA is the audiophile and distortion friedly VCA taken from the Stereo Mixer. It has a special exponential response that imitates the behavior of the early Serge VCAs and allows massive amplification and overdrive. Beware - the resulting signal can get very high amplitudes (up to 16Vpp) and allows squaring of a sine or triangle wave.

Serge 2+2 Mixer / Dual VCA for eurorack:

Designed for audio performance
Eurorack format (3U), 18 hp
Power consumption: 55mA @ +12V, 50mA @ -12V
(NEW) Skiff-friendly: < 25mm (1")

Notes: The Serge Dual Universal Slope Generator (DSG) is probably the most versatile module of a Serge Modular system, incorporating a wide range of functions for both CV and audio. Some functions for which one Slope Generator can be used: VC Transient Envelope Generator, VC LFO, VC Portamento device, Envelope Follower (Detector), VC Pulse Delay (Monostable), Sub-Harmonic Series Generator (Divider), Audio Oscillator with variable waveform symmetry (saw to triangle), Non-Linear Audio Processor (low-fidelity VCF).

From the catalog: "The Universal Slope Generators are unity gain voltage followers with voltage controllable slopes. The range of control is exponential, extremely wide, and the Rise and Fall times can be controlled independently. The range of the Slope Generator is from sub-sonic to high audio frequency. Trigger inputs and trigger outputs allows each section of this dual module to function as a transient (envelope) generator, pulse delay, or in a "cycling mode" (to produce an LFO or clock). Since the Rise and Fall times are voltage controllable, this adds another dimension to the above functions.

The DSG mk2 version has been optimized for audio performance and speed/precision. The top section covers a frequency range up to more than 10kHz. It also offers improved tracking and some temperature compensation.

Dimensions
26 HP
40 mm deep

Current Draw
90 mA +12V
80 mA -12V

Notes: The Serge GTO is a newly designed, complex multi-functional module which can be patch programmed to provide various slew and sample functions both for audio and CV signals, but also act as a (dual) oscillator or filter or bitcrusher or ... It is one of the essential Serge modules. The GTO is an offspring of the famous Serge SSG.

The Smooth section will place a positive and negative slew on input voltage transitions for lag effects, voltage controlled portamento and for low frequency filter applications. In Cycle-mode (cycle jack patched to the input), the Smooth side “will oscillate yielding a voltage controlled triangle wave LFO. A high level into the HOLD input will enable the Smooth Function to be used as a track-and-hold circuit with voltage controlled slew rate.

The Stepped function can be used as a sample-and-hold with voltage controlled slew rate limiting. In Cycle mode, a pulse applied to the Sample input will generate complex staircase waveforms for control voltage applications and for use as audio signals.

Each side has a temperature-compensated 1V/Oct input for use as an oscillator with a frequency range of up to 20kHz (left) and 8kHz (right). Each side tracks over 5 or 6 octaves.

The Coupler is an internal comparator which compares the output levels of the Smooth and the Stepped Generators. This output is useful for generating complex control voltages or random voltages.

Dimensions:
18 HP
25 mm deep

Current draw:
45 mA +12V
40 mA -12V

Notes: A handy combination of two of Serge's most recent designs:

The GATE (left side) is an enhanced redesign of the classic Serge Gates which can be used as a linear or exponential VCA or ring modulator or some interesting combination of these.

The VCFX 2023 is a newly designed Serge filter that is essentially a Bandpass, but also offers a Lowpass output.

Serge NEW GATES / VCFX 2023 for eurorack:

Designed by Serge Tcherepnin 2023
Eurorack format (3U), 18 hp
Power consumption: 24mA @ +12V, 24mA @ -12V
(NEW) Skiff-friendly: < 25mm (1")

Notes: Really impressive sequencing module with a few clever tricks up its sleeve. Eight tracks of CV/gate with built-in effects (quantise, swing, arpeggiator, etc) for processing MIDI or CV inputs. Real-time recording, step sequencing, looping and much more.

Supplier notes:
Hermod brings together a powerful step sequencer, a CV looper, a real-time effect processor, LFO generators and a complete bi-directional MIDI-USB-CV input/output interface.

Record a performance at any time thanks to the CV inputs, the USB HOST, the USB DEVICE and the MIDI input. Create and edit your tracks with the STEP mode and its piano roll and automation view. Generate crazy patterns with the randomization tool.

Hermod is polymetric, it means that each track can have a different length, from 1 step to 64 steps. Moreover, you can zoom in to increase the resolution of the step sequencer (up to 512 steps).

Polymorphic tracks:

Thanks to Hermod architecture, a track can be a simple mono CV/GATE voice, but can be easily configured as a polyphonic track (up to 8 voices), a CV/GATE + velocity + aftertouch track, a modulation + clock track... in order to perfectly fit your Eurorack system!

Sequences and Projects:

The 8 tracks are grouped into one of Hermod's 8 sequences. Every sequence is totally independent and contains a new set of tracks to be played with, for a total of 64 tracks in a single project.

Dynamic effects:

All the fun in Hermod resides in its effect system, allowing you to transform input signals, whether it's MIDI or CV. You can stack on each track up to 8 real-time effects: Quantize, Swing, Arpeggiator, Ratchet, Random, Euclid, Glide, Harmonizer, Delay, Chance, Scale, LFO... Experiment with the effects position and parameters to generate eccentric melodies!

MIDI-USB-CV interface:

Full connectivity: control Hermod with plug-and-play midi USB devices, midi keyboards, computers or other Eurorack CV systems.

Hermod is also a great midi hub, allowing you to sequence midi synthesizers/drum machines and computer's virtual instruments. Of course, Hermod can be perfectly paired with Pyramid or other hardware and software sequencer, in order to benefit from its CV/GATE outputs.

With Hermod's rock-solid clock, this module becomes a great synchronization tool for all your setup! Thanks to its powerful CPU, even when synced/slaved, Hermod allows an ultra-low latency to make the perfect link between the digital world and the analog world.

The package includes:

- Hermod "Modular Brain" Black Edition
- 1GB micro SD card + SD adapter
- Power ribbon cable
- User guide (English)

Notes: Nicely thought out four-voice sample playback module from Parisian innovators Squarp. Load up a microSD card with samples (up to 2600 kits), then trigger and process. Neat.

** Firmware update- February 2024 ***

Thanks to a major rework of the OS, this upgrade includes an overall better sound quality and an improved latency.

Moreover, the effects Freeze and Bitcrusher have been redesigned, and the parameters Start and Sample Length are now exponential to facilitate the fine-editing of your samples.

Supplier's Notes:

Rample waves system

Eurorack 4-voice sample player & audio processor

Versatile sample machine

From percussive drum-machine kits to synth samples, breakbeats to sound FX, backing tracks to hour-long audio music, Rample can play up to 4 .wav files on independent audio outputs :

These samples are stored inside the provided SD card, and organized as kits, from A00 to Z99... allowing up to 2600 banks of 4 voices, with on-the-fly loading! The SD card is preloaded with tons of samples, and we made it very easy to import your own kits.

Thanks to the DC coupled audio outputs, it's also possible to play CV waveforms.

Effects rack

Each voice has its own "rack" of effects, and all audio effects can be enabled at the same time, allowing you to manipulate your samples in real time, from a gentle lowpass to massive destruction!

pitch - a great sounding pitch engine, based on a 6-pole interpolator, which ranges from -1 octave to +1 octave.

bits - two different bitcrushing algorithms, based on sample rate and resolution reduction. It produces distortion and warms the audio signal.

filter - a low resonance filter, DJ-style, cutting off the high frequencies or the low frequencies.

freeze - sample and loop a fraction of the played waveform, creating a glitching effect.

levels - decrease the gain or drive the signal.

It's also possible to edit 'advanced parameters' like the start point, sample length, attack/decay and run mode, and create mute groups without breaking a sweat.

Finally, thanks to the 4 CV inputs, any of the effects (or advanced parameters) can be assigned to create amazing modulations!

Multi-layer sampling

One of the key feature is the ability to "multi-sample" your kits, multiplying Rample's potential. Each voice supports up to 12 samples, can be played randomly or in a controlled fashion. It's a great way to add complexity and variations, to create organic/acoustic sounding drums, or simply to increase the number of samples per kit (up to 48).

As an example, Squarp are providing a multi-layered drum kit, with 12 different recordings of a kick, 12 different recordings of a snare, etc. Sequencing them randomly leads to a more natural drum playing.

Another kind of multi-layered acoustic drum kit is also provided, where each drum is recorded with 12 levels of velocity. Controlling the layer to be played leads to intricate, convoluted drums programming.

Of course, it's very easy to create your own multi-layered kit, and you can use this method to perform multiple synth chords, sound glitches, voices, breakbeats, ...

CV/Gate and Midi interface

Rample is designed to be the perfect rhythmic companion of your eurorack system thanks to its Gate (trig samples) and CV (modulate samples) connectivity.

You can also use it as a standalone midi machine, without using the CV/Gate connectivity: the midi in port allows you to trig & control all samples parameters + effects values at the same time. Each Rample comes with a 'stereo jack to midi DIN' and 'stereo jack to jack' adapters, easing the chaining of multiple modules in order to create an 8-voice, 12-voice, 16-voice (or more) midi drum machine!

SD card preloaded with 200+ kits from artists and sound designers, covering a large range of audio samples

Notes: Studio Electronics' version of the boxy, Blade Runner-sweet and Boomstar-brash dual mode CS80 filter, initially married to the Omega Series Synths, and then tucked-in the 'Stars, now joins the Modstar Collective. They've twisted and turned the SE88 to unflatten the earth, so to speak; the original CS80 fed a HP filter into a LP filter, but with the SE88 your can select MODE 1's HP or BR to feed MODE 2's LP or BP, or patch it to reverse that pleasant path. The audio signal is completely controllable with input and output levels for each filter. Cherish and respect your filter's input gain stages, for a smooth yet often brassy sound - shed your mercy to strike hard for boiling, snarling bite, even to the blackout/cutout point (see Greg St. Regis, Tim Caswell, and Marc St. Regis' SEM filter commentary for a detailed diatribe on this "feature too far"); then and only then, uniquely blend mode settings for the filter family values you revere.

To get things merrily modulating, each filter employs attenuverters for frequency and resonance experimentation and decimation. While the SE88 does not self oscillate (Yamaha's creation didn't either), we did amp up the resonance level for full-throttle squelching. An additional master FM (frequency modulation) attenuverter-controlled level can feed both filters (when hungry enough) simultaneously, and tracking switches allow for individual keyboard response for each of the contrasting and complimentary filter modes.

Potentiometer Potential:
Five attenuverter and eight attenuation pots control the FREQUENCY MODE 1, FM IN, FREQUENCY MODE 2, RESONANCE, M1 FM, RESONANCE, M1 RES CV 1, M2 RES CV, INPUT, M2 FM, OUTPUT, LEVEL (M1 OUT), and LEVEL (M2 OUT).

Switch it Up:
2/3 - 1/3 TRACK (M1), FULL - HALF TRACK (M2), HP - BR, LP - BP.

Patch it Up:
Ten patch points: 1 V/O, FM IN, M1 FM, M2 FM, M1 RES CV, M2 RES CV, M1 IN, M1 OUT,
M2 IN, M2 OUT.

All Controls and Patch Points:
FREQUENCY MODE 1 - Adjusts the frequency, or cutoff of Mode 1.
2/3 - 1/3 TRACK - Toggles tracking options for Mode 1.
FM IN - Adjusts the master frequency modulation input.
FULL - HALF TRACK - Toggles tracking options for Mode 2.
FREQUENCY MODE 2 - Adjusts the frequency, or cutoff of Mode 2.
RESONANCE - Adjusts the resonance of Mode 1's filter.
M1 FM - Adjusts Mode 1's frequency modulation.
RESONANCE - Adjusts the resonance of the Mode 2's filter.
HP / BR - Toggles the High-Pass and Band-Reject option.
M1 RES CV - Adjusts Mode 1's resonance control voltage.
M2 RES CV - Adjusts Mode 2's resonance control voltage.
INPUT - Adjusts the master audio input.
M2 FM - Adjusts Mode 2's frequency modulation.
OUTPUT - Adjust the audio output.
1 V/O - One volt per octave control voltage input.
FM IN - Master frequency modulation input.
M1 FM - Mode 1 frequency modulation input.
M2 FM - Mode 2 frequency modulation input.
M1 RES CV - Mode 1 resonance control voltage input.
M2 RES CV - Mode 2 resonance control voltage input.
M1 IN - Mode 1 input.
LEVEL - Level control for Mode 1.
M1 OUT - Mode 1 output.
M2 IN - Mode 2 input.
LEVEL - Level control for Mode 2.
M2 OUT - Mode 2 output.

- Size: 20hp
- Depth: 39.7mm with ribbon cable attached
- Power Usage: 42mA (+12 / -12)

Notes: A whole lot of module for the money. Eight-track trigger sequencing with built-in drum synth, sample player and MIDI. Amazing value for studio use or live performance.

Supplier's Notes:
Trigger sequencer with audio and midi

TUKRA is an 8 track eurorack trigger sequencer with drum synth, sample player and midi.

This module can be an 'all in one' solution for drums, but also has great integration capabilities with other gear (eurorack modules, drum boxes, DAWs, midi devices and midi surface controllers).

There are no submenus, all functions and views are accessible all the time.

Brief overview:
- Up to 64 steps per pattern, 64 patterns, 64 parts and 16 songs per project. 64 projects in the microSD card.
- Play mode, clock divider, length & choke settings independent per track & pattern.
- Step value (can be used for modulation, to define the midi velocity, midi note & drum synth pitch or sample selection).

Ins & outs:
- 8 trigger/gate, clock & reset outputs. Clock & reset inputs.
- 4 CV inputs with offset potentiometers (so they're manual controls when no CV is plugged in).
- Audio L & R out (6 additional ones with the expander for independent track output).
- Front panel midi TRS in & out, and USB host for midi controllers.

Midi and audio:
- Midi note and channel configurable per track & song, midi note and velocity can be set by the step value.
- Drum synth, noise with envelope and 'one shot' sample player (factory and user banks) per track.
- Flexible sample selection (each track can play up to 128 samples).
- Mixer with volume, balance, reverb, bit crusher, filter cutoff, resonance and type (smoothly crossfades LP - BP - HP).

Modulation:
- CV & assignable midi CC plus 8 internal LFOs, 3 stepped random sources and step value.
- Modulation matrix for almost all parameters.

Rhythm variation:
- Probability for step, gate and roll.
- Euclidean Rhythm Generator.
- 'Ramifications' generative tool.
- Live view with solo, mute, fill, roll, invert pattern, reverse play direction and rotate.

Time:
- High precision clock source and low latency.
- External sync (via trigger, midi TRS or USB).
- Triplets and swing (aka 'shuffle'), triplet and swing can be generated from a straight clock input or midi clock.
- Micro grid edit, each step has 6 micro steps (24 ppq).
- Half and double tempo functions.

Notes: Vinia is a new powerful 8-channel audio generator and processor for Eurorack. Each channel is independent and has its own signal chain. This can be a multi-engine instrument, an FX processor, a combination of both, or a chain of several FX.

The sound generator section offers 2 sample players (one plays from the 16 MB internal flash memory and the other directly from the microSD card), various VCOs (VCO, multi-VCO, harmonic VCO), Karplus, a Chord generator, noise, a drum synth and modulation generators (LFO, envelope follower, envelope).

Each of these generators has a rich set of parameters for setting up your sounds. Then, there is a powerful multi-FX processor.

Tesseract Modular has added 20 different algorithms in Vinia: FM operator, filters (multimode, ladder, rubber, bandpass), a wave folder, tube saturation, delays (filter delay, delay, long delay), reverb, metallizer, grain pitch shift, and more.

These can be flexibly set in a chain per channel and offer many customization possibilities. The module also hosts a mixer. You can also save your channels in presets and work with macro parameters.

Each of the 8 channels can be independently configured as a multi effect processor, VCO, sample player...

Audio outputs are DC coupled so it can be used to generate complex CV modulation sources too.

There are 2 types of modulation in Vinia, the first is stepped (occurs every 1,4 milliseconds approx.) and very flexible, any modulation source can modify any parameter of any track. The second is the 'audio rate' one (44,1 KHz), only a few parameters admit this type and both sources and destinations will be within the same track.

Audio sources: Audio Input, Flash Sample Player, MicroSD Sample Player, VCO, Multi VCO, Harmonic Oscillator, Karplus, Chords, LFO, Envelope Follower, Envelope, Noise, Drum Synth

Audio processors: FM Operator, Multimode Filter, Ladder Filter, Rubber Filter, Bandpass Filter, VCA / Polarizer, Folder, Tube Saturation, Exponential Envelope, Delay, Filter Delay, Long Delay, Long Filter Delay, Reverb, Metalizer, Chorus, Modulator, Vocoder 16, Vocoder 32, Bit Crusher, Rectifier, Grain Pitch Shift, Ring Modulator

Notes: The Circadian Rhythms, is a professional performance gate sequencer in Eurorack format. Sitting at the centre of your system the Circadian provides triggers and gates to all your drum modules and percussive sounds as well as clocking your other sequencers with exceptional timing accuracy. Each channel voice can be programmed directly from the intelligent, eight-channel, 512-step master gate sequencer designed for composers looking to make music on the modular and perform live. Building up from basic step programming, multi-channel patterns of musical phrases can be repeated, looped, chained, muted, and manipulated in real-time, and, most importantly, all through a simple, clearly labelled menu-free interface.

Led Grid

Built around 72 buttons set as a multi-colour illuminated 8×9 array, Circadian Rhythms displays both note data and settings in a clear and precise manner. It takes only one click to switch to vertical view, turning the grid into a set of programming and real-time playing functions like Mutes, Loops, Swing, Fills, Copy and Paste, Grouping, Randomizing, and Manual drum-machine-style trigger entry. Activate any of those functions with only a button press or two. Using an array of multi-colour, illuminated buttons and innovative grid views provides a highly functional live performance sequencer with a beautiful, glowing appearance that will look amazing on stage for both performer and crowd. As a master controller, the heart of the modular synthesizer, the Circadian Rhythms generates high precision clock and reset signals for all the other sequencers and devices in the system and can also act as a high precision bridge for DAW synchronization.

Clock

Inside the CR ticks an extremely precise clock with jitter and latency measured in mere microseconds for the ultimate feel of the groove. The four modes of clock sync make interfacing with other modules, hardware, or software simple. Whether driving a large Eurorack system or synced to a DAW, the groove always remains tight.

Under the Hood

When state of the art chip technology, musically driven firmware, and professionally engineered hardware design all come together in one electronic device, the result is a music sequencer with unparalleled specifications. Starting with a powerful, precise sequencing engine that has superb feel for the groove, add internal functions that automatically balance performance and smooth user interface operation, and finish with outstanding low power consumption placing minimal stress on power supplies even at maximum output, Circadian Rhythms has a design focused on the requirements of the most dedicated musicians and composers. Long-time pros will immediately feel a machine made for their needs, while newcomers can instantly dive into next-level programming and performance.

SyncBus Technology

The Tiptop-Audio-designed SyncBus enables the CR to connect to any number of other SyncBus devices with the highest possible level of synchronization. A SyncBus master directly injects its core clock and running status into every connected unit so they work seamlessly as one device. Hook up two CRs to make a 16 channel device or add a Trigger Riot (or three) to the mix for further experimentation. Plus, the connection is done behind the panel so there is no need to patch anything together.

Size: 36HP
Depth: 29.4mm
Power: +12V 160ma / -12V 0ma / +5v 0ma

Notes: The Circadian Rhythms is moving modular synthesizer technology another step forward by gluing all the pieces of a system together. Each module or voice can now be programmed to play straight from an intelligent, eight-channel, 512-step master trigger sequencer made for composers looking to make music on the modular. Building on the sequencing concept of step programing multi-channel patterns of musical phrases can be repeated, looped, chained, muted and manipulated on the fly in real-time, and most importantly, all of this is done through a simple, clearly labeled interface. Using an array of multicolor illuminated buttons and innovative grid views provides a highly functional live performance sequencer with a beautiful glowing appearance of the programmed music that will look amazing on stage for both performer and crowd. As a master controller, the heart of the modular synthesizer, Circadian Rhythms generates high precision clock and reset signals for all the other sequencers and devices in the system to align with and can also act as a high precision bridge for DAW synchronization.

Views - Unlike most hardware sequencers that have a single static display of a timeline, Circadian Rhythms offers four different horizontal views of the timeline and two unique vertical views that scale from macro to micro. Switch between viewing 64 steps at once or all 8 channels side by side instantly. Stretch gates over multiple patterns to drive envelopes or use Zoom view to move a single hit back a few milliseconds in time to get the right feel all from the same interface.

LED Grid Built for Quick Access - Built around 72 buttons set as a multi-color illuminated 8x9 array, Circadian Rhythms displays both note data and settings in a clear and precise manner. It takes only one click to switch to vertical view and the grid turns into a set of programming and realtime playing functions like Mutes, Loops, Swing, Fills, Copy and Pate, Grouping, Randomizing, Manual trigger entry drum machine style and many many more. Activate any of those functions with only a button press or two.

Clock - Inside the CR ticks an extremely precise clock with jitter and latency measured in mere microseconds for the ultimate feel of groove. The four modes of clock sync make interfacing with other modules, hardware or software simple. Whether driving a large Eurorack system or synced to a DAW, the groove always remains tight.

SyncBus Technology - The Tiptop Audio designed SyncBus enables the CR to connect to any number of other SyncBus devices with the highest possible level of synchronization. A SyncBus master directly injects its core clock and running status into every connected unit so they work seamlessly as one device. Hook up two CRs to make a 16 channel device or add a Trigger Riot (or three) to the mix for further experimentation. Plus, the connection is done behind the panel so no need to patch anything together.

Under The Hood - When state of the art chip technology, musically driven firmware, and professionally engineered hardware design all come together in one electronic device, the result is a music sequencer with unparalleled specifications. Starting with a powerful, precise sequencing engine that has superb feel for the groove, add internal functions that automatically balance performance and smooth user interface operation, and finish with outstanding low power consumption placing minimal stress on power supplies even at maximum output, Circadian Rhythms has a design focused on the requirements of the most dedicated musicians and composers. Long time pros will immediately feel a machine made for their needs, while the newcomers can instantly dive into next level programming and performance.

Notes: Octogain is a eight voice polyphonic analogue audio VCA plus a eight voice mixer with master level control and odd/even (Right and Left) channels for a stereo output and clipping indicator. All eight VCA ins and outs are simultaneously available through Polytip jacks and 3.5mm jacks so the module can be used in a variety of ways both polyphonic or multi-voice monophonic. The fully analogue audio path has exponential CV control. CV inputs are 0-5V, typical audio input is 10Vp.p. A global Offset knob allow to open all VCAs manually or apply positive offset to incoming CV. The design uses very low power consumption with excellent audio quality.

Size: 16HP - Depth: 40mm
Power: +12V 42mA / -12V 35mA

Notes: OCTOPASS is an eight voice 24db/octave low pass filter based on the classic 2044 filter. All eight filters are fully analogue with gain compensation of resonance and the lovely lush sound of classic synths. A global frequency modulation CV using a 3.5mm jack can be used to modulate all eight incoming CVs of the Polytip jack. The typical use is to patch polyphonic synthesisers with the use of only a few Polytip patch cables for its audio ins and outs and its cut-off frequency controls. To tap each filter I/O or CV using discrete modules the OCTO I/O module can be used as an expander. As there are eight filters in the module special attention has been given to power consumption efficiency.

Size: 20HP

Notes: OCTOPUS is a powerhouse ART controller that takes MIDI in via the USB or DIN connector and outputs 8 ART channels with 8 velocity CV plus 8 drum triggers. Together with the ART oscillators the OCTOPUS provide unprecedented simplicity connecting the modular to your computer sequencers, hardware midi sequencers and keyboards. Each ART channel can play polyphonic notes, monophonic notes or create multi-channel polyphony using an internal voice manager. All together OCTOPUS can play more voices and notes from a single controller than ever was possible in modular. Using ART high speed control signals OCTOPUS can maintain low jitter for tight timing.

Please note, OCTOPUS is not a 1V/Oct midi to CV and should not be confused as one.

Size: 18HP - Depth: 40mm / 1.5"
Power: +12V 140mA / -12V 100mA

Notes: Part of TipTop's polyphonic range, the Octostages is based on the envelope circuits from the legendary Oberheim OB-X. Eight fully analogue envelopes with shared ADSR controls.

Supplier's Notes:
Octostages is an eight voice fully analogue envelope generator made with the original envelopes of the 1979 OBX. Each of the eight envelopes feature a Gate in, Envelope OUT, Velocity CV in and Attack CV in control as well as an output led indicator. A master output level knob and CV using standard mono jack are provided to control or modulate all envelope output levels globally. As there are eight EGs in the module special attention has been given for power consumption efficiency.

Size: 20HP - Depth: 40mm
Power: +12V 185mA / -12V 165mA

Notes: Introducing the TOMS909, the warmth of the classic, all-analogue, punchy tom-toms from the TR-909 drum machine. The TOMS909 contains all three of the TR-909's original LOW, MID and HIGH tom-tom circuits adapted for use in the modular format. The module was designed to sound like a fresh machine coming off the assembly line back in the 80's. To add flavour to the beast, Tiptop have extended each tom's tuning range so it's easier to dial soft bass drums on the low end and high-pitched toms on the other.

The toms circuitry is made up of 9 triangle oscillators and a stack of filters, VCAs, and envelopes which, in total, took about half of the space on the original 909's circuit board. Utilizing the latest in electronic design technology, Tiptop have managed to squeeze this enormous circuit, consisting of more than 450 components, into an area only 16HP wide. It is a beautiful board with hundreds of tiny, shiny components: it's a little analogue jewel.

Each tom includes a trigger and accent input with accent level control, manual tune, voltage-control tune input with attenuator and independent audio out. In addition, a MIX out is available that sums all three toms together as well as access to the MIXZ MixBus on the back. On each gate input, Tiptop have designed a dual pulse-shaper circuit so you can trigger your TOMS909 with trigger/gate signals from sequencers or any other pulse/clock sources.

TR-909 is a Trademark of Roland Corp Japan

Size: 16HP
Depth: 51mm
Power: +12V 120ma / -12V 100ma

Notes: Tiptop Audio's Z-DSP is a cartridge-based open source digital sound processing and effects generating platform for your modular synthesizer. Lush audio processing, greater stereo depth and a unique set of digital synthesis is what the Z-DSP is all about.

The Z-DSP has a stereo digital sound processor with 24-bit sampling, 15kHz of bandwidth, voltage-controlled parameters of stereo feedback, program switching, DSP parameters, equal power crossfading dry/wet mixing, as well as sequential program control switching and a clear display - all in Eurorack format. A dedicated clocking input for the DSP chip does wonders to passing sound by bending the algorithms in an unexpected way, a hardware technique computer plugins can't do and is unique to the Z-DSP.

In a recent update, the Z-DSP (NS) got an all new design of its analogue circuitry, contributing to a lower noise signal path, clearer sound of the entire frequency range, lower distortion and better immunity to noise emitted by other modules sharing the same power supply. A new analogue dry/wet circuit has been implemented to remove the 3db gain drop when the mix knob passes through the centre of the dial making the use of this function more practical in a live application. A reverse polarity protection has been added as well. The new front-panel matches Tiptop's colourful design, and a single printed circuit board and surface mount technology improve reliability during production and use. The powerful Z-DSP engine remains the same as the original Z-DSP module and all cards are compatible across both versions.

Notes: Tiptop Audio's Z-DSP is a cartridge-based open source digital sound processing and effects generating platform for your modular synthesizer. Lush audio processing, greater stereo depth and a unique set of digital synthesis is what the Z-DSP is all about.

The Z-DSP has a stereo digital sound processor with 24-bit sampling, 15kHz of bandwidth, voltage-controlled parameters of stereo feedback, program switching, DSP parameters, equal power crossfading dry/wet mixing, as well as sequential program control switching and a clear display - all in Eurorack format. A dedicated clocking input for the DSP chip does wonders to passing sound by bending the algorithms in an unexpected way, a hardware technique computer plugins can't do and is unique to the Z-DSP.

In a recent update, the Z-DSP (NS) got an all new design of its analogue circuitry, contributing to a lower noise signal path, clearer sound of the entire frequency range, lower distortion and better immunity to noise emitted by other modules sharing the same power supply. A new analogue dry/wet circuit has been implemented to remove the 3db gain drop when the mix knob passes through the centre of the dial making the use of this function more practical in a live application. A reverse polarity protection has been added as well. The new front-panel matches Tiptop's colourful design, and a single printed circuit board and surface mount technology improve reliability during production and use. The powerful Z-DSP engine remains the same as the original Z-DSP module and all cards are compatible across both versions.

An assortment of interchangeable cards, programmed by Tiptop Audio and specialists like Valhalla DSP, provide a wide range of boutique effects algorithms such as Halls of Valhalla, Time Fabric, Clocked Delays and Grain De Folie. Tiptop Audio also offers blank Z-DSP cartridges and a development tool called NumberZ for developers, students and power users who want to design their own effects and cards with the FV-1 DSP chip programming language. Blank cards can be loaded using programs that are freely available for non-commercial use and can be found in the modular community through online forums. With each card swap, the Z-DSP takes on new effect algorithms, changing like a digital chameleon and bringing colourful digital effects processing to your Eurorack setup.

The Z-DSP comes included with 2 cards: Halls of Valhalla and Dragonfly Delay MKII.

Notes: The Z8000 Matrix Sequencer is a modulation source like no other: The 16 knobs of the Z8000 are accessed by ten sequencers with their own clock, direction and reset inputs. The ten sequencers are as follows:

Four 4 step CV sequencers on the horizontal.
Four 4 step CV sequencers on the vertical.
One 16 step CV sequencer on the horizontal.
One 16 step CV sequencer on the vertical.

The Z8000 can simultaneously modulate up to 10 CV parameters poly-rhythmically, with unprecedented motion complexity. One knob affects all 10 CV outputs! Imagine modifying 10 parameters from one knob. With its 30 gate and clock inputs and 10 CV outputs one can only imagine the possibilities, and all clock inputs can even be driven at audio rates! The Z8000 pairs well with the Trigger Riot and Circadian Rhythms and using it with the QuantiZer extends its capabilities as a high-precision 1V/Oct note sequencer.

Introduced in 2017, a new version of the Z8000 maintains the original circuitry but adds output range adjustment switches on the back and Tiptop's new colored look, which helps highlight the sections, on the front.

Size: 28HP
Depth: 15mm
Power: +12V 70ma / -12V 10ma
