Notes: The Dual EnvVCA is a two-channel analogue linear envelope generator with two fully independent low-noise exponential VCAs. With time ranges from 30 minutes to 8kHz, it can be used as an LFO, slew limiter, ASR/ADSR complex EG, audio-rate oscillator, stereo audio/CV VCA, envelope follower, sidechain processor, and general utility module. The outputs can be attenuated, inverted, and offset without disrupting the VCA, making it a versatile modulation source.

100% analogue

Dual EnvVCA

16HP Eurorack format module
0.95" (24mm) maximum depth (includes power cable)
10-pin Eurorack power header

Power consumption
+12V: 156mA
-12V: 131mA

Audio/VCA
100k input impedance, 1k output impedance, DC-coupled
VCA gain range: -90dB to +0.9dB
DC to 20kHz, +/-0.1dB
VCA response to CV: exponential

Envelope Times
Minimum rise or fall time: ~62us per segment (8kHz max frequency)
Maximum rise time: >10 minutes (typically > 13 minutes)
Maximum fall time: >20 minutes (typically > 40 minutes)

Jacks:
Env jack: Min = -10.2V, Max = +10.1V?, maximum amplitude 9.3Vpp
Trigger jack: rising edge threshold = 2.5V
Cycle jack: rising edge threshold = 2.5V
Follow jack: active range = 0V to +5V

EO* jacks:
EOR (channel A): <80mV low to >4.50V high gate output
EOF (channel B): <80mV low to >4.95V high gate output
Minimum stable pulse width: 1ms. Shorter than this may produce extra 50us pulses
Audio In/Out jacks: -10V to +10V maximum range without clipping

Notes: Seriously potent polyphonic voice built around 16 sine-based oscillators. Capable of a huge range of tones thanks to FM, phase distortion and wavefolding. Another cracker from a consistently reliable brand.

Supplier's notes:
The Ensemble Oscillator is a unified polyphonic voice of sixteen complex oscillators combining additive, FM, phase-distortion and wavefolding synthesis techniques in new unorthodox ways. By quantizing the oscillators to scales or series of harmonics, the Ensemble Oscillator allows you to explore the sonic boundary between musical chords and rich evolving textures. Easily create a wide variety of sounds ranging from aggregates of pure sine waves to pulsar synthesis or pristine harmonic tones and lush wide chords to rich dirty drones and rumbling glitches. Custom scales can quickly be "learned" and saved using a CV keyboard or by manually entering notes with the controls.

The Ensemble Oscillator is designed by Matthias Puech and 4ms Company.

30 factory-programmed, user-writeable scales organized in three groups:
12TET: all notes quantized to equal temperament, repeating over octaves
Octave: unquantized notes, repeating over octaves
Free: unquantized notes, repeating over the interval between the lowest and highest note

16HP Eurorack format module
0.98" (25mm) maximum depth (including power cable)
10-pin to 16-pin Eurorack power header
Power consumption
+12V: 114mA maximum
-12V: 45mA maximum
+5V: 0mA (not used)
Audio outputs
Frequency range: 0Hz (DC) - 20kHz
Typical amplitude: 10Vpp
Maximum amplitude: 18.5Vpp
1V/oct inputs (Root and Pitch)
Voltage range: -2V to +6V (8 octave range)
Factory calibrated to 1.00V/oct
Per-jack user-calibration allows from 0.7V/oct to 1.3V/oct
CV inputs (other than 1V/oct)
Voltage range: -5V to +5V
Gate inputs
Trigger threshold: 2.5V
User memory (non-volatile)
Scale slots: 30
Shift feature settings
1V/oct calibration settings

Notes: The Ensemble Oscillator is a unified polyphonic voice of sixteen complex oscillators combining additive, FM, phase-distortion and wavefolding synthesis techniques in new unorthodox ways. By quantizing the oscillators to scales or series of harmonics, the Ensemble Oscillator allows you to explore the sonic boundary between musical chords and rich evolving textures. Easily create a wide variety of sounds ranging from aggregates of pure sine waves to pulsar synthesis or pristine harmonic tones and lush wide chords to rich dirty drones and rumbling glitches. Custom scales can quickly be "learned" and saved using a CV keyboard or by manually entering notes with the controls.

The Ensemble Oscillator is designed by Matthias Puech and 4ms Company.

Electrical and Mechanical Specifications:

16HP Eurorack format module
0.98" (25mm) maximum depth (including power cable)
10-pin to 16-pin Eurorack power header

Power consumption:
+12V: 114mA maximum
-12V: 45mA maximum
+5V: 0mA (not used)

Audio outputs
Frequency range: 0Hz (DC) - 20kHz
Typical amplitude: 10Vpp
Maximum amplitude: 18.5Vpp
1V/oct inputs (Root and Pitch)
Voltage range: -2V to +6V (8 octave range)
Factory calibrated to 1.00V/oct
Per-jack user-calibration allows from 0.7V/oct to 1.3V/oct
CV inputs (other than 1V/oct)
Voltage range: -5V to +5V

Gate inputs:
Trigger threshold: 2.5V
User memory (non-volatile)
Scale slots: 30
Shift feature settings
1V/oct calibration settings

Notes: Crystal-clear clock-synced delay for loop up to 90 seconds, echoes, sound-on-sound, Karplus-Strong etc.

Features:
Loop or echo time is synchronized to a clock
87 seconds of delay/loop time maximum
48kHz/24-bit sampling rate, loop recorded at 16-bit (24-bit optional)
Extremely quiet, low noise and low jitter design
Tap tempo button and clock Ping input set the basis for one "beat"
Delay/loop time set as a number of musical beats (or fractions of beats) using the Time knob, switch, and CV jack
Sample-accurate clock output for perfect synchronization
Loop clock outputs for each channel
Time switches change range of Time knob from 1/8th notes up to 32 bars
Digital feedback, up to 110%
Delay Feed control, independent of dry/wet signal mix
Infinite Hold mode disables recording input and fixes regeneration at exactly 100%
Reverse mode plays memory contents backwards
With an infinite loop locked, knobs or CV can "window" around memory, by shifting the loop
Trigger inputs for toggling Infinite Hold and Reverse
Send and Return for applying effects to feedback with external modules
CV jacks to control Time, Level, Feedback and Dry/Wet Mix
16HP Eurorack module

Specs:
48kHz, 24-bit low-noise hi-fidelity
Up to 90 seconds of loop time
16HP
+12V: 110mA
-12V: 45mA

Included with the Looping Delay:
16-to-16 pin power cable
4 x M3 Knurlie screws

Notes: The 4ms Pod104X is a 104HP low-cost, portable, compact enclosure that turns synthesiser modules into a table-top instrument. Pods come with an integrated power supply which allows you to daisy-chain multiple units in different configurations using only a single power brick.

The Pod104X has an integrated power supply with thirteen standard Eurorack power headers. All Pods work with all modules that use 10 and/or 16-pin power cables.

Pods are meant to be daisy-chained. When you plug a Power Brick into one of the jacks on the back of a Pod, the other jack can be used to power an additional Pod. Simply connect a Barrel Cable from one Pod to the next. You can continue to daisy-chain Pods to make long chains! With the 45W Power Brick sold for use with Pods, eight or more Pods can be daisy-chained (depending on the total power consumption of all the modules).

Notes: Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod64X is 64HP with 2.16" (55mm) of available module depth. The built-in power supply has four power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick, or a barrel cable to daisy-chain to a Pod or Row Power that's already powered.

Pods are a perfect way to get started in Eurorack, or add a couple more modules to your monster system!

Made from 100% anodized aluminum, Pods are light, tough and perfect for on-the-go set ups. The power supply can handle up to 1.4A of +12V, which is plenty of juice for even the most modern digital modules. (Or if you prefer to DIY your power supply, Pods are also available unpowered)

Each Pod64X typically will house up to six modules, but more can be accommodated using a multi-power cable accessory.

Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Pods can even daisy- chain with the 4ms Row Power system making them a convenient outboard mini-skiff. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!

Basic Features:

64 HP of Eurorack modular space
Extra room for deep modules
Standard M3 threaded holes
100% lightweight anodized aluminum
Built-in Power supply
Red, White, and Blue LED power indicators

Includes:

64HP Pod, black anodized aluminum
Built-in power supply with six Eurorack power headers
Extra deep (2.16"/55mm) fits virtually every Eurorack module
M3 x 8mm pan-head screws, stainless steel (20)
Adhesive rubber feet (4)
Does not include barrel cable or power brick
Power Supply:

Four 16-pin Eurorack power shrouded headers
+12V max 1.4A
-12V max 0.67A
+5V max 1.0A
Power input: Two barrel jacks for daisy-chaining
15V-20VDC, 2.1mm positive tip
Exterior dimensions:
Width: 329.7mm (12.98")
Height: 159.5mm (6.28")
Depth: 57mm (2.24")
Interior dimensions:
Max module depth: 55mm (2.16")
Module width: 64HP
Weight:
0.5 kg = 17 oz

Notes: Four channel voltage controlled Clock Divider/Multiplier with master Tap Tempo. Each channel can be synced to the tap tempo, to the channel above, or to an external clock. Each channel also has a reset jack.

With a Tap Tempo button and five sync'ed clock outputs, the QCD is a versatile head-of-the-chain "Master" clock module, and/or a complex rhythmic pattern generator.

Notes: The WAV Recorder from 4ms Company is a high fidelity, two-channel stereo audio recorder with basic playback features. Accepting a wide range of input signals, from line-level to modular-level, the WAV Recorder stores audio onto a microSD card in lossless .wav format up to 96kHz/24-bit. The trigger jack can be used for capturing rhythmic loops or synchronizing multiple WAV Recorder modules for multi-track recording. In Playback mode, the trigger jack or button plays the most recent recording. A simple file/folder navigation system can be used to browse the folders on the card for playing back .wav files. A Gain knob allows for up to +20dB of boost, and an LED Signal Meter indicates clipping and the signal level.

Review: A Gift from a Flower to a Garden made for a few firsts: the first double LP of Donovan's career, one of the first box sets in pop and, most importantly for Donovan himself; the first pop album for the children of tomorrow. He resolved to make A Gift from a Flower to a Garden an album of two halves. The first, Wear Your Love Like Heaven, was intended for his own generation as they started to think about the kind of world they wanted to leave behind. The second, For Little Ones, was for the children they had or would have in the years to come. The result was a kaleidoscopic folk-jazz suite on the power of love, imbued with all the romance and mystery of an Arthur Rackham illustration for an ancient English fairy tale. The songs, remarkably adventurous given Donovan was a globally famous singer at his commercial height, combined the influences he had amassed so far. There is something about A Gift from a Flower to a Garden that could never be repeated, though. It is such an innocent evocation of the childlike imagination, so redolent of its time, yet set apart from it too. All these years later, the peaceful qualities of this pioneering, enchanting, deeply unusual album feel more valuable than ever.

Review: Here it is: the all-time great album that popularised jazz for the masses, and which carries the genre's torch to this day. Most works by Coltrane serve as good introductions to jazz’s endemic practice of through-composition, but A Love Supreme (1964, Impulse!) is arguably among his best works to come in four suites; to quarter a technically singular piece. Widely recognised as the moment at which John all-aboarded the Soul ‘Trane, the album marked the apogee of a wave of popular analyses of US jazz records as holding special spiritual significance. This early vaunting may have fed into its popularity into the present day; but we cannot gloss over the fact that such elevations in status do not tend to come without supreme merit, and more level-headed takes on the LP simply interpret it as one of the most impeccably performed, precisely timed jazz records of its day. Remastered for the esteemed Analogue Productions series, its everlasting flame is rekindled.

Notes: Mini MIDI
Want to connect your modular system to USB MIDI equipment or computer-based DAWs? Simultaneously? We did too.

With over 20+ modules and three complete modular systems in our portfolio, you'd be forgiven for thinking we're a bunch of purists, roaming the studios of Berlin by night, looking for unsuspecting copies of Ableton Live and Cubase to infect with viruses.

But nothing could be further from the truth. We love analogue hardware, and we also love the power and creativity of DAWs. We love the power and creativity of DAWs, so we've long dreamed of a module to bridge the gap between our computer, modular system, and USB MIDI devices. So we made one.

It's small, and it's MIDI

Mini MIDI draws aesthetic inspiration from a runway model... or a drumstick... or the Taipei 101. Basically it's tall and thin. Nevertheless, this simple, space-saving format contains no less than seven connections: Pitch, Gate, CC, Start, Clock, USB Device, USB Host.

Pitch and Gate are self-explanatory, taking MIDI note information (pitch and note-on/off) from your DAW / keyboard / keytar / USB-whatever, and turning it into something your modular oscillators understand.

CC receives note velocity, aftertouch, or continuous controller information from USB and spits out modular-friendly CV, ready to command anything from filter cut-off to LFO rate.

The CC value to be converted is set using rear panel DIP switches, allowing multiple Mini MIDIs to respond to different CC values from the same DAW / instrument source. You can select from 13 different CC values (if you're superstitious then Mini MIDI is not for you).

The remaining three DIP settings access three additional modes: Note Velocity and Aftertouch modes convert those signals to CV, while Calibration allows precise setting of scale and pitch offset.

Start(stop) and Clock offer no surprises, but if you have a sequencer in your rack you aren't looking for surprises, just a way to trigger it and keep it in time from your DAW and other kit. If this is you, you won't be disappointed.

USB Device lets you connect... wait for it... a USB MIDI device! An obvious use is when you want to use your favourite, gig-friendly, USB controller on stage to control that cut-off, thus keeping your real-estate-guzzling modular rack out of the way (and out of reach of that beer you have perched on a cheap M-Audio controller).

USB Host is the heart of Mini MIDI, bridging the gap between your modular system and a MIDI host device, such as a DAW or hardware MIDI sequencer.

Channel X

We thought hard about MIDI channel assignment. DIP switches are wildly impractical, as you often need to change MIDI channels. A front panel selector would increase the size of a module that's designed to be squeezed into the far left of your rack. (Far left, BTW, because then you can use angled USB connectors and avoid thick cables trailing all over your rack... ). In the end we used 'first come, first served'.

On powering up, Mini MIDI sits patiently waiting for a MIDI signal. Whichever channel it detects first - from Host or Device - is the assigned channel (if your kit is dishing out ALL channels, Mini MIDI will pick the first one... which is 1). And this assignment applies to both USB MIDI connections.

Play nicely with others

Mini MIDI also works perfectly in conjunction with other Mini MIDIs (via multiple computer USB ports or USB hubs). They show up in your system with unique IDs, so each can be triggered by different MIDI channels and/or CC controllers. This can be used to send the same information to different modules/racks in your modular set-up, different information to the same module/rack, or any combination of these. And it can incorporate other USB devices.

Another insanely useful feature is the ability to play your modular set-up live, with a MIDI keyboard or controller, whilst simultaneously recording this information into a MIDI track in your DAW.

Some ultra-modular-types might complain that this is cheating, but they should remember that our grandparents insisted anything made with machines wasn't 'real' music. Chill out and enjoy the possibilities!

Size isn't everything (and other cliches)

Despite its modest appearance, diminutive size, and total lack of front panel controls, Mini MIDI is an exceptionally powerful, highly flexible, and immeasurably useful little module. We designed it to solve the kinds of problems we encountered when using similar modules, and, critically, the kinds of problems our users said they had with other such devices. Consequently, we've exceeded our initial expectations. We hope you feel the same!

Specifications:

DAC: 16 bit

Pitch Output (1V / Octave): -3 V to 7 V

Gate Output: 0 V / 10 V

MIDI CC Output: 0 V to 5 V

MIDI Start / Stop: Active High (5 V)

MIDI Clock: Rising edge (5 V)

USB MIDI Host Interface output current: up to 500 mA

3U Eurorack module, 4 HP wide, compatible with Skiff cases

Current Draw:

+12V: ca. 22mA + current consumption of a connected class compliant USB Device , USB current supply available up to 500mA
-12V: ca. 10mA
0 mA 5V
Installation depth:

30 mm deep

Notes: ***B-STOCK: Product with some signs of usage but in perfect working order***


A fresh twist on a simple 303-style acid synth, featuring a triangle/sawtooth/square wave VCO, multi-mode resonant filter, simple AD envelope and a VCA which can be overdriven. Excellent value.

Supplier's Notes:
ADDAC started this module with the idea of developing a complex drum source however, somewhere along the process, it was clear how much better it performed as a synth voice and this lucky accident was embraced.

It features a VCO with a [FREQUENCY] and [FINE TUNE] knob plus a dedicated CV Input and Attenuator knob (tunable over 4 octaves).

The VCO waveform output is achieved by selecting either a Triangle or Saw through a switch. the selected waveform can then be mixed/balanced against the square wave. The resulting mix is then sent to the Filter.

The Filter features a [CUTOFF] and [RESO] resonance knob plus a Cutoff CV Input and Attenuverter knob.

A 3 position switch is used to select the filter type: Highpass, Bandpass or Lowpass.

The resulting output is then sent to the VCA.

The VCA features an Input with [INPUT GAIN] knob which at maximum can amplify the incoming signal by a factor of 2.

This is a very important control, it accepts any signal Trigger, Gate or CV. Whatever input is plugged in the signal is then fed through an AD with a very short attack and controllable decay through the [VCA DECAY] knob plus the CV Input and Attenuverter knob. The resulting slewed signal is then used to control the VCA gain.

This signal is also sent to the CV OUTPUT as well as the LED monitor.

The Accent input adds to the Input signal creating a different amplitude output.


The CV OUTPUT is normalled to the Frequency and Cutoff inputs.

Tech Specs:
9HP
4cm deep
80mA +12V
80mA -12V

The [INPUT GAIN] knob

Usually Attack/Decay envelopes have a maximum voltage of +5v, no matter if the input gate is +5v or above the AD will clip at +5v. In this case, this clipping method was not used, and instead ADDAC allowed the incoming voltage to determine the maximum AD voltage, meaning that if a +5v gate is present then the AD maximum voltage will be +5v but if a gate of +10v is sent then the AD maximum voltage will be +10v.
This also means that with higher input voltages the decay, although falling at the same speed, will be longer than with lower voltages as it has a longer range to go back to 0v.

As previously mentioned, The [INPUT GAIN] knob can amplify the incoming input by a factor of 2, allowing to use a standard +5v gate or envelope and being able to make the resultant AD go up to +10v.

The AD signal is responsible for opening the VCA. Up to +5v the VCA will open to unity gain above this value the VCA will start to amplify and eventually saturate and distort. This saturation will add harmonics to the signal which will change its gentle timbrical nature to a more unique and peculiar timbre that will make the module shine in Acid contexts.

Adding high levels of Resonance or even filter self oscillation in combination with high VCA saturation will create even more harmonics that ADDAC highly encourage the user to explore.

Notes: This module started with an idea from Rijnder Kamerbeek aka Monotrail, a straightforward random generator with interpolation between random points making it something like a complex, ever evolving, LFO

The concept is simple. It contains two identical smooth random voltage generators. Each has a frequency, level, offset and curve control. The frequency control sets a steady pace with which bipolar random voltages are generated. The level control works like an attenuator/VCA on the output, reaching from max output to closed. The offset allows shifting the whole wave up and down on the voltage range. Curve determines the shape of the interpolation.The bipolar activity on the main outputs as well as gate outputs are visualised with LEDs.

Both Frequency and Level controls have a CV input with attenuator. When there is nothing patched into the CV inputs, these are internally connected to the main output of the other channel. This normalization makes it very easy to add randomization to the frequency or level for more depth, or of course, add cross-modulation for chaotic voltages.

The output VCAs are usefull to dial in subtle and time-based modulation without the need for external VCAs. For example, to modulate the amount over time with an envelope, or use the other generator with slower speeds to add random changes to the level of a random voltage.

Both generators also have two other outputs. One is an exact inversion of the main output, so it responds to the level and CV input. This is great for stereo or inversed effect patches. The other is a simple pulse output, here there are two different behaviours, channel A outputs a pulse at every random generation, channel B acts like a comparator. Whenever the main is positive this comparator output is a high gate. And whenever the main output is negative or close to 0, there is no gate output. Great for random triggers or firing other events like envelopes.

A couple other outputs are also available and are obtained by averaging both channel main outputs. The first output is the average while the second is an inverted average.

Tech Specs:
10HP
4.5cm deep
70mA +12V
40mA -12V

Notes: ADDAC711 is a dual channel Isolated DI box and is all about keeping the sound coming into your Modular free from any undesired noisy interferences, making sure that what you're getting from your inputs is what your external hardware is actually producing. It provides galvanic electrical isolation between the Modular system and external sources preventing impedance mismatch and ground loop induced hum. ADDAC's 711 circuit is designed around a unity 1:1 type Low-cost Audio Transformer operating in the 20 Hz to 20 KHz range, this impedance matching transformer provides two fully balanced outputs (via XLR connectors).

There are two independent channels on the module with:
Audio Output
Signal overload warning led
LIFT/FLOAT/GND toggle switch
Gain control
XLR Input

The LIFT/FLOAT/GND 3-way switch lets you choose between lift, ground or floating ground. In the LIFT position (left) the module circuit will be "lifted" to ground through a 100R resistor and a 10nF capacitor. In the FLOAT position (middle) Ground will not be shared leaving ins and outs grounds completely apart from each other fully isolating both signals.
In the GND position Ground will be shared between inputs and outputs, here no isolation is used. Any of these three positions may be the best form of avoiding ground loops or any other undesired interference occurring between your modular and the external hardware. Try out which one of these options will work best in any given situation.

The importance of using Audio Transformers

Applying a transformer balanced input isolation has lots of advantages over other less expensive ways for dealing with ground loop issues. This method provides the chance to set a very simple and cleancircuit in which the signal transfer process develops smoothly and humming free. The transformer is a device that performs both signal balancing and high-to-low (or vice-versa) impedance conversion, while rejecting straggled DC voltage and Radio Frequency Interference from signal passing through a magnetic bridge. In a transformer, two (or more) coils (called windings) of insulated wire wound around a magnetic metal core allow for its input(s) and output(s) not to be physically connected together. When an AC signal passes through the input winding (the primary), a perfectly related AC signal appears on the output winding (the secondary). This way, by the fact that signal flows via inductive coupling between the two windings of the transformer, this module presents a most accurate electrical isolation between its input and output. A same number of windings on each coil guarantees that there's no gain loss when audio signal passes from the primary to the secondary windings. Furthermore, since these two windings are insulated from each other, the transformer will electrically isolate ADDAC711 from any other device, preventing hum problems coming from an outsider ground. Being a low-cost transformer the frequency response curve is not completely linear, still the -0.2dB
attenuation at 50Hz feels negligible.

Notes: Inspired by the legendary Moog CP3 mixer, the 713 tweaks the old-school discrete circuits into three stereo inputs and one mono channel, summing to stereo with adjustable feedback and clipping to add character.

Supplier's Notes:
ADDAC713 is the stereo version of ADDAC System's 703 Discrete Mixer.

Inspired by Moog's CP3 mixer, this is a fully discrete analogue mixer and it's not, by any means, your standard breakfast mixer, although it can behave like one.

This is a wolf in sheep's clothing. Despite its harmless looks there's a dark snarly soul behind that panel that wants to take your sounds into a realm of gritty gnarly growls.

This new version was initially thought of as a percussion mixer, with mono inputs and panning, to allow placing percussive voices in the stereo field, while keeping channel 4 in mono for low end sources like a kick drum or Bass. In the development process ADDAC System slightly changed this initial idea, adding stereo inputs for the first 3 channels, but still kept the 4th channel in mono.

All four [GAIN] controls go to extreme levels, the first 3channels also feature [PAN] controls. Feedback is used to overdrive the whole mix. As the control is turned clockwise the sound will be clipped harder until it goes completely off, this happens as feedback is increased the audio bias reference also moves up, at extreme levels it offsets the whole signal upwards until it completely goes above the top rail clipping the whole signal hence the resulting gate effect.

The [MASTER OUTPUT] sets the overall output gain of the mixer, the two leds monitor the audio output signal. The Soft clipping switch engages an anti-click circuit which adds a low pass before the output, the switch allows 3 states: Soft low pass / Off / Hard low pass.

Features:

Three channels with stereo inputs, gain and pan knob
One channel with mono input and gainknob
Feedback/gate knob
Master output volume knob
Soft clipping switch
Two Led Monitors for Left and Right channels

Tech Specs:

8HP
4cm deep
80mA +12V
80mA -12V

Notes: The full power of Mutable Instruments Elements packed into 18hp. It features jack lights that can be turned on/off via a jumper on the back. This module comes loaded with the most recent firmware, with the new Chords mode that unlocks a whole new world of potential.

Based on open source designs by emilie gillet under Creative Commons (CC-BY-SA) license.

Width: 18hp
12V: 130mA
-12V: 10mA

Notes: A 6HP version of Mutable Instruments Peaks that adds CV inputs and attenuverters for each of the four parameters.

It can be an ADSR-style envelope generator, an LFO and a drum emulator. By default, the Dead Man's Catch (DMC) firmware will be loaded, which adds the Alt ENV, ALT LFO, ALT Tap, Alt Drum modes below.

The module is calibrated, comes with a power cable, and a one year warranty.

Additional Dead Man's Catch firmware modes:

Basic (original modes):

Envelope
LFO
Tap LFO
Bass/Snare Drums

Alternative ENV:

Double attack envelope
Repeating attack envelope
Looping envelope
Randomized AD envelope
Bouncing ball envelope

Alternative LFO:

Frequency-modulated LFO (folded sine FM)
Frequency-modulated LFO (random FM)
Varying wave shape LFO ( folded sine WS mod)
Varying wave shape LFO ( random WS mod)
Phase-locked loop oscillator

Alternative TAP Mini-sequencer:

ModSequencer
Pulse Shaper
Pulse Randomizer
Turing Machine
Bytebeats

Alternative DRUM:

FM drum Generators
Randomized bass and snare drum generators
Randomized high hat

Notes: Third-party clone of the open-source Mutable Instruments Plaits oscillator/sound source. All the same functionality in a compact 8hp format with full-size knobs for the key functions.

Supplier's Notes:
Functionally identical clone of the Mutable Instruments Plaits. Beehive strikes a nice balance between size, reducing 12hp down to 8hp, and playability by offering full size knobs for the four main functions. Beehive also retains the same depth of the original module at 25mm. This module uses After Later's new aluminum knobs which have a nice non-slip texture and allow for more finger space over the standard 1900H Davies knobs.

Notes: Clouds

This is a new build of a Mutable Instruments Clouds. This module is identical to the now discontinued factory made Clouds. This module loads parasites 2.01 Firmware by default.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.

Notes: This is an exact hardware replica of the Mutable Instruments Clouds.

Notes: A full size version of Mutable Instruments Warps. It is functionally identical and will run all firmware that ran on the original.

Width: 10hp
12V: 110mA
-12V: 5mA

Notes: Keanu is a partnership with Tim Held and Podular Modcast. At its core, Keanu is a standard 4x4 matrix mixer and VCAs on each output and switch to choose between unipolar or bipolar controls. After Later have also added modulation sources normalled into each channel. So you get some great modulation variety, but can also mix in your external sources.

Channels 1 & 2 CVs are clockable looping function generators with controls for rise/fall lengths, and equipped with end of rise/fall trigger outputs.

Channels 3 & 4 are each a "meandering" voltage source, created by 3 LFOs that are all at different frequencies. There are 3 CV inputs (total) to control their individual rates. You can also add slew to each channel individually to change the oscillators from square to triangle, and this slew also applies to external voltages sent into their channel.

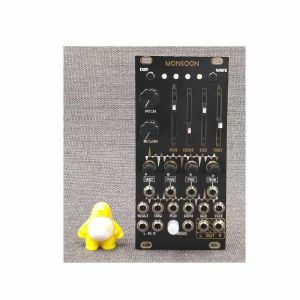

Notes: This is a new build of a Monsoon, which is a variation of Mutable Instruments Clouds with separate CV and controls for the 4 "blend" functions. The 4 LEDs on the sliders indicate incoming control voltage for the 4 main parameters. The button which was used to select blend parameters now simply switches what the 4 LEDs display (audio input monitoring or monitoring the 4 blend amounts.) Parasites 2.01 firmware is loaded by default. Alternative firmware can be loaded by request.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.

Width: 12HP
Depth: 22mm
Height: 3U
Power Consumption: +12V:120mA -12V:10mA

Notes: nRings

This is a new build of a micro version of Rings from Mutable Instruments. MicroRings, also called NanoRings, retains all the same functionality as a full-size Rings module.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.

These modules use tall bushing potentiometers to offer a more stable feel.

Notes: Popple is an 8hp multimode stereo filter based on the Mutable Instruments Ripples V1 filter section. Popple maintains the buttery smoothness of Ripples filter while giving you two separate audio paths. The audio paths share a resonance, control, a frequency cutoff control, resonance CV input, and a v/oct cutoff CV input. Each channel then has it’s own cutoff CV input with attenuverters (which are normalled to a 2.5V signal).

Popple will also self-oscillate at high resonance settings, when coupled with the v/oct CV control, it can also act as a dual sine wave oscillator.

Notes: A clever hybrid of quad VCA, function generator and more in this chunky module. Four channels of oscillators, envelope generators and VCAs, plus slew, voltage sources and plenty of CV control.

Supplier's Notes:
Four channels of function generator, oscillator, slew limiter, envelope, and VCAs. This module brings the ultimate in flexibility as it can be used as a standalone synth voice, a massive amount of modulation, or a four channel envelope generator w/ mixer. We believe this makes QARV a great first module and a great addition to the largest of systems.

All four channels have the following features:

Uni-polar oscillator mode
Attack and release time control via potentiometer and via input jack
Shape control that controls shape for both attack and release
Output attenuverter
VCAs that normal to each subsequent channel (CH1 -> CH2, etc.). So you can get a mix of all four channels out of the CH4 VCA output (unless you patch a VCA output from an earlier channel)
Channels 1 & 4

Voltage source (CH1 - 5V & CH4 - 10V)
CH1 & CH4 can be switched between IN (slew mode) and TRIG (envelope) mode
RISE and FALL gates. You can use our G&T module to turn these gates into triggers.
Channels 2 & 3:

Bi-polar oscillator mode
Dedicated IN and TRIG jacks (helpful for adding offset to a triggered ENV)
BOTH input jack to simplify patching both the attack and release (also inverts the input to give more standard pitch tracking of higher voltage equals higher pitch)

Notes: A 22hp version of Mutable Instruments Elements. It is functionally equivalent and therefore runs all firmware options and having identical sound characteristics. This version is great compromise between the tight spacing of Atom and full size original, which is a bit large.

Width: 22hp
12V: 130mA
-12V: 10mA

Module power connector can be connected either way on the module side.

Notes: After Later's redesigned take on the classic Mutable Instruments Rings module offers all the distinctive resonant synth sounds you'd expect, from strings to percussion. Great value.

Supplier notes:
This is an exact hardware replica of the Mutable Instruments Rings module.

Notes: This is where Storm and Monsoon meet to create the latest improvements on the original Clouds design. With Typhoon you get all of the features of Storm combined with sliders and layout of Monsoon in 16hp. Typhoon runs the SuperParasites firmware, so no more having to swap between Parasites and Kammerl firmware options. Some of the notable features are:

Dedicated blend controls for Feedback, Panning, Mix, and Reverb (similar to Monsoon)

All eight modes from Parasites and Kammerl

Stereo VCAs

input/output mutes

Exponential and linear pitch controls

Universal CV routing and random CV signals

Comes with an exclusive black and gold panel, power cable and one year warranty.

Notes: The TMA-2 Studio Wireless headphones provide a seamless wireless functionality for music creators seeking freedom of movement, cable free recording, and a light, comfortable build with exceptional performance for versatile use. Free yourself from cables with ultra-low latency wireless audio.

Connect wirelessly to all of your gear: Cable-like performance with under 10ms of latency via W+ Link technology, featuring 20+ hours of playback time.

Hear all the details: Detailed and balanced sound representation with strong frequency separation reveals the subtle details in your music.

Control your sound profile: Use the AIAIAI app EQ to shape the sound to your preference, whether that be flat and accurate for mixing or dialing up the bass for creative sessions.

Stay in the zone for hours: Over-ear cushions and padded headband using high grade memory foam covered in soft PU leather, for enhanced comfort during creative sessions or live performances.

Go beyond the studio: Use W+ Link for live performance or switch to Bluetooth mode for everyday listening and making calls, or plug directly in with the detachable cable.

Customise, replace and upgrade: The modular nature of TMA-2 Studio Wireless allows for endless customisation and easy upgrades or replacements of individual parts.

Review: Steely Dan are the kind of band where everyone has their favourite album, with a fanbase who might well get a little heated debating which phase of the band is superior. But when it comes down to it, everyone will agree Aja is their masterpiece, where that exacting studio process and the elevated songwriting hit some magical sweet spot that yielded the semi-mythical perfect album. The grooves are so slinky as 'Black Cow' opens the record up, they spring with joy out of 'Peg' and they lock down heavy on 'Josie', and there's so much more in between. This faithful reproduction from Analogue Productions is a limited audiophile edition for a band who were made for audiophiles.

Notes: Truly unique one from AJH, based on the sound of NASA's Apollo voice transmissions. Think outside the box and process drums and synths through this thing. Freaky. May or may not allow you to communicate with real astronauts.

Supplier's notes:
Here's a bit of fun for all fans of space missions from the previous century! This module is designed to re-create the ground to space and space to ground transissions from the Apollo era.

To be "Mission Control Houston" the Quindar PTT (push to talk) button adds a short 2,525Hz Qindar tone to the start of the transission, then at the end of the message the PTT button or switch is released and a short 2,475Hz Quindar tone is added to the audio. The bandwidth is slightly reduced in this mode.

For "Astronaut comms" we press the Capsule PTT switch, which allows us to add coloured noise, distortion, bandwidth reduction and either hum or LGM (Little green men space tone) noise to the audio signal. A deep space electret condenser mic is supplied and an be used with the MIC input.

Obviously the Lunar Module can also be used to add noise, hum, distortion, bandwidth reduction and LGM noise tone to any modular level audio too, and if the mic is left attached theremin like sounds can be added too with careful loudspeaker feedback.

Notes: Two independent Contour Envelope Generators in a single 12hp wide Eurorack module. These are very accurate replicas of the Model D contour generators, with identical circuitry and component values running on the correct +9.3V and -10v supply voltages of the original; so they exactly replicate the original envelope response along with all of it eccentricities. Extra features include manual trigger buttons and envelope status LED's.

The contour generators played a larger part in the sound of the Model D than many people realise. There are two factors that make them unique, firstly the exponential slope when is used in conjunction with the (near) linear slope of the original VCA which is responsible for the famous Model D "punch". Secondly, the re-trigger behaviour is quite unique, multiple retriggering increases the output level so that either the volume increases incrementally, or the filter opens incrementally with each extra key press.

AJH Synth have added independent Decay switches for each individual Contour Generator rather than the shared switch on the original synthesiser, these switches change the Contour response from AD (switch up) to ADSD mode (switch down).

Notes: Five-channel mixer with mutes, built-in VCA, switchable overdrive and LED level meter. Simple, straightforward, high-quality stuff from AJH.

Supplier's Notes:
The MiniMod Muting Mixer & VCA is a 10HP wide, five channel audio mixer with many useful features. It is available with either a black (Dark Edition), or a silver front panel.

The mixer section has five input channels, and each channel includes a bi-colour tactile LED switch that can instantly mute or un-mute the channel, replicating the oscillator on/off switches on the original Model D synthesiser. This arrangement is more convenient than regular switches as each illuminated switch shows the on/off status of the associated channel and multiple buttons can be pressed at once, making it very useful for live performance.

AJH have also included a four segment LED level meter so that the overall level can be seen at a glance and adjusted to prevent the output from getting too "hot" and causing distortion in other modules further downstream.

It also features a VCA that is integrated into the output section, and this can be switched from linear to exponential response - this allows it to be used as a voltage controlled sub mixer or as a stand alone VCA with five inputs.

Lastly, AJH added a wonderfully soft and warm sounding overdrive circuit that can be switched in to add smooth, tube like distortion. This works in a similar fashion to a master volume guitar amplifier, so the amount of overdrive can be varied widely with different settings of channel and master output levels.

Module Width: 10hp
Module Depth: 26mm (Including power lead)
Current Usage: 55mA Positive, 25mA Negative

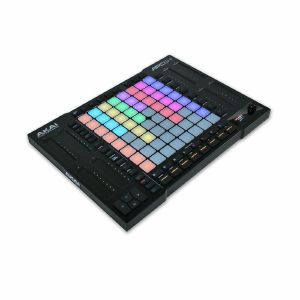

Notes: The next generation of Ableton Live controller from Akai, the APC64 is designed for seamless integration with the software, or as a standalone step sequencer and controller. The 64 velocity sensitive pads handle playing, recording, clip launching, sequencing and much more, while eight assignable touch strips offer extensive hands-on control.

Supplier's notes:

APC64; Next generation Ableton live controller.

Touch the future

Leap into a new world of musical possibility in the studio, on stage, and anywhere creativity leads you with the powerful APC64.

Ableton live controller; with sequencer and touchstrips

The new Akai Professional APC64 is a powerful next-generation Ableton Live controller for studio and live performance.

It features 64 RGB velocity-sensitive pads with poly aftertouch, and 8 fully assignable Touch Strips for instant hands-on control of devices, pitch, modulation, and much more. APC64 also works as a standalone 32-step 8-track Step Sequencer and controller with 3 MIDI ports and 8 CV/Gate outputs to take full control of synths, drum machines, or modular rack devices.

In-depth control of Ableton Live

Enter the matrix

APC64 features a vibrant 8x8 pad matrix of 64 velocity-sensitive RGB pads with poly aftertouch for playing chords, synth leads, Ableton Live's Drum Racks and of course launching Clips in Session View.

Touch the future

Add a whole new level of expression and control to your music production and live performances with 8 fully assignable Touch Strips with RGB LED indicators. Get control of Ableton Live's devices - including Auto Filter, Delay, Reverb, Impulse, Simpler and more - right at your fingertips. Adjust macros, mixer volume, pan, and effects sends as well as writing automation.

Visual feedback and control

APC64 includes a smart colour LED screen with a fast push encoder for real-time visual feedback of your parameters. Move around Ableton Live's devices and mixing environments while keeping track of each parameter on the screen. APC64 also features dedicated transport control with Play, Stop, and Record for capturing your ideas along with 8 Track Mute and Solo buttons for mixing and live performance.

Standalone step sequencing

APC64 features an internal 32-step 8-track Step Sequencer enabling completely DAW-less control of your favourite synths. With 8 CV/Gate outputs and 3 1/8" MIDI ports, you can connect, sequence, and capture your favourite modular racks, keyboards, classic drum machines, and more. Add continuous control and expression using the 8 Touch Strips for a whole new level of performance. Apply additional creative dimensions to MIDI notes using the Probability, Velocity, and Mutate functions for further experimentation.

Powerful production and performance

APC64 facilitates a seamless workflow within Ableton Live; from triggering samples and loops in Ableton Live's Drum Rack, all the way to writing expressive melodies using the Notes, Scale, and Chord modes. Use the onboard Step Sequencer to generate inventive melodic patterns that can be instantly transferred to Ableton Live using the Send To Clip function. Apply swing and quantize to your beats or use APC64 to arm and record vocal tracks directly in Ableton Live sessions.

Ableton drum rack/simpler control

APC64 features a dedicated Drum Mode allowing you to play and record beats, loops, and slices using an Ableton Live Drum Rack or Simpler device. Capture additional inspiration using the 8 Touch Strips to control Ableton Live's FX racks during beat making and performance.

Included software bundle

Ableton Live Lite 11

APC64 Includes Ableton 11 Lite for all your software music production needs in one package to produce, perform, arrange, record, edit, mix and master your music. Live Lite includes sounds, instruments, and sequencing, recording, and arranging capabilities.

Air music instruments/plugins

APC64 Includes a collection of professional plug-in instruments and effects so you can start producing out of the box. Included are the following plugins: TubeSynth, Electric, Ether, Halfspeed, Vocal Tuner, Flavor, and the Sonivox Essential Keyboard Collection.

Custom editor software

Create your own custom layouts with the included desktop software editor for Mac/PC to personalize and store pre-sets for quick recall in standalone.

Key specs

Display
Graphical full colour LCD
Connections: USB-C, 8x 1/8" (3.5 mm) CV/Gate, 2x 1/8" (3.5 mm) MIDI Output, 1x 1/8" (3.5 mm) MIDI Input
Dimensions (width x depth x height): 10.7" x 14.6" x 1.4" 272 x 371 x 34.5 mm
Weight: 3.5 lb/1.6 kg

Notes: The GALACTAVISE is Allpedal's flagship compressor. Built with the musician's needs in mind, it boasts an uncompromisingly sweet compressor circuit with a Mix control for dialling in that perfect balance of compressed tone and clean tone.

The top end can often be make or break with many compressor circuits, so AllPedal also added the ability to adjust just the right amount with the Presence control. Made with the highest quality components for a low noise floor and road-worthy durability.

Let the GALACTAVISE blast your tone into orbit!

GALACTAVISE is the best guitar compressor pedal for musicians seeking to balance their sound's dynamics. As the best compression pedal on the market, it allows guitarists to control their volume levels efficiently, ensuring a consistent sound output. This guitar compression pedal is an essential tool for both studio recording and live performance.

As with all their effect pedals, AllPedal took special care in the GALACTAVISE's aesthetics with its finish, sophisticated artwork and anodized knobs.

GALACTAVISE is proudly made by hand in Paducah, KY in the USA using the latest cutting-edge technology in the pursuit of ultimate tone.

Notes: Hybrid compact mixer / 4x4 USB interface:
ZEDi-10 combines the robustness and hands-on control of an analogue mixer with a high quality 4 x 4 USB interface, making it a perfect all-round choice for musicians, recording artists and venues. Whether it's bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZEDi-10 is a versatile companion for every step of the creative journey.

The studio quality, 24-bit / 96kHz, 4×4 USB interface makes it easy to capture stunning multitrack recordings direct from the mixer to a Mac or PC without the need for any extra equipment. Featuring the new GSPre boutique preamp design, developed from the revered GS-R24 studio recording console, the ZED boasts exceptionally low noise and massive headroom, with a signature analogue warmth and depth. Guitarists will be pleased to know that two of ZEDi-10's mono channels feature Guitar DI high impedance inputs, allowing guitars to be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes.

Mixer + USB interface:
ZEDi-10 offers the best of both worlds, incorporating a studio quality 4 in / 4 out, 24-bit/96kHz USB audio interface for hassle-free multitrack recording and playback to/from a Mac or PC, or to an iOS device using the iOS camera kit. The USB output source can be set up in several different ways to match your workflow.

Cubase LE Music production software included:
ZEDi-10 comes with the acclaimed Cubase LE software. Cubase LE offers powerful yet easy-to-use software tools for audio recording, editing, MIDI sequencing and mixing. Its vast range of proven editing and sequencing tools can be used for a large range of music styles and areas of application. From singers and songwriters recording vocal lines to rock bands jamming in their rehearsal room, Cubase LE is as easy as it gets - with outstanding audio quality as well as time-saving recording and editing functionality.

Cubasis LE mobile music production app:
The mixer also comes bundled with the Cubasis LE app. Cubasis LE is the compact version of Steinberg's streamlined, multi-touch sequencer for the iPad, providing the same look and feel of its bigger brother Cubasis. Specially designed for quick and easy operation, Cubasis LE makes recording, editing and mixing a breeze.

Exceptional audio quality:
ZEDi-10 features an exceptional new preamp design, created by analogue guru, Mike Griffin and developed from his highly acclaimed GS-R24 studio recording console. Known as GSPre, the preamps deliver exceptionally low noise and massive headroom, and the warmth and depth that Allen & Heath's analogue range is famous for. For tonal shaping, the precise 3 band MusiQ EQ controls have been carefully calibrated for responsiveness and precision, making it easy to shape and enhance each musical source.

Road tough:
All ZED mixers are designed and built to Allen & Heath's legendary touring grade standards to ensure a long life in the toughest environments. All channels are on individual, vertical circuit boards and all rotary controls are secured to the front panel with a steel nut to guard against impact damage.

Made for guitars:
ZEDi-10 comes with two Guitar DI high impedance jack inputs, allowing guitars to be plugged straight into the mixer without the need for DI boxes. That's one less piece of gear to buy, carry and set up.

It's an Allen & Heath:
Allen & Heath has been a trusted name in professional audio since 1969. The ZED technology advances, but the commitment to audio excellence and build quality endures.

Notes: ALM Eurorack cases are available in a range of sizes all including an integrated powered bus boards.

The cases all feature anodised aluminium construction, an on/off switch, rubber feet, and high quality switched powered bus boards with numerous keyed headers and ample power capacity.

These are simple and compact Eurorack cases, perfect for small, focused systems, taking along on travels, or as a tabletop addition to a larger setup.

Cases are available in 4 sizes; 3U 84HP / 6U 84HP / 3U 52HP / 6U 52HP sizes. They all offer 1 Amp on both the -12V and +12V rails per row.

Great modern cases

The ALM powered Eurorack case was originally designed for the System Coupe. Wider interest has seen it evolve into a range of different sized cases being made available by themselves.

A fixed solid bus board provides quality ample power and plentiful keyed power connectors. The shielded DC/DC power converter is low noise and includes overload and short circuit protection. Fixed, quality mounting rails are used over sometimes frustrating sliding nuts. The case has a great looking all anodised aluminium construction that is both strong and light.

The case proportions are designed to look great on a table or desk (not too deep, just enough) and also be easy to fit in a bag and transport.

Decksaver case covers are available currently for the 3U/84HP, 6U/52HP, and 6U/84HP cases.

3U / 52 HP

Provides up to 1 Amp power on each -12V & +12V rails.
Connections for up to 9 modules.
Includes 2 Amp power 'brick'

Notes: Gritty drum voice module based on new old stock Yamaha FM synthesis chips, also capable of a decent range of synth tones. User-friendly knobby interface with a decent range of CV inputs for modulation.

Supplier's notes:
'Akemie's Taiko' is an authentic complete FM synthesis based drum voice created using original Yamaha IC's. It builds on the same technology used in the mighty Akemie's Castle but in a more complete triggered voice form featuring both signal generation and envelope shaping.

The module provides CV and direct control over a number of FM parameters including algorithm selection, operator release envelopes, ratios, waveforms & feedback. This gives a massive range of unique sounds.

The voice is able to track 1 volt per octave allowing it to be used for melodic lines as well as percussion. Also optional 'frequency ramps' can be enabled for additional audio effects.

The drum voice includes a trigger input as well as accent and choke trigger inputs to add further expressive and rhythmic control.

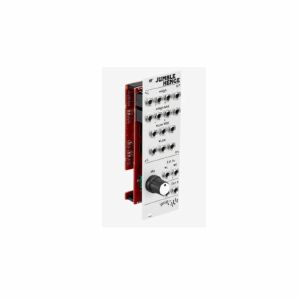

Notes: The Jumble Henge is a 16 input stereo spectral mixer with a unique patch-based mixing interface in a compact space. Each input has a carefully tuned resonant analog filter and a unique fixed pan value, providing each sound its own space within the mix. There is a Mix control to adjust the depth of the filtering and a clean external stereo input for chaining with another mixer or extra sound source. Jumble Henge is a space efficient solution for creating rich stereo mixes from a number of both mono and stereo sources.

INPUTS
Vertical and horizontal patch position determines a source's spectral and stereo placement in the mix respectively.

Aside from centred inputs, every input sits in its own unique pan position, helping to keep a separation between sounds but building a complete stereo image when combined.

The centre right inputs of the top two rows are normalised to the centre left inputs. - i.e if just a left input is patched it will be effectively panned center.

Towards the highs the panning becomes wider - as the human ear better pinpoints direction at higher frequencies, whereas the lows remain more centred for a tighter, more focused sound.

MIX CONTROL
Mix control for the overall depth of the filters applied to the inputs. Note: a slight volume increase occurs near the centre of the dial.

EXTERNAL INPUT
An additional clean stereo input pair for chaining with another mixer or additional source. Right input normalised to left input to accomodate mono sources.

OUTPUTS
Stereo mix output, the sum of all 16 inputs.

Jumble Henge was designed in collaboration with Worng Electronics and is based on the 'SoundStage'.

Technical Specifications

Supply: +12V 70mA / -12V 70mA

Size: 8HP

Depth: 38mm

Notes: The MCFx2 is ALM's state variable 'MCF' filter made double. It features 2 identical classic analog 3 pole state variable filter cores each with Low, High and Band Pass (or Notch) outputs. Direct and voltage control is provided for both filter cut offs and resonance. Switches allow the filters to function as one, with the 'Feed' switch internally routing audio from one filter to the other in series and the 'Link' switch linking the cut off controls for both filter cores. MCFx2 expands on the great sounding MCF filter to offer both serial and parallel functionality for stereo operation, dual peak, tighter slopes and other complex filtering set ups.

FREQUENCY CONTROLS
Sets the base frequency for the filter cut offs. The v/oct and frequency inputs are added to these.

RESONANCE CONTROL
Sets the level of resonant peaks atop the cut off frequencies. The resonance can get particularly aggressive going into self oscillation with the control past 12 o'clock.

OUTPUTS
Each filter output is 3 pole with an 18dB/oct slope.
Low - low pass filter outputs. Passes frequencies below the cut off.
High - high pass filter outputs. Passes frequencies above the cut off.
BP/Notch - band pass or notch filter outputs. Jumpers on the rear of the module select one or the other for each filter.
Passes frequencies within (BP) or outside (Notch) a narrow region around cut off frequency.

LINK BUTTON
Links the left cut off to parallel control both filters. The right controls will now set the max range of the right core. Both filters will track together when the right cut off is fully clockwise.

FEED BUTTON
Routes the output of the left filter core to the input of the right (unless patched), with the desired output filter type selected via jumper at the rear of the module.

FREQ INPUTS AND ATTENUATORS
Control voltage inputs here are combined with knob offsets to set the final cut off. Attenuversion control allows for both attenuation and inversion of the CV. Expects approx. -5V - 5V input.

RES INPUTS AND ATTENUATORS
Attenuated control voltage inputs here are combined with knob offsets to set the final resonance.
Expects approx. -5V - 5V input.

AUDIO INPUT 'In'
Signal inputs to the filter cores for processing.
Input sources may need to be attenuated, filter will drive from hotter input levels.
The Left input is normalised to the right (unless 'Feed' is enabled).

Notes: The MCO MK II is a highly versatile digital VCO and voice module inspired by 90s/00s digital synths shrunk into just 6HP.

It offers a broad collection of unique, high-quality synth voices, each with extensive, customizable parameters. These parameters can be directly controlled or modulated through assignable internal and external sources. Certain per-voice parameters support audio-rate modulation, including FM, sync, and DSP. Each voice also supports up to four-voice chords, external-triggered envelopes, multiple LFOs, and dual audio outputs for comprehensive desktop like synth functionality.

Voices include a multi dimensional wavetable oscillator based on the original MCO, a complex additive synthesis engine, a multi mode 'JP' type digi-synth, a lush virtual analog implementation, a fully featured vocoder, a bass synth for both kicks and sub sonic tones and finally arebirth and porting of our discontinued SID GUTs chip voice.

Each voice includes factory presets as well as the ability to store and recall user presets. All state is preserved across power cycles.

The MCO is designed to be familiar, quick and easy to use with a high resolution colour display and a rich visual user interface.

A USB-C connection allows for easy firmware updates, user wavetables upload and device config backup and restore. Axon expander modules are also supported to increase CV control options.

Notes: The 'MEGA-TANG' is a 4-channel linear VCA and stereo mixer providing per input control over level, effect send, pan and muting. Designed for live use in mind with a simple & compact layout, the 'MEGA-TANG' builds on the clean and transparent sounding Tangle Quartet VCA by adding a stereo mix output, effect sends (mono send with a stereo return) which pair great with the MFX, manual panning, soft mute buttons with LED indicators and an expansion port for future expandability.

Individual VCA outputs are available which remove the channel from the main mix (useful for cueing and monitoring). All signals are Euro level and bar the effects return, DC coupled for CV use as well as audio.

Technical Specifications

Power: +12V 125ma -12V 125ma
Size: 16HP
Depth: 32mm
Attenuation: approx -70db

Notes: The MFX is a compact 6HP Eurorack stereo digital audio multi effects processor.

It offers 14 different full featured effects programs plus a number of metering utilities.
Inspired by ALM's favourite classic hardware effects processors, the MFX incorporates DSP technologies from the dawn of digital effects in the 70s to the present day. This combines with ALM character and uniqueness to form a highly useful, fun and practical Eurorack effects module.

Reshape sounds with the distortion and dynamics engines. Bend time, space and pitch with multiple feature rich reverb and delay engines. Modulate signals with the flexible panner, frequency shifter, and range of ensemble effects. Fracture sounds with the one of a kind granular and glitch engines. Check signals and tune oscillators with various utilities.

The MFX user interface is designed to be familiar, quick and easy to use. Each program contains a wide range of controllable parameters both directly editable or freely assigned to CV or clocked control. Additionally, each program includes factory presets as well as the ability to store and recall user presets. All states are preserved across power cycles.

Effect Program List

Digi-PCM Echo
Feature rich digital delay taking inspiration from early prime time rack delay units with added modern features.

Tape-Tech Echo
Tape style delay with a digital pitch shifter bolted on.

Crumbular Echo
More experimental granular style echo.

Ursa Minor Echoverb
Emulation of the classic Ursa Major 'Space station' providing more delays and reverb type effects.

Pocket PL8 Reverb
Emulation of very early digital style reverbs with a dense metallic sound.

Almicon Reverb
Emulation of 80s studio style reverb great for bright rooms and vast synthetic spaces.

Quaidra Reverb
Emulation of a popular 90s rack reverb. Excels at creating airy, atmospheric reverbs.

TY-50 Compressor
Flexible modern compressor great for adding punch, smoothing transients or as a clean mix bus compressor.

Transient Shaper
Fast acting dynamics processor for reshaping the attack and release envelope of any sound.

TH-30 Distortion
A versatile distortion program with distortion types ranging from analog style saturation to intense digital wavefolding.

2051 Bit Corrupter
Real-time audio buffer designed to imitate malfunctioning digital audio equipment.

Modulating Panner
Clock-syncable mono or stereo auto-pan with an additional scan mode that cross fades between 2 input signals. Use for VCA, Panner, crossfader, tremolo type effects.

Ring + Freq Modulator
Pair of classic modulation effects in stereo, tailored towards otherworldly and dissonant sounds.

Ensembles Ensemble
Simulation of classic chorus and ensemble effects. An added digital pitch shifter takes the effect beyond traditional chorus circuits.

Utilities
Simple oscilloscope and VCO tuner.

Technical Specifications

Supply: +12V 50mA Max / -12v 15mA
Size: 6 HP
Depth: 32mm
16 Bit / 44.1Khz Stereo processing

Notes: 'Pamela's PRO Workout' is a compact programmable clocked modulation source for your Eurorack modular system. It provides 8 highly editable outputs producing various control voltage signals correlated and synced to a BPM based master clock.

Each output can provide everything from simple clocked triggers, complex rhythmic waveforms, quantised melodic patterns to random chaos with direct and assignable CV control over numerous parameters. These features together with a quick and easy to use interface provide almost limitless synced modulation possibilities in a tiny space.

Building on the original 'Pamela's Workout' & 'Pamela's NEW Workout' the evolved 'PRO' Pam maintains the precursor's form factor and intuitive workflow but improves and adds many new features with upgraded hardware, more CV inputs, a new full colour hi res display and rewritten software adding many new enhancements like micro grid timings and cross output modulations.

Through optional expander modules more CV input and outputs can be added with support for external non euro equipment through Midi and Din Sync outputs. Please enjoy your next generation PRO workout!

Size: 8HP
Power: +12v 60ma / -12v 10ma
Depth: 32mm (approx with power header)
Outputs: 0-5v buffered low impedance. 12 bit res. 3.8khz max update freq.
Inputs: CV 0v-5v / Clock, Run - rising edge 700mV min.

Notes: The 'Quaid Megaslope' is a five stage function generator or modulator which operates in one of 3 modes; a multistage 'CZ' or 'Juno' style complex envelope, a super flexible LFO and a step sequencer with per step programmable slew or slides.

Each mode produces a varying output voltage moving from point to point across a set number of chained together stages. Each stage features a destination level, an overall rate or time to reach its destination level and a variable slope for the output path to take. As well as direct control, every stage feature voltage control of both level and rate. There are both unipolar and bipolar voltage outputs together with triggers emitted for the end of each stage and the end of a full cycle.

The Quaid Megaslope is designed to be fun, flexible and intuitive to use.
