Notes: The Morphagene music synthesizer module is a next generation tape and microsound music module that uses Reels, Splices and Genes to create new sounds from those that already exist. Search between the notes to find the unfound sounds.

A few of the Morphagene's most basic uses: Splice recorded audio and jumble it using ORGANIZE. Manipulate playback speed and direction with Vari-Speed. Granularize with Gene-Size and Slide. Layer or Stagger Genes using MORPH. Undertake iterative music processes by recording manipulations and overdubs into new Splices, like having two machines (one for Playback and modulations, one for Record). Process sound in real time using Time Lag Accumulation. Utilize envelope following CV OUT and EOSG Trigger to engage Morphagene in conversation with the rest of your modular system. Stretch and squash sound with Clock input.

Features
New revision Morphagene firmware MG204 adds great functionality.
Voltage control over all sound manipulation parameters
Stereo I/O with Input Gain Selection, works with line- or modular-level signals
Recording Reel can be up to 2 minutes 54 seconds long
Record/ create up to 99 Splices per Reel
SD Card stores multiple Reels
Sound On Sound allows for layering sounds
Playback and Recording independent, like having two machines
Vari-Speed range 12 semitones up and 26 down, over 3 octaves
24-bit codec, creates 48k 32bit WAV files
Back up Reels on computer with SD Card
Share and download Reels at freesound.org! [see how]
includes blank SD Card

Specifications
Width: 20hp
Max Depth
(incl. power cable): 45mm
Power:
165mA @ +12V
20mA @ -12V

Notes: Freaky stereo digital delay from the Eurorack gods at Make Noise. Typically creative stuff, packed full of interesting features for creating complex echoes, modulating sounds and generating loops.

Supplier notes:
The Mimeophon music synthesiser module is a stereo, multi-zone colour audio repeater by Make Noise and soundhack, coded by Tom Erbe.

The Mimeophon (from Greek mimeo (repeat/copy) and phon (sound)) is a modern take on various historical sound copying, echo and repeating devices. It allows for Stereo modulations of Time, Space and Timbre of Mono or Stereo sound sources. The Mimeophon is capable of modulating and morphing time scales of repeated sound from micro-sound to note to phrase length while also colouring and spatializing the repeats.

Notes: Glitchy business with this digital module based on the sound of scratched CDs, buggy software and failing hardware. Stereo in and out with up to five minutes sampling time.

Supplier's Notes:
Data Bender is a circuit bent digital audio buffer. It is inspired by the ways in which audio equipment can fail. The sounds of skipping CDs, software bugs, and defective tape machine playback are all accessible. The audio buffer can hold up to five minutes of stereo audio, providing a sonic canvas capable of infinite surprises and discovery.

Notes: Eight channels of audio and CV sampling with real-time editing and processing. Does basic sampling well but quickly gets creative and weird.

Supplier's notes:
The 'Squid Salmpler' is a Eurorack 8 channel audio & CV sampler. It is designed for immediate real time sampling, editing and mangling within a modular context.

Taking influence from early hardware samplers, The Squid Salmple focuses on usability and instinctive operation, incorporating a proven Pamela's Workout style user interface for minimal screen dependence and a fun, hands on experience.

With support for sampling and playback for both audio and CV, as well as CV control of all parameters, on-the-fly bank loading and saving to USB, The Squid Salmple brings a unique take on old school sampling into the modular realm.

The Squid Salmple comes with a USB Stick containing approximately 90 banks of original carefully curated royalty free samples. This includes a wide range of sounds from classic drum machines and weird synths to field recordings and CV modulations. Banks are provided by both ALM and some of our favourite artists and friends including Mumdance, Solid Blake, Russell Haswell, Lauren Flax, Dave Burraston (NYZ), Sue Zuki, Dungeon Acid, Sasha Lewis and Andrew Duff.

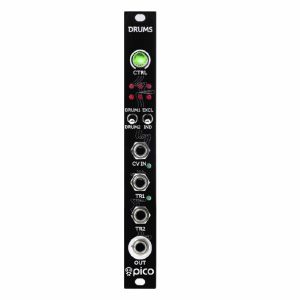

Notes: Erica Synths Pico DRUM1 module gives you two independent and great sounding drums with versatile control over different parameters and a huge collection of drum samples.

Features:

2 independent drums
64 samples for each drum
USB interface for user samples upload
Independent control over Pitch, Decay and Level for each drum
Independent control over Pitch, Decay and Level for each drum
Separate triggers for each drum
Audio output of mixed drum sounds
Exclusive switch to select how the two drums interact with
Each other when triggered at the same time
12bit resolution, 44kHz sampling frequency

You can chain up several Pico Drums and get one of the smallest modular drum setups in the modular world!

With Pico Series we challenged ourselves - can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can.

Technical specification:

Resolution: 12 bit
Sample rate: 44 kHz
Power consumption: +35mA, -15mA
Module width: 3HP
Module depth: 35mm

Notes: Performance oriented Sample Drum brings you two independent drum sounds or loops with plenty of manual and CV controlled parameters. Samples are stored on the microSD card, and OLED screen makes working with samples instant and easy.

Sample Drum allows you to slice up loops directly in your modular system and rearrange them to taste. For processing, there are tuning functions (including 1 v/octave pitch tracking) and virtual VCAs plus AD envelopes. Thanks to the module's dual-channel concept, two loops can be combined. It is also possible to load one-shot samples instead of entire rhythms, of course. A total of six CV inputs guarantees lively results.

Sample Drum is composed of two identical audio players. WAV files (including cue points) are fed to the module via a micro SD card. Loops can be cut into several sections using the Data, Start and End potentiometers. The resulting slices may be played back in any order imaginable. A tune control allows real-time pitch changes. Additionally, there is a virtual VCA plus AD envelope per slice. - But that's not all! There are three CV inputs per channel, which can be routed to any parameters. It is even possible to play sounds according to the 1 v / octave standard. Results are emitted via one output per player.

Dimensions
14 HP

Current Draw
95 mA +12V
2 mA -12V

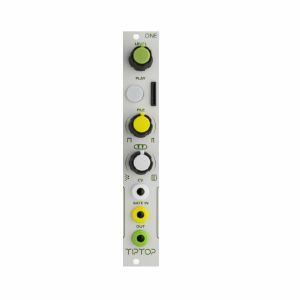

Notes: ONE brings organic sound and super low latency sample playback to the modular. It differs from other sample players in that it handles the digital audio bits as a continuously manipulated electrical flow, a feature inspired by our analog knowhow. This unique core makes ONE truly integral within the Tiptop percussive modular ecosystem thanks to a lightweight and responsive digital circuit with a very analog feel.

ONE brings a world of colours to the modular right out of the package. We have invited some of the best sound designers in the Industry to create professional sound libraries with content tailored to the unique sonic framework of the modular synthesizer and that fully takes advantage of ONE's unique qualities. To start with, ONE comes with a SD card loaded with a free set of 60 sounds designed by Glitchmachines. More cards are available to purchase separately each containing carefully selected material with up to 256 sound files. Using your own sample libraries or recordings is easy too, just copy 16 or 24bit mono WAV files onto the SD card, pop the card into ONE and go.

ONE offers several modes of operation, with the primary being the super low latency Trigger mode that retrieves audio data off the SD card adding no artificial processing such as click removal, crossfading, EQ or gain normalization. In this mode, it's a highly transparent player up to 24 bit 96kHz with no interpolation of the audio data: what you put in is what you get out. With a delay as low as 0.25ms from the moment the trigger hits, ONE offers harmonically dense, clear and detailed audio with a great rhythmic feel.

ONE handles external CV through a user selectable multifunction jack. Pitch is the main control with two modes available: Free pitch allows for fine tuning of the playback rate, great for adding subtle vibrato or wild tape speed effects; Quantized pitch maps CV to the standard 12 tone system over 3.5 octaves and is ideal for melodic content. CV can also be used to sequence through files off the SD card allowing far more varied sounds from a single source; almost like an entire percussion section behind the slim panel.

Although originally designed to play tightly with our analog drums and envelopes, ONE's rich sound quality encouraged us to make it work in a variety of other applications that are less demanding of sub millisecond timing response. The extra headroom at the core level allows features such as Gated playback, Looping, and Triggering with fades in and out to accommodate different types of sound sources from drum loops to polysynth chords to noise sources and other yet unimagined uses.

ONE offers another useful dimension since it can play CV signals too. Drop in a card with LFO signals, random CV, slopes and envelopes for a whole set of new control and modulation possibilities.

ONE is as simple to use as it is affordable and plays extremely well with its analog cousins - our vision for bringing samples into the modular world.

Notes: Nicely thought out four-voice sample playback module from Parisian innovators Squarp. Load up a microSD card with samples (up to 2600 kits), then trigger and process. Neat.

** Firmware update- February 2024 ***

Thanks to a major rework of the OS, this upgrade includes an overall better sound quality and an improved latency.

Moreover, the effects Freeze and Bitcrusher have been redesigned, and the parameters Start and Sample Length are now exponential to facilitate the fine-editing of your samples.

Supplier's Notes:

Rample waves system

Eurorack 4-voice sample player & audio processor

Versatile sample machine

From percussive drum-machine kits to synth samples, breakbeats to sound FX, backing tracks to hour-long audio music, Rample can play up to 4 .wav files on independent audio outputs :

These samples are stored inside the provided SD card, and organized as kits, from A00 to Z99... allowing up to 2600 banks of 4 voices, with on-the-fly loading! The SD card is preloaded with tons of samples, and we made it very easy to import your own kits.

Thanks to the DC coupled audio outputs, it's also possible to play CV waveforms.

Effects rack

Each voice has its own "rack" of effects, and all audio effects can be enabled at the same time, allowing you to manipulate your samples in real time, from a gentle lowpass to massive destruction!

pitch - a great sounding pitch engine, based on a 6-pole interpolator, which ranges from -1 octave to +1 octave.

bits - two different bitcrushing algorithms, based on sample rate and resolution reduction. It produces distortion and warms the audio signal.

filter - a low resonance filter, DJ-style, cutting off the high frequencies or the low frequencies.

freeze - sample and loop a fraction of the played waveform, creating a glitching effect.

levels - decrease the gain or drive the signal.

It's also possible to edit 'advanced parameters' like the start point, sample length, attack/decay and run mode, and create mute groups without breaking a sweat.

Finally, thanks to the 4 CV inputs, any of the effects (or advanced parameters) can be assigned to create amazing modulations!

Multi-layer sampling

One of the key feature is the ability to "multi-sample" your kits, multiplying Rample's potential. Each voice supports up to 12 samples, can be played randomly or in a controlled fashion. It's a great way to add complexity and variations, to create organic/acoustic sounding drums, or simply to increase the number of samples per kit (up to 48).

As an example, Squarp are providing a multi-layered drum kit, with 12 different recordings of a kick, 12 different recordings of a snare, etc. Sequencing them randomly leads to a more natural drum playing.

Another kind of multi-layered acoustic drum kit is also provided, where each drum is recorded with 12 levels of velocity. Controlling the layer to be played leads to intricate, convoluted drums programming.

Of course, it's very easy to create your own multi-layered kit, and you can use this method to perform multiple synth chords, sound glitches, voices, breakbeats, ...

CV/Gate and Midi interface

Rample is designed to be the perfect rhythmic companion of your eurorack system thanks to its Gate (trig samples) and CV (modulate samples) connectivity.

You can also use it as a standalone midi machine, without using the CV/Gate connectivity: the midi in port allows you to trig & control all samples parameters + effects values at the same time. Each Rample comes with a 'stereo jack to midi DIN' and 'stereo jack to jack' adapters, easing the chaining of multiple modules in order to create an 8-voice, 12-voice, 16-voice (or more) midi drum machine!

SD card preloaded with 200+ kits from artists and sound designers, covering a large range of audio samples

Notes: Record. Mangle. Destroy.

Nebulae is a granular sampler and DSP platform. Its phase vocoder audio engine provides elastic audio, which can be time stretched, granularized, and mangled to no end. With independent control over pitch and speed, and granular controls such as overlap, window, and density, finding new sonic territory is only a knob turn away. Nebulae can use live audio input, a recorded buffer, or audio files as the source material for its powerful audio manipulations. The live input buffer can record up to five minutes of stereo audio at 48kHz, 24 bit. In addition, up to 75 MB of stereo audio can be loaded simultaneously through the USB port. No naming convention or special formatting necessary; just plug and play.

Nebulae lives a double life as an open source DSP platform with an extensive library of off the shelf alternate instruments. You can turn the module into a lush reverb, spectral delay, or tape-style looper simply by loading a new file onto the flash drive. Do you want to tweak one aspect of an existing instrument, even the default functionality? No problem. No prior coding knowledge is necessary to tweak and refine existing firmware to your liking or start with one of our templates. Alternate firmware files can be written with Pure Data, Csound, SuperCollider, and even bare-bones C programs.

Notes: Compact take on the Bitbox sampler, also offered as the larger Mk2 version. Touchscreen-based design allowing up to eight stereo samples, recording directly or loaded from SD card.

Supplier notes:
Bitbox micro provides Eurorack sampling for smaller racks and smaller budgets. In only 18 HP of rack space you can get a touch screen based sampler with support for 8 stereo sample pads. Now you can record samples directly into the module or load them from the microSD card. Trigger your samples via CV or MIDI, then apply effects and mix the outputs. Save your configurations to multiple presets for later reuse.

Sample Playback

Play up to 24 stereo polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger stereo samples streaming directly from the microSD card
Configure 8 stereo sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Sample Recording

Record Eurorack level audio straight into the module:

Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Resample the master output without patching
Automate recording of a multi-sample bank via MIDI and CV
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer

Sample Modes
Find creative ways of using your samples with our 5 sample playback modes:

Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode

Inputs and Outputs
Use the 8 inputs the way you want: assignments include a stereo audio input, up to 8 gate inputs, up to 8 CV inputs and 1 clock input.
Route the audio from each pad out to one of 3 stereo audio outputs or one of 6 mono audio outputs
Listen to all of the pad outputs combined on the master stereo output

External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode - no need to look up CC numbers
Module Features
Use the 2? diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Refine your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Inputs and outputs are DC coupled so you can record and play out CV signals

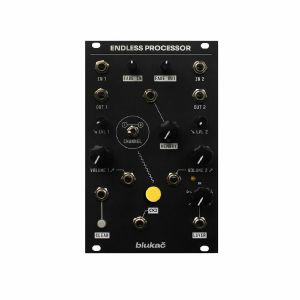

Notes: A really clever take on looping, falling somewhere closer to granular synthesis depending on how you use it. Layer and repeat multiple sound sources to create textures, chords and unique timbres.

Supplier's Notes:
Endless Processor is a dual-channel infinite sound sustainer machine.

Put your favourite instruments, unique timbres, or field recordings - virtually any sound - and make it last forever.

It is not a looper in the usual sense - Endless Processor resynthesizes your sounds to create a perfect clickless stream while preserving the timbral and tonal character of the original.

Endless Processor always listens to audio input and keeps a most recent history. Experiment with sustaining little bits of a sample or make a massive wall of sound with the ability to select how much memorized audio to process.

Stack your sounds to create harmonies, textures, or drones with 5 layers per channel. Each layer can be re-processed or cleared while keeping other ones in place. Set fade-in and fade-out time to quickly or gradually introduce a new layer or remove the existing one.

Additional controls will help you to adjust or shape a channel volume (think built-in VCA).

Dimensions
16 HP
25 mm deep

Current Draw
125 mA +12V
10 mA -12V

Notes: ***Now featuring Assimil8or Software Version 2.0! Available to download here: http://www.rossum-electro.com/products/assimil8or/

The ASSIMIL8OR is a CV/Gate-controllable sampler with eight independent channels. Each channel is not only its own voice, but also has a separate audio output and a gate/trigger and three CV inputs. Given ever get two sample inputs and main outputs. Thus, Stereo Sampling and playback is possible. Mixed operation of stereo or mono is possible and is limited only by the maximum number of eight channels or parts.

The ASSIMIL8OR works with high-quality 24-bit AD and DA converters. Internally, however, sample and bit rate for lo-fi sound can be lowered, the latter is even CV-controllable. The samples can also be otherwise manipulated in many ways. Thus, the phase of a sample via CV or a different sample can be modulated. Likewise, the loop points can be controlled and the sample can be traversed with CV control (scrubbing), whereby wavetable similar effects could be achieved. The following parameters can be addressed via the gate / trigger and CV inputs:

- Pitch
- Level
- Bit Depth
- Phase Modulation
- Pan
- Scrub
- Sample Start
- Sample Length
- Loop Start
- Loop Length
- Release Decay

Samples and presets are stored on an SD card, which is easily accessible plugged into the module front.

Notes: This is a brand new build of a JakPlugg designed Pachinko, which is a micro version of Mutable Instruments Marbles. It retains all of the functionality of the original but takes up less space (12HP) than the original Marbles (18HP).

The module is fully assembled, tested, and calibrated. The calibration is done with a 6.5 digit multimeter, itself recently calibrated, to ensure you get the highest accuracy from your module.

The panel is a custom black After Later Audio panel that offers metallic gold accents.

The module comes with a power cable and a 1 year warranty.

Notes: Loop is a high fidelity looper with four unique recording modes and an intuitive user interface. It can capture up to five minutes of audio with reverse, and half-speed playback accessible. Each recording can use one of four modes: Sound on Sound, Dub, Replace, and Infinite (i.e. Frippertronics). Whether you're looking for minimal part layering, or full blown ambient soundscapes, Loop will take your patch for a ride.

High fidelity audio - 24-bit, 48kHz with five minutes of recording time
Four recording modes: Sound on sound, Dub, Replace, and Frippertronics
Intuitive interface
Half speed and reverse playback

Tech Specs:
Width: 2HP
Depth: 42mm

Notes: Clouds

This is a new build of a Mutable Instruments Clouds. This module is identical to the now discontinued factory made Clouds. This module loads parasites 2.01 Firmware by default.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.

Notes: Updated version of the excellent Bitbox sampler module offers more powerful sound processing and an improved touch screen. Improved effects and mixing with all the same creative power of the original.

Supplier notes:
Bitbox mk2 delivers powerful sampling and mangling for Eurorack. With this module you can add recording, sample playback, clip launching, slicing, granular sounds and musically intelligent looping capabilities to your Eurorack rig. With a 3.5 inch touchscreen, bitbox mk2 makes easy work of selecting, editing, and tweaking your samples. You can stream large samples of up to 4 GB file size straight from the microSD card. Interact with other musical components via CV and MIDI. Tweak your configurations to get them just right, then save them to multiple presets for future reuse. With the new bitbox mk2 hardware, you can now do more with the new more powerful processor.

Sample Playback
Play up to 24 polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger samples streaming directly from the microSD card
Configure 16 sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Use MIDI for polyphonic playback of samples or slices
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Record Eurorack level audio straight into the module:

Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer
Sample Modes
Find creative ways of using your samples with our 5 sample playback modes:

Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode
Inputs and Outputs
Connect up to 8 CV modulators to control numerous sample parameters
Trigger each of the 16 pads with a dedicated gate input
Record through the dedicated stereo audio input pair
Use CV to keep time through the dedicated clock input
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Route the audio from each pad out to one of 2 stereo audio output pairs or any of the corresponding single channels
Inputs and outputs are DC coupled so you can record and play out CV signals

External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Trigger each pad independently through a dedicated gate input
Use MIDI to trigger pads via a note per pad
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode- no need to look up CC numbers
Module Features
Use the 3.5? diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Fill out your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Select Flipped UI mode to mount the unit with the screen on the bottom and use the screen, knobs, buttons, and CV jacks as you normally would

Notes: Harness the Sound of Failure with Data Bender.

Data Bender is a circuit bent digital audio buffer. It is inspired by the ways in which audio equipment can fail. The sounds of skipping CDs, software bugs, and defective tape machine playback are all accessible. The 96kHz, 24-bit audio buffer can hold over a minute of stereo audio, providing a sonic canvas capable of infinite surprises and discovery.

Circuit bent digital audio buffer

Skipping CDs, software bugs, old tape machine, scratched records

96kHz sample rate, 24-bit depth for high fidelity audio with over a minute of stereo sampling time

Stereo IO

Tech Specs:

Width: 14HP

Depth: 28mm

Power: 58 mA +12V, 60 mA -12V, 0 mA 5V

Color: Silver

Notes: Black version of Bitbox's excellent sampling module. Touchscreen-based design allowing up to eight stereo samples, recording directly or loaded from SD card.

Supplier's Notes:
Bitbox micro provides Eurorack sampling for smaller racks and smaller budgets. In only 18 HP of rack space you can get a touch screen based sampler with support for 8 stereo sample pads. Now you can record samples directly into the module or load them from the microSD card. Trigger your samples via CV or MIDI, then apply effects and mix the outputs. Save your configurations to multiple presets for later reuse.

Powerful Sampling Capabilities in a Smaller Form Factor

With the sampling features of Bitbox micro you can add interesting new ways of generating sound and music to your Eurorack. Trigger one shots, play time synched loops or record live looping. Bitbox micro is equally at home in your studio or as a component of your live performance.

Features

Sample Playback
Play up to 24 stereo polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger stereo samples streaming directly from the microSD card
Configure 8 stereo sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Sample Recording

Record Eurorack level audio straight into the module:
Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Resample the master output without patching
Automate recording of a multi-sample bank via MIDI and CV
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer

Sample Modes

Find creative ways of using your samples with our 5 sample playback modes:
Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode

Inputs and Outputs

Use the 8 inputs the way you want: assignments include a stereo audio input, up to 8 gate inputs, up to 8 CV inputs and 1 clock input.
Route the audio from each pad out to one of 3 stereo audio outputs or one of 6 mono audio outputs
Listen to all of the pad outputs combined on the master stereo output
Inputs and outputs are DC coupled so you can record and play out CV signals
External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode i no need to look up CC numbers

Module Features

Use the 2" diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Refine your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Compare to Our Other Samplers
Our Sampler Selection Guide shows you how bitbox micro compares to our other samplers.

What Is Included

When you purchase bitbox micro, you will receive:

a bitbox micro Eurorack module
a microSD card with a bank of demo presets and samples loaded on it
a Eurorack power cable
a bitbox micro Quick Start guide
a MIDI Adapter
Firmware Updates
Get new features by downloading firmware updates from forum.1010music.com.

Documentation and Video Tutorials

The Bitbox Micro Support page has links to videos, the quick start guide and the full user manual to get you up and running quickly and answer your detailed questions. If you can't find answers there, reach out to the community with questions on the 1010 Music forum.

Notes: The Stereo Triggered Sampler can record high quality stereo files, while simultaneously playing two different stereo files. A maximum of 600 samples can be loaded from the removable/swappable microSD card, in a variety of formats up to 96kHz/32-bit/stereo WAV. All sample parameters (1V/oct pitch, sample file selection, length, and start position) are CV controllable.

600 Samples:
A maximum of 600 samples can be loaded at once, arranged into banks of 10 samples each. Samples and banks can be re-arranged on the fly using the simple on-board Edit features. Newly recorded samples can be instantly played back and re-pitched, reversed, chopped up, etc... the result of which can even be bounced down and re-recorded to as a new sample! Sample files are limited to 4GB each, which is over 6 hours at 44k/16b/stereo.

Two Stereo Playback Channels:
Each playback channel has a knob and CV jack for Sample File selection, as well as a Start Position knob and CV jack for controlling where in the sample playback will begin. The Length knob and CV jack determine how much of the sample is played back: from tiny grains, to percussive hits, to longer loops... or just the entire file. These are powerful tools for re-arranging a sample, joining multiple samples, and creating dynamically re-sized loops within a larger sample. Combined with the Play Trigger jack and the 1V/oct jack, the STS can be two complete multi-timbral pitch-tracked stereo voices!
There's also a Reverse button and jack for backwards playback, and an End Out jack for synchronizing loops, or cascading sample playback with other events.

Looping and Sync:
Looping is easy: just hold the PLAY button down for two seconds to toggle loop or one-shot. The loop timing clock will output from the End Out jack. Or, send a clock into the Play Trig jack to sync the loop to external timing.

Stereo Recording:
Whether you patched 47 modules to create the ultimate percussive blast, or you want to capture your four hour ambient performance, recording high-quality .wav files on the STS is simple. Just hit the REC button or fire a trigger and a new stereo .wav file will be created on the SD card. Do as many takes as you need: the STS never deletes your files. Re-ordering or re-arranging samples into banks is easy, even without a computer.
You can even fill a bank with 10 different variations and immediately use them for playback.
By default the STS records at 44.1kHz/16-bit, with an option for 24-bit (a future update may increase the sample rate to 96kHz)

Easy sample loading:
Using a computer is completely optional with the STS, since samples can be recorded directly to the module and placed into the bank of your choosing. But for users with large existing sample banks, the intuitive automatic bank loading features make dragging and dropping your entire sample library a snap. You never have to rename your files again!

Notes: Play is a high-fidelity sample player with a full feature set.

Up to 32 samples can be loaded at a time and dynamically switched between using the file knob and associated CV input. Playback modes include one-shot, looping, or gated playback; all with extremely low latency. Transform your samples by pitching them up two octaves or down three octaves, all with a pitch knob that can be free running or quantized to semitones. The pitch CV input tracks volt per octave across its entire range and allows for musical sequencing of samples. Play ships with a pre-loaded SD card packed with loops, drum hits, and field recordings to get you up and running immediately.

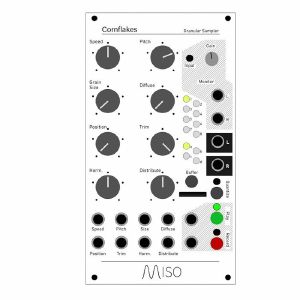

Notes: Crunchy hands-on granular synthesis is the order of the day with Miso's Cornflakes module. High-resolution controls encourage real-time tweaking and manipulation of your sound. Nuts.

Supplier's Notes:
Cornflakes, being a granular sampler, does not play its samples back conventionally, but split them into smaller bits called grains. Furthermore, the grains are divided into four simultaneous voices to allow for polyphonic pitch control or harmonization.

The module has the ability to time-stretch, pitch-shift and produce harmonics. It's calibrated to 1v/oct to encourage a bit of musicality. Recording and playback can be triggered manually or via CV.

The module features 32 memory slots for samples stored on an SD card and you can run audio through it live for real-time processing.

There are manual and CV control over Speed, Diffusion, Harmonics, Pitch, Grain Size, Position, Trim and Distribution.

Audio format:
Stereo
48khz, 24-bit sampling

Power consumption: max. 165mA at +12 V and 40mA at -12 V

HP : 14

Notes: If you can code it, you can make it.

The patch.Init() is ElectroSmith's exploratory modular interface for the Daisy Patch Submodule. Open-source both in hardware and firmware, the patch.Init() is the perfect jumping off point for your next modular DSP project. From ethereal reverbs, glitchy processors, comprehensive samplers, and complex oscillators, the patch.Init() can be any module you need it to be. Looking to create your own commercial module? The front panel design is completely open-source (MIT). Just create your interface, add the Patch Submodule to the back, and you are off to the races with industry leading specs in an accessible, affordable package.

The patch.Init() comes with x1 Daisy Patch Submodule.

Check out the Patch Submodule here.

Get the Design Files here.

Eurorack development platform for the Daisy Patch Submodule

High Fidelity Daisy architecture: 24-bit, 96kHz sample-rate, 64MB SDRAM, STM32 H7 processor

Stereo I/O

Utilitarian design, with code-matching front panel parameter names

Tech Specs

Width: 10HP

Depth: 31mm

Power Consumption*: +12V=90mA, -12V=5mA, +5V=0mA

*Power consumption is firmware dependent

Notes: Freez is a voltage controlled locked looper. It captures moments of audio in buffers, where they can be minced and mangled beyond recognition. Once frozen, adjusting size will cause pitch and timbre changes to the locked audio.

Adjusting the sample rate control will distort and decimate the incoming audio as well as warp the time domain of the currently locked buffer. From beat repeat to granular audio buffer, Freez will create new sounds and textures out of any input signal.

Notes: Clouds, the granular synthesis module from Mutable Instruments, was discontinued in 2017. Supercell brings back Clouds in a more accessible 34 hp form factor, offering an improved user interface and several additional features:

- Each of the Blend parameters (Feedback, Panning, Mix, and Space) have dedicated knobs with their own CV inputs and inverting attenuators (attenuverters).

- The inputs and outputs now have mute switches, stereo VCAs, and separate VU meters. The knobs act as offset controls when their respective VCA inputs are patched.

- A stereo output gain control has been added, providing an additional +6 dB of gain to compensate for low output levels when using certain parameter combinations.

- The complex process of changing the sampling time and managing presets has been simplified with dedicated switches and status LEDs.

- Extensive modulation options for all parameters including direct patching of external CV, distribution of one CV to all parameters via the AUX input, or an internal smooth random CV that is normalized to any unpatched inputs when AUX is also unpatched. The attenuverters control the modulation depth in all three cases. As of firmware v1.01 the internal modulation rate can be adjusted within a range of 1 to 100 Hz.

- The inputs and outputs now include stereo VCAs and separate VU meters. The knobs act as offset controls when their respective VCA inputs are patched.

- Pitch is now controlled by two separate inputs: the V/Oct input is exponential and the Pitch input is linear. When both inputs are used, their voltages are summed.

- A manual Trig switch (for capturing individual grains) has been added, in addition to the Trig input that was present on Clouds.

All other features of the original Clouds remain intact, including access to the alternate modes. Thanks to Olivier Gillet for making the original Clouds hardware and firmware available under open-source licenses. Third-party firmware such as Parasites (by Matthias Puech) and Beat Repeat (by Julius Kammerl) will be supported in future firmware updates after the initial release of the module.

Notes: Second-generation version of 1010's outstanding Bitbox sampler module, featuring improved processing power, higher-quality touchscreen and new effects.

Supplier's Notes:
Next Generation Sampling Module for Eurorack

The bitbox mk2 is a follow up to 1010's successful bitbox module. Do more with bitbox mk2's more powerful processor and improved touch screen. This module has all of the features of the original bitbox and adds effects and mixing capabilities that take advantage of the faster and more powerful processor.

Sample Playback

Play up to 24 polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger samples streaming directly from the microSD card
Configure 16 sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Use MIDI for polyphonic playback of samples or slices
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Sample Recording

Record Eurorack level audio straight into the module:

Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer
Sample Modes

Find creative ways of using your samples with our 5 sample playback modes:

Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode
External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Trigger each pad independently through a dedicated gate input
Use MIDI to trigger pads via a note per pad
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode - no need to look up CC numbers
Module Features
Use the 3.5" diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Fill out your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Select Flipped UI mode to mount the unit with the screen on the bottom and use the screen, knobs, buttons, and CV jacks as you normally would

When you purchase a bitbox mk2, you will receive:

a bitbox mk2 Eurorack module
a microSD card with with a bank of demo presets and samples loaded on it
a Eurorack power cable
a bitbox mk2 Quick Start guide
a MIDI Adapter

Technical Specs

Supports 1 and 2 channel WAV files with 16, 24 or 32-bit resolution at any sample rate (48kHz preferred)
26 HP
Module dimensions including knobs: 5.25" x 5"x 1.75"
Depth behind front panel with ribbon cable: 1.25"
+12V: 400mA
-12V: 0mA
5V: 0mA
24-bit ADC and DAC

Inputs and Outputs

Connect up to 8 CV modulators to control numerous sample parameters
Trigger each of the 16 pads with a dedicated gate input
Record through the dedicated stereo audio input pair
Use CV to keep time through the dedicated clock input
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Route the audio from each pad out to one of 2 stereo audio output pairs or any of the corresponding single channels
Inputs and outputs are DC coupled so you can record and play out CV signals

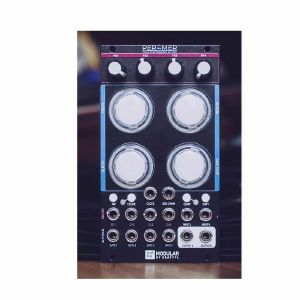

Notes: Per4mer is a quad performance effects eurorack module designed with live performance, studio use, and sound design in mind. Includes 4 performance effects (Delay, Reverb, Glitch & Tape Stop) and 2 audio processing effects (color and compressor with side chain).

Per4mer is a 14hp eurorack formatted quad performance effects unit. Inspired by time-honored DJ effects processing boxes, Per4mer allows for a hands-on and CV / Gate controlled eurorack effects performance interaction. Whether momentarily engaging or latching FX, Per4mer offers an unrivaled and fun experience.

The basic principle of Per4mer is to feed in an audio input and to trigger on-the-fly effects, bringing DJ style live improvisation to a modular environment. Effects can be triggered simultaneously or individually where an inspiring effect palette combines to generate unique creative beats and melodies.

Per4mer includes 4 performance effects (Delay, Reverb, Glitch, Tape Stop) and 2 processing effects (Color processor & Compressor). Each of the 4 performance effects has its own set of 4 parameters controlled by the 4 knobs or CV inputs. Effects can be used simultaneously or individually allowing for a vast variety of creative effects combinations.

The Color processor allows for engaging any of the 8 coloration presets - Classic (12bit), LoFi (8 Bit), Saturation, WaxWax2, LP Filter, HP Filter, White Noise with wet/dry control. Combine any one of these color presets with the onboard Compressor and Side-Chain input to instantly transform any audio signal's mood and vibe.

Features
4 no-click 24mm mini arcade buttons (life cycle rated at 10 million button presses)
4 knobs to control 4 parameters per effect
4 performance effects (Delay, Reverb, Glitch & Tape Stop)
AR envelop per performance effect
2 processing effects (Color and Compressor)
8 fixed color presets (Classic (12bit), LoFi (8 Bit), Saturation, Wax, Wax2, LP Filter, HP Filter, White Noise) with wet/dry control
Compressor with controls for Make-up Gain, Threshold, Ratio, Attack, and Release.
Side-chain input with Side-chain detection (via side-chain input, clock input, or tap tempo)
Clock input
Tap tempo
CV targeting (target specific effects with CV inputs)
CV control over knobs
Gate inputs to trigger the arcade buttons
Stereo input and output

Tech Specs
Width: 14HP
Depth: 30mm
Power: 50mA +12V, 50mA -12V
Built on the ElectroSmith Daisy platform

Notes: This is an exact hardware replica of the Mutable Instruments Clouds.

Notes: Get glitchy with it.

The 2hp Slice is a compact beat repeat/glitch engine built to add clickless stutters, digital glitches, and more to your patch. With an onboard Triplet button, seamlessly switch between straight beat repeats to offset triplets, perfect for those trap style fills you can't live without. With massive repeat range, and CV/Gate inputs for complex glitch sequencing, Slice is everything you need to get glitchy with it, all in 2HP.

Tech Specs

Width: 2HP
Depth: 45mm
Power Consumption: +12V=83mA, -12V=8mA, +5V=0mA

The 2hp Slice will be available in both Silver aluminium and Black PCB front panels.

The 2hp Slice ships with a 10-16 power cable and 2 Silver M3 mounting screws.

Notes: Great value from 4ms's twist on the Stereo Triggered Sampler module, this time capable of playing and manipulating stereo or mono WAV files from an SD card.

Supplier's Notes:
The Sampler is a variation of the Stereo Triggered Sampler.

Record, play and loop stereo .wav files with an SD Card. Includes the same 2022 Sampler Pack from the Stereo Triggered Sampler.

Features:

The Sampler plays stereo or mono .wav files from an SD Card. Samples are arranged into banks by placing .wav files into folders (each folder is a bank). A maximum of 10 samples can be loaded in a bank. There is a maximum of 60 banks (600 samples maximum total).
Sample files are limited to 4GB each, which is over 6 hours at 44k/16b/stereo.

Hundreds of samples included on microSD card
Extremely quiet, low noise and low jitter design
Stereo or Mono output

A knob and CV jack selects the Sample to play, and the Start Position knob and CV jack control where in the sample playback will begin. The Length knob and CV jack determine how much of the sample is played back: from tiny grains, to percussive hits, to longer loops... or just the entire file.

Pressing Play or firing a trigger into the Play Trig jack will play the sample. Holding the Play button down for a second will toggle looping.

There's also a Reverse button and jack for backwards playback, and an End Out jack for synchronizing loops, or cascading sample playback with other events.

To record samples, hold Play and Reverse for two seconds. Press Play again or fire a trigger into the Play/Rec Trig jack to start and stop recording. Each recording will create a new stereo 48kHz 24bit .wav file in the current bank's folder. Recordings can be as long as your card has the capacity for: a 256GB card is 18 days of continuous recording (432.9 hours). Audio data is split into maximum 4GB wav files on the microSD card.

Play button/trigger jack: Tapping the button or receiving a trigger starts/re-starts the sample
Sample CV/knob: select which sample within the channel's bank
Pitch CV and Pitch knob: playback pitch (-10 to +4 octave range)
Start Pos CV/knob: position in the sample to begin playback (loop start point)
Length CV/knob: playback time (loop end point)
Length knob at max: entire file is played
Length knob 50%-99%: 200ms - 5s of the sample is played (beginning at the Start Position)
Length knob <50%: Percussive decay envelope is applied to the playback (attack-only envelope if playing Reverse)
Length <1%: Tiny grains are played (can be used to sweep through sample file data manually)
Reverse button/jack: toggles forward/backwards
Bank button: selects channel's bank
Reverse + Start Pos button/knob combo allows for setting volume of playback
Maximum file size for playback: 4GB per file (6.7 hours per file at 44.1kHz/16b/stereo)
microSD Card is hot-swappable when Busy light is off: no power-down required to change cards.
Samples that are pre-loaded into memory can continue playing while card is swapped.

File Organization:

Using a computer, the intuitive automatic bank loading features make dragging and dropping your entire sample library a snap. No files need to be renamed. Just create folders and put up to 10 samples in each. If you want a folder to be associated with a particular colour of the Bank button, name the folder a colour name (such as "Blue - Loops").

Ships with a high-speed 16GB microSD card, loaded with hundreds of samples created for 4ms, from musicians such as Richard Devine, Wobbly, Moor Mother, Robert Aiki Aubrey Lowe, Joseph Pailo, Russell E.L. Butler, Hugo Paris & Marc Kate, Paul Barker, Baseck, Animal Collective, Cristian Vogel, Jay E, Marcus Fischer, Chris Carter, Daedelus, Nero Bellum, Anna Sitko, Thomas Fang, Bogdan Raczynski, and more (Sample List)

Intuitive bank/colour organization system; no need to rename your wav files
Record new samples directly to a bank with the Record Input jacks...
... or drag your folders of sound files onto the microSD card, and each folder will become a bank.
Folders starting with a colour name will be loaded into that colour bank
Example "Blue - Frooty Loops" will load into the Blue bank
Sub-folders are ignored, only folders in the root directory are scanned for wav files
Works best with UHS Speed Class 3 cards with |3| symbol printed on the card

Specs:

Electrical and Mechanical Specifications:
Module Size:
16 HP Eurorack format module
10-pin Eurorack power header
1.3" (33mm) maximum depth with power cable
Power consumption:
+12V: 135mA
-12V: 41mA
+5V rail: not used
Connect red stripe of power cable towards the bottom of the module, which is marked with a white stripe and the words -12V and POWER
Audio Inputs:
20Hz to 10kHz (+/-0.1dB); -6dB rolloff @ 20kHz
21V peak-to-peak maximum before clipping
Audio Outputs:
0Hz (DC) to 22kHz with maximum -1.8dB difference between file data and output
+10.5V to -10.5V maximum output
Trigger inputs:
Latency: 0.7us typical

Included with the Sampler:
16GB micro SD card (class 10)
SD adaptor
10-to-16 pin power cable
M3 Knurlie screws

Notes: Play is a high-fidelity sample player with a full feature set.

Up to 32 samples can be loaded at a time and dynamically switched between using the file knob and associated CV input. Playback modes include one-shot, looping, or gated playback; all with extremely low latency. Transform your samples by pitching them up two octaves or down three octaves, all with a pitch knob that can be free running or quantized to semitones. The pitch CV input tracks volt per octave across its entire range and allows for musical sequencing of samples. Play ships with a pre-loaded SD card packed with loops, drum hits, and field recordings to get you up and running immediately.

Notes: Get glitchy with it.

The 2hp Slice is a compact beat repeat/glitch engine built to add clickless stutters, digital glitches, and more to your patch. With an onboard Triplet button, seamlessly switch between straight beat repeats to offset triplets, perfect for those trap style fills you can't live without. With massive repeat range, and CV/Gate inputs for complex glitch sequencing, Slice is everything you need to get glitchy with it, all in 2HP.

Tech Specs

Width: 2HP
Depth: 45mm
Power Consumption: +12V=83mA, -12V=8mA, +5V=0mA

The 2hp Slice will be available in both Silver aluminium and Black PCB front panels.

The 2hp Slice ships with a 10-16 power cable and 2 Silver M3 mounting screws.

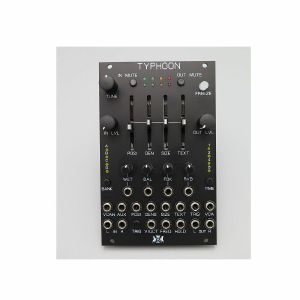

Notes: Deluxe take on the legendary Mutable Instruments Clouds, featuring one-knob-per-function controls for all parameters, built-in VCAs and additional storage. Versatile.

Supplier's Notes:
16HP Deluxe Clouds Clone with individual controls for each Parameter, VCAs for the left and right channel, additional storage so ALL extra functions are available at once.

Anodized natural aluminium or black aluminum panel.

16HP

25mm Deep

140/35 mA +12/-12V

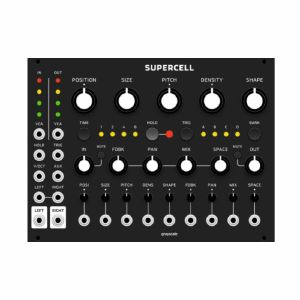

Notes: Serious granular synth power in this expanded reissue of the classic Mutable Instruments Clouds module. Easier to use and more powerful than the original. Ultra creative approach to unique synth textures

Supplier's notes:
Clouds, the granular synthesis module from Mutable Instruments, was discontinued in 2017. Supercell brings back Clouds in a more accessible 34 hp form factor, offering an improved user interface and several additional features:

- Each of the Blend parameters (Feedback, Panning, Mix, and Space) have dedicated knobs with their own CV inputs and inverting attenuators (attenuverters).

- The inputs and outputs now have mute switches, stereo VCAs, and separate VU meters. The knobs act as offset controls when their respective VCA inputs are patched.

- A stereo output gain control has been added, providing an additional +6 dB of gain to compensate for low output levels when using certain parameter combinations.

- The complex process of changing the sampling time and managing presets has been simplified with dedicated switches and status LEDs.

- Extensive modulation options for all parameters including direct patching of external CV, distribution of one CV to all parameters via the AUX input, or an internal smooth random CV that is normalized to any unpatched inputs when AUX is also unpatched. The attenuverters control the modulation depth in all three cases. As of firmware v1.01 the internal modulation rate can be adjusted within a range of 1 to 100 Hz.

- The inputs and outputs now include stereo VCAs and separate VU meters. The knobs act as offset controls when their respective VCA inputs are patched.

- Pitch is now controlled by two separate inputs: the V/Oct input is exponential and the Pitch input is linear. When both inputs are used, their voltages are summed.

- A manual Trig switch (for capturing individual grains) has been added, in addition to the Trig input that was present on Clouds.

All other features of the original Clouds remain intact, including access to the alternate modes. Thanks to Olivier Gillet for making the original Clouds hardware and firmware available under open-source licenses. Third-party firmware such as Parasites (by Matthias Puech) and Beat Repeat (by Julius Kammerl) will be supported in future firmware updates after the initial release of the module.

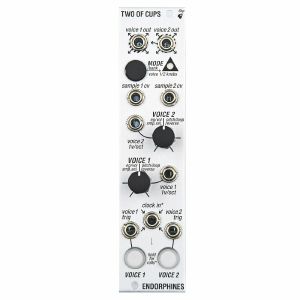

Notes: Two Of Cups; include samples in your live set.

Two of them at once with a wide variety of CV-able features. Simply load one of 8 banks each containing up to 24 samples for each of the two voices and off you go (unlock this feature with firmware 1.1). Needless to say, you can change the samples under CV and if needed - you can set up the trigger delay for each voice because that boy plays its sample so instantly and sample accurate with the with lightning speed. Breathe life and fresh sounds into your setup with a small footprint (6 HP) you would normally need to carry around loads of gear to reproduce the sonic capabilities. Alternatively, use it the boring way and simply play drum one-shots off it.

Depth: 30mm (with ribbon cable plugged in)

Power requirements: +12V: 125mA, -12V: 20mA

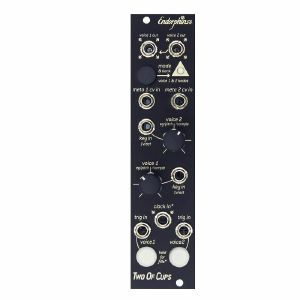

Notes: Two Of Cups - include samples in your live set. Two of them at once with a wide variety of CV-able features. Simply load one of 8 (!) banks each containing up to 24 samples for each of the two voices and off you go (unlock this feature with firmware 1.1!). Needless to say you can change the samples under CV and if needed - you can set up the trigger delay for each voice because that boy plays its sample so instantly and sample accurate with the with lightning speed. Breathe life and fresh sounds into your setup with a small footprint (6 HP) you would normally need to carry around a gazillion of gear to reproduce the sonic capabilities. Alternatively, use it the boring way and simply play drum one-shots off it.

2 voice intuitive sample player each containing 24 samples and organized in 8 banks

Zero-latency sample playback - directly from micro SD card

Factory sound-bank by Julia Bondar

On-board envelope generator decay control, pitch control with 1V/Oct input and sample selection control with meta cv input

Arbitrary sample rate: 8, 16 and 24 bit samples with 12 bit output bitrate

Power consumption:

125 mA +12V
20 mA -12V
0 mA 5V

Dimensions:

6 HP
30 mm deep

Notes: 6 channel drum sample player - 909 version

The 6 sounds available on separate channels are the one-shot sounds from the infamous 808 or 909 drum machine. It's using a big STM32F405 chip to drive the 6 DACs and store the sounds. The samples are baked-in and can't be changed.

6 input jacks to trigger the sounds with +5V signals.
6 output jacks for the audio outputs ~10Vpp.

85 mA +12V
11 mA -12V
0 mA 5V
38 mm deep

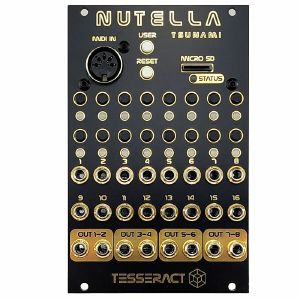

Notes: 16 trigger ins to play up to 4096 wav files from a micoSD card

Nutella is a eurorack conversion module for the Sparkfun Tsunami Super Wav Trigger.
Features:
-16 trigger in & buttons to play audio files.
-MicroSD card to store up to 4096 wav files in 44.1kHz 16bit.
-32 voices polyphony in mono and 18 in stereo.
-Low latency (8ms typically)
-8 audio outs (modular level)
-Midi in (velocity sensitive, supports MIDI Note-On, Note-Of, Pitch Bend and Program Changes messages, as well as Controller messages for real-time control of sustain, attack and release times and volume.
-Ability to play multiple audio stems in sample-locked sync.
-Can be used as a Wav player and Midi-to-Trigger converter at the same time.
-Trigger ins (and so buttons) can be assigned to various functions (normal, next, previous, random, pause, resume, stop, volume up, volume down, trigger bank up, trigger bank down, synced set, midi bank up, midi bank down)
-Easy configurable by an optional ".ini" file stored in the microSD card, a Tsunami Configurator utility (Windows, Mac and Linux versions available), makes it easy to set options and generate this file.
-Super easy firmware update system via microSD card, no external programmer needed.

30 mA +12V
15 mA -12V
200 mA 5V

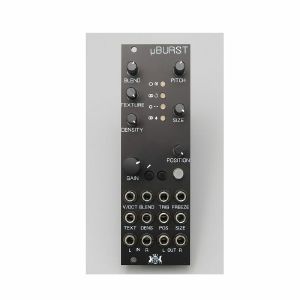

Notes: 8HP Micromodule based on Opensource Clouds

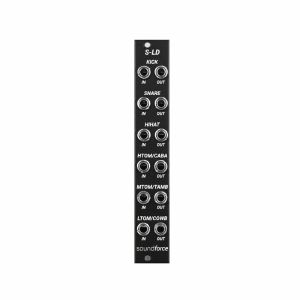

Notes: The SoundForce Samples is a 4HP 6-channel drum module. The 909 version from 2022 features a little slide switch at the back to turn on and off the shoke between the closed and open hihat. The LD version has 2 banks of sounds for the bottom 3 jacks, the switch at the back allows you to choose between the 2 banks.

Please note you cannot choose the sound of each of the 3 bottom jacks, it's either the tom sounds or the percussion sounds.

The sounds:

The 6 sounds available on separate channels are the one-shot sounds from the infamous 808, 909 or LinnDrum drum machines. It's using a big STM32F411 chip to drive the 6 DACs and store the sounds. The samples are baked-in and can't be changed.

Features:

6 input jacks to trigger the sounds with +5V signals.
6 output jacks for the audio outputs ~10Vpp.

Specifications:

4HP
Depth: 38mm (including power connector)
Power: +12V 85mA, -12V 11mA
Inputs range 0-5V
Output range -5V to 5V

Notes: ONE brings organic sound and super low latency sample playback to the modular. It differs from other sample players in that it handles the digital audio bits as a continuously manipulated electrical flow, a feature inspired by our analog knowhow. This unique core makes ONE truly integral within the Tiptop percussive modular ecosystem thanks to a lightweight and responsive digital circuit with a very analog feel.

ONE brings a world of colours to the modular right out of the package. We have invited some of the best sound designers in the Industry to create professional sound libraries with content tailored to the unique sonic framework of the modular synthesizer and that fully takes advantage of ONE's unique qualities. To start with, ONE comes with a SD card loaded with a free set of 60 sounds designed by Glitchmachines. More cards are available to purchase separately each containing carefully selected material with up to 256 sound files. Using your own sample libraries or recordings is easy too, just copy 16 or 24bit mono WAV files onto the SD card, pop the card into ONE and go.

ONE offers several modes of operation, with the primary being the super low latency Trigger mode that retrieves audio data off the SD card adding no artificial processing such as click removal, crossfading, EQ or gain normalization. In this mode, it's a highly transparent player up to 24 bit 96kHz with no interpolation of the audio data: what you put in is what you get out. With a delay as low as 0.25ms from the moment the trigger hits, ONE offers harmonically dense, clear and detailed audio with a great rhythmic feel.

ONE handles external CV through a user selectable multifunction jack. Pitch is the main control with two modes available: Free pitch allows for fine tuning of the playback rate, great for adding subtle vibrato or wild tape speed effects; Quantized pitch maps CV to the standard 12 tone system over 3.5 octaves and is ideal for melodic content. CV can also be used to sequence through files off the SD card allowing far more varied sounds from a single source; almost like an entire percussion section behind the slim panel.

Although originally designed to play tightly with our analog drums and envelopes, ONE's rich sound quality encouraged us to make it work in a variety of other applications that are less demanding of sub millisecond timing response. The extra headroom at the core level allows features such as Gated playback, Looping, and Triggering with fades in and out to accommodate different types of sound sources from drum loops to polysynth chords to noise sources and other yet unimagined uses.

ONE offers another useful dimension since it can play CV signals too. Drop in a card with LFO signals, random CV, slopes and envelopes for a whole set of new control and modulation possibilities.

ONE is as simple to use as it is affordable and plays extremely well with its analog cousins - our vision for bringing samples into the modular world.

Notes: The Flame "Vocorder" module is a compact combination of an analog vocoder and a digital CV recorder (looper). The centerpiece is an 8-channel analog vocoder with a total of 16 analog bandpass filters for analysis and synthesis.

The analog generated analysis envelope CVs are digitized and output via the DA converter to the analog VCAs of the synthesis tapes. With the help of the record function, the envelope CVs of the analysis channels can also be recorded digitally and played back in the loop. You can manipulate the playback in different ways: swap filter channels on the fly (rerouting), change speed and playback direction etc.

The module can also be a "normal classic vocoder": the envelopes are then always looped through via AD / DA conversion (direct vocoding) and can of course also be recorded. The analysis unit is ineffective during playback because the envelopes are played back from the memory. The current version is very compact, the module is only 12HP wide - see photo.

There are two audio inputs for analysis (voices, drum etc) and synthesis (instruments). A monophonic digital oscillator with three waveforms and an analog noise generator are available for internal synthesis. There is also an unvoiced / voiced switch (controls the highpass with noise when there is sibilance). A respective mix controller is responsible for both synthesis sources. The VCO has a 1V / oct input and an additional direct audio output. The synthesis filters have audio outputs for odd / mono and even (mix of even / odd channels).

The looper recorder has the following functions: buttons for record, start, stop. A triple toggle switch for the playback direction forwards, backwards, ping-pong, another for the type of triggering: Loop, OneShot, Gated. You can record about up to three minutes. The playback speed is adjustable (also via CV). The sampled loop is retained in the battery-backed memory even after switching off.

In addition, there is a controller for rerouting the filter channel assignments from the analysis (or recorded channel) to the synthesis filters, also accessible via CV. A freeze function is also available.

The filter / cutoff control regulates the synthesis bands manually with a combined lowpass-bandpass-highpass algorithm, so the synthesis filters can also be used as simple audio filters.

Dimensions
12 HP
47 mm deep

Current Draw
220 mA +12V
190 mA -12V
0 mA 5V

Notes: Sampler legend Dave Rossum's ultra-powerful Assimil8or module gets a black makeover. Eight-channel multi-timbral design with extensive CV control and clever sound manipulation options.

Supplier's Notes:
Designed to provide a powerful, flexible sampling engine for modular synthesis, the ASSIMIL8OR Multi-Timbral Phase Modulation Sampler module is the latest incarnation of Dave Rossum's decades-long pioneering of affordable professional sampling technology.

ASSIMIL8OR provides eight independent channels of sampling with sound quality that can range from extremely hi-fi to low fi, all with extensive real-time CV control.

Assimil8or Specifications

Sample memory
2,300 seconds at 48kHz mono, freely allocatable between the 8 channels

Sample rates
48kHZ, 96kHZ, 192kHZ

A/D & D/A
24 Bits

Internal processing
32 Bits

Latency
100 microseconds at the Mix Outputs
180 microseconds at the Individual Outputs

Inputs

Sample L/R
2x 3.5mm mono socket
100kO Input Impedance

Gate/Trigger 1-8
8x 3.5mm mono socket
100kO Input Impedance
1.6V threshold

Control Voltage A 1-8
8x 3.5mm mono socket
100kO Input Impedance
96 kHz sample rate
Anti-alias filtered to 20kHz bandwidth

Control Voltage B&C 1-8
16x 3.5mm mono socket
100kO Input Impedance
48 kHz sample rate
No anti-alias filtering

Outputs

Mix Outputs L/R
2x 3.5mm mono socket
1kO Impedance

Individual Outputs
8x 3.5mm mono socket
1kO Impedance

Power requirements: +/-12V via 16-pin, Doepfer-style connector
Current draw: 220mA +12V, 30mA -12V
Dimensions: 28HP (W); Panel to power connector (with connector plugged in) 25mm (D)

Supplied accessories:
1x Micro SD card
1x 16-pin, Doepfer-style cable
4x M3 screws
4x M2.5 screws
4x Nylon washers
1x Quickstart Guide

Notes: ***B-STOCK: Box opened, product in perfect working order***


Compact take on the Bitbox sampler, also offered as the larger Mk2 version. Touchscreen-based design allowing up to eight stereo samples, recording directly or loaded from SD card.

Supplier notes:
Bitbox micro provides Eurorack sampling for smaller racks and smaller budgets. In only 18 HP of rack space you can get a touch screen based sampler with support for 8 stereo sample pads. Now you can record samples directly into the module or load them from the microSD card. Trigger your samples via CV or MIDI, then apply effects and mix the outputs. Save your configurations to multiple presets for later reuse.

Sample Playback

Play up to 24 stereo polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger stereo samples streaming directly from the microSD card
Configure 8 stereo sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Sample Recording

Record Eurorack level audio straight into the module:

Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Resample the master output without patching
Automate recording of a multi-sample bank via MIDI and CV
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer

Sample Modes
Find creative ways of using your samples with our 5 sample playback modes:

Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode

Inputs and Outputs
Use the 8 inputs the way you want: assignments include a stereo audio input, up to 8 gate inputs, up to 8 CV inputs and 1 clock input.
Route the audio from each pad out to one of 3 stereo audio outputs or one of 6 mono audio outputs
Listen to all of the pad outputs combined on the master stereo output

External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode - no need to look up CC numbers
Module Features
Use the 2? diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Refine your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Inputs and outputs are DC coupled so you can record and play out CV signals

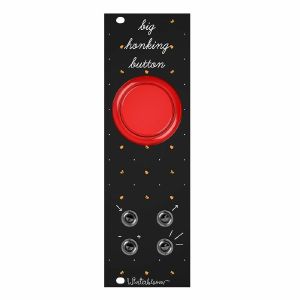

Notes: Out of the box, Big Honking Button will give you a nice "HONK!" every time you press that delicious button. However, the fun doesn't stop there. You can easily connect this module to your computer with a standard USB cable (the USB port is on the bottom of the module) and it'll show up as a tiny external drive. You can then put your own samples onto it and even customize its behaviour.

Big Honking Button is a fun, simple way to add a flexible little sampler to your setup.

Because the Biog Honking Button runs CircuitPython you can customize quite a lot about it- you could turn it into a random gate generator, for example. You can load multiple samples and have the CV in select between samples, or just play a random sample. There's lots of possibilities here & there's several examples in the user guide.

Customization is super easy thanks to the way CircuitPython works. You just connect a standard USB cable to your computer and to the USB port on the bottom of the module and it'll show up as a small external drive. From there, you can edit code.py and change how it works as well as load up new samples. It's basically a little computer that has a gate in, a gate out, a -5 to +5v ADC input, and a -10 to +10 audio output with 10 bits of resolution.

Specs:

Size: 8hp

Audio out

Gate in (the sample is triggered by the button or gate in)

Gate out (comes from the button or gate in)

Pitch CV in (-5v to +5v)*

8MBj flash storage for code & samples

Reversible panel so you can put the button at the bottom if you need to

+12v 25mA, -12v 5mA

100% open source hardware & software

* Modules made before 2021 have 2MB of storage and a pitch CV range of -2v to +2v. Post-2021 boards are labeled v5 or above.

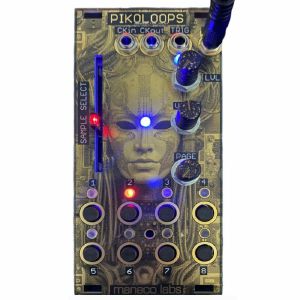

Notes: Pikoloops is Manecolabs' take on the Pkocore, developed by InfiniteDigits.

Main features:

A lo-fi music mangler based on the Raspberry Pi Pico .
Capable of holding 8 minutes of 8-bit 33 kHz monophonic samples.
Tempo-synced with a selectable BPM between 60 and 300, with samples mangled by beat-synced effects (stutter, retrig, gate, tunneling).
Loaded with real-time effects like a resonant filter, timestretching, volume, and wavefolding.
Sequenced with a 128-step sequencer with recording/playback
Saved and loaded via EEPROM for instant patch recall.
Able to load custom firmware, new samples, all through USB-C.
Sync-compatible with eurorack devices.
12HP eurorack module

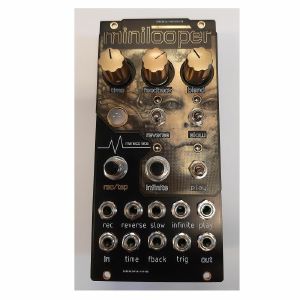

Notes: Looping digital delay inspired by the original 80s Electro Harmonix 16 second digital delay.

Features: (all parameters have voltage control)
Time
Feedback
Blend
Infinite Switch
Reverse
Slow
REC/TAP
Play

Technical data:

Maximum delay/rec time: 30 seconds
Power: 9V DC
Polarity: Negative center
Current consumption: 80mA
Input impedance: 500K
Output impedance: 100 Ohms
Warranty: 3.1 years

Notes: ***B-STOCK: Box opened, product in perfect working order***


Unique hands-on performance effects module inspired by DJ gear, featuring colour processing, compression, reverb, glitch and much more besides. Great sound and lots of CV options.

Supplier's Notes:
Per4mer is a 14hp eurorack formatted quad performance effects unit. Inspired by time-honored DJ effects processing boxes, Per4mer allows for a hands-on and CV / Gate controlled eurorack effects performance interaction. Whether momentarily engaging or latching FX, Per4mer offers an unrivaled and fun experience.

The basic principle of Per4mer is to feed in an audio input and to trigger on-the-fly effects, bringing DJ style live improvisation to a modular environment. Effects can be triggered simultaneously or individually where an inspiring effect palette combines to generate unique creative beats and melodies.

Per4mer includes 4 performance effects (Delay, Reverb, Glitch, Tape Stop) and 2 processing effects (Color processor & Compressor). Each of the 4 performance effects has its own set of 4 parameters controlled by the 4 knobs or CV inputs. Effects can be used simultaneously or individually allowing for a vast variety of creative effects combinations.

The Color processor allows for engaging any of the 4 coloration presets - Classic (12bit), LoFi (8 Bit), Saturation, and Wax. Combine any one of these color presets with the onboard Compressor and Side-Chain input to instantly transform any audio signal's mood and vibe.

Engaging the Reverb along with the "12-bit classic" color option gives an incredibly lush lo-fi reverb sound while disengaging the color option allows the reverb to remain just as beautifully lush and hi-fi. The potential is nearly limitless.

Per4mer's 'Glitch' effect is inspired by classic beat repeat and looper effects offering 4 controls - Wet/Dry (sound on sound), Loop size, Pitch, and reverse. Conversely, the Tape Stop effect allows for the perfect punctuation of any audio signal.

Width: 14HP
Depth: 25mm
Power: +12V: 50mA, -12V: 0mA

Notes: Cleverly designed melodic looping sequencer/sampler, offering four pattern banks each with 16 steps, aiming to bring 'DAW-style' workflows to Eurorack - sample reversing, pitch shifting, and so on.

Suppliers notes:
Torus is an overdub looper for harmonic playback. It offers four, 16-step pattern banks for sequencing as well as other sample manipulation techniques. It was designed to bring daw recording workflows (sample reversing, pitch shifting, sequencing, etc.) to eurorack cases.

Inputs:

A, B, C, D - buttons for choosing the current pattern. When combined with chain, these buttons can be used to sequence a pattern chain. Individual chains can be support 16 steps and are kept in sync with torus's global clock.

Chain - button for chaining behaviours. Chain + A, B, C, D can be used to sequence a pattern chain. Chain + record can be used to record multiple patterns in series and then chain playback. Chain + clear can be used to clear all recorded patterns. Chain + tap can be used to reset the current pattern when it contains recordings.

Mix - knob and CV used to blend between the input signal and the recorded pattern.

Record - button and gate in for turning on and off recording. When a pattern is not recorded, record will turn on and in sync with the clock. When a pattern is recorded, record will immediately turn on and off overdubbing.

Oct - buttons for octave shifting pattern buffer playback. Oct buttons can be used to clock divide/multiply an input clock signal.

Reverse - button and gate in for reversing buffer playback.

Harm - knob and CV for choosing harmonic pattern playback speeds. Playback speeds include both integer clock multipliers and perfect intervals.

Tap - button for tapping in tempos for the internal clock. Tap will repeat the current note when the current pattern contains recordings. Combine with chain to reset the entire pattern when the current pattern contains recordings.

Clear - button and gate in for clearing the current pattern. Combine with chain to clear all recorded patterns.

Clock - gate in for clock syncing

In L and in R - audio input, left will be converted to stereo if there is no right input.

Outputs:

Harm out - gate output mapping to harmonic playback resets. This gate output will range from 1-16x the clock out frequency depending on the harm knob/CV value.

Clock out - gate output for the global clock. The output gate frequency will be 0.25-4x the input clock speed based on the oct button state.

Reset - gate output when the current pattern has reset.

Out L and out R - audio output

100 mA +12V 40 mA -12V 0 mA 5V

16 HP 35mm deep

Notes: Module A-112 is the combination of a voltage controlled 8 Bit Sampler and a wavetable oscillator. On top of it the module is able to generate some special effects. A-112 was designed as an additional sound source with the typical sounds of the early 8 bit samplers and is not comparable with the modern polyphonic MIDI samplers available on the market.

Sampling mode: 8 bit audio resolution, 128kB memory in 2 banks 64kB each (equivalent to 2 seconds of sampling time for each bank with 32 kHz sampling rate), audio input with attenuator, overload display in record mode (gate LED), possibility of MIDI Dump to store sounds in a computer via MIDI, non-volatile memory for the 2 samples in the module, manual tune control for adjustment of sampling rate for record and play, CV input (~ 1V/Oct), both manual tune and CV determine the sampling rate respectively the pitch (pitch range is 5 octaves), gate input (not a trigger: the sample starts at the positive edge of the gate signal and is played as long as gate is high or until the end of the sample is reached), manual Gate button, non-filtered audio output (thus quantizing noise can be used as an element of the sound intentionally).

Wavetable mode: special appearance of the sampling mode when playing a sample, the audio input is now used as a second control voltage input for moving through the sample in 256 byte wide loops (wavetables). The control voltage required to move through all wavetables applied to the input "Wave CV In" is in the range -2.5V (wavetable 1) ... 0V (wavetable 127) ... +2.5V (wavetable 256) when control "Atten." is set fully clockwise. To achieve the typical wavetable oscillator sounds the sampling memory must contain corresponding wavetable data (e.g. loaded via MIDI dump). These data contain a set of wavetables with different harmonic content (e.g. a filter sweep) to get the typical wavetable sound while moving through the tables via CV. But you may also use a "normal" sample and go through the sample with CV to obtain partially amazing sounds never heard before. You may use for example sampled speech and go with CV through the syllables or speech shreds to get really very extreme sounds. An ideal addition for this feature is the Offset/Attenuator module A-183-2 which can be used to adjust the position of the wavetable (Offset) and the modulation depth (Att.). The corresponding jumper of the A-183-2 has to be set to bipolar offset (as the A-112 requires -2.5V...+2.5V to pass through all 256 wavetables). As modulation source an LFO (A-145, A-146, A-147, A-143-3), ADSR (A-140, A-141, A-142, A-143-1/2) or a random voltage (A-118, A-149-1) may be used. Even a ribbon controller (A-198 or R2M), the Theremin module A-178, the Joystick A-174 or the Wheels module A-174-2 are useful to drive through the wavetables.

Effects: Additionally, the module offers - in a way free of charge - some effects like delay, reverse delay, pitch shifting or freeze. But it has to be pointed out that due to the 8 bit audio resolution these effects are not comparable to high quality effect units and should be understand as an extra for nothing. The A-112 is not an effects unit!

The sampling time of the A-112 is about 1...30 seconds corresponding to a sampling frequency range of about 60kHz...2kHz (64kB@60kHz ~ 1 s, 64kB@2kHz ~ 30 s).

Technical note: the module uses a battery for the non-volatile storage of the sampling data. Batteries have a limited lifespan and have to be inspected at least every two years. For details please refer to the FAQ page of our website: Lifespan of rechargeable batteries (used for memory backup).

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***


Endless Processor is a dual-channel infinite sound sustainer machine.

Put your favourite instruments, unique timbres, or field recordings - virtually any sound - and make it last forever.

It is not a looper in the usual sense - Endless Processor resynthesizes your sounds to create a perfect clickless stream while preserving the timbral and tonal character of the original.

Endless Processor always listens to audio input and keeps a most recent history. Experiment with sustaining little bits of a sample or make a massive wall of sound with the ability to select how much memorized audio to process.

Stack your sounds to create harmonies, textures, or drones with 5 layers per channel. Each layer can be re-processed or cleared while keeping other ones in place. Set fade-in and fade-out time to quickly or gradually introduce a new layer or remove the existing one.

Additional controls will help you to adjust or shape a channel volume (think built-in VCA).

Dimensions
16 HP
25 mm deep

Current Draw
125 mA +12V
10 mA -12V
