Notes: The successor to Dinky's Taiko, Tyso Daiko is a 12-bit dual digital drum voice, with built-in analogue tilt EQ and wavefolder, plus extensive CV control. Intuitive, powerful and versatile.

Supplier's Notes:
The 'Tyso Daiko' is a dual 12-bit digital wavetable drum voice with full voltage control and an analogue EQ output path.

The twin voices are independently triggered and output, but share pitch, envelope and other parameters of a swept wavetable oscillator. One voice is output through a voltage controlled analogue tilt EQ emphasising upper or lower frequencies.

The other voice is output through a digital wavefolder which adds increasing timbral complexity (to noise).

Both voices respond independently to an accent input and the first voice is able to be 'choked' . A surface control allows for fine control of additional transients from a click to a slow attack. Full voltage control including a V/Oct pitch input makes the Daiko an expressive and wide ranging drum module with extremely wide pallet of sounds with lots of modulation possibilities.

The Daiko succeeds the original Dinky with the same spirit but much improved control, new features and new wavetables.

Technical Specifications

Supply: +12V 70mA Max / -12v 35mA
Size: 14 HP
Depth: 32mm

Notes: Befaco's unique GameBoy-based effects module allows you to change effects by swapping cartridges, all with CV control over key parameters. Effects include Skuara's harsh fuzz, Instruo's micro phaser and much more.

Supplier's Notes:
A crazy idea with the support of a bunch of crazy people.

A Multi FX module based on game carts!

FxBoy is a multi-FX module designed in collaboration with several talented manufacturers.

This is an effect unit with CV control over the parameters and Dry/wet control, with a Built-in CV controllable four bands EQ.

Each effect is physically hosted in a hot-swappable game cart and designed by a different manufacturer: Touell Skouarn with Skuara a harsh fuzz with overdrive, Instruo with micro Phaser, a two-flavoured Phaser, Feedback modules with a vintage Flanger, XOR with FX-Girl, a digital double effect module: Delay + Granularizer, Making sound machines with an analogue Wave folder, Tesseract with a bit crusher and Befaco Trash distortion!

What have these crazy people put in their cartridges?

Trash

Trash is a harmonic distortion that combines both clipping and folding flavours. Modes A and B will select between aggressive and more aggressive flavours!

Flanger

Analogue Wavefolder

Eskuara

AVMA
AVMA by Tesseract Modular is a bipolar VCA with one switchable wavefolder stage followed by an analogue frequency reducer. The VCA gain is x2, it can be used with i5V oscillator signals at the CV input for ring modulation effect.
Micro Phaser

Three cascaded all-pass filters, a built-in LFO and a saturator in the feedback path.

The purpose for this cartridge is to completely f&%k your phase up!

Instruo - We make sounds with the things that we make to make sounds with.

Technical Specifications

CV control over all parameters and Dry/wet
CV controllable four-band EQ, routable post or pre-effect.
Hot swap for all carts.
Selector for two different flavours of each cart.
Open specifications to design your own carts

Specs

Current needs: +12V: 125mA, -12V: 100mA, 5v: 0mA
Width: 12 HP
Depth: 35 mm (including power connector)
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.

Notes: Module A-184-2 is the combination of two functions and planned primarily as an expansion module for VCOs or LFOs (e.g. A-110-1, A-110-2, A-145, A-147-2).

Triangle-to-Sine Waveshaper:

The upper section is a very precise triangle-to-sine converter (thanks to Tim Stinchcombe who recommended this circuit). It can be used to convert any triangle waveform into a (nearly) perfect sine. The converter is much better than the simple diode converter used in the A-110-1, A-111-1, A-145 and A-147-2. Two trimming potentiometers are used to optimize the sine shape. The converter should be assigned to one VCO or LFO because the trimming potentiometers have to be re-adjusted if the input level or DC offset of the input signal changes. If the trimming potentiometers are deliberately mis-adjusted it can be used also as a waveshaper for non-sine waveforms (e.g. sine-shaped at the top of the signal and a peak at the bottom, even voltage controlled by applying an additional voltage to the waveshaping circuit, "circuit-bending" notes will be available).

The waveform converter is DC coupled and can be used also for low frequencies (e.g. LFO triangle waves).

Voltage Controlled Crossfader:

The lower section is a voltage controlled crossfader. It has two inputs A and B. The two signals are mixed together with variable percentage. When the manual control CF is fully CCW only signal A appears at the CF Out socket. When the manual control CF is fully CW only signal B appears at the CF Out socket. In the centre position of the manual control both signal appear with the same level. In addition a control voltage input CV with attenuator is available to enable voltage control of the crossfade.

Two LEDs display the crossfading shares of input A and B.

The crossfader uses two high quality VCAs (SSM2164). Inputs and outputs are DC coupled. Consequently it can be used for audio signals and slowly varying control voltages as well.

The sockets of the upper section (triangle and sine) are normalled to the inputs A and B of the crossfader section. That way the crossfader is used to fade between triangle and sine of the VCO or LFO connected to the waveshaper. If other signals are plugged into the input sockets A and B these signals are used for crossfading.

The main application is to fade between two different waveforms of a VCO or LFO or two different VCF outputs. But the module can be used for any other signals too as the waveshaper and crossfader sections are independent apart from the normalled sockets.

Notes: Versatile and valuable. The amazing Dreadbox Utopia is a CV audio and manipulator. It allows you to control a wide range of different properties inside your Eurorack system. These include four attenuverters, an offset generator, and a four to three mixer. This selection of tools give you the means to take control of your signals and bend them fully to your liking. Helping you put the finishing touches to your synth patch.

40 mA +12V
27 mA -12V
23 mm deep
10HP

Notes: The Erica Synths Black Ring-Xfade is an extremely versatile module for sound shaping. It consists of two unconventional ringmodulators/waveshapers, a crossfader that works both for audio and CV and a VCA. Unlike conventional ringmodulator that works only with a signal present on both signal and carrier inputs, the Black Ring-Xfade passes through the signal without alteration, if no carrier is present, but low level signals on the carrier input result in unique waveshaping. Add the crossfader between two ringmodulators (or as a separate unit) topped up with the VCA, and you have an amplitude modulation powerplant in 10HP!

Ring1 CV; Ring2 CV
These are the ringmodulator carrier (CV level) level controls. Unlike conventional ringmodulator, this one passes signal unaltered, if RING CV is turned down. With increasing Ring CV level a slight waveshaping turns into proper ringmodulation.

Xfade
This is a manual Crossfade control. This fades smoothly between signals patched into XFADE IN1 and XFADE IN2. The XFADE CV is added to the knob position.

Coupling
Set the Crossfader mode - AC is optimized for use with the audio signals, DC - for control voltages (but it will work fine with audio, as well).

Ring 1; Ring 2
The green LEDs give visual feedback on signal levels, applied to XFADE IN1 and XFADE IN2 respectively.

Vol CV
Select the VCA CV response. A 0-10V setting is intended for use with the envelope generator, a -5V - +5V setting - for nice tremolos with a LFO.

Xfade IN1; Xfade IN2
These are the Crossfader inputs. They are normalled to the Ringmodulator ouputs, so, if nothing is patched here, you can crossfade between two ringmodulated signals.

Xfade CV
This is the Crossfader CV input. The CV is added to the XFADE knob setting.

VOL CV
This is the VCA CV input. The VCA is post-crossfade - it controls the amplitude of a resulting signal after the crossfader. It will also work with low frequency control voltages applied to the XFADE Ins - nice for designing unconventional modulations.

Ring1 Out; Ring2 Out
These are the ringmodulator outputs.

Xfade Out
This is the Crossfader output and the main output of the module.

Ring2 In; Ring2 CV
These are the second Ringmoduator signal and carrier inputs respectively. These two are normalled to the RING1 inputs, and if no signal is patched here, the duplicate the first Ringmodulator. Interesting trick is to set RING CVs at different levels and crossfade between two ringmodulator signals.

Ring1 IN; Ring1 CV
These are the first Ringmoduator signal and carrier inputs respectively.

Fade L; Fade R
The red LEDs indicate the crossfader position.

Xfade CV LVL
This is a crossfade CV level attenuator. By adjusting it you can control a span of fading between inputs.

Specs:
Audio level 10Vptp
CV level (full span) -5V - +5V
Power consumption +38mA, -32mA
Module width 10HP
Module depth 35mm

Notes: Erica Synths Black VCO2 is an analogue VCO with built in SAW waveshaper and two modulation LFOs.

Features
Simultaneous sine, triangle, saw and pulse wave outputs
-1 octave suboscillator
Highly accurate and stable tracking across 8 octaves
Saw waveshaper with manual and CV control
Manually adjustable and CV controlled pulse width
Exponential/Linear FM input with an attenuator
2 built-in modulation LFOs
Synchronization input
Octave switch - 7 octaves
Skiff-friendly design
Erica Synths Black VCO2 is all analogue, highly accurate and stable VCO with four simultaneous waveform outputs, one octave down suboscillator and some unique features. Unlike harsh, logic divider based sub-oscillators, Black VCO2 transistor-based suboscillator generates distinct, rounded squarewave. Furthermore, the Black VCO2 has built in SAW waveshaper and two modulation LFOs. Together with Black VCO Expander - waveform mixer you get massive analogue sound source with plenty of patch points for modular use.

Erica Black Series include high-end, unique functionality and superior quality modules. Only the best, highest quality components are used, all inputs and outputs are protected against undesired over-voltage. Erica Black Series consist of range of modules that are needed to put together entire synth.

Technical specifications:
Audio output amplitude: 10Vptp
Octave range: C0 - C8
Panel width: 12HP
Module depth: 35mm
Power consumption: 71mA@+12V, 62mA@-12V
Power consumption w. Expander: 102mA@+12V, 87mA@-12V

Notes: Better known for analogue modules, it turns out Erica Synths are pretty damn good at digital too. Draw your own waveforms, build wavetables, tweak in real time and get freaky. Killer VCO.

Supplier's notes:
Erica Synths Graphic VCO allows you to draw your own waveforms, arrange them in wavetables and wavetable banks, morph between two selected waves and alter the resulting wave in advanced ways (FXes) - apply FM, phase distortion, ring modulation, wavefold/wavewrap, bitcrush.

Waves, wavetables, FXes and other settings can be saved and recalled from the memory instantly. The module has two outputs - the main output and the output with configurable suboscillator.

NB! To have the module functionality up to date, we recommend you to check the Erica Synths home pageor our social media from time to timefor announcements about firmware updates for the Graphic VCO. You can update the firmware of the module via miniUSB cable. More detailed instructions of the firmware update can be found in the User Manual.

The sound is clean, modern, punchy and detailed thanks to the unit running at 96kHz - quite different to some low bit-rate wavetable oscillators on the market. Wavetable interpolation is smooth as butter and with the built-in effects you can dirty things up in many different ways. The module scores highly on the sound front. The Graphic VCO is a very capable oscillator module with excellent sound quality and a lot of features that could make it the right choice, especially if live performance is your thing. - Sound On Sound
The bottom line is that the Graphic VCO is a joy to use. It's a module that's unashamedly digital, yet unmistakably eurorack. I think Erica showed a great deal of careful judgement and restraint in the design of this module. It would have been easy to have made it bloated and cumbersome trying to cram as many features as possible into it, but they kept it fairly simple which keeps the module fun and immediate in use. It's capable of a huge tonal palette ranging from beautiful to brutal that is bound to fit in with a lot of different styles and systems. - Ask Audio
The ability to draw and then effortlessly jump between different custom digital waveforms in this way feels unique on the Eurorack stage, and allows for a wide range of tones and transitions between them. - Orb Mag

Technical specifications:

Audio output amplitude
10Vptp
Octave range
C0-C8
Sample rate
96kHz
Unipolar CV input range
0 -+10V
Bipolar CV input range
-10V -+10V
Panel Width
16 HP
Module depth
30mm
Power consumption
152mA@+12V,
20mA@-12V

Notes: Want some distorted drums or thicken up the final mix but you are short in rack space? Pico Drive is the answer! Pico Drive is combined wavefolder overdrive module that features manually adjustable Gain and Drive level, CV control over Gain and Drive adds more expression, while built in limiter prevents output signal to run into undesired clipping.

Features:
Manual Gain and Drive controls
CV control over Gain and Drive
Wavefolder
Output signal limiter
Input and output protection against undesired overvoltage

Technical specifications:
Audio output level: -5...+5V
CV level (full span): -5V - +5V
Power consumption: 29mA @ +12V, 29mA @ -12V
Module width: 3HP
Module depth: 35mm

Notes: The VCZIII voltage controlled oscillator modules are Feedback's latest creation and are based on the VCOs of one of the most revered analogue instruments, the famous British pin matrix synth released in 1969.

The VCZIII series VCO is a result of the collaboration of Feedback modules and CMS-LAB and is a modern re-creation of those temperamental, organic and beautiful sounding VCOs from 1969 but with enhancements and adaptations to the Eurorack needs of 21st century.

There are two type of VCOs, VCZIII A based on VCO1 with variable shape SINE & SAW waveforms, VCZIII B based on VCO2 & VCO3 with variable TRIANGLE & PULSE waveforms.

Also, each VCO comes in two versions, one with normal fine tune potentiometers and one with precision multiturn potentiometer.

THIS VERSION IS WITH BOURNS MULTITURN FINE TUNE POTENTIOMETER.

Tech specs:

- 12HP width
- 35mm depth behind front panel including the power connector
- standard 10 pin euro power +12V / -12V
- power consumption +12V 50mA , -12V 30mA

Notes: Building on the familiar dual VCO core arrangement of Carrier and Modulator, Mindphaser is a complex oscillator which departs from this bit of ancestral DNA with a modern toolkit focused on searing, phase-modulated leads, percussive basslines and other-worldly effects!

A diverse palette of intermodulation and harmonic experimentation is offered through the Modulation Bus, its unique Waveshaper and the dedicated Thru-zero Phase Modulation Bus. An intuitive interface provides colour-coded visual feedback and responsive indication while performing in dimly-lit environments.

Two precision analogue oscillator cores

Precision, wide-range V/oct ramp cores, each ranging from deep subsonic to supersonic frequencies (ramp cores, and not triangular, deliver the ideal waveforms for analogue phase accumulation in the TZ-PM Bus)
Each core generates fundamental waveshapes which interact and mangle one-another through the complex Modulation Bus and TZ-PM bus
Simultaneous waveform outputs for each base shape
Dedicated button to toggle between RAMP or SAW for each core, inverting the phase of the ramp output
V/oct, linear FM and exponential FM inputs which are all independent of the TZ-PM functionality. The Carrier's FM occurs inside the core itself, separate from the TZ-PM bus.
DC-coupled linear FM

Carrier

The heartbeat of Mindphaser, focused on audio-rate generation. Drives the WAVESHAPER and TZ-PM bus. This core's frequency range spans the audible spectrum.

- An external hard SYNC IN forcibly resets the core, useful for punchy sequences, percussive basslines and drum synthesis -- or to sync to another VCO.

- Coarse and fine controls conveniently span the audible spectrum. Ranges further with external CV.

Modulator

An extremely wide range oscillator, spanning from deep LFO frequencies all the way up to supersonic sound! Four base waveforms and diverse internal routing options form a versatile palette of modulations for the CARRIER to feed on.

- Activating hard SYNC on the Modulator locks its core to the Carrier's heartbeat. The effect can be dramatic. Try this while phase modulating!

- Octave RANGE switch lets you quickly flick up and down between octaves. All the way beyond audio-rate and LFO speed octaves. Perfect for experimenting with different PM sidebands and taming the wide frequency range of the Modulator.

- Manual PW (Pulse Width) control and dedicated CV input for PWM.

Waveshaper

This isn't a classic waveshaper! Developed anew from the ground up, this waveshaper is focused on deep harmonic experimentation and audio obliteration. Each waveshaper parameter is capable of being "turned up to 11".

FOLD up to 5 octaves above the fundamental Carrier frequency. A ceiling forms at maximum, imparting additional harmonics.

FEEDBACK the waveshaped and phase-modulated audio through a signal path internal to the waveshaper.

AMPLITUDE modulation spans thru-zero, allowing for full-range ring modulation effects with bipolar CV or audio signals.

CLIP the final stage of amplitude with the switch to introduce a last stage of harmonics before the complex signal exits through the final OUT.

Switchable inverting attenuators on each CV input, for quickly inverting the behaviour of your modulation. The indicator illuminates red to tell you the attenuator has been inverted.

Two distinct waveshaping modes

A press of the shape switch toggles Mindphaser between RAMPOID (green) and TRIANGULAR (yellow) waveshaping modes.

These modes have a remarkable effect on the behaviour of wavefolding and overall character of the final complex OUT, in addition to TZ-PM Bus character.

RAMPOID mode folds more asymmetrically, with raucous, buzzing harmonic artefacts as you sweep and introduce TZ-PM

TRIANGULAR mode folds more symmetric, splitting the complex sine wave at its peak centre of the waveform. TZ-PM character is less raucous, and more smooth.

TZ-PM Bus

Thru-zero phase modulation in the ANALOGUE realm! Unlike its digital counterpart, analogue TZ-PM has its own character we've come to expect from analogue circuitry!

A dedicated, voltage-controlled phase modulation bus completely separate from the Mod Bus
Modulator's SINE wave normalled to the PM SOURCE input
SOURCE input allows you to modulate phase with any signal you patch in
Dedicated voltage-controlled INDEX (amount)
Manual phase lets you zero in (or not!) on the base phase before introducing modulation
Independent of the Linear FM circuitry in the Carrier core

Mod Bus

The internal modulation powerhouse, normally fed by the Modulator core, but external signals are patchable as well.

Select from the PULSE, RAMP/SAW or SINE output of the MODULATOR, or inject your own SOURCE to the bus.

Voltage-controlled INDEX behaves like a macro control when combined with various amounts and polarities dialled in at each CV destination.

Internal sends include the Carrier's classic Linear FM, Amplitude, Feedback and TZ-PM Index, with variable amounts and polarities!

Modulator waveforms internally feeding the Mod Bus behave unipolarly, for predictable modulation of every Mod Bus destination, without external patching. By patching in one of the Modulator's bipolar waveform outputs manually (or any external signal), you can override this behaviour.

Dimensions
30 HP
24 mm deep

Current Draw
110 mA +12V
100 mA -12V

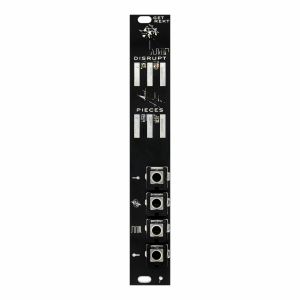

Notes: GETREKT is a full analogue waveshaper - an aggressive one.

Why:

To add saturation and harmonics.
To disrupt - folding - and cut into pieces - clipping.
To generate square waves from other control voltage signals or audio sources.
To invert the polarity of a trigger or other kind of pulses.

With:

Sine waves - hear them scream.
Human voices - fracture them in pieces with clipping as a good ol' broken tape would do.
Complex audio sources - to control and flatten them.
Envelopes going to a drum module - rectify or fold that decay tail.

Dimensions:

4 HP
18 mm deep

Current Draw
35 mA +12V
30 mA -12V

Notes: The Flexshaper is a highly versatile module when it comes to modify evolving voltages in other directions and levels.

Five settings allow you to fold/expand/clip/compress/invert partially or completely any CV or audio signal.

The module can act as an envelope-shaping tool, frequency multiplier, waveshaper, clipper, distortion, limiter, curve changer, and more.

Five CV inputs offer limitless control over the placement of the voltage points for dynamic signal sculpting.

Birth of the product

The idea of the Flexshaper comes from a feature in the Oberheimr Matrix synthesizers called Tracking Generator.

This signal processor was part of the modulation matrix and meant to be virtually inserted between modulation sources and destinations in order to change the shape of the controlling signal.

The Flexshaper applies the same concept using the same 5 shaping points. However, it goes beyond Oberheim's implementation on two main aspects:

It goes fast enough to process signals at full audio rate
The 5 points are dynamically adjustable (CV) in real-time
Besides, the Flexshaper can process adequately bipolar and unipolar Eurorack signals, even changing them one another.

Dimensions
6 HP
21 mm deep

Current Draw
6 mA +12V
7 mA -12V
32 mA 5V

Notes: Arkan

Dual Voltage Polarizer

You may have heard this before: "You can never have enough VCAs". A voltage polarizer (also known as a bipolar VCA or a 4-quadrant multiplier) is often viewed as the VCA better suited for CV. As it can be used as a unipolar VCA and it allows you to invert a signal when it is modulated with a negative voltage. Resulting in interesting movements in your modulations.

What sets Arkan apart from other voltage polarizers is the curvature control, a feature usually only seen in unipolar VCAs. By taking a different approach to the classic voltage polarizer circuitry, Malstrom have devised a unique solution that provides a new way to shape your audio and CV. The non-linearity of the polarizer also makes Arkan really good at reaching silence when presented with a 0V CV signal.

At audio rate, Arkan acts as a ring-modulator with four controls to change timbres.

Boosting adds odd harmonics (symmetrical distortion), while offsetting adds even harmonics (asymmetrical distortion). The modulation curve changes ring modulation sharpness, and modulation strength determines the carrier dominance.

Two identical channels with carefully selected features will make Arkan your go-to modulation control hub. Arkan is especially useful for common utility duties such as mixing, scaling, inverting and offsetting. As well as CV modulation, feedback patching, and waveshaping. All this makes Arkan a very versatile tool that will certainly have a place in your patch!

Features (per channel)

- Input attenuation with inverter switch gives you more precision and range, with voltage inversion and quick silencing.
- Bias input with attenuverter control to offset your input signal or mix/invert another signal.
- CV input with curvature control allows you to shape the polarizer and improve its 0V attenuation.
- CV modulation control to fade in the modulator, allowing you to determine the amount of modulation.
- Voltage gain and polarity led indicators showing you exactly what is happening under the radar.
- Output normalled internally and externally (to other Arkans) to easily mix signals.

Additional features

Optional signal boost (x4 / +12dB) via switch on the PCB to increase voltages when needed.
5V or 10V voltage reference selection for bias voltage and CV input range to adjust Arkan to your system.

Dimensions
- 8HP.
- 28mm, Skiff-friendly.

Power consumption
- 90mA @ +12V.
- 85mA @ -12V.

I/O specs

- All inputs DC coupled.
- All inputs handle audio signals.
- All inputs have 100k input impedance. - All inputs have +-10V Input range.
- CV range +-5V or +-10V.
- Bias Voltage range +-5V or +-10V.
- Boost gain x1 or x4.
- All inputs are overvoltage protected.
- Keyed power header.
- Reverse power protection.

Notes: Welcome to the Rosci soundscape. Rosci is a digital VCO that generates random waveforms to create unique, rich, and full sounds. You are able to control how complex the sound is-add harmonics and have a completely unique shape generate using the generate button/trigger. BUT, it can also be tuned to output basic waveforms (sine, square, sawtooth) if you so desire.

Tunable parameters breakdown:

COMPLEXITY: Essentially a generation of unique timbre.
ROUNDNESS: Set the basic shape of your waveform. Go from from sharp to soft sound, similar to filtering.
HARMONICS: Add up to 6 harmonies to your sound. The choir's here.
FORMANTS: Accentuate certain overtones in your sound (like a voice singing "ooo", "ahh", "eee").
DETUNE: Add a classic 'detune' with a changing phase wave for extra wide sound.

How does it work?

It is a pipeline of algorithms, which generates and modifies a waveform starting from top to bottom. Rosci works on a principle of key points: the generate button generates key point location and amplitudes to be passed down the pipeline.

Tunable parameters:

Beginning with complexity, you set the number of key points (even numbers only to create a waveform). Lowest complexity sets two points, and highest complexity sets up to 20 points. The number of key points will vary with each waveform generated. From there, the roundness sets the type of interpolation of the key points, from square to sine. Adjusting the harmonics creates copies of the waveform and adds them to the original waveform at double, triple, ... up to 6x the base frequency. Formants maintains the frequency of the wave, but squishes it so there is 'empty space' in between (this is also called pulsar synthesis). Finally, detune copies the waveform and 'detunes it' by increasing the frequency ever so slightly. And there you have it: a unique Rosci soundscape :)

Technical specs:

Module Size: 3U X 6HP X 25 mm Deep.
Current Draw: 160mA@ 12V, 20mA@ -12V.

What's in the box:

1x Rosci module
1x User Manual
1x Power cable
2x Mounting screws

Notes: Punch is the ultimate VCA-DECAY module for Eurorack

Specially designed to generate dynamic percussive sounds but also capable of basslines, leads, envelopes and more. The VCA has a built in voltage controlled Decay envelope that can be turned from smooth to more aggressive exponential responses and can be activated with triggers, gates or cv's.

Punch features two modes per channel to play, with a dedicated switch control: "vintage style drum machine mode" and "dynamic cv mode"

Punch is capable of creating AM sounds with control voltage on the "amount"

Each envelope can be inverted via dedicated switches on the front panel.

If you use an inverted envelope alongside the accent input you can create ducking effects like side-chain compression..

INSTALLATION:
* Disconnect your synth from the power source.
* Double check polarity from the ribbon cable, unfortanetly if you damage the module by powering in the wrong direction it will not be covered by the warranty.
* After connecting the module check again you have connected the right way, the red line should be on the -12V.

Notes: Reduxer is a stereo sample reducer effect module.

Depends on it's signal, It can produce dynamic range of sounds from knurly bitcrushing to formant/vowel style effects.

Extra resolution

Custom made Redux potentiometer with 300 degrees rotation for extra crashing resolution.

Double the power

Two proprietary sample reduction circuits with extra offset control on channel 2 via the "Spread", lets you create motion in the streo field for wider effect.

Stereo operation

Inputs are normelized - supporting mono to stereo configuration.

Reduction under control

Redux CV input with attenuator for external control of the bit reduction rate.

Reverse polarity protection

The module have proper reverse current and over current protection in its power input stage to protect the module in case it was connected the wrong way or connected to a faulty power supply.

Dimensions

Width: 8HP
Depth: 20mm

Current draw

+12V: 25mA
-12V: 25mA

Notes: C4RBN is a 4/2-pole state variable filter with input saturation, output wavefolding and more. It offers a wide range of characters, from nice and clean filter sounds to screaming, squeaky, sounds.

An innovative input saturation circuit and the output wavefolder of WMD's classic SYNCHRODYNE filter bring great sonic flexibility.

Features:

3 independent 2 pole outputs for High Pass, Low Pass, and Bandpass
Inverting Attenuator (attenuverter) for FM allows for positive and negative CV control over the cutoff frequency
Independent 4 Pole output with switchable frequency response
Input Saturation with 3 switchable levels and CV input for additional fine control
PING circuit generates a fast decay envelope emulating the response of a vactrol
Output wavefolder for extra bite and screaming character
Resonance with self oscillation
Temperature compensated 1V/Oct tracking.
Performance focused control scheme allows for on-the-fly changes of filter types with intention

Power consumption: 92mA at +12V and 82mA at -12V

Depth: 38mm

HP : 4

Notes: Part of Xaoc's Leibniz Binary Subsystem, the updated Drezno ADC/DAC module builds on the original with higher resolution converters, allowing you to use it for pitch quantisation.

Supplier's Notes:
Drezno II is an improved version of the original Drezno module. It is an essential member of the 8-bit Xaoc Devices Leibniz Binary Subsystem. The Leibniz subsystem is a family of modules that operate on 8 binary (two-state, on/off) signals. These signals are arranged as 8 bits of digital data and may represent analogue signals and voltages, or they may be whatever you want them to be (clocks, gates, rhythms, etc.).

Drezno features an ADC (analogue-to-digital-converter) and DAC (digital-to-analogue-converter), allowing it to act as an analog front-end of the system. In other words, Drezno allows one to convert analogue signals and CVs into digital numbers, as well as to obtain analogue signals back from some other digital numbers (or 8 binary signals). Between these two conversions there is a whole universe of digital shenanigans waiting to happen resulting in all kinds of signal transformations and modulations.

Both (ADC and DAC) sections of Drezno can work independently, or they can be linked. Input and output range of analogue signals may be adjusted using Gain and Offset sliders. Individual bit outputs (for the ADC) and inputs (DAC) allow for extensive cross-patching and the creation of complex waveforms and rhythms. A very fast clock (up to 2MHz) at which the conversions are performed may be replaced with any external clock (for each section separately).

Compared to its predecessor, Drezno II uses new converters of much higher resolution which results in much lower noise floor and higher accuracy. The lower bits are much more stable than before. It is easy now to use Drezno for quantizing pitch voltages with accurate results with 128 or 256 semitone steps. Potentiometer ranges are factory calibrated for precise chromatic scale. A new switch on the front panel allows the user to select the calibrated range of 10Vpp or 20Vpp, so that the lowest bit or the second bit correspond to 1 semitone.

Technical details

Eurorack synth compatible
12hp, skiff friendly
Current draw: +80mA/-50mA
Reverse power protection

Notes: The new component of the Leibniz Subsystem which operates on signals and voltages through manipulating binary 8-bit numbers. Jena connects to the Drezno module in a loopback. A binary transfunctioner maps input functions (eg. waveshapes) to some other functions through the classic table look-up mechanism. Input 8-bit values are treated as indices to an internal memory map. The value read from successive locations of the memory are passed to the output.

A simple VCO sawtooth or a triangle wave may be transformed to a plethora of waveshapes from any of the shape banks, with additional, deep through-zero phase modulation. Individual bit outputs may be used to produce interesting signals as well. There is a dedicated bank of Walsh functions i with these signals you can perform additive Walsh synthesis, not very common in Eurorack, but a quite powerful technique.

Transforming slow waveforms to sequences of binary signals is a great way to create rhythmic drum patterns. Jena comes with a special bank that has plenty of such patterns i just connect up to 8 drum voices to individual bit outputs on Jena. The rhythms can be selected or morphed on the fly through external CV input.

Obviously, being limited to 8 bits both in phase and signal value, Jena will not deliver crystal clear timbres you may know from many wavetable oscillators. Instead, it offers buzzy, jittery and gritty sounds as well as jerky and skippy rhytms, just like vintage computers, that were sometimes unreliable and unpredictable.

Digital waveshaper and function mapper
Through-zero phase modulation
Walsh function generator
Drum pattern generator
Voltage controlled bank and shape scanning.

Dimensions
8 HP

Current Draw
70 mA +12V
50 mA -12V
