Notes: Emulate the nostalgic sounds of old audio equipment with the 2hp Lo-Fi. Finding inspiration in quirks and happy accidents found in audio devices of the past, Lo-Fi can take any sound and give it the magic of tasteful degradation.

Lo-Fi carries two degradation modes: Analog and Digital. In the analogue mode, control the amount of wow and flutter for anything from subtle to dynamic pitch fluctuations, tickle the sonic spectrum with ASMR hiss and crackles, and warm up the coldest sounds with tape compression and saturation. In digital mode, dial in BitCrush amount, sample-rate reduction, and the wildest distortion in 2hp to cover your sound in digital crunch, or emulate blown out speakers.

With CV control over each function, and an ultra-crisp audio pass through, take your patch from hi-fi to lo-fi at a moment's notice. Get reel with the 2hp Lo-Fi!

Tech Specs: Width: 2HP, Depth: 45mm, Power Consumption: +12V=82mA -12V=4ma +5V=0mA

Notes: Emulate the nostalgic sounds of old audio equipment with the 2hp Lo-Fi. Finding inspiration in quirks and happy accidents found in audio devices of the past, Lo-Fi can take any sound and give it the magic of tasteful degradation.
Lo-Fi carries two degradation modes: Analog and Digital. In the analogue mode, control the amount of wow and flutter for anything from subtle to dynamic pitch fluctuations, tickle the sonic spectrum with ASMR hiss and crackles, and warm up the coldest sounds with tape compression and saturation. In digital mode, dial in BitCrush amount, sample-rate reduction, and the wildest distortion in 2hp to cover your sound in digital crunch, or emulate blown out speakers.

With CV control over each function, and an ultra-crisp audio pass through, take your patch from hi-fi to lo-fi at a moment's notice. Get reel with the 2hp Lo-Fi!

Tech Specs: Width: 2HP, Depth: 45mm, Power Consumption: +12V=82mA -12V=4ma +5V=0mA

Notes: Loop is a high fidelity looper with four unique recording modes and an intuitive user interface. It can capture up to five minutes of audio with reverse, and half-speed playback accessible. Each recording can use one of four modes: Sound on Sound, Dub, Replace, and Infinite (i.e. Frippertronics). Whether you're looking for minimal part layering, or full blown ambient soundscapes, Loop will take your patch for a ride.

High fidelity audio - 24-bit, 48kHz with five minutes of recording time
Four recording modes: Sound on sound, Dub, Replace, and Frippertronics
Intuitive interface
Half speed and reverse playback

Tech Specs:
Width: 2HP
Depth: 42mm

Notes: Loop is a high fidelity looper with four unique recording modes and an intuitive user interface. It can capture up to five minutes of audio with reverse, and half-speed playback accessible. Each recording can use one of four modes: Sound on Sound, Dub, Replace, and Infinite (i.e. Frippertronics). Whether you're looking for minimal part layering, or full blown ambient soundscapes, Loop will take your patch for a ride.

High fidelity audio - 24-bit, 48kHz with five minutes of recording time
Four recording modes: Sound on sound, Dub, Replace, and Frippertronics
Intuitive interface
Half speed and reverse playback

Tech Specs:
Width: 2HP
Depth: 42mm

Notes: Play is a high-fidelity sample player with a full feature set.

Up to 32 samples can be loaded at a time and dynamically switched between using the file knob and associated CV input. Playback modes include one-shot, looping, or gated playback; all with extremely low latency. Transform your samples by pitching them up two octaves or down three octaves, all with a pitch knob that can be free running or quantized to semitones. The pitch CV input tracks volt per octave across its entire range and allows for musical sequencing of samples. Play ships with a pre-loaded SD card packed with loops, drum hits, and field recordings to get you up and running immediately.

Notes: Get glitchy with it.

The 2hp Slice is a compact beat repeat/glitch engine built to add clickless stutters, digital glitches, and more to your patch. With an onboard Triplet button, seamlessly switch between straight beat repeats to offset triplets, perfect for those trap style fills you can't live without. With massive repeat range, and CV/Gate inputs for complex glitch sequencing, Slice is everything you need to get glitchy with it, all in 2HP.

Tech Specs

Width: 2HP
Depth: 45mm
Power Consumption: +12V=83mA, -12V=8mA, +5V=0mA

The 2hp Slice will be available in both Silver aluminium and Black PCB front panels.

The 2hp Slice ships with a 10-16 power cable and 2 Silver M3 mounting screws.

Notes: Swarm is a hyper-oscillator capable of an array of patch-filling sounds. Create super-saws, tonal noise hurricanes, and thick bass and lead lines.

Swarm is comprised of a large set of oscillators (up to 88 voices!). Control the number of available oscillators with the Voices control, and dial in the desired amount of pitch variance across the voices with detune. Take Swarm's oscillators from a rich thickening of sound to atonal chaos in the turn of a knob! Swarm also provides macro pitch control with the Freq knob, which also tracks 1v/oct through its CV input. A waveform toggle is also available for switching between sawtooth and pulse waveforms, expanding the timbral palette Swarm offers! Design pumping trance leads, minimoog style basslines, and more with Swarm!

Tech Specs:

Width: 2HP
Depth: 45mm
Power Consumption: +12V=82mA -12V=4ma +5V=0mA

Notes: Swarm is a hyper-oscillator capable of an array of patch-filling sounds. Create super-saws, tonal noise hurricanes, and thick bass and lead lines.

Swarm is comprised of a large set of oscillators (up to 88 voices!). Control the number of available oscillators with the Voices control, and dial in the desired amount of pitch variance across the voices with detune. Take Swarm's oscillators from a rich thickening of sound to atonal chaos in the turn of a knob! Swarm also provides macro pitch control with the Freq knob, which also tracks 1v/oct through its CV input. A waveform toggle is also available for switching between sawtooth and pulse waveforms, expanding the timbral palette Swarm offers! Design pumping trance leads, minimoog style basslines, and more with Swarm!

Tech Specs: Width: 2HP, Depth: 45mm, Power Consumption: +12V=82mA -12V=4ma +5V=0mA

Notes: Capture the iconic sound of tape sliding to a halt with Tape Stop, a clock syncable tape stop module that puts this classic effect at your fingertips. Originally an accidental artifact of analog tape, this effect has become a beloved tool in music genres from hip-hop to IDM. Now, it's fully controllable in your modular system.

Adjust the Lag to set the stop length, then tap Trig to activate. Hit it again to resume your audio seamlessly. With clock sync, your stops and starts stay perfectly in time, and a toggle lets you switch between momentary and latching Trig modes. Add a touch of tape magic to your modular system with Tape Stop!

Notes: Capture the iconic sound of tape sliding to a halt with Tape Stop, a clock syncable tape stop module that puts this classic effect at your fingertips. Originally an accidental artifact of analog tape, this effect has become a beloved tool in music genres from hip-hop to IDM. Now, it's fully controllable in your modular system.

Adjust the Lag to set the stop length, then tap Trig to activate. Hit it again to resume your audio seamlessly. With clock sync, your stops and starts stay perfectly in time, and a toggle lets you switch between momentary and latching Trig modes. Add a touch of tape magic to your modular system with Tape Stop!

Notes: Vowel is a speech synthesis and formant oscillator. It synthesizes and approximates the human voice by generating vowel sounds. These can be manipulated to provide deep low baritones, or high pitched squeaks. Two unique algorithms provide separate takes on this exciting synthesis method and allow for a multitude of talking synth sounds.

Notes: The Listen Four is a four channel stereo mixer with line, modular, and headphone outputs. Two mono channels with Pan knobs and two stereo channels with dual inputs provide optimal compatibility with both stereo and mono signals. The Listen Four can be daisy-chained to other Listen modules to create a larger mixer with sub-mix outputs.

Notes: The MetaModule Audio Expander (MetaAIO) adds an additional 6 CV/Audio inputs and 8 CV/Audio outputs to your MetaModule patches, via a ribbon cable connected to the main MetaModule. The MetaAIO provides the same high-quality as the MetaModule's Audio/CV jacks (24-bit, 48kHz default, up to 96kHz).

Notes: The Pod40X is 40HP with 2.00" (51mm) of available module depth. The built-in power supply has four power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick. If you already have a powered Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain powered Pods.

The Pod40 includes ten (10) M3x8mm stainless steel screws and is compatible with M3 Knurlies.

Notes: The Pod48X is 48HP with 2.00" (51mm) of available module depth. The built-in power supply has four power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick. If you already have a powered Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain powered Pods.

The Pod48X includes ten (10) M3x8mm stainless steel screws and is compatible with M3 Knurlies.

Notes: Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod60 is 60HP with 1.34" (34mm) of available module depth. The built-in power supply has four power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick. If you already have a powered Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain powered Pods.

The Pod60 includes twenty (20) M3x8mm stainless steel screws and is compatible with M3 Knurlies.

Notes: Row Power is a clean, regulated, and protected power solution for eurorack systems. Row Power 35 provides 35W of power, suited for any typical eurorack row (84HP to 168HP):

+12V @ 1.4A
-12V @ 1.25A
+5V @ 1.0A

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying-bus cables or the Bus Stick.

Daisy-chain multiple Row Powers to use a single power brick for multiple rows (typically 3-5 rows per power brick). Each row will be independently regulated and protected for ultra-low cross-talk between rows. Rows can also be hot-swapped (plugged/unplugged without powering the whole system down).

Notes: Row Power is a clean, regulated, and protected power solution for Eurorack systems. Row Power 45 provides enough power for two to three typical Eurorack rows (typically up to about 312HP):
+12V @ 2.0A maximum, 1.5A recommended
-12V @ 1.4A maximum, 1.2A recommended
+5V @ 1.5A maximum, 1.2A recommended

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying bus cables or the Bus Stick. For custom power systems, the Row Power 45 has a set of easily soldered holes for using large gauge wire or MTA156 connectors to connect to distribution bus boards.

Multiple Row Power modules can be powered from a single power brick by daisy-chaining with an inexpensive barrel cable. The Row Power 45 can also be daisy-chained to 4ms Company's Pod enclosures. Each power supply is independently regulated and protected for ultra-low cross-talk between rows/pods.

The Row Power 45 is compatible with the 4ms Row Power Shield. This device (sold separately) attaches to the back of the Row Power 45 and monitors the amount of current being drawn, as well as the voltages of the power rails. The information is sent over Bluetooth to be displayed on a phone or tablet.

Electrical and Mechanical Specifications

Module Size:
4 HP Eurorack format module

Power Output:
Maximum average load under normal conditions: +12V @ 2.0A, -12V @ 1.4A, +5V @ 1.5A
Maximum average load under any condition: +12V @ 1.5A, -12V @ 1.2A, +5V @ 1.2A
Powered by laptop-style DC power supply: 2.1mm barrel, positive center, 15V-20V.

Included with the Row Power 45:
16-to-16 pin power cable
2 M3 Knurlie screws

Notes: The SCM Plus is a clock multiplier with eight gate outputs and complex beat manipulation features. It combines the classic Shuffling Clock Multiplier (SCM) and SCM Breakout (SCMBO) into a single module using higher precision hardware than its predecessors.

Specs:

Electrical and Mechanical Specifications

12HP Eurorack format module
0.95" (24mm) maximum depth (includes power cable)
16-pin Eurorack power header

Power consumption
+12V: 52mA max
-12V: 15mA

Clock Input
2.5V threshold
40kHz maximum

Clock Outputs
12V gate outputs, rise/fall time approximately 1us
40kHz maximum
Jitter (x1 output): max 30us < 120BPM, max 5us >= 120BPM
Latency (clock in to x1 output): 8us worst-case, 3.5us typical

CV Inputs:
Rotate, Slip: Knob attenuates jack signal. Full range: 0V to +3.3V
Shuffle, Skip, PW: Knob offsets jack signal. Full range: -5V to +5V
Gate Inputs:
4x Fast, Mute: 2.5V threshold. Button toggles state.

Review: 69 Love Songs by The Magnetic Fields is an audacious feat that toes the line between brilliance and sheer audacity. Clocking in at three hours, this magnum opus is a sprawling exploration of love in all its forms. Stephin Merritt and his collaborators craft a diverse sonic landscape, ranging from giddy lust to resignation and despair, and from genre exercises to archetypal Magnetic Fields songs. The album's sheer scale may initially seem daunting, but Merritt's exceptional songwriting and the band's eclectic instrumentation ensure that each track holds its own. The individual songs offermany moments of small epiphanies and emotional resonance. 25 years since it was first released, 69 Love Songs continues to gain new fans and make original ones keep coming back.

Notes: Following the ADDAC103 T-Networks, this new module is also inspired by Twin T-Networks circuits used in many lengendary drum machines. A simple 4 voice module with frequency controls for each of the voices. This new module also features CV inputs with attenuverters for each voice Frequency. Due to the specificities of the circuit, and to keep the module at a low price, these inputs are not callibrated to 1v/octave.

At each voice input there's a gate to trigger converter so any input source is possible.
Audio inputs can also be used as an input, in this case and due to the nature of the gate to trigger converter, each voice can be used as very destructive filters.

The top 2 channels feature a higher frequency range, the bottom 2 channels feature a lower frequency range.

Notes: This new module should not be judged by it's size, at 6hp it's packed with features.

At its core it features a noise source and two precision Sample & Holds with 0.01% of maximum deviation from the Input which allows for quantized signals to be sent through without any noticeable detuning or the typical voltage drops over time.

The Sample & Hold sections can also be used as a Track & Hold meaning it holds the incoming input while the Trigger input is ON and lets the input flow to the output when the Trigger input is OFF.
Each section also features it's own slew processor with a single control over attack and decay and an ON/OFF switch.

The noise signal is normalled to both sections inputs, meaning that without a jack plugged into the Input the sample and hold function will act upon the incoming noise signal generating random CV values.

The [Trigger A Alternate] switch allows to Link both sections so that any trigger input in Trigger A will alternate between triggering the A and B section.

Besides each section outputs there's also 4 extra outputs: Noise, Difference, Average and Sum. The Noise output is coming from the noise source, the Difference output is the subtraction of section A minus section B, the Average output is the sum of both A plus B and then divided by 2 and finally the Sum output is the sum of both A plus B sections.

MECHANICAL:
Format: Eurorack
Width: 6 HP
Depth: 4 cm

ELECTRICAL:
Max current: +50mA/-50mA
Bus Board Cable: 8 × 2 IDC (Doepfer style) connector

Notes: Really nice stuff here. The filter circuit from ADDAC's 4 Voice Cluster module gets reimagined as a multi-mode stereo or dual mono filter module. A lot of filter action in just 6hp.

Supplier's Notes:

While developing the ADDAC105 4 Voice Cluster module, a new multimode filter to place after the summing mix stage- and the results were so postitive that it was released as a dedicated filter.

To make it more interesting, the circuitry was duplicated, to be able to use it in a stereo signal path.

To make it more versatile, a switch was added to set the working mode from Stereo to Dual Mono where both filters can be used independently.

In Stereo Mode the Left Cutoff is used to control the Right Cutoff.
In this case the Right Cutoff Knob and CV Input are simply bypassed and will have no impact on the Right Channel operation.
This allows immediate sync of both filter frequencies when the Stereo position is engaged.
Optionally there's a jumper in it's back that, when placed, connects the Right Controls back to the Right CV control allowing the possibility to control the offset of the Right Channel Cutoff.

Resonance is independent on both Modes and still has to be set manually to match both channels.

Both the Audio and CV inputs are normalled from the Left into the Right channels.
As standard plugging any input to the Right channels removes this connection.

Tech Specs:
6HP
4 cm deep
70mA +12V
70mA -12V

Notes: Inspired by our ADDAC701 VCO waveform mixing section, our new VC Signal Router also updates our legacy X-Fade/Panner to a stereo configuration that also allows 4 quadrant mixing.

Featuring two dedicated X-faders and a stereo VCA that can also be used as a third X-Fader. All controls have their own CV inputs and dedicated Attenuverters for precision control.

4 quadrant mixing is achieved by using the stereo Master as a X-fader between left and right channels, this way you can plug 4 audio sources and sweep/crossfade between each and any of them using the 3 x-faders. Plug any 4 sources (4 waveforms of a VCO, 4 LFOs, 4 envelopes...) and sweep through morph through or have them all mixed together.

For other configuration types Left and Right X-fader channels can be routed through the Master stereo VCA or sent directly to the outputs. A stereo Direct input can also be routed through the Master VCA or sent straight to the outputs.

The Mono Sum output always mix Left and Right outputs together allowing the possibility to use the module as a peculiar 6 channel mono mixer.

It can be used for both Audio or CV Signals.

Tech Specs:
8HP
4.5 cm deep
40mA +12V
40mA -12V

Notes: Alan (micro Turing Machine) Shift Register Based Sequencer

The randomness of the Music Thing Modular Turing Machine, shrunk down to 6HP. Alan retains all of the same functionality as the original including the connectors for the expanders.

While this module has little to do with the original Turing Machine (by Alan Turing), it is a shift register based sequencer. You cannot program this sequencer, instead it builds random sequences that can be locked in.

Alan comes tested, calibrated and ready to bring random voltages.

The After Later Audio panel is black and gold and made from FR4. The package will include a power/ribbon cable and a one year warranty.

Notes: Two channel expander for Bartender

Mixer section

Each channel has the following:

Stereo or mono - Each channel can be treated as a stereo channel or a mono channel with two summed inputs.

CV inputs for both panning and level control

Two send buses - You can route each channel to one of two send buses. Each send bus is stereo. You can choose if you want the send to come before or after the level/panning controls.

Mute - The mute has both latching mute (up) and a momentary mute (down). The mute uses a capacitor to slow the turn off and on of the mute action. So it is mostly click-less, but you may find an occasional pop.

Cue bus - You can route each channel to the cue bus.

Expandable Mixer Series

Bartenders can be cascaded to create 8ch, 12ch, or 16ch mixer. The main level is what is sent the main level control can act as a group control.

Barbacks can be added to add 2ch to your mix. Barbacks can also be cascaded enabling up to a 16ch mixer configuration.

Send-VCA can be added for CV control of the level of the send.

DVCA, Cast Iron, Mingles, and USB-2CH can all be connected with Dupont cables (aka female to female breadboard cables) via pin headers on the back of the modules. Connecting the in and out pins will send/receive the audio into the next module.

Width: 10hp
12V: 125mA
-12V: 100mA

Notes: uBurst

This is a new build of the micro version of Mutable Instruments Clouds. The module retains all the functions of the original Clouds, taking up significantly less rack space.

These modules use tall bushing potentiometers to offer a more stable feel.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.

Notes: An 8hp version of the retired Mutable Instruments Grids. It is an identical functional clone, so it will behave in the same was as the full size version, and will run any firmware that runs on the full size version.

Notes: DJ-friendly version of AIAIAI's excellent modular headphones. Configured here with punchy S02 drivers, on-ear PU leather earpads and coiled cable.

Supplier's notes:
TMA-2 DJ has been put to the test on stages all over the world. With its reinforced headband and powerful bass, it's a specialized piece of equipment for the hardworking musician.

The titanium-coated S02 speaker unit delivers a punchy and intense sound representation focused on bass and low-end dynamics. Combining the durable H02 nylon headband and the E02 on-ear PU leather earpads providing high isolation results in a powerful sturdy headphone suitable for live performance and electronic/bass heavy music.

In the Box.

S02 Speaker unit: Punchy.

E02 Earpads: PU leather, on-ear.

H02 Headband: Nylon, Silicone padding

C02 Cable: Coiled w/adaptor, black, 4 mm, 1.5 m.



Technical Specifications.

Driver diameter: 40 mm

SPL: 117 dB

Resonance frequency: 90 Hz

Impedance: 32 Ohm

Rated power: 30 mW

Max power: 70 mW

Diaphragm material: Titanium Coated

Magnet type: Neodymium

Notes: Updated with new driver construction and recycled materials, AIAIAI's Studio model is designed for production work and mixing, featuring the same top quality modular design as the brand's other TMA-2 models.

Supplier's Notes:

Signature AIAIAI bio-diaphragm speaker tuned for clarity and detail.

Critically acclaimed sound stage specifically designed for music creation with a clear and highly detailed sound representation.

Enhanced comfort with Alcantara.

Ultra soft over-ear memory foam cushions covered with resilient, CO2 neutral, and highly comfortable Alcantarar ideal for longer sessions.

Versatile.

Trusted for music creativity in all environments - in the studio, on the road, and on stage.

Modular product design.

This TMA-2 modular headphone system offers a customizable solution that adapts to your creative process. With interchangeable components such as earpads, cables, and drivers, you can upgrade or change parts of your headphones to improve sound quality, comfort, or style.

Headphones for life.

AIAIAI offer lifetime trade-in for your headphones or modular parts. With this program, users can leverage the modular product design to get maximum value from their purchase by swapping out used or non-functional headphones or parts for future credit. This means only investing in one pair of headphones, for life.

Signature AIAIAI sound tuned for clarity and detail
Bio-diaphragm speaker for enhanced accuracy
Enhanced comfort with Alcantarar
Responsible modular headphones - headphones for life
High quality cable

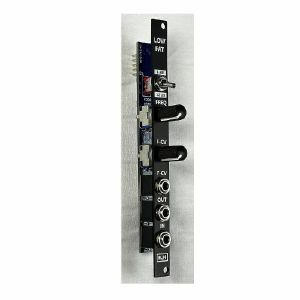

Notes: The Low Fat is a new 2hp Eurorack module by AJH Synth, it's a High Pass filter, with frequency control by either manual pot, and/or external CV with attenuator. It's intended to compliment other filters, particularly low pass VCF modules, in practical tasks such as removing excessive low frequencies, for example when the bass is swamping a mix. It can be switched between 6dB (1 pole) response and 12dB (2 pole) response.

By patching a CV signal to the FCV input it can be voltage-controlled and used musically as with any other VCF. When used in conjunction with a LP filter it forms a fully customisable band pass filter, allowing the range of passbands to be cherry-picked. Feeding in a 1V/Oct pitch CV and setting the FCV pot to a suitable level allows it to track an incoming pitch CV, so the amount of High Pass filtering remains constant as the pitch of the incoming VCOs traverse up and down the frequency range. This can be particularly useful in creating percussive sounds, such as snares and hats, but also on sequenced bass lines. Since it is only 2HP it's a great way to occupy one of those frustrating gaps in your eurorack modular case with something that is deceptively useful, and adds another dimension to the classic bass monster that is the Transistor Ladder Filter.

Dimensions:
2 HP
26 mm deep

Current Draw:
9 mA +12V
12 mA -12V
0 mA 5V

Notes: This useful module is a Bipolar Mixer, DC voltage source and Linear DC coupled VCA.

- With no input to channel 1 the Input 1 pot becomes a voltage source with a range of +/- 6V.
- The control pot and input for channel 4 can be switched to become an offset control and/or a second CV input for the VCA.
- Input 3 has 2x gain, so it can amplify lower level CV's too.
- All inputs are bipolar, which means that either non-inverted or inverted version of the input signal can be added to the mix depending upon the Input control being turned clockwise (non-inverting) or anti-clockwise (inverted). The 12'o'clock position is zero.

Notes: The Tone Science Chance Delay is a unique concept in Eurorack modules as it combines chance and randomness, with pulse delay and pulse conditioning. It is a collaboration between electronic musician/composer Ian Boddy and AJH Synth.

It can perform as a Chance generator, but is also capable of pulse stretching for Trigger to Gate conversion, pulse shortening for Gate to Trigger conversion, Gate Delay, Sub Bass Generation and also "divide by n" clock division.

There is a wide range of control and all functions can be operated manually from the front panel or can be automated using external CV voltages. Chance can range between 0 to 100%. The Gate out can be delayed by anywhere between from 0.5mS to 30 Seconds, and the output Pulse length can also vary from 0.5mS to 30 Seconds.

The TRIG push button allows manual triggering of pulses, also determined by the Chance control, and a green LED shows the output pulse status.

Includes a handy "Gate pass through" mode; when the Length control is set to zero the incoming pulse or trigger will still be determined by the Chance and Delay controls, whilst the outgoing gate length will be the same as the incoming gate length.

Compact 8hp form factor and very low power consumption make this an excellent addition to any Eurorack system.

Key features:

Chance, Gate Delay time and Pulse Length can all be set manually or controlled using external CV voltages.

The 'TRIG' push button allows manual triggering, and Chance will be applied to any manual triggering too.

Fast processing allows operation into the lower audio range, so it can perform sub bass generation on drone type sounds. In this mode the Length pot (or an external Length CV) can be used to change the PWM of the output waveform.

After the initial trigger pulse has been acted on, further incoming pulses are ignored until the current cycle has finished. This useful feature allows it to perform "divide by n" division on gate pulses, so it can be used for clock division, and the delay function can be used to add a "swing" away from the rhythm.

Gate pass through mode - if the Length pot is set to zero, then the incoming gate length is preserved, so in this case the gate has Chance and Delay time applied to it, but the outgoing gate length is the same as the incoming gate length.

By setting Chance to 100% and Delay to zero (0.5mS) it can be used as a Gate to Trigger converter, or a Trigger to Gate converter, depending on the Pulse length set with the LENGTH control. We can also use an external Length CV to shorten or increase the length of the output pulse in real time.

Fast and slow ranges for both DELAY time and PULSE length - Fast range is 0.5mS to 2 Sec and Slow Range is 2 Sec to 30 Sec.

Green status LED shows when the output pulse is high.

Front panel controls

Chance Control and CHA Input

This sets the probability of an incoming trigger or gate being passed through to the Pulse Generator circuit. The chance can be set anywhere between 0% and 100%.

The CHA input allows an external control voltage (CV) to control chance remotely. In this mode the Chance control acts as an attenuator for the incoming CV. With the Chance control fully clockwise a CV of +5V will give 100% chance, and lower CV voltages reduce the Chance accordingly. For example, a +2.5V CV will give a 50% chance. The attenuator function is useful if we are using higher control voltages of for example 0 to +10V. If we set the Chance control to the 12 o'clock position it would then halve the incoming CV signal, so in this case +10V will give 100% chance and +5V will give a 50% chance. Negative CV voltages are ignored and will be treated in the same way as zero volts..

Delay Control and DEL Input

This sets the delay amount that is applied to the leading edge of the incoming Gate or trigger received at the IN jack (or a press of the Manual Trigger button), assuming that the "Chance" has been determined to be positive. With the Delay Time switch set to FAST the Delay range will be from 0.5mS to 2 Seconds. With the Delay Time switch set to SLOW the Delay range will be between 2 Seconds and 30 Seconds.

The DEL input allows an external CV voltage to control Delay Time remotely. In this mode the Delay control acts as an attenuator for the incoming CV. With the Delay control fully clockwise a CV of +5V will give the maximum Delay time of either 2 Seconds or 30 seconds depending on the position of the Fast / Slow switch. Lower CV voltages reduce the Delay Time accordingly, so if we apply a CV of zero volts then we will get the minimum Delay time. The attenuator works on any CV patched to the DEL input in the same manner as described for the Chance control.

Length Control and LEN Input

This sets the length, or rather pulse width of the output pulse. With the LENGTH Switch set to FAST the pulse length can be anywhere between 0.5 mS to 2 Seconds. With the LENGTH Switch set to SLOW the pulse length can be between 2 seconds and 30 Seconds.

The LEN input allows an external CV to control Delay Time remotely. In this mode the Length control acts as an attenuator for the incoming CV in the same manner as the Chance and Delay controls.

Setting the Length control to zero invokes "Gate pass through" mode - in this case the incoming gate length is preserved, so the incoming pulse or trigger will still be affected by the Chance and Delay controls, but the outgoing gate length will be the same as the incoming gate length. Turning the Length control slightly clockwise will then invoke the minimum pulse length around control position 1, and further clockwise rotation will increase the Pulse Length as expected. This behaviour also applies to external CV's patched to the LEN input, where a CV of 0V will enable Gate pass through mode.

Fast / Slow mode switches

These switches allow the selection of Fast or Slow mode for Delay time and pulse length, so these ranges can be selected independently for Delay and Length. Fast range is 0.5 mS to 2 Seconds, and Slow range is 2 Seconds to 30 Seconds.

TRIG Switch

The TRIG push button allows manual triggering, and Chance will also be applied to any manual triggering, so depending on the setting of the Chance control, pressing the button has a chance of not doing anything! Holding the button down keeps the incoming gate high for as long as the button is pressed, however this is only really relevant in "Gate pass through" mode - normally only the leading edge of the input pulse is used.

IN - input jack

Connect your input here - a gate, output from an LFO, or even waveforms from a VCO. Any negative component of the input voltage will be ignored, so unipolar or bipolar signals can be used.

OUT - output jack

This outputs the binary pulse (or stream of pulses) that are generated by the Chance Delay circuitry. The gate low level is 0V and gate high level is +6V. The green status LED shows if a pulse is currently being generated.

Module Width: 8hp
Module Depth: 26mm (Including power lead)
Current Usage: 25mA Positive, 6mA Negative

Notes: The entry-level option to get started with Akai's MPC workflow. Hardware controller for the MPC 2 software, which runs on Mac or PC. Features 16 MPC pads and a new assignable touch strip.

Supplier's Notes:
MPC Studio is a Complete MPC System

MPC Studio brings the total MPC experience to your computer by combining intuitive hardware control and innovative, inspiring software. Load a loop from the library, chop it into samples, lay down a beat, then play instruments over it to add more melodic textures. Add some insert effects to develop your song structure and arrangement, or to build drops and transitions. MPC Studio makes your workflow one continuous stream of non-stop creativity.

Premium Pads for Perfect Production

Pad performance is the top priority for any beat maker. With MPC Studio, you can be confident that every beat and note will be right on time, every time. Velocity-sensitive RGB pads mean maximum expression, whether you're playing soft melodies or booming kick drums with coloured visuals to keep track of your velocities and pad groupings. Switch from Note to Chord Mode quickly and build out your tracks right as inspiration strikes.

Assignable Touch Strip Control and Expression

Create your own signature sounds with the assignable Touch Strip. This fluid controller bends and shapes your sounds however you want. Make that pad synth more mysterious with a swell, control the roll of your hi-hats to fill your trap drumbeat, or make that guitar part more realistic by articulating the strum right where you need it. Assign any of the numerous knobs, sliders, and parameters to the Touch Strip for new and inventive manipulation of any track. Add dynamic and real-time Touch Strip effects for the ultimate live production and performance.

Colour Screen for Vibrant Feedback

When you're locked in the creative moment, the vibrant colour screen ensures you can keep your hands on the MPC Studio and your focus on the music. Whether you need to trim a waveform, browse through instruments, samples, and plugin presets, or adjust parameters on the fly, the screen gives you the visual feedback you need in a moment's glance without having to stop your workflow and reach for your laptop. When it comes to your musical efficiency, every moment matters, and every move needs to help you effectively capture your ideas to finish your songs faster.

World-Class Plugins & Effects

MPC Studio includes an extended palette of sounds, instruments, drum samples, loops, insert effects, and much more to both spark your creativity and complete any music project or task. With over 100 instrument and effects plugins combined, MPC Studio can tackle any style or genre of music with rich, inspiring sound. The modern-day beat making insert effects plugins are powered by award-winning AIR Music Tech. with powerful editing, arranging, and mixing tools including the AIR Vocal Suite. Create, record, and mix the perfect vocals with the Vocal Suite to add everything from pitch correction, to harmonising, to thickening your vocals and audio tracks with the AIR Doubler.

Includes MPC2 Software

Akai Professional's acclaimed MPC2 Software works seamlessly with MPC Studio for the ultimate beat making and music production experience. This cutting-edge production suite and DAW combines 128-track sequencing capability, real-time time stretching, advanced MIDI editing capability, VST compatibility, and numerous plugin instruments and Insert Effects for creating and mastering professional finished songs and tracks. MPC2 software has a dedicated set of plugins to record and produce the perfect vocal recordings with the AIR Vocal Suite including automatic vocal tuning, vocal doubling, and vocal harmonising. Legendary plugin instruments including AIR Hype, AIR Mellotron, AIR Solina, and WayOutWare Odyssey, among others, offer a plethora of world-class sounds and presets to sculpt the perfect master track. A massive suite of modern plugin Insert Effects powered by AIR Music Tech - including a Limiter for finalising tracks - rounds out the infinite music and beat making possibilities.

Includes Loop Content From: Decap, F9 Audio, Mvp Loops, Rawcutz, Snipe Young, and more.

Technical Specifications:
Pads: (16) velocity- and pressure-sensitive pads, RGB-backlit, (8) banks accessible via Pad Bank buttons Knobs
Knobs: (1) 360- push encoder for display navigation and selection
Touch Strip: (1) multi-function 5.5" (140 mm) touch-capacitive controller with LED indicators
Buttons: (39) LED backlit dedicated function buttons
Display: Full-colour LCD
Connections (1) 1/8-inch (3.5 mm) MIDI input, (1) 1/8-inch (3.5 mm) MIDI output, (1) USB Type-B port
Power: via USB
Dimensions (width x depth x length): 12.0" x 6.7" x 1.5"/305 x 171 x 37mm
Weight 1.8 lbs./0.83kg

Notes: ***B-STOCK: Box opened, product in perfect working order***


The entry-level option to get started with Akai's MPC workflow. Hardware controller for the MPC 2 software, which runs on Mac or PC. Features 16 MPC pads and a new assignable touch strip.

Supplier's Notes:
MPC Studio is a Complete MPC System

MPC Studio brings the total MPC experience to your computer by combining intuitive hardware control and innovative, inspiring software. Load a loop from the library, chop it into samples, lay down a beat, then play instruments over it to add more melodic textures. Add some insert effects to develop your song structure and arrangement, or to build drops and transitions. MPC Studio makes your workflow one continuous stream of non-stop creativity.

Premium Pads for Perfect Production

Pad performance is the top priority for any beat maker. With MPC Studio, you can be confident that every beat and note will be right on time, every time. Velocity-sensitive RGB pads mean maximum expression, whether you're playing soft melodies or booming kick drums with coloured visuals to keep track of your velocities and pad groupings. Switch from Note to Chord Mode quickly and build out your tracks right as inspiration strikes.

Assignable Touch Strip Control and Expression

Create your own signature sounds with the assignable Touch Strip. This fluid controller bends and shapes your sounds however you want. Make that pad synth more mysterious with a swell, control the roll of your hi-hats to fill your trap drumbeat, or make that guitar part more realistic by articulating the strum right where you need it. Assign any of the numerous knobs, sliders, and parameters to the Touch Strip for new and inventive manipulation of any track. Add dynamic and real-time Touch Strip effects for the ultimate live production and performance.

Colour Screen for Vibrant Feedback

When you're locked in the creative moment, the vibrant colour screen ensures you can keep your hands on the MPC Studio and your focus on the music. Whether you need to trim a waveform, browse through instruments, samples, and plugin presets, or adjust parameters on the fly, the screen gives you the visual feedback you need in a moment's glance without having to stop your workflow and reach for your laptop. When it comes to your musical efficiency, every moment matters, and every move needs to help you effectively capture your ideas to finish your songs faster.

World-Class Plugins & Effects

MPC Studio includes an extended palette of sounds, instruments, drum samples, loops, insert effects, and much more to both spark your creativity and complete any music project or task. With over 100 instrument and effects plugins combined, MPC Studio can tackle any style or genre of music with rich, inspiring sound. The modern-day beat making insert effects plugins are powered by award-winning AIR Music Tech. with powerful editing, arranging, and mixing tools including the AIR Vocal Suite. Create, record, and mix the perfect vocals with the Vocal Suite to add everything from pitch correction, to harmonising, to thickening your vocals and audio tracks with the AIR Doubler.

Includes MPC2 Software

Akai Professional's acclaimed MPC2 Software works seamlessly with MPC Studio for the ultimate beat making and music production experience. This cutting-edge production suite and DAW combines 128-track sequencing capability, real-time time stretching, advanced MIDI editing capability, VST compatibility, and numerous plugin instruments and Insert Effects for creating and mastering professional finished songs and tracks. MPC2 software has a dedicated set of plugins to record and produce the perfect vocal recordings with the AIR Vocal Suite including automatic vocal tuning, vocal doubling, and vocal harmonising. Legendary plugin instruments including AIR Hype, AIR Mellotron, AIR Solina, and WayOutWare Odyssey, among others, offer a plethora of world-class sounds and presets to sculpt the perfect master track. A massive suite of modern plugin Insert Effects powered by AIR Music Tech - including a Limiter for finalising tracks - rounds out the infinite music and beat making possibilities.

Includes Loop Content From: Decap, F9 Audio, Mvp Loops, Rawcutz, Snipe Young, and more.

Technical Specifications:
Pads: (16) velocity- and pressure-sensitive pads, RGB-backlit, (8) banks accessible via Pad Bank buttons Knobs
Knobs: (1) 360- push encoder for display navigation and selection
Touch Strip: (1) multi-function 5.5" (140 mm) touch-capacitive controller with LED indicators
Buttons: (39) LED backlit dedicated function buttons
Display: Full-colour LCD
Connections (1) 1/8-inch (3.5 mm) MIDI input, (1) 1/8-inch (3.5 mm) MIDI output, (1) USB Type-B port
Power: via USB
Dimensions (width x depth x length): 12.0" x 6.7" x 1.5"/305 x 171 x 37mm
Weight 1.8 lbs./0.83kg

Notes: AXON-2 is an 8HP expander module for the SQUID SALMPLE, MFX and Pamela's PRO Workout that like the AXON-1 provides 4 additional freely assignable CV inputs but additionally adds manual offset controls and 2 additional 'performance' buttons.

The addition of AXON-2 increases the Squid, MFX or Pam PRO's total number of CV inputs by 4, greatly increasing the possibilities for vast modular manipulation. Each of the CV inputs includes an offset for hands on control over parameters assigned to CV. Per assignment digital attenuation and offset via the host module is also available for fine tuning the modulation or control over parameters.

The AXON-2's large buttons are great for controlling select functions in a live performance environment or adding convenient quick navigation shortcuts when making edits. The buttons functionality and assignability are dependent on the host module. See respective manuals for details.

NOTE: AXON-2 support requires the latest firmware be installed for Pam Pro (120 or newer), Squid (187 or newer) and MFX (105 or newer).

Features
4 Additional freely assignable CV inputs for the SQUID SALMPLE, MFX or Pamela's PRO Workout
Manual offset knob controls
Two Assignable performance buttons for mutes, tap tempo, navigation, etc (dependant on module)
Powered directly from the module, no additional power header required
Made in England
Skiff friendly
Technical Specifications
Power: Additional approx 10mA on +12V

Size: 8HP

Depth: 38mm

Notes: The 'Mega Milton' is a smorgasbord of handy all analogue utilities in just 8HP that will greatly extend the functionality of your Eurorack system.

It includes a stereo line input converter for incorporating line level external sources into a Eurorack system, a fixed 4 input mixer with breakout attenuator for combining signals, a gated slew limiter for adding slides to sequences, a sample and hold with analogue white noise with a myriad of uses such as generative melodies or producing percussive textures and finally a buffered mult for droop free signal distribution with handy LEDs to monitor.

All sections are normalised to help with typical use cases such as generating random CV from the sample & hold section, a smooth random source from the slew output and breaking out a standalone attenuator from the fourth mixer input.

The 'Mega Milton' provides essential classic synthesizer building blocks for patching in any Eurorack system.

Ideal For

Incorporating stereo external sources easily into your Eurorack system.
Signal attenuation and basic mixing in a small space.
Building percussion sounds from an analogue noise source.
Producing clocked random to add interest and variation to patterns and sounds.
Adding gated 303 style slides to patterns.
Creating and Manipulating patterns with Sample and Hold.
Buffering and monitoring voltage across multiple VCOs or other destinations with no drop.

Tech Specs

Supply: +12V 70mA / -12V 70mA
Size: 8HP
Depth: 32mm

Notes: Think of the MFD like a tiny DJ mixer: two stereo inputs, one stereo output, with the option to cue either input and crossfade between the two. A simple idea very well executed.

Supplier's Notes:
Inspired by DJ mixers, the MFD allows you to cue and crossfade between signals. Ideal for live performance as well as jamming out ideas in the studio.

Supplier's Notes:
The 'MFD' is a 2-channel stereo crossfader designed for live DJ-style mixing and jamming in Eurorack. Two mono or stereo inputs are mixed to a single stereo output via direct or voltage control. Additional Cue controls provide preview monitoring of either input pre-mix via dedicated Cue switches and an output.

Voltage control over the crossfade and DC coupling allow for further creative uses such as a high quality stereo VCA or as a mix processor for either stereo audio signals or CV.

The MFD is designed to have very low noise and cross bleed and employs equal power crossfading for smooth constant level blending between signal sources.

Features:

Two channel stereo crossfader with voltage control.
Approx equal power crossfading.
Cue output switches for direct monitoring of either stereo input (pairing well with HPO for headphone monitoring).
Can be used as a high quality stereo VCA.
DC coupled for use with both audio and CV.
Skiff friendly with reverse power protection.
Two year warranty.
Made in England.

Ideal For:

Smoothly blending and monitoring 'tracks' or 'scenes' during a live set.
High quality VCA use for stereo based sources.
Voltage controlled crossfading and mixing of both CV and Audio signals.
Other advanced uses including audio rate modulation, stereo panning effects and a CV controlled FX send.

Technical Specifications

Supply: +12V 70mA / -12V 70mA

Size: 6HP

Depth: 32mm

Notes: The mmMidi is a simple & compact MIDI interface for your Eurorack synthesiser. It translates two independent channels of MIDI note, velocity and gate information to corresponding control voltage signals via either a classic MIDI DIN type connection or as a driverless USB MIDI device.

The mmMidi also converts MIDI Clock to analogue x24 fixed clock and run outputs (i.e DIN Sync). The optional mmT expander provides a third MIDI channel of 8 key mapped gate outputs.

Requiring minimal configuration and a pain free set up, the mmMidi makes it easy to sync Pam's clock to your DAW, control multiple synth voices, and trigger drum or sample modules with the optional mmT expander. The new USB-C connection makes it easy to drive your modular not just from your computer but also via your tablet, phone or any USB MIDI Host.

(Note: New 2025 mkII version adds USB-C functionality.)

Technical Specifications

Power: +12V 50mA / -12V 0mA
Size: 4HP
Depth: 38mm
MIDI response latency: 200-400 uSec
Resolution: Factory calibrated 12 bit 0-8V CV outputs. +5V gates

Notes: 'MUM M8' is an 8hp Eurorack low pass filter building on the filter design used in the classic Akai S950 12 bit sampler with the addition of resonance, voltage control, clipped saturation and a dedicated VCA.

The low pass filter gives the recognisable super smooth vacuum like tone sucking sound which works magic on complex sources. The addition of clipped overdrive and intentionally aggressive self-oscillating resonance compliment the smooth filter core by juxtaposing it into more wasp like territory with acidic squeals and a more gritty sound.
Mum M8 features dual voltage control with attenuation (and inversion) of filter cut off and voltage control of resonance together with dual audio inputs - one of which includes a VCA to with the capability to aid overdriving signals into the filter core.

The filter core is a 6th Order Butterworth switched capacitor type design featuring an analog core but controlled by a high speed digital clock. This produces the characteristic smooth sounding filter but, as with the original S950, has a relatively high minimum cut off as to avoid 'clock bleed' into the filter output from the digital control. This minimum cut of point (and introduction of bleed if required) can be controlled via trimmers on the rear of the module (see calibration chapter). It is not unusual for there still to be some low-level artefacts from the clock present, particularly during filter sweeps - these add to the filters character.

The motivation for the module came from discussing filters in classic samplers with the artist Jack Adams - aka Mumdance. Jack suggested investigating the S950's filter well known as for it use in classic use in early jungle and hardcore. From that point onward Jack provided inspiration, help and feedback in the development of the filter. Big up Mumdance.

Notes: 'Tangle Quartet' is a high quality quad linear voltage controlled amplifier (VCA) providing individual level control of 4 signal inputs with both individual outputs and a combined 'mix' output (for non patched outputs) . Control signal inputs and associated attenuation controls allow for voltage control of signal levels. Control inputs are normalised to 5v thus providing manual mix control in the absence of control signals.

Technical Specifications:

Supply: +/-12V (Reverse voltage protection)
Current Draw: ~80ma
Size: 8 HP
Depth: 32mm (including power header)

Notes: Great value from AlphaTheta's entry-level FLX controller. Designed for use with software including Rekordbox, Serato and Djay, the tiny FLX2 has everything the beginner DJ needs to get started mixing any type of music.

Supplier's Notes:
Compatible with multiple DJ applications and streaming services:

The DDJ-FLX2 works with various DJ applications including rekordbox, djay and Serato DJ Lite - popular choices among both beginners and professionals. After installing your preferred app on your mobile device, you can connect to the controller and start DJing right away. If you want to challenge yourself to learn more advanced techniques, you can use DJ software on your PC/Mac. Each DJ application is compatible with different streaming services, so you can choose one based on the music and DJ style you want to play. If you go for djay, you can access Apple Music, allowing you to choose from over 100 million tracks and incorporate your favourite music into your mixes.

Mix easily with Smart CFX and Smart Fader:

It's easy to replicate the seamless song mixing of professional DJs thanks to the Smart CFX* 3 and Smart Fader* 3 features on the DDJ-FLX2. Smart CFX enables you to recreate complex and dynamic effect techniques used by professionals with the simple turn of knob. You can use it for connecting tracks together and for making your performances more dynamic by adding emphasis to the music whenever you like. Smart Fader automatically optimizes control of the volume, BPM, and bass - which is all needed when transitioning between tracks - and all you have to do is slide the crossfader in one direction. With this feature, you can easily mix tracks from different genres, even if they have vastly different tempos (BPM). * 3 Function names and operations may vary depending on the DJ application used

Lightweight, compact body with user-friendly features:

The DDJ-FLX2 is AlphaTheta's lightest and most compact DJ controller, so you can take it anywhere you want to play. It runs on USB bus power, so there's no need for an external power supply when you connect it to a PC/Mac or a mobile device 4 via USB Type-C. You can start DJing easily by playing music through the built-in speakers of your PC/Mac/mobile device or, if you plug speakers into the audio output terminals of the DDJ-FLX2, you can throw a loud party with friends. And, if you want to level up your skills, you can use headphones to cue up tracks and challenge yourself to learn various DJ techniques

Performance Pads for professional-style DJing:

It's easy to manipulate your music with the Performance Pads on the DDJ-FLX2. Pad Mode Select allows you to switch between various modes, including Hot Cue mode, where you can mark any point in a track - such as the intro or chorus - like a bookmark which allows you to instantly jump to that point. With Pad FX, you can apply a variety of effects simply by pressing the pads, adding your own touch to the music. And, using the sampler, you can add sound effects or try performance techniques like finger drumming.

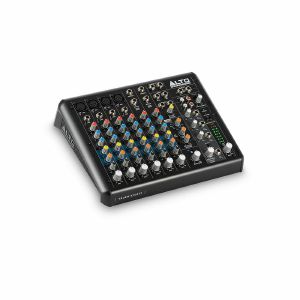

Notes: Great value from this compact eight-channel mixer featuring built-in Alesis effects. Bluetooth and USB in/out give added versatility, allowing you to mix just about any sound source.

Supplier's Notes:
Easy-to-Use Analogue Audio Mixing with Built-in Effects from Alesis

The Alto Professional TrueMix 800 FX is a portable audio mixer with built-in DSP effects that delivers all the essential features you need for home recording, livestreaming, podcasting, or performing. The TrueMix 800 FX features 16 effects including chorus, flange and an assortment of high-quality delays and reverbs. There's also a convenient Bluetooth channel for easily streaming from your personal devices. A unique feature to the TrueMix Series, the Bluetooth channel also supports feedback-free phone pairing by utilizing mix-minus technology. There are eight analogue inputs with high-headroom circuitry for minimal noise and clipping in your signal. The four Mic Input Channels offer XLR inputs that are great for connecting dynamic mics or condenser mics with 48v phantom power. These channels also have balanced 14" line inputs for connecting instruments and other line-level signals. There are also two Stereo Input Channels, each with dual balanced 14" TRS inputs. These inputs are perfect for your line level audio sources. All channels feature a two-band EQ with colour coded knobs that make it easy to dial in your perfect sound while operating in low-light situations. There are even extra knob caps included so you can fully customize the look of your TrueMix 800 FX. Connecting the TrueMix 800 FX to your computer is also lightning fast, with plug and play connectivity on Windows and macOS. The TrueMix 800 FX is a feature-packed compact audio mixer that's perfect for using on-the-go.

Flexible Output Routing

Whether you're recording a podcast, livestreaming online, or making music at home, being able to hear yourself and easily route audio is essential. The TrueMix 800 FX features a variety of output and routing options to handle any scenario. There are four headphone outputs, each with their own volume control knob. If you need to send your audio signals to another destination like an external monitor or effects unit, each channel is equipped with a send knob so you can always dial in the perfect mix. For recording, the USB output sends a copy of the main outputs to your computer, or you can connect the 2-Track in/out to an external recorder which can also be sent directly to the headphones. The TrueMix 800 FX delivers everything you need to take full control of your audio routing in any situation.

Product Features:

TrueMix 800 FX Features
USB I/O for audio playback and stereo recording
Dedicated bluetooth channel with mix-minus return for feedback-free phone pairing
Four headphone outputs with independent volume control
16 built-in Alesis multi-fx with dedicated return channel
1/4" Main, Tape, and AUX outputs
Four mic input channels with phantom power and balanced line inputs
Two stereo input channels with balanced 1/4" TRS jacks
Two-band EQ on all channels
2-track inputs w/ assignable routing: main mix or headphone out
Eight-segment LED VU meter for precise level monitoring
Extra knob caps included in the box for added customization

Technical Specifications

Frequency Response All inputs: 20 Hz - 22 kHz (i1 dB)

THD+N (Total Harmonic Distortion)
All inputs: < 0.005% (@ 4 dBu, 1 kHz)

Gain Range Mic inputs (Channels 1-2): 0 - 50 dB Line inputs (Channels 1-2): 15 dBu - 35 dBu Line inputs (Channels 3-6): -20 dBu - +20 dBu

Max Voltage Gain
70 dB (MIC INPUT to MAIN MIX OUTPUT)
80 dB (MIC INPUT to CTRL ROOM / PHONES OUPTUT)
60 dB (MIC INPUT to MON SEND)

SNR (Signal-to-Noise ratio)
All inputs: > 110 dBu

Crossover Frequency
Adjacent inputs: < -80 dB @ 1 kHz
Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-2, panned hard left or right)

Phantom Power: +45 ~ +49V with switch control

Impedance
Mic inputs: 3.9 kO
All other inputs: > 10 kO
Aux outputs: 1 kO
All outputs: 120 O

Equalization High:
+/-15 dB @ 12 kHz
Low: +/-15 dB @ 80 Hz

Bluetooth
Profile: A2DP
Module: Bluetooth 5.0
Operating Frequency: 2402 MHz - 2480 MHz
Range: 100 ft. / 30.5 m

Connectors
(6) 1/4" (6.35 mm) TRS outputs
(6) 1/4" (6.35 mm) TRS stereo L/R inputs
(4) 1/4" (6.35 mm) TRS headphone outputs
(4) 1/4" (6.35 mm) TRS mono inputs
(1) Standard RCA L/R input
(1) Standard RCA L/R output
(4) XLR inputs
(1) USB type-B input
(1) DC power input

Controls
(1) Power switch
(15) volume control knobs (1 per input, 1 return, 1 EFX return, 1 2-track/USB in, 4 headphone outs, 1 Bluetooth, 1 main)
(6) Stereo pan control knobs (1 per input)

(6) Mon volume control knobs (1 per input)
(6) EQ Low control knobs (1 per input)
(6) EQ Hi control knobs (1 per input)
(6) Gain control knobs (1 per input)
(4) Buttons (1-EFX mute, 1 Bluetooth, 2 Source Select)
(1) Horizontal sliding switch

Indicators
(1) Power LE
(6) Peak LEDs
(1) Phantom LED
(16) Main Out Meter LEDs
(1) Bluetooth LED

Power Connection: DC Voltage: 18V, 1.2A Consumption: 18W
