Notes: Customized to hold the new Denon SC Live 2 controller. Crafted from 9 mm vinyl laminated plywood, sturdy aluminum profiles and heavy duty butterfly latches, this case provides ultimate protection for mobile use on the road.

Fits:

Denon SC Live

Basics:

Heavy duty construction of 9 mm vinyl laminated plywood
Solid aluminium profiles and spring loaded latches
Secure stacking due to stackable ball corners
Full padded interior keeps Controller well-protected
Detachable front cover/panel

Specs:

Outer measures: 74 x 50 x 22,5 cm
Inner measures: 65,2 x 33,5 x 5,6 cm (Controller-compartment)
Weight: 11,1 kg
Color: black/silver

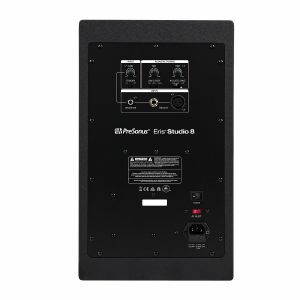

Notes: Part of the excellent Eris range, the Studio 8 is PreSonus's eight-inch two-way studio monitor, offering solid performance all the way down to 35 Hz and crystal clear reproduction thanks to 1.25-inch silk-dome tweeters and Elliptical Boundary Modeled waveguides.

Supplier's Notes:
With a smooth, accurate frequency response; powerful amplification with tons of headroom; and Acoustic Tuning functions that ensure you get the best sound, it's no wonder that Erisr-series studio monitors have been a runaway hit since their introduction. Building on the reputation of its award-winning predecessors, the Eris Studio 8 is a substantial update that delivers richer low-end and more controlled high-frequency response, reproducing every detail in your recordings with a natural sound unparalleled in its class.

Designed for superior performance in both home studios and professional mix rooms, the Eris Studio 8 features a custom-designed EBM (Elliptical Boundary Modeled) waveguide that provides superior high-frequency response and wide 100-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a 1.25-inch, silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you'll hear the finest details in your mix.

The woven-composite, 8-inch, low-frequency driver offers Eris' signature tight, clear bass with plenty of punch. Its 140W of biamped power make the Eris Studio 5 more efficient than previous designs. The ported enclosure maximizes bass response and allows the Eris Studio 8 to reach down to an astonishing 35 Hz - with no subwoofer!

Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You'll have no problem hooking your Eris speakers up to virtually anything.

Features

8-inch woven composite, low-frequency transducer
1.25-inch (31.75 mm), ultra-low-mass, silk-dome, high-frequency transducer
100-(H) x 60-(V) EBM waveguide for a wide sweet spot
Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
140W, Class AB bi-amplification
35 Hz to 20 kHz frequency response
106 dB SPL (Peak, @ 1 meter)
Acoustic Tuning controls: HF (i6 dB, continuously variable); Midrange (i6 dB, continuously variable), and Acoustic Space (flat, -2, -4 dB), plus highpass filter (Off, 80 Hz, 100 Hz)
RF interference, output-current limiting, over-temperature, transient, subsonic protection, and amplifier "soft start" feature (eliminates popping on power-up)
Internal power supply with IEC connector and power switch with on/off LED
Balanced XLR and 14-inch inputs and unbalanced RCA inputs

Set up your studio monitors for your room.

Erisr Studio 8 active monitors are equipped with Acoustic Tuning controls to ensure the flattest response in your mix environment. You get Low Cut, Mid, and High controls, as well as three-way Acoustic Space tuning that makes it easy to compensate for the boundary bass boost that occurs when a speaker is placed too close to a wall.

Honest. Expressive. Powerful.

Like all PreSonusr studio monitors, the Erisr Studio 8 offers consistent, accurate listening. Their stylish design makes them a welcome addition to any mix space, and their smooth, incredibly even frequency response ensures that your mixes will sound great everywhere.

Specs

Electronics
Voltage: 220-240V UK
Wattage: 80 Watts
Input impedance: 10 kO

Performance
Peak SPL: 6 dB (@ 1 meter)

Speakers
Crossover frequency: 3.5 kHz
Coverage pattern: 100 degree (H) x 60 degree (V)

Hardware
Cabinet material: Vinyl-Laminated, Medium-Density Fiberboard

Audio controls: Volume High Frequency (+/-6 dB, centre 10 kHz, continuously variable) Mid Frequency (+/-6 dB, centre 1 kHz, continuously variable)

Audio switches: Acoustic Space (Flat, -2 dB, -4 dB) Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
Monitor inputs: 1- Balanced XLR, 1- Balanced 14" TRS, 1- Unbalanced RCA
Power amplifier type: Class AB

Measurements

Dimensions: 16.50 x 9.80 x 11.70 IN

Depth: 11.73" (29.8 cm)
Height: 16.5" (41.91 cm)
Width: 9.84" (25 cm)

Review: One of the best-selling albums of all time, Hotel California could be considered the pinnacle of American rock, at least in terms of success and sales. Ranked the 118th Greatest Album of All Time by Rolling Stone, certified by RIAA as the third best-selling LP in history, and considered the foundation on which the Golden State's mid-70s music scene was built, the 1976 landmark is a music staple immune to shifts in trends, eras, and styles. Fearlessly addressing the chaos and consequences of American life, its songs remain strikingly prescient and gain credence with each passing day. Now reissued as a box set by Mobile Fidelity Sound Lab; mastered from the original analog master tapes; pressed on MoFi SuperVinyl, and limited to 17,500 numbered copies.

Review: Celebrating its 30-year anniversary with a monolithic deluxe edition, Green Day's Dookie has gone on to become one of the cornerstones of pop-punk, pre-dating Blink-182 with its global expansion. Spawning timeless anthems such as 'Basket Case', 'Longview' and pop smash hit 'When I Come Around'; the album signalled the artistic prowess and bright future the band have continued to live up to in the decades since. Complete with 17 previously unreleased demos, studio outtakes and both their Woodstock 1994 and unreleased Barcelona 1994 live performances, as well as a 36-page book cataloguing the creative journey of these formative years, this 6xLP beast is not for the faint of heart but for the devout and avid legions of generation spanning followers the trio still continue to amass to this day.

Notes: 8-input CV expander for Xer Mixa

Expando Expandi adds 8 freely assignable CV inputs to the Xer Mixa in just 4 HP. Connect up to two Expando Expandi to Xer Mixa for easy CV control over channel levels, pan, aux sends, and more.

Expando Expandi is not for use on its own and is currently compatible only with Xer Mixa.

Notes: 8-input CV expander for Xer Mixa

Expando Expandi adds 8 freely assignable CV inputs to the Xer Mixa in just 4 HP. Connect up to two Expando Expandi to Xer Mixa for easy CV control over channel levels, pan, aux sends, and more.

Expando Expandi is not for use on its own and is currently compatible only with Xer Mixa.

Notes: 30 fully polyphonic pitch-shifting options under 15 square inches!

Offering a total of 30 pitch shift options and expanded controls, the Pico Pitch Fork is the next evolution in pitch shifting from Electro-Harmonix. The original Pitch Fork has garnered praise from all styles of player at every level and the Pico Pitch Fork brings even more features to the celebrated pedal in an impossibly small package.

The Pico Pitch Fork features 10 pitch shift intervals and three modes of pitch-shifting - Up, Down and Dual. Dual mode features specially paired pitch shift intervals to allow for more musical effects.

Controls on the Pico Pitch Fork are simple and effective. SHIFT selects the Pitch Shift interval. BLEND sets the wet/dry blend of the output mix while VOL adjusts the overall output volume. SWEEP controls pitch bend sweep time when toggling between bypass and effect and back to create automatic whammy effects. The Pico Pitch Fork's footswitch can operate in two modes: Latching and Momentary. Latching turns the effect on with one footswitch press and off with another while Momentary turns the effect on only when the footswitch is being held for instant bursts of pitch-shifting pandemonium.

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 3.65 x 2.0 x 2.0
Current Draw: 100mA
Year Released: 2023

Notes: Expanded Freeze in a lowball-sized package!

Meeting between the original Freeze and Superego pedals is the Pico Deep Freeze Sound Retainer. With the ability to freeze a moment in sound, the Deep Freeze can act as a sustain pedal for holding chords and notes as backing for your playing or as a platform to manipulate your tone into new sounds impossible with a normal guitar. In addition to the original Freeze's abilities, the Deep Freeze features layering, adjustable attack/decay speeds, glissando, dedicated volume controls, and 3 modes: Latch, Moment, and Auto, making it powerful pedal punching well above its weight.

The Deep Freeze allows for instant sound freezing in three modes of operation. Latch freezes sound each time the footswitch is pressed until the effect is bypassed, while Moment mode freezes sound only while the footswitch is held down. Auto mode captured sound automatically each time it senses signal above its threshold for virtually foot-free freezes. These three modes make it easy to operate the Deep Freeze in a way that fits any playing style.

Controls on the Deep Freeze let you further tailor the operation of the effect. Separate DRY and EFFECT volume controls let you blend signals from subtle backing to 100% effect experimentation. GLISS adjusts the morph time between freeze sounds creating otherworldly soundscapes. The SPEED/LAYER knob adjusts either the attack/decay time of the effect in Moment and Auto modes, or the amount of layering possible in Latch mode which makes playing impossible chords possible!

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 3.65 x 2.0 x 2.0
Current Draw: 100mA
Year Released: 2023

Notes: Module A-135-5 is a combination of a voltage controlled polyphonic mixer and a polyphonic suboctave generator. It is made of 12 voltage controlled amplifiers (VCAs) which are arranged in form of a 4x3 matrix. Herewith up to three four-voice polyphonic signals (e.g. the outputs of three polyphonic VCOs A-111-4) can be mixed. The level of each of the three polyphonic channels (A, B, C) with four voices each can be controlled manually or by means of an external control voltage with associated attenuators.

In addition the module features four frequency dividers which derive the suboctaves from the four input signals of channel A. The suboctave signals are wired to the switching contacts of the sockets of channel B. As long as the sockets of channel B are not patched the suboctave signals of channel A are used as inputs for channel B. The suboctaves are symmetrical rectangle waves with half the frequency of the corresponding signal A. For example two polyphonic VCOs A-111-4) can be used and patched to the channels A and C. Channel B then provides the suboctaves of channel A.

As the module is fully DC coupled it can be used also for the mixing of control voltages in a polyphonic environment (e.g. for envelopes, LFOs or other control voltages).

The switching contacts of the 12 input sockets and the four outputs are internally connected to pin headers. That way the module can be internally pre-patched to other polyphonic modules (e.g. the four inputs A to an A-111-4, the four inputs C to another A-111-4 and the outputs to the polyphonic filter A-105-4). As the switching contacts of the sockets are used for the internal pre-patching the internal patch can be overridden by using the sockets at the front panel.

The module has these controls and in/outputs available:

Controls Lev.A, Lev.B, Lev.C: manual level adjustment of the channels A, B and C

Controls CV A, CV B, CV C: attenuators for the corresponding control voltage inputs

Sockets A1...4: inputs channel A

Sockets B1...4: inputs channel B (if the sockets are not patched the suboctave signals are used for the inputs B)

Sockets C1...4: inputs channel C

Sockets CV A. CV B, CV C: control voltage inputs for the channels A, B and C

Sockets Out 1...4: outputs

Dimensions
10 HP
55 mm deep

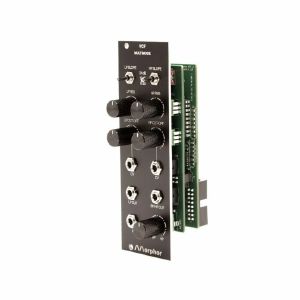

Notes: The Morphor VCF Multimode is an intuitive, no nonsense 8HP fully analogue filter module. Featuring a dedicated lowpass and highpass filter core.

To shape the sound exactly the way you want, both filter sections have a cutoff frequency control over the whole audible frequency range through a knob and bipolar CV jack. Additionally, resonance control and a switchable pole selection are available.

The second output acts as both a bandpass and highpass output, depending on the position of the BP/HP mixing knob. Combining all these features results in an easy-to-use but flexible module to perform your unique filter needs.

Weight: 110 g
Dimensions: 128.5 × 40.6 × 40 mm
Width: 8 HP

Notes: The Morphor Mixer - 5 Channel Amplifier is a flexible analogue mixer module that can find a home in every type of Eurorack setup.

Each of the five channels feature an attenuator knob and mute switch to allow for instant playability, for example in live settings.

Input signals can be AC or DC-coupled depending on your preferred setting.

The output stage also features an extra attenuation/gain stage that allows you to double the mixed signal. An additional master mute switch, clipping LED are nice-to-haves that complete this intuitive mixer module.

Weight: 102 g
Dimensions: 128.5 × 40.3 × 30 mm
Width: 8 HP

Notes: The Morphor Plectrum - Analogue BBD Pluck is the successor of Morphor's successful module. Now only 8 HP instead of 10 HP with additional CV-able feedback!

Plectrum is a high quality, fully analogue Eurorack module that can produce plucked string-like sounds. It is a compact all-in-one solution for generating amazing bass, acoustic guitar, percussion and other amazing sounds.

The module is based on the Karplus-Strong principle with a true analog audio path built with an authentic bucket brigade delay (BBD) circuit which is recognizable by its specific timbre. By using carefully chosen high quality components, this module has a rich, warm analogue sound.

Now being only 8 HP in width, you won't need a lot of space to get going and start creating some incredible sounds. If you're looking to fully sculpt the string-like sound, you can extend the internal Karplus-Strong loop by breaking out the signal and adding external modules like filters and/or FX modules to it.

Features

100% analogue
Karplus-Strong principle
Built with classic BBD chip
Break-out BBD loop
Internal/external loop switch
Trigger input
1V/oct input
Tune knob
Pitch modulation CV input
Feedback CV input
Colour CV input (i.e. internal loop LPF cut-off frequency)
Mono output

Specifications

Panel width: 8 HP
Panel height: 3 U
Module depth: 40 mm
Current draw: 12V : 40 mA | -12V : 40 mA | +5V : 0 mA
Dimensions: 128.5 x 40.3 x 40 mm
Weight: 259 g
Frequency Range: sub-audio range to roughly 800 Hz
Power Socket: 16-pin

Notes: Unleash your creativity

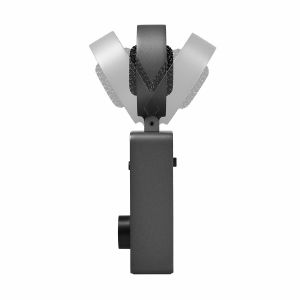

The Austrian Audio MiCreator is a new type of creative tool. Equal parts high-quality condenser microphone and simple audio interface with USB-C r connectivity, MiCreator gives you the flexibility to create what you want - how you want. Just plug in and start recording in top-notch audio quality instantly. Or expand your setup using MiCreator's additional input to achieve stereo recordings, record an additional sound source, and more. And whether you're recording at home or on the go, you can create with confidence thanks to MiCreator's ultra-durable metal housing. So, whether you're looking for a capable plug-and-play microphone or a multifaceted production tool, MiCreator simplifies your creative process and delivers no-compromise results.

Custom Condenser Capsule - Record in top notch audio quality
Max SPL: 130 dB SPL - Record even very loud sources
FlexTilt mechanic - Easily position the mic head for optimal recording
Full metal housing - Longlasting and durable
One Knob Jog Dial control - Allowing quick adjustments
Latency free direct monitoring - monitor yourself without complicated software adjustments
Exchangeable & customizable face plates for an individual and personalized look

Technical Specifications

Digital Resolution: max 48kHz/24-Bit
Digital Connector: USB-C - USB Audio Class 1.0/2.0 compliant
Directional characteristic: Cardioid
Frequency range: 20 Hz - 20 kHz
Sensitivity: - 35dBFS/Pa (low gain)/-15dBFS(high gain)
Hardware Gain Switch: 0dB (low)/20dB (high)
Equivalent noise level: 22 dB SPL (A) (high gain)
Max SPL: 130 dB SPL (low gain)
Output Power: 45mW (32Ohm Load)
Dynamic Range: 89 dB(A)
In/Output TRRS: for instrument cable, 2nd headphone or MiCreator Satellite or Y-Lav
Dimensions: 155 x 60 x 37 mm
Weight: 370g

Notes: *** Updated to v3 in February 2024 with improved hardware and circuitry ***

The Omen is a dual LPG with a bit more than you might be used to. This module was born out of the realisation that it was possible to make far more interesting LPG designs than the standard we've become so accustomed to.

In a convergence of old-school LPG design and more modern components, the Omen boasts two -6dB resonant filters, custom built vactrols, built in CV attenuation and no less than three cutoff modes per filter. Filter 1 is soft and light, imparting a gentle, naturally gated touch of filtering on your sound, while Filter 2 is darker and more resonant, and can turn downright growly and distorted when left wide open.

Designed to give you as many creative options as possible, the Omen has the unique ability to function as either two discrete LPG, or as one 4-pole resonant LPG. When plugging a signal in to Input 1, and with no signal plugged into Input 2, the output will be present at both Output 1 and Output 2, with Output 2 producing the signal as it passes through both filters. Tweaking both filters independently will generate a wide array of soft and sometimes harsh tones, ranging from Buchla bongos to early synthesis brass and organ sounds. There is much to love here.

CV is similarly handled, by plugging in only one CV source, it will act on both channels - this is useful for creating musically similar outputs as well as when using the dual filter operation. However, the dual filter mode greatly benefits from having two CV inputs: use an envelope in CV1 to act as a VCA, and an LFO in CV2 to create tremolo, for instance.

Using custom designed, hand built vactrols, care has been taken to mitigate the less desirable aspects of passive LPGs - in most modules, the user can expect zero bleed through on the LPG channels, and signal attenuation is minimal even with the 4-pole filter settings engaged. Of course, many of the natural features of vactrols remain, such as subtle memory effect when engaging the vactrol for long periods.

Finally, you receive maximum blinkenlights as LED's on the front panel simulate the action of the vactrols, so you'll always know what's going on under the hood. No collection of fancy LPG's is complete without the Omen.

Dimensions
4 HP
36 mm deep

Current Draw
Module does not draw current

Review: Famously first released in 1973 and transferred to CD in the 1980s with no significant remastering, the Beatles two colour-coded 'best of' collections have long been in need of an overhaul. Apple has typically gone all-out on this 50th anniversary re-issue, not only remastering everything (or at least those tracks that hadn't already been tweaked by Giles Martin in recent years), but also expanding each collection to three discs via the addition of other fan favourites and tracks that missed out first time round. As for the vinyl itself, it has been half-speed remastered to guarantee superior sound quality. This boxed edition boasts both compilations, plus an insert with fresh liner notes from music journalist-turned-Guardian scribe John Harris.

Notes: A workhorse studio condenser microphone with a warm, silky character, exceptionally low noise and high SPL handling - ideal in a wide range of studio applications.

The World's Most Popular Studio Microphone

Since it launched over 30 years ago, the NT1 has become the world's most popular studio microphone and the go-to for countless creators across the globe - from bedroom musicians and studio professionals to streamers, podcasters and voice over artists. The NT1 Signature Series carries on this legacy, delivering classic studio sound for today's creators.

Iconic Signature Sound

Featuring our stunning HF6 1-inch true condenser capsule, the NT1 Signature Series boasts the same iconic sound signature that its forebears are revered for. Sparkling top end, highly detailed midrange, and rich, warm bass make it shine in almost any recording application you can imagine - from vocals, piano and acoustic guitar to drums, percussion and electric guitar.

Your Mic, Your Way

For the first time in the NT1's 30-year history, this iconic microphone is available in a range of iconic colours. This limited-edition collection features five vibrant colourways alongside the timeless black finish, including red, green, purple, pink and blue.

A True Workhorse

A true workhorse that excels in a wide range of studio applications. With an exceptionally low noise floor and incredibly high max SPL, it captures everything from whispers to drums with the utmost clarity. The perfect all-rounder studio microphone.

Legendary RODE Quality

The NT1 Signature Series is designed and made using the highest-grade components in RODE's precision manufacturing facilities in Sydney, Australia. It's built to last, with a rugged body machined from high-grade aluminium and comes with our industry-leading 10-year warranty, so you can rest assured it will remain your go-to for the long haul.

Premium Accessory Kit

Keep your recordings pristine with the studio-grade shock mount and pop filter included with the NT1 Signature Series, the perfect tools for minimising audio artifacts caused by knocks, rumbles and plosives. It also ships with a premium XLR cable so you can start creating right away - just plug straight into your audio interface or mixer and start recording exceptional audio.

Key Features

Large-diaphragm cardioid condenser microphone
HF6 1-inch true condenser capsule, precision engineered to sub-micron tolerances
Tight cardioid polar pattern for excellent background noise rejection
Classic NT1 sound signature - rich, warm bass, detailed midrange and sparkling highs for exceptional performance in a wide range of studio applications
Smooth frequency response and high sensitivity for incredible balance and clarity
Extremely low noise (4dBA) - the world's quietest studio condenser microphone
High SPL handling capabilities (142dB) for capturing very loud sound sources
Studio-grade shock mount and pop filter and premium XLR cable included
Available in classic black or a range of limited-edition colours, including red, green, purple, pink and blue
Rugged aluminium body with a high-grade finish - incredibly resistant to scuffs and scratches
Industry-leading 10-year warranty
Designed and made in RODE's precision manufacturing facilities in Sydney, Australia

Acoustic & Electrical Specifications

Acoustic Principle: Pressure gradient
Active Electronics: JFET impedance converter with bipolar output buffer
Capsule: 1.00"
Polar Pattern: Cardioid
Address Type: Side
Frequency Range: 20Hz - 20kHz
Output Impedance: 100O
Maximum SPL: 142 dB SPL
Equivalent Noise (A-Weighted): 4dBA
Sensitivity: -32 dB re 1 Volt/Pascal (25 mV @ 94 dB SPL) +/- 2 dB @ 1 kHz
Analogue Power Requirements: P48
Analogue Output Connection: 3-pin XLR

Mechanical

Weight (grams): 313

Dimensions (millimetres)
Length: 52
Width: 52
Height: 189

What's in the Box
1x NT1 Signature Series
1x SM6
1x XLR Cable

Notes: Customized to hold the Pioneer DDJ-REV5 Controller and a 19'' rack mount device (1U) such as a wireless microphone system, power strip or storage drawer. Crafted from 9 mm vinyl laminated plywood, sturdy aluminium profiles, heavy duty butterfly latches and smooth rolling wheels, this case provides ultimate protection for mobile use on the road. The included 19" rack mounting brackets allow individually fastening of a 1U 19" unit (or smaller devices) at the front underneath the controller.

Fits

Pioneer DDJ-Rev5

Basics

Heavy duty construction of 9 mm vinyl laminated plywood
Solid aluminium profiles and spring loaded latches
Incl. gliding laptop platform (removable)
Incl. two 19" rack mounting brackets to fix 1U devices underneath the controller
Full padded interior keeps controller well-protected
Detachable front cover/panel
Incl. recessed wheels for easy transportation
Solid rubber feet

Specs

Outer measures: 82,4 x 50,7 x 22 cm
Inner measures: 73,6 X 36,3 X 5 cm (Controller-compartment)
Weight: 17 kg

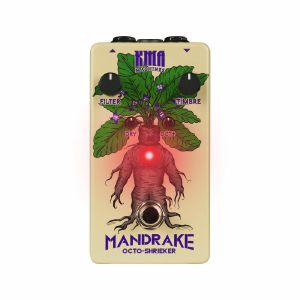

Notes: From the outset, KMA Machine's goal was to create the most flexible analogue upper octave pedal ever yet produced. Based on a highly refined and improved version of the Shriek circuit from KMA's venerated MOAI MAEA pedal, the MANDRAKE brings an even more robust and present upper octave to the sonic table. By combining that upper-octave might with a versatile, yet highly intuitive user interface, the pedal provides a ton of killer tonal options in a very modern and pedalboard-friendly package.

"The humanesque abomination, begat of the evils that once fertilised his empire of dirt, now senses the bleak emptiness of the air that surrounds him. In recognition of his harvest and the perpetual change to his existence, his mesmerising scream is both devastating and euphoric, so all those that encircle him are subdued from the aural toxicity that emanates from the disfigured effigy."

Octave up pedals (as used by so many legendary performers including Hendrix, Tony Iommi, Josh Homme, Billy Corgan, Jack White and so many more), can really give added bite to your sound. But often, many of these fun tools can be untamed and lead to nasty clashing overtones.

With MANDRAKE however, KMA didn't want to just make a one trick pony octave up device. The powerful and ultra-fast tracking Shriek circuit was expanded on with its edgy and fuzzy character that's reminiscent of many of the best vintage octave-up devices. To do this, a 2nd order Low-Pass Filter was introduced, a TIMBRE and individual Mix controls to KMA's well-regarded circuit to make it way more versatile in a single pedal. Let's look at those cool new things in more detail.

The FILTER control helps to tame your upper harmonics, as well as to improve tracking, letting you achieve unhinged, cutting and shrieking mayhem when the control is fully turned all the way to the left. While turning the knob in the other direction gives a more mellow and blooming synth-like texture. The FILTER section is also very useful for tailoring the upper octave effect to different instruments and pickups, where getting the right tone is not a "one size fits all" equation.

In addition, to enable the octave voicing in MANDRAKE to be sculpted exactly to your own personal taste, the TIMBRE control defines the amount of fuzzy gain present in the upper octave. This allows you to perfectly blend in the pedal's tonality with the rest of your signal chain. Turning the control fully counterclockwise, gives a slightly crunchy and percussive tone that's ideal for melodic arpeggio enhancements. While cranking the TIMBRE knob fully clockwise will transform MANDRAKE into a crushingly saturated doom-hammer, instantly ready to wreak havoc with each power chord you throw at it!

Topping off the features, the DRY and OCT+ controls allow the dry signal and effected upper octave to be mixed independently, for precise tonal balancing. This is especially handy when using MANDRAKE together with other dirt pedals or when you just want to retain the natural body and attack of your instrument.

Subtle descant or decimating octaval Armageddon? With MANDRAKE the choice is totally yours!

Notes: Psychosis is a high quality true stereo - 6 channel mixer eurorack module, that has the unique ability to pan an input signal, from left to right with a single control.

It is equipped with a set of 4 stereo effects - reverb, delay, chorus and flanger, all trimmed for the modular levels.

This module is an easy gateway into mixing multiple signals as the last part in your signal chain.

10HP.

Notes: Think of the MFD like a tiny DJ mixer: two stereo inputs, one stereo output, with the option to cue either input and crossfade between the two. A simple idea very well executed.

Supplier's Notes:
Inspired by DJ mixers, the MFD allows you to cue and crossfade between signals. Ideal for live performance as well as jamming out ideas in the studio.

Supplier's Notes:
The 'MFD' is a 2-channel stereo crossfader designed for live DJ-style mixing and jamming in Eurorack. Two mono or stereo inputs are mixed to a single stereo output via direct or voltage control. Additional Cue controls provide preview monitoring of either input pre-mix via dedicated Cue switches and an output.

Voltage control over the crossfade and DC coupling allow for further creative uses such as a high quality stereo VCA or as a mix processor for either stereo audio signals or CV.

The MFD is designed to have very low noise and cross bleed and employs equal power crossfading for smooth constant level blending between signal sources.

Features:

Two channel stereo crossfader with voltage control.
Approx equal power crossfading.
Cue output switches for direct monitoring of either stereo input (pairing well with HPO for headphone monitoring).
Can be used as a high quality stereo VCA.
DC coupled for use with both audio and CV.
Skiff friendly with reverse power protection.
Two year warranty.
Made in England.

Ideal For:

Smoothly blending and monitoring 'tracks' or 'scenes' during a live set.
High quality VCA use for stereo based sources.
Voltage controlled crossfading and mixing of both CV and Audio signals.
Other advanced uses including audio rate modulation, stereo panning effects and a CV controlled FX send.

Technical Specifications

Supply: +12V 70mA / -12V 70mA

Size: 6HP

Depth: 32mm

Notes: Nive Grad is a level shifter designed for simplicity. Two Eurorack signals can be attenuated down to pedal and line levels, and two external line or pedal signals can be amplified up to Eurorack level. Integrating a drum machine, external synth, effects processor, or guitar with your Eurorack system has never been easier!

Nive Grad uses 1/8" jacks to save HP. If you want to use 1/4" gear with your system, ask your modular supplier about mono/TS 1/8" to 1/4" adapters or adapter cables.

Nive Grad pairs well with Noise Engineering's Xer Mixa system mixer, but can be used in any Eurorack system.

Type: Universal drum synthesizer
Size: Level Shifter
Depth: .9 inches
Power: 2x5 Eurorack
+12 V: 25 mA
-12 V: 25 mA
5 V: 0mA
Nive - level - from Latin niveum

Grad - step or degree- from Latin Gradus

Notes: Great value from this versatile percussion module, built around a noise generator and four linked envelope generators, each with its own VCA. Generate hi-hats, envelopes, shape drums or create modulation sequences.

Supplier's Notes:
Ricochet is a compact, fully analogue module featuring four interconnected decay envelopes, each with its own VCA and an integrated noise generator.

The module's design is inspired by the way skipping stones bounce on the water, creating a versatile tool for crafting percussive sounds.

The exponential envelopes are specifically designed to generate dynamic percussive tones. The unique linking function connects the end of one envelope's decay to the trigger of the next, enabling the subsequent envelope to activate once the previous one ends. This innovative feature allows you to create ratcheted envelope.

A front-panel trimmer lets you adjust the threshold for triggering subsequent envelopes, while a rear header enables connecting two Ricochet modules together, or linking the last envelope to the first. This feature transform the Ricochet to a weird sequencer where the steps length depend of the decay times.

Since Ricochet is fully analogic, trig inputs are velocity-sensitive, responding to a standard gates but also allowing attenuation to modify the envelope's velocity (you can play with the dynamic of your sound by attenuating the trigg input. Ricochet is also perfect to play with drum pads).

Each VCA features a gain control that can be pushed to achieve subtle saturation.

All envelopes and VCAs have separate outputs, but there are also mixed audio and envelope outputs. When an individual output is connected, it is removed from the mix. The decay modulation inputs are normalized between each other.

Last but not least, an analogue noise generator is normalised to the first input, so you can use ricochet on it's own to create hi hat kind of sounds

Main features:

- Fully analogue design so everything is responsive to the amplitude
- Unique linked envelopes feature
- Compact 4 envelopes 4 VCAs module
- Linkable to a second ricochet or looping back the last envelope to the first one

Some applications:

- Envelope generator
- Drum shaper
- Hi-hat
- Clap envelope shaper( with short ratcheted envelopes)
- Envelope sequencer
- Trigg delay
- Burst generator

Technical details:

- Fully Analogue design
- 14hp
- Skiff friendly
- Reverse power protection

Review: British and American artists working in the experimental scene were in fine fettle during the mid to late 1970s, though it is a rather under-investigated time. This new, vast and comprehensive box set from Dialogo's - made in full collaboration with all of the composers or their estates - serves up all ten of the albums Brian Eno's Obscure Records label put out. Each one has been remastered and an extensive booklet is included making this an essential collection that documents some of the most vital sounds to emerge during the second half of the 20th Century.

Notes: Endless Processor (Ex)pander Kit opens new possibilities for Endless Processor!

Now, there is pitch control over both channels. You can shift one octave up or shift down to a full sound stop, covering multiple octaves, effectively replicating the variable speed replay effect. This allows for the creation of new textures from existing sounds.

Additionally, with the expansion PCB, the Endless Processor gains an SD card slot that enables you to store up to 5 sound banks. This means everything sustained in both channels can be saved to preserve those happy accidents! However, this is not just a simple save and recall process. It allows more performing possibilities: sustain new sounds, play with them, and then recall the stored ones, all with respect to the fade controls.

And if that's not enough, there's a bonus! With the help of our web tool, you can upload the sound banks saved on the SD card and extract clickless loops of each layer in WAV format. You can then import these loops into your DAW or hardware sampler to build your composition on top of the captured sounds.

Endless Processor Expander Kit contains:

Endless Processor Ex module
Expansion PCB for the Endless Processor
Cable to connect Ex module to the expansion PCB

Width: 4HP

Depth of Endless Processor with expansion PCB attached: 45mm

Depth of Endless Processor Ex module: 30mm

Review: Made and released way back in 1958, Somethin' Else is a classic jazz album by the American alto saxophonist Cannonball Adderley, notably his only ever album for the esteemed Blue Note label. It famously hears Adderley enlist the help of trumpeter Miles Davis as one of its sidemen, and this was an ongoing relationship that later paved the way for popular jazz as a whole; without Somethin' Else, we wouldn't have Kind Of Blue, for which Adderley would contribute his sax playing just a year later. Though it is a testament to the unity of two great core musicians, we also hear the piano stylings of Hank Jones, bassist Sam Jones and drummer Art Blakey.

Notes: The tiny but mighty Eurorack power supply with all the bells and whistles

Micronova is a miniature power supply with a big soul. It can provide up to 18W of power for your modules and multiple units can be easily daisy chained to power larger systems.

This bundle includes:

an assembled Micronova
an assembled Micronova busboard
a Micronova front entry kit

Please note that the front entry requires assembly. It's a delightfully easy kit, but make sure you know what you're getting into!

A suitable AC-DC power adapter is required. We have adapters available for domestic customers. International customers please take a look at the manual for guidance and recommendations.

Check out the manual to get to know Micronova and all of the delightful ways you can integrate it into your case.

100 mm x 30 mm x 13 mm
15-20V, 1.5A
+12V @ 1A
-12V @ 300mA
+5V @ 500mA
Daisy chainable
Busboard included
Front entry kit included

Notes: The Vermona MEX3 is a midi extension for the meloDICER sequencer and allows the sequencing of synthesizers outside the modular system.

Features:

MIDI output of sequences
Sequences can now be polyphonic with up to three voices
meloDICER can receive MIDI Control Change messages to remotely control all parameters.
All meloDICER controls can send MIDI Control Change messages
Direct synchronisation to a MIDI clock including shuffle conversion (e.g. from a Multiclock)
MeloDICER converts the MIDI real-time messages START, STOP and CONTINUE.
Module width: 4 TE
Power supply via meloDICER

Included in delivery:

MEX3
Connection cable to meloDICER
2 x MIDI cable DIN-3.5mm; 150 cm (Type A)
To use the meloDICER with the MEX3, the latest firmware must be installed. This can be downloaded from the manufacturer's website.

Notes: Another typically creative offering from the good people at Soma, the Metaconformer is a MIDI router and thru box with some nice touches, including Combiner mode to join monophonic instruments into one big polyphonic patch.

Supplier's Notes:

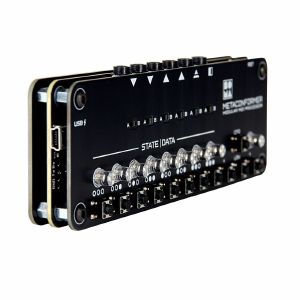

METACONFORMER is a smart MIDI router and thru box.

The METACONFORMER has 2 independent MIDI inputs and 4 MIDI outputs. One of the outputs can be configured as a sync signal source.

Today METACONFORMER supports 3 modes of processing MIDI messages:

Splitter mode allows you to split the keyboard of one MIDI channel into several zones. Notes from each zone are sent to only one instrument. This allows you to simultaneously play several instruments at once, listen to the interaction of timbres without having to switch the MIDI channel.

Combiner mode allows you to combine several monophonic instruments into one multitimbral polyphonic instrument. This works the same way as a polyphonic synthesizer's algorithm when it activates its voices. Only instead of voices with the same dynamics and parameters, you can play completely different timbres, which greatly expands the possibilities for creating interesting harmonies and rhythms.

Translator mode allows you to play the sound core parameter by pressing notes. Each received note is translated into a CC message corresponding to the desired parameter. This mode allows you to play with sound parameters, rather than simply enter them by rotating the knob. This mode works great with granular delays, resonant filters and paraphonic oscillators.

Power supply: DC +5V via USB
Current consumption: 20 ma max
Dimensions: 148 x 50 x 20 mm
Weight: 0.15 kg

Notes: You must absolutely own Skippy to use this module; it cannot operate independently.

The firmware version 2.21 or higher must be installed on your Skippy.

Additional features:
1 CV gate or trig input for Reset
1 CV gate or trig input for Play/stop
1 Reset button
1 Play/stop button
1 Live mode on/off button
16 function potentiometers distributed over 4 rows: you can freely choose a function (BPM, STEP, BEGIN, END, GAUSS, GATE, PROBA, CHAOS, SWING, WAY) for each row.
1 row of 4 algorithm potentiometers: you can freely choose an algorithm (Euclid, Jazzy, PolyR, Tiles) for each potentiometer.
The Save function takes into account the settings used in Skippy Live.
The selected parameters for Skippy Live are automatically saved.

Technical specifications:
10 HP
Depth: 25 mm
Power consumption:
+12 V 0 mA
-12 V 0 mA
+5 V 15 mA
Comes with a connector to Skippy and Knurlies.

Notes: The 'Mega Milton' is a smorgasbord of handy all analogue utilities in just 8HP that will greatly extend the functionality of your Eurorack system.

It includes a stereo line input converter for incorporating line level external sources into a Eurorack system, a fixed 4 input mixer with breakout attenuator for combining signals, a gated slew limiter for adding slides to sequences, a sample and hold with analogue white noise with a myriad of uses such as generative melodies or producing percussive textures and finally a buffered mult for droop free signal distribution with handy LEDs to monitor.

All sections are normalised to help with typical use cases such as generating random CV from the sample & hold section, a smooth random source from the slew output and breaking out a standalone attenuator from the fourth mixer input.

The 'Mega Milton' provides essential classic synthesizer building blocks for patching in any Eurorack system.

Ideal For

Incorporating stereo external sources easily into your Eurorack system.
Signal attenuation and basic mixing in a small space.
Building percussion sounds from an analogue noise source.
Producing clocked random to add interest and variation to patterns and sounds.
Adding gated 303 style slides to patterns.
Creating and Manipulating patterns with Sample and Hold.
Buffering and monitoring voltage across multiple VCOs or other destinations with no drop.

Tech Specs

Supply: +12V 70mA / -12V 70mA
Size: 8HP
Depth: 32mm

Notes: Portable recording made with musicians in mind, the R4 records up to four tracks in 32-bit float resolution, with on-board EQ and effects, amp simulation and the option to bounce recordings down then overdub.

Supplier's Notes:
The Little Recorder For Big Ideas

Introducing the Zoom R4 MultiTrak

Designed By Musicians

All of our engineers are musicians and they designed the R4 to empower musicians to explore big ideas. With a unique dedicated 'bounce track' and 32-bit float recording, the R4 is perfect for capturing your most ambitious compositions.

Record. Bounce. Repeat.

With the R4, you can record up to four tracks, mix and then bounce them to the dedicated 'bounce track.' This lets you free up additional tracks to keep adding layers.

You can choose to do a 'quick' bounce or mix and bounce in real time.

The R4 also allows you to 'undo' your last bounce, if you're not satisfied with the results.

32-Bit Float Recording

The R4 captures perfect audio with every take, without the need to set gain.

Combo Inputs

The R4 has 2 XLR/TS combo inputs with legendary Zoom preamps. You can plug in microphones, instruments, keyboards, and more.

Track Effects

Each track features a 3-band EQ, pan, echo, and reverb to refine your mix.

Input Effects

Apply effects to input A such as amp simulations, delays, distortions and more.

Built-In Microphone

The R4 features a high-quality built-in microphone, perfect for acoustic guitars, vocals, or capturing a quick reference recording.

Much More Than A Metronome

The R4 has a rhythm section preloaded with over 80 different drum patterns to play along with featuring genres such as rock, hip hop, funk, heavy metal, and more.

Every Take Is Saved

Tracks that you record are automatically saved individually, even after they have been bounced.

32-Bit Float Audio Interface

The R4 is also a powerful 2-in/ 2-out USB audio interface with 32-bit float technology. Connect it to either your computer or smartphone.

Control and Create

With a fader for each track and dedicated hardware buttons for the most used functions, you won't need to menu dive to record your music.

Powered For Your Ideas

The R4 can be powered by 4 AA Batteries, or through its USB-C port.

Specs

Inputs/outputs
Inputs: Built-in mic (mono): 1
XLR/TS inputs (mono): 2
Output: Headphones: 1

Inputs
XLR/TRS inputs:
Connectors: 2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT)
Input gain: No adjustment required (dual A/D converter circuit used)
Input impedance XLR: 2.3 kO; TS: 1 MO
Maximum input level: XLR: +4 dBu, TS: +10 dBu
Phantom power: +48 V (switchable separately for INPUTS A and B)
Equivalent input noise: XLR: -120 dBu or less (IHF-A); TS: -107 dBu or less (IHF-A)
Frequency response: XLR: -0.5 /+0.0 dB : 20 Hz - 20 kHz; TS: -0.2 /+0.0 dB : 20 Hz - 20 kHz

Built-in mic input
Directionality: Omnidirectional
Input gain: No adjustment required (dual A/D converter circuit used)
Maximum sound pressure input:
115 dB SPL
Output

Headphone

Connector: 1 stereo 3.5mm mini jack
Output impedance: 10 O
Maximum output level: 20 mW + 20 mW (into 32O load)

Recorder

Maximum simultaneous recording tracks: 2
Recording format: WAV: 48kHz, 32-bit float, mono
Recording media: Cards compatible with microSDHC specifications 4 GB - 32 GB; Cards compatible with microSDXC specifications 64 GB - 1 TB

Display: 2" full-colour LCD (240 × 320)

USB

Connector: USB Type-C
Note: Use a USB cable that supports data transfer. USB bus power is supported.
Audio interface function
Class: USB 2.0 High Speed
Sampling frequency: 48 kHz
Bit rate: 24-bit/32-bit float
Input / output channels: 2 in/2 out
Mass storage function: USB2.0 High Speed

Power supply

Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)
AC adapter: ZOOM AD-17 (5V/1.0A)
* USB bus power is supported.
Estimated continuous operation time using batteries

Alkaline batteries: about 7 hours
NiMH batteries (1900 mAh): about 6 hours
Lithium batteries: about 14 hours
* Use conditions: Recording 1 track, playing 1 track, phantom power off, headphones into 32O load, power saving on
* The above values are approximate. * Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

Power consumption: 5 W
External dimensions: 74 mm (W) × 138 mm (D) × 36 mm (H)
Weight (including batteries): 287 g
Note: 0 dBu = 0.775 Vrms

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analogue Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long .wav file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 2000 Hz or brought up to 48 kHz.

Dimensions

24 HP
40 mm deep
Module is a 1U tile in Intellijel format

Current Draw

80 mA +12V
30 mA -12V

Notes: Step up to the RC-5 and prime your pedalboard with maximum looping range. Capture sound with premium 32-bit quality, navigate parameters and monitor loop status with the backlit LCD, and tap into expanded operation via the control jack and TRS MIDI I/O. And with over 50 rhythms, 13 hours of stereo recording, 99 phrase memories, and more, the compact RC-5 puts a deep well of musical power at your feet.

Featuring best-in-class 32-bit AD/DA and 32-bit floating-point processing, the RC-5 captures your personal sound with full fidelity and keeps loops crystal clear, even with multiple overdubs. And with 13 hours of stereo recording time, there's plenty of space for extended creative journeys.

The RC-5 features the most advanced interface available in any compact looper pedal. The LCD lets you keep an eye on loop status as you perform, with a backlight that changes colour to indicate recording, overdub, and playback states. And coupled with the multi-function parameter knob, it's quick and easy to navigate rhythms, kits, system settings, and more in the heat of the moment.

The RC-5's versatile pedal switch controls all looping functions-record, overdub, play, stop, and undo/redo. But deeper control is also supported if you need it. Connect up to two external footswitches for direct control of many assignable functions, or an expression pedal for continuous adjustments. Players with advanced systems will love the TRS MIDI I/O, which saves space and enables remote operation from MIDI switchers and foot controllers, plus MIDI sync with drum machines and DAWs.

With 57 preset rhythms and seven different drum kits, the RC-5 is ready to elevate loop and practice sessions with inspiring grooves for any style. For each rhythm, A/B variations can be selected from the panel or controlled via MIDI while performing. The RC-5's looper engine also includes a cool reverse function that's great for infusing your music with fresh sonic colours.

The RC-5 provides 99 phrase memories, letting you store loops as fast as you create them. In addition to audio, a phrase memory includes the selected rhythm and kit, so it's ready to go when you call it up. Loop audio can be backed up to a computer via USB. And with WAV import via BOSS Tone Studio, the RC-5 becomes a pedalboard playback hub for lesson material, jam tracks, or backing music for your next gig.

Notes: 1U version of Happy Nerding's effects module, offering a total of 32 effects, with user-storable presets and CV control. Great value in a convenient package.

Supplier's Notes:
32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analogue Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long .wav file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 2000 Hz or brought up to 48 kHz.

Dimensions

24 HP
40 mm deep
Module is a 1U tile in Intellijel format

Current Draw

80 mA +12V
30 mA -12V

Review: The 1971 classic album by Canadian singer-songwriter Joni Mitchell, Blue is widely thought by many music lovers to be one of the best albums of all time. Already well into her career by the time of its release - it's her fourth album - it was certainly Mitchell's best yet, reflecting a period in her life where she took a break from touring and live performing to focus on creation. Its confessional and poetic lyrics, not to mention the distinctively groggy yet idyllic guitar and piano playing on songs like 'All I Want', 'River', 'A Case Of You', heard Mitchell encapsulate the various milestones, Renaissances and turning points of the contemporary rock landscape of the 1970s, into a singular LP.

Notes: Enlightening

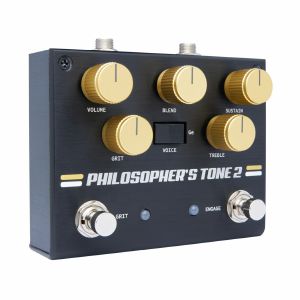

Elevating the groundbreaking optical compression of the original Philosopher's Tone to a new plane of tonal enlightenment, the Philosopher's Tone 2 is a world-class compressor/sustainer with footswitchable Grit, allowing for more versatility than ever before. Featuring a refined implementation of the overdrive circuit first heard in the limited-edition Gold version of this iconic compressor pedal, the unique germanium distortion found in the Philosopher's Tone 2 delivers smooth top end and rich midrange response, tailored to perfectly match the characteristics of the optical sustainer driving it. In addition to Volume and Sustain controls, the Philosopher's Tone 2 features a parallel clean Blend knob that allows musicians to mix their instrument's original tone with the compressor/sustainer effect when the Grit circuit is bypassed. This mixing technique restores natural pick-attack and allows clean settings with extreme sustain to remain dynamic and musical. When the Grit circuit is engaged, the Blend knob is automatically bypassed, circumventing the compromises of the original unit and imparting a colourful distortion to your sound in both Germanium and Silicon modes. This nonlinear diode-clipping can range from subtle overdrive to overflowing distortion, all without unwanted feedback. A Treble control located just before the master Volume provides 6db of cut or boost at 2kHz for fine-tuning the frequency response of the effect. The Philosopher's Tone 2 features true-bypass switching and internal 18V power rails for maximum clean headroom that is ideal for use with hot pickups, active bass, synthesisers and other line-level sources. Runs on 9VDC.

Knob-by-knob

Volume: Sets the overall output volume.
Treble: Boosts or cuts treble at 2kHz.
Sustain: Sets the amount of sustain.
Blend: Mixes your compressed effect with your clean signal. Note: This control is only active when the Grit footswitch is turned OFF.
Grit: Controls the gain of the overdrive stage. Note: This control is only active when the Grit footswitch is turned ON.

Rare design

Generations of guitar players have sought noiseless clean sustain from a compressor, and this was the guiding goal of the research and design behind Philosopher's Tone, yielding a compressor with an internal 18 volts of headroom and naturally musical tone control.

The evolution of Philosopher's Tone

First released in 2009 and igniting a new following for Pigtronix, the Philosopher's Tone 2 is a "best of" design, incorporating the best elements of previous iterations plus a completely redefined Grit knob for significantly more versatility.

Modern-day alchemy

Practitioners of the mystical and ancient art of alchemy long sought an element called the Philosopher's Stone. They believed, if found, it could turn lead into gold and bestow immortality upon the person who wielded it. Philosopher's Tone 2 allows players to conjure gleaming sustain, soaring lead tones, and articulation across all six strings.

Model name: Philosopher's Tone
Function: Optical Compressor Sustainer
Category 1: Compression
Bypass: True Bypass

Electronics

Voltage: 9VDC
Current draw: 100mA
Input impedance: High
Output impedance: 150ohms

Body
Length (inches): 1.5
Width (inches): 3.75
Height (inches): 1.75
Weight (lbs): 0.5

Notes: Infinite inspiration, ready to play

Combining high-end sound and wide-ranging versatility, the RV-6 takes pedal-based reverb to the next level. Reaching beyond the capabilities of previous generations, this powerful stomp employs the latest tech and legendary BOSS know-how to make it easy to get amazing reverb tones instantly. From subtle rooms to modern shimmer effects to long, evocative reverbs, the RV-6 envelops your tone in lush ambient spaces that endlessly inspire.

Simply Great-Sounding Reverbs

Packing the latest BOSS DSP and updated algorithms, the RV-6 gives you eight highly musical reverb effects in one compact pedal. Add body and depth to your core tone with standards like Room, Hall, and Plate, dial up swirling richness with the Modulate setting, or surf it up with a vintage-style Spring reverb. Dynamic mode automatically adjusts the effect depth to your playing touch, providing deep, immersive reverb that won't turn your tone to mud. And modern players will love the new Shimmer and Reverb + Delay modes.

Dialled-In Sounds at Your Command

The RV-6 makes getting high-quality reverb sounds with your guitar quick and easy- just select a sound mode, tweak the knobs to taste, and play. But while its operation is simple, the RV-6's sound is rich and sophisticated. Under the hood, each mode includes a huge array of detailed reverb parameters, all perfectly tuned for guitar by the BOSS engineers with direct input from many pro players and sound engineers. Even as you adjust the selected mode with the Time and Tone knobs, many parameters are simultaneously adjusted inside to create the ideal voicing for every setting.

Analogue Dry Tone and Versatile I/O

While the RV-6's reverb effects are high-tech digital, you can rest assured that your straight guitar tone always remains pure analogue as the effect is blended in. Convenient auto-switching jacks let you integrate with any pedal chain, with support for mono, mono-to-stereo, and stereo-to-stereo operation. And by plugging into the B input only, the RV-6 outputs a 100-percent wet sound, great for working with more complex rigs that employ parallel processing chains and mixers. There's also a jack for connecting an optional expression pedal, allowing you to control the effect level in real time as you play.

Reverb Modes

+DELAY - This is reverb combined with delay. The synergistic effect provides rich reverberation.
SHIMMER- This reverb is distinctive for its sparkling high-frequency range. It produces fantasy-like reverberation wrapped in spacious overtones.
DYNAMIC- This reverb automatically sets the depth of the effect according to your performance. It produces deep reverberation without blurring the overall shape of your playing.
ROOM- This reverb simulates the reverberation of a room. It produces warm reverberation.
HALL- This reverb simulates the reverberation of a hall. It produces clear and spacious reverberation.
PLATE- This simulates a plate reverb (a reverb unit that uses the vibration of a metal plate). It produces metallic-sounding reverberation with an extended high-frequency range.
SPRING- This simulates a spring reverb built into a guitar amp.
MODULATE- This reverb adds modulation to hall reverb, producing extremely good-feeling reverberation.

Specifications


Reverb Modes:

8 modes- HALL, PLATE, ROOM, SPRING, MODULATE, +DELAY, SHIMMER, DYNAMIC
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level-20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Controls: Pedal switch, E.LEVEL knob, TONE knob, TIME knob, MODE knob
Indicator: CHECK indicator (Serves also as battery check indicator)

Connectors: INPUT-A (MONO) jack, INPUT-B jack, OUTPUT-A (MONO) jack, OUTPUT-B jack, EXP jack, AC adaptor jack (DC 9 V)
Power Supply: Alkaline battery (9V, 6LR61), AC adaptor (sold separately)
Current Draw: 95 mA

Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
Alkaline: Approx. 3 hours

Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61)

Options (sold separately) AC adaptor: PSA series
Expression Pedal: BOSS FV-500H, FV-500L, Roland EV-5

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 450 g / 1 lb

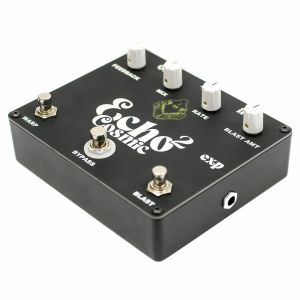

Notes: Great for live performances! The Cosmic ECHO Squared is an analogue-sounding LoFi delay that will work with just about anything you plug into it.

The dark, lush, moody tones of the ever-popular PT2399 IC provide an out-of-this-world experience. Our take on this classic pedal pushes the chip's limits so you can explore all the gritty elements drifting at the edge of long delay rates. It already outperforms other bucket brigade style echoes, but just to be sure, we added 2 stomp switches, Blast and Warp.

The "Squared" version of the pedal is tailored to live guitar and keyboard performers. It has all the features of the original plus:

Expression pedal input over Rate
Warp and Blast ("Zone" on the Cosmic Echo) are now momentary stomp switches
Blast amount knob now accessible externally

Features:

Dark, rich sounds with the analogue vibe of a tape echo.

Uses the PT2399 IC, a bucket brigade style emulation. This IC has 16-bit sampling for 30-300 milliseconds. After that, the sample rate goes down in relation to the delay length. This results in artifacts and noise being introduced into the audio for weird, cosmic, psychedelic sounds.

Delay length: 30ms-1,250ms

4 knobs: Feedback, Mix and Rate, Blast Amount. The Mix is a wet-only control that attenuates the amount of delayed signal in the signal chain. The Rate controls the number of repeats in an organic-sounding way.

Warp button: Stomp switch that gives a bright, "small speaker" tone.

Blast button: Stomp switch that introduces feedback into the circuit momentarily. Great for adding rhythmic feedback and other strange sounds. The Blast intensity is adjusted with the Blast Amount knob.

Pedal may have a slight volume drop.

Great for shoegaze, surf rock, ambient and experimental sounds.

Pedal uses a 1590XX case.

Dimensions (L x W x H): 5 3/4" x 4 3/4" x 2 1/8" (146mm x 121mm x 54mm)

Takes a 9V battery or 9V centre negative 2.1mm barrel power supply (not included)

Notes: E4 Encoder Controller

The E4 is a controller with four rotary encoders.

The encoders look like normal potentiometers, but you can turn them endlessly in either direction. (Don't be fooled by the knobs, which do have a pointer).

This allows for a wide range of applications and great flexibility.

Each encoder is surrounded by a square of 32 multicolor LEDs. This LED ring is used to indicate the current value of the encoder. And it looks really great! The LEDs help you to give you an orientation by displaying the current value.

Each encoder contains a push button, which can be used just like those on the P2B8 or on the B32.

The E4 is perfect for mapping many different functions or presets to one encoder and then switch with the buttons of a P2B8 or B32 to some other context. Because of the LED rings you instantly see the current value after switching. And other than with pots, no "picking up" of the value is needed.

Furthermore, the nature of the encoders allows for some useful features, for example:

Create a "multi turn" pot, that needs to be turned several rounds for going through the total range (which allows for a finer selection).
Enable a mode where a slow movement of the encoder changes the value even slower, so it allows for instant fine tuning.
Use an encoder as a switch with a fixed number of positions (the LEDs visualise that)
Select a bipolar value with proper visualisation by the LEDs.
Use an encoder for "strumming", where you get triggers when it is turned.
As a bonus, there is a circuit called encoquencer, that allows you to build a melody sequencer based on the encoders and LEDs of the E4. It has the same features as the sequencer that is based on the motor faders of the M4 (motoquencer).

Power consumption:

+12V: 220 mA when all LEDs are white, 53 mA during normal use case
-12V: 0 mA
5V: 0 mA

Hint: The LEDs only shine fully white when you set them up to do so in your DROID patch. As long as you use the encoders in a normal way, the LEDs display colored light which is not as bright, so the power consumption is much less under normal circumstances.

Dimensions
6 HP
23 mm deep

Current Draw
53 mA +12V
0 mA -12V
0 mA 5V
