Notes: The Jumbler music synthesiser module is a six by six channel analogue signal combiner and distributor for the New Universal Synthesizer System or any Eurorack modular synthesiser. Jumble is one of the N.U.S.S. concepts where the routings of a patch could be re-configured, or jumbled, instantly via voltage control to produce variations on a theme.

Jumbler gives you powerful two-parameter access to the rearrangement of both origins and destinations for up to six modular signals. One to six inputs are routed to one to six outputs, in an order determined by the Rotate control, and combination determined by the Radiate control. Unlike a simple switch module, Jumbler's analogue VCA-based design is specially geared for smooth transitions and hybrid signals.

Jumbler is a great module for hybrid control voltage mashing, complex waveform mixing, on-the-fly effects re-routing, gate and clock re-combinations and more. Some folks have said it is like patching a stack of 6 RxMx circuits.

Width: 10hp
Max Depth (incl. power cable): 43 mm

Power:
178mA@ +12V
92mA @ -12V

Notes: ***B-STOCK: Box opened, product in perfect working order***


The MetaModule Audio Expander (MetaAIO) adds an additional 6 CV/Audio inputs and 8 CV/Audio outputs to your MetaModule patches, via a ribbon cable connected to the main MetaModule. The MetaAIO provides the same high-quality as the MetaModule's Audio/CV jacks (24-bit, 48kHz default, up to 96kHz).

Notes: Analogue discrete Synthvoice with two VCOs, three SUB-VCOs, Wavefolder, Noise, Ring Modulator, two loopable ADRS, two LFOs/VCOs, MIXER, 24db Lowpass VCF, VCAOur new Eurorack flagship hits stores this summer. Very compact (pre-patched) discrete synth voice module with excellent analogue technology for endless soundscapes at a reasonable price.

Two discrete VCOs with highly stable tracking

Three analogue Suboscillators (3/4-1/2-1/4 with SQUARE, SAW, TRI) + Gravity Mix -Sync

Wavefolder (VCO 1 TRI WAVE)

White Noise

XOR Ringmodulator

Discrete VCA

24dB LP VCF with overdrive

Dual analogue LFO (one also usable as VCO) with incredible range and keytracking -Two superfast and punchy analog ADSR sections with LOOP function and four TRG outputs (End of ATT, End of DEC)

Mixer section with Master level -Glide presets and huge Patchfield to communicate with other Eurorack Modules.

Screwed metal shaft potentiometer

Rackspace: 36TE
Depth: 25mm

Notes: A super impressive offering from Xaoc, the Samarkanda is a quad delay module designed for hands-on, real-time performance. Dial in everything from loops to stereo delays, resonators, modulation effects and much more.

Supplier's Notes:
Xaoc Devices Samarkanda is a digital quad delay module with extensive patching capabilities and a lot of flexibility for signal mangling. It can be used as four entirely independent delays, a dual stereo delay, a complex/multi-tap or multi-channel delay, a quad/polyphonic resonator, dual chorus, dual flanger, reverb, looper (with sound on sound!), and granulator, or any combination of those. You can reverse the delayed signal, hold it, squeeze and stretch it beyond all recognition and still go back to the original piece of audio captured in the buffer! The internal lossless normalization (the signal doesn't leave the digital domain) combined with top-notch components (including 24-bit AKM converters and 32-bit internal processing) are responsible for high sound quality. Samarkanda has been conceived in the truly modular spirit. Not only can you control almost all its features remotely with CV/gates, but the external feedback path gives you the opportunity to process the delayed signal with other modules.

Samarkanda offers a wide range of delay times beginning at a mere 0.5ms and reaching up to 15 seconds per channel. That means that, by stacking its four channels, you can achieve up to one minute delay! There are two operating modes switchable individually for each channel. Analogue delivers pitch changes that resemble classic analogue tape and BBD delays. When you combine it with the looping Hold function, you can play Samarkanda with any 1V/octave CV source. By using the Sync function you can even loop single wave cycles. The Digital mode gives you a granular buffer-scrubbing effect (no pitch change) across the whole delay time range. You can seamlessly switch back and forth between modes without losing any information. You can use Samarkanda for multiple tasks at the same time - from four independent delay lines through any combination of channels processing the same signal up to a quad behemoth. You can also use the linking feature for ease of operation (the first channel in the chain acts as the main control source for the others).

As most settings operate on a per-channel basis, you can freely combine different features (such as analog/digital behaviour, delay time range, reverse and hold functions, etc.) in a configuration of your choosing. You can synchronize each of its channels separately to a different source, either via the Sync input, or by using the tap-tempo functionality (with multiplication and division galore). Should you ever get lost, the Purge button comes in handy when/if things start to spiral out of control!

Notes: 'Pamela's PRO Workout' is a compact programmable clocked modulation source for your Eurorack modular system. It provides 8 highly editable outputs producing various control voltage signals correlated and synced to a BPM based master clock.

Each output can provide everything from simple clocked triggers, complex rhythmic waveforms, quantised melodic patterns to random chaos with direct and assignable CV control over numerous parameters. These features together with a quick and easy to use interface provide almost limitless synced modulation possibilities in a tiny space.

Building on the original 'Pamela's Workout' & 'Pamela's NEW Workout' the evolved 'PRO' Pam maintains the precursor's form factor and intuitive workflow but improves and adds many new features with upgraded hardware, more CV inputs, a new full colour hi res display and rewritten software adding many new enhancements like micro grid timings and cross output modulations.

Through optional expander modules more CV input and outputs can be added with support for external non euro equipment through Midi and Din Sync outputs. Please enjoy your next generation PRO workout!

Size: 8HP
Power: +12v 60ma / -12v 10ma
Depth: 32mm (approx with power header)
Outputs: 0-5v buffered low impedance. 12 bit res. 3.8khz max update freq.
Inputs: CV 0v-5v / Clock, Run - rising edge 700mV min.

Notes: The MCO MK II is a highly versatile digital VCO and voice module inspired by 90s/00s digital synths shrunk into just 6HP.

It offers a broad collection of unique, high-quality synth voices, each with extensive, customizable parameters. These parameters can be directly controlled or modulated through assignable internal and external sources. Certain per-voice parameters support audio-rate modulation, including FM, sync, and DSP. Each voice also supports up to four-voice chords, external-triggered envelopes, multiple LFOs, and dual audio outputs for comprehensive desktop like synth functionality.

Voices include a multi dimensional wavetable oscillator based on the original MCO, a complex additive synthesis engine, a multi mode 'JP' type digi-synth, a lush virtual analog implementation, a fully featured vocoder, a bass synth for both kicks and sub sonic tones and finally arebirth and porting of our discontinued SID GUTs chip voice.

Each voice includes factory presets as well as the ability to store and recall user presets. All state is preserved across power cycles.

The MCO is designed to be familiar, quick and easy to use with a high resolution colour display and a rich visual user interface.

A USB-C connection allows for easy firmware updates, user wavetables upload and device config backup and restore. Axon expander modules are also supported to increase CV control options.

Notes: Part of TipTop's exceptional series of Eurorack-format Buchla modules, the 264t provides four sample-and-hold circuits, plus a logic circuit designed to control polyphonic patches. Deceptively simple but surprisingly creative, like most Buchla modules.

Supplier's Notes:
Four independent sample-and-hold circuits, plus a specialized logic circuit for expediently implementing polyphonic patches.

Sample-and-hold's are essentially one-cell analog memories. They are useful for "remembering" the instantaneous value of a control voltage (a detected envelope, for example), for generating equally spaced steps from a constant slope input (as from a 281t envelope generator), and for converting any continuously changing voltage (a random voltage, for instance) into a series of discrete values.

The 264's sample-and-hold circuits have two operating modes: sample and track. In the sample mode, the value of the input is sampled and applied to the output whenever a pulse is received. The output remains at this value until the next pulse arrives. The track mode diers in that an input is applied to the output for the duration of the pulse. The output tracks the input until the end of the pulse and remains at a constant value until the next pulse.

To use the 264t as four independent channels set the separate/common switch to separate. A single CV can be set to all four channels by setting the operate/common to common and plug CV in the the back jack on the with right side.

The Model 264t includes a polyphonic adaptor, which performs the logic necessary to implement four-voice polyphony. Facilities are incorporated for fine tuning and f.m. modulating the oscillators; light emitters display the adaptor's operation.

Specifications:

Size: 18 HP - Depth: 45mm
Power: +12V 60mA / -12V 30mA

Notes: Freaky stereo digital delay from the Eurorack gods at Make Noise. Typically creative stuff, packed full of interesting features for creating complex echoes, modulating sounds and generating loops.

Supplier notes:
The Mimeophon music synthesiser module is a stereo, multi-zone colour audio repeater by Make Noise and soundhack, coded by Tom Erbe.

The Mimeophon (from Greek mimeo (repeat/copy) and phon (sound)) is a modern take on various historical sound copying, echo and repeating devices. It allows for Stereo modulations of Time, Space and Timbre of Mono or Stereo sound sources. The Mimeophon is capable of modulating and morphing time scales of repeated sound from micro-sound to note to phrase length while also colouring and spatializing the repeats.

Notes: A typically clever approach to modulation from Make Noise, the MultiMod takes a control signal and modifies it into eight related outputs, adjustable by phase and timing. Hugely versatile.

Supplier's Notes:
With MultiMod...from one control signal, we create many.

In a modular synthesiser, it is easy to create complex results via complex means - patching an elaborate network of independent control signals, for example. This can be very powerful but also cumbersome to set up, and potentially difficult to control in a meaningful way. MultiMod represents a new approach: it takes a single control signal and copies it 8 times, not unlike a simple mult, except that it allows you to modify those copies by weighted adjustment of their relative phase and speed. The result is modulation that is related to the source, but not identical at each destination.

Phase sets the spacing of the signal copies in time, weighted by channel, with each progressive channel getting more out of phase from the original signal and from each other. Spread allows for varispeeding the copies by different amounts, with each getting progressively faster or slower than the original Signal. Time determines the range of time captured at the input and therefore also the depth of modulation across copies of the input signal when Phase and Spread are manipulated. MultiMod also includes Tempo, Hold, and Reset features, and a variety of Read Shapes for temporal rearrangement of input signals.

When the input is not patched, MultiMod generates an LFO that is copied eight times and manipulated in the same ways.

MultiMod is built with the latest DSP hardware which offers eight high resolution outputs, with signal input and output ranges approaching the upper limits of the analogue eurorack modular system. All I/O is capable of a 20V range at +/-10V, greatly exceeding the typical 0-5V CV input ranges on typical digital modules.

Specifications

Width: 10hp
Max depth (incl power cable): 39mm

Power:
195mA @+12V
10mA @-12V

Notes: The MFX is a compact 6HP Eurorack stereo digital audio multi effects processor.

It offers 14 different full featured effects programs plus a number of metering utilities.
Inspired by ALM's favourite classic hardware effects processors, the MFX incorporates DSP technologies from the dawn of digital effects in the 70s to the present day. This combines with ALM character and uniqueness to form a highly useful, fun and practical Eurorack effects module.

Reshape sounds with the distortion and dynamics engines. Bend time, space and pitch with multiple feature rich reverb and delay engines. Modulate signals with the flexible panner, frequency shifter, and range of ensemble effects. Fracture sounds with the one of a kind granular and glitch engines. Check signals and tune oscillators with various utilities.

The MFX user interface is designed to be familiar, quick and easy to use. Each program contains a wide range of controllable parameters both directly editable or freely assigned to CV or clocked control. Additionally, each program includes factory presets as well as the ability to store and recall user presets. All states are preserved across power cycles.

Effect Program List

Digi-PCM Echo
Feature rich digital delay taking inspiration from early prime time rack delay units with added modern features.

Tape-Tech Echo
Tape style delay with a digital pitch shifter bolted on.

Crumbular Echo
More experimental granular style echo.

Ursa Minor Echoverb
Emulation of the classic Ursa Major 'Space station' providing more delays and reverb type effects.

Pocket PL8 Reverb
Emulation of very early digital style reverbs with a dense metallic sound.

Almicon Reverb
Emulation of 80s studio style reverb great for bright rooms and vast synthetic spaces.

Quaidra Reverb
Emulation of a popular 90s rack reverb. Excels at creating airy, atmospheric reverbs.

TY-50 Compressor
Flexible modern compressor great for adding punch, smoothing transients or as a clean mix bus compressor.

Transient Shaper
Fast acting dynamics processor for reshaping the attack and release envelope of any sound.

TH-30 Distortion
A versatile distortion program with distortion types ranging from analog style saturation to intense digital wavefolding.

2051 Bit Corrupter
Real-time audio buffer designed to imitate malfunctioning digital audio equipment.

Modulating Panner
Clock-syncable mono or stereo auto-pan with an additional scan mode that cross fades between 2 input signals. Use for VCA, Panner, crossfader, tremolo type effects.

Ring + Freq Modulator
Pair of classic modulation effects in stereo, tailored towards otherworldly and dissonant sounds.

Ensembles Ensemble
Simulation of classic chorus and ensemble effects. An added digital pitch shifter takes the effect beyond traditional chorus circuits.

Utilities
Simple oscilloscope and VCO tuner.

Technical Specifications

Supply: +12V 50mA Max / -12v 15mA
Size: 6 HP
Depth: 32mm
16 Bit / 44.1Khz Stereo processing

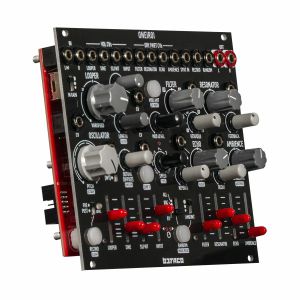

Notes: A really interesting synth voice module from Befaco, the Oneiroi specialises in ambient pads, drones and soundscapes thanks to a combination of oscillators, looping, effects and randomisation. True stereo textures from a single module.

Supplier's Notes:
Experimental synth voice focused on ambient pads and drone-like soundscapes.

Shape your performance

At its core, there is a Sine Wave Oscillator, Wavetable/Supersaw, and a joyful Looper. This is followed by an FX section featuring a Multimode filter, a Resonator, a Delay, and a Reverb.

His randomizer creates instant patches at the touch of a button.

The Looper can record the external input or the output with "Sound On Sound" looping.

5-second Looper records either the stereo input or the module's output, the Wavetable oscillator uses the Looper buffer

The atmosphere creator

A full-stereo synthesiser that easily creates dense atmospheres for hypnotic music or cinematic sound design.

Featuring three oscillators, four effects, a looper, modulation with complex routing, and a randomizer.

Powerful randomizer with four different targets that acts in different ways depending on the position of the two switches, three levels of intensity and undo/redo.

Specs

Current needs: +12V=200mA, -12V=60mA
Width: 30 HP
Depth Assembled Version: 25mm
Designed, kits prepared and assembled in Barcelona.

Notes: Part of Knobula's excellent polyphonic Eurorack range, the Monumatic is an eight-voice poly/monophonic synth module with 16 oscillator modes, covering everything from virtual analogue to cutting-edge tone generation algorithms.

Supplier's Notes:
Monumatic is a fully polyphonic 8-voice synthesiser and a monophonic synthesiser packed into a compact 12HP module.

It features16 selectable oscillator modes to provide a diverse range of both classic and futuristic tone generation using exclusively virtual analog algorithms. These include; Roland super-saw, Polymoog vox humana, Casio phase distortion, Solina string synth, percussive drawbar organs , "noisy cassette" strings, pulse width modulation and some gnarly asymmetric sync oscillators, all modelled without samples and each one of these customisable using the Detune control and each providing the foundation for further signal processing though the filter and effects sections.

6 powerful filter types are provided, including a vocal vowel filter, a 24db/oct Butterworth low pass filter, a dual peak notch filter and a phase shifter, each of which features an overdrive setting.

Like its sibling module Poly Cinematic, Monumatic is designed to be simple to use yet versatile, offering minimal controls to access a wealth of sounds, avoiding the need to scroll through 1000s of complex presets.

Monumatic supports full analog control of every parameter, with two instantly assignable CV inputs, as well as dedicated CV inputs for Gate, V/Oct and Filter cutoff, with additional digital control using comprehensive Midi CC and MPE implementation. An altogether unparalleled potential for expansion and integration into the eurorack universe.

As well as full midi capability, the 8 built-in chord presets can be custom programmed to provide polyphonic stabs and pads and using a single CV/Gate input, arpeggios can be layered polyphonically or "plucked" using long release times. The mono/poly function allows the Monumatic to switch between a fully capable poly synth or a mono synth at the touch of a button.

In polyphonic mode Monumatic introduces an advanced micro-tuning system to modular synthesis, it can replicate the organic drift of vintage analogue oscillators or it can apply realtime tuning temperaments to enhance harmonic authenticity using 'just' intonation, this parameter can even be assigned to CV control.

Notes: The Quad VCA is a compact and feature packed module that is sure to find its way it almost all of your patches. In addition to being used for standard VCA duties it can also be used as a mixer and signal booster.

Features:

- Manual LEVEL control per VCA which is convenient when using the module as a mixer or for biasing when CV modulating the VCA with a bipolar LFO.
- Dedicated CV attenuators with dual colour LEDs for monitoring bipolar CV signals.
- Continuously adjustable response from linear to exponential per VCA.
- Each CV input is normalled to the adjacent one for cascaded control.
- Each output is normalled to the mix input of the adjacent one which allows you to use adjacent sets as submixes or the fourth output can be used as a master mix output when none of the other outputs are patched.
- Each VCA has a boost switch that increases the output level by approximately +6dB (double).

Notes: The 'MEGA-TANG' is a 4-channel linear VCA and stereo mixer providing per input control over level, effect send, pan and muting. Designed for live use in mind with a simple & compact layout, the 'MEGA-TANG' builds on the clean and transparent sounding Tangle Quartet VCA by adding a stereo mix output, effect sends (mono send with a stereo return) which pair great with the MFX, manual panning, soft mute buttons with LED indicators and an expansion port for future expandability.

Individual VCA outputs are available which remove the channel from the main mix (useful for cueing and monitoring). All signals are Euro level and bar the effects return, DC coupled for CV use as well as audio.

Technical Specifications

Power: +12V 125ma -12V 125ma
Size: 16HP
Depth: 32mm
Attenuation: approx -70db

Notes: Updated Atlantix module is an even better synth voice than the original Atlantis. Based on the Roland SH-101 formula, it's a monster with dual VCOs, legendary filter and built-in envelope generator. All you need for iconic analogue sounds.

Supplier's Notes:
Atlantix

Dual Oscillator Subtractive Analogue Synth Voice

It's Massive

The Atlantix is a complete analogue synth voice. It's quick to dial in huge bass or lead sounds, and easy to push it into new sonic territory. Dual VCOs, Multimode VCF, VCA with Drive, and an ADSR envelope; all of the building blocks needed to expand or start making sound in your rack. With 32 patch points and a selection of routing switches, you can remix these blocks into something all your own.

Reimagining a Reimagined Classic

The Atlantix is the highly-anticipated successor to the Intellijel Atlantis which was originally inspired by the classic Roland SH-101. Despite the SH-101's seemingly limited architecture, it produces various creative and musically useful sounds that have inspired generations of artists and countless hits. The Atlantix is just as immediate for dialling in beautifully rich bass and lead sounds. The thoughtful design, numerous additional features, and flexible patching options open up a massive amount of new sonic territory to explore as well.

The Atlantix is an analogue, complete subtractive synthesizer voice condensed into a single 42HP module. It provides all the fundamental building blocks needed to make sounds in Eurorack: VCOs, VCF, VCA, S&H, Noise, and an Envelope.

Oscillators - Advanced TZFM and Flexible Mixer

The Atlantix uses two triangle core voltage controlled oscillators (VCO) which respond in a musically pleasing way to frequency modulation. The Atlantix primary VCO (VCO A) is capable of thru-zero frequency modulation and has a dedicated amplifier for controlling FM depth (FM INDEX). The modulation oscillator (VCO B) can be used as either an LFO or VCO. The highly flexible architecture allows you to route VCO B as a modulation source or stack it as a secondary VCO all by the flick of a switch or slider. VCO B also has a bonus "spike" waveform output which is a square wave with fixed HPF, similar to the Buchla Easel. Both oscillators track very precisely over eight or more octaves.

In the mixer section, you can adjust the balance of the primary oscillator's waveforms, sub-oscillator noise, and two auxiliary inputs that are normalled to additional VCO A waveforms or VCO B waveforms. The auxiliary inputs also allow you to patch other external signals into the mix.
The second Auxiliary input has a switch that allows you to route the source between the mixer sum or directly into the VCA (post-VCF). The latter is a way to pass an unfiltered fundamental signal to the final VCA stage and then blend it with filtered audio from the VCF. This draws inspiration from the architecture of the CS-80 where a sine wave is mixed with the filtered audio to make glassy tones with some added harmonics.

Multimode Filter - From Drips to Growls

The filter section (VCF) is a discrete cascaded 4-pole multimode filter with lowpass, bandpass, highpass, and phaser (multi-notch) modes. The filter can self-oscillate which produces a very clean sine wave that also tracks 1V/Oct. The VCF has three frequency modulation sources, two of which are normalled to the external pitch and envelope and have switches for polarity.

Add Atlx for dedicated outputs from each mode.

Envelope - A Classic ADSR

The envelope section is an analogue ADSR with three timing ranges: slow, medium, and fast. It can be gated externally or via a manual gate button located in the centre of the panel. The ADSR is routed through a VCA which can be used for level or velocity control.

Modulation - Random, Feedback, and Built-in Routing

Two eight-position rotary switches allow you to select from eight different modulation sources and route them to outputs MOD X and MOD Y. Each switch also has a polarity control and an option to level shift between unipolar and bipolar operation. MOD X is normalled to VCO A frequency modulation and MOD Y is normalled to VCF frequency modulation. The dedicated outputs allow for further creative modulation patching.

Four of the Input jacks have normal switches to change your patch without the need for cables.

The analogue Sample and Hold (S&H) circuit is normalled to the white noise source and can be clocked by VCO B, an external clock source, or via the gate input for per-note synced randomization.

Atlx - Expander w/ Ring Mod (Optional) ***Sold separately ***

The Atlx expander provides 16 additional jacks to the Atlantix, including: dedicated waveform outputs for A and B oscillators, filter outputs, and a ring modulator. Atlx adds many new possibilities for self-patching, advanced routing, and connections to other modules.

Specs + Downloads

Width: 42HP
Depth: 25mm
Power: 140mA @ +12V
138mA @ -12V

Notes: Dual 1 x 3 buffered mult (one audio or cv signal in with multiple buffered outputs).

The output of the first mult is normalled to the input of the second mult to create a 1×6 buffered mult

Notes: Really nice approach to sequencing from Omni-Tone. The Melodi generates 'semi-random' patterns based on tunable parameters and probabilities. Dial in combinations of scales, pitch range, tempos and so on to create unique melodies.

Supplier's Notes:
Melodi generates sequences based on the mood you set so you can create the sound you're searching for- it can be tweaked to create anything from a powerful bassline to a sparkly melody.

Ships with version 2 of firmware

Improvements: Skip, tie, length are now LIVE knobs. Added a ping-pong trend line and a blues scale.

GENERATE

1. NEW - will prompt Melodi to generate a new sequence.
2. TRIGGER IN - accepts a trigger to prompt Melodi to generate a new sequence.

CYCLE

1. ON/OFF - determines if the sequence will loop or require retriggering.
2. TRIGGER - button and jack trigger the sequence to restart at the beginning.

TUNE

* While adjusting tunable parameters, the light bar will reflect the current selection. For continuous parameters the light bar shows amount from 0-100%, for quantized parameters the light bar shows steps.
1. SKIP (continuous) - sets the probability that a note will be skipped in a sequence.
2. PLUCK (continuous) - sets the length of the gate, from short plucks to gliding between notes (portamento).
3. TIE (continuous)- sets the probability that a note gets tied to the next (effectively making the note last two clock cycles).
4. TREND (continuous) - sets whether the sequence trends upwards or downwards in pitch.
5. SCALE (quantized) - select the quantization of the notes used in the sequence. Choose from perfect notes, pentatonic scale, diatonic scale, chromatic scale and completely unquantized.
6. RANGE (continuous) - sets the range of notes from 1 to 4 octaves (unquantized)
7. LENGTH (quantized) - select the number of notes to play in a sequence (from 1-16, or infinitely generating at the max position).
8. SPEED (continuous) - sets the tempo of the internal clock, between 20 and 2000 BPM.

OUT
1. GATE - outputs the gate of the notes in the sequence.
2. PITCH - outputs the pitch (in V/OCT) of the sequence.

CLOCK

1. SELECT - Melodi will generate internal clock signal if select switch is up, and will use external clock signal when down
2. IN - connect external clock signal
3. OUT - output clock signal

Technical specs:

- Module Size: 3U X 8HP X 25 Mm Deep.
- Current Draw: 85mA @ 12V, 10mA @ -12V.

What's in the box:

- Ready to use Assembled Module
- Mounting Screws
- Power Cable
- User Manual

Notes: The brilliant Perkons drum machine comes to Eurorack. A single hybrid drum voice with digital sound engine and analogue filter/overdrive, the Perkons Voice is flexible and supremely powerful.

Supplier's Notes:
Erica Synths Perkons Voice is a eurorack incarnation of the percussion voices from the PERKONS HD-01 Drum machine. Like on the drum machine, the module has hybrid architecture, featuring a digital sound engine followed by an analogue multimode filter and overdrive. Users can select among 13 sound generation algorithms and save up to 99 presets that can be recalled easily. Tune and Patch CV inputs are configurable for various CV settings and are tuned to 1V/oct. Module also features a 4-voice poly overlap mode and samples on the "Rompler" engine can be easily replaced.

Specifications:

Audio output: 10Vptp
CV levels configurable: -5V - +5V
Power consumption: +59mA, -30mA
Module width: 14HP
Module depth: 35mm

Notes: The legendary Buchla 259 complex oscillator gets the officially licensed Eurorack treatment from TipTop Audio. One of the most versatile and characterful VCOs ever made, with endless cross-modulation options and wave shaping features. Iconic.

Supplier's Notes:
The 259t is the largest and most complex analogue oscillator from Don Buchla's legendary 200 modular synthesiser. The 259 originated the concept of the "Complex Oscillator" in the 1970s and has been reissued by Buchla and Tiptop Audio in Eurorack format. The module consists of two oscillators, called the Modulator and Principal, with a middle section that provides voltage control over the internal modulation paths between the two oscillators, resulting in highly complex timbres. Additionally, the principal oscillator passes through multiple unique voltage-controlled waveshapers and crossfaders for further signal processing. The module's pitch can be controlled with 1V/OCT or via its internal auto-tuner and ART control to create precisely pitched notes.

Notes: Eight channels of audio and CV sampling with real-time editing and processing. Does basic sampling well but quickly gets creative and weird.

Supplier's notes:
The 'Squid Salmpler' is a Eurorack 8 channel audio & CV sampler. It is designed for immediate real time sampling, editing and mangling within a modular context.

Taking influence from early hardware samplers, The Squid Salmple focuses on usability and instinctive operation, incorporating a proven Pamela's Workout style user interface for minimal screen dependence and a fun, hands on experience.

With support for sampling and playback for both audio and CV, as well as CV control of all parameters, on-the-fly bank loading and saving to USB, The Squid Salmple brings a unique take on old school sampling into the modular realm.

The Squid Salmple comes with a USB Stick containing approximately 90 banks of original carefully curated royalty free samples. This includes a wide range of sounds from classic drum machines and weird synths to field recordings and CV modulations. Banks are provided by both ALM and some of our favourite artists and friends including Mumdance, Solid Blake, Russell Haswell, Lauren Flax, Dave Burraston (NYZ), Sue Zuki, Dungeon Acid, Sasha Lewis and Andrew Duff.

Notes: Erica Synths Pico OUTPUT module is just what you need to monitor your music on headphones and have standardized connection to mixing desks.

Features

Stereo input
High quality headphones amplifier
3,5mm headphones output jack
Headphones volume control
3,5mm stereo line output jack
The 3,5mm stereo output jack in this module allows you to connect the Pico System directly to virtually any speaker system or line input. Even in your car!

With Pico Series we challenged ourselves - can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can.

Technical specification:

Input level: 10Vptp
Power consumption: +20mA, -7mA
Module width: 3HP
Module depth: 35mm

Notes: *** Firmware update- February 2025 ***

Hermod+OS2.00

Again, a major firmware upgrade packed with exciting new features. This update offers a wealth of new creative tools and improvements.

Audio tuner

4 internal automation per track - MOD, MOD2, MOD3, MOD4

Automation per track : 7 (4x modulations + pitchbend + aftertouch + sustain

***

Parisian sequencer specialists Squarp turn up the goods once again with the updated Hermod+ module. Huge sequencing power for both MIDI and CV, with a range of monophonic and polyphonic features to get the most out of your sound sources.

Supplier's Notes:

Hermod+ adds so much to your system.

Based on the established Hermod workflow and keeping the same form factor, Hermod+ offers a lot of new features, and a refined, more playful interface with extended connectivity.

Record CV/Gate, MIDI notes and modulations on 16 polyphonic tracks. Compose melodic variations across 16 patterns per track, and take advantage of the advanced step sequencer and the new effects to gain efficiency and creativity in studio and on stage.

8 CV/Gate and 8 MIDI tracks

Hermod+ offers 8 CV/Gate tracks (that can also output midi) and adds 8 dedicated MIDI tracks for your extra gear.

CV inputs

Record, edit and loop analogue modulations or CV/Gate using the 4 CV inputs, and use them to synchronize Hermod+ to an incoming analogue clock.

Record live

With an improved resolution of 96ppqn, record and playback your CV/Gate or MIDI performance seamlessly without any noticeable note shifting, for up to 16 bars per pattern.

Polyphonic step composer

The revisited piano-roll now allows intuitive polyphonic editing. Edit or program chords, melodies and rhythms using the 16 built-in pads for a quick and playful composition process.

Automation

Program or record automated modulations (CV and/or MIDI) for each track, in addition to midi aftertouch, pitchbend and sustain voices.

Dynamic effects

Add up to 8 real-time CV/MIDI effects per track. All effects are non-destructive, so they can be edited at any given time to add some variations to a performance.

Advanced ModMatrix

Use the modulation matrix to link incoming CV or CC messages to effect parameters. Each modulations can be attenuverted and offsetted.

Playable song mode

Build your song structures using up to 16 sequences per project. Play them into a predefined order or launch them manually for improvised performances.

Synchronized project swap

Quickly save and recall your projects on the SD card. Project loading can now be done in sync, without interrupting your performance.

Boosted connectivity.

The missing link between your eurorack system and the rest of your studio.

Editing made simple.

Fluid workflow with a redesigned Step mode

Step mode is where you can edit notes, modulations and gate events. Hermod+ offers quick ways to write melodies and rhythms. Zoom in and out to visualize and edit portions of your track precisely and break free from rigid grid sequencing.

The re-designed piano roll editor makes the vertical and horizontal scrolling easier and faster, while the new "row edit" feature allows for quick chords and drum patterns programming.

Create modulation curves by programming them directly on Hermod+ or by recording incoming signals, and send those curves via CV or MIDI to other parts of your system.

Versatile interface.

Polymorphic layouts for perfect integration

Hermod+ can adapt its voice layout to any patching scenario. Depending on your needs, any track can become a modulation output, a monophonic CV/Gate track, a polyphonic MIDI track...

For a track of CV/Gate note + velocity + aftertouch, or for a polyphonic CV/Gate track, simply group voices using the desired layout.

Take advantage of the 8 dedicated MIDI tracks, that can record and be programmed independently from the 8 CV/Gate tracks. Up to 8 real-time effects per track with creative parameters and generative features. Hermod+ is the canvas, the paint and the brush of your setup.

Specifications

Sequencer
Tracks: 8 CV/Gate + 8 MIDI
Patterns: 16 per track
Recording resolution: 96ppqn
Track length: 1/16 note to 16 bars
Automation per patterns: modulation + pitchbend + aftertouch + sustain

Projects
Amount of projects: unlimited
Tempo: 10 to 280 BPM
Global transpose track: yes
Double project architecture: yes
Song chain length: 64 sequences

Piano roll
Zoom min: /4 (1 step = 1/4 note = 1 beat)
Zoom max: X8 (1 step = 1/128 note)
Note/gate width: 1/32 (1/512 note) to 8 bars
Maximum polyphony per step: 24
Row edit (polyphony editing): yes
Note pitch: C0 to C10
Note velocity: 0 to 127

Synchonization clock speed
Max input rate: 1/96 = 24ppqn
Max output rate: 1/96 = 24ppqn

Input
MIDI: TRS type A + USB host + USB device
CV: 4x [-5V to +5V]

Output
MIDI: TRS (type A) + USB host + USB device
CV: 8x [-5V to +5V]
GATE: 8x [0V / +5V]
Dedicated Clock port
Dedicated Reset port for transport

Power
Note: the use of your eurorack +5V rail is configurable with a switch on the back of Hermod+
Consumption (using +5V rail): -12V 20mA, +12V 20mA, +5V 820mA (add up to +500mA when attaching a controller on USB host)
Consumption (not using +5V rail): -12V 20mA, +12V 400mA (add up to +220mA when attaching a controller on USB host)

Hardware
Width: 26HP
Depth: 20mm
Weight: 285gr (0.63lbs)
CV inputs resolution: 16-bit
CV outputs resolution: 16-bit
Display: OLED 58 x 16mm
SD card: microSD high speed (provided)
CPU: ARM 480MHz

Notes: This module is divided between 3 functions, a 3 channel mixer, with 3 knobs the the singal together, this then passes in a dual analogue filter, a resonant 24db LPF and a non resonant 18db HPF, passing from there into a built in VCA.

Notes: Rhythmi is a Eurorack drum sequencer that allows you to dial in your groove, and explore it by evolving the pattern and modulating the energy. It allows for rhythmic inspiration and creativity without the burden of step programming. The evolve parameter enables smooth transitions between related rhythms through the use of branches. New branches can be generated at the push of a button, loading up a whole new branch of related rhythms to explore. The Evolve parameter is the heart of Rhythmi, its inspiration, and defining feature. Allowing rhythms to shift, transform, and melt into one another.

The Clock Section provides internal or external clocking with division or multiplication. The Customize Section shapes individual drum elements through density and syncopation. The Global Section introduces macro-level control over the rhythm via the Energy, Evolve, Length and Swing parameters, dynamically shaping fills and variations. Rhythmi has a jumper cable connector on the back to pair up seamlessly with Beatsi, the drum voice it was designed alongside with.

Technical specs:

- Module Size: 3U X 14HP X 25 mm Deep.
- Current Draw: 120mA (170mA peak)@ 12V, 10mA@ -12V.

What's in the box:

1x Rhythmi module
1x User Manual
1x Power cable
4x Mounting screws

Notes: Quad random, highly controllable, quantized-voltage generator and generative CV sequencer

Gamut Repetitor is a four-channel random quantized voltage generator with looping, range, key, and scale settings. It features a built-in quantizer with 27 scales grouped across a selection of three CV-controllable switches, so it's easy and fun to generate patterns you'll love. The trigger outputs can simply pass through the input trigger or they can generate random triggers for more modular merrymaking.

Patching GR is as simple as sending in a trigger pattern and turning Length up. Then you can use the built-in quantizer, key, and range controls to change the way voltages are generated. Once you hear something you like, turn the Length down to a sequence length you like (up to 32) and loop away!

Size and Power

10HP Eurorack
+12v: 55mA
-12v: 15mA
Gamut from medieval Latin: "a complete scale of musical notes; the compass or range of a voice or instrument."

Repetitor from Latin repetito with suffix -tor to make the noun: "thing which repeats"

"Thing which repeats all the things"

What's in the box
Module
Power cable

*** Noise Engineering no longer include screws with newly packaged modules. Bulk screws are available for purchase. ***

Notes: Row Power is a clean, regulated, and protected power solution for Eurorack systems. Row Power 45 provides enough power for two to three typical Eurorack rows (typically up to about 312HP):
+12V @ 2.0A maximum, 1.5A recommended
-12V @ 1.4A maximum, 1.2A recommended
+5V @ 1.5A maximum, 1.2A recommended

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying bus cables or the Bus Stick. For custom power systems, the Row Power 45 has a set of easily soldered holes for using large gauge wire or MTA156 connectors to connect to distribution bus boards.

Multiple Row Power modules can be powered from a single power brick by daisy-chaining with an inexpensive barrel cable. The Row Power 45 can also be daisy-chained to 4ms Company's Pod enclosures. Each power supply is independently regulated and protected for ultra-low cross-talk between rows/pods.

The Row Power 45 is compatible with the 4ms Row Power Shield. This device (sold separately) attaches to the back of the Row Power 45 and monitors the amount of current being drawn, as well as the voltages of the power rails. The information is sent over Bluetooth to be displayed on a phone or tablet.

Electrical and Mechanical Specifications

Module Size:
4 HP Eurorack format module

Power Output:
Maximum average load under normal conditions: +12V @ 2.0A, -12V @ 1.4A, +5V @ 1.5A
Maximum average load under any condition: +12V @ 1.5A, -12V @ 1.2A, +5V @ 1.2A
Powered by laptop-style DC power supply: 2.1mm barrel, positive center, 15V-20V.

Included with the Row Power 45:
16-to-16 pin power cable
2 M3 Knurlie screws

Notes: Successor to the excellent Metropolis, the Metropolix is a performance-focussed step sequencer with some really neat features, including modulation and sub-sequences in Loopy mode.

Supplier's Notes:
The Intellijel Metropolix is a unique and powerful Eurorack format musical sequencer. With an abundance of hands-on, tactile controls and a wealth of modulation possibilities (both internal and external) you can quickly and easily create infectiously musical sequences that are never boring. Even the simplest riff can be brought to life with seemingly endless options to create variations or real-time manipulations. Equally at home in the studio or a live improvised performance, the Metropolix is sure to become a staple source of fresh ideas and killer riffs in your creative process.

Width: 34HP
Depth: 25mm
Power: 95mA @ +12V 10mA @ -12V

On first blush, it appears to be a simple 8-stage sequencer - but there is far more functionality than first meets the eye:

There are two tracks (TRK 1 and TRK 2) that are variants of the single master pitch/gate sequencer, which is programmed via the PITCH sliders, PULSE COUNT and GATE TYPE switches. Each track interprets the master sequence in a variety of ways - creating complementary sequence variations that enable you to generate counterpoint, polyrhythms, and all manner of sonic movement (both subtle and extreme). Each of these tracks has its own playback ORDER, sequence LENgth, clock DIVision, SWING amount, SLIDE time, and track GATE lengths. Other track-based sequence variables are accessible from the TRACK MENU, and include Pitch Slider inversion; sequence note range; track transposition; and more. In addition, Tracks 1 & 2 both have multiple lanes of per-stage playback parameters, including: GATE override; PITCH override; RATCHet count; PROBability of playback; ACCUMulating transposition, and a dedicated CV lane. Each stage also has a SKIP feature, and a pitch SLIDE option.

8 separate and individual MODulation lanes are accessed via the MOD button. Each MOD lane has 8-stages of modulation values and its own playback ORDER, LENgth, and clock DIVision; and each lane is routable to one of Metropolix' two assignable outputs or to dozens of internal destinations, allowing for some sophisticated and powerful self-modulation.

A trio of AUX inputs allows for external modulation of user-assignable sequencer parameters for even greater variation, while two assignable CTRL knobs give you direct access to the parameters you want to adjust most frequently during a performance. With dedicated Pitch/Gate outputs for both Track 1 and Track 2; two totally user-assignable outputs (A and B); and internal MOD routing, Metropolix features a wealth of patching opportunities.

Metropolix also features a Loopy mode, allowing you to instantly play back short sub-sequences, or even "play" the stage buttons directly (like a 'keyboard').

Metropolix stores up to 64 preset configurations (in 8 banks of 8 presets), and all live settings are stored in EPROM, ensuring that your Metropolix will always power up exactly as you left it - even if you haven't saved them to a preset. By default presets can change all the structural (menu-based) elements of your sequencer without overwriting the front panel controls, but full recall is also available.

The operation of the Metropolix is optimized for live performance and jamming, with quick access to all the most important performance parameters, and the ability to greatly affect your sequences with a single slider or switch.

Notes: Module A-160-2V is an enhanced version of the standard clock divider A-160. The module is a frequency divider for clock/trigger/gate signals, designed to be a source of lower frequencies, particularly for rhythm uses.

The Clock input will take any digital signal from, eg., an LFO, MIDI sync, or the gate from a MIDI-CV interface. At the outputs, you have access to three sets of seven different sub-divided clock signals, from half the clock frequency down to 1/128. The low/high levels of the output signals are 0V and about +10V.

The A-160-2V also has a reset input. Whenever a reset signal is sensed, all outputs are set to certain levels which depend upon the selected mode.

HP : 4

Notes: Clever sequential signal processing from Joranalogue, capable of a range of functions including toggling signal muter/attenuator, clock divider, rotating shift register or programmable voltage bank.

Supplier's Notes:
Sequencers, sequential switches, counters, analogue shift registers... Modular synthesisers provide a wealth of creative sequential functions for controlling and processing signals. Choosing which of these to include in a system can be a bewildering task.

Except when you don't have to choose. Step 8 represents a new type of modular building block: a sequential tracking/sampling register, which can be configured to provide any of these functions, and many more.

At its heart lies an analogue 1-to-8 signal switch feeding an octet of high-stability track/sample-and-hold stages. Each of these has its own analogue output with an attenuation slider, in addition to a gate output. LEDs visualise the status of each stage in real time. The switch can be controlled sequentially using the built-in 8-step counter, or addressed directly by an analogue control voltage (CV).

Numerous advanced circuit techniques are used to avoid the issues that often plague analogue switching and memory modules. The result: totally transparent signal paths with low noise, distortion and voltage 'droop', yet high bandwidth and precision.

Add to this the ability to 'mute' the inactive stages, pause the counter, reset it, change its direction or even shift the stages on each step, and the possibilities quickly become near-endless. A scanning output takes things even further, particularly making sequencer or addressed voltage source use easy and intuitive.

For those who are feeling adventurous, there are always more applications to try: configurable voltage mapper, hocketing controller, clock divider, graphic waveshaper, multi-output analogue downsampler... Discover a new world of sequential synthesis with Step 8.

16 HP
+12: 110 mA, -12: 45 mA

Notes: A-138s is a simple but useful 4-in-2 mixing tool. It has four inputs available. Each input is equipped with an attenuator (Level) and a panning control that is used to distribute the signal to the left and right output. Beyond stereo mixing it is equally suited to create variable parallel routings. For example: Any of the four inputs may be routed in variable intensity to feed two filters.

You may regard the A-138s as a smaller version of the A-138m Matrix Mixer.

Inputs and outputs are DC coupled, i.e. the module can be used for the mixing of control signals too.

- 3U Eurorack module, 8 HP wide, 30 mm in depth
- Power consumption: 10 mA at +12 V and 10 mA at -12 V

Notes: The most complex modulator is you. The Planar 2 puts macro control over six outputs - including a quad panning mixer - into your hands with a buttery smooth joystick. Record up to 30 seconds of your own movements, stretch it or mangle it with scan mode, use a trigger for playback, or just loop it - synced or not. Add yourself to your patch.

With its smoothly responsive precision joystick, Planar 2 facilitates hands-on vector control of two entirely independent sets of outputs (quadrants A-D, and axis X/Y), plus the ability to capture and playback your gestures. Recording your joystick movements enables the creation of organic and complex envelopes, wild and wobbly LFOs, or extended sonic evolutions. It mixes, morphs, routes and pans audio inputs; triggers gates; outputs control voltages and is itself, CV-controllable. Planar 2 puts the 'joy' back in 'joystick,' and the 'fun' back in 'function generator.' Its multitasking and tactile interface makes it a flexible and unique control device, no matter what your musical genre.

Notes: Erica Pico INPUT module is just what you need to interface your modular system with external synths or even your mp3 player or mobile phone.

It boosts external signal to modular synth signal level.

With the Pico Input, line signals from, for example, a synthesizer, drum-computer, audio interface or smartphone can be raised to modular level. The module delivers up to 40 dB of gain. Thanks to its two channels, users can comfortably process mono as well as stereo material.

The Pico Input comes equipped with two signal paths. Each signal path features an audio input, a volume potentiometer and an output. Up to 40 dB of amplification are available. Using jumpers on the circuit board, it is possible to dampen the maximum gain to 20 dB. The module's first input is a stereo jack, meaning the user can connect a smartphone or tablet without any adapter cables. In this case, incoming signals are distributed internally to both channels.

Notes: The Morphagene music synthesizer module is a next generation tape and microsound music module that uses Reels, Splices and Genes to create new sounds from those that already exist. Search between the notes to find the unfound sounds.

A few of the Morphagene's most basic uses: Splice recorded audio and jumble it using ORGANIZE. Manipulate playback speed and direction with Vari-Speed. Granularize with Gene-Size and Slide. Layer or Stagger Genes using MORPH. Undertake iterative music processes by recording manipulations and overdubs into new Splices, like having two machines (one for Playback and modulations, one for Record). Process sound in real time using Time Lag Accumulation. Utilize envelope following CV OUT and EOSG Trigger to engage Morphagene in conversation with the rest of your modular system. Stretch and squash sound with Clock input.

Features
New revision Morphagene firmware MG204 adds great functionality.
Voltage control over all sound manipulation parameters
Stereo I/O with Input Gain Selection, works with line- or modular-level signals
Recording Reel can be up to 2 minutes 54 seconds long
Record/ create up to 99 Splices per Reel
SD Card stores multiple Reels
Sound On Sound allows for layering sounds
Playback and Recording independent, like having two machines
Vari-Speed range 12 semitones up and 26 down, over 3 octaves
24-bit codec, creates 48k 32bit WAV files
Back up Reels on computer with SD Card
Share and download Reels at freesound.org! [see how]
includes blank SD Card

Specifications
Width: 20hp
Max Depth
(incl. power cable): 45mm
Power:
165mA @ +12V
20mA @ -12V

Notes: 'MUM M8' is an 8hp Eurorack low pass filter building on the filter design used in the classic Akai S950 12 bit sampler with the addition of resonance, voltage control, clipped saturation and a dedicated VCA.

The low pass filter gives the recognisable super smooth vacuum like tone sucking sound which works magic on complex sources. The addition of clipped overdrive and intentionally aggressive self-oscillating resonance compliment the smooth filter core by juxtaposing it into more wasp like territory with acidic squeals and a more gritty sound.
Mum M8 features dual voltage control with attenuation (and inversion) of filter cut off and voltage control of resonance together with dual audio inputs - one of which includes a VCA to with the capability to aid overdriving signals into the filter core.

The filter core is a 6th Order Butterworth switched capacitor type design featuring an analog core but controlled by a high speed digital clock. This produces the characteristic smooth sounding filter but, as with the original S950, has a relatively high minimum cut off as to avoid 'clock bleed' into the filter output from the digital control. This minimum cut of point (and introduction of bleed if required) can be controlled via trimmers on the rear of the module (see calibration chapter). It is not unusual for there still to be some low-level artefacts from the clock present, particularly during filter sweeps - these add to the filters character.

The motivation for the module came from discussing filters in classic samplers with the artist Jack Adams - aka Mumdance. Jack suggested investigating the S950's filter well known as for it use in classic use in early jungle and hardcore. From that point onward Jack provided inspiration, help and feedback in the development of the filter. Big up Mumdance.

Notes: Synthesists beware, there's a new menace in towniand much to the chagrin of it's older sibling, this one doubles down on its Banzai Rush. The Piston Honda mk3 maintains the character of its previous incarnation, while incorporating some punishing new combos. Where the infamous Piston Honda mk2 features a single oscillator consisting of 4,096 8-bit waveforms organized across a 16x16x16 "cube", the mk3 houses 512 16-bit waveforms arranged in an 8x8x8 configuration. Just like its predecessor, the waveforms operate at full resolution and can be manipulated manually with sliders or remotely via CV. Unlike the mk2, which only accepts CV in the range of 0-5v, the mk3's CV inputs accept both positive and negative voltages. Another welcome upgrade is the module's preset manager, which is operable via CV. This enhancement pulls all the punches by allowing users to store and recall specific configurations then morph between those presets! Who knew the fourth dimension was so unabashedly infernal?

The Piston Honda Mark III is a dual morphing wavetable oscillator with waveshaping audio inputs and unison detune. The three axis sliders create a waveform for each selected oscillator to play from the internal "cube" of 8x8x8 16-bit waveforms, morphed at full resolution in all three dimensions (the oscillators may each play a different waveform). The voltage-controlled preset manager stores a bank of these settings to be recalled at any time, with a virtual fourth dimension of morphing when the manager is in "continuous" mode. An orange 128x32 OLED display displays the current waveform for the selected oscillator in realtime, its frequency, and the selected preset and wave selection. The rotary encoder changes system settings on the display, but it's not necessary to interact with the display menus for any performance purpose.

Every suggestion about the previous MK II generation has been taken on board, and the design has been fully modernised, now operating as a dual oscillator in the same 17HP space. The infamous aggressive character of the Piston Honda is fully present, with the added clarity of the 16-bit wavetable engine. The second oscillator's frequency controls can be slaved to the first. Each oscillator has its own unison detune function as well, for a maximum of four stacked oscillators sounding at once. The oscillator can alternatively run as a nonlinear waveshaper, processing a dedicated audio input through the selected wavetable with voltage-controlled drive. When running in its normal oscillator mode, this input instead provides thru-zero frequency modulation.

In terms of visual apprehension, the mk3 adds even more precision to its ilk's well-documented cruelty with the addition of a 128x32 OLED display. More than a mere window into Cocytus, the display provides immediate visual indication of the selected waveform and its frequency, as well as preset and wave selections. When used in tandem with something like Argos Bleak, tuning and executing become insidiously simple. Another malevolent modification is the inclusion of a micro-SD slot, which offers users a quick and effective means of loading their own 16-bit waveforms into the module (much more convenient than the esoteric ROM burning ritual). The module is compatible with files created via the Synthesis Technology WaveEdit program.

Specs:
2x Digital Oscillator - 8 octave tuning range (C0~C7)
512 16-bit waveforms (8 waveform collections)
Micro SD card slot for loading user waveforms.
Graphic OLED display (128x32 in size, orange in color)
CV inputs accept +/- 10V.
Colorblind-friendly interface. No color codes.
8 preset slots with nonvolatile storage of all parameters (morphable)

Waveforms are selected from the internal memory of 8 collections:
* additive harmonic structures
* harsh LFSR progressions
* restored waveforms inspired by classic synthesizers
* special content from my favorite modular artists

You can load user wave data (16-bit WAV format) using the front-panel microSD card slot.

Factory waveset instructions:

Equipment needed: MicroSDcard.

Notes: The ‘Pip Slope’ (rev II) is a compact envelope and function generator. It supports both Attack/Decay and Attack/Sustain/Decay type envelopes with both direct and voltage control of Attack and Decay times. Envelope shapes can be morphed between exponential, linear and logarithmic type slopes. Envelopes can be made to loop, repeating infinitely or decreasing with time or amplitude for echo and bouncing ball type effects. An ‘End of Cycle’ trigger output further extends the envelopes functionality for both clocking and burst or fill type effects.

The improved Pip Slope adds a number of new features and updates over the original Pip whilst keeping the same size. Improvements include increased output resolution, finer control of fast envelopes, a new morphing shape control, switchable 5v or 8v maximum envelope level, additional loop modes and an additional trigger output.

Features:
Compact envelope and function generator in 4HP.
Trigger and gate inputs.
Voltage and direct control of attack and release times.
Snappy or super long envelope times – ranging approx 1ms to 7 minutes per stage.
Optional self looping ability with 3 different loop modes: Decreasing amplitude, decreasing time, and regular loop.
Shape control that morphs the envelope shape from logarithmic to linear to exponential curves.
End of Slope trigger output that fires a trigger at the end the envelope or loop cycle.
Selectable 5v or 8v max envelope level output.
Reverse polarity protection.
Skiff friendly.
Designed and Made in the UK.

Technical Specifications
Supply: +12V 30mA / -12V 10mA
Size: 4HP
Depth: 38mm

Notes: 3xMIA is a 6-channel attenuverting mixer/offset/scale/polarizer

3 blocks of 2-channel attenuverting mixers, using dual concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.

With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.

DC coupled, so it can be used for audio, CV, or both at the same time.

80 mA +12V
80 mA -12V
35 mm Depth
6 HP wide

Notes: Super-versatile quad envelope generator and LFO source from the Vancouver Eurorack brand. All CV controllable and with tons of shaping options.

Supplier's notes:
The Intellijel Quadrax consists of four independent, CV-controllable channels, each of which can be configured to perform any one of the following functions:

- An AD (Attack, Decay) envelope
- An AHR (Attack, Hold, Release) envelope
- A cycling envelope (resulting in a unipolar LFO)
- A pulse burst generator (Finite repeated functions that ascend or descend in amplitude)
- A morphing, bipolar beat syncable LFO

The envelopes all feature a continuously variable response curve, ranging from logarithmic through linear to exponential, and each stage can be as snappy as 0.3 ms to as lengthy as 20 seconds.

When set to Burst mode, the channel generates a rising or falling burst of pulses, with full control over the length of the pulse burst, the number and shape of the bursts within it, and whether the bursts increase or decrease in amplitude over the burst.

AD, AHR, Cycling and Burst modes all feature a user-selectable maximum output level of either 5V or 10V.

LFO mode offers control over the frequency and waveshape, while providing a unique morphing feature that creates numerous variations of the selected waveshape. LFOs can be either free-running or beat-synchronized using the channel's TRIG input.

Channels can be chained together to create complex multi-stage envelopes, with each channel triggered by the previous channel's trigger input, end-of-rise, or end-of-fall. This enables multiple function generators to fire simultaneously, or it enables the creation of complex multi-stage envelopes by allowing the linked function to fire either at the end of the previous function's rise time, or at the end of its fall time.

Four freely-assignable, step-attenuverted CV inputs are capable of modulating any or all of the various parameters across all four channels using the built-in CV matrix, and built-in attenuversion for each assignment.

Quadrax remembers its current state (Mode and CV assignments, channel links, etc) and retains that state even if power is removed, meaning Quadrax will always turn on in exactly the same state as you last left it.

Notes: Steppy is a 4-track programmable gate sequencer with eight internal memory slots, external clocking, numerous tweakable parameters, and a performance-first design aesthetic.

Each track features numerous independent parameters that govern its playback independently of the other tracks. Specifically:

- Each track has its own length, which can range from 1-step to 64-steps, allowing for polyrhythms, fills, or constantly evolving gate interactions between tracks.
- Each track has its own gate length, which ranges from very short to very long, with tied gates possible at the extreme setting.
- Each track has its own clock divider, allowing patterns to play out over completely different periods of time.
- Each track has its own swing setting, which offsets the timing of every other step.
- Each track has its own delay setting, which offsets the timing of every step.
- Each track has its own probability control, which sets the likelihood that each programmed gate will fire when called upon by the pattern.
- Each track can be shifted (or 'rotated') forward or backward by a number of steps. So if you've created a pattern that 'feels' like it has its downbeat on step 3, you can shift that pattern two steps to the left, so that the downbeat sits on step 1.

Tracks can be programmed by entering active steps on the grid or tapped in live as the sequence is moving. Tracks can be selected and modified in real time as the sequence plays. A select button allows you to directly access each track (and each page of 16 steps within that track) directly through Steppy's intuitive multifunction buttons array.

Tracks can be individually muted and unmuted, and a special performance mode (called "Loopy") enables you to touch any two gate steps and instantly create a performance that loops between those steps.

Track patterns can be cleared without clearing its playback parameters, and all track patterns (along with their individual playback and performance parameters) can be saved as a preset to one of eight internal memory slots.

Notes: The hands-on control of hardware meets the versatility of software. Bridging the gap between Eurorack and VCV Rack, the MetaModule includes over 160 built-in modules plus access to over 200 third-party options.

Supplier's Notes:
The MetaModule puts real knobs and jacks on virtual software modules. Step back from the computer and make music with hardware, while keeping the flexibility and expandability of software.

The MetaModule comes with over 160 built-in modules from 4ms Company, Befaco, HetrickCV, NonlinearCircuits, and Scanner Darkly, plus clones of popular classics such as the Mutable Instruments eurorack modules, fun physical modeling algorithms, and lots of handy utilities.

All of the included modules are also available on the computer using the free program VCV Rack. Whether you make patches on VCV Rack and transfer them to the MetaModule, or if you just create patches directly on the MetaModule, there are plenty of creative modules to inspire new ways to make music.

MetaModule Plugins

If the 160+ built-in module aren't enough, you can load more modules as plugins. Already there are over 200 modules in third-party plugins from Bogaudio, Valley, ChowDSP, NANO Modular, and the list is growing. 4ms have an SDK available to make it easy for VCV Rack plugin developers to convert their plugin to a MetaModule plugin. 4ms' licensing terms are non-restrictive: developers are welcome to distribute their plugin in any way they wish, commercially or not.

Mapping Knobs and Jacks

The MetaModule has 12 knobs that can be mapped to virtual knobs. Each knob can be mapped to up eight virtual knobs, and each mapping can have a different range and offset. You also can save a group of mappings as a Knob Set and switch between Knob Sets with the encoder. You also can map the 8 inputs and 8 outputs to virtual module jacks. Also, the MetaModule is a USB MIDI host, so you also can map MIDI CC, note, gate, and other parameters to knobs and jacks.

Expanders

There are lots of ways to customize your MetaModule. A Wifi expander allows you to wirelessly transfer patches from your computer. Add eight more knobs with the Knob expander, or buttons with the Button expander. A CV/Audio expander adds more high-resolution inputs and outputs, and the Gate In/Out expander adds not only gate jacks but also TRS MIDI and I2C.

Under the Hood

There are six CV/Audio inputs, two gate inputs, and six CV/Audio outputs. The CV/Audio jacks are all 24-bit, 48kHz DC-coupled, -10V to +10V. A USB-C jack accepts MIDI devices and thumb drives. Patches and plugins can be loaded via a USB drive or microSD Card, and internal flash memory lets you save patches you always want to come back to.

The processor is more advanced than anything 4ms has used in the past, and is among the most powerful processors found in Eurorack. Startup time and latency are blazingly fast.

Modules

160 built-in modules
Over 200 3rd-party module plugins available so far, and the ecosystem is growing
Create patches using VCV Rack or directly on MetaModule

Patches

Patches are loaded from microSD Card, USB drive, or via the Wifi expander
Patches can be optionally saved onto internal flash memory
Create patches using VCV Rack or directly on MetaModule
Patches can be given a name and description

Mappings

Map each physical knob to up to 8 virtual knobs
Set range and offset for each mapping, including inverted control
Knob mappings are grouped into Knob Sets, and changing Knob Sets can be done quickly without menu-diving
Map physical jacks to virtual jacks, seamlessly making splits/mults
Add or edit modules, cables, and mappings in real-time while the patch is playing
Create alias names for mappings like "Kick Drum Level"

Interface

Simple, intuitive graphical interface lets you zoom in on details, or zoom out to get a big picture
Patch View displays the patch as faceplates and cables, with knobs, buttons, and lights animating in real-time
Knob Set View simplifies the display, showing only the mapped knobs for the current Knob Set
Module View shows just one module and lists the names of each jack, knob, and control legibly
Mapping View lets you adjust details of a knob mapping
Adjust styles and visual preferences to your liking
Save, rename, duplicate, and delete patches
Firmware updater and plugin loader read from microSD Card or USB drive

Hardware

12 Knobs
8 CV/Audio outputs, 24-bit 48kHz, -10V to +10V, DC-coupled
6 CV/Audio inputs, 24-bit 48kHz, -10V to +10V, DC-coupled
2 Gate inputs
USB-C jack: MIDI Host or MSC (External drive) Host
microSD Card slot
Internal Flash RAM for additional patch storage
Dual-core 800MHz Cortex-A7 plus Cortex-M4 co-processor
512MB DDR3 533MHz RAM
Bare-metal operation for fast startup and low latency

26hp

Notes: USB socket for charging/powering peripheral devices.

This tiny but handy module connects the USB A connector to the +5V bus on the Intellijel TPS series powered busboards. Allowing 1A or more of current to be supplied to USB devices such as lamps, phone chargers, and usb powered musical devices.

It connects to the bus via supplied two-pin cable.

*Compatible with the TPS30 MAX and TPS80 busboards. TPS30MINI board requires an adapter.

Notes: Module A-124 is a special 12dB multimode filter using the "strange" filter circuit of the "EDP Wasp" (an analog synthesizer with black/yellow case built end of the seventies, manufactured by the UK company "Electronic Dream Plant" with Chris Huggett und Adrian Wagner). This design "abuses" digital inverters as analog operational amplifiers leading to distortions and other "dirty" effects that generate the specific sound of this filter. The filter is equipped with a band pass output and a combined low/notch/high pass output. For this output a control knob defines the relation between low and high pass signal. If both signals appear at the same level (i.e. middle position of the Mix knob) one obtains a notch filter. Otherwise the low or high pass signal predominates. The module does not feature self-oscillation in contrast to most of the other filters of the A-100 system.

Inputs: Audio In, CV In (2x)
Outputs: Bandpass Out, Low/Highpass Mix-Out
Controls: Audio and CV attenuator, Frequency, Resonance, LP/HP Mix

The function and operation of this module is very similar to the module SEM VCF A-106-5. But the sound of both filters is very different! The only functional difference is the position of the sockets and controls, and the function of the controls CV2 (A-124: normal attenuator, A-106-5: polarizer).

- 3U Eurorack module, 8HP wide, 45mm deep
- Current draw 30mA

Notes: 3xMIA is a 6-channel attenuverting mixer/offset/scale/polarizer.

3 blocks of 2-channel attenuverting mixers, using dual concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.

With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.

DC coupled, so it can be used for audio, CV, or both at the same time.

80 mA +12V
80 mA -12V
35 mm Depth
6 HP wide

Notes: Clock generation meets waveform manipulation in this analogue harmonic oscillator. Combine with the Tobinski sequencer and/or interpolating scanner modules for the best creative results.

Supplier's Notes:
The Harmonic Timing Generator is a versatile Eurorack module that combines advanced clock generation with harmonic waveform manipulation. Combined with the Tobinski Sequencer, the module is a great tool for rhythmic and sonic creativity in the modular system.

As a reference clock generator, the Harmonic Timing Generator produces a base frequency with analogue multipliers (x1 to x8) to generate complex timing signals. Three selectors provide manual or voltage-controlled frequency switching, offering flexibility for intricate sequencing patterns. An LFO mode enables slower clocking rates, ideal for driving sequencers or generating modulation sources.

When used with the Interpolating Scanner, the sawtooth outputs of the Harmonic Timing Generator are transformed into sine waves. This allows the module to function as a harmonic oscillator at audio rates or as a versatile modulation source in LFO mode. Its dual functionality ensures that it can adapt to a wide range of patching needs, from rhythm generation to rich harmonic exploration.

The Harmonic Timing Generator is a versatile and creative tool, offering rhythmic and harmonic possibilities that complement any modular synthesizer setup. Its integration with other Tobinski modules ensures a cohesive and expansive sonic palette.

Power consumption: 235mA at +12V and 176mA at -12V and 20mA at +5V

Depth: 27mm

18 HP

Notes: Tobinski 8-Channel interpolating scanner with integrated VCAs

This Eurorack module combines an 8-channel interpolating scanner with a powerful array of 8 independent VCAs, providing unparalleled flexibility for dynamic audio and CV routing for creative sound design.

Key Features:

1. Interpolating Scanner

8-Channel Interpolation: Smoothly blend between up to 8 stages with high precision, using either bipolar CV or manual control.

Scan Stage & Width Control: Dedicated controls for selecting active stages and defining the range of the interpolation window.

Multiple Outputs: Individual outputs for odd stages, even stages, and a combined all stages output provide versatile routing options.

2. Integrated VCAs

8 VCAs with CV Control: Each VCA has its own dedicated control voltage input, allowing for intricate amplitude shaping.

Mix Outputs: Summed outputs for odd channels, even channels, and all channels, perfect for mixing duties or creating complex stereo effects.

Subtractive Mixing: Individual VCA outputs are excluded from the mix outputs when patched, allowing for flexible routing and advanced signal processing.
3. Parallel and Flexible Signal Flow

Parallel Input Routing: The 8 inputs feed both the scanner and VCAs simultaneously, making it easy to use the module in multiple roles at once.

Switchable Sliders: 8 high-quality sliders can control input levels to the scanner, the VCAs, or both, adapting to your workflow needs.

Creative Patching Examples:

Stereo Mixer:
Use 2 scanner channels and route their outputs through the odd and even mix outputs to create a dynamic stereo mix.

4-Channel Mixer:
Combine 4 inputs through the VCA sections and use the mix outputs to create a versatile sub-mixer for blending multiple signals.

VCA Control:

Independently use 2 or more VCAs for precise amplitude modulation of separate signals.
All the above options can be implemented simultaneously, making this module an exceptionally powerful tool for complex patches.

Expandable with Tobinski Harmonic Timing Generator (HTG):

This module seamlessly integrates with the Tobinski Harmonic Timing Generator (HTG) via an internal ribbon cable that goes to the switched (normalled) connections of the input jack sockets. The scanner inputs automatically link to the HTG outputs via sine shaping circuitry, enabling the two modules to function as a sinewave harmonic oscillator. This pairing unlocks harmonic interpolation and complex timbre creation, expanding your sonic palette.

Connections:

Inputs:
8 for audio or CV

Outputs:
8 individual VCA outputs

Mix outputs for odd, even, and all channels
Scanner outputs for odd stages, even stages, and all stages

Control Inputs:
Bipolar CV for scan stage and scan width

Dedicated CV inputs for each VCA
Sliders: 8, switchable between scanner, VCAs, or both

Power consumption: 205mA at +12V and 190mA at -12V

Depth: 27mm

18 HP

Notes: Collabing with YouTube sensation Andrew Huang, Endorphin.es offer up this impressive multipurpose processor module. Building blocks of stereo filtering, compression, reverb and more offer huge creative potential.

Supplier's Notes:
In collaboration with Andrew Huang, based on his modern music production techniques, Endorphin.es developed a creative audio processor with multiple blocks that can be moved around in order to achieve different flavours for sound design.

Processing unit without fixed structure: intuitively create astonishing and ephemeral timbres, from atmospheric rumbles to heavy or distorted textures.
Creative stereo effect processor with delay, reverb, filter and distortion with quickly explorable routing chain with single button press.
New generation ARM Cortex - M7 processor with 96 kHz 32 bit internal processing.
Lush hall and whooshing reverse reverbs with audio freeze and pre-delay.
Sidechain audio ducking envelope available both internally and externally with additional one knob single band compressor.
Tap delay with maximum delay time up to 2.5 seconds, external clock input with onboard clock divider and 1v/oct time control.
8x oversampled distortion algorithm.
Pre- and post - VCA, tone and volume controls with extra gain.

Power consumption:
135 mA +12V
35 mA -12V
0 mA 5V

Dimensions:
16 HP
26 mm deep with power ribbon cable connected.

Notes: A 22hp version of Mutable Instruments Elements. It is functionally equivalent and therefore runs all firmware options and having identical sound characteristics. This version is great compromise between the tight spacing of Atom and full size original, which is a bit large.

Width: 22hp
12V: 130mA
-12V: 10mA

Module power connector can be connected either way on the module side.

Notes: 'Beast's Chalkboard' is dual channel stepped voltage source and adder for your eurorack modular synthesizer system. It primarily is intended as a dual octave switcher for VCO's but has many other uses including sequence transposition, FM ratio creation, buffered CV distribution and VCO calibration.

Technical Specifications:

Supply: +/-12V (Reverse voltage & polyfuse protection)
Current Draw: ~30ma
Size: 6 HP
Depth: 22mm (including power header)
Offset Error: +/- 10mV

Notes: Analogue VCO with range from 16Hz up to 32.000Hz.

Variable Voltage Controlled Wave Shaper.

Advanced pitch control with Voltage Controlled Quantizer, so it is always in tune.

Hard Sync Input.

Separate Pulse Output, for use as a clock or to sync other oscillators
.
Power Consumption: 114mA @ +12V , 46mA @ -12V.

35mm depth.
