Notes: A unique graphical take on an oscillator design, E-RM's brand-new polygonal synthesis approach is unlike anything else we've seen. Stereo oscillator capable of a huge range of timbres. Innovative stuff.

Supplier's notes:
The polygonal synthesis is a kind of graphical complex amplitude shaping method. With the help of the built-in modulation sources, polygonal synthesis in polygogo opens up a wide range of sonic possibilities from clicky pinged sequences to unique dark thunderstorms, bass lines, leads and colored noise.

This mighty stereo oscillator impressed the audience with its wide range of possible timbres. The idea of sculpting a shape on the screen of the module that then translates into sound works really well and invites the user to interact with the module.

Notes: With our MORPHEUS digital filter module, we're finally able to unleash the full power of the 14-pole Z-Plane Filters that Dave invented for the E-mu Morpheus synthesizer.

The MORPHEUS Eurorack module includes over 280 filter configurations, what we call Cubes. Each Cube is composed of up to 8 complex filters that you can picture as being at the corners of a three dimensional cube (hence the name). Morpheus gives you the ability to smoothly interpolate between those 8 filters within the cube's three dimensional space.

Due to processor limitations back in the day, the original Morpheus was capable of real-time morphing in one dimension, but interpolation in the frequency and transform dimensions were set at note-on and remained static for the remainder of the note. But even with that limitation, Morpheus offered sonic capabilities that are unmatched to this day.

With the MORPHEUS filter module, you now have simultaneous real-time CV control of all three dimensions, for dynamic timbral effects unlike anything you've ever heard before. In stereo.

Notes: Cylonix and Intellijel have collaborated to bring you a very sophisticated and deeply complex Wavetable VCO. At the core of this module is very powerful FPGA board that he has pushed to the absolute max of its capabilities and crammed full of features. We wanted to create a module that really worked well in the modular context so there are a lot of modulation and control possibilities.

CHORDS
Oscillator 1 can be operated in a CHORD mode, which runs 8 copies of the oscillator in parallel with adjustable detuning, leading to very fat, rich waveforms. The oscillators have extensive modulation capabilities including audio rate (98KHz) Frequency and Phase Modulation (FM and PM) via external sources. Nonlinear combination processes allow the outputs of the two oscillators to interact to generate complex timbres and sonic textures.
There are 64 user selectable chords.

WAVEFOLDER
The SHAPESHIFTER module also includes the analog wave folder circuitry from
module to add analog warmth and metallic rasps to the digital oscillator output.
External signals can also be patched in.

PRESETS
The module includes a sophisticated preset mode where panel settings can be stored. There are 12 user-programmable preset slots and another 52 volatile slots that can be used as a scratchpad. These scratchpad slots are initialized to interesting presets on module powerup. The capabilities of the preset mode is not limited to mere passive storage of settings, however. In this mode the user can also step through, or sequence, the settings, either in order or randomly in response to pulses input to the external sync input. This gives the user the ability to generate complex sequences of sounds. The preset mode also allows the user to morph between the current panel settings and a preset providing a very powerful real-time performance tool.

SYNC
8 Different sync modes: HARD, SOFT, REV, HOLD, BUMP, 2=1, 1=2, OFF
with the ability to internally sync to a sub oscillator

PULSE
User selectable modes for the PULSE output: OR, AND, XOR, GLCH, +OSC1, EOC, +OSC2, -OSC2

MOD A modes: (audio rate modulation)
COMBO IN, SHAPE IN, PHASEMOD, VOCODER

MOD B options (all with CV control)

-Combo modes for OSC1 and OSC2:
NORMAL, RING, MIN, PONG, INLV, AND, XOR, GLCH
-Waveform TILT
-Chord mode overdrive
-Delay depth and FB
-Percussive mode decay time

Notes: The WT-QUAD-LFO module consists of four individual, digital, wavetable based low frequency oscillators (LFO) with an easy and intuitive featuring a 1.8" OLED color display. The module can be updated easily by inserting a flash drive with the firmware files in the USB port on the front panel.

The oscillators and their respective controls, inputs and outputs are organized in four channels. The frequency of each oscillator can be linearly or exponentially (1V/Oct.) controlled through the voltage applied to the corresponding CV input.

Each LFO channel can output one of the predefined waveforms (including sawtooth, ramp, square, sine, triangle), morph between two different waveforms or generate a random waveform. It can be externally reset through the sync input.

Each trigger output can be set to output a specific phase of the corresponding waveform.

The module offers cross frequency modulation (FM) and internal sync between LFO channels. It features also phase distortion and phase spreading of the outputs, including a classical quadrature mode (90- phase spread). Frequency relationships between the four LFOs can also be set.

Hardware

4x CV inputs -5 V to +5 V
4x Sync inputs 0 V to 5 V, active low or active high
4x Clock inputs 0 V to 5 V, active low or active high
4x LFO outputs -5 V to +5 V
4x Trigger outputs 0 V to 10 V, active low or active high
1.8" OLED Display with 160 x 128 pixel
4x push encoder
USB port for firmware update
Size: 14HP
WT-QUAD LFO - Features list:

Wavetable based, 4 channel LFO
Default waveforms: SAW, SQUARE, SINE TRIANGLE
Random waveform generation
Custom wavetables can be loaded using USB flash drive
LFO output: offset and attenuation programmable
LFO Frequency range from 0,0032 Hz to 4 kHz
Frequency free (Hz) or quantized (note)
Presets can be selected through CV input
LFO channel can be internally synced and cross modulated
Single shot modus

Notes: Packed with powerful features while maintaining intuitive playability, Strymon's Magneto module is a stereo multi-head tape delay that also functions as a looper, phrase sampler, vintage spring reverb unit, phase-aligned clock multiplier, chaotic oscillator, zero latency sub-oscillator and more, with extensive CV I/O.

Turn simple monophonic signals into complex orchestrations. Create new oscillator tones using self-oscillation. Add rich stereo dimension to your sound, and enjoy the inherent warmth and sweet, subtle distortion characteristics of magnetic tape. Magneto transforms even the smallest rack into a fully expressive, immersive instrument.

To capture the full experience and complexity of a vintage tape echo machine, every last tape system attribute was relentlessly studied and faithfully recreated. From the sought-after natural saturation and soft clipping of magnetic tape when driven hard, to hands-on real-time controls for tape age, tape crinkle, and mechanical wow and flutter, Magneto delivers a rich multi-head delay experience that adds life and vibe to your sound.

Every function, control, gain stage, and signal path component in Magneto works together to respond musically and smoothly, even during the wildest live modular improvisations. All this is combined with a luxurious spring reverb to take the sound of your modular setup to a new level, and your sonic explorations into far-out territories.

Not only does Magneto deliver the warm, luscious delay signals that tape delays are known for, it is also capable of a high degree of saturation. Turn up the Record Level knob to send a hot signal to the record head for any amount of tape saturation you desire. Turn up the Tape Age control for warmer repeats. Add some truly beautiful Spring Reverb. Magneto adds organic heart and soul to the sound of your modular.

The effect of the Low Cut and Tape Age knobs are explored, followed by the mechanical 'deterioration' of the machine with the Crinkle and Wow and Flutter controls. The Speed knob is put to use for sonic enhancement.

In a typical digital effect the dry signal gets converted to digital, causing conversion noise and latency. Signals are often attenuated before combining digital dry and wet, with makeup gain amplifying the conversion noise. To avoid this scenario, Strymon have equipped Magneto with a completely analog dry path. Why go to all this trouble? Because the improvements in dynamic range and reduction in noise are so dramatic.

Strymon have outfitted Magneto with the powerful Analog Devices SHARC ADSP-21369 processor, which provides a 366 MHz core instruction rate, and an incredible 2.4 Gigaflops of peak performance. Thanks to this high-powered technology platform within Magneto, we had the freedom to craft our processor-intense tape echo algorithms without compromise.

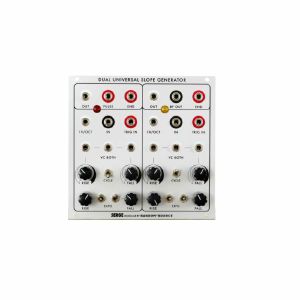

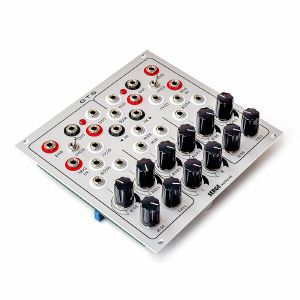

Notes: Serge Tcherepnin's superb DUSG multi-function module gets redesigned and updated for Eurorack. Function generator, integrator, oscillator and much more.

Supplier's Notes:
The Serge GTS is a complete redesign of the famous Serge Dual Universal Slope Generator (DUSG) by Serge himself - with a new core, optimized for speed and tracking. Like some of the clones it can be used for CV, but also provides exceptional audio performance: transient rise times as fast as 13us and a maximum cycle speed of 27kHz.

Some functions for which one Slope Generator can be used:

Function generator for linear, logarithmic, exponential, stepped etc. curves
Integrate an incoming signal
Sawtooth / Pulse oscillator
Add, subtract up to 4 signals
Max and Min function
VC Transient Envelope Generator
VC LFO
VC Portamento device, Envelope Follower (Detector), VC Pulse Delay (Monostable), Sub-Harmonic Series Generator (Divider), Audio Oscillator with variable waveform symmetry (saw to triangle), Non-Linear Audio Processor (low-fidelity VCF).
Serge GTS for eurorack:

Designed by Serge Tcherepnin 2021-2023
Increased audio range (up to >28kHz)
Tracks >5 octaves as a Sawtooth / Pulse oscillator
Temperature stabilized
Eurorack format (3U), 26 hp
Power consumption: 90mA @ +12V, 80mA @ -12V
(NEW) Skiff-friendly: < 25mm (1")

Notes: Explore modulation beyond the standard ADSR with Verbos's complex polyphonic envelope, opening up the potential of ADAsR and AHDsR slopes. Use the four envelopes independently or trigger sequentially in three separate modes.

Supplier's Notes:
The Verbos Polyphonic Envelope module is a set of four envelope generators which can be used together or independently. Cascade logic allows the four envelopes to trigger sequentially with subsequent envelopes starting at the Hold, Decay or End of the previous envelope.

Each envelope offers its own gate input, CV output and end pulse output, so it can be used in up to four-voice polyphonic patches. The three skew controls allow the times to change as each new envelope is switched on. All parameters can be voltage controlled.

Power consumption: 75mA at +12 V and 30mA at -12 V

HP : 22

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Nicely creative sequencer module based around controlled randomness. Build patterns and then morph them in real time. Great for live performance as well as studio use.

Supplier notes:
The Eloquencer is a powerful and versatile eurorack sequencer that can be used both as a performance and a composition tool. It's designed to be intuitive, easy to use, and quick to edit. It has been built around the "controlled chance" concept. This means you can decide when and where there will be randomness and how much this randomness will affect your sequences. It features 8 tracks of CVs and Gates in a 16 step disposition, but with the ability to define larger bar counts or chaining patterns to build multiple song parts of 256 steps each.

INPUTS AND OUTPUTS
8 V/oct CV Output
8 Trigger / Gate Output
Reset Input
External Clock Input (configurable. i.e: can be used as a clock divider / multiplier)
Accent Output (configurable)
Clock Output (configurable. i.e: can be used as a clock divider / multiplier)
2 CV Input (assignable to different parameters)

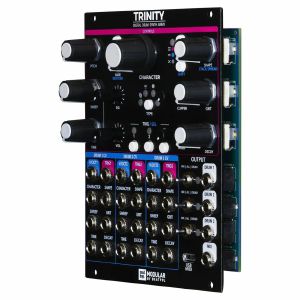

Notes: TRINITY is a 3 channel Digital Drum Synth Array packed into a 20hp eurorack synthesizer. Effectively, Trinity performs as 3 powerful drum voices packaged into one beastly drum module with a few tricks up its sleeve.

The name Trinity refers to the 3 drum channels and tips its hat to the core elements of any modern beat driven composition which is typically Kick, Snare and Hat. Trinity takes this simple idea and flips it on its head with 3 channels and an array of drum synth algorithms that use various types of synthesis (Analog Inspired, Additive, FM & Noise). This allows for a wide range of drum design capability that achieves and reaches far beyond the conventional kick, snare ,and hat.

Trinity's array of digital drum synth algorithms are very malleable by way of the 7 knobs and 4 mini-pots, each of which control a specific parameter and characteristic (Pitch, Sweep, Time, Shape, Grit, Decay, EQ, Clipper, Hold, Volume and Character) for each drum type. Each drum channel has its own trigger and v/oct in addition to extensive CV input options per channel.

Trinity's uniquely performable and switchable output matrix allows for the routing of each drum channel's output to the mix output, the individual drum channel output or both. This makes for easy performability, mutable output, parallel processing, or side chain source.

Lastly, Trinity's midi over USB connection allows for midi control over various parameters via one usb cable. USB midi makes integration a cinch by connecting one usb wire from Trinity to a groove-box or computer - instant integration

All in all, Trinity packs a hefty punch and weighs in at 20hp, 11 knobs, 3 drum channels, 3 triggers buttons, 4 drum synth algorithms based on 4 different types of synthesis, 24 CV inputs, 3 way output switching with 3 individual outputs, a mix output and a midi over usb connection.

Drum Synth Algorithms
BLOCK (Analog Inspired): Drum synth building blocks featuring sine and triangle core. Great for traditional electronic drum creation.
HEAP (Additive): Additive drum synth with 8 partials. Great for fun natural sounds and pitched percussive sounds (i.e. bells, chimes, steel drums, and wood blocks etc.).
NEON (FM): FM drum synth engine. Great for high quality FM drums, clangorous metallic percussion and more.
ARCADE (Noise): Quirky noise generator synth, reminiscent of classic 1980's arcade games sounds - zaps, crashes, explosions etc. Great for claps, hats, even some vinyl noise approximations, and all sorts of fun percussive and degraded noises.

Modes
Cycle Modes
The cycle modes can be enabled and disabled per channel.
'Round Robin' mode will switch between each drum synth type sequentially with each new trigger to the drum channel.
'Random' mode will generate a new random drum sound with each new trigger to the drum channel.
Stack Modes
The stack modes group the channels together allowing 2 or 3 drum channels to be triggered by the primary channel's trigger and v/oct inputs.
Stacked drums can be spread out similar to unison mode on a traditional synthesizer. Stack modes are inspired by the characteristics of chopped breaks where drums tend to overlap and fan out depending on the content of the chopped source material.

Features
20hp
4 drum algorithms - Block (analog inspired), Heap (additive), Neon (fm) & Arcade (noise)
2 dozen CV inputs
CV control over all major parameters
Trigger and pitch control over all 3 channels
3 voice drum polyphony
Clipping limiter
Switchable output routing matrix with individual and Mix output
Stack, Cycle & Random modes
Midi over USB (micro)
Width: 20HP
Depth: 28mm
Power: 153mA +12V, 7mA -12V (160mA Peak on Power Up)

Notes: *** Firmware update- February 2025 ***

Hermod+OS2.00

Again, a major firmware upgrade packed with exciting new features. This update offers a wealth of new creative tools and improvements.

Audio tuner

4 internal automation per track - MOD, MOD2, MOD3, MOD4

Automation per track : 7 (4x modulations + pitchbend + aftertouch + sustain

***

Parisian sequencer specialists Squarp turn up the goods once again with the updated Hermod+ module. Huge sequencing power for both MIDI and CV, with a range of monophonic and polyphonic features to get the most out of your sound sources.

Supplier's Notes:

Hermod+ adds so much to your system.

Based on the established Hermod workflow and keeping the same form factor, Hermod+ offers a lot of new features, and a refined, more playful interface with extended connectivity.

Record CV/Gate, MIDI notes and modulations on 16 polyphonic tracks. Compose melodic variations across 16 patterns per track, and take advantage of the advanced step sequencer and the new effects to gain efficiency and creativity in studio and on stage.

8 CV/Gate and 8 MIDI tracks

Hermod+ offers 8 CV/Gate tracks (that can also output midi) and adds 8 dedicated MIDI tracks for your extra gear.

CV inputs

Record, edit and loop analogue modulations or CV/Gate using the 4 CV inputs, and use them to synchronize Hermod+ to an incoming analogue clock.

Record live

With an improved resolution of 96ppqn, record and playback your CV/Gate or MIDI performance seamlessly without any noticeable note shifting, for up to 16 bars per pattern.

Polyphonic step composer

The revisited piano-roll now allows intuitive polyphonic editing. Edit or program chords, melodies and rhythms using the 16 built-in pads for a quick and playful composition process.

Automation

Program or record automated modulations (CV and/or MIDI) for each track, in addition to midi aftertouch, pitchbend and sustain voices.

Dynamic effects

Add up to 8 real-time CV/MIDI effects per track. All effects are non-destructive, so they can be edited at any given time to add some variations to a performance.

Advanced ModMatrix

Use the modulation matrix to link incoming CV or CC messages to effect parameters. Each modulations can be attenuverted and offsetted.

Playable song mode

Build your song structures using up to 16 sequences per project. Play them into a predefined order or launch them manually for improvised performances.

Synchronized project swap

Quickly save and recall your projects on the SD card. Project loading can now be done in sync, without interrupting your performance.

Boosted connectivity.

The missing link between your eurorack system and the rest of your studio.

Editing made simple.

Fluid workflow with a redesigned Step mode

Step mode is where you can edit notes, modulations and gate events. Hermod+ offers quick ways to write melodies and rhythms. Zoom in and out to visualize and edit portions of your track precisely and break free from rigid grid sequencing.

The re-designed piano roll editor makes the vertical and horizontal scrolling easier and faster, while the new "row edit" feature allows for quick chords and drum patterns programming.

Create modulation curves by programming them directly on Hermod+ or by recording incoming signals, and send those curves via CV or MIDI to other parts of your system.

Versatile interface.

Polymorphic layouts for perfect integration

Hermod+ can adapt its voice layout to any patching scenario. Depending on your needs, any track can become a modulation output, a monophonic CV/Gate track, a polyphonic MIDI track...

For a track of CV/Gate note + velocity + aftertouch, or for a polyphonic CV/Gate track, simply group voices using the desired layout.

Take advantage of the 8 dedicated MIDI tracks, that can record and be programmed independently from the 8 CV/Gate tracks. Up to 8 real-time effects per track with creative parameters and generative features. Hermod+ is the canvas, the paint and the brush of your setup.

Specifications

Sequencer
Tracks: 8 CV/Gate + 8 MIDI
Patterns: 16 per track
Recording resolution: 96ppqn
Track length: 1/16 note to 16 bars
Automation per patterns: modulation + pitchbend + aftertouch + sustain

Projects
Amount of projects: unlimited
Tempo: 10 to 280 BPM
Global transpose track: yes
Double project architecture: yes
Song chain length: 64 sequences

Piano roll
Zoom min: /4 (1 step = 1/4 note = 1 beat)
Zoom max: X8 (1 step = 1/128 note)
Note/gate width: 1/32 (1/512 note) to 8 bars
Maximum polyphony per step: 24
Row edit (polyphony editing): yes
Note pitch: C0 to C10
Note velocity: 0 to 127

Synchonization clock speed
Max input rate: 1/96 = 24ppqn
Max output rate: 1/96 = 24ppqn

Input
MIDI: TRS type A + USB host + USB device
CV: 4x [-5V to +5V]

Output
MIDI: TRS (type A) + USB host + USB device
CV: 8x [-5V to +5V]
GATE: 8x [0V / +5V]
Dedicated Clock port
Dedicated Reset port for transport

Power
Note: the use of your eurorack +5V rail is configurable with a switch on the back of Hermod+
Consumption (using +5V rail): -12V 20mA, +12V 20mA, +5V 820mA (add up to +500mA when attaching a controller on USB host)
Consumption (not using +5V rail): -12V 20mA, +12V 400mA (add up to +220mA when attaching a controller on USB host)

Hardware
Width: 26HP
Depth: 20mm
Weight: 285gr (0.63lbs)
CV inputs resolution: 16-bit
CV outputs resolution: 16-bit
Display: OLED 58 x 16mm
SD card: microSD high speed (provided)
CPU: ARM 480MHz

Notes: Immense power in this multi-featured sequencer from one of our favourite brands. Four channels of 64-step sequences with advanced options including probability, quantising and randomisation.

Supplier's Notes:
The Erica Synths Black Sequencer takes classical modular sequencing to the next level by adding tons of features required for contemporary modular synthesizers.

The Black Sequencer features 4 channels with CV, gate and modulation outputs, up to 64 step sequences that can be chained into songs, independent track time divisions, multiplications and lengths. It includes a built-in quantizer, LFOs, envelope generators, parameter randomization, a MIDI in/out and many other features essential for composing and performing electronic and experimental music. Even though it provides many programmable parameters per step, it's intuitive, easy and straightforward to use, and could well become a master controller for many modular setups.

Black Sequencer firmware 1.04 is now available!

It adds output quantiser which can quantise track outputs in real time or rewrite notes in the sequence. Update also adds new track and synced LFO time divisions.

Technical specifications:

Power consumption: +145mA, -25mA
Module width: 42HP
Module depth: 25mm

Notes: Loquelic Iteritas Percido is an extension of the original Loquelic Iteritas. Like Loquelic Iteritas, it is a digital VCO with interpretations of three classic synthesis algorithms involving dual pitch control parameterized by four tone controls. LIP adds an envelope that can be shaped, modulated, and routed to pitches and tone controls, making it into a stand-alone voice.

Notes: 'Akemie's Castle' is a dual voltage controlled oscillator with authentic 4 Operator digital FM using 'new-old-stock' Yamaha IC's for audio signal generation.

Each of the 4 operators feature independent waveform selection, frequency multiplier and level control via direct panel operation and voltage control. Operators can be combined in various ways across both oscillators, which together with independent feedback control on each VCO, offer an extremely wide palette of sounds.

Oscillator A also features a chord mode providing a range of up to 5 voice chords and voltage controlled inversion.

Notes: Synthesists beware, there's a new menace in towniand much to the chagrin of it's older sibling, this one doubles down on its Banzai Rush. The Piston Honda mk3 maintains the character of its previous incarnation, while incorporating some punishing new combos. Where the infamous Piston Honda mk2 features a single oscillator consisting of 4,096 8-bit waveforms organized across a 16x16x16 "cube", the mk3 houses 512 16-bit waveforms arranged in an 8x8x8 configuration. Just like its predecessor, the waveforms operate at full resolution and can be manipulated manually with sliders or remotely via CV. Unlike the mk2, which only accepts CV in the range of 0-5v, the mk3's CV inputs accept both positive and negative voltages. Another welcome upgrade is the module's preset manager, which is operable via CV. This enhancement pulls all the punches by allowing users to store and recall specific configurations then morph between those presets! Who knew the fourth dimension was so unabashedly infernal?

The Piston Honda Mark III is a dual morphing wavetable oscillator with waveshaping audio inputs and unison detune. The three axis sliders create a waveform for each selected oscillator to play from the internal "cube" of 8x8x8 16-bit waveforms, morphed at full resolution in all three dimensions (the oscillators may each play a different waveform). The voltage-controlled preset manager stores a bank of these settings to be recalled at any time, with a virtual fourth dimension of morphing when the manager is in "continuous" mode. An orange 128x32 OLED display displays the current waveform for the selected oscillator in realtime, its frequency, and the selected preset and wave selection. The rotary encoder changes system settings on the display, but it's not necessary to interact with the display menus for any performance purpose.

Every suggestion about the previous MK II generation has been taken on board, and the design has been fully modernised, now operating as a dual oscillator in the same 17HP space. The infamous aggressive character of the Piston Honda is fully present, with the added clarity of the 16-bit wavetable engine. The second oscillator's frequency controls can be slaved to the first. Each oscillator has its own unison detune function as well, for a maximum of four stacked oscillators sounding at once. The oscillator can alternatively run as a nonlinear waveshaper, processing a dedicated audio input through the selected wavetable with voltage-controlled drive. When running in its normal oscillator mode, this input instead provides thru-zero frequency modulation.

In terms of visual apprehension, the mk3 adds even more precision to its ilk's well-documented cruelty with the addition of a 128x32 OLED display. More than a mere window into Cocytus, the display provides immediate visual indication of the selected waveform and its frequency, as well as preset and wave selections. When used in tandem with something like Argos Bleak, tuning and executing become insidiously simple. Another malevolent modification is the inclusion of a micro-SD slot, which offers users a quick and effective means of loading their own 16-bit waveforms into the module (much more convenient than the esoteric ROM burning ritual). The module is compatible with files created via the Synthesis Technology WaveEdit program.

Specs:
2x Digital Oscillator - 8 octave tuning range (C0~C7)
512 16-bit waveforms (8 waveform collections)
Micro SD card slot for loading user waveforms.
Graphic OLED display (128x32 in size, orange in color)
CV inputs accept +/- 10V.
Colorblind-friendly interface. No color codes.
8 preset slots with nonvolatile storage of all parameters (morphable)

Waveforms are selected from the internal memory of 8 collections:
* additive harmonic structures
* harsh LFSR progressions
* restored waveforms inspired by classic synthesizers
* special content from my favorite modular artists

You can load user wave data (16-bit WAV format) using the front-panel microSD card slot.

Factory waveset instructions:

Equipment needed: MicroSDcard.

Notes: Analogue discrete Synthvoice with two VCOs, three SUB-VCOs, Wavefolder, Noise, Ring Modulator, two loopable ADRS, two LFOs/VCOs, MIXER, 24db Lowpass VCF, VCAOur new Eurorack flagship hits stores this summer. Very compact (pre-patched) discrete synth voice module with excellent analogue technology for endless soundscapes at a reasonable price.

Two discrete VCOs with highly stable tracking

Three analogue Suboscillators (3/4-1/2-1/4 with SQUARE, SAW, TRI) + Gravity Mix -Sync

Wavefolder (VCO 1 TRI WAVE)

White Noise

XOR Ringmodulator

Discrete VCA

24dB LP VCF with overdrive

Dual analogue LFO (one also usable as VCO) with incredible range and keytracking -Two superfast and punchy analog ADSR sections with LOOP function and four TRG outputs (End of ATT, End of DEC)

Mixer section with Master level -Glide presets and huge Patchfield to communicate with other Eurorack Modules.

Screwed metal shaft potentiometer

Rackspace: 36TE
Depth: 25mm

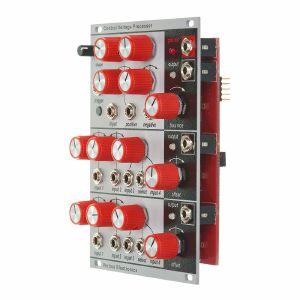

Notes: The Control Voltage Processor from Verbos Electronics GmbH is a suite of control voltage processing possibilities divided into 3 sections in a slim 18HP package. The lower 2 sections are DC coupled mixers that allow mixing, inverting, offsetting, scaling, multiplying, dividing, crossfading or a combination of these functions. The top section is a voltage controlled slewing processor with independent control of Positive and Negative slew rate, with some unique tricks. The Positive and Negative slew, or Rise and Fall rates if you like, have reversing attenuators. The slopes can be blended from linear to RC curves (starting all slides fast and ending slow, like a proper "East Coast" Portamento) without a change in speed. It can be triggered like an AD envelope and has a Gate out that goes high when the CV out is below 100mV. Of course it can loop by patching the Gate out to the Trigger in. The Bounce control adds a unique flare of overshoot to CV changes, a bit like the effect of stopping a tape reel from turning and then letting it go. The combination of multiple voltage processors offers the user the functions of analogue computer.

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Cylonix and Intellijel have collaborated to bring you a very sophisticated and deeply complex Wavetable VCO. At the core of this module is very powerful FPGA board that he has pushed to the absolute max of its capabilities and crammed full of features. We wanted to create a module that really worked well in the modular context so there are a lot of modulation and control possibilities.

CHORDS
Oscillator 1 can be operated in a CHORD mode, which runs 8 copies of the oscillator in parallel with adjustable detuning, leading to very fat, rich waveforms. The oscillators have extensive modulation capabilities including audio rate (98KHz) Frequency and Phase Modulation (FM and PM) via external sources. Nonlinear combination processes allow the outputs of the two oscillators to interact to generate complex timbres and sonic textures.
There are 64 user selectable chords.

WAVEFOLDER
The SHAPESHIFTER module also includes the analog wave folder circuitry from
module to add analog warmth and metallic rasps to the digital oscillator output.
External signals can also be patched in.

PRESETS
The module includes a sophisticated preset mode where panel settings can be stored. There are 12 user-programmable preset slots and another 52 volatile slots that can be used as a scratchpad. These scratchpad slots are initialized to interesting presets on module powerup. The capabilities of the preset mode is not limited to mere passive storage of settings, however. In this mode the user can also step through, or sequence, the settings, either in order or randomly in response to pulses input to the external sync input. This gives the user the ability to generate complex sequences of sounds. The preset mode also allows the user to morph between the current panel settings and a preset providing a very powerful real-time performance tool.

SYNC
8 Different sync modes: HARD, SOFT, REV, HOLD, BUMP, 2=1, 1=2, OFF
with the ability to internally sync to a sub oscillator

PULSE
User selectable modes for the PULSE output: OR, AND, XOR, GLCH, +OSC1, EOC, +OSC2, -OSC2

MOD A modes: (audio rate modulation)
COMBO IN, SHAPE IN, PHASEMOD, VOCODER

MOD B options (all with CV control)

-Combo modes for OSC1 and OSC2:
NORMAL, RING, MIN, PONG, INLV, AND, XOR, GLCH
-Waveform TILT
-Chord mode overdrive
-Delay depth and FB
-Percussive mode decay time

Notes: Really impressive sequencing module with a few clever tricks up its sleeve. Eight tracks of CV/gate with built-in effects (quantise, swing, arpeggiator, etc) for processing MIDI or CV inputs. Real-time recording, step sequencing, looping and much more.

Supplier notes:
Hermod brings together a powerful step sequencer, a CV looper, a real-time effect processor, LFO generators and a complete bi-directional MIDI-USB-CV input/output interface.

Record a performance at any time thanks to the CV inputs, the USB HOST, the USB DEVICE and the MIDI input. Create and edit your tracks with the STEP mode and its piano roll and automation view. Generate crazy patterns with the randomization tool.

Hermod is polymetric, it means that each track can have a different length, from 1 step to 64 steps. Moreover, you can zoom in to increase the resolution of the step sequencer (up to 512 steps).

Polymorphic tracks:

Thanks to Hermod architecture, a track can be a simple mono CV/GATE voice, but can be easily configured as a polyphonic track (up to 8 voices), a CV/GATE + velocity + aftertouch track, a modulation + clock track... in order to perfectly fit your Eurorack system!

Sequences and Projects:

The 8 tracks are grouped into one of Hermod's 8 sequences. Every sequence is totally independent and contains a new set of tracks to be played with, for a total of 64 tracks in a single project.

Dynamic effects:

All the fun in Hermod resides in its effect system, allowing you to transform input signals, whether it's MIDI or CV. You can stack on each track up to 8 real-time effects: Quantize, Swing, Arpeggiator, Ratchet, Random, Euclid, Glide, Harmonizer, Delay, Chance, Scale, LFO... Experiment with the effects position and parameters to generate eccentric melodies!

MIDI-USB-CV interface:

Full connectivity: control Hermod with plug-and-play midi USB devices, midi keyboards, computers or other Eurorack CV systems.

Hermod is also a great midi hub, allowing you to sequence midi synthesizers/drum machines and computer's virtual instruments. Of course, Hermod can be perfectly paired with Pyramid or other hardware and software sequencer, in order to benefit from its CV/GATE outputs.

With Hermod's rock-solid clock, this module becomes a great synchronization tool for all your setup! Thanks to its powerful CPU, even when synced/slaved, Hermod allows an ultra-low latency to make the perfect link between the digital world and the analog world.

The package includes:

- Hermod "Modular Brain" Black Edition
- 1GB micro SD card + SD adapter
- Power ribbon cable
- User guide (English)

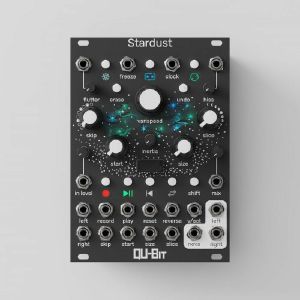

Notes: Meet Stardust, a cosmic tape looper.

The foundation of Stardust is a stereo looper with all the essential controls to record and manipulate sound, while supporting click-less looping transitions, an ultra-low noise floor, and high-fidelity audio hardware. However, getting the perfect loop is only half of the equation, Stardust also focuses on the texture and vibe of your recordings. Dial in a classic tape machine style warmth with wow & flutter/tape hiss controls, or take Stardust to new horizons with DSP effects. And, much like the tape-machines it takes it's inspiration from, Stardust can splice and rearrange its loops at the twist of a knob.

With an impressive set of front panel controls, the ability to save, recall, or export recordings, load samples via an included USB flash drive, and a host of configurable settings via our web editor Narwhal, Stardust is a comprehensive looper device.

Power Consumption: +12V=201mA, -12V=13mA, +5V=0mA

Notes: Complex digital oscillator with unison detune, programmable 3x4 modulation matrix mixer and external input. Intricate arrangements of phase distortion, thru-zero frequency modulation, and complex oscillation are instantly morphable and recallable through a voltage-controlled preset manager. Suitable for genre-targeted sequenced basslines, synthesis of stone, glass, and steel tones, and simulation of the acoustic properties of industrial machinery.

The Hertz Donut Mark III's main oscillator shapes its timbre by distorting the phase of a waveform lookup ramp, offering a linear growth of brass overtones from a simple sine wave whilst performing with exceptional clarity under heavy frequency modulation. The simulated resonance peak familiar to enthusiasts of phase distortion is also present and continuously controllable. The beloved "fractal" distortion from previous iterations of Hertz Donut is simultaneously available. The three waveform parameters operate in a modeless timbre space fully morphable under preset and shared manual/CV control, exhibiting stunning spectral evolutions that are intensified through the module's internal modulation bus. The fold knob is assignable to control one of the three parameters at a time, with the CV input also assignable to any of the three.

Two sinusoidal modulation operators are mixed to four modulation destinations with an external audio input. The operators may be locked to several precise frequency ratios of the main oscillator, or set to be otherwise subordinate. The three sources may modulate each other's frequencies, or the amount of phase or fractal distortion. A plethora of control voltage inputs allow full control of the patch, reacting within a +/- 10V range. The first operator has a calibrated 1v/oct control voltage input and fine tune control, for use as an independent oscillator augmented by the modulation bus. The modulation mix is placed under the influence of a master control, so that a single knob and CV input control the degree of modulation in the entire module. Each sound that you design will have a unique and intense behavior of this modulation control.

The preset manager stores 8 entire panel/menu states for instant recall under manual or voltage control. The control can also cause the creation of elegantly randomized preset data. The preset manager can be placed into a morphing mode where it assumes control of the various parameters, smoothly fading between entire panel states and generating very complicated sounds that are not easily described.

The unison detune function mixes in a nearly identical copy of the sound with slightly offset frequency, or optionally in octave or fifth intervals. The Hertz Donut operates at 96khz for a minimum of sampling byproducts, able to consistently and competently generate ornate digital beauty and jagged swaths of sonic mayhem. The auxiliary output presents the output of one or both modulation operators, also with optional unison applied. The nearby mix output is an analog sum of the Main and Aux outputs, facilitating parallel FM algorithm construction. Perfect, genuine, complete, crystalline, pure.

Specs:

Main oscillator with resonant, phase, and fractal distortions (CV and manual knob destinations selectable)
8 octave tuned CV response (1V/octave)
2x sinusoidal modulation operators with frequency interval lock or free operation
External thru-zero FM input
4x3 modulation matrix mixer with master amount control
128x32 OLED display providing realtime note, frequency, and modulation information, as well as menu access to deep settings
All parameters may be placed under control of morphing preset manager with 8 onboard presets (nonvolatile)
96 kHz sampling rate

Notes: Etna is an advanced triple-control Analogue Multimode Morphing Filter & Digital Control, that has been meticulously designed for precise and dynamic sound shaping. It allows for rapid or smooth transitions between diverse filter settings, known as snapshots.

Each snapshot comprehensively defines all of the filter's parameters, which can be adjusted either swiftly or gradually. These transitions are controlled through an applied voltage or clock and triggers, with the flexibility to use up to eight distinct stages for creating complex filtering effects in various audio applications.

In addition to its morphing capabilities, Etna incorporates analog controls that enable real-time, expressive modifications to the parameters of each saved snapshot. This enhancement not only enriches the morphing process but also provides a tactile, live experience that adds significant depth and nuance to the audio output, making it a powerful tool for both studio and live performance settings.

The response of each filter has been designed with top-end components, incorporating Q and passband compensation. This enables its use as three multimode filters, with all necessary analog control.

Dimensions: 20 HP
Power consumption: 165mA@+12V, 88mA@-12V

Notes: Excellent Eurorack sequencer based on random chance and evolving patterns. Dial in a series of notes and build melodies, generate and tweak patterns in real time. Huge depth for studio production or live performance.

Supplier's Notes:
The Melodicer from Vermona is a CV/Gate sequencer with an innovative concept; the melody sequencer offers twelve faders for setting the note probability and two dice-(or random) buttons for generating melody and rhythmic structure.

Notes: At its heart, Alpha Pro is four identical VCAs, each with overdrive and stereo outputs. However, it's also possible to link any of the VCAs together to form a voltage controlled mixer. This flexibility allows Alpha Pro to replace a bank of VCAs, sub-mixers and even your output mixer.

Each VCA has two Signal inputs and a summing mixer with individual attenuators.

There are two mix buses, allowing each VCA to act stand-alone or as part of the mix. So you can configure two separate sub-mixes, with any of the VCAs contributing to the mix, or use all channels to make an 8 input, stereo output main mix.

The VCA gain is controlled by the Initial Gain knob, and two Gain CVs - again mixed together, each with an attenuator. Having two Gain CV inputs allows for more complex modulation possibilities without needing another CV sub-mixer.

Gain response can be set to exponential or linear.

The XING switch enables zero crossing detection to prevent clicks on very fast CV inputs.

Two drive modes are available, a soft clip and a harder fuzz, with the DRIVE control increasing the gain into the overdrive circuit to increase the effect.

The VCA output is stereo, with manual and CV control of pan - again, with an attenuator.

Alpha Pro is available now as a 'founders edition' which includes the Alpha Switch as standard.

Specifications:
Width: 38HP
Depth: 22mm excl. power cable. Approx 32mm inc. shrouded power cable

Power Requirements:
+12v: 250mA
-12v: 100mA
+5v: 0mA

Inputs:
Signal (Zero attenuation): +/-5v nominal, +/-12v max
Gain CV (Zero attenuation): 0-5v nominal
Pan CV (Zero attenuation): +/-5v nominal

Outputs:
Stereo: +/-5v nominal, +/-10v max
With Drive Modes 1&2 outputs are normalised to around +/-5v max

Notes: Foxtrot is a quad, multimode virtual analogue filter with three different classic filter types.

Each of the four filter channels can be:

1) A ladder filter, based on the classic MOOG designs from the '60 and '70s
2) A Sallen-and-Key filter based on the Korg 35 module used in the MS-20
3) A State Variable filter as used in the Oberheim SEM

Each filter type produces Low Pass, Band Pass and High Pass responses which can be morphed between using the front panel control or CV.

In addition, any or all of the filter channels can be linked together internally producing a parallel filter bank controlled by a single cut-off control or CV. Check out some of the examples for how amazing this sounds.

The AUX CV input can be switched to allow CV control of the filter response, resonance or pan of each filter channel's dual outputs.

Finally, each filter can be overdriven to accentuate the unique sound of each filter type.

Specifications:
Width: 38HP
Depth: 22mm excl. power cable. Approx 32mm inc. shrouded power cable
Power Requirements:
+12v: 250mA
-12v: 100mA
+5v: 0mA

Inputs:
Signal (Zero attenuation): +/-5v nominal, +/-12v max
Cut-off CV (Zero attenuation): 0-5v nominal
AUX CV (Zero attenuation): +/-5v nominal

Outputs:
Dual Outputs: +/-5v nominal, +/-10v max

Notes: Cursus Iteritas Percido is the second module in the Percido line of powerful synth voices. Similar to its predecessor the Loquelic Iteritas Percido, CIP takes the original Cursus Iteritas and adds the same musical envelope from LIP with attenuverter-controlled routing to every knob. With the inclusion of the performance-oriented Master Blaster and CV outputs, CIP is a powerhouse of incredibly versatile synthesis in 24 HP.

Features:

Size and power:
24 HP
+12v: 105mA/60mA(if +5v on)
-12v: 60mA
+5v: 0ma/75ma (if +5v on)
Curses - series, from Latin cursus "series"

Iteritas - repetitiousness - from Latin itero "repeat" with suffix -tas "state of being"

Percido - from Latin danger

Dangerous repetitousness series

Notes: A big deal even by Xaoc's prolific and eclectic standards. Fully analogue VCO based on the none-more-old-school fonction d'onde formantique, implemented with extensive CV control. Transcendent waveforms indeed.

Supplier's Notes:
Sofia is a fully analogue voltage-controlled oscillator (VCO) based on an original waveforming principle. It features a modern, well-calibrated, temperature compensated triangle core and two elaborate waveshaping and modulating sections. The sound is a mixture of a warm, saturated base tone and two ripple components. Besides its main output, Sofia offers access to individual components of the sound plus a multitude of modulation inputs allowing for extensive self-patching and animation of the waveform. To better understand the device, it is strongly advised to read through the entire manual before using the module.

Sofia implements and extends the classic computer music method for synthesis of formant sounds called FOF (fonction d'onde formantique), which uses a combination of simple, time-domain components (decaying sinusoidal waves) to achieve desired spectral characteristics.

In Sofia, two of such ripple elements are added on top of a slightly saturated sinusoidal base tone. Each new cycle of the base tone spawns a new pair of ripple elements. The ripples' density and decay rate may be adjusted over a wide range. Additionally, the elements may be warped so that their density accelerates or decelerates within the cycle. Finally, their basic waveform may be switched from sine-like to square-like for additional richness.

Despite the seemingly divergent frequencies present in the signal, it remains strictly harmonic due to how all elements are waveshaped from the core tone and therefore phase coherent. Thus, Sofia is not a complex oscillator in the Buchla sense; however, it goes beyond the traditional set of primary waves and wavetables, hence the name.

Analogue VCO with complex waveforms
Extended FOF synthesis
3 frequency control inputs
8 parameter control inputs
6 signal outputs

24hp, 30mm deep
Current draw: +90mA/-80mA
Reverse power protection

The high quality Coal Mine black panels are available for all of Xaoc Devices modules. Sold separately. Ask your favourite retailer.

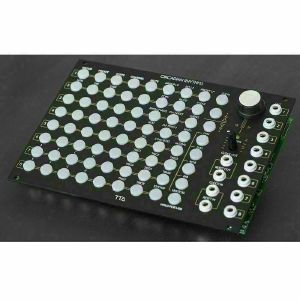

Notes: The Circadian Rhythms, is a professional performance gate sequencer in Eurorack format. Sitting at the centre of your system the Circadian provides triggers and gates to all your drum modules and percussive sounds as well as clocking your other sequencers with exceptional timing accuracy. Each channel voice can be programmed directly from the intelligent, eight-channel, 512-step master gate sequencer designed for composers looking to make music on the modular and perform live. Building up from basic step programming, multi-channel patterns of musical phrases can be repeated, looped, chained, muted, and manipulated in real-time, and, most importantly, all through a simple, clearly labelled menu-free interface.

Led Grid

Built around 72 buttons set as a multi-colour illuminated 8×9 array, Circadian Rhythms displays both note data and settings in a clear and precise manner. It takes only one click to switch to vertical view, turning the grid into a set of programming and real-time playing functions like Mutes, Loops, Swing, Fills, Copy and Paste, Grouping, Randomizing, and Manual drum-machine-style trigger entry. Activate any of those functions with only a button press or two. Using an array of multi-colour, illuminated buttons and innovative grid views provides a highly functional live performance sequencer with a beautiful, glowing appearance that will look amazing on stage for both performer and crowd. As a master controller, the heart of the modular synthesizer, the Circadian Rhythms generates high precision clock and reset signals for all the other sequencers and devices in the system and can also act as a high precision bridge for DAW synchronization.

Clock

Inside the CR ticks an extremely precise clock with jitter and latency measured in mere microseconds for the ultimate feel of the groove. The four modes of clock sync make interfacing with other modules, hardware, or software simple. Whether driving a large Eurorack system or synced to a DAW, the groove always remains tight.

Under the Hood

When state of the art chip technology, musically driven firmware, and professionally engineered hardware design all come together in one electronic device, the result is a music sequencer with unparalleled specifications. Starting with a powerful, precise sequencing engine that has superb feel for the groove, add internal functions that automatically balance performance and smooth user interface operation, and finish with outstanding low power consumption placing minimal stress on power supplies even at maximum output, Circadian Rhythms has a design focused on the requirements of the most dedicated musicians and composers. Long-time pros will immediately feel a machine made for their needs, while newcomers can instantly dive into next-level programming and performance.

SyncBus Technology

The Tiptop-Audio-designed SyncBus enables the CR to connect to any number of other SyncBus devices with the highest possible level of synchronization. A SyncBus master directly injects its core clock and running status into every connected unit so they work seamlessly as one device. Hook up two CRs to make a 16 channel device or add a Trigger Riot (or three) to the mix for further experimentation. Plus, the connection is done behind the panel so there is no need to patch anything together.

Size: 36HP
Depth: 29.4mm
Power: +12V 160ma / -12V 0ma / +5v 0ma

Notes: Flame Black Filterbank is an analogue moving resonance filter bank.

The module is based on the Flame Curves and combines its most important functions in a more compact format. As a result, the individual outputs for the filter channels no longer found a place on the front panel.

The filterbank includes twelve-channel and a pattern player programmable via a software editor. You can use a freeware "Curves editor software" (Win/Mac) for setup and user pattern editing. The module needs a clock to run in pattern-mode. It also features a reset input to set the sequence back to the first step. The memory in the module can save up to 99 patterns. The active pattern can be seen on the display and selected thanks to two buttons.

When the Black Filterbank is in sequencer mode, the Envelope potentiometer controls the AR envelope, the Variation knob adds random velocity and release, and the Fill potentiometer controls the level of all the channels.

In manual mode, when the sequencer is off, you can select different filter-types with the Variation potentiometer: allpass, lowpass, bandpass 1-3 and highpass. Thanks to the Fill knob it is possible to sweep through the twelve filter bands. The Envelope knob smooths the sweep by activating a second band next to the selected filter band. Thus, the change from one band to another is not so abrupt.

It is also possible to play the twelve filters via MIDI like a drum module, thanks to the supplied MIDI to minijack cable. It even reacts to velocity.

There are several CV inputs for controlling Envelope, Variation and Fill parameters as well as the pattern number.

Power consumption: 250mA at +12V and 180mA at -12V
Depth: 42mm
22 HP

Notes: The Flame FM Kosmos is a full-featured 4-voice polyphonic FM synthesizer with integrated multi-effects unit. With 6 operators per voice and 32 selectable FM algorithms, it offers a wide range of sounds from classic FM tones to complex modulations. Each operator has a loopable ADSR envelope for detailed sound shaping.

It also allows morphing between two sound variations (A and B) and real-time control of effects. The integrated multi-effects processor includes stereo chorus, MIDI-syncable delay and reverb. Intuitive operation is paramount, with 8 knobs and easily accessible menus for all key parameters.

The module supports both analogue CV signals and MIDI control, making it extremely versatile. With 128 preset sounds and 128 memory slots, there is plenty of room to store and recall your own sounds.

Power consumption: 120-140mA at +12V and 60-70mA at -12V
Depth: 30mm
22 HP

Notes: OCTOPASS is an eight voice 24db/octave low pass filter based on the classic 2044 filter. All eight filters are fully analogue with gain compensation of resonance and the lovely lush sound of classic synths. A global frequency modulation CV using a 3.5mm jack can be used to modulate all eight incoming CVs of the Polytip jack. The typical use is to patch polyphonic synthesisers with the use of only a few Polytip patch cables for its audio ins and outs and its cut-off frequency controls. To tap each filter I/O or CV using discrete modules the OCTO I/O module can be used as an expander. As there are eight filters in the module special attention has been given to power consumption efficiency.

Size: 20HP

Notes: Record. Mangle. Destroy.

Nebulae is a granular sampler and DSP platform. Its phase vocoder audio engine provides elastic audio, which can be time stretched, granularized, and mangled to no end. With independent control over pitch and speed, and granular controls such as overlap, window, and density, finding new sonic territory is only a knob turn away. Nebulae can use live audio input, a recorded buffer, or audio files as the source material for its powerful audio manipulations. The live input buffer can record up to five minutes of stereo audio at 48kHz, 24 bit. In addition, up to 75 MB of stereo audio can be loaded simultaneously through the USB port. No naming convention or special formatting necessary; just plug and play.

Nebulae lives a double life as an open source DSP platform with an extensive library of off the shelf alternate instruments. You can turn the module into a lush reverb, spectral delay, or tape-style looper simply by loading a new file onto the flash drive. Do you want to tweak one aspect of an existing instrument, even the default functionality? No problem. No prior coding knowledge is necessary to tweak and refine existing firmware to your liking or start with one of our templates. Alternate firmware files can be written with Pure Data, Csound, SuperCollider, and even bare-bones C programs.

Notes: FLAME "TAKT" rhythm sequencer.

"TAKT" is a compact 30HP Eurorack sequencer module for playing or programming trig- ger/gate/velocity rhythm sequences.

The sequencer has 8 tracks with trigger/gate outputs, 8 velocity/modulation CV outputs and full MIDI functionality. The CV track can also be used independently as a modulation track. Live sequencing in looper mode is possible in two ways: SHOTS for playing "note repeats" or quantized triggering via keys or sensors.

Four tracks can be triggered simultaneously with four external distance sensors. These sensors are just 2HP slim modules that can be rack mounted at desired locations. These are connected directly to the module with narrow and sufficiently long ribbon cables, which also supplies the sensors with the necessary operating voltage. The 4 sensors and the connection cables are included in the scope of delivery. The sensors generate trig- gers/gates and can be switched live as a set between tracks 1-4 and 5-8 (e.g. via foots- witch).

Four syncable LFOs with VCOs for amplitude adjustment are also provided. The LFOs are equipped with many interesting functions. This includes 26 different waveforms, phase, amplitude, speed and output voltage. This can be unipolar or bipolar (0..+5v or +/- 5v) and additionally attenuated by AMP (amplitude) with built-in VCA. This means that the LFO outputs can also be adapted to modules that do not have an input attenuator.

Patterns can be switched live and are each up to 4 bars long. 4 patterns plus a fill pat- tern are saved as a scene. 50 scenes can be permanently stored in the module. This means that 250 patterns are available in total.

Additional inputs and outputs for controls are available. There are 4 CV inputs to be defi- ned by the user, as well as 2 programmable analog clock outputs. On the front there are MIDI input and output as 3.5mm TRS sockets. Firmware updates can be done via MIDI- SYSEX.

HP : 30

Notes: Compact take on the Bitbox sampler, also offered as the larger Mk2 version. Touchscreen-based design allowing up to eight stereo samples, recording directly or loaded from SD card.

Supplier notes:
Bitbox micro provides Eurorack sampling for smaller racks and smaller budgets. In only 18 HP of rack space you can get a touch screen based sampler with support for 8 stereo sample pads. Now you can record samples directly into the module or load them from the microSD card. Trigger your samples via CV or MIDI, then apply effects and mix the outputs. Save your configurations to multiple presets for later reuse.

Sample Playback

Play up to 24 stereo polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger stereo samples streaming directly from the microSD card
Configure 8 stereo sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Sample Recording

Record Eurorack level audio straight into the module:

Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Resample the master output without patching
Automate recording of a multi-sample bank via MIDI and CV
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer

Sample Modes
Find creative ways of using your samples with our 5 sample playback modes:

Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode

Inputs and Outputs
Use the 8 inputs the way you want: assignments include a stereo audio input, up to 8 gate inputs, up to 8 CV inputs and 1 clock input.
Route the audio from each pad out to one of 3 stereo audio outputs or one of 6 mono audio outputs
Listen to all of the pad outputs combined on the master stereo output

External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode - no need to look up CC numbers
Module Features
Use the 2? diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Refine your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Inputs and outputs are DC coupled so you can record and play out CV signals

Notes: Black version of Bitbox's excellent sampling module. Touchscreen-based design allowing up to eight stereo samples, recording directly or loaded from SD card.

Supplier's Notes:
Bitbox micro provides Eurorack sampling for smaller racks and smaller budgets. In only 18 HP of rack space you can get a touch screen based sampler with support for 8 stereo sample pads. Now you can record samples directly into the module or load them from the microSD card. Trigger your samples via CV or MIDI, then apply effects and mix the outputs. Save your configurations to multiple presets for later reuse.

Powerful Sampling Capabilities in a Smaller Form Factor

With the sampling features of Bitbox micro you can add interesting new ways of generating sound and music to your Eurorack. Trigger one shots, play time synched loops or record live looping. Bitbox micro is equally at home in your studio or as a component of your live performance.

Features

Sample Playback
Play up to 24 stereo polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger stereo samples streaming directly from the microSD card
Configure 8 stereo sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Sample Recording

Record Eurorack level audio straight into the module:
Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Resample the master output without patching
Automate recording of a multi-sample bank via MIDI and CV
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer

Sample Modes

Find creative ways of using your samples with our 5 sample playback modes:
Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode

Inputs and Outputs

Use the 8 inputs the way you want: assignments include a stereo audio input, up to 8 gate inputs, up to 8 CV inputs and 1 clock input.
Route the audio from each pad out to one of 3 stereo audio outputs or one of 6 mono audio outputs
Listen to all of the pad outputs combined on the master stereo output
Inputs and outputs are DC coupled so you can record and play out CV signals
External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode i no need to look up CC numbers

Module Features

Use the 2" diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Refine your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Compare to Our Other Samplers
Our Sampler Selection Guide shows you how bitbox micro compares to our other samplers.

What Is Included

When you purchase bitbox micro, you will receive:

a bitbox micro Eurorack module
a microSD card with a bank of demo presets and samples loaded on it
a Eurorack power cable
a bitbox micro Quick Start guide
a MIDI Adapter
Firmware Updates
Get new features by downloading firmware updates from forum.1010music.com.

Documentation and Video Tutorials

The Bitbox Micro Support page has links to videos, the quick start guide and the full user manual to get you up and running quickly and answer your detailed questions. If you can't find answers there, reach out to the community with questions on the 1010 Music forum.

Notes: Kermit is a 4-channel programmable supermodulator with morphing wavetable generator and internal modulation matrix. Four channels operate as LFOs, audio rate oscillators (with 1v/octave response on two channels), 1-shot envelopes, random voltage generators, or sample-and-holds, all responding to manual control, external control voltages, or synchronization to the module's master tap tempo clock. Designed for maximum patching power in small systems, Kermit carries an unmatched functionality-per-HP factor with an easily readable display that shows parameters in their real-world units.

The module has a 16-bit DAC to accurately render subtle changes of voltage at extremely low frequencies. The oscillator mode is best suited for bass frequencies, and the waveform "character" modes restrict the morph behavior or degenerate the audio to a minimum of 8 bits with limited horizontal resolution, like the Konami SCC chip used with the MSX computer. The tap tempo facility features an input jack and a manual button. The tempo is shown on the OLED display in BPM. The relevant units (hertz, seconds, volts, etc) or selected waveform of each channel are contextually shown on the display as the user programs the module.

List of operating modes per channel:

LFO (1 volt/octave)
LFO (with reset)
Tap tempo LFO
Audio oscillator
Audio oscillator (unison)
Code scan
1-shot envelope
Gated repeat envelope
Tap tempo envelope
Smooth random
Stepped random
Tap tempo stepped random
Sample-and-hold
Track-and-hold
Tap Tempo sample-and-hold

Three parameters on each channel can be modulated: frequency, amplitude, or waveform. Both external CV input and internal cross modulation are programmable with hotkeys. For example: assign the output of Channel B to morph the waveform of Channel A by holding the Channel B button while turning the Channel A Waveform knob. All channels have manual control of frequency (coarse and fine), phase, wave bank, waveform morph, and amplitude. Channels A and B have full controls, C and D have single knob controls with deep parameters accessible by hotkey combinations. Still deeper functions are accessible through the Mark III menu system.

Kermit has a microSD card slot for loading custom waveforms, like its big brother Piston Honda. The SD card accepts one .WAV file in WaveEdit format (free software editor) containing 64 waveforms, also compatible with several other Eurorack modules. When loaded into Kermit, the waveforms are organized into 8 banks of 8 waveforms each. Each oscillator can select any of the 8 banks, and the 8 constituent waves can be smoothly morphed from one to another.

The Mark III morphing preset manager is in full effect on Kermit. The discrete preset mode quickly and reliably recalls all parameters in response to triggers or CV, accessing the true power of the module as detailed, carefully programmed settings are effortlessly loaded and changed. The morphing mode causes delightfully unexpected variations of the basis preset.

Insert a master clock signal and you're ready to go. Kermit is a reliable provider of endless rhythmically coherent modulation voltages and a reasonably competent "voice module" providing most common synthesis functions on each channel with an internal modulation matrix.

Notes: Clock generation meets waveform manipulation in this analogue harmonic oscillator. Combine with the Tobinski sequencer and/or interpolating scanner modules for the best creative results.

Supplier's Notes:

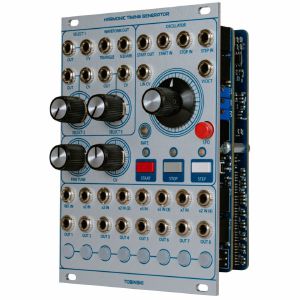

The Harmonic Timing Generator is a versatile Eurorack module that combines advanced clock generation with harmonic waveform manipulation. Combined with the Tobinski Sequencer, the module is a great tool for rhythmic and sonic creativity in the modular system.

As a reference clock generator, the Harmonic Timing Generator produces a base frequency with analogue multipliers (x1 to x8) to generate complex timing signals. Three selectors provide manual or voltage-controlled frequency switching, offering flexibility for intricate sequencing patterns. An LFO mode enables slower clocking rates, ideal for driving sequencers or generating modulation sources.

When used with the Interpolating Scanner, the sawtooth outputs of the Harmonic Timing Generator are transformed into sine waves. This allows the module to function as a harmonic oscillator at audio rates or as a versatile modulation source in LFO mode. Its dual functionality ensures that it can adapt to a wide range of patching needs, from rhythm generation to rich harmonic exploration.

The Harmonic Timing Generator is a versatile and creative tool, offering rhythmic and harmonic possibilities that complement any modular synthesizer setup. Its integration with other Tobinski modules ensures a cohesive and expansive sonic palette.

Power consumption: 235mA at +12V and 176mA at -12V and 20mA at +5V

Depth: 27mm

18 HP

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Loquelic Iteritas Percido is an extension of the original Loquelic Iteritas. Like Loquelic Iteritas, it is a digital VCO with interpretations of three classic synthesis algorithms involving dual pitch control parameterized by four tone controls. LIP adds an envelope that can be shaped, modulated, and routed to pitches and tone controls, making it into a stand-alone voice.

Notes: The Serge Dual Universal Slope Generator (DSG) is probably the most versatile module of a Serge Modular system, incorporating a wide range of functions for both CV and audio. Some functions for which one Slope Generator can be used: VC Transient Envelope Generator, VC LFO, VC Portamento device, Envelope Follower (Detector), VC Pulse Delay (Monostable), Sub-Harmonic Series Generator (Divider), Audio Oscillator with variable waveform symmetry (saw to triangle), Non-Linear Audio Processor (low-fidelity VCF).

From the catalog: "The Universal Slope Generators are unity gain voltage followers with voltage controllable slopes. The range of control is exponential, extremely wide, and the Rise and Fall times can be controlled independently. The range of the Slope Generator is from sub-sonic to high audio frequency. Trigger inputs and trigger outputs allows each section of this dual module to function as a transient (envelope) generator, pulse delay, or in a "cycling mode" (to produce an LFO or clock). Since the Rise and Fall times are voltage controllable, this adds another dimension to the above functions.

The DSG mk2 version has been optimized for audio performance and speed/precision. The top section covers a frequency range up to more than 10kHz. It also offers improved tracking and some temperature compensation.

Dimensions
26 HP
40 mm deep

Current Draw
90 mA +12V
80 mA -12V

Notes: Eight channels of audio and CV sampling with real-time editing and processing. Does basic sampling well but quickly gets creative and weird.

Supplier's notes:
The 'Squid Salmpler' is a Eurorack 8 channel audio & CV sampler. It is designed for immediate real time sampling, editing and mangling within a modular context.

Taking influence from early hardware samplers, The Squid Salmple focuses on usability and instinctive operation, incorporating a proven Pamela's Workout style user interface for minimal screen dependence and a fun, hands on experience.

With support for sampling and playback for both audio and CV, as well as CV control of all parameters, on-the-fly bank loading and saving to USB, The Squid Salmple brings a unique take on old school sampling into the modular realm.

The Squid Salmple comes with a USB Stick containing approximately 90 banks of original carefully curated royalty free samples. This includes a wide range of sounds from classic drum machines and weird synths to field recordings and CV modulations. Banks are provided by both ALM and some of our favourite artists and friends including Mumdance, Solid Blake, Russell Haswell, Lauren Flax, Dave Burraston (NYZ), Sue Zuki, Dungeon Acid, Sasha Lewis and Andrew Duff.

Notes: ***B-STOCK: Without original box, item shows small amount of damage but in perfect working order***


FLAME "TAKT" rhythm sequencer.

"TAKT" is a compact 30HP Eurorack sequencer module for playing or programming trig- ger/gate/velocity rhythm sequences.

The sequencer has 8 tracks with trigger/gate outputs, 8 velocity/modulation CV outputs and full MIDI functionality. The CV track can also be used independently as a modulation track. Live sequencing in looper mode is possible in two ways: SHOTS for playing "note repeats" or quantized triggering via keys or sensors.

Four tracks can be triggered simultaneously with four external distance sensors. These sensors are just 2HP slim modules that can be rack mounted at desired locations. These are connected directly to the module with narrow and sufficiently long ribbon cables, which also supplies the sensors with the necessary operating voltage. The 4 sensors and the connection cables are included in the scope of delivery. The sensors generate trig- gers/gates and can be switched live as a set between tracks 1-4 and 5-8 (e.g. via foots- witch).

Four syncable LFOs with VCOs for amplitude adjustment are also provided. The LFOs are equipped with many interesting functions. This includes 26 different waveforms, phase, amplitude, speed and output voltage. This can be unipolar or bipolar (0..+5v or +/- 5v) and additionally attenuated by AMP (amplitude) with built-in VCA. This means that the LFO outputs can also be adapted to modules that do not have an input attenuator.

Patterns can be switched live and are each up to 4 bars long. 4 patterns plus a fill pat- tern are saved as a scene. 50 scenes can be permanently stored in the module. This means that 250 patterns are available in total.

Additional inputs and outputs for controls are available. There are 4 CV inputs to be defi- ned by the user, as well as 2 programmable analog clock outputs. On the front there are MIDI input and output as 3.5mm TRS sockets. Firmware updates can be done via MIDI- SYSEX.

HP : 30

Notes: Vinia is a new powerful 8-channel audio generator and processor for Eurorack. Each channel is independent and has its own signal chain. This can be a multi-engine instrument, an FX processor, a combination of both, or a chain of several FX.

The sound generator section offers 2 sample players (one plays from the 16 MB internal flash memory and the other directly from the microSD card), various VCOs (VCO, multi-VCO, harmonic VCO), Karplus, a Chord generator, noise, a drum synth and modulation generators (LFO, envelope follower, envelope).

Each of these generators has a rich set of parameters for setting up your sounds. Then, there is a powerful multi-FX processor.

Tesseract Modular has added 20 different algorithms in Vinia: FM operator, filters (multimode, ladder, rubber, bandpass), a wave folder, tube saturation, delays (filter delay, delay, long delay), reverb, metallizer, grain pitch shift, and more.

These can be flexibly set in a chain per channel and offer many customization possibilities. The module also hosts a mixer. You can also save your channels in presets and work with macro parameters.

Each of the 8 channels can be independently configured as a multi effect processor, VCO, sample player...

Audio outputs are DC coupled so it can be used to generate complex CV modulation sources too.

There are 2 types of modulation in Vinia, the first is stepped (occurs every 1,4 milliseconds approx.) and very flexible, any modulation source can modify any parameter of any track. The second is the 'audio rate' one (44,1 KHz), only a few parameters admit this type and both sources and destinations will be within the same track.

Audio sources: Audio Input, Flash Sample Player, MicroSD Sample Player, VCO, Multi VCO, Harmonic Oscillator, Karplus, Chords, LFO, Envelope Follower, Envelope, Noise, Drum Synth

Audio processors: FM Operator, Multimode Filter, Ladder Filter, Rubber Filter, Bandpass Filter, VCA / Polarizer, Folder, Tube Saturation, Exponential Envelope, Delay, Filter Delay, Long Delay, Long Filter Delay, Reverb, Metalizer, Chorus, Modulator, Vocoder 16, Vocoder 32, Bit Crusher, Rectifier, Grain Pitch Shift, Ring Modulator

Notes: The Circadian Rhythms is moving modular synthesizer technology another step forward by gluing all the pieces of a system together. Each module or voice can now be programmed to play straight from an intelligent, eight-channel, 512-step master trigger sequencer made for composers looking to make music on the modular. Building on the sequencing concept of step programing multi-channel patterns of musical phrases can be repeated, looped, chained, muted and manipulated on the fly in real-time, and most importantly, all of this is done through a simple, clearly labeled interface. Using an array of multicolor illuminated buttons and innovative grid views provides a highly functional live performance sequencer with a beautiful glowing appearance of the programmed music that will look amazing on stage for both performer and crowd. As a master controller, the heart of the modular synthesizer, Circadian Rhythms generates high precision clock and reset signals for all the other sequencers and devices in the system to align with and can also act as a high precision bridge for DAW synchronization.

Views - Unlike most hardware sequencers that have a single static display of a timeline, Circadian Rhythms offers four different horizontal views of the timeline and two unique vertical views that scale from macro to micro. Switch between viewing 64 steps at once or all 8 channels side by side instantly. Stretch gates over multiple patterns to drive envelopes or use Zoom view to move a single hit back a few milliseconds in time to get the right feel all from the same interface.

LED Grid Built for Quick Access - Built around 72 buttons set as a multi-color illuminated 8x9 array, Circadian Rhythms displays both note data and settings in a clear and precise manner. It takes only one click to switch to vertical view and the grid turns into a set of programming and realtime playing functions like Mutes, Loops, Swing, Fills, Copy and Pate, Grouping, Randomizing, Manual trigger entry drum machine style and many many more. Activate any of those functions with only a button press or two.

Clock - Inside the CR ticks an extremely precise clock with jitter and latency measured in mere microseconds for the ultimate feel of groove. The four modes of clock sync make interfacing with other modules, hardware or software simple. Whether driving a large Eurorack system or synced to a DAW, the groove always remains tight.

SyncBus Technology - The Tiptop Audio designed SyncBus enables the CR to connect to any number of other SyncBus devices with the highest possible level of synchronization. A SyncBus master directly injects its core clock and running status into every connected unit so they work seamlessly as one device. Hook up two CRs to make a 16 channel device or add a Trigger Riot (or three) to the mix for further experimentation. Plus, the connection is done behind the panel so no need to patch anything together.

Under The Hood - When state of the art chip technology, musically driven firmware, and professionally engineered hardware design all come together in one electronic device, the result is a music sequencer with unparalleled specifications. Starting with a powerful, precise sequencing engine that has superb feel for the groove, add internal functions that automatically balance performance and smooth user interface operation, and finish with outstanding low power consumption placing minimal stress on power supplies even at maximum output, Circadian Rhythms has a design focused on the requirements of the most dedicated musicians and composers. Long time pros will immediately feel a machine made for their needs, while the newcomers can instantly dive into next level programming and performance.

Notes: The only module named after a Swedish botanist? Possibly. Relentless synth innovator Dave Rossum pushes the boundaries again with a state-variable stereo filter offering through-zero frequency modulation. Sounds complicated. Sounds good.

Supplier notes:
Following in the tradition of Evolution and Morpheus, LINNAEUS represents yet another Dave Rossum innovation in filter technology.

LINNAEUS is a stereo state-variable filter that provides the unique ability to linearly modulate its resonant frequency through zero into negative frequency, while maintaining stability. With extensive voltage control of nearly every parameter, Linnaeus lets you manipulate the filter's natural response curve in new ways, to create both subtle and dramatic timbral effects. And with a "one-knob-per-parameter" interface, LINNAEUS inspires sonic creativity that invites (and rewards) real-time interaction.

LINNAEUS's cutoff/resonant frequency is exponentially voltage controllable from sub-audio to ultrasonic frequencies, while its resonant gain (Q) is exponentially voltage controllable from 0dB to greater than 60dB.

LINNAEUS's channel output response characteristics are independently and continuously variable from Lowpass, through Bandpass, Highpass and Notch, to Low and High Shelving characteristics. Voltage control of the response characteristics are independently selectable for each of the two channels.

The linear thru-zero modulation is provided by an integrated modulation oscillator and/or an External Linear FM modulation input.

The voltage-controllable modulation oscillator can track the filter's exponential frequency or operate independently. The modulation oscillator's output waveform is continuously variable from Off through Sine, Triangle, and Sawtooth, to Square. The modulation oscillator output is summed with the external linear FM input and applied to the modulation index VCA, which controls the linear thru-zero modulation index from zero to 8X. The modulation index is, of course, also voltage controllable.

Notes: Part of Knobula's excellent polyphonic Eurorack range, the Monumatic is an eight-voice poly/monophonic synth module with 16 oscillator modes, covering everything from virtual analogue to cutting-edge tone generation algorithms.

Supplier's Notes:
Monumatic is a fully polyphonic 8-voice synthesiser and a monophonic synthesiser packed into a compact 12HP module.

It features16 selectable oscillator modes to provide a diverse range of both classic and futuristic tone generation using exclusively virtual analog algorithms. These include; Roland super-saw, Polymoog vox humana, Casio phase distortion, Solina string synth, percussive drawbar organs , "noisy cassette" strings, pulse width modulation and some gnarly asymmetric sync oscillators, all modelled without samples and each one of these customisable using the Detune control and each providing the foundation for further signal processing though the filter and effects sections.

6 powerful filter types are provided, including a vocal vowel filter, a 24db/oct Butterworth low pass filter, a dual peak notch filter and a phase shifter, each of which features an overdrive setting.

Like its sibling module Poly Cinematic, Monumatic is designed to be simple to use yet versatile, offering minimal controls to access a wealth of sounds, avoiding the need to scroll through 1000s of complex presets.

Monumatic supports full analog control of every parameter, with two instantly assignable CV inputs, as well as dedicated CV inputs for Gate, V/Oct and Filter cutoff, with additional digital control using comprehensive Midi CC and MPE implementation. An altogether unparalleled potential for expansion and integration into the eurorack universe.

As well as full midi capability, the 8 built-in chord presets can be custom programmed to provide polyphonic stabs and pads and using a single CV/Gate input, arpeggios can be layered polyphonically or "plucked" using long release times. The mono/poly function allows the Monumatic to switch between a fully capable poly synth or a mono synth at the touch of a button.

In polyphonic mode Monumatic introduces an advanced micro-tuning system to modular synthesis, it can replicate the organic drift of vintage analogue oscillators or it can apply realtime tuning temperaments to enhance harmonic authenticity using 'just' intonation, this parameter can even be assigned to CV control.

Notes: Multi-model stereo delay with reverb, featuring tape, bucket brigade and crossfading digital models, plus saturation, filters, internal modulation plus tons of CV control. Vibey as hell.

Supplier's Notes:
It's all gone a bit wobbly

Intellijel's design goal for Sealegs was to create the warmest, most musical and organic delay module possible - something that would sweeten and enhance any audio one chose to feed into it. As such, great care has gone into modelling the most distinctive and desirable sonic characteristics of three different types of delay circuits: Tape; Bucket Brigade, and Crossfading Digital.

A plethora of onboard controls enable you to dial in exactly the sound you want; synced or un-synced delays times (for both left and right channels); a built-in modulator with seven morphing waveshapes, a Wow & Flutter emulation, and an envelope follower; plus dedicated low- and high-pass filters; built-in hiss & crackle noises; per-model colour controls; a spacious reverb; and a re-configurable signal flow through the unit. In addition, attenuverted modulation inputs abound - ensuring the delay ebbs and flows with your musical needs.

Features
Three Unique delay models with per-model "Color", modulation behaviour, and saturation/limiting
Three Stereo configurations (PONG, L/R, Time/Width)
Built-in modulator with multiple, morphing wave shapes
Lush, routable 1970s-inspired reverb
Noise control to introduce hiss and crackle.
Highpass and lowpass filters for filtered repeats
Input drive with level trim
Per-model Freeze functionality for holding the delay contents and looping
Delay times up to 6 sec (L channel) and 8 sec (R channel, Width adds 33% to Time)
9 CV inputs (with attenuverters)
Stable external clock syncing (or tap tempo)
96 kHz, 32-bit stereo floating point processing

Size: 20HP
Depth: 29mm
Power: 116mA @ +12V 10mA @ -12V

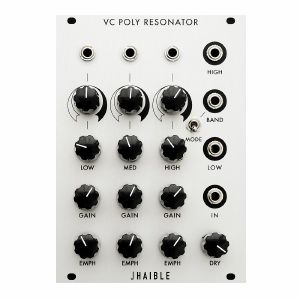

Notes: The Haible VC Resonator is an evolution of Jurgen Haible's Resonator which was inspired by the Polymoog Resonator. As Jurgen stated: The Polymoog, an early polyphonic synthesizer, featured a 3-band "Resonator" section that allows Formant-Filtering in addition to its dynamic Filters. Such a Resonator is a very useful feature for analogue synthesizers. Each of the three (now overlapping) filter bands has a control for frequency, signal gain, and emphasis (resonance). The VC Resonator now not only adds VC control for each band, but also extends the ranges whithin which each frequency band can be set - adjacent bands can now overlap or even cross over, for instance the LOW and MED bands can now be set (or moved!) so that the LOW center frequency is higher than the MED frequency.

Jurgen's original Resonator (like the Polymoog) had a switch to select one of 3 basic modes, i.e. only one mode could be used at a time. The Haible VC Resonator now provids the same 3 modes as separate outputs so they can be used simultanously, e.g. for further processing like crossfading.

Some details of the Haible VC Resonator:

Evolution of Jurgen Haible's design
Added Voltage Control for Filter bands
Extended range of each band (overlapping)
Three separate outputs
Burr-Brown op-amps and high-end VCAs
Eurorack (3U) format, 18 hp
Skiff-friendly: < 30mm deep
Power: appr. 60mA @ +12V and 60mA @ -12V

Notes: The Falistri is a fully analogue multi-purpose movement manager designed to generate and edit voltages to easily accomplish any patch.

The module can be divided into two big parts: in the upper two-thirds of the panel take place two specular function generators, while the lower third is composed of a dual cascaded frequency divider, a linear slew limiter, and a four-quadrant multiplier.

Key features:

Two Function Generators: Envelopes, LFOs, Oscillators
Adjust the Shape Without Changing the Time
Exclusive Shapes per Stage
Trig Buttons: Play Those Envelopes!
Three Play Modes (Voltage-Selectable)
Interacting Functions: Quadrature Mode
All the Outputs, Everywhere
Cascaded Frequency Dividers
Four-Quadrant Multiplier
Linear Slew Limiter

Size 18 HP
Depth 38 mm

Current draw
170 mA @ +12 V
170 mA @ -12 V

Notes: *** Free software update available as a free download, along with updated documentation, at the Mob of Emus product page on the Rossum Electro-Music website***

A lot to unpack here. Six-channel multipurpose oscillator/noise source/modulation generator with quantisation, trigger generators and even more. Seriously powerful all-round digital goodness.

Supplier's Notes:
Mob of Emus is a powerful music and sound design tool that packs an enormous amount of creative power into an amazingly compact 16HP module.

Mob of Emus gives you six channels of oscillators, noise sources, cyclical and 1-shot modulators (including LFOs, envelopes, and various other shapes), sample and hold waveshapes, slow random modulators, triggers, rhythm patterns, and quantization (of both internal and external signals) in pretty much any combination (well, any combination of six channels, anyway).

In addition to being able to independently program the function of each individual channel, Mob of Emus' Hex Mode provides a macro control layer that allows you to control all of its channels simultaneously (while maintaining the relationships of each channel's independent programming).

What's more, Mob of Emus' "harmonic" control structure makes it extremely easy to combine its oscillators into rich additive timbres, to combine its LFOs into stacked harmonic low frequency modulation waves, and to create modulation sources and triggers with intricate polyrhythmic patterns.

With an external trigger input, six CV inputs that can operate in six different control modes, six independent outputs, and an assignable mix output, Mob of Emus can operate as the heart of an almost unlimited variety of patches. And its 8 real-time controls will give you immediate hands-on access to a channel's (or all six channels') key parameters, inviting (and rewarding) exploration and improvisation.

Mob of Emus features include:

Six channels that can function independently or can be further controlled by a Hex Mode macro layer that lets you control all six simultaneously. Channels can be:
Wide-range digital oscillators
Noise sources
Cyclical and 1-shot modulators (including LFOs, envelopes, and various other shapes)
Sample and hold waveshapes
Slow random modulators
Triggers
Rhythm patterns
Quantizers (of both internal and external(!) signals)
Six CV inputs that can function in six different control modes
Eight real-time controls for immediate access to key channel parameters
Six individual channel outputs and an assignable mix output
The ability to store and recall 12 user presets
And much more.

Mob of Emus is 16HP wide and 25mm deep.

Power requirements (max): 130mA +12V, 25mA -12V. Reverse polarity protected.

As of March 2021, there has been a been a small bug fix to the recent software update for Mob of Emus.

The update fixes a bug where holding the Channel Selector Buttons for a short time to select a single channel and deselect any others was not working correctly.

The update fixes a bug where some Hex Mode parameters were not ignored when Hex Mode was set to off.

The update introduces a feature allowing users to double-click and hold the Hex button to reset all Hex Mode parameters and set Hex Mode to on.

Rossum Electro-Music made a change to the behavior of the LEDS when using the utility 'Display Software Revision'

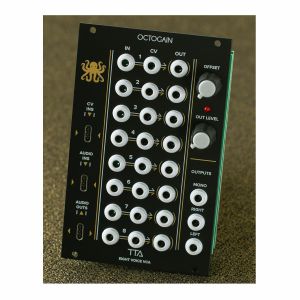

Notes: Octogain is a eight voice polyphonic analogue audio VCA plus a eight voice mixer with master level control and odd/even (Right and Left) channels for a stereo output and clipping indicator. All eight VCA ins and outs are simultaneously available through Polytip jacks and 3.5mm jacks so the module can be used in a variety of ways both polyphonic or multi-voice monophonic. The fully analogue audio path has exponential CV control. CV inputs are 0-5V, typical audio input is 10Vp.p. A global Offset knob allow to open all VCAs manually or apply positive offset to incoming CV. The design uses very low power consumption with excellent audio quality.

Size: 16HP - Depth: 40mm
Power: +12V 42mA / -12V 35mA

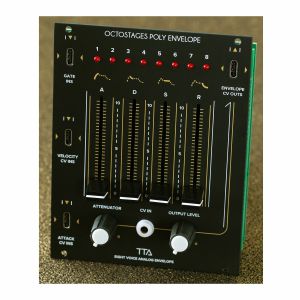

Notes: Part of TipTop's polyphonic range, the Octostages is based on the envelope circuits from the legendary Oberheim OB-X. Eight fully analogue envelopes with shared ADSR controls.

Supplier's Notes:
Octostages is an eight voice fully analogue envelope generator made with the original envelopes of the 1979 OBX. Each of the eight envelopes feature a Gate in, Envelope OUT, Velocity CV in and Attack CV in control as well as an output led indicator. A master output level knob and CV using standard mono jack are provided to control or modulate all envelope output levels globally. As there are eight EGs in the module special attention has been given for power consumption efficiency.

Size: 20HP - Depth: 40mm
Power: +12V 185mA / -12V 165mA
