Notes: Pressure Points is a controller module, an analog sequencer that is played by hand. Touching the gold plated copper wires (aka Touch Plates), you become part of the circuit, generating a gate signal (Gate OUT), a control signal proportional to the amount of pressure applied (Press OUT) and the 3 Tuned Voltages for the activated Stage.

Notes: Four channel voltage controlled Clock Divider/Multiplier with master Tap Tempo. Each channel can be synced to the tap tempo, to the channel above, or to an external clock. Each channel also has a reset jack.

With a Tap Tempo button and five sync'ed clock outputs, the QCD is a versatile head-of-the-chain "Master" clock module, and/or a complex rhythmic pattern generator.

Notes: Full-featured triangle core VCO/LFO

The Dixie II+ is a larger variant of the classic Dixie II. Using the same great triangle core oscillator, it adds a number of features to make it even more versatile with only a modest increase in size. The Dixie II+ makes a great primary oscillator for a modular system, or a great companion the Rubicon.

Notes: The Polaris is a 4-stage cascaded OTA filter designed by David Dixon. It builds on the lineage of the Dr. Octature and Atlantis filters, but with a totally revised core and resonance control. Along with dedicated LP, HP and BP outputs it features a configurable MULTI output capable of an unprecedented 27 different filter modes.

With drive turned down the Polaris is capable of buttery smooth filtering, and the cutoff control range has been fine-tuned for playability. With the drive dialled up and the new asymmetric multi distortion circuit engaged it creates a more aggressive sound. Not content to be just a filter, the Polaris's AP phaser mode combined with frequency modulation can be used to achieve a phaser effect.

With so much versatility in a modest size, the Polaris is an ideal filter for a starter system and an excellent addition to the tonal palette of a larger modular.

Notes: Two independent Contour Envelope Generators in a single 12hp wide Eurorack module. These are very accurate replicas of the Model D contour generators, with identical circuitry and component values running on the correct +9.3V and -10v supply voltages of the original; so they exactly replicate the original envelope response along with all of it eccentricities. Extra features include manual trigger buttons and envelope status LED's.

The contour generators played a larger part in the sound of the Model D than many people realise. There are two factors that make them unique, firstly the exponential slope when is used in conjunction with the (near) linear slope of the original VCA which is responsible for the famous Model D "punch". Secondly, the re-trigger behaviour is quite unique, multiple retriggering increases the output level so that either the volume increases incrementally, or the filter opens incrementally with each extra key press.

AJH Synth have added independent Decay switches for each individual Contour Generator rather than the shared switch on the original synthesiser, these switches change the Contour response from AD (switch up) to ADSD mode (switch down).

Notes: Gritty drum voice module based on new old stock Yamaha FM synthesis chips, also capable of a decent range of synth tones. User-friendly knobby interface with a decent range of CV inputs for modulation.

Supplier's notes:
'Akemie's Taiko' is an authentic complete FM synthesis based drum voice created using original Yamaha IC's. It builds on the same technology used in the mighty Akemie's Castle but in a more complete triggered voice form featuring both signal generation and envelope shaping.

The module provides CV and direct control over a number of FM parameters including algorithm selection, operator release envelopes, ratios, waveforms & feedback. This gives a massive range of unique sounds.

The voice is able to track 1 volt per octave allowing it to be used for melodic lines as well as percussion. Also optional 'frequency ramps' can be enabled for additional audio effects.

The drum voice includes a trigger input as well as accent and choke trigger inputs to add further expressive and rhythmic control.

Notes: TouellSkouarn Strakal Brulu is a handmade distortion and fuzz module. The great sound is due to the new-old-stock east-German germanium transistors.

Very characteristic for the module's sound if the feedback that is coupled to the feedback. The more fuzz, the more feedback - the Strakal Brulu 2 can get pretty nasty and it screams a lot at high fuzz settings and low input level. The fuzz amount can be voltage controlled, with an inverse attenuator. Input and output levels can also be set separately.

Notes: The BF-22 VCF is a dual Hi/Low-pass filter inspired by the Sallen-Key filter from the early MS-20.

DISCLAIMER: This filter brings to your modular system the character of early MS-20 sound: Kick-ass-rocking-dirty screams! It inherited not only it's amazing sound, also MS-20 noise floor. If noise floor is an issue for you, this might not be your filter.

Features:

Dual-channel Sallen-Key Filter. Inspired by the early MS-20
High and Lowpass operation.
Two CV inputs per channel with a dedicated atenuverter for the first one.
CV controlled resonance.
The first channel can be linked to the second one with the "Link" switch.

Specifications:

Current needs: +12V: 40mA, -12V: 20mA
Width: 17 HP
Depth: 30mm (including power connector)
Aluminiun, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona.

Notes: Crush Delay v3 is a special Echo-Delay unit based on the PT2399 IC, which is able to offer 400ms of clean delay and up to 2 seconds of dirty repetitions, having a special talent to generate noisy-glitch textures. The module bases its operation on controlling the PT2399 chip with circuit bending techniques, converting the unit in an advanced VC digital trash generator. This third version comes with some interesting new features like redesigned VCAs circuits, wider range for clean delay and reduced depth to make it skiff friendly.

The module features a few VCAs to provide a flexible signal route to maximize module's possibilities. First two VCAs at the inputs to control the amount of signal sent to the delay. The first is routed to both the dry/wet mix and the delay, and the second directly to the delay. Combining the second VCA and the FX Send output allows external feedback routings.

Compared with v2, this third version offers a bigger range of clean delay time as well as a revision of some of the Crush modifiers. Combining those modifiers you will have a access to a vast palette of noises and textures that can be used in many different ways. From ambient/drone patches to even percussion sounds.

The VC Feedback features an automatic gain control to keep levels stable at any feedback level.

- Current needs: +12V: 135mA, -12V: 35mA
- Width: 11 HP
- Depth: 30 mm (inc power connector)
- Aluminium, heat-treated front panel
- Designed, kits prepared and modules assembled in Barcelona

Notes: The EVEN VCO is a voltage-controlled oscillator that offers stability and high precision tuning over 10 octaves. A redesigned temperature compensation circuit maintains the oscillator stable against voltage and temperature drops.

Specifications:

Current needs: +12V: 36mA, -12V: 26mA
Width: 8 HP
Depth: 22mm, (28mm DIY) including power connector
Aluminium, heat-treated front panel.
Designed, kits prepared and completed modules assembled in Barcelona.

Notes: Tetrapad is a versatile, multi-dimensional, touch-sensitive control surface for Eurorack. Each of its four pads use force sensing resistors to respond to both the vertical position of your finger and its pressure. Four push encoders and a shift function give you even more tactile control over your modular system.

Tetrapad operates in numerous modes - each of which configures the module to perform a specific control task. Through these modes, Tetrapad can emulate a bank of faders; a voltage storage device; a finger drumming surface; a chord generator; an 8-key keyboard; four independent LFOs; or an 8-switch panel. The chosen mode determines what type of signal (CV, note, trigger, gate, etc.) is sent from each of Tetrapad's eight independent outputs, while its multitude of multi-coloured LEDs keep you informed of exactly what's happening within each mode.

Tetrapad automatically remembers how you've configured each of its modes and retains these settings when powered off. By default, Tetrapad automatically saves these settings every minute, or whenever you change modes. This makes Tetrapad ideal for live performance, since you know it will always power up with your configurations intact.

Notes: The WAV Recorder from 4ms Company is a high fidelity, two-channel stereo audio recorder with basic playback features. Accepting a wide range of input signals, from line-level to modular-level, the WAV Recorder stores audio onto a microSD card in lossless .wav format up to 96kHz/24-bit. The trigger jack can be used for capturing rhythmic loops or synchronizing multiple WAV Recorder modules for multi-track recording. In Playback mode, the trigger jack or button plays the most recent recording. A simple file/folder navigation system can be used to browse the folders on the card for playing back .wav files. A Gain knob allows for up to +20dB of boost, and an LED Signal Meter indicates clipping and the signal level.

Notes: To add some space to your compositions and nuances in sound design Erica Synths Dual FX module brings you two identical sections of 8 custom effects with two adjustable and CV controllable parameters.
Dual FX combines two Spin FV-1 chips in one module, each filled with eight custom effect programs with two adjustable and CV controlled parameters per effect and analogue dry/wet circuit. All parameter settings can be saved with the effect and recalled instantly during the performance. Also the output of the first FX section is normalised to the second input so creating huge layers of effects is easy.

FX:

Mono delay
Stereo delay
Hi-pass delay
Big reverb
Saturated reverb
Stalker reverb
Ripper
Dual pitch shifter

Technical specs:

Audio output level: -5...+5V
CV level (full span): -5...+5V
Power consumption: 118mA@+12V, 61mA@-12V
Module width: 10HP
Module depth: 45mm

Notes: Pons Asinorum is a compact four-channel multimode envelope generator and LFO with voltage control. PA has three different envelope shapes, CV over cycle length, and a unique single encoder control scheme that makes adjusting multiple channels mid-performance easy. Channels can be set separately to envelope mode or to cycle in LFO mode, giving PA maximal flexibility in a minimal footprint.

Notes: The 'Quaid Megaslope' is a five stage function generator or modulator which operates in one of 3 modes; a multistage 'CZ' or 'Juno' style complex envelope, a super flexible LFO and a step sequencer with per step programmable slew or slides.

Each mode produces a varying output voltage moving from point to point across a set number of chained together stages. Each stage features a destination level, an overall rate or time to reach its destination level and a variable slope for the output path to take. As well as direct control, every stage feature voltage control of both level and rate. There are both unipolar and bipolar voltage outputs together with triggers emitted for the end of each stage and the end of a full cycle.

The Quaid Megaslope is designed to be fun, flexible and intuitive to use.

Notes: The Listen Four Quarters is a four channel stereo mixer with 1/4" (6.35mm) TRS balanced outputs and 1/8" (3.5mm) headphones output. Two mono channels with Pan knobs and two stereo channels with dual inputs provide optimal compatibility with both stereo and mono signals. The Listen Four Quarters can be daisy-chained to other Listen modules to create a larger mixer with sub-mix outputs.

Notes: Scales is an 8hp dual-channel note quantizer and step sequencer. Fundamentally, it takes an input voltage, quantizes it to notes in a user-defined scale, and sends that quantized voltage to an output, where you can use it as a melodic pitch source for oscillators or any other module that expects to see discreet note values at its input.

Scales goes far beyond the fundamental, allowing you unprecedented control of the pitches and intervals hiding inside your control voltages; turn LFO's into arpeggiators; random voltages into harmonic counterpoint; and unquantized external CV sequencers into chromatically tuned note sequencers.

Quantization can be locked to an incoming trigger. There are a number of trigger output options as well, ranging from no triggering (good for pitch shifting drones); through triggers that sync with either of the two outputs (or both); to a trigger or gate transmitted in sync with one sent to the module's TRIG input.

Shift:

Scales features two independent outputs, enabling you to create shifted harmonic intervals within your chosen scale using only a single pitch input. Using the SHIFT input you can modulate changes on OUT A and/or OUT B.

You can also use the shift input to switch between scales or to change the root of any existing scale pattern or split Scales into two quantizers - each conforming to a common scale, but fed entirely different voltage sources.

Sequence:

Scales also features a 128-step SH-101 style step sequencer (complete with storage for up to 35 fully programmable patterns) - allowing you to feed OUT B with sequenced notes and rhythm patterns, while OUT A continues to function as a standard pitch quantizer for external voltages. You can even sync the sequencer to quantizer events on OUT A.

Notes: Clep Diaz is a handy and small step CV and LFO generator. In step and random modes, use the encoder to control the number of steps in the sequence; in LFO mode, the encoder controls the amplitude of the wave. Toggle the directionality of the sequence: up, down, or up/down to customize the CVs further. CD also gives CV control over the number of steps in the sequence and an end-of-cycle trigger output. Unipolar and bipolar outputs allow maximal control.

Dimensions
4 HP
26 mm deep

Current Draw
44 mA +12V
10 mA -12V
0 mA 5V

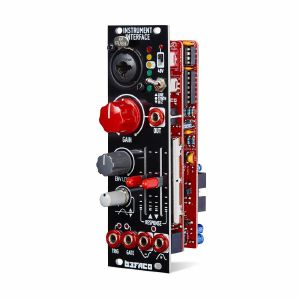

Notes: Instrument Interface is a Eurorack pre-amp capable of bringing any type of audio signal to modular levels, thanks to its amplification circuit.

The module can drive regular and condenser microphones (+48V Phantom Powered), as well as Instrument and Line signals with a very low distortion ratio.

Going further from the regular re-amp operation, Instrument Interface offers some additional extra functions like a Trig/Gate extractor and Envelope Follower circuits, allowing you to use the character of your audio signal in more creative ways.

Notes: Erica Synths Black Spring Reverb is a different take on spring reverberation units. Firstly, it has built in vactrol based audio compressor, secondly, it can operate an external tank and combination of both internal and external ones for effects unheard before, thirdly, in order to animate reverb effect, the module has built-in feedback effects - pitch shifters, delay, ring-modulator, etc; feedback amount and effect parameters can be controlled manually and via CV, making the module an experimental instrument on its own. Module comes with compact spring reverberation tank which can be easily installed in most eurorack cases.

Features
Compact spring reverberation tank to install in a skiff case
Manually and CV controlled feedback amount
Vactrol-based compressor
7 distinct feedback effects
Selection between internal, external reverberation tanks or combination of both
Feedback Send and Return jack sockets
The module is designed to be used with wide variety of spring tanks, but the best results will be using tanks with low input impendance - 8-200ohm

Technical specifications:
Audio input level -5V - +5V
CV level (full span) -5V - +5V
Power consumption 43mA, -71mA
Module width 12HP
Module depth 30mm
Internal reverb tank dimensions 190mmx67mmx24mm (30mm with spacers)

Notes: VCO:

- Tune: manual tune control (with an internal jumper the range can be set to ~ +/-1 half an octave or ~ +/-2.5 octaves)
- Oct: range switch -1 / 0 / +1 octave
- Mod: modulation depth (attenuator wired to the Mod. socket)
- Dest: switch that is used to address the modulation to frequency modulation (position FM) or pulsewidth modulation (positon PM), in centre positon no modulation
- PW: manual pulsewidth control for rectangle waveform, PW can be also modulated by the Mod. input as mentioned above
- Wave: waveform switch (sawtooth / off / triangle), the sum of the waveform chosen by this switch and the rectangle is fed into the VCF (to turn the rectangle off the PW control has to be set fully CCW or fully CW)
- 1V/Oct. (socket): external CV input for VCO frequency (1V/octave)
- Access to internal bus CV (via jumper, optional, please remove the bus jumper if this feature is not used to avoid unwanted frequency modulation as then the unused CV line of the bus works as a kind of antenna)
- Triangle core VCO, frequency range about 32Hz ... 8kHz

Balance unit:

- The balance unit is made of two VCAs which are controlled by the sum of manual Balance control and the balance CV input in the opposite direction.
- The audio input of VCA1 is hard-wired to the VCO output, audio input 2 is connected to the socket Ext.In.
- The output of the balance unit is used as audio input for the VCF
- Bal.: manual balance control, fully CCW the internal VCO is used, fully CW the external signal (Ext.In) is used, at centre position both signals have about the same level
- CV Bal.: CV input for balance (range about 0...+5V)
- Ext. In: external audio input for VCA2, about 5 Vpp level required for similar loudness as the internal VCO
- This socket is normalled to the internal VCO suboctave f/2 signal (rectangle with half the frequency), if no external signal is applied the suboctave signal is used as the second signal for the balance unit

VCF:

- 24 dB low pass
- Frq: manual frequency control
- FM1: frequency modulation depth (attenuator wired to the VCF FM1 socket, the socket is normalled to the internal Envelope signal and then FM1 controls the modulation depth of the internal envelope applied to the filter)
- FM2 (socket) : second CV input for VCF without attenuator (about 1V/octave), can be used e.g. for VCF tracking by connecting the same CV which is used also for the VCO frequency
- Res: manual resonance control (up to self oscillation)
- If the VCO is turned off (waveform switch = centre position, pulsewidth control = fully CCW or CW) and the VCF resonance is set to maximum the module can be used as a sine oscillator, the tracking at socket VCF FM2 is about 1V/octave (not as precise as the VCO but much better than most other filters)
- ~ 11 octaves frequency range (~ 10 Hz ... 20kHz)

VCA:

- Gain: manual amplitude control (initial gain), can be used to open the VCA without envelope signal
- VCA (switch): used to switch between gate and envelope as control signal for the VCA, in centre position the VCA is not controlled by envelope or gate
- Note: when gate is used the VCA is controlled directly by the gate signal (i.e. hard on/off), this may lead to clicking noise under certain conditions (especially with low VCO/VCF frequencies)
- Special control scale: exponential scale in the range from about -20dB to -80/90dB, linear scale from about -20dB to 0dB
- Remark: this special control scale results in a loudness behaviour that is a bit different from pure linear or exponential VCAs
- Out: audio output of the module (= VCA output)

Envelope:

- Gate (socket): Gate input (min. +5V), can be normalled to the bus gate signal by means of a jumper
- Att: manual control for Attack
- D/R: manual control for Decay/Release
- Env. (switch): used to switch between A/D, ADSR and A/R mode of the envelope generator, in centre position (ADSR) the sustain level is fixed to about 50%
- Envelope (socket): envelope output (about +10V)
- CVT (socket): CV input for time control, by means of two internal jumpers one can select which time parameters are controlled by the CVT input (e.g. A only or D/R only or A/D/R) and in which direction (i.e. if an increasing CVT shortens or stretches the time parameter in question)
- Envelope LED display
- Attack time range: ~ 1ms ... 5 sec (can be extended by using the CVT input)
- Decay/Release time range: ~ 1ms ... 15 sec (can be extended by using the CVT input)

Notes: Module A-198 is a Trautonium Manual resp. Ribbon Controller. The controlling element of the A-198 is a linear position sensor (length about 50 cm) that has available a pressure sensor too.

Touching the sensor with a finger generates a control voltage CV1 that is proportional to the position of the finger. The scale (i.e. the relation between position difference and voltage difference) is adjustable with a potentiometer at the front panel. A hold switch is used to determine if the CV voltage is held after removing the finger (hold = on) or if the CV voltage jumps to 0V (hold = off). In the last case (hold = off) a gate signal is derived from the CV voltage whenever a finger touches the sensor (e.g. for triggering an envelope generator).

A sensitive pressure sensor located below the position sensor generates a second control voltage CV2 that increases with higher pressure of the finger. Even for CV2 the scale is adjustable. A second gate signal is triggered as soon as the pressure exceeds a certain value. The gate threshold is adjustable at the front panel.

The sensors are located in a separate metal frame (length about 600 mm, width about 30 mm, height about 18 mm, weight: about 900 g, colour: silver-grey). The connection between the module and the sensor frame is made by a 4 pin cable (same as used for USB connections).

Typical applications:

- Trautonium manual, the string is replaced by the position sensor that is much easier to use and cheaper than the string. In combination with the Subharmonic Oscillator A-113, the Trautonium Filter A-104 and some auxiliary modules a complete Trautonium replica may be realized. In combination with the Quantizer A-156 exact semitone intervals are possible.

- Ribbon Controller for any A-100 parameter

Notes: ZVERB is a collection of all new reverb algorithms developed by Tiptop ranging from typical reverbs to more complex effects that combine delay and pitch shifting with reverb. The effects are grouped by decades based on either the era an algorithm was introduced or the time when the effect was most popular. This variety of reverbs covers small to epic size spaces with the addition of shimmering, feedback tunnelled pitch shifting, tape delay drivers, gated reverbs and a lot more. Analog clocking of the DSP chip and CV over the parameters enables even more experimentation. This is a collection inspired by the best from the past right at your fingertips.

Notes: Truly unique one from AJH, based on the sound of NASA's Apollo voice transmissions. Think outside the box and process drums and synths through this thing. Freaky. May or may not allow you to communicate with real astronauts.

Supplier's notes:
Here's a bit of fun for all fans of space missions from the previous century! This module is designed to re-create the ground to space and space to ground transissions from the Apollo era.

To be "Mission Control Houston" the Quindar PTT (push to talk) button adds a short 2,525Hz Qindar tone to the start of the transission, then at the end of the message the PTT button or switch is released and a short 2,475Hz Quindar tone is added to the audio. The bandwidth is slightly reduced in this mode.

For "Astronaut comms" we press the Capsule PTT switch, which allows us to add coloured noise, distortion, bandwidth reduction and either hum or LGM (Little green men space tone) noise to the audio signal. A deep space electret condenser mic is supplied and an be used with the MIC input.

Obviously the Lunar Module can also be used to add noise, hum, distortion, bandwidth reduction and LGM noise tone to any modular level audio too, and if the mic is left attached theremin like sounds can be added too with careful loudspeaker feedback.

Notes: Better known for analogue modules, it turns out Erica Synths are pretty damn good at digital too. Draw your own waveforms, build wavetables, tweak in real time and get freaky. Killer VCO.

Supplier's notes:
Erica Synths Graphic VCO allows you to draw your own waveforms, arrange them in wavetables and wavetable banks, morph between two selected waves and alter the resulting wave in advanced ways (FXes) - apply FM, phase distortion, ring modulation, wavefold/wavewrap, bitcrush.

Waves, wavetables, FXes and other settings can be saved and recalled from the memory instantly. The module has two outputs - the main output and the output with configurable suboscillator.

NB! To have the module functionality up to date, we recommend you to check the Erica Synths home pageor our social media from time to timefor announcements about firmware updates for the Graphic VCO. You can update the firmware of the module via miniUSB cable. More detailed instructions of the firmware update can be found in the User Manual.

The sound is clean, modern, punchy and detailed thanks to the unit running at 96kHz - quite different to some low bit-rate wavetable oscillators on the market. Wavetable interpolation is smooth as butter and with the built-in effects you can dirty things up in many different ways. The module scores highly on the sound front. The Graphic VCO is a very capable oscillator module with excellent sound quality and a lot of features that could make it the right choice, especially if live performance is your thing. - Sound On Sound
The bottom line is that the Graphic VCO is a joy to use. It's a module that's unashamedly digital, yet unmistakably eurorack. I think Erica showed a great deal of careful judgement and restraint in the design of this module. It would have been easy to have made it bloated and cumbersome trying to cram as many features as possible into it, but they kept it fairly simple which keeps the module fun and immediate in use. It's capable of a huge tonal palette ranging from beautiful to brutal that is bound to fit in with a lot of different styles and systems. - Ask Audio
The ability to draw and then effortlessly jump between different custom digital waveforms in this way feels unique on the Eurorack stage, and allows for a wide range of tones and transitions between them. - Orb Mag

Technical specifications:

Audio output amplitude
10Vptp
Octave range
C0-C8
Sample rate
96kHz
Unipolar CV input range
0 -+10V
Bipolar CV input range
-10V -+10V
Panel Width
16 HP
Module depth
30mm
Power consumption
152mA@+12V,
20mA@-12V

Notes: AXXENT is an expander module for the METRON trigger and gate sequencer and adds 16 "accent" gate outputs. Each track is specifically tied to METRON tracks, making it a very intuitive addition to any METRON sequencing ecosystem.

Use AXXENT to send signals to additional envelopes, slews, drum accents, and other gate triggered functions.

METRON will need its Firmware updated to support AXXENT.

Dimensions:
Width: 4HP (20.32mm)
Height: Eurorack 3U (128.5mm Panel, 112mm PCB behind panel)
Depth Including Cables: 43mm

Do not connect power to expansion headers.

Notes: Seriously potent polyphonic voice built around 16 sine-based oscillators. Capable of a huge range of tones thanks to FM, phase distortion and wavefolding. Another cracker from a consistently reliable brand.

Supplier's notes:
The Ensemble Oscillator is a unified polyphonic voice of sixteen complex oscillators combining additive, FM, phase-distortion and wavefolding synthesis techniques in new unorthodox ways. By quantizing the oscillators to scales or series of harmonics, the Ensemble Oscillator allows you to explore the sonic boundary between musical chords and rich evolving textures. Easily create a wide variety of sounds ranging from aggregates of pure sine waves to pulsar synthesis or pristine harmonic tones and lush wide chords to rich dirty drones and rumbling glitches. Custom scales can quickly be "learned" and saved using a CV keyboard or by manually entering notes with the controls.

The Ensemble Oscillator is designed by Matthias Puech and 4ms Company.

30 factory-programmed, user-writeable scales organized in three groups:
12TET: all notes quantized to equal temperament, repeating over octaves
Octave: unquantized notes, repeating over octaves
Free: unquantized notes, repeating over the interval between the lowest and highest note

16HP Eurorack format module
0.98" (25mm) maximum depth (including power cable)
10-pin to 16-pin Eurorack power header
Power consumption
+12V: 114mA maximum
-12V: 45mA maximum
+5V: 0mA (not used)
Audio outputs
Frequency range: 0Hz (DC) - 20kHz
Typical amplitude: 10Vpp
Maximum amplitude: 18.5Vpp
1V/oct inputs (Root and Pitch)
Voltage range: -2V to +6V (8 octave range)
Factory calibrated to 1.00V/oct
Per-jack user-calibration allows from 0.7V/oct to 1.3V/oct
CV inputs (other than 1V/oct)
Voltage range: -5V to +5V
Gate inputs
Trigger threshold: 2.5V
User memory (non-volatile)
Scale slots: 30
Shift feature settings
1V/oct calibration settings

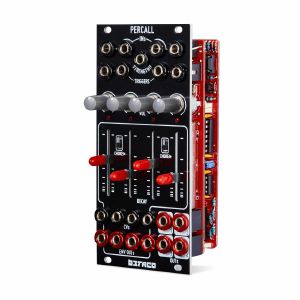

Notes: From trickling hi-hats to thunderous kicks. The Befaco Percall 4-Channel VCA/Delay Envelope Module is designed to take care of all percussive aspects of your Eurorack rig. You'll be able to create a whole host of percussion thanks to the 4 VCAs, volume control and decay options. By using the trigger you'll be free to open the VCA whilst the volume knob helps determine the level of the percussive sound you've sculpted. Take your tones to the next level thanks to the inclusion of an output on the envelope. You can apply this to the pitch of the oscillator to achieve a fat kick drum which offers excellent low frequency energy. The Percall 4-channel module is the ultimate addition to your Eurorack.

Notes: LYRA8-FX is a processor that can give you a significant part of the mysterious LYRA-8 sound thanks to the FX section from the LYRA-8, expanded with CV controls and packed into a Eurorack module.

It contains a double modulated lo-fi delay with cross-feedback and the unique possibility of self-modulation, where the delay output signal modulates its own sample rate. Also, it packs a parallel distortion with CV control of the drive. The distortion is after the delay. It's much more than a delay - you can get a simple reverb, comb filter, chorus and much more cool FXs which are hard to describe.

It has a famous LYRA-8 build quality - no SMD, no twisted plastic shafts.

Pots:
IN volume
Stage 1 delay time
Stage 2 delay time
Stage 1 delay time modulation depth
Stage 2 delay time modulation depth
Delay feedback
Delay feedback CV amount
Delay mix
Distortion drive
Distortion mix
Distortion drive CV amount

Switches:
- Stage 1 delay time modulation source
Stage 2 delay time modulation source

Ins:
Audio in
Delay time CV
Delay feedback CV
Distortion drive CV

Outs:
Main audio out
Delay only out

Dimensions:
Width: 20HP
Depth:40mm

Power consumption:
+12V - 90ma
-12V - 20ma

Notes: Javelin is a module that is basically an ADSR envelope with integrated VCA. However, it has several features that make the module an expressive sound shaping tool.

Three level ranges determine the total amplitude of the envelope, additionally three different time ranges are integrated, which can be switched between.

The accent behaviour is also unique. If several gates are applied to the Accent input at the same time, the envelope rises slightly with each gate.

Features:

Attack-decay-sustain-release envelope
Integrated VCA
Unique accent behaviour for expressive sequences
Reset input
CV control over attack and release
Looping mode for LFO-like modulations
Mode switch for gate and trigger behaviour
Linear, moderate or steep exponential shape
Short hold in the peak of the attack for more punch
Power consumption: 93mA at +12V and 65mA at -12V

Depth: 38mm

HP : 6

Notes: Mini MIDI
Want to connect your modular system to USB MIDI equipment or computer-based DAWs? Simultaneously? We did too.

With over 20+ modules and three complete modular systems in our portfolio, you'd be forgiven for thinking we're a bunch of purists, roaming the studios of Berlin by night, looking for unsuspecting copies of Ableton Live and Cubase to infect with viruses.

But nothing could be further from the truth. We love analogue hardware, and we also love the power and creativity of DAWs. We love the power and creativity of DAWs, so we've long dreamed of a module to bridge the gap between our computer, modular system, and USB MIDI devices. So we made one.

It's small, and it's MIDI

Mini MIDI draws aesthetic inspiration from a runway model... or a drumstick... or the Taipei 101. Basically it's tall and thin. Nevertheless, this simple, space-saving format contains no less than seven connections: Pitch, Gate, CC, Start, Clock, USB Device, USB Host.

Pitch and Gate are self-explanatory, taking MIDI note information (pitch and note-on/off) from your DAW / keyboard / keytar / USB-whatever, and turning it into something your modular oscillators understand.

CC receives note velocity, aftertouch, or continuous controller information from USB and spits out modular-friendly CV, ready to command anything from filter cut-off to LFO rate.

The CC value to be converted is set using rear panel DIP switches, allowing multiple Mini MIDIs to respond to different CC values from the same DAW / instrument source. You can select from 13 different CC values (if you're superstitious then Mini MIDI is not for you).

The remaining three DIP settings access three additional modes: Note Velocity and Aftertouch modes convert those signals to CV, while Calibration allows precise setting of scale and pitch offset.

Start(stop) and Clock offer no surprises, but if you have a sequencer in your rack you aren't looking for surprises, just a way to trigger it and keep it in time from your DAW and other kit. If this is you, you won't be disappointed.

USB Device lets you connect... wait for it... a USB MIDI device! An obvious use is when you want to use your favourite, gig-friendly, USB controller on stage to control that cut-off, thus keeping your real-estate-guzzling modular rack out of the way (and out of reach of that beer you have perched on a cheap M-Audio controller).

USB Host is the heart of Mini MIDI, bridging the gap between your modular system and a MIDI host device, such as a DAW or hardware MIDI sequencer.

Channel X

We thought hard about MIDI channel assignment. DIP switches are wildly impractical, as you often need to change MIDI channels. A front panel selector would increase the size of a module that's designed to be squeezed into the far left of your rack. (Far left, BTW, because then you can use angled USB connectors and avoid thick cables trailing all over your rack... ). In the end we used 'first come, first served'.

On powering up, Mini MIDI sits patiently waiting for a MIDI signal. Whichever channel it detects first - from Host or Device - is the assigned channel (if your kit is dishing out ALL channels, Mini MIDI will pick the first one... which is 1). And this assignment applies to both USB MIDI connections.

Play nicely with others

Mini MIDI also works perfectly in conjunction with other Mini MIDIs (via multiple computer USB ports or USB hubs). They show up in your system with unique IDs, so each can be triggered by different MIDI channels and/or CC controllers. This can be used to send the same information to different modules/racks in your modular set-up, different information to the same module/rack, or any combination of these. And it can incorporate other USB devices.

Another insanely useful feature is the ability to play your modular set-up live, with a MIDI keyboard or controller, whilst simultaneously recording this information into a MIDI track in your DAW.

Some ultra-modular-types might complain that this is cheating, but they should remember that our grandparents insisted anything made with machines wasn't 'real' music. Chill out and enjoy the possibilities!

Size isn't everything (and other cliches)

Despite its modest appearance, diminutive size, and total lack of front panel controls, Mini MIDI is an exceptionally powerful, highly flexible, and immeasurably useful little module. We designed it to solve the kinds of problems we encountered when using similar modules, and, critically, the kinds of problems our users said they had with other such devices. Consequently, we've exceeded our initial expectations. We hope you feel the same!

Specifications:

DAC: 16 bit

Pitch Output (1V / Octave): -3 V to 7 V

Gate Output: 0 V / 10 V

MIDI CC Output: 0 V to 5 V

MIDI Start / Stop: Active High (5 V)

MIDI Clock: Rising edge (5 V)

USB MIDI Host Interface output current: up to 500 mA

3U Eurorack module, 4 HP wide, compatible with Skiff cases

Current Draw:

+12V: ca. 22mA + current consumption of a connected class compliant USB Device , USB current supply available up to 500mA
-12V: ca. 10mA
0 mA 5V
Installation depth:

30 mm deep

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Separate modulation inputs for all three effect parameters plus Sample Rate Reducer (SRR) input - changes internal clock. Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long "wav" file of line level amplitude to SRR input.

Reflashing mode: hold both buttons for 10 sec.

By default it runs on 32.77 kHz and, this sample rate can be decreased down to 150 Hz or brought up to 48 kHz via SRR input.

Please note the reverse CV operation of the Dry/Wet control: positive CV crossfades from Wet to Dry, and negative CV crossfades from Dry to Wet.

80 mA +12V
30 mA -12V
45 mm deep

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Separate modulation inputs for all three effect parameters plus Sample Rate Reducer (SRR) input - changes internal clock. Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long "wav" file of line level amplitude to SRR input.

Reflashing mode: hold both buttons for 10 sec.

Please note the reverse CV operation of the Dry/Wet control: positive CV crossfades from Wet to Dry, and negative CV crossfades from Dry to Wet.

By default it runs on 32.77 kHz and, this sample rate can be decreased down to 150 Hz or brought up to 48 kHz via SRR input.

80 mA +12V
30 mA -12V
45 mm deep

Notes: The Serge Divide by N Comparator (NCOM) is a rare, much sought-after and very essential Serge module covering a number of functions: comparator, voltage-controlled pulse divider, and voltage-controlled staircase generator.

The #N COMPARATOR consists of two sections - a comparator (right side) and a voltage-controlled pulse divider (left side). The #N output of the pulse divider sends out a pulse on every N-th comparator pulse where N is a number from 1 to 31. N can be (pre-)set with the divider's control knob (1 #N) and can by changed with a control voltage. The VC knob (attenuator)on the bottom of the left side determines how much effect the control voltage has on "N". In addition, the divider generates a staircase waveform with N steps. This can be used to produce whole-tone steps when run into the 1V/Oct input of a VCO or as a stepped control voltage to change for instance the cutoff of a filter.

The comparator provides a number of useful "housekeeping functions": Logical decisions (if the +input is greater than the -input, the output will be high, otherwise low), Level detection (whenever a variable waveform crosses the theshold, a pulse is generated ), Pulse width modulation or Rectifying a waveform (e.g. a sine or triangle wave).

Notes: Small and efficient MIDI to CV courtesy of Intellijel's 1U series. Works in conjunction with an Intellijel case or the MIDI IN Jacks 1U module to give you Pitch, Velocity, Mod, CC, Gate, Trig, Clock and Reset.

Supplier's Notes:
The MIDI 1U system provides all the essentials to control and sync your Eurorack modular from your computer, mobile, or hardware MIDI device with a minimum of fuss. Several of the module's most important features can be changed using the two front panel buttons, with full configuration capabilities offered via the Intellijel Config app, which is available for both Mac and Windows. The connectivity, feature set, expandability, and compact size make the MIDI 1U system ideal for integrating your modular gear with the rest of your rig.

Intellijel's MIDI 1U system comprises several elements, which work together to provide flexible, programmable MIDI-to-CV conversion to your Eurorack modules: The system comprises two mandatory components, and one optional component:

MIDI 1U module - This 14HP 1U module receives MIDI from an attached, external MIDI input connector (7U case, Palette case, or MIDI IN Jacks 1U module), and extracts (by default) Pitch, Velocity, Mod, CC, Gate, Trig, Clock and Reset messages i sending the proportional voltages to individual 3.5mm jacks for patching.If desired, the CC and MOD jacks may be configured to respond to either Channel Aftertouch or High Resolution CC, and the Reset jacks can be configured as a Run jack, instead. Additionally, MIDI 1U features an alternate Dual Mode, which maintains the Clock & Reset functionality, but uses the other six jacks to transmit Pitch, Velocity and Gate messages derived from two separate MIDI channels.
MIDI input connector - the MIDI 1U module does not have its own MIDI input jack. This enables you to use the MIDI/USB inputs built-in to your Intellijel 7U Performance Case or Palette Case. If you don't own one of these cases, you can purchase the MIDI IN Jacks 1U module to connect an external MIDI device.
MIDI Expander 1U module - This optional 14HP 1U module connects to the MIDI 1U module and adds an additional eight 3.5mm CV outputs. These outputs are fully programmable using the Intellijel Config app, and greatly expand MIDI 1U's ability to control your entire Eurorack system.

Width: 14HP
Depth: 14mm
Power: 34mA @ +12V
2mA @ -12V

Notes: Three-band isolator with stereo inputs and outputs, splitting the signal into highs, mids and lows then allowing you to control level and frequency via CV for some clever sound sculpting and modulation.

Supplier's Notes:
Katowice is a stereo variable-band isolator that allows the user to manipulate a selected range of frequencies. It is the first module in a series of upcoming Xaoc Devices products designed specifically for processing stereo signals.

Katowice splits the stereo input signal into three bands: low, middle, and high. While the knobs and CV inputs define the center frequency and bandwidth of the mid band, the low and high bands are automatically adjusted so that the sum of all three is a complete signal. All three bands are passed through high quality VCAs and their stereo outputs are available separately for further processing. A stereo mixdown signal is also available.

Katowice may be used as a crossover network, a parametric EQ, DJ-style kill filter, or other band-selective applications, including multiband compression and stereo enhancement.

TECHNICAL DETAILS:
Eurorack synth compatible
10hp, skiff friendly
Current draw: +100mA / -100mA
Reverse power protection

Notes: Lich is a programmable multi-function module based in Rebel Technology OWL platform. This is a Befaco Rebel collaboration that brings back Owl’s platform with this new hardware iteration. It has stereo in and out, four pot controls summed to cv inputs (like the classic Owl module) And as addition, CV and Gate outputs, patch selection with display and USB MIDI host and device connections.

FEATURES
Stereo Audio IN and OUT at 48k 24 bits.
4 CV controls (Pot + Attenuated CV in)
2 CV outputs.
2 Gate intputs + buttons.
1 Gate Output.
Patch selection and visialization via display.
USB host and Device connections

SPECS
Current needs: +12V: 130mA, -12V: 30mA
Width: 12 HP
Depth: 26 mm (including power connector)
Aluminium, heat-treated front panel.
Designed, kits prepared and completed modules assembled in Barcelona.

Notes: Dual tidal modulator with max, min & mix outs

FranKinksTides is a 18hp dual Tides (based on the Swirls pcb layout) with the max/min circuit from Kinks and some switches for sync, quadrature, pll and fm operation . It can be a double/complex oscillator, a dual function generator or any combination of oscillator, Lfo and Envelope generator with lots of cv control plus some interesting cross-modulation and sync features.

Some improvements in version 1.2:

-Mix output is now buffered, no signal bleeding on single outs.
-Mix pot controls also the balance of the signals sent to the max/min circuit.
-Uni/bi switch now also determines the signal sent to FM1.
-Clock/sync switch has now a center OFF position, no need of plugging a dummy cable in the Clock1 when using Sheeps firmware to avoid ultra fast sound bank changes.
small improvements for DIY:
-Bigger font size on the pcb.
-Parts renumbered for easy DIY.

Original design by Emilie Gillet
Available assembled and DIY (pcb+panel)
+12v
-12v

Notes: Voltage-controlled Dual VCO/LFO - two oscillators independently set as VCO or LFO.

Features in VCO mode:
V/Oct tracking over 10 octaves
Through zero and linear FM
Sub-octave output
Hard & soft synchronization
VCA control and CV algorithms selection
Quantizer with various scales
20 algorithm-based synthesis types among:
Wave shaping
Phase modulation
Phase positioning of multiple waves
Up to 5 stacked oscillators in tunable unison
Self-sync with phantom oscillator
Additive synthesis (7 waves)
Variable bit reduction (bit-crushing)
Ring modulator with its own 2nd oscillator
Noise with LPF, BPF, or resonant filter
Features in LFO mode:
Simultaneous signal and trigger outputs
External wave synchronization
Clock controlled rate with voltage controlled multiplier and divider
CV and knob control of output level
Algorithm based wave engine with a selection of:
Wave shaping
Phase modulation
Random levels and vectors (also Brownian)
Randomly spaced triggers and waves
Display with contextual icons and instant reminder help text
LEDs indicating potentiometer vs. value matching, switch settings and output levels
Automatically saved settings for instant recall at power on
Firmware update by playing an audio file via the front panel
Compact and skiff-friendly module

The driving idea behind the Twin waves voltage-controlled dual oscillator/LFO is to offer two interesting oscillators in a skiff-friendly and compact size. To achieve that challenge, Klavis built the product's architecture on the concept of pre-defined algorithms, where the most useful configurations and their matching parameter are ready to use.

This MKII evolution brings a redesigned layout, additional knobs for more hands-on fun and semi-modular cross-patching between sections.

All of the original features are present: a top selection of synthesis techniques, each with their key parameter directly at hand, enriched by a full set of complementary features.

More than ever, the Twin Waves is versatility at its best.

Dimensions:

(mm) Height: 128.40, Width: 40.40, Depth: 21.00
(Inches): Height: 5.06, Width: 1.59, Depth: 0.83
Eurorack: Height: 3HE, Width: 8HP
Depth behind panel (no supply cable inserted)- 21.00mm, 0.83 inches

Current draw
+12V: 46mA
-12V: 18mA
+5V: 0mA

Notes: mBrane is a 4 channel midi to CV interface based on opensource Yarns. The device includes a 1.5m 3.5mm TRS to Midi male cable (Type B). This is the brand new Rev1.1 of the device which now features PSImidi which allows ANY type of TRS midi cable to be used on the input. Type A or B, male or female, all will work.

Running firmware 1.5
Multichannel MIDI to CV/Gate conversion

Yarns is a MIDI interface providing up to 4 channels of very accurate CV/Gate conversion, which can be assigned to up to 4 voices.

In single voice mode, note, velocity, modulation and aftertouch (or other CC) CV are produced, along with a gate, a trigger, and a clock/reset output.

In two voices mode, two channels of note, modulation or aftertouch CV are produced, along with two gates, and clock/reset outputs.

Finally, in four voices mode, four pairs of CV/Gate outputs are provided.

Each voice has a built-in digital LFO to interpret modulation wheel messages as a vibrato; can respond to pitch-bend messages; or can be smoothed with a glide/portamento control - no need for a dedicated module and patches to get the right response from a MIDI keyboard!

Monophonic and polyphonic

The 2 and 4-voice modes are available both in a "polyphonic" and "multitimbral" flavour. The former receives chords from one single MIDI channel and dispatches them to the voices; while the later provides independent monophonic parts - which can be addressed to different MIDI channels, keyboard ranges, or even velocity levels.

Various note priority modes (low, high, last) and polyphonic allocation schemes (voice-stealing, random, cyclic) allows you to fine-tune the CV/Gate conversion to your playing style.

With sequencing and note transformation...

Each part can generate sequences either through an arpeggiator/euclidean sequencer combo; or with a SH-101 style sequencer with step-by-step recording, storing up to 64 notes. The module can sync to an external MIDI clock, and generate a clock/reset output at any subdivisions of the MIDI clock.

...and even more advanced features.

Other unique features include support for microtunings (either through standard MIDI messages or from a selection of historical tunings or indian ragas), just intonation, and an audio output mode which can transform one, two, or four of the CV outputs into simple digital oscillators.

Notes: This is a new build of a Monsoon, which is a variation of Mutable Instruments Clouds with separate CV and controls for the 4 "blend" functions. The 4 LEDs on the sliders indicate incoming control voltage for the 4 main parameters. The button which was used to select blend parameters now simply switches what the 4 LEDs display (audio input monitoring or monitoring the 4 blend amounts.) Parasites 2.01 firmware is loaded by default. Alternative firmware can be loaded by request.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.

Width: 12HP
Depth: 22mm
Height: 3U
Power Consumption: +12V:120mA -12V:10mA

Notes: nRings

This is a new build of a micro version of Rings from Mutable Instruments. MicroRings, also called NanoRings, retains all the same functionality as a full-size Rings module.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.

These modules use tall bushing potentiometers to offer a more stable feel.

Notes: The full power of Mutable Instruments Elements packed into 18hp. It features jack lights that can be turned on/off via a jumper on the back. This module comes loaded with the most recent firmware, with the new Chords mode that unlocks a whole new world of potential.

Based on open source designs by emilie gillet under Creative Commons (CC-BY-SA) license.

Width: 18hp
12V: 130mA
-12V: 10mA

Notes: Clouds

This is a new build of a Mutable Instruments Clouds. This module is identical to the now discontinued factory made Clouds. This module loads parasites 2.01 Firmware by default.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.

Notes: This is where Storm and Monsoon meet to create the latest improvements on the original Clouds design. With Typhoon you get all of the features of Storm combined with sliders and layout of Monsoon in 16hp. Typhoon runs the SuperParasites firmware, so no more having to swap between Parasites and Kammerl firmware options. Some of the notable features are:

Dedicated blend controls for Feedback, Panning, Mix, and Reverb (similar to Monsoon)

All eight modes from Parasites and Kammerl

Stereo VCAs

input/output mutes

Exponential and linear pitch controls

Universal CV routing and random CV signals

Comes with an exclusive black and gold panel, power cable and one year warranty.

Notes: A 6HP version of Mutable Instruments Peaks that adds CV inputs and attenuverters for each of the four parameters.

It can be an ADSR-style envelope generator, an LFO and a drum emulator. By default, the Dead Man's Catch (DMC) firmware will be loaded, which adds the Alt ENV, ALT LFO, ALT Tap, Alt Drum modes below.

The module is calibrated, comes with a power cable, and a one year warranty.

Additional Dead Man's Catch firmware modes:

Basic (original modes):

Envelope
LFO
Tap LFO
Bass/Snare Drums

Alternative ENV:

Double attack envelope
Repeating attack envelope
Looping envelope
Randomized AD envelope
Bouncing ball envelope

Alternative LFO:

Frequency-modulated LFO (folded sine FM)
Frequency-modulated LFO (random FM)
Varying wave shape LFO ( folded sine WS mod)
Varying wave shape LFO ( random WS mod)
Phase-locked loop oscillator

Alternative TAP Mini-sequencer:

ModSequencer
Pulse Shaper
Pulse Randomizer
Turing Machine
Bytebeats

Alternative DRUM:

FM drum Generators
Randomized bass and snare drum generators
Randomized high hat

Notes: Popple is an 8hp multimode stereo filter based on the Mutable Instruments Ripples V1 filter section. Popple maintains the buttery smoothness of Ripples filter while giving you two separate audio paths. The audio paths share a resonance, control, a frequency cutoff control, resonance CV input, and a v/oct cutoff CV input. Each channel then has it’s own cutoff CV input with attenuverters (which are normalled to a 2.5V signal).

Popple will also self-oscillate at high resonance settings, when coupled with the v/oct CV control, it can also act as a dual sine wave oscillator.

Notes: Motomouth is an analogue 3-Band, Sedra + Espinoza Bandpass Filter (DABP) with resonant frequencies that are tuned to the same resonant frequencies found in the human mouth and nose cavities, and these can be varied, independently, to form different 'mouth shapes,' to emulate vowels such as A, E, I, O and U. Motomouth can emulate 16 vowels and 'morph' or 'glide' between each vowel using a single Control Voltage input (1V/Oct), and a Gate to 'snap' to each vowel when required.

Two of the bands (F1 and F2) are used to form the mouth cavity, and the third band (F3) is used to form the nasal cavity, which is reasonably static. Varying F3 makes little significant difference 'in the mix,' but having it is important.

The single Control Voltage is decoded to control F1 and F2 independently, because the frequency bands for each vowel are not proportional to each other over the vowel range. So Motomouth has learned how to 'speak,' so to speak, but it still needs to learn more, and that's where you come in.

Specifications:
Module width: 12HP
Module depth: 42mm
Power draw:
+12V: 80mA
-12V: 4mA

Notes: Third-party clone of the open-source Mutable Instruments Plaits oscillator/sound source. All the same functionality in a compact 8hp format with full-size knobs for the key functions.

Supplier's Notes:
Functionally identical clone of the Mutable Instruments Plaits. Beehive strikes a nice balance between size, reducing 12hp down to 8hp, and playability by offering full size knobs for the four main functions. Beehive also retains the same depth of the original module at 25mm. This module uses After Later's new aluminum knobs which have a nice non-slip texture and allow for more finger space over the standard 1900H Davies knobs.
