Notes: 'Pamela's PRO Workout' is a compact programmable clocked modulation source for your Eurorack modular system. It provides 8 highly editable outputs producing various control voltage signals correlated and synced to a BPM based master clock.

Each output can provide everything from simple clocked triggers, complex rhythmic waveforms, quantised melodic patterns to random chaos with direct and assignable CV control over numerous parameters. These features together with a quick and easy to use interface provide almost limitless synced modulation possibilities in a tiny space.

Building on the original 'Pamela's Workout' & 'Pamela's NEW Workout' the evolved 'PRO' Pam maintains the precursor's form factor and intuitive workflow but improves and adds many new features with upgraded hardware, more CV inputs, a new full colour hi res display and rewritten software adding many new enhancements like micro grid timings and cross output modulations.

Through optional expander modules more CV input and outputs can be added with support for external non euro equipment through Midi and Din Sync outputs. Please enjoy your next generation PRO workout!

Size: 8HP
Power: +12v 60ma / -12v 10ma
Depth: 32mm (approx with power header)
Outputs: 0-5v buffered low impedance. 12 bit res. 3.8khz max update freq.
Inputs: CV 0v-5v / Clock, Run - rising edge 700mV min.

Notes: Part of TipTop's exceptional series of Eurorack-format Buchla modules, the 264t provides four sample-and-hold circuits, plus a logic circuit designed to control polyphonic patches. Deceptively simple but surprisingly creative, like most Buchla modules.

Supplier's Notes:
Four independent sample-and-hold circuits, plus a specialized logic circuit for expediently implementing polyphonic patches.

Sample-and-hold's are essentially one-cell analog memories. They are useful for "remembering" the instantaneous value of a control voltage (a detected envelope, for example), for generating equally spaced steps from a constant slope input (as from a 281t envelope generator), and for converting any continuously changing voltage (a random voltage, for instance) into a series of discrete values.

The 264's sample-and-hold circuits have two operating modes: sample and track. In the sample mode, the value of the input is sampled and applied to the output whenever a pulse is received. The output remains at this value until the next pulse arrives. The track mode diers in that an input is applied to the output for the duration of the pulse. The output tracks the input until the end of the pulse and remains at a constant value until the next pulse.

To use the 264t as four independent channels set the separate/common switch to separate. A single CV can be set to all four channels by setting the operate/common to common and plug CV in the the back jack on the with right side.

The Model 264t includes a polyphonic adaptor, which performs the logic necessary to implement four-voice polyphony. Facilities are incorporated for fine tuning and f.m. modulating the oscillators; light emitters display the adaptor's operation.

Specifications:

Size: 18 HP - Depth: 45mm
Power: +12V 60mA / -12V 30mA

Notes: The MFX is a compact 6HP Eurorack stereo digital audio multi effects processor.

It offers 14 different full featured effects programs plus a number of metering utilities.
Inspired by ALM's favourite classic hardware effects processors, the MFX incorporates DSP technologies from the dawn of digital effects in the 70s to the present day. This combines with ALM character and uniqueness to form a highly useful, fun and practical Eurorack effects module.

Reshape sounds with the distortion and dynamics engines. Bend time, space and pitch with multiple feature rich reverb and delay engines. Modulate signals with the flexible panner, frequency shifter, and range of ensemble effects. Fracture sounds with the one of a kind granular and glitch engines. Check signals and tune oscillators with various utilities.

The MFX user interface is designed to be familiar, quick and easy to use. Each program contains a wide range of controllable parameters both directly editable or freely assigned to CV or clocked control. Additionally, each program includes factory presets as well as the ability to store and recall user presets. All states are preserved across power cycles.

Effect Program List

Digi-PCM Echo
Feature rich digital delay taking inspiration from early prime time rack delay units with added modern features.

Tape-Tech Echo
Tape style delay with a digital pitch shifter bolted on.

Crumbular Echo
More experimental granular style echo.

Ursa Minor Echoverb
Emulation of the classic Ursa Major 'Space station' providing more delays and reverb type effects.

Pocket PL8 Reverb
Emulation of very early digital style reverbs with a dense metallic sound.

Almicon Reverb
Emulation of 80s studio style reverb great for bright rooms and vast synthetic spaces.

Quaidra Reverb
Emulation of a popular 90s rack reverb. Excels at creating airy, atmospheric reverbs.

TY-50 Compressor
Flexible modern compressor great for adding punch, smoothing transients or as a clean mix bus compressor.

Transient Shaper
Fast acting dynamics processor for reshaping the attack and release envelope of any sound.

TH-30 Distortion
A versatile distortion program with distortion types ranging from analog style saturation to intense digital wavefolding.

2051 Bit Corrupter
Real-time audio buffer designed to imitate malfunctioning digital audio equipment.

Modulating Panner
Clock-syncable mono or stereo auto-pan with an additional scan mode that cross fades between 2 input signals. Use for VCA, Panner, crossfader, tremolo type effects.

Ring + Freq Modulator
Pair of classic modulation effects in stereo, tailored towards otherworldly and dissonant sounds.

Ensembles Ensemble
Simulation of classic chorus and ensemble effects. An added digital pitch shifter takes the effect beyond traditional chorus circuits.

Utilities
Simple oscilloscope and VCO tuner.

Technical Specifications

Supply: +12V 50mA Max / -12v 15mA
Size: 6 HP
Depth: 32mm
16 Bit / 44.1Khz Stereo processing

Notes: The Polaris is a 4-stage cascaded OTA filter designed by David Dixon. It builds on the lineage of the Dr. Octature and Atlantis filters, but with a totally revised core and resonance control. Along with dedicated LP, HP and BP outputs it features a configurable MULTI output capable of an unprecedented 27 different filter modes.

With drive turned down the Polaris is capable of buttery smooth filtering, and the cutoff control range has been fine-tuned for playability. With the drive dialled up and the new asymmetric multi distortion circuit engaged it creates a more aggressive sound. Not content to be just a filter, the Polaris's AP phaser mode combined with frequency modulation can be used to achieve a phaser effect.

With so much versatility in a modest size, the Polaris is an ideal filter for a starter system and an excellent addition to the tonal palette of a larger modular.

Notes: Muxlicer is a sequential signal processor designed for add a huge range of special functions to your modular setup in the minimum space.

Muxlicer is divided in three main blocks: Digital Step Controller, Gate Generator and Analog Switch (a.k.a. Mux/DeMux).

The module is designed with high "function to HP ratio" philosophy, to have maximum flexibility in minimum space.

Notes: Tesseract's step sequencer is designed for hands-on playability, configured as a 16-step or dual 8-step design. Unique features include a 'drunk' mode to add variety to your sequences.

Supplier notes:
Step Fader mkII is a 'hands on' eurorack dual sequencer, featuring two 8 step lines or one with 16 steps, plus quantizer, slew limiter, internal clock generator, CV inputs to control any parameter and more...

Each sequencer has independent settings for the play mode, start point, size (length), clock divider (or step repeat), transposition and duty cycle.
There are 16 presets to store & recall all the above settings plus CV input assignment, scale, tempo, step repeat and clock out ones.
The 2 channels of the quantizer can be used for processing external signals, same for the slew limiters.
The 16 illuminated buttons can be used to set several parameters, even to play the sequencer as a keyboard.

There are 3 MAIN SETUPS:
DUAL (2 totally independent 8 step sequencers)
PARALLEL (one sequencer with 2 rows of CV and 8 steps)
SINGLE (one sequencer with 16 steps)

There are also these PLAY MODES:
Normal
Reverse
Pendulum
Drunk
Random

Each sequencer features:
Clock input (clock input 1 is normalised to clock input 2)
Clock output
Reset input
Gate/Trigger output
Slew limiter output (unquantized)
V/OCT output (quantized)

Additionally, there are 2 summing outputs:
Gate/Trigger 1+2 (OR output of both G/T)
CV 1+2 (sum of both slew limiters)

Features 2 CV inputs with offset pots. Assignable parameters are mode, start, size, clock divider, key (the position of the sequencer is controlled by CV), transposition and duty cycle.

Dimensions: 26 HP

Current Draw:
85 mA +12V
36 mA -12V

Notes: The full power of Mutable Instruments Elements packed into 18hp. It features jack lights that can be turned on/off via a jumper on the back. This module comes loaded with the most recent firmware, with the new Chords mode that unlocks a whole new world of potential.

Based on open source designs by emilie gillet under Creative Commons (CC-BY-SA) license.

Width: 18hp
12V: 130mA
-12V: 10mA

Notes: A seriously versatile filter here, much more than meets the eye. Stereo, state-variable, multi-mode design gives you huge control over frequency response and stereo image.

Supplier's Notes:
Zagrzeb is a stereo multimode 4-pole (24dB/oct) state variable voltage-controlled filter (SV VCF). It offers five distinct frequency responses, three of which are available simultaneously. Spread control allows for animation of the stereo image by moving the left and right filter cutoff frequencies in opposite directions. Zagrzeb is designed to sound smooth and clean unless it is overdriven with a hot signal- however, it does not lack character! We believe it will be appreciated by fans of old Japanese synthesizers, but bear in mind that Zagrzeb is not a clone of any existing design. The four-pole state variable structure is a new development and offers unique sonic characteristics. While Zagrzeb is designed for filtering stereo signals (e.g. samples or stereo oscillators like Xaoc Devices Odessa), it can easily handle mono signals and is capable of creating a faux stereo pair thanks to a special phase shifting network at the input.

Dimensions:
8 HP

Current Draw:
70 mA +12V
60 mA -12V
0 mA 5V

Notes: Rings is a resonator, the essential ingredient at the heart of several physical modeling synthesis techniques. The resonator transforms an external, unpitched excitation audio signal into a full-bodied pitched sound. Rings is the bar, the tube or the bunch of strings you cause to vibrate with a bursty external signal.

Any signal can be fed into the resonator, including envelope clicks, trigger signals, noise bursts, even tonal sounds. It also contains a special "polyphonic mode", where four notes can ring together at the same time. Although it is not truly polyphonic, it adds density and chordal characters to the sounds output. For those wanting the functions of Elements without the losing HP real-estate, Rings is exactly the solution.

Three families of vibrating structures are simulated by the module, with CV control over their parameters:

Strings, membranes and tubes as modelled by Elements' resonator section (modal synthesis).

Strings coupled together and vibrating in sympathy, with controllable intervals between them.

Strings with a variable amount of inharmonicity.

Rings can be configured so that each new note is played on its own virtual string, while the previously played note(s) still decay. This unique take on polyphony allows the module to play strummed chords.

Controls

Number of strings/structures (1, 2 or 4).
Synthesis model (modal, sympathetic strings, string).
Main frequency (quantized in semitones).
Structure. With the modal and string models, controls the inharmonicity of the spectrum (which directly impacts the perceived "material"). With the sympathetic strings model, controls the intervals between strings.
Brightness. Specifies the brightness and richness of the spectrum.
Damping. Controls the damping rate of the sound, from 100ms to 10s.
Position. Specifies at which point the structure is excited.

Inputs and Outputs

Frequency, structure, brightness, damping and position modulation CV inputs with attenuverter (-8V to +8V).

"Strum" trigger input to indicate when a new polyphony voice needs to be allocated. Normalized to an edge detector detecting changes on the main V/Oct input, or sharp transients on the audio input. Detection threshold at 0.6V.

1 V/Oct frequency input (-1V to +5V).

Resonator audio input, normalized to a filtered pulse/noise burst triggered by the "Strum" input (for stand-alone use). Modular level, up to 16Vpp.

Two audio outputs, splitting the signal into even/odd partials in monophonic operation, or even/odd notes in polyphonic operation.

Specifications

Module width: 14HP
Module depth: 25mm
Current draw: 120mA @ +12V, 5mA @ -12V

Notes: The Stereo I/O 1U is an all-in-one audio input/output module designed to bridge the gap between your Eurorack system and line-level devices. Whether you want to process external audio with your modules, monitor your patch with headphones, or connect your system to mixers or interfaces with line level - Stereo I/O 1U has got you covered.

Audio I/O allows you to effectively interface your Eurorack modular system to the balanced line-level world (+4 dBu). You can send and return to rack mount/desktop fx units, patch to external line-level instruments like synths and drum machines, interface to a DAW and much more.

The rear-mounted 3-pin CHAIN IN connector allows you to sum (in parallel) other audio sources to go from Eurorack level to the BAL LINE OUTPUTS. This could be from modules like the Mixup 3U, Xfade 1U, Stereo Mix 1U, and XY I/O 1U. You could also use this to connect with the 3-pin headers on the Palette and 7U cases audio i/o boards.

The rear-mounted 3-pin CHAIN OUT connector allows you to directly connect the level-shifted BAL LINE IN to the inputs of other compatible devices such as the Mixup 3U, Outs 3U, Stereo Mix 1U, XY IO 1U, and Headphones v2 1U. You could also connect the to the TRS jacks of the Palette and 7U cases audio i/o boards.

Dual Balanced ins and outs for the studio or the road. Interface your rack with the balanced line level world; send and return to pedals or desktop FX units; patch in and out of your DAW, external synths, drum machines and other line-level instruments.

A space-friendly, feature-rich, highly flexible solution for all your stereo line level input and output needs. Includes a dedicated headphone jack/volume and a clever cue bus for monitoring signals outside of the main output or to add a 2nd source to the main outputs.

Notes: The MCO MK II is a highly versatile digital VCO and voice module inspired by 90s/00s digital synths shrunk into just 6HP.

It offers a broad collection of unique, high-quality synth voices, each with extensive, customizable parameters. These parameters can be directly controlled or modulated through assignable internal and external sources. Certain per-voice parameters support audio-rate modulation, including FM, sync, and DSP. Each voice also supports up to four-voice chords, external-triggered envelopes, multiple LFOs, and dual audio outputs for comprehensive desktop like synth functionality.

Voices include a multi dimensional wavetable oscillator based on the original MCO, a complex additive synthesis engine, a multi mode 'JP' type digi-synth, a lush virtual analog implementation, a fully featured vocoder, a bass synth for both kicks and sub sonic tones and finally arebirth and porting of our discontinued SID GUTs chip voice.

Each voice includes factory presets as well as the ability to store and recall user presets. All state is preserved across power cycles.

The MCO is designed to be familiar, quick and easy to use with a high resolution colour display and a rich visual user interface.

A USB-C connection allows for easy firmware updates, user wavetables upload and device config backup and restore. Axon expander modules are also supported to increase CV control options.

Notes: The Dual Stereo Gate (DXG) music synthesizer module is a Dual Stereo Low Pass Gate and Mixer. It follows in the footsteps of the QMMG, Optomix, RxMx, DynaMix, and LxD. Unlike its predecessors, the DXG is specifically oriented around mixing stereo signals, making it an important addition to any system containing modules like XPO, QPAS, Morphagene, Mimeophon, and other stereo modules by Make Noise or others.

Unique to the DXG is a new low pass gate circuit that does not use vactrols. This circuit is 100% analogue and its response was arrived at after many months tailoring it to meet or exceed the expectations that have been set by all the vactrol low pass gates that Make Noise has created over the years.

In the past, Make Noise produced the Dynamix module and Dynamics circuit in the 0-COAST, both of which are vactrolless LPGs; however, the DXG is a completely new approach which better implements the gentle single pole filtering of a low pass gate, while also emulating the slow decay and memory of the vactrol based low pass gate. This new circuit makes possible the consistency of response necessary for versatile stereo use, while also keeping the module small and affordable so that it can be a key part of just about any modular system.

As on all of Make Noise's low pass gates, the DXG's Control parameter is used to set both the amplitude and the frequency content of the sound that passes through it. The control parameter tends to open faster than it closes, imparting a subtle decay phase onto any envelope shape that is used to modulate it.

Unlike previous low pass gates made by Make Noise, all the DXG's inputs and outputs are stereo. Each set of inputs is normalled so that the left input can be used for a mono signal, sending a copy to both left and right outputs. The Auxiliary inputs are also a stereo pair with mono normalization. These normalizations allow for the DXG to be used as a simple three channel stereo mixer, with one or two of the channels additionally being used for dynamics control and note event generation. The Aux inputs can be used to chain together larger decentralized mixes using additional DXG modules, or X-PAN, Optomix, modDemix etc.

Features

- Make Noise's first Stereo Low Pass Gate

- Vactrol-free design for classic Low Pass Gate sounds, but with the balance and consistency needed for true Stereo

- Fully Stereo i/o for easy integration into a Stereo-equipped modular synthesizer

- All Left inputs normalled for easy use with Mono signals

- STRIKE Input allows use of Gate signal to trigger Low Pass Gate circuit, creating "plucking" or "pinging" sound from any Gate

- Summing stage with Stereo AUXiliary IN allows for chaining of multiple units, creating larger mixes

- Part of a decentralized mix console integrated throughout the system along with X-PAN, Optomix, XOH, etc.

- Pairs well with XPO, QPAS, Morphagene, Mimeophon, Spectraphon etc.

Width: 8hp
Power:
74mA @ +12V
86mA @ -12V
Module Depth (incl power cable): 43mm

Notes: The Ensemble Oscillator is a unified polyphonic voice of sixteen complex oscillators combining additive, FM, phase-distortion and wavefolding synthesis techniques in new unorthodox ways. By quantizing the oscillators to scales or series of harmonics, the Ensemble Oscillator allows you to explore the sonic boundary between musical chords and rich evolving textures. Easily create a wide variety of sounds ranging from aggregates of pure sine waves to pulsar synthesis or pristine harmonic tones and lush wide chords to rich dirty drones and rumbling glitches. Custom scales can quickly be "learned" and saved using a CV keyboard or by manually entering notes with the controls.

The Ensemble Oscillator is designed by Matthias Puech and 4ms Company.

Electrical and Mechanical Specifications:

16HP Eurorack format module
0.98" (25mm) maximum depth (including power cable)
10-pin to 16-pin Eurorack power header

Power consumption:
+12V: 114mA maximum
-12V: 45mA maximum
+5V: 0mA (not used)

Audio outputs
Frequency range: 0Hz (DC) - 20kHz
Typical amplitude: 10Vpp
Maximum amplitude: 18.5Vpp
1V/oct inputs (Root and Pitch)
Voltage range: -2V to +6V (8 octave range)
Factory calibrated to 1.00V/oct
Per-jack user-calibration allows from 0.7V/oct to 1.3V/oct
CV inputs (other than 1V/oct)
Voltage range: -5V to +5V

Gate inputs:
Trigger threshold: 2.5V
User memory (non-volatile)
Scale slots: 30
Shift feature settings
1V/oct calibration settings

Notes: The WoggleBug music synthesizer module is a random voltage generator, originally designed by Grant Richter of Wiard Synthesizers. It is a continuation of the "smooth" and "stepped" fluctuating random voltage sources pioneered by Don Buchla within the Model 265 "Source of Uncertainty," expanding it to include the other-worldly Woggle CVs (stepped voltages with decaying sinusoids edges). The Wogglebug is a very musical random voltage generator where it is possible to synchronize all random signal to a Master Clock. Guaranteed to unleash your synthesizer's ID MONSTER!

Features:
Complete Complex Random Voltage system, no external modules necessary
Two VCOs, Phase Lock Loop, Lag Processor, Clock, Burst Generator and Sample & Hold
Generates 7 Random Signals simultaneously: Smooth VCO, Woggle VCO, Ring Mod, Stepped, Smooth, Woggle, Burst
Generates voltage controlled Master Clock
External inputs for S&H (Heart IN) and Ring-Mod (Influence)
Disturb button adds performance element
Wonderful for modulating the Morphagene and DPO

Specifications:
Width: 10hp
Max Depth (incl. power cable): 32mm
Power: 50mA@ +12V; 40mA @ -12V

Notes: The BF-22 VCF is a dual Hi/Low-pass filter inspired by the Sallen-Key filter from the early MS-20.

DISCLAIMER: This filter brings to your modular system the character of early MS-20 sound: Kick-ass-rocking-dirty screams! It inherited not only it's amazing sound, also MS-20 noise floor. If noise floor is an issue for you, this might not be your filter.

Features:

Dual-channel Sallen-Key Filter. Inspired by the early MS-20
High and Lowpass operation.
Two CV inputs per channel with a dedicated atenuverter for the first one.
CV controlled resonance.
The first channel can be linked to the second one with the "Link" switch.

Specifications:

Current needs: +12V: 40mA, -12V: 20mA
Width: 17 HP
Depth: 30mm (including power connector)
Aluminiun, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona.

Notes: Crush Delay v3 is a special Echo-Delay unit based on the PT2399 IC, which is able to offer 400ms of clean delay and up to 2 seconds of dirty repetitions, having a special talent to generate noisy-glitch textures. The module bases its operation on controlling the PT2399 chip with circuit bending techniques, converting the unit in an advanced VC digital trash generator. This third version comes with some interesting new features like redesigned VCAs circuits, wider range for clean delay and reduced depth to make it skiff friendly.

The module features a few VCAs to provide a flexible signal route to maximize module's possibilities. First two VCAs at the inputs to control the amount of signal sent to the delay. The first is routed to both the dry/wet mix and the delay, and the second directly to the delay. Combining the second VCA and the FX Send output allows external feedback routings.

Compared with v2, this third version offers a bigger range of clean delay time as well as a revision of some of the Crush modifiers. Combining those modifiers you will have a access to a vast palette of noises and textures that can be used in many different ways. From ambient/drone patches to even percussion sounds.

The VC Feedback features an automatic gain control to keep levels stable at any feedback level.

- Current needs: +12V: 135mA, -12V: 35mA
- Width: 11 HP
- Depth: 30 mm (inc power connector)
- Aluminium, heat-treated front panel
- Designed, kits prepared and modules assembled in Barcelona

Notes: The WAV Recorder from 4ms Company is a high fidelity, two-channel stereo audio recorder with basic playback features. Accepting a wide range of input signals, from line-level to modular-level, the WAV Recorder stores audio onto a microSD card in lossless .wav format up to 96kHz/24-bit. The trigger jack can be used for capturing rhythmic loops or synchronizing multiple WAV Recorder modules for multi-track recording. In Playback mode, the trigger jack or button plays the most recent recording. A simple file/folder navigation system can be used to browse the folders on the card for playing back .wav files. A Gain knob allows for up to +20dB of boost, and an LED Signal Meter indicates clipping and the signal level.

Notes: TouellSkouarn Strakal Brulu is a handmade distortion and fuzz module. The great sound is due to the new-old-stock east-German germanium transistors.

Very characteristic for the module's sound if the feedback that is coupled to the feedback. The more fuzz, the more feedback - the Strakal Brulu 2 can get pretty nasty and it screams a lot at high fuzz settings and low input level. The fuzz amount can be voltage controlled, with an inverse attenuator. Input and output levels can also be set separately.

Notes: Another update for WMD's clever dual VCA, this time a little bigger to give more control. Digital control of CV and attenuation gives lots of creative options. Third time's a charm.

Supplier's Notes:
WMD have done several designs of this circuit over the years, the first one had no knobs, the second was too small, the MKIII is finally how this circuit should be packaged. This module does some really cool stuff and is super useful in any system.

The Digital VCA lets signal through like a normal VCA, but the CV and attenuation level is controlled digitally. This lets us do things like wait until there is a zero crossing to change the amplitude, resulting in clickless amplitude changes.

The Trigger mode causes the VCA to only update when a trigger is received. The addition of a noise circuit for each side let us do a very quick and easy sample and hold that never droops. With no input, 5V is normaled to the attenuator, so you get a 0-5V sample and hold. In Bipolar mode, you can get -5 to +5V.

Both sides have bipolar VCA mode (polarizer), which lets them invert the signal when negative CV comes in. Also known as ring modulation. With the zero crossing detector, this can produce some super wild wave shapes.

Features

Dual VCA Design
Unipolar or Bipolar Operation
DC Coupled Analogue Signal Path
Low Distortion / Low Noise
VCA Closes Completely
Zero Crossing Detector Mode
Trigger Mode
Two Independent Noise Sources
8 bit CV resolution
Great for Fast Envelopes and Sine Bass Sounds

Specifications

Power: +65mA, -45mA
Width: 8HP
Depth: 35mm with cables
Height: Eurorack 3U (128.5mm)
Board Height Behind Panel: 112mm
CV/Signal Input Impedance: 100k
Output Impedance: 1k
UPD in 3.3V Threshold Schmitt Trigger
ZCD produces 15us 5V pulse
5V CV to fully open VCA
Linear VCA response
20Vpp signal handling

Notes: Truly unique one from AJH, based on the sound of NASA's Apollo voice transmissions. Think outside the box and process drums and synths through this thing. Freaky. May or may not allow you to communicate with real astronauts.

Supplier's notes:
Here's a bit of fun for all fans of space missions from the previous century! This module is designed to re-create the ground to space and space to ground transissions from the Apollo era.

To be "Mission Control Houston" the Quindar PTT (push to talk) button adds a short 2,525Hz Qindar tone to the start of the transission, then at the end of the message the PTT button or switch is released and a short 2,475Hz Quindar tone is added to the audio. The bandwidth is slightly reduced in this mode.

For "Astronaut comms" we press the Capsule PTT switch, which allows us to add coloured noise, distortion, bandwidth reduction and either hum or LGM (Little green men space tone) noise to the audio signal. A deep space electret condenser mic is supplied and an be used with the MIC input.

Obviously the Lunar Module can also be used to add noise, hum, distortion, bandwidth reduction and LGM noise tone to any modular level audio too, and if the mic is left attached theremin like sounds can be added too with careful loudspeaker feedback.

Notes: Instrument Interface is a Eurorack pre-amp capable of bringing any type of audio signal to modular levels, thanks to its amplification circuit.

The module can drive regular and condenser microphones (+48V Phantom Powered), as well as Instrument and Line signals with a very low distortion ratio.

Going further from the regular re-amp operation, Instrument Interface offers some additional extra functions like a Trig/Gate extractor and Envelope Follower circuits, allowing you to use the character of your audio signal in more creative ways.

Notes: Scales is an 8hp dual-channel note quantizer and step sequencer. Fundamentally, it takes an input voltage, quantizes it to notes in a user-defined scale, and sends that quantized voltage to an output, where you can use it as a melodic pitch source for oscillators or any other module that expects to see discreet note values at its input.

Scales goes far beyond the fundamental, allowing you unprecedented control of the pitches and intervals hiding inside your control voltages; turn LFO's into arpeggiators; random voltages into harmonic counterpoint; and unquantized external CV sequencers into chromatically tuned note sequencers.

Quantization can be locked to an incoming trigger. There are a number of trigger output options as well, ranging from no triggering (good for pitch shifting drones); through triggers that sync with either of the two outputs (or both); to a trigger or gate transmitted in sync with one sent to the module's TRIG input.

Shift:

Scales features two independent outputs, enabling you to create shifted harmonic intervals within your chosen scale using only a single pitch input. Using the SHIFT input you can modulate changes on OUT A and/or OUT B.

You can also use the shift input to switch between scales or to change the root of any existing scale pattern or split Scales into two quantizers - each conforming to a common scale, but fed entirely different voltage sources.

Sequence:

Scales also features a 128-step SH-101 style step sequencer (complete with storage for up to 35 fully programmable patterns) - allowing you to feed OUT B with sequenced notes and rhythm patterns, while OUT A continues to function as a standard pitch quantizer for external voltages. You can even sync the sequencer to quantizer events on OUT A.

Notes: The MCFx2 is ALM's state variable 'MCF' filter made double. It features 2 identical classic analog 3 pole state variable filter cores each with Low, High and Band Pass (or Notch) outputs. Direct and voltage control is provided for both filter cut offs and resonance. Switches allow the filters to function as one, with the 'Feed' switch internally routing audio from one filter to the other in series and the 'Link' switch linking the cut off controls for both filter cores. MCFx2 expands on the great sounding MCF filter to offer both serial and parallel functionality for stereo operation, dual peak, tighter slopes and other complex filtering set ups.

FREQUENCY CONTROLS
Sets the base frequency for the filter cut offs. The v/oct and frequency inputs are added to these.

RESONANCE CONTROL
Sets the level of resonant peaks atop the cut off frequencies. The resonance can get particularly aggressive going into self oscillation with the control past 12 o'clock.

OUTPUTS
Each filter output is 3 pole with an 18dB/oct slope.
Low - low pass filter outputs. Passes frequencies below the cut off.
High - high pass filter outputs. Passes frequencies above the cut off.
BP/Notch - band pass or notch filter outputs. Jumpers on the rear of the module select one or the other for each filter.
Passes frequencies within (BP) or outside (Notch) a narrow region around cut off frequency.

LINK BUTTON
Links the left cut off to parallel control both filters. The right controls will now set the max range of the right core. Both filters will track together when the right cut off is fully clockwise.

FEED BUTTON
Routes the output of the left filter core to the input of the right (unless patched), with the desired output filter type selected via jumper at the rear of the module.

FREQ INPUTS AND ATTENUATORS
Control voltage inputs here are combined with knob offsets to set the final cut off. Attenuversion control allows for both attenuation and inversion of the CV. Expects approx. -5V - 5V input.

RES INPUTS AND ATTENUATORS
Attenuated control voltage inputs here are combined with knob offsets to set the final resonance.
Expects approx. -5V - 5V input.

AUDIO INPUT 'In'
Signal inputs to the filter cores for processing.
Input sources may need to be attenuated, filter will drive from hotter input levels.
The Left input is normalised to the right (unless 'Feed' is enabled).

Notes: Welcome to the DROID X7 expander. The X7 gives you USB and MIDI connectivity for your master and also four gate outputs with modular levels.

You can process incoming and generate outgoing MIDI streams, both via classical DIN cables and via USB. Both the in and the out direction support polyphony with eight or even more voices in parallel.

For size reasons the X7 uses 3.5 mm TRS jacks for MIDI instead of the classical DIN jacks. But it comes with two DIN to TRS adapters, so you are free to use either form factor.

As a bonus feature, the X7 provides super fast loading of DROID patches via USB - without any need for putting the SD card in and out anymore.

Here are some examples of what you can do with the X7:

Attach an external keyboard to your modular.
Use an external hardware sequencer for playing melodies and beats in your modular.
Use an external MIDI controller to influence your DROID patch.
Do the same with a MIDI controller app on your tablet or phone (via USB).
Use your modular for playing polyphonic music and beats on your hardware synths or software synth plugins in your DAW, tablet or phone.
Connect two DROIDs (both with X7) and exchange real time CVs and triggers.
Use the four additional gate outputs on the X7 for sending clocks, gates and triggers and free your valuable CV outputs for other things.
Access the SD card in your master just like a USB stick for direct access to it via your PC, Mac, phone or tablet.
Alternatively load new patches to your master via MIDI sysex from your PC - and get your new patch ideas up and running in less than a second.

Dimensions
4 HP
23 mm deep

Current Draw
94 mA +12V
0 mA -12V
0 mA 5V

Notes: ADDAC711 is a dual channel Isolated DI box and is all about keeping the sound coming into your Modular free from any undesired noisy interferences, making sure that what you're getting from your inputs is what your external hardware is actually producing. It provides galvanic electrical isolation between the Modular system and external sources preventing impedance mismatch and ground loop induced hum. ADDAC's 711 circuit is designed around a unity 1:1 type Low-cost Audio Transformer operating in the 20 Hz to 20 KHz range, this impedance matching transformer provides two fully balanced outputs (via XLR connectors).

There are two independent channels on the module with:
Audio Output
Signal overload warning led
LIFT/FLOAT/GND toggle switch
Gain control
XLR Input

The LIFT/FLOAT/GND 3-way switch lets you choose between lift, ground or floating ground. In the LIFT position (left) the module circuit will be "lifted" to ground through a 100R resistor and a 10nF capacitor. In the FLOAT position (middle) Ground will not be shared leaving ins and outs grounds completely apart from each other fully isolating both signals.
In the GND position Ground will be shared between inputs and outputs, here no isolation is used. Any of these three positions may be the best form of avoiding ground loops or any other undesired interference occurring between your modular and the external hardware. Try out which one of these options will work best in any given situation.

The importance of using Audio Transformers

Applying a transformer balanced input isolation has lots of advantages over other less expensive ways for dealing with ground loop issues. This method provides the chance to set a very simple and cleancircuit in which the signal transfer process develops smoothly and humming free. The transformer is a device that performs both signal balancing and high-to-low (or vice-versa) impedance conversion, while rejecting straggled DC voltage and Radio Frequency Interference from signal passing through a magnetic bridge. In a transformer, two (or more) coils (called windings) of insulated wire wound around a magnetic metal core allow for its input(s) and output(s) not to be physically connected together. When an AC signal passes through the input winding (the primary), a perfectly related AC signal appears on the output winding (the secondary). This way, by the fact that signal flows via inductive coupling between the two windings of the transformer, this module presents a most accurate electrical isolation between its input and output. A same number of windings on each coil guarantees that there's no gain loss when audio signal passes from the primary to the secondary windings. Furthermore, since these two windings are insulated from each other, the transformer will electrically isolate ADDAC711 from any other device, preventing hum problems coming from an outsider ground. Being a low-cost transformer the frequency response curve is not completely linear, still the -0.2dB
attenuation at 50Hz feels negligible.

Notes: A full size version of Mutable Instruments Warps. It is functionally identical and will run all firmware that ran on the original.

Width: 10hp
12V: 110mA
-12V: 5mA

Notes: The Dual EnvVCA is a two-channel analogue linear envelope generator with two fully independent low-noise exponential VCAs. With time ranges from 30 minutes to 8kHz, it can be used as an LFO, slew limiter, ASR/ADSR complex EG, audio-rate oscillator, stereo audio/CV VCA, envelope follower, sidechain processor, and general utility module. The outputs can be attenuated, inverted, and offset without disrupting the VCA, making it a versatile modulation source.

100% analogue

Dual EnvVCA

16HP Eurorack format module
0.95" (24mm) maximum depth (includes power cable)
10-pin Eurorack power header

Power consumption
+12V: 156mA
-12V: 131mA

Audio/VCA
100k input impedance, 1k output impedance, DC-coupled
VCA gain range: -90dB to +0.9dB
DC to 20kHz, +/-0.1dB
VCA response to CV: exponential

Envelope Times
Minimum rise or fall time: ~62us per segment (8kHz max frequency)
Maximum rise time: >10 minutes (typically > 13 minutes)
Maximum fall time: >20 minutes (typically > 40 minutes)

Jacks:
Env jack: Min = -10.2V, Max = +10.1V?, maximum amplitude 9.3Vpp
Trigger jack: rising edge threshold = 2.5V
Cycle jack: rising edge threshold = 2.5V
Follow jack: active range = 0V to +5V

EO* jacks:
EOR (channel A): <80mV low to >4.50V high gate output
EOF (channel B): <80mV low to >4.95V high gate output
Minimum stable pulse width: 1ms. Shorter than this may produce extra 50us pulses
Audio In/Out jacks: -10V to +10V maximum range without clipping

Notes: A really clever take on looping, falling somewhere closer to granular synthesis depending on how you use it. Layer and repeat multiple sound sources to create textures, chords and unique timbres.

Supplier's Notes:
Endless Processor is a dual-channel infinite sound sustainer machine.

Put your favourite instruments, unique timbres, or field recordings - virtually any sound - and make it last forever.

It is not a looper in the usual sense - Endless Processor resynthesizes your sounds to create a perfect clickless stream while preserving the timbral and tonal character of the original.

Endless Processor always listens to audio input and keeps a most recent history. Experiment with sustaining little bits of a sample or make a massive wall of sound with the ability to select how much memorized audio to process.

Stack your sounds to create harmonies, textures, or drones with 5 layers per channel. Each layer can be re-processed or cleared while keeping other ones in place. Set fade-in and fade-out time to quickly or gradually introduce a new layer or remove the existing one.

Additional controls will help you to adjust or shape a channel volume (think built-in VCA).

Dimensions
16 HP
25 mm deep

Current Draw
125 mA +12V
10 mA -12V

Notes: Dual Balanced ins and outs for the studio or the road. Interface your rack with the balanced line level world; send and return to pedals or desktop FX units; patch in and out of your DAW, external synths, drum machines and other line-level instruments.

Get Connected

Audio I/O (2023 edition) allows you to effectively interface your Eurorack modular system to the balanced line-level world (+4 dBu). You can send and return to rack mount/desktop fx units, patch to external line-level instruments like synths and drum machines, interface to a DAW and much more.

The 2023 edition moves the TRS jacks to the top of the panel

The rear-mounted 3-pin CHAIN IN connector allows you to sum (in parallel) other audio sources to go from Eurorack level to the BAL LINE OUTPUTS. This could be from modules like the Mixup 3U, Xfade 1U, Stereo Mix 1U, and XY I/O 1U. You could also use this to connect with the 3-pin headers on the Palette and 7U cases audio i/o boards.

The rear-mounted 3-pin CHAIN OUT connector allows you to directly connect the level-shifted BAL LINE IN to the inputs of other compatible devices such as the Mixup 3U, Outs 3U, Stereo Mix 1U, XY IO 1U, and Headphones v2 1U. You could also connect the to the TRS jacks of the Palette and 7U cases audio i/o boards.

Features:

2 x Balanced TRS 1/4" to Eurorack modular level input paths
2 x Eurorack modular level signals to Balanced TRS 1/4" output paths
4 x six stage analog led VU meter to monitor all inputs and outputs simultaneously
Input path has up to 20 dB of gain, which allows you to patch in low-level consumer level signals and boost them.
Output path steps a nominal Eurorack level (10 Vpp) down to +4 dBu with up to +6 dB gain
3pin CHAIN IN connector
3-pin CHAIN OUT connector

Dimensions
10 HP
39 mm deep

Current Draw
75 mA +12V
70 mA -12V

Notes: An expander module for Rossum's powerhouse Assimil8or sampler module, the Locutus provides MIDI in, out and thru connections over 5-pin DIN sockets, letting you take full control of the module alongside other MIDI gear.

Supplier's notes:
Locutus is designed to interface Assimil8or with MIDI instruments, controllers, and sequencers to provide multichannel modulation and new polyphonic possibilities.

Locutus includes a special cable to connect to the Assimil8or CPU behind the panel.

Locutus is 6 HP wide and 25mm deep.

More pricing and availability information is coming soon.

Locutus is on display in the MIDI Association booth #9901 at NAMM 2023 where Locutus and Assimil8or will be performing with a Rossum SP-1200 Reissue, an Oberheim OB-X8, and other new and vintage MIDI-equipped instruments.

MIDI Association booth #9901 is dedicated to the MIDI@40 Lifetime Achievement Award winners, including Rossum Electro-Music co-founder Dave Rossum.

From the MIDI Association: "At Saturday's anniversary celebration, lifetime achievement awards will be presented to (or posthumously honour) legendary music industry innovators who created the modern music production environment of synths, drum machines, and sequencers, including Bob Moog, Don Buchla, Ikutaro Kakehashi, Tsutomu Katoh, Roger Linn, Tom Oberheim, Alan Pearlman, Dave Rossum, and Dave Smith."

Notes: ALM's first analogue oscillator is a typically smart design, featuring thru-zero FM, continuously morphing wave shapes, dual subs and voltage-controlled FM index.

Supplier's Notes:
The 'TAZM-O' is an analogue triangle core oscillator featuring through-zero frequency modulation and a collection of some of ALM's favourite features of classic oscillator designs.

It includes a continuous morphing wave/pulse width shape control inspired by the Serge NTO, dual SH-101 style varied pulse sub octave outputs, a voltage controlled FM Index typically found in larger complex oscillators, a built in output level VCA and voltage controlled octave transposition similar to the multipliers found on Akemie's Castle digital FM VCO.

Designed to act as the primary oscillator in your system the 'TAZM-O' offers a wide range of timbral and patch flexibility within a relatively compact 12HP size, making it the perfect fit for any modular system.

Continuous crossfading wave shape with direct and voltage control.
Through-zero FM input with direct and voltage controlled mod index.
Dedicated outputs for sine (or triangle), saw and square sub-1 & sub-2.
Primary output with level VCA.
V/Oct input with approx 8 octave range.
Octave transpose CV input ranging 3 octaves.
Hard Sync input.
LFO mode with bipoler LED indication.
Rear switches for selecting Sub-2 pulse width, and sine/triangle waves.
Skiff friendly with reverse power polarity protection.
Made in England.

Dimensions
12 HP
38 mm deep

Current Draw
70 mA +12V
60 mA -12V

Notes: Crystal-clear clock-synced delay for loop up to 90 seconds, echoes, sound-on-sound, Karplus-Strong etc.

Features:
Loop or echo time is synchronized to a clock
87 seconds of delay/loop time maximum
48kHz/24-bit sampling rate, loop recorded at 16-bit (24-bit optional)
Extremely quiet, low noise and low jitter design
Tap tempo button and clock Ping input set the basis for one "beat"
Delay/loop time set as a number of musical beats (or fractions of beats) using the Time knob, switch, and CV jack
Sample-accurate clock output for perfect synchronization
Loop clock outputs for each channel
Time switches change range of Time knob from 1/8th notes up to 32 bars
Digital feedback, up to 110%
Delay Feed control, independent of dry/wet signal mix
Infinite Hold mode disables recording input and fixes regeneration at exactly 100%
Reverse mode plays memory contents backwards
With an infinite loop locked, knobs or CV can "window" around memory, by shifting the loop
Trigger inputs for toggling Infinite Hold and Reverse
Send and Return for applying effects to feedback with external modules
CV jacks to control Time, Level, Feedback and Dry/Wet Mix
16HP Eurorack module

Specs:
48kHz, 24-bit low-noise hi-fidelity
Up to 90 seconds of loop time
16HP
+12V: 110mA
-12V: 45mA

Included with the Looping Delay:
16-to-16 pin power cable
4 x M3 Knurlie screws

Notes: Part of Xaoc's range of modular mixing tools, the Bohumin 1966 is a commander module for Ostrawa stereo mixer modules, adding a second stereo aux bus, voltage control and manual attenuators with clickless mutes

Supplier's notes:
Bohumin [bo'xumin] is an expander for Xoac Deives' Ostrawa full stereo mixer module. By connecting to Bohumin, Ostrawa gains a second full stereo AUX bus with voltage control over the amount of the effect on each channel. Bohumin features manual attenuators for stereo returns of both AUX A and AUX B, as well as four gate inputs for automated clickless muting of each stereo input channel. Please note that Bohumin is not compatible with Ostrawa's sister module Praga. Similarly, Praga's expander Hrad cannot be connected to Ostrawa. However it is possible to chain any combination of Ostrawas and Pragas, and each of them may have its corresponding expander attached.

Technical details

10hp, skiff friendly
Power drawn from Ostrawa: +50mA/-40mA

Notes: Part of Xaoc's Leibniz Binary Subsystem, the updated Drezno ADC/DAC module builds on the original with higher resolution converters, allowing you to use it for pitch quantisation.

Supplier's Notes:
Drezno II is an improved version of the original Drezno module. It is an essential member of the 8-bit Xaoc Devices Leibniz Binary Subsystem. The Leibniz subsystem is a family of modules that operate on 8 binary (two-state, on/off) signals. These signals are arranged as 8 bits of digital data and may represent analogue signals and voltages, or they may be whatever you want them to be (clocks, gates, rhythms, etc.).

Drezno features an ADC (analogue-to-digital-converter) and DAC (digital-to-analogue-converter), allowing it to act as an analog front-end of the system. In other words, Drezno allows one to convert analogue signals and CVs into digital numbers, as well as to obtain analogue signals back from some other digital numbers (or 8 binary signals). Between these two conversions there is a whole universe of digital shenanigans waiting to happen resulting in all kinds of signal transformations and modulations.

Both (ADC and DAC) sections of Drezno can work independently, or they can be linked. Input and output range of analogue signals may be adjusted using Gain and Offset sliders. Individual bit outputs (for the ADC) and inputs (DAC) allow for extensive cross-patching and the creation of complex waveforms and rhythms. A very fast clock (up to 2MHz) at which the conversions are performed may be replaced with any external clock (for each section separately).

Compared to its predecessor, Drezno II uses new converters of much higher resolution which results in much lower noise floor and higher accuracy. The lower bits are much more stable than before. It is easy now to use Drezno for quantizing pitch voltages with accurate results with 128 or 256 semitone steps. Potentiometer ranges are factory calibrated for precise chromatic scale. A new switch on the front panel allows the user to select the calibrated range of 10Vpp or 20Vpp, so that the lowest bit or the second bit correspond to 1 semitone.

Technical details

Eurorack synth compatible
12hp, skiff friendly
Current draw: +80mA/-50mA
Reverse power protection

Notes: Part of Xaoc's Leibniz binary system, the Rostock is a digital delay line capable of processing triggers, audio, CV and video signals. Another useful module from the unique Leibniz series.

Supplier's Notes:
Rostock is a component of the Leibniz Binary Subsystem. It is a data pipeline, a FIFO (first in - first out) shift register, or a very short digital delay. The module operates similarly to a BBD delay or an ASR (analogue shift register), except that it is digital. It consists of a chain of memory cells that pass bits from one to another at each clock cycle. The delay length is variable from 1 to 64 stages (with optional looping and scrambling). It works by processing data in the Leibniz bus and must be connected to other Leibniz modules using data ribbon cables at the back. Rostock may process data sequences representing rhythms, control voltages, audio-rate signals, and even video signals because the bits can change at extreme rates (up to 2MHz). In addition, its memory may be digitally looped. Delaying and looping is a fundamental building block for sequence automation, pattern and chaos generation, and various cybernetic modular patches. Thus, Rostock is a multi-purpose open-ended device that invites creative thinking.

Technical details

Eurorack synth compatible
8hp, skiff friendly
Current draw: +70mA/-40mA
Reverse power protection

Notes: Arkan

Dual Voltage Polarizer

You may have heard this before: "You can never have enough VCAs". A voltage polarizer (also known as a bipolar VCA or a 4-quadrant multiplier) is often viewed as the VCA better suited for CV. As it can be used as a unipolar VCA and it allows you to invert a signal when it is modulated with a negative voltage. Resulting in interesting movements in your modulations.

What sets Arkan apart from other voltage polarizers is the curvature control, a feature usually only seen in unipolar VCAs. By taking a different approach to the classic voltage polarizer circuitry, Malstrom have devised a unique solution that provides a new way to shape your audio and CV. The non-linearity of the polarizer also makes Arkan really good at reaching silence when presented with a 0V CV signal.

At audio rate, Arkan acts as a ring-modulator with four controls to change timbres.

Boosting adds odd harmonics (symmetrical distortion), while offsetting adds even harmonics (asymmetrical distortion). The modulation curve changes ring modulation sharpness, and modulation strength determines the carrier dominance.

Two identical channels with carefully selected features will make Arkan your go-to modulation control hub. Arkan is especially useful for common utility duties such as mixing, scaling, inverting and offsetting. As well as CV modulation, feedback patching, and waveshaping. All this makes Arkan a very versatile tool that will certainly have a place in your patch!

Features (per channel)

- Input attenuation with inverter switch gives you more precision and range, with voltage inversion and quick silencing.
- Bias input with attenuverter control to offset your input signal or mix/invert another signal.
- CV input with curvature control allows you to shape the polarizer and improve its 0V attenuation.
- CV modulation control to fade in the modulator, allowing you to determine the amount of modulation.
- Voltage gain and polarity led indicators showing you exactly what is happening under the radar.
- Output normalled internally and externally (to other Arkans) to easily mix signals.

Additional features

Optional signal boost (x4 / +12dB) via switch on the PCB to increase voltages when needed.
5V or 10V voltage reference selection for bias voltage and CV input range to adjust Arkan to your system.

Dimensions
- 8HP.
- 28mm, Skiff-friendly.

Power consumption
- 90mA @ +12V.
- 85mA @ -12V.

I/O specs

- All inputs DC coupled.
- All inputs handle audio signals.
- All inputs have 100k input impedance. - All inputs have +-10V Input range.
- CV range +-5V or +-10V.
- Bias Voltage range +-5V or +-10V.
- Boost gain x1 or x4.
- All inputs are overvoltage protected.
- Keyed power header.
- Reverse power protection.

Notes: Simple to look at but deceptively powerful, Dreadbox's Telepathy is a full analogue synth in a small module, featuring VCO, low-pass and high-pass filters, LFO, envelopes and VCA.

Supplier's Notes:
Telepathy is a full voice analogue synthesizer module with deep modulation options due to its multi-destination LFO and Envelope. From Bass to Lead sounds, to drums and drones, Telepathy has broad and versatile sound design capabilities. It has a Full Analogue path (Typhon VCO, 4-pole low pass / 2-pole high pass filters, analogue VCA) that is digitally controlled for more precision over its parameters, resulting in a warm, present and distinct Dreadbox sound.

With lots of useful and musical features integrated into a compact size (10hp), and its skiff friendly design, Telepathy is a great addition to small or large Eurorack systems.

Features:

1x Analogue Oscillator with saw, square, -1 oct square sub and noise, plus PW control for square, level for noise and waveshape
Automatic tuning for the oscillator and fine tune
Analogue 24db Resonant Low pass filter with Oscillator FM and Noise FM and 6db High pass filter
Analogue VCA
1x LFO with Free/Key/Track/BPM/BPM Key modes, Fade in, Triangle/Saw/Ramp/Square/Random waveforms, that is mapped to various parameters
2x Envelopes, one dedicated to the VCA with Velocity control and one loopable for Low pass Filter, Pitch and PW
CV in patch that can be mapped to all the basic parameters in parallel with dedicated amount for each parameter
MIDI in/out+through
CC in/out, Program Change in/out
Multitimbral Chaining functionality via MIDI up to 8 modules 16 presets
10HP

Notes: Premium quality stereo bus mixer module with balanced and unbalanced output drivers, high end headphone amp and level meters.

Tech specs:

- Panel width 16HP
- 45mm depth behind the panel, including the power connector
- 6 control pots : In 1,2,3,4, Master, Phones Level
- 8 input jacks
- 1 stereo output jack for phones
- 2 unbalanced 6.35mm jack ouputs
- 2 balanced XLR outputs
- standard 10 pin euro power +12V/-12V
- power consumption +12V 150mA , -12V 50mA

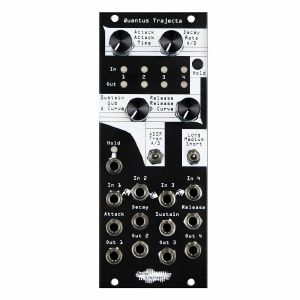

Notes: Quantus Trajecta is a quad envelope designed with polyphony in mind. Quantus Trajecta's envelope structure takes the functionality from Noise Engineering's beloved Loquelic and Cursus Iteritas Percido modules, and adds even more control and mode options like Tremolo and ADSR.

Each parameter is CV controllable, and each control universally adjusts all four envelopes for easy polyphonic tracking. Quantus Trajecta is performable, musical, and most importantly, fun.

Notes: Inspired by the legendary Moog CP3 mixer, the 713 tweaks the old-school discrete circuits into three stereo inputs and one mono channel, summing to stereo with adjustable feedback and clipping to add character.

Supplier's Notes:
ADDAC713 is the stereo version of ADDAC System's 703 Discrete Mixer.

Inspired by Moog's CP3 mixer, this is a fully discrete analogue mixer and it's not, by any means, your standard breakfast mixer, although it can behave like one.

This is a wolf in sheep's clothing. Despite its harmless looks there's a dark snarly soul behind that panel that wants to take your sounds into a realm of gritty gnarly growls.

This new version was initially thought of as a percussion mixer, with mono inputs and panning, to allow placing percussive voices in the stereo field, while keeping channel 4 in mono for low end sources like a kick drum or Bass. In the development process ADDAC System slightly changed this initial idea, adding stereo inputs for the first 3 channels, but still kept the 4th channel in mono.

All four [GAIN] controls go to extreme levels, the first 3channels also feature [PAN] controls. Feedback is used to overdrive the whole mix. As the control is turned clockwise the sound will be clipped harder until it goes completely off, this happens as feedback is increased the audio bias reference also moves up, at extreme levels it offsets the whole signal upwards until it completely goes above the top rail clipping the whole signal hence the resulting gate effect.

The [MASTER OUTPUT] sets the overall output gain of the mixer, the two leds monitor the audio output signal. The Soft clipping switch engages an anti-click circuit which adds a low pass before the output, the switch allows 3 states: Soft low pass / Off / Hard low pass.

Features:

Three channels with stereo inputs, gain and pan knob
One channel with mono input and gainknob
Feedback/gate knob
Master output volume knob
Soft clipping switch
Two Led Monitors for Left and Right channels

Tech Specs:

8HP
4cm deep
80mA +12V
80mA -12V

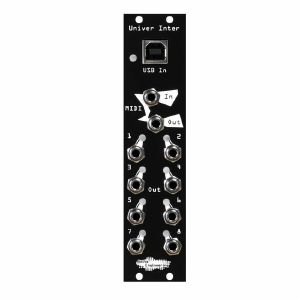

Notes: Describing Univer Inter as merely a MIDI-to-CV module falls short of its immense potential. It serves as an all-encompassing MIDI-to-any-format converter, elegantly packed into a compact 6 HP unit. Connect to your gear via USB B or TRS MIDI, or use the included adapter to plug straight into those 5-pin DIN connecters we all know and love. Whether you're looking to map clock, note, CC, aftertouch or something else that MIDI can encode, UI can do it: we built in over 20 settings for each of the 8 outputs.

Want to control a pair of monophonic voices, complete with velocity and aftertouch? No problem. How about a polyphonic setup, with gate and pitch per voice? Easy. Need to synchronize an in-the-rack sequencer with your DAW or a MIDI clock? UI has you covered.

Eight outputs isn't enough, you say? Chain two UI together via their front-panel MIDI ports and a TRS cable for 16 - you read that right, 16 - configurable CV outputs from a single MIDI connection. The possibilities are endless.

Noise Engineering also made configuration simple via the front-panel USB connection and the easy-to-use Univer Inter section on the Noise Engineering Customer Portal. Go wild and set each channel to any output option you need, or just use one of our simple presets. Configuration files can also be saved as sysex files for easy backup and sharing.

Features

Size and Power
6HP Eurorack
+12v: 40mA
-12v: 10mA

Univer - from Latin: "Universe"

Inter - from Latin: "between"

"Between universes"

What's in the box:
Module
Power cable
5-pin MIDI to TRS cable
USB A to B cable

To reduce excess materials, screws will no longer be included with Noise Engineering modules beginning in 2023.

Notes: Introducing SUM0, a voltage-controlled oscillator with expanded harmonic possibilities, in a Eurorack format.

The 4 classic waveforms are generated by a meticulously designed oscillation engine.

You can modulate its frequency and its pulse width thanks to its integrated LFO, capable of reaching audible frequencies to achieve expressive modulations with the simple touch of a switch.

Expand the voice of your system by creating complex waveforms and high harmonic content thanks to its output mixer. This mixer also has an input to integrate an external signal to the mix output.

Of course, all its parameters (FM, PWM, SYNC, V/OCT) are at your fingertips through its patch points on the front panel.

And of course, assembled with a load of passion in Bocuma's studio-workshop in Guadalajara.

Nerdy-specs:

22HP
+12V > 12mA -12V > 12mA

Notes: Wonderland is an 8×8 active patchbay/matrix mixer/switcher for both audio and control voltages. It features:

8 inputs (1 through to 8), each with micro-attenuators (which can be set with a small screwdriver)
8 buffered inverted outputs (A through to H) which are 180o out of phase with the inputs
8 buffered normal outputs (A through to H) which are in phase with the inputs
A switch matrix of 64 push on/push off switches
Any of the 8 inputs can be patched to any of the 8 outputs simply by pressing the corresponding switches. A patched signal will appear at both normal and inverted outputs simultaneously.

A single input can be patched to a single output. A single input can be patched to multiple outputs. Multiple inputs can be patched to a single output. Multiple inputs can be patched to multiple outputs.

Each input features a micro-attenuator which can be set with a small screwdriver. This space saving feature allows you to reduce the volume of an incoming signal without having to resort to external attenuators. If you add many inputs to one output you will of course cause clipping (which may or may not be desirable!), the micro-attenuators are your on-board way around this. I find it useful to leave the micro-attenuators set to 50% (which is how they come pre-set at delivery). Of course, their size is a little bit of a compromise, but they are a useful feature nonetheless. Wonderland’s sister module Looking Glass includes full size input attenuators as well as LED status indicators.

Product Specifications
12V draw
30mA

5V draw
0mA

-12V draw
31mA

Depth
35mm

Width
18HP

Notes: After Later's redesigned take on the classic Mutable Instruments Rings module offers all the distinctive resonant synth sounds you'd expect, from strings to percussion. Great value.

Supplier notes:
This is an exact hardware replica of the Mutable Instruments Rings module.

Notes: Delta-V is a fully analogue dual-channel function generator, featuring a dedicated VCA and LFO cycle switch for each channel. It packs a great deal of functionality in only 10HP, and will surely find use in almost every patch.

Generate envelopes, slew gates and signals, or run LFOs with precise control over attack and decay times. Using the SHAPE knob, Delta-v can create a wide range of envelopes, from very snappy exponential curves for percussion to logarithmic thumps for bass lines.

If VCA's input is unpatched, the module outputs a regular voltage envelope. When an audio signal is patched into the VCA input, the output signal becomes the audio signal amplified by the envelope.

Sending other envelopes or an LFO to VCA input lets you modulate those modulators, quickly creating complex control voltages that go beyond the usual attack-decay envelope.

Combine this with the SUM output, which sums the two channels, and the attenuverters, which can quickly attenuate or invert the signal, and you have a whole array of signal processing capabilities.

The TRIGGER input fires a Attack-Decay envelope, while the SLEW input will affect the rate of change of the signal.

The trigger for channel 1 and 2 can be linked together, so you can fire two envelopes with one patch cable.

Each channel has an End of Cycle output, (EOC) this outputs a short trigger at the end of each envelope cycle.

The output voltage ranges from -10 to +10 volts, set with handy output attenuverters.

The CYCLE switch starts looping the envelope, creating LFO's that go up to audio rate, and that can also be used as an interesting sound source.

There are many ways to utilise Delta-V.

Challenge yourself to explore new, unconventional territories!


Width: 10HP
Depth: 27MM
Power: +12V 70 MA
Power: -12V 70 MA
Power 5V: 0 MA

Notes: Clever stereo filter with multi-mode options and mid-side processing for adding width. Works nicely with stereo inputs or when adding stereo to a mono signal. Good value.

Supplier's Notes:
Stereo 12dB/octave state-variable multimode filter with powerful imaging technique to enhance and alter the stereo field.

The resonance sounds beyond any other filter when you play with the stereo imager control.

With 8 different combinations and span to separate both filters, you increase the possibilities to treat your sounds and open them in the stereo field.

Applying audio rate cv to the stereo imager or span control input and sweeping the cutoff control will create a unique character to the filter.

The resonant peaks can be shifted around the stereo field, every cv input can be modulated up to audio rate frequencies creating a wide palette of sonic combinations.

Size: 14HP

Power consumption 82mA@+12V, 63mA@-12V

Notes: This is a new build of a micro sized Mutable Instruments Plaits called Knit.

These modules use tall bushing potentiometers to offer a more stable feel.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.

Width: 6HP
Depth: 25mm
Height: 3U
Power Consumption: 12V: 50mA -12V: 5mA

Notes: The Jumble Henge is a 16 input stereo spectral mixer with a unique patch-based mixing interface in a compact space. Each input has a carefully tuned resonant analog filter and a unique fixed pan value, providing each sound its own space within the mix. There is a Mix control to adjust the depth of the filtering and a clean external stereo input for chaining with another mixer or extra sound source. Jumble Henge is a space efficient solution for creating rich stereo mixes from a number of both mono and stereo sources.

INPUTS
Vertical and horizontal patch position determines a source's spectral and stereo placement in the mix respectively.

Aside from centred inputs, every input sits in its own unique pan position, helping to keep a separation between sounds but building a complete stereo image when combined.

The centre right inputs of the top two rows are normalised to the centre left inputs. - i.e if just a left input is patched it will be effectively panned center.

Towards the highs the panning becomes wider - as the human ear better pinpoints direction at higher frequencies, whereas the lows remain more centred for a tighter, more focused sound.

MIX CONTROL
Mix control for the overall depth of the filters applied to the inputs. Note: a slight volume increase occurs near the centre of the dial.

EXTERNAL INPUT
An additional clean stereo input pair for chaining with another mixer or additional source. Right input normalised to left input to accomodate mono sources.

OUTPUTS
Stereo mix output, the sum of all 16 inputs.

Jumble Henge was designed in collaboration with Worng Electronics and is based on the 'SoundStage'.

Technical Specifications

Supply: +12V 70mA / -12V 70mA

Size: 8HP

Depth: 38mm

Notes: Dual tidal modulator with max, min & mix outs

FranKinksTides is a 18hp dual Tides (based on the Swirls pcb layout) with the max/min circuit from Kinks and some switches for sync, quadrature, pll and fm operation . It can be a double/complex oscillator, a dual function generator or any combination of oscillator, Lfo and Envelope generator with lots of cv control plus some interesting cross-modulation and sync features.

Some improvements in version 1.2:

-Mix output is now buffered, no signal bleeding on single outs.
-Mix pot controls also the balance of the signals sent to the max/min circuit.
-Uni/bi switch now also determines the signal sent to FM1.
-Clock/sync switch has now a center OFF position, no need of plugging a dummy cable in the Clock1 when using Sheeps firmware to avoid ultra fast sound bank changes.
small improvements for DIY:
-Bigger font size on the pcb.
-Parts renumbered for easy DIY.

Original design by Emilie Gillet
Available assembled and DIY (pcb+panel)
+12v
-12v
