Back in stock: All genres

Notes: ***B-STOCK: Box opened, product in perfect working order***

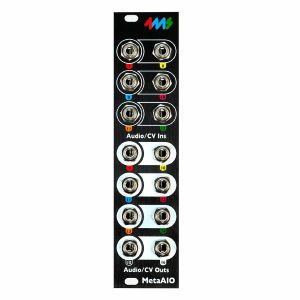

The MetaModule Audio Expander (MetaAIO) adds an additional 6 CV/Audio inputs and 8 CV/Audio outputs to your MetaModule patches, via a ribbon cable connected to the main MetaModule. The MetaAIO provides the same high-quality as the MetaModule's Audio/CV jacks (24-bit, 48kHz default, up to 96kHz).

Notes: ***B-STOCK: Box damaged, product in perfect working order***


Great value from this compact eight-channel mixer featuring built-in Alesis effects. Bluetooth and USB in/out give added versatility, allowing you to mix just about any sound source.

Supplier's Notes:
Easy-to-Use Analogue Audio Mixing with Built-in Effects from Alesis

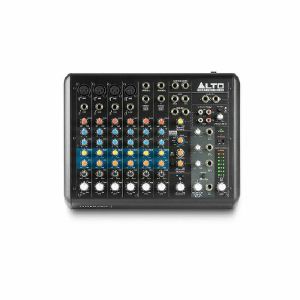

The Alto Professional TrueMix 800 FX is a portable audio mixer with built-in DSP effects that delivers all the essential features you need for home recording, livestreaming, podcasting, or performing. The TrueMix 800 FX features 16 effects including chorus, flange and an assortment of high-quality delays and reverbs. There's also a convenient Bluetooth channel for easily streaming from your personal devices. A unique feature to the TrueMix Series, the Bluetooth channel also supports feedback-free phone pairing by utilizing mix-minus technology. There are eight analogue inputs with high-headroom circuitry for minimal noise and clipping in your signal. The four Mic Input Channels offer XLR inputs that are great for connecting dynamic mics or condenser mics with 48v phantom power. These channels also have balanced 14" line inputs for connecting instruments and other line-level signals. There are also two Stereo Input Channels, each with dual balanced 14" TRS inputs. These inputs are perfect for your line level audio sources. All channels feature a two-band EQ with colour coded knobs that make it easy to dial in your perfect sound while operating in low-light situations. There are even extra knob caps included so you can fully customize the look of your TrueMix 800 FX. Connecting the TrueMix 800 FX to your computer is also lightning fast, with plug and play connectivity on Windows and macOS. The TrueMix 800 FX is a feature-packed compact audio mixer that's perfect for using on-the-go.

Flexible Output Routing

Whether you're recording a podcast, livestreaming online, or making music at home, being able to hear yourself and easily route audio is essential. The TrueMix 800 FX features a variety of output and routing options to handle any scenario. There are four headphone outputs, each with their own volume control knob. If you need to send your audio signals to another destination like an external monitor or effects unit, each channel is equipped with a send knob so you can always dial in the perfect mix. For recording, the USB output sends a copy of the main outputs to your computer, or you can connect the 2-Track in/out to an external recorder which can also be sent directly to the headphones. The TrueMix 800 FX delivers everything you need to take full control of your audio routing in any situation.

Product Features:

TrueMix 800 FX Features
USB I/O for audio playback and stereo recording
Dedicated bluetooth channel with mix-minus return for feedback-free phone pairing
Four headphone outputs with independent volume control
16 built-in Alesis multi-fx with dedicated return channel
1/4" Main, Tape, and AUX outputs
Four mic input channels with phantom power and balanced line inputs
Two stereo input channels with balanced 1/4" TRS jacks
Two-band EQ on all channels
2-track inputs w/ assignable routing: main mix or headphone out
Eight-segment LED VU meter for precise level monitoring
Extra knob caps included in the box for added customization

Technical Specifications

Frequency Response All inputs: 20 Hz - 22 kHz (i1 dB)

THD+N (Total Harmonic Distortion)
All inputs: < 0.005% (@ 4 dBu, 1 kHz)

Gain Range Mic inputs (Channels 1-2): 0 - 50 dB Line inputs (Channels 1-2): 15 dBu - 35 dBu Line inputs (Channels 3-6): -20 dBu - +20 dBu

Max Voltage Gain
70 dB (MIC INPUT to MAIN MIX OUTPUT)
80 dB (MIC INPUT to CTRL ROOM / PHONES OUPTUT)
60 dB (MIC INPUT to MON SEND)

SNR (Signal-to-Noise ratio)
All inputs: > 110 dBu

Crossover Frequency
Adjacent inputs: < -80 dB @ 1 kHz
Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-2, panned hard left or right)

Phantom Power: +45 ~ +49V with switch control

Impedance
Mic inputs: 3.9 kO
All other inputs: > 10 kO
Aux outputs: 1 kO
All outputs: 120 O

Equalization High:
+/-15 dB @ 12 kHz
Low: +/-15 dB @ 80 Hz

Bluetooth
Profile: A2DP
Module: Bluetooth 5.0
Operating Frequency: 2402 MHz - 2480 MHz
Range: 100 ft. / 30.5 m

Connectors
(6) 1/4" (6.35 mm) TRS outputs
(6) 1/4" (6.35 mm) TRS stereo L/R inputs
(4) 1/4" (6.35 mm) TRS headphone outputs
(4) 1/4" (6.35 mm) TRS mono inputs
(1) Standard RCA L/R input
(1) Standard RCA L/R output
(4) XLR inputs
(1) USB type-B input
(1) DC power input

Controls
(1) Power switch
(15) volume control knobs (1 per input, 1 return, 1 EFX return, 1 2-track/USB in, 4 headphone outs, 1 Bluetooth, 1 main)
(6) Stereo pan control knobs (1 per input)

(6) Mon volume control knobs (1 per input)
(6) EQ Low control knobs (1 per input)
(6) EQ Hi control knobs (1 per input)
(6) Gain control knobs (1 per input)
(4) Buttons (1-EFX mute, 1 Bluetooth, 2 Source Select)
(1) Horizontal sliding switch

Indicators
(1) Power LE
(6) Peak LEDs
(1) Phantom LED
(16) Main Out Meter LEDs
(1) Bluetooth LED

Power Connection: DC Voltage: 18V, 1.2A Consumption: 18W

Notes: Desktop version of the mega Hydrasynth. The same amazing synth engine, paired with polyphonic, pressure-sensitive touchpads, making it an interesting creative alternative to the keyboard version.

*** New 2.0 Firmware update for all Hydrasynth models - March 2023 ***

This is a free of charge update for all current and new users of Hydrasynth. The biggest news in this update includes:
Expanded memory to 8 banks (Keyboard, Desktop, and Explorer only)
NEW modulation source: VOICE MODULATOR
OSC Bit reducer
LFO quantizer
ENV quantizer
LFO Step Advance
Global FX bypass
Increased Vibrato resolution
New Sustain pedal options including Sostenuto
More LED options
Glissando in glide options
Arp Range goes to 6 octaves
Arp Step Offset parameter
More Rand/Init shortcuts (all STEP LFO steps, Wavescan waves, Voice mod offsets)
Local On/Off saved
......And more!
This is the first major update to the Hydrasynth family in a little, which adds a tonne of new features.


Supplier's notes:
The HYDRASYNTH Desktop / Rack has the same great sound engine as the HYDRASYNTH Keyboard. The sound engine is a sound designers dream synth as well as a performing musicians ideal. The sound engine is designed for maximum flexibility. At the same time, we designed the user interface in a way to allow you to edit the patch quickly with a minimal amount of paging and many workflow shortcuts.

Utilizing an advanced wavetable synthesis engine, 3 Oscillators, dual Wave Mutators and 2 filters that can be configured in series or parallel, the tone generating capabilities are unmatched.

As for the performance capabilities, The Hydrasynth Desktop / Rack has 24 polyphonic pressure touch pads so that you can play the unit without needing to connect a keyboard or other controller. Using multiple pad layout modes as well as quick to access scale modes, the Hydrasynth Desktop / Rack is easy to make music on.

The Hydrasynth Desktop / Rack comes with rack ears so that you can mount it in a standard 19" rack.

Notes: The Tiptop Audio Buchla Model 296t is a 16 band spectral resonator & vocoder based on the original Buchla 296.

The 296 was first introduced in 1978 and very few were ever made. Making a module of such complexity at a time when electronic schematics were drawn with pencils, with 48 filters that were most likely hand-calculated is just incredible.

The 70's were a great era of exploration and proof of audio electronics scientific theories, but for Don Buchla it seems like it was always something beyond theory.

The 296 might at first look like an equalizer, but Don Buchla had totally different ideas for it. He managed to pack into it a 16-band analogue modular spectral processor, a cross-band vocoder, plus a massive amount of patch points to work with his synthesizer system.

Notes: Tiptop bring the iconic low-pass gate to their range of Buchla reissues. The 292t offers four channels which can be mixed or treated individually, with adjustable modes for low-pass filtering, VCA or the classic low-pass gate combo.

Supplier's Notes:
The 292t is a reissue of Don Buchla's low-pass gate from the 1970s, adapted for the Eurorack modular format. The module consists of four independent low-pass gates (LPGs) and retains the natural, percussive sounds of the original, all of which can be manipulated in real time using control voltages. The 292t allows you to mix up to four sounds from their individual outputs or through a summed output, functioning as a mixdown. Each channel can operate in one of three modes: a low-pass filter with a variable cutoff, a VCA with controllable gain, or a combination of both, producing Buchla's classic low-pass gate effect.

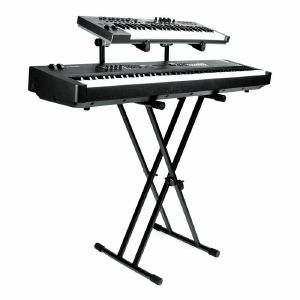

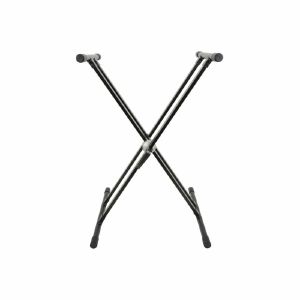

Notes: Double X-braced keyboard stand with textured end caps to aid grip and prevent the keyboard sliding forwards. Pull and lock ball mechanism enables quick setup and secure multi-point positioning.

- Easy to reach pull and spring lock ball mechanism to adjust height
- Height adjustment from 170 - 970 mm
- Anti-slip feet

Notes: Dual-purpose 1-in-1-out USB-C-to-MIDI cable with filter/mapper/router.

Notes: Experience the perfect balance of power and form with the H2MIDI Pro.

Advanced features, engineered for excellence, designed for your workflow.

Seamlessly connect USB MIDI keyboards, controllers, and devices to traditional MIDI hardware without the need for a computer. Compatible with USB class-compliant MIDI instruments, including digital pianos, drum machines, portable keyboards, guitar pedals, EWIs, synthesizers, and more.

Accommodate up to 8 USB MIDI devices via an optional USB hub, providing flexibility for complex setups.

Enjoy bidirectional MIDI communication via 5-pin DIN MIDI ports, perfect for interfacing with MIDI hardware.

Easily connect to your computer via USB-C, offering 2 inputs and 2 outputs of virtual MIDI ports.

Compatible with leading operating systems, including MacOS, Windows, iOS, Android, Linux, and ChromeOS.

Master your MIDI setup with precision using the HxMIDI Tools software, available for macOS, Windows, Android, and iOS. Customize routing, apply intelligent MIDI filtering, and perform robust message remapping effortlessly.

Notes: The compact MIDI thru box with optional wireless MIDI. Work straight out of the box with high-speed wired MIDI. Expand with ultra-low latency wireless MIDI via the optional WIDI Core.

Notes: This is the world's most versatile MIDI Interface compatible with all major operating systems via USB. Easily configure MIDI split/thru, merge, reassign and filter out any MIDI message via the free UxMIDI Tools software (Win/Mac).

Notes: Analogue VCO with range from 16Hz up to 32.000Hz.

Variable Voltage Controlled Wave Shaper.

Advanced pitch control with Voltage Controlled Quantizer, so it is always in tune.

Hard Sync Input.

Separate Pulse Output, for use as a clock or to sync other oscillators
.
Power Consumption: 114mA @ +12V , 46mA @ -12V.

35mm depth.

Notes: SOLAR 42F is a unique experimental electro-music instrument, an analogue microtonal ambient drone machine. It will inspire you to find a new and spontaneous approach to composing music. It gives you the ability to create a multi-layered, massive sound. The instrument is oriented for live performances, creating film soundtracks, theatre soundtracks, atmospheric sounds, microtonal and background music.

It is an improved version of the older SOLAR 50 model. The instrument was inspired by early electronic musical instruments of the 1920s and 1950s, notably Leo Theremin's "Harmonium" instrument, as well as science fiction film soundtracks.

The new version of the Solar 42F has added a LIN/EXP CV switch, sub oscillators in volt octave voices and a band pass and stereo distortion mode to the filter. Other quality of life improvements include modified graphics - inputs have been labeled in black and outputs in red for convenience - bypasses for each channel of the effector and a LED indication in the joystick unit.

Notes: SOLAR 42F is a unique experimental electro-music instrument, an analogue microtonal ambient drone machine. It will inspire you to find a new and spontaneous approach to composing music. It gives you the ability to create a multi-layered, massive sound. The instrument is oriented for live performances, creating film soundtracks, theatre soundtracks, atmospheric sounds, microtonal and background music.

It is an improved version of the older SOLAR 50 model. The instrument was inspired by early electronic musical instruments of the 1920s and 1950s, notably Leo Theremin's "Harmonium" instrument, as well as science fiction film soundtracks.

The new version of the Solar 42F has added a LIN/EXP CV switch, sub oscillators in volt octave voices and a band pass and stereo distortion mode to the filter. Other quality of life improvements include modified graphics - inputs have been labeled in black and outputs in red for convenience - bypasses for each channel of the effector and a LED indication in the joystick unit.

Notes: This professional 24-bit/192kHz USB-C audio interface boasts 2 inputs and 2 outputs with excellent quality, making it the ideal choice for anyone seeking exceptional audio quality and versatility. Positioned right inbetween the Amber i1 and the larger Amber i4, the Amber i2 offers a balanced blend of performance and affordability without quality compromises.

Flexible Monitoring with ADM (Advanced Direct Monitoring): Tailor your monitoring experience to your needs with various configurations and enjoy real-time, zero-latency monitoring for flawless recording sessions.

Professional Mixer: Easily mix the input sources and playback signals directly on the interface.

Bidirectional MIDI Ports: Connect your MIDI devices seamlessly and use the 2 ports as either inputs or outputs.

Modern, Eye-Catching Design: Featuring a sleek look with a functional LCD display and an amber-colored volume knob that stands out against the green sand main body color.

Ultra Low Latency Drivers: Experience high-performance audio with exceptional stability.

The Amber i2 combines top-notch features with an unbeatable price, delivering above-average quality and performance. Whether you're a seasoned professional or just starting your audio journey, the Amber i2 is your go-to interface for creating stunning audio.

Notes: ESI's 4-in, 4-out audio interface offers clear sound quality, flexible connectivity and versatile monitoring. More advanced than the smaller Amber i2, the i4 includes MIDI in and out and two headphone outputs.

Supplier's Notes:
This professional 24-bit/192kHz USB-C audio interface boasts 4 inputs and 4 outputs with excellent quality, making it the ideal choice for anyone seeking exceptional audio quality and versatility. Positioned right at the pinnacle of ESI's Amber lineup and a step above Amber i2, the Amber i4 offers unparalleled performance and affordability without quality compromises.

Flexible Monitoring with ADM (Advanced Direct Monitoring): Tailor your monitoring experience to your needs with various configurations and enjoy real-time, zero-latency monitoring for flawless recording sessions.

Professional Mixer: Easily mix the input sources and playback signals directly on the interface.

Bidirectional MIDI Ports: Connect your MIDI devices seamlessly and use the 2 ports as either inputs or outputs.

Modern, Eye-Catching Design: Featuring a sleek look with a functional LCD display and an amber-colored volume knob that stands out against the green sand main body color.

Ultra Low Latency Drivers: Experience high-performance audio with exceptional stability.

More Inputs and Outputs: Equipped with 4 inputs (including 2 line inputs on the back), 4 outputs, and 2 independent headphone outputs, providing great flexibility for various recording and playback needs, as well as A/B comparison of mixes.

The Amber i4 combines top-notch features with an unbeatable price, delivering above-average quality and performance. Whether you're a seasoned professional or just starting your audio journey, the Amber i4 is your go-to interface for creating stunning audio.

Notes: The stylish and very powerful M8U eX is a modern USB 3.0 MIDI interface with a total of 16 MIDI ports in one single device.

Featuring the popular MIDI auto detection technology that was pioneered by ESI, each of these 16 ports can either be used as a MIDI input or as a MIDI output, replacing not only regular MIDI interfaces like our previous popular legacy multi port MIDI interfaces with 8 inputs and 8 outputs, but providing also other possible configurations: for instance, you can use up to 16 outputs at a time or up to 16 inputs, or any other combination, like 12 outputs and 4 inputs. Each automatic input / output configuration is displayed via colored LEDs on the front panel.

If the number of ports is not enough, you can hook up multiple M8U eX to the same computer - a feature that is made easy also via the integrated fast USB 3.0 hub that allows you to connect other USB equipment like software dongles or USB keyboards and others to your computer. This literally turns M8U eX into the central hub for the MIDI and USB devices in your studio or live performance setup.

The 100% fully class compliant device can even be bus powered (or if needed for other USB devices, it is powered via the included 5V DC power supply) and it works out of the box without the installation of additional drivers on Windows 7, Windows 8.1, Windows 10, Windows 11 and macOS systems (both 32-bit and 64-bit). Yet, there is more: it also works as a standalone Thru and Merge solution for your MIDI devices. Selected via a push button on the front panel, M8U eX provides various configurations allowing you to merge multiple MIDI signals and send them out to a single port or to send out signals through multiple ports that are coming in from just one - all based on your individual needs.

All this makes our M8U eX easily the most powerful USB MIDI interface existing on the market today.

If 16 ports are more than what you need, there is also the smaller M4U eX available, with 8 ports.

Features/specifications

USB 3.0 MIDI interface
100% class compliant, works without the installation of a driver
USB bus powered
16 MIDI ports, 8 on the front and 8 on the back
Automatic input and output detection, each port works as a MIDI input or MIDI output
Standalone operation possible
Can be used as MIDI Thru box in standalone mode to send one MIDI signal to 15 outputs
Can be used as MIDI merger in standalone mode to merge 15 MIDI signals to a single output
3-port USB 3.0 hub with external 5V DC power supply to power USB devices (power supply included)
Multiple units can be used with one computer at a time
Downwards compatible to USB 2.0 with a USB 2.0 legacy mode
Optional ESI MIDI Port driver for multi device / multi client operation under Windows available
Dimensions roughly 32.5cm x 14.5cm x 4.5cm

Notes: MAYA44 USB+ is a powerful, affordable and very stylish USB audio solution for home recording - a perfect solution for mobile live and recording applications!

Beside standard recording and playback functionality, MAYA44 USB+ provides everything that is needed for professional music production. In its compact aluminium case MAYA44 USB+ provides 4 analog input and 4 analog output channels with RCA connectors and a combined optical S/PDIF digital output / stereo headphone output. The headphone output provides a separate stereo output signal, making it perfect for DJs.

With support for ASIO 2.0, CoreAudio and MME / WDM, MAYA44 USB+ is compatible to all major music and DJ applications like Cubase, Logic, Sonar, Reason, Reaktor, MixVibes, Traktor DJ Studio, BPM Studio and much more.

Features
4 input channels and 4 output channels with RCA connectors
-10dBV input / output level (unbalanced) with improved performance
optical S/PDIF digital output with Miniplug connector
headphone output (1/8" connector) with 60mW amplifier, sends out signal from channel 1 / 2 only
MME, WDM, ASIO 2.0 and CoreAudio support
EWDM driver with DirectWIRE support under Windows
standard USB connection to PC or Mac
compatible with Windows XP, Vista, 7, 8.1, 10, 11 (32-bit / 64-bit) and Mac OS X
compatible with all important DJ software applications
compatible with all important professional audio applications
compact and portable design with around 12 cm x 7 cm x 2 cm

Notes: Whether you're about to become a content streamer or beat maker or anything beyond - with Neva Uno you're ready to go instantly.

Coming at a super affordable price, Neva Uno offers superior audio quality, elegant design and an extensive software package while retaining a compact form. Equipped with professional pre-amplified microphone and guitar inputs as well as two line inputs, it offers everything you need to get started right away. The USB-C port makes it easy to connect to your computer or mobile device. Neva Uno comes with professional ASIO drivers including DirectWIRE loopback function and more, so you can focus on your creativity.

Features

2 input / 2 output 24-bit / 192kHz USB 3.1 audio interface with USB-C connector
XLR combo microphone preamp with +48V phantom power support
Hi-Z instrument input with 1/4" connector
USB bus powered (no additional power adapter needed)
line output with unbalanced RCA connectors
headphone output with 1/4" connector
ADC with 97dB(a) dynamic range
DAC with 107dB(a) dynamic range
Zero latency hardware direct input monitoring activated by switch
Master output volume control
Supports Windows 10, Windows 11 with ASIO 2.0, MME, WDM and DirectSound
Supports macOS via the native CoreAudio USB audio driver from Apple
Stereo hardware loopback channel for internal recording
Includes Bitwig Studio 8-Track DAW
Includes Steinberg WaveLab LE audio editor license
Works with Cubasis LE from Steinberg for iPhone / iPad
Includes 3 month (up to 9000 minute) subscription to JackTrip Virtual Studio
Dimensions: 10.5cm x 9cm x 4cm


Connectors & Functions

+48V PHANTOM POWER SWITCH to provide power for a condenser microphone.

LINE HI-Z SWITCH for input 2 to switch between Line level and Hi-Z guitar signals.

DIRECT MONITORING SWITCH to enable or disable input monitoring to listen to the input signals.

GAIN KNOB 1 to change the input gain / input level for input 1. The LED ring indicates the signal level.

GAIN KNOB 2 to change the gain / input level for input 2. The LED ring indicates the signal level.

VOLUME KNOB to change the main output volume for connected headphones and speakers.

XLR / TRS COMBO INPUT 1 to connect a microphone via XLR cable or a line signal via 1/4" TRS connector.

TRS INPUT 2 to connect a line via 1/4" TS connector.

HEADPHONE OUTPUT to connect headphones.

LINE OUTPUT 1/2 to connect the stereo master line level output signal via RCA cables for left and right channels.

USB-C CONNECTOR to connect the audio interface to a PC, Mac, tablet or mobile phone.

Small, portable and perfect for your podcasting or live streaming applications

This stylish 24-bit / 192 kHz USB-C audio interface is so small, it will instantly become your new companion on the go and in your studio. Neva Uno is USB bus powered and Plug & Play, just plug it in and start working! It works with any modern Mac (Intel or M1 CPU or better), PC (Windows 10 and higher) and with many portable devices (iPhone, iPad, etc.). One XLR/jack combo input will take either your microphone or line signal, while the second 1/4" jack input accepts line or Hi-Z guitar signals. The inputs feature a mic preamp with up to 50dB gain and 48V phantom power support and the analog-to-digital converter provides 97db(a) dynamic range. On the output side, there is an integrated headphone amplifier and stereo line RCA outputs with a digital-to-analog converter with 107dB(a) dynamic range, allowing you to connect a mixer, amplifier or active speakers. You can monitor incoming audio signals with zero latency, just push the direct monitor button.

Neva Uno is compatible with virtually all common audio software thanks to the professional low latency ASIO 2.0 driver for Windows and CoreAudio compatibility on the Mac. There is even a DirectWIRE hardware loopback function that allows you to route and mix different sound sources internally: perfect for podcasting or live streaming applications.

All this turns Neva Uno into an ideal device to get started in the world of digital audio recording, no matter if you create your own music, if you want to mix and edit audio, if you work on your podcast or even for live streaming. And yet there is more: Bitwig Studio 8-Track and Steinberg WaveLab LE are included. On the iPhone and iPad, you can use Cubasis LE from Steinberg.

An alternative to Neva Uno is ESI's larger model Neva Duo with two microphone preamps.

Notes: Heavy duty synthesiser stand that can hold 2 synthesisers, features rubberized feet to prevent slipping during use.

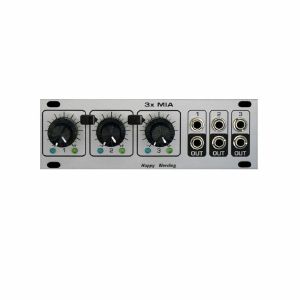

Notes: 3xMIA is a 6-channel attenuverting mixer/offset/scale/polarizer

3 blocks of 2-channel attenuverting mixers, using dual concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.

With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.

DC coupled, so it can be used for audio, CV, or both at the same time.

80 mA +12V
80 mA -12V
35 mm Depth
24HP wide

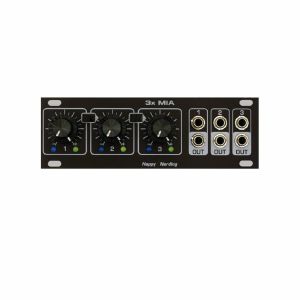

Notes: 3xMIA is a 6-channel attenuverting mixer/offset/scale/polarizer

3 blocks of 2-channel attenuverting mixers, using dual concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.

With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.

DC coupled, so it can be used for audio, CV, or both at the same time.

80 mA +12V
80 mA -12V
35 mm Depth
24HP wide

Notes: 3xMIA is a 6-channel attenuverting mixer/offset/scale/polarizer.

3 blocks of 2-channel attenuverting mixers, using dual concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.

With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.

DC coupled, so it can be used for audio, CV, or both at the same time.

80 mA +12V
80 mA -12V
35 mm Depth
6 HP wide

Notes: 3xMIA is a 6-channel attenuverting mixer/offset/scale/polarizer

3 blocks of 2-channel attenuverting mixers, using dual concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.

With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.

DC coupled, so it can be used for audio, CV, or both at the same time.

80 mA +12V
80 mA -12V
35 mm Depth
6 HP wide

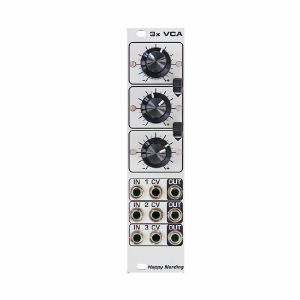

Notes: 3xVCA ofers three high class amplifier circuits with linear characteristic. Thanks to AC / DC compatibility, a very low noise floor and basically no distortion, the module is not only a great partner for control voltages, but audio material as well. Besides a signal input and output, each VCA has its own CV input. The dual potentiometers regulate levels and bipolar CV attenuation values of all amplifiers. Using these rather unusual, yet very practical components, it was possible to equip the 3x VCA with a front panel that is only 6 HP wide. Switches allow the user to feed the results of one amplifier to the output of the next amplifier, so we can get 1+2, 2+3, and 1+2+3 outputs mix. Two-colored LEDs visualize CV and output signals.

60 mA +12V
60 mA -12V
35 mm Depth

Notes: Mix up to four stereo channels in just 4hp, or chain multiple modules together to add channels. Inputs are normalled for mono operation. Simple, compact and high quality at a reasonable price.

Supplier's Notes:
4xSt.Mixer is 4 HP quad stereo mixer.

Right inputs are normalled to Left inputs for easy mono operation

Several 4xSt.Mixers can be chained together or with other HN stereo modules via sockets on the back side

65 mA +12V
50 mA -12V
35 mm deep

Notes: Dual xFade is a compact voltage controlled crossfader suitable for both audio and CVs. Smaller knobs set manual crossfade between A<>B, and bigger knobs are CV attenuverters. LEDs show the adjusted positive and negative CV sides for easy monitoring.

Upper inputs (section 1) are normalled to lower inputs (section 2). Thus the same signal pair A&B can be differently crossfaded in both sections.

The switch clones section's 1 controls to the section 2, which is useful to make stereo Dry/Wet adjustment or stereo VCA.

This module can be used as:

two independent crossfades

two independent VCAs

stereo crossfade or Dry/Wet control

stereo VCA

panner

Four jumpers on the back can give optional 5x amplification for each A or B input. Sot it is easy to crossfade modular level with linear level from pedals. Installed jumpers give 1x amplification, removing jumpers gives 5x amplification.

Output 1 is mixed with output 2 if left unconnected.

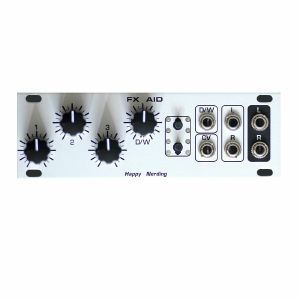

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analogue Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long .wav file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 2000 Hz or brought up to 48 kHz.

Dimensions

24 HP
40 mm deep
Module is a 1U tile in Intellijel format

Current Draw

80 mA +12V
30 mA -12V

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other user selected Happy Nerding effects in any order. Also the possibility to run freely available third party effects will be added too.

Reflashing procedure is quite easy: playing 40 sec long "wav" file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

Please note the reverse CV operation of the Dry/Wet control: positive CV crossfades from Wet to Dry, and negative CV crossfades from Dry to Wet.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 150 Hz or brought up to 48 kHz.

80 mA +12V
30 mA -12V
45 mm deep

Notes: Upgraded Pro version of the outstanding FX Aid multi-effects module. 200 onboard stereo effects, customisable via an online app, with added CV inputs and even more physical controls. Superb.

Supplier's Notes:
FX AID Pro:

OLED screen shows current effect's number, name and its three parameters

200 onboard effects which can be arranged in any order via the online editor https://fxaid.app/pro

Instant switching of the effects or seek then activate option

Stereo input level control

SRR input can also be routed to parameters 1-3 or effect selection

Advanced internal lfo which can be routed to the Sample Rate, parameters 1-3 or effect selection

Manual control of the Sample Rate with one click for default position

10 user storable presets with handy indicator lines for each stored parameter

Screensaver with 1, 10, 30, 60 minutes options

Easy update by playing wav file, level indicator for proper volumes matching

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Separate modulation inputs for all three effect parameters plus Sample Rate Reducer (SRR) input - changes internal clock. Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long "wav" file of line level amplitude to SRR input.

Reflashing mode: hold both buttons for 10 sec.

Please note the reverse CV operation of the Dry/Wet control: positive CV crossfades from Wet to Dry, and negative CV crossfades from Dry to Wet.

By default it runs on 32.77 kHz and, this sample rate can be decreased down to 150 Hz or brought up to 48 kHz via SRR input.

80 mA +12V
30 mA -12V
45 mm deep

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Separate modulation inputs for all three effect parameters plus Sample Rate Reducer (SRR) input - changes internal clock. Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long "wav" file of line level amplitude to SRR input.

Reflashing mode: hold both buttons for 10 sec.

By default it runs on 32.77 kHz and, this sample rate can be decreased down to 150 Hz or brought up to 48 kHz via SRR input.

Please note the reverse CV operation of the Dry/Wet control: positive CV crossfades from Wet to Dry, and negative CV crossfades from Dry to Wet.

80 mA +12V
30 mA -12V
45 mm deep

Notes: ***B-STOCK: Box damaged with tears on packaging, but product is in excellent condition and in perfect working order***


The Headliner 3-Tier Desktop Synth Stand was designed to improve your workflow and help you stay organized while fitting more gear on your production desk. It fits three compact devices like synthesizers, controllers, drum machines, and effects modules. The angled design makes it easier to reach knobs and view LCD screens.

The Headliner 3-Tier Desktop Synth Stand is adjustable in width from 7.3" to 11.5" and fits a variety of devices from Roland, Korg, Elektron, and more (partial list below). It is made from solid steel and includes non-slip rubber strips for added stability.

Features
Improve your workflow and stay organized while fitting more gear on your production desk.
Fits three devices such as synthesizers, controllers, drum machines, and effects modules.
Angled stand makes it easier to reach knobs and view LCD screens.
Solid steel construction with non-slip rubber strips keep stand and equipment in place.
Width adjustable from 7.25" to 11.5". Best fits devices from 8" to 14" in width.
The lower tier has a depth of 7". The middle and upper tiers have a depth of 5.25".
Overall dimensions of stand (WxDxH): 7.25"-11.5" x 17" x 17.5".
Includes non-slip rubber strips.

Fits*: Akai Fire, Alesis SR-16, Arturia SparkLE, Behringer Crave, Behringer TD-3, Behringer RD-6, Elektron Digitone, Native Instruments Maschine Mikro MK3, PreSonus ATOM SQ, Akai LPD8, Akai MPX8, Dreadbox Typhon, Korg nanoPAD2, Korg SQ-1, Korg Volca Bass, Korg Volca Beats, Korg Volca Drum, Korg Volca Kick, Korg Volca NuBass, Korg Volca Sample 2, Roland Boutique Series, Roland MC-101, Roland TB-3 Touch Bassline, Roland TR-6S
*Some devices may not fit on all tiers.

Notes: The Great Wave Turntable Slipmats 12", printed using a high resolution printer, the results will not disappoint.

These are considered the go to slipmats for printers and turntablists, A hybrid slipmat with a unique glazed bottom surface.

These slipmats are compressed with enough thickness and density to accommodate the speed and accuracy of a Scratch DJ, without having the needle bounce when touching the vinyl. The Mix/Club DJ's using our hybrid glazed slipmats would get the absorbent feel and gain the speed along with the accuracy of a Scratch DJ.

These slipmats also work perfect for any vinyl/collector home turntablist.

Professional Grade Blank Slipmats for 12" Turntables
Weight: 16oz Felt
Bottom Surface: Glazed
Thickness: .09" (3/32")

Additional information

Weight: 0.2 g
Size: 12"
Pair of Slipmats

Notes: The legendary Alpha Base drum machine gets a major update. Sheer analogue power meets hybrid sampling options, now with improved visual feedback, better control and tweaked sound engines. Immense.

Supplier's Notes:
The ALPHA BASE Mk II is the successor of the already legendary ALPHA BASE.

What's new?

-Graphic OLED display
-Real RGB LEDs in the sequencer
-More buttons: Last Step, Roll/Flam, Store Kit/Patt, Rec Para and Rec Sample
-Analogue panning circuitry for the hybrid sample channels
-Improved analogue engine
-Noise volume is controllable in the hybrid sample channels
-More samples
-Headphone volume is independent from mix volume

It's true analogue. Eleven instruments, sequencer, Midi/USB/SD-Card. Samples. Sampling inputs, balanced individual outputs.

Although it may appear similar to the classics XBASE 09, 999 and 888, the ALPHA BASE has an entirely new design under the hood. Jomox have put in the concentrated know-how of their drum machines and synths of the past 20 years. Some things have been simplified, but also added new components or have combined them new. The outcome is the best sounding and most versatile drum machine that Jomox has ever built.

Kick Drum

The centre instrument still is the analogue kick drum which has gotten a facelifting again. The legendary punch and assertiveness of all Jomox kicks is convincingly continued. LFO, pitch envelope, metallic noise and gate time are famous features that may not and do not miss out.

MBrane
As a second analogue instrument, Jomox have put in a complete MBrane voice. It covers a gigantic spectrum of analogue snare drums, percussions, cow bells, claves, glasses, toms, bass drums etc. etc. It uses the technology of the Mod.Brane11. Of course, this instrument has 2 own LFOS, pitch envelopes and metallic noise as well.

Samples+Filter

The succeeding six instruments are built hybridly and consist of samples that are run through real analogue filters and VCAs. Each analogue sample channel has an own metallic noise that alternatively can be used as a signal source or being mixed to the sample.

With metallic noise only, it becomes a pure analogue instrument again. Four channels make use of a multimode filter that is capable of resonance - again they can be used as true analogue instruments with the self-oscillating filter as the only sound source if you wish.

Hi Hat

Two of these six channels are reserved for hi hats and make use of a proven and improved HH filter that was used in the XBASE 999 already. It is specialized for analogue hi hats and may conjure wonderful noisy hi hats from a sample mixed with metallic noise.

Clap, Rim, Crash, Ride

The succeeding four channels have each a resonateable 2-pole multimode filter that can be switched between LP, HP and BP. The filter cutoff can be modulated by an ADSR envelope and an LFO per instrument. If the filter is self-oscillating, one can create wonderful analogue toms, claves, sticks etc. by means of the VCA envelope behind. Or even extremely bend samples sonically. By principle, each of the four MM filter sample channels is a little synth voice of its own. A sampled synth bass run through the analogue filter is nearly indistinguishable from a real analogue synth.

X Sample 1+2

Moreover, there are two sample instruments that work purely digital. It's even possible that the Alpha Base can sample external audio on these channels for about max. 5 seconds. Which is more than enough for drum samples. The recorded sample can be stored on SD card or being copied to the internal flash memory and then being played back by the other sample channels. Samples can also be copied from SD card into flash memory. The format is RAW/WAV mono 16 Bit / 48kHz. The internal organization divides samples into fixed memory slots that can be addressed by the parameter sample select in the instruments. All samples can be pitched and modulated in a wide range. The sample start and stop can be edited and they are loopable as well. Modulation targets are: pitch, filter cutoff and volume. Each channel has an own LFO for that.

FM Synth

As a little digital gadget, a mini FM synth has been added. With 4 operators and maximum 6 voices it can create weird and crazy percussion sounds up to simple chords. Played over an external midi keyboard, it can be used as a polyphonic synth.

Effects

Two digital effects are on board: delay and reverb that act as send/return effects. Each of the analogue instrument outputs has an own A/D converter. The delay effect can also be inserted into the six hybrid sample channels and becomes then part of the sound production chain. The reverb can easily be killed by an encoder click but is indeed a great advantage for life performances with minimal equipment. Reverb times may reach to almost infinity, and the damping filters act quite extremely so that the reverb meets the requirement of modern electronic music and can be an essential part of sound.

Editing

For the editing of parameters there are 16 encoders arranged in a 4x4 matrix. Each instrument only addresses two pages by 16 values to make the editing as easy as possible, without deep menu cursors.

11 Instruments: Kick Drum, MBrane, Cl HiHat, Op HiHat, Clap, Rim Shot, Crash, Ride, X Sample 1, X Sample 2, FM Synth.
Real analogue Jomox kick drum.
Real analogue Jomox MBrane voice with 2 coupleable F-OSC for complex analogue snare, percussion, bass and tom sounds ranging from 16Hz to 20kHz.
2 sample based instruments with analogue VCA ADSR envelope and/or HH filter, optionally with metallic noise mixed as extra sound source. The HH filter is 2-pole, HP/LP/Res each separated parameters, peakable but not oscillating.
4 sample based instruments with analogue VCA ADSR envelope and/or resonating multimode filter (LP, HP, BP) with ADSR envelope, optionally with metallic noise mixed as extra sound source. The multimode filter can be used as a signal generator in order to generate analogue toms or sticks etc.
2 sample based instruments with external sampling input and pure digital playback.
1 FM synth with 4 operators and max. 6 voices for percussive sounds.
Effects delay, reverb with send per instrument, also insertable into analogue signal path on CH, OH, Clp, Rim, Ride.
LFOs: per instrument one LFO (MBrane 2 LFOs) with 64 wave forms, each assignable on pitch, VCA, filter cutoff.
500 samples 16 Bit/48kHz in internal flash memory.
SD card slot for loading of samples.
USB (Midi Device).
Midi In, Midi Out, Midi Thru.
Inputs: stereo in for sampling, FX or sidechain. Both inputs are Hi-Z and suitable for guitar/bass or work up to line level +20dBu.
Outputs: 8 individual balanced outputs, stereo mix balanced, headphones.
Output Level: max. ca.+14dBu unbalanced, +20dBu balanced on all outputs.
18 encoders
Input Volume, Phones Volume and Mix Volume are analogue potentiometers.
OLED Display 256x64px.
12V 2A DC external power supply.
Stable metal case.
Wooden side cheeks, rubber feet.
Size: 41cm (16.1") x 24cm (9.5") x 8cm (3.2") (back side).
Weight: ca. 3.3kg (7.26 lbs).

Notes: Jomox's legendary analogue kick drum prowess distilled into Eurorack form. Hugely versatile sound with plenty of CV control on the front panel, plus MIDI via DIN sockets hidden round the back.

Supplier's Notes:
The mightiest Bass Drum - MK II

Tune Varies the pitch envelope of the VCO

Pitch Basses as low as 10Hz reach up to 175Hz

Decay Up to 2 sec

Harmonics Enrichment of harmonics of the VCO - for the hardest kick drums on planet earth

Pulse Change of the pure pulse part of the attack - gate time affects this parameter also

Noise Change of the pure noise part of the attack - gate time affects this parameter also

Attack Level of the mixing of Pulse and Attack

EQ Filters the bass drum with a low pass filter - for soft and 808ish kick drums

Gate T Varies the gate time from 0.1ms to 16ms

Compr Compression of decaying envelope - for slim and clicky kicks and all the depth that is needed

MetNze Metalized noise. A complex digital multitone pattern of 499 different combinations feeds the attack noise

CV1-CV4 can route the external 0-5V CV signals to any of the above parameters including LFOs. Also negative amounts are processed.

LIN.FM This is a true analog dedicated CV FM modulation input for the bass drum VCO. It only works linear-wise and does not offer musical semitones across the CV scale.

ACC This is a CV input for the kick drum accent / velocity. This input may also trigger the kick drum dynamically if the ACC trigger mode is set and the sequencer is able to generate dynamic pulses.

LFO The ModBase 09 has 2 LFOs that work on the pitch of the bass drum. The LFO always starts syncronous to the gate trigger.

The wave forms are: saw up, saw down, sine+/-, triangle+/-, rectangle+/- and portions of it.

MIDI The midi controllers of this module are identical to the Alpha Base/XBASE999/MBase11. All parameters including LFOs can be remotely controlled by Midi CCs.

Bus Env Is the programmable level of the audio out signal from the bus on the back mixed to the Kick Drum VCA envelope. Works with experimental Jayemsonic modules.

140 mA +12V
80 mA -12V
0 mA 5V
53 mm deep

Notes: 10hp blank panel for modular synth system

Notes: 4hp blank panel for modular synth system

Notes: 6hp blank panel for modular synth system

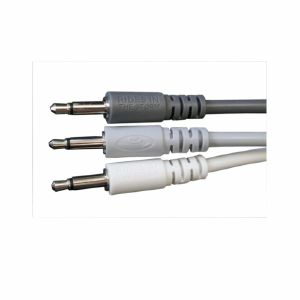

Notes: 15 pack of purple 6", white 12", and black 24" patch cables for modular synths.

3.5mm mono jack connectors.

Notes: A spin-off from the brilliantly experimental Strega synth, the Bruxa module offers a different type of 'Time/Filter Experiment' designed to warp and twist sounds from other modules. Excellent creative stuff.

Supplier's Notes:
Check Make Noise's website for content and pictures!

The Bruxa music synthesiser module is an audio alchemical experiment. Spill your sound into time, and let it decay through the filters to hear the results.

Bruxa is a collaboration between Make Noise and Alessandro Cortini. Inspired by Cortini's music and sonic experimentations, Bruxa embodies the seen and unseen, the sign and magic, the alchemy of sound. It is a new evolution of Tony and Alessandro's original prototype circuits which eventually became the Strega's Time/Filter Experiment. It is a multi-tap delay line with over a dozen unique feedback paths and multiple filters within those feedback paths aligned to allow for accumulation of noise, saturation and signal degradation.

While Strega is a complete synthesiser in a tabletop form factor, Bruxa is a Eurorack module designed to be used as one part of a Eurorack modular synthesiser. You will discover a number of differences in layout, signals, and sound. Living inside the Eurorack modular system, Bruxa encourages you to patch your own sound and modulation sources, yielding results surprisingly distinct from Strega.

Echoverb signal processor which shares origins with Strega
Well tuned to work nicely in a Eurorack modular system
All analogue dry signal path blended with digital/ analogue hybrid signal processor
Analog CV inputs with wide range capable of audio rate modulation
Time control with massive, smoothly variable range
Linear FM input with attenuator allows for fluttering of Time
Absorb and Filter controls dramatically shape the echo tone and reflections
New unique CV outputs for use in self-patching or mutual patching with other modules
Pairs well with DPO, STO, MATHS, Prss Pnt, modDemix and more!

Specs:

Width: 18hp
Max Depth (incl. power cable): 48mm

Power:
140mA @ +12V
90mA @ -12V

Notes: 10 pin to 16 pin power cable for Make Noise synth modules

Notes: 16 pin to 16 pin power cable for Make Noise synth modules

Notes: The Michigan Synth Works SY-1 Drum synth is a full size, exact replica of the Pearl SY-1 Syncussion. Every detail has been replicated from the original board layouts to the mechanical construction. The assembled version has been modernized to use current manufacturing processes while still using the original board layouts and all parts have been carefully chosen to match the behaviour of the original. Case, boards, and I/O Boards are all interchangeable with the original Pearl device

The Syncussion:

The Syncussion is a 2 voice drum synthesizer with two oscillators per voice and six different modes. Five modes mix and modulate the oscillators plus a noise channel. Each voice has controls for TUNE, DECAY, SWEEP amount, SWEEP Speed, Sweep up/off/down, LFO amount, and LFO speed, LFO Shape (Tri or Square), and sample and hold

OSC Modes:

A: One oscillator sound, at this position the regular drum synthesizer sweep can be effected.

B. Sound of one oscillator adjusting the other osciIIator frequency; produces a metallic sound.

C. Sound of a mix of two oscillator outputs; sound is similar to that of a vibraphone.

D. Sound of mix of two oscillator outputs; produces a low to high sweep and is done by hitting pad softly or hard; there is no connection to SWEEP SPEED and SWEEP RANGE

E. Sound of one oscillator adjusting the other oscillator frequency with a mix of noise; produces a sound similar to hitting thin metal.

F. Sound of only noise

Triggering:

The SY-1 is designed to be triggered via drum triggers which output a very low pulse signal. Modern 5V trigger signals (v-trig) can be used, how it i recommended experimenting with simple audio samples or more dynamic triggers. One of the more interesting features of the Syncussion is the dynamic response to the drum triggers and just sending a straight pulse which maxes out the trigger inputs does not do the device justice.

Tuning:

The original SY-1 uses a tune pedal to adjust the pitch of both oscillators while playing. This functionality has been retained in the original configuration but is of limited use without the pedal. The expanded version DOES have per voice CV control (1v/Oct) as well as the MIDI.
The Michigan Synth Works SY-1 is available in 3 different versions:

Expanded I/O Configuration: The inputs and outputs use 1/4" Stereo to 1/4" (3 included) to greatly expand the capabilities of the device. The Mod input is open for user modification, factory mods will be available. Please contact for details.

Trig 1,2 In - Mod 1,2 In - Mute - Tune 1,2 CV in - Output 1, 2

The SY-1 ships with a metal base panel but the DIY wood case can be used instead. It is provided UNFINISHED and sold separately.

What's included:
SY-1 Synthesizer
Universal Power adapter (100-240V, 12V DC out, Tip Positive)
Expanded I/O: 3x 1.5m TRS 1/4" Phone to 2x TS 1/4" Phone

Notes: ***B-STOCK: Box opened, product in perfect working order***

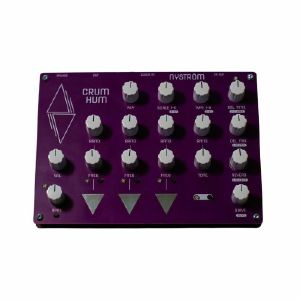

A clever take on generative sound, the Crum Hum is a three-voice soundscaping instrument, capable of creating unique melodic and harmonic tones based on 12 different sound engines.

Supplier's Notes:
Crum Hum is a 3-voice experimental and expressive soundscaping instrument with generative, ever evolving melodic and harmonic creation.

3 melodic voices with expressive touch control

12 different Sound engines

Generative & randomized melodic and chord generation

12 different Scales

Delay, Reverb, Overdrive, LFO

3.5mm CV output

3.5mm Clock input

Send and receive Midi sequencing and Midi CC.

Notes: They are not just blanks, they are MULTS! Each white line connects holes which are electrically connected. Nicely fits the tip of a patch cable for a quick-n-easy signal splitting.

OR

The holes are sized for screws to fit, but not fall through, acting as a handy screw holder!

OR

Use it as a vent for your toasty warm skiff!

Notes: Rhythmi is a Eurorack drum sequencer that allows you to dial in your groove, and explore it by evolving the pattern and modulating the energy. It allows for rhythmic inspiration and creativity without the burden of step programming. The evolve parameter enables smooth transitions between related rhythms through the use of branches. New branches can be generated at the push of a button, loading up a whole new branch of related rhythms to explore. The Evolve parameter is the heart of Rhythmi, its inspiration, and defining feature. Allowing rhythms to shift, transform, and melt into one another.

The Clock Section provides internal or external clocking with division or multiplication. The Customize Section shapes individual drum elements through density and syncopation. The Global Section introduces macro-level control over the rhythm via the Energy, Evolve, Length and Swing parameters, dynamically shaping fills and variations. Rhythmi has a jumper cable connector on the back to pair up seamlessly with Beatsi, the drum voice it was designed alongside with.

Technical specs:

- Module Size: 3U X 14HP X 25 mm Deep.
- Current Draw: 120mA (170mA peak)@ 12V, 10mA@ -12V.

What's in the box:

1x Rhythmi module
1x User Manual
1x Power cable
4x Mounting screws

Notes: 10x Rides In The Storm branded PVC patch cables.

Longlife and superb audio quality

2 x 60,0 cm in dark grey

4 x 47,5 cm in light grey

4 x 32,5 cm in white

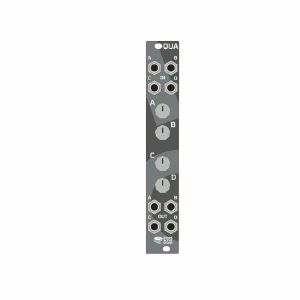

Notes: QUA Quad Attenuator

without CV In each Channel generates 0-10V

Power consumption: +/-10 mA

Rackspace: 4HP

Notes: TUL Dual Attenuator/-verter and Offset Generator

Temperature stable and accurate circuit design. The attenuator is exponential and can be regulated more precisely in the initial range.

As an attenuverter, the fader describes an S-curve, i.e. it is in Range +/- 0 finer adjustable. The AC gain is 1, so there is no loss at maximum Att/Attv settings.

The offset potentiometer shift by +/- 5 volts and can be switched to another mode on the back of the PCB using jumpers.

Here the attenuation is towards zero made until it is zero.

The normal mode leaves the voltage at the specified offset value.

Channel A is normalized to channel B so you can get two different CVs.

On the rear side of the PCB, you have a jumper to switch from offset pre fader (good for ADSR) and post fader.

Power consumption: +/- 20mA

Rackspace: 6HP

CV out is (-/+5Volt) if nothing is patched to IN A/B, so you can use it as a manual CV source.

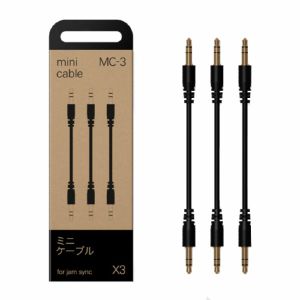

Notes: Male mini-jack to male mini-jack cables for syncing Pocket Operator units.

Pack of 3
