Back in stock: All genres

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Envelope with filter with serious attitude

This mangled, filter-sweeping, abruptly overdriving pedal is designed to respond to your playing. It syncs its wave-thumping movement with the force at which you play. It multiplies dynamics into a hyper-exaggerated frenzy. It adds just the right amount of movement to punch through the mix and it reacts to an external trigger of your choosing to follow your tempo. Six selectable frequency ranges mean you're always gonna have just the right quack and oomph for whatever's plugged in! The sounds are wild, the thump is thick, and the animation is deep.

Controls

Input: Plug an instrument in to this jack.
Trig: Plug another instrument in to this jack and use it to trigger the filter sweep.
Out: Connect this to the amplifier.
Sensitivity: Determines the point at which the filter engages and the frequency range of the filter shift in relation to the input amplitude.
Intensity: Simultaneously blends in the resonance, amount, and grit of the filter.
Vol: Adjusts the output volume of the DEEP ANIMATION.
Frequency Selector: Selects the frequency range of the filter.
Bypass: True bypass the effect.
Up / Down: Controls the polarity of the filter decay once triggered. UP sweeps the frequency from higher frequencies to lower ones and DOWN, the opposite.
Additional Features: There is a subtle light to indicate the external trigger behind the main bypass LED.

Specifications

Dimensions: 5.92" x 4.72" x 2.34" (including hardware).
Weight: 21 oz.
Power: 9V (runs on standard 2.1mm negative center 9V adapter or included 9V battery).
Current Draw: 18 mA.

Notes: The DigiTechr Mosaic Polyphonic 12-String effect pedal sets you upon the path of creating lush 12-string sounds with either 6-string electric or amplified acoustic guitars. Immediately identifiable 12-string tones are now yours with octave low strings and doubled high strings. Single notes and full chordal strums shine with polyphonic richness and celestial movement that will inspire you. The Mosaic's balanced low-end response with crisp octave shimmer produces a tone that's lush and articulate, just as with a 12-string guitar.

Tailor the Mosaic's sound with the independent Level and Tone controls. Level will control the 12-string effect intensity while Tone shapes the overall brightness of the effect. The Mosaic will give you a richer, more resonant and full tone than a standard six-string guitar. It is true bypass and uses a 9V DC power supply to easily integrate into your existing pedalboard.


General Specifications
SAMPLE RATE

44.1 kHz
FREQUENCY RESPONSE

20 Hz-11 kHz (Effect Enabled)
SIGNAL TO NOISE RATIO

> -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD

0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A CONVERSION

24-bit
INPUT

1/4" Unbalanced (Tip-Sleeve)
OUTPUT

1/4" Unbalanced (Tip-Sleeve)
CONTROLS

Level, Tone
TRUE BYPASS

Yes. True bypass circuitry preserves your tone when the pedal is not in use.
Dimensions
LENGTH

4.75" (120mm)
HEIGHT

1.75" (44mm)
WIDTH

2.875" (73mm)
WEIGHT

0.36 lb. (163g)

Notes: The TRIO+ is a simple-to-use guitar pedal that listens to the way you play and automatically generates bass and drum parts that match your song. Just plug your guitar into the TRIO+, press the Band footswitch to teach the TRIO+ your chords and rhythm, then press the Band footswitch again to start playing with your own personal band! Bass and drum levels can be adjusted for the perfect mix using the TRIO+'s Bass and Drums knobs. The TRIO+ also features a Simple Bass button lets you select between 3 bass line modes for busy or simple bass lines. Pushing the Band Creator™ paradigm further, the TRIO+ also allows you to loop and custom sequence your looped guitar parts to create full songs on the fly. Press the TRIO+'s Looper footswitch to record a loop along with an unlimited number of overdubs. The Loop level can be individually controlled using the TRIO+'s Loop knob. Loops can be recorded by themselves, operating just like a traditional looper, or along with the band. You can also apply built-in effects to your guitar signal by enabling the TRIO+'s Guitar FX button, or connect your favorite effects to the TRIO+'s FX Send and FX Return jacks. The TRIO+ provides 12 music genres to choose from including Blues, R&B, Rock, Alternative Rock, Metal, Pop, Electronic Pop, Hip-Hop, Country, Folk, Latin, and Jazz. 12 song styles are available for each genre and can be selected using the TRIO+'s Style encoder, including selection between 3/4 and 4/4 time signatures. Multi-colored LEDs around the TRIO+'s Style encoder indicate which styles best match your song. The TRIO+ can learn up to 5 different song parts, perfect for creating an intro, verse, chorus, bridge and outro. Song parts can be recalled on-the-fly as the song plays back or pre-programmed as a sequence for automated playback. An optional DigiTech FS3X Footswitch can be connected to the TRIO+'s Control In jack for additional handsfree control with 3 modes of operation to select from. Up to 12 songs along with loops can be stored to the TRIO+'s Micro SD Card (included). Need to create more songs? No problem. Just insert a new SD Card and you're ready to start teaching the band your new songs. To manage all your songs and loops on a computer, download the free Librarian Manager software from digitech.com, available for Windowsr and Macr. The TRIO+ offers independent Tempo, Genre, Style, Loop Level, Bass Level, Drums Level, Headphone Output Level controls; Guitar, FX Return and Control Inputs; Amplifier, Mixer, FX Send and Headphone Outputs; Built-in Guitar Effects (relative to music genre); a Soft Click Footswitch and includes a 9V DC adapter.

General Specifications
ControlsTempo, Genre, Style, Loop, Bass, Drums, Headphone Volume
Backlit ButtonsGuitar FX, Seq, Part 1-5, Alt Time, Song, Simple Bass
FootswitchesLooper, Band
LEDsGenre types, Style 1-12, Audiolastic, Looper, Band
JacksPower, Control In, Guitar In, FX Return, FX Send, Amp Out, Mixer Out, Headphone
OtherMini USB port, microSD card slot
Bit Depth24-bit
Sample Rate44.1 kHz
Signal-To-Noise Ratio110dB, A-weighted
Maximum Recording Time230 seconds per song part i based on a minimum 50 BPM and 48 bars per part
USB TypeMini-B
SD Card TypemicroSDHC, Class 10
SD Min/Max Storage Size8 GB/32 GB
Power Requirements9 VDC external power adapter
Power Consumption7.2 W
Current Draw800 mA
Dimensions
Length5.4"
Width4.25"
Height2.5"
Weight1.46 lbs.
Audio Output
Amp Output TypeUnbalanced, 1/4" TS
Amp Output Impedance1 kO
Mixer Output TypeUnbalanced, 1/4" TS
Mixer Output Impedance1 kO
FX Send Output TypeUnbalanced, 1/4" TS
FX Send Impedance1 kO
Headphone Output Type1/8" (3.5 mm) Stereo Mini Jack
Headphone Output Impedance120 O
Audio Input
Guitar Input TypeUnbalanced, 1/4" TS
Guitar Input Impedance1 MO
FX Return Input TypeUnbalanced, 1/4" TS
FX Return Impedance1 MO
Control Input Type1/4" TRS (compatible with DigiTech FS3X)

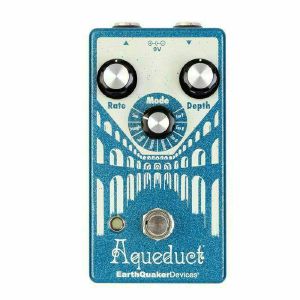

Notes: Aqueduct is a vintage-inspired pitch vibrato with eight modulation modes delivering synth-like sonar pulses, touch-sensitive frequency modulation, gentle rolling pitch-wobbles, steady kosmische pulsations, rapid trills, slimy sonic squiggles, whammy bar wiggles, pitch bends, pseudo-flange, and anything else your pitch-warped brain can picture in your murky mind's eye.

Controls
The controls are simple. Rate (1) adjusts the LFO speed which controls how quickly the pitch rises and falls. Depth (2) controls the LFO amplitude, adjusting the intensity of the vibrato effect. The rotary switch labeled Mode (3) selects between one of eight LFO waveshape and envelope combinations which drastically alter the character of the modulation and make Aqueduct adaptable to nearly any musical situation.

Modes
Sine: The smoothest and most subtle of all waveforms, sine waves are most commonly associated with classic amp-like vibrato. Plug in, turn on, and commence the Chooglin'.

Triangle: Triangle waves have a sharper rise and fall than sine waves with a more pronounced pitch bend at the peak of each LFO cycle.

Ramp: Like a triangle wave with a twist. The Ramp waveform has a sharp sonar pulse followed by a rapid downward slope with a synthesizer-like sustain and release. This is where things start to get a little weird.

Square: Square waves are the most rigid and abrupt of the waveforms. Rather than gliding smoothly between pitches, square waves produce an instant on-or-off transition between notes. Use this mode for trills when you get tired of doing hammer-ons and pull-offs.

Random: This waveform isn't a waveform at all as much as it's a drunken master of modulation who slurs your notes into an unpredictable assortment of greasy pitch-bends before disappearing at last call and leaving you stuck with the tab. It has a "warped record" effect at low Depth settings and becomes sloppier and more randomized as you increase the Depth control.

Env D: This is Envelope-Controlled Depth mode. The waveshape is set to a sine wave, the speed of which may be adjusted using the Rate control. The Depth control sets the sensitivity of the envelope - the point at which the effect kicks in as you play. In this mode, your pick attack sets the intensity of the modulation. The harder you dig in, the more pronounced the effect. Try it during your next motorik jam.

Env R: This is Envelope-Controlled Rate mode. In this mode, the input level (i.e. pick attack) controls the LFO rate. The LFO uses a sine waveshape. Play harder for faster modulation or lay low for slower modulation speeds. The Rate control adjusts the sensitivity of the envelope. Depth selects the LFO intensity.

Env P: This is Envelope-Controlled Pitch mode, which has been lovingly nicknamed "The My Bloody Valentine setting". If your instrument doesn't have a tremolo bar, it does now. In this mode, the LFO is set to a sine waveshape, and frequency modulation is controlled by the dynamics of your pick attack and not the LFO. Do yourself a favor and try this one with Flexi-Switching™.
Depth sets the wet/dry mix. This is the only mode that contains a wet/dry mix and may be set to taste to create touch-sensitive dynamic vibrato, chorus, flanger, or tactile pitch drops. Full counterclockwise is all dry, full clockwise is all wet. With this control set to noon you will get a 50/50 mix with a small amount of phase cancellation.
Rate sets the sensitivity and overall range of the pitch bend.

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

Current Draw: 68 mA

Input Impedance: 1 MO

Output Impedance: <10 kO

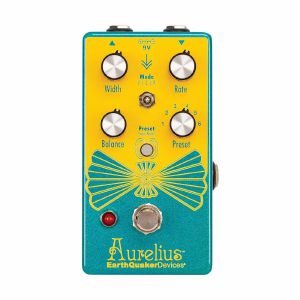

Notes: The Aurelius is not your run of the mill chorus pedal. This compact, beautifully cased wonder is a three mode chorus with six programmable presets and an expression control. Inspired by the 1970s CE-1 Chorus Ensemble pedal, this digital unit has been tirelessly tweaked and fine-tuned to give you an all-encompassing chorus and vibrato experience like nothing else.

Choose from Vibrato, Chorus and Rotary mode and manipulate their Width, Rate and Balance to achieve your ideal sound. Shift seamlessly from one mode to another to cop a blend that is all your own. Just one simple tap of the Preset (Save/Recall) and you can summon up to six settings of your choosing at will.

Welcome, fellow frequency chaser! Kudos to you for referring to the official manual of this majestic Device rather than diving into its powers blindly. Or equally likely, traveling down a YouTube pedal demo rabbit hole where you eventually find yourself watching a tutorial on how to make gnocchi from scratch at 3am. You're about to embark on a magical journey with this mighty Aurelius pedal in front of you.

You see, this is not simply your run of the mill chorus pedal. This compact, beautifully cased wonder is a three-mode chorus with six programmable presets and an expression control. Choose from Vibrato (V) Mode, Chorus (C) Mode, and Rotary (R) Mode and manipulate their Width, Rate, and Balance to achieve your ideal sound. Shift seamlessly from one mode to another to cop a blend that is all your own. Just one simple tap of the Preset ("Save/Recall") switch and you can summon up to six settings of your choosing at will.

Feeling pretty powerful now, aren't you?

Inspired by the 1970s CE-1 Chorus Ensemble pedal, this digital unit has been tirelessly tweaked and fine-tuned to give you an all-encompassing chorus and vibrato experience like nothing else. Inspiration the 1940s and the advent of the Leslie speaker to boldly capture the sound of its rotating baffle system for the Rotary mode. Earthquaker studied the way that the horn and the rotor moved on Leslie speakers and emulated the phasing and speeds of the low frequency oscillator, but they exaggerated the hell out of them to make it sonically suitable for guitar, bass or your instrument of choice.

And by popular demand, like many Earthquaker pedals, this is equipped with an expression control so you can use any TRS expression pedal to manipulate the Width, Rate or Balance. Put it in the Vibrato mode and you'll have a really subtle chorus with a seasick vibrato and alternate quickly between the two seamlessly. And that's only just one mode. The possibilities are endless. Think about it.

This compact world of chorus in a box will fit on any pedalboard and is so intuitive and easy to use that you most likely won't have to refer to this manual ever again.

Each and every Aurelius is hand crafted in Akron, Ohio, USA and is inspected by the spirit of speaker innovator Donald Leslie.

Specs

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 75 mA
Input Impedance: 500 kO
Output Impedance: 100 O
TRS expression pedal wiring:
Tip: Wiper
Ring: +3.3V
Sleeve: Ground

Flexi-Switchr Technology

This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Notes: The Bit Commander is a monophonic analog guitar synthesizer with four octaves of vintage square wave synth tones. Its no-nonsense interface makes it easy to add or subtract octaves to create a wide variety of sounds without having to dial in envelopes or oscillators. Ripping sub-octave thump, pulsing octave down, a lightly squared base tone and a swelling transformer based octave up all join together to make a single guitar sound like an army of olde tyme synths.

Controls:
1. Level: Master volume

2. Filter: Tone control more highs clockwise, more warmth counterclockwise

3. Base: Squared input signal level

4. Sub: Two octaves down level

5. Down 1: One octave down level

6. Up 1: One octave up level

This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 25 mA
Input Impedance: 50 kO
Output Impedance: <500 O

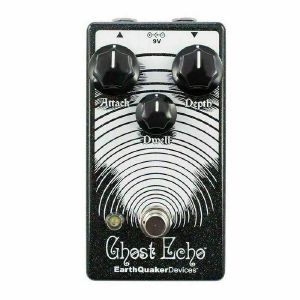

Notes: You hear that EVP? It's the all new, extra spook-tacular, Ghost Echo calling out from beyond the void! The Ghost Echo is Earth Quaker's spooky take on the haunted amp-top spring reverberation units of yesteryear. This creepy analog/digital spring reverb emulation machine boasts a terrifying 30ms - 150ms of pre-delay, controllable via the Attack knob, for everything from a quick rockabilly slapback to viscous pools of ectoplasmic reverberations. When playing staccato, you'll hear the tortured trails of the reverb, resulting in more of a slapback or echo sound. Legato playing will reveal a massive ambient "depth" that fattens up the sound - and look out, it's right behind you!

Phew, that was close. The Dwell control sets the length and thickness of the decay, which is to say that it controls how long the disembodied spirits of notes no longer with us float through the ether. At the maximum setting it will descend into an infinite loop of self-oscillation. The Depth sets the intensity of the reverb, which you probably know as the wet/dry mix.

Controls:
1. Attack: Adjusts the length of the pre-delay, from 30ms at minimum to about 150ms at maximum. When the Dwell is set to self-oscillate, this will change the pitch of the oscillations.

2. Dwell: Adjusts the length of the decay. This will start to self oscillate around 3 O'clock, the pitch of the oscillations can be changed by turning the Attack control.

3. Depth: Mixes in the wet signal with the dry, unity is around noon and everything after is boosted.

Tech Specs:
This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. Pedal-specific, transformer-isolated wall-wart power supplies, or multiple isolated-output supplies, are always recommended. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 86 mA
Input Impedance: 10 MO
Output Impedance: 1 kO

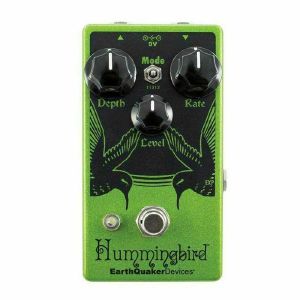

Notes: The Hummingbird is a choppy, sawtooth tremolo modeled on the vintage "repeat percussion" unit and similar to those found in old Valco and Vox amplifiers. It is capable of producing everything from classic "50's style" shimmering tremolo to a synthy, delay-like chop that turns your signal into a burst of short pings and on through to near ring modulation speeds. Simply choosing between modes 1 (slow), 2 (mid-tempo) or 3 (fast) and adjusting the rate and depth controls will unlock a whole new world of amplitude modulation at your feet. The Rate is also expression pedal accessible to allow instant changes on the fly. Using an expression pedal opens up the possibility of true random amplitude modulation! In addition to the modulation, the Hummingbird has plenty of clean gain on-tap allowing you to either boost or cut the signal using the level control. If the Depth is turned to zero, the Hummingbird will become a JFET clean boost!

Controls:
1. Depth: This adjusts how much the oscillator affects the signal. All the way clockwise produces a full chop, all the way counterclockwise produces no chop and the Hummingbird can be used as a simple JFET booster.

2. Mode: Three way toggle switch which selects the range of the oscillator. Mode 1 is slow, Mode 2 is mid tempo and Mode 3 is fast.

3. Rate: This adjusts the speed of the oscillator. Faster clockwise, slower counterclockwise.

4. Level: Adjusts the output volume

5. Expression Jack: Use an expression pedal to adjust the rate with your foot! When an expression pedal is in use the Rate control is defeated. We recommend the Moog EP-2 expression pedal.

Tech Specs:
Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 10 mA
Input Impedance: 50 kO
Output Impedance: <10 kO

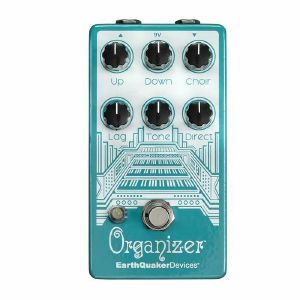

Notes: The Organizer is a polyphonic organ emulator designed to mimic the organ tones of yesteryear crossed with the highly unique "Guitorgan". It has a warm and very analog feel with a hint of Leslie warble that is unlike other modern octave shifters. It is simple to dial in and tracks chords as well as single notes perfectly all over the neck on both guitar and bass. Not only can the Organizer be used on strings, it has been widely used on everything from vocals and synths to horns and drums. If it makes sound, the Organizer can handle it! The Organizer uses a mix of analog and DSP circuitry with true bypass switching and an all analog dry signal path.

Controls:
1. Up: Level control for the octave up.

2. Down: Level control for the octave down.

3. Choir: This control takes a mix of the octave Up and octave Down setting and regenerates it. The end result is an additional 2 octaves up, 2 octaves down and direct signal with a slight delay that adds a "church organ" like feel. This control only works if the octave Up and octave Down are in use.

4. Lag: Delay control for the wet signal. Full counterclockwise is minimal delay. Delay time increases as it rotates clockwise.

5. Tone: Rolls off the high end as you dial it counterclockwise.

6. Direct: Level control for the analog dry signal.

Tech Specs:
Switching
This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. Pedal-specific, transformer-isolated wall-wart power supplies, or multiple isolated-output supplies, are always recommended. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 81 mA
Input Impedance: 1 MO
Output Impedance: 500 O

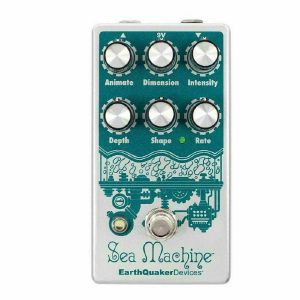

Notes: The Sea Machine is a chorus pedal with as many modulation possibilities as there are fish in the ocean. That's a lot of fish. And a lot of modulation. From subtle, shimmery chorus sounds, to wobbly, seasick, warbly pitch-bent detuning that rocks the boat, the Sea Machine is the audio bait that'll help you reel in the big one.

The Sea Machine ain't no one-trick seahorse. With a mix of standard and unique controls, everything from subtle warble, classic Leslie, seasick pitch bends, strangled alien sounds, stunted arpeggiations and many more far out sounds are available. Or you could just use it as a chorus. That works, too. Oh, and if you're a bass player who fancies themselves a fan of the classic 80s post-punk bass sound, the Sea Machine is pretty much just like (tone) heaven.

Controls:
1. Animate: How far the pitch shifted signal swings, lower levels equals a tighter and more focused shift a la traditional chorus. As you increase the control a more wild and animated pitch shift begins to emerge.

2. Dimension: Adds a slight slap-back at low levels, reverb-like ambiance at mid levels and an echo-resonance that will lead to self-oscillation at max.

3. Intensity: Adjusts how much modulated signal is blended in with the dry signal. Unity for this control is right around noon, everything above that is boosting the modulated signal.

4. Depth: Adjusts how strongly the LFO modulates the delay time.

5. Shape: Goes from triangle wave to square wave as you turn clockwise.

6. Rate: This sets the speed of the LFO. The miniature LED will blink to the tempo, even in bypass mode.

Tech Specs:
Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. Pedal-specific, transformer-isolated wall-wart power supplies, or multiple isolated-output supplies, are always recommended. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 40 mA
Input Impedance: 10 kO
Output Impedance: <1 kO

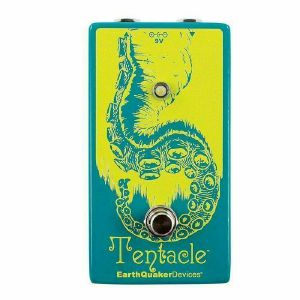

Notes: The Tentacle is a classic analog octave up effect. It is the very same octave from our beloved Hoof Reaper pedal. We got so many requests to make this a stand-alone unit that we just had to make it a reality. You can now add an excellent, swelling octave up to anything your heart desires! Pair it with your favorite fuzz, strap on a headband and unleash your inner Jammy Hendrix. Put it in front of another octave up and blow your amps mind. Throw it in the effects loop of a delay and marvel at what happens (then tell us, we'd like to know too). What's better? It has no controls! Nothing to worry about at all here, just hit the switch and go for it. The Tentacle is an analog octave up, the effect will become much more pronounced when using your neck pickup and playing above the 12th fret.

Tech Specs:
Flexi-Switch Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. Pedals will make extra noise if there is ripple or unclean power. Pedal-specific, transformer-isolated wall-wart power supplies, or multiple isolated-output supplies, are always recommended. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.00 in. (121 x 64 x 51 mm) with footswitch
Current Draw: 10 mA
Input Impedance: 100 kO
Output Impedance: <1 kO

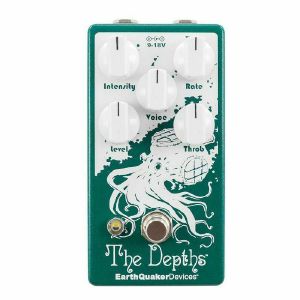

Notes: The Depths is Earth Quaker Devices' take on the classic optical vibe circuit. Now you can swab the decks with the same lush, pulsating, three-dimensional swirling sound you know and love, with some modern accouterments for all you land-lubbers out there.

The Depths is optimized for use with all kinds of instruments, pickups, and to play well with dirt, so nobody's left waiting on shore. If it's got a 1/4" output, plug it in and get deep!

Controls:
1. Intensity: This controls how subtle or intense the overall effect is. Counterclockwise from noon are the more subtle, classic sounds. Clockwise from noon are the more drastic and intense sounds.

2. Voice: Dials in the overall sound. Turn it clockwise for a fuller sound with more lows, bring it back for a thinner, more midrange focused tone.

3. Rate: Controls the speed of the effect. Counterclockwise for slow, clockwise for fast.

4. Level: Controls the volume of the effect. Unity is around 1 o'clock, everything above that is boost.

5. Throb: This controls the low end pulse. It may not be immediately evident on the bridge pickup, but switch to the neck or add some dirt and it comes alive. All the way up for more throb, dial it back for less. Works best when the Voice is set to a warmer tone.

Tech Specs:
Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9-18 volt DC power supply with a 2.1mm negative center barrel. Pedals will make extra noise if there is ripple or unclean power. Pedal-specific, transformer-isolated wall-wart power supplies, or multiple isolated-output supplies, are always recommended. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 21 mA
Input Impedance: 1 MO
Output Impedance: <1 kO

Notes: The Oceans Abyss expands on Electro-Harmonix's highly acclaimed reverb technology to deliver a truly immersive effects workstation. The pedal is centered around dual reverb engines that are independently programmable with full-stereo algorithms including Hall, Spring, Shimmer and more. Place these reverbs into a customizable signal path with additional FX blocks like Delay, Chorus, Tremolo, or Bit Crusher for a completely unique soundscape building experience.

Electro-Harmonix has paved the way for powerful, accessible reverbs since the release of the original Holy Grail and now we've pushed the envelope deeper with the fully-equipped Oceans Abyss. Featuring a customizable signal path with up to 8 effects blocks, the Oceans Abyss can be configured as individual reverb, modulation, EQ, delay, bit crusher, saturation or volume effects, or as countless combinations for incredibly creative effect shaping. From a simple Spring reverb to a lush stereo field featuring stereo hall and shimmer reverbs, chorus, delay, overdrive, and tremolo, you can go from surf to shoegaze instantly, without breaking a sweat.

Deep parameter editing is accessible via the high-visibility OLED display with multiple graphical views and easy-to-read designs. Expression/CV control over nearly every parameter gives artful control of your effects and dynamics. Fully-stereo I/O plus an FX Loop allows for use with any instrument, recording set up, or live rig. 128 programmable presets via onboard footswitching or MIDI ensure perfect recall in all performance situations. MIDI IN/OUT ports with MIDI IN support of PC, CC, and Tempo Clock expand the already immense talents of the Oceans Abyss. Connect with UBS-C to Windows or Mac for effects editing, preset management, and more with the free EHXport app.

Circuit: Digital
Bypass: Buffered Bypass
Audio: Stereo In & Out
Power Supply: 9.6VDC-500mA power adapter included
Dimensions (in): 7.125 x 5.75 x 2.25
Current Draw: 500mA

Notes: ***B-STOCK: Box damaged, product in perfect working order***

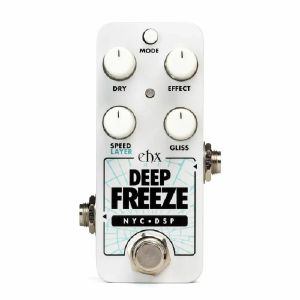

Expanded Freeze in a lowball-sized package!

Meeting between the original Freeze and Superego pedals is the Pico Deep Freeze Sound Retainer. With the ability to freeze a moment in sound, the Deep Freeze can act as a sustain pedal for holding chords and notes as backing for your playing or as a platform to manipulate your tone into new sounds impossible with a normal guitar. In addition to the original Freeze's abilities, the Deep Freeze features layering, adjustable attack/decay speeds, glissando, dedicated volume controls, and 3 modes: Latch, Moment, and Auto, making it powerful pedal punching well above its weight.

The Deep Freeze allows for instant sound freezing in three modes of operation. Latch freezes sound each time the footswitch is pressed until the effect is bypassed, while Moment mode freezes sound only while the footswitch is held down. Auto mode captured sound automatically each time it senses signal above its threshold for virtually foot-free freezes. These three modes make it easy to operate the Deep Freeze in a way that fits any playing style.

Controls on the Deep Freeze let you further tailor the operation of the effect. Separate DRY and EFFECT volume controls let you blend signals from subtle backing to 100% effect experimentation. GLISS adjusts the morph time between freeze sounds creating otherworldly soundscapes. The SPEED/LAYER knob adjusts either the attack/decay time of the effect in Moment and Auto modes, or the amount of layering possible in Latch mode which makes playing impossible chords possible!

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 3.65 x 2.0 x 2.0
Current Draw: 100mA
Year Released: 2023

Notes: Empress have brought back the most sought after Parametric EQ pedal with groundbreaking updates.

More Control

Whether you're trying to cut through a mix or fix a feedback issue, you need precision! The ParaEq MKII offers the most control of any pedal EQ on the market.

More Power

The ParaEq MKII pedals operates internally at 27V, providing clean headroom without unwanted clipping.

More Purity

We're able to offer the most control without degradation to the tone due to minimal circuit topology0 the opposite of graphic EQs.

Which ParaEq Do You Need?

The original ParaEq has been loved and trusted by musicians on a variety of instruments for over a decade. Both the ParaEq MKII and the ParaEq MKII Deluxe feature a low-noise, transparent signal path that is extremely versatile.

With three fully parametric bands, you can simultaneously achieve broad tonal shaping and precise fine-tuning to sculpt your perfect sound.

The ParaEQ MKII Deluxe will appeal to players who:

Need high-pass and low-pass filters for precision work at the frequency extremes
Want the glorious sound of Baxandall filters for sparkling high end or extra weight in the low end
Want to be prepared for any EQ situation

Why Parametric over Graphic EQ?

Graphic equalizers provide a convenient visual sense of the EQ curve. However, there is a tradeoff in transparency and precision.

The ParaEq MKII Deluxe excels in precision and transparency compared to a standard 7-band graphic EQ pedal. When both are set to provide a boost, the ParaEq MKII Deluxe offers a much more focused adjustment, affecting only the targeted frequencies. In contrast, the graphic EQ alters a broader range of the frequency spectrum. Moreover, while the ParaEq keeps the rest of the signal unchanged, the graphic EQ can unintentionally reduce other parts of the signal. This makes the ParaEq MKII Deluxe a more transparent and accurate tool for shaping your sound.

This combination of transparency and precision is why recording studio control rooms are dominated by parametric equalizers, and why they're a great choice for creative and corrective EQ on your pedalboard.

Specifications

Input Impedance: 1MO
Output Impedance: 100O
Frequency Response (-3dB): 22Hz - 25kHz
Total Harmonic Distortion: < 0.05%
Noise: > 107dB
Headroom: +30dBu
Input Voltage: 9VDC Centre-Negative
Required Current: 300mA
Power Input Connector: 2.1mm Barrel Connector
Height (Enclosure Only): 1.5"
Height (Including Controls): 2.5"
Length: 4.8"
Width: 2.6"
Weight: 1 lb

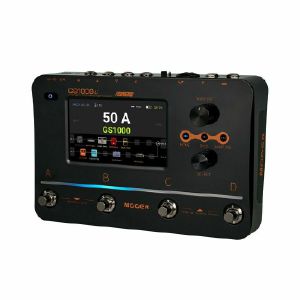

Notes: In 2025, MOOER has announced that it will be set to release its latest multi-effects pedal, the GS1000 Intelligent Amp Profiling Processor, an augmented intelligent amp profiling processor. Built on MOOER's advanced third-generation digital platform, the GS1000 introduces groundbreaking MNRS 2.0 technology, allowing guitarists around the world to emulate their favorite gear with immense precision -specifically, for distortion pedals, preamps, amplifier heads, and cabinets.

With this innovation, guitarists can fully capture the essence of their favorite guitar gear without owning the physical hardware, enabling them to carry their favorite tones wherever they go. Users are even able to use third-party IRs for cabinets of their choice, further enhancing the flexibility of this feature.

It's unforgettable how much MOOER's multi-effects pedals have impressed audiences so far, primarily thanks to their robust tone libraries. However, even still, the GS1000 continues to build upon this with storage for up to 120 sampling profiles, along with continued integration with the MOOER Cloud app. Essentially, this cloud integration facilitates infinite upload and download possibilities, giving users access to a global community of shared tones, widely expanding the number of accessible tones. More still, the GS1000's previously mentioned third-party IR cabinet simulations support up to 2048 sample points, guaranteeing studio-grade tonal accuracy across the board.

Even more impressive for the price is how the GS1000 inherits the dual-chain effects architecture that made previous MOOER gear so versatile, making it suitable for highly complex usage scenarios. With over 350 factory effects models and a Sub-Patch preset grouping mode, the GS1000 makes it far simpler for users to make seamless transitions between tones, all while maintaining effect tails to guarantee seamless transitions. Additionally, the reintroduction of the innovative AI-driven EQ Master builds upon MOOER devices' previous capabilities, using intelligent adjustments in real-time to match the musical style of players to tones, while still allowing manual tweaks for precise control.

Impressively, the GS1000 also comes packed with a Groove Station module, consisting of a combination of drum machine and looper features - including 56 high-quality drum kits! It offers a 480-second phrase looper with infinite overdubs, automated detection, and synchronization capabilities, resulting in an intuitive platform for solo jamming, composition, and live loop-based performance. Overall, the Groove Station acts as an all-in-one suite for creating full arrangements, without having to depend on additional backing tracks or bandmates.

Visually and functionally, the GS1000 really stands out thanks to its sleek visual design and enhanced user experience. For example, it features a convenient 5-inch high-resolution touch screen, which is also paired with ambient lighting to add a visually stunning element to the pedal. As a result, the GS1000 is not only designed for convenient touch-based control but also as a standout centerpiece in any guitar rig.

In addition to this touchscreen control system, the GS1000 also provides expanded connectivity options, improving upon the already impressive flexibility of past pedals. Most notably, it supports connectivity with the MOOER F4 wireless footswitch, as well as the ability to control presets via external MIDI devices.

As is expected from MOOER these days, the GS1000 also excels when it comes to routing opportunities, going above and beyond the typical stereo 14" inputs and outputs that would be expected from other brands. Yes, it still includes such staples, but it also includes an XLR microphone input, alongside balanced TRS outputs for long-distance signal clarity. The configurable serial/parallel stereo effects loop enables seamless integration of external effects, and the addition of Bluetooth audio input and MIDI compatibility broadens its wide range of use cases for live and practice-based applications.

Furthermore, the pedal also serves as a professional audio solution thanks to its low-latency 2-in/2-out ASIO USB sound card. Supporting up to 192kHz sampling rates, the GS1000 makes recording and live streaming effortless, as it can easily be used with software DAWs, MOOER's editing software, as well as the USB-based MIDI control.

The GS1000 will be available in two versions - the standard white edition, which is powered by mains power, and the GS1000 Li version, which introduces a 7.4V 4750mAh lithium battery, chargeable through its power port. With this upgrade, users can enjoy up to six hours of continuous power-free playtime, making it ideal for practicing, busking, and generally performing on the go.

Overall, for fans of MOOER's previous amp simulation offerings, the GS1000 represents a natural evolution, building on everything that made its predecessors great while introducing cutting-edge features and expanded capabilities. Most importantly, MOOER has promised to continuously update its MOOER 4.0 tonal algorithms on the MOOER Cloud in line with the release, keeping things fresh for the company's dedicated user base.

Notes: In 2025, MOOER has announced that it will be set to release its latest multi-effects pedal, the GS1000 Intelligent Amp Profiling Processor, an augmented intelligent amp profiling processor. Built on MOOER's advanced third-generation digital platform, the GS1000 introduces groundbreaking MNRS 2.0 technology, allowing guitarists around the world to emulate their favorite gear with immense precision -specifically, for distortion pedals, preamps, amplifier heads, and cabinets.

With this innovation, guitarists can fully capture the essence of their favorite guitar gear without owning the physical hardware, enabling them to carry their favorite tones wherever they go. Users are even able to use third-party IRs for cabinets of their choice, further enhancing the flexibility of this feature.

It's unforgettable how much MOOER's multi-effects pedals have impressed audiences so far, primarily thanks to their robust tone libraries. However, even still, the GS1000 continues to build upon this with storage for up to 120 sampling profiles, along with continued integration with the MOOER Cloud app. Essentially, this cloud integration facilitates infinite upload and download possibilities, giving users access to a global community of shared tones, widely expanding the number of accessible tones. More still, the GS1000's previously mentioned third-party IR cabinet simulations support up to 2048 sample points, guaranteeing studio-grade tonal accuracy across the board.

Even more impressive for the price is how the GS1000 inherits the dual-chain effects architecture that made previous MOOER gear so versatile, making it suitable for highly complex usage scenarios. With over 350 factory effects models and a Sub-Patch preset grouping mode, the GS1000 makes it far simpler for users to make seamless transitions between tones, all while maintaining effect tails to guarantee seamless transitions. Additionally, the reintroduction of the innovative AI-driven EQ Master builds upon MOOER devices' previous capabilities, using intelligent adjustments in real-time to match the musical style of players to tones, while still allowing manual tweaks for precise control.

Impressively, the GS1000 also comes packed with a Groove Station module, consisting of a combination of drum machine and looper features - including 56 high-quality drum kits! It offers a 480-second phrase looper with infinite overdubs, automated detection, and synchronization capabilities, resulting in an intuitive platform for solo jamming, composition, and live loop-based performance. Overall, the Groove Station acts as an all-in-one suite for creating full arrangements, without having to depend on additional backing tracks or bandmates.

Visually and functionally, the GS1000 really stands out thanks to its sleek visual design and enhanced user experience. For example, it features a convenient 5-inch high-resolution touch screen, which is also paired with ambient lighting to add a visually stunning element to the pedal. As a result, the GS1000 is not only designed for convenient touch-based control but also as a standout centerpiece in any guitar rig.

In addition to this touchscreen control system, the GS1000 also provides expanded connectivity options, improving upon the already impressive flexibility of past pedals. Most notably, it supports connectivity with the MOOER F4 wireless footswitch, as well as the ability to control presets via external MIDI devices.

As is expected from MOOER these days, the GS1000 also excels when it comes to routing opportunities, going above and beyond the typical stereo 14" inputs and outputs that would be expected from other brands. Yes, it still includes such staples, but it also includes an XLR microphone input, alongside balanced TRS outputs for long-distance signal clarity. The configurable serial/parallel stereo effects loop enables seamless integration of external effects, and the addition of Bluetooth audio input and MIDI compatibility broadens its wide range of use cases for live and practice-based applications.

Furthermore, the pedal also serves as a professional audio solution thanks to its low-latency 2-in/2-out ASIO USB sound card. Supporting up to 192kHz sampling rates, the GS1000 makes recording and live streaming effortless, as it can easily be used with software DAWs, MOOER's editing software, as well as the USB-based MIDI control.

The GS1000 will be available in two versions - the standard white edition, which is powered by mains power, and the GS1000 Li version, which introduces a 7.4V 4750mAh lithium battery, chargeable through its power port. With this upgrade, users can enjoy up to six hours of continuous power-free playtime, making it ideal for practicing, busking, and generally performing on the go.

Overall, for fans of MOOER's previous amp simulation offerings, the GS1000 represents a natural evolution, building on everything that made its predecessors great while introducing cutting-edge features and expanded capabilities. Most importantly, MOOER has promised to continuously update its MOOER 4.0 tonal algorithms on the MOOER Cloud in line with the release, keeping things fresh for the company's dedicated user base.

Notes: ***B-STOCK: Box opened, product in perfect working order***


In 2025, MOOER has announced that it will be set to release its latest multi-effects pedal, the GS1000 Intelligent Amp Profiling Processor, an augmented intelligent amp profiling processor. Built on MOOER's advanced third-generation digital platform, the GS1000 introduces groundbreaking MNRS 2.0 technology, allowing guitarists around the world to emulate their favorite gear with immense precision -specifically, for distortion pedals, preamps, amplifier heads, and cabinets.

With this innovation, guitarists can fully capture the essence of their favorite guitar gear without owning the physical hardware, enabling them to carry their favorite tones wherever they go. Users are even able to use third-party IRs for cabinets of their choice, further enhancing the flexibility of this feature.

It's unforgettable how much MOOER's multi-effects pedals have impressed audiences so far, primarily thanks to their robust tone libraries. However, even still, the GS1000 continues to build upon this with storage for up to 120 sampling profiles, along with continued integration with the MOOER Cloud app. Essentially, this cloud integration facilitates infinite upload and download possibilities, giving users access to a global community of shared tones, widely expanding the number of accessible tones. More still, the GS1000's previously mentioned third-party IR cabinet simulations support up to 2048 sample points, guaranteeing studio-grade tonal accuracy across the board.

Even more impressive for the price is how the GS1000 inherits the dual-chain effects architecture that made previous MOOER gear so versatile, making it suitable for highly complex usage scenarios. With over 350 factory effects models and a Sub-Patch preset grouping mode, the GS1000 makes it far simpler for users to make seamless transitions between tones, all while maintaining effect tails to guarantee seamless transitions. Additionally, the reintroduction of the innovative AI-driven EQ Master builds upon MOOER devices' previous capabilities, using intelligent adjustments in real-time to match the musical style of players to tones, while still allowing manual tweaks for precise control.

Impressively, the GS1000 also comes packed with a Groove Station module, consisting of a combination of drum machine and looper features - including 56 high-quality drum kits! It offers a 480-second phrase looper with infinite overdubs, automated detection, and synchronization capabilities, resulting in an intuitive platform for solo jamming, composition, and live loop-based performance. Overall, the Groove Station acts as an all-in-one suite for creating full arrangements, without having to depend on additional backing tracks or bandmates.

Visually and functionally, the GS1000 really stands out thanks to its sleek visual design and enhanced user experience. For example, it features a convenient 5-inch high-resolution touch screen, which is also paired with ambient lighting to add a visually stunning element to the pedal. As a result, the GS1000 is not only designed for convenient touch-based control but also as a standout centerpiece in any guitar rig.

In addition to this touchscreen control system, the GS1000 also provides expanded connectivity options, improving upon the already impressive flexibility of past pedals. Most notably, it supports connectivity with the MOOER F4 wireless footswitch, as well as the ability to control presets via external MIDI devices.

As is expected from MOOER these days, the GS1000 also excels when it comes to routing opportunities, going above and beyond the typical stereo 14" inputs and outputs that would be expected from other brands. Yes, it still includes such staples, but it also includes an XLR microphone input, alongside balanced TRS outputs for long-distance signal clarity. The configurable serial/parallel stereo effects loop enables seamless integration of external effects, and the addition of Bluetooth audio input and MIDI compatibility broadens its wide range of use cases for live and practice-based applications.

Furthermore, the pedal also serves as a professional audio solution thanks to its low-latency 2-in/2-out ASIO USB sound card. Supporting up to 192kHz sampling rates, the GS1000 makes recording and live streaming effortless, as it can easily be used with software DAWs, MOOER's editing software, as well as the USB-based MIDI control.

The GS1000 will be available in two versions - the standard white edition, which is powered by mains power, and the GS1000 Li version, which introduces a 7.4V 4750mAh lithium battery, chargeable through its power port. With this upgrade, users can enjoy up to six hours of continuous power-free playtime, making it ideal for practicing, busking, and generally performing on the go.

Overall, for fans of MOOER's previous amp simulation offerings, the GS1000 represents a natural evolution, building on everything that made its predecessors great while introducing cutting-edge features and expanded capabilities. Most importantly, MOOER has promised to continuously update its MOOER 4.0 tonal algorithms on the MOOER Cloud in line with the release, keeping things fresh for the company's dedicated user base.

Notes: CHO-mini

Compact Stereo Chorus Pedal

The pocket-sized, yet feature packed, the Nobels CHO-mini pedal combines an outstanding selection of chorus tones, all in a budget-friendly and space-saving enclosure. With a heritage of building chorus units in the past, Nobels has engineered this all new pedal to offer maximum versatility, in a super compact package.

Providing a skilfully curated selection of ageless chorus effects, CHO-mini delivers a wealth of sonic possibilities, with either a mono or spacious stereo image. The achievable tones are far beyond the
pedal's modest footprint and is an excellent addition to any type of setup.

The CHO-mini features three carefully crafted, yet distinct chorus flavours. All three modes faithfully capture those iconic modulation tones that have shaped music across genres, past and present and are simply selected by the pedal's convenient mode switch, right on the face of the pedal.

"Chorus 1"

This emulates the coveted and well-established bucket-brigade style of chorus pedal tones from the 70s. You know "THAT" Chorus sound that is instantly recognisable from many popular recordings.

"Chorus 2"

Based on a different flavour of stereo chorus, "Chorus 2" allows for a higher rate towards the end of the control range, enabling pleasing vibrato like textures.

"Flanging"

While not a flanger tone in a traditional sense, this mode emulates another extremely popular (and rare and expensive in its original form) chorus pedal from the 70s, in its subtle flanging mode. Think of this as a comb-filter phasing of the signal (like feedback on a delay), focusing on its luscious general character and without becoming too extreme.

Adding to its flexibility, the CHO-mini features full tap tempo functionality, but in a single switch design. Simply holding the footswitch for approximately two seconds enters the pedal into "Tap Tempo Mode", following which the pedal will respond to rhythmic tapping instantly. Further defying expectations based on its compact appearance, there are dedicated toggles for selection between mono and stereo (TRS) operation as well as true or buffered bypass modes, making the pedal suitable for almost any musical situation, anywhere, any time.

As with all other current Nobels pedals, the CHO-mini features 4 integrated Mounty-P Mounting Plates for safe and secure attachment to pedalboards. With its full metal enclosure and Glow in the Dark pointer knobs, the CHO-mini is a pint-sized powerhouse that's built for performance!

Product Height (cm): 5.100
Product Width (cm): 4.850
Product Depth (cm): 9.370
Product Weight (kg): 0.210

Box Height (cm): 6.540
Box Width (cm): 7.000
Box Depth (cm): 12.100
Boxed Weight (kg): 0.301

Notes: Black Fountain Stereo Characterful Delay Building on the inimitable Black Fountain, a pedal that put OBNE on the map and for many a favourite always-on device, Black Fountain Stereo is much more than just turning things from mono into stereo. It truly expands Old Blood Noise Endeavors' highly regarded 'oil-can delay' pedal right into a multi-tool.

With a wider control set that's complete with added sonic options, a lower noise floor, dual delay lines that play together in a multitude of ways, presets, MIDI and expression control over everything, Black Fountain Stereo combines a sonic powerhouse of creative delay tones and into a pedalboard friendly package.

Black Fountain Stereo emulates the sound of a spinning oil-can delay. This is a warm, modulated and a little gritty type of tone that's perfect for chorusing, doubling, slap back and long rhythmic delays alike. You choose the amount and rate of modulation, the tone and grit of the core voice, the two delay times and their feedback. Plus, to top it off the mono/stereo voicing of it all can be set exactly as you like and everything can be saved into presets, for easy recall.

The Rate and Depth controls sets the amount of modulation and speed, Tone shapes the warmth of the repeats, while Grit sets the amount of drive in the repeats. To help maintain the clarity of your tone or for more special effects, you can set the mix of volume of either the Dry and/or Wet levels. Space defines the mono delay mode or stereo width and adds diffusion past the noon position.

Separate controls are available for setting the Left and Right Delay Time as well as being able to choose between six subdivisions for each side when holding the Tap footswitch. That little Tap switch (surprise) helps you set the delay repeats in time with your tempo, while holding it down will give for infinite feedback. Optionally, it can also be used as a preset switcher.

Product Height (cm): 6.9
Product Width (cm): 10.8
Product Depth (cm): 12.6
Product Weight (kg): 0.454

Box Height (cm): 7.06
Box Width (cm): 11.43
Box Depth: 12.7cm
Boxed Weight (kg): 0.596kg

Notes: Open up your signal routing options with this neat and simple pedal. Split one signal into three, run effects in parallel, mix three signals together, set up ABY routing or set levels. Versatile.

Supplier's Notes:
The Signal Blender provides a number of parallel routing solutions through its use of a pair of send/returns, primary input and output, switching, and volume control.

Signal Blender can be used as a:
Parallel effect blender
3-to-1 mixer
1-to-3 splitter
Active ABY in either direction
Volume level setter

and more.

A courtesy 9V power outlet and phase correction switches for both Sends add further versatility to this box. Clever switching allows for latching or momentary on/off action.

The Signal Blender uses standard 9V center negative power, and has a current draw of 31 mA.

Notes: ***B-STOCK: Box opened, light surface marks, product in perfect working condition ***


The classic Pantheon pedal gets even better with this Deluxe version. Two independent overdrive circuits give you classic Blues Breaker-style tone plus modern boutique sounds.

Supplier's Notes:
The now legendary Wampler Pantheon provided a unique interpretation of the classic "Blues Breaker" style stomp box, by capturing all the tonal nuance of the original, but with added flexibility and style. In doing so, it found its way onto thousands of pedalboards across the world. Enter the new Pantheon Deluxe - a dual overdrive pedal that takes this evolution several steps further by offering a flexible design with two completely independent Pantheon circuits, one voiced as a classic blues breaker and one with a more modern boutique sound. This palace of tone delivers a staggering 200 combinations of gain settings, featuring dual Inputs and Outputs, and for the first time ever, Wampler have added MIDI channel switching to one of their gain pedals.

The Pantheon Deluxe lets you dial in two channels of organic creamy gain, gritty overdrive, or heavy distortion while retaining Wampler's famous ease of use and flexibility. Channel 1 delivers a classic Blues Breaker tone, Channel 2 is a recreation of the original Pantheon, a similar circuit to the Blues Breaker but with a modern boutique feel. Independent side mounted Voicing and Gain Level switches allow you to further shape your tone to perfection.

DOUBLE UP

The Pantheon Deluxe lets you dial in two channels of organic creamy gain, gritty overdrive, or heavy distortion while retaining Wampler's famous ease of use and flexibility. Channel 1 delivers a classic Blues Breaker tone, Channel 2 is a recreation of the original Pantheon, a similar circuit to the Blues Breaker but with a modern boutique feel.

ALWAYS THE RIGHT FIT

Each Channel of the Pantheon Deluxe Dual Overdrive feature independent Gain, Level, Treble, and Bass controls to enhance the shaping of your tone. The Baxandall-style active Bass control is neutral at noon but boasts an extremely powerful sweep as you move through the range. A single global Presence control simultaneously alters each channel to add just the right amount of top-end chime to suit different guitars and amplifiers - perfect for when playing live or when in the studio.

MAXIMUM CONNECTIVITY

With the addition of MIDI In and Out, you can now also switch the analog channels of each circuit on and off with a MIDI switcher - saving you valuable hardware loops on your loop switcher. With dual analog inputs and outputs, you can split both channels in a loop switcher, insert pedals between each side, or run in stereo.

BUILT FOR FOREVER

Brian Wampler's attention to detail and commitment to bringing you the best-sounding & most usable Effects Boxes on the market is nothing new. Those qualities are on full display within the Pantheon Overdrive. We're all tone-freaks, and we're always trying new things, but we hope this pedal finds its forever home on your pedalboard, so we built it to last that long.

TECHNICAL DETAILS

Built in the U.S.A
Dual Independent drive channels using Brian Wampler's classic Pantheon circuits; Channel 1 Classic Blues Breaker voicing, Channel 2 Modern Boutique voicing.
Independent Volume, Gain, Treble and Bass controls for both channels, global Presence control, front mounted Channel Order Switch, side mounted independent Gain Level and Voicing switches, MIDI In and Out (3.5mm TRS) and 2 sets of input and output jacks.
Top-mounted jacks make pedalboard placement effortless
Power draw: 55mA
9-18V power jack: DC supply only, do not exceed 18V DC, battery Included.
Includes Wampler's limited 5-year warranty
5" x 4.5" x 1.5" (88.9mm x 114.3mm x 38.1mm) - height excludes knobs and switches
