Notes: With DeFeel Enjoy Electronics have redesigned and applied the Fill concept to make it usable in the world of modular synthesizers.

This device is designed to break the chain between the sequencer and everything that comes after it, allowing you to intervene at the right time and create unique variations.

A modular device that's not going to generate anything, but is created to degenerate the monotony.

DeFeel isn't about complex button presses or cryptic menus. Here, creativity reigns supreme. Design your rhythmic patterns with an intuitive touch. Simple lines and vectors come to life on the multitouch display, allowing you to experiment and craft unique sequences with remarkable ease.

With DeFeel, we offer musicians and performers a powerful and versatile tool to enrich their performances and compositions. With its intuitive programming, sleek design, and innovative translucent panel, DeFeel stands out as a unique device poised to revolutionize the way modular synthesizers are used and perceived.

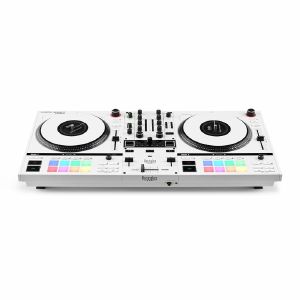

Notes: Introducing the DJ Control Inpulse T7 White Edition, the latest release from Hercules DJ following the success of the Inpulse range and the DJ Control Inpulse T7.

Designed with precision and elegance, this model is perfect for both seasoned DJs and beginners. Experience unparalleled control and creativity with features that cater specifically to your artistic needs, like the FX section, the Stems functionalities and so much more.

Whether you are performing at a club, a party, or honing your skills at home, the DJControl Inpulse T7 White Edition transforms your music and elevates your performances. Discover the future of DJing with a controller that combines innovation with timeless style.

Notes: The Mellotron Micro is the smallest version available of the Digital Mellotron, and includes many of the features of the full-size version. It includes one hundred 24-bit uncompressed sounds sourced from original first-generation Mellotron and Chamberlin tape libraries. Sound Card 01 is the built-in library for the Micro and M4000D series of instruments.

To update your Micro Rev 2, please use the Mellotron Updater app (iOS only). This update process uses Bluetooth and takes less than 1 minute. The Rev 2 Micro is the revision without the SD slot in the back. This is not supported by the Android app.

On the Rev 1 the SD slot is between the MIDI jacks and the Phones jack. The Rev 1 needs to be updated with an SD card.

Specifications

Sample playback engine with 24-bit audio data
100 Mellotron and Chamberlain sounds - based on the original sound of the first generation from the 60s and 70s (Sound Card 01)
25-Key keyboard
Controller for octave, volume, tone, pitch and A/B mix
2 Displays
Line output: 6.3 mm jack
Sustain pedal input
Stereo headphone-output 6.3 mm jack
MIDI In/Out/Thru
External power supply connection

Notes: Fueled by the success of its DJControl Inpulse range and the DJControl Inpulse T7, the DJControl Inpulse T7 Premium Edition comes with a range of unique enhancements and sleek finishes that will make it easier for modern DJs to scratch and perform anywhere.

The controller features a high-quality premium fader module, two new slipmats ideal for scratching, two slipmats ideal for traditional mixing, a transport case and eye-catching gold details and markings.

Designed primarily to serve the hip-hop and scratching community that embraced the original DJControl T7 most enthusiastically, this new controller from Hercules will add a little extra heart to every beat.

The DJControl Inpulse T7 Premium Edition comes with two software licenses, Serato DJ Lite and DJUCED. It is compatible with Serato DJ Pro

Notes: The ultimate way to experience audio

Full bass immersion

SUBPAC is revolutionizing the way audio is created and experienced. Building off our success in the studio and on stage, the SUBPAC X1 represents the next step on our journey to deliver the highest-fidelity immersive audio solutions ever made. Trusted by top artists, producers and DJ's, including Timbaland, Finneas (Billie Eilish), Richie Hawtin, Fat Boy Slim, and Dub Fire, and used in thousands of studios worldwide. The SUBPAC X1 is the next frontier in audio that fully engages you in the physical dimension of sound, quietly and accurately transferring deep immersive bass frequencies directly to the body.

The SUBPAC X1 is simple to use, just connect with your Music, Video Games, VR Experiences, and Movies, and feel things like you've never experienced before - SUBPAC IS THE FUTURE OF AUDIO.

One Subpac. One system.

SUBPAC X1 is Designed for Dual Use

For your chair

Anywhere you sit and engage with audio

For you to wear

Big Bass, Anywhere

Connect to the deepest feeling

Unparalleled Bass Response.

Customise & control

Mobile and PC app control over filters, EQs, time alignment, tactile and headphone levels, and other advanced settings.

Power & precision

Redesigned audio path and software optimizations for improved fidelity, increased power and more headroom.

Comfort & flexibility

Interchangeable strapping solutions for both seated & wearable uses, providing a more comfortable and ergonomic fit.

Modular

Removable wired analogue I/O and remote for the X1, and the optional C1 for professional-grade interface options.

Bluetooth wireless freedom

Connect wirelessly via Bluetooth Bluetooth 5.0 AD2P, aptX HD & LE Audio.

Pro grade

Highest quality component selection to meet the most rigorous demands in the studio, on stage, and everywhere you connect to audio.

A unified experience

The SUBPAC X1 System Combines Hardware & Software

Inputs:

3.5mm Stereo TRS Analog Line Input
USB Audio Class 2.0 over USB Type-C
SUBPAC Ultra Wideband Wireless Audio
Bluetooth A2DP

Outputs:

3.5mm Stereo TRS Headphone Output
+130dB SNR, +122dBA DNR
-112dB THD+N, 2.0Vrms into *100kO
-110dB THD+N, 1.0Vrms into 32O
*100kO = 100,000O

Power:

Integrated rechargeable Li-Ion battery
Up to 8hrs battery life
USB Type C Power Delivery
Included USB Type C 45W charger
Tactile Frequency Range:

Adjustable between 1-250hz
Mobile Control App:

iOS and Android compatible

Review: Limited to just 2000 copies, this gargantuan boxset collates every solo record from original Black Sabbath vocalist/reality TV star/heavy metal legend Ozzy Osbourne dating from his seminal 1980 debut full-length Blizzard Of Ozz all the way up to his most recent 2022 swansong Patient Number 9, with ample space even provided for the much-lauded rarities compilation Flippin' The B-Side. Individually numbered, this mega deluxe boxset also comes complete with ten full-size posters of vintage photos, a gold bat vinyl slipmat, and a numbered vellum certificate of authenticity personally signed by the Ozz Man himself.

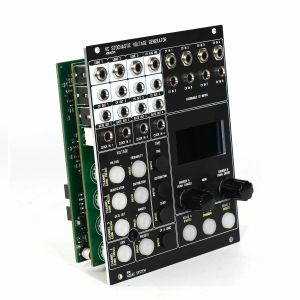

Notes: This module greatly expands on the principles of the ADDAC501 Complex Random from 2013.

This is a fully fledged 4 channel voltage generator capable of all things random, with quantization, probability, distribution, interpolation, time control, clock, states and a 32 step sequencer.

The module operation relies on its screen for all parameter editing, each button accesses one single page where parameters can be changed allowing a fast and fluid workflow across all settings.

Long presses on all buttons have a secondary function allowing fast Channel selection plus Mute and Hold functions.

The combination of having 2 Encoders with Push buttons allow swift navigation and editing across all pages and their settings.

Tech Specs:
20HP
4.5cm deep
200mA +12V
100mA -12V

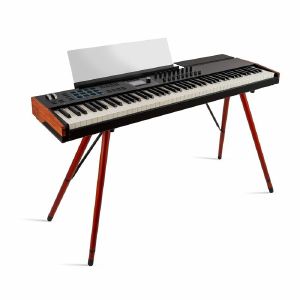

Notes: Building on the success of their recent rev3. releases (Minilab 3, Keylab Essential 3 and Keylab MK3) Arturia are delighted to share their next gen 88 note controller keyboard, the Keylab 88 MK3.

With a full-size hammer-action aftertouch keybed and next-level software integration encased in hard wearing high-quality materials and hard-wood panelling - KeyLab mk3 88 not only looks the part but will stand the test of time on stage and in the studio.

Keylab 88 MK3 features all of the refinements found in the other MK3 keyboards, but it sports a massive upgrade to it's keybed over previous models, now equipped with a FATAR TP/110 the Keylab 88 MK3 delivers a stunning playing experience, unlike any other 88 note controller on the market.

With a stunning visual display that shows a range of contextual information on-screen alongside touch-sensitive controls and advanced creative features; it enhances every aspect of the music-making process. From integrating effortlessly with Analog Lab Pro and all major DAWs to supporting musical ideation, keyboardists, producers and composers alike can take full command of their setup like never before.

From customizable MIDI settings and intuitive controls to advanced creative features that support musical ideation - KeyLab mk3 is a powerful ally both in the studio and on stage

KeyLab mk3 offers advanced connectivity with all major DAWs including MCU/ HUI protocols, allowing you to view contextual information on-screen, create user programs and have complete control of your music making software and instruments.

With Analog Lab Pro, Ableton Live Lite and a range of timeless instruments from the world-renowned V Collection, discover a suite of pro-grade software to start making music right away.

Notes: Unlock Limitless Creativity.

Experience the power and versatility of the ultimate MIDI Controller & Looper. Take control of your music like never before.

Redefined sensitivity.

ERAE II reacts from the lightest touch to the fastest strokes, pushing the dynamics to the extreme possible range of musical articulation. Embedding 16.000 force sensors, ERAE II benefits from our patented Force Multi-Touch technology, which offers ultra-responsiveness, down to a very low threshold force.

The most playable surface yet.

ERAE II benefits from 3 years of R&D with our patented Force Multi-Touch technology sensing just a few grams of pressure on a very large playable surface.

A sub-millimetre XY precision both in relative and absolute mode with enhanced sensor linearity for ultra-stable and continuous finger slides.

Complete musical articulation.

Add polyphonic portamentos, slides and after-touch to your musical creative process.

Control multiple sound parameters with a single touch and explore new possibilities on your favourite synthesizers.

Expressive looping.

Record segments of music and play them back with ERAE II's 8-track looper. You can define duration, quantization and BPM, overwrite and overdub expressive features.

Every gesture recorded on the fly is replayed visually, creating a show for the eyes.

Here it is in action: quickly recording a base line then adding a drum sequence. Stop the recording and jam on top of your loops.

Modular mastermind

Multi-dimensional connectivity.

ERAE II features 24 (12 dual) configurable analogue outputs, to be used as CV/Gate, drum triggers, and bipolar modulation CV controls. Bring life to your modular patches, and record intricate loops to be played back on any CV!

Different skins.

ERAE II features a unique skin that connects the sensors to your fingers. This material is designed to provide the perfect gliding sensation, with just the right amount of softness and the organic feel of fabric.

This skin can be replaced in just a few minutes. Our Kickstarter backers will receive a second skin made of black silicone.

Expressive Controller Looper

Erae Touch is a polyphonic MIDI Controller & Looper.

Designed for immersive live performances it will enrich your musical composition and become the master device to control all your hardware synthesizer, modular gear and software instruments.

Built with unrivalled sensitivity and offering infinite configurability.

User-friendly configuration

No more back & forth menu diving.

Setup the tempo, set your scales and launch loops from the settings section with ease thanks to the backlit buttons, the LCD screen and the selection click wheel embedded in the top right hand corner.

The ERAE Lab

Create your own layouts with the free companion software ERAE Lab. It's a simple yet powerful creation software: elements, MIDI settings and styles can be defined and tested in just a few clicks.

ERAE Lab now enables seamless layouts and project management. Drag existing layouts from a project to the compose panel. Browse your project library and pick layouts to create new ones in a few clicks.

Customize your interface with musical elements such as isomorphic keygrids, keyboards, or control elements with fader and buttons.

An open canvas.

This is an open canvas for the most daring. The API is a custom sysex library with messages enabling you to take full control of the ERAE II detection points and LEDs states. (You can already download the full API Documentation here).

A new kind of arpeggiator.

Explore the arpeggio's parameters in 3D. All the arpeggiator parameters (rate, octave range, note length, pattern, steps, velocity) can be mapped to expressive gestures (after touch, slide, portamentos).

Use the aftertouch control to modulate the rate while sliding the same finger to bend the note. Push it even more with MPE!

What's in the box:

Erae Il MIDI Controller & Looper
A Set of 2 skin with fabric and silicon material
60W USB power supply
2x USB cables (Power and MIDI data)
1x MIDI-TRS cable

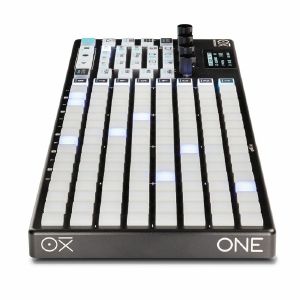

Notes: The OXI One MKII is the culmination of years of refinement, shaped by invaluable input from our community and artists. We've integrated powerful new features and optimized the workflow for unparalleled speed and creativity. The result? The most robust, intuitive, and affordable sequencer available today.

The OXI One MKII takes everything you loved about its predecessor and amplifies it. Now equipped with 8 sequencers and support for up to 64 tracks, it offers unparalleled flexibility for crafting complex compositions. Enhanced rhythmic sequencing, advanced composition tools, and expanded connectivity options make the MKII a powerhouse for music production. With a refined, intuitive workflow and a host of new features, the OXI One MKII delivers more functionality, more precision, and more creative freedom than ever before. More is More. Long celebrated as a go-to sequencer for melodic creativity, the OXI One MKII is now equally powerful on the rhythmic front.With expanded generative options, it allows you to effortlessly add dynamic variations to your compositions - unlocking endless creative possibilities. Featuring conditionals, modulation lanes, and LFOs tied to each sequencer mode, the OXI One MKII ensures that your creativity moves at the speed of inspiration. This sequencer empowers you to craft intricate, evolving patterns with ease. With a top of the line repeats engine, accumulators, and the enigmatic Flow button your compositions will be taken to the next level. More than just a studio centerpiece, the OXI One MKII is a powerful performance tool. With enhanced performative features, it equips you to play your arrangements and compositions live with precision and freedom. Whether in the studio or on stage, the OXI One MKII is your ultimate creative partner.

While the OXI ONE MKII is a new release, it retains the familiar workflow of the original OXI ONE now refined and enhanced. With significant feature upgrades and improved usability, the MKII sets a new standard as the ultimate sequencer.

With 6 sequencer modes OXI One MKII is the most versatile sequencer on the Market.

Multitrack: 8 independent tracks with customizable parameters; expandable to 64 tracks for vast creative potential.

Chord: Innovative chord generator with diverse types, voicings, Chromatic Mode, and custom scales for rich progressions.

Poly: Up to 7 voices with unique per-note chance and logic conditions for dynamic editing.

Mono: Full control over monophonic tracks, enhanced with accumulators for intricate melody creation.

Stochastic: Generative sequencing for evolving melodies with precise rhythm and pitch control.

Matriceal: Rule-breaking sequencer with four independent lanes for velocity, octaves, and notes, designed for experimental flexibility.

Our innovative CHORD MODE lets you effortlessly create dynamic chord progressions with diverse chord types,voicings, and bass options via intuitive menus. The built-in chord arpeggiator transforms chords into lush, evolving soundscapes. The HARMONIZER syncs other instruments to your chords, maintaining perfect harmonic unity. MODULATE your chord track with LFO, MOD lanes, or External CV. Applied modulations carry over to linked instruments, keeping your music dynamic and evolving.

4 Knobs For Total Control Of Any Parameter: All parameters of every menu are shown in the screen and can be modified with their respective encoder. No menu diving needed. With OXI One MKII the workflow is even more refined.

The OXI ONE MKII elevates sequencing with enhanced logic conditionals, transforming simple compositions intointricate, vibrant sequences effortlessly. Its innovative Accumulator and Repeats Engine delivers rapid, intuitivevariation, setting it apart from other sequencers. Expanded with eight modulation lanes per track and a broaderrange of internal destinations, the modulation system is more powerful than ever. Plus, a fresh suite of generative tools sparks inspiration, breathing life and endless creative possibilities into your music.

OXI ONE MKII supports both modern and legacy connectivity, ensuring full integration with all your studio gear sonothing gets left behind.DIN Sync, MIDI, CV/Gate, USB, and Bluetooth allow you to connect anything to the OXIONE MKII. 8 CV and Gates, use USB as Device or Host mode, Bluetooth to connect your tablet or mobile phoneand use it as another musical instrument and with the Split v2 expansion you can connect up to 6 MIDI Lanes. Nothing is left out in your studio with OXI ONE MKII.

OXI ONE MKII is built for durability and performance, using premium components, advanced technology, andrugged materials to handle demanding studio use and tough touring conditions. Featuring a sleek aluminiumun body, high-grade silicone pads, and robust aluminium knobs, it delivers professional build quality at an accessible price - making it one of the best value sequencers on the market.

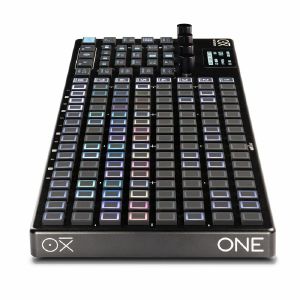

Notes: The OXI One MKII is the culmination of years of refinement, shaped by invaluable input from our community and artists. We've integrated powerful new features and optimized the workflow for unparalleled speed and creativity. The result? The most robust, intuitive, and affordable sequencer available today.

The OXI One MKII takes everything you loved about its predecessor and amplifies it. Now equipped with 8 sequencers and support for up to 64 tracks, it offers unparalleled flexibility for crafting complex compositions. Enhanced rhythmic sequencing, advanced composition tools, and expanded connectivity options make the MKII a powerhouse for music production. With a refined, intuitive workflow and a host of new features, the OXI One MKII delivers more functionality, more precision, and more creative freedom than ever before. More is More. Long celebrated as a go-to sequencer for melodic creativity, the OXI One MKII is now equally powerful on the rhythmic front.With expanded generative options, it allows you to effortlessly add dynamic variations to your compositions - unlocking endless creative possibilities. Featuring conditionals, modulation lanes, and LFOs tied to each sequencer mode, the OXI One MKII ensures that your creativity moves at the speed of inspiration. This sequencer empowers you to craft intricate, evolving patterns with ease. With a top of the line repeats engine, accumulators, and the enigmatic Flow button your compositions will be taken to the next level. More than just a studio centerpiece, the OXI One MKII is a powerful performance tool. With enhanced performative features, it equips you to play your arrangements and compositions live with precision and freedom. Whether in the studio or on stage, the OXI One MKII is your ultimate creative partner.

While the OXI ONE MKII is a new release, it retains the familiar workflow of the original OXI ONE now refined and enhanced. With significant feature upgrades and improved usability, the MKII sets a new standard as the ultimate sequencer.

With 6 sequencer modes OXI One MKII is the most versatile sequencer on the Market.

Multitrack: 8 independent tracks with customizable parameters; expandable to 64 tracks for vast creative potential.

Chord: Innovative chord generator with diverse types, voicings, Chromatic Mode, and custom scales for rich progressions.

Poly: Up to 7 voices with unique per-note chance and logic conditions for dynamic editing.

Mono: Full control over monophonic tracks, enhanced with accumulators for intricate melody creation.

Stochastic: Generative sequencing for evolving melodies with precise rhythm and pitch control.

Matriceal: Rule-breaking sequencer with four independent lanes for velocity, octaves, and notes, designed for experimental flexibility.

Our innovative CHORD MODE lets you effortlessly create dynamic chord progressions with diverse chord types,voicings, and bass options via intuitive menus. The built-in chord arpeggiator transforms chords into lush, evolving soundscapes. The HARMONIZER syncs other instruments to your chords, maintaining perfect harmonic unity. MODULATE your chord track with LFO, MOD lanes, or External CV. Applied modulations carry over to linked instruments, keeping your music dynamic and evolving.

4 Knobs For Total Control Of Any Parameter: All parameters of every menu are shown in the screen and can be modified with their respective encoder. No menu diving needed. With OXI One MKII the workflow is even more refined.

The OXI ONE MKII elevates sequencing with enhanced logic conditionals, transforming simple compositions intointricate, vibrant sequences effortlessly. Its innovative Accumulator and Repeats Engine delivers rapid, intuitivevariation, setting it apart from other sequencers. Expanded with eight modulation lanes per track and a broaderrange of internal destinations, the modulation system is more powerful than ever. Plus, a fresh suite of generative tools sparks inspiration, breathing life and endless creative possibilities into your music.

OXI ONE MKII supports both modern and legacy connectivity, ensuring full integration with all your studio gear sonothing gets left behind.DIN Sync, MIDI, CV/Gate, USB, and Bluetooth allow you to connect anything to the OXIONE MKII. 8 CV and Gates, use USB as Device or Host mode, Bluetooth to connect your tablet or mobile phoneand use it as another musical instrument and with the Split v2 expansion you can connect up to 6 MIDI Lanes. Nothing is left out in your studio with OXI ONE MKII.

OXI ONE MKII is built for durability and performance, using premium components, advanced technology, andrugged materials to handle demanding studio use and tough touring conditions. Featuring a sleek aluminiumun body, high-grade silicone pads, and robust aluminium knobs, it delivers professional build quality at an accessible price - making it one of the best value sequencers on the market.

Notes: A super impressive offering from Xaoc, the Samarkanda is a quad delay module designed for hands-on, real-time performance. Dial in everything from loops to stereo delays, resonators, modulation effects and much more.

Supplier's Notes:
Xaoc Devices Samarkanda is a digital quad delay module with extensive patching capabilities and a lot of flexibility for signal mangling. It can be used as four entirely independent delays, a dual stereo delay, a complex/multi-tap or multi-channel delay, a quad/polyphonic resonator, dual chorus, dual flanger, reverb, looper (with sound on sound!), and granulator, or any combination of those. You can reverse the delayed signal, hold it, squeeze and stretch it beyond all recognition and still go back to the original piece of audio captured in the buffer! The internal lossless normalization (the signal doesn't leave the digital domain) combined with top-notch components (including 24-bit AKM converters and 32-bit internal processing) are responsible for high sound quality. Samarkanda has been conceived in the truly modular spirit. Not only can you control almost all its features remotely with CV/gates, but the external feedback path gives you the opportunity to process the delayed signal with other modules.

Samarkanda offers a wide range of delay times beginning at a mere 0.5ms and reaching up to 15 seconds per channel. That means that, by stacking its four channels, you can achieve up to one minute delay! There are two operating modes switchable individually for each channel. Analogue delivers pitch changes that resemble classic analogue tape and BBD delays. When you combine it with the looping Hold function, you can play Samarkanda with any 1V/octave CV source. By using the Sync function you can even loop single wave cycles. The Digital mode gives you a granular buffer-scrubbing effect (no pitch change) across the whole delay time range. You can seamlessly switch back and forth between modes without losing any information. You can use Samarkanda for multiple tasks at the same time - from four independent delay lines through any combination of channels processing the same signal up to a quad behemoth. You can also use the linking feature for ease of operation (the first channel in the chain acts as the main control source for the others).

As most settings operate on a per-channel basis, you can freely combine different features (such as analog/digital behaviour, delay time range, reverse and hold functions, etc.) in a configuration of your choosing. You can synchronize each of its channels separately to a different source, either via the Sync input, or by using the tap-tempo functionality (with multiplication and division galore). Should you ever get lost, the Purge button comes in handy when/if things start to spiral out of control!

Notes: ***B-STOCK: Box opened, product in perfect working order***


Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesiser designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Specifications:

Max output voltage: 2 v 0-to-peak
Output connector: mono 6.3 mm TS or TRS (balanced) jack
Output resistance: 100 Ohm
EXT IN: 1 v 0-to-peak
EXT IN connector: 6.3 mm TS jack
HOLD GATE: full HOLD volume +5 V
HOLD GATE connector: 6.3 mm TS jack
CV DELAY : unipolar, range of 0 to +5 volt
CV DELAY connector: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply: stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 2 watt
Dimensions: 266 x 266 x 62 mm
Weight (without power supply and packaging): 2.5 kg

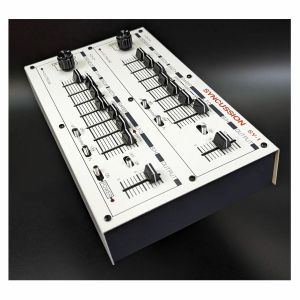

Notes: An exact replica of the legendary Pearl SY-1 Syncussion drum machine, featuring expanded I/O board. Classic analogue sound with individual trigger inputs, two voices and six different oscillator modes per voice.

Supplier's Notes:
The Michigan Synth Works SY-1 Drum synth is a full size, exact replica of the Pearl SY-1 Syncussion. Every detail has been replicated from the original board layouts to the mechanical construction. The assembled version has been modernized to use current manufacturing processes while still using the original board layouts and all parts have been carefully chosen to match the behaviour of the original. Case, boards, and I/O Boards are all interchangeable with the original Pearl device.

Assembled versions come with the METAL back standard, the wood case is available as a DIY kit separately.

The Syncussion:

The Syncussion is a 2 voice drum synthesizer with two oscillators per voice and six different modes. Five modes mix and modulate the oscillators plus a noise channel. Each voice has controls for TUNE, DECAY, SWEEP amount, SWEEP Speed, Sweep up/off/down, LFO amount, and LFO speed, LFO Shape (Tri or Square), and sample and hold.

OSC Modes:

A: One oscillator sound, at this position the regular drum synthesizer sweep can be effected.

B. Sound of one oscillator adjusting the other oscillator frequency; produces a metallic sound.

C. Sound of a mix of two oscillator outputs; sound is similar to that of a vibraphone.

D. Sound of mix of two oscillator outputs; produces a low to high sweep and is done by hitting pad softly or hard; there is no connection to SWEEP SPEED and SWEEP RANGE

E. Sound of one oscillator adjusting the other oscillator frequency with a mix of noise; produces a sound similar to hitting thin metal.

F. Sound of only noise

Triggering:

The SY-1 is designed to be triggered via drum triggers which output a very low pulse signal. Modern 5V trigger signals (v-trig) can be used, how it i recommended experimenting with simple audio samples or more dynamic triggers. One of the more interesting features of the Syncussion is the dynamic response to the drum triggers and just sending a straight pulse which maxes out the trigger inputs does not do the device justice.

Tuning:

The original SY-1 uses a tune pedal to adjust the pitch of both oscillators while playing. This functionality has been retained in the original configuration but is of limited use without the pedal. The expanded version DOES have per voice CV control (1v/Oct) as well as the MIDI.

The inputs and outputs use 1/4" Stereo to 1/4" (3 included) to greatly expand the capabilities of the device. The Mod input is prewired to VCF freq but can easily be switched to decay via jumper on the voice cards.

The SY-1 ships with a metal base panel but the DIY wood case can be used instead. It is provided UNFINISHED and sold separately.

Whats included:

SY-1 Synthesiser

Universal Power adapter (100-240V, 12V DC out, Tip Positive)

Expanded I/O: 3x 1.5m TRS 1/4" Phone to 2x TS 1/4" Phone

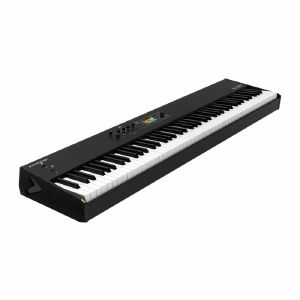

Notes: More than just master keyboards, the SL mk2 series is a new chapter in musical keyboard controllers. From the innovative UX Logic interface, seamless integration with the Numa Player, high-definition MIDI 2.0, to the immersive realism of our new keybeds, every detail is crafted to bring your music to life.

The SL gets smarter. With the revolutionary Studiologic UX Logic, first introduced with the Numa X Piano, the SL mk2 series redefines simplicity and elegance. A sleek, modern control panel empowers your creativity, making navigation intuitive and effortless. Create, explore, and control with unparalleled ease.

SL Link, Studiologic's groundbreaking protocol, bridges the gap between your gear and your imagination. With compliant external apps taking full control of the SL mk2, every nuance of your performance stays in perfect sync.

Seamlessly connect the SL mk2 with Numa Player 2, our cutting-edge music software is built now to complement the SL series perfectly.

Numa Player is cross-platform and designed for ultimate versatility, offering a rich selection of high-quality sound libraries. Best of all, these libraries are free for every SL user1, providing you with a full musical experience straight out of the box. Whether you're composing, performing, or exploring, SL Link and Numa Player ensure your creativity knows no bounds.

The SL mk2 takes a leap into the future with MIDI 2.0. Unlock the full potential of your music with greater resolution, richer dynamics, and unprecedented precision. It's not just MIDI; it's music at its most expressive.

Take charge of your studio with dedicated DAW transport controls. From playback to recording, essential features are just a touch away, so you stay immersed in the creative process without breaking stride.

The SL mk2 doesn't just control; it delivers. With dual audio outputs and a headphone jack, it functions as a professional-grade audio interface. Powered entirely by USB-C, it delivers pristine sound from computer or mobile device directly to your speaker system no extra hardware needed.

Featuring the TP/400 Wood, our finest keybed ever. Designed to deliver an unparalleled touch, it offers a playing experience remarkably close to that of an acoustic grand piano. From the precise hammer action to the timeless beauty of wooden keys, every detail is crafted to inspire and elevate your performance

Notes: One of the best solutions for 7"/10"/12" record cleaning, HumminGuru's ultrasonic approach automatically restores your records, cleaning and drying within 7 to 15 minutes per disc. Simple, easy to use and effective.

Supplier's Notes:
The HumminGuru Ultrasonic Vinyl Record Cleaner

An all-in-one ultrasonic vinyl cleaning machine that automatically cleans and dries your record in just 7 to 15 minutes. It is compact, lightweight, quiet and compatible with 100v-240v.

HumminGuru ultrasonic vinyl record cleaner not only brings your dirty records back to life; its ease of use and intuitive design also makes record cleaning a more pleasant experience. It has been designed to clean and dry the vinyl records in one step using ultrasonic cleaning system. With 40kHz frequency, it is effective to remove the contaminants and dust on the record without causing any damage to the surface of the record. Less is more. Its lightweight and compact design make it easy to transport and creates more space to store. The simple yet elegant look was created to intuitively fit into your lifestyle. HumminGuru would be your best option in quality for price and value.

Maintenance Features

Air Filtration - To prevent external dust from blowing back onto the record during the drying process. The filter is washable and replaceable, which makes for easy maintenance.
Water Filter - A detachable water filter in the water tank gives an option to reuse the cleaning water. The filter is washable, which makes for easy maintenance.
Removable water tank - Water tank is removable for easy cleaning and maintenance
Replaceable rotation wheels - Easy to replace with HumminGuru assigned maintenance tool

Specifications

Item Name: HumminGuru Ultrasonic Vinyl Record Cleaner
Net Weight: 3.1 kg
Material: ABS & Stainless Steel
Colour: The New Blue
Dimensions: 34 x 15 x 28 cm
Adapter (Supported Voltage): 100 - 240 V AC 50-60 Hz
Water Tank Capacity: 400 ml
Ultrasonic Frequency: 40 kHz
Packing Volume: 38 x 21 x 37 cm
Packing Weight: 4.88 kg
Cbm: 0.03
Certifications: RoHS Directive 2011/65/EU, (EU) 2015/863
1 Year Warranty: HumminGuru comes with 1 year world-wide warranty.

Humminguru supports all commonly used voltage standards from 100v-240v.

The package comes with:

Ultrasonic Vinyl Record Cleaner
A Cleaner Lid
Power Cord
Manual Instruction
Removable Water Tank x 1
Maintenace Tool x 1
Replacement kit (2 pairs of rotation wheels, 5 pcs of air filters and 5 pcs of water filters) x1
Adapters for 7" and 10" records

Notes: The legend is back. Updated and re-engineered for the 21st century, the classic Technics DJ turntable remains the industry standard. Top sound, top build quality.

Supplier notes:
The SL-1210MK7 is the newest model of the SL-1210 Series. For the development of this model, all that modern-day DJs need and want was reviewed from the ground up. At the drive section of the MK7 is a coreless direct drive motor. While achieving both stable rotation and powerful torque, this has successfully eliminated a rotation irregularity called cogging, which was the only drawback of the direct drive system. As a result, sound quality was further improved. The pitch control incorporates digital control to achieve improved tracking performance and accuracy. The buttons and tonearm are black to complete the all black design, and the LED light can be set to illuminate in red or blue. A reverse play function has been added to expand the breadth of DJ play style. With those features and functions, the MK7 aims to set a new standard for DJ turntables.

Notes: Building on the success of the original HumminGuru record cleaner, the NOVA model takes things to the next level. More power, quieter operation, easier operation and lots of tweaks to make the winning formula even better.

Supplier's Notes:
Premium | Automatic | Efficient

The HumminGuru NOVA is an Advanced Ultrasonic Vinyl Record Cleaner that elevates your record-cleaning experience to the highest level of satisfaction. Utilizing 40kHz ultrasonic sweep frequency with an upgraded power drive, it delivers quieter and highly efficient cleaning performance. Furthermore, with the NOVA's upgraded fan power, experience rapid record-drying in just 3 to 6 minutes. It is recommend that you use The Small Bottle.

The NOVA also includes a patented design of adjustable rotation wheels, eliminating the need for 7" & 10" record adapters! The newly added countdown timer, a new draining mode, and a practical cover lid that doubles as a drying rack and a record display stand further enhance usability, delivering an even more satisfying experience.

With its innovative design and upgraded features, the HumminGuru NOVA delivers maximum convenience, exceptional cleaning, and efficient drying performance. The NOVA is quiet, compact, and lightweight- making it the perfect companion for all vinyl collectors.

Inside The Package

NOVA Advanced Ultrasonic Vinyl Record Cleaner
Cleaner Lid
Removable Water Tank
Water Funnel
Maintenance Tool
7" and 10" water basin supports
The Small Bottle (5ml)
Drying Rack Accessories
Drawstring Pouch
Air Filters x 6
Water Filters x 6
Interchangeable Plug Power Adapter (Compatible with 100-240V)
Owner's Manual

Specifications

Product Name: HumminGuru NOVA Advanced Ultrasonic Vinyl Record Cleaner
Model: HG05
Material: ABS and Stainless Steel
Product Size: 34 x 15 x 26.1 cm
Product Weight: 3.4 kg
Input: DC 12V 5.0A
Output Power: 60W

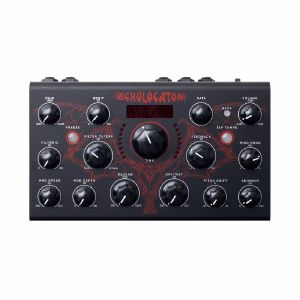

Notes: Developed in conjunction with Dutch software dons 112dB, the Echolocator brings precise, ultra-controllable delay to the hardware realm. Full stereo design with filter and shimmer modes, freeze function and foot switch input.

Supplier's Notes:
The Echolocator is a hands-on precision tool that lets you take manual and very musical control over small nuances. Like a bat navigating its environment in the dark, you can feel your way through your live performances and shape the delay response and character on the fly. Featuring 12 parameters for detailed sound design, save/recall functions for all parameters, MIDI control over all parameters and a sleek aluminium case to match our lineup of compact desktop units, the Echolocator will let your setup take flight in any live show, studio or sonic experiment.

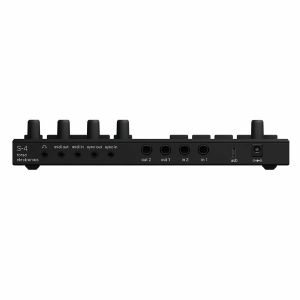

Notes: Explore malleable sound. Mold, carve, bend.

The S-4 is a sculpting sampler designed to capture and transform sounds. Merging tape-era workflows with cutting-edge technology, the S-4 redefines sound mangling by providing a futuristic platform for crafting unique soundscapes and compositions, using samples and real-time audio processing.

S-4 is a tool made for sonic explorers. It has four parallel stereo tracks, each with an audio engine featuring a chain of audio devices including samplers, live granular processing, morphing resonators, and a range of audio effects. A novel modulation system allows anything and everything to be modulated with four modulators per track. Capture sounds on the fly with the onboard microphone and stereo line input, or load samples from the 4GB internal flash storage.

Use cases

The S-4 is a versatile powerhouse, capable of serving as an effects processor, transformative sound designer, tape machine, live looper, classic sample player, or textural synthesizer.

Tape machine

Capture your surroundings. Use S-4 as a transformative four-track tape machine.

Effect processor

Manipulate live audio, and add colour and textures to your beats, melodies, and sounds

Midi controlled sampler

Hook up a MIDI keyboard or sequencer and use S-4 as a powerful textural synthesizer and sample player.

Audio engine

Push the creative boundaries and transform audio into uncharted depths. S-4 has four parallel stereo tracks, each of which contains a chain of five audio devices tailored to cover specific sonic areas and applications. Create everything from glittering textures to broken soundscapes or evolving synth sounds.

Together, the devices form a playful toolbox for sculpting sample material and live audio.

Material

Stereo tape and sample players with live audio and looping capabilities.

Granular

Live granular processing with time-warping and pitch-shifting algorithms.

Filter

Morphing resonator: 48-band tuned filter bank with animation, tonal control, and classic filter functions.

Colour

Collection of destructive effects including bit crushing, drive, and compression.

Space

Combined reverb and delay with pitch-shifting and shimmer.

Modulation system

Animate and bring life to any parameter using the rich and unique modulation system. Each track has four configurable modulators that can be mapped to any parameter with unlimited mapping destinations. It is even possible to do cross-modulation between modulators. Choose between a range of different modulators from complex LFOs, and generative sequencers to envelopes.

Capture your surroundings

Utilize the built-in microphone to record sounds, sample and loop your external gear with the stereo line input, resample the internal tracks, or effortlessly load samples from the S-4's flash memory or an external drive.

Versatile powerhouse

The S-4 is designed with durable RGB buttons offering tactile feedback and a high-quality 3.5-inch LCD display ensuring all the visual feedback you need. It features USB connectivity for seamless connection to class-compliant devices and effortless file transfers to and from your laptop. Moreover, it can function as an audio interface when you require a simplified setup. You can also expand the number of inputs and outputs by connecting a class-compliant external USB interface.

Technical specifications

Audio engine features

4 parallel stereo audio tracks
Tape player with live looping capabilities
Polyphonic sample player
Live granular processing with time-warping and pitch-shifting algorithms
Morphing resonator (48-band filter bank)
Bit crushing, drive, and compression
Combined reverb and delay with pitch-shifting and shimmer

Modulation features

4 modulators per track
Modulate any parameter of the audio engine
Modulator types:
- Complex LFOs
- Generative sequencing tools
- Envelopes

Hardware

Quad-core 1.5 GHz processor
4 GB flash memory (sample pool)
24-bit / 48 kHz stereo audio in and out

I/O

2 line-inputs
2 line-outputs
Built-in microphone
Stereo headphone output
MIDI in/out
Analog sync in/out
USB-C

Miscellaneous

WiFi - Ableton Link
Class-compliant USB audio interface
Expandable number of inputs/outputs with class-compliant USB interfaces

User Interface

High-resolution LCD colour display, 3.5 inch
21 tactile RGB buttons
9 high-quality endless encoders

Physical

Matte black aluminium casing
Dimensions: 242 x 156 x 39 mm (9.5" x 6.1" x 1.5")
Weight: 820g (1.8 lbs)

Notes: Hotly anticipated rotary goodness from Spanish pro audio specialists Ecler. Simple, pure two-channel design with three-band channel EQs, three-band isolator and quality sound.

Supplier's Notes:

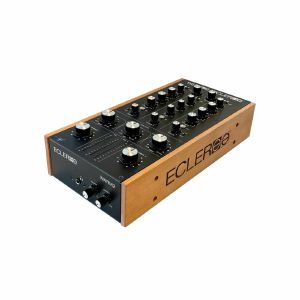

Two-Channel Analogue Rotary Mixer

WARM2 is a professional two-channel analogue rotary DJ mixer, designed and manufactured by ECLER in Barcelona. Featuring two phono/line channels and a micro/line channel, classic sharp filters, a 4th order Isolator and a narrow portable format, it will deliver a warm and crystal clear analogue sound.

Audio Performances

Inputs Sensitivity nom/Impedance:

LINE : 0dBV/50kO
PHONO : -40dBV/50kO
MICRO : -50dBV/>1kO
FX RETURN : 0dBV/>6kO

Outputs Level/Minimum Load:

HOUSE (BAL) : 0dBV/600O 1V *(+12dB 4V)
HOUSE (UNBAL) : 0dBV/2.2kO 1V *(+12dB 4V)
BOOTH (UNBAL) : 0dBV/2.2kO 1V *(+12dB 4V)
REC : 0dBV/10kO
HEADPHONES : 200mO/200O THD 1%
FX SEND : 0dBV/2.2kO

Frequency Response:

LINE : 10Hz#30kHz -1dB
MICRO : 10Hz#25kHz -1dB
PHONO : RIAA i0.5dB
FX RETURN : 10Hz#50kHz -1dB

THD-N:

LINE : <0.006%
MICRO : <0.9%
PHONO : <0.08%
FX RETURN : <0.005%

CM MR:

MICRO: >70dB @ 1kHz

Signal Noise Ratio:

LINE: >99dB
MICRO: >85dB
PHONO: >98dB
FX RETURN: >100dB

Max Undistorted Output Level:

HOUSE (Electr.BAL): 21dBV (23dBu)
HOUSE (UNBAL): 21dBV (23dBu)
BOOTH (UNBAL): 21dBV (23dBu)

Trim control:

INPUTS 1-2: - 15dB
INPUT 3: - 20dB

Tone control Inputs 1-2:

BASS: +10/-30dB
MID: +10/-25dB
TREBLE: +10/-30dB


Tone control Isolator:

BASS: +12/-70dB
MID: +12/-40dB
TREBLE: +12/-70dB

Tone Filter cut frequency at -6dB (slope 12dB/oct):

BASS: 200Hz
MID: 200Hz#6.8kHz
TREBLE: 6.8kHz

Isolator cut frequency at -6dB (slope 24dB/oct):

BASS: 300Hz
MID: 300Hz#4kHz
TREBLE: 4kHz

Connectors

Inputs:

LINE 1-2-3: RCA STEREO
PHONO 1-2: RCA STEREO
MICRO 3: 6.3mm TRS BAL. JACK
FX RETURN: RCA STEREO

Outputs:

HOUSE (BAL): XLR STEREO
HOUSE (UNBAL): RCA STEREO
BOOTH: RCA STEREO
FX SEND: RCA STEREO
REC: RCA STEREO
HEADPHONES: 6.3mm/3.5mm STEREO JACK

Miscellaneous

Control Mode: Rotary with Alps Blue Velvet Potentiometers
Phantom Voltage: 18VDC/5mA Max (Default ON)
MIX and PFL VU-Meter: LED 12 segments (-30dBV # +20dBV)

Operation

Operation Temperature: -5-C - 45-C / 23-F - 113-F
Humidity: 20 - 90% RH (no condensation)

Supply

Mains voltage: 90-264VAC 47-63Hz
Rated power consumption: 30VA

Mechanical

Dimensions (without wooden sides): 400 x 185 x 100mm / 15.7" x 7.2" x 3.9"
Weight : 3.6Kg / 7.94 lbs

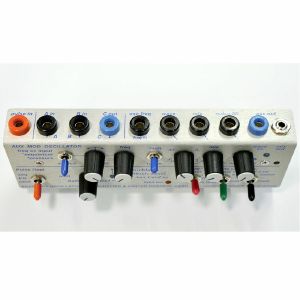

Notes: Introducing the new Buchla Auxiliary Oscillator Card, a brand new revision of the BEMI era AUX Card, designed to perfectly compliment 208c series / Easel instruments.

Buchla Music Easel users remember fondly the BEMI-Era Easel Aux Expander Card, which added an auxiliary modulation source which could also be used as an audio rate oscillator and more!

Now, the Aux Card returns as the Aux Osc Card - A new Auxiliary Oscillator Card which perfectly compliments the current generation Music Easel Modern, Retro, Easel Command, and Anniversary Edition.

The new AUX Card unlocks an incredible range of features, dramatically expanding the Easel's capabilities and taking your creative potential to the next level.

Notes: Updated version of Akai's excellent MPC One features increased storage, WiFi, Bluetooth and a striking new colour scheme. Full standalone beat creation masterpiece.

*** Introducing MPC Stems- March 2024 ***

Akai Professional now introduces the next chapter of sampling innovation and production powered by the groundbreaking MPC Stems bringing sampling into a new chapter.

With MPC Stems, you can access the raw building blocks of any sample or vinyl record, isolating the DNA of any record. Producers can now manipulate the Drums, Bass, Music, and Vocals, opening new creative possibilities.

Akai Professional introduces the ultimate creative workflow with Stems Separation seamlessly integrated into the leading MPC series, powered by MPC 2 Desktop Software.

With MPC Stems, producers and beat-makers can now unlock unmatched sampling creativity by easily isolating drums, bass, music, and vocals from any audio, vinyl recording, or sample revolutionizing the art of sampling.
Experience lightning-fast workflow with superior sound quality, keeping you inspired throughout the creative process.

Slice and isolate samples while maintaining chop regions across each of the four stem layers.

Take complete control with direct manipulation of stem layers from the pads, adjusting volume, pitch, pan, start, and end points with instant responsiveness.

MPC Stems requires MPC 2 Desktop Software running 2.14 or higher, compatible with MPC Live, MPC Live 2, MPC One, MPC One +, MPC X, MPC XSE, MPC Key 37, MPC Key 61, MPC Studio Mk 2 in Controller Mode.

Supplier's Notes:

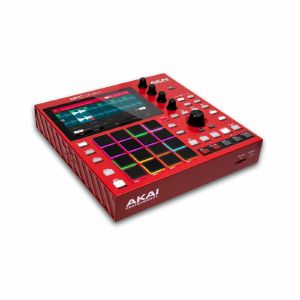

MPC One +

Standalone MPC with 7" touchscreen / WiFi & Bluetooth

Supercharge your beats

Standalone supercharged

The new MPC One+ brings a jolt of energy to the standalone workflow to enhance creative speed and efficiency. With MPC One+, beatmakers producers to live performers can enjoy the creative journey like never before.

Pure standalone power in your hands

At the heart of MPC One+ is the powerful multi-core processor, the same featured in the flagship MPC X. This isn't a scaled down little brother, but a production unit built with the same DNA for high-level music creation. Instruments, audio, MIDI, and effects processing to bring the music to life. With an upgraded 16GB of internal storage, create and store more of your inspired moments right in MPC One+ for immediate access and recall.

Wireless for the future

New Wi-Fi and Bluetooth connectivity opens a new world of possibilities for your creative workflow. With Wi-Fi, you now have access to Ableton Link 3 to wirelessly connect and sync all your capable devices. Lock patterns and grooves for a mega creation without any cables or connections. Grab your Bluetooth enabled MIDI controller to lay down synths and melodies while your infectious rhythms have you vibing to the beat. Pair with a wireless QWERTY keyboard to search through folders and libraries accurately. With Wi-Fi and Bluetooth, your MPC One+ may be untethered but you are locked right into the music.

The centre of your creativity

MPC One+ is meant to be the focal point of your creative workspace. Whether you need compact, efficient beat-making or expanded interconnected production and composition, MPC One+ is versatile enough to accommodate any need. Connect your studio speakers to Stereo Outputs for accurate monitoring. A pair of Line Level Inputs are ready for keyboards, synths, instruments, hardware processors, and more. Expand your I/O with support for ClassCompliant Devices via a USB A host port. Connect your favorite plug-and-play USB MIDI Controllers, Audio Interface Devices, or removable storage drives, and take your production up another level with ease.

The workflow that sparks inspiration

MPC is the premier platform for all pattern-based music from EDM to Electro, Hip-Hop to House, and beyond. With 128 MIDI and 8 Audio Tracks per project, MPC One can capture any idea just as fast as you can think it. Browse thousands of MPC Plugin Instrument Presets to find that perfect sound to build melodies or shape harmonic phrases with massive sonics. Lay down serious drums and percussion with the signature MPC groove and precision. 16 Levels, Note Repeat, and Time Correct have defined the rhythmic feel for generations and continue to be the foundation for hit song after hit song. Use the pads in combination with Notes and Chords modes to unlock a completely new world of pad performance using the 16 velocity-sensitive RGB backlit pads.

One place for your sounds, samples, and songs

MPC One+ grows with you as you evolve on your music production journey. Update features, sounds, and samples wirelessly thanks to built-in Wi-Fi. When new MPC plugin instruments are available, you'll enjoy instant notifications as well as downloads and software authorizations right from your MPC One+. Browse and sync your curated Splice loops and samples and give your productions a breath of fresh inspiration whenever you need it. Keep all your sounds and instruments right within reach to instantly capture the most inspired moments anytime.

The next step of your MPC journey

MPC One+ is here for the producers and beatmakers ready to take the next step in the journey. Upgrade to MPC One+ from MPC Beats and load your old projects seamlessly on MPC One+. Your MPK mini or other class-compliant controller connects for powerful keyboard control of popular MPC plugin instruments like Hype, Mellotron, or Odyssey. For a limited time, receive a voucher for a free MPC Plugin instrument download from the MPC Store with the purchase and registration of a new MPC One+. MPC One+ has arrived and the musical possibilities ahead of you are endless with the power of its supercharged standalone workflow.

Technical Specifications

Pads
(16) velocity- and pressure-sensitive pads, RGB-backlit
(8) banks accessible via 4 Pad Bank buttons

Knobs
(4) 360- touch-sensitive Q-Link knobs for parameter adjustment
(1) data encoder for value adjustment and selection via push

Buttons
(31) dedicated-function buttons

Display
7.0" / 177 mm (diagonal)
5.9" x 3.7" / 151 x 94 mm (width x height)
Full-colour LED-backlit display with touch interface

Memory
Processor: Quad-core ARMr processor
RAM: 2 GB
Storage: 16 GB (over 7.8 GB available for user storage)

Power via power adapter (12 V, 3.0 A, center-positive, included)

Connections
(2) 1/4" (6.35 mm) TRS inputs (1 stereo pair)
(2) 1/4" (6.35 mm) TRS outputs (1 stereo pair)
(1) 1/8" (3.5 mm) stereo headphone output
(1) 5-pin MIDI inputs
(1) 5-pin MIDI output
(4) 4 TRS CV/Gate Jacks, 8 Outputs Total
(1) USB Type-A port
(1) USB Type-B port
(1) SD Card slot
(1) Power Adapter input

Dimensions (width x depth x height)
10.7" x 10.7" x 2.1"
272 x 272 x 53 mm

Weight
4.7 lbs / 2.1 kg

Notes: Silver version of the rebooted SL-1200, updated and refreshed in MK7 form. Still sounds great, still built like a tank and still the industry standard DJ deck.

Supplier's Notes:
Coreless Direct Drive Motor Achieving Stable Rotation

The direct drive system uses a slow-turning motor to directly drive the platter. This system has various advantages. It offers high performance, such as rotation accuracy and powerful torque, does not require replacement of parts and maintains high reliability over a long period of time. On the other hand, the direct drive system was said to produce a rotation irregularity called cogging. For the SL-1200MK7, a new coreless direct drive motor was developed. This motor employs a coreless stator. The removal of the core (iron core) from the stator eliminated the root cause of cogging. Furthermore, the magnetic force of the rotor magnets was improved to the highest possible level, and the gap between the coreless stator and rotor magnets was optimised, thus achieving high-torque-performance equalling that of the SL-1200MK5. Boasting smooth rotation and powerful torque, this motor reproduces sound accurately and faithfully from the groove on an analogue record.

Diverse New Functions Adapt to Various Playing Styles

The newest digital motor control technology, accumulated through the development of Blu-ray disc products, is applied to improve adjustment by allowing the torque and brake speed to be adjusted individually in four steps.

The pitch control function allows fine adjustment of the rotation speed within i8 % / i16 %. It does this through digital control, from positional detection of the slider to rotational control of the motor, eliminating the unnecessary DA conversion. This greatly improves tracking performance to achieve accurate and stable pitch adjustment.

Reverse Play Function

The reverse play function, which brings forth new possibilities of creative performance, makes its first appearance in the SL-1200 Series. In addition to 33-1/3 rpm and 45 rpm, a rotation speed of 78 rpm is supported.
*The torque / brake speed adjustment, rotation speed switch, and reverse play can be adjusted by switches on the main unit.

The tonearm, which has continued to support the leading edge of the DJ scene for many years, inherits the highly reliable static-balance universal S-shape tonearm. Using high-precision bearings, it achieves a higher initial-motion sensitivity than the SL-1200MK6. This accurately tracks the groove on the phonorecord to assure excellent tracking performance with minimum stylus jumping even in harsh playing conditions such as scratching.

The stylus illuminator features a new push-type structure for intuitive operation, and employs a high-brightness and long-life white LED. The illumination area and intensity were reviewed to provide improved visibility of the stylus tip even in a dark environment.

Power / Phono Cable Terminals

The power and phono cable terminals allow detachment of the cables. The phono terminals are gold-plated to minimise sound quality degradation. Since the terminals allow disconnection of the cables, maintenance of the cables is easier.

High-rigidity Cabinet and High-damping Insulator

The chassis, an essential part for reducing external vibrations, inherits the audio quality enhancement technology fostered through the development of high-end turntables. The aluminium die-cast chassis is rigidly integrated with a special material consisting of ABS mixed with glass fibre to achieve a two-layer construction. The combination of this special high-rigidity material and a metal chassis raised the rigidity and vibration-damping performance to higher levels, realising a robust cabinet for beautiful sound reproduction. The insulator is comprised of a spring and rubber to provide optimal frequency characteristics. This not only assures high sound quality and superb howling resistance, but also effectively shuts out external vibrations under high sound level conditions.

Specs:

Type: Direct Drive Manual Turntable
Turntable Speeds: 33-1/3, 45 rpm (with switch 78 rpm)
Starting Torque: 0.18 N .m / 1.8 kg . cm
Build-up Characteristics : 0.7 s. from standstill to 33 1/3 rpm
Wow And Flutter: 0.025 % W.R.M.S.
Turntable Platter: Aluminium diecast
Diameter: 332 mm (13-5/64 inch)
Weight: Approx. 1.8 kg (4.0 lbs) (including slipmat and slipsheet)

Tonearm
Type: Universal Static Balance
Effective Length: 230 mm (9-1/16")
Overhang: 15 mm (19/32")
Tracking Error Angle: Within 2- 32' (at the outer groove of 30 cm (12") record) - Within 0- 32' (at the inner groove of 30 cm (12") record)
Offset Angle: 22-
Arm-height Adjustment Range: 0 - 6 mm
Stylus Pressure Adjustment Range: 0 - 4 g (Direct Reading)
Head Shell Weight: Approx. 7.6 g
Applicable Cartridge Weight Range: (without auxiliary weight) 5.6 - 12.0 g, 14.3 - 20.7 g (including head shell)
Head Shell Terminal Lug: 1.2 mmf 4-pin terminal lug

Notes: Classy stuff from the London label's debut collab with one of our favourite synth brands. Classy stereo delay with analogue filtering and creamy valve distortion. Perfect for studio or live use.

Supplier's Notes:

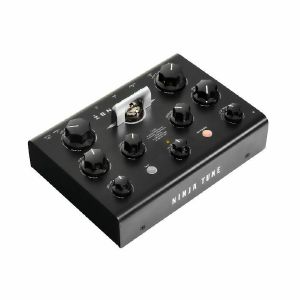

Ninja Tune - an English independent record label based in London and Erica Synths have teamed up to create a custom dub delay effects unit, the Zen Delay.

Features
Controls: delay time, feedback, delay mod (5 presets), tap button, dry/wet, bypass switch, filter cutoff, resonance, drive, input level, filter mode

Inputs
Stereo In: 2x standard jack

MIDI In: standard MIDI socket

CV In: standard jack

Outputs

Stereo Out: 2 x standard jack

Delay times: 1-5000ms with 1/8...x8 of clock/tap rate in beat mode

Inspired by a trip to Berlin's trailblazing music hardware trade show Superbooth, Coldcut's Matt Black and longtime friend Dr Walker (Liquid Sky artist collective / Air Liquide) envisaged the exciting possibilities of a custom hardware effects unit. The result is the creation of the Zen Delay i the first-ever hardware effects unit produced in collaboration with an electronic music label.

Bringing together the best of the digital and analogue worlds, the Zen Delay is a BPM-synced stereo delay line, combining extreme feedback ranges for dub and experimental lo-fi effects with a multi-mode 24 dB synth filter and valve overdrive.

Created and manufactured by Erica Synths, the unit is housed in a metal case with Erica Synths' signature bakelite knobs and a valve circuit for extra analogue warmth. While sonically versatile, it is incredibly easy to use each function has a physical knob that you can play around with without diving into manuals or scrolling through menus on a tiny screen.

Crafted in close collaboration with DJs and producers, the Zen Delay was uniquely developed with both live and studio use in mind and is suitable for many different performance situations, musical styles and instruments. While most delay devices are designed as 'stomp boxes' for guitarists, the device is equally powerful in the hands of electronic music producers, artists and DJs, adding a unique, warm and powerful sonic character to drum machines, loops, vocals, synths, samples or any other source. Even full tracks or a live stereo mix can be enhanced by the combination of analogue and digital circuitry, breathing new life into iPad performances and giving traditional digital synths and drum machines a huge kick.

The Zen Delay is a product of our expertise on vacuum tube designs, our powerful, custom DSP platform and the great sound of our filter ICs made and developed in Latvia. It by far exceeded expectations in terms of how it sounds and feels when played. - Girts Ozolin

The Zen Delay is the analogue delay unit I've been waiting for. Stereo warmth, tone and texture. Perfect for live abusage, and studio madness love it - The Bug

The Zen excels at the sort of extreme dub possibilities Coldcut love. Feed it back! - Matt Black

For years I have dreamed of a state-of-the-art stereo valve dub delay for my MPC that perfectly masters all sound aesthetics from "badass" to "psychedelic hypnotically trashed" and now, have a look! There it is... the Zen Delay! - Dr Walker

Power: 12v (power supply for worldwide use is included)
In/Out levels: 3.2v peak to peak
DAC
114 dB dynamic range

-100dB THD+N

ADC
108 dB dynamic range

-98 dB THD+N

Dimensions: 21 x 15 x 5 cm
Weight: 870g

Notes: Latest version of an interface that's become a modern classic. Up to 18 audio inputs and 22 outputs in total, spread over a mixture of analogue and digital connections. A true all-rounder that's hard to beat.

Supplier's Notes:

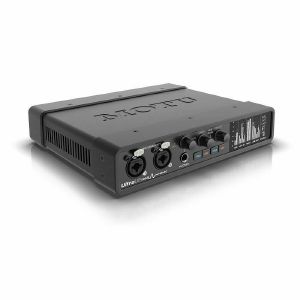

The MOTU UltraLite-mk5 is the latest incarnation of the best-selling UltraLite series (replacing the UltraLite-mk4). It takes the winning formula of the half-rack form factor with 18 in x 22 out analog and digital I/O and adds state-of-the-art enhancements at the same great price :

Best-in-class Audio Quality - the UltraLite-mk5 includes renowned ESS Sabre32 DAC technology, featuring the ES9026PRO DAC, to deliver 125dB dynamic range and -114 dB THD+N.

Ultra-low Latency - optimised Drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW the UltraLite-mk5 delivers an astonishing round-trip latency of 2.4ms (at 96kHz with a 32-sample host buffer

New Design - while retaining the same front and back panel layout as its predecessors the UltraLite-mk5 has a sleek new look, incorporating a high-resolution, high-contrast white OLED display providing precision metering for all analog inputs and outputs, along with digital I/O activity indicators and status info

Connectivity and Compatibility- the UltraLite-mk5 has a USB-C connector and is also class-compliant for operation with iOS devices. It is also compatible with MacOS 11 Big Sur and M1 Macs

New Software and Simplified Monitoring - live monitoring of inputs is controlled via the new CueMix 5 software

Rack-mount options - a half-rack mounting kit (sold separately) allows the steel-encased UltraLite-mk5 to be rack-mounted with thick steel brackets to withstand the punishment of touring. Alternatively, two UltraLite-mk5 units can be joined together with a Half-rack Coupler Kit (sold separately)

Technical Specifications:

Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Mic/line/guitar inputs: 2 x XLR/TRS "combo" jacks, 1 MO impedance on the line/instr inputs
Analog inputs: 6 x 1/4" TRS line in (balanced)
Analog outputs: 10 x 1/4" TRS line out (balanced, DC coupled)

Digital I/O:
1 bank (8 ch) of ADAT optical at 1x sample rates
1 bank (4 ch) of SMUX optical at 2x sample rates
Switchable to stereo TOSLink (optical S/PDIF)
1 x stereo S/PDIF on RCA (up to 96 kHz)

Computer I/O:
1 x USB-C 2.0 audio class compliant
Compatible with USB Type A (with adapter or C-to-A cable)

Total audio I/O:
18 in / 22 out (40 total) at 1x sample rates
14 in / 18 out (32 total) at 2x sample rates
8 in / 12 out (20 total) at 4x sample rates

MIDI I/O:
1 x MIDI IN
1 x MIDI OUT
16 MIDI channels to/from computer host

Headphone: 1 x 1/4" TRS stereo phone
Phantom power: 2 x individual +48V

Front panel:
2 x XLR/TRS combo inputs
1 x 1/4" TRS headphone output
1 x potentiometer - phone/monitor vol
2 x potentiometer - mic/instr input gain
4 x switches - (2) 48V and (2) pad
1x high-resolution white OLED display for metering/status
Power: External 12-18V DC power supply - 1.0A max - tip pos or neg

Dimensions and weight: (width x depth x height, enclosure only)
8.6 x 6.9 x 1.75 inches
22 x 17.5 x 4.5 cm
2.875 lbs / 1.31 kg

Notes: Great value mid-range rotary mixer from Omnitronic, a big step up from the popular TRM-202. Large format two-channel design, featuring three-band channel EQs, master isolator, multi-mode filter and dedicated channel VU meters.

Supplier's Notes:

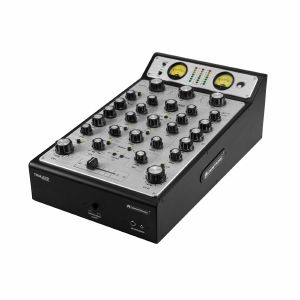

Rotary in its most beautiful form: Omnitronic TRM-222

With the TRM-222, Omnitronic presents an analogue rotary mixer that has been developed with direct feedback from the community.

Proven features have remained

Like its predecessors, the TRM-222 is equipped with a 3-band master frequency isolator, which uses classic ALPS rotary potentiometers (Blue Velvet RK27) for precise sound control. The kill characteristic allows bass, midrange and treble to be completely cancelled out, giving DJs creative freedom in shaping their sound.

The switchable filter section with HPF, BPF, LPF, resonance and sweep controls allows creative processing of the frequency bands. Two stereo input channels with gain control, clip LED, 3-band EQ and phono/line switching as well as a microphone input channel with gain control, 2-band EQ and on-air switch extend the mixer's range of applications. The LED level display for the master signal (L+R) and cue signal provide a good overview.

New functions at the request of users

During the further development of the mixer, great importance was attached to feedback from the community. New functions such as the VU meter display per channel, dipswitches for individual adjustment of the EQ curve and a booth output (XLR or RCA) with 2-band EQ and volume control testify to the sophisticated functionality of the TRM-222. At the request of the fans, the mixer now has a crossfader in VCA technology with adjustable crossfade characteristics, an adjustable send-return effect path and an adjustable record-out.

In addition, the TRM-222 offers two direct outputs for timecode applications and a variety of outputs: Master and Booth (XLR/ RCA L/R), Record (RCA L/R), Master Insert Send/Return (RCA L/R) and FX In/Out (stereo jack).

Technical specifications

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 15 W
Protection class: Protection class I
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Cable length: 1,5 m detachable
Frequency range: 20 - 20000 Hz
S/N ratio: >100 dB
THD: <0,05 % at 1 kHz
Gain: Line -12 dB to +12 dB
Phono -40 dB to +5 dB
FX 20 dB
Microphone: 55 dB
DJ filter: Routable: LPF, HPF,
Isolators: Master Gain:- 8 bis +9
Low/mid 300 Hz, 18db/oct , Butterworth
Mid/high 4000 Hz, 18db/oct , Butterworth
Housing colour: Black; silver
Control elements: Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, tone control
Status LED: Power, master level meter, clip, CUE

Connections:

Input: line via 2 x stereo RCA
Input: line/phono via 2 x stereo RCA
Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: AUX returns via 2 x 6.3-mm-jack (bal.)
Output: Timecode via 2 x stereo RCA
Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version
Output: headphones via 1 x 3.5 mm jack (stereo) mounting version
Output: rec. via 1 x stereo RCA
Output: booth via 2 x 3-pin XLR
Output: booth via 1 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: master via 1 x stereo RCA
Output: AUX sends via 2 x 6.3-mm-jack (bal.)

Channels:

Input channel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch
Microphone channel: 1 x mono via Combination socket (XLR/jack), channel control via Rotary, 2-band tone control EQ, ON AIR switch
Master output: 1 x stereo via XLR or RCA, channel control via Rotary
Booth output: 1 x stereo via XLR or RCA, channel control via Rotary, 2-band tone control EQ
Rec. output: 1 x stereo via RCA, channel control via Rotary

Headphones output: stereo via Jack, channel control via Rotary
Max. level: Output: +21 dBu
Material: Metal; aluminium
Housing design: Desktop console housing

Dimensions:

Width: 45 cm
Depth: 26 cm
Height: 16 cm

Weight: 5,80 kg

Notes: Mid-range DJ mixer from the leading UK brand. Fully analogue four-channel design with A&H's much-loved Xone filter section. Very tempting alternative to the flagship Xone:96. Excellent value.

Supplier notes:

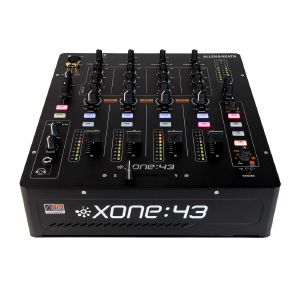

Created for DJs and electronic music purists, Xone:43 is a 4+1 channel DJ mixer that offers the very best of analogue audio quality, including the legendary Xone filter with resonance control, 3 band EQ, crossfader with three curve settings and X:FX for send/return to your favourite FX unit.

The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to a custom Innofader for ultimate crossfader performance.

With balanced XLR main outputs, independent booth and record outputs, Xone:43 excels in the club and in high end personal DJ setups.

Notes: Desktop module version of Intellijel's popular Metropolix sequencer, one of the best options for generating and performing melodies and patterns via MIDI or CV.

Supplier's Notes:

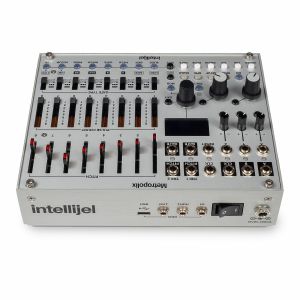

The Metropolix Solo is a unique and powerful desktop multitrack MIDI and CV musical sequencer. With an abundance of hands-on, tactile controls and a wealth of internal and external modulation possibilities, you can quickly and easily create infectious sequences.

Even the simplest melody can be brought to life with seemingly endless options to create variations or real-time manipulations. In the studio or in a live performance, the Metropolix is sure to become a staple source of fresh ideas and killer riffs in your creative process.

CV and MIDI Sequencing on your desktop

Intellijel have set Metropolix free from the rack, in a small desktop case, allowing you to interface with your DAW or other hardware music machines without needing a full eurorack system.

Connections

Metropolix Solo has all the connections you need for USB MIDI, Serial MIDI (TRS or DIN with Adaptors) and CV/GATE for modular systems. Use CV/Gate, TRS and USB MIDI all at the same time.

Top Panel (CV/Gate)
A/B Assignable CV Outputs
X/Y/Z CV Modulation Inputs
CLK Sync and Reset Input
CLK Sync Output
Track 1 and 2 Pitch and Gate
Rear Panel (MIDI/Power)
MIDI TRS: In / Out / Thru
MIDI USB-C
2.1mm DC for Power Supply

Let's talk about Metropolix

Performance Controls

Metropolix is an interactive sequencer optimized for live performance, jamming, and improvisation i with configurable, hands-on control of all the most essential performance parameters. Sequences transform and mutate with just the twist of a knob; a flick of a switch; a nudge of a slider; or an injection of CV. With Metropolix, your music is as dynamic and evolving as your imagination.

Two Tracks, Interconnected

Two tracks (TRK 1 and TRK 2) are variants of a main pitch/gate sequencer, which is programmed via the PITCH sliders, PULSE COUNT and GATE TYPE switches. Each track interprets the main sequence in a variety of ways i creating complementary variations that enable you to generate counterpoint, polyrhythms, and all manner of sonic movement (both subtle and extreme).

Each of these tracks has its own playback ORDER, sequence LENgth, clock DIVision, SWING amount, SLIDE time, and track GATE lengths. Other track-based sequence variables are accessible from the TRACK MENU, and include Pitch Slider inversion; sequence note range; track transposition; and more. In addition, both tracks have multiple lanes of per-stage playback parameters, including: GATE override; PITCH override; RATCHet count; PROBability of playback; ACCUMulating transposition, and a dedicated CV/CC lane. Each stage also has a SKIP feature, and a pitch SLIDE option.

The Accumulator

Automate pitch movements on a per-track or per-stage basis. Use various trigger types and increments to control variation on your tracks.

Eight Modulation Lanes

Eight Separate modulation lanes are accessed via the MOD button. Each MOD lane has 8-stages of modulation values and its own playback ORDER, LENgth, and clock DIVision; and each lane is routable to one of Metropolix' two assignable outputs, MIDI CC, and dozens of internal destinations, allowing for sophisticated and powerful self-modulation.

Three AUX Inputs and Two CTRL Knobs

A trio of AUX inputs allows for external modulation of user-assignable sequencer parameters for even greater variation, while two assignable CTRL knobs give you direct access to the parameters you want to adjust most frequently during a performance. With dedicated Pitch/Gate outputs for both Track 1 and Track 2; two totally user-assignable outputs (A and B); and internal MOD routing, Metropolix features a wealth of patching opportunities.

100 User Defined Scales

Design and modulate between your own custom scales and root note.

Modulate BPM

Use the CTRL Knobs, AUX Inputs, or Mod Lanes to modulate the BPM of your track and the clock outputs of the Metropolix.

Loopy - Performance Looping

Metropolix also features a Loopy mode, allowing you to instantly play back short sub-sequences, or even "play" the stage buttons directly (like a 'keyboard').

64 Total Recall Presets & Preset Chaining

Metropolix stores up to 64 preset configurations (in 8 banks of 8 presets), and all live settings are stored on the module, ensuring that your Metropolix will always power up exactly as you left it i even if you haven't saved them to a preset. By default presets can change all the structural (menu-based) elements of your sequencer without overwriting the front panel controls, but full recall is also available.

Chain Presets to go hands free while you twiddle other knobs on your synth.

Specs

Width: 34HP
Solo Kit Only: Metropolix Solo Enclosure
USB-MINI-MINI internal connection cable
MIDI to 3.5mm TRS (A) Adaptor
15V/0.4A AC Adaptor (Euro/American prongs included)

Height: 66mm (from rubber foot to top of knobs)
Width: 175mm
Depth: 140mm (front to rear jacks).
Power: 15V DC/0.4 A (minimum) center-pin-positive.

Notes: Updated Atlantix module is an even better synth voice than the original Atlantis. Based on the Roland SH-101 formula, it's a monster with dual VCOs, legendary filter and built-in envelope generator. All you need for iconic analogue sounds.

Supplier's Notes:
Atlantix

Dual Oscillator Subtractive Analogue Synth Voice

It's Massive

The Atlantix is a complete analogue synth voice. It's quick to dial in huge bass or lead sounds, and easy to push it into new sonic territory. Dual VCOs, Multimode VCF, VCA with Drive, and an ADSR envelope; all of the building blocks needed to expand or start making sound in your rack. With 32 patch points and a selection of routing switches, you can remix these blocks into something all your own.

Reimagining a Reimagined Classic

The Atlantix is the highly-anticipated successor to the Intellijel Atlantis which was originally inspired by the classic Roland SH-101. Despite the SH-101's seemingly limited architecture, it produces various creative and musically useful sounds that have inspired generations of artists and countless hits. The Atlantix is just as immediate for dialling in beautifully rich bass and lead sounds. The thoughtful design, numerous additional features, and flexible patching options open up a massive amount of new sonic territory to explore as well.

The Atlantix is an analogue, complete subtractive synthesizer voice condensed into a single 42HP module. It provides all the fundamental building blocks needed to make sounds in Eurorack: VCOs, VCF, VCA, S&H, Noise, and an Envelope.

Oscillators - Advanced TZFM and Flexible Mixer

The Atlantix uses two triangle core voltage controlled oscillators (VCO) which respond in a musically pleasing way to frequency modulation. The Atlantix primary VCO (VCO A) is capable of thru-zero frequency modulation and has a dedicated amplifier for controlling FM depth (FM INDEX). The modulation oscillator (VCO B) can be used as either an LFO or VCO. The highly flexible architecture allows you to route VCO B as a modulation source or stack it as a secondary VCO all by the flick of a switch or slider. VCO B also has a bonus "spike" waveform output which is a square wave with fixed HPF, similar to the Buchla Easel. Both oscillators track very precisely over eight or more octaves.

In the mixer section, you can adjust the balance of the primary oscillator's waveforms, sub-oscillator noise, and two auxiliary inputs that are normalled to additional VCO A waveforms or VCO B waveforms. The auxiliary inputs also allow you to patch other external signals into the mix.
The second Auxiliary input has a switch that allows you to route the source between the mixer sum or directly into the VCA (post-VCF). The latter is a way to pass an unfiltered fundamental signal to the final VCA stage and then blend it with filtered audio from the VCF. This draws inspiration from the architecture of the CS-80 where a sine wave is mixed with the filtered audio to make glassy tones with some added harmonics.

Multimode Filter - From Drips to Growls

The filter section (VCF) is a discrete cascaded 4-pole multimode filter with lowpass, bandpass, highpass, and phaser (multi-notch) modes. The filter can self-oscillate which produces a very clean sine wave that also tracks 1V/Oct. The VCF has three frequency modulation sources, two of which are normalled to the external pitch and envelope and have switches for polarity.

Add Atlx for dedicated outputs from each mode.

Envelope - A Classic ADSR

The envelope section is an analogue ADSR with three timing ranges: slow, medium, and fast. It can be gated externally or via a manual gate button located in the centre of the panel. The ADSR is routed through a VCA which can be used for level or velocity control.

Modulation - Random, Feedback, and Built-in Routing

Two eight-position rotary switches allow you to select from eight different modulation sources and route them to outputs MOD X and MOD Y. Each switch also has a polarity control and an option to level shift between unipolar and bipolar operation. MOD X is normalled to VCO A frequency modulation and MOD Y is normalled to VCF frequency modulation. The dedicated outputs allow for further creative modulation patching.

Four of the Input jacks have normal switches to change your patch without the need for cables.

The analogue Sample and Hold (S&H) circuit is normalled to the white noise source and can be clocked by VCO B, an external clock source, or via the gate input for per-note synced randomization.

Atlx - Expander w/ Ring Mod (Optional) ***Sold separately ***

The Atlx expander provides 16 additional jacks to the Atlantix, including: dedicated waveform outputs for A and B oscillators, filter outputs, and a ring modulator. Atlx adds many new possibilities for self-patching, advanced routing, and connections to other modules.

Specs + Downloads

Width: 42HP
Depth: 25mm
Power: 140mA @ +12V
138mA @ -12V

Notes: Based on technology from the award-winning LVX and MercuryX pedals, the Enzo X is a superbly powerful six-voice modular synth, with polyphonic pitch detection and no special pickup needed on your guitar.

Supplier's Notes:
Combining 5 synth modes, Enzo X incorporates each of these into a modular system UI/architecture from both the award-winning LVX and MercuryX pedals.

In addition to being a 6-voice poly synth, Enzo X includes 3 reverbs which are adapted from Mercury X (Prism algorithm), 5 Drives (including Bitcrush), a full stereo 2.5 second Delay and 5 modulation types.

To make this complex system immediately intuitive to navigate, Meris again leveraged the simple and easy to use UI first developed for LVX.

Notes: Upgraded second-generation version of the high-end DT 1990 features improved sound, increased comfort and top quality sound, all based around the new generation Tesla 45mm driver.

Supplier's Notes:

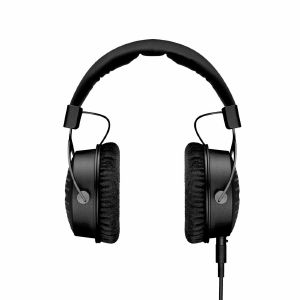

DT 1990 PRO MKII - the evolution of a studio legend

The DT 1990 PRO MKII open-back studio headphones are the second generation of the popular premium model. They boast improved sound, increased comfort and industry-leading workmanship made in Germany. At the heart is the newly developed TESLA.45 driver technology. Suitable for mixing, mastering and editing, they are the perfect choice for discerning users who want to take their tracks to the next level.

The open-back reference

Thanks to their open-back design, the DT 1990 PRO MKII offers a natural, spatial sound pattern, which makes them ideal for professional mixing, mastering and editing.

The new generation of TESLA technology

TESLA.45

The DT 1990 PRO MKII feature the latest generation of TESLA driver technology TESLA.45. Redesigned from the ground up, the 45mm driver system boasts an excellent resolution, extremely low distortion and outstanding impulse behaviour. The TESLA.45 provides signal fidelity even at high volumes. Beyerdynamic's engineers have managed to combine studio-sound and flexibility thanks to weight-optimized materials. The DT 1990 PRO MKII has an impedance of 30 ohms, which means that the studio headphones can be used with a variety of end devices.

When it comes to sound, the reference headphones boast precise bass response right down to the lowest octaves. The slightly reduced highs compared to the previous model offer a high amount of information and help to avoid wrong decisions when mixing. Thanks to the wide soundstage, instruments and voices can be precisely pinpointed.

The sound transducers are manufactured at the company headquarters in Heilbronn, Germany. Each DT 1990 PRO MKII contains two TESLA.45 sound transducers, which are measured several times during the various production steps.

Maximum comfort

The DT 1990 PRO MKII is designed for several hours of use in the studio and offers outstanding comfort. The robust, flexible spring steel headband design ensures optimum contact pressure. Thanks to the skin-friendly velour ear pads, the headphones are comfortable to wear even during long sessions. The headband, consisting of soft memory foam and durable leatherette, adapts perfectly to the shape of the head. And thanks to the fontanelle recess, potentially pain-sensitive areas on the head are avoided. Both the headband and the ear pads can be replaced if necessary.

Two sound signatures

Designed to maximise flexibility, the DT 1990 PRO MKII is supplied with two different types of ear pads. The 'Producing Velours' fitted as standard deliver a full sound thanks to a slight bass boost. The 'Mixing & Mastering Velours' offer a more analytical sound. Two cables are also included: a 3m straight cable and a 5m coiled cable. Both cables have a lockable 3-pin mini-XLR plug. Everything is safely stored in a high-quality hard case.

Industry-leading workmanship

Thanks to German manufacturing expertise, the DT 1990 PRO MKII sets the benchmark in workmanship and durability. The TESLA.45 driver systems are measured within tight tolerances several times during production. High-quality materials such as anodised metal and hard-wearing plastics make the DT 1990 PRO MKII a long-term investment. In the interest of sustainability, almost every part of the premium headphones can be replaced.

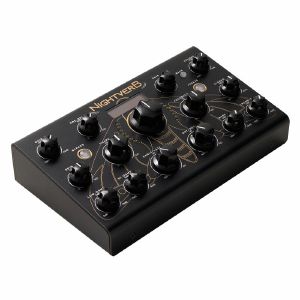

Notes: Developed in conjunction with Dutch software masters 112dB, Erica's stereo reverb is the best of both worlds: deep DSP power with plenty of hands-on control. Designed for musicality, ideal for synths, drum machines and more.

Supplier's Notes:
A stereo reverb with a unique and musical algorithms developed by 112db, save/recall functions for all parameters, all in sleek aluminum case to aesthetically match our lineup of compact desktop units.

Erica Synths focused on the musical aspect of the effect - extremely long decay tails are possible without losing harmonic integrity and since multiple parameters can be adjusted at once, notes can be played individually and held in chords, pitch-shifted at a whim or used to create massive, ambient textures.

Notes: *** Firmware update- February 2025 ***

Hermod+OS2.00

Again, a major firmware upgrade packed with exciting new features. This update offers a wealth of new creative tools and improvements.

Audio tuner

4 internal automation per track - MOD, MOD2, MOD3, MOD4

Automation per track : 7 (4x modulations + pitchbend + aftertouch + sustain

***

Parisian sequencer specialists Squarp turn up the goods once again with the updated Hermod+ module. Huge sequencing power for both MIDI and CV, with a range of monophonic and polyphonic features to get the most out of your sound sources.

Supplier's Notes:

Hermod+ adds so much to your system.

Based on the established Hermod workflow and keeping the same form factor, Hermod+ offers a lot of new features, and a refined, more playful interface with extended connectivity.

Record CV/Gate, MIDI notes and modulations on 16 polyphonic tracks. Compose melodic variations across 16 patterns per track, and take advantage of the advanced step sequencer and the new effects to gain efficiency and creativity in studio and on stage.

8 CV/Gate and 8 MIDI tracks

Hermod+ offers 8 CV/Gate tracks (that can also output midi) and adds 8 dedicated MIDI tracks for your extra gear.

CV inputs

Record, edit and loop analogue modulations or CV/Gate using the 4 CV inputs, and use them to synchronize Hermod+ to an incoming analogue clock.

Record live

With an improved resolution of 96ppqn, record and playback your CV/Gate or MIDI performance seamlessly without any noticeable note shifting, for up to 16 bars per pattern.

Polyphonic step composer

The revisited piano-roll now allows intuitive polyphonic editing. Edit or program chords, melodies and rhythms using the 16 built-in pads for a quick and playful composition process.

Automation

Program or record automated modulations (CV and/or MIDI) for each track, in addition to midi aftertouch, pitchbend and sustain voices.

Dynamic effects

Add up to 8 real-time CV/MIDI effects per track. All effects are non-destructive, so they can be edited at any given time to add some variations to a performance.

Advanced ModMatrix

Use the modulation matrix to link incoming CV or CC messages to effect parameters. Each modulations can be attenuverted and offsetted.

Playable song mode

Build your song structures using up to 16 sequences per project. Play them into a predefined order or launch them manually for improvised performances.

Synchronized project swap

Quickly save and recall your projects on the SD card. Project loading can now be done in sync, without interrupting your performance.

Boosted connectivity.

The missing link between your eurorack system and the rest of your studio.

Editing made simple.

Fluid workflow with a redesigned Step mode

Step mode is where you can edit notes, modulations and gate events. Hermod+ offers quick ways to write melodies and rhythms. Zoom in and out to visualize and edit portions of your track precisely and break free from rigid grid sequencing.

The re-designed piano roll editor makes the vertical and horizontal scrolling easier and faster, while the new "row edit" feature allows for quick chords and drum patterns programming.

Create modulation curves by programming them directly on Hermod+ or by recording incoming signals, and send those curves via CV or MIDI to other parts of your system.

Versatile interface.

Polymorphic layouts for perfect integration

Hermod+ can adapt its voice layout to any patching scenario. Depending on your needs, any track can become a modulation output, a monophonic CV/Gate track, a polyphonic MIDI track...

For a track of CV/Gate note + velocity + aftertouch, or for a polyphonic CV/Gate track, simply group voices using the desired layout.

Take advantage of the 8 dedicated MIDI tracks, that can record and be programmed independently from the 8 CV/Gate tracks. Up to 8 real-time effects per track with creative parameters and generative features. Hermod+ is the canvas, the paint and the brush of your setup.

Specifications

Sequencer
Tracks: 8 CV/Gate + 8 MIDI
Patterns: 16 per track
Recording resolution: 96ppqn
Track length: 1/16 note to 16 bars
Automation per patterns: modulation + pitchbend + aftertouch + sustain

Projects
Amount of projects: unlimited
Tempo: 10 to 280 BPM
Global transpose track: yes
Double project architecture: yes
Song chain length: 64 sequences

Piano roll
Zoom min: /4 (1 step = 1/4 note = 1 beat)
Zoom max: X8 (1 step = 1/128 note)
Note/gate width: 1/32 (1/512 note) to 8 bars
Maximum polyphony per step: 24
Row edit (polyphony editing): yes
Note pitch: C0 to C10
Note velocity: 0 to 127

Synchonization clock speed
Max input rate: 1/96 = 24ppqn
Max output rate: 1/96 = 24ppqn

Input
MIDI: TRS type A + USB host + USB device
CV: 4x [-5V to +5V]

Output
MIDI: TRS (type A) + USB host + USB device
CV: 8x [-5V to +5V]
GATE: 8x [0V / +5V]
Dedicated Clock port
Dedicated Reset port for transport

Power
Note: the use of your eurorack +5V rail is configurable with a switch on the back of Hermod+
Consumption (using +5V rail): -12V 20mA, +12V 20mA, +5V 820mA (add up to +500mA when attaching a controller on USB host)
Consumption (not using +5V rail): -12V 20mA, +12V 400mA (add up to +220mA when attaching a controller on USB host)

Hardware
Width: 26HP
Depth: 20mm
Weight: 285gr (0.63lbs)
CV inputs resolution: 16-bit
CV outputs resolution: 16-bit
Display: OLED 58 x 16mm
SD card: microSD high speed (provided)
CPU: ARM 480MHz

Notes: Supercar styling arrives on the iconic SL-1200. The classic Automobili Lamborghini Y-shape pattern is applied to a black deck for this high-end version of the industry standard turntable.

Supplier's Notes:
Design Inspired by Lamborghini DNA

The functions of the SL-1200M7B are based on the SL-1200MK7/SL-1210MK7 models, while the design is inspired by Automobili Lamborghini's iconic Y-shape pattern. Orange, Green and Yellow are the colours of the SL-1200M7B, based on the most iconic liveries of the Italian automotive super sports cars brand. Automobili Lamborghini and Technics operate in completely different markets but share the same values with cutting-edge ideas and approaches: disruptive technological development, a corporate culture rooted in a spirit of uncompromising craftsmanship, and the pursuit of emotional sounds inspiring customers-with Automobili Lamborghini, the sound of its engines, and with Technics, the sound of its audio. The SL-1200M7B is the powerful result of the collaboration and innovative ideas of the two brands.

*Consumption and emission values of Revuelto: Fuel consumption combined: 11,86 l/100km; Power consumption combined: 10,1 kWh/100 Km; CO2-emissions combined: 276 g/km; Efficiency class combined: G; Fuel consumption with discharged battery combined: 17,8 l/100km; CO2 efficiency class with discharged battery: G; WLTP values

Exclusive Gifts

The SL-1200M7B comes with an original vinyl record containing the powerful V12-engine and driving sounds of six different Lamborghini super sports cars, a slipmat and two stickers with Automobili Lamborghini and Technics logos. The picture disc features a design inspired by the tires of one of the Lamborghini's latest models, the Revuelto. As you listen to the sounds of Lamborghini V12-engines, you can also enjoy the visual effect of the tire spinning on your turntable.

Coreless Direct Drive Motor Achieving Stable Rotation

The direct drive system uses a slow-turning motor to directly drive the platter. This system has various advantages. It offers high performance, such as rotation accuracy and powerful torque, does not require replacement of parts and maintains high reliability over a long period of time. On the other hand, the direct drive system was said to produce a rotation irregularity called cogging. For the SL-1210MK7, a new coreless direct drive motor was developed. This motor employs a coreless stator. The removal of the core (iron core) from the stator eliminated the root cause of cogging. Furthermore, the magnetic force of the rotor magnets was improved to the highest possible level, and the gap between the coreless stator and rotor magnets was optimised, thus achieving high-torque-performance equalling that of the SL-1210MK5. Boasting smooth rotation and powerful torque, this motor reproduces sound accurately and faithfully from the groove on an analogue record.

Diverse New Functions Adapt to Various Playing Styles

Torque / Brake Speed Adjustment

The newest digital motor control technology, accumulated through the development of Blu-ray disc products, is applied to improve adjustment by allowing the torque and brake speed to be adjusted individually in four steps.

The Pitch Control Function

The pitch control function allows fine adjustment of the rotation speed within i8% / i16%. It does this through digital control, from positional detection of the slider to rotational control of the motor, eliminating the unnecessary DA conversion. This greatly improves tracking performance to achieve accurate and stable pitch adjustment.

Reverse Play Function

The reverse play function, which brings forth new possibilities of creative performance, makes its first appearance in the SL-1210 Series. In addition to 33-1/3 rpm and 45 rpm, a rotation speed of 78 rpm is supported.

*The torque / brake speed adjustment, rotation speed switch, and reverse play can be adjusted by switches on the main unit.

High Sensitive Tonearm

The tonearm, which has continued to support the leading edge of the DJ scene for many years, inherits the highly reliable static-balance universal S-shape tonearm. Using high-precision bearings, it achieves a higher initial-motion sensitivity than the SL-1210MK6. This accurately tracks the groove on the phonorecord to assure excellent tracking performance with minimum stylus jumping even in harsh playing conditions such as scratching.

Stylus Illuminator Featuring a High-brightness and Long-life White LED

The stylus illuminator features a new push-type structure for intuitive operation, and employs a high-brightness and long-life white LED. The illumination area and intensity were reviewed to provide improved visibility of the stylus tip even in a dark environment.

Specifications

Technics for Automobili Lamborghini collaboration model

Coreless Direct-Drive Motor Achieving Stable Rotation

Diverse New Functions Adapt to Various Playing Styles

High Sensitive Tonearm

Stylus Illuminator Featuring a High-brightness and Long-life White LED

High-rigidity Cabinet and High-damping Insulator

Tech Specs

General

Power Supply: AC 120 V, 60 Hz
Power Consumption: 8 W Approx. 0.2 W (Standby)
Dimensions (W x H x D): 453 x 169 x 353 mm
Weight: Approx. 9.6 kg
Accessories: Turntable, Slipmat, Slipsheet, Dust cover, Technics sticker for limited edition, EP record adaptor, Balance weight, Head shell, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Control vinyl stickers, Owner's Manual

Terminals

Audio Output: PHONO (Pin Jack) x 1, EARTH TERMINAL x 1

Tonearm Section

Type: Universal Static Balance
Effective Length: 230 mm
Overhang: 15 mm
Tracking Error Angle: Within 2 degrees 32'?(at the outer groove of 30cm (12") record), Within 0 degrees 32'?(at the inner groove of 30cm (12") record)
Offset Angle: 22-
Arm-height Adjustment Range: 0 - 6 mm
Stylus Pressure Adjustment Range: 0 - 4 g (Direct Reading)
Head Shell Weight: Approx. 7.6 g
Applicable Cartridge Weight Range: 5.6 - 12.0 g (without auxiliary weight), 14.3 - 20.7 g (including head shell)

Turntable Section

Type: Direct Drive Manual Turntable
Turntable Speeds: 33-1/3, 45 rpm (with switch 78 rpm)
Starting Torque: 0.18 N*m / 1.8 kg*cm
Build-up Characteristics: 0.7 s. from standstill to 33 1/3 rpm
Wow And Flutter: 0.025% W.R.M.S.
Turntable Platter: Aluminum diecast
Diameter : 332 mm
Weight : Approx. 1.8 kg (Including slipmat and slipsheet)

Notes: The hands-on control of hardware meets the versatility of software. Bridging the gap between Eurorack and VCV Rack, the MetaModule includes over 160 built-in modules plus access to over 200 third-party options.

Supplier's Notes:
The MetaModule puts real knobs and jacks on virtual software modules. Step back from the computer and make music with hardware, while keeping the flexibility and expandability of software.

The MetaModule comes with over 160 built-in modules from 4ms Company, Befaco, HetrickCV, NonlinearCircuits, and Scanner Darkly, plus clones of popular classics such as the Mutable Instruments eurorack modules, fun physical modeling algorithms, and lots of handy utilities.

All of the included modules are also available on the computer using the free program VCV Rack. Whether you make patches on VCV Rack and transfer them to the MetaModule, or if you just create patches directly on the MetaModule, there are plenty of creative modules to inspire new ways to make music.

MetaModule Plugins

If the 160+ built-in module aren't enough, you can load more modules as plugins. Already there are over 200 modules in third-party plugins from Bogaudio, Valley, ChowDSP, NANO Modular, and the list is growing. 4ms have an SDK available to make it easy for VCV Rack plugin developers to convert their plugin to a MetaModule plugin. 4ms' licensing terms are non-restrictive: developers are welcome to distribute their plugin in any way they wish, commercially or not.

Mapping Knobs and Jacks

The MetaModule has 12 knobs that can be mapped to virtual knobs. Each knob can be mapped to up eight virtual knobs, and each mapping can have a different range and offset. You also can save a group of mappings as a Knob Set and switch between Knob Sets with the encoder. You also can map the 8 inputs and 8 outputs to virtual module jacks. Also, the MetaModule is a USB MIDI host, so you also can map MIDI CC, note, gate, and other parameters to knobs and jacks.

Expanders

There are lots of ways to customize your MetaModule. A Wifi expander allows you to wirelessly transfer patches from your computer. Add eight more knobs with the Knob expander, or buttons with the Button expander. A CV/Audio expander adds more high-resolution inputs and outputs, and the Gate In/Out expander adds not only gate jacks but also TRS MIDI and I2C.

Under the Hood

There are six CV/Audio inputs, two gate inputs, and six CV/Audio outputs. The CV/Audio jacks are all 24-bit, 48kHz DC-coupled, -10V to +10V. A USB-C jack accepts MIDI devices and thumb drives. Patches and plugins can be loaded via a USB drive or microSD Card, and internal flash memory lets you save patches you always want to come back to.

The processor is more advanced than anything 4ms has used in the past, and is among the most powerful processors found in Eurorack. Startup time and latency are blazingly fast.

Modules

160 built-in modules
Over 200 3rd-party module plugins available so far, and the ecosystem is growing
Create patches using VCV Rack or directly on MetaModule

Patches

Patches are loaded from microSD Card, USB drive, or via the Wifi expander
Patches can be optionally saved onto internal flash memory
Create patches using VCV Rack or directly on MetaModule
Patches can be given a name and description

Mappings

Map each physical knob to up to 8 virtual knobs
Set range and offset for each mapping, including inverted control
Knob mappings are grouped into Knob Sets, and changing Knob Sets can be done quickly without menu-diving
Map physical jacks to virtual jacks, seamlessly making splits/mults
Add or edit modules, cables, and mappings in real-time while the patch is playing
Create alias names for mappings like "Kick Drum Level"

Interface

Simple, intuitive graphical interface lets you zoom in on details, or zoom out to get a big picture
Patch View displays the patch as faceplates and cables, with knobs, buttons, and lights animating in real-time
Knob Set View simplifies the display, showing only the mapped knobs for the current Knob Set
Module View shows just one module and lists the names of each jack, knob, and control legibly
Mapping View lets you adjust details of a knob mapping
Adjust styles and visual preferences to your liking
Save, rename, duplicate, and delete patches
Firmware updater and plugin loader read from microSD Card or USB drive

Hardware

12 Knobs
8 CV/Audio outputs, 24-bit 48kHz, -10V to +10V, DC-coupled
6 CV/Audio inputs, 24-bit 48kHz, -10V to +10V, DC-coupled
2 Gate inputs
USB-C jack: MIDI Host or MSC (External drive) Host
microSD Card slot
Internal Flash RAM for additional patch storage
Dual-core 800MHz Cortex-A7 plus Cortex-M4 co-processor
512MB DDR3 533MHz RAM
Bare-metal operation for fast startup and low latency

26hp

Notes: Successor to the excellent Metropolis, the Metropolix is a performance-focussed step sequencer with some really neat features, including modulation and sub-sequences in Loopy mode.

Supplier's Notes:
The Intellijel Metropolix is a unique and powerful Eurorack format musical sequencer. With an abundance of hands-on, tactile controls and a wealth of modulation possibilities (both internal and external) you can quickly and easily create infectiously musical sequences that are never boring. Even the simplest riff can be brought to life with seemingly endless options to create variations or real-time manipulations. Equally at home in the studio or a live improvised performance, the Metropolix is sure to become a staple source of fresh ideas and killer riffs in your creative process.

Width: 34HP
Depth: 25mm
Power: 95mA @ +12V 10mA @ -12V

On first blush, it appears to be a simple 8-stage sequencer - but there is far more functionality than first meets the eye:

There are two tracks (TRK 1 and TRK 2) that are variants of the single master pitch/gate sequencer, which is programmed via the PITCH sliders, PULSE COUNT and GATE TYPE switches. Each track interprets the master sequence in a variety of ways - creating complementary sequence variations that enable you to generate counterpoint, polyrhythms, and all manner of sonic movement (both subtle and extreme). Each of these tracks has its own playback ORDER, sequence LENgth, clock DIVision, SWING amount, SLIDE time, and track GATE lengths. Other track-based sequence variables are accessible from the TRACK MENU, and include Pitch Slider inversion; sequence note range; track transposition; and more. In addition, Tracks 1 & 2 both have multiple lanes of per-stage playback parameters, including: GATE override; PITCH override; RATCHet count; PROBability of playback; ACCUMulating transposition, and a dedicated CV lane. Each stage also has a SKIP feature, and a pitch SLIDE option.

8 separate and individual MODulation lanes are accessed via the MOD button. Each MOD lane has 8-stages of modulation values and its own playback ORDER, LENgth, and clock DIVision; and each lane is routable to one of Metropolix' two assignable outputs or to dozens of internal destinations, allowing for some sophisticated and powerful self-modulation.

A trio of AUX inputs allows for external modulation of user-assignable sequencer parameters for even greater variation, while two assignable CTRL knobs give you direct access to the parameters you want to adjust most frequently during a performance. With dedicated Pitch/Gate outputs for both Track 1 and Track 2; two totally user-assignable outputs (A and B); and internal MOD routing, Metropolix features a wealth of patching opportunities.

Metropolix also features a Loopy mode, allowing you to instantly play back short sub-sequences, or even "play" the stage buttons directly (like a 'keyboard').

Metropolix stores up to 64 preset configurations (in 8 banks of 8 presets), and all live settings are stored in EPROM, ensuring that your Metropolix will always power up exactly as you left it - even if you haven't saved them to a preset. By default presets can change all the structural (menu-based) elements of your sequencer without overwriting the front panel controls, but full recall is also available.

The operation of the Metropolix is optimized for live performance and jamming, with quick access to all the most important performance parameters, and the ability to greatly affect your sequences with a single slider or switch.

Notes: A fresh new take on synthesis from the legendary Moog. The Labyrinth combines two generative sequencers with parallel analogue signal paths to create evolving sounds and patterns.

Supplier's Notes:
Labyrinth, a semi-modular instrument and idea machine, discovers patterns, layers, and textures both familiar and unheard. Two generative sequencers bring to life sounds that bloom over time, letting you control their evolution and scale, then play them off of each other for striking polymetric melodies. With parallel analogue signal paths, this unique instrument shines when adding colour to the static backdrop of a drum pattern or bassline. Fully capable of standing on its own, or adding depth to your existing rack, it's equally at home in a live set or at the centre of a humble bedroom studio. Labyrinth is the lightning in a bottle that drives a studio session deeper into undiscovered creative caverns.

The beating heart of Labyrinth is a robust dual sequencer, which uses chance operations to construct two unique eight-step paths which twist and curve around each other, forming a mesmerizing path of sound. With a comprehensive patch bay, Labyrinth can be synced via analogue clock or MIDI while processing, directing, and being influenced by other kit.

Tune your instruments together and let Labyrinth improvise alongside in key while you play Matriarch. Patch Labyrinth and Spectravox together for animated spectral movement. Combine Labyrinth with Mavis in a 104HP rack for expanded modularity.

These are just a handful of many playful setups where Labyrinth fits. Whichever path you choose, have Labyrinth guide you.

Dual generative sequencers create intertwining melodies that mutate over time. It's a fountain of inspiration that uncovers patterns you can capture, return to, and evolve.

A fresh approach to the signature sound of classic Moog synthesizers with a smooth West Coast-style voltage-controlled wavefolder. Two oscillators drive duophonic melodic counterpoints, metallic FM tones, and analogue synthetic drums.

State variable resonant voltage-controlled filters that morph between lowpass and bandpass responses let you experiment with smooth command over complex tonal shapes.

A parallel voice processing path with a voltage-controlled blending allows you to morph sounds over time.

A comprehensive patch bay for integration with a wide variety of other modules in your rack and studio.

In the box

Labyrinth Semi-Modular Parallel Generative Analog Synthesizer

Power Supply
Patch Sheet Overlays
Patch Cables (5x 12")
Registration Card
Quickstart Guide
Cheat Codes
Safety & Warranty Manual

Weights & dimensions

Product only:

Weight: 3.1lbs/1.5kg
Dimensions: 12.84" W 5.64" D 4.2" H/32.61cm W 14.33cm D 10.67cm H

Product in box:

Weight : 5.29 lbs / 2.4 kg
Dimensions: 14.16" W 8.16" D 6.6" H / 35.97cm W 20.73cm D 16.76cm H

Analogue synthesis engine:

Sources: VCO, MOD VCO, RING MOD, NOISE Generator SIGNAL PROCESSORS: 1x Voltage-Controlled Wavefolder, 1x Voltage-Controlled State-Variable Filter, 2x Voltage-Controlled Amplifiers MODULATORS: 2x Decay-only envelope generators

Dual generative sequencer

2x 8-step Generative Digital Sequencers

Patch bay

Jacks: 32 x 3.5mm
Inputs: 20 Input Jacks
Outputs: 12 Output Jacks

Rear panel

Audio: 1/4" TRS Headphone or 1/4" TS Instrument
Power: Power Supply connection SECURITY: Kensington Lock slot

Power supply (included)

Style: Wall adapter; barrel connection; centre-pin positive INPUT: 100 - 240VAC; 50 Hz - 60 Hz OUTPUT: +12VDC; 1200mA

Power consumption
Typical: 4.0 W

Notes: Synthesists beware, there's a new menace in towniand much to the chagrin of it's older sibling, this one doubles down on its Banzai Rush. The Piston Honda mk3 maintains the character of its previous incarnation, while incorporating some punishing new combos. Where the infamous Piston Honda mk2 features a single oscillator consisting of 4,096 8-bit waveforms organized across a 16x16x16 "cube", the mk3 houses 512 16-bit waveforms arranged in an 8x8x8 configuration. Just like its predecessor, the waveforms operate at full resolution and can be manipulated manually with sliders or remotely via CV. Unlike the mk2, which only accepts CV in the range of 0-5v, the mk3's CV inputs accept both positive and negative voltages. Another welcome upgrade is the module's preset manager, which is operable via CV. This enhancement pulls all the punches by allowing users to store and recall specific configurations then morph between those presets! Who knew the fourth dimension was so unabashedly infernal?

The Piston Honda Mark III is a dual morphing wavetable oscillator with waveshaping audio inputs and unison detune. The three axis sliders create a waveform for each selected oscillator to play from the internal "cube" of 8x8x8 16-bit waveforms, morphed at full resolution in all three dimensions (the oscillators may each play a different waveform). The voltage-controlled preset manager stores a bank of these settings to be recalled at any time, with a virtual fourth dimension of morphing when the manager is in "continuous" mode. An orange 128x32 OLED display displays the current waveform for the selected oscillator in realtime, its frequency, and the selected preset and wave selection. The rotary encoder changes system settings on the display, but it's not necessary to interact with the display menus for any performance purpose.

Every suggestion about the previous MK II generation has been taken on board, and the design has been fully modernised, now operating as a dual oscillator in the same 17HP space. The infamous aggressive character of the Piston Honda is fully present, with the added clarity of the 16-bit wavetable engine. The second oscillator's frequency controls can be slaved to the first. Each oscillator has its own unison detune function as well, for a maximum of four stacked oscillators sounding at once. The oscillator can alternatively run as a nonlinear waveshaper, processing a dedicated audio input through the selected wavetable with voltage-controlled drive. When running in its normal oscillator mode, this input instead provides thru-zero frequency modulation.

In terms of visual apprehension, the mk3 adds even more precision to its ilk's well-documented cruelty with the addition of a 128x32 OLED display. More than a mere window into Cocytus, the display provides immediate visual indication of the selected waveform and its frequency, as well as preset and wave selections. When used in tandem with something like Argos Bleak, tuning and executing become insidiously simple. Another malevolent modification is the inclusion of a micro-SD slot, which offers users a quick and effective means of loading their own 16-bit waveforms into the module (much more convenient than the esoteric ROM burning ritual). The module is compatible with files created via the Synthesis Technology WaveEdit program.

Specs:
2x Digital Oscillator - 8 octave tuning range (C0~C7)
512 16-bit waveforms (8 waveform collections)
Micro SD card slot for loading user waveforms.
Graphic OLED display (128x32 in size, orange in color)
CV inputs accept +/- 10V.
Colorblind-friendly interface. No color codes.
8 preset slots with nonvolatile storage of all parameters (morphable)

Waveforms are selected from the internal memory of 8 collections:
* additive harmonic structures
* harsh LFSR progressions
* restored waveforms inspired by classic synthesizers
* special content from my favorite modular artists

You can load user wave data (16-bit WAV format) using the front-panel microSD card slot.

Factory waveset instructions:

Equipment needed: MicroSDcard.

Notes: Immense power in this multi-featured sequencer from one of our favourite brands. Four channels of 64-step sequences with advanced options including probability, quantising and randomisation.

Supplier's Notes:
The Erica Synths Black Sequencer takes classical modular sequencing to the next level by adding tons of features required for contemporary modular synthesizers.

The Black Sequencer features 4 channels with CV, gate and modulation outputs, up to 64 step sequences that can be chained into songs, independent track time divisions, multiplications and lengths. It includes a built-in quantizer, LFOs, envelope generators, parameter randomization, a MIDI in/out and many other features essential for composing and performing electronic and experimental music. Even though it provides many programmable parameters per step, it's intuitive, easy and straightforward to use, and could well become a master controller for many modular setups.

Black Sequencer firmware 1.04 is now available!

It adds output quantiser which can quantise track outputs in real time or rewrite notes in the sequence. Update also adds new track and synced LFO time divisions.

Technical specifications:

Power consumption: +145mA, -25mA
Module width: 42HP
Module depth: 25mm

Notes: Limited edition Stellar version of the excellent MiniFreak, Arturia's hybrid digital/analogue six-voice polysynth. Versatile and distinctive thanks to a wide range of digital oscillator engines.

Supplier's Notes:
Dark sky synthesis

MiniFreak Stellar is a special edition of the mighty polyphonic hybrid keyboard. The same dual digital sound engines, gnarly analogue filters, advanced modulation, sequencing and stereo effects, but with a dark intergalactic edge that will take your sound into deep space and beyond.

T Minus

2 Engines, 6 voices

The same powerful hybrid instrument loved the world over, redesigned to take your studio beyond convention and your sound, beyond the stratosphere.

Space age look

Discover a synth with a striking all-black exterior, decorated with stylish and characterful graphics that reflect the controls.

Hybrid polysynth power

With 2 engines, 6 voices and 23 oscillator modes, MiniFreak stellar is a compact synth powerhouse that just keeps getting better with ongoing free firmware updates.

Mirrored in software

Enjoy the same wild hybrid sound in your DAW of choice, complete with modelled analogue filters, with MiniFreak V, a like-for-like VST. Use the same presets physically or virtually, and tweak the VST with MiniFreak Stellar's controls for a seamless creative flow.

Outer space free bank

MiniFreak Stellar comes with a free sound bank designed for outer space sonic exploration.

Featuring a range of synths, leads, sequences and SFX - travel beyond the event horizon and discover an otherworldly realm of ambient and atmospheric sounds.

Dark Sky style

From the resonance UFO to the ADSR rocket launch - take command of your sound with an out-of-this-world attitude.

It's not just the sleek all-black keys that stand out. MiniFreak Stellar is adorned with playful graphics that bring the signal chain to life and symbolize the unique effect of each control.

Extraterrestrial Sound

MiniFreak Stellar comprises a vast constellation of sounds that unite, merge and mutate for totally playful and daring results.

From ethereal wavetable sweeps to gritty noise-driven textures, 8-bit superwave basslines to crisp Karplus-Strong plucked strings, combine MiniFreak Stellar's arsenal of 23 distinct engines in any way you see fit, for an impressive array of synthesis.


Between the proprietary algorithms and exclusive oscillator modes crafted by module-masters Noise Engineering and Mutable Instruments, a plethora of impactful and inspiring sounds await your discovery.

More than meets the eye

MiniFreak Stellar packs a punch with a range of scintillating digital and wavetable oscillators, cutting-edge FX and a simple-yet-powerful modulation matrix. But that's not all.

Inject movement and momentum into your sound design with advanced sequencing and arpeggiation, and seamlessly integrate with any DAW using MiniFreak's VST-twin.

Melodic propulsion

Effortlessly take your sound in a new direction.

MiniFreak Stellar's sequencer and arpeggiator allows you to lock variety into your patterns, introduce dramatic octave jumps, and drop-in repeats and mutations on the fly.

A sequence that never fully repeats, thanks to MiniFreak's Spice & Dice randomization and one-touch mutations.

Virtual Doppelganger

Explore the power of MiniFreak Stellar in your favorite DAW with mirrored sound and architecture.

MiniFreak V is a comprehensive standalone instrument, perfect for taking your Freak-infused production on-the-go, as well as offering seamless integration between hardware and software for a workflow that can suit your every need. Simply click Link to MiniFreak, and you're all set!

Platform Specifications

Windows
Win 10+ (64bit)
2.5 GHz CPU
4 GB RAM
2GB free hard disk space
OpenGL 2.0 compatible GPU
ARM processors not supported on Windows

Work with ASC
An elegant and simple solution to help you install, activate, and update your Arturia software instruments

Required configuration
VST, AAX, Audio Unit

What's in the box

Box content
MiniFreak Unit
Universal PSU - 12V 1A
USB A to USB 2.0
Registration card

Instrument dimensions

Size: 22.75 x 9.09 x 1.57 inches (578 x 231 x 55mm)
Weight: 6.48 lbs. (2.94 Kg)

Notes: Strymon's Big Sky reverb moves to the next level with the MX evolution, featuring more versatile editing options, two simultaneous reverb machines, full MIDI control and brand new algorithms.

Supplier's Notes:
In BigSky MX, raw computational power meets innovative design and consummate sonic craftsmanship to give you positively sublime reverbs with stunning new levels of richness and complexity.

BigSky MX features seven brand-new algorithms in addition to significant enhancements to the other classics. Dual reverbs can be routed in Series, Parallel or Split modes, and individually panned per engine. Access full IR editing functionality, as well as custom long captures of classic studio gear. Unlock massive width and presence with full stereo I/O featuring Strymon's discrete Class A JFET input preamps. Create lush pads to play over, or infinitely sustain any notes played for unique atmospheric effects. Change presets and control parameters with MIDI via USB-C, TRS, or DIN connections. Adjust controls on the fly via an expression pedal. All this and more in an elegant, easy-to-use pedal.

BigSky MX features a staggering amount of computing power - it uses a high performance tri-core 800 MHz ARM processor - all dedicated to producing truly breathtaking reverbs. Strymon's new reverb algorithms were meticulously created by hand, and then a state-of-the-art gradient descent optimization algorithm was used to dial out any undesirable ringing or artifacts. This type of neural fine-tuning is based upon the same techniques that have enabled the recent AI revolution, and the result is springs that drip and splash, physical spaces you can really feel yourself in, and the sweetest possible musical response to every note you play.

BigSky MX allows you to use two reverbs at once, for powerful sound sculpting and expansive reverb sounds that evolve organically over time. You can switch between reverb engines with a single button press while editing, and easily see the Series, Parallel or Split audio routing state clearly displayed onscreen.

For a more interactive experience, you can dedicate a footswitch to control each reverb's on/off state if you desire.

BigSky MX features seven brand new reverb algorithms built from the ground up, plus new features and enhancements for the classic BigSky algorithms. Impulse and Chamber were created specifically for BigSky MX, and Spring, Plate, Hall, Room and Shimmer boast entirely new handcrafted algorithms while still giving you access to the original BigSky voices for each one.

BigSky MX gives you powerful editing tools to intuitively manipulate impulse responses in real time. Set decay envelopes, gate the reverb tail, reverse the entire IR, resample on the fly to shorten or stretch the impulse, and create infinitely sustaining granular pads at the press of the Infinite footswitch. Any compatible audio file can be loaded, allowing you to use convolution reverbs for everything from hyper-realistic spaces to wacky experimentation.

BigSky MX comes preloaded with 22 unique stereo impulse responses, including a collection of our very own meticulous captures of legendary analog studio gear that are addictively inspiring.

Notes: Keyboard version of Akai's iconic MPC workstation, combining the classic MPC sampling and sequencing approach with 16 pads and a 37-note synth keybed. A superb all-rounder for any production style.

*** Introducing MPC Stems- March 2024 ***

Akai Professional now introduces the next chapter of sampling innovation and production powered by the groundbreaking MPC Stems bringing sampling into a new chapter.

With MPC Stems, you can access the raw building blocks of any sample or vinyl record, isolating the DNA of any record. Producers can now manipulate the Drums, Bass, Music, and Vocals, opening new creative possibilities.

Akai Professional introduces the ultimate creative workflow with Stems Separation seamlessly integrated into the leading MPC series, powered by MPC 2 Desktop Software.

With MPC Stems, producers and beat-makers can now unlock unmatched sampling creativity by easily isolating drums, bass, music, and vocals from any audio, vinyl recording, or sample revolutionizing the art of sampling.
Experience lightning-fast workflow with superior sound quality, keeping you inspired throughout the creative process.

Slice and isolate samples while maintaining chop regions across each of the four stem layers.

Take complete control with direct manipulation of stem layers from the pads, adjusting volume, pitch, pan, start, and end points with instant responsiveness.

MPC Stems requires MPC 2 Desktop Software running 2.14 or higher, compatible with MPC Live, MPC Live 2, MPC One, MPC One +, MPC X, MPC XSE, MPC Key 37, MPC Key 61, MPC Studio Mk 2 in Controller Mode.


Supplier's Notes:
Introducing the Akai Professional MPC Key 37; a standalone keyboard workstation that has everything you need to produce music out of the box. The iconic MPC range has been the centrepiece of beatmakers' and producers' studios for over three decades, evolving into a production platform that combines sampling, sequencing and synthesis into a lightning-fast workflow that keeps you focused on your music. MPC Key 37 brings together the familiar 16 pad grid together with a synth-styled 37 note keybed; along with legendary MPC sounds and instruments, and all the connectivity you need to integrate with your outboard gear and computer - in a compact footprint.

Sound

MPC Key 37 ships with a core collection of sounds and samples from Akai MPC's industry standard plug-ins.

There are 8 plug-in instruments out of the box: including Hype, Odyssey, Mellotron and more; and over 10GB of production ready samples and drum kits. Together these offer over 1000 production-ready presets and if you want to dive deeper each plug-in instrument features advanced synthesis, deep parameter editing, and effects for programming in the exact sound you need. With 32GB of internal storage (plus removable media via SD Card and USB) there is enough space to expand your sample and instrument library in whatever direction you need to take it.

Effects

MPC Key 37 includes over 100 powerful studio-quality effects for creative production and mixing.

Insert lush Reverb & Delay effects into your tracks, add bounce and punch to your drums and mix using modern or vintage style compressors and limiters. MPC Key 37 also ships with cutting edge vocal FX plugins which can also be used for straight vocals or creative sound design.

Control surface

The MPC Key 37 features a synth action key-bed with aftertouch, alongside separate pitch and modulation wheels. The synth-style keyboard action has been designed with players and producers in mind; whether tracking basslines into your productions or jamming out synth leads on stage. The 16-velocity sensitive RGB pads are the same award-winning pads as the MPC One+, along with the renowned Time Correct, Swing, and Quantize features of MPC that continue to inspire producers at the top of the industry. Tweaking and editing take place on the 7' multi-touch display and 5 Q-link rotary encoders, giving you fine control as well as quick access to the parameters you need at your fingertips.

Connectivity

MPC Key 37 can also act as a hub for your outboard gear: Connect MIDI devices via USB or using the MIDI DIN In/Out ports; and integrate with modular rigs with the 8 CV/Gate outs. Onboard WiFi/Bluetooth allows for wireless synchronization with Ableton Link and MPC OS Updates, and the SD Card Reader allows for volumes of expandable sounds and tracks.

DAW Integration

MPC Key 37 features a built in 2-in 2-out USB audio/MIDI interface, so you can record audio and MIDI directly in and out of your computer. The included MPC software is a standalone DAW on your Mac or PC, so you get all the tactility and control of the hardware, but with as many tracks as your computer can handle. MPC software also comes as a VST/AU plug-in so you can open it in major DAWs such as FL Studio, Logic, Ableton, Pro Tools, Studio One and more, and combine your favourite workflows.

Notes: Based on the iconic Mono/Poly analogue synth of the early 1980s, the Multi/Poly draws on decades of tech innovation to offer something fresh and exciting. Super versatile analogue modelling engine allows you to create unique synth voicings.

Supplier's Notes:
Multi/poly module

Breath-taking analogue-inspired sound with the limitless power of digital technology.

Summary

The multi/poly module takes analogue modelling to new heights, offering musicians and sound designers an incredible fusion of classic analogue warmth and cutting-edge digital power in a compact, rack-mountable module form. Inspired by the legendary Mono/Poly, this revolutionary synthesizer features four oscillators per program, advanced modulation capabilities, and a wealth of hands-on controls, allowing you to craft everything from rich, layered textures to futuristic, experimental tones. The new 19" rack-mountable enclosure has the same controls as the keyed model yet boasts an easily transportable form factor that fits neatly into any studio or desktop production system.

Overview

Inspired by the legendary Korg Mono/Poly, the new multi/poly analogue modelling synthesizer delivers breathtaking analogue sounds combined with extraordinary digital power and flexibility.

Korg is now pleased to introduce the multi/poly module: all of the multi/poly's incredible features and sounds in a compact 19" desktop/rackmount package. With support for MIDI 2.0 property exchange and poly aftertouch, the module is an excellent companion to Korg's Keystage controller. It's also fully compatible with programs from the multi/poly native software, as well as an increasing number of excellent third-party libraries, keeping the updated sounds and software fresh. The new 19" rack-mountable enclosure has the same controls as the keyed model, yet is easily transportable and fits neatly into any studio or desktop production system.

Next-level analogue modelling

multi/poly features redesigned, incredibly detailed filters and oscillators, and advances in analogue modelling that take this technology to a new level. Each voice contains a Virtual Voice Card, where oscillators, filters, envelopes, LFOs, and portamento circuits are modelled to reflect analogue hardware component variations. As a result, each voice can have its own slightly di6erent character, creating rich and naturally evolving timbres

Just like in an analogue synthesiser, voice cards continue to play even if you're not hearing them. Envelopes evolve naturally, meaning if you play a long pad with an extended release time, newly played notes "catch" the envelope at its current state rather than restarting from zero Oscillators and LFOs maintain phase, while resonance continues to ring out. Pitch drift mimics the subtle instabilities of true analogue hardware.

The multi/poly also includes envelope curvature presets inspired by classic synths like the Mono/Poly, MS-20, ARP Odyssey, and Prophet 5. Additionally, analogue VCAs behave di6erently depending on voltage, with varying thresholds for turning on and o6, which has a strong impact on the Amp Envelope's character. multi/poly models VCA responses from the Mono/Poly, MS-20, Prophet 5, Mini, Odyssey, and more, alongside a linear option.

MIDI 2.0 property exchange and polyphonic aftertouch support

All models of multi/poly, hardware and software, support MIDI 2.0 Property Exchange and easy access to Polyphonic Aftertouch - making them excellent companions to Korg's Keystage controller.

Rack-mount and desktop compatible

The multi/poly module is cleverly designed for both desktop and rack-mount use. The front panel is redesigned to fit into a standard 19" width, and the rear jack panel is recessed to allow easy access to cables even with gear mounted directly above. With desktop setups, brackets over a choice of panel angles: flatter for performing standing up, or more upright for working while seated in your studio

Specifications

Maximum Polyphony: 60 voices (varies depending on settings)
Dimensions (W× D × H) 483 x 172 x 107 mm / 19.02" x 6.77" x 4.21"
Weight: 1.7 kg / 3.75lb
Included items: AC adapter
Other specifications are the same as for multi/poly.

Notes: Unassuming looks conceal the excellent EaganMatrix sound engine, offering USB-powered synth creativity perfectly matched to Haken's own Warbl Wind Controller but also compatible with MIDI and MPE.

Supplier's Notes:
EaganMatrix Micro

The power of EaganMatrix Sound Technology in Haken's smallest product ever! The EaganMatrix Micro is a full-featured EaganMatrix sound engine in a small self-contained form factor, and is powered and controlled via USB.

The EaganMatrix Micro provides a truly versatile framework for both studio and live performance, with a robust implementation of MPE and MPE+ Midi.

The EaganMatrix Micro is a perfect companion to the amazing Warbl Wind Controller.

The fingering holes on the Warbl are not just switches. You can hear that the pitch starts off a bit as the finger gets close to the hole (like it would on an acoustic wind instrument) and hits the final pitch once the hole is covered. It's a subtle effect but important. The following video shows 15 Presets from the Micro's demo assortment that Edmund Eagan skillfully customized to take advantage of the Warbl's specific sensing technology. In the future there may be demo assortments customized for the sensing technologies of other devices.

Hundreds of System Presets are included with the EaganMatrix Micro. An external cross-platform (Mac and PC) Haken Editor may be connected to modify and customize the supplied EaganMatrix System Presets, or create completely new presets from scratch.

The EaganMatrix Sound Technology, originally created for the highly sensitive Continuum, is now available to you in this compact form factor.

EaganMatrix Micro Connections
1. USB Power and Midi (shown connected).
2. Foot Pedal or Haken Audio CVC communication.
3. Stereo Audio Out.

Haken Audio's EaganMatrix Micro offers:
Polyphony: Nominal 1-3, Maximum 8
Stereo Audio Output: 3.5 mm TRS
EXT Connection: 3.5 mm TRS

Can be used as a pedal input (Yamaha FC3A with HOSA MHE-100.5 is recommended),
or it can be configured for a Control Voltage Converter.

Seven Segment Display: Preset navigation and settings
USB Power: 500 mA (190 mA average actual usage), via Mini USB connector
USB Midi: via Mini USB connector (USB-A to Mini USB cable included with purchase)
Allows bidirectional MPE and MPE+ connection to other devices; allows connection to the Haken Editor for editing and archiving EaganMatrix presets
Dimensions: 11.3 x 5.8 x 1.9 cm (4.4 x 2.3 x 0.75 inches)
Weight: 0.075 kg (2.6 oz)

Notes: Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesiser designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Specifications:

Max output voltage: 2 v 0-to-peak
Output connector: mono 6.3 mm TS or TRS (balanced) jack
Output resistance: 100 Ohm
EXT IN: 1 v 0-to-peak
EXT IN connector: 6.3 mm TS jack
HOLD GATE: full HOLD volume +5 V
HOLD GATE connector: 6.3 mm TS jack
CV DELAY : unipolar, range of 0 to +5 volt
CV DELAY connector: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply: stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 2 watt
Dimensions: 266 x 266 x 62 mm
Weight (without power supply and packaging): 2.5 kg

Notes: The Morphagene music synthesizer module is a next generation tape and microsound music module that uses Reels, Splices and Genes to create new sounds from those that already exist. Search between the notes to find the unfound sounds.

A few of the Morphagene's most basic uses: Splice recorded audio and jumble it using ORGANIZE. Manipulate playback speed and direction with Vari-Speed. Granularize with Gene-Size and Slide. Layer or Stagger Genes using MORPH. Undertake iterative music processes by recording manipulations and overdubs into new Splices, like having two machines (one for Playback and modulations, one for Record). Process sound in real time using Time Lag Accumulation. Utilize envelope following CV OUT and EOSG Trigger to engage Morphagene in conversation with the rest of your modular system. Stretch and squash sound with Clock input.

Features
New revision Morphagene firmware MG204 adds great functionality.
Voltage control over all sound manipulation parameters
Stereo I/O with Input Gain Selection, works with line- or modular-level signals
Recording Reel can be up to 2 minutes 54 seconds long
Record/ create up to 99 Splices per Reel
SD Card stores multiple Reels
Sound On Sound allows for layering sounds
Playback and Recording independent, like having two machines
Vari-Speed range 12 semitones up and 26 down, over 3 octaves
24-bit codec, creates 48k 32bit WAV files
Back up Reels on computer with SD Card
Share and download Reels at freesound.org! [see how]
includes blank SD Card

Specifications
Width: 20hp
Max Depth
(incl. power cable): 45mm
Power:
165mA @ +12V
20mA @ -12V

Notes: Still based on 80s games console circuits, this second-generation model of the unique Twisted Electrons FM synth gives more freedom to try out different chips. Same gritty sound and hands-on control.

Supplier's Notes:
This updated version is identical in appearance and functionality but will include a pair of YM3438 chips instead of the YM2612. The YM3438 is a variant of the YM2612 that is identical in functionality and was featured in the Sega Megadrive II. The circuit layout has also been updated to grant access to the FM chips with minimal disassembly.

Indeed the chips are now socketed (removable) and accessible by removing the bottom panel.

This allows you to install alternate FM chips (like the YM2612, modern alternatives or even custom sound chips).

You can also mix different versions of FM chip as there are 2 slots that can be configured individually.

MEGAfm MKII features the same audio circuitry and analog distortion as the MKI, as a result both chips sound very similar inside of MEGAfm.

The firmware will work identically on both versions.

Beautiful dirt

Unlike most FM synthesizers that are very clean and digital, the vintage FM chips within MEGAfm have very characterful tone allowing a broad sound palette ranging from beautiful plucked strings to growly distorted bass lines.

Tactile operators

Hardware FM synthesizers are infamous for their reduced controls and complexity to program, with tiny LCD screens and only a couple of buttons to operate a load of menus...
With its 32 operators faders, 14 knobs and 15 buttons MEGAfm offers unprecedented hands-on FM control!

Every knob and fader can easily be modulated by the easy to use LFOs.

Make it a double!
The vintage FM chips from the 90s each offer 6 voices of crispy FM, 4 operators per voice and 8 algorithms.


MegaFM features 2 chips for a total of 12 voices spread across two outputs (or summed to one)

Features:

12 Voice Polyphony
Dual vintage FM chips (included)
8 Algorithms
600 preset memory (saving to any slot) arranged in 6 banks. Easy upload/download of banks to and from computer vis SYSEX.
Preset randomiser
4 Voicing modes (Poly12, stereo/wide6, special CH3 mode, 12 voice unison with detune/fat knob
Stereo or Mono output (1 chip per channel or both chips summed)
32 Sliders for total control of all 4 operators
14 knobs
15 buttons
23 LEDS, LED numeric display.
3 LFOs to modulate any parameter
7-mode arpeggiator with transposable Sh-style step sequencer
Vibrato with depth and rate
MIDI clock on all LFOs, ARP and Vibrato
All faders/knobs send MIDI (use MegaFM to control your favourite modern FM synth!)
Full MIDI automation
Dual 6.35mm TS output and 6.35mm Stereo Headphones output
Brushed/Anodized Aluminum Case
Sturdy metal panel bolted potentiometers
Dimensions: 30CM x 13CM x 5CM
DIN5 MIDI input with MIDI channel learn and thru/out

Notes: The excellent Wavestate MkII gets a desktop/rack module spin-off. Exceptional value from this 96-voice Wave Sequencing synth, excelling at everything from glossy, modulated pads through to organic, evolving baselines.

Supplier's Notes:
A new modular model that makes a big difference in the music production environment.

Introducing the Wavestate module - all of the features of the Wavestate mkII in a compact 19" desktop/rackmount package.

In 2020, the acclaimed Wavestate brought KORG's Wave Sequencing to the next level. Featuring the radically re-imagined Wave Sequencing 2.0, the Wavestate delivers astonishing, ever-changing sounds with extensive hands-on control. Far from a nostalgic reissue, the Wavestate was designed from the ground up for a new generation of musicians, producers, and composers, taking cues from sources as diverse as modular synths, groove boxes, and algorithmic composition.

120 voices of polyphony, updated LFOs, and more

Taking full advantage of both a new enclosure design and new processing hardware, the Wavestate module provides an impressive 120 stereo voices of polyphony. The new 4U rack-mount enclosure has the same controls as the keyboard models, yet is easily transportable and fits neatly into any studio or desktop production system.

Responding to user requests, we've also updated all LFOs with options for free running, delayed start, and retriggering, added new modulation sources, and more. A software update will also be available for the original Wavestate.

The Wavestate module is fully compatible with the sounds and samples of the original Wavestate, Wavestate mk II, Wavestate SE, and Wavestate native software, as well as many excellent third-party libraries.

MIDI 2.0 Property Exchange and Polyphonic Aftertouch support

With the latest software updates, all models of Wavestate, hardware and software, now support MIDI 2.0 Property Exchange. Hundreds of the original factory sounds have been updated to include Polyphonic Aftertouch modulation (Channel Aftertouch is supported as well). All of this makes the Wavestate module an excellent companion to KORG's Keystage controller.

Rack-Mount and Desktop

The Wavestate module is cleverly designed for both desktop and rack-mount use. The panel is redesigned to fit into a standard 19" width, and the rear jack panel is recessed to allow easy access to cables even with gear mounted directly above. With desktop setups, brackets offer a choice of panel angles: flatter for performing standing up, or more upright for working while seated in your studio.

Many musicians have requested a module version of the wavestate. Now that components are once again available after a long period of supply-chain disruption, KORG is pleased to make that request a reality.

Main Specifications

Maximum Polyphony: 120 stereo voices
Dimensions (W x D x H): 483 x 172 x 113 mm / 19.02 x 6.77 x 4.45 inch
Weight: 1.7 kg / 3.75 lbs.
Accessories: AC adapter
Sound generating system: Wave Sequencing 2.0
Maximum Polyphony: 96 stereo voices
Sounds: Ships with 261 Performances, 799 Programs, and 1,042 Wave Sequences
Storage for tens of thousands of user Performances Structure

Performance

4 Layers, Reverb, EQ; all edits are stored in the Performance, DAW-style (saving as separate Programs, Wave Sequences etc. is supported but not required)
Layer: Program, Arpeggiator, Key and Velocity Zones
Program: Wave Sequence, Filter, Amp, Pre FX, Mod FX, Delay
Filters: 2-pole LPF, 2-pole HPF, 2-pole BPF, 2-pole Band Reject, 4-pole LPF, 4-pole HPF, 4-pole BPF, 4-pole Band Reject, Multi Filter, MS-20 LPF, MS-20 HPF, Polysix
Modulation: Controllers
Mod Wheel, Pitch Wheel, Vector Joystick X/Y, 8x Program/Performance Mod Knobs
Other Sources: 3x Envelopes, Vector Envelope, 3x LFOs, 2x Mod Processors, 2x Key Track, Step Sequencer Lane, Step Pulse, Tempo, Program/Performance Note Count, Program/Performance Voice Count, Poly Legato, Velocity, Exponential Velocity, Release Velocity, Gate/Gate+Damper, Note-On Trigger/Note-On Trigger+Damper, Note Number, Aftertouch/Poly Aftertouch (external MIDI only), MIDI CCs +/-, MIDI CCs +
Destinations: Most parameters can be modulated, including parameters of individual Wave Sequence Steps. Depending on Wave Sequence length, there can be more than 1,000 potential modulation targets per Program.

Effects

Pre FX: Decimator, Graphic EQ, Guitar Amp, Modern Compressor, Parametric EQ, Red Compressor, Ring Modulator, Tremolo, Wave Shaper
Mod FX: Black Chorus/Flanger, Black Phase, CX-3 Vibrato Chorus, EP Chorus, Harmonic Chorus, Modern Chorus, Modern Phaser, Orange Phase, Polysix Ensemble, Small Phase, Talking Modulator, Vintage Chorus, Vintage Flanger, Vintage/Custom Wah, Vox Wah
Delay: L/C/R Delay, Multiband Mod Delay, Reverse Delay, Stereo/Cross Delay, Tape Echo
Reverb: Early Reflections, Overb
Performance EQ: 4-band parametric EQ

Inputs/outputs: Headphone (6.3 mm stereo phone jack), OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks), DAMPER (6.3 mm phone jack), MIDI IN and OUT connectors, USB B port
Power supply: AC adapter (DC12V, 2500mA)
Power consumption: 5 W
Dimensions (W x D x H): 565 x 338 x 92 mm/22.24" x 13.31" x 3.62"
Weight: 2.9 kg/6.93 lb.

Included items

AC adapter
Accessories (sold separately)
DS-1H damper pedal, PS-1 pedal switch, PS-3 pedal switch

Notes: All black version of Sonicware's excellent digital synth. The ELZ_1 Play features an impressive 17 different digital synth engines, including low-bit retro sounds and the unique DNA Explorer.

*** As of November 2024, Firmware 1.1 has been installed, including effects such as 4-Pole Filter, Trim Filter, Ambient Hall, Ambient Infinity and Ambient Room ***

Supplier's Notes:
17 Distinctive Synth Engines-Unlike Anything You've Ever Heard
The ELZ_1 play's synth engines are built from scratch using 32-bit floating point math. From hard low-bit textures to organic FM tones to granular synthesis, the ELZ_1 play offers unique synth engines unlike any other synthesizer.

LOW-BIT OSC: 2 ~ 8 bit variable low-bit oscillator. Sine, square, triangle and sawtooth waves.
STANDARD OSC: 32-bit floating-point processing high resolution oscillator. Sine, square, triangle and sawtooth waves.
CUSTOM OSC: Choose 2 waveforms / period of cycles.
DNA EXPLORER: Extract and generate waveform DNA from audio.
SiGRINDER: Granular synthesizer engine.
MASKED NOISE: Noise oscillator.
SAND FLUTE: Extract and generate tone from noise.
8BIT WAVE MEMORY: Editing your own waveform.
8BIT WAV MEM (MORPH): Morphing 3 waveforms.
8BIT WAV MEM (FM MODE): 2 operators, 8bit FM mode.
8BIT WAV MEM (WARP): Generates an intermediate waveform by crossfading two waveforms.
8BIT WAV MEM (ADSAR): Waveforms change according to envelope.
8BIT WAV MEM (TIME): 3 waveforms change in the orders.
FM SYNTH: 4 operators with 31 algorithms, 32-bit floating point processing.
ZTRINGS: Physical Modelling Strings engine.
SUPER OSC: Super synth engine with 5 detunable sub-oscillators.
STK DRUMMER: Drum machine engine equipped with 5 types of drum kits. (SmplTrek .stk file compatible)

28 Effects to Elevate Your Sound-From Soothing to Striking
Unlock a world of sound by combining 3 insert effects from 18 types and 1 master effect from 10 types, including Shimmer Reverb.
Insert effects: overdrive, distortion, fuzz, crusher, chorus, stereo chorus, flanger, phaser, tremolo, vibrato, ring modulator, auto wah, delay, reverse delay, ping pong delay, auto pan, tape echo & reverb, 4 pole filter, trim filter.

Master effects: hall, room, plate, arena, tunnel, infinity, custom reverb, crusher, ambient room, ambient hall, ambient inf, vinyl simulator & cassette tape simulator.

Flexible 4-Track Looper-Layer, Loop, and Remix with Ease
The newly developed 4-track looper allows easy recording, playback, and overdubbing by simply pressing the track buttons. You can record not only ELZ_1 play performances, but also LINE input and USB audio input.

Instrument Redefined - Velocity-enabled keyboard, Built-in Stereo Speakers and More:
To make it a musical instrument that is pleasant and expressive to play, the keyboard has been improved to support velocity on all keys, and high-quality loud stereo speakers are built into the side panels. It is also equipped with an SD card slot, USB-C, and DIN-MIDI jacks for flexible handling of audio and MIDI.
