Notes: The Mini Case offers 40 HP for mounting modules. A power supply is built-in.

208 mm long x 45mm deep.

PLEASE NOTE: Comes with EU 2 pin plug only - UK adapter may be required.

Notes: ***B-STOCK: Box opened, product in perfect working order***


This AC Power Adapter comes with a locking DC extension cable. The connector of the DC extension cable screws down to the DC jack, preventing noise interference when the cable is bumped.

There are two voltage options:
12V: used with original 5A Power Supply and newer Five Amp Power.
19V: used with Deluxe Power, Super Power, Case Power Mini and Case Power.
Note: If you are replacing a power brick on a Synthrotek power supply, use the same voltage as was originally sent (unless the brick is 15V, then change to it to 19V).

AC input: 100-240V, 1.6A, 50-60Hz

DC output:
12V at 5A
19V at 4.74A

Center positive 2.1mm pin

Comes with a 3-prong power cable, which will work in the US and some other countries. If you are in Europe, etc. you can get a separate volex connector that will work in your country. We don't carry international connecting cables, but you can find them easily on the web.

Notes: polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analog audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: Medium sized spring reverb tank, Type 8 Accutronics 8BB2C1B with 3×1 springs and medium decay (1.75 - 3 seconds).

Input impedance 190 Ohm, output impedance 2575 Ohm. Input connector insulated, output connector grounded.

Notes: Use this panel to mount your Field Kit FX in your Eurorack System.

Please note: This only includes the Eurorack Panel, NOT the full Field Kit FX.

Notes: The Dual Mantis Studio Brackets pair lets you connect two Mantis together in a robust and elegant solution. This setup is fixed and is recommend mainly for studio use. The brackets are cut precisely by laser from a sturdy metal and then coated twice for a nice smooth finish that matches the Mantis light gray color. They come with sixteen screws and special washers that help hold the screw in place during assembly and keep a tiny gap between the brackets and the Mantis. Installation is fairly simple and takes about 30 minutes to complete.

Using the optional bracket accessory Mantis can be doubled up to 416HP! Multiply your Mantis and watch your studio setup grow...

Before you begin:
Please get a Phillips head screw driver. It is also recommended to have eight eurorack modules available to help align the Z-Rails but this is not mandatory.

The kit contains:
2 x Brackets, left and right
2 x Adhesive foam strips
12 x Phillips pan head machine screws
12 x Nylon washers
1 x Allen Wrench 3mm

Notes: The Happy Ending Kit is an easy way to get everything needed to start a Eurorack modular system.

The Happy Ending Kit includes:
1 x Z-Rails set plus screws to attach to Z-Ears
1 x uZeus 4HP PSU with 2 x flying bus boards
1 x UK 3-pin mains adapter

Notes: Mariana Trench is an FDN card for the Z-DSP. Feedback Delay Networks (FDNs) are built around multiple delays which are connected to their inputs thanks to a feedback matrix designed for its stability and lossless properties. FDN can mimic the recursive process of sound waves bouncing back and forth in an acoustic space. They were first suggested for artificial reverberation by Michael Gerzon (1971) and later John Stautner and Miller Puckette (1982) introduced four-channel FDN reverberator with general stability conditions.

FDN can also be used as a special case of digital waveguides, they can be tuned, or also used as complex delays. The Mariana Trench Z-DSP cartridge is designed to explore these more unusual sides of the FDN algorithms. Mariana Trench Z-DSP cartridge is designed by Christophe Duquesne Anckorage - Haken Audio developement team - La Voix du Luthier.

Notes: The 3-Tier Mantis Studio Brackets pair lets you connect three Mantis together in a robust and elegant solution. This setup is fixed and is recommended mainly for studio use. The brackets are cut precisely by laser from a sturdy metal and then coated twice for a nice smooth finish that matches the Mantis light gray color. They come with twenty screws and special washers that help hold the screw in place during assembly and keep a tiny gap between the brackets and the Mantis. Installation is fairly simple and takes about 30 minutes to complete.

Notes: The 1-row QUICKSWAP CASE for AE modular is the high-end case for AE modular. It is based on a sturdy metal chassis with a beautiful matte black powder coating and - the key feature of this case - allows to plug in AE modules without any screws! The design makes sure that the modules sit really firm in the case and the bus connection is established automatically by the integrated bus board, so need for the separate bus cable known from the standard AE cases. This means, rearranging your modular system can't be easier!

This case is developed by Kyaa, a great 3rd party AE module developer; tangible waves is producing the case. We are happy about this great cooperation and this marvellous addition to our product range!

With a connector kit, another QUICKSWAP CASE of same width can be attached at certain angles, depending on the connector - and the power supply is linked between the cases also via the connector.

Other utilities, like a handle for carrying a folded case, are coming soon.


Please note: This rack does not include the Master or Power module. To connect the case to power you have the following options:
Install the Master Module
Install the Power Module
Connect to another, already powered QUICKSWAP CASE
Connect to another AE case via the RACKLINK module kit

Notes: 104hp wide with two 3U rows and a 1U row.
Powder coated aluminum construction
VESA mount compatible (100mm x 100mm)
Plastic handle for easy mobility
Metal feet can be installed to support multiple angles of jamming.
Secure latching lid with enough depth to keep your patches patched

Expandable

Lid - when you're ready to add more space, the lid can be expanded to be another 104hp x 7U. You can add another set of rails, power supply and power jack and double your available space. (Kit available)
Metal feet - The metal feet can have a pair of rails and rack mounted power added to support another 3U row of 104hp. (Kit available in future)

Connectivity

Audio jacks - set of four jacks for stereo in and stereo out.
MIDI jacks - DIN jacks to support IN, OUT, and THRU MIDI.
USB power - can be used for a lamp to light your case or to charge your phone while recording your set.

Dimensions
557mm x 334mm x 169mm
74mm depth for 1U and bottom 3U row
52mm depth for middle 3U row

Power
+12V - 3A (with plenty of allowance for in-rush current)
-12V - 3A
+5V - 3A (shared with USB power)
36 shrouded power headers

In The Box
Main case
Lid
Metal feet
Power adapter 20V at 6A

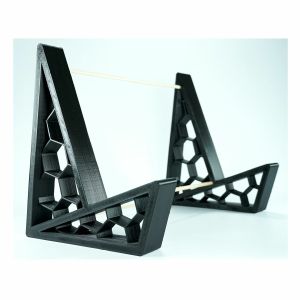

Notes: The Eurostand support is designed to hold Eurorack-style synthesizers, with specific features to ensure user comfort and equipment stability. Two sturdy feet connected by rods can support cabinets of up to 7u. This rod system allows adjusting the width of the stand according to the size of the cabinet you have.

The angle of inclination makes it ideal for use standing or sitting.

A durable and resistant plastic material, such as PLA, is used to 3D print the stand. This ensures it can support the weight of multiple Eurorack modules without deforming or breaking.

In summary, the ergonomic Eurostand support for Eurorack-style synthesizers is designed to provide a safe and comfortable platform for organizing and efficiently using these devices.

*** Please note: The synth modules are not inlcuded, they are shown for demonstration purposes only. ***

Notes: Looking to expand your Lunchbox? Look no further! 2hp's Flying Bus Cable is the perfect addition to your ever expanding modular meal. Carrying 8 power slots, expanding your system is a breeze by simply inserting the Flying Bus cable into the extra slot of your Lunchbox power. Did somebody say seconds?!

Flying Bus Cable

8 Slots

Malleable for easy cable management

Double your Lunchbox's modular possibilities

Notes: Omnitone designed these M3 screws so we don't have to deal with cumbersome screwdrivers anymore. Comes in a black tin with an Omnitone sticker on to (peels off cleanly if you would like to use for other things).

Notes: It's always nice to have some extra power cables handy. Omnitone's standard modular power cables come in a pack of 5. Each power cable is 26cm (~10 inches) long.

Notes: ***B-STOCK: Box opened, product in perfect working order***


This is the powered version that includes the case as described here, a Strom+ module, a Strom power supply (AC/DC adapter) and a Strom busboard with connector cable. You only need to plug modules into the case and you’re ready to go!

One case fits 84HP of modules with a depth of 70mm.

The cases can be used with an incredible amount of flexibility to swap in an out full rows and create larger setups using the Case Connectors and Case Standoffs.

The side cheeks are made of high-quality Finnish plywood and are coated with a durable transparent melamine film. The black surface is hardwearing and crack resistant as well as easy to clean.

All cases are shipped with a set of 4 rubber feet and 50 x M3 screws.

Notes: Make Noise's 208hp 7U 4 Zone CV Bus Case arrives ready to use. Just add modules, patch cables and inspiration. The powder coated metal construction offers excellent mechanical durability. The lid is removable and can be closed with the system fully patched. The sleek matte black finish was selected to match Make Noise's line of Black & Gold modules, and it looks great with just about any module installed. This finish will show the story of your modular synth's travels over the years.

The Make Noise 4 Zone Power Bus Board is a new approach to accommodating the ever-growing universe of Eurorack modules. The multi-zone solution is like having 4 independent bus boards in a convenient single bus board package. Each Zone features isolated +12 VDC and -12VDC supplies and a dedicated ground return path. The +5VDC supply is shared amongst all 4 zones.

The multiple section of the CV Bus was originally designed in 2013 for Alessandro Cortini's personal Make Noise system. It provides visual indication of level, rate and polarity for up to 4 control signals that will be shared throughout a patch. These 4 control signals are colour coded and distributed across the centre of the system allowing for quick, clean and intuitive patching. The distribution method is unlike the typical multiple since the control signals will appear beneath their possible destinations allowing for the use of shorter patch cables. The colour coding and visual indication makes navigating complex patches easier and more intuitive. Typically, the CV Bus would be used to share the most important control signals in a patch such as your Master Clock.

This new version of the CV Bus also includes useful modular utilities:

The Voltage Math is found at the left end of the CV Bus. Like the similar circuit on the 0-Coast, it is a small collection of universally useful modular utilities. The two inputs are summed at the output, one at unity and one adjusted by the input attenuverter. The attenuverted input is also normalled to a DC offset, for purposes of level shifting, voltage mirroring etc. The output strength and polarity is indicated by the Green and Red output LEDs.

A high quality Stereo Line Driver converts powerful modular synthesizer signal levels to the commonly used Line Level. There are mini-jack inputs for Left or Mono, and Right for Stereo sound, a single master volume control, as well as a stereo line output pair, and finally a TRS line/headphone out on a single jack. This output is capable of driving a long cable out to a PA System or a set of Headphones. It is AC coupled with a built-in limiting circuit (with visual indication) that prevents damage to ears and PA system when the patching gets experimental.

Includes

Two 104 hp 3U rows for Eurorack modules, One 104hp 1U row fitted w/ CV Bus
Hybrid switched/linear power solution for low noise and excellent load regulation
Multi-Zone, allowing isolation of noise-prone modules from noise-sensitive ones
Black powder coated metal w/ embossed logo on lid
Sealed to keep dust out during travel or storage
Lid offers space to close w/ your system patched
Recessed side mounted on/off switch and power inlet for safe travel
Locking power connector helps prevent on-stage power loss accidents
Solid carrying handle and rubber feet so the case travels w/ ease
Meets carry-on luggage size requirements for most airlines
Universal AC power adapter works world wide (Need IEC Cable for non-US outlets)
Blued Steel Stand sold separately

Specifications

Size: 7U
Total HP: 208 @ 3U, 104 @ 1U
Outer Dimensions:
22.25" x 14" x 7.25" w/ lid
Max Module Depth: 2.5"
Weight: 12.75 lbs. (w/ powered bus board, CV Bus installed)
Power: +12VDC @ 4A, -12VDC @ 2.4A and +5VDC @ 1A
Connectors: 32
Includes: CV Bus, Powered Bus Board, 120 Sliding M2.5 nuts w/ Black screws, AC Adapter

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:

Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 64HP-104HP:
Power output:
+12V @ 2A
-12V @750mA
5V@ 1.5A
Power connectors: 15
Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:

Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 24HP-44HP:
Power output:
+12V @ 1A
-12V @300mA
5V@ 150mA
Power connectors: 2 (plus optional flying bus cable)

Specifications, 64HP-104HP:
Power output:
+12V @ 2A
-12V @750mA
5V@ 1.5A
Power connectors: 15
Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:

Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 24HP-44HP:
Power output:
+12V @ 1A
-12V @300mA
5V@ 150mA
Power connectors: 2 (plus optional flying bus cable)

Specifications, 64HP-104HP:
Power output:
+12V @ 2A
-12V @750mA
5V@ 1.5A
Power connectors: 15
Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.

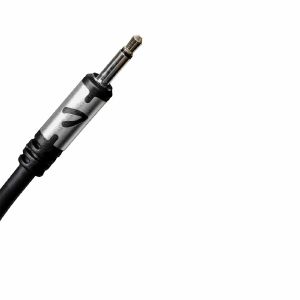

Notes: What started as a simple plan to develop a new line of patch cables, quickly became an engineering feat in typical Joranalogue fashion. After countless hours of stripping cables, benchmarking crosstalk and high frequency performance, and designing in-house cable testing tools, Patch is the result of these efforts.

Patch is a series of top-quality patch cables for the discerning modularist, available in black and white, and a variety of lengths. Constructed using a custom-made coaxial base cable and over moulded mini-jack plugs, protected by unique laser-cut aluminium shells, these Eurorack cables are designed to outlast and outperform.

Lengths 15, 30, 60 and 90 cm are available in 8-packs, while the extra-long 150 cm cables are supplied in 4-packs.

Premium patch cables with 3.5 mm mono mini-jack connectors for Eurorack modular synthesiser use.
Engineered for audio, CV as well as analogue video signals.
Unique anodised aluminium shells and heavy duty bend reliefs for long life span.
7 inner signal and 40 outer shield conductors of 100 % ultra-pure oxygen free copper.
Extra-flexible PVC outer sleeve: satisfying 'droop' without crinkles.
Safely packaged in a reusable cotton bag with branded hook-and-loop cable tie included.
Incredibly fun to patch with. (Seriously!)
Designed in Belgium; made in China.

Notes: The tiny but mighty Eurorack power supply. Winterbloom's love letter to DIYers is perfect for custom cases.

Micronova is a miniature 100x30mm power supply with a big soul. It can provide up to 18W of power for your modules and multiple units can be easily daisy chained to power larger systems.

Despite being adorably small, Micronova provides lots of flexibility for custom case builds. It can be powered through an attached DC barrel jack, screw terminals, or through an optional front entry panel.

Micronova is equipped with two Eurorack power headers that can be expanded using a busboard or flying bus cable.

Micronova also has critical safety features including reverse polarity protection, a resettable polyfuse, and over-current shutdown.

A suitable AC-DC power adapter is required.

A tiny 100mm x 30mm board with M3 mounting holes
Provides +12V @ 1A, -12V @ 300mA, and +5V @ 500mA
Includes two 16-pin Eurorack power headers
Requires a 15V to 20V center positive DC power supply
Multiple units can be daisy chained
Reverse-polarity, over-current, and over-temperature protection

Notes: After Later Audio Braided Patch Cables for Eurorack in Gold and Black. One size per pack of five cables. Packs come in 15, 30, 45, and 60 centimeters, or 6, 12, 18, and 24 inches.

Notes: After Later Audio Braided Patch Cables for Eurorack in Gold and Black. One size per pack of five cables. Packs come in 15, 30, 45, and 60 centimeters, or 6, 12, 18, and 24 inches.

Notes: The uBASE-QS 2 module is the carrier (or BASE) for four micro modules and explicitly designed for use in the QUICKSWAP CASEs. This carrier module can be plugged into the QS case as any other module; then, the uModules can be plugged in and removed itself into it, even with the AE system running, so you can reconfigure or add needed functions in form of micro modules "on the fly".

A number of sockets provide access to the bus signals, like CV, gate, cotroller, MIDI start/stop/clock.

Included is a small "key" to lift also modules without knobs in an easy way.
