Notes: Excellent basic analogue synth with its own distinctive character. The UNVO-1 is a two-oscillator design with a 'strain' and filter circuit to sculpt your sound. Control via the knobby front panel for experimental tones and powerful bass sounds.

Supplier's Notes:
It is powered by a center negative DC 9V adapter or a single 9V battery.

It contains two VCOs (oscillators) with a wide range.

The SUB oscillator has a different frequency and waveform, and is input to the main, respectively. Each of them has a range switch, so it works like an LFO under the switch. The color of the range switch (white, black) corresponds to the color of the SUB.1 and SUB.2 on-off switches next to the FREQ knob of the main oscillator.

When the WAVE switch is turned on, the WAVE knob is activated, and the SUB OSCILLATOR.1 and 2 are shaken.

The main VCO×2 is mixed and fed into the strain + filter circuit. This special filter has a FREQ knob and a TUNE knob. The TUNE knob powerfully amplifies the input signal while also tracking specific pronunciations.

The filter is a circuit that has been fine-tuned so that it can very effectively enhance the bass and treble of this input signal.

Unlike other switches, the noise-on switch moves sideways, left (VCO.1), middle (OFF), and right (VCO.2). They are populated in VCO.1 and 2, respectively.

It is a noise machine that can output a very strong signal that generates a variety of noise sounds.

This analogue synth runs on DC9V negative center or a 9V battery.

The main 2 VCOs can receive 2 oscillators and noise generator inside and go to 2 different filters.

2 oscillators can be tuned with each two FREQ. knobs and controlled with the wave knob.

RED switch is for wave knob working.

Black and White for tone of oscillators

Notes: EGL-1 is a desktop analogue synthesiser that is ideal for a variety of duties. The unit's sub-oscillator can be configured to determine the emitted waveform and decays when the Push switch is pressed. There are four LFOs routed to the primary VCO for bountiful modulation capabilities. The VCO itself is routed through a boost circuit for a some extra flair that's sure to punish listeners in all the right ways.

EGL-1 Features

VCO routed through boost circuit
4 LFOs provide ample modulation possibilities
Integrated sub-oscillator
Push switch causes the sub-oscillator to decay
Two types of modulation can be applied to the MAIN VCO (oscillator).

The bottom stage mixes four LFOs and allows you to adjust the input level to the MAIN VCO with the level.

The middle stage allows you to input a WAVE to the SUB OSC (another oscillator) with adjustable rise and fall of the oscillator, which can then be fed into the MAIN VCO.

The push-button in the top right-hand corner rapidly decays the power of the SUB OSC as long as it is pressed. While it decays, it has an effect on the sound of the MAIN VCO.

The MAIN VCO output also has an output circuit to make the sound more powerful.

The EGL-1 operates from a 9V centre-minus or battery. Neither is included.

Notes: The first outing for KMA's unique and custom AI driven True Double Tracker technology was in the ENDGAME, their powerhouse end-of-chain pedal. KMA designed their dead-simple-to-use, TDT Algorithm in ENDGAME to be as authentic to the doubling recording process as possible, but they realise that not everybody needs all the bells and whistles of such an all-encompassing device.

However, the processing power requirements required for TDT meant a simpler device wasn't yet possible. But as demand from the community grew, KMA's team worked hard to squeeze it down and make it happen.

So, meet GEMINUS - all of KMA's True Double Tracker goodness in a compact pedal that's suitable for any board. Whether playing live or recording with a single instrument, GEMINUS is the perfect solution for adding "fatness" and "width" to your performances - it really does feel like you are playing the same riff twice!


Enabled via the soft bypass footswitch, GEMINUS accurately replicates the minor differences that exist between two separate recordings. The TDT WIDTH control spreads your doubled tracks, anywhere from completely centred (0%) to 50% left and right (centre indent) and 100% left and right split.



KMA has carried out extensive research on how to make double tracking sound exactly how they think it should perform. In the process, they've spent thousands of engineering hours working on our own proprietary technology, even developing their own custom neural network AI with onset detection in the process for our algorithms.

The mode for the TRS input and output jacks is selected by the toggle switch. You can choose between stereo in and out, mono in and stereo out or mono in to mono out, so no matter your signal and tonal desires, GEMINUS will fit into your rig with ease.

For the most accurate performance (and just like the real double tracking scenario in the studio), their custom True Double Tracker algorithm should ideally be fed with a mono signal. Obviously if you are trying to emulate what traditionally happens in the studio, you wouldn't normally double up a stereo source. Having said that, the TDT algorithm has been optimised to still have a useful and very pleasing widening effect on stereo input signals, just take care that using too much doubling on some stereo sources may cause your carefully crafted reverb, delay or other modulation effects to turn to mush or even add phase issues.

To help tailor the Doubling to your own taste, the TIME control changes the timing range of the doubled AI-driven onset detection. Essentially, it's all about the tightness of the doubled signal to fit differing playing styles. Variable from an extra tight mode, that's perfect for extra fast riffs, to a looser timing that can just the right amount of density to more open playing styles, this control is a powerful weapon to make your riffs fit your musical goals. The centre detent is GEMINUS' default factory position, but turning the knob left will give a tighter feel. Crank the knob to the right and the doubled signal becomes much more relaxed.


While the LEVEL control affects the balance of the doubled signal against the original source. Useful for those times where you might want maximum width, but a little less (or even more) of the sound to be doubled against the original. Centre detent of the knob is GEMINUS' default factory position. There's some clever panning stuff going on under the hood here too, so neither the doubled or original signal is louder on one side or the other, when in Stereo.

Finally, the new PITCH selector switch can add some additional movement to your doubled signal, extending the usefulness of GEMINUS beyond standard doubling. When the switch is at the centre default position (-) there is no pitch adjustment, (~) adds some subtle modulation, while (?) adds even more wobble. In this mode, it doesn't mean that your second guitarist will sound like they are off on a quest for enlightenment all on their own (!), it is just super handy for those times when you want more chaos and instability in your ensemble.

To top it all off, they've added a switchable real True/Buffered bypass and 'silent' relay-based soft switching. When KMA were testing our new pedal platform, they really loved the clarity and signal integrity of KMA's Buffered Bypass, plus there are zero clicks and pops when switching in this mode, which is why it is the recommended and default mode on shipping. However, they know some players have some special devices like extra fussy vintage fuzz pedals and the like, so they added the ability to select True Bypass mode via an internal dip switch.

Phew, seems that there's quite a lot going inside GEMINUS then. We believe our True Double-Tracker in this pedal is the best sounding, yet easiest to use doubler you'll ever play - period.


Go forth and multiply your riffs!


Product Type:

Stereo True-Double-Tracker (Proprietary Doubler) pedal

Bypass Type:

Switchable True/Buffered Bypass with 'silent' relay-based soft switching

Power Supply Requirements:

9 V DC - Centre (-) negative 2.1mm

Current Draw (max):

< 100 mA

Product Dimensions / Weight:

H: 60 mm / 2.36 inch
W: 74 mm / 2.91 inch
D: 128 mm / 5.04 inch
Weight: 350 g / 12.35 ounces

Notes: When Wampler decides to jump into the multiFX market, they do it in style. 11 custom designed effects blocks, from Flanger to Phaser, Chorus to U-Vibe, Harmonic Tremolo to Envelope Filter, you know everything about it is going to be perfect.

In one incredibly small package, you can control any of the 8 presets via midi, you can assign an expression pedal to control ANY of the main five controls, you can run it in full glorious stereo or keep it in mono - you can even split that mono signal to route some effects to go before your drive pedals, or amp gain, and have the rest follow behind or in your effects loop!

When you put the Terraform into your rig, you know that not only will you get that legendary Wampler tone, but you will get the most easy to use, hugely versatile and best sounding collection of modulations you could ever want.

Each of the 11 effect blocks have been designed and realized in-house by the tone chasing freaks at Wampler. Each one has been inspired by many individual stomps, both modern and vintage, to bring you the best version of them all.

There are 8 presets to store your favorite sounds - you can recall them via the fully mappable midi, via the button on the front and even from the stomps! The expression pedal can control ANY of the 5 controls and you can even set the heel and toe point!

If you want true Stereo, you got it - You want basic mono, you got it.. You can even split that mono signal so you can put some effects in front of your drive section and the others behind, or going into the front of your amp with the rest in the effects loop. However you like to route your signal, the Terraform has you covered.

Brian Wampler's attention to detail and commitment to bringing you the best-sounding & most usable Effects Boxes on the market is nothing new. Those qualities are on full display within the Terraform. We're all tone-freaks, and we're always trying new things, but Wampler hope this pedal finds it's forever home on your pedalboard, so it was built to last that long.

Technical Details

Built in the U.S.A.
High grade components picked for their superior sound and response
Relay true bypass with soft switch (buffered bypass in trails mode)
Top mounted input and output jacks 9v power jack
Power draw: 64mA (at 9v) and 68mA (at 18v)
Allows for you to use reverb and two delays simultaneously
Maximum 1 second delay
Second delay can be layered on top in 3 different patterns
Relay True/Buffered Bypass
Includes Wampler's limited 5-year warranty
2.50" x 4.50" x 1.5" (63.5mm x 114.3mm x 38.1mm) - height excludes knobs and switches

Notes: How many times have you sat in front of your favorite ambient pedal and felt like you need weeks of training at NASA to use it? Knobs, switches, sliders - It's often SO hard and frustrating to find a usable tone on those things quickly - Keeping that firmly in mind, when Wampler first considered making an ambient pedal, ease of use was a top priority, right up there with top tier quality tone on par with pedals at twice the price.

How do you describe a pedal like the Wampler Ethereal? Does ambient heaven cover it? Is it the gateway between real life and the astral plane? Or is it just gorgeous? It's hard to know which phrase to use when talking about it, because they all match it perfectly - plus, of course, so easy to use you'll be getting those perfectly Ethereal tones instantly.

When designing the Ethereal these were the EXACT thoughts running through the mind of Brian Wampler. He wanted to make a delay that is as pure as you could want, with a time of up to 1s, a reverb that is thick and then have the option to mix them all up and put them together in one glorious effect that will send you away - all the way away while making it as easy to use and easy to find those perfect tones as possible.

It's been a bit of a secret, there isn't one delay lurking within the Ethereal, there are two! The first delay constantly sits there like a heartbeat, coming back at you at quarter notes, Wampler then layer another over the top - that one can be put into a triplet pattern, or a dotted 8th (so you can get that beautiful quarter + dotted 8th mix) and even a self-oscillating dotted eighth pattern that just takes you away and leads you over the edge and down the rabbit hole into perfect ambience - Things can get a little crazy when that one is selected, so you know, knock yourself out - it's there to make some incredibly strange yet beautiful sounds - See that little switch down there? Yep, that's the one, just to the right of the stomp - that's a trails button. When this is used the delay patterns and reverbs sing out after the pedal has been deactivated, so you can even control what you want to come back at you.

While you are enjoying the delay patterns, sitting underneath is that beautifully cavernous plate style reverb that is alive with character and shape, that can be brought in to exactly the right level (whether that be under your guitar, the same level - unity, or even considerably louder) to compliment the delay.

As you can imagine, this has been some feat of engineering (definitely worth waiting for) as we wanted all this to happen from a regular sized box, with the purity of tone and response you would expect from a Wampler. So, as with our other time pedals, we split the signal going in, the effected signal is then laid back on top of the original base tone, making sure that YOUR guitar sounds exactly how it does going in.

The Wampler Ethereal. Not only can it be used a stand alone reverb or delay pedal, it can be combined for you to worship, to get lost in, to even help you inspect your shoes - but most of all, it was designed to inspire.

Technical Details

Built in the U.S.A.
High grade components picked for their superior sound and response
Relay true bypass with soft switch (buffered bypass in trails mode)
Top mounted input and output jacks 9v power jack
Power draw: 64mA (at 9v) and 68mA (at 18v)
Allows for you to use reverb and two delays simultaneously
Maximum 1 second delay
Second delay can be layered on top in 3 different patterns
Relay True/Buffered Bypass
Includes Wampler's limited 5-year warranty
2.50" x 4.50" x 1.5" (63.5mm x 114.3mm x 38.1mm) - height excludes knobs and switches

Notes: Designed for Make Noise's New Universal Synthesizer System but compatible with all Eurorack modules, the Jumbled is a 6-in/6-out VCA-based signal router, designed to manipulate and reimagine control voltage signals.

Supplier's Notes:
The Jumbler music synthesiser module is a six by six channel analogue signal combiner and distributor for the New Universal Synthesizer System or any Eurorack modular synthesiser. Jumble is one of the N.U.S.S. concepts where the routings of a patch could be re-configured, or jumbled, instantly via voltage control to produce variations on a theme.

Jumbler gives you powerful two-parameter access to the rearrangement of both origins and destinations for up to six modular signals. One to six inputs are routed to one to six outputs, in an order determined by the Rotate control, and combination determined by the Radiate control. Unlike a simple switch module, Jumbler's analogue VCA-based design is specially geared for smooth transitions and hybrid signals.

Jumbler is a great module for hybrid control voltage mashing, complex waveform mixing, on-the-fly effects re-routing, gate and clock re-combinations and more. Some folks have said it is like patching a stack of 6 RxMx circuits.

Width: 10hp
Max Depth (incl. power cable): 43 mm

Power:
178mA@ +12V
92mA @ -12V

Notes: Instant ambient bliss coupled with the powerful ambience processing is a brand-new Ensemble engine, capable of creating pads and soundscapes that follow your playing organically - so if you change pickups or play in a different place on the neck you get different results. It's unlike anything you've ever heard or played before, all wrapped in a smaller form factor that still manages to house full stereo I/O, TRS MIDI and USB-C connectors on the back panel. Prepare to be inspired!

Cloudburst's Ensemble switch reveals a whole new world of captivating sounds never previously heard from a reverb pedal. Use it subtly to add harmonically rich and otherworldly dimensions to your ambient reverb soundscapes, or use it liberally to hear a lush synthesized string section swell under your guitar playing. Ensemble reacts to your entire guitar signal in an organic and musical way, delivering a richly responsive and uniquely inspiring playing experience.

Cloudburst gives you multiple reverb experiences, with beautifully-tuned and natural small spaces at one end of the Decay knob and vast, expansive atmospheres at the other. As you turn the Decay control numerous internal parameters are automatically adjusted, allowing this ambient reverb pedal to produce outstanding studio-quality spaces of any size at the turn of a single knob.

All of the premium components, sound quality and road-worthiness you expect from a Strymon reverb pedal are here in Cloudburst's new compact format. Featuring unbeatable ease of use and some of the finest reverb sounds we've ever created, Cloudburst could easily be the only reverb pedal you need on your pedalboard.

Notes: The MCO MK II is a highly versatile digital VCO and voice module inspired by 90s/00s digital synths shrunk into just 6HP.

It offers a broad collection of unique, high-quality synth voices, each with extensive, customizable parameters. These parameters can be directly controlled or modulated through assignable internal and external sources. Certain per-voice parameters support audio-rate modulation, including FM, sync, and DSP. Each voice also supports up to four-voice chords, external-triggered envelopes, multiple LFOs, and dual audio outputs for comprehensive desktop like synth functionality.

Voices include a multi dimensional wavetable oscillator based on the original MCO, a complex additive synthesis engine, a multi mode 'JP' type digi-synth, a lush virtual analog implementation, a fully featured vocoder, a bass synth for both kicks and sub sonic tones and finally arebirth and porting of our discontinued SID GUTs chip voice.

Each voice includes factory presets as well as the ability to store and recall user presets. All state is preserved across power cycles.

The MCO is designed to be familiar, quick and easy to use with a high resolution colour display and a rich visual user interface.

A USB-C connection allows for easy firmware updates, user wavetables upload and device config backup and restore. Axon expander modules are also supported to increase CV control options.

Notes: A user-friendly approach to melody and harmony, the Exquis offers an alternative control method for those who want to break away from conventional keyboards. Compatible with MIDI or CV/gate.

Supplier's notes:
A controller, an app, an instrument.

The Exquis controller gives you immediate access to the rules of harmony to improvise with or without theoretical prerequisites, and offers you dimensions of expressiveness that you can quickly master. In combination with the Exquis app, a unique workflow opens up, allowing you to create an entire song in a few minutes: choose sounds, record loops, play the conductor and structure your songs in complete spontaneity.

Exquis offers an intuitive way to guide you on the right path, while allowing you to get out of it. No hassle: just choose a scale, and follow its luminous path to play in tune. Thanks to our default note layout, it's very easy to make chords; Exquis arranges notes that sound good together next to one another. You will be amazed at how harmony falls under your fingers.

Compared to a piano keyboard, on our note layout the semitones are also arranged horizontally, the harmonious (third) notes are always next to one another, and the intervals starting from any note are always the same. If you prefer, you can change the note layout, and soon even create your own tailored note layout using our editor.

On the default note layout, scales can be simply represented by a pair of light paths; whether you are a beginner, amateur or experienced musician, just follow the colors, with one or two hands, to stay in tune and improvise spontaneously. Explore many scales (major, minor, dorian, oriental...) and soon you will be able to create your own using our editor.

Our default note layout goes back to the basic logic of harmony, putting notes that sound good together (thirds) next to one another vertically. Each type of chord (major, minor, diminished, dominant etc) always forms a single and unique transposable form.

Inspired by the finesse of acoustic instruments, the keys of Exquis are both firm enough to play percussion and short notes with precision, and soft enough to modulate long notes with sensitivity. Tap, press, and tilt multiple keys independently using the MIDI Polyphonic Expression (MPE) protocol. The encoders (clickable, with infinite and smooth rotation and with a slight resistance) allow you to control the effects of a sound being played, as well as certain essential settings in the various menus.

In order to allow musicians to create new rhythms and moods, the application natively includes exclusive features. For example, we were inspired by the workshops of Jacob Collier and will soon allow the use of tuplets (particular divisions of beats such as 1/5 or 1/7), useful for creating grooves with a drunk effect.

The Exquis keyboard is a MIDI controller compatible with all software, MIDI synthesizers and modular synthesizers. The Exquis app, although optimized for the controller, is also compatible with all MIDI controllers, and like all MIDI controllers, the Exquis keyboard is compatible with most DAWs and plug-ins.

Dear users of modular synthesizers, Exquis connects directly to your favorite devices thanks to the CV outputs: GATE, PITCH and MOD. You can also connect Exquis to your MIDI synthesizers using the MIDI IN and OUT ports.

Notes: The brilliant Perkons drum machine comes to Eurorack. A single hybrid drum voice with digital sound engine and analogue filter/overdrive, the Perkons Voice is flexible and supremely powerful.

Supplier's Notes:
Erica Synths Perkons Voice is a eurorack incarnation of the percussion voices from the PERKONS HD-01 Drum machine. Like on the drum machine, the module has hybrid architecture, featuring a digital sound engine followed by an analogue multimode filter and overdrive. Users can select among 13 sound generation algorithms and save up to 99 presets that can be recalled easily. Tune and Patch CV inputs are configurable for various CV settings and are tuned to 1V/oct. Module also features a 4-voice poly overlap mode and samples on the "Rompler" engine can be easily replaced.

Specifications:

Audio output: 10Vptp
CV levels configurable: -5V - +5V
Power consumption: +59mA, -30mA
Module width: 14HP
Module depth: 35mm

Notes: The Stereo I/O 1U is an all-in-one audio input/output module designed to bridge the gap between your Eurorack system and line-level devices. Whether you want to process external audio with your modules, monitor your patch with headphones, or connect your system to mixers or interfaces with line level - Stereo I/O 1U has got you covered.

Audio I/O allows you to effectively interface your Eurorack modular system to the balanced line-level world (+4 dBu). You can send and return to rack mount/desktop fx units, patch to external line-level instruments like synths and drum machines, interface to a DAW and much more.

The rear-mounted 3-pin CHAIN IN connector allows you to sum (in parallel) other audio sources to go from Eurorack level to the BAL LINE OUTPUTS. This could be from modules like the Mixup 3U, Xfade 1U, Stereo Mix 1U, and XY I/O 1U. You could also use this to connect with the 3-pin headers on the Palette and 7U cases audio i/o boards.

The rear-mounted 3-pin CHAIN OUT connector allows you to directly connect the level-shifted BAL LINE IN to the inputs of other compatible devices such as the Mixup 3U, Outs 3U, Stereo Mix 1U, XY IO 1U, and Headphones v2 1U. You could also connect the to the TRS jacks of the Palette and 7U cases audio i/o boards.

Dual Balanced ins and outs for the studio or the road. Interface your rack with the balanced line level world; send and return to pedals or desktop FX units; patch in and out of your DAW, external synths, drum machines and other line-level instruments.

A space-friendly, feature-rich, highly flexible solution for all your stereo line level input and output needs. Includes a dedicated headphone jack/volume and a clever cue bus for monitoring signals outside of the main output or to add a 2nd source to the main outputs.

Notes: PM DB25 MKII is an expander output for the MKII versions of the Performance Mixer and Channels.

Pre-fade and Post-fade connections are available for all channels. The DB25 has 16 outputs. All mixer channels are stereo, so one DB25 handles the main PM MKII (either pre or post), and the DB25 can handle 2x Channels (either pre or post).

Simply connect the cable to the Pre or Post headers on the back of the PM MKII or Channels MKII modules to choose pre/post.

The PM MKII has an additional header with both Aux Sends, Master Bus, and Submix Bus.

Connect a DB25 cable of your choice to the front connector and then straight to your DAW or recording interface.

For use with original WMD Performance Mixer, an adapter board can be added on. Please note that width behind panel is increased by 8mm when adapter board is added on. This may require some clever position in your case. The original Performance Mixer still only offers Pre Fader Outputs.

Notes: Never worry about power again. Zuma is the highest horsepower, most technologically advanced effects pedal power supply of its kind. Zuma offers nine high-current, individually isolated, ultra-low-noise outputs-each with its own dedicated regulator and custom transformer. Designed to meet the needs of today's players, each output provides a staggering 500mA of current.

Zuma's dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering result in a power supply that allows your pedals to achieve their highest possible dynamic range.

The all analog circuitry offers two stages of isolation. Each of the nine output channels is individually isolated from the 24V DC, and the 24V DC is isolated from the AC input power, eliminating ground loop and AC line noise issues. Zuma also provides dual power regulation: Wide-bandwidth optically isolated feedback loops on each channel, as well as on the input, allow both the input and outputs to adjust for changes, ensuring solid output under changing load conditions.

With automatic international power compatibility built-in, Zuma delivers an abundance of clean, rock-steady power to all your pedals, on any stage anywhere you play in the world.

Have a growing rig? Zuma is part of an expandable system. Add more outputs by connecting a Strymon Ojai (sold separately) with the 24V Out jack.

Many popular guitar pedals were originally designed to work with batteries. Since batteries are inherently very low noise and not susceptible to ground loops, these pedals often were not designed to be resistant to noise from power supplies. Stymon's ultra-low-noise design prevents power noise from bleeding into the audio signal, allowing your pedals to deliver the highest possible dynamic range.

Playing gigs all around the world? No need to purchase separate power supplies for your international tour. Zuma has automatic worldwide power compatibility built-in (when connected with the appropriate IEC cable). Whether you're on 120V, 240V, 100V, or any variation in between, Zuma will deliver clean, reliable power to your pedals, even if the venue has dirty power.
Do you have pedals that require 12V or 18V? Zuma has you covered. Two channels have selectable 9, 12, or 18V output voltages.

Some analog pedals designed for 9V operation may provide higher output and/or more clean headroom when run at higher voltages such as 12V or 18V. However, others will simply start smoking and melting, so please check with the manufacturer of your pedal before operating at a higher-than-standard voltage!

Don't let the blue chassis fool you: Zuma is green at heart. Significantly more efficient than linear power supplies, Zuma is able to deliver substantially more current while handling a much wider range of input voltages. Zuma's high efficiency design delivers high-current power distribution in a compact unit, for a small carbon footprint and a small pedalboard footprint.

Strymon has solved the switching power supply problem. With their dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering, we have designed a switching power supply that is actually quieter than linear units.

Notes: An evolution of the iconic HD 25 design, the HD 26s are on-ear, lightweight monitor headphones with punchy sound and proven durability. Popular for studio use, DJ monitoring and revealing all-round listening.

Supplier's Notes:
The HD 26 - the perfect headphones for radio and television broadcast productions. Because of its closed design these headphones offer a high passive noise attenuation. The HD 26 provides a very accurate sound reproduction for demanding applications. Soft ear cushions and low weight guarantee outstanding wearing comfort even in long term use. The HD 26 comes with ActiveGard- limiting technology including three switchable attenuation settings and passive noise attenuation for optimal audio clarity and hearing protection, especially in challenging outdoor broadcasting environments.

Notes: Excellent value from the updated Mooer delay/reverb/looper. The Ocean Machine II features improved sound quality all round, plus expanded loop memory up to a total of 120 seconds.

Supplier's Notes:
Similarly to the original, the Ocean Machine II offers two independent delay modules, each with nine different delay types of up to two seconds, including household names such as digital, tape, and echo delays, as well as more abstract options, such as galaxy, crystal, and rainbow. A high-fidelity reverb module complements these delays with nine reverb types, as well as a shimmer effect. Each delay and reverb effect can also be 'frozen,' creating static ambient drones, an effect that sounds particularly impressive considering the pedal's DSP upgrades.

While the original Ocean Machine's looping capabilities provided just 44 seconds of loop storage, the new addition features an impressive 120 seconds. To experiment with this feature, along with Ocean Machine II's other sonic capabilities, users can use an intuitive LCD screen along with 12 knobs (four for each delay and reverb module) to easily adjust parameters within the device's 'Play Mode.' Three footswitches are also provided to facilitate independent effect toggling, tap tempo control, looper interfacing, and a preset selector.

Once the guitarist has crafted an interesting effect chain, they can save their work as a preset and enter 'Patch Mode,' in which they can toggle between saved settings with each of the three footswitches. In total, the Ocean Machine II provides eight preset storage banks, each of which supports up to three presets, resulting in a total of 24 save slots.

The pedal's versatility is further enhanced by its programmable parallel and serial effect chain hybrid, a signature element of Devin Townsend's tone creation. This feature allows users to customize the order of effects, providing endless creative possibilities. Further programming options can be accessed through the LED screen, which impressively includes synchronizable MIDI connectivity, a feature that was absent in the original Ocean Machine.

In addition to MIDI, the pedal supports various external control systems, including expression pedal input through a TRS cable. Furthermore, the pedal is compatible with MOOER's F4 wireless footswitch, allowing for extended capabilities for mapping presets and other features. A USB-C port is also available for firmware updates, ensuring that the pedal remains up-to-date with the latest features and improvements.

Considering the experimental nature of Devin Townsend's performances, MOOER has also gone above and beyond to facilitate the seamless integration of Ocean Machine II into any audio setup. The device features full stereo inputs and outputs, as well as adjustable global EQ settings, letting users tailor their sound to suit different environments. Guitarists can also customize their effect chains to be used with true bypass or DSP (buffered) bypass, depending on their preferences and specific use cases.

Overall, Ocean Machine II brings higher quality delay and reverb algorithms, augmented looping support, and various updated connections to Devin Townsend's original device. As per MOOER's typical standard, the pedal is engineered to withstand the rigors of touring and frequent use, allowing guitars to bring their special creations and atmospheric drones to the stage.

*Dimensions: 215 x 127 x 56 mm

*Weight: 1.1 kg

*Power Supply: 9V DC

*Sampling Rate: 44.1 kHz

*Sampling Accuracy: 24-bit

*Includes USB-C to USB-A cable, power adaptor, stickers, and artist signature card from Devin Townsend

Notes: Your Dream Tone Starts Here.

Start your signal chain with the best possible version of your guitar tone. Treat your guitar signal to true studio quality analogue compression with two distinct voices for smooth transparency or vintage squeeze. Hit the Boost switch to add clean boost or soft-clipped dirty boost, with the EQ curve of your choice. Mix in some dry signal for natural attack even with extreme compression settings. Feel the perfectly tailored dynamic response, feeding your amp and effects just what they need to sound their best.

Your Everything Upgrade.

From pickups, tubes, capacitors, to speaker cabinets-the aspects of a rig that can be upgraded or changed are nearly endless. Plug in Compadre and you may find you already have everything you need for the tone you've been seeking.

Bring out your amp's character in ways you never thought possible. Compadre's Class A JFET input circuit, studio quality analogue compression, and musically voiced analogue boost circuits all work together to make your amp sound like it was just modified by a world-class boutique amp designer.

Super Flexible, Super Easy.

Compadre gives you everything you need to shape your front end tone, and nothing to slow you down. Auto makeup gain and auto threshold mean that all you have to do is turn up the Compression knob to dial in the desired amount. Compadre's wide variety of tone shaping features are all designed to easily sound great across a wide variety of settings.

Two Distinct Analogue Compression Circuits.

Choose between two compression circuits, each with its own unique character. Studio mode gives you the smooth, beautifully transparent compression typically found in the best vintage studio rack units. For a harder compression effect typical of classic guitar pedals, Compadre's Squeeze mode is designed to deliver heavy compression with maximum sustain.

Boost the Sweet Spot, Clean or Dirty.

Compadre gives you two distinct analogue boost circuits: a clean boost, and a dirty boost that introduces soft clipping, characteristic of an overdrive pedal. The selectable boost EQ ensures the perfect compliment to any guitar and amp combination. Add sparkle and shine with a treble boost, fatten your tone with the midrange boost, or level up the full frequency range with flat mode.

Extended Control.

Connect an expression pedal to add premium VCA-based volume control. Add an optional MiniSwitch or MultiSwitch Plus to store and recall your favourite settings. Integrate Compadre into a MIDI pedalboard using the MIDI EXP Cable and access up to 300 preset locations.

Vintage Inspiration, Modern Execution.

The Compadre design project started with a study of some of the finest analogue compressors ever created, inspiring and guiding the circuit design process. Utilizing a VCA in the compression circuits allowed Strymon to carefully tune the exact response and dynamics that were desired for each voicing.

For Studio mode, the goal was to achieve the musical and transparent sound found within Strymon's favourite studio rack units and the best vintage studio console bus compression. Careful tuning of the detection circuit provided Strymon with exacting control over decay, especially important for Squeeze mode. With ample sustain on tap, Strymon paid special attention to creating a completely smooth decay, with no unwanted pumping artifacts.

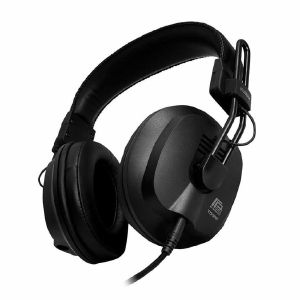

Notes: The iconic T50 headphone gets a major update, featuring a redesigned take on Fostex's Regular Phase flat-diaphragm driver. Superb sound, excellent comfort. A modern classic goes to the next level.

Supplier's Notes:
The T50RPmk4 is a brand-new headphone developed by Fostex, equipped with a completely redesigned RP planar magnetic driver. Since having debuted in 1974 as part of the T50, Fostex's first ever headphones, the renowned RP driver has been featured in numerous different headphone models throughout the years.

These headphones have been regarded as firstrate monitoring headphones by musicians and sound engineers all over the world. Audiophiles have also sought RP series headphones for their fantastic versatility and unparalleled value-to-performance.

Featuring a new 4th generation RP driver as well as an updated, improved housing design, listeners of all backgrounds can enjoy the increasingly-refined new generation of RP headphones from Fostex.

Specifications

Type: Semi-open
Driver: RP planar magnetic
Impedance: 28 ohm
Sensitivity: 97 dB/mW Max Input: 3,000 mW Freq. response: 10 - 40,000 Hz
Weight: Approx.330 g (excluding cable)
Unbalanced cable : F3.5 mm (4-pole) to F3.5 mm (3-pole) 2 m x 1
Includes conversion connector (F3.5 to F6.3 x 1)

Notes: Phonkify X

Envelope Filter and Octave

Maximise your funk with the Tsakalis Audioworks Phonkify X pedal. A potent pairing of fabulous filters and outstanding octaves. Expanding on the esteemed original Phonkify, the Phonkify X turns up the funk-o-meter with three selectable flavours of envelope filter and three types of octave voicings. This makes the pedal not only perfect for juicing up your jams and dripping your tone in cosmic gravy, but also delivers filters and octave tones that go way beyond and into the spaces between. Featuring flexible momentary or latching operation for each effect, plus a dedicated toggle switch for selecting the order of the filter and octave, the Phonkify X is ready to pour on the funk gravy and turn up the stank factor!

Phonkify X's Filter section warps and wiggles your tone into a kaleidoscope of grooves.

Flip the dedicated toggle switch to find your filter flavour: Low Pass for warm, buttery tones, Band Pass for that snappy, in-your-face attitude or a cosmic combo of Low Pass-to-High Pass for sweeping, interstellar effects. Got an expression pedal? Slide it in and ride the funk wave with hands-free control over your freaky frequencies.

While the Octave section can make the floor rumble and shake! No matter if you're feeling that high-flying octave-up, a deep-diving octave-down or a spaced-out blend of both, hit that footswitch and squeeze out every last funky drop.

Need more juice? Crank the master volume to fine-tune your output, while the pedal's internal voltage doubling gives your tone headroom for days. True Bypass keeps your original signal pure when you step off the funk train.

The Phonkify X isn't just a pedal. It's a total vibe machine, a groove generator and a tone tailor for the funky-hearted. Whether you're laying down tight pocket grooves or blasting off into experimental soundscapes, the Phonkify X has the tools to elevate your sounds right into the stratosphere.

Notes: Sunset

Classic overdrive sound, x2.

Sunset gives you the best of the best classic overdrive circuits, custom voiced for instantly gratifying control over a huge range of sought-after tones. Strymon studied six circuit types found in many truly timeless and iconic overdrive pedals, and put their takes on all six of them into a single two-channel unit.

Overview

Two pedals at once.

Sunset is really two customisable overdrive pedals, independently selectable and flexibly routable, designed and voiced for complementary tones when stacked. Six distinct circuits each feel and react differently in your hands, two at once, all in one convenient package. Push your amp any way you want, from transparent "more amp" to heavy saturated fuzz, and all the best places in between.

Holy Grail tone, minus the quest.

We are all familiar with the endless search for the ultimate overdrive pedal and the perfect tone. Strymon did the critical listening and custom voicing to design each side of Sunset with just one tone knob, so you can quickly dial in the sound you want. The knob ranges for each circuit type are custom calibrated to provide maximal usable control. Strymon applied the same design philosophy and care to the stacking options, ensuring each combination interacts optimally and sounds great, so a huge range of classic overdrive tones are instantly achievable.

Optimized stacking.

Since the time when overdrives were created to simply push an amp in order to achieve an overdriven sound even at sane volume levels, players have evolved to want more layered, multistage tonalities. Stacking gives you more flexibility and tone range on the floor. You can find an overdrive that sounds good on its own, then run it through a second drive to add new dimensions to your tone. Sunset allows you to use any of its six overdrive circuits on their own, or route the Channel A drive circuit through Channel B, or Channel B through Channel A, or use two circuits in parallel. When stacking overdrive pedals, some combinations work especially well together. Sunset eliminates the guesswork. Routing options have been chosen deliberately to present the best-sounding combinations of drive circuits.

Digital or analogue? Strymon chose both.

Sunset's input features an ultra low noise, discrete, class-A JFET circuit providing up to 20dB of pure analogue gain. With Strymon's hybrid approach you get the best of both analogue and digital worlds: The JFET stage provides exceptional touch sensitivity and dynamic interaction with your guitar, while the incredibly powerful SHARC DSP facilitates the great level of detailed complexity and responsiveness you'll want to hear.

Channel A overdrive circuits

The Ge overdrive combines the softer response of germanium diodes with a parallel path that blends in the dry signal as the Drive is lowered. At higher gains the lower-midrange frequencies are emphasized to create a tight, thick response. This overdrive really fattens up single coil pickups, and responds with a bold push when paired with humbuckers.

The Texas overdrive employs a single stage soft-clipper configuration that is filtered before and after the gain stage to create a smooth and dynamic overdrive. The original signal dynamics are retained as the gain is increased - perfect for playing the blues or just fattening up your sound with a signature midrange bump.

Channel B overdrive circuits

The 2 stage overdrive combines a soft-clipping stage followed by a hard-clipping stage, creating a complex overdrive with a wide range of gain. Its EQ structure preserves the low end while adding some muscle to push your amp. This overdrive can easily take you from lightly clipped to beefy saturation.

The Hard overdrive uses a single-stage hard- clipping circuit that has a ton of available gain, approaching fuzz territory with the Drive knob maxed. At lower gains, mildly clipped transparent tones are achieved with this versatile drive. The wide-ranging Tone knob lets you shape the top end from smooth to buzzy.

Channel A boost circuit

The Treble type is a treble booster that removes the low frequencies as the Tone knob is turned up - great for tightening up an overdriven amp, or driving another gain pedal that's a bit looser on the low end. Turning the Tone knob down brings in the low end, making for a versatile all- around boost.

Channel B boost circuit

The JFET type is a clean boost that subtly

beefs up your signal with the dynamics and responsiveness created from the JFET front end. As you turn up the drive, the signal gets rounded and warmer. The is a great option when your amp just "needs a little extra."

Ins, Outs, Switches

High impedance mono input
Mono output
Favorite Input to connect an external MiniSwitch to recall a Favorite preset
Expression pedal input allows the connection an expression pedal for simultaneous morphing control over multiple parameters (Expression mode), or logarithmic taper for smooth volume control (Volume mode)
MIDI accessible via Expression jack for remote parameter control and access to 300 preset locations

Audio Quality

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
Premium analog front end and output section
Super high performance SHARC DSP in a compact form factor
32-bit floating point processing

More

True Bypass (electromechanical relay switching) or selectable transparent Analog Buffered Bypass
Strong and lightweight anodized red aluminum chassis
9V DC power supply included
Power requirements: maximum 9 volts DC center-negative, with a minimum of 250mA of current
4.5" deep (11.43 cm) x 4" wide (10.16 cm) x 2.4" tall (6.1 cm)
Designed and built in the USA

Notes: The LedPressor is a full stereo Diode-based compressor module.
Its unique core adds character and color to any signal passed through it.
The LedPressor can be used as a normal compressor with low input levels, but as the input volume increases and the "nuke" LED lights up, it enters a new territory that combines compressor and overdrive, creating a dynamic overdrive effect.

Get it pumping with the Side Chain
The module features an external sidechain input that accepts audio and CV signals. Only the sidechain signal passes through a high pass filter, which gives the user greater control over the sound shape. The audio signal itself is not affected by the filter.
Parallel compression
The module also includes a mix knob that can be controlled with a dedicated mix CV input, allowing for greater flexibility when blending dry and wet signals. Additionally, it features a momentary bypass button to easily adjust the levels of dry and wet signals.
Feed-Back Or Feed-Forward - it's your choice
The module can be configured with a feed-back or feed-forward topologies with a jumper in the back.
Reverse polarity protection
The module have proper reverse current and over current protection in its power input stage to protect the module in case it was connected the wrong way or connected to a faulty power supply.
Dimensions
Width
: 12HP
Depth
: 34mm
Current Draw
+12V
: 20mA
-12V
: 15mA

Notes: The SetonixSynth SkyWave is an all-analogue voltage controlled oscillator capable of producing many different timbres and unique harmonic behaviours, thanks to an original step-based control scheme which allows the user to dial in completely different wave-shapes and levels for successive oscillator cycles.

This complex VCO uses an internal feedback loop with the clock output of the oscillator triggering a step sequencer which in turn cycles through settings at the frequency of the core oscillator, thus changing the shape and level of the waveform output on a per-cycle basis while also staying in tune and tracking pitch like a typical VCO.

Notes: Not just another clone or continuation of the 808-esque, acid-style kicks of the Mutant Bassdrum - the Mutant BD9 seeks to explore uncharted bassdrum territory by having an integrated sub-oscillator for maximal auditory obliteration.

Parametric bassdrum synthesis offers creative control of the core sound

The primary analogue VCO offers classic 909-esque sinusoidal bassdrums, but can also be switched to generate a square wave bassdrum

The PITCH of the VCO spans several octaves, from about 30Hz to 240Hz, and can be modulated with voltage control

A novel PITCH DECAY circuit allows you to adjust the duration and AMOUNT of the pitch-modulation envelope applied to the bassdrum, from short blips to exaggerated tom-like sweeps

The AMPLITUDE DECAY allows adjustment of the length of the bassdrum, from short punchy kicks to massive booms. This parameter is voltage-controlled with a snappy CV response time, allowing you to modulate the duration of your kicks per step.

The CLICK generator is responsible for the attack intensity of the BD9. A fair amount of circuitry goes into creating this subtle punch at the beginning of the kick. The level of this effect is adjustable up to a fairly dramatic extremity.

The overall timbre of the BD9 varies with the DRIVE control from warm, analogue bassdrums at low settings to speaker-shattering overdriven sounds at high settings. Output levels are modular-level signals, unlike many classic line-level percussive devices.

Still not heavy enough? Try the sub-oscillator.

A square wave sub-oscillator derived from the primary oscillator's pitch can be mixed in (manually and with voltage control) to the BD9. The effect can be subtle deepness or extreme timbre changes.

A jumper on the back of the module allows you to select between the sub-osc being a raw square wave or having some of the high frequency components removed with a lowpass filter.

At high OUTPUT DRIVE and SUB LVL combinations, the sub-oscillator can be modulated with CV to saturate the BD9 output in evolving ways.

The SUB OCT can be set to 0, -1 or -2 octaves down from the primary oscillator. A drop of 0 means that you can mix an equal-pitch square wave with a sinusoidal primary wave.

Designed for the contemporary modular synthesiser

Plenty of eurorack-compatible control voltage inputs with bipolar attenuverters allow synthesis of dynamic percussion

A practical analogue trigger circuit allows activation of the BD9 from many signal sources (anything with a positive-going edge lasting 2ms or longer). Most electronic drum pads can also directly trigger the Mutant BD9.

An accent input accepts analogue voltage control (0 to 5V will fully modulate the volume from low to high)

13HP | 30mm deep
+50mA, -50mA

Notes: Inspired by classic 70s analogue drum synths like the Syncussion and Syndrum, the Eurorack version of the Seven Sisters offers seven different sound modes, each with four CV-controllable parameters.

Supplier's notes:
Seven Sisters is a percussion synthesizer featuring seven voices that aims to capture the essence of late '70s instruments such as the Syncussion and Syndrum.

This module contains 7 presets, with one voice playable at a time. Each voice has four editable controls, including volume, and parameters such as decay, pitch, and filter, all of which can be controlled via CV. Each voice also includes multiple oscillators, noise generators, and filters, providing rich, complex tones beyond the capabilities of the original devices. This enables you to recreate classic sounds or craft more realistic snare, hi-hat, and cymbal effects. The result is a powerful percussion synthesizer that combines the essence of early drum synthesis with modern flexibility.

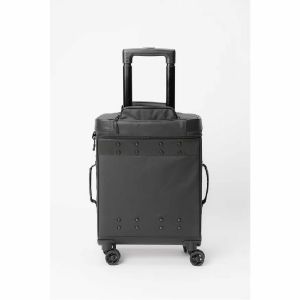

Notes: Solid Blaze Cabin Trolley

Introducing the first 4-wheel DJ trolley designed for ultimate convenience. The Solid Blaze Cabin Trolley allows DJs and music producers to easily navigate airports, train stations, and more while traveling to gigs. Safely transport essential gear like laptops, mixers, drum samplers, DAW controllers and 12"records with ease.

Made from recycled plastic bottles, this sustainable trolley also features interchangeable wear-and-tear components, including the trolley handle and wheels, for long-lasting performance.

Travel smart and eco-friendly with the new SOLID BLAZE CABIN-TROLLEY, perfectly sized to meet cabin luggage standards of most airlines.

Fits
Pioneer:
DJM-S11
DJM-S7
DJM-S9
DJM-900NXS/SRT
DJS-1000

Alpha Theta:
Euphonia

Ecler:
Warm 4

Akai:
APC 64
MPC Live 2
MPC One +
MPC2000XL
MPC 2000
MPC 2500
MPC 5000

Rane:
Seventy-Two
Seventy

Reloop:
Elite

Allen & Heath:
Xone PX5
Xone DB4
Xone DB2
Xone 92
Xone 62
Xone 43

Headliner LA:
Headliner R4
Headliner R2

Ableton:
Push 3
Push Move

Native Instruments:
Maschine MK3+
Kontrol X1MK3

50 x 12" records

Basics
Fabrics made from 120 0,5 l recycled PET plastic bottles - Global Recycling Standard certified
4 precision 360 (degree) PU spinning wheels (interchangeable)
Outer material crafted from robust and water-repellent RPET 900D Polyester with eco-friendly water-based PU-coating
Main compartment includes two removable dividers, meshpocket under the lid and an internal PVC rain cover
Lining made from RPET TC Polyester
Internal laptop compartment fits up to 13" or 15-17" laptops (stored upright)
Lockable dual PVC-coated YKKr AquaGuardr zippers
One large front pocket with magnetic flap including internal pouches and zippered pockets to organize smaller gear and personal belongings
Extra-sturdy 2-stage trolley handle (interchangeable)
Vertical and horizontal carrying-handles

Specs
Outer dimensions (H/B/T): 55 x 39 x 23 cm / 21.6 x 15.3 x 9 inch
Inner dimensions: 45 x 36 x 15 cm (main compartment) / 17.7 x 14.17 x 5.9

Weight:
4,3 kg / 9.47lbs
Colour: black

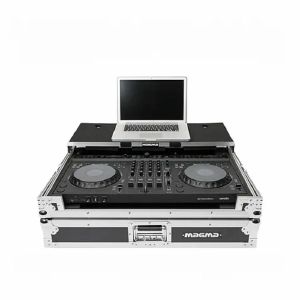

Notes: Customized to transport and protect the AlphaTheta DDJ-GRV6 DJ-Controller. Crafted from 9 mm vinyl laminated plywood, sturdy aluminium profiles and heavy-duty butterfly latches, it provides you with secure transport and workstation in one. Thanks to the integrated gliding laptop platform and the convenient cable access port, the setup is ready for action in no time at all.

FITS: AlphaTheta DDJ-GRV6 (not included)

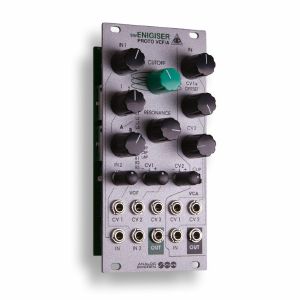

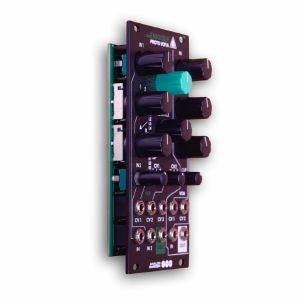

Notes: SWEnigiser Proto VCF/A

Enigiser multimode filter and VCA in 12hp. Circuit based on originalEnigiser prototype kindly loaned by Anthony Linell of Northern Electronics.

VCF
Unique configuration with 3 x 4 filter modes
2x audio input with drive
2x cutoff CV attenuverter inputs
1x cutoff CV input, tunable to 1v/oct

VCF output normalized to VCA input.

VCA
1x audio input with gritty drive, normalized from VCF output
2x CV input. CV1 knob adds offset for drone etc.
CLIP switch for old/new revision Enigiser diode setting adjusting drive character.
+12V 22mA
-12V 22mA
Skiff friendly
Includes power cable, 4 screws+ plastic washers

Available in sand blasted silver and black panel versions.

Notes: THE SBG-PRO supports mono, stereo, balanced, and unbalanced input and output via 6.35mm jacks with level matching controls with clipping indication. The module features both direct and voltagecontrolled equal power crossfading between wet and dry sources.

Additionally, an expression input, along with the included 'floating ring' cable and conditioned output, ensures safe, voltage-limited CV control of external devices from your modular system.

The module extends its sibling, the original S.B.G, by adding full size stereo balanced jack connections and voltage control focusing more on connectivity with not just pedals but also pro audio equipment including rack effects, 500 Series modules and mixing consoles.

Notes: UDG have further fined-tuned already a great design concept of our flight case into one especially for the most discerning creative performers. Constructed from aluminum thus providing an extremely stable structure with lighter weight compared to traditional flight cases. The inner sides are protected with pick & pluck foam, which allowing user to create individualized adapted compartments. The pick & pluck foam allow you to pluck out any desired shape you require for AlphaTheta DDJ-GRV6 and creating another slot beside for cable storage. This pick & pluck foam creating an easy, do-it-yourself customized system of case interiors.

The UDG Ultimate Pick Foam Flight Case AlphaTheta DDJ-GRV6 is designed to keep your AlphaTheta DDJ-GRV6 protected from accidental damage when you transport it to and from gigs. They're compact and lightweight yet tough enough to keep your gear safe.

Colour: Black
Weight: 6.65 kg / 14.66 lb
Outer Dimensions (W x H x D): 82.0 x 54.0 x 20.0 cm | 32.3 x 21.2 x 7.8 inch
Material: Aluminium

Protection

Pick & pluck foam with two separate layers
Corrosion resistant aluminium profiles with strong rounded corners
Fully lined with high density foam protective padding
Fully lined interior egg-crate foam on lid
Two side strong butterfly lock
Solid metal hinges
Rubber feet at the bottom for support in standing position
Several additional rivets for improved solidity

Extras

Lighter weight than traditional flight cases
Black Diamond finishing surface
Ergonomic & sturdy carry handle
Removable front access panel

Fits: AlphaTheta DDJ-GRV6

Notes: What does this do?

This is an analogue filter with a separate 3 channel mono mixer, and VCA combo. There is also an internal envelope generator with Decay. All this product needs is a VCO and a trigger signal to complete a mini voice.

The outputs on the filter are meant to be manually patched into one of the VCA audio inputs on the module to complete the mini voice. You can mix and match to create custom filter types.

The Feedback on the product 'Rez', is what makes this sound like an MS20 filter. There are diodes, used as a limiter, and also to wave shape when in self oscillation mode.

Features:

-2 audio inputs with 2 level control knobs.

-Bi-polar FM for the filter.

-Mod input with level knob for the filter.

-FCV Filter CV direct input for the filter.

All CV inputs for the Filter are 1V per octave, Exponential.

-REZ CV

-VOLT CUT output. +5v/5v output. Used to remote control another filter, with the master 'Cut' knob.

-Internal Envelope Generator, with Level Sends to VCA and Filter.

-Separate VCA circuit, with 3 channel mono mixer input.

-1 CV input for the VCA. 'VCV'.

-1 VCA output.

The filter will self oscillate into a sine wave and does track 1v per octave.

Width: 16HP

Current: +65mA,-65mA

PCB Stack: 1 Level, Skiff compatible.

Notes: ***B-STOCK: Box opened, product in perfect working order***


The music-making essentials

Whether you're a beginner producer, an experienced music maker, or anyone in between, unlock your full creative potential with a MIDI controller that breaks down all the barriers between you, your DAW, and your perfect sound.

Find joy in your workflow

Find the right sound faster than ever. Customise your mix in real-time. Finish that track with ease. Music-making shouldn't feel like work; KeyLab Essential removes barriers and puts the joy back into your workflow.

Your DAW, upgraded

Your favourite synth sounds, your DAW transport, and your mixing desk all in one. Enjoy next-level control over your sounds & DAW projects, seamless communication with Analog Lab, and a bundle of pro creative software to supercharge your sound.

Quickly inspire new ideas

KeyLab Essential doesn't just help you play & navigate your projects - it's also built to inspire. Summon catchy melodies, curious rhythms, and moving chord sequences with its array of creative features, and see where it can take your sound.

That quality feeling

You want the feeling of a premium instrument, the flexibility of a top-class controller, and the ease-of-use of a beginner keyboard. KeyLab Essentials sensitive controls, hybrid synth-feel keybed, and smart layout puts it all at your fingertips.

Your keys to creativity
However you choose to make music, KeyLab Essential has all the creative answers - before you've even thought of the questions. This controller fits right into your setup to become an extension of your creative identity.

Control any DAW

Enjoy plug-and-play connectivity and ready-mapped controls with your DAW of choice. KeyLab Essential doesn't just feature familiar MCU & HUI compatibility; it also has custom scripts for major DAWs for next-level integration.

Customize your workflow

KeyLab Essential easily adapts to your creative needs; recall your favourite 'liked' presets from Analog Lab, navigate your custom-made playlists, activate custom User programs for your own control assignments, and more.

At one with Analog Lab

Turn Analog Lab into a hardware synth and get hands-on with your sound thanks to KeyLab Essential's seamlessly mapped controls. Adjust sound parameters, tweak FX, and browse presets without ever needing to touch your computer.

Main Features

Premium Keybed quality:

61-note velocity-sensitive keyboard with hybrid synth-piano feel

Pads & controls:

1 clickable encoder, 9 rotary encoders, 9 x 30mm faders, 8 transport switches, 4 command switches, 1 modulation wheel & bend wheel, 8 touch & pressure-sensitive pads

Display control:
2.5" LCD display with contextual buttons
Real-time feedback on tweaks and controls

Smart features:
Multi-mode arpeggiator
Chord mode
Scale mode
Hold function
Semitone transpose

Software integration:
Seamless integration with Analog Lab V: select sounds, browse presets, smart-assigned controls
Custom DAW scripts for FL Studio, Logic Pro, Ableton Live, Cubase, Bitwig Studio
Also compatible with MCU/HUI control
Up to 6 user presets for a totally customizable experience

Included Software titles & services:
Analog Lab V software with 2000+ sounds
Ableton Live Lite
Native Instruments' The Gentleman
UVI Model D
2-month Loopcloud subscription
Melodics subscription for 40 lessons

Connectivity
USB-C connects to computers and MIDI Control Center, MIDI 5-pin DIN output for, connection to external instruments, gear, Control input for pedal: sustain, expression, or footswitch
USB-C powered

Platform specifications

Windows:
Win 10+ (64bit), 4 GB RAM, 4 cores CPU, 3.4 GHz (4.0 GHz Turbo-boost), 3GB free hard disk space, OpenGL 2.0 compatible GPU, ARM processors not supported on Windows

Apple
Mac OS 11+, 4 GB RAM, 4 cores CPU, 3.4 GHz (4.0 GHz Turbo-boost) or M1 CPU, 3GB free hard disk space, OpenGL 2.0 compatible GPU

Required configuration
Works in Standalone, VST, AAX, Audio Unit, NKS (64-bit DAWs only).

Work with ASC
An elegant and simple solution to help you install, activate, and update your Arturia software instruments.

What's in the box
Box content
KeyLab Essential Unit
USB-A to USB-C cable
Registration card

Dimensions for 61 keys
Size : 35 x 9.45 x 2.76 inches (890 x 240 x 70mm)
Weight : 6.8 lbs. (3.08 Kg)

Notes: Pretzel Logic is a 4 bit to 16 step addressable analogue sequencer which outputs gates. Each of it's 16 steps can be addressed in any order for ultimate creative flexibility. It pairs nicely with Polygraf, High Towers and Akropoli; together they make a powerful combination.

It features 4 address inputs, 1, 2, 4 and 8, each of which has an associated input socket as well as a 3 position state switch which allows each address input to be held high, respond to input signals, or held low. Each input has two status LEDs. The red LED displays the signal present at the input socket, while the green LED displays the status of the address input. The combination of signals present at the input sockets, together with the positions of the state switches allows Pretzel Logic to have 16 different output states, numbered from 0 through to 15. The output state of Pretzel Logic can be ascertained by observing which of the 4 address inputs are high. So, for example:

- If no green status LEDs are on, Pretzel Logic is in output state 0

- If green status LED 4 is on, Pretzel Logic is in output state 4

- If green status LEDs 1, 2 and 4 are on, Pretzel Logic is in output state 7

- If green status LEDs 2 and 8 are on, Pretzel Logic is in output state 10

The input sockets may be addressed by various external modules, for example:

- FC Pocket Calculator, FC High Towers, or similar clock dividers with multiple outputs from other manufacturers.

- FC Polygraf or similar grid editors from other manufacturers.

- FC Little Melody, Akropoli or similar.

As Polygraf is capable of storing many user patterns which themselves are selectable by CV, multiple chained patterns are possible. Furthermore, we accept that users will discover their own unique combinations of FC and third party modules to address Pretzel Logic, always bearing in mind that at any time the status of any of the 4 input sockets may be overridden by the 4 state switches. Pretzel Logic may be latched manually via the Latch toggle switch, or externally via the Latch input. When Pretzel Logic is latched, the last output state to go high is held until Pretzel Logic is unlatched.

Notes: ***B-STOCK: Box opened, product in perfect working order***


This is the powered version that includes the case as described here, a Strom+ module, a Strom power supply (AC/DC adapter) and a Strom busboard with connector cable. You only need to plug modules into the case and you’re ready to go!

One case fits 84HP of modules with a depth of 70mm.

The cases can be used with an incredible amount of flexibility to swap in an out full rows and create larger setups using the Case Connectors and Case Standoffs.

The side cheeks are made of high-quality Finnish plywood and are coated with a durable transparent melamine film. The black surface is hardwearing and crack resistant as well as easy to clean.

All cases are shipped with a set of 4 rubber feet and 50 x M3 screws.

Review: Noton Records - an outfit dedicated largely and almost solely to the output of experimental electronic / minimal legend Alva Noto - here presents the full 10" box set version of Infinity, the mammoth set of originally 72 (here just 50) "sound graffities" commissioned to the artist by contemporary art exhibition Documenta X. The aim of Documenta X was to abstract the member of the public from their everyday lifeworld, exposing them instead to bare sonic spaces in which modernist sound fragments were played back, expressly challenging the collective listener's cochlear gaze. None of these pieces amount to full songs on Noto's part; instead they serve as auditory "throw-ups", to borrow from graffiti parlance, mirroring the unconscionable nature of certain visual or aural perceptions - public art works, gradual alterations in the environment, etc. - as we perceive them only intuitively, only in passing, as we submit to the daily bustle of the street. It comes as no surprise that many of these pieces were also played in public spaces outside the white cube, such as airports and public spaces: the tracks squeeze and bend time-space with twinging noisebursts and glitching digital scuzzes; cortically, convexly, chirally inverting the dysthymias of urban life and transience.

Notes: Welcome to the Rosci soundscape. Rosci is a digital VCO that generates random waveforms to create unique, rich, and full sounds. You are able to control how complex the sound is-add harmonics and have a completely unique shape generate using the generate button/trigger. BUT, it can also be tuned to output basic waveforms (sine, square, sawtooth) if you so desire.

Tunable parameters breakdown:

COMPLEXITY: Essentially a generation of unique timbre.
ROUNDNESS: Set the basic shape of your waveform. Go from from sharp to soft sound, similar to filtering.
HARMONICS: Add up to 6 harmonies to your sound. The choir's here.
FORMANTS: Accentuate certain overtones in your sound (like a voice singing "ooo", "ahh", "eee").
DETUNE: Add a classic 'detune' with a changing phase wave for extra wide sound.

How does it work?

It is a pipeline of algorithms, which generates and modifies a waveform starting from top to bottom. Rosci works on a principle of key points: the generate button generates key point location and amplitudes to be passed down the pipeline.

Tunable parameters:

Beginning with complexity, you set the number of key points (even numbers only to create a waveform). Lowest complexity sets two points, and highest complexity sets up to 20 points. The number of key points will vary with each waveform generated. From there, the roundness sets the type of interpolation of the key points, from square to sine. Adjusting the harmonics creates copies of the waveform and adds them to the original waveform at double, triple, ... up to 6x the base frequency. Formants maintains the frequency of the wave, but squishes it so there is 'empty space' in between (this is also called pulsar synthesis). Finally, detune copies the waveform and 'detunes it' by increasing the frequency ever so slightly. And there you have it: a unique Rosci soundscape :)

Technical specs:

Module Size: 3U X 6HP X 25 mm Deep.
Current Draw: 160mA@ 12V, 20mA@ -12V.

What's in the box:

1x Rosci module
1x User Manual
1x Power cable
2x Mounting screws

Notes: ***B-STOCK: Box opened, product in perfect working order***


Huge power in a compact package with this upgraded 10-inch design from Alto's TrueSonic 4 range. Bluetooth connectivity and DSP give added control via the Alto app.

Supplier's Notes:
2000-watt 10-inch 2-way powered loudspeaker with Bluetooth, DSP & app control

TrueSonic TS4 from Alto Professional

Louder. Clearer. Smarter.

Where TS3 exceeded expectations, TS4 redefines them completely.

Building on the legacy of the best-selling TrueSonic speakers, the TS4 Series delivers increased power, clearer sound, and advanced Bluetooth functions including streaming, speaker linking, and App control.

Compact, lightweight, and designed for reliability, the new TS4 Series makes it simple to get great live sound at every event.

True Sonic Power

Whether you need a powerful vocal PA or club-shaking bass performance for a DJ set, TS4 speakers deliver loud, clear, room-filling sound for any application. With a 10-inch woofer, and a 1.4-inch compression driver, TS410 delivers 2000W of class-leading power and clarity in equal measure.

Free Alto App for remote configuration and control

Available free for both Android and iOS, the Alto App gives hands-on remote control over Bluetooth levels, Speaker Use Modes, Custom EQ and Sub Size selection. Further, True Wireless Stereo linking can be configured remotely via the app to save time during setup.

Built-In 3-channel mixer

Every TS4 features an integrated 3-channel mixer, with two Mic/Line input channels and a dedicated Bluetooth channel. The Mic/Line channels feature XLR/TRS combo jacks and can be used with microphones, instruments, and line-level signals without the need for additional hardware or adjustment. Just plug straight into the rear panel and you're up and running.

Simple Bluetooth Streaming & Speaker Linking

The ideal high-powered streaming solution, TS4's built-in Bluetooth connectivity makes it easy to pair your laptop, phone or tablet and get the music pumping in no time at all. With the True Wireless Stereo function you can stream Bluetooth audio to two TS4 speakers in perfect stereo without the need for any cables.

DSP Modes for the best sound in every application

TS4's three preset "Speaker Use" modes let you optimize the speaker for any application, so you'll get great sound every time at the touch of a button. For even more control over your sound, you can configure a Custom EQ within the Alto App and remote adjust the settings from any listening point in the venue. You can even save your favourite Custom EQ setting direct to the TS4 for easy recall whenever you need it.


Versatile and Reliable

From the high-quality drivers to the fanless class D amplifiers, every aspect of the TS4 Series has been designed for superb reliability, whether used for mobile gigs and performances or fixed installation.

Each speaker features a lightweight, sleek, black box design that can be used as the application demands - freestanding, as a wedge monitor, pole-mounted or suspended via the integrated suspension points.

Level up your live sound. Choose Alto Professional's TS4 Series.

Applications

Solo performers
Musicians and Bands
Mobile DJs
Gymnasiums, fitness centers, and dance studios
Houses of worship
Theatres
Bars, restaurants, clubs
Special events, presentations, and wedding

Specifications

Output Power: 2000W
Drivers Low-Frequency: 10.0" driver, 2.0" (50 mm) high-temperature voice coil. 1 x 650 W RMS @ 2 ?.
High Frequency: 1.0" exit ceramic driver with 1.4" (35 mm) coil. 1 x 350 W @ 4 ?.
Crossover Frequency: 2 kHz
Maximum SPL: 130 dB (peak), 127 dB (continuous) (dB-SPL @ 1 m)
Frequency Response: 57 Hz - 20 kHz (+/-3 dB)
Frequency Range: 48 Hz - 20 kHz (-10 dB)
Horn Coverage: 90- horizontal x 60- vertical (nominal)
Connectors: (2) XLR+1/4" (6.35 mm) TRS combo inputs (Balanced) (1) XLR output (Link) (1) IEC power cable input
Input Impedance Line: 10 K? balanced, 20 K? unbalanced, Mic: 1.2K
Line Gain/Volume Control Range: -? to 0 dB, +4 dBu nominal, +10 dBu for max output
Mic/Inst. Gain/Volume Control Range: -? to +50 dB
USB Charging Port: 5V 2.1A
Controls: Power switch, (2) gain control knobs (1 per input), (2) Mic/Line switches, Bluetooth volume control encoder, Pairing button, Stereo Link button, Sub Size button, Speaker Use button
Indicators: (1) Input Channel Signal/Limit/Clip LED (Green = Ch1/2 Signal) (Yellow = Ch1/2 Limiter) (Red = Ch1/2 Output Clipped), (1) Bluetooth LED (Blue), (1) Link LED (Orange), (4) DSP Presets LED (Green), (3) HPF LED (Green)
Power Connection: IEC
Voltage: 100-120V, 50/60Hz; 220-240V, 50-60Hz
Consumption: 900W
Fuse: 100-120V T10AL AC250V; 220-240V T5AL AC250V
Protection: Electronic clip, thermal, and transducer overdrive protection
Enclosure: Injected Moulded Enclosure and Perforated Metal Grill
Mounting/Installation: Standard 36 mm pole socket, flown application with integral M10 suspension points, or in a wedge monitor position
Operating Temperature: -10-C to 45-C (14-F to 113-F)
Dimensions (height x width x depth): 21.1" x 12.6" x 12.5" / 536 x 320 x 317 mm
Weight: 26.0 lbs. / 11.8 kg

Notes: The RC-500 is an essential partner for guitarists, singer/songwriters, multi-instrumentalists, and anyone who wants to take their looping to the next level. Craft real-time compositions with two loop tracks, mic and stereo instrument inputs, rhythms, and inspiring Loop FX, all backed by premium 32-bit audio quality. Store loops in onboard memories, and explore expanded operation with external controls and MIDI. Filled with next-generation Loop Station features, the RC-500 gives serious creators the tools they need to develop new ideas and deliver impactful performances that will leave audiences wanting more.

Super Sound Quality

Featuring best-in-class 32-bit AD/DA and 32-bit floating-point processing, the RC-500 captures your personal sound with full fidelity and keeps loops crystal clear, even with multiple overdubs. And with 13 hours of stereo recording time, there's plenty of space for extended creative journeys.

Connect, Loop, and Mix

With its versatile I/O and free-flowing interface, the RC-500 is ready to support all your musical visions. Connect mono/stereo instruments and pedal effects, plus a mic to the dedicated XLR input-complete with phantom power if needed. Use the two tracks independently for song-style composition, or together for rich multi-track textures. The LCD backlight changes colour to clearly show the current operation mode, while hands-on track faders and a mic level knob provide direct access to volume control as you loop.

Flexible Creative Control

Three onboard footswitches make it simple to control recording and playback, track switching, and more. For expanded operation, you can connect up to two external footswitches for direct control of many assignable functions, or an expression pedal for continuous adjustments. And for advanced rigs, the space-saving TRS MIDI I/O enables remote operation from MIDI switchers and foot controllers, plus MIDI sync with drum machines and DAWs.

Personalize Your Setup

The RC-500's I/O and footswitches are configured for basic operations by default, but they can be reassigned in a variety of ways to meet your custom needs. Route left/right input sources to separate tracks, or send guitar and vocals to independent outputs. Use the footswitches to turn effects on/off, start/stop rhythms, and more. Custom assignments are saved along with phrase memories, letting you instantly reconfigure the RC-500 for any application.

Energise Performances with Rhythms and Loop FX

Loaded with inspiring rhythms and evocative loop processing, the RC-500 is primed to bring groove and colour to all your looping adventures. Each of the 57 preset rhythms include A/B variations, while 16 different drum kits provide sounds to match any style. Designed for live performance, Loop FX like repeat, scatter, and more infuse your loops with instant sonic energy. There's a cool reverse function too, perfect for creating unique sonic flavours on demand.

Capture, Practice, and Perform

The RC-500's 99 phrase memories let you store loops as fast as you create them, complete with rhythm and kit selections, audio settings, and control assignments. Loop audio can be backed up to a computer via USB. And with WAV import via BOSS Tone Studio, the RC-500 becomes a central playback hub for lesson material, jam tracks, or backing music for your next gig.

Specifications

Sampling Frequency: 44.1 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point
Recording/Playback: Number of Track: 2, Data Format: WAV (44.1 kHz, 32-bit float, stereo), Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)
Rhythm Type: 57 Patterns x 2 Variations
Rhythm Kit: 16 types
Effect: LOOP FX (only for loop tracks)
Type: BEAT REPEAT, BEAT SHIFT, BEAT SCATTER, VINYL FLICK, Reverb (only for rhythm part)
Memory: 99
Nominal Input Level: MIC IN:-40 dBu (variable), INST IN A/MONO B: -10 dBu
Maximum Input Level: MIC IN:+8 dBu, INST IN A/MONO, B: +8 dBu
Input Impedance: MIC IN: 4 k ohms, INST IN A/MONO, B: 1 M ohm
Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, B: +8 dBu
Output Impedance: OUTPUT A/MONO, B: 1 k ohm
Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
Bypass: Buffered bypass
Controls: REC/PLAY switch, STOP switch, TRACK SELECT switch, MEMORY/VALUE knob, MIC LEVEL knob, TRACK 1 slider, TRACK 2 slider, TRACK 1 EDIT button, TRACK 2 EDIT button, RHYTHM TEMPO button, RHYTHM ON/OFF button, MEMORY button, MENU button, EXIT button, ENTER button, INPUT button
Display: Graphic LCD (96 x 32 dots, RGB backlit LCD)
Connectors: INST IN A/MONO, B jacks: 1/4-inch phone type, MIC IN jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max, OUTPUT A/MONO, B jacks: 1/4-inch phone type, CTL 1,2/EXP jack: 1/4-inch TRS phone type, USB port: USB micro B type, MIDI (IN, OUT) jacks: stereo miniature type, DC IN jack
Power Supply: Alkaline battery (AA, LR6) x 4, AC adapter (PSA-S series: sold separately)
Current Draw: 330 mA (with phantom power), 240 mA (without phantom power)
Expected battery life under continuous use: Alkaline: Approx. 3.5 hours (without phantom power), Approx. 2 hours (with phantom power)
*These figures will vary depending on the actual conditions of use.
Accessories: Owner's manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (AA, LR6) x 4, Rubber foot x 4
Options (sold separately) AC adaptor: PSA-S series
Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size & weight

Width: 170 mm / 6-3/4 inches
Depth: 138 mm / 5-7/16 inches
Height (including rubber foot): 62 mm / 2-1/2 inches
Weight (including battery): 950 g / 2.1 lb

Notes: ***B-STOCK: Box damaged, product in perfect working order***


DAP's entry-level club-style mixer offers a lot of bang for your buck. This four-channel design features three-band EQ, eight inputs and an assignable crossfader.

Supplier's Notes:
The DAP CORE Club is a 4-channel DJ mixer and can be considered the little brother of the DAP Core MIX-4 USB. It has 8 Line/MP3 inputs, a microphone input and Bluetooth playback module. Each channel has a volume fader, 3-band equalizer, gain and cue knob. The crossfader can be assigned to channel 1/2 or 3/4.

The CORE Club has an output with volume control for both master and booth. In addition, you can choose from three crossfader curves. VU indicators are provided for both the master output and for each channel separately to prevent clipping.

Bluetooth playback module & mic input
Talk over function
3 crossfader curves
VU channel indicators
8 line/MP3 inputs

Specifications

Inputs

Mono Inputs: 1
Mono Input Connector: 3-pin XLR, TRS balanced 6.3 mm
Stereo Inputs: 8
Stereo Input Connector: RCA

Outputs

Main Outputs: 1
Main Output Connector: RCA
Monitor Outputs: 1
Monitor Output Connector: RCA
Record Output: 1
Record Output Connector: RCA

Audio Specifications

THD Level: < 0.05 %
Signal-to-noise Ratio: > 80 dB
Crosstalk: 75 dBu
Signal-to-noise Ratio (Mic): > 85 dB
Signal-to-noise Ratio (Line): > 80 dB
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20000 Hz
Phantom Power: No

Sound Editing:

Parametric Channel Equalizer: 3 Bands
Input Channel Equalizer Gain Range: 12 dB
Input Channel Fixed Frequencies: 100, 1.000, 10.000 Hz
Microphone Input Equalizer Gain Range: 12 dB
Parametric Microphone Equalizer: 2 Bands
Microphone Input Fixed Frequencies: 100, 10.000 Hz

Wireless Specifications

Bluetooth Audio Profile: A2DP
Bluetooth Range: 25 m

Product Properties

LED Indicators: BT Pairing, Input level, Output level, Power

Electrical Specifications and Connections

Power Supply: 240 V AC 50/60 Hz
Output voltage: 15 V AC
Power Consumption: 8.2 W
Power Connector In: Low Voltage DC plug

Mechanical Specifications

Fader Length: 60 mm
Height (mm): 84 mm
Width (mm): 292 mm
Length (mm): 356 mm
Flightcase Size: 14"
Housing: Metal
Colour: Black
Weight: 4.2 kg

Included Items

Included Accessories: Adapter

Notes: Compact all-in-one workstation for producers

The Reloop Keypad Pro raises the bar for mobile music production. The clever combination of a mini master keyboard, drum pads, a mixer unit, and digital audio workstation (DAW) controls provides an ideal all-in-one solution for project studios and mobile use.

Produce anytime, anywhere!

The compact DAW workstation is capable of running on either USB power or batteries, making it a perfect solution for mobile studios or live projects. Furthermore, the Keypad Pro also supports both wired (via USB) and wireless (via Bluetooth) connections to host computers and smart devices (via wireless MIDI).

Create harmonic compositions at the touch of a button

The built-in keyboard features 25 velocity-sensitive keys across nine playable octaves, so even the most complex musical ideas can be brought to life. The Keypad Pro also accommodates the needs of professional keyboard players thanks to its integrated pitch bend and modulation wheels. Other innovative features include an arpeggiator with a wide variety of patterns, a sustain, velocity quick selection for the keys, a chord function to simplify the playing of common chords, and a clever scale mode in which the right note is always played across four different modes, ensuring limitless creative compositions.

On the beat!

Sixteen velocity-sensitive drum pads provide maximum creative flexibility when composing beats, and can also be used for control or program change commands to activate specific effects or plugins. Impressive recording is further enhanced by aftertouch and RGB backlighting. The drum pad section can also be used to launch clips (play and stop) in a project session.

Record, mix and master

Eight full channel strips can be found in the sophisticated control section, together with dedicated line faders, an endless encoder (pan), two potentiometers (send/return), and three illuminated function buttons (Channel, Solo, Rec). With the Keypad Pro, you can conveniently control and monitor every aspect of the recording, mixing, and mastering processes without ever touching a mouse.

DAW master controls

The DAW master section on the Keypad Pro features important controls including dedicated buttons for transport control and the key recording functions (Play, Stop, Rec, Loop, Zoom, Automate, Metronome, Scene, Tap, Master Volume, Navigation encoder, Reset, CC/PC Mode, Perform Mode).

Versatile performance with OLED display

The Keypad Pro is an intuitive and flexible creative hub with four selectable performance scenes with LED indication, an OLED display for the real-time reference of parameters and settings, and a shift button for activating secondary functions.

Modern music production: plug & play with Bitwig Studio

The Keypad Pro is fully integrated into Bitwig Studio and works with the popular DAW via plug-and-play. Bitwig's lightning-fast workflow, with its large library of plugins and sounds, allow you to start producing immediately. The DAW workstation is also MIDI-compatible with all popular DAWs.

Practical connections to expand the setup

The producing workstation has a 6.3 mm jack connection for an external sustain pedal and a 3.5mm jack connection for MIDI out. Additional recording peripherals can be connected via the integrated passive USB hub (2x USB-A).

Comprehensive software package included

Includes a comprehensive software package of plugins and samples: Bitwig Studio 8-Track DAW recording software, Loopcloud Studio with 4 million royalty-free samples in all popular genres (access for two months), Excite Audio Lifeline Expanse Lite multi-effects plugin, Melodics (40 free lessons) and a three-months free Serato Studio license.

Notes: SWEnigiser Proto VCF/A

Enigiser multimode filter and VCA in 12hp. Circuit based on originalEnigiser prototype kindly loaned by Anthony Linell of Northern Electronics.

VCF
Unique configuration with 3 x 4 filter modes
2x audio input with drive
2x cutoff CV attenuverter inputs
1x cutoff CV input, tunable to 1v/oct

VCF output normalized to VCA input.

VCA
1x audio input with gritty drive, normalized from VCF output
2x CV input. CV1 knob adds offset for drone etc.
CLIP switch for old/new revision Enigiser diode setting adjusting drive character.
+12V 22mA
-12V 22mA
Skiff friendly
Includes power cable, 4 screws+ plastic washers

Available in sand blasted silver and black panel versions.

Notes: ***B-STOCK: Box damaged, product in perfect working order***


A total music production system in a controller:
The iRig Keys I/O series evolves the concept of traditional controllers as the only one available on the market that integrates 25 or 49 full sized keys together with a fully-fledged professional audio interface featuring 24-bit audio up to 96kHz sampling rate, balanced stereo and headphone outputs, plus a combo input jack for line, instrument or mic input (with Phantom power.)

Together with an audio interface, iRig Keys I/O also packs all the controls you would expect from a premium controller including velocity sensitive multicoloured pads and programmable touch-sensitive sliders, buttons and knobs for unique expressiveness and fast workflow.

Both iRig Keys I/O 25 and 49 are also the smallest full sized keys on the market making them the best solution for working in small spaces and ideal when it comes to having a controller for traveling musicians, in addition to the consideration that they are the only truly mobile devices that can also work on AA batteries.

Being certified Apple MFi keyboard controllers ("Made for iPod, iPhone, iPad,") iRig Keys I/O are guaranteed to work out of the box with all iOS devices including the latest generation of iPhone 7, that does not have an audio output, thanks to the on-board audio interface. The included Lighting cable allows for straight plug-and-play with Apple iOS devices, the USB cable connects Mac and PC computers.

Plus with over $/€550 (25) and $/€750 (49) worth of IK full software and apps they include an unmatched selection of everything that is needed to make complete, finished productions out of the box like the full SampleTank 3 sound and groove workstation, Miroslav Philharmonik 2 CE orchestral workstation, Syntronik Pro-V vintage synthesizer, T-RackS Deluxe mix and mastering suite and more, as the ultimate music production station.

The only controller with an audio interface:
Having a professional 24-bit / 96kHz capable complete audio interface built-in with iRig Keys I/O presents many advantages versus regular controllers for today's musicians. The system becomes self-contained taking up minimal space in any situation whether on a small studio desk or when playing live and traveling. The set-up is also kept to a minimum and is as fast and easy as just plug and play. The work environment becomes clean and tidy, without a bunch of extra cables.

In a recording studio, everything can be connected directly to the keyboard ensuring the best possible quality with a Class A preamp for dynamic and condenser mics (including those requiring 48V Phantom power, which works under battery power as well,) to line instruments and even Hi-Z guitars and basses. The built-in headphone output allows for convenient silent playing when studying or practicing. Plus, when used in live performances the balanced stereo output allows for long cable runs directly from the keyboard to the PA or mixer which is useful for performing keyboard players or DJs.

Take control with touch controls:
Despite their ultra-compact dimension, iRIg Keys I/O include all the tactile controls you would expect from a fully-fledged controller and more. Starting with a fast synth-action key bed that improves on all preceding IK keyboards and it's a joy to play. Both the models feature one volume/ data push knob, 4 touch sensitive knobs on 2 banks (acting as 8 total controls) and 8 multicoloured, velocity sensitive pads. Plus, there are 2 fully programmable touch control strips acting by default as Pitch and Mod controls allowing for dramatic performances in any genre and double as fully programmable sliders.

A complete touch sensitive transport and button control section rounds out the controls available. All knobs, sliders and buttons are touch-sensitive using capacitive technology for ultra-fast action and immediate feedback, displaying the related parameter value just with a simple touch.

Perfect for mobile, great with computer:
iRig Keys I/O work universally with all types of devices whether mobile, laptop or regular desktop computer. They are ideal for iPhone and iPad thanks to the included Lighting cable connections and certified MFi compatibility. Additionally, they offer more iOS friendly features that can't be found with any other controller like the included mobile device stand and the possibility to keep the device charged during long playing session using an optional power supply adapter, and of course the included audio interface that makes them perfect when used with the latest generation iPhone 7 that lacks a mini jack audio output.

Notes: ***B-STOCK: Box opened, product in perfect working order***

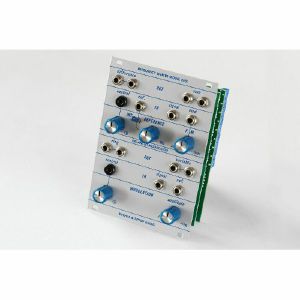

Tiptop's reissues of iconic Buchla modules continue with the 285 frequency shifter. Edgy, twangy harmonic modulation with ring mod options and stereo operation via sum and difference outputs.

Supplier's Notes:
The 285t combines two sets of functions: the top section features a frequency shifter, while the lower section includes both balanced modulation and classic ring modulation, all with voltage control. The frequency shifter can shift incoming audio using either its internal oscillator or external audio. Both SUM and Difference outputs are available simultaneously for analogue stereo widening effects and more.

As Tiptop Audio continues its aural odyssey of preserving and transforming the hallmark engineering prowess of Don Buchla's namesake synthesizer modules, the 285t brings a constellation of blistering sonic-contouring tools to your Eurorack array. Like its predecessor, the Tiptop Audio Buchla 285t is a menagerie of modulation madness, offering variable degrees of ring, frequency, and amplitude styles of modulation. Plus, its dyad of modulation sub-modules operates independently, with dedicated audio and CV I/O for each, functionally giving you the sum of performance possibilities you'd get with two modules, all in one instrument. Suffice it to say: Sweetwater's synthesists commend Tiptop Audio on capturing the electric magic of Don Buchla's imaginative engineering while transposing it for the world of Eurorack to experience. For a constellation of timbral sculpting and summitting heretofore unknown peaks of daring synthesis exploration, the Tiptop Audio Buchla 285t Frequency Shifter module is your key. Discover what awaits at the fringes of Eurorack possibility!

Note: This module is not compatible with Buchla system voltages. CV signals require a distinct connectivity configurations. Please contact your Sweetwater Sales Engineer with any questions or concerns regarding compatibility or use in your Eurorack case.

Type: Frequency Shifter
Depth: 1.77" (45mm)
HP Size: 18HP
Power Usage: +12V/70mA, -12V/40mA
Power Supply: Requires Eurorack Case and Power Supply
Manufacturer Part Number: 285t

Notes: No-nonsense analogue business here from JMT. Square wave VCO and sub-oscillators can be morphed and wave folded to create unique timbres.

Supplier's Notes:
The JMT Synth EWG is a desktop analog synthesiser with a wide-ranging VCO and two reconfigurable sub-oscillators that emit square waves, ideal for thick bass tones. Two adjacent knobs can control the pulse of the square waves, allowing for a wide range of tones and timbres. Two reduce knobs govern the leve of each sub-oscillator, allowing the user to blend the tones to their taste. The EWG-1 is powered by a DC9V center negative adapter or a single 9V battery.
