Tags: Filter module

Notes: Module A-105-2 is a voltage controlled low pass filter with 24dB/octave slope.

It is the successor of the A-105 which had to be discontinued because the obsolete SSM2044 filter circuit. The A-105-2 is based on the SSI2144 which is in turn the successor circuit of the SSM2044. The features of both modules are nearly the same. The main difference is the clearly reduced front panel width of the A-105-2 (4HP instead of 8HP) and the associated changes of the controls and sockets positions. In addition the A-105-2 is equipped with 2 audio inputs.

The module has these controls and in/outputs available:

Control Frequ: manual frequency control
Control FCV2: attenuator for the frequency control voltage applied to socket FCV2
Control Q: manual resonance control
Control QCV: attenuator for the resonance control voltage applied to socket QCV
Control Input 1 Level: attenuator for the audio input signal applied to socket Input 1
Socket Input 1: audio input 1 (with attenuator)
Socket Input 2: audio input 2 (without attenuator)
Socket FCV1: frequency control voltage 1 (without attenuator, about 1V/oct scale)
Socket FCV2: frequency control voltage 2 (with attenuator)
Socket QCV: resonance control voltage (with attenuator)
Socket Out: audio output
Technical notes:

Frequency range: about 15Hz ... 15 kHz
Resonance up to self oscillation
Max. input voltage at Input 2 without clipping/distortion: about 15Vpp
Max. output voltage without clipping/distortion: about 15Vpp
The signals of both inputs are mixed before they are processed by the filter. This saves an external mixer for small setups.
Depth: 45 mm

HP : 4

Notes: Befaco's unique GameBoy-based effects module allows you to change effects by swapping cartridges, all with CV control over key parameters. Effects include Skuara's harsh fuzz, Instruo's micro phaser and much more.

Supplier's Notes:
A crazy idea with the support of a bunch of crazy people.

A Multi FX module based on game carts!

FxBoy is a multi-FX module designed in collaboration with several talented manufacturers.

This is an effect unit with CV control over the parameters and Dry/wet control, with a Built-in CV controllable four bands EQ.

Each effect is physically hosted in a hot-swappable game cart and designed by a different manufacturer: Touell Skouarn with Skuara a harsh fuzz with overdrive, Instruo with micro Phaser, a two-flavoured Phaser, Feedback modules with a vintage Flanger, XOR with FX-Girl, a digital double effect module: Delay + Granularizer, Making sound machines with an analogue Wave folder, Tesseract with a bit crusher and Befaco Trash distortion!

What have these crazy people put in their cartridges?

Trash

Trash is a harmonic distortion that combines both clipping and folding flavours. Modes A and B will select between aggressive and more aggressive flavours!

Flanger

Analogue Wavefolder

Eskuara

AVMA
AVMA by Tesseract Modular is a bipolar VCA with one switchable wavefolder stage followed by an analogue frequency reducer. The VCA gain is x2, it can be used with i5V oscillator signals at the CV input for ring modulation effect.
Micro Phaser

Three cascaded all-pass filters, a built-in LFO and a saturator in the feedback path.

The purpose for this cartridge is to completely f&%k your phase up!

Instruo - We make sounds with the things that we make to make sounds with.

Technical Specifications

CV control over all parameters and Dry/wet
CV controllable four-band EQ, routable post or pre-effect.
Hot swap for all carts.
Selector for two different flavours of each cart.
Open specifications to design your own carts

Specs

Current needs: +12V: 125mA, -12V: 100mA, 5v: 0mA
Width: 12 HP
Depth: 35 mm (including power connector)
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.

Notes: Roucha Legio is a 12 dB /octave state-variable stereo multimode filter available on the Legio DSP+oscillator platform.

Noise Engineering received tons of requests for NE filters over the years, and Roucha Legio is their first dedicated release. The filter features lowpass, bandpass, and highpass settings and tracks frequency via the dedicated encoder and extremely accurate 1v/8va CV input. Roucha Legio's CV-controlled resonance parameter can go from clean to acidy-squelchy for bassline joy. Add CV for filter sweeps that will knock your socks off. Of course, because it's a Noise Engineering module, there's a Fold knob. Add wavefolding to the signal chain before, after, or both before and after the filter.

Noise Engineering have made it easy to carry out dramatic buildups and cuts with Roucha Legio. Just tap the encoder to bypass; tap again to turn the filter on again. Want to automate it? Send a gate into the Bypass input. The filter will remain bypassed as long as a high gate is present.

Roucha Legio is also a DSP and oscillator platform: users can change the firmware on any Legio module, 100% free, to any other firmware in the Legio series.

Dimensions
6 HP
38 mm deep

Current Draw
140 mA +12V
22 mA -12V

Notes: The Dystopia is ideal for complex patches where sound can be used to thicken the sound or filter out frequencies. It features a noise generator which can provide white, white to pink, white to blue, scatter, digital, pitch types of noise. The digital noise is brilliant as it can be used as a random gate generator. The bit crusher stage can range from one second up to 8kHz - meaning you can obtain really thick distortions - ideal for a range of styles of music. You can reference all the signals through the four LEDs too - which help you determine the level at which the module is pumping out the noise sources.

Noise Generator (white, white to pink, white to blue, scatter, digital, pitch)
Bit Crusher with range from 1sec up to 8kHz
Digital Noise can also be used as a Random Gate Generator
Dual Filter (parallel) 12dB Low Pass and High Pass Filter
When you insert a signal to the External In, the Internal Noise generator is cancelled and the External Signal is in process
LED indicator for all controls to illustrate the current CV Sum

56 mA +12V
67 mA -12V
35 mm deep
10HP

Notes: Aphelion packs a stereo distortion and low/high pass filter into a compact 8HP design, making it ideal for live performance setups. It features three unique stereo distortions in parallel with a continuous crossfade between them, controlled with the character knob or a cv input.

The first circuit is an overdrive that adds a lot of warmth and fattens up the sound without becoming too harsh.
The second one is a saturating wavefolder, that can add interesting extra harmonics depending on the waveform of the material.
The last distortion is inspired by the classic RAT guitar pedal. It adds an aggressive feel and grit to the sound.

A mix knob lets you blend the dry input signal with the distorted signal, before it hits the filter. Setting it fully dry bypasses the distortion effect.

If you need even more dirt, there's a handy +12dB gain switch, to really drive the inputs into overdrive. If you want to keep your low-end undistorted, you can switch on the Low-cut filter.

The non-resonant. This filter is also overdriven, adding some warm distortion and extra harmonics to the stereo filter combines a low pass and high pass stage, and uses an IC based on the classic SSM2040original signal, and limiting the output level. The cutoff knob has no effect in the centre, turning CCW creates a low pass and CW a high pass effect. It's possible to control the low and high pass filter cores independently using CV.

The filter bypass switch can be used for instant reintroduction of all frequencies into the mix upon release-a great tool for live performers.

Lastly the level knob can be used to attenuate the output.

Power: +12v - 100mA, -12v 80mA

Notes: What does this do?

This is an analogue filter based on the 1974 SEM filter. The original early design did not self oscillate into a sine wave. This one also does not self oscillate. The sound, however, makes up for that. You get the original notch sweep, and incredible band pass mode at such a low friendly price.

Added Features

-Onboard VCA
-Onboard envelope generator (decay)
-Variable trigger input circuit. Emulates a Vactrol.
-Dual audio input possible

Width: 10HP
Depth: 1 PCB stack, skiff compatible

Notes: A handy combination of two of Serge's most recent designs:

The GATE (left side) is an enhanced redesign of the classic Serge Gates which can be used as a linear or exponential VCA or ring modulator or some interesting combination of these.

The VCFX 2023 is a newly designed Serge filter that is essentially a Bandpass, but also offers a Lowpass output.

Serge NEW GATES / VCFX 2023 for eurorack:

Designed by Serge Tcherepnin 2023
Eurorack format (3U), 18 hp
Power consumption: 24mA @ +12V, 24mA @ -12V
(NEW) Skiff-friendly: < 25mm (1")

Notes: *** Updated to v3 in February 2024 with improved hardware and circuitry ***

The Omen is a dual LPG with a bit more than you might be used to. This module was born out of the realisation that it was possible to make far more interesting LPG designs than the standard we've become so accustomed to.

In a convergence of old-school LPG design and more modern components, the Omen boasts two -6dB resonant filters, custom built vactrols, built in CV attenuation and no less than three cutoff modes per filter. Filter 1 is soft and light, imparting a gentle, naturally gated touch of filtering on your sound, while Filter 2 is darker and more resonant, and can turn downright growly and distorted when left wide open.

Designed to give you as many creative options as possible, the Omen has the unique ability to function as either two discrete LPG, or as one 4-pole resonant LPG. When plugging a signal in to Input 1, and with no signal plugged into Input 2, the output will be present at both Output 1 and Output 2, with Output 2 producing the signal as it passes through both filters. Tweaking both filters independently will generate a wide array of soft and sometimes harsh tones, ranging from Buchla bongos to early synthesis brass and organ sounds. There is much to love here.

CV is similarly handled, by plugging in only one CV source, it will act on both channels - this is useful for creating musically similar outputs as well as when using the dual filter operation. However, the dual filter mode greatly benefits from having two CV inputs: use an envelope in CV1 to act as a VCA, and an LFO in CV2 to create tremolo, for instance.

Using custom designed, hand built vactrols, care has been taken to mitigate the less desirable aspects of passive LPGs - in most modules, the user can expect zero bleed through on the LPG channels, and signal attenuation is minimal even with the 4-pole filter settings engaged. Of course, many of the natural features of vactrols remain, such as subtle memory effect when engaging the vactrol for long periods.

Finally, you receive maximum blinkenlights as LED's on the front panel simulate the action of the vactrols, so you'll always know what's going on under the hood. No collection of fancy LPG's is complete without the Omen.

Dimensions
4 HP
36 mm deep

Current Draw
Module does not draw current

Notes: The Grand Terminal is a digital multipurpose module. Its two function generators can be used as envelopes, LFOs or VCOs. The 2 filter channels individually offer 8 modes of operation, and combined with its mixing and routing capabilities and a multi effects unit, it is not only a complete back end of a synth voice, but can also be used as a synthesizer voice, stereo filter bank or general purpose sound effects processor.

The Grand Terminal is based on an ARM M4 DSP, audio resolution 48 kHz/16Bit. Its two filter channels can be used in parallel or serial, and there is a link mode for stereo operation. The Audio inputs have individual trimmable gain stages to integrate the Grand Terminal into different production environments. There´s a soft clipping feature in order to prevent unwanted distortion. Gate A is normalized to Gate B for easy parallel processing.

Each of the filters can be set to any of 8 filter types, which are: Transistor Ladder Filter (Low Pass), Diode Ladder Filter (Low Pass), Vactrol Low-Pass Gate, Resonant Vactrol Low-Pass Gate, State Variable Low-Pass Filter, State Variable High-Pass Filter, State Variable Band-Pass Filter, Comb Filter. The filter can be controlled in 2 parameters manually as well as via CV. The outputs of this section can also be controlled in Volume and Pan position. At this stage, the unit is designed to distort in the upper third of the gain control setting.

The built-in multi effects processor features eight algorithms which can be altered in 2 crucial parameters and a possibility to crossfade between the dry and the effected signal. Its algorithms are: Hall Reverb, Shimmer Reverb, Room Reverb, Spring Reverb, Ping-Pong Delay, Tape Delay and Chorus. At the end of the audio path, there´s a Master Volume Control as well as one Mono and one Stereo output.

The two function generators can operate as AD or AR envelopes. All time parameters can be set between 1 ms and 10 seconds, manually as well as via CV. The envelopes can be individually set to loop and then act as LFOs or VCOs (following V/Oct for about 6,5 octaves). They also feature End-of-Stage Outputs.

When used in connection to the Gateway, all controls which are normally set by jumpers on the back of the module are accessible from the Gateway´s front panel.

Notes: This module is divided between 3 functions, a 3 channel mixer, with 3 knobs the the singal together, this then passes in a dual analogue filter, a resonant 24db LPF and a non resonant 18db HPF, passing from there into a built in VCA.

Notes: With the MORPHEUS digital filter module, Rossum are finally able to unleash the full power of the 14-pole Z0-Plane Filters that Dave invented for the E-mu Morpheus synthesizer.

The MORPHEUS Eurorack module includes over 280 filter configurations, which are called Cubes. Each Cube is composed of up to 8 complex filters that you can picture as being at the corners of a three dimensional cube (hence the name). Morpheus gives you the ability to smoothly interpolate between those 8 filters within the cube's three dimensional space.

Due to processor limitations back in the day, the original Morpheus was capable of real-time morphing in one dimension, but interpolation in the frequency and transform dimensions were set at note-on and remained static for the remainder of the note. But even with that limitation, Morpheus offered sonic capabilities that are unmatched to this day.

With the MORPHEUS filter module, you now have simultaneous real-time CV control of all three dimensions, for dynamic timbral effects unlike anything you've ever heard before. In stereo.

Like all Rossum Electro-Music digital modules, all parameters are available for adjustment with a single button press. No menu diving.

Morpheus Specifications

Filter cubes: 289
Filters: 1000
Filter sequences: 200
Sequence steps: 20,000 Dynamically Allocated

Inputs: Audio L/R
2x 3.5mm mono socket
100kO Input Impedance

Full Level Frequency CV
1x 3.5mm mono socket
100kO Input Impedance

Attenuverted Frequency CV
1x 3.5mm mono socket
100kO Input Impedance

Attenuverted Morph CV

1x 3.5mm mono socket
100kO Input Impedance

Attenuverted Transform/Distortion CV

1x 3.5mm mono socket
100kO Input Impedance

Filter Sequencer Dec

1x 3.5mm mono socket
100kO Input Impedance
1.6V threshold

Filter Sequencer Inc

1x 3.5mm mono socket
100kO Input Impedance
1.6V threshold

Filter Sequencer Reset

1x 3.5mm mono socket
100kO Input Impedance
1.6V threshold

Outputs

Audio L/R
2x 3.5mm mono socket
1kO Impedance

Power requirements
+/-12V via 16-pin, Doepfer-style connector

Current draw
135mA +12V, 25mA -12V (maximum)

Dimensions
18HP (W); Panel to power connector (with connector plugged in) 25mm (D)

Supplied accessories
1x 16-pin, Doepfer-style cable
4x M3 screws
4x M2.5 screws
4x Nylon washers
1x Quickstart Guide

Notes: Bleeding Hearts Eurorack Modular Device

(Random Sequencer, Rhythm Generator, Destroyer, and Filter)

The Bleeding Hearts is a device that starves, bit crushes, splatters, and filters audio sources like no other. Feeding a gate signal to the Bleeding Hearts enables a whole new world of strange and random analog-generated movement. Each position of the 8-step sequencer can bleed into each other and interact with the destruction effect, creating gated and filtered splatters, glitches, and crunches that move to the beat of your patch.

Designed and assembled in Seattle, Washington. Includes a limited 1-year warranty, if registered within 30 days of purchase.

20hp, 42mm deep.

Notes: Analogue goodness awaits with the four-pole Low Pass Filter. Thanks to CV control over resonance and frequency, the Low Pass Filter can go from squelching leads to dynamic sweeps in an instant. In addition, 1V/Oct tracking allows it to double as a musical sine wave oscillator. Bring analog warmth to your system today in a compact, yet stand out package.

Tech Specs:
Width: 14HP
Depth: 38mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

Notes: Etna is an advanced triple-control Analogue Multimode Morphing Filter & Digital Control, that has been meticulously designed for precise and dynamic sound shaping. It allows for rapid or smooth transitions between diverse filter settings, known as snapshots.

Each snapshot comprehensively defines all of the filter's parameters, which can be adjusted either swiftly or gradually. These transitions are controlled through an applied voltage or clock and triggers, with the flexibility to use up to eight distinct stages for creating complex filtering effects in various audio applications.

In addition to its morphing capabilities, Etna incorporates analog controls that enable real-time, expressive modifications to the parameters of each saved snapshot. This enhancement not only enriches the morphing process but also provides a tactile, live experience that adds significant depth and nuance to the audio output, making it a powerful tool for both studio and live performance settings.

The response of each filter has been designed with top-end components, incorporating Q and passband compensation. This enables its use as three multimode filters, with all necessary analog control.

Dimensions: 20 HP
Power consumption: 165mA@+12V, 88mA@-12V

Notes: The Mankato Filter is a four-pole lowpass filter with positive and negative outputs at every pole, giving you slopes of 6 dB/oct, 12 dB/oct, 18 dB/oct, and 24 dB/oct simultaneously. The negative slope outputs allow you to use the Mankato as a quadrature sine oscillator with 8 available phases. The Mankato will self-resonate from subaudio to superaudio, and responds to one volt per octave through its unattenuated control inputs. When resonating, the 6dB/oct outputs are slightly hotter than the others and can be driven to lightly saturate at full resonance. The signal inputs are DC coupled, which allows you to use the Mankato as a voltage-controlled slew limiter at very low cutoff frequencies.

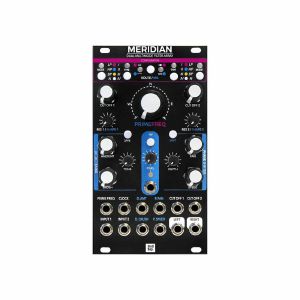

Notes: Meridian is a 14hp digital dual multimode stereo filter array, designed to offer users a choice between 4 selectable filter types per side and 4 selectable filter modes per side, plus 2 effects (drive & phase shift), and the ability to be pinged. This allows users the flexibility to easily create a range of unique sound textures and sonic landscapes using a single powerful eurorack filter module.

Meridian represents the idea of a meeting point or a convergence of different elements. Filters are often used to blend, shape, and refine different sounds into a cohesive whole. Meridian is often represented through the idea of a barrier or a line that separates parts. This concept mirrors the way the filter delineates different frequencies and aural elements, generating a defined contrast that shapes the overall sound.

In context, the name Meridian conveys a sense of balance, harmony, and unity, while also suggesting a clear and definitive separation between different sonic elements. Similarly, Modbap Meridian allows the use of two selectable, mixed or matched, filter types and two selectable, mixed or matched, filter modes to reshape and refine the source material into new cohesive textures.

Meridian's two filters, each have independently adjustable cut off, resonance, and contour parameters. The PrimeFreq control is the center macro control of both filters in tandem. The module boasts a dynamic control feature aptly-titled 'Ping'. Activation of Ping is enabled through the Ping input. Additionally, the filter permits selection of serial or parallel routing configurations and is capable of functioning as either a stereo system or two independent mono channels with the press of a button.

Meridian boasts a selection of filters (including Ladder, OTA, Comb, and vocal formant) to generate a vast range of textures. Its sound shaping capabilities are furthered by its two distinctive and characterful effects: Phase Shifter and Drive.

All of Meridian's key features can be modulated via CV inputs. For instance, synchronization to tempo can be achieved with the clock input, allowing for clock synchronized Phase Shifting.

As is typical of Modbap modules, Meridian was designed with tweak-ability and performance in mind and it is the perfect companion for Modbap Osiris.

Effects
Phase Shifter with speed, panning and depth controls.
Drive Circuit with level, tone and crush controls.

Features
256 possible filter configurations
Dual mono / Stereo filter
4 filter selectable types per side - Ladder, OTA, Comb, Vocal Formant
4 Filter selectable modes per side - LP, HP, BP, NOTCH
Low Pass Gate styled Pingable input
Phase Shifter
Stereo panning control
Drive effect with tone and crush control
Save and recall presets

Tech Specs
Width: 14HP
Depth: 30mm
Power: 107mA +12V, 7mA -12V (115mA Peak on Power Up)

Notes: Aphelion packs a stereo distortion and low/high pass filter into a compact 8HP design, making it ideal for live performance setups. It features three unique stereo distortions in parallel with a continuous crossfade between them, controlled with the character knob or a cv input.

The first circuit is an overdrive that adds a lot of warmth and fattens up the sound without becoming too harsh.
The second one is a saturating wavefolder, that can add interesting extra harmonics depending on the waveform of the material.
The last distortion is inspired by the classic RAT guitar pedal. It adds an aggressive feel and grit to the sound.

A mix knob lets you blend the dry input signal with the distorted signal, before it hits the filter. Setting it fully dry bypasses the distortion effect.

If you need even more dirt, there's a handy +12dB gain switch, to really drive the inputs into overdrive. If you want to keep your low-end undistorted, you can switch on the Low-cut filter.

The non-resonant. This filter is also overdriven, adding some warm distortion and extra harmonics to the stereo filter combines a low pass and high pass stage, and uses an IC based on the classic SSM2040original signal, and limiting the output level. The cutoff knob has no effect in the centre, turning CCW creates a low pass and CW a high pass effect. It's possible to control the low and high pass filter cores independently using CV.

The filter bypass switch can be used for instant reintroduction of all frequencies into the mix upon release-a great tool for live performers.

Lastly the level knob can be used to attenuate the output.

Power: +12v - 100mA, -12v 80mA

Notes: Analogue discrete Synthvoice with two VCOs, three SUB-VCOs, Wavefolder, Noise, Ring Modulator, two loopable ADRS, two LFOs/VCOs, MIXER, 24db Lowpass VCF, VCAOur new Eurorack flagship hits stores this summer. Very compact (pre-patched) discrete synth voice module with excellent analogue technology for endless soundscapes at a reasonable price.

Two discrete VCOs with highly stable tracking

Three analogue Suboscillators (3/4-1/2-1/4 with SQUARE, SAW, TRI) + Gravity Mix -Sync

Wavefolder (VCO 1 TRI WAVE)

White Noise

XOR Ringmodulator

Discrete VCA

24dB LP VCF with overdrive

Dual analogue LFO (one also usable as VCO) with incredible range and keytracking -Two superfast and punchy analog ADSR sections with LOOP function and four TRG outputs (End of ATT, End of DEC)

Mixer section with Master level -Glide presets and huge Patchfield to communicate with other Eurorack Modules.

Screwed metal shaft potentiometer

Rackspace: 36TE
Depth: 25mm

Notes: The SetonixSynth Marsupial is a new dual filter design based around the re-issued AS3350 filter IC, originally used in rare synths such as the Synton Syrinx, Crumar Spirit and Rhodes Chroma but never widely utilized. Normalization between the control inputs and a Series/Parallel switch makes it simple to dial in a huge variety of unique and musical filter sounds.

Current draw: 36mA @ +12V; 35mA @ -12V

Eurorack width/depth: 8hp; 25mm

Notes: Module A-121d is a special dual multimode filter which can be used for parallel or serial organized dual mono filters. Even stereo applications are imaginable. The filters are based on two special circuits: one with highpass and bandpass outputs, the other with lowpass and bandpass outputs. It's a new filter design that is not used so far in any other A-100 filter module.

We attached great importance to the usability of the manual controls and CV inputs for dual filter applications: for the filter frequencies of both filters a common control (Frequ.) and a difference control (Delta, filter spread) are available. For both parameters even CV inputs are available (FCV, DCV). The resonance (Q1, Q2), the sensitivity of the individual frequency control input (FCV1, FCV2) and the level of the audio input (In1, In2) are adjusted by means of the individual controls for each filter.

The module has a simple audio mixing unit available with the inputs Mx1 and Mx2, and the output MxO. Provided that the mixer inputs are open bandpass 1 and bandpass 2 are normalised to the sockets Mx1 and Mx2. All other filter types are realized by connecting the other filter outputs (H1 = highpass 1, L2 = lowpass 2) to the mixer inputs.

Controls:
Frequ.: master frequency control for both filters
Delta: controls the difference between the frequencies of the two filters manually (frequency spread), at centre position the frequencies are about the same
Q1 / Q2: resonance controls for filter 1 and 2
FCV1 / FCV2: attenuators for the individual frequency control inputs FCV1 (filter 1) and FCV2 (filter 2)
In 1 / In 2: attenuators for the audio inputs of filter 1 and 2

Sockets:
Mx1 / Mx2: audio inputs of the mixer, Mx1 is normalised to bandpass 1 (B1), Mx2 is normalised to bandpass 2 (B2)
MxO: audio output of the mixer
In1 / In2: audio input of filter 1 and 2 (In2 is normalised to In1)
H1: highpass output filter 1
L2: lowpass output filter 2
B2: bandpass output filter 2
DCV: control voltage input for frequency spread (Delta)
FCV1 / FCV2: individual frequency control inputs, processed by the attenuators FCV1 and FCV2, socket FCV2 is normalised to socket FCV1
FCV: common frequency control input for both filters (~ 1V/oct)

Triangle symbols indicate the normalising of sockets (B1>Mx1, B2>Mx2, In1>In2, FCV>FCV2). The four outputs are inverse labelled.

Technical note:
Ex factory the module is adjusted so that the resonance of the two filters does not reach self-oscillation. If desired the filters can be modified by the user by means of two trimming potentiometers so that self-oscillation is possible.

Dimensions
8 HP
41 mm deep

Notes: OCTOPASS is an eight voice 24db/octave low pass filter based on the classic 2044 filter. All eight filters are fully analogue with gain compensation of resonance and the lovely lush sound of classic synths. A global frequency modulation CV using a 3.5mm jack can be used to modulate all eight incoming CVs of the Polytip jack. The typical use is to patch polyphonic synthesisers with the use of only a few Polytip patch cables for its audio ins and outs and its cut-off frequency controls. To tap each filter I/O or CV using discrete modules the OCTO I/O module can be used as an expander. As there are eight filters in the module special attention has been given to power consumption efficiency.

Size: 20HP

Notes: The Morphor VCF Multimode is an intuitive, no nonsense 8HP fully analogue filter module. Featuring a dedicated lowpass and highpass filter core.

To shape the sound exactly the way you want, both filter sections have a cutoff frequency control over the whole audible frequency range through a knob and bipolar CV jack. Additionally, resonance control and a switchable pole selection are available.

The second output acts as both a bandpass and highpass output, depending on the position of the BP/HP mixing knob. Combining all these features results in an easy-to-use but flexible module to perform your unique filter needs.

Weight: 110 g
Dimensions: 128.5 × 40.6 × 40 mm
Width: 8 HP

Notes: T-spectrum takes the concept of merging modulation sources and destinations into a single module.

T-spectrum is a spectral processor, an organic sound sculpting tool transforming drastically what passes through it.

The powerful modulation engine lets you hear frequency bands dance, smoothly or frantically. Bring life to your patches with free running or resettable custom drawn modulations.

Maximum automation recording length of 20s for each parameter.

MODE allows to change between 1/2/4/16 (max) bands

FREQ moves the filter initial frequency

SPREAD changes the bandpass filters Q peak

TILT moves the selected peaks around the spectrum.

The integrated touch lightstrip controllers can drive four parameters with looping or one-shot recording playback mode on each track with global RESET input.

Secondary distorted output.

Current draw: 150 mA (+12 V) / 20 mA (-12 V)
Width: 8 HP
Depth: 34 mm

Notes: Have some noisy modules in your case? Or maybe you're just looking to attenuate your sound for a different vibe. Whatever your case, Lopas is a great, compact solution for your passive filtering needs. Lopas has 5 passive low-pass filters each with a different cutoff frequency (10k, 5k, 1k, 500, 100) at -6dB/octave. Lopas has NO resonance making it great for reducing unwanted harsh frequencies without sacrificing a VCF.

Technical specs:

3U x 4HP x 20 mm deep.
Passive Module -- No power required!

What's in the box:

1x Lopas Module
2x Mounting Screws

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


The MST Low Pass Filter is a precision analog dual slope output 2 & 4 pole filter. Simultaneous -12 DB and -24 DB outputs with CV control over all parameters. Can be used as a 1V/O sine wave oscillator

Specifications:

Current draw: V+ max 23.5mA, V- max 15.5mA

Width: 6HP Depth: 3.5cm (1.75 in)

Notes: GOBLET is an analogue filter and distortion unit with some added quirks and extra controls.

Why:

To make stuff sound filthy.
To shape the output of an oscillator.
To live interact with the sound during a performance.
To soft sweep the cutoff thanks to the optocouplers logarithmic response.

With:

Simple waves - make them unrecognizable.
Complex waves - shape them into something new.
Percussions - crank the resonance and give an acid twist to a beat.
No input - play with the feedback and the touch controls.

Dimensions:

8 HP
18 mm deep

Current Draw:

45 mA +12V
25 mA -12V

Whichever power connector you use should work fine with the polarity.

Notes: The Futureretro Transfer is a 12hp analogue filter featuring 16 different types of fully controllable filters with CV inputs, a voltage controlled amplifier, and an input overdrive. While the included 4 types of commonly used low pass filters, and the 12 specially crafted unique filters were specifically engineered to be the perfect sonic pairing with our Trax and Transient models, the Transfer also functions perfectly with any modular setup.

3 larger control pots give immediate and easy access to cutoff, input drive, and resonance control with the three smaller attenuators/attenuverters control input from the type CV, cutoff CV, and resonance CV input jacks. A VCA (voltage controlled amplifier) jack is conveniently placed at the bottom row along with standard input and output jacks.

Notes: Based off Euterpe's classic Vertice filter bank, this fully analogue multimode filter biasts an integrated preamp and transistor based distortion. This saturates the signal in order to generate harmonically rich sounds for the filters to manipulated.

The Itinera boasts four modes: LPF, BPF, HPF and notch, allowing for a wide range of possibilties, especially when combined with the 3 selectable resonance paths.

These 3 paths - transistor, diode and Innesco - each offer their own characteristics. The Itinera alos has two CV controllable feedback functions, "Vindicta" and "Formant", which help create feed back effects.

With two audio inputs and four CV inputs, the Itinera offers tons of potential for creative applications, not only as a filter but also as a saturator!

Notes: Foxtrot is a quad, multimode virtual analogue filter with three different classic filter types.

Each of the four filter channels can be:

1) A ladder filter, based on the classic MOOG designs from the '60 and '70s
2) A Sallen-and-Key filter based on the Korg 35 module used in the MS-20
3) A State Variable filter as used in the Oberheim SEM

Each filter type produces Low Pass, Band Pass and High Pass responses which can be morphed between using the front panel control or CV.

In addition, any or all of the filter channels can be linked together internally producing a parallel filter bank controlled by a single cut-off control or CV. Check out some of the examples for how amazing this sounds.

The AUX CV input can be switched to allow CV control of the filter response, resonance or pan of each filter channel's dual outputs.

Finally, each filter can be overdriven to accentuate the unique sound of each filter type.

Specifications:
Width: 38HP
Depth: 22mm excl. power cable. Approx 32mm inc. shrouded power cable
Power Requirements:
+12v: 250mA
-12v: 100mA
+5v: 0mA

Inputs:
Signal (Zero attenuation): +/-5v nominal, +/-12v max
Cut-off CV (Zero attenuation): 0-5v nominal
AUX CV (Zero attenuation): +/-5v nominal

Outputs:
Dual Outputs: +/-5v nominal, +/-10v max
