Notes: Explore modulation beyond the standard ADSR with Verbos's complex polyphonic envelope, opening up the potential of ADAsR and AHDsR slopes. Use the four envelopes independently or trigger sequentially in three separate modes.

Supplier's Notes:
The Verbos Polyphonic Envelope module is a set of four envelope generators which can be used together or independently. Cascade logic allows the four envelopes to trigger sequentially with subsequent envelopes starting at the Hold, Decay or End of the previous envelope.

Each envelope offers its own gate input, CV output and end pulse output, so it can be used in up to four-voice polyphonic patches. The three skew controls allow the times to change as each new envelope is switched on. All parameters can be voltage controlled.

Power consumption: 75mA at +12 V and 30mA at -12 V

HP : 22

Notes: The Mini Horse from Verbos Electronics GmbH is a multi-dimensional touch activated voltage controller. At 42HP wide and ultra thin, it can be added to a synthesizer system either inside the Eurorack or out front in the forthcoming Black Box extra low profile powered enclosure. Twelve keys run across the front, each with its own Gate out, Pressure out and Position out. In addition to the individual keys' outputs the master section presents the parameters of which key was last pressed in addition to a tuneable from the knob behind the key and a "Fixed" voltage, spanning from 0-10v across the keys from left to right. Position outs have memory of their position when last touched, allowing the user to draw a mix across the keys when connected to voltage controlled mixers as in the Harmonic Oscillator or Bark Filter Processor.

Dimensions
42 HP
15 mm deep

Current draw
140 mA +12V
115 mA -12V

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Inspirational west coast sounds from one of the masters. Additive oscillator with eight harmonics, direct outputs and powerful CV control to scan, tilt and mix the waveforms.

Supplier's Notes:
For the first time in Eurorack, this oscillator module provides outputs for the first 8 harmonics as sine waves. Also included are triangle, saw, square waves.

A voltage controlled mixer with various methods of address allows the user to scan, tilt and mix the harmonics from both panel and external voltage control. It is built on a discrete, all analog triangle core with an old school discrete transistor exponential converter. It has inputs for linear and exponential FM, the exponential with a reversing attenuator. Of course there's a 1 volt/octave trimmed CV input as well.

Power consumption: 120mA at +12 V and 90mA at -12 V

HP : 32

Notes: Inspirational west coast sounds from one of the masters. Additive oscillator with eight harmonics, direct outputs and powerful CV control to scan, tilt and mix the waveforms.

Supplier's Notes:
For the first time in Eurorack, this oscillator module provides outputs for the first 8 harmonics as sine waves. Also included are triangle, saw, square waves.

A voltage controlled mixer with various methods of address allows the user to scan, tilt and mix the harmonics from both panel and external voltage control. It is built on a discrete, all analog triangle core with an old school discrete transistor exponential converter. It has inputs for linear and exponential FM, the exponential with a reversing attenuator. Of course there's a 1 volt/octave trimmed CV input as well.

Power consumption: 120mA at +12 V and 90mA at -12 V

HP : 32

Notes: The Control Voltage Processor from Verbos Electronics GmbH is a suite of control voltage processing possibilities divided into 3 sections in a slim 18HP package. The lower 2 sections are DC coupled mixers that allow mixing, inverting, offsetting, scaling, multiplying, dividing, crossfading or a combination of these functions. The top section is a voltage controlled slewing processor with independent control of Positive and Negative slew rate, with some unique tricks. The Positive and Negative slew, or Rise and Fall rates if you like, have reversing attenuators. The slopes can be blended from linear to RC curves (starting all slides fast and ending slow, like a proper "East Coast" Portamento) without a change in speed. It can be triggered like an AD envelope and has a Gate out that goes high when the CV out is below 100mV. Of course it can loop by patching the Gate out to the Trigger in. The Bounce control adds a unique flare of overshoot to CV changes, a bit like the effect of stopping a tape reel from turning and then letting it go. The combination of multiple voltage processors offers the user the functions of analogue computer.

Notes: The 2M is a dual three channel mixer in 6 HP with volume controls over all the inputs as well as the final output. As its design has been specially focused on audio applications, the input potentiometers are audio-taper type while the output ones are linear. Low distortion / high quality audio operational amplifiers have been selected in order to achieve clean audio mixing, but is also DC-coupled, so it can perform CV signal mixing as well. Great for a small system, allowing for submixes or even stereo mixing.

Technical specifications:

6HP.

38 mm depth.

Consumption: +/-12V 20mA

Notes: TouellSkouarn Strakal Brulu is a handmade distortion and fuzz module. The great sound is due to the new-old-stock east-German germanium transistors.

Very characteristic for the module's sound if the feedback that is coupled to the feedback. The more fuzz, the more feedback - the Strakal Brulu 2 can get pretty nasty and it screams a lot at high fuzz settings and low input level. The fuzz amount can be voltage controlled, with an inverse attenuator. Input and output levels can also be set separately.

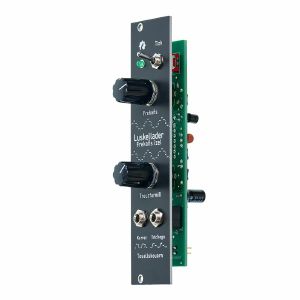

Notes: The "Luskellader Frekans Izel" is a Low Frequency Oscillator (LFO) that can be used to modulate various parameters of the synthesizer, including pitch, filter cutoff, and amplitude. The module has 2 ouputs, with continuous morphing shapes available at the same time, one Square/PWM, one Saw/triangle/inverted saw. The LFO has a speed switch going from low to audio rates. The 2 knobs are : Speed and Morph. The module is 6HP wide and is made with quality components such as Nichicon/Panasonic caps and alpha pots.

HP : 6

Notes: A colourful approach to mixing here, the Kemmerskan offers two stereo channels and four mono channels, processed through germanium transistors. Three band master EQ and aux sends give plenty of creative options.

Supplier's Notes:
More than just a mixer, the Kemmeskan can be used as a soundscaping module. It has an equaliser that sounds really musical and gives the user the ability to change the sound drastically. It can be used in an Eurorack context or with external devices.

Notes: Expander for the 4-channel sequencer that provides CV inputs and controls for each sequencer to enable complex pattern generation, waveshaping oscillators, ratcheting sequence effects, sequence step address re-ordering, gate length control and more.

Depth (internal from panel): 27mm
-12V @ 30mA
+12V @ 63mA
+5V @ 8mA

Weight = 0.171kg not including packaging or cables

Notes: Clock generation meets waveform manipulation in this analogue harmonic oscillator. Combine with the Tobinski sequencer and/or interpolating scanner modules for the best creative results.

Supplier's Notes:
The Harmonic Timing Generator is a versatile Eurorack module that combines advanced clock generation with harmonic waveform manipulation. Combined with the Tobinski Sequencer, the module is a great tool for rhythmic and sonic creativity in the modular system.

As a reference clock generator, the Harmonic Timing Generator produces a base frequency with analogue multipliers (x1 to x8) to generate complex timing signals. Three selectors provide manual or voltage-controlled frequency switching, offering flexibility for intricate sequencing patterns. An LFO mode enables slower clocking rates, ideal for driving sequencers or generating modulation sources.

When used with the Interpolating Scanner, the sawtooth outputs of the Harmonic Timing Generator are transformed into sine waves. This allows the module to function as a harmonic oscillator at audio rates or as a versatile modulation source in LFO mode. Its dual functionality ensures that it can adapt to a wide range of patching needs, from rhythm generation to rich harmonic exploration.

The Harmonic Timing Generator is a versatile and creative tool, offering rhythmic and harmonic possibilities that complement any modular synthesizer setup. Its integration with other Tobinski modules ensures a cohesive and expansive sonic palette.

Power consumption: 235mA at +12V and 176mA at -12V and 20mA at +5V

Depth: 27mm

18 HP

Notes: This versatile dual-function Eurorack module offers both a Low Pass Gate (LPG) and a Voltage-Controlled Amplifier (VCA), inspired by two iconic designs in synthesiser history.

Low Pass Gate (LPG)

The LPG is modeled after the classic Buchla design, delivering a rich, organic sound that blends amplitude control with low-pass filtering. Ideal for producing natural-sounding dynamics, the LPG responds to control voltages to create plucky, percussive tones and smooth, woody textures. Its distinctive vactrol-based architecture provides a warm and unique character, adding depth and nuance to your patches.

Voltage-Controlled Amplifier (VCA)

The VCA draws its inspiration from the legendary Minimoog, ensuring a clean, dynamic, and responsive performance. Known for its iconic smoothness and headroom, this design is perfect for traditional amplitude shaping, allowing precise control over audio signals with minimal distortion. The VCA section excels in both subtle modulation and aggressive signal sculpting, making it a versatile choice for any patch.

Power consumption: 30mA at +12V and 47mA at -12V

Depth: 27mm

6 HP

Notes: PERC features 256 percussion sounds with tight attacks and a bright harmonic spectrum. This collection is specifically focused on shorter percussive samples and includes material such as multi-layer drum & percussion hits, chopped & processed loops, synthesized FM strikes, mallet and bell tones, sampled drum machines, various toms and hand drums, obscure noise boxes, sampled old-school game chips and much more. PERC makes full use of ONE's snappy character.

All samples on the card are available for playback at 48k, 64k and 96k for maximum versatility in pitch control while maintaining latencies of as low as 0.25 ms.

Design by: Glitchmachines
Type: One Shot
Character: Percussive

Only compatible with the Tiptop Audio One Digital Audio Flux Eurorack Module.

Notes: ZVERB is a collection of all new reverb algorithms developed by Tiptop ranging from typical reverbs to more complex effects that combine delay and pitch shifting with reverb. The effects are grouped by decades based on either the era an algorithm was introduced or the time when the effect was most popular. This variety of reverbs covers small to epic size spaces with the addition of shimmering, feedback tunnelled pitch shifting, tape delay drivers, gated reverbs and a lot more. Analog clocking of the DSP chip and CV over the parameters enables even more experimentation. This is a collection inspired by the best from the past right at your fingertips.

Notes: The Z8000 Matrix Sequencer is a modulation source like no other: The 16 knobs of the Z8000 are accessed by ten sequencers with their own clock, direction and reset inputs. The ten sequencers are as follows:

Four 4 step CV sequencers on the horizontal.
Four 4 step CV sequencers on the vertical.
One 16 step CV sequencer on the horizontal.
One 16 step CV sequencer on the vertical.

The Z8000 can simultaneously modulate up to 10 CV parameters poly-rhythmically, with unprecedented motion complexity. One knob affects all 10 CV outputs! Imagine modifying 10 parameters from one knob. With its 30 gate and clock inputs and 10 CV outputs one can only imagine the possibilities, and all clock inputs can even be driven at audio rates! The Z8000 pairs well with the Trigger Riot and Circadian Rhythms and using it with the QuantiZer extends its capabilities as a high-precision 1V/Oct note sequencer.

Introduced in 2017, a new version of the Z8000 maintains the original circuitry but adds output range adjustment switches on the back and Tiptop's new colored look, which helps highlight the sections, on the front.

Size: 28HP
Depth: 15mm
Power: +12V 70ma / -12V 10ma

Notes: The Z4000 NS is a snappy voltage-controlled analog envelope generator with a built-in CV processor for scaling, inverting, and voltage-controlled deviating of the envelope shape. The Z4000 generates an envelope made of the four classic segments: Attack, Decay, Sustain and Release, in which each segment can be manually set using knobs or dynamically set under voltage control.

Control knobs for the Attack, Decay, and Release segments are scaled. The first 0-50% of the knobs rotation is dedicated to high resolution adjustment in the millisecond range.

The output levels are fully adjustable with signals that can reach up to 10V in either polarity and can be mirrored into the opposite polarity or clipped using the voltage-controlled deviater-scaler. A bi-color LED indicates intermediate values in both polarities and their crossfade state.

The Attack slope switch allows selection of a logarithmic or exponential curve for the Attack segment. This subtle effect helps further the fine adjustment of the Attack segment slope. A Shoot button is provided to let you fire the envelope manually. The Z4000 also provides a retrigger input allowing you to create legato notes when using a classic keyboard interface.

Going down to nuts and bolts, the Z4000's smoothness and snappiness is made possible by a four segment active-charge discrete circuit which is an extended version of circuits found in classic two segment rise / fall transient generators.

Size: 8HP
Depth: 28mm
Power: +12V 34ma / -12V 18ma

Notes: Tiptop Audio's Z-DSP is a cartridge-based open source digital sound processing and effects generating platform for your modular synthesizer. Lush audio processing, greater stereo depth and a unique set of digital synthesis is what the Z-DSP is all about.

The Z-DSP has a stereo digital sound processor with 24-bit sampling, 15kHz of bandwidth, voltage-controlled parameters of stereo feedback, program switching, DSP parameters, equal power crossfading dry/wet mixing, as well as sequential program control switching and a clear display - all in Eurorack format. A dedicated clocking input for the DSP chip does wonders to passing sound by bending the algorithms in an unexpected way, a hardware technique computer plugins can't do and is unique to the Z-DSP.

In a recent update, the Z-DSP (NS) got an all new design of its analogue circuitry, contributing to a lower noise signal path, clearer sound of the entire frequency range, lower distortion and better immunity to noise emitted by other modules sharing the same power supply. A new analogue dry/wet circuit has been implemented to remove the 3db gain drop when the mix knob passes through the centre of the dial making the use of this function more practical in a live application. A reverse polarity protection has been added as well. The new front-panel matches Tiptop's colourful design, and a single printed circuit board and surface mount technology improve reliability during production and use. The powerful Z-DSP engine remains the same as the original Z-DSP module and all cards are compatible across both versions.

An assortment of interchangeable cards, programmed by Tiptop Audio and specialists like Valhalla DSP, provide a wide range of boutique effects algorithms such as Halls of Valhalla, Time Fabric, Clocked Delays and Grain De Folie. Tiptop Audio also offers blank Z-DSP cartridges and a development tool called NumberZ for developers, students and power users who want to design their own effects and cards with the FV-1 DSP chip programming language. Blank cards can be loaded using programs that are freely available for non-commercial use and can be found in the modular community through online forums. With each card swap, the Z-DSP takes on new effect algorithms, changing like a digital chameleon and bringing colourful digital effects processing to your Eurorack setup.

The Z-DSP comes included with 2 cards: Halls of Valhalla and Dragonfly Delay MKII.

Notes: Tiptop Audio's Z-DSP is a cartridge-based open source digital sound processing and effects generating platform for your modular synthesizer. Lush audio processing, greater stereo depth and a unique set of digital synthesis is what the Z-DSP is all about.

The Z-DSP has a stereo digital sound processor with 24-bit sampling, 15kHz of bandwidth, voltage-controlled parameters of stereo feedback, program switching, DSP parameters, equal power crossfading dry/wet mixing, as well as sequential program control switching and a clear display - all in Eurorack format. A dedicated clocking input for the DSP chip does wonders to passing sound by bending the algorithms in an unexpected way, a hardware technique computer plugins can't do and is unique to the Z-DSP.

In a recent update, the Z-DSP (NS) got an all new design of its analogue circuitry, contributing to a lower noise signal path, clearer sound of the entire frequency range, lower distortion and better immunity to noise emitted by other modules sharing the same power supply. A new analogue dry/wet circuit has been implemented to remove the 3db gain drop when the mix knob passes through the centre of the dial making the use of this function more practical in a live application. A reverse polarity protection has been added as well. The new front-panel matches Tiptop's colourful design, and a single printed circuit board and surface mount technology improve reliability during production and use. The powerful Z-DSP engine remains the same as the original Z-DSP module and all cards are compatible across both versions.

Notes: WAYOUT8 is a patchbay module for Eurorack systems used to group your DAW inputs and outputs, or manage signals going from one case to another. Wayout8 is grounded, meaning that even if nothing is plugged into the inputs your outputs are still grounded and will not pick up noise. The module is made so it can be mounted two ways, with outputs on the left or right, whichever is the most ergonomic placement in your case. All eight channels are passive so they do not modify your signals and can be used for audio and CV Gate. No power is required.

Size: 6HP
Depth: 10mm
No Power Required

Notes: Vortex 6 us a polyphonic 6-voice wavetable oscillator inspired by the hardware design and sound of the PPG Wave 2.2, and it is the only oscillator of this type that uses true 8-bit vintage audio converters from the '80s. Dozens of wavetables are provided internally, and user tables can be loaded via an SD card. VORTEX6 has built-in vibrato, glide, and six wavetable-scrolling envelopes, all with CV. The ART-in jack and a built-in voice manager take care of incoming notes and distribute them to audio, gate, and velocity outsieither through per-voice 3.5mm jacks or the Polytip jacks. Together with OCTOPUS, one or more OCTOSTAGES, OCTOPASS, and OCTOGAIN, along with a few Polytip patch cables, it forms the world's first complete six-voice polyphonic modular synth. Alternatively, VORTEX6 can be patched to discrete mono modules or use its voice mix-out for paraphonic soundscapes with up to 12 oscillators in detune mode.

Size: 20HP - Depth: 40mm

Power: +12V 190mA / -12V 50mA

Notes: Introducing the TOMS909, the warmth of the classic, all-analogue, punchy tom-toms from the TR-909 drum machine. The TOMS909 contains all three of the TR-909's original LOW, MID and HIGH tom-tom circuits adapted for use in the modular format. The module was designed to sound like a fresh machine coming off the assembly line back in the 80's. To add flavour to the beast, Tiptop have extended each tom's tuning range so it's easier to dial soft bass drums on the low end and high-pitched toms on the other.

The toms circuitry is made up of 9 triangle oscillators and a stack of filters, VCAs, and envelopes which, in total, took about half of the space on the original 909's circuit board. Utilizing the latest in electronic design technology, Tiptop have managed to squeeze this enormous circuit, consisting of more than 450 components, into an area only 16HP wide. It is a beautiful board with hundreds of tiny, shiny components: it's a little analogue jewel.

Each tom includes a trigger and accent input with accent level control, manual tune, voltage-control tune input with attenuator and independent audio out. In addition, a MIX out is available that sums all three toms together as well as access to the MIXZ MixBus on the back. On each gate input, Tiptop have designed a dual pulse-shaper circuit so you can trigger your TOMS909 with trigger/gate signals from sequencers or any other pulse/clock sources.

TR-909 is a Trademark of Roland Corp Japan

Size: 16HP
Depth: 51mm
Power: +12V 120ma / -12V 100ma

Notes: The S1 is a promotional bundle that Tiptop Audio is offering to users, providing a 33% savings to get you started with ART. With these bundles, this incredible voice is included: the big, beefy 3 VCO stack. The bundles come in two options: Bundle S1, which uses the ART V/OCT Quantizer as a controller, and Bundle S2, which uses Octopus as a controller. In addition to the controllers, there are three ATX1 analogue oscillators, MIX7 for mixing them with plenty of headroom, and followed by the beloved 4-pole Z2040 filter that has been with TipTop since day one; it just sounds so good. Finally, we end up with Control Path dual envelope plus VCA dynamics modules. This special price is time limited and while supplies last.

ART QUAD QUANTIZER is a four channel CV to ART Quantizer to play ART oscillators from CV sequencers, LFOs and anything that outputs CV. This is Tiptop's second ART controller option and is designed for those of us playing ART without a computer or MIDI source. The inputs take in positive, negative, bipolar CV voltages. Scales include Major Minor and the five other modes (Dorian, Lydian, etc). The module is simple to set up with a simple menu and one knob with switch for navigation. The 4th channel can be set to generate Chords and polyphonic note streams for ART Polyphonic oscillators.

Size: 8HP - Depth: 40mm / 1.5"
Power: +12V 38mA / -12V 4mA

ATX1: a classic all analogue saw VCO core with 3 switchable modes, ART, 1V/Oct, LFO and is recommended as the basic building block for ART systems. It is designed for patching analogue polyphonic synths from discrete modules or multi-mono patches in ART mode. When using ART the ATX1 takes care of the tuning including accounting for temperature changes. In 1V/Oct mode the ATX1 runs as a standard old school modular VCO. LFO mode drops the frequency range and is great for patching vibrato to other ATX1s among other things. The ATX1 outputs variable waveshapes with manual or CV control. Classic FM, PWM and hard sync are provided. A dedicated Gate Out in ART mode manages the voice envelopes or any modulation synced to that voice. TipTop consider the ATX1 the best sounding analogue VCO they have ever created.

Size: 8HP - Depth: 40mm / 1.5"
Power: +12V 105mA / -12V 33mA

MIX7 is a seven channel analogue summing mixer module for Eurorack. It is designed for summing any of the different types of signals you'll find in a modular system: Audio, CV, Triggers, or Gate.

MIX7 gives ability to sweeten your mix with more headroom using the power of low noise analogue summing. A compact 3HP Eurorack utility module, MIX7 is an attractive mixing addition to any rig, especially with the ability to also combine rhythms, note patterns or CV automations from different control sources. The main output of one section can be connected to the input of another MIX7 to create larger mixing groups and complex signal routes inside your modular.

The MIX7 summing mixing circuit is built with low-noise operational amplifiers, giving it an excellent sound quality for mixing audio, the beautiful texture of classic analogue mixing with plenty of headroom to handle hot modular signals, and the versatility to sum non-audio signals in your system to open up new creative possibilities.

Each input is labelled with a number of dots, 1-7, yellow for input and green for output. The module matches Tiptop's system look with clean white faceplate styling.

At the back of the module is a user-configurable jumper allowing users to configure the MIX7 for either unity gain (OUT = IN) or give increased headroom (OUT = 0.4IN) for use with hot audio signals, which makes it a great pairing for Tiptop Audio percussive modules. A peak indicator light on the front panel warns the user of even the slightest audio clipping in the mix, helping to keep all the incoming sound sources at their full original quality.

Size: 3HP - Depth: 43mm - Power: +12V 25ma / -12V 20ma

CONTROL PATH is an all in one voice dynamics module that helps build full voices quickly. It contains two analogue envelopes with velocity cv, and one VCA. In a typical voice patch the left envelope will control a filter and the right envelope will be the voice VCA. Velocity control is provided for each envelope and delay front panel trimmers are used to compensate for any miss match between incoming gate signal and velocity CV timings. Envelope cv outs are 0-5V, Velocity cv ins are 0-5V.

Size: 8HP - Depth: 40mm / 1.5"
Power: +12V 50mA / -12V 55mA

The Z2040 is TipTop's redesign of the most famous analogue filter from the polysynths of the 80's and features Tiptop Audio's signature lush, big, and creamy sound. Its frequency sweeps make thick bass lines and leads with great dynamics. When modulated with audio frequencies through its various inputs, the Z2040 gets quite colourful and is capable of creating many new sounds and textures as the forces of the incoming waves and their harmonics blend through the filter's non-linear circuit. When set with Resonance feedback fully up, the Z2040 transforms into a pure sine-core VC-Oscillator, great for making snappy percussive elements and whistling sounds.

A look under the hood will find that the heart of the Z2040 is a discrete design 4-pole low pass filter with a core similar to that of the SSM2040 filter chip, used in the 80's Prophet 5 Rev 2 synthesizer, and its brother the SSM2044, used in the famous early EMU samplers and PPG synthesizers of the 80's. Both filters are considered by many to be, "the best sounding filter ever".

The Z2040's four modulation inputs are built to handle CV and audio signals, enabling deep modulation of the filter core and passing signals. A VC resonance input is provided to modulate and even clip the sine wave produced by the filter feedback loop. A Frequency Modulation input (FM) provides dynamic filter sweeps and the unique VC-FM index allows modulation of the incoming FM signals. On top of that, the Z2040 comes with an audio VCA that can be configured to act upon the input or the output of the filter.

Size: 8HP - Depth: 42mm - Power: +12V 20ma / -12V 20ma

Notes: The SD909 adapts the iconic TR-909 snare drum and noise generator for use in the Eurorack modular synthesizer format. Tiptop painstakingly tested the module in their lab to sound like a fresh machine coming off of the assembly line back in the 80s. On top of the original circuit, Tiptop have added new features that expand the palette of what can be produced with this analogue circuit.

The sound of the SD909 consists of two main sections: the binary noise generator and two modulated triangle oscillators. The oscillators provide the low end punch while the noise makes up the upper sonic spectrum, resulting in a combination that makes the 909 snare sound so rich. In the SD909 module, the noise generator and oscillators are variable and voltage-controllable, pushing the circuit beyond its original boundaries, offering new sounds and many variations of the original tone. The panel also has markings to guide setting the knobs to reproduce the vintage snare sound of the original machine.

Just like the other drums in this series, the SD909's high-powered output gain stage allows further enhancement of the sound through distortion and clipping. Tiptop have designed a dual pulse-shaper circuit on each gate input so you can trigger your SD909 with Trigger/Gate signals from step sequencers, clock dividers, or any other pulse/clock sources. Also, the SD909 is equipped with access to the MIXZ MixBus, matching the rest of the Tiptop line of percussive modules.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 46mm
Power: +12V 35ma / -12V 30ma

Notes: The RS808 is a Eurorack module that brings the TR-808's analogue Rimshot and Claves sounds to your modular drum machine at a low cost. It offers the classic sounds plus two unique snappy "click" variations. Two control knobs, labeled Pitch and Snap, adjust the oscillator frequency and envelope decay, providing greater sound variation and control.

The RS808 faithfully reproduces the original 1980s TR-808 circuit and includes a high-powered gain stage for hot, distortable signals. It features a dual input pulse-shaper for stable triggering from various pulse sources. These enhancements make the RS808 an easy and powerful addition to any modular synth setup, delivering authentic analogue drum sounds.

TR-808 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 14mm
Power: +12V 14ma / -12V 13ma

Notes: The Octovert is a CV processor capable of scaling, inverting, and offsetting up to eight polyphonic signals. It can also be externally controlled via CV! Its most obvious applications include inverting envelopes, reversing the direction of CV, and scaling plus offsetting any CV source to precisely fine-tune the modulation sweet spot of the target module. With the added feature of external control, it takes things even further by modulating the modulation signal itself for even deeper modulation motion.

Size: 6HP - Depth: 40mm

Power: +12V 18mA / -12V 15mA

Notes: Part of TipTop's polyphonic range, the Octostages is based on the envelope circuits from the legendary Oberheim OB-X. Eight fully analogue envelopes with shared ADSR controls.

Supplier's Notes:
Octostages is an eight voice fully analogue envelope generator made with the original envelopes of the 1979 OBX. Each of the eight envelopes feature a Gate in, Envelope OUT, Velocity CV in and Attack CV in control as well as an output led indicator. A master output level knob and CV using standard mono jack are provided to control or modulate all envelope output levels globally. As there are eight EGs in the module special attention has been given for power consumption efficiency.

Size: 20HP - Depth: 40mm
Power: +12V 185mA / -12V 165mA

Notes: OCTOPUS is a powerhouse ART controller that takes MIDI in via the USB or DIN connector and outputs 8 ART channels with 8 velocity CV plus 8 drum triggers. Together with the ART oscillators the OCTOPUS provide unprecedented simplicity connecting the modular to your computer sequencers, hardware midi sequencers and keyboards. Each ART channel can play polyphonic notes, monophonic notes or create multi-channel polyphony using an internal voice manager. All together OCTOPUS can play more voices and notes from a single controller than ever was possible in modular. Using ART high speed control signals OCTOPUS can maintain low jitter for tight timing.

Please note, OCTOPUS is not a 1V/Oct midi to CV and should not be confused as one.

Size: 18HP - Depth: 40mm / 1.5"
Power: +12V 140mA / -12V 100mA

Notes: OCTOPASS is an eight voice 24db/octave low pass filter based on the classic 2044 filter. All eight filters are fully analogue with gain compensation of resonance and the lovely lush sound of classic synths. A global frequency modulation CV using a 3.5mm jack can be used to modulate all eight incoming CVs of the Polytip jack. The typical use is to patch polyphonic synthesisers with the use of only a few Polytip patch cables for its audio ins and outs and its cut-off frequency controls. To tap each filter I/O or CV using discrete modules the OCTO I/O module can be used as an expander. As there are eight filters in the module special attention has been given to power consumption efficiency.

Size: 20HP

Notes: Octogain is a eight voice polyphonic analogue audio VCA plus a eight voice mixer with master level control and odd/even (Right and Left) channels for a stereo output and clipping indicator. All eight VCA ins and outs are simultaneously available through Polytip jacks and 3.5mm jacks so the module can be used in a variety of ways both polyphonic or multi-voice monophonic. The fully analogue audio path has exponential CV control. CV inputs are 0-5V, typical audio input is 10Vp.p. A global Offset knob allow to open all VCAs manually or apply positive offset to incoming CV. The design uses very low power consumption with excellent audio quality.

Size: 16HP - Depth: 40mm
Power: +12V 42mA / -12V 35mA

Notes: Octo I/O is a bi-directional passive Polytip to 3.5mm expander and a Polytip Mult. The expander section lets you break out to each individual voice from a polyphonic module. The mult section lets you mult Polytip polyphonic signals from one source to multiple destinations. For example patching the OCTOSTAGES envelopes to control both your OCTOPASS filters and HEXAGAIN VCAs.

Dimensions:

6HP - Depth: 15mm

Current Draw:

Module does not draw current

Notes: MIXZ is a multi-channel mixing module for mixing audio, CV, and gate signals with excellent linear response and low noise. Balancing a clear visual layout and multiple mixers in a small footprint makes the MIXZ easy to use in a variety of configurations within a modular synth. Its high-quality analog mixing circuitry makes for a great sounding mixer with plenty of headroom, providing a smooth, organic merge of dynamics and excellent separation of mixing sections and channels. MIXZ has three sections:

Mixer A: a low-noise, 4-channel mixer with independent gain control for each channel.
Mixer B: a low- noise, 4-channel mixer with master gain control.
MixBus: a multi-channel mixer that mixes signals from modules utilizing the Tiptop MixBus.

Mixer A and B can be configured as either two independent, 4-channel mixers or as a single 8-channel mixer. If the output of Mixer A is not in use, then Mixer A will be routed internally to Mixer B forming the 8-channel mixer.

Tiptop MixBus is a new method we have developed to mix audio signals through the Eurorack power bus board without patch cables. A little bit of magic, eh? Although this technique is not ideal for a low-noise mix, we found it to be useful for some applications, including mixing our drum modules, which all have a MixBus-enabled output. The result is that your drum modules are always available and mixed on the master out of the MIXZ with a flip of a switch. This will save you time and frees up cables for repatching sound again and again, while keeping the channels of MIXZ free to bring other signals into the mix.

Combining the MixBus with Mixer A and B, the MIXZ sums dozens of channels in only 10HP.

Dimensions:
10 HP
36 mm deep

Current draw:
14 mA +12V
14 mA -12V

Notes: The MA808 is a Eurorack module that recreates the TR-808's analogue Maracas drum voice and white noise generator at a low cost, expanding your Tiptop Audio modular drum machine. It features a fluffy, harmonically rich sound that enhances Hi-Hats dynamics. The Attack control knob allows adjustments from sharp Hi-Hat to slow-rise Maracas, with a marker for the original 808 setting.

The MA808 also includes the 808's continuous analogue white noise generator, ideal for creating custom drum sounds or general white noise use. It faithfully reproduces the original 1980s circuit and includes a high-powered gain stage for hot, distortable signals. The dual input pulse-shaper ensures stable triggering from various pulse sources, making the MA808 an easy and powerful addition to any modular synth setup.

TR-808 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 14mm
Power: +12V 16ma / -12V 14ma

Notes: The M module is a 5-way Polytip signal multiplier. It takes a single polyphonic audio, CV, or gate signal set and routes it to up to five multiple outputs. The module is completely passive and requires no power. Like all Polytip jacks on Tiptop Audio modules, the jacks on the M module are top-quality components made in Japan.

Size: 4HP - Depth: 15mm

Power: no power required

Notes: Introducing the HATS909, part of TipTop's new series of drum modules that brings those classic percussion sounds into the modular synth world, instantly turning your system into a self-contained music machine.

The HATS909 is the TR-909's original Closed and Open Hi-Hats circuits adapted for use in Eurorack modular synthesizer format and was designed to sound like a machine coming fresh off the assembly line back in the 80's. Improving on the original, TipTop have added some great new features that expand the sound palette that can be produced with this small, powerful module.

The original TR-909 circuit is made with a combination of low-fi sound samples that pass through a series of analogue elements to provide envelope and filtering to the source sound. The HATS909 module allows for manual and voltage control of the sample's tuning, which provides anything from crushed hats and short ticks to the original sound and anything between. Additional controls allow you to send a voltage control signal to either the tune input or the internal VCA for modulation with external control signals and, using a modulation switch, add AM or FM synthesis in the audio range from external oscillators, other drum sounds, or just about any other sound source. Lastly, HATS909 also offers a switch that allows you to tap directly into the raw output of the module for a unique sound source that can used throughout your system.

Just like the other drums in this series, the HATS909 high-powered output gain stage allows you to further harmonize the sound through distortion and clipping. On each gate input, Tiptop have designed a dual pulse-shaper circuit so you can trigger your HATS909 with trigger/gate signals from step sequencers, clock dividers, or any other pulse/clock sources.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 36mm
Power: +12V 33ma / -12V 22ma

Notes: Introducing the HATS808, a drum module that brings the classic TR-808 closed and open hi-hat sounds to the Eurorack modular synth format. This module includes features like independent accent levels, a high-powered gain stage, dual input pulse-shaper, and adjustable Filter Q and VC-Q knobs for additional tuning.
The HATS808 uses six analogue square wave oscillators to create its signature sizzling sound, maintaining the unique metallic character of the original. The original "choke" circuitry is fully implemented but can be disabled if needed. The high-powered gain stage allows for further sound harmonization through distortion and clipping. The dual pulse-shaper circuit ensures consistent sound quality from any pulse source, making the HATS808 an easy and powerful addition to any modular synth setup.

TR-808 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 14mm
Power: +12V 30ma / -12V 25ma

Notes: Introducing the CYMBL909, part of Tiptop's new series of drum modules that brings those classic percussion sounds into the modular synth world, instantly turning your system into a self-contained music machine.

CYMBL909 is a dual voice module containing the TR-909's original Crash and Ride circuits adapted for use in Eurorack modular synthesizer format and was designed to sound like a fresh machine coming out of the assembly line back in the 80's. On top of the original, Tiptop have added some great new features that expand the sound palette of what can be produced with these two voice circuits.

The original circuits use a combination of low-fi 6-bit sound samples that pass through a series of analogue elements that provide envelope and filtering to the source sound. The CYMBL909 module adds manual and voltage control of the sample's analogue tuning section creating tones which range from heavy industrial at the low end, to the original crash/ride sound at the mid range, and bright hats-like sounds at the top end. Modulating the tune with an envelope, CV sequencer, or LFO makes interesting sound bending effects, which can be applied either in or out of sync with the triggering of the sounds.

Just like the other drums in this series, the CYMBL909 high-powered output gain stage allows you to further enhance the sound through distortion and clipping. Tiptop have designed a dual pulse-shaper circuit on each gate input so you can trigger your CYMBL909 with trigger/gate signals from step sequencers, clock dividers or any other pulse/clock.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 46mm
Power: +12V 60ma / -12V 40ma

Notes: The CP909 is the TR-909's analogue clap sound generator in Eurorack format. This is yet another low-cost analogue drum generator from a legendary drum machine in your modular synthesizer, expanding your Tiptop Audio modular drum machine even further.

The CP909 is an exact reproduction of the original analogue circuit and with the addition of just one extra knob, "trashing" the frequency of the internal noise generator, Tiptop have added greatly to the spectrum of sounds that can be generated. All that without compromising the signature sound of the TR-909.

The CP909 clap effect is made by a special triple-saw envelope generator that controls the gain of a VCA. The sound source feeding into the VCA is made by a quasi-random logic- based noise generator. Some might call it "digital noise", though this term might be misleading in today's world of microcontrollers and sound samples. What really makes the noise generator is a ring of logic gates, so primitive, so 80s, and so much the sound of the 909 Clap!

The CP909 includes a high-powered output gain stage capable of producing hot signals. On the inputs, Tiptop have designed a pulse-shaper circuit so you can trigger the CP909 with trigger/gate signals from step sequencers, clocks, dividers, or any other pulse/clock sources. This eliminates the need to shape pulses sent to the module and ensures the same stable sound at peak power, regardless of your pulse source. Based on the architecture of the 909, the Accent input is versatile and able to take in both CV and Gate signals for continuously changing dynamics. All these unique features make integrating this legendary sound generator into your modular synth easy, unleashing the power of real analogue drums.

TR-909 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 36mm
Power: +12V 6ma / -12V 10ma

Notes: CONTROL PATH is an all in one voice dynamics module that helps build full voices quickly. It contains two analogue envelopes with velocity cv, and one VCA. In a typical voice patch the left envelope will control a filter and the right envelope will be the voice VCA. Velocity control is provided for each envelope and delay front panel trimmers are used to compensate for any miss match between incoming gate signal and velocity CV timings. Envelope cv outs are 0-5V, Velocity cv ins are 0-5V.

Size: 8HP - Depth: 40mm / 1.5"
Power: +12V 50mA / -12V 55mA

Notes: The Circadian Rhythms is moving modular synthesizer technology another step forward by gluing all the pieces of a system together. Each module or voice can now be programmed to play straight from an intelligent, eight-channel, 512-step master trigger sequencer made for composers looking to make music on the modular. Building on the sequencing concept of step programing multi-channel patterns of musical phrases can be repeated, looped, chained, muted and manipulated on the fly in real-time, and most importantly, all of this is done through a simple, clearly labeled interface. Using an array of multicolor illuminated buttons and innovative grid views provides a highly functional live performance sequencer with a beautiful glowing appearance of the programmed music that will look amazing on stage for both performer and crowd. As a master controller, the heart of the modular synthesizer, Circadian Rhythms generates high precision clock and reset signals for all the other sequencers and devices in the system to align with and can also act as a high precision bridge for DAW synchronization.

Views - Unlike most hardware sequencers that have a single static display of a timeline, Circadian Rhythms offers four different horizontal views of the timeline and two unique vertical views that scale from macro to micro. Switch between viewing 64 steps at once or all 8 channels side by side instantly. Stretch gates over multiple patterns to drive envelopes or use Zoom view to move a single hit back a few milliseconds in time to get the right feel all from the same interface.

LED Grid Built for Quick Access - Built around 72 buttons set as a multi-color illuminated 8x9 array, Circadian Rhythms displays both note data and settings in a clear and precise manner. It takes only one click to switch to vertical view and the grid turns into a set of programming and realtime playing functions like Mutes, Loops, Swing, Fills, Copy and Pate, Grouping, Randomizing, Manual trigger entry drum machine style and many many more. Activate any of those functions with only a button press or two.

Clock - Inside the CR ticks an extremely precise clock with jitter and latency measured in mere microseconds for the ultimate feel of groove. The four modes of clock sync make interfacing with other modules, hardware or software simple. Whether driving a large Eurorack system or synced to a DAW, the groove always remains tight.

SyncBus Technology - The Tiptop Audio designed SyncBus enables the CR to connect to any number of other SyncBus devices with the highest possible level of synchronization. A SyncBus master directly injects its core clock and running status into every connected unit so they work seamlessly as one device. Hook up two CRs to make a 16 channel device or add a Trigger Riot (or three) to the mix for further experimentation. Plus, the connection is done behind the panel so no need to patch anything together.

Under The Hood - When state of the art chip technology, musically driven firmware, and professionally engineered hardware design all come together in one electronic device, the result is a music sequencer with unparalleled specifications. Starting with a powerful, precise sequencing engine that has superb feel for the groove, add internal functions that automatically balance performance and smooth user interface operation, and finish with outstanding low power consumption placing minimal stress on power supplies even at maximum output, Circadian Rhythms has a design focused on the requirements of the most dedicated musicians and composers. Long time pros will immediately feel a machine made for their needs, while the newcomers can instantly dive into next level programming and performance.

Notes: The Circadian Rhythms, is a professional performance gate sequencer in Eurorack format. Sitting at the centre of your system the Circadian provides triggers and gates to all your drum modules and percussive sounds as well as clocking your other sequencers with exceptional timing accuracy. Each channel voice can be programmed directly from the intelligent, eight-channel, 512-step master gate sequencer designed for composers looking to make music on the modular and perform live. Building up from basic step programming, multi-channel patterns of musical phrases can be repeated, looped, chained, muted, and manipulated in real-time, and, most importantly, all through a simple, clearly labelled menu-free interface.

Led Grid

Built around 72 buttons set as a multi-colour illuminated 8×9 array, Circadian Rhythms displays both note data and settings in a clear and precise manner. It takes only one click to switch to vertical view, turning the grid into a set of programming and real-time playing functions like Mutes, Loops, Swing, Fills, Copy and Paste, Grouping, Randomizing, and Manual drum-machine-style trigger entry. Activate any of those functions with only a button press or two. Using an array of multi-colour, illuminated buttons and innovative grid views provides a highly functional live performance sequencer with a beautiful, glowing appearance that will look amazing on stage for both performer and crowd. As a master controller, the heart of the modular synthesizer, the Circadian Rhythms generates high precision clock and reset signals for all the other sequencers and devices in the system and can also act as a high precision bridge for DAW synchronization.

Clock

Inside the CR ticks an extremely precise clock with jitter and latency measured in mere microseconds for the ultimate feel of the groove. The four modes of clock sync make interfacing with other modules, hardware, or software simple. Whether driving a large Eurorack system or synced to a DAW, the groove always remains tight.

Under the Hood

When state of the art chip technology, musically driven firmware, and professionally engineered hardware design all come together in one electronic device, the result is a music sequencer with unparalleled specifications. Starting with a powerful, precise sequencing engine that has superb feel for the groove, add internal functions that automatically balance performance and smooth user interface operation, and finish with outstanding low power consumption placing minimal stress on power supplies even at maximum output, Circadian Rhythms has a design focused on the requirements of the most dedicated musicians and composers. Long-time pros will immediately feel a machine made for their needs, while newcomers can instantly dive into next-level programming and performance.

SyncBus Technology

The Tiptop-Audio-designed SyncBus enables the CR to connect to any number of other SyncBus devices with the highest possible level of synchronization. A SyncBus master directly injects its core clock and running status into every connected unit so they work seamlessly as one device. Hook up two CRs to make a 16 channel device or add a Trigger Riot (or three) to the mix for further experimentation. Plus, the connection is done behind the panel so there is no need to patch anything together.

Size: 36HP
Depth: 29.4mm
Power: +12V 160ma / -12V 0ma / +5v 0ma

Notes: Reverse-engineered from the original machine, the BD909 is an identical recreation of the original all-analogue drum circuit of the TR-909. Tiptop have added additional controls and synthesis features that turn this classic circuit into a chest-pounding analog bass drum laboratory - all tightly packed into an 8HP module. The BD909 sound differs from the BD808 in that the main sonic energy is centered in the mid to low frequency range (as opposed to the low frequency range of the BD808). This frequency range gives the needed headroom allowing your bass lines to deeply fill up the low end while the kick drum rides on top - creating a clear and punchy mix.

The BD909 includes all the controls found in the original: Attack, Decay, Tune Decay, Accent, and Level. Tiptop have gone beyond that and added controls that further increase the palette of sound this circuit is capable of. First off, a tuning control knob has been added for the oscillator and included its own CV input and attenuator that let you tune the 909 kick with your bass lines. Next, control knobs have been added for the tuning attack and extending tuning decay. Each one affects the other, allowing for intuitive and interactive sound shaping, opening Z8000 up numerous "sweet spots" and provides the ability to center the energy peak at different parts of the sound. Finally, Tiptop have offered additional punch and distortion by giving complete control over the internal waveshaper, which allows you to overload the waveform manually or with voltage control.

Beginning with the classic and pure sound of the 909 kick, these additional functions greatly expand the BD909's flexibility and let it create powerful analogue bass drums that range from soft and smooth to punchy and aggressive - and everything in between.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 36mm
Power: +12V 34ma / -12V 21ma

Notes: Introducing the BD808, part of TipTop's new drum module series that brings the iconic analogue percussion of the Roland TR-808 into the modular synth world. This compact, minimalist module is cost-effective due to modern production methods, reviving the renowned bass drum sound.

The BD808 adapts the TR-808's Bass Drum circuit for Eurorack format, retaining the classic 80's sound while adding new features. These include an independent Accent level, a high-powered gain stage, dual input pulse-shaper, and extended decay. The integrated high-powered gain stage can produce signals up to 20Vpp, allowing for a range of harmonized bass drum sounds from sharp attacks to distorted tones. The dual pulse-shaper circuit ensures stable sound from various pulse sources, making integration into your modular setup seamless. These enhancements unleash the power of true analog drums, delivering impactful bass sounds.

TR-808 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 14mm
Power: +12V 13ma / -12V 6ma

Notes: A classic all analogue saw VCO core with 3 switchable modes, ART, 1V/Oct, LFO and is recommended as the basic building block for ART systems. It is designed for patching analog polyphonic synths from discrete modules or multi-mono patches in ART mode. When using ART the ATX1 takes care of the tuning including accounting for temperature changes. In 1V/Oct mode the ATX1 runs as a standard old school modular VCO. LFO mode drops the frequency range and is great for patching vibrato to other ATX1s among other things. The ATX1 outputs variable waveshapes with manual or CV control. Classic FM, PWM and hard sync are provided. A dedicated Gate Out in ART mode manages the voice envelopes or any modulation synced to that voice. TipTop consider the ATX1 the best sounding analogue VCO they have ever created.

Size: 8HP - Depth: 40mm / 1.5"

Power: +12V 105mA / -12V 33mA

Notes: A deep, comprehensive digital LFO offering 16 waveforms, sync, built-in VCA and more. All made even more powerful by the fact you can control every parameter via dedicated CV inputs.

Supplier's Notes:
Fully voltage controllable Eurorack format, externally syncable, 16 waveform low frequency oscillator with built-in VCA and sample & hold.

Powered by a socketed VCLFO10 IC from Electric Druid.

The core idea behind this module is all about control voltage. Hence all features are individually broken out to CV inputs, making the most use possible of the benefits of the digital wavetable oscillator. This means that the design is geared towards allowing hands-off control of all aspects and some concessions have been made to that effect.

Initial setup basically consists of connecting the power cable to the module and your bus. The cable has a slotted socket for correct orientation, but mind that the red stripe faces the white line on the edge of the pcb. The included screws are nylon in order to minimise rack-rash.

Tuning the module is possible by adjusting the small smd trim potentiometer on the back. It adjusts the offset voltage that affects the center point of the lfo oscillations. It should be close to its three o'clock position, but you can adjust it by turning the module on, reducing the output level to almost zero and turning the trim potentiometer until you find the point where the gate output led just barely turns off.

The LFO sync type is hard sync, meaning that it resets the current cycle to the beginning of the waveform. It does not control the duration of the cycles. This allows you to further shape the output to, say, three quarters of a sinewave by using external sync and adjusting the HZ knob so the duration of a cycle is just a little longer than the time between incoming sync pulses.

Color coded nuts indicate the type of jack, with gold representing Gate/Trigger input, black is +-5v CV inputs and red jacks are outputs.

The CV inputs are scaled down to +-2.5v and added/subtracted with the knob setting, meaning that to sweep the full range of the parameter with CV, the knob should be in center position. The inputs are clipped to the allowed range after mixing, so you can apply any eurorack voltage here.

The module's core processor is socketed, so using a simple PIC programmer and some basic Assembly knowledge you can modify its functionality to suit your needs.

The code is written by Electric Druid who supplies the chips preprogrammed.

Height: 3U (128.5mm)
Width: 12hp (60.6mm)
Depth from panel: 31mm
Depth total: 51mm

+12v: 80mA
-12v: 60mA

Notes: The core idea behind this module is all about control voltage. Hence all features are individually broken out to CV inputs, making the most use possible of the benefits of the digital wavetable oscillator. This means that the design is geared towards allowing hands-off control of all aspects and some concessions have been made to that effect.

Initial setup basically consists of connecting the power cable to the module and your bus. The cable has a slotted socket for correct orientation, but mind that the red stripe faces the white line on the edge of the PCB. The included screws are nylon in order to minimise rack-rash.

Tuning the module is possible by adjusting the small SMD trim potentiometer on the back. It adjusts the offset voltage that affects the centre point of the LFO oscillations. It should be close to its three o'clock position, but you can adjust it by turning the module on, reducing the output level to almost zero and turning the trim potentiometer until you find the point where the gate output led just barely turns off.

The LFO sync type is hard sync, meaning that it resets the current cycle to the beginning of the waveform. It does not control the duration of the cycles. This allows you to further shape the output to, say, three quarters of a sinewave by using external sync and adjusting the HZ knob so the duration of a cycle is just a little longer than the time between incoming sync pulses.

Colour coded nuts indicate the type of jack, with gold representing Gate/Trigger input, black is +-5v CV inputs and red jacks are outputs.

The CV inputs are scaled down to +-2.5v and added/subtracted with the knob setting, meaning that to sweep the full range of the parameter with CV, the knob should be in centre position. The inputs are clipped to the allowed range after mixing, so you can apply any eurorack voltage here.

The module's core processor is socketed, so using a simple PIC programmer and some basic Assembly knowledge you can modify its functionality to suit your needs.

The code is written by Electric Druid who supplies me the chips preprogrammed.

Fully voltage controllable Eurorack format, externally syncable, 16 waveform low frequency oscillator with built-in VCA and sample & hold.
Powered by a socketed VCLFO10 IC from Electric Druid.

Suitable for precision modulation, live performance as well as educational purposes.

Height: 3U (128.5mm)
Width: 12hp (60.6mm)
Depth from panel: 31mm
Depth total: 51mm
+12v: 80mA
-12v: 60mA

Notes: The core idea behind this module is all about control voltage. Hence all features are individually broken out to CV inputs, making the most use possible of the benefits of the digital wavetable oscillator. This means that the design is geared towards allowing hands-off control of all aspects and some concessions have been made to that effect.

Initial setup basically consists of connecting the power cable to the module and your bus. The cable has a slotted socket for correct orientation, but mind that the red stripe faces the white line on the edge of the PCB. The included screws are nylon in order to minimise rack-rash.

Tuning the module is possible by adjusting the small SMD trim potentiometer on the back. It adjusts the offset voltage that affects the centre point of the LFO oscillations. It should be close to its three o'clock position, but you can adjust it by turning the module on, reducing the output level to almost zero and turning the trim potentiometer until you find the point where the gate output led just barely turns off.

The LFO sync type is hard sync, meaning that it resets the current cycle to the beginning of the waveform. It does not control the duration of the cycles. This allows you to further shape the output to, say, three quarters of a sinewave by using external sync and adjusting the HZ knob so the duration of a cycle is just a little longer than the time between incoming sync pulses.

Colour coded nuts indicate the type of jack, with gold representing Gate/Trigger input, black is +-5v CV inputs and red jacks are outputs.

The CV inputs are scaled down to +-2.5v and added/subtracted with the knob setting, meaning that to sweep the full range of the parameter with CV, the knob should be in centre position. The inputs are clipped to the allowed range after mixing, so you can apply any eurorack voltage here.

The module's core processor is socketed, so using a simple PIC programmer and some basic Assembly knowledge you can modify its functionality to suit your needs.

The code is written by Electric Druid who supplies me the chips preprogrammed.

Fully voltage controllable Eurorack format, externally syncable, 16 waveform low frequency oscillator with built-in VCA and sample & hold.
Powered by a socketed VCLFO10 IC from Electric Druid.

Suitable for precision modulation, live performance as well as educational purposes.

Height: 3U (128.5mm)
Width: 12hp (60.6mm)
Depth from panel: 31mm
Depth total: 51mm
+12v: 80mA
-12v: 60mA

Notes: Smith: it's an 8 inputs & 8 outputs precision buffered matrix with presets. Each of the 8 outputs can take the signal from any of the 8 inputs, allowing over 16 million possible combinations.

This is not a mixer, the same input can be routed to many outputs, but several inputs can't be present at the same output simultaneously. The module works with both audio and CV signals, ins & outs have i10 volts range and minimum offset (1 millivolt approx.), which makes it perfect for distributing V/Oct signals too.

8 scenes that can be accessed through the dedicated push buttons but also by CV and trigger. 8 banks (with 8 scenes each, 64 scenes per preset). 8 persistent presets (with 8 banks of 8 scenes each).

This module can be used to store 'presets' for your live setup, allowing patch changes and easy rerouting signals with literally just pressing a button.

Another (more chaotic) way to use it is to plug several modulation sources to the inputs (such as envelopes, LFOs, sequenced CVs) and several modulation destinations to the outputs (filter cutoff, PWM, VCAs...). If you want to introduce a variation in the sound, select a different scene or directly randomize the current one to drastically change 'what is modulating what'.

Using audio sources can lead us to interesting territories too, sequencing waveform changes or using different processors (filter, distortion, folder...). Keep in mind that the switch performs pretty fast and the signal is passed without any modification (to preserve its accuracy, which is pretty important when using the module for v/oct) so with audio, the switching may be clicky. This depends on the sound source too, with 'dirty' ones there's no problem but with clean ones, like low pitched sine waves, it will be.

Notes: Remote extension module that allows to connect 16 signals (audio, CV, gate or whatever) between large or spread-out cases.

To avoid bleeding, signals are isolated with a ground line between them (both in the ribbon cable and the printed circuit).

The bundle consists in two XT modules and two ribbon cables (1, 1.5 or 2 meters depending on the option selected).

This is a passive module, it does not draw any current.

5 HP

Notes: Remote extension module that allows to connect 16 signals (audio, CV, gate or whatever) between large or spread-out cases.

To avoid bleeding, signals are isolated with a ground line between them (both in the ribbon cable and the printed circuit).

The bundle consists in two XT modules and two ribbon cables (1, 1.5 or 2 meters depending on the option selected).

This is a passive module, it does not draw any current.

5 HP

Notes: Vinia is a new powerful 8-channel audio generator and processor for Eurorack. Each channel is independent and has its own signal chain. This can be a multi-engine instrument, an FX processor, a combination of both, or a chain of several FX.

The sound generator section offers 2 sample players (one plays from the 16 MB internal flash memory and the other directly from the microSD card), various VCOs (VCO, multi-VCO, harmonic VCO), Karplus, a Chord generator, noise, a drum synth and modulation generators (LFO, envelope follower, envelope).

Each of these generators has a rich set of parameters for setting up your sounds. Then, there is a powerful multi-FX processor.

Tesseract Modular has added 20 different algorithms in Vinia: FM operator, filters (multimode, ladder, rubber, bandpass), a wave folder, tube saturation, delays (filter delay, delay, long delay), reverb, metallizer, grain pitch shift, and more.

These can be flexibly set in a chain per channel and offer many customization possibilities. The module also hosts a mixer. You can also save your channels in presets and work with macro parameters.

Each of the 8 channels can be independently configured as a multi effect processor, VCO, sample player...

Audio outputs are DC coupled so it can be used to generate complex CV modulation sources too.

There are 2 types of modulation in Vinia, the first is stepped (occurs every 1,4 milliseconds approx.) and very flexible, any modulation source can modify any parameter of any track. The second is the 'audio rate' one (44,1 KHz), only a few parameters admit this type and both sources and destinations will be within the same track.

Audio sources: Audio Input, Flash Sample Player, MicroSD Sample Player, VCO, Multi VCO, Harmonic Oscillator, Karplus, Chords, LFO, Envelope Follower, Envelope, Noise, Drum Synth

Audio processors: FM Operator, Multimode Filter, Ladder Filter, Rubber Filter, Bandpass Filter, VCA / Polarizer, Folder, Tube Saturation, Exponential Envelope, Delay, Filter Delay, Long Delay, Long Filter Delay, Reverb, Metalizer, Chorus, Modulator, Vocoder 16, Vocoder 32, Bit Crusher, Rectifier, Grain Pitch Shift, Ring Modulator
