Notes: Dual 1 x 4 buffered mult (one audio or cv signal in with multiple buffered outputs).

The output of the first mult is normalled to the input of the second mult to create a 1×8 buffered mult.

Notes: Dual 4-way passive mult (one audio or cv signal in with multiple unbuffered outputs)

On the back of the pcb is a pair of solder points marked as "link". You can connect these (with a solder blob or small jumper wire) to turn the mult into a single 8 channel Mult instead of 2 x 4 channel.

Notes: The Multiple is a simple but important module that allows for sending a signal to multiple destinations. Within the Make Noise system the Multiple may also be used for combining clock, gate and pulse signals together to create interesting timing sources (in other words, it acts as a Gate combiner aka logic OR circuit).

It has 9 inter-connected sockets that may be split into different group combinations depending upon how it is patched. The jacks circled in white will make or break the interconnects between the 3 groups of three, thus allowing for three 3-way, one 5-way/ one 3-way or one 7-way multiple.

The Multiple is passive, because the Make Noise system does not require Buffered Multiples since all critical control signals are already buffered in such a way as to provide a large fan-out capability.

Notes: The SELECTOR module is an electronic switch for any kind of signals to select one of up to eight sources or sending a signal to a specific destination (it's bidirectional). It is also known as "Sequential switch" in former modular synths. The SELECTOR has 8 inputs for any kind of signals, no matter if audio CV or gate, and one of them can be routed to an output in different ways: Either by a knob, or by a CV, or by clock pulses to advance by 1 plus a reset trigger input. By a switch it can be set to operate as a dual unit with 4 inputs each.

It's a quite useful tool for more complex patches, e.g. for selecting between different sequencers, or sending a modulation source to varying "receivers".

Notes: The uPROBAGATE (also known as Bernoulli gate in the eurorack world) distributes a gate/trigger signal to two / three different outputs randomly. The probability knob controls the percentage of distribution to the outputs - from "only output 1" to "1 and 2 mixed" to "only output 2" to further distribution to the 3rd output. The switch allows two options: Only one output at a time - multiple outputs at a time.

Please note: These micro modules need a carrier, like the uBASE module. They cannot be mounted directly into an AE case.

Notes: Dive into the world of subtle tone modulation with the revolutionary 2HP Eurorack compatible Slew Limiter. This compact but powerful module is the secret weapon in your synth setup to create smooth transitions between your sounds, giving you the opportunity to expand your musical expression in a unique way.

With its slim design of only 2HP, the Slew Limiter fits seamlessly into any Eurorack system without taking up valuable space.

Create smooth transitions between notes or modulate CV signals to create organic, vibrant effects such as portamento/glide, or complex modulated patches.

Adjustable rise and fall times give you complete control over the speed of signal changes, from instant jumps to smooth, slow transitions. Versatile uses: Whether for smoothing control voltages, creating legato effects for monophonic melodies or for creative sound design - this slew limiter is a true all-rounder.

Thanks to its clean layout and simple controls, you can make the settings you want instantly, making it ideal for live performances and studio sessions.

CV control via rise/fall

A unique feature is the ability to control rise and fall times via external CV signals, allowing you to dynamically react to your performance or patch.

Shape Control

The Shape slider allows you to fine-tune transitions over a wide area. Whether it's a slow exponential increase, linear transitions, or a subtle adjustment through the logarithmic characteristic, it's all at the service of the music

Notes: Get the most signal attenuation in the smallest 3U package possible! The ATT module features three independent IN - Attenuate - OUT circuits in one 2HP module. Works great for attenuating both audio and CV signals. Completely passive, so no current draw on your power supply.

Notes: This module allows you to connect balanced line level audio (+4 dBu) into your Eurorack modular system. It is a compact and easy way to patch in a rack mount/desktop FX units, external line-level instruments like synths and drum machines, outputs from your DAW, or many other line level sources.

Notes: Tiny little low-pass gate in Intellijel's compact 1U format. Great value approach to this west coast classic module, based on a vactrol for that natural, organic sound.

Supplier's Notes:

Drop this module (or a few of them) into your 1U row, patch in some sound sources, and then ping them with gates and CV to get some instantly pleasing results. So simple and fun!

Natural dynamics with the magic of vactrols.

In general, low pass gates (LPGs) control the amplitude and timbre of a signal by opening and closing a low pass filter. When the gate is closed, no frequencies are allowed to pass through (and no output is heard). As the gate begins to open, the lowest frequencies pass through to the output. As the gate opens further, the output grows louder and its high frequency content increases.

Traditional Low Pass Gates use vactrols to control the opening and closing of the filter. Encased within a vactrol is both a light source and a light detector. Applying a control voltage to the vactrol lights its internal LED i the brightness of which is measured by its detector. What makes vactrols particularly unique (and well-suited to musical applications) is their non-linear response to voltage - in particular, the way in which the internal LED slowly dims (rather than shutting off instantly) when the control voltage is removed. This sonic coupling of timbre and volume, along with the circuit's natural decay, makes the low pass gate particularly adept at producing tones associated with struck objects, like hand drums or marimbas. Indeed, low pass gates are the main ingredient of the so-called Buchla Bongo sound.

The Intellijel Passive Low Pass Gate 1U is a simple, vactrol based, 1-pole, passive low pass gate, which is controlled by an external CV input. Without positive control voltage, the gate is completely closed and none of the LPG's input signal is passed through to the output. Increasing amounts of positive CV open the gate i making the output signal both louder and brighter. At +5V, the gate is fully open and the input signal is passed through to the output.
This makes LPGs sound very different (and more acoustic) than the traditional complement of envelopes, VCFs and VCAs that are employed in most subtractive synthesizers. Exciting the vactrol (via the CV input) with a trigger, noise blast, or short envelope will result in a very natural sounding filtered envelope that's reminiscent of the sonic characterics of struck objects, which are allowed to decay naturally.

In addition, because this is a passive circuit (no power is applied to it), its sonic characteristics are somewhat dependent upon the audio signal you feed into it, making it a very natural and organic way to shape a signal's volume and tone.

Pairs very well with the intellijel Shifty module to derive polyphony out of a only a few HP of modules.

Width: 6HP
Depth: 19mm

Notes: 1/4" TRS Jack Panel For Stereo Line In 1U Module

If you don't own an Intellijel case with built-in compatible 14" jacks, then you need to purchase a Stereo Line In Jacks 1U module, which connects via ribbon cable to the Stereo Line In 1U module to provide 14" TRS input jacks for interfacing with other studio or stage gear.

Width: 8HP
Depth: 39mm

Notes: This module allows you to interface your Eurorack modular system to the pro balanced line level world (+4 dBu). You can send audio out to rack mount/desktop FX units, patch to external line-level instruments like synths and drum machines, interface to a DAW, and much more.

Features:

1 x Eurorack modular level signals to Balanced TRS 1/4? output path
Uses a high quality THATCorp balanced line driver IC
Output path steps a nominal Eurorack level (10 Vpp) down to +4 dBu with up to +6 dB gain.

Notes: Att 1U Passive Variable Signal Attenuator

This passive attenuator has a 100K linear potentiometer that is DC coupled. Perfect for adding attenuators to those 1U/3U modules without.

Width: 6HP
Depth: 18mm

Notes: PERC features 256 percussion sounds with tight attacks and a bright harmonic spectrum. This collection is specifically focused on shorter percussive samples and includes material such as multi-layer drum & percussion hits, chopped & processed loops, synthesized FM strikes, mallet and bell tones, sampled drum machines, various toms and hand drums, obscure noise boxes, sampled old-school game chips and much more. PERC makes full use of ONE's snappy character.

All samples on the card are available for playback at 48k, 64k and 96k for maximum versatility in pitch control while maintaining latencies of as low as 0.25 ms.

Design by: Glitchmachines
Type: One Shot
Character: Percussive

Only compatible with the Tiptop Audio One Digital Audio Flux Eurorack Module.

Notes: WAYOUT8 is a patchbay module for Eurorack systems used to group your DAW inputs and outputs, or manage signals going from one case to another. Wayout8 is grounded, meaning that even if nothing is plugged into the inputs your outputs are still grounded and will not pick up noise. The module is made so it can be mounted two ways, with outputs on the left or right, whichever is the most ergonomic placement in your case. All eight channels are passive so they do not modify your signals and can be used for audio and CV Gate. No power is required.

Size: 6HP
Depth: 10mm
No Power Required

Notes: Mult is a 2 input, 6 output signal splitter. Channel 1 is normalled to channel 2 when no cable is present, allowing the user to split an input signal six ways, or two input signals with three outputs each.

Notes: Trim is a 2 channel passive attenuator. It features two individual channels of attenuation.

Notes: Mult is a 2 input, 6 output signal splitter. Channel 1 is normalled to channel 2 when no cable is present, allowing the user to split an input signal six ways, or two input signals with three outputs each.

Notes: The FADRMIX JACKOUT is an extension for the FADRMIX6 with two 1/4" (6.5mm) jack sockets for master left/right output and 4 stereo minijack sockets for the FX send and returns.

The module is connected via a small internal connection cable to the right of the FADRMIX6.

Notes: Identical to the OR2x4 module in full size, but shrunk to 1/3 size. It contains two logical OR functions with four inputs each; with a switch they can be linked to an 8-input mode. Useful for "summing" gate / trigger signals from different sources.

Please note: These micro modules need a carrier, like the uBASE module. They cannot be mounted directly into an AE case.

Notes: The u4LOGIC is identical to the full-size LOGIC module, but shrunk to 1/3 micro format.

Please note: These micro modules need a carrier, like the uBASE module. They cannot be mounted directly into an AE case.

Notes: The uBASE module is the size of a regular AE modular module and is the carrier (or BASE) for three micro modules of 1/3 size or two of 1/2 size. The uModules can be plugged in and removed easily, even with the AE system running, so you can reconfigure or add needed functions in form of micro modules "on the fly".

Included is a small "key" to lift also modules without knobs in an easy way.

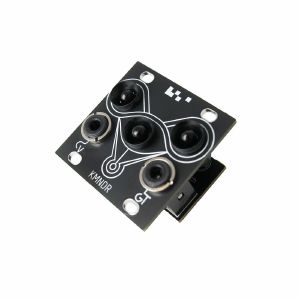

Notes: A simple and compact 1U module for hands-free control, the Kommander generates CV and gate signals based on your hand's proximity to the infrared sensors. Cheap, fun and effective.

Supplier's Notes
An infrared motion controller that makes controlling your modules intuitive and fun. The KMNDR measures the distance to other objects (e.g. your hand) and sends a CV and gate signal.

This will allow you to interact with your modular system in a fun and intuitive way, create complex synth sounds, trigger a drum machine and "play" your modules.

Just plug the KMNDR into your synthesizer and create! The KMNDR ships with a 10-pin power connector.

Meet the KMNDR: our new compact sibling of the renowned KOMMANDER. This infrared X-Y motion controller is about to revolutionize the way you interact with your modular synthesizer.

Designed to make module control both intuitive and enjoyable, the KMNDR transforms physical gestures into musical magic. By simply measuring the distance to objects like your hand, it sends out CV signals ranging from 0 to 10 volts, alongside a 10V gate output, enabling a tactile and expressive approach to music creation.

Whether you're looking to craft complex synth landscapes, trigger rhythms on a drum machine, or "play" your modules as if they were traditional instruments, the KMNDR is your gateway to a new realm of musical expression. Its plug-and-play functionality means you can seamlessly integrate it into your setup, opening up endless possibilities for innovation and performance.

The KMNDR is not just about functionality; it's about bringing fun back into music production. It ships ready-to-use with a 10-pin power connector, ensuring you can dive straight into creating the moment it arrives. Prepare to engage with your modular system like never before. With the KMNDR, your hands are not just making music; they're creating an experience. BOOM!

Dimensions: 8 HP, 23 mm deep
Module is a 1U tile in Intellijel format

Current Draw: 56 mA +12V, 2 mA -12V, 0 mA 5V

Notes: A passive multiple that fits nicely with the Klavis range.

Notes: Take your patch down a notch with the Line Output 1U tile. Line Output is a modular level to line level adjustment module, with knob control over your output level to get it just right. Turning your modular system into an open-ended audio pathway has never been easier.

Tech Specs:
Width: 8HP
Depth: 38mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

Notes: The Synthrotek Passive Mult is the module that keeps on giving! Use this as either a 2x 1-to-3 passive multiplier or one 1-to-6 passive multiplier. Input one cascades to all 6 output jacks, or can be interrupted by plugging a cable into input two.

What is a passive mult? It is an ideal way of multiplying non-precise voltages in your Eurorack system. (Buffered multiples like the MST '07 Buff Mult are needed to maintain exact outputs of input voltages). Multiply any control voltage or audio sources across your system with ease in a very small and well priced package.

Available as an assembled unit, kit or PCB/panel combo. With such a small part count, this is a great module for first-time DIYers!

Specifications:
Width: 2HP
Depth: 14mm
Current draw: n/a

Notes: ***B-STOCK: Box opened, product in perfect working order***


Drawing inspiration from the MMI Maxima, the MMI Helios is intended as a middle ground between the gestural control surface of the Maxima and the fingertip control of the smaller MMI.

Less density, but a much higher degree of patch control is the key point of the Helios, which complements other MMI devices very well, and can be joined with other Helios (Helii?) to form larger and creative control surfaces.

The design is greatly simplified compared to the original MMI, with only two I/O jacks - either can function as input and output, and their interaction with each other is determined by touching both plates simultaneously to form a connection, or in cooperation with other MMI devices.

Available in a "right" and "left" version - one is an exact mirror image of the other, which makes it suitable for having two units adjacent to one another.

Dimensions
8 HP

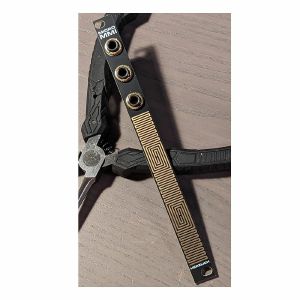

Notes: Touch and Pressure Controller 2HP - Herzlich Man-Machine Interface Micro MMI - passive modular controller for Eurorack systems

The Man-Machine Interface, or MMI, is a passive touch and pressure sensitive controller which allows the user to direct CV and audio signals at will. The MMI consists of three input/output jacks, and five body contact surfaces in glorious gold.

The zig-zag body contacts correspond to the input/output jacks, with the top zig-zag connecting to the top jack, the middle zig-zag connecting to the middle jack, and the lower zig-zag connecting to the lower jack. The spiral patterns in between the zig-zags are comprised of the two adjacent jacks, so the upper spiral is comprised of the upper and middle jack, while the lower spiral is comprised of the middle and lower jack.

In order to operate the MMI, the user can touch any two points with their fingers, patch cables, a piece of fruit or vegetable, or any other conductive substance or object, in order to complete the connection. The degree of contact made with the MMI, and the resistance of the object completing the circuit, will determine the output that is sent along the circuit. For instance, if a user were to patch a VCO into the top jack, and patch the MMI into a filter in the middle jack, the VCO will be sent to the filter when the topmost zig-zag and lower zig-zag are connected by two fingers, for instance.

But how about the spirals? The spirals offer a way to make a connection with one finger. Using the example from before, the connection will instantly complete when the user touches the upper spiral pattern. Using this principle, it becomes possible to use the MMI in unusual and interesting ways, such as a rudimentary keyboard, a drum controller, a switch and any other number of weird and exciting purposes.

It is also possible to combine several MMI - using two different MMI, it is possible to reach across one zig-zag to another zig-zag, in order to make a different connection, or to place a particularly long vegetable across all the contacts just to see what will happen. The MMI is an unusual patching system for the experimental musician, and lends itself well to all manner of experimentation and weird instruments.

The MMI can bleed a tiny bit of signal when using sharp VCO waves like square waves, while other sounds like sine waves will have softer responses. This can easily be corrected with amplification or attenuation as needed.

The Micro MMI takes up 2HP and is skiff friendly, and is also suitable for installing in external boxes as a passive control unit. You can combine any number of MMI to create increasingly complex keyboard-like arrangements, drum pad matrixes or advanced switch systems.

Dimensions
2 HP
10 mm deep

Current Draw
Module does not draw current

Notes: Tap into the world of precise signal processing with the 2HP Eurorack-compatible Precision Rectifier. This compact but powerful module is a must-have for anyone who wants to modify their audio signals with the utmost precision. Not only does it provide rectified solid wave, but it also provides dedicated outputs for the positive half-wave as well as the inverted negative half-wave of the input signal. Perfect for experimental sound designers and creative synth users.

Compact format

At just 2HP, this Precision Rectifier offers a powerful feature extension for your Eurorack system without taking up a lot of space.

Versatile signal processing

Get access to rectified full wave to fully modify your input signal, ideal for dynamic effects and creative signal paths.

Dedicated Half-Wave Outputs

In addition to full-wave rectification, the module offers separate outputs for the positive half-wave and the inverted negative half-wave. This special feature allows you to play with the original character of the input signal and create unique sound textures.

Precise signal processing

The Precision Rectifier is designed for the highest level of accuracy, so you can count on clear and precise signal processing, no matter how complex your requirements are.

Notes: Bring your Eurorack modules to life with our groundbreaking 2HP wide Switchable Logic Gate, an essential tool for anyone looking to enrich their modular synthesis with complex rhythmic patterns and sequences. This compact but powerful module offers intuitive operation and innovative features that make it a must-have for creative sound tinkerers.

The module offers a separate inverter stage, which is normalized to the output of the first stage. Not only does this allow you to reverse the original logic operations, but it also gives you the ability to create even more complex and creative waveforms.

An LED is provided for each stage, which indicates the current initial state. This direct visual feedback makes it easy to see and understand the impact of your settings in real-time, which is invaluable, especially during live performances.

Dimensions: 2 HP, 39 mm deep

Current Draw
30 mA +12V
15 mA -12V
0 mA 5V

Notes: Expand the connectivity options in your Eurorack system with the versatile 2HP Eurorack compatible Passive Multiple. This compact module is an indispensable helper when it comes to efficiently distributing signals within your modular setup. With its intelligent design and two normalized channels, it offers a flexible solution for a wide range of patch requirements.

Space-saving design

With its slim design of only 2HP, the Passive Multiple fits seamlessly into any Eurorack system without taking up much space.

Flexible Signal Distribution

Thanks to the two normalised channels, this module can be used either as a 2x 1->3 multiple for distributing a signal to up to three targets, or as a 1x 1->6 multiple to send a signal to up to six targets. This flexibility makes it a true all-rounder for your patch environment.

Optimized for gate and trigger

The module is specially designed for the distribution of gates and triggers. It allows you to route a signal unchanged to multiple outputs, which is ideal for complex signal paths.

Limited CV signal suitability

Although the passive multiple can also be used for CV signals, it is only suitable to a limited extent due to its passive design. For precise voltage distribution, especially with pitch CV, we recommend using a buffered multiple to avoid signal loss and inaccuracies.

Dimensions
2 HP
14 mm deep

Current Draw
Module does not draw current

Notes: Expand the capabilities of your Eurorack system with the 2HP Eurorack compatible Single Buffered Multiple. This compact but powerful module is the perfect solution to multiply and distribute your signals without losing quality. It is specially designed for synth lovers who want to optimize their signal chain and shape their soundscapes with precision.

Ultra-compact design

With a width of only 2HP, this module fits seamlessly into any Eurorack setup, maximizing the space available for further creative expansion.

Seven outputs

Equipped with seven outputs, our Single Buffered Multiple allows simultaneous signal distribution to multiple modules. Perfect for complex patches where you want to send a signal to different destinations.

Buffered Outputs

The buffered outputs ensure that signal integrity is maintained even when distributed across multiple modules. Enjoy precise control and stability in your signal chain without sacrificing signal quality.

LED indicator for positive input signals

A special feature is the integrated LED, which lights up as soon as a positive input signal is detected. This visual feedback is not only convenient, but also makes it easier to troubleshoot complex patches and improve the user experience.

Optimal flexibility

Whether you want to route audio signals, control voltages or triggers, our Single Buffered Multiple offers the flexibility you need to meet your creative needs.

Notes: The E-OR is a passive 2HP 'selectable gate mixer,' which means that you can choose between two different gate sources, two trigger sources or BOTH using the three way switch per channel. Great for choosing between various rhythms, clocks, gates, etc. Perfect for manual fills and variation in your set! Matte black panel with white ink. The E-OR is diode protected, so combining two trigger or gate sources is what it is meant to do!

Notes: Skippy Exp is a tiny module in 2HP that adds "Play/Stop" and "Reset" functions to Skippy, either via a button or a CV input. It cannot operate independently; you absolutely need Skippy to use it.

For those who don't need the live adjustments offered by Skippy Live (or have run out of space!), Skippy EXP still provides two essential functions for dynamic performance.

This module cannot operate alongside Skippy Live, which already has these two functions. It can be placed either to the right or left of Skippy. The connector to link it to Skippy is included. This module does not need to be connected to power.

Technical Specifications
2 HP

Depth: 20 mm

Power consumption:
+12 V 10 mA
-12 V 0 mA
+5 V 0 mA

Supplied with cable and Knurlies.

Notes: S&M is a very useful utility module in 1u Intellijel format combining unity mixer and a precision active buffer.

CV and Audio Mixer
Audio grade dc-coupled unity mixer for mixing CV or Audio signals
Active Buffer/Splitter
Precision active buffer/splitter for splitting signals along your system without any signal loss (highly recommended for splitting Pitch CV).
Reverse polarity protection
The module have proper reverse current and over current protection in its power input stage to protect the module in case it was connected the wrong way or connected to a faulty power supply.
Dimensions
Width
: 12HP
Depth
: 20mm
Current Draw
+12V
: 10mA
-12V
: 10mA
