Notes: Lipsk facilitates the inversion of the individual bits produced by Drezno (or any other module connected to its input header at the back), and delivers the resulting code to its output header. Bit inversion can be manually controlled by pressing any of combination of its eight illuminated buttons, or it can be automated by patching gate signals into its gate input sockets. An active (5V) gate flips the state of the respective bit. If the button is active (bit already flipped), then the gate flips the bit again yielding double inversion (no inversion). The corresponding LEDs show the combined effect of both manual and gate actions. The bit processing logic is hardware-based, so there is virtually no latency, allowing the binary signals to be manipulated at extreme rates.

Notes: Arad is an expander for the Oradea quadruple resonator. It adds three additional features. Arad features direct audio inputs for individual channels, so you can use each channel for a different audio source (the individual channel outputs are already incorporated into the main module). There are buttons and gate inputs for manual and/or remote clickless muting and unmuting of the channels. Another group of four buttons acts in parallel to the EXCITE inputs of Oradea, allowing for manual triggering.

Technical details
Eurorack synth compatible
6hp, 30mm deep (incl. ribbon bracket)
Current draw: +10mA / -0mA
Reverse power protection

Notes: Simple but effective four-channel module, allowing you to attenuate or offset CV or audio signals. Normalled 5V source on each channel allows you to generate a standalone CV signal without an input.

Supplier notes:

4TTEN (pronounced either ATTEN or FOUR-TEN) is a four channel attenuator and offset generator.
Use 4TTEN to attenuate any CV or audio signal by running through the ins and outs.
A +5V voltage source is normalled to each input, making it a standalone offset when there is no cable patched into an input.
Each channel is completely independent.
Ever-so-useful in live performance, we designed this module with 4 sliders for easy maneuverability, visual feedback, and enjoyable to play interface. Make your eurorack modular synthesizer system more playable with 4TTEN!
*** 4TTEN's PCB is 113mm (4.45") tall and may be a tight fit in some cases ***

Highlights

- 4 independent attenuators for Control Voltage and Audio signals
- Performance friendly sliders
- Can be used as 0 to +5V Offset
- Comfortable fader caps from the Performance Mixer
- Only 4 hp!

Specs:

Size: 4hp
Depth: 30mm(with cables)
Power: +5mA , -5mA
Virtually no drop on 1V/Oct signals.
VERTICAL PCB LENGTH: 113mm (4.45")
IMPEDANCE = (SOURCE + 100ohm ) / 100kohm
UNBUFFERED

Notes: Reduxer is a stereo sample reducer effect module.

Depends on it's signal, It can produce dynamic range of sounds from knurly bitcrushing to formant/vowel style effects.

Extra resolution

Custom made Redux potentiometer with 300 degrees rotation for extra crashing resolution.

Double the power

Two proprietary sample reduction circuits with extra offset control on channel 2 via the "Spread", lets you create motion in the streo field for wider effect.

Stereo operation

Inputs are normelized - supporting mono to stereo configuration.

Reduction under control

Redux CV input with attenuator for external control of the bit reduction rate.

Reverse polarity protection

The module have proper reverse current and over current protection in its power input stage to protect the module in case it was connected the wrong way or connected to a faulty power supply.

Dimensions

Width: 8HP
Depth: 20mm

Current draw

+12V: 25mA
-12V: 25mA

Notes: The RS808 is a Eurorack module that brings the TR-808's analogue Rimshot and Claves sounds to your modular drum machine at a low cost. It offers the classic sounds plus two unique snappy "click" variations. Two control knobs, labeled Pitch and Snap, adjust the oscillator frequency and envelope decay, providing greater sound variation and control.

The RS808 faithfully reproduces the original 1980s TR-808 circuit and includes a high-powered gain stage for hot, distortable signals. It features a dual input pulse-shaper for stable triggering from various pulse sources. These enhancements make the RS808 an easy and powerful addition to any modular synth setup, delivering authentic analogue drum sounds.

TR-808 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 14mm
Power: +12V 14ma / -12V 13ma

Notes: Octo I/O is a bi-directional passive Polytip to 3.5mm expander and a Polytip Mult. The expander section lets you break out to each individual voice from a polyphonic module. The mult section lets you mult Polytip polyphonic signals from one source to multiple destinations. For example patching the OCTOSTAGES envelopes to control both your OCTOPASS filters and HEXAGAIN VCAs.

Dimensions:

6HP - Depth: 15mm

Current Draw:

Module does not draw current

Notes: The M module is a 5-way Polytip signal multiplier. It takes a single polyphonic audio, CV, or gate signal set and routes it to up to five multiple outputs. The module is completely passive and requires no power. Like all Polytip jacks on Tiptop Audio modules, the jacks on the M module are top-quality components made in Japan.

Size: 4HP - Depth: 15mm

Power: no power required

Notes: The CP909 is the TR-909's analogue clap sound generator in Eurorack format. This is yet another low-cost analogue drum generator from a legendary drum machine in your modular synthesizer, expanding your Tiptop Audio modular drum machine even further.

The CP909 is an exact reproduction of the original analogue circuit and with the addition of just one extra knob, "trashing" the frequency of the internal noise generator, Tiptop have added greatly to the spectrum of sounds that can be generated. All that without compromising the signature sound of the TR-909.

The CP909 clap effect is made by a special triple-saw envelope generator that controls the gain of a VCA. The sound source feeding into the VCA is made by a quasi-random logic- based noise generator. Some might call it "digital noise", though this term might be misleading in today's world of microcontrollers and sound samples. What really makes the noise generator is a ring of logic gates, so primitive, so 80s, and so much the sound of the 909 Clap!

The CP909 includes a high-powered output gain stage capable of producing hot signals. On the inputs, Tiptop have designed a pulse-shaper circuit so you can trigger the CP909 with trigger/gate signals from step sequencers, clocks, dividers, or any other pulse/clock sources. This eliminates the need to shape pulses sent to the module and ensures the same stable sound at peak power, regardless of your pulse source. Based on the architecture of the 909, the Accent input is versatile and able to take in both CV and Gate signals for continuously changing dynamics. All these unique features make integrating this legendary sound generator into your modular synth easy, unleashing the power of real analogue drums.

TR-909 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 36mm
Power: +12V 6ma / -12V 10ma

Notes: CONTROL PATH is an all in one voice dynamics module that helps build full voices quickly. It contains two analogue envelopes with velocity cv, and one VCA. In a typical voice patch the left envelope will control a filter and the right envelope will be the voice VCA. Velocity control is provided for each envelope and delay front panel trimmers are used to compensate for any miss match between incoming gate signal and velocity CV timings. Envelope cv outs are 0-5V, Velocity cv ins are 0-5V.

Size: 8HP - Depth: 40mm / 1.5"
Power: +12V 50mA / -12V 55mA

Notes: Introducing the BD808, part of TipTop's new drum module series that brings the iconic analogue percussion of the Roland TR-808 into the modular synth world. This compact, minimalist module is cost-effective due to modern production methods, reviving the renowned bass drum sound.

The BD808 adapts the TR-808's Bass Drum circuit for Eurorack format, retaining the classic 80's sound while adding new features. These include an independent Accent level, a high-powered gain stage, dual input pulse-shaper, and extended decay. The integrated high-powered gain stage can produce signals up to 20Vpp, allowing for a range of harmonized bass drum sounds from sharp attacks to distorted tones. The dual pulse-shaper circuit ensures stable sound from various pulse sources, making integration into your modular setup seamless. These enhancements unleash the power of true analog drums, delivering impactful bass sounds.

TR-808 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 14mm
Power: +12V 13ma / -12V 6ma

Notes: Remote extension module that allows to connect 16 signals (audio, CV, gate or whatever) between large or spread-out cases.

To avoid bleeding, signals are isolated with a ground line between them (both in the ribbon cable and the printed circuit).

The bundle consists in two XT modules and two ribbon cables (1, 1.5 or 2 meters depending on the option selected).

This is a passive module, it does not draw any current.

5 HP

Notes: Remote extension module that allows to connect 16 signals (audio, CV, gate or whatever) between large or spread-out cases.

To avoid bleeding, signals are isolated with a ground line between them (both in the ribbon cable and the printed circuit).

The bundle consists in two XT modules and two ribbon cables (1, 1.5 or 2 meters depending on the option selected).

This is a passive module, it does not draw any current.

5 HP

Notes: Designed with versatility in mind, MapVolt is a dual-channel Universal Voltage Processor built for flexibility in handling audio and CV signals.

With only 6hp, Mapvolt is a multipurpose tool for voltage-controlled scaling, inverting, offsetting, subtracting, and mixing functions.

Each channel of MapVolt can operate in either Polarizer or Attenuator mode, allowing manual control via knobs or CV signals. In Polarizer mode, it functions as a Voltage Controlled Attenuator-Inverter, granting control over signal level and polarity. Additionally, it can be used as a Four-Quadrant Multiplier or Ring Modulator for audio signals, with the processor input serving as the carrier signal and the polarizer's CV input acting as the modulator.

In Attenuator mode, MapVolt operates as a VCA, providing control over signal levels. Its VCA CV input range of +5/-5 makes it well-suited for amplitude modulation (AM) with other +/-5V waveforms.

MapVolt is equipped with dedicated Voltage Offset knobs for each channel, which can be controlled via CV. If no input is patched into the Processor input channel, the Voltage Offset knobs can be used as Offset Generators.

With its dedicated mixing stage, MapVolt enables the combination of both channels into a shared output. Furthermore, if one of the processor channels is inverted, it allows for the subtraction of one signal from the other.

Dimensions
6 HP
33 mm deep

Current Draw
65 mA +12V
65 mA -12V

Notes: The TBD module is a multifunctional DSP (digital signal processing) module that includes more than 30 different synthesis and audio processing plugins. It is a collaboration project between CTAG Kiel (an academic working group of Kiel University of Applied Sciences), instrumentsofthings.com (who produce this module for Eurorack) and tangiblewaves.

The module looks quite simplistic with it's only three knobs and three buttons, but the power lies in the web based user interface for editing and storing the parameters. For editing, the module is connected via USB to your computer and a small software tool running here is the bridge to the editing of the parameters via your web browser. IMPORTANT TO KNOW: When the editing is done, the module runs autonomously, without a computer!

Up to 10 favourites can be stored on the module and be chosen by the CONFIG button.

Dynamic control of the modules' parameters works via the two CV inputs and two trigger inputs (which are linked to two buttons), and two knobs are also available for live tweaking parameters. The assignment of inputs/knobs to actual parameters is done in the web based user interface.

Please note that the TBD module has mono audio input and output (compared to the Eurorack version which is stereo); plugins that do stereo audio work also in the AE TBD, but only on one channel. ("Why only mono?" you might ask; the limitation to mono is due to licensing agreements to keep the module price in the usual AE range.

The contained plugins are:

Talkbox (Vocoder), MSxxNoise (MS20 filter and Stone Phaser), Antique (Old Record / Tape Effect), Subotnik (Huge Modulations), VctrSyn, SpaceFX, Formantor, Bjorklund, Karpuskl, APCpp, Retroactor, Rompler (sample playback), WTOsc (custom wavetable), Claude (ported MI granular audio processor), BBeats, CStrip, CStripM, EveryTrim, MISVF, TBD03, PolyPad, TBDings (ported MI resonator), TBDaits (Ported MI Macro Oscillator), TBDeeps (ported MI Wavetable Oscillator), DustLoop, Dust, SubSynth, Sine Source, Simple VCA, SDelay, Plate Reverb, Pink Noise, MiVerb, MiVerb2, MiPShift, MiEnsemble, MiChorus, HiHat1, G-Verb, Freeverb, FBDlyLine, EChorus, Progen Reverb, CDelay

Notes: The SetonixSynth/Tidbit Audio Psychedelic Voltage Processor, or PVP, is a four-channel chaos module. It uses colour-changing LEDs to produce fluctuating voltages in response to the Channel input, with each channel normalized in series to create increasingly chaotic "taps" that can be used one after another for different variations.

Any positive voltage input such as unipolar LFOs, envelopes, stepped voltages, or simply the onboard normalized voltage patched to a channel input is reproduced approximately on each channel output, with the PVP inducing unpredictable fluctuations due to the variable current consumed by an LED circuit with a mind of its own.

Dimensions
8 HP
25 mm deep

Current Draw
135 mA +12V
10 mA -12V
0 mA 5V

Notes: Bad Comrade V3 Eurorack Modular Device

(Glitch, Pitch, Slice, and Dice)

The Bad Comrade is a powerful glitch, delay, and chaotic distortion tool, packed in a tiny 4hp module. Freeze wrecked blips and oscillations in place, create scrambled gated delays, and straight-up over-the-top distortion, all mixed to taste with the original signal. CV available for mix and delay time.

Designed and assembled in Seattle, Washington. Includes a limited 1-year warranty, if registered within 30 days of purchase.

4hp, 30mm deep. 20ma current draw.

Notes: Meet Mixel: A eurorack modular synth that can mix 3 inputs, sum 3 inputs, and invert 2 channels! A handy addition to any skiff!

Combine and buffer 3 signals (CV or audio) in the MIX section with dedicated level knobs (fade from 0 (muted) to 2x boost) and an output signal attenuator. Featuring LEDs which show the polarity of the signal (blue for positive, red for negative, and purple for audio rate).

Sum up to 3 signals in the SUM section to make some cool audio or CV signals.

Invert any signal using the INVERT section, with two separate invert channels!

Technical specs

- Module Size: 3U X 6HP X 25 mm Deep.
- Current Draw: 15mA@ 12V, 15mA@ -12V.

What's in the box?

- 1x Mixel Module
- 2x Thumb Screws
- 1x Power Cable
- 1x Sticker

Notes: You can never have too many voltage controlled amplifiers VCAs! (voltage controlled amplifiers). Ampera offers 4x VCAs in a tiny 6HP footprint with manual potentiometer control mixed with CV control.

Amplification ranges between 0.1x-2x, so you can make your 5V signals 10V with an offset voltage. Chain 2 channels together, and you have boost.
Ampera has bi-polar LEDs that display red or blue depending on the polarity of the signal. At audio rates, the LEDs show purple.

An excellent solution for those with small systems, or those just looking to free-up some space in their Eurorack cases.

Important note: Ampera works both for CV and audio. However, if audio is passed though, it will always be slightly audible, as the VCA circuit has some leakage (cannot completely mute). Two channels can be used in series to mitigate this if necessary.

Technical specs:

- Module Size: 3U X 6HP X 25 mm deep
- Current Draw: 70mA@ 12V, 70mA@ -12V

What's in the box:

- 1x Ampera module
- 1x Power cable
- 2x Mounting Screws

Notes: The Bohm:Groove adds a secondary kick voice, that can be triggered via clock divisions, allowing the user to build more complex grooves around the main kick. Craft dynamic percussive textures with ease. Sync a secondary kick to clock divisions and fine-tune every tap's level, pitch, and FX using intuitive controls.

Notes: Terci Ruina combines three classic distortions in 4 hp. Distortions are reinterpreted in classic NE style and routed through each other for complete sonic annihilation of any sound. Patch in and out anywhere in the signal chain to pick the best sound for your purpose (because modular). Looking for a pretty distortion? This is probably not your module. Unapologetically gross and dirty.

Notes: KR is based off of the concept of a guitar tonestack: you get a gnarly drive on the top and a super clean two-band shelving EQ with switchable midpoint after that. There are separate ins and outs, too, so if you want to EQ a thing and distort the other thing at the same time you can!

Kith Ruina's inspiration comes from the world of guitar amps. A drive into an EQ is an extremely common configuration for shaping guitar tone, and we find that it works extremely well for synths as well. A grungy drive into a pristine EQ gives excellent tone control, and with separate ins and outs for the two sections KR can be configured to fit into any patch you throw at it.

Notes: WarpEx is an expander module that adds polyphony and MIDI to Warp.

- 4-Voice polyphony
- MIDI input and MIDI Thru
- MPE compatibility (MIDI polyphonic expression)
- Dedicated trigger and V/Oct inputs for each voice
- Illuminated pushbutton to quickly toggle between the MIDI voice modes: Mono, Poly and MPE.

Inputs:

- +/- 8 Volts (V/OCT)
- 0.0 Volts to +5.0 Volts (TRIG and MIDI)
- Overvoltage protection on all jacks.
- 4 TRIG Inputs: Gate inputs for Voices 1-4
- 4 V/Oct Inputs: CV input for pitch of voices 1-4 (i 8V, up to low audio rate ~100Hz)
- 1 MIDI In: Input Type-A for Midi signals. Use provided MIDI-to-DIN adapters.
- Button Toggles between MIDI voice modes: Red = Mono, Blue = Poly, Purple = MPE (Poly)

Outputs:

- Midi-Thru, 5v signal

WarpEx is fully managed by the Warp master

Scope of delivery:

Module, 3mm screws, ribbon cable for connection to Warp, 2 Midi-to-Din adapters Type A

Power consumption: Warp powers this expander via the included grey bus cable
Depth: 30mm
HP : 4

Notes: ST.MAR is a 3-channel Stereo Mixer with individual and master volume controls, CV modulation and mute switches. All the basics to blend your stereo signals in only 8HP.

Voltage controls for each channel.

Modulate the volume of each audio source using external control signals, such as envelope generators or sequencers.

Details

Dimensions 8HP - 40×128,5mm
Current 50 mA +12V / 52 mA -12V / 0 mA +5V
Input & Output Signals +/-10V
Impedance Input 47k - Output 10k
Materials PCB and Panel - FR4 1,6mm
Depth 35mm - Skiff friendly

Notes: SERRA generates a fully controllable 4 segment function (Attack, Decay, Sustain, Release) that can be adjusted in time with its own sliders and external CV inputs.

Tweak and modulate shapes until they fit your taste thanks to its onboard Attenuverter & Offset controls.

Tweak it further.

Nano Modules have made these built-in Attenuverter & Offset feature applicable to an external signal if connected to the SIG input, and then extracted via the OUT output.

Wide range.

As fast as 1 millisecond and as slow as 40 seconds. You can even improve this range by applying external CV to the selected stage.

Clear layout.

Accessible and comfortable to use, the controls are easy to handle and you can always see the envelope state through the built-in LEDs.

Specifications

Dimensions: 10HP - 50×128,5mm
Current 53 mA +12V / 39 mA -12V / 0 mA +5V
Input & Output Signals: +/-10V
Impedance Input: 10k - Output 10k
Materials: PCB and Panel - FR4 1,6mm
Depth: 20mm - Skiff friendly

Notes: FONT is a massive sounding liquid filter- designed to bring you powerful basslines, tons of FM modulation and a clean resonance over your audio path.

It features two simultaneous outputs:
2-pole Low Pass
2-pole Band Pass

It can also work as a sine oscillator, tracking 1V/OCT when the resonance is at its maximum level.

FONT can be used to make basslines, acid patterns thanks to its organic and musically sounding resonance.

Ping it to produce percussion sounds such as, bongos, congas or toms.

Applying a pitch envelope, it really shines as a kick-drum machine!

22 mA +12V
25 mA -12V
0 mA 5V
15 mm deep
O 4.60 (10 Votes) Average Rating

Notes: CEQ is an analogue 3-band Equalizer and Compressor module in 4HP. Enhance your synth voices, get some punch and have fun playing with the DJ-style EQ.

CEQ is perfect for your final live mix or you can even use several on individual synth voices.

Great versatility.

CEQ Compressor can be used to subtly tune the dynamics of your voice, saturate or distort it heavily and everything in between. Want to sound a little fatter? This one is for you.

Synth tracks will love it.

Thanks to a switch on the back of the module, you can adjust the compression speed between FAST and SLOW depending on your needs.

CEQ is an analogue module.
NO digital noise.
BIG headroom.

Specifications:

EQ Cuttoff Frequency
High: 2567Hz
Mid: 256Hz to 2567Hz
Low: 256Hz
Filter type Sallen Key configuration.
Filter Q 0.5

Dimensions 4HP - 20×128,5mm

Notes: For Intellijel's 1U rack format, Mosaic serve up a handy quantiser with a clever built-in arpeggiator, meaning you can generate melodic sequences from within the module.

Supplier's Notes:
Craft melodic sequences out of random voltage, LFOs, and more with the Mosaic Quantizer. Don't have a voltage source? Enter Arpeggiator mode to create a sequence from your current scale or note pattern, and modify it on the fly using the chromatic note interface. Pull musicality out of the unknown with Quantizer!

Tech Specs:
Width: 20HP
Depth: 38mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

Notes: Bring the boom with the Mosaic Bass Drum. Bass Drum is a dedicated kick voice, and an essential piece of any percussive section. With v/oct tracking, Bass Drum can play the role of both rhythm and melody, rounding out the low end of your patch. With control over character and dampening, your kicks can shake the house, or sit in the pocket.

Tech Specs:
Width: 14HP
Depth: 28mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

Notes: This all analog voltage controlled oscillator revolves around the reissue of the legendary Curtis CEM3340 IC, which is found in synthesizers such as the Prophet 5, Roland Jupiter Series, and more.

CEM3340 based VCO (triangle core)
Waveforms: Sine, Triangle, Sawtooth, Square
Linear and Exponential FM
PWM
Sync capability
1V/Oct tracking over 10 octaves

Tech Specs:
Width 20HP
Depth: 38mm
Current Consumption: +12V = 27mA, -12V = 24mA

Notes: The Morphor VCO is a compact yet powerful analogue oscillator designed to be the foundation of your Eurorack system. Built around the legendary 3340 architecture, it delivers the clean, precise waveforms that have shaped countless classic synth sounds.

Despite its slim 6HP footprint, the Morphor VCO packs a versatile feature set. It offers four dedicated outputsisquare, saw, triangle, and sineiproviding a rich palette of tones. Pitch control is precise and stable across the entire audible range, with fine-tuning via a tune knob, CV input, and an attenuated FM control for added modulation flexibility.

A three-position octave switch, hard sync input, and pulse-width modulation (PWM) round out the module, making it a reliable and expressive sound source for any patch. Whether you're crafting deep basses, soaring leads, or complex FM textures, the Morphor VCO is ready to deliver.

Features

100% analogue
4 dedicated outputs
Trangle/Sine/Square/Saw
3-position octave switch
FM
PWM
Hard-Sync

Specifications

Panel width: 6 HP
Panel height: 3 U
Module depth: 25 mm
Dimensions: 128.5 x 30.3 x 25 mm
Mass: 111 g
Power Socket: 16-pin

Current draw:
12 V: 26 mA
-12 V: 23 mA
+5 V: 0 mA

Notes: The Morphor LFO - Dual is a slim (6 HP) dual LFO. Each channel features analogue triangle, square, sine, saw and inverted saw outputs and a cycle reset input.

Frequency ranges:

Low: 0.005 - 1.5 Hz
Med: 1.5 - 425 Hz
High: 15 - 4250 Hz

Features

100% analogue
Dual channel
Triangle wave output
Square wave output
Sine wave output
Saw output
Inverted saw output
Cycle reset input
Low/Med/High frequency selector

Specifications

Panel width: 6 HP
Panel height: 3 U
Module depth: 25 mm
Current draw: 12 V : 22 mA | -12 V : 22 mA | +5 V : 0 mA
Dimensions: 128.5 x 30.3 x 25 mm
Weight: 71 g
Power Socket : 10-pin

Notes: ***B-STOCK: Box opened, product in perfect working order***


The Morphor Envelope - Dual ADSR is a slim (6 HP) dual envelope generator. Each channel features standard ADSR (Attack, Decay, Sustain, Release) analogue circuitry, providing the classic, rich envelope shaping tools essential for any modular enthusiast. It features separate control knobs for the attack, decay, sustain and release parameters, two independent channels for versatile envelope shaping and each channel comes equipped with gate, re-trigger, output, and an inverted output.

On the back of the module you can find tiny switches for each channel to change the overall length of the complete envelope:
Short: 5 ms - 30 s
Med: 25 ms - 60 s
Long: 60 ms - 200 s (=3.3 min)

Features

100% analogue
Dual channel
Attack length control
Decay length control
Sustain level control
Release length control
Inverted output
Re-trigger

Specifications

Panel width: 6 HP
Panel height: 3 U
Module depth: 40 mm
Current draw: 12 V : 32 mA | -12 V : 32 mA | +5 V : 0 mA
Dimensions: 128.5 x 30.3 x 40 mm
Weight: 111 g
Power Socket : 16-pin

Notes: Motion MTR allow you to mix, attenuate and invert signals while having clear visual feedback of their levels.

Each channel can function as:

Audio level control with VU meter
CV attenuator with voltage meter
CV inverter with voltage meter
Each input is normalled to 10v, so you can
use each of them to generate fixed voltages.
Also, the outputs of channels 1 and 2 are summed into Out 3 to be used as a mixer.
Patch it wildly to make it work as an attenuverter with offset, as a mixer, a VU meter or a combination of them all!
This module is our first collaboration with Robin Vincent from Molten modular.

Specs

Current Draw: +12v: 110 mA -12v: 43 mA
Width: 6HP
Depth: 30mm including power connector
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.
Idea by Robin Vincent

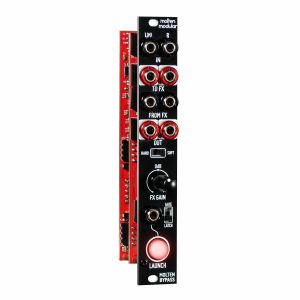

Notes: This is Befaco's new collaboration with Robin Vincent aka Molten Music Technology. A Stereo bypass module to gate control the send of your signals to your favorite effect!

Molten bypass features a hard/soft bypass control, to hard cut the return of your effect or allow the long tails of your reverb to stay after you bypass the effect. Also a gate/latch control to use either triggers or gates for control and a gain control for the returned signal.

Specs

Current needs: +12V: 33mA, -12: 26mA, 5v:0
Width: 4 HP
Depth: 42mm (including power connector)
Designed, kits prepared and modules assembled in Barcelona.

Notes: The XOH (miX Out Headphone) music synthesizer module is a stereo mixer, headphone amplifier and output interfacing module for your modular synthesizer. It consists of two stereo input channels with independent level controls, and two stereo outputs: one pair of independent line level left and right outputs at unity gain; and one TRS headphone or line level output with dedicated level control.

Notes: Based on similar circuits to the legendary Maths module, the CH.SVR ('channel saver' is a three-part function generator module based around sum/offset/attenuversion features. Great value for an accessible entry point to CV signal processing.

Supplier's Notes:
The Ch.Svr music synthesiser module is a small utility module, offering several channels of signal-processing that will be useful in just about any modular system. As a condensation/extension of the sum/offset/attenuversion aspects of MATHS, it continues the great tradition of sculpting the control signals we use to sculpt our sound signals.

Features:

Scale, amplify, attenuate, or invert an incoming signal using Channels 1 or 2
Generate DC offsets when Channel 1 or 2 is unpatched
Crossfade between two signals, or attenuate one signal, using Channel 3
SUM and INVerted Sum Bus for addition, subtraction, mirroring, inversion etc.
Individual Channel Outputs for Channels 1 and 2 allow independent use of all three channels
Anywhere you need more subtle modulation, Ch.Svr is there for you... now all your eurorack slivers may have subtle and intentional modulation they deserve!

Specifications:

Width: 6hp
Max Depth (incl. power cable): 30mm
Power: 20mA @+12V / 10mA @-12V

Notes: Volume 1 pot: regulates the volume for the mini jack input 1.

Volume 2 pot: regulates the volume for the mini jack input 2.

Volume 3 pot: regulates the volume for the mini jack input 3.

Send out the mixer signal before the resonant equalizer, mini jack out, to use with external effect or as mixer dry out.

Return pot: regulate the volume for the mini jack return input, to use with external effect or as a 5- input.

Resomix has one mono mini jack out.

High pass, band pass, low pass switch; selects the filter type.

High, mid, low switch; selects the filter frequency range.

Cutoff pot: regulates the cutoff frequency of the filter, the 0-10v CV input affects the cutoff frequency to obtain the CV in maximum effect keep the cutoff pot to 0.

Resonance pot: regulates the resonance level.

Gain pot: regulates the gain level at the filter input, work as general mixer gain.

Resomix works with a +/-12v 10pin modular connector.

Dimensions

8 HP
38 mm deep

Notes: Winnows, a dual VC resonant filter with damping.

Winnows brings radical resonant filtering to the 1U row. Make your basslines growl like it's 1999. Create clean resonant tones and layers, tuned percussion, steep filtered peaks, vowel filters and more. Each filter channel comprises two state variable filter cores, the first producing a 2-Pole band-pass response, with resonance and self-oscillation amounts set by a 3-Pole feedback network. Signals are then routed through a 1-Pole low-pass damping stage to remove harshness if required. This can be routed to the channel output, or switched and routed through a second series of resonant SVF and 1-Pole LPF damping stages. This circuitry is identical per channel.

Features and uses

Steep and spiked or wide and smooth, resonant bandpass filters
Zone in on and reinforce a sound's dominant frequency, create overtones using both channels
Create sharp resonant peaks, dull or remove any harshness with VC damping
Use the resonator as a sound source by shaping and triggering tuned percussion tones or kick drums
Per channel: 2 x VCA based SVF, 2 x 1-pole damping LPF, 1 x 3-Pole resonance core
Identical circuitry per channel, CV and audio jacks are normalled between channels
Combine both channels in series for vowel filter responses and creative filtering

Specifications

Intellijel 1U format
Width 24 HP
Depth 34mm
Power requirements ~90mA +12V/~80mA -12V
Control voltage range 0-8V
Impedance Input 100K / Output 1K

Notes: Neat little logic and gate processor offering various modes and simple, effective processing power in a small format. Updated version adds state-based logic functions and more.

Supplier's notes:
Voltage-controlled logic and gate processor.

Built upon the foundations of its acclaimed predecessor, this new version drastically expands the feature set within the same footprint.

All the original goodies are still there, now enriched by a full list of state-based logic functions including a delay line.

Faster processing allows perfect handling of audio signals.

User editable settings are stored in non-volatile memory.

With its versatility and features never seen before, the Klavis Logica XT will arouse your creativity and bring inventiveness to your soundscapes.

Notes: The Flexshaper is a highly versatile module when it comes to modify evolving voltages in other directions and levels.

Five settings allow you to fold/expand/clip/compress/invert partially or completely any CV or audio signal.

The module can act as an envelope-shaping tool, frequency multiplier, waveshaper, clipper, distortion, limiter, curve changer, and more.

Five CV inputs offer limitless control over the placement of the voltage points for dynamic signal sculpting.

Birth of the product

The idea of the Flexshaper comes from a feature in the Oberheimr Matrix synthesizers called Tracking Generator.

This signal processor was part of the modulation matrix and meant to be virtually inserted between modulation sources and destinations in order to change the shape of the controlling signal.

The Flexshaper applies the same concept using the same 5 shaping points. However, it goes beyond Oberheim's implementation on two main aspects:

It goes fast enough to process signals at full audio rate
The 5 points are dynamically adjustable (CV) in real-time
Besides, the Flexshaper can process adequately bipolar and unipolar Eurorack signals, even changing them one another.

Dimensions
6 HP
21 mm deep

Current Draw
6 mA +12V
7 mA -12V
32 mA 5V

Notes: The ComPair is a versatile yet compact and affordable tool to expand your sonic arsenal. Voltage comparison is used to trigger events, reshape and mangle waveforms and realize level-dependent logic functions.

Two sections can be used independently as voltage against manual setting comparison. Additionally, the first section allows voltage against voltage comparison with offset adjustment.

When used globally, the module offers a powerful window comparator with CV-controlled top setting.

The outputs benefit from three triple-position switches, allowing independently settable polarity and muting.

Three LEDs indicate the output logic to keep track of what's happening.

Notes: The ComPair is a versatile yet compact and affordable tool to expand your sonic arsenal. Voltage comparison is used to trigger events, reshape and mangle waveforms and realize level-dependent logic functions.

Two sections can be used independently as voltage against manual setting comparison. Additionally, the first section allows voltage against voltage comparison with offset adjustment.

When used globally, the module offers a powerful window comparator with CV-controlled top setting.

The outputs benefit from three triple-position switches, allowing independently settable polarity and muting.

Three LEDs indicate the output logic to keep track of what's happening.

Notes: By combining a mixer and four VCAs in a single module, Mix 3 manages to provide a unique combination of compact size and functionality in just 6 HP. High-end signal paths ensure extremely low noise and distortion, wide headroom and precise gain control, despite the small form factor.

Each of the three main channels has an exponential response, which is more natural for audio than linear, as it matches the human hearing. However, all signal paths are DC-coupled, so control voltage (CV) signals can be processed as well.

What truly sets Mix 3 apart from other compact mixing modules are the three CV inputs, providing voltage control over the signal levels. This even allows you to go beyond unity gain and reach up to +20 dB of amplification. Once a CV input is used, the corresponding channel knob becomes a CV attenuator.

When clipping, Mix 3 does so in a clean, symmetrical way. This yields a very pure overdriven sound, only containing odd harmonics, and allows the module to be used as a triple voltage controlled distortion.

Additional features include audio indicator LEDs, a fourth auxiliary input, voltage control over the output level and a line output jumper setting.

Notes: GOBLET is an analogue filter and distortion unit with some added quirks and extra controls.

Why:

To make stuff sound filthy.
To shape the output of an oscillator.
To live interact with the sound during a performance.
To soft sweep the cutoff thanks to the optocouplers logarithmic response.

With:

Simple waves - make them unrecognizable.
Complex waves - shape them into something new.
Percussions - crank the resonance and give an acid twist to a beat.
No input - play with the feedback and the touch controls.

Dimensions:

8 HP
18 mm deep

Current Draw:

45 mA +12V
25 mA -12V

Whichever power connector you use should work fine with the polarity.

Notes: GETREKT is a full analogue waveshaper - an aggressive one.

Why:

To add saturation and harmonics.
To disrupt - folding - and cut into pieces - clipping.
To generate square waves from other control voltage signals or audio sources.
To invert the polarity of a trigger or other kind of pulses.

With:

Sine waves - hear them scream.
Human voices - fracture them in pieces with clipping as a good ol' broken tape would do.
Complex audio sources - to control and flatten them.
Envelopes going to a drum module - rectify or fold that decay tail.

Dimensions:

4 HP
18 mm deep

Current Draw
35 mA +12V
30 mA -12V

Notes: This module connects via 3 pin cable to the Intellijel Pedal I/O 1U module.

It provides the 1/4" TS interface for connecting guitar pedals or instruments.

Dimensions: 8 HP
44 mm deep

Module is a 1U tile.

Current Draw: Module does not draw current

Notes: Noise Random Tools comprises a collection of useful utility blocks that you could use in many of your patches - Clock, Random Pulse, Analog Noise, Sample and Hold, and Slew.

Features:

- Clock and Random pulse source with adjustable rate
- Analog pink and white noise source with very accurate spectrum
- Analog sample / track and hold with very low droop
- Analog slew with adjustable slew rate

Notes: The Voltage Controlled Amplifier or "VCA" is one of the most essential and useful building blocks in a synthesis patch. The DUAL VCA 1U packs two high quality, DC coupled, linear VCAs into a very compact 1U package.

The two VCAs can be used completely independently or in tandem via the handy signal normalling. The DC coupling means that the VCA can be used for the amplitude control of both control voltages (CV) and audio signals.

Some application/use examples:

- Dual, independent VCA for dynamic level control of two different audio or cv sources
- Stereo VCA (use the CV normalling where CV A normals to CV B) for processing stereo sources or CV pairs.
- CV/Audio summing (when Out A is not patched, it normals to sum with OUT B, CV A and B control the independent levels)
- Voltage/signal doubling (use input A only and the doubled voltage will appear at OUT B when a CV of +5V applied to CV A)

Notes: Operation of the Astra is both simple and straightforward - the large touch panel on the front will respond gradually to soft and firm touches, making it easy to inject some human feeling into your compositions.

Being fully analogue, the controller uses an internal vactrol and slew rate limiter to make it easy for you to create smooth transitions - when used without an input, the MMI Astra uses an internal 5v source as the basis of its signal, allowing you to easily generate complex CV to control other modules, in order to create intermittent filter sweeps, resonance peaks and much more.

By using the input, you can route in both CV and audio to destinations of your choosing, attenuating and amplifying by varying pressure and position on the touch plate. Easily introduce LFOs, create huge reverb or volume swells, or intermittently introduce fading soundscapes as you play.

The front facing LED gives you immediate visual feedback on the status of the module as you play, making it easy to control the MMI Astra. It's the MMI you've wanted for years, finally made real.

Sixe: 4HP
