Tags: Attenuator module

Notes: Samara is a "Swiss Army Knife" type of module, intended to serve the most common voltage and audio signal processing purposes such as attenuation, offsetting, mixing, inverting, and even basic waveshaping. Samara features four channels, each with two inputs and an attenuator, additional switchable offset generators, four voltage level and polarity indicators, two adders with switchable scale, and a precision four-channel processor that selects minimum and maximum voltage.

Notes: Simple but effective four-channel module, allowing you to attenuate or offset CV or audio signals. Normalled 5V source on each channel allows you to generate a standalone CV signal without an input.

Supplier notes:

4TTEN (pronounced either ATTEN or FOUR-TEN) is a four channel attenuator and offset generator.
Use 4TTEN to attenuate any CV or audio signal by running through the ins and outs.
A +5V voltage source is normalled to each input, making it a standalone offset when there is no cable patched into an input.
Each channel is completely independent.
Ever-so-useful in live performance, we designed this module with 4 sliders for easy maneuverability, visual feedback, and enjoyable to play interface. Make your eurorack modular synthesizer system more playable with 4TTEN!
*** 4TTEN's PCB is 113mm (4.45") tall and may be a tight fit in some cases ***

Highlights

- 4 independent attenuators for Control Voltage and Audio signals
- Performance friendly sliders
- Can be used as 0 to +5V Offset
- Comfortable fader caps from the Performance Mixer
- Only 4 hp!

Specs:

Size: 4hp
Depth: 30mm(with cables)
Power: +5mA , -5mA
Virtually no drop on 1V/Oct signals.
VERTICAL PCB LENGTH: 113mm (4.45")
IMPEDANCE = (SOURCE + 100ohm ) / 100kohm
UNBUFFERED

Notes: The Control Voltage Processor from Verbos Electronics GmbH is a suite of control voltage processing possibilities divided into 3 sections in a slim 18HP package. The lower 2 sections are DC coupled mixers that allow mixing, inverting, offsetting, scaling, multiplying, dividing, crossfading or a combination of these functions. The top section is a voltage controlled slewing processor with independent control of Positive and Negative slew rate, with some unique tricks. The Positive and Negative slew, or Rise and Fall rates if you like, have reversing attenuators. The slopes can be blended from linear to RC curves (starting all slides fast and ending slow, like a proper "East Coast" Portamento) without a change in speed. It can be triggered like an AD envelope and has a Gate out that goes high when the CV out is below 100mV. Of course it can loop by patching the Gate out to the Trigger in. The Bounce control adds a unique flare of overshoot to CV changes, a bit like the effect of stopping a tape reel from turning and then letting it go. The combination of multiple voltage processors offers the user the functions of analogue computer.

Notes: Great value from this versatile six-channel function generator, suitable for LFOs, envelopes, slew limiting and much more. A versatile module at a good price.

Supplier's Notes:
This modules is a 6 channels function generator, each channel has an attenuverter to set the output gain, there are 2 extra outputs with mixed signals (channels 1+2+3 and 4+5+6) for complex CV

-With no signal plugged in the input, channel will self-oscillate generating an LFO of i4,8V

-With gate/trigger signals in the input, channel is an AR envelope generator

-With an stepped CV signal plugged in the input, the channel acts as a slew limiter

min attack/decay time:
0,3 milliseconds in fast mode
13 milliseconds in slow mode

max LFO length:
1" in fast mode
1'20" in slow mode

max attack/decay length:
13" in fast mode
3'00" in slow mode (approx)

18 HP
159 mA +12V
153 mA -12V

Notes: TUL Dual Attenuator/-verter and Offset Generator

Temperature stable and accurate circuit design. The attenuator is exponential and can be regulated more precisely in the initial range.

As an attenuverter, the fader describes an S-curve, i.e. it is in Range +/- 0 finer adjustable. The AC gain is 1, so there is no loss at maximum Att/Attv settings.

The offset potentiometer shift by +/- 5 volts and can be switched to another mode on the back of the PCB using jumpers.

Here the attenuation is towards zero made until it is zero.

The normal mode leaves the voltage at the specified offset value.

Channel A is normalized to channel B so you can get two different CVs.

On the rear side of the PCB, you have a jumper to switch from offset pre fader (good for ADSR) and post fader.

Power consumption: +/- 20mA

Rackspace: 6HP

CV out is (-/+5Volt) if nothing is patched to IN A/B, so you can use it as a manual CV source.

Notes: QUA Quad Attenuator

without CV In each Channel generates 0-10V

Power consumption: +/-10 mA

Rackspace: 4HP

Notes: Performance-focussed four-channel attenuverter and offset module, with built-in voltage generator for 0-5v or i5v voltages. Simple but effective.

Supplier's Notes:
Lapsus Os is a four channel attenuator/attenuverter and offset. Designed with performance in mind, each channel can be set to either attenuate or attenuate/invert an incoming signal, adjust offset of an incoming signal, or with nothing patched to its input, generate a 0-5v or i5v offset. Switches on the back of the module invert the fader behavior, allowing for the module to be mounted in either direction, for further customization and ease of use.

Etymology
Lapsus -- from latin lapsus : 'sliding' Os -- from latin os 'bones'
"Translation: Dancing Corpse"

Interface

Faders 1-4: The main controls of LO. The LEDs in the faders show the CV that is being passed through. When in attenuverter mode, the LED will be off at 0, allowing each fader to easily be set near 0.

Offset inputs 1-4 (+): Sending a signal to these inputs adds an offset to the input, controlled by the fader and the mode switch.

Outputs: Each channel has a pair of identical outputs. If nothing is sent to either input of a channel, an offset will be generated and output here, useful for controlling parameters on other modules with a single fader.

Uni/Bi Switches 1-4: In the Unipolar position (left), the corresponding channel attenuates the input signal. In the Bipolar position (right), the upper half of the corresponding channel fader attenuates the input signal, the lower half of the fader inverts and attenuates the signal.

Attenuating/attenuverting inputs 1-4 (x): Sending a signal to these inputs attenuates/attenuverts the signal, depending on the position of the channel fader and switch.

Rear-board switches: Below, in red. Inverts the corresponding channel, allowing for creative mounting in either direction. Note that each channel must be switched independently to fully reverse the functionality.

Patch Tutorial

Patch 1: Set a channel switch to the left position and patch the outputs to CV inputs on another module (for instance, Loquelic Iteritas). The fader becomes an easy-to-use controller for those parameters. Patch the rest of the LO channels to other parameters in your system to create an expressive and intuitive interface.

Patch 2: Patch a CV signal (such as an LFO) into the attenuverting input of a channel. Set the channel switch to the right position, and patch the output to a bipolar CV input in your system. Tweak the fader to attenuvert and dial in the perfect amount of modulation on the fly.

Patch 3: In a case with four voices route each LO channel to the decay control for each voice. Use for centralized control over voicing.

Size: 10HP Eurorack
Depth .8 Inches
Power 2x5 Eurorack
+12 mA 60 mA
-12 mA 50 mA

Inputs: i10v
Outputs (without voltage applied):
Unipolar: 0-5v
Bipolar: i5v

Notes: Blend your signals together with Mixer, our 4 input mixing solution! With DC coupled inputs, Mixer works well with both audio and CV signals, making it the perfect option for level controls across your system.

Tech Specs:
Width: 14HP
Depth: 38mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

Notes: Arkan

Dual Voltage Polarizer

You may have heard this before: "You can never have enough VCAs". A voltage polarizer (also known as a bipolar VCA or a 4-quadrant multiplier) is often viewed as the VCA better suited for CV. As it can be used as a unipolar VCA and it allows you to invert a signal when it is modulated with a negative voltage. Resulting in interesting movements in your modulations.

What sets Arkan apart from other voltage polarizers is the curvature control, a feature usually only seen in unipolar VCAs. By taking a different approach to the classic voltage polarizer circuitry, Malstrom have devised a unique solution that provides a new way to shape your audio and CV. The non-linearity of the polarizer also makes Arkan really good at reaching silence when presented with a 0V CV signal.

At audio rate, Arkan acts as a ring-modulator with four controls to change timbres.

Boosting adds odd harmonics (symmetrical distortion), while offsetting adds even harmonics (asymmetrical distortion). The modulation curve changes ring modulation sharpness, and modulation strength determines the carrier dominance.

Two identical channels with carefully selected features will make Arkan your go-to modulation control hub. Arkan is especially useful for common utility duties such as mixing, scaling, inverting and offsetting. As well as CV modulation, feedback patching, and waveshaping. All this makes Arkan a very versatile tool that will certainly have a place in your patch!

Features (per channel)

- Input attenuation with inverter switch gives you more precision and range, with voltage inversion and quick silencing.
- Bias input with attenuverter control to offset your input signal or mix/invert another signal.
- CV input with curvature control allows you to shape the polarizer and improve its 0V attenuation.
- CV modulation control to fade in the modulator, allowing you to determine the amount of modulation.
- Voltage gain and polarity led indicators showing you exactly what is happening under the radar.
- Output normalled internally and externally (to other Arkans) to easily mix signals.

Additional features

Optional signal boost (x4 / +12dB) via switch on the PCB to increase voltages when needed.
5V or 10V voltage reference selection for bias voltage and CV input range to adjust Arkan to your system.

Dimensions
- 8HP.
- 28mm, Skiff-friendly.

Power consumption
- 90mA @ +12V.
- 85mA @ -12V.

I/O specs

- All inputs DC coupled.
- All inputs handle audio signals.
- All inputs have 100k input impedance. - All inputs have +-10V Input range.
- CV range +-5V or +-10V.
- Bias Voltage range +-5V or +-10V.
- Boost gain x1 or x4.
- All inputs are overvoltage protected.
- Keyed power header.
- Reverse power protection.

Notes: A true legend of modular synthesis, Make Noise's Maths is arguably the definitive Eurorack function generator. Based on analogue computing circuits, Maths draws on Buchla-style techniques to offer countless ways of generating and processing modulation signals.

Supplier's Notes:
The MATHS music synthesizer module is an analogue computer designed for musical purposes. Amongst other things, it will allow you to:

Features

Generate a variety of linear, logarithmic, or exponential triggered or continuous functions

Integrate an incoming signal

With no signal applied, generate a variety of linear, logarithmic, or exponential functions

Add, subtract and OR up to 4 signals

Generate analogue signals from digital information (Gate / Clock)

Generate digital information (Gate / Clock) from analog signals

Delay digital (Gate / Clock) information

If the above list reads like science rather than music, here is the translation:

Voltage Controlled Envelope or LFO as slow as 25 minutes and as fast as 1khz

Apply Lag, Slew or Portamento to control voltages

Change the depth of modulation and modulate backwards!

Combine up to 4 control signals to create more complex modulations

Musical Events such as Ramping up or Down in Tempo, on command

Initiating Musical events upon sensing motion in the system

Musical note division and / or Flam

Perfect for modulating the DPO and just about anything else

Specifications
Width: 20hp
Max Depth
(incl. power cable): 32mm

Power:
60mA@ +12V
50mA @ -12V

Notes: The Flexshaper is a highly versatile module when it comes to modify evolving voltages in other directions and levels.

Five settings allow you to fold/expand/clip/compress/invert partially or completely any CV or audio signal.

The module can act as an envelope-shaping tool, frequency multiplier, waveshaper, clipper, distortion, limiter, curve changer, and more.

Five CV inputs offer limitless control over the placement of the voltage points for dynamic signal sculpting.

Birth of the product

The idea of the Flexshaper comes from a feature in the Oberheimr Matrix synthesizers called Tracking Generator.

This signal processor was part of the modulation matrix and meant to be virtually inserted between modulation sources and destinations in order to change the shape of the controlling signal.

The Flexshaper applies the same concept using the same 5 shaping points. However, it goes beyond Oberheim's implementation on two main aspects:

It goes fast enough to process signals at full audio rate
The 5 points are dynamically adjustable (CV) in real-time
Besides, the Flexshaper can process adequately bipolar and unipolar Eurorack signals, even changing them one another.

Dimensions
6 HP
21 mm deep

Current Draw
6 mA +12V
7 mA -12V
32 mA 5V

Notes: Triplatt is a three-channel active/buffered attenuverter and summing mixer. Each channel has a knob, which can function as a unipolar attenuator or a bipolar attenuverter, depending on the setting of its corresponding two-position polarity switch.

Each input is normalled to a built-in precision +5V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 V or -5 to +5 V depending on the position of the channel polarity switch. Outputs A and B are also capable of a range of 0-10 / -10 to +10 when using the special function switches.

Each output is normalled to mix into the output of the channel below, making it possible to do sub mixes in groups of two or three.

In addition, each channel has a "special function" switch to alter its input voltage in a specific way. Channel A has a 2x voltage multiplier switch, allowing you to double the voltage sent into Channel A. Channel B has a +5V switch, allowing you to add 5V to whatever voltage is sent into Channel B. Channel C has a mute switch, allowing you to completely turn off the signal being sent into Channel C.

Notes: The shorter and wider brother to the popular Triatt module!

The four handy knobs can act as active attenuators (unipolar) or attenuverters (bipolar) depending on the setting of the two-position switches above each one.

Each input is normalled to a precision +5V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 v or -5 to +5 v depending on the position of the mode switch.

- 2 modes for each channel
- 5v normalled to each input
- With external signals it acts as active/buffered attenuator/attenuverter/mixer
- Each output normalled to mix into the adjacent channel on the right making it possible to do sub mixes in groups of 2, 3 or all four channels.

Notes: This module allows you to connect balanced line level audio (+4 dBu) into your Eurorack modular system. It is a compact and easy way to patch in a rack mount/desktop FX units, external line-level instruments like synths and drum machines, outputs from your DAW, or many other line level sources.

Notes: Duatt is a dual-channel active/buffered attenuverter and summing mixer. Each channel has a knob, which can function as a unipolar attenuator or a bipolar attenuverter, depending on the setting of its corresponding two-position polarity switch. It's a versatile and super handy utility module that will find its way into almost any patch you make!

Each input is normalled to a built-in +5V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 V or -5 to +5 V depending on the position of the channel polarity switch.

Channel A's output is normalled into the output of channel B for mixing duties, and channel A has a 2x voltage multiplier switch, allowing you to double the voltage sent into Channel A.

Notes: Att 1U Passive Variable Signal Attenuator

This passive attenuator has a 100K linear potentiometer that is DC coupled. Perfect for adding attenuators to those 1U/3U modules without.

Width: 6HP
Depth: 18mm

Notes: Beauty. Refinement. Attenuversion.

It's another Herzlich Labs release: the 2hp stereo Attenuverter. Two channels of connected attenuversion, allowing you to fully and smoothly invert any signals you plug in - turn negative to positive, turn phase to antiphase, and find all the variations in between.

With the usual pleasantly tactile sliding pot, the sAttenuverter is both performance friendly and inspiring to use. Extremely suitable for linked mono signals and stereo alike, it will feel right at home in the increasingly popular stereo setups in modular.

Dimension: 2 HP

Notes: In recent years, stereo signal paths have increasingly found their way into the wonderful world of Eurorack synthesis - so naturally, utilities should follow suit. Introducing the Herzlich PSA, a simple solution to a problem you might not even realize you had. Far from just useful as an attenuator for audio sources in mixdowns, the PSA can also be used to bring audio down to more managable levels (such as line level), attenuate multiple signals simultaneously (like increasing the modulation depth of two LFO's at the same time! It's like having two hands, but with one hand!) and even function as a multiple: Attenuator 1 is normalled to Attenuator 2, so multing your stereo signal (or two mono signals) while attenuating the two signals individually is easy as pie.

There's not much else to say, except that it's passive, and draws no power - and it looks great!

Dimensions
4 HP

Current Draw
Module does not draw current

Notes: *** Updated to v3 in February 2024 with improved hardware and circuitry ***

The Omen is a dual LPG with a bit more than you might be used to. This module was born out of the realisation that it was possible to make far more interesting LPG designs than the standard we've become so accustomed to.

In a convergence of old-school LPG design and more modern components, the Omen boasts two -6dB resonant filters, custom built vactrols, built in CV attenuation and no less than three cutoff modes per filter. Filter 1 is soft and light, imparting a gentle, naturally gated touch of filtering on your sound, while Filter 2 is darker and more resonant, and can turn downright growly and distorted when left wide open.

Designed to give you as many creative options as possible, the Omen has the unique ability to function as either two discrete LPG, or as one 4-pole resonant LPG. When plugging a signal in to Input 1, and with no signal plugged into Input 2, the output will be present at both Output 1 and Output 2, with Output 2 producing the signal as it passes through both filters. Tweaking both filters independently will generate a wide array of soft and sometimes harsh tones, ranging from Buchla bongos to early synthesis brass and organ sounds. There is much to love here.

CV is similarly handled, by plugging in only one CV source, it will act on both channels - this is useful for creating musically similar outputs as well as when using the dual filter operation. However, the dual filter mode greatly benefits from having two CV inputs: use an envelope in CV1 to act as a VCA, and an LFO in CV2 to create tremolo, for instance.

Using custom designed, hand built vactrols, care has been taken to mitigate the less desirable aspects of passive LPGs - in most modules, the user can expect zero bleed through on the LPG channels, and signal attenuation is minimal even with the 4-pole filter settings engaged. Of course, many of the natural features of vactrols remain, such as subtle memory effect when engaging the vactrol for long periods.

Finally, you receive maximum blinkenlights as LED's on the front panel simulate the action of the vactrols, so you'll always know what's going on under the hood. No collection of fancy LPG's is complete without the Omen.

Dimensions
4 HP
36 mm deep

Current Draw
Module does not draw current

Notes: Drawing inspiration from the MMI Maxima, the MMI Helios is intended as a middle ground between the gestural control surface of the Maxima and the fingertip control of the smaller MMI.

Less density, but a much higher degree of patch control is the key point of the Helios, which complements other MMI devices very well, and can be joined with other Helios (Helii?) to form larger and creative control surfaces.

The design is greatly simplified compared to the original MMI, with only two I/O jacks - either can function as input and output, and their interaction with each other is determined by touching both plates simultaneously to form a connection, or in cooperation with other MMI devices.

Available in a "right" and "left" version - one is an exact mirror image of the other, which makes it suitable for having two units adjacent to one another.

Dimensions
8 HP

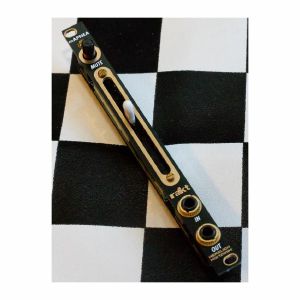

Notes: Passive Performance Attenuator and Mute with Reversible Front Panel

The mApnea is designed in cooperation with Rakt to create a simple, modular and extensible utility mixing system. The features are numerous and the use cases multitudes, among them:

Apnea-style performance mute for quick and silent muting of both audio and control signals during performance.

Long slide attenuator for fine attenuation control.

Reversible front panel and slide pot: easily flip the orientation of the double-sided front panel, or switch the direction of the slide pot with a microswitch on the back.

Passive design and 2hp width makes integration easy and flexible in any system, even in an auxiliary pod.

Integrates seamlessly with audio interfaces, mixers and other modules: combine them with any module like the Expert Sleepers ES-9 or Herzlich Labs Active Mix to create performance mixers of any size, or use it alone as a performance attenuator or master volume control.

Why bother shopping for one massive performance mixer after the other, when you can simply build the exact solution to match your needs, with Herzlich Labs.

Dimensions
2 HP
9 mm deep

Current Draw
Module does not draw current

Notes: 3xMIA is a 6-channel attenuverting mixer/offset/scale/polarizer.

3 blocks of 2-channel attenuverting mixers, using dual concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.

With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.

DC coupled, so it can be used for audio, CV, or both at the same time.

80 mA +12V
80 mA -12V
35 mm Depth
6 HP wide

Notes: 3xMIA is a 6-channel attenuverting mixer/offset/scale/polarizer

3 blocks of 2-channel attenuverting mixers, using dual concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.

With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.

DC coupled, so it can be used for audio, CV, or both at the same time.

80 mA +12V
80 mA -12V
35 mm Depth
24HP wide

Notes: Wonderland is an 8×8 active patchbay/matrix mixer/switcher for both audio and control voltages. It features:

8 inputs (1 through to 8), each with micro-attenuators (which can be set with a small screwdriver)
8 buffered inverted outputs (A through to H) which are 180o out of phase with the inputs
8 buffered normal outputs (A through to H) which are in phase with the inputs
A switch matrix of 64 push on/push off switches
Any of the 8 inputs can be patched to any of the 8 outputs simply by pressing the corresponding switches. A patched signal will appear at both normal and inverted outputs simultaneously.

A single input can be patched to a single output. A single input can be patched to multiple outputs. Multiple inputs can be patched to a single output. Multiple inputs can be patched to multiple outputs.

Each input features a micro-attenuator which can be set with a small screwdriver. This space saving feature allows you to reduce the volume of an incoming signal without having to resort to external attenuators. If you add many inputs to one output you will of course cause clipping (which may or may not be desirable!), the micro-attenuators are your on-board way around this. I find it useful to leave the micro-attenuators set to 50% (which is how they come pre-set at delivery). Of course, their size is a little bit of a compromise, but they are a useful feature nonetheless. Wonderland’s sister module Looking Glass includes full size input attenuators as well as LED status indicators.

Product Specifications
12V draw
30mA

5V draw
0mA

-12V draw
31mA

Depth
35mm

Width
18HP

Notes: The 333 is a summing and distribution module for Eurorack modular systems.

It is composed of three identical sections, the red, yellow and green, each of those featuring three inputs summing amplifier with three independently buffered outputs.

Derived directly from the CGM creative mixer series, the sum section is DC coupled, allowing the sum of control voltages as well as audio signals.

With an extremely low tolerance in both sum and output sections, it is suitable also for summing quantized voltages like the ones coming out from the quantized outputs of the SAPEL.

In case CVs or audio signals are particularly hot, the 6dB attenuator might be helpful to reduce exactly by 50% the incoming signals.

Red and yellow output are also normalled to the 1st jack socket of the yellow and green input: in this way this module can also work as a 1 to 9 buffered multiple.

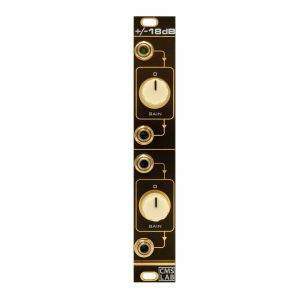

Notes: +/-18dB is an active amplifier module, capable to amplify or attenuate signals up to +/-18 decibels.

The circuit is highly optimized to work well both with audio and CV signals.

It is useful in the following situations:

- to amplify audio signals from various external sources like IPODs IPADs, portable recorders, desktop synths or drum machines to eurorack levels.

- to amplify CV signals to produce stronger modulations. For example applying a slew limiter with long attack and decay times to noise, will reduce the amplitude of the resulted signal so in many cases you may need to amplify it to produce the right modulations.

- to clip signals. For example transform a triangle signal to a trapezoid signal.

- to change the shape of an ADSR. You can clip the point where the Attack meets the Decay and modulate the audio VCA to produce a more impactful sound.

- and many more applications.

Unity amplification (what goes in equals what goes out) is when the potentiometer is at the 0 position.

+/-18dB is for line level signals so it is not optimal for microphone level signals.

CMS-LAB module

Tech specs:

-Width: 4HP
-35mm depth behind the panel
-Standard 10 pin euro power (+12V / -12V)
-Power consumption: e+12V 10mA , -12V 10mA

Notes: Pico Mixer is simple 3 channel DC coupled mixer intended to mix audio signals and CV signals in order to obtain complex modulations. Also it may serve as CV and audio attenuator.

Features:
3 inputs
Diode protection against overvoltage

Technical specification:
Mixer gain: 1
Power consumption +4mA, -4mA
Module width: 3HP
Module depth: 35mm

Notes: LINK is the module that bridges Eurorack to destop mixers - it has 5 sections that attenuate Eurorack signals to line level signals and sends them to 6.3mm jacks for quality connection to the mixer.

Notes: Versatile and valuable. The amazing Dreadbox Utopia is a CV audio and manipulator. It allows you to control a wide range of different properties inside your Eurorack system. These include four attenuverters, an offset generator, and a four to three mixer. This selection of tools give you the means to take control of your signals and bend them fully to your liking. Helping you put the finishing touches to your synth patch.

40 mA +12V
27 mA -12V
23 mm deep
10HP

Notes: Stereo Strip takes the idea of a channel strip and makes it modular. By bringing this long-established component of the audio engineering world into the Eurorack environment and by adding CV control over its key parameters, you will find new, creative ways to use it in your patches!

It features stereo inputs and outputs for audio or CV with EQ, voltage controlled panning, stereo VCA, performable mute and input/output level switching for Eurorack or line level uses. Abusing the input level switching allows for some musical, modulate-able and highly shapeable distortion sounds too.

Stereo Strip was designed to be a creative part of a modular patch. Creating stereo images from mono sources, shaping and modulating existing stereo images, synthesising stereo pseudo ring modulation, sweetening FX with EQ or drastically wave shaping your oscillators, creating send FX routings with benefits or it can simply be used as a channel strip at the end of chain in a patch.

The addition of line level gain boosting (for the input) or reduction (for the output) allow it to work as a stereo input or output interface for external gear with the advantage of the VCA, panning and the EQ to shape the sound. Experiment with bringing external gear into the Eurorack format and then shape and modulate those sounds them on the way in!

Try patching Stereo Strip anywhere you would place a VCA in a system and/or explore its EQ and voltage controlled panning, which are rarer additions to the sound sculpting options for the Eurorack format.

Specs

Current Draw: +12: 63mA -12: 63mA 5v:0
Width: 6HP
Depth: 33mm including power connector
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.

Notes: Yet more bargain Buchla collabs from TipTop Audio with this dual voltage processor. Generate CV outputs algorithmically based on multiple inputs, allowing for some seriously complex modulation.

Supplier's Notes:
Model 257 Dual Control Voltage Processor consistsof two identical sections, each of which permits several applied control voltages to define a single output voltage according to the equation:

(Va * K) + ((Vb * (1-M)) + (Vc * M)) + Voset = V_out

The algebraic manipulations possible with this module include addition, subtraction, scaling, inversion, and multiplication. Also incorporated is the capability of using one control voltage (M) to transfercontrol from one applied voltage (V_b) to another (V_c).

Functions

- Attenuverter
Va is the voltage input a for attenuverter (left jack on the panel)
K knob can scale the incoming Va voltage either positively or negatively

- Crossfader
Vb is the voltage input b for the left side of the crossfader (second jack from the left)
+.5 switch adds 5 volts to the input of Vb
Vc is the voltage input c for the right side of the crossfader (fourth jack from the left)
M scales Vb from 1 to 0 based on the position of M knob
M scales Vc from 0 to 1 based on the position of M knob
The middle CV input at M/M can crossfade between Vb and Vc (third jack from the left)
The M knob and M CV added together to control crossfade position

- Oset
Voset Adds 0 - 10 volts to any combination of Va + Vb + Vc

- Output
Vout is the combined voltage of the attenuverter, crossfader and oset (right jack on the panel)

Specifications:

Size: 14HP - Depth: 25mm
Power: +12V 45mA / -12V 22mA

Notes: 1U TRS

Total flexibility for the Befaco 7U or Intellijel cases rear connectors Jacks.
The channels are reversible and can be used independently for Input or Output.
4 Inputs or Outputs (per module) can be obtained by "AND" cables.
Independent tip and ring attenuators are selectable for each channel to convert the Modular Input Level to Line Output Level.

Features

Selectable attenuator per channel
Fully compatible with Intellijel's 7U and Palette cases.
1U Intellijel format.

Specs

Current needs: Passive
Width: 6 HP
Depth: 20 mm (including power connector)
Designed, kits prepared and completed modules assembled in Barcelona

Notes: Each of the two sections of the module is capable of performing the analog multiplication of two signals (A and B) and add an offset (C). It can also act as a dual voltage controlled attenuverter, dual ring modulator, dual VCA or four channel mixer (see block diagram below).

The B inputs are routed to an attenuverter that multiplies the signal between -2 to 2, while the offset inputs (C) route through a unity gain attenuverter (multiplies the signal between -1 and 1).

The output of first section is routed to the output of the second (when the first's output is unused), so the second output can act as master to achieve (A1*B1+C1) + (A2*B2+C2) or (A1 + C1) + (A2 + C2) - a 4 channel mixer.

The through-zero (four-quadrant) multipliers in the A*B+C allow for true Ring Modulation. To achieve this, simply connect two waveforms to the A and B inputs.

Notes: Take up to two CV signals and this passive module converts them to TRS outputs in order to control effects pedal modulation inputs, with attenuation on both channels. Simple, straightforward stuff.

Supplier's Notes:
ADDAC309 CV to Expression allows a simple and straight forward connection between modular and effect pedals that features expression pedal TRS inputs.

Instead of using an expression pedal into the effects pedal the user can use this module in between a CV source and the Effects pedal to be controlled.

This is a great way to control the available parameters on the effects pedals straight from a CV source.

ADDAC309 features 2 channels each with a CV Input with attenuator and a 1/4" jack output.

This is a passive module, the power needed for operation is taken from the pedal power instead of the modular frame, this allows for perfect matching of the pedal's operating voltage which can range from 3.3v to 9v.

Tech Specs:
4HP
3,5cm deep
Passive module

Notes: Trim is a 2 channel passive attenuator. It features two individual channels of attenuation.
