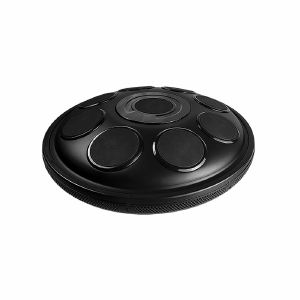

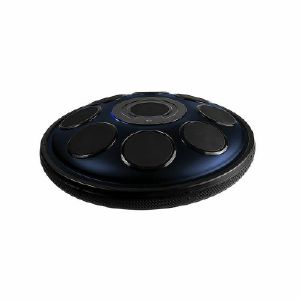

Notes: The Lumen Handpan is the world's first electroacoustic handpan.

It sounds and plays like an acoustic handpan, but offers incredible flexibility by comparison. With the Lumen Handpan, you can play in any tuning. It also includes samples from various handpan types, giving you full control over the sound. These individual settings - including volume control - can be adjusted via the built-in display and touch interface.

And the most important feature of any handpan: the strike dynamics. The 9 pressure-sensitive pads deliver impressively nuanced response, along with polyphonic aftertouch, creating an expressive and immersive playing experience.

The integrated 360-degree full-range speaker and a battery that lasts up to 8 hours make the Lumen Handpan fully portable and versatile. It can also be played using headphones, in which case the internal speaker can be disabled. DAW integration via MIDI is also supported.

Notes: The Lumen Handpan is the world's first electroacoustic handpan.

It sounds and plays like an acoustic handpan, but offers incredible flexibility by comparison. With the Lumen Handpan, you can play in any tuning. It also includes samples from various handpan types, giving you full control over the sound. These individual settings - including volume control - can be adjusted via the built-in display and touch interface.

And the most important feature of any handpan: the strike dynamics. The 9 pressure-sensitive pads deliver impressively nuanced response, along with polyphonic aftertouch, creating an expressive and immersive playing experience.

The integrated 360-degree full-range speaker and a battery that lasts up to 8 hours make the Lumen Handpan fully portable and versatile. It can also be played using headphones, in which case the internal speaker can be disabled. DAW integration via MIDI is also supported

Notes: The M4000D Mini Mellotron was developed to meet the needs of keyboardists who want an even smaller and lighter Digital Mellotron. The Mini is also designed to fit perfectly on top of the regular M4000D to make a great looking dual manual Mellotron. Instead of the M4000D's wooden keyboard, it includes a high-quality, semi-weighted Fatar piano-style keyboard with velocity sensitivity, and mono aftertouch.

Specifications

100 instantly accessible Mellotron and Chamberlin sounds, captured from original tape sources at 24-bits, uncompressed
Expansion slot for 100 additional sounds
A and B sound banks simultaneously accessible, with mix control
Controls for volume, tone, normal/half-speed play and pitch adjustment
A, B and Master outputs available on unbalanced 1/4-in. line connectors
1/4-in. connectors for sustain, expression, and volume pedals, and for headphones
MIDI in, out, and thru
Dimensions: 32 in (W) x 13 in (D) x 3 in (H); weight: 21 pounds

Notes: Discover the perfect harmony of our top-of-the-line modules with our ORACLE system - a meticulously crafted 66hp stereo desktop instrument that seamlessly integrates our selection of eurorack modules: a full-featured system that offers a vast array of capabilities in a compact form factor. With ORACLE, you can dig into unorthodox sequencing, interactive modulation, and innovative stereo sounds- spanning styles ranging from ambient to techno, as well as experimental soundscapes and sound design.

At the heart of the system is our renowned module Chaos; within this compact ecosystem, it can unleash its full potential and seamlessly integrate with the other modules.

Chaos can produce control signals quickly and creatively with minimal user input. It can be used as a rhythmic or melodic sequencer, as a random or deterministic source of modulation: A random stream of data that you can manipulate at your linking and then loop.

Our ORACLE system is, indeed, built on the fundamental concept of loops, a powerful and versatile technique used in many forms of audio production. While loops are traditionally used to repeat audio samples, our system, ORACLE, expands on this concept by allowing you to loop various elements, including gestural movements, waveforms, note progressions, and beats from random sources.

With Thererec, our sketchable dual-channel function generator, you can experiment with your system's interaction differently. Move your hands over the sensors and loop your movements to create intricate voltage patterns, envelopes, or LFOs. With Thererec, you can unlock a new level of creativity in your system design.

One of the key features that sets our system apart is our advanced stereo oscillator, Proteo. With its innovative approach, it can convert any voltage source into high-quality audio waveforms and put them in a loop.Waveforms can be frozen or left in a constantly evolving state, giving Proteo an unheard distinctive sound. With Proteo, you can explore new territories and experiment with different audio sources, allowing you to create truly unique stereo sounds.

Axis includes all the classic blocks for audio amplitude management, such as a dual-function generator, dual VCA, a crossfader, channel volume, AM modulation, and dynamic control capabilities like velocity.The idea is to manipulate a sound over three axes: its length, its volume, and its place inside the stereo field.

At the end of the chain, Endline is our ultimate solution for your summing and outputs needs. This high-quality module offers four stereo channels of summing, sub-mix capabilities, two sends and returns, a headphone output, and transformer-balanced outputs.

Notes: Discover the perfect harmony of our top-of-the-line modules with our ORACLE system - a meticulously crafted 66hp stereo desktop instrument that seamlessly integrates our selection of eurorack modules: a full-featured system that offers a vast array of capabilities in a compact form factor. With ORACLE, you can dig into unorthodox sequencing, interactive modulation, and innovative stereo sounds- spanning styles ranging from ambient to techno, as well as experimental soundscapes and sound design.

At the heart of the system is our renowned module Chaos; within this compact ecosystem, it can unleash its full potential and seamlessly integrate with the other modules.

Chaos can produce control signals quickly and creatively with minimal user input. It can be used as a rhythmic or melodic sequencer, as a random or deterministic source of modulation: A random stream of data that you can manipulate at your linking and then loop.

Our ORACLE system is, indeed, built on the fundamental concept of loops, a powerful and versatile technique used in many forms of audio production. While loops are traditionally used to repeat audio samples, our system, ORACLE, expands on this concept by allowing you to loop various elements, including gestural movements, waveforms, note progressions, and beats from random sources.

With Thererec, our sketchable dual-channel function generator, you can experiment with your system's interaction differently. Move your hands over the sensors and loop your movements to create intricate voltage patterns, envelopes, or LFOs. With Thererec, you can unlock a new level of creativity in your system design.

One of the key features that sets our system apart is our advanced stereo oscillator, Proteo. With its innovative approach, it can convert any voltage source into high-quality audio waveforms and put them in a loop.Waveforms can be frozen or left in a constantly evolving state, giving Proteo an unheard distinctive sound. With Proteo, you can explore new territories and experiment with different audio sources, allowing you to create truly unique stereo sounds.

Axis includes all the classic blocks for audio amplitude management, such as a dual-function generator, dual VCA, a crossfader, channel volume, AM modulation, and dynamic control capabilities like velocity.The idea is to manipulate a sound over three axes: its length, its volume, and its place inside the stereo field.

At the end of the chain, Endline is our ultimate solution for your summing and outputs needs. This high-quality module offers four stereo channels of summing, sub-mix capabilities, two sends and returns, a headphone output, and transformer-balanced outputs.

Notes: The world first heard the instantly recognizable sounds of the Mellotron on hits from the Moody Blues ("Nights in White Satin") and the Beatles ("Strawberry Fields Forever") in the 1960s. In 2010, Mellotron reintroduced the iconic tape-based machine in a compact digital version, the Mellotron M4000D, that retains the authentic sound, look and feel of the original keyboard while adding some significant improvements.

The M4000D has been used onstage and in the studio by artists, musicians and producers including Foo Fighters, Red Hot Chili Peppers, Smashing Pumpkins, Wilco, Incubus, Queens of the Stone Age, Eels, Jackson Browne, Bruno Mars, Band of Horses, Fleet Foxes, Sean Lennon, Brendan Benson, Air, Kooks, Train, Elbow, Michael Beinhorn, Bob Rock, Raphael Saadiq, Noel Gallagher and Gotye.

Specifications

100 instantly accessible Mellotron and Chamberlin sounds, captured from original tape sources at 24-bits, uncompressed
Expansion slot for 100 additional sounds
A and B sound banks simultaneously accessible, with mix control
Controls for volume, tone, normal/half-speed play and pitch adjustment
A, B and Master outputs available on gold plated balanced XLR and gold plated unbalanced 1/4-in line connectors
1/4-in connectors for sustain, expression, and volume pedals, and for headphones
MIDI in, out, and thru
Dimensions: 34 in (W) x 19.5 in (D) x 5.25 in (H); weight: 38.5 pounds

Notes: (ISE-NIN) VOICE brings the legendary Japanese discrete analogue sound into a compact 100% analogue Eurorack creation. Ideal for combination with an x0x techno rig, the full depth of rich sonic potential and programmability of ISE-NIN can now be patched into new modular concoctions. A full complement of iconic analog oscillators, filters, envelopes, and modulation make this at once a full-featured semi-modular synth on its own, and a powerful addition to any rig with the addition of ISE-NIN BREAKOUT.

Two Oscillators with Deep Modulation

This is a no-compromise compact recreation of a complete voice - lacking only the desktop synth's polyphony. Two oscillators each include multiple waveforms (triangle, ramp, pulse, and square on the VCO-1, with sine and noise replacing triangle and square on VCO-2). Hard sync is available, as is configurable modulation, with dedicated PWM (controlled manually, via LFO, or via envelope 1), and tweakable modulation amounts from both LFO and envelope 1 to VCO-1, VCO-2, or both. The LFO section provides access to waveform (sine, saw, square, random), rate, and delay.

Unmistakable Filter, Dual Envelopes, Musical Control

The unique classic 80s Japanese filter sound is fully embodied here, with highpass filter, lowpass with two slope options (-12 dB, -24 dB), and resonance, all with their own controls. Dual envelopes, each with four stages, are assignable to the filter, VCO modulation (ENV-1), and VCA (ENV-2), with an envelope mod fader. Envelope 1 also sports a polarity switch. As with our desktop synths, musical control is front and center, literally: you'll find dedicated controls for toggling keyboard input to each envelope, a keyboard amount to VCF fader. If you're using ISE-NIN alone as a voice, you'll have access to 1v/octave and gate inputs with glide control.

Unprecedented Patchability

Start with ISE-NIN VOICE (36HP), and you'll already have a deep semi-modular instrument on its own. But add ISE-NIN BREAKOUT (22HP), and you can place every single control under one-to-one voltage control for unmatched patchability and programmability. This is a level of sound possibility that could would normally require investing in several rows of modules; here, they're all readily accessible on one convenient, compact front plate. Not only do you get dedicated inputs for the oscillators, filters, and each separate envelope stage for both of the two envelopes, but there are separate FM inputs to each oscillator and every possible routing of the LFO, envelope, and keyboard. XMOD amount and VCO-2 quantized range each get their own input.

Power consumption: 110mA at +12V and 30mA at -12V

Depth: 38mm

36 HP

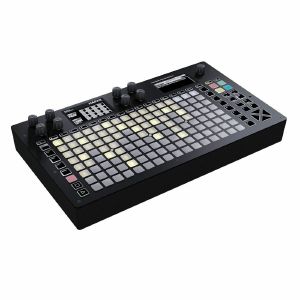

Notes: A true MIDI powerhouse, based around a 128-pad matrix and 16-track MIDI sequencer with slick programming workflow and Ableton-style pattern mode for live performance.

*** Firmware update- February 2025 ***

HapaxOS2.10

Squarp are very pleased with this version, which is both creative and packed with new features, as well as numerous bug fixes that make HAPAX more stable than ever.

Up to 16 pattern per tracks
Arranger fonction
Mix / mute performance mode
Pattern follow actions
Midi import / export
Multi track recording
Track latency compensation
STEP-INPUT REC mode (SH101 style)

Supplier's Notes:
Professional standalone sequencer

Genuine centerpiece of a setup, it offers every tool needed to compose songs in the studio and perform them on stage. From vintage to modern synths, from modular systems to your favourite DAW, Hapax can sequence and synchronize all your gear, while bringing you carefully crafted tools, designed for maximizing creativity.

The midi powerhouse.

Up to a million notes and events

16 tracks per project, 8 patterns per track.

Thanks to its dual-processor architecture, Hapax can record and transform tremendous amounts of data in no time, without a hitch.

Express yourself.

MPE compatibility

Hapax is the first hardware sequencer that fully supports MIDI Polyphonic Expression. Record the finest gestures, slides and articulations of your playing, without compromising quality.

Around the clock performance.
Dual-project architecture



Hapax can handle two separate and independent projects, that can be played simultaneously. This lets you compose or load an entire project while the first one is already playing, enabling endless sets and seamless transitions.

Dawless is more.

Hapax offers broad connectivity options for perfect integration in any setup.

Adaptive workflow.
Several ways to write music
Writing a melody: use a polyphonic or MPE track and take advantage of the advanced step sequencer to quickly lay down notes or edit your live recording.

Composing a beat: control up to 8 different instruments with a single track. The drum sequencer is tailored for very easy rhythm writing and jamming.

Real-time midi effects.

Bring your synths to life

Hapax embeds multiple real-time, polyphonic, non-destructive midi effects, as well as project-wide assignable LFOs. Each parameter of these effects can be automated in the dedicated mode, and processed in the mod matrix, which provides even more ways of routing and modulating.

Powerful composition tools.

Algorithms

Powerful tools for offline note transformation and generation, right at your fingertips. Harmonically invert your motive, generate a controlled-random counter-melody, slowly ramp up the velocities, emphasize every fifth 8th note...

Hi-res recording

Hit the red button, and record from the encoders and 128 pads of Hapax, external midi instruments (included MPE controllers) or any incoming analogue signal, at a high resolution of 192 ppqn. Looper style recording, count-down and metronome options, punch-in mode, you'll certainly find the options that best suit your workflow.

Time elasticity

Each track has an elasticity value which changes its playback speed, expressed in percentage of BPM. Quickly double or halve the speed of a track, or create slightly shifted tracks that will slowly drift out of phase with each other.

Fluid editing

Using hardware should never get in the way of creative flow. The undo/redo button lets you go back in time as needed, thanks to its extensive history. Additionally, the snapshot function enables you to save the state of a pattern and recall it with a single press. Together with dedicated copy, paste and delete buttons, Hapax offers a complete toolbox for the prompt editing of your tracks.

Harmony, simplified

For fast and intuitive chord building, the chord live mode brings harmonic capabilities to anyone, with or without deep theoretical knowledge. With its colourful interface, the chord mode displays a synesthetic melding of hearing, vision and touch.

Simple by design.

Trimmed to perfection

Squarp designed Hapax from the ground up, deconstructing everything you thought you knew about sequencing- aiming for a high-end product, with dual arm processors for computation power and a rugged yet minimalist housing.

As music-making should remain an enjoyable process, dedicated buttons were over key combinations and imagined a clear-cut interface as well as a simple architecture. Squarp have striven to minimize the importance of screens for live performing, but the dual grayscale display helps keeping track of things in a studio context.

Hapaxos
Evolving firmware.
The Hapax Operating System has been written with extra care, prioritizing stable and fast operations. New features and parameters will be added regularly.

Specifications
Model name: Hapax
Hardware: 128 RGB MATRIX pads
52 clic pads
9 sturdy clickable encoders
2 OLED greyscale displays
SD card for saving projects
CPU: dual ARM design
RAM: 32MiB
Housing: machined aluminium 2mm
Housing (back): unibody ABS

Sequencer
Dual Sequencer (2 Projects)
16 tracks per project
8 patterns per track

Input
2× midi in (DIN + TRS)
2× CV in [-5V to +5V] (16bit)
Stereo pedal (footswitch)

Output
4× midi out (3× DIN + TRS)
4× CV out [-5V to +5V] (16bit)
4× GATE out [+5V]

Bidirectional I/O
USB Host (link a controller)
USB Device (link a computer)
Power supply: 15V, 1.2A, 18W (included)
Dimensions: 358 × 206 × 48 mm
Weight: 1.855 kg

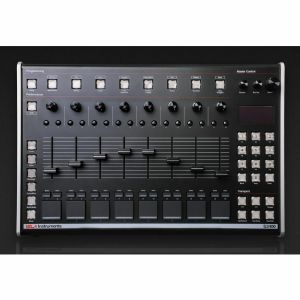

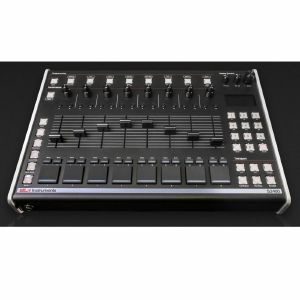

Notes: Combining vintage sound with modern features, the S2400 draws heavily on the iconic Emu SP1200 to create a new instrument with a distinctive character. One of the best samplers money can buy.

Supplier's Notes:
A legend, reborn.

The S2400 is nothing short of a passion project. Along with a small team of talented Software Engineers, CAD Engineers and revered artists, Isla Instruments have developed a future classic.

The S2400 is a passion project - to recreate the sound of one of the world's most iconic sampling drum machines, and bring it up-to-date with modern features. The result is the very best of old school and new school technology coming together.

Brad has been obsessed with drum machines for many years - owning, repairing, restoring, modifying countless makes and models (see his HR-16 mods on YouTube).

Staying true to form in both sonic characteristics and design aesthetic were the main drivers in the realisation of this project, while bringing the hardware into the 21st Century and keeping the same 'instant gratification' and intuitiveness of its spiritual pre-predecessor at heart.

A machine built for the now and the future.

S2400 Specifications

Sampler / Audio:
16-Bit 48Khz 'Hi-Fi' Sampling/Playback Engine
12-Bit 26Khz 'Classic' Sampling/Playback Engine
Engine type assignable to each of the 32 sample slots
Sample up to 21.5 minutes per slot (Classic / Mono),
5.5 minutes (Hi-Fi / Stereo)
Simultaneous (Full Duplex) playback and record with 8 channel LiveLooping functionality.
On-screen waveform display (slice audio, set loop-points with ease)
128 MB of built-in factory drum kits (from some of our featured beta team)
Independent Headphone output for monitoring (effectively 2 extra channels)
DSP based LP/HP Filtering per track (more FX planned for future)

Sequencer:
Multiple sequence entry methods: Live recording, Step Sequence, Piano Roll GUI, TR x0x Style
32 Stereo Audio Tracks w/ 16 Voice polyphony
32 MIDI Tracks (for sequencing external equipment)
96 PPQN Clock
Per track quantization and swing (including classic mode)
Patterns are up to 100 measures, any time signature
All parameters (level, pitch, envelope, filters) configurable per pattern step
Song mode

Hardware

Bright 128 × 64 pixel OLED display (viewable from any angle)
Ultra High quality Grayhill Optical Data Entry Encoder
8 x 60mm Professional Dual Rail Faders
8 x Dual 'concentric' Pro-Audio rotary pots
Broadcast Equipment grade A/V backlit pushbutton switches
Tactile silicone pads backlit with RGB LEDs
SD Card storage (up to 1TB currently tested)
Classic (OG) input and output analogue filtering circuitry.

I/O

MIDI In/Out/Thru (Standard 5-pin DIN)
2 × 1/4" Stereo Mix Out jacks (psuedo balanced)
8 × 1/4" Individual audio out jacks (psuedo balanced)
4 × 1/4" External input jacks (with adjustable pre-amp modes)
2 × Stereo RCA Line/Phono Inputs (with dual phono pre-amps)
Hi-speed USB 2.0 device port. (USB Audio/MIDI)
USB Host port (connect external USB peripherals, MIDI controllers etc).
3.5mm Clock/trigger in and out jacks (to sync/trigger vintage equipment or modular synths)
Universal Voltage100-250V AC Mains powered.

Physical

Rock Solid 16Ga Cold Rolled Steel enclosure with 6mm Anodised aluminium sidewalls.
Aluminium knobs
Dimensions: (Including knobs, jacks, feet)
Imperial: W18" x D12" x H5" (back) 3" (front)
Metric: W460mm x D310mm x H130mm (back) 80mm (front)
Weight: approximately 13lbs / 6Kgs (metric)

*** Please note: This product does not come with the three-pin PSU UK kettle leads required, please purchase separately. ***

Notes: *** Osmose 2.0 Firmware Update- August 2024 ***

What's New in Osmose 2.0?

Here's a quick overview of the new features:

Press Glide in External MIDI Mode
MPE Arpeggiator in External MIDI Mode
Preset Favourites & Playlists
2048 Preset Slots
Preset & Playlist Changes via Program Changes
New Soundbank Management System
and more!


Next-gen standalone expressive synthesizer. Add emotion & movement to your music with a simple touch.

Osmose is the new standard for musical expressivity. Use intuitive gestures to control this standalone synthesizer and upgrade your playing & production skills. Press, bend, shake, strum & more to interact with keyboards & electronic sounds in a new organic way. Whether you're a veteran keyboardist, a workflow-oriented producer, a daring sound designer, or anything in between, Osmose will take your musical journey to uncharted places.

Explore new ways to play

Behind the expressivity of Osmose lies a few natural gestures you already know well. Discover how they interact with Osmose and enhance your musicianship from the very first touch.

Design & build quality

Designed in France to stand the test of time and touring with style, Osmose is made of quality components and boasts a high repairability index.

A sound engine by Haken Audio

Made for expressivity by Haken Audio, the EaganMatrix sound engine is at home with FM, virtual analogue, and physical modeling synthesis, as well as everything in-between.

Fun to play

Easy-to-tweak presets, a playful interface, and an innovative keybed make for a fun & refreshing playing experience, for players of all levels.

Osmose's browser has been tailored to make it a hassle-free experience. It offers various filters and sub-filters based on both sound types and colours so you can find the sounds in your head quickly.

Main features:

49 Key MPE keyboard with polyphonic aftertouch
Full-size keys with 3-dimension MPE control
EaganMatrix sound engine by Haken Audio: a digital modular sandbox allowing subtractive, FM and different physical modeling synthesis
24 voices of polyphony
Assignable mod and pitch sliders
500 factory presets
128 user presets
Configuration modes: standalone synthesizer, MPE MIDI Controller, and classic MIDI Controller
Filters and sub-filters for browsing
Customisable sensitivity and velocity curves
Multi-mode MPE arpeggiator and innovative pressure glide feature
Digital stereo effects: select between reverb , mod delay, swept echo,analog echo or LPF and HPF delay
Large colour display
9 push encoders
2 Line outputs: Two 14" TS pseudo balanced line outputs
MIDI input, output, and MIDI-thru
USB MIDI
Separated 1/4" TRS headphone output on the front panel (with its dedicated volume knob)
2 continuous pedal inputs assignable to macro or sustain: 6.35 mm Jack
Power: External PSU with lockable connector, 12V, 1.5A, center positive
Dimensions (W x H x D): 894 x 316 x 87.5 mm / 35.2" x 12.4" x 3.4"
Weight: 8.3 kg / 18.4 lbs
Includes a software updater for new firmware and library versions
Includes a Mac/PC editor to create and edit sound

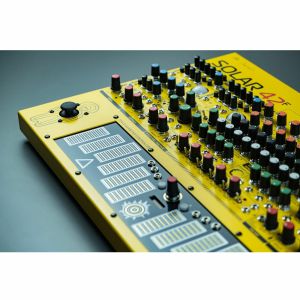

Notes: SOLAR 42F is a unique experimental electro-music instrument, an analogue microtonal ambient drone machine. It will inspire you to find a new and spontaneous approach to composing music. It gives you the ability to create a multi-layered, massive sound. The instrument is oriented for live performances, creating film soundtracks, theatre soundtracks, atmospheric sounds, microtonal and background music.

It is an improved version of the older SOLAR 50 model. The instrument was inspired by early electronic musical instruments of the 1920s and 1950s, notably Leo Theremin's "Harmonium" instrument, as well as science fiction film soundtracks.

The new version of the Solar 42F has added a LIN/EXP CV switch, sub oscillators in volt octave voices and a band pass and stereo distortion mode to the filter. Other quality of life improvements include modified graphics - inputs have been labeled in black and outputs in red for convenience - bypasses for each channel of the effector and a LED indication in the joystick unit.

Notes: No oscillators, 8 voice polyphony.

The Steampipe is a true physical modelling synthesizer developed in close collaboration with Dutch company 112.dB.

The Steampipe has no conventional oscillators. Instead, it mimics the way sound is created in wind instruments and it is fine-tuned to create a wide range of sounds - everything from wind instruments to strings, pipe organs, crazy effects and beyond. The Steampipe has three major sections - STEAM, PIPE and REVERBERATOR.

The STEAM section can be compared to the lungs and mouth of a musician. The generator creates the flow of air or "steam", the envelope in this section determines the force with which it is blown out. DC/noise is the noise you get when blowing out. DC/Noise on the Steampipe can also be replaced with an external audio source.

The PIPE section can be compared to a flute. In the pipe, the tune is formed. Push (in feedback) bounces the steam like it does in a flute and generates the tone. The delay box subsection changes the flute's tuning and shape.

The REVERBERATOR adds space and ambience to the sound.

The Steampipe is optimized for performance with wind MIDI controllers and it works great with any MIDI keyboard. The overtones the Steampipe produces are very organic and rich and it comes with great-sounding presets. The Steampipe is rather versatile and allows for nuanced sonic exploration, conjuring sonic imagery ranging from from wisps of cloud to fairground band organs, then to industrial horns of the railroad and finally, to massive, otherworldly ambiences.

Notes: Top-of-the-range option from A&H, with a focus on pure analogue sound and ease of use. 4+2 channel design with four-band EQ, built-in soundcard and the brand's trademark Xone filters.

Supplier's notes:

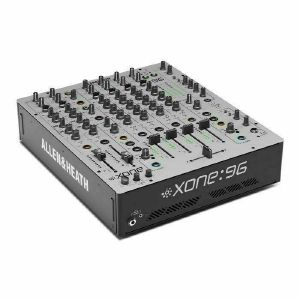

Xone:96. The long-awaited follow-up to a genuine club classic.

A new, uncompromising analogue DJ mixer, destined to be the heart of your creativity, Xone:96 takes the legendary soul of the acclaimed Xone:92 and redelivers it, enhanced, and with state-of-the-art digital connectivity.

It's all here. The huge, detailed, space-shaking analogue sound that only Xone delivers. A refined, precision 4-band EQ. Unrivalled dual Xone:VCF filters with CRUNCH harmonic distortion. And a dual 32-bit USB soundcard (24 Channels @ 96kHz) with Traktor Scratch certification right out of the box.

Xone:96 lets you connect your whole rig, from laptops and turntables, to pedals, synths and drum machines.

Two dedicated FX sends, four stereo input channels (with 4-Band EQ), two stereo input channels with all new 3-Band Parametric EQ + two auxiliary stereo return channels. And a separate master insert for your outboard hardware.

Explore new possibilities with a familiar layout of beautifully tactile controls. And rely on the industrial build quality that exceeds the demands of relentless back-to-back performances, night after night.

Xone96: You mixed. We listened.

Notes: A tiny studio microphone with a large-diaphragm capsule and groundbreaking features.

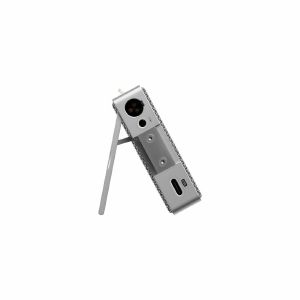

CM-1; the latest addition to Teenage Engineering's field system.

A versatile studio quality, ultra-portable microphone that comes with a built-in professional SUB-C audio interface with built-in preamp. Add a 3.5 mm jack and a 48v phantom powered mini XLR, and you have a truly one-of-a-kind battery-powered studio microphone.
A rarity in the field.

Large-diaphragm capsules are preferred for professional recording, but are rare within the world of portable equipment. CM-15 features an ESS sabre analogue-to-digital converter, preserving high-fidelity sound and capturing exceptional detail in any recording situation.

Clean, mean and lean mic-machine.

Clean, rich, transparent and natural sound. Period.

Use the gain switch on the back for padding those mean drums, or the other way around. Battery-powered with an integrated audio interface and preamp, cm-15 is always ready to use wherever you like to record. In other words: 'lean operation'.

CM-15 includes a standard 1/4" and 3/8" adapter, making it universally compatible with standard mic stands and tripods.

The included adapter allows for a 90- to 110- tilt, so you can mount the mic onto a boom arm or to better record overheads. Use tripod mini for portable setups (available separately).

Dynamic sound for any occasion.

Teenage Engineering's first microphone also means a unique sound quality to discover.

Rich, transparent and natural, cm-15 captures clear and clean sound for professional audio productions, always ready to set up wherever you like to record.

Pure craftsmanship.

CM-15 is an incredibly versatile microphone, both inside and outside the studio. The large-diaphragm condenser capsule essentially means you get a better signal, so there is less noise and better depth of sound.

Vocal recording

As a directional mic, CM-15 is perfect for the vocal booth, focused on picking up sounds in front of it.

Instrument recording

With the flattest frequency response at a 50 cm distance, CM-15 is perfect for capturing a variety of instruments, including your drum kit.

Interview/podcast

CM-15 is great for podcasts and interviews, where high audio quality and portability is necessary.

Field production

With a compact form factor and 10 hour rechargeable battery, it's a great tool for every 'trip'.

Camera mic

When filming with a video camera, connect CM-15 through the line out to record synced audio directly.

Multi-use connectivity.

CM-15 has multiple outputs that can be used simultaneously:

mini XLR, 3.5 mm jack and USB-C. It can also be powered three ways, through phantom power, battery or USB-C, instantly detecting the right power source for your connected device.

On the bottom side of CM-15, you will find three audio outputs: mini XLR, 3.5 mm jack and USB-C. The built in table stand can be used to rest and angle the microphone on a surface.

CM-15 includes a mini XLR to XLR cable for connecting to your recording console. The 3.5 mm jack can be used with headphones, while USB-C is used for digital audio interface connection, firmware updates and charging.

Technical specifications

CM-15 highlights

1-inch large-diaphragm capsule
10 hour rechargeable battery
48 V phantom power compatible pseudo-balanced mini xlr output
dual mono 3.5 mm jack line output
USB-C class compliant device with high performance
ESS sabre ES9822Q PRO analogue to digital converter

Dimensions and weight

90 mm x 65.5 mm x 19 mm
132 g / 54.6 oz

Audio characteristics

Self noise: 14 dBA

Max SPL for 0.5% THD: 138 dB
USB SNR dBA FS: 120 dB
Polar pattern: supercardioid
Polarity: positive

The field system.

CM-15 is part of Teenage Engineering's ultra-portable sound recording and performance system. All battery-powered, rechargeable via USB-C and with full interconnectivity (MIDI and high resolution audio). Compatible with iOS, macOS, and windows it's the most powerful, highest quality, portable system in the world 'as we know it'.

Notes: *** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

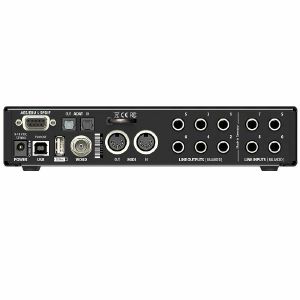

The Fireface UCX II is a highly integrated pro audio solution in an ultra-compact format. Designed for use in studio and live recording, the UCX II continues RME's tradition of producing powerful and flexible interfaces for the professional audio market, packing the kind of connectivity and features into a half-rack size unit that is often spread over two - or even three - 19 inch panels.

With up to 20 channels recording and 20 channels playback; RME's stellar SteadyClock FS digital clocking technology; high performance microphone inputs; TotalMix FX mixing and routing software (complete with Parametric EQ and Dynamics processing on every channel, plus Echo and Reverb sends); stand-alone hard disk recording to external USB hard drives or pen drives via 'DURec' (Direct USB Recording); MIDI I/O; a powerful headphone output; and full stand-alone operation, the Fireface UCX II excels with the highest feature to space ratio ever from an RME device.

Developed in time to celebrate the company's 25th anniversary, the RME Fireface UCX II represents the culmination and refinement of 25 years of digital audio innovation.

Throughout its 25 year history, RME has been fully committed to a principle of flexibility - the more flexible a product, the more easily it can be adapted to new requirements. For company founder Matthias Carstens, this lies at the heart of RME's success: "The Fireface UCX II makes us proud and enthusiastic as it represents a natural evolution of our product range."

"Boasting up to 20 recording and 20 playback channels, SteadyClock FS, high-performance microphone inputs, built-in parametric EQ, USB direct recording plus full stand-alone functionality, the brand-new Fireface UCX II truly represents the essence of freedom, flexibility, and passion. At present, no existing audio interface offers more connectivity and functionality in a half-rack package."

The Fireface UCX II houses two mic/line preamps in XLR combo configuration on the front panel, along with two digitally controlled line/instrument inputs, followed by a headphone jack, various control buttons, a display, and the main volume knob. At the rear is a set of ten analogue balanced line inputs and outputs, MIDI I/O, ADAT I/O, AES/EBU and SPDIF I/O, USB 2.0 as well as a switchable word clock I/O.

The RME Fireface UCX II is the first half-rack interface from RME to feature RME's Direct USB Recording (DURec) functionality. Previously only found on RME's Fireface UFX, UFX II and UFX+, any of the Fireface UCX II's input or output channels can be recorded directly to a USB storage device - in any combination, up to and including all 40 channels simultaneously - via the dedicated USB port found on the back panel of the device.

Powered by the integrated DSP, DURec also enables the Fireface UCX II to be used for standalone recording and playback (i.e. without the need for a computer). Suggested applications include creating instantaneous backups of studio, live and rehearsal recording - acting as a fail-safe against a computer hardware failure - as well as for strand-alone field recording, or for use in virtual soundchecks (using DURec for playback of a previous night's live show recording).

The Fireface UCX II also features a Class Compliant / Plug 'n' Play mode, enabling the interface to be used for high-quality, mulit-track recording with an Apple iPad, and providing iPad users with a full set of professional analogue I/O connections.

Additionally, the optional TotalMix FX for iPad app adds full control over the TotalMix hardware mixer, giving users the ability to create, store and load complete mixes directly from the iPad.

Most audio interfaces are traditionally designed with what is called 'AC-coupled outputs', where capacitors are used to filter out any extreme low frequencies.

Whilst these frequencies are generally considered undesirable for audio - eating into headroom and potentially causing damage to other equipment - one instance where DC-coupling remains desirable is the world of modular synthesizers, where static or slow-moving signals are used for control over various parameters such as pitch note values or LFOs.

All of the Fireface UCX II's line-level outputs are fully DC-coupled, allowing for the sending of control voltages (CV) or Gate information to modular synthesizers (such as the popular Eurorack and Moog/MOTM/Synthesizers.com formats) and other studio hardware.

General Specifications:

Power supply: external power supply
Typical power consumption: 13 Watts
Current at 12 Volt operating voltage: 910 mA (11 Watts)
Dimensions incl. rack ears, full depth (WxHxD): 265 x 44 x 155 mm (10.5" x 1.73" x 6.1")
Dimensions without rack ears, body depth (WxHxD): 215 x 44 x 130 mm (8.5" x 1.73" x 5.1")
Weight: 910 g ( 2.0 lbs)
Temperature range: +5- up to +50- Celsius (41- F up to 122-F)
Relative humidity: < 75%, non condensing

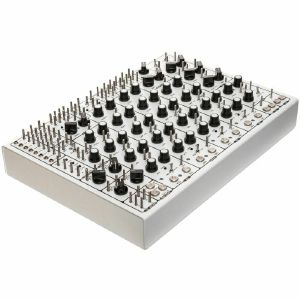

Notes: White fog version of Intellijel's brilliant Cascadia, one of our favourite synths of recent years. A huge range of semi-modular circuits combine to create a hands-on instrument with its own distinctive character.

Supplier's Notes:
A massive semi-modular system in a small case with the footprint of a laptop. Cascadia has MIDI in/out/thru/USB, Eurorack compatible signal levels and pro-level audio I/O to interface with the rest of your studio or get your studio started.

Modern Analogue Architecture

Cascadia is packed with a mix of classic East and West Coast synthesizer blocks. Normalized connections let you get straight to the sounds inside. Or, let your imagination run wild and patch any of the modules together however you choose. Make small tweaks to the architecture, or re-route the entire synth to your liking- the choice is yours!

Two Precision Analogue VCOs
VCO A is Thru-zero FM-ready with a dedicated Index VCA, Sub Oscillator, PWM and Soft/hard sync.
VCO B is a combo VCO/LFO with 4 simultaneous outputs
Six Channel Waveform Mixer
Two patchable (normalled) inputs
Noise generator with multiple algorithms.
Optional asymmetric soft clipping on the mix output.
Liquid-Sounding, Cascaded 4-Pole Multimode Filter
Eight Modes: LP1, LP2, LP4, BP2, BP4, HP4, NT2, Phazor.
Additional dedicated outputs for LP4 and HP4.
Input Level Knob for fine control of filter input and resonance balance and added drive.
Multiple FM inputs and a QM input, all with attenuators.

Wavefolder Circuit

West Coast-style parallel wavefolder.

Normalled into the auxiliary input on the VCA in parallel with the filter.

Dual Digital Envelopes

ENV A is a versatile east coast style ADSR / AHDSR envelope generator with a hold function and dynamic level/time control. Normalled to the VCA to instantly shape your sound.

ENV B is a complex, multimode function generator with a West Coast style AR/ASR/Cycling AR, a beat syncable LFO, Burst generator modes, and the Entropic Sequence Generator (added in 1.3). Normalled to the filter for instant FM without patching.

VCA A and Output Path

VCA A is a linear VCA with auxiliary input.
Global Output Mixer with overdrive circuit and bypassable asymmetric soft clipping.

Expansive Utilities Sections
Cascadia also features a whole host of utilities for getting the most out of your patches.

The Utility Row
Sample and hold circuit with white noise normalled to the input.

Slew/Envelope follower.
Attenuverter/Mixer with multiple outputs.

Triple triangle LFO with rate control, rate input and divided outputs.
Triple buffered multiple.

Precision adder.

Signal inverter.

Bi-polar > Unity level shifter.
Expression level control for modulation the TRS expression input on an FX pedal.

Ring Modulator.
VCA B / LPF (LPG) - Auxiliary VCA and 4-Pole Diode Ladder VCF combination for additional dynamics.

The Top Row
Easy to access Pitch, Gate, and Velocity CV inputs.
Pedal Send and Return FX loop with Wet/Dry control, phase inverter and Line/Pedal level switches.

Output Mixer with Overdrive.
Eurorack Level Main output with level control for interfacing with other modular gear.

The Outside world i MIDI, Pedal and Audio I/O
Cascadia is equipped with a ton of I/O to get it connected to the rest of your gear.

Rear Panel

1/4" Stereo Headphone jack.
1/4" Balanced Output Jack.
1/4" Balanced Input routed to a slider and output on the main panel for patching anywhere into Cascadia.
1/4" TS Pedal FX Send Return and 14" TRS Expression Out.
MIDI DIN In/Out/Thru and USB-MIDI all routed to the MIDI > CV Interface on the top panel.
MIDI > CV Interface
Deeper MIDI configuration is available with the Intelljel Config App. MPE Support has been added in v1.4 and supports the Ableton Live 12 Tuning systems. Dual Mono mode (added in 1.3) allows an additional channel to send it's own Pitch/Gate signal on the CC/MOD outputs. All modes support MIDI Portamento.

MIDI Pitch / Velocity Outputs and Learn Button
MIDI Gate / Trig Outputs
MIDI CC / Mod - Learnable and assignable to any CC or Channel Pressure
MIDI LFO - Multimode LFO synced with MIDI or Tap Clock
MIDI CLK - Dividable MIDI clock with alternate Tap Clock functionality.
Cascadia comes ready to play.
The normalization behind the panel allows for a ton of exploration without ever adding a patch cable; there is years of material to explore in Cascadia and years more when you start patching. Everything you need to get started is included: 14 assorted patch cables, USB-A to USB-C cable, and an international power supply.

Expand and Customize
In addition to additional patch cables, there are great additional options for swapping the wooden cheeks for metal side cheeks or a rackmount kit with a storage tray- great for an effects pedal or patch cables.

Specs

In the Box: Cascadia Semi-modular Synthesizer
14 Patch cables - 4×10cm, 4×15cm, 4×30cm, 2×45cm
USB-C to A cable
Intellijel cable tie
15V/1.2A AC Adaptor (Euro/American prongs included)

Height: 66mm (from rubber foot to top of knobs)
Width: 348mm (including wood end cheeks)
Depth: 246mm (front to rear jacks).
Power: 15V DC/1.0 A (minimum), centre-pin-positive.

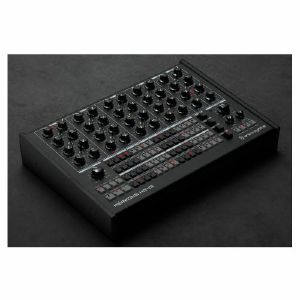

Notes: Erica's superb Perkons returns with a stealthy new black paint job. Four hybrid voices each with a range of different sound engine modes, paired with analogue filters, overdrive and a superb sequencer.

Supplier's Notes:
PERKONS HD-01 is a unique live performance and sound design instrument that tears down the borders between drum machine, synthesizer, and drone instrument.

PERKONS features four sonically versatile hybrid voices (digital sound engine + analogue multimode filter with overdrive) and a sequencer with simultaneous control over all four percussion tracks.

Each voice has 3 sound engine modes, an HP/BP/LP filter and 8 controls for nuanced sound design, including an internal BBD FX send. All voice parameter settings can be saved as KITS. To add dynamics to the performance, parameter automation is implemented and a modulation LFO can be assigned to all parameters.

For a real thunderstorm, integration with external gear is considered - each voice has a dedicated trigger input, individual output, and FX send and return with 6.3mm jack sockets, along with extensive MIDI implementation. All voices are summed and run through a built-in compressor.

Time to ride the skies!

Erica Synths are pleased to see the enjoyment the PERKONS has brought to users worldwide over the past two years! To celebrate its success, they have decided to transform the beast by giving it a new demeanour - a timelessly black finish to match Erica Synths' other instruments and to visually complement the dark aesthetic that has become synonymous with Erica Synths modules and desktop instruments all over the world.

Notes: The Subsequent 37 is a (2-note) paraphonic analogue synthesizer that builds upon the award-winning design of the ultra-powerful Sub 37 Tribute Edition. Its control panel is home to 40 knobs and 74 switches, placing a vast array of analogue sound-design tools and onboard sequencing options immediately at your command. The Subsequent 37 improves upon its source through the implementation of a number of user-requested sonic and functional enhancements. Each enhancement maintains the magic and character of its predecessor while also providing access to new dimensions of sound and improved playability.

The SUBSEQUENT 37 mixer section has double the headroom of that in the Sub 37 Tribute Edition. This provides access to a new range of classic clean tones in both mono and duo performance modes. Leveraging the mixer's newfound flexibility, gain-staging in the Ladder filter has been reshaped to boost harmonic saturation and analogue compression, resulting in an overall richer low end. Completing the sonic evolution of the SUBSEQUENT 37 is a re-tuned Multidrive circuit that extends well beyond the grit and growl of the original Sub 37.

"We are really excited to incorporate community feedback into the evolution of an instrument. Adding CV interconnectivity was the starting point, but we have also increased the headroom in the mixer and significantly extended the range of Multidrive, giving the Subsequent 37 CV expanded sonic capability and modular control." - Cyril Lance, Moog Chief Engineer

In addition to the sound engine augmentation, each SUBSEQUENT 37 comes with an upgraded keybed for improved playability, a high-powered headphone amplifier strong enough to drive the most demanding headphones, and a software plugin/editor for both Windows and Mac platforms.

Specifications

Sound engine: Analogue
Polyphony: Selectable monophonic or paraphonic (can be poly-chained)
Keybed: 37 note semi-weighted with after pressure
LCD: 128 x 64 pixel LCD with white backlight
Controllers: Pitch bend, mod wheel, after pressure, velocity
Sound sources: 2 variable waveshape oscillators, 1 square wave sub oscillator, 1 analogue noise generator, 1 external input/filter feedback
Oscillator calibration range: 22hz-6.8khz. Note range at 8' = 18 - 116
Glide module: Assign to osc1/osc2/both. Type - LCR, LCT, EXP, gated, legato

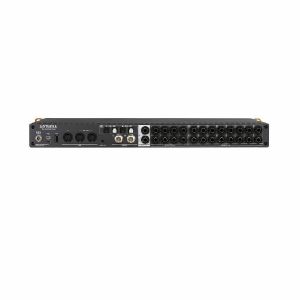

Notes: One of the most trusted names in audio, MOTU deliver as always with the 16A, offering a whopping 32-in/34-out configuration over Thunderbolt or USB, all with pristine audio quality.

Supplier's Notes:

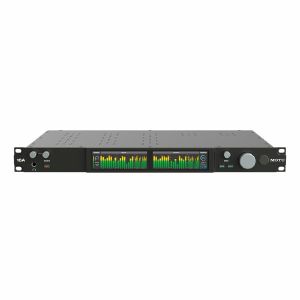

The 16A Thunderbolt audio interface provides industry-leading dynamic range and large console style mixing. With 64 channels of audio I/O (32 ins and 32 outs), the 16A also supports USB 2.0 audio class compliant connectivity that is USB 3.0 compatible.

As an interface, standalone mixer or patchbay, the 16A provides 32 separate inputs and 32 separate outputs, including sixteen balanced TRS analog inputs, sixteen balanced TRS analog outputs, and two 8-channel banks of ADAT optical digital I/O. Powerful DSP delivers large console style mixing with 48 channels, 12 stereo busses, and 32-bit floating point effects processing, including modeled analog EQ, vintage compression and classic reverb. The unit's extensive routing grid patches ins to outs, or splits inputs to multiple destinations.

Use the 16A as a stand-alone mixer and control everything from the 16A's innovative web app running on your iPad, iPhone, tablet, smart phone, and laptop. Connect a second MOTU AVB interface (1248, 8M or 16A) with a simple Ethernet cable. Add more I/O with the MOTU AVB Switch (sold separately). Build an AVB audio network with multiple switches and sub-millisecond latency, even over long cable runs. Stream hundreds of channels among devices and computers on the network. From initial tracking to final mastering, the 16A delivers superb sound quality, state-of-the-art operation, and reliable performance.

This box contains everything you need to turn your computer into a powerful 24-bit/192 kHz digital audio workstation. As a "hybrid" audio interface, the 16A offers flexible connectivity to your computer via ultra-fast Thunderbolt technology or class compliant, hi-speed USB 2.0, with 32 channels of pristine analog I/O, combined with 32 channels of digital I/O, for a total of 64 simultaneous audio channels.

Connect all of your studio gear, including synths, keyboards, drum machines and even effects processors. Record, monitor, route and process all of these live inputs using the professional on-board digital mixer - with no latency and no processor strain on your computer. Apply hardware DSP-driven effects processing to inputs, outputs, and busses independent of your host computer. Add Classic Reverb with lengths up to 60 seconds. Further sculpt your sound with gating, 4-band parametric EQ, and vintage compression modeled after the legendary LA-2A leveling amplifier.

Add more MOTU interfaces as your needs grow, connected to a state-of-the-art audio network using standard AVB Ethernet switches and CAT-5e cabling, with near-zero network latency, even over long cable runs (several hundred meters). Record and monitor up to 128 audio channels in and out, simultaneously, to a host computer through Thunderbolt. Route hundreds of audio channels among multiple devices and computers on the network.

Control all DSP-based mixing and effects, device settings, and network audio routing using your favorite web browser running on your laptop, tablet or smart phone connected wirelessly or locally to the 16A audio network.

From initial tracking to final mastering, the 16A delivers superb sound quality, state-of-the-art operation, and reliable performance.

Notes: Updated version of the ground-breaking synth, sampler and sequencer. Better than ever, with legendary sound quality and portability.

Supplier's Notes:
The beauty of evolution.

Louder, thinner and 100 times better.

Introducing the all new OP-1 field. Injected with more than a decade of ideas, refinements and improvements. Just to mention a few: stereo throughout the whole signal chain, Bluetooth MIDI, USB type-C, a new speaker system with a passive driver for detailed, fat and loud sound, a massive 24 hour battery life, multiple tapes and recording formats, new great sounding reverb and the 'dimension' synth engine, an all glass, flush, high resolution display. The graphics have also been meticulously reworked, screen by screen.

Reworked, refined, reborn.

Think of OP-1 field as the natural continuation of its predecessor. Updated with the latest technology, improved design and finely tuned with professional musicians, recording artists and sound designers in mind. Higher quality in all aspects, from its circuitry to connectivity and flexibility, it's tailor made for professionals in the field.

The new stereo sample engine is just one of the features that takes the OP-1 field to a higher level. With increased sampling time up to 20 seconds and dual layer mode for instant mixing of the a and b channels or via an assigned LFO.

Four new recording formats: Studio 4-track, vintage 4-track, porta and disc mini.
All with their own unique characteristics and graphics. Now with multiple tapes or discs, up to 8 in total.

If it feels thinner, it is.

By lowering the aluminium body around the keyboard, the new OP-1 field feels lighter, thinner and more precise. with 2k moulding Teenage Engineering have also managed to fit a dual 2.4 GHz antenna system inside the aluminium body.

The back is warm, velcro and bass.

Two soft velcro rings have been added on the back for fastening covers and accessories. Perhaps you want to stick your op-1 field on top of your full size keyboard, or slap it on a guitar? Use the included adhesive looped back and start experimenting. On the right you'll find an additional passive loudspeaker for hugely improved bass. And for a 'no-more-cold-metal-on-your-lap' experience, the aluminium body has been folded in a warm, soft touch, hard cover.

The first accessory out using the velcro rings is the Bill Amberg leather wrap that attaches to the back and wraps around the op-1 field and locks around the encoders.

Dimensions: 28.8 cm x 10.2 cm x 2.9 cm

Notes: Building on Supercritical's back catalogue, the Redshift provides a range of characters, based around the Demon Core Oscillator and Neutron Flux Filter. Six-voice analogue design with multitimbral options, MPE control and DSP effects.

Supplier's Notes:
Supercritical Synthesizers introduces their first desktop instrument, Redshift 6 - six voice analogue Variable Character Synthesizer

Supermassively dense analogue oscillator combined with a chameleon analogue filter with versatile gain staging. Now sixfold.

Redshift 6 combines technology from the company's previous products, the Demon Core Oscillator and the Neutron Flux Filter. Each of the six voices features a DCO with analogue waveforms generated under digital control. The filter core is an analogue 4-pole state variable filter also digitally controlled to act like almost any classic vintage synthesizer filter and more. In addition to the oscillators and filters, Redshift 6 has all the features expected of a modern synth - plenty of modulators, flexible voice routing, multitimbrality, MPE, and DSP effects.

Redshift 6's idea is something that is wrapped in the moniker "Variable Character Synthesizer". Each voice's analogue path regarding tuning, gain staging, filter, and more is under strict digital control. Redshift 6 has as lush and warm sweet spot inspired by the analogue polysynth tradition, but it can also cover the full range from almost digitally sterile and clean to distorted misbehaviour and beyond. No modelling here - it's all analogue until the bypassable stereo DSP effects processor.

The oscillator, already road-tested in the Demon Core Oscillator eurorack module, is featured in each of the six voices. The oscillator has multiple tricks up its sleeve, each one wrapped as an Engine for the user to choose between. Traditional twin oscillator engines, supersaw engines, flanging phase sync engines, and transistor organ engines are all powerful modes in user-friendly ways that are easily controllable and modulatable.

Redshift 6's six voices can be configured in plenty of ways. Choose between true six-voice polyphony, classic vintage poly dual layer mode with 3+3 voices, six individual voices each with their own patch and physical output, or any combination of the above. Each of the six voices can also operate as a paraphonic voice with up to 16 note paraphony. Additionally, multiple filters can be chained by routing audio from one voice to another.

The form factor of Redshift 6 is a modern, compact desktop device with a 2.7-inch colour screen. Menu diving is reduced to a minimum, with quick navigation via the shortcut button grid. A selection of familiar synth controls are featured on the front panel. A macro mode is included with six user-assignable controls. The back panel features main audio outputs with a DSP effects processor and four auxiliary voice outputs.

One of the major design principles of Redshift 6 is to have a versatile and capable analogue platform and a flexible UI for new Engines, easily updateable via software updates.

Supercritical Redshift 6 Desktop synthesizer module

Technical specifications

Six voices each featuring:
Full analogue signal chain
Digitally controlled analogue Supercritical Demon Core Oscillator
Analog four pole Variable Character Filter
Flexible gain staging with an analogue boost circuit
Physical audio output per voice (2 main outputs and 4 aux outputs)
Optional voice chaining
Bypassable digital effects in main outputs 1-2
2.7" TFT IPS colour screen with a bank of 8 endless clickable potentiometers and quick navigation via button grid
Quick powerful controls for oscillators and filters.
Six user-assignable macro controls
Six parts multitimbral
Modern MIDI implementation with USB-B connection and DIN IN/OUT
MPE
12V power supply
Physical dimensions: 378 mm x 254 mm x 63 mm

Notes: Part of Teenage Engineering's high-end Field series, the OP-XY is best seen as a pro groovebox, combining polyphonic synthesis, sampling and sequencing. More music-focussed than its OP-Z predecessor, the OP-XY represents a new flagship for TE.

Supplier's Notes:
No-compromise, dual-CPU boosted and fully rebuilt sequencer, sampler, and performance instrument, based on the much-loved workflow of the OP-Z. Now including built-in cv, effect sends, and a best-in-class DAC. with 8 individual instrument tracks and 8 auxiliary tracks for controlling any external synthesizer, modular or otherwise, and adding effects. It's probably the most complete, portable sequencer ever built. It's here. It's real. it's black.

And it's got so much more than you've wished for.

The exterior is all black, and matches the exact dimensions of OP-1 field. A distinct grayscale gradient is at its centre, making it clear that OP-XY is all about serious sequencing. Hands-on graphics on the high-resolution display are all grayscale, with a bright red to indicate recording and parameter locks. all vital keys have LEDs to stay in full control.

Experience the ultra fast sequencing workflow. Punch-in FX lets you add quick, rapid-firing, unique, live variations and adding individual step components creates an extra dimension and deep rhythmic patterns. randomize note timing, velocity and pitch, or use live automation to alter filters. Use brain to create chord progressions, generating tracks that reinvent themselves. Literally.

Run every track, independently, at different speeds and lengths to form powerful polyrhythms. create new sequences every time with step components, variations that can be added to any step on the sequencer, controlling everything from altering pitch to bending, skipping or even multiplying steps.

Main audio-out

Multi-out, featuring:
MIDI
CV/gate
Sync
Aux audio
MIDI IN
AUDIO IN
USB-C

The 2 Vrms main output drives any sound system, real loud. Keep everything locked in sync and sequenced with the multi-out and take control with MID IN. process and sample external audio with the audio-in. control, record and charge with the audio/midi host over USB-C, plus a complete wireless experience with midi over Bluetooth LE -keine bedingungen [no strings attached].

Compose your album, head off to the gig, plug and play immediately, then keep everything locked-in with all the I/O you could ask for. 16-hour, battery-powered freedom lets you perform for hours on-end. create, produce and perform anywhere. Mit allen bedingungen [all strings attached]

The bottom left side features a pressure sensitive pitchbend

Instrument tracks:

8 individually sequenceable instrument tracks
8 unique synth engines
3 samplers
independent send levels per track

Step components
14 unique step components for advanced step sequencing
Apply up to all 14 to every step screen
480 x 222px IPS TFT display

Patterns
9 patterns per track
up to 64 bars per pattern
spread across 4 pages
presets per pattern

Effects: reverb, delay, chorus, distortion, lo-fi, phaser

Hardware
Dual blackfin processing cores
Dual DDR memory
Triple-core dsp co-processor
2x controller MCU's for wireless & low power IO domain

Sensors: 6-axis IMU accelerometer

Microphone: immediate, high quality sampling with the built-in microphone.

Connectors: 3.5 mm stereo line-out with headset mic support
3.5 mm multi-out
3.5 mm midi in
3.5 mm stereo line-in

Tactile input
2 octave musical keyboard
68 ultra low profile mechanical buttons
Pressure sensitive pitch bend
4 x multi purpose grayscale encoders

USB
USB type C connector
USB MIDI host & device
USB audio host & device

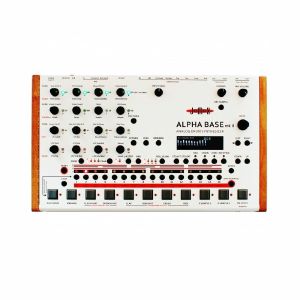

Notes: The legendary Alpha Base drum machine gets a major update. Sheer analogue power meets hybrid sampling options, now with improved visual feedback, better control and tweaked sound engines. Immense.

Supplier's Notes:
The ALPHA BASE Mk II is the successor of the already legendary ALPHA BASE.

What's new?

-Graphic OLED display
-Real RGB LEDs in the sequencer
-More buttons: Last Step, Roll/Flam, Store Kit/Patt, Rec Para and Rec Sample
-Analogue panning circuitry for the hybrid sample channels
-Improved analogue engine
-Noise volume is controllable in the hybrid sample channels
-More samples
-Headphone volume is independent from mix volume

It's true analogue. Eleven instruments, sequencer, Midi/USB/SD-Card. Samples. Sampling inputs, balanced individual outputs.

Although it may appear similar to the classics XBASE 09, 999 and 888, the ALPHA BASE has an entirely new design under the hood. Jomox have put in the concentrated know-how of their drum machines and synths of the past 20 years. Some things have been simplified, but also added new components or have combined them new. The outcome is the best sounding and most versatile drum machine that Jomox has ever built.

Kick Drum

The centre instrument still is the analogue kick drum which has gotten a facelifting again. The legendary punch and assertiveness of all Jomox kicks is convincingly continued. LFO, pitch envelope, metallic noise and gate time are famous features that may not and do not miss out.

MBrane
As a second analogue instrument, Jomox have put in a complete MBrane voice. It covers a gigantic spectrum of analogue snare drums, percussions, cow bells, claves, glasses, toms, bass drums etc. etc. It uses the technology of the Mod.Brane11. Of course, this instrument has 2 own LFOS, pitch envelopes and metallic noise as well.

Samples+Filter

The succeeding six instruments are built hybridly and consist of samples that are run through real analogue filters and VCAs. Each analogue sample channel has an own metallic noise that alternatively can be used as a signal source or being mixed to the sample.

With metallic noise only, it becomes a pure analogue instrument again. Four channels make use of a multimode filter that is capable of resonance - again they can be used as true analogue instruments with the self-oscillating filter as the only sound source if you wish.

Hi Hat

Two of these six channels are reserved for hi hats and make use of a proven and improved HH filter that was used in the XBASE 999 already. It is specialized for analogue hi hats and may conjure wonderful noisy hi hats from a sample mixed with metallic noise.

Clap, Rim, Crash, Ride

The succeeding four channels have each a resonateable 2-pole multimode filter that can be switched between LP, HP and BP. The filter cutoff can be modulated by an ADSR envelope and an LFO per instrument. If the filter is self-oscillating, one can create wonderful analogue toms, claves, sticks etc. by means of the VCA envelope behind. Or even extremely bend samples sonically. By principle, each of the four MM filter sample channels is a little synth voice of its own. A sampled synth bass run through the analogue filter is nearly indistinguishable from a real analogue synth.

X Sample 1+2

Moreover, there are two sample instruments that work purely digital. It's even possible that the Alpha Base can sample external audio on these channels for about max. 5 seconds. Which is more than enough for drum samples. The recorded sample can be stored on SD card or being copied to the internal flash memory and then being played back by the other sample channels. Samples can also be copied from SD card into flash memory. The format is RAW/WAV mono 16 Bit / 48kHz. The internal organization divides samples into fixed memory slots that can be addressed by the parameter sample select in the instruments. All samples can be pitched and modulated in a wide range. The sample start and stop can be edited and they are loopable as well. Modulation targets are: pitch, filter cutoff and volume. Each channel has an own LFO for that.

FM Synth

As a little digital gadget, a mini FM synth has been added. With 4 operators and maximum 6 voices it can create weird and crazy percussion sounds up to simple chords. Played over an external midi keyboard, it can be used as a polyphonic synth.

Effects

Two digital effects are on board: delay and reverb that act as send/return effects. Each of the analogue instrument outputs has an own A/D converter. The delay effect can also be inserted into the six hybrid sample channels and becomes then part of the sound production chain. The reverb can easily be killed by an encoder click but is indeed a great advantage for life performances with minimal equipment. Reverb times may reach to almost infinity, and the damping filters act quite extremely so that the reverb meets the requirement of modern electronic music and can be an essential part of sound.

Editing

For the editing of parameters there are 16 encoders arranged in a 4x4 matrix. Each instrument only addresses two pages by 16 values to make the editing as easy as possible, without deep menu cursors.

11 Instruments: Kick Drum, MBrane, Cl HiHat, Op HiHat, Clap, Rim Shot, Crash, Ride, X Sample 1, X Sample 2, FM Synth.
Real analogue Jomox kick drum.
Real analogue Jomox MBrane voice with 2 coupleable F-OSC for complex analogue snare, percussion, bass and tom sounds ranging from 16Hz to 20kHz.
2 sample based instruments with analogue VCA ADSR envelope and/or HH filter, optionally with metallic noise mixed as extra sound source. The HH filter is 2-pole, HP/LP/Res each separated parameters, peakable but not oscillating.
4 sample based instruments with analogue VCA ADSR envelope and/or resonating multimode filter (LP, HP, BP) with ADSR envelope, optionally with metallic noise mixed as extra sound source. The multimode filter can be used as a signal generator in order to generate analogue toms or sticks etc.
2 sample based instruments with external sampling input and pure digital playback.
1 FM synth with 4 operators and max. 6 voices for percussive sounds.
Effects delay, reverb with send per instrument, also insertable into analogue signal path on CH, OH, Clp, Rim, Ride.
LFOs: per instrument one LFO (MBrane 2 LFOs) with 64 wave forms, each assignable on pitch, VCA, filter cutoff.
500 samples 16 Bit/48kHz in internal flash memory.
SD card slot for loading of samples.
USB (Midi Device).
Midi In, Midi Out, Midi Thru.
Inputs: stereo in for sampling, FX or sidechain. Both inputs are Hi-Z and suitable for guitar/bass or work up to line level +20dBu.
Outputs: 8 individual balanced outputs, stereo mix balanced, headphones.
Output Level: max. ca.+14dBu unbalanced, +20dBu balanced on all outputs.
18 encoders
Input Volume, Phones Volume and Mix Volume are analogue potentiometers.
OLED Display 256x64px.
12V 2A DC external power supply.
Stable metal case.
Wooden side cheeks, rubber feet.
Size: 41cm (16.1") x 24cm (9.5") x 8cm (3.2") (back side).
Weight: ca. 3.3kg (7.26 lbs).

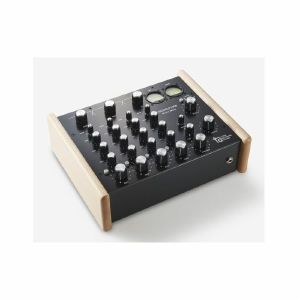

Notes: Upgraded to broadcast-ready specification for 2022, ARS's flagship Model 9100 is a thing of beauty. True hand-built Japanese audiophile quality, available here with wooden end cheeks.

Supplier's Notes:
Model 9100B Music Mixer

4 channel table top mixer

Model 9100B (broadcast mixer) Music Mixer Wood TYPE (Headphone Monitor Trim: Cue-Mix-Pgm special version)

ARS Model 9100B DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first 3band hybrid isoeq Hi-EQ Mid-EQ Low -Iso on each channel.

This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master. Potentiometer and Switch are All ALPS .

A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship- highly recommended.

It is designed with purist ideals with only essential features.

ARS 9100 has 3 band hybrid iso-EQ hi-EQ mid-EQ low-iso on each channel and 3band Iso on the master
.
The Master Isolators can be boost of cut from +18db ~ -8.

The Ch hi-EQ mid-EQ can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -8.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-9100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Specifications

Frequency Response: +-1dB 20Hz-20Khz
Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Retrun: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-4Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -8.

Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 25w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)306 x (H)250 x (D)100 mm
Front Panel Colour: Black

Notes: An excellent combination of West Coast and East Coast synth philosophies, the Implexus features a complex wave generator and wave folder, analogue low-pass filter and sinkable LFOs and stereo delay.

Supplier's Notes:

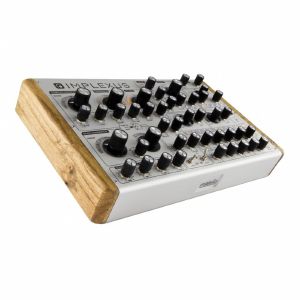

The IMPLEXUS is a hardware desktop synthesizer combining west - and east-coast synthesis techniques into a single formfactor. The IMPLEXUS uses analogue waveshaping, folding and audio rate modulation to create a immense range of sounds and textures!

The IMPLEXUS is a performance-oriented musical instrument which will inspire you to compose music and explore its unique soundscape. The IMPLEXUS has a carefully designed analogue signal path with many unique ways to create intriguing sounds. The many sound shaping methods and modulation possibilities help you to create west-coast style harmonically rich sounds as well as thick east-coast analogue sounds.

The IMPLEXUS has a powerful "one-knob-per-function" interface with graphical feedback, utilizing LED rings to indicate modulators. The drone mode, tap tempo and looping envelopes let you explore the IMPLEXUS as a standalone sound generator. The MIDI and Eurorack compatibility and clock synchronisation options make sure it can be played in every setting. The IMPLEXUS is built to last. It has metal shaft potentiometers, an aluminium casing with scratch and solvent resistant graphics and an internal power supply (no adapter!). The IMPLEXUS is a characteristic, unique and complete musical instrument.

"West-Coast"

The characteristic sound of the IMPLEXUS comes from shaping and folding a sinewave, resulting in a complex waveform. The shaping and folding can be modulated at audio-rate in a single knob turn utilizing the second generator. Instead of subtracting you will be adding harmonics. After tweaking for a while you will be surprised to find out you didn't touch the filter... yet.

Unique filter design

The IMPLEXUS offers a 12dB/oct VCF with a unique analogue topology. This filter offers a lowpass and highpass mode. For cutoff modulation there is an envelope amount control with polarizer and a CV input on the back of the IMPLEXUS. There is an input mixer that has amplitude control over three inputs: complex generator, basic generator and the sub-oscillator.

Syncable delay

The IMPLEXUS has a stereo digital delay with dry/wet, delay-time and feedback control. There is a subtle modulation difference between the left and right channels to create a wide stereo image.
The delay can be synchronized to MIDI and external (modular) clock sources. Also the delay can be synchronized to Tap Tempo. For clock synchronization there are five divisions: 1/1 3/4 1/2 1/3 1/4.

Global pitch controls

The IMPLEXUS has a global pitch control section offering control over glide rate and pitch envelope amount. There is a dedicated vibrato LFO with manual control over amount and frequency.

Syncable LFO's

The IMPLEXUS has two LFO's with a variety of waveforms and multiple modulation destinations. The LFO's offer a wide range of 0.01 - 100Hz and can be BPM synced to MIDI and external clock. The LFO's can also be synchronized to Tap Tempo and can even be set in five different divisions.

Connections

The IMPLEXUS offers a 1/4" stereo balanced output. In addition to that there is a stereo headphone output with dedicated volume control.
There is standard MIDI input and thru over DIN and USB. Also there is a eurorack compatible patchbay on the back. This extends the sound and modulation possibilities of the IMPLEXUS even more!

Built in VCO tuner

There is a strobe tuner with 3 LED's on board, which lets you tune both the Complex and the Basic generator to a perfect "A" within just a couple of seconds.

A unique project by a small company

Majella Audio is a small company, and because of that, Majella Audio do most of the design and development themselves. The amount of hard work and effort that went into this project is what makes the IMPLEXUS a unique piece of gear with outstanding build quality. Majella Audio have created a few "How its made" videos to give you an insight into the design and development of the IMPLEXUS, which are viewable on their web page.

Features/specifications

Generators
Analog Complex Generator consisting of a waveshaper cascaded by a wavefolder to create Complex Waveforms
Analog Basic Generator
Sub-Ocscillator one octave below Complex Generator
Dedicated octave switches with 6 octave settings
Pitch modulation sources: Envelope, Vibrato, Glide, Pitchbend, External 1V/oct (CV)
Cross modulation: Linear FM, Folding, Folder DC Bias

Filter:
Analog VCF
12dB/oct Slope
Switchable Low-pass/High-pass
Mod Envelope to Cutoff with attenuverter
External CV for Cutoff
3x audio input from the Generators

2x LFO section:
Accurate digital waveform generation
5 waveform shapes: Random, Square, Sine, Ramp, Saw
Syncable from all clocking sources or "Free" running
Frequency range: 0.01 Hz-100 Hz
Clock divider options: 1/4 | 3/16 | 1/8 | 1/3 | 1/16
Destinations options LFO 1: Bias, Folder, Harmonics,
Destinations options LFO 2: Bias, Folder

2x Analog Envelope Generators:
1x Modulation EG and 1x Amplitude EG
Attack, Decay, Sustain, Release controls
Velocity amount per Envelope
MOD EG is Loopable as AD-LFO triggered by gate
MOD EG Destinations: Filter Cutoff, Harmonics, Folding, Global pitch
AMP EG has 'DRONE" mode for instant sound generation

Delay FX:
Digital Audio Delay with Analog Dry/Wet mixing
Maximum delay time: 1 second
Syncable delay time from all clocking sources
Clock divider options: 1/4 | 3/16 | 1/8 | 1/3 | 1/16

Performance Features:
"One Knob Per Function" philosophy
LED ring indicators for visual feedback and easy understanding of CV signal routing
Guitar Style Tuner for Basic and Complex Generator making it easy to tune the IMPLEXUS
Drone mode for instant sound without any external gear necessary

Physical:
2mm thick solid aluminium casing
Graphics are underneath the anodisation layer and thus scratch and solvent resistant
Handcrafted wooden side panels made from regional oak
All metal shaft potentiometers
High quality switches and connectors (Neutrik)
Internal power supply (AC Input 100-240 VAC)
No adapters needed
Dimensions: W 345 mm x D 206 mm x H 75 mm
Weight: ca. 3kg
Serial number plate

Connectivity:
External CV inputs: Pitch (1V/oct), Gate, Velocity, Folding, Harmonics, Bias, VCF cutoff
External CV outputs: Complex generator, Basic Generator, Clock output
MIDI IN over USB
MIDI IN over DIN
MIDI thru over DIN
1/4" TRS Balanced line outputs
1/4" Dedicated stereo heaphone amp

Clocking options:
External Modular/Eurorack Clock (automatic detection)
MIDI clock via DIN or USB (automatic detection)
Tap Tempo

Global Controls:
Master Volume
Headphone Volume
MIDI Channel selection

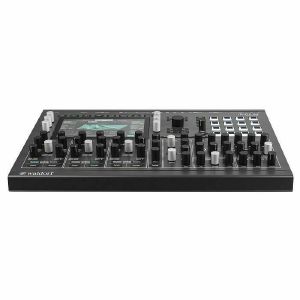

Notes: Tracing the footsteps of its bigger brother, Iridium features all the synthesis elements of Quantum as well in a rack-compatible format. The combination of the powerful engine, incredible flexibility and detailed sound shaping facilities creates sheer endless possibilities of sound. Yet, the comprehensive layout and easy-to-understand structure lets you design your own sounds in no time. Sporting a solid metal casing and the same high level of craftsmanship like Quantum, Iridium is now ready to take over studios and stages throughout the world.

Contributing another entry in Waldorf's rich history, Iridium joins the family as a direct descendant of the PPG Wave. Though, Iridium offers much more than its ancestor. Five different synthesis models are provided by Iridium for each of the three oscillators:

Wavetable
Waveform (Virtual Analog)
Particle (Sampling and Granular Sampling)
Resonator
Kernels

Kernel mode has been introduced with the OS 2.0 of Quantum. This huge upgrade allows one oscillator to be turned into up to six sub oscillators. These can be interlinked through FM at audio rate and arranged in user-definable constellations. Just this upgrade alone would have provided enough additional features to create a synthesizer on its own. Now, all those functions have been integrated into Iridium as well.

Up to 7000 patches can be saved in Iridium. Patches from Quantum can be loaded in Iridium and vice-versa.

Iridium features three digital filters per voice. Two in the Dual Filter section and another one in the Digital Former. Several types are available to choose from:

12 or 24dB and Lowpass/Highpass/Bandpass with optional saturation or dirtiness.
Various filter models are available including those from Waldorf Nave, Largo and PPG 3V.
The Dual Filter section can be controlled independently or together in several different link modes.
The Digital Former offers all the filter types and models from the Dual Filter plus unusual models like Comb, Drive, Bitcrusher and more in addition.

All filters retain a true stereo signal throughout the entire structure of the instrument.

Up and down, back and forth
6 Envelopes, 6 LFOs and many more are just waiting for being used as sources in the 40 slots of the Modulation Matrix. Each slot has one additional control amount. Modulations can be directed to almost every numerical value in Iridium. All sources and destinations can be used as many times as desired until the Modulation Matrix is full. If you ever happen to run out of LFOs or Envelopes, you can use the Komplex Modulator for generating a custom shape LFO or Envelope.

Even though Iridium features a staggering amount of parameters to control, everything is organized in a logic structure which is easy to master. The major controls have their own dedicated knob, while the rest is accessible through the touch screen and the encoders around. There are no long menus keeping you from doing what you had planned. Instead, you will find a workflow which you will soon miss on other synthesizers.

Embedded in the front panel, a 4x4 silicon pad matrix invites you to launch notes, chords, arpeggios and sequences with up to 32 steps for notes and multiple parameter lines. Direct access to the parameters is granted by the seven encoders to the left and the right hand side of the touch screen.

Iridium's large color touch screen keeps you informed at all times. Upon moving a knob, Iridium gives you an optical feedback of your changes in real-time. Filter curves move, Particle grain sizes change, Envelopes warp and much more:

Komplex Modulator curves can be drawn with your finger
Envelopes show at which point the voices currently are
Wavetables are displayed in comprehensive view modes
VU meters show which voices are used and the individual voice levels
Different Analyzers show the audio signal at different points

Two Audio Outputs allow you to listen to Iridium, while two Inputs allow Iridium to process external signals. 4 CV inputs plus Gate In and Trigger In are ready to forward external signals to the Mod Matrix. Furthermore, Clock In and Clock Out will get your gear in sync. MIDI connections can be made through USB and DIN MIDI. Iridium is also equipped with a USB Host port for MIDI devices. This port also handles data exchange, in addition to the MicroSD card slot.

Once again, Waldorf have underlined their status with a new and exciting synthesizer.

Notes: One of the most trustworthy brands in the industry delivers another winner. Proper high-end business, with 12 analogue inputs and 12 outputs, plus an extensive array of digital connections. Great value at this price point.

Supplier's Notes:

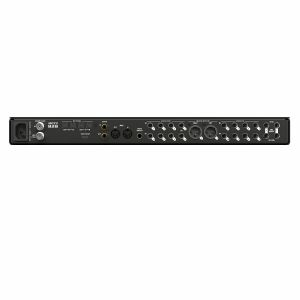

Next-gen 28 x 32 USB3 audio interface - Builds on 22 years of proven success as an industry-leading audio interface brand.

New 3.9-inch TFT display - The bright, 24-bit RGB LCD provides 480 x 128 pixel high-resolution metering for all analogue and digital I/O, plus detailed status info and access to hardware settings from a simple and convenient menu.

Superb analogue audio quality and high-end converters - Renowned ESS Sabre32 DAC technology delivers 125 dB dynamic range. Support for all standard sample rates up to 192 kHz.

Ultra-low latency and proven, high-performance MOTU drivers - Round-trip latency (RTL) performance as low as 2 ms at 96kHz with high-performance DAW hosts.

Universal connectivity - Connects to your computer with 5 Gbps USB3 (compatible with USB2) for up to 60 audio channels. Class-compliant firmware and industry standard drivers work with any audio apps. Connects to an iPad™ with USB-C or a Lightning adapter kit (sold separately).

60 simultaneous audio channels - 28 inputs and 32 outputs, including two combo XLR/TRS mic/line/hi-Z guitar inputs with send/return inserts, 8 TRS analogue (line-level) in/out, separate main outs on XLR jacks, two banks of 8-channel optical I/O, stereo RCA S/PDIF digital I/O, and two front-panel headphone outputs.

Advanced mic channels - Cutting-edge components deliver ultra-transparent sound with -114 dB THD+N, 118 dB dynamic range and -129 dBu EIN. Each mic channel provides individual controls for +74 dB of preamp gain, -20 dB pad, 48V phantom power, and phase invert. All settings can be controlled remotely from a computer or iOS device. Each mic channel includes a dedicated send/return insert for outboard gear processing.

Flexible insert returns - When nothing is connected to the front-panel mic inputs, the two rear-panel returns function as additional line inputs with identical signal path characteristics as the other eight line inputs.

DSP mixing and effects processing - Flexible 24-input digital mixer with 8 stereo busses and DSP effects, including reverb, 4-band EQ, gate and compression.

Wi-Fi control - If the 828 is connected to a computer on your Wi-Fi network, you can control everything wirelessly from the CueMix 5 app running on mobile devices or other computers on the same network - even multiple devices at the same time. Manage access to the 828 with network discovery and password protection.

Precision boost/trim for analogue I/O - Calibrate analogue input and output signals in precise 1 dB increments. Apply phase invert individually to analogue inputs.

Control room features - Control your sessions with front-panel "talk" button and "A/B" speaker select buttons to quickly compare your mixes on two sets of studio monitors.

Two flexible headphone outputs - With independent volume control, each headphone output can mirror each other, the Main Outs, any other analogue output pair, any CueMix bus, or any USB output channels. Or you can create a completely customized mix for each headphone that includes live 828 inputs and built-in reverb.

Two banks of optical I/O - Connect outboard digital processors, digital mixers or other gear with 16 channels of ADAT at 44.1/48 kHz or 8 channels of SMUX at 88.2/96 kHz. Bank A can optionally provide stereo TOSLink (optical S/PDIF) I/O up to 96 kHz.

Foot switch input - Connect a standard foot pedal switch (sold separately) for hands-free punch-in and punch-out while recording. Or map the pedal to any keystroke function in your host software.

MIDI in/out/thru - connect MIDI gear without the need for a separate MIDI interface.

Word clock in/out/thru - Supports all sample rates up to 192 kHz.

DC-coupled TRS outputs - Use the 828 to manipulate and sequence voltage-controlled modular synthesizers from a host DAW.

Loopback for live streaming and podcasting - Easily route computer output back to the computer, where you can mix it with live mics and/or guitar inputs from the 828 in your host software for live streaming or podcasting.

Guitar re-amping - Connect your guitar to the front-panel input, use CueMix's near-zero latency to loop to any output (with a re-amp adapter, if needed), and record both the dry signal and your mic'd up amp simultaneously. Then re-amp the dry signal later with different amps and cabs - or amp modelling plug-ins - to experiment with different tones.

CueMix 5 app - Control mixing and settings from your Mac, PC or iOS device.

Performer Lite - Workstation software with over 100 included instruments, dozens of effects and 6 GB of included loops to make music right away. Also includes Ableton Live Lite.

Next-gen 28 x 32 USB3 audio interface with DSP, mixing and effects
New 3.9-inch 24-bit RGB LCD with precision metering for all I/O
Superb analogue audio performance driven by ESS Sabre32 Ultra™ DAC Technology
Ultra-low latency and proven, high-performance MOTU drivers (~2 ms RTL with a 32 sample buffer @ 96 kHz)
Universal connectivity with 5 Gbps USB

Technical Specifications
Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz

Mic/line/instr inputs
2 x XLR/TRS "combo" jacks
Individual -20 dB pad and 48V phantom power
Preamp gain: +74 dB in 1 dB increments
1 MO impedance on the line/instr inputs
Independent balanced send/return inserts

Analogue inputs
8 x 1/4-inch TRS line in (balanced/unbalanced)
2 x 1/4-inch insert returns function as balanced TRS line inputs (with no mic inputs connected)
Max level: +21 dBu
+20 dB digital gain on each input

Analogue outputs
8 x 1/4-inch TRS line out (balanced, DC coupled)
2 x male XLR out
Max level: +21 dBu
2 x 1/4-inch TRS stereo headphone
2 x 1/4-inch TRS sends (balanced, pre-converter)

Digital I/O
2 banks (16 ch) of ADAT optical I/O at 1x sample rates
2 banks (8 ch) of S/MUX optical I/O at 2x sample rates
Bank A switchable to stereo TOSLink I/O (optical S/PDIF)
1 x stereo S/PDIF I/O on RCA (up to 96 kHz)

Computer I/O
1 x USB-C 3.2 Gen 1 (5 Gbps) Type C - USB2 compatible USB audio class compliant (no driver needed)
1 x IF-certified USB 3.2 Gen 1 Type C-to-C cable included
Compatible with USB Type A (with a C-to-A cable, sold separately)
Total USB audio channels: see "Total Audio I/O" below
Round Trip Latency (RTL): ~2 ms (32 sample buffer at 96K)

Total audio I/O
28 in / 32 out (60 total channels) at 1x sample rates
20 in / 24 out (44 total channels) at 2x sample rates
10 in / 14 out (24 total channels) at 4x sample rates

MIDI I/O
1 x MIDI In
1 x MIDI Out/Thru
16 MIDI channels to/from computer host

Headphone
2 x 1/4-inch TRS stereo headphones
Output impedance: <1O
Max output: 14.4 dBu

Phantom power: 2 x individual +48V

Foot Switch
1 x 1/4-inch foot switch input
Mapping: pedal up/down to any host keystrokes

Sync I/O
1 x BNC Word Clock In
1 x BNC Word Clock Out/Thru
Sample rates: all (from 44.1 to 192 kHz)

Front panel
2 x XLR/TRS combo inputs
2 x 1/4" TRS headphone outputs
2 x potentiometer - headphone volume
2 x potentiometer - mic/instr input gain
1 x potentiometer - menu navigation
1 x large potentiometer - main volume
12 x switches - (2) 48V, (2) pad, (6) control room, (2) nav
1 x 3.9-inch 480 x 128 pixel 24-bit RGB TFT display
1 x latching power button

Power
Internal 100-240V autoswitching supply
50-60 Hz - 0.5A max

Dimensions and weight
(width x depth x height, enclosure only)
19 x 12.25 x 1.75 inches / 48.26 x 31.1 x 4.44 cm
11 lbs / 5 kgs

Notes: SOLAR 42F is a unique experimental electro-music instrument, an analogue microtonal ambient drone machine. It will inspire you to find a new and spontaneous approach to composing music. It gives you the ability to create a multi-layered, massive sound. The instrument is oriented for live performances, creating film soundtracks, theatre soundtracks, atmospheric sounds, microtonal and background music.

It is an improved version of the older SOLAR 50 model. The instrument was inspired by early electronic musical instruments of the 1920s and 1950s, notably Leo Theremin's "Harmonium" instrument, as well as science fiction film soundtracks.

The new version of the Solar 42F has added a LIN/EXP CV switch, sub oscillators in volt octave voices and a band pass and stereo distortion mode to the filter. Other quality of life improvements include modified graphics - inputs have been labeled in black and outputs in red for convenience - bypasses for each channel of the effector and a LED indication in the joystick unit.

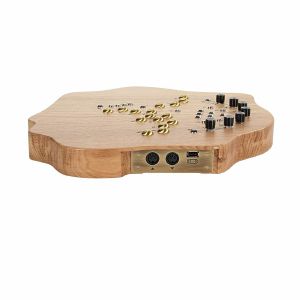

Notes: PULSAR-23 is an organismic drum machine designed by Vlad Kreimer. It has a semi-modular structure and consists of 23 independent modules. PULSAR can be used for the synthesis of percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage and powerful analog FX processor.
The PULSAR functions in three different modes: stand-alone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination.
Additionally, PULSAR offers live circuit bending capabilities and the use of the artist's body conductivity to create patches and cross modulations. PULSAR continues the line of organismic synthesizers begun by LYRA-8, but now in the area of percussion instruments.

PULSAR-23 main features:

- 4 drum channels: Bass drum, Bass\Percussion, Snare drum, Cymbals\Hi-Hat
- 4 envelope generators with the unique ability to generate a sustain for the drum channels, turning them into noise\drone synthesizers. - 4 independent loop recorders with the option for individual clocking. They record triggering events, not audio.
- Clock generator with an array of dividers as a very powerful tool for rhythm synthesis.
- Wide range LFO (0.1 - 5000Hz) with variable waveform.
- Shaos - a unique pseudo-random generator based on shift registers with 4 independent outputs, sample and hold and other cool features.
- FX processor with CV control incl. CV control of the entire DSP's sample rate.
- Distortion.
- 2 CV-controlled gates.
- 2 CV-controlled VCAs.
- 2 controllable inverters.

Also, it has MIDI control and synchronization and a lot of smaller modules such as 4 assignable attenuators and 2 dynamic CV sensors for CV generation etc. In general, there are 55 knobs, 11 switches and over 100 inputs and outputs for patching, Eurorack integration, external mixing and processing, live circuit bending!

It comes with 30 alligator clips cables and PSU.

The PULSAR-23 Screw has the same functionality as the PULSAR Turret, but at a much lower price, because we used screws instead of expensive custom turrets (on the first photo the black one with turrets, and the white one with the screws)

Notes: Powerful step sequencer built around four well-equipped full-featured 16-step sequencers communicating via both MIDI and CV/Gate. There are no screens or submenus.

All features have their own dedicated controls and have their own dedicated in- and outputs on the large 87-point patch bay. Every aspect of this sequencer is CV-able. Lastly a seven bank CV Recorder is on board and can output up to 5 banks at once!

The Komplex Sequencer opens up a whole new world of creative possibilities and starts where other sequencers have stopped!

Our step sequencer lets you construct complex musical patterns, via both MIDI and CV/Gate. Built around four full-featured 16-step sequencers in a compact and light enclosure, the Komplex Sequencer is a powerful tool both live and in the studio. All features have their own dedicated controls; no screens or submenus, and all features have their own dedicated in- and outputs on the large 87-point patch bay. By patching both internal and external CV sources through the patch bay of the Komplex, you can control any parameter of the sequencer immediately and "sequence the sequence." Controls include Speed, Sequence Length, Gate Length, Play Mode, Glide, Division, Transpose, Repeat, Sequence Start Point and Skip. Additionally, the sequencer can vary output range and also has a quantizer on board operable in different scales.

And not only is the sequencer compatible with almost any synthesizer with CV/Gate, MIDI note, velocity and CC information can also transmitted by any of the four sequencers. Lastly a seven bank CV Recorder is on board and can output up to 5 banks at once! The Komplex Sequencer opens up a whole new world of creative possibilities and starts where other sequencers have stopped.

CV Inputs
Clock, Rec Clock, Transpose, Start, Stop, Skip Step, Sequence Start Point, Repeats, Seq Length, Gate Length, Play Mode, Glide, Division, CV Recorder (CV In, Clock, Start, Bank Up/Down)

CV Outputs
CV Out, Gate Out, Start Of Sequence, End Of Sequence, Clock, CV Recorder CV Out (A, B, C, D and CV)

Sequencer Controls
64 Sliders and Step Select Buttons, Speed, Sequence Length, Gate Length, Play Mode, Glide, Division, Quantizer and Scale, Output Range, One-Shot Mode, Play/Pause and Stop, Global Play/Pause and Global Stop

Section Controls
Repeat Set, Mode Menu, Skip Step, Glide, Sequence Start Point, Gate

MIDI
MIDI In, MIDI Out, MIDI Clock Out (1 trigger per quarter note)

CV Recorder
Banks A, B, C and D available at corresponding sequencer patch bay outputs. All 7 banks selectable at CV Recorder CV Out by the Select control or Bank Up/Down inputs. CV is recorded and clocked through the CV Recorder CV and Clock inputs or Sequencer Rec Clock inputs.

Extra Features
Mode Menu (Skip Step Mode, Repeat Mode, Unipolar/Bipolar CV Output, MIDI Message, MIDI Channel, MIDI CC) and Firmware Updates

Casing:
Powder coated aluminum casing, silk screened printing and wooden side panels.

Dimensions
46.2 cm x 29 cm x 4 cm (L x W x H)
18.2" x 11.4" x 1.6" (L x W x H)

Net Weight
3.2 kg / 8.8 lb

Shipping Weight:
4.5 kg. / 9.9 lbs including power adapter and instruction manual.

Power Requirements:
9VDC power adapter. Only use the KOMA adapter shipped with the unit.

Accessories
Included: dust cover, manual and power supply unit.
Rackmount kit available separately

Notes: Updated version of Erica's superb EMS-inspired synth, featuring a powerful dual oscillator synth architecture, piano roll sequencer, modulation matrix and recordable joystick.

Supplier's Notes:
Based on lessons learned from the SYNTRX, Erica Synths decided to create an instrument that would integrate even deeper into contemporary electronic and experimental music setups and cover sonic territory from daunting drones to powerful basslines and glitched noisescapes - the SYNTRX II is a new dark horse for experimental sonic rides.

The SYNTRX II is the culmination of Erica Synths' analogue sound design circuits - two perfectly stable main oscillators with waveshapers, a modulation oscillator with 1V/oct tracking, a versatile multimode filter, supercharged external instrument inputs with an envelope follower, a unique, great-sounding ring modulator, a recordable joystick, built-in piano roll sequencer and stepped modulation sources, all arranged around Erica Synths' signature matrix mixer and topped off with powerful FX on their new DSP platform.

"The SYNTRX 2 is awesome, a very different instrument from V1. My first synths were the VCS3 and the AKS and are still among my favorites today. The Syntrx 2 is pushing the boundaries of possibilities & experimentations much beyond the original analogue version. The Syntrx 2 is an instant classic". - Jean Michel Jarre

Features

Two perfectly stable main oscillators with CV-controlled waveforms
Modulation oscillator with variable waveforms
Highpass and Lowpass filters in series
Free running or gate synced sample and hold circuit
Multi-colour noise generator
DC coupled instrument inputs with signal inversion and envelope follower
Ring modulator of unique design
Looping trapezoid envelope generator and VCA
Two output VCAs
Signal meter with a dedicated audio/CV output
FX section with great sounding Delay and Reverb developed in collaboration with 112db.com
Recordable Joystick
Analogue patch matrix with 3 attenuation levels in each patch point
254 patch memory
Piano roll sequencer and two stepper modulation sources
DIN5 MIDI Input and MIDI Thru
Two assignable outputs
Headphone output
Dimensions: 309mm x 457mm x 115mm (with the joystick in centre position)
Weight: 3.9 kg

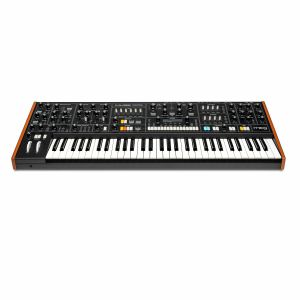

Notes: Moog enter a fresh chapter with a huge new synth. Full-on eight-voice bi-timbral analogue goodness, featuring selected highlights of Moog's iconic synth circuits from over the decades. Classic Moog sound, updated and bigger than ever.

Supplier's Notes:
Meet Muse, an eight-voice analogue bi-timbral polyphonic synthesiser - the culmination of over 5 years of dreams, design, and passion. Muse is an intuitive and powerful instrument built on the rich history of Moog that simultaneously gazes boldly into the future. This studio or performance centrepiece is driven by eight analogue voices, each with two VCOs, modulation VCO, dual VCFs, and a stereo VCA - all with that recognizable, kinetic analogue quality.

Muse represents a melting pot of classic Moog designs paired with forward-thinking controls in one complete instrument. Moog have selected the very best of vintage Moog circuits to create Muse - inspired by Moog Voyager oscillators, MF-102 Ring Modulator, CP3 Mixer, 902 VCA module, and a 904a Filter.

With 16 banks of 16 patches, you'll encounter beautiful pads, organic FM plucks, attention-grabbing leads, subterranean basses, stage-oriented key splits, as well as 2 banks reserved for your own sonic discoveries. Explore and express yourself endlessly with cutting-edge digital controls for powerful modulation capabilities, dedicated macro control, customizable envelopes, and multiple flexible LFOs. Shaping sound with Muse is a pleasure - the synthesizer and synthesist grow as one as the adventure continues for years to come.

Muse was created for, and by, modern musicians, producers, and sound designers who appreciate performance-oriented controls, intuitive knob per function layout, and "More" menus for every module. Built for stage and studio with a 61-key Fatar keyboard with velocity and channel aftertouch, a left-hand controller with pitch and mod wheels, and a programmable Macro knob makes the experience of interacting with Muse inspiring, intriguing, and innately playable.

A hypnotic stereo Diffusion Delay processor was inspired by golden era vintage digital rack delays with a unique and powerful set of diffusion, multi-tap, and filter behaviours. Craft complex echoes and diffused tonal smears that add dimension and depth to any patch.

In addition to Muse's creative immediacy, the powerful arpeggiator invites you to generate melodic ideas with compelling patterns and rhythms. With Muse's deep sequencer, you'll unravel unique patterns and gestures - further develop these discoveries with parameter recording, generative/probabilistic functions, and detailed editing of every note in the sequence - Moog Muse is a limitless canvas of musical exploration.

Moog Muse Specs:
Synthesiser type - Polyphonic, Bi-timbral Analog Synthesizer
Sound engine - Analogue
Polyphony - 8 Voices
Keybed - 61 full-size semi-weighted Fatar keybed with Velocity and channel Aftertouch
Controllers - Pitch Wheel, Modulation Wheel, Macro Knob, Keyboard Octave switch, Hold switch, Sustain Pedal input, Expression Pedal input - all pedal functions are assignable
Panel controls - 44 knobs, 16 sliders, 129 buttons - OLED screen
Analogue voltage-controlled oscillators - (x2) Selectable Triangle/Sawtooth mix, variable width Pulse wave, Octave (16', 8', 4', 2'), Frequency (+/- 7 Semitones), Wave Mix (blends Triangle/Sawtooth with variable Pulse wave), FM routing and amount, Hard sync
Analogue ring modulator - Ring modulation between Oscillators 1 and 2
Analogue voltage-controlled modulation oscillator - Selectable waveform (Sine, Sawtooth, Reverse Sawtooth, Square, Noise), Audio range toggle switch, Keyboard tracking, Keyboard reset, Unipolar switch, Pitch Modulation routing and amount, Filter Modulation routing and amount, Pulse Width Modulation routing and amount, VCA Modulation amount, Panning switch
Analogue noise generator - White noise
Analogue voltage-controlled mixer - Independent level control for OSC 1, OSC 2, RING, MOD OSC, and NOISE. Overall OVERLOAD control
Analogue voltage-controlled filters - (x2) Moog transistor ladder filters (1 with highpass/lowpass modes), Cutoff Frequency, Resonance, KB Tracking Amount, Envelope Amount, Linked Operation, Routing (Series, Parallel, Stereo)
Envelopes - (x2) Attack, Decay, Sustain, Release, variable curves per stage, Multi-trig, Loop, Velocity
Analogue voltage-controlled amplifier - Volume per Timbre, Pan position per Timbre, Pan Spread per timbre
Diffusion Delay™ - Configurable stereo signal processor, Delay Time Left, Delay Time Right, Feedback, Character, Mix, analogue bypass switches (to maintain 100% analogue signal path)
Output section - Master Volume, Headphones Volume, Low Cut EQ
LFO - (x2) Rate, Amplitude, Waveform selection (Triangle, Sawtooth, Square, Sample-and-Hold, User customizable), Keyboard Reset
Pitch LFO - Rate, Ramp Down through Triangle to Ramp Up Shape control, One-Shot Envelope toggle, Keyboard Reset, Pitch Modulation routing and amount
Glide - Selectable glide type (LCR, LCT, EXP), Glide amount
Clock - Clock rate, Tap Tempo
Arpeggiator - Per-timbre with Clock Division, Octave range, Pattern, Direction, Gate time, Rhythmic programming, etc.
Sequencer - 64-step sequencer with Clock Division, Transport controls, Sequence chaining, Step editing, Modulation capabilities, and memory capacity of 16 banks of 16 sequences
Programmer - Browser via OLED screen with 16 banks of 16 patches, Mod Map, Arpeggiator settings, Sequencer with per-step settings, Global settings, etc.
Voice control - Mono or poly voice count per timbre, Unison/Mono, Detune, Timbre editing, Voice stealing configuration
Chord memory - Chord memory with per-key functionality
MOD MAP - 16 modulation slots per timbre per patch with controllers and mathematical transform functions

Rear panel

Audio outputs - Main Left, Main Right (14" TRS)
Headphones - Stereo 1/4" (located on the front edge of the Left Hand Controller)
Pedal inputs - Sustain, Expression (1/4" TRS; Configurable through Mod Map or for use as 1/4" TS CV inputs)
Control voltage inputs - CV IN 1, CV IN 2 (1/8" TS)
Control voltage outputs - CV OUT 1, CV OUT 2 (1/8" TS)
Analogue clock input - CLOCK IN (1/8" TS)
Analogue clock output - CLOCK OUT (1/8" TS)
MIDI - 5 Pin DIN MIDI IN, OUT, THRU; MIDI over USB
USB B - USB-B connector for interfacing with a computer or other host MIDI device
USB A (HOST) - USB-A connector for connecting to other instruments with Muse as the MIDI host

Power
Style IEC Cable
Input: 100 - 240VAC; 50 Hz - 60 Hz

In the box

Moog Muse 8-Voice Polyphonic Analog Synthesizer
IEC Cable
Quick Start Guide
Registration Card
Safety & Warranty Manual

Weights & dimensions

Product Only
Weight: 14.55 (kg), 32 (lbs)
Dimensions (W x D x H): 99 x 42 x 11 (cm), 39 x 17 x 4.5 (inches)
Product In Box
Weight 18.92 (kg), 43.92 (lbs)
Dimensions (W x D x H): 116.7 x 55.2 x 24.7 (cm), 45.96 x 21.72 x 9.72 (inches)

Notes: PULSAR-23 is an organismic drum machine designed by Vlad Kreimer. It has a semi-modular structure and consists of 23 independent modules. PULSAR can be used for the synthesis of percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage and powerful analog FX processor.
The PULSAR functions in three different modes: stand-alone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination.
Additionally, PULSAR offers live circuit bending capabilities and the use of the artist's body conductivity to create patches and cross modulations. PULSAR continues the line of organismic synthesizers begun by LYRA-8, but now in the area of percussion instruments.

PULSAR-23 main features:

- 4 drum channels: Bass drum, Bass\Percussion, Snare drum, Cymbals\Hi-Hat
- 4 envelope generators with the unique ability to generate a sustain for the drum channels, turning them into noise\drone synthesizers. 4 independent loop recorders with the option for individual clocking. They record triggering events, not audio.
- Clock generator with an array of dividers as a very powerful tool for rhythm synthesis.
- Wide range LFO (0.1 - 5000Hz) with variable waveform.
- Shaos - a unique pseudo-random generator based on shift registers with 4 independent outputs, sample and hold and other cool features.
- FX processor with CV control incl. CV control of the entire DSP's sample rate.
- Distortion.
- 2 CV-controlled gates.
- 2 CV-controlled VCAs.
- 2 controllable inverters.

Also, it has MIDI control and synchronization and a lot of smaller modules such as 4 assignable attenuators and 2 dynamic CV sensors for CV generation etc. In general, there are 55 knobs, 11 switches and over 100 inputs and outputs for patching, Eurorack integration, external mixing and processing, live circuit bending!

It comes with 30 alligator clips cables and PSU.

The PULSAR-23 Screw has the same functionality as the PULSAR Turret, but at a much lower price, because we used screws instead of expensive custom turrets (on the first photo the black one with turrets, and the white one with the screws)

Notes: Black version of arguably the best experimental drum synth in the world. Unique semi-modular, 'organismic' design with over 100 patch points and extensive controls for the four drum channels.

Supplier's Notes:
PULSAR-23 is an organismic drum machine designed by Vlad Kreimer. It has a semi-modular structure and consists of 23 independent modules. PULSAR can be used for the synthesis of percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage and powerful analog FX processor.
The PULSAR functions in three different modes: stand-alone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination.
Additionally, PULSAR offers live circuit bending capabilities and the use of the artist's body conductivity to create patches and cross modulations. PULSAR continues the line of organismic synthesizers begun by LYRA-8, but now in the area of percussion instruments.

PULSAR-23 main features:

- 4 drum channels: Bass drum, Bass\Percussion, Snare drum, Cymbals\Hi-Hat
- 4 envelope generators with the unique ability to generate a sustain for the drum channels, turning them into noise\drone synthesizers. - 4 independent loop recorders with the option for individual clocking. They record triggering events, not audio.
- Clock generator with an array of dividers as a very powerful tool for rhythm synthesis.
- Wide range LFO (0.1 - 5000Hz) with variable waveform.
- Shaos - a unique pseudo-random generator based on shift registers with 4 independent outputs, sample and hold and other cool features.
- FX processor with CV control incl. CV control of the entire DSP's sample rate.
- Distortion.
- 2 CV-controlled gates.
- 2 CV-controlled VCAs.
- 2 controllable inverters.

Also, it has MIDI control and synchronization and a lot of smaller modules such as 4 assignable attenuators and 2 dynamic CV sensors for CV generation etc. In general, there are 55 knobs, 11 switches and over 100 inputs and outputs for patching, Eurorack integration, external mixing and processing, live circuit bending!

It comes with 30 alligator clips cables and PSU.

The PULSAR-23 Screw has the same functionality as the PULSAR Turret, but at a much lower price, because we used screws instead of expensive custom turrets (on the first photo the black one with turrets, and the white one with the screws)

Notes: Arturia's flagship audio interface is designed for maximum versatility as well as top quality sound. With 16 analogue inputs, 12 analogue outputs and an array of digital I/O including ADAT, MIDI and clock, your creative process won't be interrupted by reconfiguring your hardware.

Supplier's Notes:
AudioFuse 16Rig

Studio mastermind interface

AudioFuse 16Rig is a high-density audio interface that combines an unmatched array of connections with a creativity-first workflow, built to handle a hardware-focused setup and keep your devices always in sync, always sounding pristine, and always ready to go.

Make your sound count

Introducing an interface that lets you leave everything connected, route anything to anything, and be more creative with your projects.

A workhorse hub of connections and smart features designed to get the job done, no matter the complexity. A powerful, reliable production tool that can be moulded to suit your audio setup, your workflow, and your sound.

A standalone mixer

For DAWless recording, live mixing, and outside-the-box audio configuration, AudioFuse 16Rig just works. Fire up its two low-latency internal mixers for sessions away from the studio, process audio & MIDI without a computer connection, and save your configurations for instant recall and quick setup switching.

Intricate audio routing

Get hands-on with an interface that lets you configure its connections to suit any need, including multiple sends/returns for effects, quick A/B speaker monitoring, and more. The included AudioFuse Control Center even features a matrix for quick 'connect anything and everything' configuration.

Quantity, meet quality

Give every recording the shine, clarity, and projection it deserves with two high-quality digitally-controlled preamps and 24-bit AD/DA converters from ESS and Cirrus Logic. Whether it's red-hot synths, dynamic guitars, delicate vocals, or any combination of inputs, expect top-notch sound across the board.

Choose your workflow

Your interface should adjust to suit your setup, not the other way around. Control AudioFuse 16Rig's settings via the display or the included software, configure it for desktop or 1U rackmount operation, use the DC-coupled outputs to send signals to synth modules, and connect your high-impedance headphones.

It's time your music had an upgrade

x16 ADAT I/O
x8 Analog Line DC coupled Outputs
x16 Analog Line Inputs
x1 MIDI In & 2x MIDI Out/Thru
Wordclock I/O
24-bit AD/DA 192kHz
Creative FX Bundle Included

Smart design

Sometimes it's the little things that matter most. You need your gear to complement and enhance the way you work, and that's the driving force behind AudioFuse 16Rig.

See how every piece of the AudioFuse 16Rig puzzle fits together to deliver a dream interface for audio & music hardware lovers.

Premium FX included

Every AudioFuse interface comes with an ever-evolving suite of creative plugins curated from Arturia's award-winning FX Collection. Refine any incoming audio with vintage studio tools, get experimental with contemporary effects, and embark on a journey through classic & modern sounds with Analog Lab.

AudioFuse Range

The new studio reference

The AudioFuse interface range connects your computer to the world of music. Record with the highest quality, monitor with absolute precision, and bring all of your gear together to create the music you always wanted to.

Analogue signal path

The highest quality components are used in the input and output signal paths of the AudioFuse series, giving you an audiophile-quality experience with no compromise.

Powerful monitoring

Multiple outputs, integrated A/B switching, monitor mix options, and even headphone outputs with both 3.5mm and 6.35mm connectors. The AudioFuse makes monitoring a joy.

Huge versatility

Each AudioFuse interface has its own unique set of features designed to make recording as fun and easy as possible.

Main Features

16 x TRS analogue inputs
Includes 2 x high-quality digitally-controlled preamps
Inputs 3 & 4 also available as 3.5mm stereo input

12 x analogue outputs
Includes 8 x DC-coupled TRS line outputs
Stereo monitor outputs
6.35mm front-panel outputs for reamping, dual-headphones

2 x ADAT in, 2 x ADAT out

Up to 16 channels of I/O at 48kHz, 8 channels at 88.2/96kHz

Wordclock in & out

1 x MIDI in, 2 x MIDI out/thru
5-pin DIN connectors
Route MIDI standalone

Low-latency USB-C connection

Class-compliant MIDI
3 x USB hub connections

Two internal standalone mixers

No computer connection needed
Cue mixer for sub-mixing and added flexibility
Main mixer controllable by MIDI

Color display with rotary control & menu buttons
Desktop or 1U rackmount configuration
Includes AudioFuse Control Center
Includes AudioFuse Creative Suite

Analog Lab Intro
Comp DIODE-609* NEW
Pre 1973
Pre V76
Pre TridA
Filter MINI
Chorus JUN-6
Comp FET-76
Delay TAPE-201
Rev PLATE-140
Phaser BI-TRON

What's in the box

Box content
AudioFuse 16Rig unit
Power supply
2x USB cable

Instrument dimensions
size : 17.3 x 11.6 x 1.7 inches (493 x 294 x 43mm)

Platform requirements

Windows
Win 10+ PC: 4 GB RAM; Intel i5 CPU or faster
1GB free hard disk space
OpenGL 2.0 compatible GPU

Apple
10.13+: 4 GB RAM; Intel i5 CPU or Apple Silicon CPU
1GB free hard disk space
OpenGL 2.0 compatible GPU

Notes: Reboot of the classic Megacity sequencer, the AS500 follows the same unique approach with up to 64 steps presented in two banks, each split into groups of eight cascading steps.

Supplier's Notes:
New Analogue Sequencer!

Almost identical re-boot of Analogue Solutions' legendary Megacity sequencer.

Smaller form factor

Desktop design

Some general over enhancements, internal improvements.

Note: This version is pure analogue and does not feature a quantizer or MIDI.

Standalone 64 step analogue step sequencer with a host of unique features that sets it apart from others

What's so special about this sequencer?

AS500 is formatted differently and operates differently than other step sequencer.

Traditionally step sequencers run horizontally from left to right then loop back to step one. You can make the pattern shorter, but generally that's it.

AS500 patterns run vertically downwards in columns. As the end of each column is played, the next to the right is played.

AS500 has a unique Jump system. When a Jump switch is on, the rest of the column's steps are bypassed and the sequencer jumps straight to the start of the next column

These two features in particular as familiar enough ways of working to be intuitive, but different enough to force you to work and think in a slightly different way. The end result is you will get sequences and patterns that you might not have created otherwise.

More Variation

Many step sequencers can start to sound repetitive since it's usually the same single pattern looping endlessly.

AS500 allows you to split the sequencer in half and use the right half as a Fill-In pattern to add variation, much like vintage drum machines.

These Fills are activated via a Push Button, or via a trigger pulse from an external modular.

AS500's format and Jump switches, combined with excellent features like Fill-In, Split sequencers and other features makes AS500 a great sequencer package.

Use

If you are familiar with analogue sequencers in general, then most features of AS500 should be fairly self-explanatory, but it would still be worth having a read through the manual.

The sequencer is laid out in vertical columns, eight in total.

The sequencer runs from top to bottom, and left to right.

The Difference Between Reset and Jump

If a Reset is initiated the sequencer returns to step one, the first step of the sequencer.

Use Reset to shorten the sequence.

If a Jump is initiated the sequencer will advance (jump) to step one of the next column to the right.

Notes: Wooden side panel version of ARS's brilliant Model9500 mixer. Four-channel rotary design with unique three-band hybrid iso-EQ plus three-band isolator and five-band master EQ.

Supplier's Notes:
MODEL9500BW Music Mixer

4-channel table top mixer

MODEL9500BW (broadcast mixer) Music Mixer Wood TYPE

ARS MODEL 9500BW DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first?3band hybrid isoeq Hi-eq Mid-eq Low -Iso on each channel.

This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator and 5Band Equalizer on the master.

5Band Equalizer Control: 75Hz 300Hz 1Khz 3Khz 10Khz 5Band

Potentiometer and Switch are All ALPS .

A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship.

Highly recommended.

It is designed with purist ideals with only essential features.

ARS 9500 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel and 3band Iso and 5band EQ on the master.

The Master Isolators can be boost of cut from +18db ~ .

The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ .

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-9500 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Wood is a natural material, so there may be unevenness in the wood grain. Thank you for your understanding.

Specs

Frequency Response: +/-1dB 20Hz-20Khz
Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output :RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output: RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Return: RCA Unbalanced Impedance 20K Ohm

Isolator Frequency Response:
3band hybrid isoeq 1-4Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~.
5Band Equalizer Control: 75Hz 300Hz 1Khz 3Khz 10Khz 5Band

Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 30w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)366 x (H)250 x (D)100 mm (WOOD 20MM Thickness)
Model: 9500BW
Unit weight:5400g
ACBOX:1100g
Front Panel Colour: Black

Notes: A serious mixer from a legendary name. Tascam's 2400 combines analogue mixing with a 24-track recorder, built-in USB interface and DAW integration. Exceptional versatility in a convenient package.

Supplier's Notes:
Streamline Your Mix Process with Advanced Onboard Processing

The Model 2400's versatility doesn't compromise its mixing capabilities one bit. With per-channel compression, multiple sub groups, and master stereo bus processing including compression and EQ, you'll have the pro-level mix control you need in any scenario. Taking your project from tracking to a final master on the Model 2400 couldn't be simpler.

22 Channels and 24 Tracks, One Solution

With comprehensive 22-channel mixing capabilities, the Model 2400 is an ideal studio and live mixer for everything from larger combos and jazz ensembles to orchestra and choir ensembles. And when it comes to recording, no additional interface or computer are required.

Insert Professional Processors and Effects

Insert points on channels 1-12 allow you to easily integrate a studio rack full of processors and effects units. And, in addition to the onboard Master Bus processing, a send/return loop on the Main output allows you to connect external mastering gear such as compressors, EQs, stereo imagers and sonic exciters.

Ample Aux and Sub Outputs

With 5 Aux sends and 4 stereo sub groups, Model 2400 handles advanced mixing duties with ease. Create more monitor mixes without sacrificing an aux for effects. Connect multiple pairs of studio monitors for checking your mixes. In your studio or on stage, Model 2400 delivers the comprehensive connectivity and routing you need.

Professional Recording Capabilities

Model 2400 seamlessly integrates multitrack recording with studio and live mixing. With the ability to record 24 channels (22 inputs plus the stereo master) of high-quality audio direct to SD card media, Model 2400 is a powerful recording solution even if you're a DAW-less producer.

Sound with Excitement

TASCAM Ultra HDDA (High-Definition Discrete Architecture) mic preamps give Model 2400 the vibrant analogue sound that makes harmonics come alive.

With Ultra HDDA, any sound source will be represented with the utmost clarity and richness, and with an ultra-low noise floor.

Monitor Your Signal Virtually

With the Model Mixer Settings Panel app, users can take advantage of a digital meter bridge across by connecting the Model 2400 via USB to a PC or Mac. Set peak hold times, monitor the input, MTR or USB signal all while being able scale the GUI from a small window to full screen. Take it a step further by porting the app from your computer to a dedicated monitor of your choosing.

Ready to Be Your Studio Centrepiece

Model 2400 delivers the classic analogue console experience in the studio, with an onboard 24x22 audio interface that's ready to meld with modern production workflows. Insert points on channels 1-12 allow you to integrate studio processors and effects. And with the ability to return 22 DAW tracks through Model 2400's mix path and processing, it's also the most versatile analogue summing mixer you'll find.

MIDI Interface

Model 2400's comprehensive MIDI functionality allows full integration with MIDI-based production setups. From controlling drum machines and synthesizers from your DAW software, to synchronizing external effects processors to the tempo of your music and creating click tracks, Model 2400 offers the MIDI functionality you need to make it happen.

Specifications
Recorder
Recording media: SD (Class 10 or higher), SDHC (Class 10 or higher), SDXC (up to 512 GBytes, Class 10 or higher)
File system: SD: FAT16, SDHC: FAT32, SDXC: exFAT
Recording file formats: WAV (BWF), 44.1/48 kHz, 16/24 bit (maximum file size: 2 GBytes)
Playback file formats: WAV, BWF (44.1/48 kHz, 16/24 bit)
Recordable tracks: 24 (22 tracks + stereo mix)

Audio inputs and outputs

Microphone inputs (MIC, 1-12, 13,15,17,19): XLR-3-31 (combo jack), balanced (1: GND, 2: HOT, 3: COLD)
Maximum input level: +10 dBu
Nominal input level: -8 dBu
Minimum input level: -58 dBu
Gain adjustable range: 0-50 dB
Input impedance: 1.9 kO (1-12), 2.4 kO (13, 15, 17, 19)
Line/Instrument inputs (LINE/INST, 1-2): 6.3-mm TRS phone jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: LINE: +22 dBu, INST: 19.8 dBV
Nominal input level: LINE: +4 dBu, INST: 1.8 dBV
Gain adjustment range: -10 dB to +40 dB
Input impedance: LINE: 22 kO, INST: 1 MO
Line inputs (LINE, 3-12): 6.3-mm TRS phone jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: +22 dBu
Nominal input level: +4 dBu
Gain adjustable range: -10 dB to +40 dB
Input impedance: =22 kO
Stereo line inputs (LINE L/MONO, R, 13/14 to 21/22): 6.3-mm TRS phone jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: +22 dBu
Nominal input level: +4 dBu
Gain adjustment range: -20 dB to +30 dB
Input impedance: =11 kO (mono), =22 kO (stereo)
Inserts (1-12): 6.3-mm TRS phone jack, (Tip: Send, Ring: Return, Sleeve: GND)
Maximum input level: +18 dBu
Nominal input level: 0 dBu
Input impedance: 15 kO
Maximum output level: +18 dBu
Nominal output level: 0 dBu
Output impedance: 100 O
Talkback input: XLR-3-31, balanced (1: GND, 2: HOT, 3: COLD)
Maximum input level: -22 dBu
Minimum input level: -65 dBu
Gain adjustable range: 52 dB
Input impedance= 2.6 kO
Main output (MAIN OUTPUT L/R): XLR-3-32, balanced (1: GND, 2: HOT, 3:COLD)
Maximum output level: +22 dBu
Nominal output level: +4 dBu
Output impedance: 200 O
Main inserts (MAIN SEND/RETURN L/R): 6.3-mm TRS phone jack (Tip: Send, Ring: Return, Sleeve: GND)
Maximum input level: +18 dBu
Nominal input level: 0 dBu
Input impedance= 9 kO
Maximum output level: +18 dBu
Nominal output level: 0 dBu
Output impedance: 100 O
Control Room outputs (CONTROL ROOM L/R): 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: +16 dBu
Nominal output level: -2 dBu
Output impedance: 200 O
Aux outputs (AUX OUTPUT 1-5): 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: +16 dBu
Nominal output level: -2 dBu
Output impedance: 200 O
Sub group outputs (SUB OUTPUT 1-2, 3-4, 5-6, 7-8): 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: +16 dBu
Nominal output level: -2 dBu
Output impedance: 200 O
Phones output 1/2: 2 × 6.3-mm stereo phone jack
Maximum output power: 45 mW + 45 mW (at 32 O)

Control inputs/outputs

USB port: USB Type-B
Protocol: USB 2.0 High Speed (480 Mbit/s)
Click output
6.3-mm standard TS jack: (Tip: HOT, Sleeve: GND)
Footswitch connector: 6.3-mm TRS phone jack (Tip: FOOTSW1, Ring: FOOTSW2, Sleeve: GND, unlatching switches required)
MIDI input and output: 5-pin DIN connector
Format: Standard MIDI

USB audio

Sampling rate: 44.1 kHz, 48 kHz
Bit depth: 16 bit, 24 bit
Maximum number of audio channels: 24 inputs, 22 outputs

Bluetooth
Version: 5.1
Output class: 2 (approximate transmission distance: 10 m)
Supported profile: A2DP
Supported A2DP codecs: SBC, AAC
A2DP content protection: SCMS-T

Audio performance
S/N ratio: (22 kHz LPF, A-weighted), Main mix off: -100 dB, Main mix 0 dB: -80 dB
Equivalent input noise (EIN): -128 dBu (Rs=15 O, MIC IN to INSERT SEND, GAIN knobs at max., A-weighted)
Total harmonic distortion (THD+N): (GAIN knobs at min., 1 kHz), 0,01 % (mic input to main output), 0.004 % (mic input to main output, +2 dBu, BYPASS switches on)
Frequency response: (all gain knobs at min., 1 kHz) 20 Hz to 30 kHz, +0.5/-1 dB (analogue), 20 Hz to 20 kHz, +0.5/-1 dB (digital)
Crosstalk: (PAN knobs fully left or right, 1 kHz), Between channels: -80 dB, Between input and output: -80 dB
Maximum gain: (all GAIN knobs at max., PAN knobs fully left or right, BYPASS on, MASTER BUS IN off), 74 dB (MIC to MAIN OUT), 54 dB (MIC to INSERT OUT), 74 dB (MIC to SUB OUT), 75 dB (MIC to AUX OUT), 24 dB (USB/SD to MAIN OUT)

Computer system requirements

Windows: Windows 11, Windows 10 (64-bit)
Compatible computers: Windows-compatible computer with a USB 2.0 (or higher) port, using Tascam driver, operation not guaranteed with ARM64 CPUs
Display requirements (settings panel software): 1280 × 720 or higher, True colour recommended
Mac: macOS Sonoma (14), macOS Ventura (13)
Compatible computers: Apple Mac computer with a USB 2.0 (or higher) port
Display requirements (settings panel software): 1280 × 720 or higher, True colour recommended
iOS/iPadOS devices: iOS 17/iPadOS 17, iOS 16/iPadOS 16

Power supply and other specifications

Power: AC 100-240 V, 50/60 Hz
Power consumption: 65 W
Dimensions (W × D × H): 681 mm × 568 mm × 133 mm (overall), 639 mm × 568 mm × 133 mm (without side panels)
Weight: 14 kg
Guaranteed operating temperature range: 0-40 -C
Guaranteed operating humidity range: 5-85 % (without condensation)
Included items: AC power cord, Startup Guide, Registration Guide

Notes: GS Music's fully analogue six-voice synth module. Huge sonic power from the classic single-oscillator design, brought up to date with modern touches like balanced stereo outputs and USB control. Also available in blue.

Supplier's Notes:
The JHS Pedals 3 SerieThe Bree6 is a polyphonic analog synthesizer that features a fully analog sound generation. It offers six voices of polyphony, each equipped with a single voltage controlled oscillator (VCO), and a sub oscillator. The signal path includes a mixer, a 4-pole low-pass voltage-controlled ladder filter (VCF), and a voltage-controlled amplifier (VCA). The control signals are digitally generated, incorporating one low-frequency oscillator (LFO) and two ADSR-type envelope generators. Additionally, the Bree6 integrates an effects processor with chorus and delay.

The Bree6 interface is engineered for straightforward and intuitive use, featuring one knob per function and ensuring ease of access to its robust features, including MIDI connections, USB, balanced stereo audio outputs, headphone output, and CV inputs.

The signal path in the Bree6 is entirely analog, including a single VCO per voice, a sub oscillator, a mixer, a 4-pole low-pass ladder VCF, and a VCA. The control voltages are digitally generated, comprising one LFO and two ADSR-type envelope generators. It also features a stereo digital effects processor with Delay and Chorus.

The Bree6 features a single VCO plus a sub oscillator per voice. The oscillator includes sawtooth and pulse waveforms, with pulse width modulation control that can be modulated by the LFO. The oscillator tuning can be adjusted, and modulation can be applied from the LFO. The sub oscillator generates a square wave one octave below the main oscillator.

The Bree6's filter is a 4-pole ladder-type low-pass filter with resonance control. It can be modulated by EG1, with velocity affecting the modulation depth, and can also be modulated by the LFO. It can also be controlled by the modulation wheel and aftertouch.

The synthesizer offers a stereo ensemble type chorus effect. It simulates a string or vocal ensemble using multiple delay lines modulated by their dedicated LFOs. The stereo delay can reach a maximum delay time of up to 1 second.

The Bree6 contains one LFO with selectable waveforms (triangle, ramp up, ramp down, square, and random with sample and hold). The LFO's frequency can be set from 0.1Hz to 100Hz, and modulation can be applied to the VCO, VCF, and VCA.

There are two ADSR-type envelope generators in the Bree6, designed for precise control over the dynamics of both the filter and the amplifier.

The synthesizer supports MIDI Polyphonic Expression (MPE), facilitating detailed performance dynamics when used with compatible MPE controllers. The Bree6 has been carefully tested with Osmose, Linnstrument and Geoshred.

Notes: The iconic Synclavier brand returns with this digital powerhouse, based around FM synthesis but also offering additive and subtractive methods. Super versatile, with up to 98-voice polyphony and MPE support.

Supplier's Notes:
The new buck in the Synclavier stable

Synclavier Regen is the newest in an auspicious line of Digital FM synthesizers. Designed for desktop use, it contains the power of the Synclavier II DSP engine, enhanced and optimised. Full colour screen, liquid-like touch controls, high fidelity audio output coupled with a sound design powerhouse makes this the synth you always dreamed of.

Regen supports additive synthesis for full control of 24 harmonics. Synclavier have now added subtractive synthesis to the Synclavier synthesis engine, especially for Regen, allowing creation of super saws, PCM square waves, and noise generation. Or you can use samples for your carrier waveform.

And these different waveform generators can be mixed. You have up to 12 partials to use in your sound design creation with crossfades assignable to inputs such as velocity, pressure, mod wheel, and of course, keyboard.

Regen is loaded with content to get you inspired fast. There are over 550 timbre presets across 10 newly commissioned timbre libraries. On top of that, there are over 2000 royalty-free samples built-in, including over 350 selected original samples from the NED era and 2 exclusive artist sample libraries.

When you're done exploring the factory content, you'll have fun with the sound design possibilities. You can layer up to 12 partials with different sound generators (additive, subtractive, samples) then apply dynamic effects per partial. It's truly an expressive instrument, both to program and to play. Polyphonic aftertouch and MPE is fully supported and there's a sophisticated modulators section where you can apply responsive curves to properties driven by pressure, velocity, mod wheel position, and so on.

Synclavier Regen is a desktop unit measuring 310mm wide by 260mm tall and 42mm deep.

Housed in aluminium, finished with a sand-textured black and Synclavier red surround. It has rubberized plinths.

User interface consists of many silicone buttons with multi-colour backlighting, a virtual knob capacitive-touch slider with epoxy-coating. A VK display is included as well as a main modal display that shows current parameters, user settings, timbre library, etc.

Over 40 years of synth design has led to this product. It's a sound-designer's dream in a timeless desktop package.

Sound-design Capabilities

Advanced DSP synth engine, as used on Synclavier II, has been extended for Regen.
12 separate tracks of multi-timbrality, assignable to MIDI tracks and keyboard ranges.
Up to 98 simultaneous voices. Voice count is dependent on system load and is likely to be much higher in typical scenarios.
12 partials per timbre. Each partial can be 1 of 3 oscillator synth modes: additive, subtractive, or samples.
Additive mode supports coefficient and phase control of 24 harmonics.
In samples mode, up to 128 samples can be placed on the partial's patchlist.
Subtractive can have a noise generator or up to 9 de-tunable continuous sawtooth waveforms.
Hybrid (resynthesized samples)
Timbre-level effects, including:
Stereo reverb algorithm with pre-delay and library of presets.
Highly-optimised multi-mode filter with sophisticated filter envelope.
Bit-crusher (for use with additive, sample, and hybrid modes).
Frequency modulation (FM) controllable per partial (all modes) with envelope.
Sophisticated modulation system that allows many Regen parameters to be controlled via MIDI, LFOs (24 per timbre), or driven by envelopes (24 per timbre).
Approx 300MB of sample space in memory = 100 mins @ 48Khz 24-bit mono shared across all active tracks and partials.

Hardware

Balanced stereo output through XLR connections at pro-level 4dBu. Designed for studio and home use. These are DC-coupled for maximum bass impact.
Single-ended TS stereo outputs, also DC-coupled.
Convenient headphones TRS jack for monitoring master audio with independent volume
control. For headphones in range 32O - 300O.
DAC circuit is designed for ultra-low noise floor. 11dB of headroom over nominal level. A
measured 130dB of dynamic range. 24-bit, 50kHz sample rate, as per Synclavier II.
Hybrid sound design engine: original Synlcavier II hardware is modelled in software.
High quality audio components throughout, including a precision temperature compensated crystal oscillator for jitter-free digital audio.
Two glorious full-colour sunken displays.
Responsive silicon back-lit parameter buttons.
The vertical value swiper is touch accurate to 128 levels of resolution for precise control
of every parameter.
12 selector buttons are touch-sensitive and can handle gestures to quickly select
multiple partials or tracks.
SD Card reader for unlimited user timbre and sample libraries.
4 USB accessory ports for MIDI keyboards, sequencers, and audio interfaces. Plus 1 USB Host port for connecting to a computer for MIDI input from a DAW.
Take it on the road. Rugged, full metal enclosure.

Notes: One of the best synths money can buy. Hugely expressive PolyBrute engine expands to 12 voices with the same beguiling combination of FullTouch keyboard, Morphee control and ribbon strip. Immense

Supplier's Notes:
Unleashing the full power of PolyBrute

Continuing the legacy of its predecessor as one of the most powerful and expressive analogue synths ever made, PolyBrute 12 goes a step further.

A multi-faceted tool for musical expression, PolyBrute 12 lets you seamlessly evolve and control any parameters while playing. The input-perfect sensitivity of the keyboard, the bi-timbral morphing presets, the multi-axis Morphee controller, the Ribbon controller - all work in perfect harmony so you can breathe vitality and intricate dynamics into your sound.

PolyBrute's in-the-moment sonic display would not be possible without the raw energy of its Brute oscillators and dual enhanced classic filters. This, combined with its intuitive interface, elegant modulation Matrix and advanced software companion make PolyBrute 12 a synth for the ages - a matrimony of Brute force and human touch.

Full touch, full control

Discover a next-generation keybed and new aftertouch modes that bring you into a direct and tactile connection with your sound.

PolyBrute's patented FullTouch keyboard provides the exact position of every key across the entire range of movement. This not only allows for precise and dynamic aftertouch expression but it also puts versatility at PolyBrute's core - allowing you to go from regular playing modes to exceptional aftertouch and envelope control at the touch of a button.

You can also use PolyBrute 12 to control any MPE-compatible VST. If you don't have a MPE compatible DAW, you can still record expressively using MIDI 1.0, although at a lower resolution.

Mono Aftertouch

In this mode, the note is triggered by regular keyboard velocity and the classic aftertouch area corresponds to an assignable aftertouch signal, where all the voices receive the same level and amount of expression. Great for applying a unified modulation effect to a chord or phrase.

Morph between sonic worlds

Seamlessly blend from one patch to another and find that perfect middle ground

Each preset is made up of two sonic states, A & B. A dedicated Morph knob lets you seamlessly explore a continuum of sound between them. This, combined with the Morphee controller and PolyBrute's keyboard, paves the way for endless patch evolution and expressivity.

Analogue heart, seismic sound

PolyBrute's sound begins with two analogue VCOs sharing much of the same sonic architecture that has made the Brute family renowned.

Each oscillator generates sawtooth, triangle and square waves simultaneously, and you can mix between them to shape just the right signal source and timbre.

Dial in VCO 1's Metalizer wavefolding to escalate from pure to punchy. Bring in VCO 2's sub-oscillator to add an extra lower octave and some added rumble.

Dial in edgy FM effects by modulating VCO 1's frequency with VCO 2, or subtly alter a continuous range of harmonics with soft or hard sync.

1 VCF 1 Steiner

A 2-pole 12db/octave Steiner filter design with continuous sweepable slope types, as seen across the Brute range. The addition of the proprietary Brute Factor feedback control lets you add anything from subtle warmth to a electrified growl.

2 VCF 1 Ladder

Inspired by Dr. Bob Moog's legendary 4-pole 24db/octave ladder design. A low-pass classic, with added gain compensation and asymmetrical distortion to add upfront grit to your polyphonic patches.

Modern modulation sources

Modulation has always been essential in animating synth sounds.

PolyBrute weaves a web of envelopes and LFOs that's intricate and unpredictable in equal measure - a dynamic display of sonic motion.

Three Envelope Generators

PolyBrute's VCF and VCA have velocity-sensitive ADSR envelopes hardwired outside the Matrix for instant gratification. The third Envelope Generator features a delay stage (DADSR) and can be assigned to sculpt any Matrix modulation targets. Use the various repeat and loop modes to add complex movement to your patches.

Three Envelope Generators

PolyBrute's VCF and VCA have velocity-sensitive ADSR envelopes hardwired outside the Matrix for instant gratification. The third Envelope Generator features a delay stage (DADSR) and can be assigned to sculpt any Matrix modulation targets. Use the various repeat and loop modes to add complex movement to your patches.

Three LFOs

PolyBrute's three syncable LFOs span an extremely wide range - facilitating anything from beautiful evolving soundscapes to clangorous audio-range modulation. Options for waveshaping, polarity and retriggering let you take your sound way outside the box. Experiment with Matrix routing and tempo/MIDI sync for hyper-rhythmic effects.

Enter the matrix

The flexibility of modular patching combined with digital precision and analogue richness makes for a transcendent polysynth experience.

32 target parameters, 64 connections in total. Rearrange PolyBrute's signal chain with the touch of a single button. Dial in positive or negative amounts, intuitively assign one or more destinations via any relevant controls, instantly route PolyBrute's array of performance controllers and advanced modulation sources to influence just about anything in the instrument's chain - all without a convoluted array of wires.

But the Matrix doesn't just take care of PolyBrute's all-encompassing modulation routing - it's the centrepiece of every aspect of its architecture. In Presets mode, use the Matrix to select any of the 768 patch memory locations. Morph mode accesses advanced morph state editing. Sequencer mode transforms the Matrix into an intuitive visual pattern editor.

Main Features

61-keys with FullTouchr MPE Technology keyboard
Pitch Bend, Mod Wheel, Ribbon controllers
Morphee touch and pressure sensitive 3D controller
Osc and Noise Mixer with Filter routing
12dB/Oct Steiner Parker Filter

Continuous LP>Notch>HP>BP morphing
Cutoff, Resonance, Brute Factor

24dB/Oct Ladder Filter with Distortion
Three Envelopes
Looping capability
Two ADSR
One DADSR
Three stereo digital effects
Modulation FX : Chorus, Phaser, Flanger, Ring Modulation
Delay : 9 algorithms including BBD, Digital delay
Reverb : 9 algorithms including Hall, Plate, Spring, Shimmer
Distortions : Subtle Tape, Classic Distortion, Soft Clip, Worn Out Tape, Germanium, BitCrusher, DownSampler
Arpeggiator, Matrix Arpeggiator, Sequencer
Stereo audio output
2 expression and 1 sustain pedal inputs
Two Analogue VCO's
Saw
Triangle + Metalizer
Square + Pulse Width
Sub
Linear FM
Hard Sync
Noise Generator
Continuous tone from rumble noise to white noise
Three LFOs
LFO1 and LFO2 with waveform selection
LFO3 with waveform shaping using Shape and Symmetry
Rate control & Tempo Sync
Various retrig options
480 presets and 768 preset slots
12x32 Modulation Matrix
Notes, Accent, Slide per step
3 tracks of automation
MIDI and USB I/O + analogue clock I/O

Platform specifications

Windows
Win 10+ (64bit)
4 GB RAM
4 cores CPU, 3.4 GHz (4.0 GHz Turbo-boost)
3GB free hard disk space
OpenGL 2.0 compatible GPU
ARM processors not supported on Windows

Apple
Mac OS 11+
4 GB RAM
4 cores CPU, 3.4 GHz (4.0 GHz Turbo-boost) or M1 CPU
3GB free hard disk space
OpenGL 2.0 compatible GPU

Required configuration
Works in Standalone, VST, AAX, Audio Unit.

Work with ASC
An elegant and simple solution to help you install, activate, and update your Arturia software instruments.

What's in the box

Box content

PolyBrute 12 Unit
Power Cord
User Manual
Registration Card

Instrument dimensions
Size : 38.3 x 17.1 x 6.1 inches (972 x 435 x 156mm)
Weight : 50.7lbs (23kg)

Notes: Buchla's touch-sensitive keyboard updated for the 21st century. Third-generation version offers expressive control for Buchla, MIDI and Eurorack. Iconic.

Supplier's Notes:
Though our lives are dominated by touchscreens, when it comes to music, there's still a lot of magic in capacitive touch control. Don Buchla was one of the first to apply this technology to electronic music in the Buchla 112 module. The non-traditional sounds were controlled with a futuristic interface. This fantastic idea met many iterations in Buchla history: the Music Easel, 400, 700, Thunder, and 223 all employed touch technology.

Buchla USA is proud to present the third iteration of one of the most used touch interfaces, the 218, as the LEM218v3: The 218e version3 Lunar Excursion Module. The first design appeared in the 1973 release of the Buchla Music Easel and named for the spacecraft that delivered astronauts to the moon. Providing the familiar piano key layout for this early mobile music machine, the additional controls and capabilities were an interface for exploring uncharted musical territory. With the new version 3, it's been updated with a new foundation of stable, modern electronics and plenty of inputs and outputs to integrate with your Buchla, MIDI, and Eurorack gear.

Capacitive Magic

The incredible sensitivity and accuracy of the redesigned touch bed means the lightest touch will produce triggers and control voltage for your setup. The adjustable sensor has the dynamic range and durability to handle your playing. The new texture not only improves the sensing, but provides a satisfying tactile experience.

As always, pressure is an expressive output, adding an extra dimension to the control. MIDI outputs velocity and polyphony, as well as channel pressure, making the LEM218 a uniquely expressive controller for all your synthesizers. The configurable touchstrip adds a fantastic addition for pitch bend or as an additional modulator to patch into your system.

MIDI Polyphony, Velocity & More!

More than just MIDI compatible, the LEM 218 v3 gives you a unique interface to playing your existing MIDI gear and soft synths. Each touch outputs note name, channel pressure, and velocity for every note, along with sustain controls from a pedal. Polyphonic MIDI mode lets you play chords. The touchstrip can act as a pitch bend control, or as a mod wheel for additional expressive control. Easily configured using the front panel controls, you can send notes and controls on any MIDI channel. Send the LEM some MIDI, and it gets converted to voltages and gates for eurorack and Buchla control.

Get More For Your Euro

Even if you don't have any Buchla products, the LEM 218 v3 is designed to work with your Eurorack-compatible gear. Four 3.5mm jacks output 1v/octave pitch, 0-8 volts pressure, touchstrip voltage, and gate outputs for use with Eurorack equipment. Or, combine your Euro with your Buchla instruments. If NATO can do it, so can you. The sound design possibilities will blow your mind.

Arpeggiate

A pulse input allows the arpeggiator to be driven by external inputs and are allowed to interact with the automated notes to make the pattern more complex. Additional controls allow you to blend different patterns and randomness to easily change from the expected to the surprising.

Control

The classic preset voltage knobs offer several possible ways to shift your sounds into new territory. Not only can the knobs be used for quick access to voltages for your patch, they can control arpeggiation modes and octave shifting. Pads output pulses for additional control

Set It Up Your Way

Such a unique device will spark many ideas. With easy front panel configuration, you can quickly customize the velocity and pressure sensitivity, MIDI channel, knob behavior, and more. No cumbersome software setups, just simple settings with the keys and knobs, and you're ready to play.

Notes: Serious synth options here, with a 24-voice polyphonic, four-part multi-timbral design based on the iconic PPG wavetable approach, updated and blended with analogue filters. An absolute powerhouse of an instrument.

Supplier's Notes:
The 3rd Wave desktop module a powerhouse wavetable synth with 24-voice polyphony and 4-part multi-timbral capability that's like having four independent synthesizers at your fingerprints.

It has all of the power, all of the polyphony, all of the multipart capability, all of the I/O, and all of the awesome sound quality of the full keyboard version.

Each of its 3 oscillators per voice can be any of these 3 choices:
A classic PPG 8-bit wavetable with all the original processing
A high-resolution anti-aliased 96KHz wavetable
Analogue modelled waveforms with spline interpolation

Create up to 64 custom wavetables of your own using the built-in Wavemaker. With the sample-to-wavetable capability, you can connect an audio source to the audio input and generate a wavetable at the touch of a button.

Classic legacy, modern sound

While the 3rd Wave has roots in the classic digital wavetable synths of the past, it takes that concept into the 21st century with a lush, expansive sound that's a product of its expanded wavetables and warm, organic-sounding analogue filters, 4 independent parts, and 24 voices.

It boasts not only a punchy, Dave Rossum-designed 2140 analogue low-pass filter with variable saturation, but a second, SEM-style state-variable filter (low-pass, high-pass, notch, and band-pass) for additional tone-sculpting. Run both filters in series for harmonically complex textures.

4-part multi-timbral

With 24-voices, the 3rd Wave has enough power for the most note-intensive performances.

And that polyphony really comes into play with its ability to layer up to 4 independent parts or split zones -- each with a completely different sound, sequence, and dual effects.

Each part has independent panning, volume, and a dedicated stereo physical output. Use the multiple outputs and part placement to create spatial audio mixes.

Modulation matrix

The secret weapon of any synth is its mod matrix, and the 3rd Wave doesn't disappoint.

With 16 assignable slots, 12 additional fixed-source slots, 27 sources, and 114 destinations, it has the flexibility of a modular.

And all of this power is per multipart. That means up to 4 independent layers of sound, each with its own mod matrix.

Sequence notes, songs and parameters

The 3rd Wave's sequencer is an inspiring tool for both composers and sound designers because it is pattern-based and can sequence notes, songs, and parameter changes.

For composing and performing, enter notes and chords in real time with or without quantization for maximum groove and arrange up to 24 patterns of up to 32 measures in length into songs just as easily.

Sound engine

3 High-resolution Digital Oscillators Per Voice

64 total user wavetable positions with 48 wavetables that contain 64 waveforms per table (32 legacy PPG waves with room for another 16 of this type)
32 original 8-bit wavetables from the PPG 2 series instruments with room for 16 more user created 8 bit wavetables
7 high-resolution modelled analogue waveforms (sine, saw, triangle, supersaw, pulse, white noise, pink noise)
VCO sync
Free-running oscillators
Linear FM
6-stage wave envelope per oscillator with variable time and position that can be looped
Optional wave flow section that allows for no wavetable as well as no waveform interpolation
Upper wavetable mode as with the original PPG 2 series
Unison, poly unison, and chord unison mode with variable voice count

Analog Low-pass Filter (per voice)

Dave Rossum designed, classic, 2140 low-pass resonant filter
24 dB per octave slope
variable saturation amount
optional resonance compensation

State-Variable Filter (per voice)
12 dB per octave slope
Continuously variable between low-pass, notch, and high-pass, operation with optional band-pass mode

4 ADSR+ Delay Envelopes
Filter, Amplifier, plus 2 additional envelopes switchable between exponential and vintage PPG-style response
Freely assignable to multiple modulation destinations

4 Low-Frequency Oscillators
Triangle, sawtooth, reverse sawtooth, square, pulse 1, pulse 2, pulse 3, and random (S&H)
Variable delay
Note reset
Syncable to master clock BPM

2 Digital Effects
BBD, stereo delay, tape delay, chorus, phaser, flanger, distortion pedal, rotating speaker, ring mod, room reverb, hall reverb, super plate reverb - most modelled on famous hardware devices
Syncable to master clock BPM
Parameters modulatable via mod matrix

Wave maker tool

Built-In Custom Wavetable Maker

"Sample-to-wave" functionality. Connect an audio source to the 3rd Wave's Audio In port, press "Make Waves" and the synth samples the audio to create a custom wavetable
Samples to convert can also be brought in as a 96 kHz wav file through USB
Store up to 32 custom wavetables
64 waveforms per wavetable
Accepts pitched or un-pitched material as input
96 kHz sampling rate
16-bit resolution
1024 cycles per waveform, converted automatically to cover entire keyboard range
Flexible wave-sampling length

Sequencer

Performs both Note and Parameter Sequencing
1 song per multi-part
24 sequences per song
32 measures per sequence
Variable quantization resolution per sequence (32nd, 16th, 8th, quarter, half, whole note, or quantization off)
Swing

Arepggiator

1 Arp per Multi-part
Up, down, up/down, and assign modes
Variable range (1, 2, or 3 octaves)

Mod matrix

16-slot Modulation Matrix Per Multi-Part

16 slot modulation matrix with 27 mod sources and 114 mod destinations
12 additional fixed-source mod paths
Modulation assignment buttons enable quick and easy modulation routing
Mod Matrix runs at audio rates
Sequencer can record and play mod parameter changes in real time

Controls

77 knobs and 39 buttons enable deep, comprehensive editing with minimal menu diving
Pitch and Mod Wheels
Full-sized, five-octave, semi-weighted, premium Fatar keyboard with velocity and aftertouch

Programs

500 factory programs. User rewritable

In/out

4 Stereo outputs (2x 1/4" phone jack per part)
Headphone out (stereo 1/4" phone jack)
MIDI In, MIDI Out, and MIDI Thru
USB port for bidirectional MIDI communication
Audio Input for creating user wavetables from external audio source (1/4" phone jack)
Sustain/footswitch input
Volume pedal input
Expression pedal input

Power

1 universal IEC AC power inlet for internal power supply

Notes: 12-voice version of Waldorf's Iridium Core, a compact synth from the same range as the Quantum. Running on the Waldorf OS, the Iridium features a versatile selection of Wavetable, Multi- & Granular-Sampling, Waveform, Kernel FM and Resonator synth engines.

Supplier's Notes:
The Core

Iridium Core provides the core synthesis engine of the Quantum / Iridium platform. It is the heart of Waldorf's most advanced hardware-based synthesis. The essence of forward-looking sound. The Core.

Sonic Explorer

Iridium Core contains 5 synthesis engines: Wavetable, Multi- & Granular-Sampling, Waveform, Kernel FM and Resonator. Combined with a broad selection of digital filter and processing options Iridium Core lets you explore a huge sonic universe of electronic sound. Iridium Core's intuitive and easy graphical interface helps you to keep your flow of creativity.

Wave Traveller

The compact form factor makes Iridium Core an ideal companion to travel with you to all your sonic explorations and performances. It fits well into laptop size bags and in carry on-baggage it leaves enough space to all your other devices you need for your performances.

Driven by Inspiration

Iridium Core comes with a huge collection of more than 1700 factory presets and samples to drive your sonic Wanderlust. Get inspired what the broad and diverse array of sound designers have created to fuel your musical endeavours.

Team Player

Iridium Core integrates into various live performance and studio setups. Its connects with your modular synths, drum machines, sequencers and computers. The compact form factor fits well into your tabletop or space limited setups.

Family Member

Iridium Core shares the same software platform like Quantum, Iridium Desktop & Iridium Keyboard. All instruments are powered by the Waldorf synthesiser OS and will receive joint updates. Thus, the whole family participates from future enhancements and developments.

Specifications

Compatible with the Waldorf Quantum synth engine
Software: Waldorf Synthesis Platform OS

Oscillators
3 Oscillators each capable of 5 synthesis modes:
Wavetable
Waveform (VA)
Particle (Sampling and Granular Sampling)
Resonator
Kernels (up to 6 sub-oscillators which can be interlinked through FM, AM or Wavetable-position at audio rate)

Dual Stereo Filters per voice
True stereo path Dual Digital Filter with independent modes:
12/24dB LP/HP/BP in all combinations
Nave, Largo, PPG, Quantum and StateVariable models
Analyzer displayed in Filter view
Filter curve animation when modulated (optional)
Sophisticated filter routing options with modulatable panning and levels

Digital Former
Filter models like State Variable, Waldorf Nave, Largo and PPG in HP/LP/BP/Notch
Comb filters, Bit-Crusher, various Drives, Ring-Modulation

Modulators
6 Envelopes
6 LFO
Komplex Modulator (LFO/Envelope combination with user-definable shape and morphing)

Mod Matrix
40 slots
Fast assign mode
One additional control amount per slot
Identical Sources and Destinations can be used multiple times until the matrix is full

Effects
5 slots per layer
Various parallel and sequential routing options
Reverb, Delay, Chorus, Phaser, Flanger, Drive, EQ, Compressor, Tremolo

Performance features
Advanced Arpeggiator
Step-sequencer with up to 64 steps for notes and parameters
2x4 button pads assignable to notes or chords
4 user-assignable potentiometers
6 user-configurable macro buttons
Favourites screen for quick patch recall
XY control on touchscreen
Wheels touchscreen for MIDI controls like mod wheel, pitch bend, aftertouch and velocity
MPE capable

Screen
Industrial-grade highly responsive touch screen with Brightness control
1024x600 pixels

Voices
12 voice polyphony
Duo-timbral
Mono, Legato and Unisono modes

Patches
Over 1700 factory patches
Capacity of 7000 patch memory slots (numbers 0000-9999 can be used)
Patches from Quantum and other Iridium variants can be loaded and vice-versa
Category filter for patch list
2.6 GB sample flash memory preloaded with 2 GB factory samples

Connections
Stereo Audio Out: 2x TS jacks
Stereo Audio In: 2x TS jacks
Headphones TRS output with level control
DIN MIDI IN & Out, mini-TRS Type A (two adapters to DIN MIDI sockets included)
USB Type B (device) for MIDI connection to computer
USB Type A (host) for storage media and MIDI devices
MicroSD slot
2 high-resolution CV Inputs which can be used as modulation sources in the Mod-Matrix
Analogue clock In & Out with clock divider settings

Overall
Sturdy metal case
Dimensions: 346 mm wide by 200 mm depth by 64 mm height (including controls)
Weight: 2.2 kg
External Power Supply: Input 100-240 V / AC 50-60 Hz, Output 12 V DC / 3 A

What's In the Box?
Iridium Core Synthesizer
Two MIDI adapters: mini TRS to DIN sockets
Power Supply
Printed Quick Start Guide

Notes: SOLAR 42F is a unique experimental electro-music instrument, an analogue microtonal ambient drone machine. It will inspire you to find a new and spontaneous approach to composing music. It gives you the ability to create a multi-layered, massive sound. The instrument is oriented for live performances, creating film soundtracks, theatre soundtracks, atmospheric sounds, microtonal and background music.

It is an improved version of the older SOLAR 50 model. The instrument was inspired by early electronic musical instruments of the 1920s and 1950s, notably Leo Theremin's "Harmonium" instrument, as well as science fiction film soundtracks.

The new version of the Solar 42F has added a LIN/EXP CV switch, sub oscillators in volt octave voices and a band pass and stereo distortion mode to the filter. Other quality of life improvements include modified graphics - inputs have been labeled in black and outputs in red for convenience - bypasses for each channel of the effector and a LED indication in the joystick unit.

Notes: The kind of instrument Soma Labs do so well: weird but wonderful. Based around 32 complex digital synth algorithms and 12 note velocity- and pressure-sensitive sensors, transposition techniques allow you to play the full range of a grand piano.

Supplier's Notes:
TERRA is a new SOMA Labs synth.

TERRA is a highly conceptual device. The core idea is unity of nature and technology, and a perfect balance between simplicity and versatility. Behind the extremely simple interface hides a complex polyphonic, microtonal synthesizer with a broad and flexible sound palette that ranges from classical beautiful tones to complex atonal noise, and offers smooth and fast transitions between these extremes.

The innovative keyboard design invites new playing techniques and covers the full range of a grand piano with the possibility to tune each note with an accuracy of 125 steps per semitone. To achieve this range with such a simple keyboard we designed a unique system of pitch shifting using four additional sensors. Pressing different combinations of them will result in 16 variations of keyboard transposing, including up to 3 octaves up and down, fifth, fourth, third, tone etc.

Not only do you get the full range of a grand piano in a very compact design, TERRA also offers an entirely new and different approach to playing melodies and chords.

The keyboard consists of 12-note sensors with velocity and pressure sensitivity allowing for the manual creation of slow attack and vibrato, 4 dynamic sensors for timbre modification and control, 4 pitch-shifting sensors and 2 hold sensors for holding the state of the timbre and note sensors.

Inside TERRA there is a three-axis motion sensor for creating a variety of different modulations by simple intuitive movements of your hands and body.

TERRA is digital and contains 32 complex synthesis algorithms. Each algorithm has been carefully designed to be a complete and flexible musical instrument on its own, ready for learning and playing in its own unique way. The goal is to free the musician from long exhausting programming, setting hundreds of parameters for creating one timbre, and instead putting the focus directly on music and performance and following your imagination and inspiration.

TERRA offers the best of both worlds: the direct intuitive tactile connection from acoustic instruments and the flexibility and versatility of synthesizers. TERRA inherits design principles from LYRA-8 and also contains application of the new principles that were announced for ReFLEX, exploring the future of synthesis.

TERRA has an extremely simple interface that gives you instant access to all its functions in several touches, including saving and loading the 96 presets that are stored directly on the playing sensors. TERRA has no display. Instead it shows and lets you dial all necessary data on the 6 LED-sensor triangle in the centre.

TERRA has a built-in FX processor so the stereo output is ready to use, making it a perfect stand-alone performance instrument. While the sound generation is digital, TERRA has a unique custom-built and top quality analogue part that makes it sound rich, natural, clear and powerful at the same time.

The housing of TERRA comes from a solid piece of wood, making each instrument unique and slightly different. In the photo above and in the announcement demo video you can see the prototype of the synth. The final design is in development and we intend to make several different versions.

TERRA is a sanctuary for a natural soul right in the middle of the rumbling plastic world, a ground where you can breathe in and out slowly, and hold on to your roots.

TERRA is our dream about a bright future where we will be both technologically advanced and more connected to nature, where machines and technology are not a prison for our feelings and spirit but their extension.

Synthesis algorithms: 32
Polyphony: 1-12 voices (depending on the algorithm)
Presets: 96
Pitch Shifter presets: 24
Line out: L, R TS/TRS 1/4-inch jacks / 6.35 mm jacks
Maximum line output signal: 13 V peak-to-peak
Nominal line output signal: ~1.5 V (volume 100%)
Headphone output: TRS 1/4 inch jack / 6.35 mm jacks
Headphones impedance: 6-64 ohm
CV-clock input voltage: 3-15 V
Power supply voltage: DC 12 V *
Consumption current: 0.2 A
DC jack: 5.5 x 2.1 mm, "+" in center
Dimensions: 405 x 365 x 57 mm
Weight: 2.2 kg
* TERRA comes with a high quality power supply . If it gets lost, use a high-quality modern switched-mode power supply with 12 V output voltage, at least 0.4 A maximum current, 5.5 x 2.1 mm DC jack, center "+".

What's included:

TERRA - 1 pc.
Power supply - 1 pc.
CV clock adapter (DIN5 - 3.5 mm mini-jack) - 1pc.
Short interface reference manual - 1 pc.
On-table mounting pads - 4 pcs.

Notes: A proper bargain here. Ecler's flagship rotary mixer offers all the benefits of audiophile sound quality and organic, hands-on control at a surprisingly low price point.

Supplier's Notes:
WARM4 is a professional four channel analogue rotary DJ mixer, designed and manufactured by ECLER in Barcelona. Featuring 4 phono/line channels, 2 MIC inputs, classic sharp filters and a 4th order Isolator. WARM4 includes an unique feature, an Analogue Subharmonic Synthesizer selectable per channel, specially designed to generate and reinforce ultra-low frequencies.

Applications

Night Clubs
DJ studios
Itinerant DJ performances

Audio performances

Inputs:

Number of Inputs:
LINE: 4 Stereo Unbalanced Inputs
PHONO: 4 Stereo Unbalanced Inputs
MICRO: 2 Mono Balanced Inputs
FX RETURN: 1 Stereo Unbalanced Input

Connectors type:
LINE 1-2-3-4: RCA STEREO
PHONO 1-2-3-4: RCA STEREO
MICRO 3: XLR3-F
MICRO 4: Combo XLR3F-6.3mm TRS BAL
FX RETURN: RCA STEREO

Inputs Sensitivity nom/Impedance:
LINE: 0dBV/50kO
PHONO: -40dBV/50kO
MICRO: -50dBV/>1kO
FX RETURN: 0dBV/>6kO

PERFORMANCE:

Frequency Response:
LINE: 10Hz#30kHz -1dB
MICRO: 10Hz#25kHz -1dB
PHONO: RIAA i0.5dB
FX RETURN: 10Hz#50kHz -1dB

THD+N:
LINE: <0.004%
MICRO: <0.7%
PHONO: <0.06%
FX RETURN: <0.001%

CMMR:
MICRO: >75dB @ 1kHz

Signal Noise Ratio:
LINE: >105dB
MICRO: >90dB
PHONO: >100dB
FX RETURN: >110dB

Trim control / Tone control Inputs 1-2-3-4:
INPUTS 1-2-3-4: i 15dB
BASS: +10/-30dB
MID: +10/-25dB
TREBLE: +10/-30dB

Trim control / Tone control Isolator:
BASS: +12/-70dB
MID: +12/-40dB
TREBLE: +12/-70dB

Tone Filter cut frequency at -6dB (slope 12dB/oct):
BASS: 200Hz
MID: 200Hz#6.8kHz
TREBLE: 6.8kHz

Isolator cut frequency at -6dB (slope 24dB/oct):
BASS: 300Hz#4kHz
TREBLE: 4kHz

Analogue Subharmonic Synthesizer:
Input selective filter: 50#120Hz
Harmonics synthesis: 25#60Hz
Max Output level: +12dBV

OUTPUTS:

Number of Outputs:
HOUSE: 1 Stereo Balanced Outputs / 1 Stereo Unbalanced Outputs
BOOTH: 1 Stereo Balanced Outputs / 1 Stereo Unbalanced Outputs
HEADPHONE: 2 Stereo Unbalanced Outputs
FX SEND: 1 Stereo Unbalanced
REC: 1 Stereo Unbalanced

Connectors Type:
HOUSE: XLR3-M STEREO / RCA STEREO
BOOTH: XLR3-M STEREO / RCA STEREO
HEADPHONE: Jack Stereo 6.3mm / Jack Stereo 3.5mm
FX SEND: RCA STEREO
REC: RCA STEREO

Outputs Level/Minimum Load:
HOUSE (BAL): 0dBV/600O 1V *(+12dB 4V)
HOUSE (UNBAL): 0dBV/2.2kO 1V *(+12dB 4V)
BOOTH (BAL): 0dBV/2.2kO 1V *(+12dB 4V)
BOOTH (UNBAL): 0dBV/2.2kO 1V *(+12dB 4V)
REC: 0dBV/10kO
HEADPHONES: 200mO/200O THD 1%
FX SEND: 0dBV/2.2kO

Max Undistorted Output Level:
HOUSE (Electr.BAL): 21dBV (23dBu)
BOOTH (Electr.BAL): 21dBV (23dBu)
HOUSE (UNBAL): 21dBV (23dBu)
BOOTH (UNBAL): 21dBV (23dBu)

MICELLANEOUS
Control Mode: Rotary with Alps Blue Velvet Potentiometers and Alps RK09L potentiometers
Phantom Voltage: 18VDC/5mA Max (Default ON)
Input VU-Meter: LED 12 segments (-38dBV # +10dBV)
House-Mix-Booth VU-Meter: LED 12 segments (-30dBV # +20dBV)
Subharmonic Output VU-Meter: LED 3 Segments (-20dBV / 0dBV / +4dBV)

ELECTRICAL

Power Supply: Internal
AC Mains Voltage: 90-264VAC 47-63Hz
AC Main Connector: 15A IEC inlet connector
Rated power consumption: 39 VA

PHYSICAL
Operating Temperature: -5-C # 45-C / 23-F # 113-F
Operating Humidity: 20 - 90% RH (no condensation)
Storage Temperature: -10-C # 50-C / 14-F # 122-F
Storage Humidit : <90% RH (no condensation)
Operating Humidity: 20 - 90% RH (no condensation)
Installation Options: Desktop or Rack mount with optional accessories
Included Accessories: IEC Cable EU
Dimensions (WxHxD): 34.0 x 8.1 x 37.2 cm / 13.39 x 3.19 x 14.65 in
Weight: 5.32 Kg / 11.73 lb
Shipping Dimensions (WxHxD): 49.5 x 17.5 x 43.5 cm / 19.49 x 6.89 x 17.13 in
Shipping Weight: 6.74 Kg / 14.86 lb

MECHANICAL

Dimensions (without wooden sides) : 400 x 185 x 100mm / 15.7" x 7.2" x 3.9"
Weight : 3.6Kg / 7.94 lbs

Notes: Broadcast-ready update of ARS's flagship audiophile rotary mixer. Small design changes mean even better sound quality and improved cueing. Still hand built in Japan to the highest standards.

Supplier's Notes:
Model 9100B Music Mixer

4 channel table top mixer

Model 9100B (broadcast mixer) Music Mixer Wood TYPE (Headphone Monitor Trim: Cue-Mix-Pgm special version)

ARS Model 9100B DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first 3band hybrid isoeq Hi-EQ Mid-EQ Low -Iso on each channel.

This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master. Potentiometer and Switch are All ALPS .

A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship- highly recommended.

It is designed with purist ideals with only essential features.

ARS 9100 has 3 band hybrid iso-EQ hi-EQ mid-EQ low-iso on each channel and 3band Iso on the master.

The Master Isolators can be boost of cut from +18db ~ -8.

The Ch hi-EQ mid-EQ can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -8.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-9100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Specifications
Frequency Response: +-1dB 20Hz-20Khz
Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Retrun: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-4Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -8.

Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 25w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)306 x (H)250 x (D)100 mm
Front Panel Colour: Black

Notes: The new PerFourMer is a real analog synthesizer, through its simple control surface and very flexible sound production it is able to offer a near inexhaustible variety of Bass, Lead, Pad and Effect sounds. Additionally, with its total of six filter inputs, the PerFourMer is also perfectly suited as a complex filter-bank. Even though the PerFourMer is not considered a modular system, it can still be described as a modular or at the very least a semi-modular. The basic concept is reminiscent of classics such as the Oberheim 4 Voice or the Korg Monopoly.

The PerFourMer is a 4 voice synthesizer, consisting of completely independent synthesizers, which can be adjusted and played independently from each other. These four synthesizer channels can be linked with each other and be played in 3 different operating modes.

Next to the already mentioned filter inputs, each channel has a single output, which can also be used as an insert for external effect devices, and make it possible to easily integrate the PerFourMer with already established equipment. It is also possible to transmit the unedited VCO signal. Additionally the opportunities of the PerFourMer can be expanded through internal patching between the channels, for example; you can route a VCO through multiple filters and VCAs, or use 2 channels to create 1 voice with 2 ADSR envelopes (1 for VCA and 1 for VCF). Use the PerFourMer as a filter-bank and the slope envelope can be doubled by interconnecting the filter in series. The PerFourMer is controlled via MIDI and additionally via CV/gate (1V/octave) inputs for every synthesizer channel.

Notes: Serious mastering-grade kit. Stereo interface with high-end converters and headphone amp circuit for pristine sound quality. Proper clarity for critical listening.

*** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

Supplier's notes:
The RME ADI-2 Pro FS is a two channel 24-bit / 768kHz AD/DA converter and USB 2 Digital Audio Converter, audio interface and high-end headphone amp with new jitter rejection SteadyClock FS technology.

The RME ADI-2 Pro FS is the most flexible converter available with balanced and unbalanced I/O, two headphone outputs, DSP-based signal processing and RME's latest Steady Clock FS jitter rejection technology. It offers Class Compliant USB compatibility, sample rates up to 768kHz as well as DSD record and Direct DSD playback.

It boasts a raft of analogue and digital I/O, including two servo-balanced analogue XLR/TRS Jack inputs, two separate balanced and unbalanced outputs on XLR and TS as well as two headphone outputs. Digital I/O include optical ADAT, Optical and coaxial SPDIF and AES accessible via a breakout cable.

Furthermore, its Class Compliant UAC 2 USB 2.0 port offers iOS compatibility and is necessary for firmware updates. It can also work as a 6-in / 8-out audio on Mac OSX and Windows via WDM and ASIO.

Using the latest in A-to-D technology the ADI-2 Pro FS offers best possible sound with highest signal-to-noise ratio, super low THD and noise. It supports sample rates up to 786kHz PCM and DSD recording in dual mono design, with 3dB improved signal to noise ratio. Two digital-to-analogue converters are used for the separate stereo outputs. The latest Integrated Sample Rate converter takes care of clocking issues between S/PDIF and AES thanks to RME's latest SteadyClock FS technology.

A high-resolution display shows controls for the ADI-2 Pro FS unique features including DSP effects like 5-band parametric EQ, binaural crossfeed, adjustable loudness filter, selectable AD/DA filters and four analogue reference levels. Furthermore, M/S processing is provided with stereo width control as well as phase loop. The display also shows RME's famous Spectral Analyser and 30-band bi-quad filtered analysis tool.
