Notes: Bad Comrade Pedal

(Glitch, Pitch, Slice, and Dice)

Is it a distortion pedal? Is it a ring modulator? Delay? Just call it the Bad Comrade, the world's first hand-wired glitch, pitch, slice, and dice pedal. For the adventurous guitarist (or anyone wielding a 1/4" jack) that craves unthinkable tones, the Bad Comrade lets you distort, modulate, glitch, and slice on the fly.

The Bad Comrade is hand-wired in Seattle, Washington. True bypass, chrome plated LED, lead-free solder. It operates on a standard Boss style 9vdc power supply, not included. Includes a limited lifetime warranty, if registered within 30 days of purchase.

Important: power up the Bad Comrade with Glitch and Time wide open.

Enclosure size: 4.67" x 3.654" x 1.547"

Notes: Bad Comrade V3 Eurorack Modular Device

(Glitch, Pitch, Slice, and Dice)

The Bad Comrade is a powerful glitch, delay, and chaotic distortion tool, packed in a tiny 4hp module. Freeze wrecked blips and oscillations in place, create scrambled gated delays, and straight-up over-the-top distortion, all mixed to taste with the original signal. CV available for mix and delay time.

Designed and assembled in Seattle, Washington. Includes a limited 1-year warranty, if registered within 30 days of purchase.

4hp, 30mm deep. 20ma current draw.

Notes: Cutting Room Floor V3 Eurorack Module

(Vintage Reel-to-Reel Tape, Echo, and Stutter)

The Cutting Room Floor was designed to emulate the sound and functionality of vintage reel-to-reel tape overdrive and echo. This eurorack module reaches into the 21st century with customized features that traverse the world of modulation and delay. Imagine an abandoned factory with a fluttering tape machine left on repeat.

The Cutting Room Floor provides beautifully marred saturated tape tone, and ethereal repeats in a streamlined 6hp interface. Other features include a freeze button that traps any tone while still playing and CV control for time.

Designed and assembled in Seattle, Washington. Includes a limited 1-year warranty, if registered within 30 days of purchase.

6hp, 43mm deep, 150ma current draw.

Notes: Bleeding Hearts Eurorack Modular Device

(Random Sequencer, Rhythm Generator, Destroyer, and Filter)

The Bleeding Hearts is a device that starves, bit crushes, splatters, and filters audio sources like no other. Feeding a gate signal to the Bleeding Hearts enables a whole new world of strange and random analog-generated movement. Each position of the 8-step sequencer can bleed into each other and interact with the destruction effect, creating gated and filtered splatters, glitches, and crunches that move to the beat of your patch.

Designed and assembled in Seattle, Washington. Includes a limited 1-year warranty, if registered within 30 days of purchase.

20hp, 42mm deep.

Notes: Sound Destruction Device (Ultimate Distortion Tool)

The Sound Destruction Device is a variable resistor distortion with a twin T-notch filter that distorts, glitches, clips, and filters sound into unearthly shapes. Five parameters allow for creating super thick fuzz, starved splatters, and sonic malformations. CV control takes the damage to another level. Warp, contort, and twist shapes to create your own distinctive tones. The Sound Destruction Device has no limits. It is the ultimate distortion tool!

Designed and assembled in Seattle, Washington. Includes a limited 1-year warranty, if registered within 30 days of purchase.

8hp, 18mm deep, 10ma current draw.

Notes: Inspired by classic 70s analogue drum synths like the Syncussion and Syndrum, the Eurorack version of the Seven Sisters offers seven different sound modes, each with four CV-controllable parameters.

Supplier's notes:

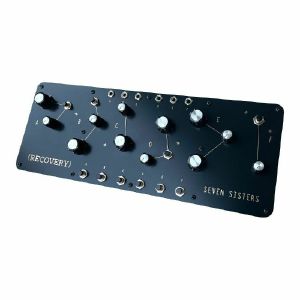

Seven Sisters is a percussion synthesizer featuring seven voices that aims to capture the essence of late '70s instruments such as the Syncussion and Syndrum.

This module contains 7 presets, with one voice playable at a time. Each voice has four editable controls, including volume, and parameters such as decay, pitch, and filter, all of which can be controlled via CV. Each voice also includes multiple oscillators, noise generators, and filters, providing rich, complex tones beyond the capabilities of the original devices. This enables you to recreate classic sounds or craft more realistic snare, hi-hat, and cymbal effects. The result is a powerful percussion synthesizer that combines the essence of early drum synthesis with modern flexibility.

Notes: Inspired by vintage drum synths, the unique Seven Sisters creates everything from classic percussion tones through to experimental synth effects. Play via buttons or trigger inputs compatible with widely available sequencers.

Supplier's Notes:
Seven Sisters is a percussion synthesizer with seven voices that aims to capture the essence of late '70s instruments like the Syncussion and Syndrum.

Each voice is equipped with multiple oscillators, noise generators, and filters, providing rich, complex tones beyond the capabilities of the original devices. This allows you to recreate classic sounds or craft more realistic snare, hi-hat, and cymbal effects. The result is a powerful percussion synthesizer that blends the essence of early drum synthesis with modern flexibility.

You can trigger Seven Sisters using the buttons at the bottom of the unit or trigger inputs at the top. It's the perfect companion for your Beatstep Pro, Korg SQ-64, Eurorack, or other trigger sequencers, whether in the studio or on stage.

Notes: This is a 60cm/23.5" TRS cable with male 3.5mm minijacks on either end, and the 1010music logo printed on the jacks.

Use this cable to connect your 1010music Eurorack modules to other modules that also use stereo minijack connections. The cable can be used for connections between any two 1010music modules, and to any other modules that use a compatible mapping of MIDI signals to stereo minijack connectors.

Notes: This is a 5 pack of 60cm/23.5" TRS cables with male 3.5mm minijacks on either end, and the 1010music logo printed on the jacks.

Use these cables to connect your 1010music Eurorack modules to other modules that also use stereo minijack connections. The cables can be used for connections between any two 1010music modules, and to any other modules that use a compatible mapping of MIDI signals to stereo minijack connectors.

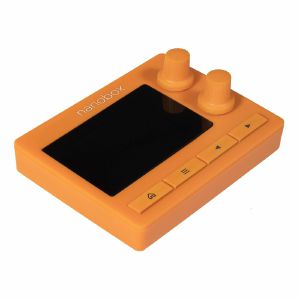

Notes: One of 1010music's first miniature Nanobox instruments, the Lemondrop is a granular synth in a compact format. Touchscreen interface gives full hands-on control of the four-voice sound engine.

Supplier's Notes:
Freshly Squeezed Granular Synthesis

Explore a freshly squeezed approach to granular synthesis with Nanobox | Lemondrop, a polyphonic granular mini synthesizer with intuitive touchscreen control. Four voice polyphony, two granulators and an oscillator provide a wide sonic paletteifrom lush environmental pads to rugged and glitched-out textures. Instantly morph and shape sounds with the swipe of a finger using touchscreen X/Y control. Choose from hundreds of professionally designed presets and wav files, or quickly create your own patches with deep parameter control via the 2" touchscreen. Integrate lemondrop seamlessly with your existing tabletop gearior create on-the-go thanks to a compact design that fits in the palm of your hand.

What Is Included

Nanobox | Lemondrop compact polyphonic granular synthesizer with touchscreen control
MicroSD card with presets and wav files
USB power cord
Type B TRS MIDI To MIDI 5 Pin DIN adapter
Quick Start Guide

Technical Specs

Includes 153 presets and 311 wave files
16 grains per oscillator for a total of 128
Sample memory per oscillator 30 seconds
Power: USB-C connection 5V, 500mA
3.5mm audio input and output
Maximum input and output level: 2Vrms
DAC and ADC resolution: 24-bit
Internal resolution: 32-bit
Sample rate: 48kHz
MIDI Input: 3.5mm Type A/B auto sensing
MIDI Output: 3.5mm Type A/B selectable
Clock Input: 4 PPQ
MIDI support: Note On/Off, Mod Wheel, Sustain, Pitch Bend, Mono & poly Aftertouch, assignable CCs, and clock
H x W x D: 1.5" x 3.75" x 3"
Weight: 0.25 lbs.

Notes: You can now update your Bitbox mk1 or mk2 with a black faceplate. Now you can have an all black rack and have digital sampling capabilities. This is just the faceplate.

Give your module a facelift

These replacement faceplates are designed for use with the module in the traditional orientation with the screen on top. These are the same faceplates used when manufacturing our modules, but now in black. They are anodized aluminium with a bead blasted finish.

Swapping out a faceplate is easy to do, and requires a small wrench or pliers. Here are the steps to replace a faceplate:

Remove the module from the rack.
Use a small wrench or pliers to remove the small round nuts around each of the mini jacks. Note that these nuts have a notch on the top side of them. This notch fits into a specialized tool that can be used to remove these nuts more easily.
Gently tug on the four knobs to pull them off.
Use a small wrench or pliers to remove the hex nuts from the knob stems.
Remove the washers from the knob stems.
Gently pull up on the faceplate and it will slide off easily.
Place the new faceplate on the module.
Replace the washers on the knob stems.
Use a small wrench or pliers to replace the hex nuts on the knob stems.
Use a small wrench or pliers to replace the small round nuts around each of the mini jacks. Note that the notch should be on the top side of the nuts, the side away from the faceplate.
Look at the underside of the knobs and the post that they rest on. You will see that the knobs are keyed. Line up the flat edge of the hole in the knob with the flat edge of the post, and then push the knob onto the post. If you have the knob aligned properly, it should go on with moderate pressure. If it seems to require more force, please check the alignment.

Weight: 0.19 lbs
Dimensions: 5.5 × 5 × 0.25 in
Touchscreen product: bitbox, fxbox, synthbox, toolbox

Notes: Black version of Bitbox's excellent sampling module. Touchscreen-based design allowing up to eight stereo samples, recording directly or loaded from SD card.

Supplier's Notes:
Bitbox micro provides Eurorack sampling for smaller racks and smaller budgets. In only 18 HP of rack space you can get a touch screen based sampler with support for 8 stereo sample pads. Now you can record samples directly into the module or load them from the microSD card. Trigger your samples via CV or MIDI, then apply effects and mix the outputs. Save your configurations to multiple presets for later reuse.

Powerful Sampling Capabilities in a Smaller Form Factor

With the sampling features of Bitbox micro you can add interesting new ways of generating sound and music to your Eurorack. Trigger one shots, play time synched loops or record live looping. Bitbox micro is equally at home in your studio or as a component of your live performance.

Features

Sample Playback
Play up to 24 stereo polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger stereo samples streaming directly from the microSD card
Configure 8 stereo sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Sample Recording

Record Eurorack level audio straight into the module:
Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Resample the master output without patching
Automate recording of a multi-sample bank via MIDI and CV
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer

Sample Modes

Find creative ways of using your samples with our 5 sample playback modes:
Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode

Inputs and Outputs

Use the 8 inputs the way you want: assignments include a stereo audio input, up to 8 gate inputs, up to 8 CV inputs and 1 clock input.
Route the audio from each pad out to one of 3 stereo audio outputs or one of 6 mono audio outputs
Listen to all of the pad outputs combined on the master stereo output
Inputs and outputs are DC coupled so you can record and play out CV signals
External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode i no need to look up CC numbers

Module Features

Use the 2" diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Refine your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Compare to Our Other Samplers
Our Sampler Selection Guide shows you how bitbox micro compares to our other samplers.

What Is Included

When you purchase bitbox micro, you will receive:

a bitbox micro Eurorack module
a microSD card with a bank of demo presets and samples loaded on it
a Eurorack power cable
a bitbox micro Quick Start guide
a MIDI Adapter
Firmware Updates
Get new features by downloading firmware updates from forum.1010music.com.

Documentation and Video Tutorials

The Bitbox Micro Support page has links to videos, the quick start guide and the full user manual to get you up and running quickly and answer your detailed questions. If you can't find answers there, reach out to the community with questions on the 1010 Music forum.

Notes: Second-generation version of 1010's outstanding Bitbox sampler module, featuring improved processing power, higher-quality touchscreen and new effects.

Supplier's Notes:
Next Generation Sampling Module for Eurorack

The bitbox mk2 is a follow up to 1010's successful bitbox module. Do more with bitbox mk2's more powerful processor and improved touch screen. This module has all of the features of the original bitbox and adds effects and mixing capabilities that take advantage of the faster and more powerful processor.

Sample Playback

Play up to 24 polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger samples streaming directly from the microSD card
Configure 16 sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Use MIDI for polyphonic playback of samples or slices
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Sample Recording

Record Eurorack level audio straight into the module:

Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer
Sample Modes

Find creative ways of using your samples with our 5 sample playback modes:

Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode
External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Trigger each pad independently through a dedicated gate input
Use MIDI to trigger pads via a note per pad
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode - no need to look up CC numbers
Module Features
Use the 3.5" diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Fill out your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Select Flipped UI mode to mount the unit with the screen on the bottom and use the screen, knobs, buttons, and CV jacks as you normally would

When you purchase a bitbox mk2, you will receive:

a bitbox mk2 Eurorack module
a microSD card with with a bank of demo presets and samples loaded on it
a Eurorack power cable
a bitbox mk2 Quick Start guide
a MIDI Adapter

Technical Specs

Supports 1 and 2 channel WAV files with 16, 24 or 32-bit resolution at any sample rate (48kHz preferred)
26 HP
Module dimensions including knobs: 5.25" x 5"x 1.75"
Depth behind front panel with ribbon cable: 1.25"
+12V: 400mA
-12V: 0mA
5V: 0mA
24-bit ADC and DAC

Inputs and Outputs

Connect up to 8 CV modulators to control numerous sample parameters
Trigger each of the 16 pads with a dedicated gate input
Record through the dedicated stereo audio input pair
Use CV to keep time through the dedicated clock input
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Route the audio from each pad out to one of 2 stereo audio output pairs or any of the corresponding single channels
Inputs and outputs are DC coupled so you can record and play out CV signals

Notes: Compact take on the Bitbox sampler, also offered as the larger Mk2 version. Touchscreen-based design allowing up to eight stereo samples, recording directly or loaded from SD card.

Supplier notes:
Bitbox micro provides Eurorack sampling for smaller racks and smaller budgets. In only 18 HP of rack space you can get a touch screen based sampler with support for 8 stereo sample pads. Now you can record samples directly into the module or load them from the microSD card. Trigger your samples via CV or MIDI, then apply effects and mix the outputs. Save your configurations to multiple presets for later reuse.

Sample Playback

Play up to 24 stereo polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger stereo samples streaming directly from the microSD card
Configure 8 stereo sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Sample Recording

Record Eurorack level audio straight into the module:

Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Resample the master output without patching
Automate recording of a multi-sample bank via MIDI and CV
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer

Sample Modes
Find creative ways of using your samples with our 5 sample playback modes:

Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode

Inputs and Outputs
Use the 8 inputs the way you want: assignments include a stereo audio input, up to 8 gate inputs, up to 8 CV inputs and 1 clock input.
Route the audio from each pad out to one of 3 stereo audio outputs or one of 6 mono audio outputs
Listen to all of the pad outputs combined on the master stereo output

External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode - no need to look up CC numbers
Module Features
Use the 2? diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Refine your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Inputs and outputs are DC coupled so you can record and play out CV signals

Notes: Updated version of the excellent Bitbox sampler module offers more powerful sound processing and an improved touch screen. Improved effects and mixing with all the same creative power of the original.

Supplier notes:
Bitbox mk2 delivers powerful sampling and mangling for Eurorack. With this module you can add recording, sample playback, clip launching, slicing, granular sounds and musically intelligent looping capabilities to your Eurorack rig. With a 3.5 inch touchscreen, bitbox mk2 makes easy work of selecting, editing, and tweaking your samples. You can stream large samples of up to 4 GB file size straight from the microSD card. Interact with other musical components via CV and MIDI. Tweak your configurations to get them just right, then save them to multiple presets for future reuse. With the new bitbox mk2 hardware, you can now do more with the new more powerful processor.

Sample Playback
Play up to 24 polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger samples streaming directly from the microSD card
Configure 16 sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Use MIDI for polyphonic playback of samples or slices
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Record Eurorack level audio straight into the module:

Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer
Sample Modes
Find creative ways of using your samples with our 5 sample playback modes:

Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode
Inputs and Outputs
Connect up to 8 CV modulators to control numerous sample parameters
Trigger each of the 16 pads with a dedicated gate input
Record through the dedicated stereo audio input pair
Use CV to keep time through the dedicated clock input
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Route the audio from each pad out to one of 2 stereo audio output pairs or any of the corresponding single channels
Inputs and outputs are DC coupled so you can record and play out CV signals

External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Trigger each pad independently through a dedicated gate input
Use MIDI to trigger pads via a note per pad
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode- no need to look up CC numbers
Module Features
Use the 3.5? diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Fill out your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Select Flipped UI mode to mount the unit with the screen on the bottom and use the screen, knobs, buttons, and CV jacks as you normally would

Notes: A digital mixer at heart but so much more. 1010's unique take on mixing and recording includes built-in effects and EQ, compression, headphone/monitor mixes and output routing. Clever stuff.

Supplier's Notes:

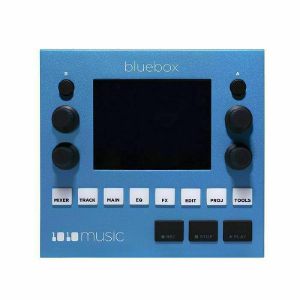

Bluebox is the portable digital audio mixer that lets you get the most out of your electronic music gear. Connect your eurorack, sampler, drum machine and synthesizer outputs to 6 stereo, 3.5 mm TRS inputs and map them to 12 mono tracks or 6 stereo tracks, all with independent control for recording and playback. It's that keyboard mixer with live performance features that you always hoped someone would make.

Connect the output of your electronic music gear to Bluebox, and then route each track independently to the three outputs and effects sends. Each track offers control of volume, gain, 4 band parametric EQ, pan, mute and solo functions. Apply high-quality global reverb and delay effects along with 4 band EQ per track to add new depth to your sound with total control to quickly tweak incoming audio or track playback as needed.

With Bluebox you can record independent tracks or the Main mix using a standard microSD card. Capture your jam session for later review, or record the ultimate mix of the tracks for your song.

Bluebox's compact 5.5h x 5h x 2h case lets you tuck it into a crowded tabletop studio or throw it in your pack for the next gig.

Interact with the dynamic visual interface on the 3.5h touchscreen along with physical knobs, navigation buttons and transport buttons to quickly access the most important functions. MIDI input and output allow you to sync the clock with external gear for synchronized effects and metronome.

Add Some Colour to Your Mix:
Mix 12 mono/6 stereo tracks of live or prerecorded sound.
Independently route each track to any combination of three stereo TRS outputs:

Stereo Output 1 - Main mix
Stereo Output 2 - Assignable, with dedicated sub-mixer (pre or post fader)
Stereo Output 3 - Headphone output, with dedicated sub-mixer (pre or post fader)
Control one parameter for multiple tracks at once in Mixer mode.
Focus on one track at a time in Track mode.
Adjust the level or mute state of each output independently.
Use touch gestures or knobs to tweak your sound with four band EQ per track with support for Low Cut/Low Shelf, Parametric, and High Shelf/High Cut settings for each band.
Apply high-quality Reverb and Delay effects with independent effects sends for each track.
Override the headphone output with the Main mix on demand.
Maximize the loudness and unify your mix with the built-in global compressor
Sync to external clocks through the MIDI Input and Output.
Record hours of music as 48k, 24 bit WAVs directly to the microSD card as multi-track or as the main stereo mix.
Playback a previously recorded track while recording new ones.
Load firmware updates through the microSD card.
Mix electronic music gear such as the 1010music blackbox, eurorack modules, drum machines, samplers and synthesizers.
Save and recall Project settings including all parameters for tracks, outputs, EQ and effects.
Copyright 1010music LLC 2020 --- CONFIDENTIAL ---
Copyright 1010music LLC 2020 --- CONFIDENTIAL UNTIL 10/10/2020 ---
Fit it into a small spot on your desk and then tuck it in your pack for the next gig.

What is Included:
Bluebox digital recording mixer
A microSD card with bluebox firmware and pre-loaded project files
A USB power cable and AC adapter with 3 international adapters
2 MIDI Adapters . Male 3.5 mm TRS to Female 5 pin DIN, MIDI Class B standard
A Quick Start guide to show you the basics (full user manual available online)

Specs:
6 stereo 3.5 mm TRS inputs
12 mono tracks, 6 stereo tracks or something in between
3 independently controlled stereo 3.5 mm TRS outputs
3.5h touch screen, 4 knobs, 8 navigation buttons and 3 transport buttons
3 effects: reverb, delay and compressor
Records and plays back 48k, 24-bit audio WAV files
4 band EQ per track
MIDI In and Out for beat syncing effects
Dimensions: 5.5 x 5 x 2 (14 cm x 13 cm x 5 cm), 1 lb (450 grams)
Durable aluminum case

Notes: The 1010music line of stereo breakout cables are designed to connect 2 mono audio signals to a single stereo TRS 3.5 mm minijack plug. The slim plug caps fit side by side with other cables in compactly spaced input jacks, like those on the 1010music bluebox. These cables may have been designed for the bluebox, but they have a wide variety of uses with other gear as well.

Each of these cables has a male TRS stereo 3.5mm minijack plug on one end and two female TS mono 3.5 mm minijack plugs on the other end. They are 15 cm/6 in long with the 1010music logo printed on the plug caps.

This stereo breakout cable connects two 3.5mm female mono TS minijack plugs to the left and right channels of one 3.5 mm stereo TRS minijack plug. Red and black end caps on the female end differentiate the left and right channels. Each cable is 15 cm/6 in long and has slim metal caps with the 1010music logo.

Specifications:
15 cm / 6 in long
One 3.5 mm male stereo TRS to two 3.5 mm female mono TS
Nickel / 24K Gold plated connector
Highly flexible PVC / TPE Jacket Materials
Rohs, UL, CE, and FCC approved

Notes: Part of 1010's excellent Nanobox series, the Tangerine is a tiny powerhouse sampler. A fresh new approach to sampling, from one-shots to loops, all the way through to four-hour recordings.

Supplier's Notes:
Sweet and Tangy Sampling

The nanobox | tangerine delivers powerful sampling in an ultra portable form factor. With this nanobox, you can add recording, sample playback, clip launching, slicing, and musically intelligent looping capabilities to your desktop or travel rig. With an intuitive touch screen interface, nanobox | tangerine makes easy work of selecting, editing, and tweaking your samples. You can stream large samples of up to 4 GB file size straight from the microSD card. Interact with other musical components via MIDI. Load multi-sample banks with over 500 samples for amazing instrument reproduction. Tweak your configurations to get them just right, then save them to multiple presets for future reuse.

Top features

Play up to 24 stereo polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger stereo samples streaming directly from the microSD card

Play multi-sample banks with up to 16 velocity layers and 576 WAV files loaded in one preset

Configure 8 stereo sample pads per preset as single or multi-samples, clips, slicers, or new recordings

Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio

Trigger samples with the touch screen or MIDI input as one shots or melodic notes

Control how samples start and stop by choosing from one-shot, toggle, gate and piano (New!) launch modes

Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, and MIDI note and channel mapping

Quickly and easily use MIDI mapped controls for more tactile access to common parameters

Record up to 16 sequence layers per preset.

Get into the groove with a fast, fluid, and intuitive workflow

Make music anywhere thanks to a compact and nearly indestructible design

Recording Capabilities

Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Resample the master output without patching
Automate recording of a multi-sample bank via MIDI
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer

What is Included:
nanobox | tangerine - Compact Streaming Sampler
MicroSD card with 85 presets and over 1500 wav files
Colour matched USB power cord
Type B TRS MIDI To MIDI 5 Pin DIN adapter
Quick Start Guide

Technical Specs:

Power: USB-C connection 5V, 500mA
3.5mm audio input and output
Maximum input and output level: 2Vrms
DAC and ADC resolution: 24-bit
Internal resolution: 32-bit
Sample rate: 48kHz
MIDI Input: 3.5mm Type A/B auto sensing
MIDI Output: 3.5mm Type B
Clock Input: 1,2, 4, 8, 12 or 24 PPQ selectable
MIDI support: Note On/Off, Velocity, Pressure, Mod Wheel, Aftertouch, CC mappings to common parameters, program changes and clock
H x W x D: 1.5" x 3.75" x 3"
Weight: 0.25 lbs.
2" touch screen, 2 knobs and 4 buttons in a 3.75" x 3" x 1.5" package

Additional information

Weight: 0.65 lbs
Dimensions: 7.75 × 4.85 × 2.25 in

Notes: ***B-STOCK: Paint chip on some parts***


A digital mixer at heart but so much more. 1010's unique take on mixing and recording includes built-in effects and EQ, compression, headphone/monitor mixes and output routing. Clever stuff.

Supplier's Notes:
Bluebox is the portable digital audio mixer that lets you get the most out of your electronic music gear. Connect your eurorack, sampler, drum machine and synthesizer outputs to 6 stereo, 3.5 mm TRS inputs and map them to 12 mono tracks or 6 stereo tracks, all with independent control for recording and playback. It's that keyboard mixer with live performance features that you always hoped someone would make.

Connect the output of your electronic music gear to Bluebox, and then route each track independently to the three outputs and effects sends. Each track offers control of volume, gain, 4 band parametric EQ, pan, mute and solo functions. Apply high-quality global reverb and delay effects along with 4 band EQ per track to add new depth to your sound with total control to quickly tweak incoming audio or track playback as needed.

With Bluebox you can record independent tracks or the Main mix using a standard microSD card. Capture your jam session for later review, or record the ultimate mix of the tracks for your song.

Bluebox's compact 5.5h x 5h x 2h case lets you tuck it into a crowded tabletop studio or throw it in your pack for the next gig.

Interact with the dynamic visual interface on the 3.5h touchscreen along with physical knobs, navigation buttons and transport buttons to quickly access the most important functions. MIDI input and output allow you to sync the clock with external gear for synchronized effects and metronome.

Add Some Colour to Your Mix:
Mix 12 mono/6 stereo tracks of live or prerecorded sound.
Independently route each track to any combination of three stereo TRS outputs:

Stereo Output 1 - Main mix
Stereo Output 2 - Assignable, with dedicated sub-mixer (pre or post fader)
Stereo Output 3 - Headphone output, with dedicated sub-mixer (pre or post fader)
Control one parameter for multiple tracks at once in Mixer mode.
Focus on one track at a time in Track mode.
Adjust the level or mute state of each output independently.
Use touch gestures or knobs to tweak your sound with four band EQ per track with support for Low Cut/Low Shelf, Parametric, and High Shelf/High Cut settings for each band.
Apply high-quality Reverb and Delay effects with independent effects sends for each track.
Override the headphone output with the Main mix on demand.
Maximize the loudness and unify your mix with the built-in global compressor
Sync to external clocks through the MIDI Input and Output.
Record hours of music as 48k, 24 bit WAVs directly to the microSD card as multi-track or as the main stereo mix.
Playback a previously recorded track while recording new ones.
Load firmware updates through the microSD card.
Mix electronic music gear such as the 1010music blackbox, eurorack modules, drum machines, samplers and synthesizers.
Save and recall Project settings including all parameters for tracks, outputs, EQ and effects.
Copyright 1010music LLC 2020 --- CONFIDENTIAL ---
Copyright 1010music LLC 2020 --- CONFIDENTIAL UNTIL 10/10/2020 ---
Fit it into a small spot on your desk and then tuck it in your pack for the next gig.

What is Included:
Bluebox digital recording mixer
A microSD card with bluebox firmware and pre-loaded project files
A USB power cable and AC adapter with 3 international adapters
2 MIDI Adapters . Male 3.5 mm TRS to Female 5 pin DIN, MIDI Class B standard
A Quick Start guide to show you the basics (full user manual available online)

Specs:
6 stereo 3.5 mm TRS inputs
12 mono tracks, 6 stereo tracks or something in between
3 independently controlled stereo 3.5 mm TRS outputs
3.5h touch screen, 4 knobs, 8 navigation buttons and 3 transport buttons
3 effects: reverb, delay and compressor
Records and plays back 48k, 24-bit audio WAV files
4 band EQ per track
MIDI In and Out for beat syncing effects
Dimensions: 5.5 x 5 x 2 (14 cm x 13 cm x 5 cm), 1 lb (450 grams)
Durable aluminum case

Notes: These knobs fit all 1010music products. Replace your damaged knobs or just swap them for a different colour. These knobs will fit blackbox, bluebox, the nanoboxes, bitbox mk1, bitbox mk2, bitbox micro, bluebox Eurorack edition, and Waverazor Dual Oscillator. They are sold in single colour packs of 4.

These are the official knobs used on 1010music products since the release of the bluebox. They fit the stems of the potentiometers on all current and past 1010music products. They come in packs of 4, all one colour.

Each knob is 0.65" / 18 mm high with a base diameter of 0.65" / 18 mm.

Notes: These knobs fit all 1010music products. Replace your damaged knobs or just swap them for a different colour. These knobs will fit blackbox, bluebox, the nanoboxes, bitbox mk1, bitbox mk2, bitbox micro, bluebox Eurorack edition, and Waverazor Dual Oscillator. They are sold in single colour packs of 4.

These are the official knobs used on 1010music products since the release of the bluebox. They fit the stems of the potentiometers on all current and past 1010music products. They come in packs of 4, all one colour.

Each knob is 0.65" / 18 mm high with a base diameter of 0.65" / 18 mm.

Notes: These knobs fit all 1010music products. Replace your damaged knobs or just swap them for a different colour. These knobs will fit blackbox, bluebox, the nanoboxes, bitbox mk1, bitbox mk2, bitbox micro, bluebox Eurorack edition, and Waverazor Dual Oscillator. They are sold in single colour packs of 4.

These are the official knobs used on 1010music products since the release of the bluebox. They fit the stems of the potentiometers on all current and past 1010music products. They come in packs of 4, all one colour.

Each knob is 0.65" / 18 mm high with a base diameter of 0.65" / 18 mm.

Notes: These knobs fit all 1010music products. Replace your damaged knobs or just swap them for a different colour. These knobs will fit blackbox, bluebox, the nanoboxes, bitbox mk1, bitbox mk2, bitbox micro, bluebox Eurorack edition, and Waverazor Dual Oscillator. They are sold in single colour packs of 4.

These are the official knobs used on 1010music products since the release of the bluebox. They fit the stems of the potentiometers on all current and past 1010music products. They come in packs of 4, all one colour.

Each knob is 0.65" / 18 mm high with a base diameter of 0.65" / 18 mm.

Notes: A 4 ft Type B MIDI Adapter

This cable enables you to connect MIDI devices that use standard MIDI cables to the stereo minijacks that use the Type B standard. The adapter cable has a male stereo minijack at one end, and a male 5 pin DIN MIDI connector on the other, and is 1.42 meters/4' 8" long. It is also useful as a converter for connecting to other MIDI devices that use a different mapping of MIDI signals to the stereo minijacks.

Early 1010music music products use the Type B mapping of MIDI signals to stereo minijacks. Bitbox mk2 and bitbox micro can use mini TRS Type A or Type B for MIDI inputs. Bitbox micro uses Type B for MIDI outputs.

The diagram to the right shows the numbering of the pins on a MIDI connector and the labels of the connection components of a stereo minijack. Type B products are compatible with cables that use the following mapping of MIDI signals between female MIDI connectors and stereo minijacks.

Notes: The 1010music line of stereo breakout cables are designed to connect 2 mono audio signals to a single stereo TRS 3.5 mm minijack plug. The slim plug caps fit side by side with other cables in compactly spaced input jacks, like those on the 1010music bluebox. These cables may have been designed for the bluebox, but they have a wide variety of uses with other gear as well.

Each of these cables has a male TRS stereo 3.5mm minijack plug on one end and two female TS mono 3.5 mm minijack plugs on the other end. They are 15 cm/6 in long with the 1010music logo printed on the plug caps.

This stereo breakout cable connects two 3.5mm female mono TS minijack plugs to the left and right channels of one 3.5 mm stereo TRS minijack plug. Red and black end caps on the female end differentiate the left and right channels. Each cable is 15 cm/6 in long and has slim metal caps with the 1010music logo.

Specifications:
15 cm / 6 in long
one 3.5 mm male stereo TRS to two 3.5 mm female mono TS
Nickel / 24K Gold plated connector
Highly flexible PVC / TPE Jacket Materials
Rohs, UL, CE, and FCC approved

Notes: The 1010music line of stereo breakout cables are designed to connect 2 mono audio signals to a single stereo TRS 3.5 mm minijack plug. The slim caps fit side by side with other cables in compactly spaced input jacks, like those on the 1010music bluebox. These cables may have been designed for the bluebox, but they have a wide variety of uses with other gear as well.

Each of these cables has a male TRS stereo 3.5mm minijack plug on one end and two male TS mono 6.35 mm plugs on the other end. They are 1.4 m/4.5 ft long with the 1010music logo printed on the 3.5mm minijack plug caps.

This stereo breakout cable connects two 6.35 mm male mono TS plugs to the left and right channels of one 3.5 mm male stereo TRS minijack plug. Red and black caps on the 6.35 mm end differentiate the left and right channels. Each cable is 1.4 m/4.5 ft long and has slim metal caps with the 1010music logo on the 3.5 mm plug.

Specifications:
1.4 m/4.5 ft long
one 3.5 mm male stereo TRS to two 6.35 mm male mono TS
Nickel / 24K Gold plated connector
Highly flexible PVC / TPE Jacket Materials
Rohs, UL, CE, and FCC approved

Notes: These knobs fit all 1010music products. Replace your damaged knobs or just swap them for a different colour. These knobs will fit blackbox, bluebox, the nanoboxes, bitbox mk1, bitbox mk2, bitbox micro, bluebox Eurorack edition, and Waverazor Dual Oscillator. They are sold in single colour packs of 4.

These are the official knobs used on 1010music products since the release of the bluebox. They fit the stems of the potentiometers on all current and past 1010music products. They come in packs of 4, all one colour.

Each knob is 0.65" / 18 mm high with a base diameter of 0.65" / 18 mm.

Notes: The 1010music line of stereo breakout cables are designed to connect 2 mono audio signals to a single stereo TRS 3.5 mm minijack plug. The slim caps fit side by side with other cables in compactly spaced input jacks, like those on the 1010music bluebox. These cables may have been designed for the bluebox, but they have a wide variety of uses with other gear as well.

Each of these cables has a male TRS stereo 3.5mm minijack plug on one end and two male TS mono 6.35 mm plugs on the other end. They are 1.4 m/4.5 ft long with the 1010music logo printed on the 3.5mm minijack plug caps.

This stereo breakout cable connects two 6.35 mm male mono TS plugs to the left and right channels of one 3.5 mm male stereo TRS minijack plug. Red and black caps on the 6.35 mm end differentiate the left and right channels. Each cable is 1.4 m/4.5 ft long and has slim metal caps with the 1010music logo on the 3.5 mm plug.

Specifications:
1.4 m/4.5 ft long
one 3.5 mm male stereo TRS to two 6.35 mm male mono TS
Nickel / 24K Gold plated connector
Highly flexible PVC / TPE Jacket Materials
Rohs, UL, CE, and FCC approved

Notes: Use these black cables with the 1010music logo on either end of the jack to connect your 1010music eurorack modules to other modules that also use stereo minijack connections. This is a TRS cable with male 3.5mm minijacks on either end. It is available in two lengths: 30cm/11.75" and 60cm/23.5". These cables can be used for connections between any two 1010music modules, and to any other modules that use a compatible mapping of MIDI signals to stereo minijack connectors.

Weight: 0.04 lbs
Dimensions: 4 × 3.5 × 0.25 in
Length: 30 cm / 11.75"
Pack size: single

Notes: This MIDI Adapter enables you to connect MIDI devices that use standard MIDI cables to the stereo minijacks used by 1010music products. The adapter has a male stereo minijack at one end, and a female 5 pin DIN MIDI connector on the other, and is 22 cm/8.5" long. It is also useful as a converter for connecting to other MIDI devices that use a different mapping of MIDI signals to the stereo minijacks.

Notes: Just when you thought 2HP couldn't go any smaller, the Zero HP Mult has now arrived! The ZHM a 1 to 5 cable splitter, providing utility outside your case for increased patchabilty. Whether it is sending out a master clock, modulation, or simply lengthening a cable to reach the far ends of your rack, the Zero HP Mult is ready for duty!

Notes: Loop is a high fidelity looper with four unique recording modes and an intuitive user interface. It can capture up to five minutes of audio with reverse, and half-speed playback accessible. Each recording can use one of four modes: Sound on Sound, Dub, Replace, and Infinite (i.e. Frippertronics). Whether you're looking for minimal part layering, or full blown ambient soundscapes, Loop will take your patch for a ride.

High fidelity audio - 24-bit, 48kHz with five minutes of recording time
Four recording modes: Sound on sound, Dub, Replace, and Frippertronics
Intuitive interface
Half speed and reverse playback

Tech Specs:
Width: 2HP
Depth: 42mm

Notes: Play is a high-fidelity sample player with a full feature set.

Up to 32 samples can be loaded at a time and dynamically switched between using the file knob and associated CV input. Playback modes include one-shot, looping, or gated playback; all with extremely low latency. Transform your samples by pitching them up two octaves or down three octaves, all with a pitch knob that can be free running or quantized to semitones. The pitch CV input tracks volt per octave across its entire range and allows for musical sequencing of samples. Play ships with a pre-loaded SD card packed with loops, drum hits, and field recordings to get you up and running immediately.

Notes: Vowel is a speech synthesis and formant oscillator. It synthesizes and approximates the human voice by generating vowel sounds. These can be manipulated to provide deep low baritones, or high pitched squeaks. Two unique algorithms provide separate takes on this exciting synthesis method and allow for a multitude of talking synth sounds.

Notes: ADSR is a four stage linear envelope with two expressive ranges. Each stage can be modified independently allowing for the creation of complex, multi-segment envelopes. Great for modulating filters, VCAs, and oscillators.

Notes: Div is a 2 channel, voltage controlled clock divider and multiplier. Incoming clock signals can be multiplied or divided by a factor of 16 with a multitude of values in between.

CV inputs provide external control of the current clock rate, allowing for the creation of dynamic rhythms from a single clock signal.

Notes: Mult is a 2 input, 6 output signal splitter. Channel 1 is normalled to channel 2 when no cable is present, allowing the user to split an input signal six ways, or two input signals with three outputs each.

Notes: Great for generating random voltages from white noise, arpeggios from sawtooth waves, and downsampling audio signals.

Notes: Verb is a lush stereo reverb with a full feature set and superior audio quality. A wide range of reverb times take your sound from small room to never-ending concert hall.

CV over mix allows dynamic movement between the dry and reverberated sound, and the dampening control lets you dial in the perfect timbre for the wet signal. Whether you need a traditional reverb for an FX send or an esoteric sound design tool, Verb can take you there. Get lost in space with Verb.

Notes: Trim is a 2 channel passive attenuator. It features two individual channels of attenuation.

Notes: Loop is a high fidelity looper with four unique recording modes and an intuitive user interface. It can capture up to five minutes of audio with reverse, and half-speed playback accessible. Each recording can use one of four modes: Sound on Sound, Dub, Replace, and Infinite (i.e. Frippertronics). Whether you're looking for minimal part layering, or full blown ambient soundscapes, Loop will take your patch for a ride.

High fidelity audio - 24-bit, 48kHz with five minutes of recording time
Four recording modes: Sound on sound, Dub, Replace, and Frippertronics
Intuitive interface
Half speed and reverse playback

Tech Specs:
Width: 2HP
Depth: 42mm

Notes: Easily connect your modular system to the rest of your setup with Out, a compact 2HP stereo line output and headphone module. Despite its small size, it includes everything you need for clear, convenient listening.

The top section features stereo modular-level inputs with LED indicators for quick level monitoring. From there, the signal is routed to both a stereo line output and a dedicated headphone jack, each with independent volume control. Whether you're sending your modular through external effects, recording into an interface, or just monitoring with headphones, Out keeps things simple and efficient.

Notes: Capture the iconic sound of tape sliding to a halt with Tape Stop, a clock syncable tape stop module that puts this classic effect at your fingertips. Originally an accidental artifact of analog tape, this effect has become a beloved tool in music genres from hip-hop to IDM. Now, it's fully controllable in your modular system.

Adjust the Lag to set the stop length, then tap Trig to activate. Hit it again to resume your audio seamlessly. With clock sync, your stops and starts stay perfectly in time, and a toggle lets you switch between momentary and latching Trig modes. Add a touch of tape magic to your modular system with Tape Stop!

Notes: Swarm is a hyper-oscillator capable of an array of patch-filling sounds. Create super-saws, tonal noise hurricanes, and thick bass and lead lines.

Swarm is comprised of a large set of oscillators (up to 88 voices!). Control the number of available oscillators with the Voices control, and dial in the desired amount of pitch variance across the voices with detune. Take Swarm's oscillators from a rich thickening of sound to atonal chaos in the turn of a knob! Swarm also provides macro pitch control with the Freq knob, which also tracks 1v/oct through its CV input. A waveform toggle is also available for switching between sawtooth and pulse waveforms, expanding the timbral palette Swarm offers! Design pumping trance leads, minimoog style basslines, and more with Swarm!

Tech Specs:

Width: 2HP
Depth: 45mm
Power Consumption: +12V=82mA -12V=4ma +5V=0mA

Notes: Swarm is a hyper-oscillator capable of an array of patch-filling sounds. Create super-saws, tonal noise hurricanes, and thick bass and lead lines.

Swarm is comprised of a large set of oscillators (up to 88 voices!). Control the number of available oscillators with the Voices control, and dial in the desired amount of pitch variance across the voices with detune. Take Swarm's oscillators from a rich thickening of sound to atonal chaos in the turn of a knob! Swarm also provides macro pitch control with the Freq knob, which also tracks 1v/oct through its CV input. A waveform toggle is also available for switching between sawtooth and pulse waveforms, expanding the timbral palette Swarm offers! Design pumping trance leads, minimoog style basslines, and more with Swarm!

Tech Specs: Width: 2HP, Depth: 45mm, Power Consumption: +12V=82mA -12V=4ma +5V=0mA

Notes: MMF is an analogue, multimode filter with a 12dB per octave slope. Its sonic character swings all the way from classic low pass to squelchy acid lines. Simultaneous outputs of low pass, high pass, and band pass filter types are provided allowing for many variations of the input signal. Whether you're looking for smooth and creamy, or resonant and wild, MMF can go there.

Notes: Get glitchy with it.

The 2hp Slice is a compact beat repeat/glitch engine built to add clickless stutters, digital glitches, and more to your patch. With an onboard Triplet button, seamlessly switch between straight beat repeats to offset triplets, perfect for those trap style fills you can't live without. With massive repeat range, and CV/Gate inputs for complex glitch sequencing, Slice is everything you need to get glitchy with it, all in 2HP.

Tech Specs

Width: 2HP
Depth: 45mm
Power Consumption: +12V=83mA, -12V=8mA, +5V=0mA

The 2hp Slice will be available in both Silver aluminium and Black PCB front panels.

The 2hp Slice ships with a 10-16 power cable and 2 Silver M3 mounting screws.

Notes: Capture the iconic sound of tape sliding to a halt with Tape Stop, a clock syncable tape stop module that puts this classic effect at your fingertips. Originally an accidental artifact of analog tape, this effect has become a beloved tool in music genres from hip-hop to IDM. Now, it's fully controllable in your modular system.

Adjust the Lag to set the stop length, then tap Trig to activate. Hit it again to resume your audio seamlessly. With clock sync, your stops and starts stay perfectly in time, and a toggle lets you switch between momentary and latching Trig modes. Add a touch of tape magic to your modular system with Tape Stop!

Notes: The 2hp VCA is a dual, linear VCA. It uses the renowned 2164 SSM architecture, giving it extremely low distortion and high quality audio outputs. With a CV input attenuator, and DC-coupled inputs this is your new go-to module for voltage controlled amplification of audio or CV.

Notes: Brst is a voltage controlled burst generator and trigger delay. Upon receipt of a gate signal, Brst will output a stream of triggers. Knobs and CV inputs give the user control over speed and the number of repetitions. Whether you're generating bouncing balls, crafting IDM drum beats, or humanizing a clock signal, Brst will prove an indispensable addition to your rack.
