Notes: Suitable for guitar, synths, drum machines and more, the updated Godeater refines the boutique saturation/distortion pedal, offering more precise control over low frequencies. New filter-keyed sidechain, advanced routing and MIDI integration add major flexibility.

Supplier's Notes:
The new Godeater+ is the successor to the successful Godeater pedal from Indian manufacturer Animal Factory.

The Godeater was primarily designed for electric basses and saturates the sound in the lower frequencies. However, it is not limited to bass guitars. The pedal can also be used with synthesizers or guitars. The pedal can also be interesting in combination with drum computers. The main aim of the Godeater+ is to create a pedal that allows you to create a distorted sound without losing the low frequencies.

Notes: The DigiTech FreqOut Natural Feedback Creator allows you to get sweet, natural feedback at any volume, with or without distortion. The FreqOut is perfect for situations where volume must be controlled like in the studio, with in ear monitors, or low-volume performance and practice. However, the FreqOut can also be used at gig volume to focus out-of-control feedback on a preferred harmonic at any stage position. The FreqOut uses a 9VDC power supply to easily integrate into your existing pedalboard.

General Specifications
ControlsFeedback, Momentary On/Off, Dry On/Off, Gain, Onset, Type, Effect On/Off
Signal to Noise Ratio> -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A Conversion24-bit
Power Consumption2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements9 VDC External Adapter (sold separately)
Power Adapter (Sold Separately)PS0913DC-04 (US, JA, EU, AU, UK)
Power Adapter Output9 VDC 1.3 A
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.8 lbs.
Audio Output
Output Type1/4" Unbalanced TS (Tip-Sleeve)
Max Output Level+10 dBu
Output Impedance1 kO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input
Input Type1/4" Unbalanced TS (Tip-Sleeve)
Max Input Level+5 dBu
Input Impedance1 MO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)

Notes: Instant ambient bliss coupled with the powerful ambience processing is a brand-new Ensemble engine, capable of creating pads and soundscapes that follow your playing organically - so if you change pickups or play in a different place on the neck you get different results. It's unlike anything you've ever heard or played before, all wrapped in a smaller form factor that still manages to house full stereo I/O, TRS MIDI and USB-C connectors on the back panel. Prepare to be inspired!

Cloudburst's Ensemble switch reveals a whole new world of captivating sounds never previously heard from a reverb pedal. Use it subtly to add harmonically rich and otherworldly dimensions to your ambient reverb soundscapes, or use it liberally to hear a lush synthesized string section swell under your guitar playing. Ensemble reacts to your entire guitar signal in an organic and musical way, delivering a richly responsive and uniquely inspiring playing experience.

Cloudburst gives you multiple reverb experiences, with beautifully-tuned and natural small spaces at one end of the Decay knob and vast, expansive atmospheres at the other. As you turn the Decay control numerous internal parameters are automatically adjusted, allowing this ambient reverb pedal to produce outstanding studio-quality spaces of any size at the turn of a single knob.

All of the premium components, sound quality and road-worthiness you expect from a Strymon reverb pedal are here in Cloudburst's new compact format. Featuring unbeatable ease of use and some of the finest reverb sounds we've ever created, Cloudburst could easily be the only reverb pedal you need on your pedalboard.

Notes: Based on technology from the award-winning LVX and MercuryX pedals, the Enzo X is a superbly powerful six-voice modular synth, with polyphonic pitch detection and no special pickup needed on your guitar.

Supplier's Notes:
Combining 5 synth modes, Enzo X incorporates each of these into a modular system UI/architecture from both the award-winning LVX and MercuryX pedals.

In addition to being a 6-voice poly synth, Enzo X includes 3 reverbs which are adapted from Mercury X (Prism algorithm), 5 Drives (including Bitcrush), a full stereo 2.5 second Delay and 5 modulation types.

To make this complex system immediately intuitive to navigate, Meris again leveraged the simple and easy to use UI first developed for LVX.

Notes: For the Fundamental Series, Walrus Audio challenged themselves to design a set of pedals with the tonal integrity that's required to live on a professional's pedalboard, but with simplified controls friendly enough for even the newest effect pedal users. Each Fundamental pedal has three faders for tweaking the sound and a three-way switch for changing pedal modes. The result is a line of pedals that will keep you covered from your first band practice all the way to a sold-out arena. Designed and assembled at Walrus Audio headquarters in OKC, OK.

Because vast ambient sounds shouldn't just be for larger pedals with vast price points, the Fundamental Ambient brings expansive pillowy reverb to the Fundamental Series with three atmospheric modes in a compact size. The Fundamental Ambient offers a great entry point into ambient exploration with the tonal integrity to live on a professional's pedalboard but with simplified controls friendly enough for even the newest effect pedal users. With Ambient's three reverb algorithms, you can experiment with deep, dark pad-like sounds to AM Radio-like lo-fi sounds with the flip of a switch.

The Fundamental Ambient provides three different atmospheric reverb algorithms to explore beautifully vast and lush soundscapes with plenty of decay time for pillowy soft pad-like decay.

Modes:

Deep - A dark ambient reverb with an added low octave, perfect for creating murky, cavernous sustain or adding a touch of moody atmosphere.
Lush - A breathy, expansive reverb featuring ultra-long sustain. Perfect for generating silky pads and immersive soundscapes with every note.
Haze - A textured, lo-fi reverb featuring distortion, sample rate reduction, and a resonant bandpass tone control, great for vintage or experimental tones.
Decay: Control the amount of reverb decay time. Left is the minimum and right is the maximum amount of time.
Tone: Shapes the overall tonality of the reverb. On Deep and Lush this controls the cutoff of a synth-style lowpass filter. On Haze this controls the width of a resonant bandpass filter, filtering both high and low end at the right, and allowing more high and low to pass through at the left.
Mix: Control the mix of the effect and the original clean signal. All the way to the left outputs only the fully clean signal, and all the way to the right outputs only the affected Reverb signal.
Slide Switch - The slide switch allows you to change between three distinct Reverb algorithms.

Trails Mode - The Fundamental Ambient Reverb comes with trails mode active by default, to disengage trails mode hold down the bypass stomp switch when applying power to the pedal. Once the LED flashes it indicates that trails mode is turned off. To re-engage trails mode, repeat the process, and wait for the LED to turn dark, indicating that trails mode is back on. With trails mode active, your reverb decay will fade off naturally after turning the pedal off. With trails mode inactive, the decay abruptly cuts off when you turn off the pedal.

Notes: MOOER has unveiled its latest effect pedal innovation, the MVP1 AUTUNER vocal processor. Unlike most of MOOER's products, this pedal is designed primarily for use with vocals, offering precise pitch correction and exceptional vocal enhancement features. However, MOOER hasn't forgotten about its primary audience, so AUTUNER still provides features that will interest guitarists.

Due to the pedal's primary focus on vocals, the device includes several features specifically designed for microphone usage. This includes XLR input and output, in addition to support for 48V phantom power, ensuring that the pedal supports both dynamic and condenser microphones. However, AUTUNER also includes standard 1/4" guitar inputs and outputs, along with convenient footswitch control to switch between mixed or individual signals.

The pitch correction features behind AUTUNER are highly versatile. With an LED button, users can choose between flat, warm, and bright vocal tones, each indicated by a different colour. Once a tone has been chosen, the 'correction' dial can be used to define the sensitivity of the pitch correction. Users can also press and hold the left footswitch to trigger the pitch correction's vocal synthesizer mode.

AUTUNER's versatility shines particularly brightly thanks to its built-in effects modules. The first of these is delay; the delay module can be can controlled with its dedicated dial, with users having the option to choose between tape delay, digital delay, slapback delay, or bypass. The pedal's left footswitch serves as a tap switch, which allows the user to determine the speed of the delay module.

A reverb module is also featured within AUTUNER. This too has its own dedicated dial, which can be used to morph between room delay, hall delay, and plate delay. Whilst the pitch correction features of the pedal are limited only to vocals, these delay and reverb modules ensure that the pedal has plenty of dedicated features to offer MOOER's guitarist fanbase.

As is common with MOOER products, AUTUNER features a wide range of control mechanisms. In addition to the left footswitch's dual functionality, the right footswitch also acts as a bypass for the pitch correction and effects, whilst still ensuring the tone processing remains active. The pedal's tonal enhancements can then be fully bypassed with the 'flat' tone option.

In addition to its core features, the MVP1 AUTUNER also includes a gain dial, a 48V phantom power switch for internal microphone amplification, a grounding switch, and a DC 9V 500mA power input. Overall, the features of this pedal ensure that musicians have everything they need for impressive pitch correction, vocal synthesis, and special processing, whilst ensuring that they never have to rely on external batteries.
Vocal pitch correction feature with a controllable sensitivity dial
Footswitch-controllable vocal synthesizer mode
Three vocal tone modes: flat, warm, and bright
Four delay modes: tape, digital, slapback, and OFF
Four reverb modes: room, hall, plate, and OFF
Tap tempo footswitch for delay speed
Bypass footswitch functionality for isolating the tone from effects
Multifunctional footswitches for 'hidden mode'
LED button for tonal control
Two output modes: mixed and individual
XLR input and output
1/4" input and output
Internal 48V Phantom Power amplification
48V Phantom Power toggle switch for condenser microphones
Line in toggle switch for instruments and dynamic microphone
Gain dial
Ground/Lift toggle switch
DC IN 9V 500mA power input

Notes: When Empress released the original Compressor back in 2011, it quickly became a favourite among guitar and bass players alike who were searching for something more than the typical oversimplified controls found on most compressor pedals. Although our original Compressor sounded great on bass (and still does!) we set out to do even better.

On top of the full range of features and controls normally only seen in high end studio equipment, such as input and gain reduction metering, independent attack and release controls, a mix knob for parallel compression, and an external sidechain insert, we've now added a fully variable sidechain high pass filter, and a two position 'tone + colour' circuit which adds gentle tone sculpting and harmonic distortion, giving your bass some delicious character.

Specifications:
Input Impedance 1M
Output Impedance 2.2k
Frequency Response (-3dB) 10Hz - 20kHz
Distortion less than 0.1%
Noise -101dB
Power Input Voltage 9 - 18 V DC (Negative tip)
Power Input Connector 2.1mm barrel connector (Negative tip)
Power Consumption ~ 100mA
Enclosure Material Die Cast Aluminum
Input connector 1/4" Jack
Output connector 1/4" Jack
Height (Enclosure only) 1.5"
Height (including controls) 2.5"

Notes: The Qi Etherealizer (pronounced "chee ethereal-izer"), a collaborative creation with Yvette Young, is a multi-effects pedal that combines Chorus, Delay, Granular effects, and, of course, Reverb, into a creative playground for atmospheric exploration.

Known for her innovative and explorative fingerstyle playing technique, love of guitar pedals, and leadership of the math rock band Covet, the Qi reflects her approach to creating lush, evolving soundscapes. Named after the vital life energy that flows through all living things, the Qi is designed to deliver rich textures, expansive atmospheres, and dynamic layers. By blending Yvette's artistic vision with cutting-edge design, the Qi opens the door to immersive, otherworldly sounds.

The Qi allows you to mix and match the chorus, delay, and grain and run in series or parallel to create your own inspiring universe of possibility in a stereo field. With the ability to save presets and bypass the chorus, delay, and grain controls, you can quickly and instantly change settings by simultaneously pressing the Bypass and Freeze stomp switches. Go from a traditional chorus with a little bit of delay, or go all in and let the Qi take over with unexplainable washes of glitchy and lush ambiance. Whatever your style is, the Qi will give it a new life.

The Qi is the first creation to emerge from Walrus' groundbreaking proprietary digital processing platform, MDSP. Designed in-house by their talented engineering team, MDSP sets a new benchmark for high-fidelity audio and innovative design, delivering decades of inspiration to creators seeking practical yet forward-thinking gear.

At the core of MDSP is the powerful ARM-based Cortex M7 processor, renowned as the highest-performing processor in its class. With a proven history in high-level electronics, the Cortex M7 has been meticulously tailored for advanced audio algorithm processing in the MDSP platform. This unique system integrates a microcontroller and a DSP into a single compact unit, enabling a smaller, modular design that can seamlessly adapt to a wide range of pedal formats.

This modular and "mini" approach empowers Walrus Audio to push the boundaries of audio processing. The enhanced capabilities of Walrus's MDSP allow for the development and execution of more sophisticated algorithms than ever before, delivering unparalleled creative possibilities for musicians and audio professionals alike.

The MDSP platform also boasts a superior audio codec, supporting faster sample rates, increased bit depth, greater headroom, and an exceptional signal-to-noise ratio. These enhancements ensure outstanding audio performance, setting a new standard in digital signal processing for the music industry.

The introduction of MDSP reflects Walrus Audio's commitment to providing creators with cutting-edge tools that inspire innovation and creativity.

Global Controls


Space Knob: Space adds a delightfully charming reverb to your affected signal. Use this knob to modify the mix and decay of the reverb. Go from smaller room sounds to a huge, diffused ambient reverb at maximum settings. It's lush and complimentary, and adding it in with the other effects will put you squarely in dreamscape territory.


Tone Knob: The Tone parameter controls the cutoff of a synth-style resonant low pass filter, allowing you to shape the tone of the effect output.


Series and Parallel: In series, effects will feed into each other in the order of Chorus > Delay > Grain > Output.


In parallel, all of the effect outputs on Chorus, Delay, and Grain are summed together and do not feed into each other. The top row of knobs will act as level controls, and the user can control the level of each effect.


The Mix/Dry parameter controls the mix of wet and dry signal in series mode and dry level in parallel mode.

Grain Controls


The featured Grain effect features two 'flavours' of operation:


Grain Cloud: This mode triggers small samples (grains) randomly from your playing, which gives you unpredictable, yet charming glitchy texture for your sound. The X knob controls the length of time between grains, so you can go from dense clusters to sparse accents.


Phrase Sample: This mode triggers grains rhythmically from your playing. Initial peaks in your playing are detected and grains are played back starting at these peaks, creating a rhythmic and intentional effect. The X knob controls the tempo at which the samples will be played back. Turning the X knob to the minimum position will sync the Phrase Sample time to the Delay time so that repeated grains are in time with the Delay repeats.


The Grain effect also features 5 playback modes that dictate different ways the grain samples are projected.


x1: Normal
x2: Double-speed and +1 octave
x.5: Half-speed and -1 octave
REV: Reverse playback
RNDM: Randomized combination of the previous four modes.


Delay Controls

The delay effect is a full, clean digital delay that offers repeats for up to two seconds. Use the time knob to control the time between delays as well as the feedback knob to control the amount of delays. The TAP/OSC switch on the bottom right of the pedal can also be used to control the delay effect via tap tempo, or when held down will ramp up the feedback and cause the delay to oscillate.

Subdivisions

Delay trails can be projected in three subdivision modes:

Quarter Note
Dotted Eighth Note
Eighth Note

Chorus Controls

The Chorus effect offers two modes:
Tri Chorus: A multi-dimensional chorus favourite. Lush, complex, modulated sounds combining three voices for a full, vibrant sound.

Stereo Chorus: This mode is a classic chorus effect but with the modulation of the chorus being offset 180 degrees to the right channel to achieve the stereo width effect.


Other Features

Three on-board presets (red, green, blue) plus a live mode (white).
TRS MIDI 1/8" in and thru ports for MIDI control.
USB-C port included for future firmware updates.
Momentary Grain Freeze
Momentary Grain + Max Reverb Freeze

Notes: Based on Mooer's extensive experience producing looper pedals, the GL100 offers affordable, powerful dual looping options and drum machine features. Two foot switches provide hands-free control for guitarists and keyboard players.

Supplier's Notes:
Throughout MOOER's track record of producing electric guitar pedals, the company has put a lot of its innovative prowess into its range of loop pedals, including 2023's VP3 Loopation. Ever since, MOOER's engineers have been hard at work designing the GL100, a feature-packed dual-footswitch stereo phrase looper and drum machine that has far more on offer than its younger looper siblings.

Perhaps the most impressive upgrade that MOOER has integrated into the GL100 is the sheer amount of looping time that this pedal can provide. In total, the pedal supports 300 minutes of looping time, all of which can be manually or automatically saved into 100 different storage slots.

The two footswitches are the primary means for controlling this feature, used through short presses and holds to trigger phrase recording, playback, overdubs, cancellations, and, most impressively, undo and redos. Most importantly, the pedal's position-jumping function gives users the flexibility to switch between storage slots with the footswitches while performing, providing them with the potential to perform fully structured loop-based music.

In synchronization with the phrase looper, users of the GL100 can also leverage the pedal's integrated drum machine, which contains 11 variations of 20 different drum pattern styles in various time signatures. Ultimately, this ensures that just about every musical genre is covered, regardless of whether it's for music performance, rehearsals, or simply experimenting at home. It's very simple to use, being triggerable with the device's footswitches, editable through the touchscreen, and, of course, tap-tempo synchronisable. Four different stop modes are also provided to facilitate perfect drum machine endings. More still, for the first time, MOOER has integrated its AI Band Technology feature, an intelligent accompaniment system that automatically matches suitable drum patterns based on the character of real-time guitar input, facilitating control-free synchronization.

Notably, MOOER has also made a serious effort to ensure that it is easy to record the perfect loop with the GL100. For example, the count-in function is very easy to use, as is the auto-record feature, which allows users to capture perfect loops by triggering it based on signal detection, preventing the need for perfectly timed footswitch presses. Better still, this signal detection feature can be toggled on or off with a single button press, and the signal threshold is easily adjustable, helping to support instruments of varying signal ranges.
A simple footswitch press also primes the pedal for various drum synchronization features, triggering the drum pattern to stop after one bar, repeat, or reset the looper, making it easy to perfect the loop's ending and creation-not just the beginning. To aid in this, an internal quantizer function is active to ensure that users always trigger and stop recording perfectly, even if they are slightly late with the footswitch press. Better still, the phrase looper even has a time-stretch feature, facilitating the changing of the tempo of a recorded loop but without changing the pitch, allowing any loop to sync perfectly, in key, with the drum machine.

As with any other MOOER product, the team's designers have really pushed the boundaries when it comes to the user experience. Despite packing so many features into such a small device, MOOER's signature multi-purpose footswitches, dials, and, most notably, touchscreen have all been integrated into this pedal to ensure users can squeeze as much dynamic use out of it as possible. A perfect example of this is how users have two different ways to browse through their phrase loop creations-both through using the pedal's menu encoder and by pressing and holding the footswitches, enabling dynamic looping control and real-time phrase selection without needing to stop playing the guitar.

Furthermore, the GL100 also stands out from MOOER's past loop stations for its flexible audio routing functionalities. As you would expect from a modern looping pedal, stereo input, and output are provided, but these inputs and outputs can be used with different amplifiers or instruments depending on the routing settings, allowing performers to coordinate complex loop phrases and drum patterns together in a coherent and sonically diffused manner. This includes mono connections, dual-channel connections, and even the isolation of both drum machine and instrument channels.

Finally, the GL100 comes with its own MOOER Studio software, compatible with both Windows and iOS, which users can use to save, export, import, and delete phrase recordings, expanding the device's storage capabilities. This same software can also be used to download firmware upgrades to the device when available and to complete a factory reset if ever necessary. Overall, this pedal combines an expanded showcase of MOOER's impressive looper and drum machine functions, along with a focus on innovative user experience, convenient performance flexibility, and, most importantly, accessibility to create the perfect loop from start to finish.

2 x 1/4" mono input and output jacks
1 x 1/8" stereo headphone jack
Sample rate: 44.1kHz
Sample depth: 24 bit
Export file format: .wav
9V 300mA power supply (included)
Weight: 200g

Notes: Proudly billed as the first fully programmable drum machine in a pedal format, the Step is designed to accompany other instruments. Four-track, 16-step sequencer with 300 Beat presets and 500 kits.

Supplier's Notes:
Step Modern Drum Machine

Step is the first fully programmable drum machine in pedal format. It's an instrument, a co-writer, an accompaniment at a live performance, or a bandmate in an empty studio. Designed with the flexibility to instantly start a unique song but with deep customization options to quickly create fresh beats. Step is for everyone - everyone that isn't afraid to experiment, take chances, try something new, and create original music.

4 Customizable Drum Tracks

Step is a 4 track drum machine with a complete interface. Easily control all parameters for each of the 16 steps on the face of the pedal, no computer editor needed.

Mix & Match

How about an electronic snare with a jazzy kick? With Step, with a twist of a knob, you can create your sound pack by combining sounds from different Kits.

Instant Drum Beat Generator

Tap in the tempo, turn the Beat and Kit knobs to find your groove and play! There are 300 rhythms and 500 kits - it gives tons of combinations.

Modern Sound

With over 2000 samples, from the sounds of classic analogue machines to acoustic drums, anyone can find the sound they want. And, if you're going to create your kits, you can easily do it, too.

Per-Step Control
Customize over 15 parameters for each track's drum sound on a per-step basis. Switch up hi-hat velocity, add reverb to a final crash or throw in a 10% chance for a drum roll.

A Thousand Songs

Create and play complete 16-part songs, easily put together by quick-copying patterns, selecting new beats or making your own. Then make a playlist and go live!

Stomp-In FX

Use the FX stomp-switch to punch in customized effects from delays, reverbs, loopers, rearrangers and more. Every pattern in your song can have a different stomp-in effect.

Expansive Connectivity

Step has all the connectivity you need, stereo input and output, MIDI in and out, expression pedal input, and micro SD card storage with USB-C connectivity.

Nerdy on Demand

Need polymetric or polyrhythmic beats? Or maybe some generative drums? Step offers per-track swing, speed and length, step probability, randomized note playback, and more. You don't have to get nerdy with Step, but you can!

Instant Inspiration

From musicians wanting to quickly play along with a drum kit to deep divers looking to create more than traditional drum beats, Step is for everyone. Either create songs instantly by selecting from 500 preset rhythms and 200 drum kits or use the interface to create completely customized beats anywhere. Loop 16 steps and jam or combine patterns into a 16 pattern song.
A Complete Instrument

Step is a fully customizable drum machine, with features designed to make original drum tracks you want to play along with. All Step's parameters can be controlled directly on the pedal with a straightforward, intuitive user interface. Create complex and evolving patterns using probability, a dynamic drummer by switching up the velocity on eat hit, a sloppy drummer with the humanize, chance and micro-move features, or a perfect robotic machine.

Performance Ready

As a live companion Step can't be beat. With the ability to stomp-in effects and change songs or patterns via the dedicated stomp-switches, Step is a one stomp solution for all your performance needs.

Smash the FX stomp-switch and create interesting transitions or emphasize a solo. Freely assign over 50 effects in 8 different categories to the FX stompswitch, from repeaters and rearrangers to delays and reverbs.

For even more live control, assign the expression pedal to parameters including tempo or volume.

In Sync

Step is the perfect bandmate, keeping everything in sync. Use Step's MIDI input and output to stay in time with your delay, start playback at the same time as a looper, and more.

Keep your devices in sync too. Step's sequences are also compatible with Play and Play+. Create and exchange patterns between grooveboxes and the pedal, in both directions.

Tech specs

Ins & Outs

Stereo/Mono In: jack 6.3 mm
L-Out/MONO: jack 6.3 mm
R-Out: jack 6.3 mm
Expression Pedal
MIDI In: mini-jack 3.5 mm
MIDI Out: mini-jack 3.5 mm
USB-C
Power: 9-18 V DC / min. 500 mA (power adapter not included)

Physical Dimensions

Height: 2.24 inches (5.7 cm) - with knobs
Width: 7.09 inches (18.0 cm)
Depth: 4.72 inches (12.0 cm)
Weight: 2.05 pounds (0.930 kg)

Notes: Strymon's Big Sky reverb moves to the next level with the MX evolution, featuring more versatile editing options, two simultaneous reverb machines, full MIDI control and brand new algorithms.

Supplier's Notes:
In BigSky MX, raw computational power meets innovative design and consummate sonic craftsmanship to give you positively sublime reverbs with stunning new levels of richness and complexity.

BigSky MX features seven brand-new algorithms in addition to significant enhancements to the other classics. Dual reverbs can be routed in Series, Parallel or Split modes, and individually panned per engine. Access full IR editing functionality, as well as custom long captures of classic studio gear. Unlock massive width and presence with full stereo I/O featuring Strymon's discrete Class A JFET input preamps. Create lush pads to play over, or infinitely sustain any notes played for unique atmospheric effects. Change presets and control parameters with MIDI via USB-C, TRS, or DIN connections. Adjust controls on the fly via an expression pedal. All this and more in an elegant, easy-to-use pedal.

BigSky MX features a staggering amount of computing power - it uses a high performance tri-core 800 MHz ARM processor - all dedicated to producing truly breathtaking reverbs. Strymon's new reverb algorithms were meticulously created by hand, and then a state-of-the-art gradient descent optimization algorithm was used to dial out any undesirable ringing or artifacts. This type of neural fine-tuning is based upon the same techniques that have enabled the recent AI revolution, and the result is springs that drip and splash, physical spaces you can really feel yourself in, and the sweetest possible musical response to every note you play.

BigSky MX allows you to use two reverbs at once, for powerful sound sculpting and expansive reverb sounds that evolve organically over time. You can switch between reverb engines with a single button press while editing, and easily see the Series, Parallel or Split audio routing state clearly displayed onscreen.

For a more interactive experience, you can dedicate a footswitch to control each reverb's on/off state if you desire.

BigSky MX features seven brand new reverb algorithms built from the ground up, plus new features and enhancements for the classic BigSky algorithms. Impulse and Chamber were created specifically for BigSky MX, and Spring, Plate, Hall, Room and Shimmer boast entirely new handcrafted algorithms while still giving you access to the original BigSky voices for each one.

BigSky MX gives you powerful editing tools to intuitively manipulate impulse responses in real time. Set decay envelopes, gate the reverb tail, reverse the entire IR, resample on the fly to shorten or stretch the impulse, and create infinitely sustaining granular pads at the press of the Infinite footswitch. Any compatible audio file can be loaded, allowing you to use convolution reverbs for everything from hyper-realistic spaces to wacky experimentation.

BigSky MX comes preloaded with 22 unique stereo impulse responses, including a collection of our very own meticulous captures of legendary analog studio gear that are addictively inspiring.

Notes: Infinite inspiration, ready to play

Combining high-end sound and wide-ranging versatility, the RV-6 takes pedal-based reverb to the next level. Reaching beyond the capabilities of previous generations, this powerful stomp employs the latest tech and legendary BOSS know-how to make it easy to get amazing reverb tones instantly. From subtle rooms to modern shimmer effects to long, evocative reverbs, the RV-6 envelops your tone in lush ambient spaces that endlessly inspire.

Simply Great-Sounding Reverbs

Packing the latest BOSS DSP and updated algorithms, the RV-6 gives you eight highly musical reverb effects in one compact pedal. Add body and depth to your core tone with standards like Room, Hall, and Plate, dial up swirling richness with the Modulate setting, or surf it up with a vintage-style Spring reverb. Dynamic mode automatically adjusts the effect depth to your playing touch, providing deep, immersive reverb that won't turn your tone to mud. And modern players will love the new Shimmer and Reverb + Delay modes.

Dialled-In Sounds at Your Command

The RV-6 makes getting high-quality reverb sounds with your guitar quick and easy- just select a sound mode, tweak the knobs to taste, and play. But while its operation is simple, the RV-6's sound is rich and sophisticated. Under the hood, each mode includes a huge array of detailed reverb parameters, all perfectly tuned for guitar by the BOSS engineers with direct input from many pro players and sound engineers. Even as you adjust the selected mode with the Time and Tone knobs, many parameters are simultaneously adjusted inside to create the ideal voicing for every setting.

Analogue Dry Tone and Versatile I/O

While the RV-6's reverb effects are high-tech digital, you can rest assured that your straight guitar tone always remains pure analogue as the effect is blended in. Convenient auto-switching jacks let you integrate with any pedal chain, with support for mono, mono-to-stereo, and stereo-to-stereo operation. And by plugging into the B input only, the RV-6 outputs a 100-percent wet sound, great for working with more complex rigs that employ parallel processing chains and mixers. There's also a jack for connecting an optional expression pedal, allowing you to control the effect level in real time as you play.

Reverb Modes

+DELAY - This is reverb combined with delay. The synergistic effect provides rich reverberation.
SHIMMER- This reverb is distinctive for its sparkling high-frequency range. It produces fantasy-like reverberation wrapped in spacious overtones.
DYNAMIC- This reverb automatically sets the depth of the effect according to your performance. It produces deep reverberation without blurring the overall shape of your playing.
ROOM- This reverb simulates the reverberation of a room. It produces warm reverberation.
HALL- This reverb simulates the reverberation of a hall. It produces clear and spacious reverberation.
PLATE- This simulates a plate reverb (a reverb unit that uses the vibration of a metal plate). It produces metallic-sounding reverberation with an extended high-frequency range.
SPRING- This simulates a spring reverb built into a guitar amp.
MODULATE- This reverb adds modulation to hall reverb, producing extremely good-feeling reverberation.

Specifications


Reverb Modes:

8 modes- HALL, PLATE, ROOM, SPRING, MODULATE, +DELAY, SHIMMER, DYNAMIC
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level-20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Controls: Pedal switch, E.LEVEL knob, TONE knob, TIME knob, MODE knob
Indicator: CHECK indicator (Serves also as battery check indicator)

Connectors: INPUT-A (MONO) jack, INPUT-B jack, OUTPUT-A (MONO) jack, OUTPUT-B jack, EXP jack, AC adaptor jack (DC 9 V)
Power Supply: Alkaline battery (9V, 6LR61), AC adaptor (sold separately)
Current Draw: 95 mA

Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
Alkaline: Approx. 3 hours

Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61)

Options (sold separately) AC adaptor: PSA series
Expression Pedal: BOSS FV-500H, FV-500L, Roland EV-5

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 450 g / 1 lb

Notes: The Zoom MS-90LP+ is a versatile stereo looper. With the tap of your foot you can add loops, layers, effects and rhythm patterns. And with 32-bit float processing, the MS-90LP+ gives creators flawless audio quality every time.

Notes: Produces volume and reverse swells, backward tape sounds, artificially short staccato notes and bowed instrument effects!

The circa-1980 Electro-Harmonix Attack Decay is a sought after prize among vintage pedal aficionados. Originally called a Tape Reverse Simulator, it's known for producing volume and reverse swells, backward tape sounds, artificially short staccato notes and bowed instrument effects. The freshly designed EHX Attack Decay reinterprets the classic and keeps its cool factor, but adds some modern features for convenience and enhanced functionality.

It can produce a single volume envelope like the original, or, with Poly engaged, put separate volume envelopes on each note you play. The built-in Harmonix fuzz is now a fully controllable distortion with gain, tone and volume controls. The effects loop allows the musician or sound designer to place the volume envelope onto whatever signal is present at the Return jack. Expression pedal/CV input and three user presets give the user total control over their Attack Decay!

Volume envelope manipulation with adjustable Attack and Decay times
Mono mode: one volume envelope at a time, the envelope resets when you play a new note
Poly mode: gives each note you play its own envelope
Built-in, fully adjustable, Harmonix fuzz enhances the volume envelope effect and produces bowed instrument sounds
Built-in effects loop allows for your own pedals to be inserted onto the volume envelope
Expression pedal or CV control over every knob on the Attack Decay
Save and recall up to three presets
Power adapter included

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.75 x 4.13 x 2.25
Current Draw: 140mA
Year Released: 2019

Notes: The Qi Etherealizer (pronounced "chee ethereal-izer"), a collaborative creation with Yvette Young, is a multi-effects pedal that combines Chorus, Delay, Granular effects, and, of course, Reverb, into a creative playground for atmospheric exploration.

Known for her innovative and explorative fingerstyle playing technique, love of guitar pedals, and leadership of the math rock band Covet, the Qi reflects her approach to creating lush, evolving soundscapes. Named after the vital life energy that flows through all living things, the Qi is designed to deliver rich textures, expansive atmospheres, and dynamic layers. By blending Yvette's artistic vision with cutting-edge design, the Qi opens the door to immersive, otherworldly sounds.

The Qi allows you to mix and match the chorus, delay, and grain and run in series or parallel to create your own inspiring universe of possibility in a stereo field. With the ability to save presets and bypass the chorus, delay, and grain controls, you can quickly and instantly change settings by simultaneously pressing the Bypass and Freeze stomp switches. Go from a traditional chorus with a little bit of delay, or go all in and let the Qi take over with unexplainable washes of glitchy and lush ambiance. Whatever your style is, the Qi will give it a new life.

The Qi is the first creation to emerge from Walrus' groundbreaking proprietary digital processing platform, MDSP. Designed in-house by their talented engineering team, MDSP sets a new benchmark for high-fidelity audio and innovative design, delivering decades of inspiration to creators seeking practical yet forward-thinking gear.

At the core of MDSP is the powerful ARM-based Cortex M7 processor, renowned as the highest-performing processor in its class. With a proven history in high-level electronics, the Cortex M7 has been meticulously tailored for advanced audio algorithm processing in the MDSP platform. This unique system integrates a microcontroller and a DSP into a single compact unit, enabling a smaller, modular design that can seamlessly adapt to a wide range of pedal formats.

This modular and "mini" approach empowers Walrus Audio to push the boundaries of audio processing. The enhanced capabilities of Walrus's MDSP allow for the development and execution of more sophisticated algorithms than ever before, delivering unparalleled creative possibilities for musicians and audio professionals alike.

The MDSP platform also boasts a superior audio codec, supporting faster sample rates, increased bit depth, greater headroom, and an exceptional signal-to-noise ratio. These enhancements ensure outstanding audio performance, setting a new standard in digital signal processing for the music industry.

The introduction of MDSP reflects Walrus Audio's commitment to providing creators with cutting-edge tools that inspire innovation and creativity.

Global Controls


Space Knob: Space adds a delightfully charming reverb to your affected signal. Use this knob to modify the mix and decay of the reverb. Go from smaller room sounds to a huge, diffused ambient reverb at maximum settings. It's lush and complimentary, and adding it in with the other effects will put you squarely in dreamscape territory.


Tone Knob: The Tone parameter controls the cutoff of a synth-style resonant low pass filter, allowing you to shape the tone of the effect output.


Series and Parallel: In series, effects will feed into each other in the order of Chorus > Delay > Grain > Output.


In parallel, all of the effect outputs on Chorus, Delay, and Grain are summed together and do not feed into each other. The top row of knobs will act as level controls, and the user can control the level of each effect.


The Mix/Dry parameter controls the mix of wet and dry signal in series mode and dry level in parallel mode.

Grain Controls


The featured Grain effect features two 'flavours' of operation:


Grain Cloud: This mode triggers small samples (grains) randomly from your playing, which gives you unpredictable, yet charming glitchy texture for your sound. The X knob controls the length of time between grains, so you can go from dense clusters to sparse accents.


Phrase Sample: This mode triggers grains rhythmically from your playing. Initial peaks in your playing are detected and grains are played back starting at these peaks, creating a rhythmic and intentional effect. The X knob controls the tempo at which the samples will be played back. Turning the X knob to the minimum position will sync the Phrase Sample time to the Delay time so that repeated grains are in time with the Delay repeats.


The Grain effect also features 5 playback modes that dictate different ways the grain samples are projected.


x1: Normal
x2: Double-speed and +1 octave
x.5: Half-speed and -1 octave
REV: Reverse playback
RNDM: Randomized combination of the previous four modes.


Delay Controls

The delay effect is a full, clean digital delay that offers repeats for up to two seconds. Use the time knob to control the time between delays as well as the feedback knob to control the amount of delays. The TAP/OSC switch on the bottom right of the pedal can also be used to control the delay effect via tap tempo, or when held down will ramp up the feedback and cause the delay to oscillate.

Subdivisions

Delay trails can be projected in three subdivision modes:

Quarter Note
Dotted Eighth Note
Eighth Note

Chorus Controls

The Chorus effect offers two modes:
Tri Chorus: A multi-dimensional chorus favourite. Lush, complex, modulated sounds combining three voices for a full, vibrant sound.

Stereo Chorus: This mode is a classic chorus effect but with the modulation of the chorus being offset 180 degrees to the right channel to achieve the stereo width effect.


Other Features

Three on-board presets (red, green, blue) plus a live mode (white).
TRS MIDI 1/8" in and thru ports for MIDI control.
USB-C port included for future firmware updates.
Momentary Grain Freeze
Momentary Grain + Max Reverb Freeze

Notes: Introducing a new addition to the DigiTech Whammy Family -- Whammy DT! We've taken the premier pitch shifting effects pedal added drop tuning and true bypass to bring you the ultimate Whammy pedal, the Whammy DT. With the Whammy DT, you can modify your tuning without having to change guitars or pause awkwardly to make adjustments for the next song. Key changes are at the tips of your toes and take just moments, which is crucial when the audience is feeling your vibe. Pitch shifting effects really help your guitar performance stand out and the Whammy pedal has been the core pitch shifting effect for famous artists for over 20 years. Now add full drop and raised tuning in addition to classic Whammy shifting to your effects arsenal and find out why the Whammy DT is the premiere pitch shifting effects pedal for every guitarist.

General Specifications
D/A Conversion24 bit
Pitch Bend Range+2/-3 Octaves
Detune Range-4 to -30 cents
Drop Tune Range1-7 Semitones, Octave, Octave + Dry
Power Consumption2.6 Watts (< 288 mA @ 9 VDC)
Power Adapter9 VDC External Adapter
Sample Rate44.1 kHz
Frequency Response20 Hz to 20 kHz
Signal to Noise Ratio> -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
Dimensions
Height2.36"
Width8.2"
Depth7.73"
Audio Output
Output Type1/4" Unbalanced TS
Max Output Level+10 dBu
Output Impedance1 kO
Audio Input
Instrument Input Type1/4" Unbalanced TS
Max Input Level+5 dBu
Input Impedance1 MO
MIDI Input5-Pin Din
Footswitch Input1/4" TRS - for use with optional FS3X Footpedal

What's in the box?
1 x Whammy DT Pedal
1 x Power Supply

Notes: EHX's rich history was marked by many revolutionary pedals but one of our most distinctive lines was a group of analog drum synthesizers that included the Crash Pad.

Like the original from 1980, the EHX Crash Pad Electric Crash Drum can create an array of drum sounds and other-worldly oscillation sweeps, as well as process external sounds thru its resonant filter. Plus, it's been updated to respond to expression pedal/CV input for external control over the filter in real-time.

Creates a range of percussive sounds from cymbals, snares and hi hats to oscillation sweeps
Triggers via the on-board pushbutton, an external (non-MIDI) drum pad and most clock generators
Process external sounds thru the resonant filter + EXP/CV input for real-time filter control
Rugged, die-cast chassis
Works great with the EHX Clockworks Rhythm Generator/Synthesizer, 8 Step Program Analog Expression/CV Sequencer and other similar devices
Power adapter included

Circuit: Analogue
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included (optional 9V battery not included)
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 22mA
Year Released: 2015

Notes: Raise the bar when it comes to creating synth effects, sound layers, glissandos, infinite sustain and more!

Building on the synthesis platform of the award-winning Superego, the EHX Superego+ Synth Engine raises the bar when it comes to creating synth effects, sound layers, glissandos, infinite sustain and more. Plus, we've added a complete effects section featuring 11 effects types, an EXP input for effect parameter control/preset recall and an EXT jack for a 3-button controller.

The Superego+ is equipped with the following effects:
DETUNE: pitch detune, EXP pedal controls pitch
DELAY: warm, analog sounding delay, feedback is preset, EXP controls delay time up to 2 seconds
ECHO: pristine digital delay, feedback is preset, EXP pedal controls delay time up to 2 seconds
FLANGE: Electric Mistress style w/filter matrix, rate and feedback. EXP pedal controls rate
PHASE: Small Stone style phase shifting with rate and depth control. EXP controls rate
MOD: pitch-based vibrato or chorus. EXP controls rate
ROTARY: rotary speaker style sound. Depth controls tweeter/horn balance. EXP pedal controls rate
TREM 1: sine wave tremolo. EXP controls rate
TREM 2: square wave tremolo. EXP controls rate
PITCH: pitch shifting effect over a +/- one octave range. EXP controls whammy
FILTER: resonant low-pass filter. EXP pedal controls frequency

The pedal provides enough sound shaping control to please the most sonically adventurous player and is equipped with Dry, Effect, Attack, Decay, Threshold, Layer and Gliss knobs, plus Rate and Depth knobs for the Effects Section. Four foot-switchable Freeze modes: Moment, Sustain, Auto and Latch, plus a Live Effects mode where the dry signal is routed thru the built-in effects and the internal synth engine is disabled, are included.

The polyphonic Superego+ works with guitar as well as other instruments including bass, keyboards, vocals, drums, etc. and comes equipped with an EHX 9.6DC-200 AC Adaptor.

Creates synth effects, sound layers, glissandos, infinite sustain and more
Four Freeze modes
Built-in effects section with 11 effect types
EXP input for effect parameter control
EXP Presets sweep between snapshots of 7 knob parameters; create and save one set of snapshots for each FX type
Live Effects mode where the dry signal is routed thru the built-in effects and the internal synth engine is disabled
EXT jack for a 3-button controller
Power adapter included

Specifications
Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 140mA
Year Released: 2017

Notes: Flexible bass preamp and DI delivers powerful tone shaping capabilities in a rugged pedalboard-friendly package!

The EHX Battalion Bass Preamp and DI is packed with a four-band equalizer, fully-featured MOSFET distortion section with three signal path options, a compressor, a noise gate and a comprehensive I/O. An all-in-one tone tank for your bass guitar.

Four-band EQ tailored specifically for bass guitar. Includes controls for Bass (below 200Hz), Lo Mid (boost/cut at 280Hz Mid (boost/cut at 750Hz) and Treble (boost/cut above 2kHz)
The Battalion's distortion section delivers an awesome array of distorted bass sounds
Distortion section features Level, Blend, Drive and Tone controls plus a dedicated footswitch
Three signal flow modes yield unique tonal variations. Pre EQ, distortion comes before EQ. Post EQ, distortion comes after EQ and Dry EQ, only the dry signal mixed in with the Blend control is affected by the EQ
Compressor with dedicated pushbutton, amount control and LED adds thump and sustain to your bass sound
Noise Gate with adjustable threshold control eliminates noise and hum while preserving your attack and original tone
Flexible I/O allows the Battalion to fit perfectly in any bass rig or application
14 input jack includes switchable 10dB pad
Power adapter included

Specifications:
Circuit: Analogue
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 100mA
Year Released: 2017

Notes: Originally designed by Josh Scott of JHS Pedals and graphic designer, Daniel Danger as a homage to Electro-Harmonix in what Josh and Daniel consider the company's design heyday of the 1970s, the EHX Lizard Queen Octave Fuzz is a nano-sized version of the pedal brought to life by the engineers at Electro-Harmonix that has all of the tones and vibes of the original circuit design by Josh. The tone is inspired by EHX's fuzz pedigree with a unique analog octave up circuit that has all the vibe of the original design first featured on the JHS Show in 2022. This creates a completely new and unique EHX fuzz sound we've never heard before. To further tell the tale, the pedal is adorned with vintage EHX-inspired graphics designed by Daniel.

Housed in EHX's Nano-sized chassis, the EHX Lizard Queen is a fixed gain fuzz pedal which features Volume, Octave, and Balance knobs. Volume controls the overall output volume level. The Octave control adjusts the level of the octave-up signal from zero to full octave chaos. Perfect for dialing in a crushing rhythm sound or a chimey, clanging lead sound. The Balance knob sets the tone balance between the smoother Shadow setting and the raspy, biting Sun setting. The effect of the Balance control is especially apparent with the octave set high.

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 5mA

Notes: 1978 rarity reissued with modern updates and a tiny pico footprint!

The late 1970s rarity Electro-Harmonix Slap-Back Echo pedal is reissued with modern updates and a Pico footprint!

The 50s era gave birth to an iconic sound in which a single, short delay was utilized to add depth and rhythmic effect on countless recordings. The newly reissued all-analog design of the EHX Slap-Back Echo delivers this beloved classic sound and more in a Pico-sized pedalboard-friendly package. With three delay time settings and up to +20dB of boost, the Slap-Back Echo can achieve subtle doubling effects to intense bathroom reflections all with the distinct flavor of bucket-brigade (BBD) circuitry.

Housed in EHX's Pico-sized chassis, the Slap-Back Echo features Gain and Blend knobs as well as a Time switch. The Gain knob controls the input signal before the echo circuit and also adjusts the overall volume at the output with a boost of up to +20dB. The Blend knob mixes the dry signal and the echo signal from 100% dry to 100% echo. The Time switch selects between three different delay times: 45ms, 65ms, and 100ms.

Independent gain and blend knobs
Time switch with 45ms, 65ms, and 100ms delay times
Up to 20dB of boost
True-Bypass
Small, pico-sized chassis
9V power supply included

Specifications:
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 3.65 x 2.0 x 2.0
Current Draw: 15mA
Year Released: 2023

Notes: Pigtronix Infinity 2 is a stereo looping pedal with two independent loops and a streamlined user interface that has been designed to provide an intuitive musical workflow, right out of the box.

The Infinity 2 enables musicians to seamlessly switch between parts, even during initial recording or while overdubbing. This Verse / Chorus type of workflow is further expanded by the ability to delete the loop that is not currently playing - freeing up an open slot for a new loop to be created, without interrupting playback.

Nearly all actions taken by the Infinity 2 occur at the loop boundary. This allows the musician to cue an overdub, switch between loops or stop precisely at the end of a loop, without having to worry about hitting the footswitch at precisely the correct time. Simply tell the machine what to do and it will occur at the end of the current loop. This is the general rule of thumb for all commands, with a few exceptions such as instant stop and fade out, which take place immediately when activated.

A small push-button switch, located above the left footswitch, allows the user to change the functionality of this footswitch to perform various Stop, Stutter and Octave Shift effects. A TRS remote jack allows these special features to be triggered by an external switch. Undo / Redo functionality can also be assigned to the left footswitch, allowing the musician to remove previous overdubs and add them back as desired.

In addition to a dedicated knob for loop Volume, the Infinity 2 also features a Decay knob that causes loop audio to fade out progressively during overdub. With the Decay knob set fully clockwise, the layers pile up at full volume. With the Decay knob set fully counter-clockwise, each overdub lasts for only one loop cycle. With the Decay knob set anywhere in-between those extremes, overdubbing on the Infinity 2 creates constantly evolving loop textures that can be instantly snapped back to a previous state using the Undo function.

The Infinity 2's full-range, high-headroom audio inputs will accept mono or stereo instruments as well as line-level signals. The dual outputs of the Infinity 2 can be routed for stereo output with pass-through and loop audio mixed together, or they can be configured for discrete Wet / Dry operationiwhere the loop audio is summed to one output, and pass-through audio is sent to the other.

Infinity 2 combines the high-fidelity audio and ultra-low-latency looping engine of the original award-winning Pigtronix Infinity Looper, with a much smaller form factor and a user interface specifically designed to make looping fun and musical for everyone.

Notes: Delay and granular sampling combine to create unique ambience effects, creative reverbs and glitchy chaos. Hugely versatile pedal with five contrasting programs.

Supplier's Notes:
In the high woodlands of the north, undiscovered by most inhabitants, there ruled a clan of old, mystic Treefolk. On the first new moon of spring, these Treefolk could be heard grafting limbs to grow their young - splicing bits of branches from each generation to produce the next line of Treefolk. These new beings keep the lifeblood of all who came before in their new skin. These sounds are in part very old, but in part very new. They are referred to as... Fable.

Let your storybook adventure grows with the Fable Granular Soundscape Generator. The Fable gives you five all-new programs centered around sample and chop delay algorithms to create bizarrely beautiful networks of sampled and resampled sounds. The Fable uses a powerful dual DSP architecture to combine delay programs in series with granular sampling algorithms, each with its own analogue feedback path. Find unique soundscapes ranging from smooth, flowing ambience; to bizarre, organic reverberance; to chaotic, glitchy swarms.

So, what exactly is this granular effect and why is it a magical experience when combined with delay? Granular is a digital processing technique of micro-sampling, wherein short samples called grains are read from a delay buffer. In the Fable, players can adjust these grains by manipulating their sampling length, position, and buffer size from which they're read. They can be played at double or half speed for pitch shift and time stretching effects, play them in reverse, read from multiple positions, and more, in order to achieve different effects.

It's a powerful but complex technique and Walrus Audio created five streamlined programs in the Fable that explore different aspects of its sonic range.

Programs

I. Reverse Delay into Reverse Granular

Program 1 runs a reverse delay into a reverse granular algorithm, in which sampled grains are played backwards. Reversal and re-reversal build up in the feedback paths, creating a complex and organically shifting soundscape. Turn grain size down for long, smooth reversed transients, and grain size up for stuttering reverse glitch madness.

II. Forward Delay into Octave Up Granular

Program 2 runs a forward delay into an octave-up granular program, in which sampled grains are played at double speed. Swarms of double-speed grains build up in the feedback path for bright and airy cascades of sound.

III. Analogue Delay into Octave Down Granular

Program 3 runs a warm, dark analogue-style delay into an octave-down granular program, in which sampled grains are played back at half speed. Slowed down repeats combine with analogue-style processing to create deep, thunderous footfalls and thick, murky ambience.

IV. Multi-Tap Granular into Multi-Tap Granular (Grain-Verb)

Program 4 runs two multi-tap granular algorithms in series, in which multiple samples are played back from each granular buffer simultaneously. Multiple points of sampled sound build upon each other in the feedback paths to create glitchy clouds and unique organic reverberance. Time in this program controls time-stretching of both granular algorithms, changing both the length and tonal character of the granular effect.

V. Forward Delay into Randomized Pitch Granular

Program 5 runs a forward delay into a randomized pitch granular program, in which each grain is played back at a randomly selected speed and direction, varying between pitched up double speed, pitched down half speed, normal speed, plus forward and reversed playback from grain to grain. Pitch changes with each new grain, so play with the X knob in this program to control the rate of randomized pitch modulation.

Notes: Last year in 2023, MOOER released its Prime Stomp S1 multi-effects pedal, to great critical acclaim. The device expanded on MOOER's previous pedalboard creations, applying a more sleek, lightweight, and, most importantly, chargeable design. Now, the company is turning heads once again with the Prime Minimax M1, an upgraded device that improves functionality not only for electric guitarists, but for bassists too.

Packed inside the Prime Minimax M1 are 149 high-quality effect models across 10 banks, each of which contains 4 patches. These include amp and cabinet simulations and overdrives, along with dynamic, modulation, delay, reverb, and EQ effects, as well as empty user slots. Most notably, though, 20 of the amp and cabinet simulations have been curated specifically for bass guitarists, showing MOOER's dedication to providing support for this additional audience.

As with the Prime Stomp S1 and other recent MOOER multi-effects pedals, the Prime Minimax M1 is supported by the MOOER Cloud, a cutting-edge framework for preset sharing. Not only does this allow guitarists to customize and share their favourite M1 creations via the Bluetooth-compatible MOOER Prime app, but it also supports the importing of third-party IR files of up to 512pts. As a result, the 149 built-in effects are greatly expanded, with users able to simulate their favourite classic amplifiers, cabinets, and tones, whether they have downloaded them online or recorded the IRs themselves.

Taking an all-in-one approach to guitar practice and performance, the M1 also includes a built-in drum machine, complete with 40 different drum grooves and 10 metronomes. This goes hand-in-hand with the 80-second looper, with which guitarists can record electric and bass guitar phrases, play them back, and overdub them, all with simple footswitch presses. The looper can even be triggered automatically through signal detection, ensuring that loops always begin perfectly to form a perfect loop. Moreover, the looper can also be synced with the drum machine, a combination of which results in an all-in-one suite for songwriting.

Rather than the four footswitches found on the Prime Stomp S1, the Minimax M1 features just two footswitches, facilitating a more compact and streamlined design. Each footswitch is multi-functional, supporting a variety of tasks, such as browsing preset slots, triggering loop recordings, activating the device's built-in tuner, the tap tempo functionality, and interacting with the drum machine. The status and information of these features are visualized through the device's LED screen, along with indicators for Bluetooth activation, charging, battery life, and footswitch status. Two buttons are also provided-one to activate the drum machine and another for the device's power toggle.

In contrast to MOOER's recent flagship device, the GE1000 Li, the Prime series focuses heavily on portability and compactness. Weighing up at just 190g and 12cm in length, the Minimax M1 can fit comfortably into any backpack and most pockets, facilitating on-the-go guitar practice and performance. To add to this convenience, the M1 can be charged by USB through its built-in 2000mAh lithium battery. As a result, with the device's portability, guitarists can truly use this multi-effect pedal anywhere, anytime.

Continuing MOOER's reputation for providing flexible audio routing options, the design of the Prime Minimax M1 inputs and outputs are varied. Of course, the usually 14" mono input and 14" stereo output are available, as well as the 3.5mm output for headphone practice and monitoring. However, further options are available, such as Bluetooth 5.0 support for audio playback, allowing users to stream audio from another device to play along with. The device's USB-C port can even be used for OTG recording, allowing users to record their creations directly into the MOOER Prime mobile app.

Overall, the Prime Minimax M1 is yet another welcome addition to the pedal producer's range of multi-effects pedals. In particular, it marks a new level of portability for MOOER's device portfolio, showing just how much functionality its design team can pack into such a small box.

Notes: High Quality Mic Pre with FX Loop in a compact form factor

FX Loop Send and Return supports Balanced and Unbalanced signals - interfaces with consoles or guitar pedals easily

Latching or Momentary Footswitch control of FX Loop for performance effects

Works with a wide range of microphones including condenser and ribbon mics with up to 65dB of clean gain

Aux I/O connection supporting stereo input and send

Guitar Amp output and Headphone monitor output with separate master volume control

International universal power supply included

Operates on 9V battery (No phantom power)

48V Phantom power for Condenser mics

Balanced XLR Output which supports DI and Line levels

Instrument and Balanced Line level inputs

Versatile Mix Control supports 3 modes- 100% Mic w/FX blended in, or Mic/FX balance control, or 100% FX (no Mic)

Notes: The Golden Boy Mini - the epitome of versatile and transparent overdrive, designed in collaboration with the renowned guitarist Joey Landreth. With its exceptional harmonic detail and abundant headroom, this compact overdrive pedal takes the concept of transparent overdrive to new heights, using a simple and powerful interface.

The Golden Boy Mini is the perfect addition to any guitarist's arsenal, allowing you to shape and enhance your tone in ways you've never imagined. Its transparent nature ensures that your core tone remains intact, while adding a dynamic of warmth, richness, and depth that elevates your playing to new levels.

Its intuitive controls allow you to dial in the perfect blend of overdrive, from subtle grit to soaring, harmonically rich tones. The pedal's wide-ranging gain control ensures that it can adapt to any musical style or genre, whether you're playing delicate fingerpicked melodies or unleashing blistering solos. Pair it with Asymmetrical or Led Clipping and put the final touches with it's 3-band Baxandall-style EQ.

Beyond its exceptional sound, the Golden Boy Mini is built to withstand the rigors of the road. Its rugged construction and top-quality components ensure reliability and durability, making it a reliable companion for both studio sessions and live performances.

Whether you're a seasoned professional or an aspiring guitarist, the Golden Boy Mini will transform your tone and ignite your creativity.

Discover the Golden Boy Mini and unlock the true potential of your guitar tone. Order yours today and witness the power of transparent overdrive like never before. Elevate your sound and embark on a sonic journey with the GOLDEN BOY Mini!

Notes: Discover your amp's potential

Riverside's cascading gain stages create harmonically rich tones that are immensely musical and natural-from silky clean overdrive to colossal distortion, and all points between. The analogue JFET front-end ensures that Riverside responds to your guitar with uncompromised dynamics and feel. The precision crafted DSP generates dynamic complexity and pleasing harmonics at every stage, letting your amp shine at any gain level. Riverside takes your amp to places you never knew it could go.

Overview

Infinite sweet spot

Riverside's continuously variable circuit tuning dynamically tweaks multiple parameters under the hood so that the sweet spot follows you at any gain setting. As you turn the Drive knob, Riverside makes continuous adjustments, tuning the circuit for optimum tone. This results in an incredibly versatile drive pedal that is equally capable of providing sparking cleans, mild overdrives, high-gain leads, and heavy saturated distortions.

Flexibility to adapt to any amp

Your amp choice has a large influence on the sound of any drive pedal connected to it. Riverside's musical 3-band EQ, with independent Bass, Middle and Treble knobs, is designed to complement your amp's tone with the flexibility needed to dial in your sound effectively and efficiently. The three-position Presence switch tailors the highest frequencies, allowing Riverside to integrate perfectly with any amp or setup, no matter how dark or bright.

Digital or analogue? Strymon choose both

The first stage of Riverside's custom multistage drive topology is an all-analogue, ultra low noise, discrete, class-A JFET circuit. This gain stage is digitally controlled to maximize headroom while adding as much as 20dB of pure analogue gain, with tight integration to the subsequent DSP gain stages. With Strymon's hybrid approach you get the best of both analogue and digital worlds: The JFET stage provides exceptional touch sensitivity and dynamic interaction with your guitar, while the incredibly powerful SHARC DSP facilitates the great level of detailed complexity and responsiveness you'll want to hear.

Tone Adjustment and Shaping

Drive adjusts the amount of gain applied to the signal. Employs continuously variable circuit tuning which adjusts many parameters as you turn the knob.

Level controls the output volume level when the effect is engaged.

Gain toggles between low or high gain channels.

Low sets a gain structure allowing for a wide range of low to medium gain sounds. At high Drive settings the sound is heavily overdriven, and slightly 'loose' like a dimed vintage amp.

High increases the gain throughout the signal path and tightens things up. Stays relatively clean at low Drive settings, shifting to heavy saturated distortion at maximum.

Push toggles between flat or enhanced midrange frequencies.

Norm can be used for cleaner, more transparent tones.

Mid adds a mid-band EQ push just after the analogue front-end gain. This pushes the subsequent drive stages harder, tightening up the response. Perfect for fat drive tones, or pushing a distorted or on- the-edge amp into further breakup.

Bass is an active shelving/parametric low frequency control. The control is post-drive, shaping your drive tones before they reach your amp.
Middle is a parametric mid boost/cut control with optimized frequency centre. The control is post-drive, shaping your drive tones before they reach your amp.

Treble is a wide-ranging high frequency active shelf control. The control is post-drive, shaping your drive tones before they reach your amp.

Rear Panel

Presence is a three position switch that tailors the highest frequencies of the output signal.

Minus (-) provides clarity with a controlled top end that works well with many amps that have a brighter voice.

Enhanced (centre) extends the top end to allow for more sizzle on high gain tones. Useful if you want enhanced detail in the uppermost frequencies.

Plus (+) delivers extended high end detail to the darkest amps, and is also useful when plugging directly into a power amp.

In is a high impedance mono input. Plug your instrument in here.

Out is a mono signal output. Connect to your amp, other pedals, mixing board, etc.

Boost allows use of an external switch to toggle up to +6dB of post boost on/off. Or connect to the EXP input of another Strymon pedal and simultaneously engage the Favorite settings on both pedals with Riverside's Favorite switch.

Expression Pedal Input provides continuous expression pedal control over any or all of the knobs, in any direction, with your foot. Or can be used in Volume Mode to control the volume level of the effect.
Power - Plug your power supply in here. Maximum 9 volts DC centre-negative, with a minimum of 250mA of current. Standard 5.5mm x 2.1mm barrel connection.

Secondary Functions

Press and hold ON footswitch to enter Secondary Function mode. Release the footswitch, then turn the desired knob to adjust the parameter.

Optional variable-threshold Noise Reduction tames hum, buzz, and system noise when you're not playing. A downward expander with advanced signal detection techniques creates a seamless transition to noise reduced silence with all types of input signal dynamics.

Boost Level sets up to +6dB of available boost when using an external Boost footswitch.

Ins, Outs, Switches

High impedance mono input
Mono output
Favorite footswitch to save a favorite setting
Favorite Input to connect an external MiniSwitch to recall a Favorite preset
Expression pedal input allows the connection an expression pedal for simultaneous morphing control over multiple parameters (Expression mode), or logarithmic taper for smooth volume control (Volume mode)
MIDI accessible via Expression jack for remote parameter control and access to 300 preset locations
Boost pedal input allows connection of an external footswitch for up to +6dB of analog boost, or to toggle the Favorite preset on other Strymon pedals (Favorite Out mode)

Analogue Quality

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
Premium analog front end and output section
Super high performance SHARC DSP in a compact form factor
32-bit floating point processing

More

True Bypass (electromechanical relay switching) or selectable transparent Analog Buffered Bypass
Strong and lightweight anodized gold aluminum chassis
9V DC power supply included
Power requirements: maximum 9 volts DC center-negative, with a minimum of 250mA of current
4.5" deep (11.43 cm) x 4" wide (10.16 cm) x 2.4" tall (6.1 cm)
Designed and built in the USA

Notes: Dark Star Stereo Flagship Reverb Pedal

The continued pull, the drift unabated, the controlled wash of gravity and the chaotic meander of its combined uncertainties. In fact, the original and highly loved Dark Star is a pedal that historically was OBNE's most popular reverb. People bonded with its warmth and aliasing, its long trails and the way it encouraged you to turn the mix fully up. Now, it's in with the new. Dark Star Stereo expands on the promise of ambient reverb and is a pitch shifting, bit crushing, filtered reverb pedal with just about every feature you could ask for. One massive stereo voice, with a wide suite of controls that likes to go anywhere in your signal chain - all that's left is for you to decide just how dark you must go.

Reviving the magic of the long-trail lo-fi reverb algorithm that made Dark Star a breakout hit years ago, Old Blood Noise Endeavors announces a new Dark Star for a new era, with a drastically expanded feature set and improved signal quality that is sure to draw in old fans and new. New features like Stereo Input and Output, on-board Presets, Trails, Expression control over all parameters and MIDI control, of both Parameters and Presets, all help to give more versatility to this device than ever before. Beyond that, the new Dark Star does away with the three-mode toggle, instead creating a single mode combining all the Pitch-Shifting, Bit-Crushing, delayed goodness of the original. Access your favourite sounds as well as new combinations, with new shapers like Filter, Multiply, Volume and Stereo-Spread.

Notes: A fresh, original take on pitch shifting, the HammerOn generates hammer-on pitch shifts which alternate between two different intervals. Seven modes provide a range of effects, from simple hammer-ons to automatic techno guitar sequencing with trills.

Supplier's Notes:
Hands-free Hammer-Ons

Hammer-on notes in conjunction with your hands to create never-before-heard licks and riffs - the only limit is your imagination.

7 pedals in 1

Seven modes range from pitch jumps and harmony effects to pitch sequences and drop/capo tunings - HammerOn is like seven pedals in one.

Play the Impossible

Impossible Mode allows you to hammer-on pitch shifts that alternate between two selectable pitch amounts.

The DigiTech HammerOn is a versatile effects pedal with an amazing amount of flexibility and options to create and channel your musical ideas. Take the time to get to know the many options and see if it sparks new creative ideas.

The PITCH 1 footswitch is dedicated to always be a hammer-on selectable momentary pitch shift above or below what you are playing. PITCH 2 footswitch has 3 different modes of operation selectable using the MODE button. There is a button called DRY+ that can turn on the dry signal and a button called TRILL that can mimic rapid presses of the footswitches.

With all these options it's like having 7 pedals in one:

1. HAMMER-ON: An instantaneous momentary pitch shifter pedal
2. HAMMER-ON with TRILL: A rapid fire hammer-on action pedal
3. HARMONY-ON: An instantaneous harmony creation pedal
4. The IMPOSSIBLE Pedal: A dual alternating momentary pitch shift pedal
5. DROP/CAPO SEQUENCE: A multi-setting pitch transposition pedal
6. SEQUENCE with TRILL: An automatic guitar riff sequencer
7. SEQUENCE with DRY and TRILL: An automatic techno guitar sequencer

Specifications

Electronics
Sample Rate: 44.1 kHz in classic mode, 22 kHz in chords mode
Frequency Response: 20 Hz-16 kHz (classic mode), 20 Hz-11 kHz (chords mode)
Signal to Noise Ratio: > -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD: 0.004% @ 1kHz; ref= 1 dBu w/ unity gain
A/D/A Conversion: 24-bit

Input / Output
Input Type: 1/4" Unbalanced TS
Max Input Level: +5 dBu
Input Impedance: 1MO
Output Type: 1/4" Unbalanced TS
Max Output Level: +10 dBu
Output Impedance: 1kO (Effect enabled or effect bypassed), True Bypass

Physical

Dimensions: 5.12"(13.00cm) x 3.57"(9.06cm) x 1.84"(4.67cm) (L x W x H)
Weight: 1.12 lbs. (508g)

Power

Power Consumption: 2.3 Watts (258 mA @ 9VDC) typical
Power Requirements: External Adapter (included), 9 VDC 1300 mA

Notes: Buzz. Beep and bloop. Get high on the lo-fi sounds of "old-school" games, toys and terminals!

The Mainframe provides sample rate reduction ranging from 48kHz to 110Hz. A little background... the sample rate is the number of times per second that a sample or snapshot of an analogue signal is taken. For example, CDs (remember them?) had a sample rate of 44.1kHz which means that the original analogue signal is sampled 44,100 times per second.

The sample rate defines the frequency range that can be reproduced while maintaining good fidelity. When the sample rate is reduced the quality of the audio is degraded and aliasing occurs. Aliasing means audible artifacts created when higher frequencies are sampled at an inadequate rate and the result is distortion. The Mainframe's sample rate range is wide enough to take you from sounds that are quite pristine to sounds that are unrecognizable when compared to the input signal.

It also provides bit crushing ranging from 24-bit to 1-bit. What does that mean? Bit crushing is bit depth reduction. Back to the CD example... CDs used a 16-bit bit depth meaning that each of its samples was represented by 16-bits of information. Higher bit depths can accurately represent a greater dynamic range while bit crushing increases the number of sampling errors and creatively degrades the sound to bring us back to those nasty "old school" sounds we love.

The Mainframe's selectable High/Low/Band-Pass filter lets the user shape the artifacts of the bit crushing and sample rate. Another very cool feature is its Sample Rate Tuning Mode where the pedal analyses your input signal in real-time and sets the sample rate to match the pitch of your signal, or a set interval above your signal. This allows you to set the sample rate to match the key of a song, or it will continually adjust the sample rate based on what you play!"

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 90mA
Year Released: 2020

Notes: Five decades of sound processing expertise distilled into a compact multi-effects pedal. Huge processing power derived from the H9000 Harmonizer, featuring classic algorithms and new effects.

*** Two new algorithms for the Eventide H90 Harmonizer- Update April 2024 ***

Aggravate

Aggravate is an octave fuzz inspired by famous classic analog octave fuzzes from the '70s. Satisfy all your fuzz needs with its versatile controls and rich feature set.

Features
Screaming fuzz tone with 3 voices - Thick: off, Thick: On and Thick: MoreOn which adds a rich low end to your signal
Octave is based on an 'absolute value' style octave meaning that it sounds much more organic than a pitch shifted octave up
Envelope follower to achieve some dirty Queens-like tone. The filter can go from positive to negative envelopes and has 2 shapes, linear and exponential
Pump controls allow you to duck your signal on rhythm via a rate or tempo knob OR you can manually pump your signal by assigning Pump to a performance switch or an external controller
Tone and mid controls for the fuzz
Bias control to make the fuzz more 'spitty', reminiscent of a dying battery on a classic fuzz pedal

Sticky Tape

Sticky Tape is a new tape algorithm based on the same emulation technology as the H90-exclusive, Head Space. It opens up a world of tape tone possibilities - all the character, grit, and modulation of those classic reel-to-reel tape machines without the bother.

Features
One-knob compressor based on the compression section of DBX companders found in many tape machines
Two tape machines with an adjustable offset to get a wide range of doubling or slap back echo effects
4 different tape speeds for a variety of tone and character
Wow and Flutter controls which can be used to create lo-fi detuning, subtle flanging, gooey chorus, or the extreme sounds of a machine that's in desperate need of a tune-up
Flange performance parameters to get that classic, dramatic, studio style tape flange
Separate tunings of the algorithm for Bass and Guitar depending on the Instrument Type for best possible tone no matter the instrument

Supplier's Notes:
Beyond the Effect Horizon

The H90 Harmonizer is Eventide's next-generation multi-effects pedal. Whether you want high-quality bread and butter effects or experimental sounds unheard, the H90 has everything you need to inspire your creativity with an intuitive UI designed with players in mind. Discover why top artists and producers have chosen Eventide through the years with 62 effect algorithms and hundreds of Program combinations curated for a variety of instruments and genres. With its comprehensive I/O and flexible routing options, the H90 is designed to be the heart of your rig.

New Technology, New Effects

H90 Harmonizer features modern ARM-based architecture derived from the world's most powerful effects processor, Eventide's flagship H9000 Harmonizer. This paves the way for the ongoing creation of more advanced effects processing techniques. As a result, the pedal not only offers the iconic reverbs, delays, modulation, and pitch shifting effects of the H9 Max but goes far beyond with 10 new powerful algorithms including state-of-the-art, fast-tracking, and warble-free Polyphonic Pitch Shifting. Eventide's proprietary SIFT (Spectral Instantaneous Frequency Tracking) technology clears the road ahead for next-gen effects both long imagined and unimaginable.

Live Performance Machine

The H90 Harmonizer is a live performance powerhouse! The front panel has been reimagined with five push knobs, seven LED buttons, and a hi-res OLED display for greater hands-on control and parameter feedback. Two large push knobs allow you to switch between SELECT, BANK, and PERFORM modes with ease. In PERFORM mode, you get six programmable footswitches. Map functions like tap tempo, preset, insert bypass or momentary states; use them to engage options like reverb freeze, pitch flex, or delay repeat; make multiple instantaneous parameter changes with three Hot Switches .The comprehensive UI allows you to control any parameter with ease. Adjust expression mappings by hand with the PERFORM HotKnob and engage up to six individual assignable parameters with the three push-button Quick Knobs. Get even more control with two inputs for expression pedals or auxiliary switches with up to three buttons. If that wasn't enough, take advantage of the pedal's extensive MIDI control. The H90 comes with hundreds of factory Programs which can be loaded using either SELECT or BANK mode. In SELECT mode, you can navigate your Playlist sequentially without ever missing a detail thanks to the OLED display. In BANK mode, you can quickly load from a bank of 3 Programs, perfect for cueing up a range of sounds for a song. Organizing your favourite sounds has never been easier, simply load a new Playlist and you're ready for the next gig!

Specifications

Inputs 1 - 4: 14 inch TS mono jack
Outputs 1-4: 14 inch TS mono jack
Exp/Ctl 1-2: 14 inch TRS / Expression pedal or Aux Switch
USB Type-C: Use USB 2.0 for control, updates, and MIDI
MIDI In: Five-pin DIN (Female)
MIDI Out/Thru: Five-pin DIN (Female)
DC Input Jack: 5.5/2.5mm plug / Center Positive (+)
Input Impedance (Inst. Level: >600k ohms
Input Impedance (Line Level): >80k ohms
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms
Maximum Input Level (Inst): +4dBu
Maximum Input Level (Line): +14dBu

Power
12V DC @ 1A / Center Positive (+), 5.5/2.5mm jack

Dimensions (Product)
English: 6.5" (W) x 5.25" (D) x 2.5" (H)
Metric: 170 (W) x 136 (D) x 68 (H) mm

Dimensions (Package)
English: 10.5" (W) x 7" (D) x 3" (H)
Metric: 265 (W) x 180 (D) x 75 (H) mm
Weight (Product): 1.85 lbs / 0.84 kg
Weight (Package): 3 lbs / 1.36 kg
Shipping Contents: H90, Eventide Sticker, 4x Rubber feet, Guitar pick, Universal power supply with plugs (US, UK, EU, AUS), USB A to Type-C cable, Quick Reference Guide

Notes: Robotise, harmonise... rule the vocoder world!

The EHX V256 Vocoder welds your voice to your axe inspiring the twist of creativity that can make all of the difference. Bend your gender, drone your tone and invite aliens into your work of art. You want flexibility? The V256 lets you adjust the vocoder from 8 to 256 bands taking you back to the 80's and propelling you into the future at the same time. Bring your vocals up to snuff with advanced processing "Reflex Tune"... today's most popular pitch correction effect.

Specifications:

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 200mA
Year Released: 2009

Notes: Harvezi Hazze is a versatile and unique distortion pedal with a wide tonal palette.

The heart of Harvezi Hazze is a waveshaper designed around a unijunction transistor, a relic from the early days of the semiconductor industry unearthed from the e-waste bins of flea markets in Tbilisi, Georgia.

The unique properties of the unijunction transistor allow one simple component to replace a number of very complex devices: depending on the operating mode, we can get a distortion, a limiter, a waveshaper and a generator - with a smooth transition between them. Experiments have shown that this transistor is an excellent basis for a distortion stompbox.

The name translates from Georgian as "a fault on the transmission line" or "signal jamming", and both the semantic and phonetic natures of it unequivocally imply what to expect - an impediment to the input signal, ranging from pleasant harmonic distortions to complete obliteration. The signal chain of the unit consists of an optical compressor with fixed parameters; a dual-mode distorting amplifier with either softer or harsher clipping; a waveshaper built around a unijunction transistor; and a tone stack section trying to tame all this mess.

Signal Chain:

Input -> Compressor -> Distorting amplifier -> Waveshaper -> Tone stack -> Output

Controls:

Gain - controls the output amplitude of the signal in the distorting amplifier section. Depending on the position of the switch, the distortion introduced by this section is soft (switch in the left position) or more aggressive with an abundance of high harmonics (middle position).

Spoil and Spread - control the operation of the unijunction transistor (waveshaper section). Spoil sets the point on the amplitude axis at which the wave will fold, and Spread sets the amplitude of the folding. The sonic meaning of these knobs can be described as follows: the higher the Spread value, the more severe the distortion will be, and Spoil changes timbre and response threshold. By adjusting Spoil you can achieve various gating and cutoff effects. At low Spread values, distortion sounds are mixed into the clean sound.

Tone - adjusts the brightness of the sound; the higher the value, the more high harmonics are present in the signal.

The switch regulates either the distortion mode in the amplifier section (left and center positions), or it turns on the total feedback mode (right position), when the values of all knobs begin to influence each other and effects occur such as resonance at certain frequencies and self-oscillation.

Level - controls the output volume of the signal.

The footswitch routes the signal through the effect circuitry or from input to output directly (true bypass).

The array of switches on the side of the unit gives a few more tonal options:

TONE STACK - routes the signal through the tone stack section (Tone knob).

BASS BOOST - enhances bass frequencies.

TONE MODE - changes the behaviour of the Tone knob (tilt or lowpass).

NOTCH FREQ - changes the central frequency of the filter.

HIGH CUT - attenuates high frequencies.

COMPRESSOR - routes the signal through the compressor.

The lower position of the switch enables the function.

Examples:

Compression:

Switch in the central position, Spoil, Spread, Gain - min, Tone - 12 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Soft clipping:

Switch in the left position, Spoil, Spread - min, Tone - 12 o'clock, Gain - 2 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - on, HIGH CUT - off, COMPRESSOR - on.

Distortion:

Switch in the middle, Spoil, Spread - min, Tone - 1 o'clock, Gain - max.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - off.

Fuzz:

Switch in the left position, Spoil - 1 o'clock, Spread - max, Tone - 11 o'clock, Gain - 10 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - on, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Black:

Switch in the left position, Spoil - 12 o'clock, Spread - 1 o'clock, Tone - 3 o'clock, Gain - 3 o'clock.

TONE STACK - on. BASS BOOST - off, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - off.

Feedback:

Switch in the right position, Spoil - 11 o'clock, Spread - 4 o'clock, Tone - 2 o'clock, Gain - 9 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Technical specifications:

Input - 1/4-inch/6,35mm mono jack.

Input impedance - 750 kOhm.

Output - 1/4-inch/6,35mm mono jack.

Output impedance - 100 Ohm

True bypass.

Power - DC 9V, 50mA, DC jack 2.1mm, centre negative.

Notes: The ultimate overdrive? Raw version of the Unobtanium pedal adds hand-selected NOS germanium transistors to the circuit. Filthy 60s vibes on tap here. Hard to beat.

Supplier's Notes:
A rare sonic element with alternate refinement - meet the new Unobtanium RAW edition!

The main composition has stayed the same as the standard version of the pedal: A recreation of the K-style overdrive true to the last detail finds its place at the right section of the pedal while the left section features two D-style amplifier voicings, the most unobtainable tube amplifiers in the world.

For the RAW edition, Crazy Tube Circuits have added a couple of magic ingredients to the clipping section of the K side: a set of hand selected New Old Stock Mullard/Valvo labelled OC45 germanium transistors from the 60s.

This is the first K-type circuit to feature germanium transistors!

Many germanium transistor types and found that the OC45 transistors added a supernatural feel with organic compression for increased gain and sustain. Fear not - the standard sounds are still there in the stock setting where you listen to germanium diodes clipping like in the original unit.

The amp-in-a-box side of the RAW version is glassier and punchier than the standard version. Think of singing blues rock and classic rock sounds that cut through the mix, flawlessly performing with all kinds of different guitars/ pickups combinations. Think of having the rock/jazz toggle switch set in the rock setting.

As with the standard version, Unobtanium Raw features a passive effects loop to give you the option to connect your beloved pedals between your booster/overdrive and amp in a box or use the two sections as separate and independent effects when using an external bypass switcher/looper.

Note that all pedals inserted in the passive effects loop are still in the signal chain when any or both sections of are in bypass mode.

Unobtanium Raw features a power-up bypass/engage pre-set function for the footswitches. That way you can select which state your pedal will go to when you plug the power supply. This function comes in especially handy to people that use remote pedal switchers/loopers as they only set the state of the pedal once and then operate from the controller.

Main sonic differences between standard and RAW versions:

K-side:

Standard version: MOD setting = silicon diodes added in combination with the stock germanium diodes in the clipping section for higher output/less compression.

Raw version: OC45 setting = New Old Stock Mullard/Valvo OC45
germanium transistors used instead of stock germanium diodes for
clipping resulting in higher gain and sustain/compression.

D-side:

Standard version: Smoother jazz/blues oriented tones.

Raw version: Glassier blues rock oriented tones.

The RAW version will not replace the standard one, that will continue to thrive. It will be built in limited quantities, and will stay out there for as long as there is stock of the beautiful NOS Mullard/Valvo OC45.

Warning: This unit was designed for 9V DC input only. Do not use a higher voltage power supply

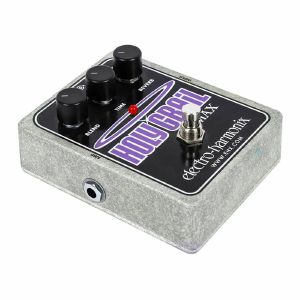

Notes: Your quest for the perfect reverb pedal is answered!

The EHX Holy Grail Max, an easy to use, stellar sounding reverb pedal. The Holy Grail Max delivers four types of studio quality reverb: SPRING, HALL, PLATE and REVERSE all designed for the discerning guitarist but also great with other instruments on stage or in the studio. Included is an analogue wet/dry control that provides a constant volume curve as you turn the BLEND knob from fully dry to fully wet while also keeping your dry signal analogue through the pedal.

Specifications:

Circuit: Digital
Bypass: True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 80mA
Year Released: 2014

Notes: Intelligent multi-effects from Mooer, the Prime M2 is a compact, convenient pedal compatible with the Mooer Prime mobile app, Mooer Studio desktop software and the Mooer Cloud tone-sharing platform.

Supplier's Notes:
Over the last few years, MOOER has released several Prime multi-effects devices, including the Prime P1, P2, S1, and most recently in 2024, the Prime Minimax M1. Excitingly, the company is kicking off 2025 with a brand new addition to the Prime family-the Prime Minimax M2 Intelligent Pedal.

Within this small multi-effects device, a whole lot of functionality is packed in, including an impressive 194 effects models, including overdrive, preamp simulators, cabinet models, delays, reverbs, modulation effects etc., and more. In typical MOOER style, though, the company took things a step further by offering limitless flexibility through the support of its in-house MNRS sample files, as well as third-party IR sample files. Essentially, this means that users can download additional tonal emulations and effects from the MOOER Cloud and third-party sources to the device, which they can then save across 80 preset slots.

As with some past models in the Prime series, the M2 sports a convenient touchscreen design, facilitating easy browsing through the device's banks of presets. However, guitarists are not limited to interfacing with the pedal in this way, as it also features two footswitches, both of which can be used to switch between presets in each bank. There is even a MIDI jack built into the device, enabling users to connect their MIDI controllers to extend the control functions, and the MOOER F4 wireless footswitch support is also supported. Essentially, these augmentation options facilitate additional footswitches to ensure switching preset tones is always as quick and seamless as possible within any workflow.

While the Prime M2 Intelligent Pedal is primarily designed for effects and tonal simulations, it also comes packed with an array of other useful features. For example, it contains a looping module with a hefty 80-minute capacity, in addition to 10 recording save slots to ensure that any looping creations can be kept for future use in performances. Similar to past looper modules in MOOER's products, users are also free to overdub their recordings and even undo or redo their overdubs, offering a lot of real-time flexibility for creating loop-based musical structures.

As if the addition of a looper wasn't enough, this feature is also synchronizable with an internal drum machine and metronome, a combination that includes 56 drum grooves and 4 metronome varieties. Ultimately, it's a reminder that MOOER clearly recognizes and wishes to solve the struggles that musicians have when attempting to produce precise loops while staying in time. Upon commencing recording, the drum machine can produce four initial beats to serve as a count-in cue, and of course, this can be combined with the device's tap-tempo control for dynamic use. Best of all, this feature can also be applied to modulation and delay effects, ensuring that they work perfectly in time with any performance.

Extra features are included to complete this all-in-one pedal, including a high-precision tuner with fully customizable frequency ranges. Guitarists can even leverage the M2's built-in Bluetooth input support, allowing them to practice, jam, and even produce looped musical structures over their favorite backing tracks, band prototypes, and musical pieces.

Perhaps unsurprisingly for existing MOOER product users, the Prime M2 also boasts an impressive variety of audio routing systems. As was previously mentioned, that includes Bluetooth input, as well as industry standards such as dual-channel stereo output, perfect for stereo delay and modulation effects. It also supports headphone output for those who wish to practice in silence, and even OTG recording, which means that guitarists can record their creations directly to their smartphone whilst on the go.

Speaking of on-the-go, MOOER is continuing its recent portable-play focus with the Prime M2 Intelligent Pedal, as it is fitted with a built-in rechargeable lithium battery with a battery life of up to 6 hours. Ultimately, this means that even a lack of local power sources won't get in the way of rehearsals and live performances. Combined with the pedal's lightweight and small build, it truly is an ideal addition to the pedalboard of any traveling musician.

Overall, the Prime M2 Intelligent Pedal is set to be an impressive new addition to the Prime series. It features augmented functionality when compared to past models, yet still in a minimalist and easy-to-use package, keeping the size small and light yet still packing in footswitches, a touch screen, and other flexible control systems.

Notes: Over the last few years, MOOER has released several Prime multi-effects devices, including the Prime P1, P2, S1, and most recently in 2024, the Prime Minimax M1. Excitingly, the company is kicking off 2025 with a brand new addition to the Prime family-the Prime Minimax M2 Intelligent Pedal.

Within this small multi-effects device, a whole lot of functionality is packed in, including an impressive 194 effects models, including overdrive, preamp simulators, cabinet models, delays, reverbs, modulation effects etc., and more. In typical MOOER style, though, the company took things a step further by offering limitless flexibility through the support of its in-house MNRS sample files, as well as third-party IR sample files. Essentially, this means that users can download additional tonal emulations and effects from the MOOER Cloud and third-party sources to the device, which they can then save across 80 preset slots.

As with some past models in the Prime series, the M2 sports a convenient touchscreen design, facilitating easy browsing through the device's banks of presets. However, guitarists are not limited to interfacing with the pedal in this way, as it also features two footswitches, both of which can be used to switch between presets in each bank. There is even a MIDI jack built into the device, enabling users to connect their MIDI controllers to extend the control functions, and the MOOER F4 wireless footswitch support is also supported. Essentially, these augmentation options facilitate additional footswitches to ensure switching preset tones is always as quick and seamless as possible within any workflow.

While the Prime M2 Intelligent Pedal is primarily designed for effects and tonal simulations, it also comes packed with an array of other useful features. For example, it contains a looping module with a hefty 80-minute capacity, in addition to 10 recording save slots to ensure that any looping creations can be kept for future use in performances. Similar to past looper modules in MOOER's products, users are also free to overdub their recordings and even undo or redo their overdubs, offering a lot of real-time flexibility for creating loop-based musical structures.

As if the addition of a looper wasn't enough, this feature is also synchronizable with an internal drum machine and metronome, a combination that includes 56 drum grooves and 4 metronome varieties. Ultimately, it's a reminder that MOOER clearly recognizes and wishes to solve the struggles that musicians have when attempting to produce precise loops while staying in time. Upon commencing recording, the drum machine can produce four initial beats to serve as a count-in cue, and of course, this can be combined with the device's tap-tempo control for dynamic use. Best of all, this feature can also be applied to modulation and delay effects, ensuring that they work perfectly in time with any performance.

Extra features are included to complete this all-in-one pedal, including a high-precision tuner with fully customizable frequency ranges. Guitarists can even leverage the M2's built-in Bluetooth input support, allowing them to practice, jam, and even produce looped musical structures over their favorite backing tracks, band prototypes, and musical pieces.

Perhaps unsurprisingly for existing MOOER product users, the Prime M2 also boasts an impressive variety of audio routing systems. As was previously mentioned, that includes Bluetooth input, as well as industry standards such as dual-channel stereo output, perfect for stereo delay and modulation effects. It also supports headphone output for those who wish to practice in silence, and even OTG recording, which means that guitarists can record their creations directly to their smartphone whilst on the go.

Speaking of on-the-go, MOOER is continuing its recent portable-play focus with the Prime M2 Intelligent Pedal, as it is fitted with a built-in rechargeable lithium battery with a battery life of up to 6 hours. Ultimately, this means that even a lack of local power sources won't get in the way of rehearsals and live performances. Combined with the pedal's lightweight and small build, it truly is an ideal addition to the pedalboard of any traveling musician.

Overall, the Prime M2 Intelligent Pedal is set to be an impressive new addition to the Prime series. It features augmented functionality when compared to past models, yet still in a minimalist and easy-to-use package, keeping the size small and light yet still packing in footswitches, a touch screen, and other flexible control systems.

Notes: Endorphin.es present the rather simple but ever so useful PLUS 3 - desktop expression and sustain pedal that adds controls and unlocks features in MIDI controllers, synthesizers, effects pedals and semimodular/eurorack instruments, some in ways previously not possible

PLUS 3 is designed for musicians who prefer compact desktop control of features accessible via the sustain and expression jacks of their instruments, as opposed to using their feet or bulky sustain and expression pedals on their desk.

PLUS 3 includes a high-quality fader for expressive performance and automation, a momentary sustain key, and an innovative "drone mode" toggle switch, which lets you free your hands and hold notes indefinitely. In drone mode, the momentary key's functionality changes, to let you swap droned notes with new ones.

PLUS 3 is totally passive, meaning it doesn't require any power to work. It's made of aluminium, so it's sturdy, light, and portable. Its sustain key is based on standard mechanical keyboard-style keys, so you can customize it and swap the key out to make the pedal your own with your key of choice.

Capabilities PLUS 3's sustain side unlocks for instruments with a sustain jack, subject to the instruments capabilities are among other:

A momentary sustain button for instruments that don't have a dedicated physical sustain control (most don't!)

A dedicated drone/hold/arp latch switch for instruments that don't have one (many don't!). It's important to note that even if an instrument has a hold button, its sustain jack may unlock additional functionality or behaviour (for example, a button that simply holds notes does not cause Piano VSTs to resonate sympathetic strings in the way using sustain does.

Momentary and toggle control of any parameter mappable in your DAW synth's mod matrix/menu system, or effect pedal (for example, sostenuto, a freeze effect, dry/wet bypass, swapping presets, etc)
Capabilities PLUS 3's expression side unlocks for instruments with an expression jack are, among other:

PLUS 3 is particularly useful for adding an expressive physical fader to MIDI controllers that don't already have faders, but have an expression jack (for example, Native Instruments Kontrol MK3, or M32; or Korg's KeyStage).

Use PLUS 3's fader for direct access and expressive control of any single parameter mappable in your DAW, effects pedal or synth in ways not possible with a regular keyboard (for example, bowing a violin, an orchestral swell, fine tuning a track's level in the mix)

For DAWs, synths with a mod matrix or effect pedals with expression jack mapping capabilities (e.g. many Chase Bliss, Boss, EHX pedals, and the GHOST and GOLDEN MASTER pedals), use PLUS 3's fader as a macro control to change multiple parameters at once - almost similar to preset morphing, based on your instruments ability to map its expression input to multiple parameters

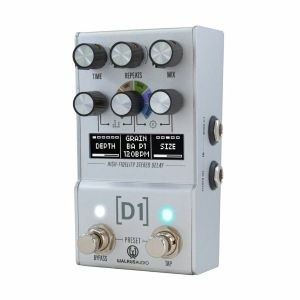

Notes: The D1 MKII is a feature-packed, high-fidelity all-in-one delay pedal with six algorithms for players to choose from: Digital, Mod, Vintage, Dual, Reverse, and Grain. The D1 can create inspirational delay trails ranging from dreamlike and bizarre, to rhythmic and clear, to warm and analogue sounding.

Program Controls:
Each program can be fully customized to your taste and playing style with the left encoder knob, which controls six parameters on all programs of the D1: Depth, Rate, Shape, Age, Tone, and Spread.

The Right encoder knob adjusts BPM, Swell, and Tap Division. BPM can also be set via the tap tempo switch or MIDI. Some programs will have additional options. See the manual for details.

Programs:
Digital - The Digital delay program offers a clean and crystal-clear delay that is perfect for rhythmic guitar parts where ultra-defined echoes are desired.

Mod - The Mod delay program has unique modulation LFOs applied to random repeats and run at multiple rates to create unpredictable pitch modulation. This results in unique sounding repeats perfect for warping minds and scattering trains of thought.

Vintage - The Vintage program allows for analogue tape delay-inspired tones to be achieved with complex filtering applied to the repeats. Use the tone knob at low settings for darker filtering and at higher settings to roll off the low end.

Dual - The Dual program employs two delays, one in each channel and both with different repeat subdivisions. The user has complete control over these subdivisions for both the L and the R channel, and can also choose to run their channel feedback in parallel, ping pong, or series. This effect can leave some jaw dropping trails, especially in stereo.

Reverse - The Reverse program reads the delay memory backward creating a unique delay repeat character known as a reverse delay. Select whether your repeats stay always reversed, or follow an analogue reverse feedback system where the repeats flip flop.

Grain - The Grain program can be as smooth, choppy, glitchy, or flowy as you want it to be, and for users who may want to try their hand at experimenting a little, this will be the perfect program for them to explore. The grain trails can be adjusted to short staccato sounding glitches, or opened up for full immersion. It's a whole new world, but the player is still firmly in control.

Presets:
The D1 can save up to 128 onboard presets, which can be held in a preset bank made accessible by tapping down on the bottom left and bottom middle knobs simultaneously. Presets 0-9 are divided into Banks A, B, and C. Select a bank while in the preset menu. Bank A will cycle through presets 0-2, Bank B will cycle through presets 3-5, and Bank C will cycle through presets 6-9. Presets 10-128 can be accessed through manual selection or MIDI.

Notes: Clear Skies Ahead. Plug into BigSky and instantly lift your sound into the stratosphere. The world below you fades into the distance, and you're elevated into a glow of lush, glorious, radiant reverbs.

To create a reverb experience as natural, beautiful, and immersive as BigSky required tremendous feats of sound engineering and artistic imagination. Using the fundamentals of acoustical science as our beacon, we carefully studied and scientifically analyzed reverb technology from the past fifty years. Strymon faithfully captured the essence of these classic sounds, and forged ahead to dream up our vision of reverbs from the future.

BigSky gives you twelve studio-class reverb machines, each with simple yet powerful controls. Feel the mechanical tension of the Spring reverbs. Hear the floating particles of the Cloud machine. Defy the laws of physics with the Nonlinear reverbs. Unleash the multi-head reverberations of the Magneto machine.

With careful attention to detail, innovative analogue circuitry design, a powerful SHARC processor, and the utilization of top-shelf components, Strymon have developed a reverb pedal that fits on your pedal board yet has better audio quality than many rack reverb units. This fusion of science with art has just one goal. To provide you with the most musically inspirational reverb experiences possible.

Features

Hand crafted, studio-class reverb algorithms deliver lush, gorgeous, and musically inspiring reverb experiences

Twelve reverb machines to choose from: Room, Hall, Plate, Spring, Swell, Bloom, Cloud, Chorale, Shimmer, Magneto, Nonlinear, Reflections

Seven front-panel tone shaping knobs: Decay, Pre-Delay, Mix, Tone, Mod, Param 1, Param 2 (Param knobs assignable per preset)

Additional menu parameters allow for easy customization of reverb sounds

300 easily accessible and namable presets

Press-and-hold Infinite Sustain and Freeze functions, saveable per preset

Spillover and Reverb Persist modes, saveable per preset

Selectable Speaker Cabinet emulation for direct-to-PA gigs or recording applications

Three rugged metal footswitches for preset selection and effect bypass

LED display for preset info, reverb decay time, and extended parameter control

Multi-color preset LEDs (green for active preset, amber for edited preset)

Full MIDI implementation allows extended control for those with more complex rigs

Sturdy and lightweight light blue anodized aluminum chassis, with laser-etched artwork

Durable black anodized aluminum knobs

Studio-grade audio input and output jacks

Stereo input and output

Expression pedal input with selectable control over any knob or combination of knobs, saveable per preset (also configurable as external tap input)

MIDI input and output

Included 9V center-negative power supply (300mA minimum required)

Analog dry path for a zero latency dry signal that is never converted to digital

Premium analogue front end and output section

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters

115dB typical signal to noise at 50% wet mix (120db at 100% dry mix, 109dB at 100% wet mix)

20Hz to 20kHz frequency response

+8dBu maximum input level easily handles instrument and line signals

Super high performance DSP in a compact form factor

32-bit floating point processing

366MHz SIMD SHARC processor core, capable of 2.4 Gigaflops peak performance

True Bypass (electromechanical relay switching)

High quality, tranparent Analog Buffered Bypass mode

+/- 3dB Boost/Cut, saveable per preset

Optional Kill Dry mode mutes dry signal, for use in parallel effects loops

Dimensions: 6.75" (171mm) wide, 5.1" (130mm) deep

Designed and Built in the USA

Notes: Volante

Sounds From The Expanse.

Create instant retrofuture atmosphere with evocative vintage delay tones. Activate your imagination with evolving ambient echoes and warm, organic feedback with just the right amount of grit. Sculpt your soundscape in real time as Volante becomes an extension and expansion of your musical instrument. Infuse your pedalboard with stunning vintage vibes that resonate and inspire.

Overview

Delays For Days.

Three Magnetic Delay Types, Spring Reverb, Looper, and More.

Delivering truly exceptional sound quality and intuitive playability, Volante is designed to radically enhance the sonic expressiveness of your pedalboard. Featuring magnetic drum echo, tape echo, and reel-to-reel studio echo, Volante is a stereo multi-head delay that also offers a looper and vintage spring reverb, with powerful sound-sculpting controls for limitless sonic possibilities.

Vintage Vibe.

To capture the nuance and complexity of classic tape and drum echo machines, every last magnetic delay system attribute was relentlessly studied and faithfully recreated. From the sought-after natural saturation and soft clipping of magnetic media when driven hard, to hands-on real-time controls for mechanics, wear, head-spacing, and low cut, Volante instantly adds tons of vibe to your sound.

Multi-Head Maven.
Volante provides the full experience and sonic attributes of iconic multi-head echo machines. At the centre of Volante's control surface are four delay playback heads with individual feedback, panning, and level controls-delivering unlimited creative options right at your fingertips. All of this range allows the creation of complex rhythmic patterns as well as reverb-like atmospheric textures.

Drum Delay With Unprecedented Control.

Magnetic drum echoes are famous for their warmth and for their harmonically rich and saturated sounds. This is due in large part to the many tube stages present in the most sought-after units. There were tubes in the input buffer, the signal mixer, the record and playback amplifiers, the tone shaping circuit, and the output mixing circuit.

Every sonic aspect of Strymon's favourite drum echoes has been meticulously reproduced within Volante. Dial in any possible sound from the full range of the best vintage drum echo units in conditions ranging from fresh-from-factory to road-worn classic.

Classic Tape Echo Experience.

Volante gives you superbly crafted multi-head tape echoes, including the smooth tape saturation and the characteristic imperfections and nonlinearities inherent to the sound of those vintage machines.

Mechanical alignment, head wear, and tape crinkles, splices, and contaminants are all accounted for in Volante, giving you all the richness and complexity of a classic tape echo, with modern control and stability. Volante also allows you to recreate the irregular head spacing of some of the classic tape echo machines.

True Studio Tape Sound.

The professional reel-to-reel machines of the 50s and 60s were high-fidelity units built to accurately reproduce full-range audio signals. In the hands of creative engineers, these machines also doubled as some of the earliest studio effects, producing some of the fattest sounds imaginable.

Of Volante's three magnetic echo types, the Studio Echo provides the cleanest sound, able to sustain the highest number of repeats with minimal degradation. Volante gives you a pristine studio delay with the full-bodied warmth and fidelity of reel-to-reel tape.

Completely Analogue Dry Path.

In a typical digital effect the dry signal gets converted to digital, causing conversion noise and latency. Signals are often attenuated before combining digital dry and wet, with makeup gain amplifying the conversion noise. To avoid this, Strymon have equipped Volante with a completely analogue dry path, featuring all-analogue, ultra low noise, discrete, class-A stereo JFET preamps. Volante is truly a studio-quality effect.

Insanely Powerful DSP.

Strymon have outfitted Volante with the incredibly powerful Analog Devices SHARC ADSP-21375 processor, which provides a 266 MHz core instruction rate, and an incredible 1.596 Gigaflops of peak performance. Thanks to this high-powered technology platform within Volante, Strymon had the freedom to craft this processor-intense echo algorithms without compromise.

Notes: Celebrating the classic, shimmering flanger sounds of Andy Summers, the EHX Walking on the Moon is a tribute to the tones Andy employed while carving his niche in the early days of playing with the Police. Liquid flange effects that hint toward chorus with extra depth and nuance make Andy's sound one of the most coveted in all of the guitar universe.

"This beautiful shimmering which sort of made the sound more bigger and more glamourous - became a sort of characteristic of my guitar sound - A big part of my guitar sound at that time in The Police was the flange sound which we have here today in this great new pedal." - Andy Summers

The Andy Summers Walking on the Moon is an analogue flanger with a simple but powerful control set of RATE, RANGE, and COLOR. RATE sets the speed of modulation which ranges from slow, smooth filter sweeps to jittering vibrato. RANGE controls how narrow or wide the effect sweeps into the bass frequency range. The COLOR control effects the intensity of the flanger effect from subtle chorusing effects to classic jet woosh sounds. These three controls interact to create a wide breath of modulation effects.

Additionally, the Walking on the Moon includes a FILTER MATRIX which disengages the LFO from the flanger circuit, freezing the flanger giving a fixed filter effect, which can add chime or metallic overtones to your sound without the movement of a traditional modulation pedal. A DRY output allows you to split your dry signal from the effected signal.

Special Artist Edition graphics featuring Andy's signature adorn the chassis and a tribute Walking on the Moon poster with art by Laura Josephson is included with each pedal.

Analogue Flanger / Filter Matrix sounds of Andy Summers
RATE sets modulation speed
RANGE adjusts lower limit of flanger sweep
COLOR controls intensity of flanger effect
Dedicated DRY output
Special Artist Edition Graphics
Includes Walking on the Moon poster design by Laura Josephson
True Bypass
9V Power Supply included (optional 9V battery not included)

Specifications
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included (optional 9V battery not included)
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 40mA
Year Released: 2023

Notes: The legendary Strymon deliver quality goods once again with this analogue-inspired stereo delay. Single head sound gives a classic 60s vibe with modulation and subtle imperfections.

Supplier's Notes:
Experience the dreamy sound of a classic '60s tape echo complete with the harmonic richness of the accompanying tube preamp. Enjoy organic and ethereal modulation produced by countless subtle mechanical imperfections, and easily dial in anything from warm slapback to expansive echo feedback beds with a strikingly gorgeous stereo image. With beautifully-tuned low frequency response, lush tape saturation and sublime echo decay, EC-1 provides all the best of what a tube driven tape echo can deliver.

EC-1 offers impressive power and flexibility in a small and elegant form factor: Selectable tube-modeled preamp voices. Artifact-free tap tempo. Discrete stereo operation for independent processing of the left and right stereo inputs. Straightforward controls and expression pedal capability. High-impedance, ultra-low noise discrete Class A JFET stereo input preamp for exceptional touch sensitivity, dynamics and feel. MIDI control of tempo, patch save/recall and more. Premium components, rugged construction and a USB jack for performing firmware updates or controlling the pedal from a computer.

Featuring meticulous tube modeling techniques, EC-1 offers a choice of two authentically reproduced preamp circuits that lend a subtle vintage character to your input signal. One is based on the classic EP-2 tube preamp and features an enhanced high-end shelf perfect for brightening up darker humbuckers. The other preamp option (the default setting) produces a warm, balanced response based on the modded preamp circuit in the EP-2 unit that we studied during the development of EC-1. This option adds a pleasing sense of heft, especially to single-coils. Both preamp choices offer an optional boost of up to +6dB, or the preamp can be bypassed for an unprocessed dry signal if desired.

Strymon's unique dTape technology was first developed for El Capistan, and they have expanded on it to reproduce all the inspiring nuances weencountered while studying a recently-acquired tube Echoplex that was in uncommonly superb condition. Our dTape system allows precise replication of every aspect of every tape echo we've studied, and in EC1 this includes the effect of the moving head, the tape condition, the bias setting, the mechanical effects of motors, capstan slippage and all the irregularities that add up to create the unmistakable, inspiring sound of vintage tape echo repeats.

Whether you want the cleanest repeats, subtle fattening or even downright dirty echos, you can instantly dial in the desired amount of tape saturation with the flip of a switch. Providing pleasing tonal shifts from thinner to fatter, EC-1's three-way Record Level toggle switch selects the gain of the signal fed into the virtual record head. Choose the low position for unity gain with optimized bias for the cleanest repeats, medium for a 6dB input signal boost with increased bias for slightly saturated repeats, or high for a 12dB input signal boost with further increased bias for heavily saturated repeats. This control also gives you a fast and easy way to match EC-1's response to your input signal level to obtain the desired sound from any pickup type or pedalboard configuration.

For EC-1, fluctuations from motors and mechanical components were thoroughly studied to accurately capture their imperfections. At the lower end of the Mechanics control's range only slower motor-related wow and flutter are present, but at around one o'clock these fluctuations are reduced in favor of faster disturbances from crinkle, splices, and capstan slippage which accurately replicate the sound of our golden EP-2 unit.This setting can create uniquely reverberant and three-dimensionalechos that spread across the stereo spectrum. The slower fluctuations are mixed back in more prominently as you approach the maximum Mechanics setting, and the unique combination of multiple imperfections create truly gorgeous, organic stereo modulation effects unlike anything you've ever heard.

The frequency characteristics of tape echo repeats are determined in part by the bandwidth of the actual tape stock, so older tapes will have a lower bandwidth with a warmer top end. EC-1 allows you to faithfully reproduce these characteristics by turning up the Tape Age knob for warmer repeats, or turning it toward minimum for the full-bandwidth sound of fresh tape.

EC-1 is designed to allow high levels of repeats that are truly lush but that don't spiral into uncontrollable feedback. That wide sweet spot on the edge of runaway feedback can create intriguing sound beds under your lead or rhythm playing. Of course if you want to crank the Repeats control to maximum and play with the unique pitch effects that only a sliding record head tape echo can produce, those effects are all precisely replicated in sound and response.

Notes: Fresh-Sliced Inspiration

Envelop your music in vibrant rhythmic energy with the SL-2 Slicer, an inspiring creative tool filled with colourful sonic grooves. This BOSS original chops your sound into unique percussive patterns-including many processed with internal filters and effects-and provides multiple output options that bring grooves to life across the stereo field.

Evolved from the legacy SL-20 Slicer, the SL-2 offers expanded capabilities while shrinking the size to the pedalboard-friendly BOSS compact format. Instantly elevate performances with 88 onboard patterns and tap into more via the BOSS Tone Studio app. Grab the knobs to tweak audio slices on the fly and sync to songs with tap tempo and MIDI. Fun and easy to use, the SL-2 brings fresh musical power to all types of creators, from guitarists and keyboardists to loop performers, DJs, beatmakers, and beyond.

Compact Audio Adrenaline

The SL-2 brings massive sonic groove muscle to the compact pedal format. Modern DSP takes the BOSS Slicer engine further than ever before, delivering rich, animated sounds via single and dual paths chained with multiple internal effects. Eight pattern types-each with 11 variations-will keep you armed with creative firepower for a long time. When you're ready for more, connect to BOSS Tone Studio over USB to audition and load alternate patterns into the pedal and organize memory setups for different songs.


Pre-Loaded Pattern Types:

Single (1 and 2)-Rhythmic patterns that use a single Slicer effect.
Dual (3 and 4)-Rhythmic patterns that use two Slicer effects.
Tremolo (5)-Patterns with a traditional tremolo effect.
Harmonic (6)-Rhythmic patterns with pitch-shifting effects.
SFX (7 and 8)-Rhythmic patterns with different effects applied.

Shape Your Groove

With the SL-2's efficient interface, you can dial in sophisticated textures in seconds. Use the Attack control to shape the edge of the waveform for everything from hard-chopped slices to soft, fluttering movements. Then tweak the waveform's length with the Duty control, going from sharp, percussive transients to longer, fuller audio blocks. Adjust the tempo with the dedicated knob or hold the pedal switch to engage tap tempo mode for hands-free control. And with the Balance knob and +/-12 dB of output level adjustment, you always have complete control of the mix.


Set the Stage

The SL-2 dishes up loads of impressive sounds with a standard mono setup. But things get even better when using the two outputs and seven different output modes. Send direct and effect sounds to different destinations for recording and performance. Or surround yourself and listeners in animated movement using a variety of stereo and 3D processing options. You can also feed the SL-2 with your favourite stereo pedals to bring further magic to your grooves.


Stereo Output Modes:

Fixed (Default)-Sends the same direct/effect mix to both outputs.
EFX/Direct-Sends the effect sound to Output A and the direct sound to Output B.
Random-A stereo effect that randomly outputs the Slicer sound to the left, right, or center.
Ping-Pong-A stereo effect that alternately sends the Slicer sound to Output A or Output B.
Auto-A stereo effect that smoothly pans the Slicer sound between Output A and Output B.
3D Cross-Advanced spatial processing moves the Slicer sound in left/right and forward/back patterns in 3D space.
3D Rotation-Advanced spatial processing rotates the Slicer sound in 3D space.


Expand Your Creative Flow

With its generous external control options, the SL-2 flows with your creative needs. Plug in an external footswitch to instantly tap in the tempo or engage the effect with momentary presses. Or connect an expression pedal to control knob parameters or the overall level as you perform. With the TRS MIDI input, you can sync your SL-2 grooves to a drum machine, DAW, or any other device that sends MIDI clock. It's also possible to control expression, tempo, and bypass functions via MIDI CC messages.


Specifications
Sample Rate: 48 kHz

AD Conversion
24 bits + AF method
AF method (Adaptive Focus method)
This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion: 32 bits
Patterns: 88
Nominal Input Level: INPUT A (MONO), INPUT B: -20 dBu
Maximum Input Level: INPUT A (MONO), INPUT B: +7 dBu
Input Impedance: INPUT A (MONO), INPUT B: 1 MO
Nominal Output Level: OUTPUT A (MONO), OUTPUT B: -20 dBu
Maximum Output Level: OUTPUT A (MONO), OUTPUT B: +7 dBu
Output Impedance: OUTPUT A (MONO), OUTPUT B: 1 kO
Recommended Load Impedance: OUTPUT A (MONO), OUTPUT B: 10 kO or greater
Bypass: Buffered bypass
Controls: TYPE knob, VARIATION knob, ATTACK knob, DUTY knob, TEMPO knob, BALANCE knob, Pedal switch
Indicator: CHECK indicator (Used for indication of Tempo and check battery)

Connectors:
INPUT A (MONO) jack
INPUT B jack
OUTPUT A (MONO) jack
OUTPUT B jack: 1/4-inch phone type
CTL/EXP jack: 1/4-inch TRS phone type
DC IN jack
MIDI IN jack: Stereo miniature phone type
USB port: USB B
Power Supply: Alkaline battery (9 V, 6LR61 or 6LF22, commercially available), AC adaptor (PSA series: sold separately)
Current Draw95 mA

Expected battery life under continuous use: Alkaline: Approx. 2.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Dry battery (9 V, 6LR61 or 6LF22)

Options (sold separately):
AC adaptor: PSA series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 450 g / 1 lb

Notes: The Reissue series 6ixty 5ive overdrive puts the sound of the famous1960s black panel amplifiers right at your feet. Emulating the drive of these classic models gives a range of tones from just over-the-edge all the way to burning tube overdrive whilst retaining the guitar's natural voice and clearly defined edge. The all analogue circuit has a Gain control to adjust the amount of drive and the resulting output is balanced by the Level control. A Trim pot on the rear of the pedal further controls the saturation of the gain stage, bringing natural sounding compression and sustain into play. Bass and Treble controls provide tone shaping as you would find on a classic amplifier. Use as an "always on" drive pedal or switch in for a gain boost with a classic edge whenever the mood needs it.

Classic 1960's black panel amplifier tones
Level and Gain with Trim pot for drive & saturation settings
Bass & Treble EQ controls
True bypass switching
Batteries9V PP3 (supplied)
Power supply: Optional 9Vdc 300mA regulated (not supplied)
Controls: Level, Gain, Bass, Treble, Trim & foot switch
Input impedance: 1M Ohms
Output impedance: 10k Ohms
Dimensions: 121 x 77 x 48mm
Weight: 230g

In the box

The box for this item contains :

Reissue series 6ixty 5ive overdrive pedal
9V PP3 battery

Notes: Transcend musical boundaries with the Aeros Gold Edition looper pedal. Create, perform and record both parallel and sequential loops. Dual modes and quantization options adapt to your playing style. Intuitive hands-free navigation and silent footswitches offer a superior playing experience.

The Aeros Gold Edition is packed with powerful, innovative features. Use the built-in Mixer Mode to adjust track volumes on the fly. Import your own backing tracks to fuel your performance. Loop without stress thanks to error-friendly features like auto quantize, Intelligent End-of-Measure Forgiveness, and easy undo/redo commands. The Aeros Gold Edition can serve as a MIDI transmitter (Master) or receiver (slave) sending and receiving a plethora of MIDI commands like time signature, transitions, start/stop and more.

Utilize built-in effects like auto-fade in/out, reverse track and loop decay. Record up to 20 minutes of mono audio per track (10 hours per song). The Aeros Gold Edition elevates recording and songwriting with studio-grade 24-bit audio and 32-bit floating point processing. Operate line and instrument levels, send your inputs anywhere, and select between stereo and mono audio.

Parallel and Sequential Looping Capabilities
Write complete songs with multiple tracks
On-board Live Mixing View
Adjust track volumes on-demand
Flexible Dual Playing Modes
2x2 and 6x6, for boundless creativity
Innovative, Adaptive Dynamic Read Memory
Record up to 10 hours in mono
High-res Touch Screen Display
Access your features with ease
Colour-coded Cues and Waveforms
Stay locked in to your performance
Industry-leading Loop Capacity
Up to 36 in a single song
Industry-Leading Memory System And Connection

If you have a BeatBuddy or MIDI Maestro, Aeros will sync with them automatically via MIDI. Once connected, auto quantize your loops to the measure of the beat, utilize powerful Aeros functionality with a single button press and more. The built-in Quick Start Guide will get you up and running fast, and detailed changelogs keep record of every new command.

Take songwriting and performance to the next level. Spark your creativity and do more of what you love. Aeros users get access to feature-packed Firmware Updates, bringing diverse new abilities to your looper pedal. You can download them over Wi-Fi with one press.

Technical Specifications

Type: Looper Pedal with Digital Mixer
Looper: 6 x Song Parts, 6 x Stereo Tracks, Unlimited Song Memories
Looping Time: 20 Minutes Mono (1-track), 48hrs Mono (Max Memory w/ 32GB Card)
Effects: Reverse, Fade In/Out, Loop Decay
Channels: 4 (L/R Main + Aux L/R)
Faders: 7 x Digital

Signal Processing: 32-bit Floating Point
Sample Rate: 44.1kHz
Bit Depth: 24-bit
Inputs: 2 x 1/4" (L/mono, R), 1 x 1/4" TRS (Stereo Aux)
Outputs: 2 x 1/4" (L/mono, R), 1 x 1/4" TRS (Stereo Aux)
MIDI I/O: 5-pin In/Out
USB: 1 x Micro-B
Other I/O: Wi-Fi, Bluetooth
Bypass Switching: Digital Dry Through
Storage: Internal, SD Card (up to 32gb, Not Included)
Screen: 4.3" Diagonal, Touch Enabled

Power Source: 9V DC Power Supply (Included)
Power Usage: 300mA

Height: 2.2"
Width: 7.8"
Depth: 5.6"
Weight: 2 lbs. 4 oz.

Notes: Bridging the worlds of overdrive, distortion, and fuzz in a sub-compact pico chassis!

The EHX Pico Triboro Bridge is a tri-mode drive box with a wide range of tonal possibilities. Featuring Overdrive, Distortion, and Fuzz modes, it bridges any gap in your gain. With a powerful EQ, input contouring, and a pico-sized footprint, the Triboro Bridge can be your tonal keystone or a welcome change from the routine drive.

Starting with Overdrive mode, the gain spectrum ranges from low to mid with an open voicing that can be used as a light always on drive or a solo boost. Engage the Triboro's Distortion mode for additional gain-staging for a tone from crunchy rhythms to fully saturated leads. Transform the pedal into something completely different with the Fuzz mode's over-the-top gain, Gate and Low Pass Filter.

The Triboro Bridge controls features Volume and Gain knobs to control the overall output and saturation of the tone. In Overdrive and Distortion modes, the Treble and Bass knobs act as a Baxandall EQ for simple yet effective tone shaping. In Fuzz mode the Treble knob is now the gate more, controlling the Fuzz's noise gate threshold, and the Bass knob controls a Low Pass Filter for extreme tonal variations. Additionally, the Triboro Bridge features an Input Contouring EQ which can be applied to your tone at the input, for a more modern, sculpted tone in all modes.

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 3.65 x 2.0 x 2.0
Current Draw: 100mA
Year Released: 2023

Notes: Step up to the RC-5 and prime your pedalboard with maximum looping range. Capture sound with premium 32-bit quality, navigate parameters and monitor loop status with the backlit LCD, and tap into expanded operation via the control jack and TRS MIDI I/O. And with over 50 rhythms, 13 hours of stereo recording, 99 phrase memories, and more, the compact RC-5 puts a deep well of musical power at your feet.

Featuring best-in-class 32-bit AD/DA and 32-bit floating-point processing, the RC-5 captures your personal sound with full fidelity and keeps loops crystal clear, even with multiple overdubs. And with 13 hours of stereo recording time, there's plenty of space for extended creative journeys.

The RC-5 features the most advanced interface available in any compact looper pedal. The LCD lets you keep an eye on loop status as you perform, with a backlight that changes colour to indicate recording, overdub, and playback states. And coupled with the multi-function parameter knob, it's quick and easy to navigate rhythms, kits, system settings, and more in the heat of the moment.

The RC-5's versatile pedal switch controls all looping functions-record, overdub, play, stop, and undo/redo. But deeper control is also supported if you need it. Connect up to two external footswitches for direct control of many assignable functions, or an expression pedal for continuous adjustments. Players with advanced systems will love the TRS MIDI I/O, which saves space and enables remote operation from MIDI switchers and foot controllers, plus MIDI sync with drum machines and DAWs.

With 57 preset rhythms and seven different drum kits, the RC-5 is ready to elevate loop and practice sessions with inspiring grooves for any style. For each rhythm, A/B variations can be selected from the panel or controlled via MIDI while performing. The RC-5's looper engine also includes a cool reverse function that's great for infusing your music with fresh sonic colours.

The RC-5 provides 99 phrase memories, letting you store loops as fast as you create them. In addition to audio, a phrase memory includes the selected rhythm and kit, so it's ready to go when you call it up. Loop audio can be backed up to a computer via USB. And with WAV import via BOSS Tone Studio, the RC-5 becomes a pedalboard playback hub for lesson material, jam tracks, or backing music for your next gig.

Notes: Modern phasing with tap tempo sync

The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new "Rise" and "Fall" modes for unique, unidirectional phasing. Syncing these phasing effects is as simple as tapping the pedal to the desired tempo, while an optional expression pedal provides realtime control of the PH-3's Rate, Filter and Tempo.

"Rise" and "Fall" Effects

In addition to standard up and down cycles, the new PH-3 Infinite Phaser can produce entirely upward or downward moving sounds through its new Rise and Fall effects. There's also 4-, 8-, 10-, and 12-stage phasers, plus a Step effect.

Total Control

Syncing the PH-3's phasing effects can be achieved by simply tapping the pedal to the tempo desired. Or, for maximum control, connect an optional expression pedal to control both rate and filter in real time as you play.

Specifications

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output: Level-20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass

Controls:
STAGE switch
RES(Resonance) knob
DEPTH knob
RATE knob
Pedal switch

Indicator: CHECK indicator (Used for indication of check battery)

Connectors:
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
EXP/CTL jack: 1/4-inch stereo phone type
DC IN jack

Power Supply:
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw: 50 mA
Expected battery life under continuous use: Alkaline: Approx. 6 hours
*These figures will vary depending on the actual conditions of use.

Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)

Options (sold separately):
AC adaptor: PSA series
Expression pedal: EV-30/FV-500L/FV-500H, Roland EV-5
Footswitch(momentary-type): FS-5U/FS-6/FS-7

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 415 g / 15 oz

0 dBu = 0.775 Vrms

Notes: A typically unique take on multi-effects from Soma, designed to induce meditative states. Hybrid analogue-digital delay/reverb/granular processing gives a range of creative approaches.

Supplier's Notes:
COSMOS is a drifting memory station designed to work with meditative states through music. The design of the controls, functions and generated soundscapes are intended to evoke, in both performer and listener, states and experiences inherent in meditation, such as limitless space, fluidity, spontaneous development, presence, the ability to hear, tranquility, the experience of subtle harmony and happiness enveloping the whole world.

From a functional point of view, COSMOS is a large array of sound memory, in which recorded sounds undergo constant recombinations, spontaneously generating an ever-changing soundscape. This is achieved in three ways - by a mathematical shift based on the relationships between large prime numbers (the size of all delay lines are different primes), an asynchronous operation of the LFO, and modulation with a slowly changing chaotic signal. As a result, it allows the endless layering and processing of various sounds, as in a looper, but without an intrusive, repetitive loop.

COSMOS generates rich, fluid and evolving soundscapes perfect for ambient music. Using COSMOS, you can play an entire meditative solo concert while being in a spontaneous flow and without using studio-prepared sequences, backing tracks and other things that can't be a reflection of the "here and now".

Specifications

Minimum input voltage: 0.35 V peak-to-peak
Maximum output voltage at line outputs: 11.3 V peak-to-peak
The maximum output voltage at the headphones output: 10.4 V peak-to-peak
Frequency response: 10-22000 Hz
Sound memory: 44.7 sec
Supply voltage: 12 V *
Power connector polarity: centre plus
Current consumption: 0.25 A
Dimensions: 342 x 153 x 68 mm
Weight: 2.2 kg

* Use only the power supply supplied with the device! In case of failure, it can be replaced with a high-quality modern switched-mode power supply with an output voltage of DC 12 volts, the center is plus and an output current of at least 0.5 amperes (more is fine). The power supply must have a wide AC input voltage range of 100-240 volts. Such power supplies have excellent output voltage stabilization required for the device. It is forbidden to use COSMOS with nonstabilized voltage from transformer power supplies. It can lead to damage to the device, which is not covered by the warranty repair!
