Notes: Great value from 4ms's twist on the Stereo Triggered Sampler module, this time capable of playing and manipulating stereo or mono WAV files from an SD card.

Supplier's Notes:
The Sampler is a variation of the Stereo Triggered Sampler.

Record, play and loop stereo .wav files with an SD Card. Includes the same 2022 Sampler Pack from the Stereo Triggered Sampler.

Features:

The Sampler plays stereo or mono .wav files from an SD Card. Samples are arranged into banks by placing .wav files into folders (each folder is a bank). A maximum of 10 samples can be loaded in a bank. There is a maximum of 60 banks (600 samples maximum total).
Sample files are limited to 4GB each, which is over 6 hours at 44k/16b/stereo.

Hundreds of samples included on microSD card
Extremely quiet, low noise and low jitter design
Stereo or Mono output

A knob and CV jack selects the Sample to play, and the Start Position knob and CV jack control where in the sample playback will begin. The Length knob and CV jack determine how much of the sample is played back: from tiny grains, to percussive hits, to longer loops... or just the entire file.

Pressing Play or firing a trigger into the Play Trig jack will play the sample. Holding the Play button down for a second will toggle looping.

There's also a Reverse button and jack for backwards playback, and an End Out jack for synchronizing loops, or cascading sample playback with other events.

To record samples, hold Play and Reverse for two seconds. Press Play again or fire a trigger into the Play/Rec Trig jack to start and stop recording. Each recording will create a new stereo 48kHz 24bit .wav file in the current bank's folder. Recordings can be as long as your card has the capacity for: a 256GB card is 18 days of continuous recording (432.9 hours). Audio data is split into maximum 4GB wav files on the microSD card.

Play button/trigger jack: Tapping the button or receiving a trigger starts/re-starts the sample
Sample CV/knob: select which sample within the channel's bank
Pitch CV and Pitch knob: playback pitch (-10 to +4 octave range)
Start Pos CV/knob: position in the sample to begin playback (loop start point)
Length CV/knob: playback time (loop end point)
Length knob at max: entire file is played
Length knob 50%-99%: 200ms - 5s of the sample is played (beginning at the Start Position)
Length knob <50%: Percussive decay envelope is applied to the playback (attack-only envelope if playing Reverse)
Length <1%: Tiny grains are played (can be used to sweep through sample file data manually)
Reverse button/jack: toggles forward/backwards
Bank button: selects channel's bank
Reverse + Start Pos button/knob combo allows for setting volume of playback
Maximum file size for playback: 4GB per file (6.7 hours per file at 44.1kHz/16b/stereo)
microSD Card is hot-swappable when Busy light is off: no power-down required to change cards.
Samples that are pre-loaded into memory can continue playing while card is swapped.

File Organization:

Using a computer, the intuitive automatic bank loading features make dragging and dropping your entire sample library a snap. No files need to be renamed. Just create folders and put up to 10 samples in each. If you want a folder to be associated with a particular colour of the Bank button, name the folder a colour name (such as "Blue - Loops").

Ships with a high-speed 16GB microSD card, loaded with hundreds of samples created for 4ms, from musicians such as Richard Devine, Wobbly, Moor Mother, Robert Aiki Aubrey Lowe, Joseph Pailo, Russell E.L. Butler, Hugo Paris & Marc Kate, Paul Barker, Baseck, Animal Collective, Cristian Vogel, Jay E, Marcus Fischer, Chris Carter, Daedelus, Nero Bellum, Anna Sitko, Thomas Fang, Bogdan Raczynski, and more (Sample List)

Intuitive bank/colour organization system; no need to rename your wav files
Record new samples directly to a bank with the Record Input jacks...
... or drag your folders of sound files onto the microSD card, and each folder will become a bank.
Folders starting with a colour name will be loaded into that colour bank
Example "Blue - Frooty Loops" will load into the Blue bank
Sub-folders are ignored, only folders in the root directory are scanned for wav files
Works best with UHS Speed Class 3 cards with |3| symbol printed on the card

Specs:

Electrical and Mechanical Specifications:
Module Size:
16 HP Eurorack format module
10-pin Eurorack power header
1.3" (33mm) maximum depth with power cable
Power consumption:
+12V: 135mA
-12V: 41mA
+5V rail: not used
Connect red stripe of power cable towards the bottom of the module, which is marked with a white stripe and the words -12V and POWER
Audio Inputs:
20Hz to 10kHz (+/-0.1dB); -6dB rolloff @ 20kHz
21V peak-to-peak maximum before clipping
Audio Outputs:
0Hz (DC) to 22kHz with maximum -1.8dB difference between file data and output
+10.5V to -10.5V maximum output
Trigger inputs:
Latency: 0.7us typi

Notes: Rack power bringing 2.5A (2500mA) on both the +12V and -12V rails. There is a 5V rail, but it pulls from the +12V rail, up to 750mA. So only use the +5V rail if you have to.

Comes with 12-position flying bus cable and wall power supply. The wall power supply is the same unit as After Later Audio use on their cases, so there's plenty of headroom and you don't have to worry about memorizing which amperage is for which.

This should be roughly enough for 2 rows of modules in a 104hp case. If you just need power for 1 row, check out our Warp Drive module.

Notes: The E-OR is a passive 2HP 'selectable gate mixer,' which means that you can choose between two different gate sources, two trigger sources or BOTH using the three way switch per channel. Great for choosing between various rhythms, clocks, gates, etc. Perfect for manual fills and variation in your set! Matte black panel with white ink. The E-OR is diode protected, so combining two trigger or gate sources is what it is meant to do!

Notes: The XOH (miX Out Headphone) music synthesizer module is a stereo mixer, headphone amplifier and output interfacing module for your modular synthesizer. It consists of two stereo input channels with independent level controls, and two stereo outputs: one pair of independent line level left and right outputs at unity gain; and one TRS headphone or line level output with dedicated level control.

Notes: Now slimmed down to 2HP! The '07 is a precision buffered multiple, perfect for your 1V/O sources. An LED on each channel indicates positive or negative incoming voltage: red is positive, green is negative. Channel one cascades into channel two, giving you up to 7 outputs.

Specifications:
Current draw: +12V: 15mA, -12V: 15mA
Depth: 22mm
Width: 2HP

Notes: ALGO's four oscillators can be configured in series or parallel combinations, to create Complex FM or additive sound textures.

A unique Algorithm Display indicates the signal flow from one oscillator to another - easy to understand FM with pretty twinkly lights!

Each oscillator has controls for Level and Frequency, allowing easy adjustment of FM timbres, no menu diving snorkels needed.

Modulation inputs for Frequency or Level for each oscillator - patch in a couple of Envelopes, and you have an instant FM synth voice.

Bored of Sine waves ? A generous Wave Warp control bends things through Triangle to Pulse wave and back again.

Wave Warp can be applied to Carrier, Modulator or both types of oscillator.

For the more discerning mangler, Wave Folding is also available in three delicious flavours; Symmetric, Asymmetric and Soft Clip!

A Global Detune spread control with CV input is great for creating Netflix apocalypse drones that descend into the abys.

Lastly an onboard Stereo Chorus can add a vivacious 1980's shimmer to all your FM creations.

Oh, nearly forgot. It's Stereo!

Notes: Welcome to the Envy Machine ! A compact quad-channel modulation machine, with an envious array of Envelopes, LFOs, random voltages even Knob Recording. With four channels of modulation, ENVY MACHINE makes an ideal companion to the RYK ALGO module

Each of the four channels on the ENVY MACHINE can be set to one of five super-flexible modulation modes:

- ADSR Envelope

- AD Envelope

- AD LFO

- Random Voltage

- Recordable Knob Voltage Control

Ghost hand - Parameters can be animated using KNOB RECORDING to create timed variations in your patch. Oh, and with the dedicated MOD input per channel, you can use an external CV to control anything - TIME, LEVEL, WAVESHAPE and more.

Polarity paradox - Modulation inputs AND channel Outputs come with bipolar attenuverters, now you can choose either bipolar or unipolar, with continuously variable level control.

Slippery slopes - WAVESHAPES are continuously variable between LOG, EXPO, SIN, TRAPEZOID, and SQUARE!

Notes: FM & Vector Synthesis

Two icons of the '80s in one unit

Introducing Vecor Wave from RYK Modular bringing together the awesome power of 16 oscillator FM, combined with Vector synthesis OR true multi voice polyphony.

The Vector Wave is a feature packed compact Eurorack module, which can be used as a stand alone synth-voice without the need for external VCA,ENV, LFOs etc.

Features

16 oscillators, divided into 4 banks, oscillators can freely configured into series or parallel combinations for complex FM or additive synthesis

A cute Vector Joystick for morphing between oscillator banks, for cool performance timbre sweeps and sonic movement
Vectors can be recorded from the joystick and replayed from trigger sources, or animated from external or internal modulation sources

Super cool retro Big-Pixel screen, ideal for nostalgia freaks or the visually impaired

Wave Warping brings grit and aggression to the FM synthesis with oscillators continuously variable between Sine,Tri-ish Saw, Pulse waveforms

Wave Folding for subtle to extreme sonic bending

Two Envelope generators [ per voice in polyphonic modes ], and two LFOs with all controls assignable as modulation destinations

Intuitive Modulation Slot patching from external and internal sources to be routed to any parameter within the Vector Wave

30 User Voice storage spaces for storing your synth masterpieces to internal memory, enabling you to impress your friends at a later date

Thee modes of oscillator bank allocation Monophonic Vector, and Polyphonic Voice, and Multitimbral Polyphonic

MIDI input for a spaghetti-free Polyphonic setup, velocity, aftertouch and MIDI CCs avail- able as modulation sources

Slim but handsome Expander Module also available that adds 3 more V/oct and Gate inputs, for maximum mutli-voice multitimbral melodious mayhem!

Notes: Turing Machine MkII is a binary sequencer, based around a 16-bit memory circuit called a shift register. It's designed as a sequencer that you can steer in one direction or another, not one that you can program precisely.

You cannot program this sequencer to play specific tunes. You cannot save sequences. You can never go back to a sequence that has changed.

To put it another way: This random looping sequencer is a module that produces clocked randomly changing control voltages. Unlike many random voltage generators, these sequences can be locked into loops that repeat according to the length control.

Specifications:

Width: 10HP
Depth: 38mm
Current draw:
+12V: 40mA
-12V: 0mA

Notes: This is a fully built module, with the latest firmware pre-installed. Comes with Rogan knobs. You can swap our panel for another manufacturer's panel!

Mutable Instruments Plaits is a multi-algorithm macro-oscillator that provides everything from FM to speech synthesis, analogue percussion emulation, wavetables, modal synthesis, granular synthesis...whoa, this module does basically everything. Expanding on Braids's strong points and eliminating its pitfalls, Emilie Gillet's Plaits is a perfect bonding of tremendous flexibility and an intuitive user interface.

Built from the ground up and sharing no code or hardware with Braids, Plaits borrows concepts from its predecessor while operating at considerably higher audio resolution and with a refined means of user interaction. For one, it dispenses with that pesky screen to offer even more tactility and immediacy. Additionally, Plaits features a dedicated CV input for the model parameter, easy access to the module's internal envelopes for modulation of vital parameters, and an integrated lowpass gate with definable filtering intensity and virtual vactrol response time.

Offering a broad survey of synthesis techniques, Plaits promises a vast sonic palette that could find a home in any modular synthesizer setup. Ideal for beginners and modular synth gurus alike, Plaits is an obvious choice for anyone who wants a lot of functionality in a small space and with a modest price tag.

Specifications

Width: 12HP
Depth: 25mm
Current draw
+12V: 50mA
-12V: 5mA

Notes: The Synthrotek Passive Mult is the module that keeps on giving! Use this as either a 2x 1-to-3 passive multiplier or one 1-to-6 passive multiplier. Input one cascades to all 6 output jacks, or can be interrupted by plugging a cable into input two.

What is a passive mult? It is an ideal way of multiplying non-precise voltages in your Eurorack system. (Buffered multiples like the MST '07 Buff Mult are needed to maintain exact outputs of input voltages). Multiply any control voltage or audio sources across your system with ease in a very small and well priced package.

Available as an assembled unit, kit or PCB/panel combo. With such a small part count, this is a great module for first-time DIYers!

Specifications:
Width: 2HP
Depth: 14mm
Current draw: n/a

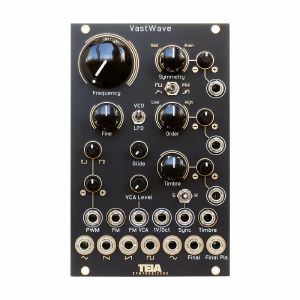

Notes: VastWave is a complex analogue Oscillator with advanced waveshaping capabilities that invites new textural and harmonic exploration beyond subtractive synthesis principles.

Crossfading between harmonically rich folded waveforms and waveforms with Odd/Even harmonics, the VastWave waveshaper expands on the Principal Oscillator heritage, bringing an additional set of waveforms with Odd and Even harmonics and a pulse waveform derived from the Waveshaper's Final output stage.

Furthermore the linear FM input has a dedicated VCA for external FM amplitude modulation and an on board linear Glide delivers a more musical approach to this classic feature.

Features:

Voltage controlled complex waveshaping.
Triangle core.
FM input with voltage controlled amplitude for FM amplitude modulation.
On board linear Glide.
Voltage controlled Pulse-width modulation for Pulse and Final Pls waveforms.
Modern temperature and tuning stability.
High Frequency (VCO) or Low Frequency (LFO) operation.
External Timbre input with sine wave normalization if no external source is patched.
Attenuator/inverter knobs on all voltage controlled inputs.
Inverted or double Sawthooth waveform (selectable by jumper).


Specs:

Width: 16HP
Depth: 33mm
Power consumption: ###mA +12 / ###mA -12
Eurorack Format
Doepfer power connection

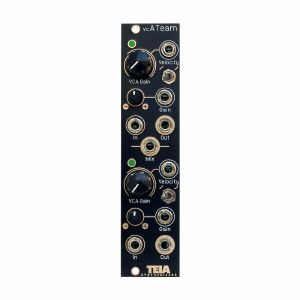

Notes: vcA Team is a dual Voltage Controlled Amplifier conceived with dynamic expression control in mind.

With Velocity control over both VCA channels, vcA Team expands the creative use of amplitude variations on your patch, bringing not only control over the contour but also over the loudness of your sound .

Each VCA is coupled with an extra linear VCA cell, for a simple and direct approach to Velocity control. The Velocity input can be modulated by the Velocity CV output of your keyboard or any other CV signal on your rack.

Linear or exponential response is available at the flip of a switch and an attenuator-inverter potentiometer is also implemented to attenuate or invert the CV input.

All inputs are DC-coupled, leaving the door open for processing audio signals or control voltage signals.

An additional Mix output sums the two VCA outputs into a single output, turning the vcA Team into a two channel mixer.

Features:

Dual VCA.
Velocity control over both VCA channels.
Linear and Exponential response.
CV input with Attenuator-Inverter.
Mixed output.
DC-coupled inputs.


Specs:

Width: 6HP
Depth: 33mm
Power consumption: 65mA +12 / 65mA -12
Eurorack Format
Doepfer power connection
