Notes: The #1 EQ pedal returns - better than ever

Empress Effects have brought back the most sought-after Parametric EQ pedal, with groundbreaking upgrades.

Everything people loved about the original ParaEq was kept, and more fidelity and control have been added.

More Control

Whether you're trying to cut through a mix or fix a feedback issue, you need precision! The ParaEq MKII offers the most control of any pedal EQ on the market.

More Sweetness

Effortlessly sweeten your tone with beautiful sounding, super smooth Baxandall filters for broad high and low frequency shelving adjustments on the Deluxe.

More Power

The ParaEq MKII pedals operates internally at 27V, providing clean headroom without unwanted clipping.

More Purity

This pedal is able to offer the most control without degradation to the tone due to minimal circuit topology00-the opposite of graphic EQs.

Why Choose Parametric EQ over Graphic EQ?
Parametric VS Graphic EQ Graph
Graphic equalizers provide a convenient visual sense of the EQ curve. However, there is a tradeoff in transparency and precision.

The graph here shows the ParaEq MKII Deluxe (cyan) and a 7-band graphic EQ pedal (magenta) both providing a +4dB boost at around 2 kHz. As can be seen, the ParaEq is much more precise in the changes it can make, whereas the graphic EQ affects nearly the entire frequency spectrum. Furthermore, at around 10kHz the ParaEq is providing unity gain, whereas the graphic EQ is attenuating the signal by nearly 6dB. This makes the ParaEq a more transparent circuit than the graphic EQ.

This combination of transparency and precision is why recording studio control rooms are dominated by parametric equalizers, and why they're a great choice for creative and corrective EQ on your pedalboard.

Which ParaEq Do You Need?

The original ParaEq has been loved and trusted by musicians on a variety of instruments for over a decade. Both the ParaEq MKII and the ParaEq MKII Deluxe feature a low-noise, transparent signal path that is extremely versatile.

With three fully parametric bands, you can simultaneously achieve broad tonal shaping and precise fine-tuning to sculpt your perfect sound.

The ParaEQ MKII Deluxe will appeal to players who:

Need high-pass and low-pass filters for precision work at the frequency extremes
Want the glorious sound of Bandaxall filters for sparkling high end or extra weight in the low end
Want to be prepared for any EQ situation

Specifications

Input Impedance: 1MO
Output Impedance: 100O
Frequency Response (-3dB): 22Hz - 25kHz
Total Harmonic Distortion: < 0.05%
Noise: > 107dB
Headroom: +30dBu
Input Voltage: 9VDC Centre-Negative
Required Current: 300mA
Power Input Connector: 2.1mm Barrel Connector
Height (Enclosure Only): 1.5"
Height (Including Controls): 2.5"
Length: 3.5"
Width: 4.5"
Weight: 1lb

Notes: 1978 rarity reissued with modern updates and a tiny pico footprint!

The late 1970s rarity Electro-Harmonix Slap-Back Echo pedal is reissued with modern updates and a Pico footprint!

The 50s era gave birth to an iconic sound in which a single, short delay was utilized to add depth and rhythmic effect on countless recordings. The newly reissued all-analog design of the EHX Slap-Back Echo delivers this beloved classic sound and more in a Pico-sized pedalboard-friendly package. With three delay time settings and up to +20dB of boost, the Slap-Back Echo can achieve subtle doubling effects to intense bathroom reflections all with the distinct flavor of bucket-brigade (BBD) circuitry.

Housed in EHX's Pico-sized chassis, the Slap-Back Echo features Gain and Blend knobs as well as a Time switch. The Gain knob controls the input signal before the echo circuit and also adjusts the overall volume at the output with a boost of up to +20dB. The Blend knob mixes the dry signal and the echo signal from 100% dry to 100% echo. The Time switch selects between three different delay times: 45ms, 65ms, and 100ms.

Independent gain and blend knobs
Time switch with 45ms, 65ms, and 100ms delay times
Up to 20dB of boost
True-Bypass
Small, pico-sized chassis
9V power supply included

Specifications:
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 3.65 x 2.0 x 2.0
Current Draw: 15mA
Year Released: 2023

Notes: Pigtronix Infinity 2 is a stereo looping pedal with two independent loops and a streamlined user interface that has been designed to provide an intuitive musical workflow, right out of the box.

The Infinity 2 enables musicians to seamlessly switch between parts, even during initial recording or while overdubbing. This Verse / Chorus type of workflow is further expanded by the ability to delete the loop that is not currently playing - freeing up an open slot for a new loop to be created, without interrupting playback.

Nearly all actions taken by the Infinity 2 occur at the loop boundary. This allows the musician to cue an overdub, switch between loops or stop precisely at the end of a loop, without having to worry about hitting the footswitch at precisely the correct time. Simply tell the machine what to do and it will occur at the end of the current loop. This is the general rule of thumb for all commands, with a few exceptions such as instant stop and fade out, which take place immediately when activated.

A small push-button switch, located above the left footswitch, allows the user to change the functionality of this footswitch to perform various Stop, Stutter and Octave Shift effects. A TRS remote jack allows these special features to be triggered by an external switch. Undo / Redo functionality can also be assigned to the left footswitch, allowing the musician to remove previous overdubs and add them back as desired.

In addition to a dedicated knob for loop Volume, the Infinity 2 also features a Decay knob that causes loop audio to fade out progressively during overdub. With the Decay knob set fully clockwise, the layers pile up at full volume. With the Decay knob set fully counter-clockwise, each overdub lasts for only one loop cycle. With the Decay knob set anywhere in-between those extremes, overdubbing on the Infinity 2 creates constantly evolving loop textures that can be instantly snapped back to a previous state using the Undo function.

The Infinity 2's full-range, high-headroom audio inputs will accept mono or stereo instruments as well as line-level signals. The dual outputs of the Infinity 2 can be routed for stereo output with pass-through and loop audio mixed together, or they can be configured for discrete Wet / Dry operationiwhere the loop audio is summed to one output, and pass-through audio is sent to the other.

Infinity 2 combines the high-fidelity audio and ultra-low-latency looping engine of the original award-winning Pigtronix Infinity Looper, with a much smaller form factor and a user interface specifically designed to make looping fun and musical for everyone.

Notes: Delay and granular sampling combine to create unique ambience effects, creative reverbs and glitchy chaos. Hugely versatile pedal with five contrasting programs.

Supplier's Notes:
In the high woodlands of the north, undiscovered by most inhabitants, there ruled a clan of old, mystic Treefolk. On the first new moon of spring, these Treefolk could be heard grafting limbs to grow their young - splicing bits of branches from each generation to produce the next line of Treefolk. These new beings keep the lifeblood of all who came before in their new skin. These sounds are in part very old, but in part very new. They are referred to as... Fable.

Let your storybook adventure grows with the Fable Granular Soundscape Generator. The Fable gives you five all-new programs centered around sample and chop delay algorithms to create bizarrely beautiful networks of sampled and resampled sounds. The Fable uses a powerful dual DSP architecture to combine delay programs in series with granular sampling algorithms, each with its own analogue feedback path. Find unique soundscapes ranging from smooth, flowing ambience; to bizarre, organic reverberance; to chaotic, glitchy swarms.

So, what exactly is this granular effect and why is it a magical experience when combined with delay? Granular is a digital processing technique of micro-sampling, wherein short samples called grains are read from a delay buffer. In the Fable, players can adjust these grains by manipulating their sampling length, position, and buffer size from which they're read. They can be played at double or half speed for pitch shift and time stretching effects, play them in reverse, read from multiple positions, and more, in order to achieve different effects.

It's a powerful but complex technique and Walrus Audio created five streamlined programs in the Fable that explore different aspects of its sonic range.

Programs

I. Reverse Delay into Reverse Granular

Program 1 runs a reverse delay into a reverse granular algorithm, in which sampled grains are played backwards. Reversal and re-reversal build up in the feedback paths, creating a complex and organically shifting soundscape. Turn grain size down for long, smooth reversed transients, and grain size up for stuttering reverse glitch madness.

II. Forward Delay into Octave Up Granular

Program 2 runs a forward delay into an octave-up granular program, in which sampled grains are played at double speed. Swarms of double-speed grains build up in the feedback path for bright and airy cascades of sound.

III. Analogue Delay into Octave Down Granular

Program 3 runs a warm, dark analogue-style delay into an octave-down granular program, in which sampled grains are played back at half speed. Slowed down repeats combine with analogue-style processing to create deep, thunderous footfalls and thick, murky ambience.

IV. Multi-Tap Granular into Multi-Tap Granular (Grain-Verb)

Program 4 runs two multi-tap granular algorithms in series, in which multiple samples are played back from each granular buffer simultaneously. Multiple points of sampled sound build upon each other in the feedback paths to create glitchy clouds and unique organic reverberance. Time in this program controls time-stretching of both granular algorithms, changing both the length and tonal character of the granular effect.

V. Forward Delay into Randomized Pitch Granular

Program 5 runs a forward delay into a randomized pitch granular program, in which each grain is played back at a randomly selected speed and direction, varying between pitched up double speed, pitched down half speed, normal speed, plus forward and reversed playback from grain to grain. Pitch changes with each new grain, so play with the X knob in this program to control the rate of randomized pitch modulation.

Notes: Dual channel analogue overdrive with real tube-like compression featuring 3 clipping options with carefully hand picked germanium diodes, smooth and sensitive to picking strength.

3 different gain levels from clear boost with a touch of dirt to high gain overdrive, full EQ with air control to manipulate the presence of your pickups, a MOSFET boost circuit lets you push your amp into natural breakup.

Order toggle switch to add volume or an extra gain stage.
Side A: BB style circuit with bass, air, treble, drive and volume control
Ge, Si and LED asymm clipping toggle
3 level gain toggle.
Side B: MOSFET boost +20dB with level control
A > B or B > A stack order toggle
Top mounted jacks

Notes: Harvezi Hazze is a versatile and unique distortion pedal with a wide tonal palette.

The heart of Harvezi Hazze is a waveshaper designed around a unijunction transistor, a relic from the early days of the semiconductor industry unearthed from the e-waste bins of flea markets in Tbilisi, Georgia.

The unique properties of the unijunction transistor allow one simple component to replace a number of very complex devices: depending on the operating mode, we can get a distortion, a limiter, a waveshaper and a generator - with a smooth transition between them. Experiments have shown that this transistor is an excellent basis for a distortion stompbox.

The name translates from Georgian as "a fault on the transmission line" or "signal jamming", and both the semantic and phonetic natures of it unequivocally imply what to expect - an impediment to the input signal, ranging from pleasant harmonic distortions to complete obliteration. The signal chain of the unit consists of an optical compressor with fixed parameters; a dual-mode distorting amplifier with either softer or harsher clipping; a waveshaper built around a unijunction transistor; and a tone stack section trying to tame all this mess.

Signal Chain:

Input -> Compressor -> Distorting amplifier -> Waveshaper -> Tone stack -> Output

Controls:

Gain - controls the output amplitude of the signal in the distorting amplifier section. Depending on the position of the switch, the distortion introduced by this section is soft (switch in the left position) or more aggressive with an abundance of high harmonics (middle position).

Spoil and Spread - control the operation of the unijunction transistor (waveshaper section). Spoil sets the point on the amplitude axis at which the wave will fold, and Spread sets the amplitude of the folding. The sonic meaning of these knobs can be described as follows: the higher the Spread value, the more severe the distortion will be, and Spoil changes timbre and response threshold. By adjusting Spoil you can achieve various gating and cutoff effects. At low Spread values, distortion sounds are mixed into the clean sound.

Tone - adjusts the brightness of the sound; the higher the value, the more high harmonics are present in the signal.

The switch regulates either the distortion mode in the amplifier section (left and center positions), or it turns on the total feedback mode (right position), when the values of all knobs begin to influence each other and effects occur such as resonance at certain frequencies and self-oscillation.

Level - controls the output volume of the signal.

The footswitch routes the signal through the effect circuitry or from input to output directly (true bypass).

The array of switches on the side of the unit gives a few more tonal options:

TONE STACK - routes the signal through the tone stack section (Tone knob).

BASS BOOST - enhances bass frequencies.

TONE MODE - changes the behaviour of the Tone knob (tilt or lowpass).

NOTCH FREQ - changes the central frequency of the filter.

HIGH CUT - attenuates high frequencies.

COMPRESSOR - routes the signal through the compressor.

The lower position of the switch enables the function.

Examples:

Compression:

Switch in the central position, Spoil, Spread, Gain - min, Tone - 12 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Soft clipping:

Switch in the left position, Spoil, Spread - min, Tone - 12 o'clock, Gain - 2 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - on, HIGH CUT - off, COMPRESSOR - on.

Distortion:

Switch in the middle, Spoil, Spread - min, Tone - 1 o'clock, Gain - max.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - off.

Fuzz:

Switch in the left position, Spoil - 1 o'clock, Spread - max, Tone - 11 o'clock, Gain - 10 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - on, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Black:

Switch in the left position, Spoil - 12 o'clock, Spread - 1 o'clock, Tone - 3 o'clock, Gain - 3 o'clock.

TONE STACK - on. BASS BOOST - off, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - off.

Feedback:

Switch in the right position, Spoil - 11 o'clock, Spread - 4 o'clock, Tone - 2 o'clock, Gain - 9 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Technical specifications:

Input - 1/4-inch/6,35mm mono jack.

Input impedance - 750 kOhm.

Output - 1/4-inch/6,35mm mono jack.

Output impedance - 100 Ohm

True bypass.

Power - DC 9V, 50mA, DC jack 2.1mm, centre negative.

Notes: Last year in 2023, MOOER released its Prime Stomp S1 multi-effects pedal, to great critical acclaim. The device expanded on MOOER's previous pedalboard creations, applying a more sleek, lightweight, and, most importantly, chargeable design. Now, the company is turning heads once again with the Prime Minimax M1, an upgraded device that improves functionality not only for electric guitarists, but for bassists too.

Packed inside the Prime Minimax M1 are 149 high-quality effect models across 10 banks, each of which contains 4 patches. These include amp and cabinet simulations and overdrives, along with dynamic, modulation, delay, reverb, and EQ effects, as well as empty user slots. Most notably, though, 20 of the amp and cabinet simulations have been curated specifically for bass guitarists, showing MOOER's dedication to providing support for this additional audience.

As with the Prime Stomp S1 and other recent MOOER multi-effects pedals, the Prime Minimax M1 is supported by the MOOER Cloud, a cutting-edge framework for preset sharing. Not only does this allow guitarists to customize and share their favourite M1 creations via the Bluetooth-compatible MOOER Prime app, but it also supports the importing of third-party IR files of up to 512pts. As a result, the 149 built-in effects are greatly expanded, with users able to simulate their favourite classic amplifiers, cabinets, and tones, whether they have downloaded them online or recorded the IRs themselves.

Taking an all-in-one approach to guitar practice and performance, the M1 also includes a built-in drum machine, complete with 40 different drum grooves and 10 metronomes. This goes hand-in-hand with the 80-second looper, with which guitarists can record electric and bass guitar phrases, play them back, and overdub them, all with simple footswitch presses. The looper can even be triggered automatically through signal detection, ensuring that loops always begin perfectly to form a perfect loop. Moreover, the looper can also be synced with the drum machine, a combination of which results in an all-in-one suite for songwriting.

Rather than the four footswitches found on the Prime Stomp S1, the Minimax M1 features just two footswitches, facilitating a more compact and streamlined design. Each footswitch is multi-functional, supporting a variety of tasks, such as browsing preset slots, triggering loop recordings, activating the device's built-in tuner, the tap tempo functionality, and interacting with the drum machine. The status and information of these features are visualized through the device's LED screen, along with indicators for Bluetooth activation, charging, battery life, and footswitch status. Two buttons are also provided-one to activate the drum machine and another for the device's power toggle.

In contrast to MOOER's recent flagship device, the GE1000 Li, the Prime series focuses heavily on portability and compactness. Weighing up at just 190g and 12cm in length, the Minimax M1 can fit comfortably into any backpack and most pockets, facilitating on-the-go guitar practice and performance. To add to this convenience, the M1 can be charged by USB through its built-in 2000mAh lithium battery. As a result, with the device's portability, guitarists can truly use this multi-effect pedal anywhere, anytime.

Continuing MOOER's reputation for providing flexible audio routing options, the design of the Prime Minimax M1 inputs and outputs are varied. Of course, the usually 14" mono input and 14" stereo output are available, as well as the 3.5mm output for headphone practice and monitoring. However, further options are available, such as Bluetooth 5.0 support for audio playback, allowing users to stream audio from another device to play along with. The device's USB-C port can even be used for OTG recording, allowing users to record their creations directly into the MOOER Prime mobile app.

Overall, the Prime Minimax M1 is yet another welcome addition to the pedal producer's range of multi-effects pedals. In particular, it marks a new level of portability for MOOER's device portfolio, showing just how much functionality its design team can pack into such a small box.

Notes: Vintage tremolo and panning with Wave Form and Shape control!

The EHX Stereo Pulsar Stereo Tap Tremolo generates vintage tremolo and panning that will fill any venue with rhythmic stereo energy. Its Wave Form switch allows you to change the modulation from triangle to square form. The Wave Shape control allows you to control transitions from negative to positive saw tooth or adjust pulse width. This all means you can create any type of stereo tremolo from pure vintage to ones never heard before.

Stereo outputs
Tough and compact die-cast chassis
9V battery included

Specifications

Circuit: Analogue
Bypass: Buffered Bypass
Audio: Stereo
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 17mA
Year Released: 2007

Notes: The Golden Boy Mini - the epitome of versatile and transparent overdrive, designed in collaboration with the renowned guitarist Joey Landreth. With its exceptional harmonic detail and abundant headroom, this compact overdrive pedal takes the concept of transparent overdrive to new heights, using a simple and powerful interface.

The Golden Boy Mini is the perfect addition to any guitarist's arsenal, allowing you to shape and enhance your tone in ways you've never imagined. Its transparent nature ensures that your core tone remains intact, while adding a dynamic of warmth, richness, and depth that elevates your playing to new levels.

Its intuitive controls allow you to dial in the perfect blend of overdrive, from subtle grit to soaring, harmonically rich tones. The pedal's wide-ranging gain control ensures that it can adapt to any musical style or genre, whether you're playing delicate fingerpicked melodies or unleashing blistering solos. Pair it with Asymmetrical or Led Clipping and put the final touches with it's 3-band Baxandall-style EQ.

Beyond its exceptional sound, the Golden Boy Mini is built to withstand the rigors of the road. Its rugged construction and top-quality components ensure reliability and durability, making it a reliable companion for both studio sessions and live performances.

Whether you're a seasoned professional or an aspiring guitarist, the Golden Boy Mini will transform your tone and ignite your creativity.

Discover the Golden Boy Mini and unlock the true potential of your guitar tone. Order yours today and witness the power of transparent overdrive like never before. Elevate your sound and embark on a sonic journey with the GOLDEN BOY Mini!

Notes: Add warm dimensionality and luscious tape saturation to your signal. Teleport the tones of yesteryear to your board. Effortlessly create a huge range of beautiful, distinctive, and enveloping vintage sounds. From the inherent warmth and luscious tape saturation to the forgotten art of how these machines were manipulated, Deco brings this original inspiration back, giving you these vintage tape effects from the earliest recording studios, right on your pedalboard.

Deco's Tape Saturation smooths out your sound with familiar and delicious tape compression and saturation, while fattening your tone with subtle tape-driven transparent overdrive.The Doubletracker provides the power to shift your sound in many ways, easily allowing you to achieve syrupy slapback tape echoes, psychedelic tape flanging, and gorgeous tape chorusing sounds.
Our second generation Deco gives you the same gorgeous reel-to-reel tape sounds from our original, while adding several significant new features, incorporating technological advancements, hardware improvements and design enhancements to give you additional flexibility, power, and ease of use on stage and in the studio.

Full MIDI implementation means you can control just about every switch, knob, and setting remotely by sending MIDI commands from your controller or DAW via Deco's EXP/MIDI jack or USB-C connection. Lag Deck delay time can be synchronized via MIDI Clock Sync, and the sync setting can be saved for each preset. 300 MIDI preset locations are available for loading and saving your favorite settings.

Deco now comes with an all-new cassette tape voicing that employs an auto level control (ALC) process common to many high-end cassette tape recorders, resulting in a compressed, fat tone. In addition, a new dedicated Tone knob lets you adjust the tone of the Tape Saturation exactly to your liking, from dark to bright.

A premium analog JFET input circuit ensures superb responsiveness to your playing, and you can select mono or stereo input with the flick of a rear panel switch. All this, plus a new ARM DSP chip provides more processing power for every sonic nuance, with less energy consumption on your pedalboard.

Features

High impedance ultra low-noise discrete Class A JFET TRS stereo input.

Low impedance independent TS stereo outputs.

Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch, MultiSwitch Plus, or TRS MIDI connection.

USB jack for controlling via MIDI from a computer or for performing firmware updates.

Dedicated tap tempo & On/Off footswitches

Premium JFET analog front end

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality

520MHz ARM Superscalar processor

32-bit floating point processing

20Hz to 20kHz frequency response

Audio Input Impedance: 1M Ohm

Audio Output Impedance: 100 Ohm

Strong and lightweight anodized dark gray aluminum chassis

9V DC power supply included

Power requirements: maximum 9 volts DC center-negative, with a minimum of 300mA of current

Dimensions: 4.5" deep x 4" wide x 1.75" tall (11.4 cm deep x 10.2 cm wide x 4.4 cm tall)

Designed and built in the USA

Notes: A sophisticated noise gate that can tame a single pedal or an entire effects loop! The Silencer's three-control layout provides precise fine-tuning to fit your system, axe and playing style. Threshold adjusts how much level is required to open the noise gate and allow a signal to pass thru. Reduction regulated the degree to which the gated signal is reduced and is variable between -70dB and +4dB. Release controls how long the gate remains open after the signal drops below the Threshold. Release time is variable between 8ms and 4 seconds.

I/O includes 1/4" Input, Output, Send and Return jacks. The footswitch selects whether The Silencer is engaged or in bypass mode; buffered bypass allows the effects loop to remain in your signal path when the gate is bypassed. A built-in AC jack accepts a standard power supply like the EHX 9.6DC unit (optional) and the pedal comes with a 9V battery.

Conquer noise with The Silencer!

Notes: Dark Star Stereo Flagship Reverb Pedal

The continued pull, the drift unabated, the controlled wash of gravity and the chaotic meander of its combined uncertainties. In fact, the original and highly loved Dark Star is a pedal that historically was OBNE's most popular reverb. People bonded with its warmth and aliasing, its long trails and the way it encouraged you to turn the mix fully up. Now, it's in with the new. Dark Star Stereo expands on the promise of ambient reverb and is a pitch shifting, bit crushing, filtered reverb pedal with just about every feature you could ask for. One massive stereo voice, with a wide suite of controls that likes to go anywhere in your signal chain - all that's left is for you to decide just how dark you must go.

Reviving the magic of the long-trail lo-fi reverb algorithm that made Dark Star a breakout hit years ago, Old Blood Noise Endeavors announces a new Dark Star for a new era, with a drastically expanded feature set and improved signal quality that is sure to draw in old fans and new. New features like Stereo Input and Output, on-board Presets, Trails, Expression control over all parameters and MIDI control, of both Parameters and Presets, all help to give more versatility to this device than ever before. Beyond that, the new Dark Star does away with the three-mode toggle, instead creating a single mode combining all the Pitch-Shifting, Bit-Crushing, delayed goodness of the original. Access your favourite sounds as well as new combinations, with new shapers like Filter, Multiply, Volume and Stereo-Spread.

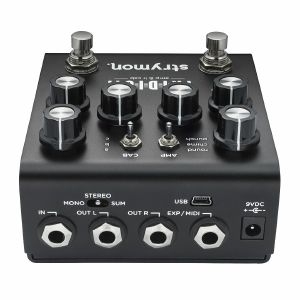

Notes: Iridium

Leave Your Amp At Home.

Nothing reveals the true nature of your guitar and your playing like a world-class tube amp driving a perfectly matched speaker cabinet in a great sounding room. Now there is a pedal that truly delivers that sound and feel, with simple controls for effortlessly dialling in the perfect amp tone when going direct. Discover inspiring tube amp responsiveness, unprecedented impulse response speaker cabinet realism, and controllable natural sounding room ambience.

Iridium gives you three iconic amplifiers, with a total of nine impulse response speaker cabinets that complement the tonality of the amp. Skip the hassle of lugging around or miking amps. Place Iridium on your pedalboard and send gorgeous stereo amplifier tones, stunningly realistic cabs, and lush room ambience direct to a recording interface or PA system. With Iridium, it's a snap to dial in a direct tone that will truly inspire and sound great whether you are monitoring through in-ears, floor wedges, reference monitors, or studio headphones.

Three Iconic Amplifiers

The Matrix Modeling process captures all the subtleties and unique tonal qualities of each amplifier. Strymon have taken three iconic tube amps with distinct characters and mathematically modelled every aspect of their circuitry with absolute precision to deliver the response, feel, and inspiring experience of playing through the original amps at their best. Taking the process a step further, Strymon have hot-rodded each amp to provide an extended range of tonal options beyond what was available from the original designs.

Nine Stereo IR Cabinets

Iridium's speaker cabinets offer a level of realism and responsiveness unprecedented in outboard effects. Iridium delivers full stereo 24bit 96kHz resolution for the entire 500 milliseconds of its speaker cabinet impulse responses. Until now, IRs of this resolution have only been available for use within studio recording software. Iridium's breakthrough technology means you can use the very best impulse responses available, bringing maximum realism to your pedalboard.

Adjustable Room Ambience

Iridium's hybrid room reverb combines a 256 millisecond stereo impulse response with Strymon's reverb tank algorithm for extended decay. This combination places your amp and cab in a natural sounding room (small, medium, or large), creating a space for your amp to open up and breathe.

Round Amp - Based on* a Fender Deluxe Reverb

The Deluxe is one of the most recorded amps in history for good reason. This amp is clean, bright, and mid-scooped, with plenty of headroom. At higher Drive settings it delivers an overdriven sound unique to its architecture. Strymon chose the Deluxe's Normal channel for its round tone that plays well with pedals. While preserving access to all the tones originally available with this channel, our model gives you something extra: a midrange control. With the midrange at noon, you get the original fixed-resistor value and standard tonal characteristics of the Deluxe. Turn down the midrange for a more scooped sound, or turn it up for tweed-era tones.

Chime Amp - Based on* the Brilliant channel of a Vox AC30

The amp that defined the guitar sound of the British Invasion. Our model of the AC30 Brilliant channel (Top Boost) is jangly, bright, and chimey, providing air for subtle passages with a light touch, and bite when you want to dig in. For this amp, the Middle knob acts a Tone Cut knob, providing high-end roll-off just before the power tubes, per the original AC30 design. In addition to the full available gain of the original amp, toward the top end of the Drive knob's range of travel, Strymon have added a frequency-shaped front end boost to tighten the low end while driving the amp further into saturation.

Punch Amp - Based on* a Marshall Plexi (Super Lead model number 1959)

This powerful amp is meatier, with higher gain than the other two amps, and has a powerful midrange response. This amp features a buttery, smooth overdrive. At higher Drive settings it will deliver all the high gain distortion and growl this amp is known for, and then some. Setting the Drive control at around 2 o'clock gets you the maximum gain the original Plexi design allowed. Beyond that, our model has some additional gain on tap, giving you access to custom hot-rodded Plexi high gain tones.

*All product names are trademarks of their respective owners, which are in no way associated or affiliated with Strymon. These product names, descriptions and images are provided for the sole purpose of identifying the specific products that were studied during Strymon's sound design process. Fender and Deluxe Reverb are registered trademarks of Fender Musical Instruments Corporation. Vox is a registered trademark of Vox R&D Limited. Marshall is a registered trademark of Marshall Amplification Plc.

A Carefully Curated Cab Collection.

Iridium comes pre-loaded with a carefully curated collection of premium cabinet impulse responses from OwnHammer, Celestion, cabIR and ValhallaIR.

Round A - Deluxe Reverb 1×12" by OwnHammer
Impulse captures a vintage Fender Deluxe Reverb open back 1×12" combo loaded with a 1978 Fender CTS ceramic 12" speaker.

Round B - Blues Junior 1×12" by CabIR
Impulse captures a 1×12" Blues Junior cabinet, loaded with a Jensen C12N speaker.

Round C - Vibrolux 2×10" by cabIR
Impulse captures a Fender Vibrolux from 1965 with 2×10" Jensen C10NS speakers from 1965.

Chime A - AC30 2×12" Alnico by OwnHammer
Impulse captures a Vox AC30/6 open back fawn 2×12" combo with 2001 Celestion T0530 Blue AlNiCo speakers.

Chime B - 1×12" Alnico by Celestion
Impulse captures Celestion Blue Alnico speaker in a closed back 1×12" cab.

Chime C - Mesa 4×12" by ValhallaIR
Impulse captures a 4×12" Mesa Boogie "Halfback", which is loaded (open back) with two Black Shadow MC-90 speakers from CelestionTM and two Black Shadow EVM12-L from ElectroVoice.

Punch A - GNR 4×12" by OwnHammer
Impulse captures a 1971 Marshall 1960B "basketweave" 4×12" cabinet.

Punch B - 2×12" Vintage 30 by Celestion
Impulse captures a Celestion Vintage 30 in an open back 2×12" cab.

Punch C - Marshall 8×12" Alnico by cabIR
Impulse captures a re-issue of the 1965 Marshall 8×12" full stack cabinet, loaded with Celestion T652 AlNiCo speakers.

Load Your Own Impulses.

It's easy to replace the pre-installed IRs with custom IRs from your own collection by using Strymon Impulse Manager software.

Stereo Output
Operates at instrument and Line Level input sources
Discrete transistor headphone amplifier
Expression pedal input provides seamless morphing between knob positions (Expression mode), or smooth pre/post volume control with logarithmic taper (Volume mode)
USB jack for connecting to Strymon Impulse Manager software
to add and edit your own speaker cabinet IRs
Compatible with Strymon MultiSwitch Plus for remote selection of up to 4 presets
Full featured MIDI control accessible via EXP Jack for remote parameter control and access to 300 preset locations (requires Strymon MIDI EXP cable or MIDI to TRS interface)

Audio Quality

Ultra-low noise, high performance 24-bit 96kHz A/D and D/A
converters provide uncompromising audio quality
Super high performance SHARC and ARM co-processors
32-bit floating point processing

More

Transparent Analogue Buffered Bypass
Strong and lightweight anodized black aluminum chassis
9V DC power supply included
Power requirements: maximum 9 volts DC center-negative, with a minimum of 500mA of current
4.5" deep (11.43 cm) x 4" wide (10.16 cm) x 2.4" tall (6.1 cm)
Designed and built in the USA

Notes: Discover your amp's potential

Riverside's cascading gain stages create harmonically rich tones that are immensely musical and natural-from silky clean overdrive to colossal distortion, and all points between. The analogue JFET front-end ensures that Riverside responds to your guitar with uncompromised dynamics and feel. The precision crafted DSP generates dynamic complexity and pleasing harmonics at every stage, letting your amp shine at any gain level. Riverside takes your amp to places you never knew it could go.

Overview

Infinite sweet spot

Riverside's continuously variable circuit tuning dynamically tweaks multiple parameters under the hood so that the sweet spot follows you at any gain setting. As you turn the Drive knob, Riverside makes continuous adjustments, tuning the circuit for optimum tone. This results in an incredibly versatile drive pedal that is equally capable of providing sparking cleans, mild overdrives, high-gain leads, and heavy saturated distortions.

Flexibility to adapt to any amp

Your amp choice has a large influence on the sound of any drive pedal connected to it. Riverside's musical 3-band EQ, with independent Bass, Middle and Treble knobs, is designed to complement your amp's tone with the flexibility needed to dial in your sound effectively and efficiently. The three-position Presence switch tailors the highest frequencies, allowing Riverside to integrate perfectly with any amp or setup, no matter how dark or bright.

Digital or analogue? Strymon choose both

The first stage of Riverside's custom multistage drive topology is an all-analogue, ultra low noise, discrete, class-A JFET circuit. This gain stage is digitally controlled to maximize headroom while adding as much as 20dB of pure analogue gain, with tight integration to the subsequent DSP gain stages. With Strymon's hybrid approach you get the best of both analogue and digital worlds: The JFET stage provides exceptional touch sensitivity and dynamic interaction with your guitar, while the incredibly powerful SHARC DSP facilitates the great level of detailed complexity and responsiveness you'll want to hear.

Tone Adjustment and Shaping

Drive adjusts the amount of gain applied to the signal. Employs continuously variable circuit tuning which adjusts many parameters as you turn the knob.

Level controls the output volume level when the effect is engaged.

Gain toggles between low or high gain channels.

Low sets a gain structure allowing for a wide range of low to medium gain sounds. At high Drive settings the sound is heavily overdriven, and slightly 'loose' like a dimed vintage amp.

High increases the gain throughout the signal path and tightens things up. Stays relatively clean at low Drive settings, shifting to heavy saturated distortion at maximum.

Push toggles between flat or enhanced midrange frequencies.

Norm can be used for cleaner, more transparent tones.

Mid adds a mid-band EQ push just after the analogue front-end gain. This pushes the subsequent drive stages harder, tightening up the response. Perfect for fat drive tones, or pushing a distorted or on- the-edge amp into further breakup.

Bass is an active shelving/parametric low frequency control. The control is post-drive, shaping your drive tones before they reach your amp.
Middle is a parametric mid boost/cut control with optimized frequency centre. The control is post-drive, shaping your drive tones before they reach your amp.

Treble is a wide-ranging high frequency active shelf control. The control is post-drive, shaping your drive tones before they reach your amp.

Rear Panel

Presence is a three position switch that tailors the highest frequencies of the output signal.

Minus (-) provides clarity with a controlled top end that works well with many amps that have a brighter voice.

Enhanced (centre) extends the top end to allow for more sizzle on high gain tones. Useful if you want enhanced detail in the uppermost frequencies.

Plus (+) delivers extended high end detail to the darkest amps, and is also useful when plugging directly into a power amp.

In is a high impedance mono input. Plug your instrument in here.

Out is a mono signal output. Connect to your amp, other pedals, mixing board, etc.

Boost allows use of an external switch to toggle up to +6dB of post boost on/off. Or connect to the EXP input of another Strymon pedal and simultaneously engage the Favorite settings on both pedals with Riverside's Favorite switch.

Expression Pedal Input provides continuous expression pedal control over any or all of the knobs, in any direction, with your foot. Or can be used in Volume Mode to control the volume level of the effect.
Power - Plug your power supply in here. Maximum 9 volts DC centre-negative, with a minimum of 250mA of current. Standard 5.5mm x 2.1mm barrel connection.

Secondary Functions

Press and hold ON footswitch to enter Secondary Function mode. Release the footswitch, then turn the desired knob to adjust the parameter.

Optional variable-threshold Noise Reduction tames hum, buzz, and system noise when you're not playing. A downward expander with advanced signal detection techniques creates a seamless transition to noise reduced silence with all types of input signal dynamics.

Boost Level sets up to +6dB of available boost when using an external Boost footswitch.

Ins, Outs, Switches

High impedance mono input
Mono output
Favorite footswitch to save a favorite setting
Favorite Input to connect an external MiniSwitch to recall a Favorite preset
Expression pedal input allows the connection an expression pedal for simultaneous morphing control over multiple parameters (Expression mode), or logarithmic taper for smooth volume control (Volume mode)
MIDI accessible via Expression jack for remote parameter control and access to 300 preset locations
Boost pedal input allows connection of an external footswitch for up to +6dB of analog boost, or to toggle the Favorite preset on other Strymon pedals (Favorite Out mode)

Analogue Quality

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
Premium analog front end and output section
Super high performance SHARC DSP in a compact form factor
32-bit floating point processing

More

True Bypass (electromechanical relay switching) or selectable transparent Analog Buffered Bypass
Strong and lightweight anodized gold aluminum chassis
9V DC power supply included
Power requirements: maximum 9 volts DC center-negative, with a minimum of 250mA of current
4.5" deep (11.43 cm) x 4" wide (10.16 cm) x 2.4" tall (6.1 cm)
Designed and built in the USA

Notes: The pedal that revolutionized compact reverb pedals has evolved. Plug into blueSky for the most lush, majestic reverbs imaginable. Transform a single note or chord into vast sonic atmospheres with impossibly gorgeous, incredibly long reverb tails. Hear the inspiring splash of an upgraded spring algorithm dripping with vintage vibe. Lose track of time and space as you interact with deep and expansive new Shimmer sounds never heard anywhere before. Whether you're a classic spring reverb fan, a studio rack aficionado, or an ambient soundscape creator searching for new sonic textures, the sounds you are looking for are here.

BlueSky provides three different reverb types: plate, room, and spring, and each type can produce everything from stunning realism to expanded sounds far beyond what would be physically possible, while always remaining musical and beautiful. Intuitive and powerful tone shaping controls allow you to easily dial in an endless variety of inspiring sounds. And with ultra low noise, high performance 24-bit 96kHz A/D and D/A converters and a 20Hz to 20kHz frequency response, blueSky is equally at home on top of a studio console or in front of a tube amp.

Our second generation blueSky offers true studio quality reverbs in a compact pedal, and adds significant new features, incorporating technological advancements, hardware improvements and design enhancements to give you additional flexibility, power, and ease of use on stage and in the studio. A dedicated Shimmer knob and new Shimmer behaviors yield an inspiring variety of immersive new sounds. A new Mod switch allows you to select the modulation depth for each reverb type. A beautiful new Spring algorithm creates extraordinary vintage spring reverb sounds, as well as expanded spring textures and hauntingly unique interactions with an octave-down Shimmer. A premium analog JFET input circuit ensures superb responsiveness to your playing, and you can select mono or stereo input with the flick of a rear panel switch. In addition, you can now control blueSky with an expression pedal or MultiSwitch Plus.

All this, plus a new ARM DSP chip provides more processing power for every sonic nuance, with less energy consumption on your pedalboard. Full MIDI implementation allows you to control just about every knob, switch, and setting remotely via the EXP/MIDI jack or USB. And you can save and recall all the new sounds you create via 300 onboard MIDI preset locations.

Notes: Raise the bar when it comes to creating synth effects, sound layers, glissandos, infinite sustain and more!

Building on the synthesis platform of the award-winning Superego, the EHX Superego+ Synth Engine raises the bar when it comes to creating synth effects, sound layers, glissandos, infinite sustain and more. Plus, we've added a complete effects section featuring 11 effects types, an EXP input for effect parameter control/preset recall and an EXT jack for a 3-button controller.

The Superego+ is equipped with the following effects:
DETUNE: pitch detune, EXP pedal controls pitch
DELAY: warm, analog sounding delay, feedback is preset, EXP controls delay time up to 2 seconds
ECHO: pristine digital delay, feedback is preset, EXP pedal controls delay time up to 2 seconds
FLANGE: Electric Mistress style w/filter matrix, rate and feedback. EXP pedal controls rate
PHASE: Small Stone style phase shifting with rate and depth control. EXP controls rate
MOD: pitch-based vibrato or chorus. EXP controls rate
ROTARY: rotary speaker style sound. Depth controls tweeter/horn balance. EXP pedal controls rate
TREM 1: sine wave tremolo. EXP controls rate
TREM 2: square wave tremolo. EXP controls rate
PITCH: pitch shifting effect over a +/- one octave range. EXP controls whammy
FILTER: resonant low-pass filter. EXP pedal controls frequency

The pedal provides enough sound shaping control to please the most sonically adventurous player and is equipped with Dry, Effect, Attack, Decay, Threshold, Layer and Gliss knobs, plus Rate and Depth knobs for the Effects Section. Four foot-switchable Freeze modes: Moment, Sustain, Auto and Latch, plus a Live Effects mode where the dry signal is routed thru the built-in effects and the internal synth engine is disabled, are included.

The polyphonic Superego+ works with guitar as well as other instruments including bass, keyboards, vocals, drums, etc. and comes equipped with an EHX 9.6DC-200 AC Adaptor.

Creates synth effects, sound layers, glissandos, infinite sustain and more
Four Freeze modes
Built-in effects section with 11 effect types
EXP input for effect parameter control
EXP Presets sweep between snapshots of 7 knob parameters; create and save one set of snapshots for each FX type
Live Effects mode where the dry signal is routed thru the built-in effects and the internal synth engine is disabled
EXT jack for a 3-button controller
Power adapter included

Specifications
Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 140mA
Year Released: 2017

Notes: Multi Delay and Reverb effect pedal with inside routing and secondary reverb effects. One of the best Delay and Reverb algorithms in a metal box. Special select 3 classic Delays & 3 classic Reverbs . . . and we added a bonus "Shimmer" and "Freeze" effects which let you create a dreamy waterfall shimmer~ especially handy for intros, interludes, and endings. And now, because of NUX's latest Core Image Technology, the new Verdugo Series effect pedals offer pro-level sound enhancement.

Notes: The EHX Bass Mono Synth transforms your bass into eleven great sounding synthesizers... from vintage synth emulations to thick, stacked voices to deep pulsing sounds and more.

Its intuitive layout makes it easy to use and easy to dial in good sounds quickly. DRY controls the volume of your dry bass signal at the Synth Output. SYNTH controls the volume of the Synthesizer sound at the Synth Output. Used together they let you create just the right mix. The SENS control, short for sensitivity, adjusts how your playing dynamics trigger the synthesizer and allows you to fine tune the way the pedal responds to your bass rig and playing style.

With the CTRL knob you can adjust a key parameter for each of the eleven synth types. It varies depending on the preset and provides more tweakability for customizing your sound. There’s also an EXP input which lets you control an entirely different parameter in real-time with an expression pedal!

Using the built-in Preset footswitch, a user customizable preset for each of the eleven synth sounds can be created, saved and recalled. The factory presets are also easy to restore should you wish to.

From lush, warm sounds to sharp, percussive stabs, the Bass Mono Synth puts a collection of cool bass synths at your fingertips.

Notes: Proudly billed as the first fully programmable drum machine in a pedal format, the Step is designed to accompany other instruments. Four-track, 16-step sequencer with 300 Beat presets and 500 kits.

Supplier's Notes:
Step Modern Drum Machine

Step is the first fully programmable drum machine in pedal format. It's an instrument, a co-writer, an accompaniment at a live performance, or a bandmate in an empty studio. Designed with the flexibility to instantly start a unique song but with deep customization options to quickly create fresh beats. Step is for everyone - everyone that isn't afraid to experiment, take chances, try something new, and create original music.

4 Customizable Drum Tracks

Step is a 4 track drum machine with a complete interface. Easily control all parameters for each of the 16 steps on the face of the pedal, no computer editor needed.

Mix & Match

How about an electronic snare with a jazzy kick? With Step, with a twist of a knob, you can create your sound pack by combining sounds from different Kits.

Instant Drum Beat Generator

Tap in the tempo, turn the Beat and Kit knobs to find your groove and play! There are 300 rhythms and 500 kits - it gives tons of combinations.

Modern Sound

With over 2000 samples, from the sounds of classic analogue machines to acoustic drums, anyone can find the sound they want. And, if you're going to create your kits, you can easily do it, too.

Per-Step Control
Customize over 15 parameters for each track's drum sound on a per-step basis. Switch up hi-hat velocity, add reverb to a final crash or throw in a 10% chance for a drum roll.

A Thousand Songs

Create and play complete 16-part songs, easily put together by quick-copying patterns, selecting new beats or making your own. Then make a playlist and go live!

Stomp-In FX

Use the FX stomp-switch to punch in customized effects from delays, reverbs, loopers, rearrangers and more. Every pattern in your song can have a different stomp-in effect.

Expansive Connectivity

Step has all the connectivity you need, stereo input and output, MIDI in and out, expression pedal input, and micro SD card storage with USB-C connectivity.

Nerdy on Demand

Need polymetric or polyrhythmic beats? Or maybe some generative drums? Step offers per-track swing, speed and length, step probability, randomized note playback, and more. You don't have to get nerdy with Step, but you can!

Instant Inspiration

From musicians wanting to quickly play along with a drum kit to deep divers looking to create more than traditional drum beats, Step is for everyone. Either create songs instantly by selecting from 500 preset rhythms and 200 drum kits or use the interface to create completely customized beats anywhere. Loop 16 steps and jam or combine patterns into a 16 pattern song.
A Complete Instrument

Step is a fully customizable drum machine, with features designed to make original drum tracks you want to play along with. All Step's parameters can be controlled directly on the pedal with a straightforward, intuitive user interface. Create complex and evolving patterns using probability, a dynamic drummer by switching up the velocity on eat hit, a sloppy drummer with the humanize, chance and micro-move features, or a perfect robotic machine.

Performance Ready

As a live companion Step can't be beat. With the ability to stomp-in effects and change songs or patterns via the dedicated stomp-switches, Step is a one stomp solution for all your performance needs.

Smash the FX stomp-switch and create interesting transitions or emphasize a solo. Freely assign over 50 effects in 8 different categories to the FX stompswitch, from repeaters and rearrangers to delays and reverbs.

For even more live control, assign the expression pedal to parameters including tempo or volume.

In Sync

Step is the perfect bandmate, keeping everything in sync. Use Step's MIDI input and output to stay in time with your delay, start playback at the same time as a looper, and more.

Keep your devices in sync too. Step's sequences are also compatible with Play and Play+. Create and exchange patterns between grooveboxes and the pedal, in both directions.

Tech specs

Ins & Outs

Stereo/Mono In: jack 6.3 mm
L-Out/MONO: jack 6.3 mm
R-Out: jack 6.3 mm
Expression Pedal
MIDI In: mini-jack 3.5 mm
MIDI Out: mini-jack 3.5 mm
USB-C
Power: 9-18 V DC / min. 500 mA (power adapter not included)

Physical Dimensions

Height: 2.24 inches (5.7 cm) - with knobs
Width: 7.09 inches (18.0 cm)
Depth: 4.72 inches (12.0 cm)
Weight: 2.05 pounds (0.930 kg)

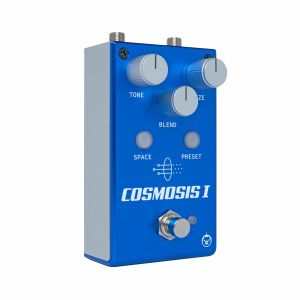

Notes: Morph across the spacetime spectrum.

Cosmosis 1 is a high-fidelity digital reverb that delivers premium ambient reverb sounds in a streamlined, single-footswitch enclosure. Cosmosis 1 contains three unique Pigtronix space algorithms with onboard controls for the size of the reverb, wet/dry blend, and filtering. Custom-made LED touch switches provide instant color-coded access to three unique reverb spaces as well as three user-defined presets. Theatre (blue) puts the player in a variable room that ranges from cozy to highly reflective using multiple parallel short reverberators. Temple (amber) occupies a dramatic, large indoor space by implementing numerous long reflections in both parallel and series. And Cosmos (purple) creates an enormous spectrum of heavenly reverb derived from the harmonic content it's fed.

Cosmosis 1 also features Pigtronix's signature 'Morph' function that allows musicians to alter their settings in real-time by pressing and holding the footswitch. This feature provides a simple way for players to trigger a gradual change to various reverb parameters simultaneously. Players can set both "red" and "green" values on their Tone, Blend, and Size knobs, then engage the Morph to traverse the difference between these values as indicated by the color-changing Engage LED. Create elegant morphs for subtle movement or sweeping, cinematic morphs for dramatic sound design effects. Stereo functionality is available via the TRS output jack. Cosmosis 1 runs on standard 9VDC power.

Knob-by-knob

Tone: Clockwise from noon, this control applies a high-pass filter, making the reverb sound brighter. Counter-clockwise from noon, this control applies a low-pass filter, making the reverb sound darker.

Size: Sets the size of the reverb space

Blend: Sets the balance between wet (reverb) and dry (clean signal)

Space Select: Push to toggle through 3 available reverb spaces.

Preset Select: Push to toggle through 4 pre-loaded presets, press and hold to select. To save a custom preset after making changes, press and hold. Presets can also be toggled and selected using only footswitches (see manual).

Three Evocative Spaces

The three unique space algorithms found inside of Cosmosis are entirely original and comprise a combination of primary source impulse responses, imagined reflections, and inspired mathematics. Theatre is a vintage-inspired small room sound ranging from cozy to reflective; Temple is a rich and flowing larger space featuring long reflections in both parallel and series; and Cosmos makes use of divine inspiration to create an enormous spectrum of harmonically-informed reverb. Kill the Size knob in any space to conjure a ghostly, full-wet "reverse" reverb effect.

Single-Footswitch Streamlining

Maintaining all of the functionality of the original dual-footswitch Cosmosis, the Cosmosis I prioritizes a streamlined interface that gets you to your favorite sounds even more quickly, plus its standard stompbox size doesn't disrupt your pedalboard.

Specifications

Function: Stereo Ambient Reverb with Morphing
Bypass: Buffered

Electronics

Voltage: 9VDC
Current Draw: 100mA
Input Impedance: High
Output Impedance: 1k

Body

Length (inches): 4.5
Width (inches): 2.5
Height (inches): 2
Weight (lbs): 1

Notes: Analogue delay with extensive controls and tap tempo all in an affordable package!

The EHX Deluxe Memory Boy Analog Delay's Quality ICs deliver warm and organic analog tones while "tap tempo" allows you to always be in sync with the groove. Choose five note divisions for metronomic variances. Sweet modulations can add lush ambience while the expression pedal input gives you external control. The Deluxe Memory Boy is the most flexible, affordable analog delay ever designed.

Tap Tempo
Tap Divide timing subdivisions
Expression pedal input for flexible control
Triangle and square wave modulation with adjustable rate and depth for superior chorus, vibratos and sweeps
Total analogue bucket brigade design
Built in EFX loop
Total Analog bucket brigade design
Power adapter included

Specifications

Circuit
Analogue: Analogue w/ Digital Control
Bypass: True Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 100mA
Year Released: 2010

Notes: With 11 reverb types and a ton of "hidden" functionality, the Electro-Harmonix Oceans 11 reverb pedal could be your new go-to reverb pedal. You can tap into classic tones like hall, plate, and spring reverbs, including a brand-new spring reverb algorithm that sounds gloriously complex and rich - you can even double-tap the footswitch to "crash" the spring reverb. And you'll be able to cover a huge range of modern tones with a variety of modulated reverbs, shimmer reverb, reverse reverb, and more. A mode switch offers access to variations on many of the 11 reverb types. Complete with an infinite reverb mode for freeze-style effects, there is vast creative potential in the Electro-Harmonix Oceans 11 reverb pedal.

Reverb types:

Hall - rich and full sound of a grand concert hall
Spring - brand-new tube spring reverb emulation
Plate - lush and warm plate reverb
Reverse - each note fades in backwards
Echo - recirculates echoes through the plate reverb algorithm
Trem - hall reverb plus tremolo
Mod - modulated reverb
Dyna - swells, gates, and ducks in response to your playing dynamics
Auto-Inf - auto-infinite reverb, triggers a wash of reverb with each new note or strum
Shim - shimmer reverb with an octave-shifted wash that blooms behind your core tone
Poly - polyphonic reverb with two pitch shifts operating on your pre-reverb guitar tone

Notes: Immerse yourself and go beyond the boundaries of what is possible with a conventional guitar or synth pedal. GHOST PEDAL brings you new possibilities of tone shaping with its state of the art flexible audio routing chain, allowing you to jump between dimensions with a single press of a button.

From earth shaking subharmonics and distorted drones to angelic shimmer reverbs and anything in between, GHOST is a PEDAL for the adventurous sound designers and the most demanding guitar and synth players. Intuitive UI coupled with hands-on control and preset storage allows you to stay in the now and focus on your performance.

Unique user interface showing parameter values and real-time modulations

Line or high-impedance JFET guitar inputs with cabinet simulator

Full MIDI control over every parameter incl. MIDI clock over LFO and delay

True relay stereo, buffered and trails bypass modes

Bipolar LFO and expression pedal assignments to any parameter

3 reverb and 3 filter types, incl. comb with resonator, six possible routing variations

Reverb freeze, delay looper, spring reverb with virtual spring excite

Three footswitches let you change assignable parameters (tap tempo/freeze/spring excite), select presets and bypass with your feet

Notes: Buzz. Beep and bloop. Get high on the lo-fi sounds of "old-school" games, toys and terminals!

The Mainframe provides sample rate reduction ranging from 48kHz to 110Hz. A little background... the sample rate is the number of times per second that a sample or snapshot of an analogue signal is taken. For example, CDs (remember them?) had a sample rate of 44.1kHz which means that the original analogue signal is sampled 44,100 times per second.

The sample rate defines the frequency range that can be reproduced while maintaining good fidelity. When the sample rate is reduced the quality of the audio is degraded and aliasing occurs. Aliasing means audible artifacts created when higher frequencies are sampled at an inadequate rate and the result is distortion. The Mainframe's sample rate range is wide enough to take you from sounds that are quite pristine to sounds that are unrecognizable when compared to the input signal.

It also provides bit crushing ranging from 24-bit to 1-bit. What does that mean? Bit crushing is bit depth reduction. Back to the CD example... CDs used a 16-bit bit depth meaning that each of its samples was represented by 16-bits of information. Higher bit depths can accurately represent a greater dynamic range while bit crushing increases the number of sampling errors and creatively degrades the sound to bring us back to those nasty "old school" sounds we love.

The Mainframe's selectable High/Low/Band-Pass filter lets the user shape the artifacts of the bit crushing and sample rate. Another very cool feature is its Sample Rate Tuning Mode where the pedal analyses your input signal in real-time and sets the sample rate to match the pitch of your signal, or a set interval above your signal. This allows you to set the sample rate to match the key of a song, or it will continually adjust the sample rate based on what you play!"

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 90mA
Year Released: 2020

Notes: The Reissue series 6ixty 5ive overdrive puts the sound of the famous1960s black panel amplifiers right at your feet. Emulating the drive of these classic models gives a range of tones from just over-the-edge all the way to burning tube overdrive whilst retaining the guitar's natural voice and clearly defined edge. The all analogue circuit has a Gain control to adjust the amount of drive and the resulting output is balanced by the Level control. A Trim pot on the rear of the pedal further controls the saturation of the gain stage, bringing natural sounding compression and sustain into play. Bass and Treble controls provide tone shaping as you would find on a classic amplifier. Use as an "always on" drive pedal or switch in for a gain boost with a classic edge whenever the mood needs it.

Classic 1960's black panel amplifier tones
Level and Gain with Trim pot for drive & saturation settings
Bass & Treble EQ controls
True bypass switching
Batteries9V PP3 (supplied)
Power supply: Optional 9Vdc 300mA regulated (not supplied)
Controls: Level, Gain, Bass, Treble, Trim & foot switch
Input impedance: 1M Ohms
Output impedance: 10k Ohms
Dimensions: 121 x 77 x 48mm
Weight: 230g

In the box

The box for this item contains :

Reissue series 6ixty 5ive overdrive pedal
9V PP3 battery

Notes: The Chthonic Fuzz (pronounced: Thawnic) creates fat, corpulent, fudgy, sludgy, fuzz tones that pair perfectly with single-coil, P90, gold-foil, and De-Armond style pickups. It also works great with PAF-style humbuckers, but this fuzz was designed with brighter guitars and amps in mind.

Starting with a beloved a single-knob '70's fuzz circuit, DOD experimented with adding a subtle tone control (Lustre), and then a separate gain control (Fuzz). This yielded a simple yet powerful fuzz with an earthy, dark flavour. Straight-up transistor clipping using a pair of 2N2222 transistors allows guitar volume knob clean-up like other classic fuzzes, but the Chthonic comes from a different dimension. Think of it as a kind of Colorsound Overdriver from an alternate universe.

The Chthonic's Kraken/Cthulhu graphics are courtesy of the same artist that did the Carcosa Fuzz art. The Chthonic is a psychotic dizygotic dark companion to the Carcosa Fuzz.

Darker fuzz designed for brighter guitars and amps
Subtle tone control retains pick attack throughout entire range
Excellent clean-up with guitar volume knob
Lightweight all aluminium chassis
Crisp blue LED
True Bypass
11.88 cm (L) x 6.68 cm (W) x 5.71 cm (H)
0.453 kg.
Power Supply 9V Alkaline Dry Battery orPS200R Power Supply
Manufacturer Warranty: 1 Year

Notes: Transcend musical boundaries with the Aeros Gold Edition looper pedal. Create, perform and record both parallel and sequential loops. Dual modes and quantization options adapt to your playing style. Intuitive hands-free navigation and silent footswitches offer a superior playing experience.

The Aeros Gold Edition is packed with powerful, innovative features. Use the built-in Mixer Mode to adjust track volumes on the fly. Import your own backing tracks to fuel your performance. Loop without stress thanks to error-friendly features like auto quantize, Intelligent End-of-Measure Forgiveness, and easy undo/redo commands. The Aeros Gold Edition can serve as a MIDI transmitter (Master) or receiver (slave) sending and receiving a plethora of MIDI commands like time signature, transitions, start/stop and more.

Utilize built-in effects like auto-fade in/out, reverse track and loop decay. Record up to 20 minutes of mono audio per track (10 hours per song). The Aeros Gold Edition elevates recording and songwriting with studio-grade 24-bit audio and 32-bit floating point processing. Operate line and instrument levels, send your inputs anywhere, and select between stereo and mono audio.

Parallel and Sequential Looping Capabilities
Write complete songs with multiple tracks
On-board Live Mixing View
Adjust track volumes on-demand
Flexible Dual Playing Modes
2x2 and 6x6, for boundless creativity
Innovative, Adaptive Dynamic Read Memory
Record up to 10 hours in mono
High-res Touch Screen Display
Access your features with ease
Colour-coded Cues and Waveforms
Stay locked in to your performance
Industry-leading Loop Capacity
Up to 36 in a single song
Industry-Leading Memory System And Connection

If you have a BeatBuddy or MIDI Maestro, Aeros will sync with them automatically via MIDI. Once connected, auto quantize your loops to the measure of the beat, utilize powerful Aeros functionality with a single button press and more. The built-in Quick Start Guide will get you up and running fast, and detailed changelogs keep record of every new command.

Take songwriting and performance to the next level. Spark your creativity and do more of what you love. Aeros users get access to feature-packed Firmware Updates, bringing diverse new abilities to your looper pedal. You can download them over Wi-Fi with one press.

Technical Specifications

Type: Looper Pedal with Digital Mixer
Looper: 6 x Song Parts, 6 x Stereo Tracks, Unlimited Song Memories
Looping Time: 20 Minutes Mono (1-track), 48hrs Mono (Max Memory w/ 32GB Card)
Effects: Reverse, Fade In/Out, Loop Decay
Channels: 4 (L/R Main + Aux L/R)
Faders: 7 x Digital

Signal Processing: 32-bit Floating Point
Sample Rate: 44.1kHz
Bit Depth: 24-bit
Inputs: 2 x 1/4" (L/mono, R), 1 x 1/4" TRS (Stereo Aux)
Outputs: 2 x 1/4" (L/mono, R), 1 x 1/4" TRS (Stereo Aux)
MIDI I/O: 5-pin In/Out
USB: 1 x Micro-B
Other I/O: Wi-Fi, Bluetooth
Bypass Switching: Digital Dry Through
Storage: Internal, SD Card (up to 32gb, Not Included)
Screen: 4.3" Diagonal, Touch Enabled

Power Source: 9V DC Power Supply (Included)
Power Usage: 300mA

Height: 2.2"
Width: 7.8"
Depth: 5.6"
Weight: 2 lbs. 4 oz.

Notes: 30 fully polyphonic pitch-shifting options under 15 square inches!

Offering a total of 30 pitch shift options and expanded controls, the Pico Pitch Fork is the next evolution in pitch shifting from Electro-Harmonix. The original Pitch Fork has garnered praise from all styles of player at every level and the Pico Pitch Fork brings even more features to the celebrated pedal in an impossibly small package.

The Pico Pitch Fork features 10 pitch shift intervals and three modes of pitch-shifting - Up, Down and Dual. Dual mode features specially paired pitch shift intervals to allow for more musical effects.

Controls on the Pico Pitch Fork are simple and effective. SHIFT selects the Pitch Shift interval. BLEND sets the wet/dry blend of the output mix while VOL adjusts the overall output volume. SWEEP controls pitch bend sweep time when toggling between bypass and effect and back to create automatic whammy effects. The Pico Pitch Fork's footswitch can operate in two modes: Latching and Momentary. Latching turns the effect on with one footswitch press and off with another while Momentary turns the effect on only when the footswitch is being held for instant bursts of pitch-shifting pandemonium.

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 3.65 x 2.0 x 2.0
Current Draw: 100mA
Year Released: 2023

Notes: The [ACS1] is an amplifier and speaker cab simulator delivering the sound and feel of world-class amplifiers, complimentary speaker cabinet IRs created by Tone Factor and York Audio, and controllable room size. With the ACS1, players have expansive options to deliver their tone on stage, in the studio, or practicing at home. Simple controls, stereo in and out, onboard presets, and MIDI support make the ACS1 an essential tool in a guitarist's arsenal. Players can also load in their own IRs and update firmware.

The ACS1 contains six amplifier models based on fan-favourite amps, each with its place in music history, and twelve cab IRs (Impulse Responses) designed by world-class designers to give you the best tonal representation possible. The stock IRs for the Fullerton, London, and Dartford amp models were custom engineered by David Hislop and Kenyon Reed at Tone Factor, while the stock IRs for the Red, Citrus, and Tread amp models were designed by Justin York at York Audio.

Amplifiers

The ACS1 can mix and match stereo amp and cab combinations. Want to run an AC30-style amp on the left and an Orange-style amp on the right? Or perhaps a 5150 flavoured amp in both channels but with two different cabs for a wider stereo sound? When running the ACS1 in stereo, one amp can be used through both channels, or these combinations can be run independently left and right if you choose, leading to powerful, unique amp tones. Simply press down on the Middle encoder to choose individual settings for L, R, or L+R combined. Amps can be mixed and matched with no phase/polarity issues as well.

Onboard models include:

Three Vintage Amp Models

Fullerton - Inspired by the classically bright and clear Fenderr Deluxe Reverb. Crisp clean tones with loads of headroom that players have come to love over the years.
London - Inspired by a 1962 Marshallr Bluesbreaker with a harmonically rich, valve-driven breakup. Articulate and sensitive response.
Dartford - Inspired by the legendary jangly high-end tones from a 1960s Voxr AC30 with all the bite and chime from the British Invasion.

Three High Gain Amp Models

Red: Inspired by the distinctively raw and punchy Peaveyr 5150, producing heavy, aggressive modern metal and hard rock sounds. Powerful and saturated with a tight low end, strong midrange, and a bright, cutting high end.
Citrus: Inspired by the warm, rich, and harmonically complex Oranger Rockerverb. Classic British gain with a creamy midrange and punchy lows. Maintains clarity and definition across its entire tonal spectrum, even at high-gain settings.
Tread: Inspired by the world-famous Mesa Boogier Dual Rectifier with massive amounts of in-your-face gain. Versatile enough to be favoured by guitarists in genres from hard rock, punk, metal, and more, Tread offers up plenty of saturation that's heavy and ready to cut through the mix.

Cabinet IRs

The ACS1 includes six IRs custom-engineered by David Hislop and Kenyon Reed at Tone Factor and six by Justin York of York Audio. Each IR has been created with vintage and modern amps to deliver the best tonal representation possible.

Additional ACS1 Settings/Features:

Primary Controls

Volume, gain, and room make up the top three knobs. Volume and gain work together, as gain is increased and made louder, volume can be turned down to compensate.

Room The ACS1 has three different types of reverb effects:

Room - Simulates the size of the room that your amp and cabinet are in. At zero, it would resemble tracking your amp in an isolated environment with no reverb. At max would emulate a natural-sounding, large studio environment.

Hall - Simulates the acoustics of a large, live sound space.

Spring - Simulates spring reverb tanks found in tube amps.

Increase the room size or amount of reverb by adjusting the Room knob. The further clockwise you go, the bigger the room. Decay control can be adjusted for room in the Global Sound menu.

Bass/Mid/Treble EQ

Bass, mid, and treble control are adjustable on the home screen with the use of the encoder knobs. The left knob controls bass, the middle is mids, and the right is treble. This simple EQ control has clear visual feedback and can be used to adjust levels on the L, R, and L+R channels.

Noise Gate

A noise gate can be applied and adjusted within the navigation menu, which can be especially helpful when playing with the high-gain amp models.

Amp EQ

Presence and resonance controls are available within Amp EQ Settings in the menu, giving you even more control of your amp tone.

(Access the settings for noise gate, Amp EQ, and more by clicking the bottom left and middle encoder knobs simultaneously).

Bypass IRs or Amps

Cab IRs as well as amp models can both be bypassed with the ACS1, making it more flexible for ampless rigs that still have physical cabs, and vice versa.

Notes: The legendary Strymon deliver quality goods once again with this analogue-inspired stereo delay. Single head sound gives a classic 60s vibe with modulation and subtle imperfections.

Supplier's Notes:
Experience the dreamy sound of a classic '60s tape echo complete with the harmonic richness of the accompanying tube preamp. Enjoy organic and ethereal modulation produced by countless subtle mechanical imperfections, and easily dial in anything from warm slapback to expansive echo feedback beds with a strikingly gorgeous stereo image. With beautifully-tuned low frequency response, lush tape saturation and sublime echo decay, EC-1 provides all the best of what a tube driven tape echo can deliver.

EC-1 offers impressive power and flexibility in a small and elegant form factor: Selectable tube-modeled preamp voices. Artifact-free tap tempo. Discrete stereo operation for independent processing of the left and right stereo inputs. Straightforward controls and expression pedal capability. High-impedance, ultra-low noise discrete Class A JFET stereo input preamp for exceptional touch sensitivity, dynamics and feel. MIDI control of tempo, patch save/recall and more. Premium components, rugged construction and a USB jack for performing firmware updates or controlling the pedal from a computer.

Featuring meticulous tube modeling techniques, EC-1 offers a choice of two authentically reproduced preamp circuits that lend a subtle vintage character to your input signal. One is based on the classic EP-2 tube preamp and features an enhanced high-end shelf perfect for brightening up darker humbuckers. The other preamp option (the default setting) produces a warm, balanced response based on the modded preamp circuit in the EP-2 unit that we studied during the development of EC-1. This option adds a pleasing sense of heft, especially to single-coils. Both preamp choices offer an optional boost of up to +6dB, or the preamp can be bypassed for an unprocessed dry signal if desired.

Strymon's unique dTape technology was first developed for El Capistan, and they have expanded on it to reproduce all the inspiring nuances weencountered while studying a recently-acquired tube Echoplex that was in uncommonly superb condition. Our dTape system allows precise replication of every aspect of every tape echo we've studied, and in EC1 this includes the effect of the moving head, the tape condition, the bias setting, the mechanical effects of motors, capstan slippage and all the irregularities that add up to create the unmistakable, inspiring sound of vintage tape echo repeats.

Whether you want the cleanest repeats, subtle fattening or even downright dirty echos, you can instantly dial in the desired amount of tape saturation with the flip of a switch. Providing pleasing tonal shifts from thinner to fatter, EC-1's three-way Record Level toggle switch selects the gain of the signal fed into the virtual record head. Choose the low position for unity gain with optimized bias for the cleanest repeats, medium for a 6dB input signal boost with increased bias for slightly saturated repeats, or high for a 12dB input signal boost with further increased bias for heavily saturated repeats. This control also gives you a fast and easy way to match EC-1's response to your input signal level to obtain the desired sound from any pickup type or pedalboard configuration.

For EC-1, fluctuations from motors and mechanical components were thoroughly studied to accurately capture their imperfections. At the lower end of the Mechanics control's range only slower motor-related wow and flutter are present, but at around one o'clock these fluctuations are reduced in favor of faster disturbances from crinkle, splices, and capstan slippage which accurately replicate the sound of our golden EP-2 unit.This setting can create uniquely reverberant and three-dimensionalechos that spread across the stereo spectrum. The slower fluctuations are mixed back in more prominently as you approach the maximum Mechanics setting, and the unique combination of multiple imperfections create truly gorgeous, organic stereo modulation effects unlike anything you've ever heard.

The frequency characteristics of tape echo repeats are determined in part by the bandwidth of the actual tape stock, so older tapes will have a lower bandwidth with a warmer top end. EC-1 allows you to faithfully reproduce these characteristics by turning up the Tape Age knob for warmer repeats, or turning it toward minimum for the full-bandwidth sound of fresh tape.

EC-1 is designed to allow high levels of repeats that are truly lush but that don't spiral into uncontrollable feedback. That wide sweet spot on the edge of runaway feedback can create intriguing sound beds under your lead or rhythm playing. Of course if you want to crank the Repeats control to maximum and play with the unique pitch effects that only a sliding record head tape echo can produce, those effects are all precisely replicated in sound and response.

Notes: Volante

Sounds From The Expanse.

Create instant retrofuture atmosphere with evocative vintage delay tones. Activate your imagination with evolving ambient echoes and warm, organic feedback with just the right amount of grit. Sculpt your soundscape in real time as Volante becomes an extension and expansion of your musical instrument. Infuse your pedalboard with stunning vintage vibes that resonate and inspire.

Overview

Delays For Days.

Three Magnetic Delay Types, Spring Reverb, Looper, and More.

Delivering truly exceptional sound quality and intuitive playability, Volante is designed to radically enhance the sonic expressiveness of your pedalboard. Featuring magnetic drum echo, tape echo, and reel-to-reel studio echo, Volante is a stereo multi-head delay that also offers a looper and vintage spring reverb, with powerful sound-sculpting controls for limitless sonic possibilities.

Vintage Vibe.

To capture the nuance and complexity of classic tape and drum echo machines, every last magnetic delay system attribute was relentlessly studied and faithfully recreated. From the sought-after natural saturation and soft clipping of magnetic media when driven hard, to hands-on real-time controls for mechanics, wear, head-spacing, and low cut, Volante instantly adds tons of vibe to your sound.

Multi-Head Maven.
Volante provides the full experience and sonic attributes of iconic multi-head echo machines. At the centre of Volante's control surface are four delay playback heads with individual feedback, panning, and level controls-delivering unlimited creative options right at your fingertips. All of this range allows the creation of complex rhythmic patterns as well as reverb-like atmospheric textures.

Drum Delay With Unprecedented Control.

Magnetic drum echoes are famous for their warmth and for their harmonically rich and saturated sounds. This is due in large part to the many tube stages present in the most sought-after units. There were tubes in the input buffer, the signal mixer, the record and playback amplifiers, the tone shaping circuit, and the output mixing circuit.

Every sonic aspect of Strymon's favourite drum echoes has been meticulously reproduced within Volante. Dial in any possible sound from the full range of the best vintage drum echo units in conditions ranging from fresh-from-factory to road-worn classic.

Classic Tape Echo Experience.

Volante gives you superbly crafted multi-head tape echoes, including the smooth tape saturation and the characteristic imperfections and nonlinearities inherent to the sound of those vintage machines.

Mechanical alignment, head wear, and tape crinkles, splices, and contaminants are all accounted for in Volante, giving you all the richness and complexity of a classic tape echo, with modern control and stability. Volante also allows you to recreate the irregular head spacing of some of the classic tape echo machines.

True Studio Tape Sound.

The professional reel-to-reel machines of the 50s and 60s were high-fidelity units built to accurately reproduce full-range audio signals. In the hands of creative engineers, these machines also doubled as some of the earliest studio effects, producing some of the fattest sounds imaginable.

Of Volante's three magnetic echo types, the Studio Echo provides the cleanest sound, able to sustain the highest number of repeats with minimal degradation. Volante gives you a pristine studio delay with the full-bodied warmth and fidelity of reel-to-reel tape.

Completely Analogue Dry Path.

In a typical digital effect the dry signal gets converted to digital, causing conversion noise and latency. Signals are often attenuated before combining digital dry and wet, with makeup gain amplifying the conversion noise. To avoid this, Strymon have equipped Volante with a completely analogue dry path, featuring all-analogue, ultra low noise, discrete, class-A stereo JFET preamps. Volante is truly a studio-quality effect.

Insanely Powerful DSP.

Strymon have outfitted Volante with the incredibly powerful Analog Devices SHARC ADSP-21375 processor, which provides a 266 MHz core instruction rate, and an incredible 1.596 Gigaflops of peak performance. Thanks to this high-powered technology platform within Volante, Strymon had the freedom to craft this processor-intense echo algorithms without compromise.

Notes: Celebrating the classic, shimmering flanger sounds of Andy Summers, the EHX Walking on the Moon is a tribute to the tones Andy employed while carving his niche in the early days of playing with the Police. Liquid flange effects that hint toward chorus with extra depth and nuance make Andy's sound one of the most coveted in all of the guitar universe.

"This beautiful shimmering which sort of made the sound more bigger and more glamourous - became a sort of characteristic of my guitar sound - A big part of my guitar sound at that time in The Police was the flange sound which we have here today in this great new pedal." - Andy Summers

The Andy Summers Walking on the Moon is an analogue flanger with a simple but powerful control set of RATE, RANGE, and COLOR. RATE sets the speed of modulation which ranges from slow, smooth filter sweeps to jittering vibrato. RANGE controls how narrow or wide the effect sweeps into the bass frequency range. The COLOR control effects the intensity of the flanger effect from subtle chorusing effects to classic jet woosh sounds. These three controls interact to create a wide breath of modulation effects.

Additionally, the Walking on the Moon includes a FILTER MATRIX which disengages the LFO from the flanger circuit, freezing the flanger giving a fixed filter effect, which can add chime or metallic overtones to your sound without the movement of a traditional modulation pedal. A DRY output allows you to split your dry signal from the effected signal.

Special Artist Edition graphics featuring Andy's signature adorn the chassis and a tribute Walking on the Moon poster with art by Laura Josephson is included with each pedal.

Analogue Flanger / Filter Matrix sounds of Andy Summers
RATE sets modulation speed
RANGE adjusts lower limit of flanger sweep
COLOR controls intensity of flanger effect
Dedicated DRY output
Special Artist Edition Graphics
Includes Walking on the Moon poster design by Laura Josephson
True Bypass
9V Power Supply included (optional 9V battery not included)

Specifications
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included (optional 9V battery not included)
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 40mA
Year Released: 2023

Notes: A powerful effects creation and mixing hub with flexible controls for multiple configurations!

The EHX TriParallel Mixer is a powerful effects creation and mixing hub with three separate FX loops and flexible controls allow for multiple configurations.

The Tri Parallel Mixer is surprisingly compact considering the level of functionality it provides, while its intuitive controls and I/O make it easy to operate.

Use it to switch between or mix up to three separate effects loops. Send a guitar or other instrument out to three separate amplifiers, or input three separate instruments to switch between or mix to a single output. Mix effects in parallel to create sounds and allow for options not possible when using effects in series (one after another).

Run up to three FX Loops in parallel and create sounds that are not possible by connecting effects in series
Switch seamlessly between FX Loops in XOR mode
Send one instrument out to three separate amplifiers
Mix three instruments into a single output
Power supply included

Specifications

Circuit: AnalogAnalog w/ Digital Control
Bypass: Buffered Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 45mA
Year Released: 2019

Notes: Modern phasing with tap tempo sync

The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new "Rise" and "Fall" modes for unique, unidirectional phasing. Syncing these phasing effects is as simple as tapping the pedal to the desired tempo, while an optional expression pedal provides realtime control of the PH-3's Rate, Filter and Tempo.

"Rise" and "Fall" Effects

In addition to standard up and down cycles, the new PH-3 Infinite Phaser can produce entirely upward or downward moving sounds through its new Rise and Fall effects. There's also 4-, 8-, 10-, and 12-stage phasers, plus a Step effect.

Total Control

Syncing the PH-3's phasing effects can be achieved by simply tapping the pedal to the tempo desired. Or, for maximum control, connect an optional expression pedal to control both rate and filter in real time as you play.

Specifications

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output: Level-20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass

Controls:
STAGE switch
RES(Resonance) knob
DEPTH knob
RATE knob
Pedal switch

Indicator: CHECK indicator (Used for indication of check battery)

Connectors:
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
EXP/CTL jack: 1/4-inch stereo phone type
DC IN jack

Power Supply:
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw: 50 mA
Expected battery life under continuous use: Alkaline: Approx. 6 hours
*These figures will vary depending on the actual conditions of use.

Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)

Options (sold separately):
AC adaptor: PSA series
Expression pedal: EV-30/FV-500L/FV-500H, Roland EV-5
Footswitch(momentary-type): FS-5U/FS-6/FS-7

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 415 g / 15 oz

0 dBu = 0.775 Vrms

Notes: E7 is the MOOER Polyphonic Guitar Synth Pedal is the second pedal of MOOER New Micro series. As a brand-new design Micro series, we have added 7 LED indicators on the right side of the shell, providing more possibility to the New Micro series.
E7 can transform your guitar into a typical electronic synthesizer, without the need for special pickups or instrument modifications. It is named as E7, for its seven different MOOER custom synthesizer tones. Each tone with an individual arpeggiator, high/low frequency cut, attack, speed function, allow users to shape the tone in their mind easily, explore the horizon of tone with the E7.

Features:
*7 different types of brand-new MOOER SYNTH tones
*Individual Arpeggiator for each tone
*7 slots for storing users' presets
*Firmware upgradeable via USB

Specifications:
*Input: 1/4" mono jack (impedance 2.2M Ohms)
*Output: 1/4" mono jack (impedance 100Ohms)
*Power supply: 9V DC transformer (internal negative external), MOOER Micro Power is recommended
*Current Draw: 150mA
*Dimensions: 93.5mm(D) x 42mm(W) x 52mm(H)
*Weight: 155g
*Accessories: User Manual

Notes: Excellent value from the updated Mooer delay/reverb/looper. The Ocean Machine II features improved sound quality all round, plus expanded loop memory up to a total of 120 seconds.

Supplier's Notes:
Similarly to the original, the Ocean Machine II offers two independent delay modules, each with nine different delay types of up to two seconds, including household names such as digital, tape, and echo delays, as well as more abstract options, such as galaxy, crystal, and rainbow. A high-fidelity reverb module complements these delays with nine reverb types, as well as a shimmer effect. Each delay and reverb effect can also be 'frozen,' creating static ambient drones, an effect that sounds particularly impressive considering the pedal's DSP upgrades.

While the original Ocean Machine's looping capabilities provided just 44 seconds of loop storage, the new addition features an impressive 120 seconds. To experiment with this feature, along with Ocean Machine II's other sonic capabilities, users can use an intuitive LCD screen along with 12 knobs (four for each delay and reverb module) to easily adjust parameters within the device's 'Play Mode.' Three footswitches are also provided to facilitate independent effect toggling, tap tempo control, looper interfacing, and a preset selector.

Once the guitarist has crafted an interesting effect chain, they can save their work as a preset and enter 'Patch Mode,' in which they can toggle between saved settings with each of the three footswitches. In total, the Ocean Machine II provides eight preset storage banks, each of which supports up to three presets, resulting in a total of 24 save slots.

The pedal's versatility is further enhanced by its programmable parallel and serial effect chain hybrid, a signature element of Devin Townsend's tone creation. This feature allows users to customize the order of effects, providing endless creative possibilities. Further programming options can be accessed through the LED screen, which impressively includes synchronizable MIDI connectivity, a feature that was absent in the original Ocean Machine.

In addition to MIDI, the pedal supports various external control systems, including expression pedal input through a TRS cable. Furthermore, the pedal is compatible with MOOER's F4 wireless footswitch, allowing for extended capabilities for mapping presets and other features. A USB-C port is also available for firmware updates, ensuring that the pedal remains up-to-date with the latest features and improvements.

Considering the experimental nature of Devin Townsend's performances, MOOER has also gone above and beyond to facilitate the seamless integration of Ocean Machine II into any audio setup. The device features full stereo inputs and outputs, as well as adjustable global EQ settings, letting users tailor their sound to suit different environments. Guitarists can also customize their effect chains to be used with true bypass or DSP (buffered) bypass, depending on their preferences and specific use cases.

Overall, Ocean Machine II brings higher quality delay and reverb algorithms, augmented looping support, and various updated connections to Devin Townsend's original device. As per MOOER's typical standard, the pedal is engineered to withstand the rigors of touring and frequent use, allowing guitars to bring their special creations and atmospheric drones to the stage.

*Dimensions: 215 x 127 x 56 mm

*Weight: 1.1 kg

*Power Supply: 9V DC

*Sampling Rate: 44.1 kHz

*Sampling Accuracy: 24-bit

*Includes USB-C to USB-A cable, power adaptor, stickers, and artist signature card from Devin Townsend

Notes: Way Back Machine

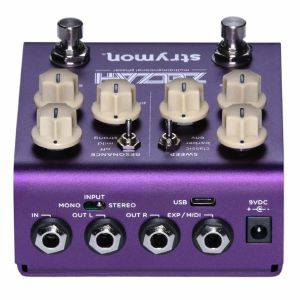

Step on Zelzah, play one chord, and you're instantly taken back to a world of classic phaser tones as they were always meant to sound, perfectly voiced, with tons of vibe. Vintage 4-stage and 6-stage phasing with controls that allow seamless transitions to vibrato, gorgeous flanging and chorus, and new sounds never heard before-all instantly musical with great tone all the way across every dial.

Two Effects At Once.

Zelzah is actually two different phasers, side by side in one pedal. Zelzah's 4-stage side gives you a wide array of classic tones ranging from phasing to vibrato and more, while the 6-stage side provides phasing, flanging, chorus, and all points in between. Dial in a chorus on one side and barber pole phaser on other, or a phaser on one side and tremolo on the other. Use the two sides independently or together in a variety of configurations. Zelzah may become the only modulation pedal you keep on your board.

Choose Your 4-Stage Phaser Sweep

Classic Sweep

The first Sweep mode is labelled "Classic" because this is the classic four stage phaser sweep we all know. In this Sweep mode, a single LFO with a warped triangle shape creates that familiar vintage sound.

Barber Sweep

Similar to the visual effect of a barber pole, the Barber sweep is a continuously rising or falling effect that is traditionally done with frequency shifters. In Zelzah, Strymon have used an arrangement of synchronized four stage phasers to produce the effect while maintaining the four stage sound.

Envelope Phaser

Set the Sweep switch to Env and you've got a whole new pedal under your feet. Now the phaser responds to your picking like an envelope filter/auto-wah would, with the phaser sweep being dynamically controlled by your input signal, creating harmonically complex and very funky sounds.

Six Stage Voice: Groundbreaking New Phaser Algorithm

The Voice knob on the six stage side simultaneously controls over 30 different parameters, all working in harmony for an inspiring musical experience.

Not only do you get thick, juicy, phasing with pure vintage vibe, but as you turn the Voice knob clockwise, the groundbreaking new modified all-pass structure expands the time response of the cascading all-pass filters seamlessly and continuously, adding spaciousness and airiness to the sound.

Explore a range of fresh musical tones that are not a mix of phasing and flanging, but actually something entirely new. Turn the Voice knob to the right for luxurious true flanger effects, and continue to the far end of the range for lush vintage chorus sounds. There are inspiring musical sounds at every point along the dial, and so many ways to make a sound that is truly yours.

Notes: Plug in, play a note or chord, and you feel it: All the warm, saturated, distinctive qualities and subtle nuances of vintage tape echo combine to instantly create an unmistakable atmosphere. Everything from classic slapback echoes to psychedelic space explorations have stunning richness and depth, responding to each note and knob turn in a musically inspiring way.

El Capistan provides three different tape machine types in one pedal, each with three unique modes and extensive control over tape quality, machine health and tone shaping. Styrmon's meticulously handcrafted dTape technology and powerful ARM DSP give you a range of tape experiences that would be unattainable with a single traditional tape machine. Plus you get sound on sound looping, all without the headaches of tape machine maintenance and repair.

The second generation El Capistan keeps the same rich magnetic tape echo tones from our original and adds significant new features, incorporating technological advancements, hardware improvements and design enhancements to give you additional flexibility, power, and ease of use on stage and in the studio. Full MIDI implementation means you can control just about every switch, knob, and setting remotely by sending MIDI commands from your controller or DAW via El Capistan's EXP/MIDI jack or USB-C connection. Delay time can be synchronized via MIDI Clock Sync, and the sync setting can be saved for each preset. 300 MIDI preset locations are available for loading and saving your favorite settings.

A premium analogue JFET input circuit ensures superb responsiveness to your playing, and you can select mono or stereo input with the flick of a rear panel switch. All this, plus a new ARM DSP chip provides more processing power for every sonic nuance, with less energy consumption on your pedalboard.

Some classic tape echo machines included small integrated spring reverb tanks tuned for limited bandwidth. For El Capistan, we captured this vintage vibe while creating a spring reverb algorithm with a gorgeous, gentle character that stands on its own, in addition to enhancing delayed signals.

Notes: MOOER has unveiled its latest effect pedal innovation, the MVP1 AUTUNER vocal processor. Unlike most of MOOER's products, this pedal is designed primarily for use with vocals, offering precise pitch correction and exceptional vocal enhancement features. However, MOOER hasn't forgotten about its primary audience, so AUTUNER still provides features that will interest guitarists.

Due to the pedal's primary focus on vocals, the device includes several features specifically designed for microphone usage. This includes XLR input and output, in addition to support for 48V phantom power, ensuring that the pedal supports both dynamic and condenser microphones. However, AUTUNER also includes standard 1/4" guitar inputs and outputs, along with convenient footswitch control to switch between mixed or individual signals.

The pitch correction features behind AUTUNER are highly versatile. With an LED button, users can choose between flat, warm, and bright vocal tones, each indicated by a different colour. Once a tone has been chosen, the 'correction' dial can be used to define the sensitivity of the pitch correction. Users can also press and hold the left footswitch to trigger the pitch correction's vocal synthesizer mode.

AUTUNER's versatility shines particularly brightly thanks to its built-in effects modules. The first of these is delay; the delay module can be can controlled with its dedicated dial, with users having the option to choose between tape delay, digital delay, slapback delay, or bypass. The pedal's left footswitch serves as a tap switch, which allows the user to determine the speed of the delay module.

A reverb module is also featured within AUTUNER. This too has its own dedicated dial, which can be used to morph between room delay, hall delay, and plate delay. Whilst the pitch correction features of the pedal are limited only to vocals, these delay and reverb modules ensure that the pedal has plenty of dedicated features to offer MOOER's guitarist fanbase.

As is common with MOOER products, AUTUNER features a wide range of control mechanisms. In addition to the left footswitch's dual functionality, the right footswitch also acts as a bypass for the pitch correction and effects, whilst still ensuring the tone processing remains active. The pedal's tonal enhancements can then be fully bypassed with the 'flat' tone option.

In addition to its core features, the MVP1 AUTUNER also includes a gain dial, a 48V phantom power switch for internal microphone amplification, a grounding switch, and a DC 9V 500mA power input. Overall, the features of this pedal ensure that musicians have everything they need for impressive pitch correction, vocal synthesis, and special processing, whilst ensuring that they never have to rely on external batteries.
Vocal pitch correction feature with a controllable sensitivity dial
Footswitch-controllable vocal synthesizer mode
Three vocal tone modes: flat, warm, and bright
Four delay modes: tape, digital, slapback, and OFF
Four reverb modes: room, hall, plate, and OFF
Tap tempo footswitch for delay speed
Bypass footswitch functionality for isolating the tone from effects
Multifunctional footswitches for 'hidden mode'
LED button for tonal control
Two output modes: mixed and individual
XLR input and output
1/4" input and output
Internal 48V Phantom Power amplification
48V Phantom Power toggle switch for condenser microphones
Line in toggle switch for instruments and dynamic microphone
Gain dial
Ground/Lift toggle switch
DC IN 9V 500mA power input

Notes: Infinite inspiration, ready to play

Combining high-end sound and wide-ranging versatility, the RV-6 takes pedal-based reverb to the next level. Reaching beyond the capabilities of previous generations, this powerful stomp employs the latest tech and legendary BOSS know-how to make it easy to get amazing reverb tones instantly. From subtle rooms to modern shimmer effects to long, evocative reverbs, the RV-6 envelops your tone in lush ambient spaces that endlessly inspire.

Simply Great-Sounding Reverbs

Packing the latest BOSS DSP and updated algorithms, the RV-6 gives you eight highly musical reverb effects in one compact pedal. Add body and depth to your core tone with standards like Room, Hall, and Plate, dial up swirling richness with the Modulate setting, or surf it up with a vintage-style Spring reverb. Dynamic mode automatically adjusts the effect depth to your playing touch, providing deep, immersive reverb that won't turn your tone to mud. And modern players will love the new Shimmer and Reverb + Delay modes.

Dialled-In Sounds at Your Command

The RV-6 makes getting high-quality reverb sounds with your guitar quick and easy- just select a sound mode, tweak the knobs to taste, and play. But while its operation is simple, the RV-6's sound is rich and sophisticated. Under the hood, each mode includes a huge array of detailed reverb parameters, all perfectly tuned for guitar by the BOSS engineers with direct input from many pro players and sound engineers. Even as you adjust the selected mode with the Time and Tone knobs, many parameters are simultaneously adjusted inside to create the ideal voicing for every setting.

Analogue Dry Tone and Versatile I/O

While the RV-6's reverb effects are high-tech digital, you can rest assured that your straight guitar tone always remains pure analogue as the effect is blended in. Convenient auto-switching jacks let you integrate with any pedal chain, with support for mono, mono-to-stereo, and stereo-to-stereo operation. And by plugging into the B input only, the RV-6 outputs a 100-percent wet sound, great for working with more complex rigs that employ parallel processing chains and mixers. There's also a jack for connecting an optional expression pedal, allowing you to control the effect level in real time as you play.

Reverb Modes

+DELAY - This is reverb combined with delay. The synergistic effect provides rich reverberation.
SHIMMER- This reverb is distinctive for its sparkling high-frequency range. It produces fantasy-like reverberation wrapped in spacious overtones.
DYNAMIC- This reverb automatically sets the depth of the effect according to your performance. It produces deep reverberation without blurring the overall shape of your playing.
ROOM- This reverb simulates the reverberation of a room. It produces warm reverberation.
HALL- This reverb simulates the reverberation of a hall. It produces clear and spacious reverberation.
PLATE- This simulates a plate reverb (a reverb unit that uses the vibration of a metal plate). It produces metallic-sounding reverberation with an extended high-frequency range.
SPRING- This simulates a spring reverb built into a guitar amp.
MODULATE- This reverb adds modulation to hall reverb, producing extremely good-feeling reverberation.

Specifications


Reverb Modes:

8 modes- HALL, PLATE, ROOM, SPRING, MODULATE, +DELAY, SHIMMER, DYNAMIC
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level-20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Controls: Pedal switch, E.LEVEL knob, TONE knob, TIME knob, MODE knob
Indicator: CHECK indicator (Serves also as battery check indicator)

Connectors: INPUT-A (MONO) jack, INPUT-B jack, OUTPUT-A (MONO) jack, OUTPUT-B jack, EXP jack, AC adaptor jack (DC 9 V)
Power Supply: Alkaline battery (9V, 6LR61), AC adaptor (sold separately)
Current Draw: 95 mA

Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
Alkaline: Approx. 3 hours

Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61)

Options (sold separately) AC adaptor: PSA series
Expression Pedal: BOSS FV-500H, FV-500L, Roland EV-5

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 450 g / 1 lb

Notes: For over 30 years, the Nobels ODR-1 overdrive pedal has become a renowned classic and has developed cult-like status among guitarists worldwide. Seen as an indispensable staple in many professional setups, the pedal has become an industry standard that is widely imitated, but seldom surpassed.

The new Nobels ODR-1X is the next generation of this now legendary overdrive, heralding a new chapter in the Nobels overdrive legacy. Due to popular demand, a convenient external bass cut pot has been added, as well as the option to change between true bypass or buffered bypass. For hi-gain aficionados, a new switchable hi-gain boost is also now available. This is capable of transforming ODR-1X into a true hard rock monster. With the ability to control both the gain boost and bypass remotely, along with the unique SPECTRUM tone control, fold-out Mounty-P mounting plates and knobs with fluorescent 'Glow in the Dark' pointers, the ODR-1X adds worthwhile flexibility and utility to a time-tested favourite.

For extended ease of use, the internal Bass Cut feature originally included in the ODR-1BC is now available as an external variable control right on the face of the pedal. This allows for complete optimisation of the pedal's bass response on the fly, at the simple turn of a knob. The flexibility of this new additional control compliments Nobels' unique and renowned SPECTRUM tone control, which alters the proportion of both the low-mid and high frequencies simultaneously. At midday, the frequencies remain almost untouched. However, moving from the minimum to maximum positions will deliver variations in frequency response that are suitable for a wealth of musical tastes and styles.

ODR-1X also now features the ability to switch between True Bypass and Buffered Bypass via a mini switch that is located within the top loading battery compartment. True Bypass gives the maximum tonal purity. While players who are using longer cable runs, can switch to Buffered Bypass mode to preserve high frequencies. No matter what Bypass mode you choose, you also have the functionality of being able to switch the pedal on and off and control the new Gain Boost feature remotely via the pedal's TRS connection.

The pedal operates at standard 9 V DC, however if run at 18 V, this allows ODR-1X to deliver increased dynamic headroom. As with all Nobels pedals, the ODR-1X features integrated Mounty-P Mounting Plates for safe and secure attachment to pedalboards.

Notes: Polyend's analogue processing debut is the versatile Press pedal, a stereo compressor with sidechain filtering, tilt EQ and wet/dry mix control for parallel compression effects. A very solid all-rounder.

Supplier's Notes:
Press is a fully analogue stereo compressor that combines features usually exclusive to professional studio equipment with modern VST controls. It offers the tight, natural response of classic analogue rack units while incorporating unique controls and features not found in other pedals.

Press is an advanced compressor that works anywhere in the signal chain, from finalizing and limiting to adding control after gain staging or taming wild modulation and time-based effects. Dial in the exact amount of desired compression with Ratio and Threshold controls. Dedicated attack and release knobs can create aggressive punch or subtly tame peaks. Roll off the mix knob for New York-style compression to blend the dry and compressed signal, and add some colour with the tilt control to shift the wet signal's EQ balance across the low/high-frequency range.

Press offers unique stereo sidechain control that cannot be found in another analogue compressor pedal. The high and low pass filters work on either the Stereo input or the external stereo sidechain thru. This allows for precise control of the sound triggering the sidechain by stopping problem frequencies from triggering the gain reduction circuit. Use the LPF to filter out the high end of a bass guitar or the HPF to remove the boom from a kick drum to sculpt your sound in ways that were not possible in analogue pedals before. Even with all these features the press is a knob-per-function compressor designed to be simple to set up and operate.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Valve-based pre-amps meet cabinet simulation in this ultra-flexible pedal. Dial in your tone, patch in effects, and control the lot via MIDI or USB. A brilliant combination of analogue and digital.

Supplier's Notes:
Tsakalis is proud to release their most ambitious product to date. Seamlessly blending the authentic analogue warmth of real tubes with a highly configurable cabinet simulator, plus flexible outputs and control options, the MOTHERSHIP - Real Tube Preamp stands out as possibly the most highly featured and flexible front end for any guitar rig currently available.

The MOTHERSHIP is a complete solution for authentic vintage and modern genuine tube amp tones, in a user-friendly and lightweight, yet rugged package that is designed to slot in easily into any setup.

Both channels on the MOTHERSHIP are identical, yet highly configurable.

Featuring three gain modes (High, Medium and Low) on each channel, along with a toggle switch for selecting between your three chosen speaker simulations, the MOTHERSHIP can conjure up a multitude of both iconic, familiar and unique tones easily and intuitively. Each channel also features two master gain controls along with two master volumes, allowing four different voices to be instantly recalled, either by pressing the relevant footswitch or via MIDI command.

Demonstrating its prowess as a fully comprehensive plug and play device, the MOTHERSHIP also features over 70 free custom cabinet simulations to choose from (when connected to Tsakalis' own TAW Editor app via USB), separate dedicated simultaneous outputs for both the cabinet simulator and a "dry" output for your amp of choice, MIDI control of channel, A/B selection and bypass and also a serial mono FX loop for added tonal versatility.

Fully-featured all-analogue real tube preamp design

The MOTHERSHIP represents the perfect "amp-in-a-box" pedal, seamlessly blending a beautifully designed, real tube front end with a highly flexible cabinet modelling solution. However, it also shines as a genuine tube overdrive pedal when connected to the front of your amplifier, or when running it as the tone defining preamp section of your setup, directly into your power amp. It can also do both of these things simultaneously.

Quad channel tube preamp and drive

This preamp pedal has two completely independent channels, each featuring a four-band EQ, two different Gain/Volume sections, three selectable gain-stages and three selectable cabinet simulations, plus a serial mono effects-loop for your external effects, MIDI in and free access to Tsakalis Audioworks' full free online library of carefully selected and curated digital cabinet simulations.

The MOTHERSHIP's two independent channels were carefully designed with a real tube audio path, providing a huge range of tones from warm or sparkling cleans all the way to high gain tube driven distortion. The two ECC83 (12AX7) tubes, run at a comfortable 240 Volts, providing touch sensitivity, headroom and plenty of gain and tube sag as required.

Each channel features a four band EQ (Bass, Mid, Treble and Presence) and two different Gain and Volume controls (Gain A-Volume A / Gain B-Volume B) transforming the MOTHERSHIP into a quad channel powerhouse.

The dedicated MODE switch for each channel is responsible for the tube audio path structure, giving 3 different gain modes L = Low, M = Mid and H = High, allowing you to easily customize completely different lead and rhythm tones with different gain structures as well as a solo volume boost for each and access them on-the-fly by simply pressing the relevant footswitch.

Notes: EHX's rich history was marked by many revolutionary pedals but one of our most distinctive lines was a group of analog drum synthesizers that included the Crash Pad.

Like the original from 1980, the EHX Crash Pad Electric Crash Drum can create an array of drum sounds and other-worldly oscillation sweeps, as well as process external sounds thru its resonant filter. Plus, it's been updated to respond to expression pedal/CV input for external control over the filter in real-time.

Creates a range of percussive sounds from cymbals, snares and hi hats to oscillation sweeps
Triggers via the on-board pushbutton, an external (non-MIDI) drum pad and most clock generators
Process external sounds thru the resonant filter + EXP/CV input for real-time filter control
Rugged, die-cast chassis
Works great with the EHX Clockworks Rhythm Generator/Synthesizer, 8 Step Program Analog Expression/CV Sequencer and other similar devices
Power adapter included

Circuit: Analogue
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included (optional 9V battery not included)
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 22mA
Year Released: 2015

Notes: Electro-Harmonix has reissued their late-1970's era Op-Amp Big Muff Pi. Sometimes also referred to as the IC or V4 Big Muff, the original circuitry has been faithfully re-created while several practical enhancements have been added including a compact, die-cast chassis and true bypass switching.

According to Electro-Harmonix founder, Mike Matthews, "The Op-Amp Big Muff was popularized by the brilliant Billy Corgan who first used it on the Smashing Pumpkins' epic 1993 album Siamese Dream. After he was videotaped playing and talking about the reissue, Billy stated: "The magic's still in the box, I can still get what I'm looking for!"

The pedal relies on op-amps rather than transistors and three gain stages rather than four, to create its signature sound. It's a sound that's been described by noted Big Muff collector and historian, Kit Rae, as: "a huge, crushing Big Muff sound with more crunch...great for grungy, wall-of-sound distortion, heavy rhythm playing and heavy leads."

The Op-Amp Big Muff Pi features standard controls: Sustain, Tone and Volume, plus a Tone switch for bypassing the tone circuit. It comes equipped with a 9V battery or can be powered by an optional 9-volt AC adapter.

Notes: Great value multi-effects pedal based on all of Zoom's extensive experience. Chain up to nine effects including amp emulation and cabinet simulation. A proper all-rounder offering a huge range of tones.

Supplier's Notes:
Jaw dropping effects combined with powerful amp modeling, the G6 is in a class of its own.

The culmination of 30 years of Zoom's engineering know-how, passion for audio and love of guitar. The G6 is brimming with some of the best sounds you'll ever hear.

Your sounds may be complex but building them shouldn't be. With easy-to-use, application driven technology, the G6's 4.3-inch color touchscreen lets you drag, drop and swipe your way to new sounds.

All the best amps in amp history are in here (and a few new ones, too), along with 70 pre-loaded, precisely recorded impulse responses (IR) and room to add more than 100 of your own.

The G6 also delivers the ultimate collection of Zoom's legendary guitar effects and tones, including brand new Distortion and Modulation effects.

The G6 has room for 240 patches, including 100 presets so you can build patches for each song in your repertoire and easily cycle through your setlist. Create patches of up to nine effects.

The four Play Modes on the G6 will change the touchscreen and footswitch layout to give you quick access to the controls you need.

In addition to the internal 45-second looper, you can insert an SD card and record a loop up to 2 hours long. Choose the groove you want from 68 internal rhythm patterns, styles and measures.

Portable, versatile, and packed with tonal possibilities, the G6 can be tucked into a guitar bag or backpack, and off you go.

The G6 has a mono input, stereo outputs with output volume control, a mono fx loop, aux in, control in and headphone out. Using the USB port, the G6 also functions as a 2in/2out audio interface for Mac and PC.

Wirelessly connect the G6 directly to the Handy Guitar Lab app via Bluetooth. Using the optional BTA-1 adaptor, you can browse and upload/download an endless assortment of amps, effects and artists patches as provided on Guitar Lab software. Guitar Lab is also available for both PC and Mac.

What's in the Box:

G6 Multi-Effects Processor
Zoom AD-16 AC adapter
Quick guide
Steinberg Cubase LE Software

Optional Accessories:

FP02M Expression Pedal
BTA-1 Bluetooth Adapter

Specs:

MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS: 7
USER PATCHES: 240
SAMPLING FREQUENCY: 44.1 kHz
A/D CONVERSION:24-bit 128x oversampling
D/A CONVERSION: 24-bit 128x oversampling
SIGNAL PROCESSING: 32-bit
FREQUENCY CHARACTERISTICS: 20 Hz - 20kHz (+0.5 db/-0.5 dB) (10k load)
DISPLAY: 4.3" TFT color LCD (480x272)

Notes: Multi-tap delays go next-level with Eventide's incredible heritage distilled into this compact pedal format. Line level options allow you to process synths, drums, guitars and just about any other signal.

Supplier's Notes:
A Multiverse of Tone UltraTap is a unique multi-tap effect pedal capable of rhythmic delays, glitchy reverbs, huge pad-like volume swells, and extraordinary modulation.

It's the perfect tool for staccato leads, swelling chords, and other evolving effects - everything from reversed reverbs to the sound of ripping it up in the Grand Canyon!

Think of UltraTap as the mother of all Echoplexes and you won't be too far off.

That's basically how it operates but with the flexibility to add as many 'tape heads' as you want and expressively control their positions and levels.

UltraTap's controls make possible new and unexpected effects. The controls that you would expect in a multi-tap delay pedaliNumber of Taps, Delay and Feedback- are just the basics.

Controls for Spread, Slurm, and Chop open up a new world of possibilities.

Effect Features:

"Slurm" An exclusive and innovative control that smears/slurs taps together to create truly unique reverbs and choruses.

"Chop" and "Spd/Rise/Rel" combine to allow unusual and expressive modulation of the taps based on LFO shapes or the audio's envelope.

"Feedback" unlocks further tone shaping capability.

"Taps" selects up to 64 taps to create simple repeats or morph delays into chorus and reverb.

"Spread" controls the 'distance' between' taps. With the knob centered, the taps are equally spaced, turn clockwise and the later taps are bunched together, counterclockwise and the early taps are bunched together. Use this control to dial in the perfect rhythmic space between taps.

Onboard LFOs and envelopes to chop the sound source into stuttered rhythms.

"Tap Footswitch" allows you to set the tempo of the taps.

Connectors:

Input: 1/4" TRS / Mono = Tip, Stereo = Tip & Ring
Out 1: 1/4" TS Mono / Mono Output
Out 2: 1/4" TS Mono / Stereo Output
EXP: 1/4" TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch: Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch: Optimizes internal gain structure
Mini USB: Software updates, MIDI I/O
DC Input Jack: 5.5mm / 2.1mm plug / Center Negative (-)

Analog I/O:

Input Impedance: 700k ohms Mono, 990k ohms Stereo
Max Input, Guitar: +8dBu
Max Input, Line: +14dBu
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms

Specifications:

Power: 9V DC @ 200mA / Center Negative (-)
Dimensions (product): 4" W x 4.25" D x 1.68" H / 102 mm x 108 mm x 43 mm
Weight (product): 1.06 lb / 0.48 kg
Dimensions (package): 7.7" W x 4.75" D x 2.8" H / 178 mm x 121 mm x 71 mm
Weight (package): 1.68 lb / .77 kg

Notes: The best delay and reverb programs from the Nemesis Delay and Ventris Dual Reverb are combined to create a potent, versatile new pedal. Create soundscapes and ambiences from vintage effects to modern experimentalism.

Supplier's Notes:
Design complex soundscapes in seconds with the Collider Delay+Reverb. Source hand-picked 12 standout delay and reverb effects from the award winning Nemesis Delay and Ventris Dual Reverb, and put them together in one compact housing with massive power and dead simple control. The Collider's intuitive control surface makes it easy to mix-and-match any two-engine combination of delay and reverb. Dual footswitches provide individual Engage/Bypass control over each effect, making it a perfect choice for live performance.

The Collider offers an exceptional collection of rich, spacious tones, including realistic reproductions of vintage Analog, Tape, and Oil Can Delays, classic models of Spring and Plate Reverb, natural replications of large and small acoustic spaces, and an intriguing and highly musical selection of "unnatural" tones including a tripped-out Reverse Delay and an other-worldly Shimmer Reverb.

Collider takes supremely high-end delay and reverb effects and offers them in a sleek and powerful design with massive processing muscle and clean functionality. The Collider features two completely independent 56-bit signal processors, essentially housing a high-powered reverb AND a high-powered delay pedal in a single box. This means that it is possible to create magnificent tones with any two-effect combination of delay/reverb, delay/delay, or reverb/reverb.

This extremely versatile pedal offers a long list of useful features, including analog dry through, stereo inputs and outputs, the option of true or buffered bypass, 8 user presets (or 128 with MIDI), full MIDI functionality, delay tap tempo, reverb hold (a.k.a. "freeze"), external expression capabilities, external preset switching capabilities and extra editing and signal routing options via the Neuro Desktop and Mobile App Editors.

The sound engineering team of Bob Chidlaw and Jesse Remignanti were relentless in their pursuit of perfection with each and every one of the Collider's delay and reverb effects. Whether it's beautifully capturing every minute detail of vintage units or bringing exceptional depth and richness to the contemporary effects, the Collider delivers excellence.

Includes 9v DC power supply (300mA / Negative Tip)
Includes 1/8" to 1/4" cable for Neuro Mobile App connection.
Power Consumption - 300mA
USB port i Connects to Mac or Windows PC for MIDI control of firmware updates.
Brushed anodized aluminum housing.
Dimensions: L: 4.5 in./11.4cm x W: 4.5 in./11.4cm x H: 2 in./5.1cm (including knobs)
Weight: 1 lb./0.45 kg.

Notes: When the original Compressor was released back in 2011, it quickly became a favourite among guitar and bass players alike who were searching for something more than the typical oversimplified controls found on most compressor pedals. Now, based on users' valuable feedback, everything great about the original Compressor has been taken and made even better.

On top of the full range of features and controls normally only seen in high end studio equipment, such as input and gain reduction metering, independent attack and release controls, a mix knob for parallel compression, and an external sidechain insert, Empress have now added a 'tilt' tone eq control, and a selectable sidechain high pass filter built into the Compressor's detection circuit.

Specifications:
Input Impedance 1M
Output Impedance 2.2k
Frequency Response (-3dB) 20Hz - 20kHz
Distortion less than 0.1%
Noise -101dB
Power Input Voltage 9 - 18 V DC (Negative tip)
Power Input Connector 2.1mm barrel connector (Negative tip)
Power Consumption ~ 100mA
Enclosure Material Die Cast Aluminum
Input connector 1/4" Jack
Output connector 1/4" Jack
Height (Enclosure only) 1.5"
Height (including controls) 2.5"
Length 4.8"
Width 2.6"
Weight 1lbs

Notes: Spanning the gamut of known delay possibilities and beyond, the Echosystem could be the ultimate delay-crafting tool. Faithful emulations of classics like digital, tape and analog delays are numerous, as well as Empress' own take on each of these delay styles. Moving beyond the traditional, the vast amount of sonic ground the Echosystem can cover becomes apparent. Check out the ambient modes when you're feeling chilled out, or perhaps a visit to the multi tap modes for a taste of inspiration.

The Dual Engine functionality allows any 2 of these delays to be used together, routed in either parallel, series, or left/right configurations.

In addition to delays, there's the super-useful reverb combos, which will elevate any guitar part. Oh, and don't forget Whisky mode, best accompanied by a dram of whatever you've got!

The pedal has 12 algorithm types, all with multiple variations. For example, there are 4 different tape delays on tap.

Emulations of classic tape and analog units are available, as well as our take on these types of delay.

All the algorithm controls are sitting on a knob in front of you, no fiddling through laborious menus.

Global tap tempo as well as local tempo with lots of subdivisions are available on all modes, in addition to being able to set the delay time directly with the knob.

Features a signal to noise ratio of >104dB and maintains an analog dry path.

2 delays can be used at the same time, each with its own full set of controls and routed in serial, parallel or left/right.

Settings can be saved to 35 presets. With three stomp switches, accessing the presets is easy.

Bank style or scrolling style preset modes.

It can be configured to run with true bypass or buffered bypass if you want to hear trails.

Cabinet Simulator - 3 variations to choose from, perfect for recording, practicing or for gigs without an amp.

Get hum-free operation when operating in stereo with two amps. Output 2 is isolated with a transformer to eliminate nasty ground loops.

48kHz sampling, with 24 bit conversion and 32 bit internal processing.

Dry signal is left untouched, and blended with the wet signal using VCA. (no zipper noise, hooray!)

The Universal Control Port allows you to connect an expression pedal, external tap switch, control voltage, external audio input and MIDI - all using a standard 1/4" jack!

The Advanced configuration menu lets you configure how your delay works. Select from true or buffered bypass, 0-35 presets, MIDI configuration, Control Port(expression pedal, external tap, control voltage and MIDI) as well as which style of preset system to use, input signal pad, output transformer enable and more!

The enclosure measures approximately 5.7" by 3.75" by 1.75", which is delightfully small when considering all the features packed into this unit.
