After Later Audio

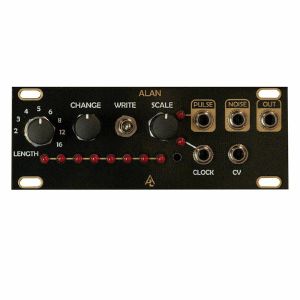

Notes: The randomness of the Music Thing Modular Turing Machine, in the Intellijel 1U format. Alan retains all of the same functionality as the original including the connectors for the expanders.

While this module has little to do with the original Turing Machine (by Alan Turing), it is a shift register based sequencer. You cannot program this sequencer, instead it builds random sequences that can be locked in.

Alan comes tested, calibrated and ready to bring random voltages.

Three good resources for getting started with Alan:

DivKid’s video on the Turing Machine
David’s video the Alan
Turing Machine manual
Based on open source design by Tom Whitwell under Creative Commons (CC-BY-SA) license.

Width: 21hp
12V: 45mA
-12V: 20mA
Module power connector can be connected either way

Notes: Alan (micro Turing Machine) Shift Register Based Sequencer

The randomness of the Music Thing Modular Turing Machine, shrunk down to 6HP. Alan retains all of the same functionality as the original including the connectors for the expanders.

While this module has little to do with the original Turing Machine (by Alan Turing), it is a shift register based sequencer. You cannot program this sequencer, instead it builds random sequences that can be locked in.

Alan comes tested, calibrated and ready to bring random voltages.

The After Later Audio panel is black and gold and made from FR4. The package will include a power/ribbon cable and a one year warranty.

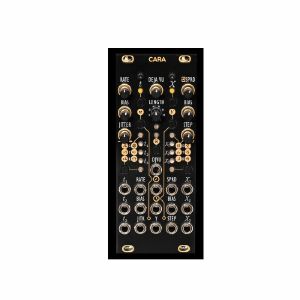

Notes: Cara (uMarbles)

This is a new build of a micro version of Mutable Instruments Marbles. It retains all the functionality of the original full-sized module but takes up less space. It comes with jack lights that can be disabled via a jumper on the back.

These modules use tall bushing potentiometers to offer a more stable feel. You can see the difference in the last picture. You will feel much less wiggle with the tall bushing (left) than with traditional trimmer style (right).

The module is fully assembled, tested, and calibrated. The calibration is done with a 6.5 digit multimeter, itself recently calibrated, to ensure you get the highest accuracy from your module. Eurorack power cable included.

Width: 10HP
Depth: 34mm
Height: 3U
Power Consumption: +12V: 80mA -12V: 20mA

Notes: This is an exact hardware replica of the Mutable Instruments Marbles.

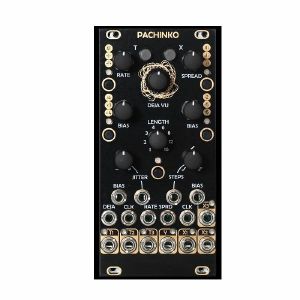

Notes: This is a brand new build of a JakPlugg designed Pachinko, which is a micro version of Mutable Instruments Marbles. It retains all of the functionality of the original but takes up less space (12HP) than the original Marbles (18HP).

The module is fully assembled, tested, and calibrated. The calibration is done with a 6.5 digit multimeter, itself recently calibrated, to ensure you get the highest accuracy from your module.

The panel is a custom black After Later Audio panel that offers metallic gold accents.

The module comes with a power cable and a 1 year warranty.

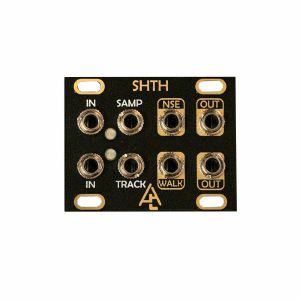

Notes: SHTH - Sample and Hold - Track and Hold

Create stepped outputs using two different classic synthesis techniques, sample & hold and/or track & hold.

Sample & Hold

The top four jacks make up the sample and hold section. There is a noise output that is normalled to the input so you can pass a gate/trig signal into the SAMP input to get a stepped output at the OUT jack.

IN - Signal that will be sampled, normalled to NSE output
SAMP - When high updates the voltage being sent to the output
NSE - White noise output
OUT - The sampled output (freezes the value from the IN jack when the SAMP jack receives a high signal)
Track & Hold

The bottom four jacks make up the track and hold section. There is a walk signal (a randomish meandering voltage) that is normalled to the input. Track and hold is the opposite of sample and hold in that it will pass the IN value to the OUT jack until the TRACK input receives a high gate. While the TRACK input is high it will hold the value. After the TRACK input goes low, it will begin tracking the IN signal again.

IN - Signal that will be tracked
TRACK - When high the value will be held at the output
WALK - A meandering voltage
OUT - The track output (follows IN while TRACK is low, held voltage while TRACK is high)
CC-BY-SA Emelie Gillett

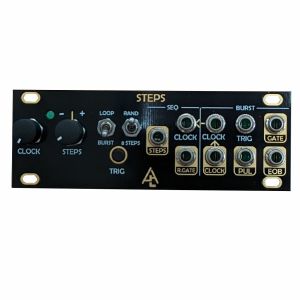

Notes: Steps has three functional blocks:

Internal clock with rate control and output
Burst generator
Pulses output which generates 8 pulses on every trigger
Gate output which is high during the burst event
EOB output which fires at the end of a burst event
Random Looping Stepped CV Generator
R.gate output outputs a random gate during a burst event
Random stepped output or a loop of 8 steps.
Steps output with attenuverter. The Steps output is held low while there is no burst event.

You can either use this as a random stepped CV source or as a repeating 8 stepped CV source. You then can trigger the burst generator to play the 8 step loop or 8 random steps. All of this can use the internal or external clock signals. To get more complex patterns you can daisy chain STEPS modules together by tying together their clocks and sending EOB to TRIG. This way you can generate 16 step patterns (or longer).

When first turning on STEPS you will need to run the module in RAND mode for at least 8 steps to fill the shift register with data.

A caveat about STEPS:

If a trigger is received off beat from the internal clock, the first step duration will be shortened.

Width: 6hp
12V: 75mA
-12V: 65mA
Module power connector can be connected either way

Notes: An 8hp version of the retired Mutable Instruments Grids. It is an identical functional clone, so it will behave in the same was as the full size version, and will run any firmware that runs on the full size version.

Notes: Ornament & Crime for 1U Intellijel format

This is functionally identical to the 3U version, just re-oriented to fit in 1U racks. Ornament & Crime is designed by mxmxmx.

The apps currently available in Ornament & Crime:

CopierMaschine is an enhanced version of the original quantising digital emulation of a four stage analogue shift register (ASR).

Harrington 1200 provides basic neo-Riemannian Tonnetz transformations of triadic chords, triggered by the digital (gate/trigger) inputs.

Automatonnetz combines Tonnetz transforms with a "vector" sequencer - it can be both a chord sequencer and a melody sequencer, but not of the usual kind.

Quantermain is a quad pitch quantiser for external voltages, with editable scales; it can do clocked (trigger-driven) quantising, or continuous quantising, with a latency of under 100 microseconds; it also features quad Turing Machines, May-Verhulst logistic maps or byte beats as optional, semi-random, internally generated CV sources.

Meta-Q is a dual-channel quantiser, similar to Quantermain, but also offering scale and note mask sequencing.

Quadraturia is a wavetable quadrature LFO, based on the "Easter egg" in the Mutable Instruments Frames module.

Low-rents is a dual Lorenz and Rossler (strange attractor) modulation generator, partially based on the "Easter egg" in the Mutable Instruments Streams module.

Piqued is a quad voltage-controlled envelope generator, based on envelope generator code from the Mutable Instruments Peaks module, but extending it with voltage control, additional envelope types, including re-triggering (looping) envelopes, additional segment shapes, adjustable trigger delays, and a unique Euclidean "trigger filter" which turns the app into a Euclidean rhythm generator which can output envelopes, not just gate or trigger pulses.

Sequins is a dual-channel step sequencer offering 4 "tracks" of up to 16 steps each; tracks can themselves be sequenced.

Dialectic Ping Pong is a quad bouncing ball envelope generator, based on a hidden mode of the Mutable Instruments Peaks module.

Viznutcracker, sweet! is a quad "byte beat" equation generator, which can be used as an audio source to generate curious but often interesting 8-bit noises and tunes, or which can be clocked by an external source to produce "byte beat" control voltage sequences. "Byte beats" were first described in 2011 by viznut (aka Ville-Matias Heikkila).

Acid Curds is both a chord quantiser (sometimes called a "harmonic quantiser" for external pitch voltages), and a chord progression sequencer.

References is an utility app that outputs specific reference voltages on each channel to help tune or calibrate VCOs and other modules. It also includes a high-precision frequency meter and note tuner, a high-precision BPM (beats per minute) tempo meter, and a closed-loop calibration mode.

Width: 30hp
12V: 85mA
-12V: 10mA
