Notes: ***B-STOCK: Box opened, product in perfect working order***


Broadcast-ready update of ARS's flagship audiophile rotary mixer. Small design changes mean even better sound quality and improved cueing. Still hand built in Japan to the highest standards.

Supplier's Notes:

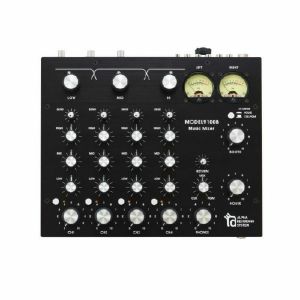

Model 9100B Music Mixer

4 channel table top mixer

Model 9100B (broadcast mixer) Music Mixer Wood TYPE (Headphone Monitor Trim: Cue-Mix-Pgm special version)

ARS Model 9100B DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first 3band hybrid isoeq Hi-EQ Mid-EQ Low -Iso on each channel.

This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master. Potentiometer and Switch are All ALPS .

A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship- highly recommended.

It is designed with purist ideals with only essential features.

ARS 9100 has 3 band hybrid iso-EQ hi-EQ mid-EQ low-iso on each channel and 3band Iso on the master.

The Master Isolators can be boost of cut from +18db ~ -8.

The Ch hi-EQ mid-EQ can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -8.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-9100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Specifications
Frequency Response: +-1dB 20Hz-20Khz
Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Retrun: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-4Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -8.

Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 25w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)306 x (H)250 x (D)100 mm
Front Panel Colour: Black
