Tags: Reverb pedal

Notes: Compact multi-effect pedal combining the award-winning Soul Food Overdrive and Holy Grail Max Reverb!

The EHX Turnip Greens is a multi-effect pedal that combines the Soul Food Overdrive and Holy Grail Max Reverb.

The Soul Food delivers transparent sounds starting with clean boost and progressing all the way to intense overdrive. It's equally adept at adding punch to a player's tone, pushing an amp into saturation or in front of other dirt pedals driving them into new worlds of distortion.

The Holy Grail Max provides four carefully crafted reverbs: Spring, Hall, Plate and Reverse. A newly designed analog wet/dry control yields a constant volume curve as the Blend knob is turned from fully dry to fully wet, while also keeping the dry signal analog through the pedal.

A toggle effect-order switch, located in the middle of the Turnip Greens, selects whether the overdrive or reverb is first in the effects chain. Send and Return jacks let the player insert effects into the signal path between the two.

The Turnip Greens features an internal switch that lets the player select between true bypass or buffered bypass for the Soul Food section.

Soul Food goes from clean boost to classic distortion and can easily drive a guitar amp into saturation
Holy Grail Max delivers four studio quality reverbs: Spring, Hall, Plate and Reverse
An Effects Loop lets you put a single pedal or your entire pedalboard in between the Soul Food and Holy Grail Max
An Effect Order toggle switch lets you put either the Soul Food or Holy Grail Max first in the chain
Power supply included

Specifications

Circuit: Analogue / Digital
Bypass: Selectable True Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 125mA
Year Released: 2014

Notes: With 11 reverb types and a ton of "hidden" functionality, the Electro-Harmonix Oceans 11 reverb pedal could be your new go-to reverb pedal. You can tap into classic tones like hall, plate, and spring reverbs, including a brand-new spring reverb algorithm that sounds gloriously complex and rich - you can even double-tap the footswitch to "crash" the spring reverb. And you'll be able to cover a huge range of modern tones with a variety of modulated reverbs, shimmer reverb, reverse reverb, and more. A mode switch offers access to variations on many of the 11 reverb types. Complete with an infinite reverb mode for freeze-style effects, there is vast creative potential in the Electro-Harmonix Oceans 11 reverb pedal.

Reverb types:

Hall - rich and full sound of a grand concert hall
Spring - brand-new tube spring reverb emulation
Plate - lush and warm plate reverb
Reverse - each note fades in backwards
Echo - recirculates echoes through the plate reverb algorithm
Trem - hall reverb plus tremolo
Mod - modulated reverb
Dyna - swells, gates, and ducks in response to your playing dynamics
Auto-Inf - auto-infinite reverb, triggers a wash of reverb with each new note or strum
Shim - shimmer reverb with an octave-shifted wash that blooms behind your core tone
Poly - polyphonic reverb with two pitch shifts operating on your pre-reverb guitar tone

Notes: Multi Delay and Reverb effect pedal with inside routing and secondary reverb effects. One of the best Delay and Reverb algorithms in a metal box. Special select 3 classic Delays & 3 classic Reverbs . . . and we added a bonus "Shimmer" and "Freeze" effects which let you create a dreamy waterfall shimmer~ especially handy for intros, interludes, and endings. And now, because of NUX's latest Core Image Technology, the new Verdugo Series effect pedals offer pro-level sound enhancement.

Notes: MOOER's reverb effects have been substantially upgraded in the first reverb pedal from The New Micro Series. This sparkling gem features seven different reverb effects catering to the far-out guitar astronauts and the psychedelic space cadets. Go to infinity and beyond with the Infinite Trail fade out or keep things brief with the traditional Trail On feature. The shimmering blue finish also adds a bit of sparkly flare to any pedal setup.

Features:
*7 different reverb effects from classic to psychedelic.
*INFINITE trail function.
*Trail On function allows effects to fade out naturally.
*Supports buffer bypass or true bypass.
*Storable preset for each effect.
*Firmware updatable via USB.

Specifications:
*Input: 1/4" mono jack (impedance 2.2M Ohms)
*Output: 1/4" mono jack (impedance 100Ohms)
*Power supply: 9V DC transformer (internal negative external), MOOER Micro
*Power is recommended
*Current Draw: 200mA
*Dimensions: 93.5mm(D) x 42mm(W) x 52mm(H)
*Weight: 155g
*Accessories: User Manual

Notes: The Dispatch Master is a hi-fi digital Delay & Reverb Device that combines independent delay and reverb effects into one space-saving enclosure, so you can keep deep ambient echoes (or just a quick slapback) on speed-dial.

The best-selling EarthQuaker Devices pedal just got better with new Flexi-Switchr Technology. Want to dip into ambient delay and reverb sounds for just one note? Press and hold the footswitch for as long as you use the effect, release it when you're finished, and resume your regularly scheduled dry sound. To use the Dispatch Master as a normal effects pedal, press the switch once to activate and again to bypass.

To Use Both Effects at the Same Time, Simply Adjust all Controls to Taste:

The Mix (1) control is a wet/dry blend that adjusts the overall level of the affected signal.

Time (2) sets the delay time from 0ms to 1500ms (1.5 seconds).

Reverb (3) controls the amount of reverb. Counterclockwise is less reverb, clockwise is more reverb.

Repeats (4) controls the regeneration of the delay signal. When the Repeats control is set to maximum, you'll get infinite repeats without runaway self-oscillation, which makes it great for creating drones, dialing in the ultimate post-rock guitar sound without feedback, or just having fun.

To Use the Dispatch Master as a Delay Only:

Turn the Reverb control all the way down.

Adjust the Time, Repeats, and Mix controls to taste:

To Use the Dispatch Master as a Reverb Only:

Turn the Time and Repeats controls all the way down

Adjust the Reverb and Mix controls to taste

THIS IS IMPORTANT! In Reverb-only mode, the Repeats control has a secondary function. It can be used to adjust the decay, depth, and tonal quality of the reverb! Turn it up for more dynamics and a thicker tone.

This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. Do not run at higher voltages!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 78 mA
Input Impedance: 1 MO
Output Impedance: <1 kO

Notes: The Avalanche Run is a dreamy stereosonic exploratory multi-tool that includes up to 2 seconds of delay time, reverse delay, tap tempo with subdivision control, switchable true bypass or buffered bypass with 5 different tail lengths (including a sound-on-sound style lo-fi looping mode) and an assignable expression control that maps the expression jack to a control of your choice, including the toggle! The delay section allows tweaking from tape emulation to bucket brigade styles with a twist of the wide-range Tone control. The cavernous, plate-style reverb has just a touch of modulation similar to the one found in our precious Dispatch Master only more lush with an adjustable Decay. Otherworldly reverse delay and dynamic swelling reverb settings are accessible through a 3-way toggle switch. And that's just the beginning...

1. Time: This controls the delay time and goes from 0ms to just under 2000ms.

2. Repeats: Controls the regeneration of the delay, from zero repeats to near infinite.

3. Tone: Controls the tone for the delay line only. Roll off highs to the left, roll off lows to the right and get a flat response in the middle.

4. Mix: The is the volume control for the delay line. This blends in the wet with dry until 1 o'clock, 1 o'clock to 3 o'clock boosts the wet signal over the dry and 3 o'clock up brings down dry until it is fully wet when all the way up.

5. Expression Jack Assign Switch: Use this switch to map the expression jack to one of the assigned controls.

Decay: Controls the reverb decay length

R Mix: Controls the reverb mix

Time: This takes over for the delay time control and is DRASTICALLY different than the interface control. Using the expression pedal to control the time will give you all kinds of wild effects that can not be achieved by turning the knob.

Repeats: Controls the delay repeats

D Mix: Controls the delay mix

Toggle: This takes over for the toggle switch and will cross fade from forward delay in heel down position to reverse delay in toe down position.

6. Ratio Selector Switch: Selects delay subdivisions when time is set by the "Tap" switch.

1/1: Quarter Note

3/4: Dotted 8th

2/3: Quarter Note Triplet

1/2: 8th Note

1/3: 8th Note Triplet

1/4: 16th Note

7. Decay: Controls the decay length of the reverb, short decay counterclockwise, long cavernous decay clockwise.

8. Toggle Switch (Mode Selector)

Normal: This is the standard delay and reverb mode

Reverse: This is reverse delay mode with standard reverb

Swell: This is the volume swell mode

9. Mix: This is the volume control for the reverb. Blends in the wet with dry until 1 O'clock, 1 O'clock to 3 O'clock boosts the wet signal over the dry and 3 O'clock up brings down dry until it is fully wet when all the way up.

The expression jack is located on the west side of the pedal. It is a TRS jack with the tip acting as the wiper.

Using a Moog expression pedal, with the output adjustment knob all the way up, is recommended. Any other expression pedal is not guaranteed to work with the Avalanche Run.

This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

For best results, please use the included 9v center-negative 1-amp DC power supply.

Dimensions: 4.65 x 4.15 x 2.25 in. (118 x 105 x 57 mm) with knobs
Current Draw: 410 mA
Input Impedance: 1 MO
Output Impedance: 100 O

Notes: Realistic simulations of spaces, as well as never-before-heard surreal ambiances are represented with stunning sound quality. Sporting stereo ins and outs, a small footprint and all the controls at your finger-tips, it strikes the perfect balance of control and ease of use, avoiding laborious menus. Presets, the versatile control port, and MIDI open up a world of possibilities for live performances. Whether you're looking for a classic spring, realistic room or new sonic flavors to expand your creativity, this pedal delivers. And....it's got a beer mode!

The pedal has 12 algorithm types, some include multiple variations. For example, vintage and studio plate, dark and bright springs. Also, as more algorithms get added you can update your pedal via the SD Card. It's the pedal that keeps on giving.

Pristine sounding classic hall, plate, spring and room sounds that rival or surpass studio units costing many times more.

A complete palette of tweak-able ambient sounds that offer the creative player so much territory to explore and make their own.

All the algorithm controls are sitting on a knob in front of you, no fiddling through laborious menus.

Many algorithms have infinite hold settings or the ability to tap in delay time.

Features a signal to noise ratio of >104dB and maintains an analog dry path.

Settings can be saved to 35 presets. With three stomp switches, accessing the presets is easy.

Bank style or scrolling style preset modes.

It can be configured to run with true bypass or buffered bypass if you want to hear trails.

3 variations to choose from, perfect for recording, practicing or for gigs without an amp.

Get hum-free operation when operating in stereo with two amps. Output 2 is isolated with a transformer to eliminate nasty ground loops.

48kHz sampling, with 24 bit conversion and 32 bit internal processing.

Dry signal is left untouched, and blended with the wet signal using VCA. (no zipper noise, hooray!)

The Universal Control Port allows you to connect an expression pedal, external tap switch, control voltage, external audio input and MIDI - all using a standard 1/4" jack!

The Advanced configuration menu lets you configure how your reverb works. Select from true or buffered bypass, 0-35 presets, MIDI configuration, Control port control(expression pedal, external tap, control voltage and MIDI) as well as which style of preset system to use, input signal pad, output transformer enable and more!

The enclosure measures approximately 5.7" by 3.75" by 1.75", which is delightfully small when considering all the features packed into this unit.

Notes: Little box, big reverb. Specially designed for huge, cavernous echo effects and ideal for infinite tails and frozen sounds, the Blackhole is an exceptionally high quality pedal at a very reasonable price.

Supplier's Notes:
Create haunting echoes, ethereal landscapes and otherworldly ambience with Blackhole, a reverb pedal as big and as mysterious as the cosmos. Blackhole takes you there - beyond the ambience of mere earthly Halls, Rooms, Plates or Springs. Blackhole will take you on a journey from cathedral-type spaces to a universe of out-of-this-world soundscapes.

It includes onboard tone controls, modulation, and infinite reverb settings with mono or stereo operation, MIDI control, preset storing, and most importantly a new compact, easy-to-use interface.

Blackhole features two types of infinite reverb. Infinity mode continuously layers new sound on top of a suspended reverb. Freeze mode holds the effect allowing you to play over the reverb tail. The Freeze Footswitch allows instant access to this feature.

Unlike other reverbs which may offer pre or post modulation, Blackhole features modulation built into the reverb structure itself. It's essentially a big multi-voice chorus, with unique tone-shaping ability. You can utilize extreme settings to smooth out the edges.

Like all Eventide pedals, Blackhole allows you to fine tune every aspect of the effect. With a new, user-friendly, intuitive interface, just about anyone can shoot for the moon and land beyond the stars.

Input: 1/4" TRS / Mono = Tip, Stereo = Tip & Ring
Out 1: 1/4" TS Mono / Mono Output
Out 2: 1/4" TS Mono / Stereo Output
EXP: 1/4" TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch: Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch: Optimizes internal gain structure
Mini USB Software updates, MIDI I/O
DC Input Jack: 5.5mm / 2.1mm plug / Center Negative (-)

Input Impedance: 700k ohms Mono, 990k ohms Stereo
Max Input, Guitar: +8dBu
Max Input, Line: +14dBu
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms

Power: 9V DC @ 200mA / Center Negative (-)
Dimensions (product): 4" W x 4.25" D x 1.68" H / 102 mm x 108 mm x 43 mm
Weight (product): 1.06 lb / 0.48 kg
Dimensions (package): 7.7" W x 4.75" D x 2.8" H / 178 mm x 121 mm x 71 mm
Weight (package): 1.68 lb / .77 kg

Notes: The best delay and reverb programs from the Nemesis Delay and Ventris Dual Reverb are combined to create a potent, versatile new pedal. Create soundscapes and ambiences from vintage effects to modern experimentalism.

Supplier's Notes:
Design complex soundscapes in seconds with the Collider Delay+Reverb. Source hand-picked 12 standout delay and reverb effects from the award winning Nemesis Delay and Ventris Dual Reverb, and put them together in one compact housing with massive power and dead simple control. The Collider's intuitive control surface makes it easy to mix-and-match any two-engine combination of delay and reverb. Dual footswitches provide individual Engage/Bypass control over each effect, making it a perfect choice for live performance.

The Collider offers an exceptional collection of rich, spacious tones, including realistic reproductions of vintage Analog, Tape, and Oil Can Delays, classic models of Spring and Plate Reverb, natural replications of large and small acoustic spaces, and an intriguing and highly musical selection of "unnatural" tones including a tripped-out Reverse Delay and an other-worldly Shimmer Reverb.

Collider takes supremely high-end delay and reverb effects and offers them in a sleek and powerful design with massive processing muscle and clean functionality. The Collider features two completely independent 56-bit signal processors, essentially housing a high-powered reverb AND a high-powered delay pedal in a single box. This means that it is possible to create magnificent tones with any two-effect combination of delay/reverb, delay/delay, or reverb/reverb.

This extremely versatile pedal offers a long list of useful features, including analog dry through, stereo inputs and outputs, the option of true or buffered bypass, 8 user presets (or 128 with MIDI), full MIDI functionality, delay tap tempo, reverb hold (a.k.a. "freeze"), external expression capabilities, external preset switching capabilities and extra editing and signal routing options via the Neuro Desktop and Mobile App Editors.

The sound engineering team of Bob Chidlaw and Jesse Remignanti were relentless in their pursuit of perfection with each and every one of the Collider's delay and reverb effects. Whether it's beautifully capturing every minute detail of vintage units or bringing exceptional depth and richness to the contemporary effects, the Collider delivers excellence.

Includes 9v DC power supply (300mA / Negative Tip)
Includes 1/8" to 1/4" cable for Neuro Mobile App connection.
Power Consumption - 300mA
USB port i Connects to Mac or Windows PC for MIDI control of firmware updates.
Brushed anodized aluminum housing.
Dimensions: L: 4.5 in./11.4cm x W: 4.5 in./11.4cm x H: 2 in./5.1cm (including knobs)
Weight: 1 lb./0.45 kg.

Notes: Multi-tap delays go next-level with Eventide's incredible heritage distilled into this compact pedal format. Line level options allow you to process synths, drums, guitars and just about any other signal.

Supplier's Notes:
A Multiverse of Tone UltraTap is a unique multi-tap effect pedal capable of rhythmic delays, glitchy reverbs, huge pad-like volume swells, and extraordinary modulation.

It's the perfect tool for staccato leads, swelling chords, and other evolving effects - everything from reversed reverbs to the sound of ripping it up in the Grand Canyon!

Think of UltraTap as the mother of all Echoplexes and you won't be too far off.

That's basically how it operates but with the flexibility to add as many 'tape heads' as you want and expressively control their positions and levels.

UltraTap's controls make possible new and unexpected effects. The controls that you would expect in a multi-tap delay pedaliNumber of Taps, Delay and Feedback- are just the basics.

Controls for Spread, Slurm, and Chop open up a new world of possibilities.

Effect Features:

"Slurm" An exclusive and innovative control that smears/slurs taps together to create truly unique reverbs and choruses.

"Chop" and "Spd/Rise/Rel" combine to allow unusual and expressive modulation of the taps based on LFO shapes or the audio's envelope.

"Feedback" unlocks further tone shaping capability.

"Taps" selects up to 64 taps to create simple repeats or morph delays into chorus and reverb.

"Spread" controls the 'distance' between' taps. With the knob centered, the taps are equally spaced, turn clockwise and the later taps are bunched together, counterclockwise and the early taps are bunched together. Use this control to dial in the perfect rhythmic space between taps.

Onboard LFOs and envelopes to chop the sound source into stuttered rhythms.

"Tap Footswitch" allows you to set the tempo of the taps.

Connectors:

Input: 1/4" TRS / Mono = Tip, Stereo = Tip & Ring
Out 1: 1/4" TS Mono / Mono Output
Out 2: 1/4" TS Mono / Stereo Output
EXP: 1/4" TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch: Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch: Optimizes internal gain structure
Mini USB: Software updates, MIDI I/O
DC Input Jack: 5.5mm / 2.1mm plug / Center Negative (-)

Analog I/O:

Input Impedance: 700k ohms Mono, 990k ohms Stereo
Max Input, Guitar: +8dBu
Max Input, Line: +14dBu
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms

Specifications:

Power: 9V DC @ 200mA / Center Negative (-)
Dimensions (product): 4" W x 4.25" D x 1.68" H / 102 mm x 108 mm x 43 mm
Weight (product): 1.06 lb / 0.48 kg
Dimensions (package): 7.7" W x 4.75" D x 2.8" H / 178 mm x 121 mm x 71 mm
Weight (package): 1.68 lb / .77 kg

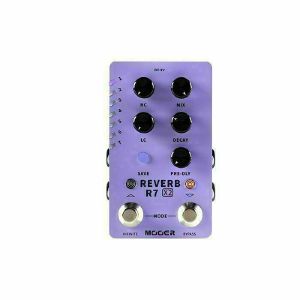

Notes: The R7 X2 Reverb combines MOOER's best digital effects algorithms from the A7 Ambiance and R7 Reverb pedals and combines 14 different types of high-quality stereo reverb in to one ultimate pedal. Parameter knobs include High Cut, Low Cut, and Mix for adjusting the EQ and Decay and Pre-Delay knobs for adjusting the intensity of each effect. Unique features of the R7 X2 include the Infinite and Trail-on functions to customize how each effect fades out.

Each pedal features a single designated save slot for each effect where users can save their settings after being tweaked to perfection. A BYPASS footswitch is included for easy toggling. Simultaneously pressing the TAP and BYPASS switches turns on Preset Rolling Mode to switch between saved presets easily

14 different reverbs

Classic: Room, Hall, Church, Cave, Plate, Spring, Studio

Modern Ambient: Mod, Reverse, Wrap, Shake, Crush, Shimmer, Dream

Notes: Reverb and reverse delay go to the next level with this "ambient creation machine". Two DSP circuits with analogue feedback allow you to create epic soundscapes, time-stretching effects and more.

Supplier's Notes:
Once upon a time, in a fairy tale world, there stood a hidden forest. On the eve of every full moon, magical and delicate sounds of light were heard bouncing and reverberating through the trees. These sounds carry artifacts of notes moving backward and stretching through time. They are referred to as... Lore.

Create the soundtrack to your storybook adventure with the Lore Reverse Soundscape Generator. Made up of five different programs, each utilizes different combinations of delay and reverb that feed into each other for time-warping ambient creations. Featuring two DSP chips running in series, each with their own analogue feedback path, the Lore takes you on an adventurous journey rich with themes of reversing, time-stretching, pitch-shifting, and vast ambiance.

Having two analogue feedback paths allows each program to incorporate a unique mix of affected and unaffected feedback. The two feedback paths interact and build off of each other organically, offering the user a wide array of sounds and behaviours to experiment with.

Programs:

I. Reverse Delay into Reverse Reverb: Program 1 combines reverse delay with reverse reverb with a focus on organically interacting feedback paths. Space and ambiance build as the signal is reversed, re-reversed, reverberated, and reversed again within the feedback network. Experiment with the X knob to control how reversed your delay trails are with left being least reversed and right being fully reversed. Lots of fun with big, eerie minor chords!

II. Reverse Delay into Octave Up Reverb: Program 2 is a "light reverb" that combines octave-up harmonic feedback with an expansive, airy, reverb tank to create a breathy, spacious ambiance. Use the Regen knob to introduce a playful shimmer into the reverb decay. Increase the X knob to control the decay of the reverb. It sounds especially great with delicate fingerpicking parts.

III. Reverse Delay into Octave Down Reverb. Program 3 is a "dark reverb" that combines octave down harmonic feedback with heavy filtering and harmonic distortion, to create a sound that is thick, rich, and murky. Use the Regen knob to bring a lower octave into the reverb decay. Increase the X knob to control the decay of the reverb. Add in some high gain or fuzz to alter the time-space continuum.

IV. Reverse Reverb into Forward Reverb. Program 4 is a dual reverb program, featuring reverse reverb into forward reverb, Dual harmonic feedback paths allow the user to dial in octave up and octave down, and time stretching allows for control of the size and character of the space. Perfect for instantly transforming guitar into rich ambient pads. Use the Feedback knob to add a lower octave to the reverse reverb. Conversely, use the Regen knob to add an octave up to the reverse reverb decay. Control the decay of the forward reverb with the X knob. To channel all things ambient, experiment with dynamic picking and strumming techniques with the mix fully wet for ethereal drones and pads.

V. Pitch Delay into Pitch Delay. Program 5 features two "duelling" pitch delays, which shift the input signal up and down in complementary or opposing directions, allowing the user to create intricate harmonic patterns in the feedback network. Behaves like a sequencer at higher delay times and like a harmonizer at lower delay times. Use Feedback and Regen knobs to control various amounts of pitched delay repeats. Use the X knob to change the order of the 4th, 5th, and octave intervals that the pitch delay steps through. Experiment with short staccato notes to create some very interesting rhythmic parts!

Dive / Rise - Holding down the tap tempo switch will momentarily shift the clock rate of the pedal down or up and will hold it at that rate for as long as the switch is pressed. The direction of the dive can be changed by simply pressing bypass and tap simultaneously. A green LED over tap will indicate rise is set and a blue LED will indicate that dive is set.

The Mod knob will control the amount of modulation applied to the wet signal. Holding down bypass and adjusting the Mod knob will adjust the modulation rate. The bypass LED will blink to show your set mod rate.

Specs:

The Lore comes coated in a muted green enclosure with Cream, Orange, brown and dark green ink with art by David Huttner.
The die-cast enclosure's exact size is 3.62" x 4.79" x 2.25" including knobs.
Buffered bypass.
Power requirements are 9VDC, center negative (300mA minimum).
The use of an isolated power supply is recommended for powering all Walrus Audio Pedals.
Daisy chain power supplies are not recommended.
Power supply not included.

Notes: Ultra-versatile stereo reverb pedal with eight contrasting algorithms for flexibility and character. Expression pedal highly recommended for real-time hands-free modulation.

Supplier's Notes:
Space Reflections

ROOMS is a stereo, multi-function digital reverb capable of searing volume, gated walls of sound, and long, trailing reverberant ambiances with an intuitive array of controls designed with live mood-bending in mind.

ROOMS was designed to the highest standards of flexibility and audio fidelity. A studio-quality mixer section provides independent DRY and FX controls over six meticulously programmed reverb algorithms; ROOM, DIGIT, PEAK, GATE, WAVE, and GONG. Each different verb is capable of a universe of sounds, and ROOMS is here to help you explore them.

ROOMS' creative I/O switching and dual-mono dry signal lines allow for a wealth of possible mono and stereo configurations, making it easy to route signals for parallel processing or stereo amplifier setups.

Controls

FREQ: Controls the frequency parameter of the current mode.

DEPTH: Controls the depth parameter of the current mode.

TIME: Controls the reverb time in all modes.

DRY: Controls the volume of the dry signal, from -inf to 20x gain.

FX: Controls the volume of the reverb signal, from -inf to 20x gain.

ALT: Engages the ALT mode, switching between two sets of controls. When active, FREQ is controlled with the F knob, DEPTH with the D knob, and TIME with the T knob. Additionally, the ALT mode turns on expression control of either FREQ or TIME using the F?T Switch on the side of the pedal. NOTE: Expression control ONLY works in ALT mode and when an expression pedal is plugged in.

Expression Pedal: Almost any expression pedal will work with ROOMS. When not plugged in, the controls work as normal. NOTE: Expression control ONLY controls the F or T knobs when ALT mode is engaged and when an expression pedal is plugged in.

Modes & Parameters

FREQ knob : DEPTH knob

1 - ROOM: Tone of Decay : Pre-Delay
A classic reverb that simulates many different rooms.

2 - DIGIT: Delay Time : Delay Feedback
A filter matrix verb capable of creating otherworldly resonances and fractured repeats.

3 - PEAK: Filter Frequency : Filter Resonance
A super intense bandpass filter combined with an ambient reverb.

4 - GATE: Decay Tone : Gate Response Time
A gated reverb. Short reverb times create a classic gate effect, long reverb times create a controllable freeze effect.

5 - WAVE: Modulation Frequency : Modulation Depth
Creates a pitch vibrato effect. Lowering TIME will blend out the reverb signal, allowing sweeps from chorus/vibrato to long modulated reverbs.

6 - GONG: Modulator Frequency : Blends from Aliasing (left) to Ring Modulation (right)
Ethereal, crushed reverb sounds guaranteed to make you star in the upcoming remake of DUNE and live out your sci-fi fantasies of space travel and galactic domination.

Specifications

Dimensions: 5.95" x 3.86" x 2.96" (including hardware).
Weight: 18 oz.
Power: 80 mA, 9V (runs on a standard 2.1 mm negative center 9V adapter).

Notes: Another banger from Dreadbox's excellent effects series. Stereo echo effects based around multiple hybrid delay stages, giving bags of character for reverb, modulation effects and classic delays.

Supplier's Notes:
Dreadbox Raindrops is a Hybrid Delay/Pitch Shifter/Reverb pedal that takes the concept of short echoes to a different level.

It is equipped with multiple delay stages and different chips and you can choose between 3 different play modes, where in each one you can have a whole new experience and alternative soundscapes. You can achieve from simple short echoes, to long, dirty and lo-fi delays and from simple pitch shifting bursts to extensively lasting reverbs.

Specifications

Circuit: Analogue Dry signal / Hybrid Delay / Digital Reverb
Bypass: Buffered OpAmp
Audio: True Stereo IN/OUT
Inputs / Outputs: TS Unbalanced 6.4mm jack
Power Supply: 9VDC BOSS style center pin negative 2.1mm (NOT INCLUDED)
Dimensions (cm): 14 x 10 x 5.6
Current Draw: 220mA

Notes: Distortion and reverb meet in this unique pedal, sporting a joystick to tweak the sound and the option to flip the order of the two effects in the signal chain. Simple, quirky and effective.

Supplier's Notes:
Walrus Audio give you the two most quintessential effects that yield unruly amounts of power and influence to an instrumentalist: reverb and distortion. They have been harnessed and woven together for an eternity of ethereal power with The Melee: Wall of Noise. The Melee unapologetically uses a joystick to meld reverb and distortion into one massive blaze of sound. With the flip of the order switch, run the distortion into the reverb or reverb into distortion; signal chain is your call now. For the explorer, the Melee can run one of three different reverb programs Ambient, Octave, and Reverse.

In a less is more approach, Walrus Audio have intentionally decided on controls that are fun to use and will inspire a wealth of creative output. Use the joystick to control the amount of distortion by moving it up and down. Moving the joystick left and right will adjust your reverb mix. The tone and decay toggles have low, medium, and high settings. Modulation can be added to the wet signal by holding down the bypass switch and moving the decay toggle. The left position is no modulation, the middle is a slight modulation, and the right is a high modulation.

Algorithms

The Melee is equipped with three different reverb programs, which can be changed by simultaneously pressing the bypass and sustain stomp switches. Experiment with the order toggle switch to hear how differently these all react in front and after the distortion!

Ambient Reverb (Pink LED) - Huge reverb capable of massive trails and engulfing your chords into an angry wash of sound. Great for soaring melodic lines or shoegaze-driven chord progressions.
Octave Down Reverb (Yellow LED) - Similar to the Dark mode in the Slo, you'll find an eerie lower octave hovering in the reverb trail for a nice and dark atmospheric touch.
Reverse Reverb with Feedback (Blue LED) - Add reversed reverb trails back into your signal, create gentle melodies or push into reverse feedback overload. Big, slow, and sad chords love to hang out here.

Momentary

Press and hold the sustain switch to ramp up the reverb trails. Release and the trails will ramp back down to where the decay switch is currently set. The sustain switch can also latch in all three programs. Press and release the Sustain switch to capture and sustain the current reverb decay for long pad-like sounds in your wet mix. Press again to release the latch, and the reverb trail will taper off based on the position of the decay knob.

Specs

The Melee comes coated in a glossy neon pink enclosure with white, yellow, and green inks with art by
David Huttner.
The die-cast enclosure's exact size is 3.62" x 4.79" x 3.14" (including joystick height).
Three bypass modes, DSP, DSP + True, True Bypass
Power requirements are 9VDC, centre negative (200mA minimum).
The use of an isolated power supply is recommended for powering all Walrus Audio Pedals.
Daisy chain power supplies are not recommended.
Power supply not included.

Notes: Damp is the name given to this miniature digital reverb pedal to describe the immersive sound image provided by its 3 inbuilt reverb models. A choice of Spring, Plate or Hall reverberation types can be selected by the illuminated push button at the top of the pedal. Holding this button down during power-up selects between mono output or stereo output, which requires a stereo jack lead. Three rotary controls adjust Decay, Level and Tone settings as required. Pressing the footswitch activates or deactivates the effect, whilst holding this pedal enables a secondary effect - Shimmer in Plate mode or Freeze in Spring or Hall modes. The Damp pedal is versatile enough to cover a wide range of reverb styles with a minimal footprint on guitarists' pedalboards or for patching into an effects loop for other instruments or even vocals.

Power supply: 9Vdc (DC5521 connector, negative centre, adaptor not supplied)
Controls: Decay, Level, Tone and 3 reverb modes switch
Dimensions: 94 x 53 x 51mm
Weight: 175g

In the box

The box for this item contains :

Damp digital reverb pedal

Notes: The Sloer Stereo Ambient Reverb builds on our popular Slo lineup but adds two additional reverb algorithms, stereo width control, two additional modulation wave shapes, and the ability to control the sample rate. Now you can create immersive, lush, modulated, sleepy, and ambient soundscapes with more width and depth than ever before.

Save your favourite dreamscapes with three onboard presets by simultaneously pressing and holding down on the bypass and sustain switches. Scroll through them by simultaneously pressing and releasing bypass and sustain.

The five-way rotary dial allows five different reverb modes - the three you know and love from the Slo: Dark (Lower Octave), Rise (Ambient Swell), and Dream (Latching Pad); and the addition of two new modes: Rain (Delay Tap Diffusion) and Light (High Octave Shimmer). Secondary functions on the dial change between five different wave shapes for modulation on the reverb trail.

Combine deep modulation, long washy trails, and an immersive stereo field to experience Sloer.

5 reverb modes:

DARK - Add a lower octave to your reverb trail. Here you'll create deep and wide atmospheric sounds and channel nightmarish soundscapes. X knob sets the level of a -1 octave signal that feeds the reverb.

RISE - This is an auto-swell reverb for beautiful cinematic swells. Don't rush it. Let it breathe and gently wake up. X knob sets the amount of time it takes the reverb to swell in after a note is played. Set lower for shorter rise times and higher for longer rise times.

DREAM - Lush reverb with a latching pad function. Press the sustain switch to latch signal. Experiment with the X knob to add vibrato over the pad. Press sustain again and the pad will decrescendo according to where the decay knob is set. X knob sets the depth of vibrato applied to the reverb trail.

RAIN - Tappy and trippy, this program creates a unique effect with lower levels of diffusion allowing the reverb delay taps to audible create an echo-like effect within your reverb. Use the Xcontrol to set the amount of diffusion of the delay taps.

LIGHT - Bright and smooth reverb with an octave-up shimmer. Create a range of ethereal sounds with the X slider, keep it low for a smooth pad-like reverb or push it higher for a bright shimmer effect.

5 wave shapes

The Sloer also features five different wave shapes accessible by holding down bypass while switching the algorithm dial.

Sine - Smooth and even pitch up and down modulation.
Warp - Asymmetric pitch up modulation similar to a warped record.
Sink - Asymmetric pitch down modulation for sinking detune similar to a Bigsby.
Square - Symmetric pitch up and down modulation for stepped modulation.
Random - Uses sample and hold that picks new random values.

Momentary functions

Bypass: When the switch is in the off position, press and hold to temporarily activate the effect to add a moment of reverb texture. Releasing the switch turns the effect off, and fades it out.

Sustain: When pressed, the decay switch ramps up the reverb trail to maximum creating a long dreamy reverb trail, and then ramps back down to the decay knob setting when released. In the "Dream" algorithm, the sustain switch is latching. Press it once to capture and sustain the current reverb decay for extremely long pad-like sounds. Press it again to let the reverb trail taper off, based on the position of the decay knob.

Trails mode

The Sloer can run in trails or no trails mode. In trails mode, when you turn the pedal off, the reverb decay dies off naturally. In no trails mode, the decay is abruptly cut off when you turn the pedal off. To toggle between either mode, hold down the bypass switch for 1 second while applying power to the pedal. Unplug power and repeat to toggle to the other mode.

Preset spillover

When scrolling through presets, there is only preset spillover if the next preset is the same algorithm as the one preceding it. For example, if your red and green presets are both in Dream mode, switching from red to green will not cut your reverb trails.

Specs

The Sloer comes in a Lollipop Blue finish with light blue and off white ink featuring original artwork by Christi Du Toit OR a matte black finish with cream ink.
The die-cast enclosure's exact size is 4.79" x 3.62" x 2.25" including knobs.
Power requirements are 9VDC (100mA minimum).
The use of an isolated power supply is recommended for powering all Walrus Audio Pedals. Daisy chain power supplies are not recommended.
Power supply not included.

Notes: Ledges is a three-mode reverb with the ability to save and recall six presets and user-assignable expression control with loads of customizable options. From classic, standard reverb tones to undiscovered sonic reaches, it's everything you've ever wanted and needed out of a reverb.

The three switchable modes each deliver a unique blend of reverb, but are connected through a spectrum where the Room (R) reverb's longest setting is the Hall (H) reverb's shortest setting, the Hall reverb's longest setting is the Plate's (P) shortest setting, and the Plate's longest setting just keeps on going. The Room setting at its shortest achieves a small, boxy room sound that gradually gets bigger as you turn it up. As you increase the Hall setting, it morphs into a Cathedrals-style reverb that becomes really big, boomy and echoey with distant reflections. Turn up the Plate setting to get bouncy reflections that recycle and reverberate forever.

Ledges can go from an '80s slapback reverb mix to a bigger room spring reverb with the twist of the dials. The Mix knob lets you control how much your signal is affected, while the Length knob controls the size of the reverb. The Damping knob subtly mutes the high-frequency reflections of the reverb, which you'll hear clearly by adjusting your gain.

In addition to all of the features, there are six Presets available. Simply select a number with the switchable knob and then engage the Save on the center button and dial in your perfect sound. A quick Recall on the same button and you have all of your personalized reverb sounds with a single tap. You can assign an expression pedal to each of the three controls and then save it all in the presets.

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 80 mA
Input Impedance: 1M O
Output Impedance: 100 O
TRS expression pedal wiring:
Tip: Wiper
Ring: +3.3V
Sleeve: Ground

Flexi-Switchr Technology

This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Ledges is buffered bypass with tails. Power is required to pass signal.

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. It is always recommend you use pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Notes: Combining the power of multi-oscillator wavetable synthesis with the percussive detail of sampled sounds, Pianophonic is a powerful hybrid synth engine featuring 8 voices of polyphony. Not limited to Piano sounds, the voice architecture of Pianophonic is extremely versatile and easy to use with the essential controls laid bare on the front panel, and the most significant CV inputs and outputs provided for full integration within eurorack patches.

Taking its inspiration from the wavetable/sampler keyboards of the 90s, Pianophonic revisits a lean and mean approach to digital sound creation but instead with 24bit 48Khz quality and fingertip control of the parameters that really matter.

With a built in SD card and an online re-synthesise utility, allowing users to create their own sound banks, the possibilities for sound exploration are limitless.

Notes: Meris describe the MercuryX as the most flexible studio reverb pedal ever made. A bold claim, but hear them out. Immense power with eight custom algorithms in a modular architecture. Full stereo with a wealth of programs from lush plates and twangy springs to experimental weirdness.

Supplier's Notes:
The Meris MercuryX takes the heart and soul of Mercury7 and expands it far beyond sci-fi into the highest quality and most flexible studio reverb ever created in a pedal format. Its modular reverb system format breaks the paradigm of pre-set reverb types and inspires new discoveries. MercuryX features the same easy to use UI as LVX, making it immediately intuitive to navigate.

All of Meris' passion for pro audio has made it into both the algorithms and hardware performance of this pedal. MercuryX combines 8 custom Meris reverb algorithms and incorporates those into a modular system architecture that first introduced with the award winning LVX pedal. It features discrete processing elements and control signal modifiers that can be connected as desired for infinite flexibility in crafting custom reverbs.

Here is a deep dive into the 8 different reverb structures in MercuryX. Each Reverb Structure has Gate controls that can be used to dial in a range of gated reverb effects including the classic percussive gate sound, reverse tail reverb sounds, and slow breathing textures.

Similar to the Dry Blend control of the Predelay, each Reverb Structure features a Predelay Blend control that allows you to put some or all of the predelay reflections in parallel with the reverb tank.

Ultraplate - Adapted from Mercury7, Ultraplate is an inspiring and lush plate with a fast build. Use the Ultraplate's flexible decay range to create a wide range of studio textures.

Cathedra - Adapted from Mercury7, Cathedra is a massive and ethereal algorithm with a slow build. Cathedra is perfect for scifi textures and recreating C-beams glittering in the dark near the Tannhauser gate.

Spring - A flexible algorithm that can be voiced to replicate both the amp based reverb sounds and the classic studio spring tanks featured on early recordings.

78 Room - A lively and direct sound. This algorithm is great for transforming static sounding virtual amps into the difficult to capture sound of a great amp live in the room with you. The Room algorithm features a unique infinite mode (Maxed out Decay controls) that interacts with the Tank Mod to provide deep chorused and flanged reflections.

78 Plate - Fast and dense, the 78 Plate algorithm is a good match for beefing up percussion and vocals.

78 Hall - A large hall with a medium build up of reflections. Great for building up ambient walls of sound. The Hall algorithm's extended reflections are a great base for sculpting with the Bass/Mids/Cross controls. Deep rumbling bass caverns and ethereal upper mid emphasized halos of sound are easy to create. Explore the additional sparse mode for the Hall when Diffusion is set Low.

Prism - The Prism Strucure is an dual tank that allows you to build your own geometric rooms by specificying the size and distance and reflectivity. Prism features a highly configurable modulation section which allows different modulation phases per side to further increase the stereo image.

Gravity - The Gravity Structure works by accelerating indivual windows of your signal and stretching them across the horizon.

Notes: Updated version of the White Whale pedal follows the same formula of 60s-inspired tremolo and spring reverb, with an improved power amp for higher fidelity. The essence of iconic amp effects in a single pedal.

Supplier's Notes:
Inspired by the match-made-in-heaven of vintage effects found on 60s American amps, White Whale V2 sets out a new objective to pack bigger real spring reverb and tremolo sounds in the same pedalboard friendly enclosure (17 x 12,5 x 7,5 cm).

The 3-spring reverb tank assembly housed inside White Whale's enclosure has remained the same, but Crazy Tube Circuits have upgraded the power amp driving the springs for increased headroom and wider frequency response. Following the signal topography of vintage units, Crazy Tube Circuits have also upgraded the dwell control to allow you to dial the right amount of signal that goes into the springs for a mellower or splashier reverb sound. Real spring reverb found in 60s American tube amps and external reverb units featured a tube power amp driving the spring assembly via an output transformer, so analogue circuit has been delicately tuned to emulate the tube and output transformer saturation that was produced on higher dwell settings.

Each of these vintage units had its own reverb effect qualities so Crazy Tube Circuits tried to categorize them according to the most emblematic ones with a toggle switch selecting the size and decay. The user can select between the milder reverb qualities of a short to medium 2-spring reverb tank, the liveliness of a medium to long 2-spring reverb tank as found in most blackface amp designs and the dense reverb qualities of a long 3-spring reverb tank assembly. A reverb's tone control comes after the recovery stage at the output of the reverb tank and affects only the wet sounds for lively and drippy or smooth and mild reverb tones. Use the mix control to blend your desired amount of wet signal on top of the dry guitar signal. Higher reverb mix settings tend to get lost in the mix, so we've made sure you'll be heard loud and clear by incorporating a volume control capable of up to 20db boost.

The tremolo section has also been upgraded to feature harmonic tremolo, besides the opto and tube bias found in the previous incarnation of Crazy Tube Circuits' "marine mammal". This hypnotic and mesmerizing effect originated on certain models of the brown and blonde era amps and does frequency-based modulation by shifting between high and low frequencies compared to the amplitude-based modulation (opto and tube bias) that shifts between volume levels. Crazy Tube Circuits have made sure to include the two most significant variations of harmonic tremolo, as found in the original amps, that differentiate in the range and sweep of pulsating frequencies. The depth control sets the intensity of modulation while the range of the speed control has been extended beyond the span of vintage amps' to make sure we'll maximize your creativity. The volume control will boost the signal, if needed, even in the hardest throb settings.

Another upgrade found in the White Whale V2 is that the two effect sections are now completely independent and you can select the effects order so that the tremolo effect comes before the reverb or vice versa. This gives you the option to make heavenly combinations as optical and tube bias style tremolo usually sound better when placed after (post) the reverb effect while the harmonic tremolo usually sounds better when placed in front (pre) of the reverb effect. The two onboard footswitches are used to engage or bypass each effect section and feature a power-up bypass/engage pre-set function. That way you can select which state your pedal will go to when you plug the power supply. White Whale V2 also features a remote switcher input jack where you can control the bypass state of each effect section remotely via your favourite external effects switcher or via the matching artwork remote control dual footswitch (sold separately). Reverb's mix can also be controlled via an expression pedal and tremolo's speed can be controlled by either an expression pedal or external tap tempo footswitch (expression pedals / tap tempo footswitch are not included).

The surf-friendly light green colour adds to the overall drippy experience of a real spring reverb and tremolo that will fit on your pedalboard. If your amp setup doesn't have these effects by design, you have now found your perfect match.

Notes: The R1 MKII is an extremely powerful and versatile multi-function reverb that can go from intimate, small-room type subtle reverbs to huge, experimental euphoria. With six distinct programs based on fan-favourite reverb sounds that have been built from the ground up, players of all styles and genres will be able to find eternal inspiration with the R1.

Program Controls

Each program can be fully customized to your taste and playing style with the left encoder knob for features like modulation rate, ducking, and more. Refer to the manual for program specific features.

The R1 MKII includes a unique Ducking/Swelling control that modifies the reverb's behavior. Higher settings increase the swelling effect, making it more prominent, while lower settings enhance the ducking effect, helping to maintain a clear and focused mix.

The Right encoder knob adjusts parameters like reverb EQ and room size. See the manual for details.

Programs:
Spring: The Spring program emulates an excited spring reverb commonly found in tube amps with loads of transducing drip. Easily go from subtle to full-on surf rock. Experiment with the decay knob to get more than average amounts of reverb not found in traditional amp spring reverb tanks.
Hall: The Hall program provides the acoustics of large live sound spaces like concert halls to arenas. Longer decays result in a massive wash of ambiance.
Plate: The Plate program emulates a smooth analogue plate reverb with nice even diffusion for the classic plate sound that you know and love.
BFR: BFR is a no holds barred, big, f____, reverb. This is more than a giant arena reverb. It's a hall-esque reverb with rich and lush decay in a vast cavern filled with choirs of angels.
Refract: The RFRCT program allows for lovely, charming, and glitch-like textures hovering over a controllable amount of diffusion. The Rate controls on RFRCT set how often new grains trigger, while Depth controls the amount of modulation applied to the grains. The Time control sets the delay time of the grains, and the size control sets the size of the grains being pulled from the buffer. The diffuse control allows you to take the grains from super dry and stuttery to washed out in a reverb mix.
Air: The Air program offers a larger diffused reverb with a shimmer, as well as a distinct clarity to its decay. Adjust the shimmer control to really lean into that high-octave sound that ambient style artists have come to love over the decades. Explore slow-building complimentary sounds that don't get in the way of your playing.

Presets
The R1 can save up to 128 onboard presets, which can be held in a preset bank made accessible by tapping down on the bottom left and bottom middle knobs simultaneously. Presets 0-9 are divided into Banks A, B, and C. Select a bank while in the preset menu. Bank A will cycle through presets 0-2, Bank B will cycle through presets 3-5, and Bank C will cycle through presets 6-9. Presets 10-128 can be accessed through manual selection or MIDI.

Notes: Clear Skies Ahead. Plug into BigSky and instantly lift your sound into the stratosphere. The world below you fades into the distance, and you're elevated into a glow of lush, glorious, radiant reverbs.

To create a reverb experience as natural, beautiful, and immersive as BigSky required tremendous feats of sound engineering and artistic imagination. Using the fundamentals of acoustical science as our beacon, we carefully studied and scientifically analyzed reverb technology from the past fifty years. Strymon faithfully captured the essence of these classic sounds, and forged ahead to dream up our vision of reverbs from the future.

BigSky gives you twelve studio-class reverb machines, each with simple yet powerful controls. Feel the mechanical tension of the Spring reverbs. Hear the floating particles of the Cloud machine. Defy the laws of physics with the Nonlinear reverbs. Unleash the multi-head reverberations of the Magneto machine.

With careful attention to detail, innovative analogue circuitry design, a powerful SHARC processor, and the utilization of top-shelf components, Strymon have developed a reverb pedal that fits on your pedal board yet has better audio quality than many rack reverb units. This fusion of science with art has just one goal. To provide you with the most musically inspirational reverb experiences possible.

Features

Hand crafted, studio-class reverb algorithms deliver lush, gorgeous, and musically inspiring reverb experiences

Twelve reverb machines to choose from: Room, Hall, Plate, Spring, Swell, Bloom, Cloud, Chorale, Shimmer, Magneto, Nonlinear, Reflections

Seven front-panel tone shaping knobs: Decay, Pre-Delay, Mix, Tone, Mod, Param 1, Param 2 (Param knobs assignable per preset)

Additional menu parameters allow for easy customization of reverb sounds

300 easily accessible and namable presets

Press-and-hold Infinite Sustain and Freeze functions, saveable per preset

Spillover and Reverb Persist modes, saveable per preset

Selectable Speaker Cabinet emulation for direct-to-PA gigs or recording applications

Three rugged metal footswitches for preset selection and effect bypass

LED display for preset info, reverb decay time, and extended parameter control

Multi-color preset LEDs (green for active preset, amber for edited preset)

Full MIDI implementation allows extended control for those with more complex rigs

Sturdy and lightweight light blue anodized aluminum chassis, with laser-etched artwork

Durable black anodized aluminum knobs

Studio-grade audio input and output jacks

Stereo input and output

Expression pedal input with selectable control over any knob or combination of knobs, saveable per preset (also configurable as external tap input)

MIDI input and output

Included 9V center-negative power supply (300mA minimum required)

Analog dry path for a zero latency dry signal that is never converted to digital

Premium analogue front end and output section

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters

115dB typical signal to noise at 50% wet mix (120db at 100% dry mix, 109dB at 100% wet mix)

20Hz to 20kHz frequency response

+8dBu maximum input level easily handles instrument and line signals

Super high performance DSP in a compact form factor

32-bit floating point processing

366MHz SIMD SHARC processor core, capable of 2.4 Gigaflops peak performance

True Bypass (electromechanical relay switching)

High quality, tranparent Analog Buffered Bypass mode

+/- 3dB Boost/Cut, saveable per preset

Optional Kill Dry mode mutes dry signal, for use in parallel effects loops

Dimensions: 6.75" (171mm) wide, 5.1" (130mm) deep

Designed and Built in the USA

Notes: Excellent value from the updated Mooer delay/reverb/looper. The Ocean Machine II features improved sound quality all round, plus expanded loop memory up to a total of 120 seconds.

Supplier's Notes:
Similarly to the original, the Ocean Machine II offers two independent delay modules, each with nine different delay types of up to two seconds, including household names such as digital, tape, and echo delays, as well as more abstract options, such as galaxy, crystal, and rainbow. A high-fidelity reverb module complements these delays with nine reverb types, as well as a shimmer effect. Each delay and reverb effect can also be 'frozen,' creating static ambient drones, an effect that sounds particularly impressive considering the pedal's DSP upgrades.

While the original Ocean Machine's looping capabilities provided just 44 seconds of loop storage, the new addition features an impressive 120 seconds. To experiment with this feature, along with Ocean Machine II's other sonic capabilities, users can use an intuitive LCD screen along with 12 knobs (four for each delay and reverb module) to easily adjust parameters within the device's 'Play Mode.' Three footswitches are also provided to facilitate independent effect toggling, tap tempo control, looper interfacing, and a preset selector.

Once the guitarist has crafted an interesting effect chain, they can save their work as a preset and enter 'Patch Mode,' in which they can toggle between saved settings with each of the three footswitches. In total, the Ocean Machine II provides eight preset storage banks, each of which supports up to three presets, resulting in a total of 24 save slots.

The pedal's versatility is further enhanced by its programmable parallel and serial effect chain hybrid, a signature element of Devin Townsend's tone creation. This feature allows users to customize the order of effects, providing endless creative possibilities. Further programming options can be accessed through the LED screen, which impressively includes synchronizable MIDI connectivity, a feature that was absent in the original Ocean Machine.

In addition to MIDI, the pedal supports various external control systems, including expression pedal input through a TRS cable. Furthermore, the pedal is compatible with MOOER's F4 wireless footswitch, allowing for extended capabilities for mapping presets and other features. A USB-C port is also available for firmware updates, ensuring that the pedal remains up-to-date with the latest features and improvements.

Considering the experimental nature of Devin Townsend's performances, MOOER has also gone above and beyond to facilitate the seamless integration of Ocean Machine II into any audio setup. The device features full stereo inputs and outputs, as well as adjustable global EQ settings, letting users tailor their sound to suit different environments. Guitarists can also customize their effect chains to be used with true bypass or DSP (buffered) bypass, depending on their preferences and specific use cases.

Overall, Ocean Machine II brings higher quality delay and reverb algorithms, augmented looping support, and various updated connections to Devin Townsend's original device. As per MOOER's typical standard, the pedal is engineered to withstand the rigors of touring and frequent use, allowing guitars to bring their special creations and atmospheric drones to the stage.

*Dimensions: 215 x 127 x 56 mm

*Weight: 1.1 kg

*Power Supply: 9V DC

*Sampling Rate: 44.1 kHz

*Sampling Accuracy: 24-bit

*Includes USB-C to USB-A cable, power adaptor, stickers, and artist signature card from Devin Townsend

Notes: Limited black edition of the excellent stereo Dark Star pedal, offering premium reverb with beautifully creative pitch shifting, filtering and bit crushing options. Superb value for money.

Supplier's Notes:
Dark Star Stereo Flagship Reverb Pedal

The continued pull, the drift unabated, the controlled wash of gravity and the chaotic meander of its combined uncertainties. In fact, the original and highly loved Dark Star is a pedal that historically was OBNE's most popular reverb. People bonded with its warmth and aliasing, its long trails and the way it encouraged you to turn the mix fully up. Now, it's in with the new. Dark Star Stereo expands on the promise of ambient reverb and is a pitch shifting, bit crushing, filtered reverb pedal with just about every feature you could ask for. One massive stereo voice, with a wide suite of controls that likes to go anywhere in your signal chain - all that's left is for you to decide just how dark you must go.

Reviving the magic of the long-trail lo-fi reverb algorithm that made Dark Star a breakout hit years ago, Old Blood Noise Endeavors announces a new Dark Star for a new era, with a drastically expanded feature set and improved signal quality that is sure to draw in old fans and new. New features like Stereo Input and Output, on-board Presets, Trails, Expression control over all parameters and MIDI control, of both Parameters and Presets, all help to give more versatility to this device than ever before. Beyond that, the new Dark Star does away with the three-mode toggle, instead creating a single mode combining all the Pitch-Shifting, Bit-Crushing, delayed goodness of the original. Access your favourite sounds as well as new combinations, with new shapers like Filter, Multiply, Volume and Stereo-Spread.

Notes: Dark Star Stereo Flagship Reverb Pedal

The continued pull, the drift unabated, the controlled wash of gravity and the chaotic meander of its combined uncertainties. In fact, the original and highly loved Dark Star is a pedal that historically was OBNE's most popular reverb. People bonded with its warmth and aliasing, its long trails and the way it encouraged you to turn the mix fully up. Now, it's in with the new. Dark Star Stereo expands on the promise of ambient reverb and is a pitch shifting, bit crushing, filtered reverb pedal with just about every feature you could ask for. One massive stereo voice, with a wide suite of controls that likes to go anywhere in your signal chain - all that's left is for you to decide just how dark you must go.

Reviving the magic of the long-trail lo-fi reverb algorithm that made Dark Star a breakout hit years ago, Old Blood Noise Endeavors announces a new Dark Star for a new era, with a drastically expanded feature set and improved signal quality that is sure to draw in old fans and new. New features like Stereo Input and Output, on-board Presets, Trails, Expression control over all parameters and MIDI control, of both Parameters and Presets, all help to give more versatility to this device than ever before. Beyond that, the new Dark Star does away with the three-mode toggle, instead creating a single mode combining all the Pitch-Shifting, Bit-Crushing, delayed goodness of the original. Access your favourite sounds as well as new combinations, with new shapers like Filter, Multiply, Volume and Stereo-Spread.

Notes: The JHS Pedals 3 Series is a collection of pedals designed to give you affordability and simplicity without compromising quality. Each 3 Series pedal is made by us JHS using high-quality parts, quality control, and attention to every detail. Each pedal has three simple controls and one toggle that offer a wide range of sounds, perfect for beginners and professionals alike. The JHS 3 Series will inspire your playing and help you explore new sounds at a totally approachable price point.

In the early 1980s, Brian Eno invented an effect called "Shimmer," which was popularized in U2's The Unforgettable Fire (1984). The effect mixed ambient reverb and octave effects in the reverb's decay. The 3 Series Octave Reverb is our take on this classic effect that has been used for decades to allow the guitar to create pads and textures that fill out ambient space. Toggle up layers in upper octave sounds, while toggle down layers in lower octave sounds.

Notes: The JHS Pedals 3 Series is a collection of pedals designed to give you affordability and simplicity without compromising quality. Each 3 Series pedal is made by us JHS using high-quality parts, quality control, and attention to every detail. Each pedal has three simple controls and one toggle that offer a wide range of sounds, perfect for beginners and professionals alike. The JHS Pedals 3 Series will inspire your playing and help you explore new sounds at a totally approachable price point.

The 3-Series Hall Reverb is inspired by the sounds of large reverberated spaces, cathedrals and halls where the decay of natural reverb seemingly goes on forever. This pedal is perfect for players who are searching for massive, infinite and even otherworldly reverb. The JHS Pedals 3 Series Hall Reverb runs on 9V DC Negative Center power and consumes 70mA.

Notes: Best known for Eurorack synth modules, Noise Engineering's Batverb builds on the brand's extensive experience, offering a performance-focused take on echoes, dynamics and tone.

Supplier's Notes:
Batverb is the stereo reverb that dreams are made of. Taking inspiration from Noise Engineering's famed tail-generating synth modules, Batverb brings reverberation and delay to a whole new level with extensive control of timbre, echoes, and dynamics.

Start by setting a predelay time and adjusting Regen to taste: this will set the length of the tail, from a short slapback-style echo to an infinite wall of reverberation. Add in some chaotic suboctaves with Doom, or some haunting overtones with Shimmer - or both at the same time. If you need to carve the range for your reverb, Batverb has low and high damping settings for the reverb tank. Batverb even has settings for saturation that can be applied to only the reverberant signal, or to the whole output.

Batverb is easy to balance with the rest of the effects in your chain, thanks to its onboard dry/wet Blend control, as well as input and output gain parameters. It also features a unique Duck switch that allows the reverb to duck out of the way of an input signal, or match the dynamics of your playing, similar to a gated reverb.

Batverb was designed to integrate perfectly into your performances. The left switch mutes the input to the reverb and sets the feedback to maximum, creating a wall of sound as long as it's held down. The expression input can also be routed to any parameter on the pedal. Plus, if you're a fan of MIDI, Batverb can store and recall 16 different presets and recall them in response to program change messages.

Batverb is an advanced pedal with state-of-the-art features, but it's incredibly easy to use and immediately fun to play.

Notes: The Faux Spring Reverb has been a staple on many players boards for many years now, and when it was discontinued a few years ago Brian Wampler received numerous requests to bring it back since then. Not being one to be content with just reissuing something, Brian decided to take all of the feedback from players he had received and give it a bit if an upgrade.

The result was the birth of the Mini Faux Spring Reverb. Following the idea of - If it's not broke, don't fix it - he just added more of what players love. More decay, more drippiness and more of that bouncy spring tone players love in the bigger Reverb tanks. Despite sounding bigger and fuller, he decided to condense it down into a mini enclosure to fit perfectly at the end if any chain to grab and go.

When the moment calls for the sound of spring reverb, you'll be glad you have this little guy. With an extended decay time, the Mini Faux Spring Reverb pedal serves up authentic tones that drip with boing (Don't you love spring reverb adjectives?) just like a great spring tank. And thanks to an easy-to-navigate control layout, you'll have your perfect tone pulled up in no time.

For years, the Wampler Faux Spring Reverb was the very best spring reverb pedal available, Brian Wampler updated it, made it smaller, made it bouncier - made it even more perfect for your rig!

There no denying the popularity and convenience of this pedal's mini design. Not only does it fit wonderfully on even the most cramped pedalboards, but it's easy to throw in the back of your open-back combo when running in the amp's effects loop.

Brian Wampler's attention to detail and commitment to bringing you the best-sounding & most usable Effects Boxes on the market is nothing new. Those qualities are on full display within the Mini Faux Spring Reverb. We're all tone-freaks, and we're always trying new things, but we hope this pedal finds it's forever home on your pedalboard, so we built it to last that long.

Technical Details

Built in the U.S.A.
High-grade components picked for their superior sound and response
True bypass Small profile, ideal for pedal board placement
Signal is split, core tone is unchanged through the pedal, the effect is laid on top of your tone
Volume, Depth, and Tone control allowing you full control of your reverb trail
9v power jack (no battery connector inside)
3PDT True Bypass
Includes Wampler's limited 5-year warranty
Power draw: 64.3mA (at 9v) and 69.5mA (at 12v)
1.50" x 3.50" x 1.5" (38.1mm x 88.9mm x 38.1mm) - height excludes knobs and switches

Notes: How many times have you sat in front of your favorite ambient pedal and felt like you need weeks of training at NASA to use it? Knobs, switches, sliders - It's often SO hard and frustrating to find a usable tone on those things quickly - Keeping that firmly in mind, when Wampler first considered making an ambient pedal, ease of use was a top priority, right up there with top tier quality tone on par with pedals at twice the price.

How do you describe a pedal like the Wampler Ethereal? Does ambient heaven cover it? Is it the gateway between real life and the astral plane? Or is it just gorgeous? It's hard to know which phrase to use when talking about it, because they all match it perfectly - plus, of course, so easy to use you'll be getting those perfectly Ethereal tones instantly.

When designing the Ethereal these were the EXACT thoughts running through the mind of Brian Wampler. He wanted to make a delay that is as pure as you could want, with a time of up to 1s, a reverb that is thick and then have the option to mix them all up and put them together in one glorious effect that will send you away - all the way away while making it as easy to use and easy to find those perfect tones as possible.

It's been a bit of a secret, there isn't one delay lurking within the Ethereal, there are two! The first delay constantly sits there like a heartbeat, coming back at you at quarter notes, Wampler then layer another over the top - that one can be put into a triplet pattern, or a dotted 8th (so you can get that beautiful quarter + dotted 8th mix) and even a self-oscillating dotted eighth pattern that just takes you away and leads you over the edge and down the rabbit hole into perfect ambience - Things can get a little crazy when that one is selected, so you know, knock yourself out - it's there to make some incredibly strange yet beautiful sounds - See that little switch down there? Yep, that's the one, just to the right of the stomp - that's a trails button. When this is used the delay patterns and reverbs sing out after the pedal has been deactivated, so you can even control what you want to come back at you.

While you are enjoying the delay patterns, sitting underneath is that beautifully cavernous plate style reverb that is alive with character and shape, that can be brought in to exactly the right level (whether that be under your guitar, the same level - unity, or even considerably louder) to compliment the delay.

As you can imagine, this has been some feat of engineering (definitely worth waiting for) as we wanted all this to happen from a regular sized box, with the purity of tone and response you would expect from a Wampler. So, as with our other time pedals, we split the signal going in, the effected signal is then laid back on top of the original base tone, making sure that YOUR guitar sounds exactly how it does going in.

The Wampler Ethereal. Not only can it be used a stand alone reverb or delay pedal, it can be combined for you to worship, to get lost in, to even help you inspect your shoes - but most of all, it was designed to inspire.

Technical Details

Built in the U.S.A.
High grade components picked for their superior sound and response
Relay true bypass with soft switch (buffered bypass in trails mode)
Top mounted input and output jacks 9v power jack
Power draw: 64mA (at 9v) and 68mA (at 18v)
Allows for you to use reverb and two delays simultaneously
Maximum 1 second delay
Second delay can be layered on top in 3 different patterns
Relay True/Buffered Bypass
Includes Wampler's limited 5-year warranty
2.50" x 4.50" x 1.5" (63.5mm x 114.3mm x 38.1mm) - height excludes knobs and switches

Notes: The Oceans Abyss expands on Electro-Harmonix's highly acclaimed reverb technology to deliver a truly immersive effects workstation. The pedal is centered around dual reverb engines that are independently programmable with full-stereo algorithms including Hall, Spring, Shimmer and more. Place these reverbs into a customizable signal path with additional FX blocks like Delay, Chorus, Tremolo, or Bit Crusher for a completely unique soundscape building experience.

Electro-Harmonix has paved the way for powerful, accessible reverbs since the release of the original Holy Grail and now we've pushed the envelope deeper with the fully-equipped Oceans Abyss. Featuring a customizable signal path with up to 8 effects blocks, the Oceans Abyss can be configured as individual reverb, modulation, EQ, delay, bit crusher, saturation or volume effects, or as countless combinations for incredibly creative effect shaping. From a simple Spring reverb to a lush stereo field featuring stereo hall and shimmer reverbs, chorus, delay, overdrive, and tremolo, you can go from surf to shoegaze instantly, without breaking a sweat.

Deep parameter editing is accessible via the high-visibility OLED display with multiple graphical views and easy-to-read designs. Expression/CV control over nearly every parameter gives artful control of your effects and dynamics. Fully-stereo I/O plus an FX Loop allows for use with any instrument, recording set up, or live rig. 128 programmable presets via onboard footswitching or MIDI ensure perfect recall in all performance situations. MIDI IN/OUT ports with MIDI IN support of PC, CC, and Tempo Clock expand the already immense talents of the Oceans Abyss. Connect with UBS-C to Windows or Mac for effects editing, preset management, and more with the free EHXport app.

Circuit: Digital
Bypass: Buffered Bypass
Audio: Stereo In & Out
Power Supply: 9.6VDC-500mA power adapter included
Dimensions (in): 7.125 x 5.75 x 2.25
Current Draw: 500mA
