Tags: FM synthesisers

Notes: Korg's excellent FM synth offers a modern take on those classic 80s digital tones. Second-gen version doubles the number of voices to six, adds new MIDI features and extra effects.

Supplier's Notes:
The next-gen Volca FM is a powerful 6-voice, 6-Operator FM synthesizer with all 32 classic algorithms, a 16-step loop sequencer, effects and a powerful arpeggiator that perfectly reproduces the sound of the classic Yamaha DX7 and is completely compatible with SYS-EX patches for the DX7 as well.

Battery (included) or adapter (optional) operated with built-in speakers and a compact and light chassis, the Volca FM is the ultimate portable FM solution for all musicians.

This new generation - with double the voices of its predecessor, additional effects, expanded MIDI connectivity, and intuitive interface - is poised to bring unprecedented possibilities to your setup, and revolutionize your studio with new musical ideas.
With 6 voices (instead of the 3 of its predecessor) the new Volca FM brings a new world of harmonic possibilities to your production.

Now it is possible to play, sequence or arpeggiate complex chords with up to 6 voices in order to bring a unique flavour to your music production. No more running out of voices when sequencing melody, harmony and bass all in one device!

Moreover, the new Volca FM is now velocity sensitive via MIDI, which coupled with its 6 voice polyphony, provides a much more expressive and nuanced playing experience than ever before.

By popular request, Volca FM includes a lush Reverb effect in addition to the Chorus effect. Each of these two effects can be used and adjusted individually to add the finishing touch to any FM sound you are going for.

In addition to MIDI IN the new Volca FM also includes a MIDI OUT (IN/OUT 3.5 mm TRS), making it possible to use the intuitive Volca internal sequencer to control other devices through MIDI, making it the perfect addition to your standalone setup. Of course, it also works well with your DAW of choice thanks to note, control, and clock receipt via the MIDI IN.

The internal sequencer offers looping up to 16 steps, allowing you to record your performance on the touch panel keyboard as you play. Up to 16 sequence patterns can be stored in the internal memory.

Volca FM also incorporates a motion sequence function to record in real time all the subtle nuances of your playing and knob movements, letting you add time-varying change to the sound. This is a great way to polish your loops, and also lets you generate highly original live performances.
In order to spice things up, the new generation of Volca FM includes a brand new program randomizer, letting you find new inspiration through happy accidents and unexpected patches.

Of course, it still incorporates highly acclaimed functions such as the warp active step, pattern chain and an improved arpeggiator, making it easy to create crazy looping rhythms and patterns.

In addition to the active step function that lets you skip steps during a sequence, the volca fm provides new functions that enable you to generate more irregular rhythms. If the active step is fewer than 16 steps, you can use the warp active step function to compensate so you occupy the same playback time as 16 steps; then by synchronizing the playback with another volca series unit, you can deliberately skew the step timing to generate truly unconventional performances.

Specifications

Keyboard: Multi touch 27 key keypad
Synthesizer:
Type: FM synthesis
Maximum Polyphony: 6 voices
Structure: 6 operators, 32 algorithms
Number of Programs: 64
Edit parameters: Modulator (Attack, Decay), Carrier (Attack, Decay), LFO (Rate, P.Depth), Algrtm, Randomize Available to edit full parameters for each operator in Edit Mode
Controls: Transpose, Velocity, Octave, Arp (Type, Div), Chorus Level, Reverb Level
Arpeggiator Types: 9 (each 3 patterns of "Rise", "Fall", and "Random")
Voice Modes: Poly, Mono, Unison
Effect: Chorus, Reverb
Sequencer:
Number of Parts: 1
Number of Steps: 16
Number of Recording Patterns: 16
Controls: Motion Sequence, Active Step, Warp Active Step, Pattern Chain, Metronome
Audio Output: Headphones (3.5mm stereo mini jack)
Sync: Sync In (3.5mm monaural mini jack, Maximum input level: 20V), Sync Out (3.5mm monaural mini jack, Output level: 5V), When two units of Volca FM, available to export the sound programs and sequence data from a Volca FM to the other one
MIDI: IN/OUT - Note: 3.5mm stereo mini jack connector (type-A MIDI adaptor needed)
Available to convert and load SYS-EX/SYX files from Yamaha DX7
Power Supply: AA alkaline battery x 6 or AA nickel-metal hydride battery x 6, Or AC adapter (DC 9V) (optional)
Battery Life: Approximately 10 hours (using alkaline batteries)
Dimensions (W x D x H): 193 x 115 x 40 mm / 7.60" x 4.53" x 1.57"
Weight: 360 g / 12.70 oz. (Excluding batteries)
Included Items: AA alkaline battery x 6 (for verifying operation), Sync Cable, Edit Parameter List - Accessories: AC adapter (DC 9V) KA-350

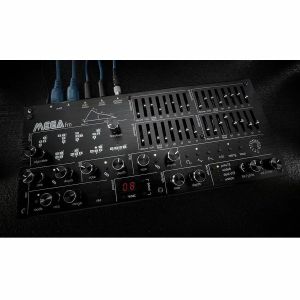

Notes: Still based on 80s games console circuits, this second-generation model of the unique Twisted Electrons FM synth gives more freedom to try out different chips. Same gritty sound and hands-on control.

Supplier's Notes:
This updated version is identical in appearance and functionality but will include a pair of YM3438 chips instead of the YM2612. The YM3438 is a variant of the YM2612 that is identical in functionality and was featured in the Sega Megadrive II. The circuit layout has also been updated to grant access to the FM chips with minimal disassembly.

Indeed the chips are now socketed (removable) and accessible by removing the bottom panel.

This allows you to install alternate FM chips (like the YM2612, modern alternatives or even custom sound chips).

You can also mix different versions of FM chip as there are 2 slots that can be configured individually.

MEGAfm MKII features the same audio circuitry and analog distortion as the MKI, as a result both chips sound very similar inside of MEGAfm.

The firmware will work identically on both versions.

Beautiful dirt

Unlike most FM synthesizers that are very clean and digital, the vintage FM chips within MEGAfm have very characterful tone allowing a broad sound palette ranging from beautiful plucked strings to growly distorted bass lines.

Tactile operators

Hardware FM synthesizers are infamous for their reduced controls and complexity to program, with tiny LCD screens and only a couple of buttons to operate a load of menus...
With its 32 operators faders, 14 knobs and 15 buttons MEGAfm offers unprecedented hands-on FM control!

Every knob and fader can easily be modulated by the easy to use LFOs.

Make it a double!
The vintage FM chips from the 90s each offer 6 voices of crispy FM, 4 operators per voice and 8 algorithms.


MegaFM features 2 chips for a total of 12 voices spread across two outputs (or summed to one)

Features:

12 Voice Polyphony
Dual vintage FM chips (included)
8 Algorithms
600 preset memory (saving to any slot) arranged in 6 banks. Easy upload/download of banks to and from computer vis SYSEX.
Preset randomiser
4 Voicing modes (Poly12, stereo/wide6, special CH3 mode, 12 voice unison with detune/fat knob
Stereo or Mono output (1 chip per channel or both chips summed)
32 Sliders for total control of all 4 operators
14 knobs
15 buttons
23 LEDS, LED numeric display.
3 LFOs to modulate any parameter
7-mode arpeggiator with transposable Sh-style step sequencer
Vibrato with depth and rate
MIDI clock on all LFOs, ARP and Vibrato
All faders/knobs send MIDI (use MegaFM to control your favourite modern FM synth!)
Full MIDI automation
Dual 6.35mm TS output and 6.35mm Stereo Headphones output
Brushed/Anodized Aluminum Case
Sturdy metal panel bolted potentiometers
Dimensions: 30CM x 13CM x 5CM
DIN5 MIDI input with MIDI channel learn and thru/out

Notes: A unique approach to FM synthesis in this updated version of Kodamo's ludicrously powerful EssenceFM. Up to 300 voice polyphony, hugely powerful touchscreen editing and stereo effects.

Supplier notes:
The EssenceFM is a powerful and easy to use FM synthesiser, allowing you to explore the endless soundscapes offered by FM synthesis. With a super-responsive touchscreen, assignable knobs and workflow optimized for sound design, creating rich and unique sounds is easier than on any other FM synthesiser.

The EssenceFM engine allows to create ridiculously powerful sounds made of more than 6 operators. That's why it's been given 300 voices of polyphony, you get the easy-to-program 6 op FM synthesis and the ability to layer many voices to create huge, rich-souding instruments.

There are 1800 operators and 4200 envelopes running at the same time, more than you will ever need.

This synth is the result of Kodamo's efforts to create the best user interface to interact with FM synthesis. No endless menus, no weird key combinations, no complex structure to remember. Everything is displayed on screen, every element is editable by pressing on it.It requires some trial and error to find the perfect sound, and that exploration process is fun only when the interface doesn't work against you. The EssenceFM is full of small details that makes workflow better: 1024 undo/redo steps while editing, copy/paste on every element, clear navigation using 4 modes and a breadcrumb, real-time envelope level display on the operators and much more. All that makes for a powerful and enjoyable synthesiser.

What you can do with it:
Create your own FM algorithms by drag and dropping operators on the touch screen. An almost infinite number of configurations is possible
Layer up to 128 voices per patch, each consisting of 6 operators, for incredibly rich sounds
Draw your custom waveforms on the touch screen to use them as oscillators or LFOs
Thicken the sound with the built-in effects
Take advantage of its 16 part/300 voice multi-timbrality to create full songs with it
Use it to make analog-like sounds with the built-in resonant filter
Connect it to your audio recording gear and effect modules in many different ways with the four balanced stereo outputs
Explore FM synthesis in the most convenient way possible with the Undo-Redo buttons, allowing for any action to be undone
Try microtunings, layer splits, round robin, MPE, and many other advanced features.

Package Contents:

EssenceFM synthesizer (MKII version)
Printed user manual
2x 3U 19" rack mount brackets
4x screws
Universal (100-240V) AC adapter
IEC power cable
2x rubber strip

Notes: The iconic Synclavier brand returns with this digital powerhouse, based around FM synthesis but also offering additive and subtractive methods. Super versatile, with up to 98-voice polyphony and MPE support.

Supplier's Notes:
The new buck in the Synclavier stable

Synclavier Regen is the newest in an auspicious line of Digital FM synthesizers. Designed for desktop use, it contains the power of the Synclavier II DSP engine, enhanced and optimised. Full colour screen, liquid-like touch controls, high fidelity audio output coupled with a sound design powerhouse makes this the synth you always dreamed of.

Regen supports additive synthesis for full control of 24 harmonics. Synclavier have now added subtractive synthesis to the Synclavier synthesis engine, especially for Regen, allowing creation of super saws, PCM square waves, and noise generation. Or you can use samples for your carrier waveform.

And these different waveform generators can be mixed. You have up to 12 partials to use in your sound design creation with crossfades assignable to inputs such as velocity, pressure, mod wheel, and of course, keyboard.

Regen is loaded with content to get you inspired fast. There are over 550 timbre presets across 10 newly commissioned timbre libraries. On top of that, there are over 2000 royalty-free samples built-in, including over 350 selected original samples from the NED era and 2 exclusive artist sample libraries.

When you're done exploring the factory content, you'll have fun with the sound design possibilities. You can layer up to 12 partials with different sound generators (additive, subtractive, samples) then apply dynamic effects per partial. It's truly an expressive instrument, both to program and to play. Polyphonic aftertouch and MPE is fully supported and there's a sophisticated modulators section where you can apply responsive curves to properties driven by pressure, velocity, mod wheel position, and so on.

Synclavier Regen is a desktop unit measuring 310mm wide by 260mm tall and 42mm deep.

Housed in aluminium, finished with a sand-textured black and Synclavier red surround. It has rubberized plinths.

User interface consists of many silicone buttons with multi-colour backlighting, a virtual knob capacitive-touch slider with epoxy-coating. A VK display is included as well as a main modal display that shows current parameters, user settings, timbre library, etc.

Over 40 years of synth design has led to this product. It's a sound-designer's dream in a timeless desktop package.

Sound-design Capabilities

Advanced DSP synth engine, as used on Synclavier II, has been extended for Regen.
12 separate tracks of multi-timbrality, assignable to MIDI tracks and keyboard ranges.
Up to 98 simultaneous voices. Voice count is dependent on system load and is likely to be much higher in typical scenarios.
12 partials per timbre. Each partial can be 1 of 3 oscillator synth modes: additive, subtractive, or samples.
Additive mode supports coefficient and phase control of 24 harmonics.
In samples mode, up to 128 samples can be placed on the partial's patchlist.
Subtractive can have a noise generator or up to 9 de-tunable continuous sawtooth waveforms.
Hybrid (resynthesized samples)
Timbre-level effects, including:
Stereo reverb algorithm with pre-delay and library of presets.
Highly-optimised multi-mode filter with sophisticated filter envelope.
Bit-crusher (for use with additive, sample, and hybrid modes).
Frequency modulation (FM) controllable per partial (all modes) with envelope.
Sophisticated modulation system that allows many Regen parameters to be controlled via MIDI, LFOs (24 per timbre), or driven by envelopes (24 per timbre).
Approx 300MB of sample space in memory = 100 mins @ 48Khz 24-bit mono shared across all active tracks and partials.

Hardware

Balanced stereo output through XLR connections at pro-level 4dBu. Designed for studio and home use. These are DC-coupled for maximum bass impact.
Single-ended TS stereo outputs, also DC-coupled.
Convenient headphones TRS jack for monitoring master audio with independent volume
control. For headphones in range 32O - 300O.
DAC circuit is designed for ultra-low noise floor. 11dB of headroom over nominal level. A
measured 130dB of dynamic range. 24-bit, 50kHz sample rate, as per Synclavier II.
Hybrid sound design engine: original Synlcavier II hardware is modelled in software.
High quality audio components throughout, including a precision temperature compensated crystal oscillator for jitter-free digital audio.
Two glorious full-colour sunken displays.
Responsive silicon back-lit parameter buttons.
The vertical value swiper is touch accurate to 128 levels of resolution for precise control
of every parameter.
12 selector buttons are touch-sensitive and can handle gestures to quickly select
multiple partials or tracks.
SD Card reader for unlimited user timbre and sample libraries.
4 USB accessory ports for MIDI keyboards, sequencers, and audio interfaces. Plus 1 USB Host port for connecting to a computer for MIDI input from a DAW.
Take it on the road. Rugged, full metal enclosure.

Notes: Part of Sonicware's excellent Liven series of compact groove boxes, the Mega Synthesis draws on the unique sound of the Sega Mega Drive/Genesis games console to create characterful 80s/90s synths.

Supplier's Notes:
Revive the SONIC sensation of the golden era!

Create Diverse Game Music with a Sophisticated 6-Track Sequencer and 10 Types of Effects

You too must have fallen under the spell of the extraordinary visuals and sounds of the groundbreaking 16-bit video game console that once dominated the world! It was powered by the iconic "YM2612" sound chip, a legacy that endures even today.

The MEGA SYNTHESIS has resurrected the sound engine of this chip. Sonicware have faithfully recreated the 4-operator FM sound module, the 8-bit PCM sound module, and the "SN76489" PSG (Programmable Sound Generator) sound module used by the original console.

4-operator & 8-algorithm FM sound module with precise sound editing in Edit Mode - Including extra features like fine-tuning operator ratios, which was impossible at the time.

PSG (Programmable Sound Generator) sound module - Synthesize basic waveforms and white noise to recreate iconic retro-game-sounds.

And the 8-bit PCM sound part of YM2612 - Recreate the sound of PCM playback controlled by the Z80 microprocessor used at the time.

Sampling capabilities (8-bit - 12kHz: up to 8 seconds / 24kHz: 4 seconds / 48kHz: 2 seconds, 96 stored samples)

Legacy Mode to faithfully replicate the sound of the era

This feature simulates the characteristically grungy sounding quirks of the YM2612 sound and can be turned on/off for each track.

In the FM tracks, you can separately configure FILTER [frequency response simulation] and LADDER [replication of the unique 9-bit DAC]. And the PCM track can also be played back in 4BIT, allowing you to create the sound to your preferences.

Create Diverse Game Music with a Sophisticated 6-Track Sequencer and 10 Types of Effects

Creating game music is a breeze with this intuitive sequencer, featuring a straightforward 6-track layout comprising 3 FM synthesis tracks, 2 PSG synthesis tracks, and 1 PCM sample track. woo
Specifications

Synthesiser


FM sound module [Tracks 1, 2, 3]
- 4 operators - 8 algorithms
- Maximum polyphony: 6 voices
- Sound editing in FM Edit mode

- Polyphonic mode
- Mono mode with adjustable glide time
- Legato mode with adjustable glide time
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

PSG sound module [Tracks 4, 5]

- 11 types
Square wave
Noise (Low/Mid/High) -> Square wave
Pulse Wave
Noise (Low/Mid/High) -> Pulse Wave
Noise (Low/Mid/High)
- Maximum polyphony: 4 voices

- Polyphonic mode
- Mono mode with adjustable glide time
- Legato mode with adjustable glide time
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

PCM sound module [Track 6]

- 8bit - 12/24/48kHz (switchable) linear PCM sampling (mono)
- Up to 8 seconds of sampling per sample (12kHz), 4 seconds (24kHz) or 2 seconds (48kHz)
- Auto start sampling function with the input level (input level can be set)
- Auto-slice function (equal division by number of slices or length of one slice)
- Maximum polyphony: 3 voices (1 voice in One-shot mode)?- 96 sample memory slots (16 x 6 banks)
- Import and export of a slot or banks of samples (via MIDI)
*Import of audio files from PC/Mac is not supported.

- Drum mode (Drum kit performance)
- One-shot mode (Sample playback or chromatic performance)

- Sweep with adjustable speed, range, and curve
- Switchable between sweep envelope and LFO

[Effects]

Effect send amount can be set independently for each track

- Send Delay
- Insert Delay
- Reverb
- Crusher
- Distortion
- Compressor
- Low pass filter
- High pass filter
- Isolator
- Remix Performance effect

[Sequencer]

- 6 tracks
- Up to 128 steps per pattern
- 128 patterns
- Step length can be set from 1/1 to 1/32
- Real-time recording
- Directly enter notes for each step when playback is on or off
- Enter longer notes (Tied notes)
- Metronome and pre-count function
- Step copy and paste function
- Track copy and paste function
- Duplicate to extend a sequence
- Transpose function
- Swing function
- Pattern BPM / Global BPM can be set
- Pattern chain function (Loop playback possible)
- Track level and pan can be set independently
- Parameter Lock function to record parameter settings for each step
- Sound Lock function to record sound settings for each step
- Note playback probability can be set from 25 to 100% for each step
- RANDOM function to play back steps in random order
- STUTTER function to play back only the step being pressed

[MIDI]

- Notes, control changes, clock input/output
- Import and export user data
- Firmware update via Sysex

[Unit]


27 keys (with a hold function)

- 15 physical control knobs
- Optional LATCH function prevents jumps in value when knob position and parameter values do not match.
- One physical encoder for fine adjustments.
- LCD dot indicates when a parameter value matches the saved value, or when the value has been changed.

Notes: Second-gen version of the excellent Opsix features major updates including 64-voice polyphony and an improved interface. Same powerful six-operator FM synth engine.

Supplier's Notes:
A Full-Spectrum Sound Experience

Opsix mk II is a digital synth like no other. Based on the sound engine of the original Opsix, the number of simultaneous voices and voicings has been expanded to an astounding 64 voices. The result is superior performance and precise control.

The Opsix Operator Mixer simplified FM synthesis for the first time, making it not just comprehensible but also controllable. With the addition of extra synthesis capabilities and programming, it offered a more efficient workflow and an even richer sound.

And, it is fully compatible with the sounds and samples from both the original opsix and the opsix Native software, including numerous high-quality libraries.

Evolved to an astounding 64 voices

The Opsix mk II has 64 voices, twice as many as the original 32 voices, allowing users to enjoy tone editing without having to worry about the number of simultaneous voices. In addition, the operator-mixer section, the most distinctive feature of this product, has been accented with a new image colour, green.

Get Illuminated with the Operator Mixer

At the heart of every sound is Opsix mk II's Operator Mixer - a simple set of six faders and knobs that invite exploration. Each part lights up red to indicate carriers or blue for modulators. Manipulating them opens up new sound-shaping possibilities to breathe fresh life into your musical ideas. This straightforward, hands-on workflow is part of what makes Opsix mk II so unique, just like the sounds it offers.

Direct Hands-On Control

Whether you're tweaking a preset or building a patch from the ground up, the six data entry knobs on the right give you quick access to the parameters you need and seamlessly sync with the large OLED display, giving you a clear, focused direction to your workflow. Coupled with the mixer, it makes creating fresh sounds super easy and, most importantly, fun!

Select from a full range of analogue-style filters, from the radical Korg MS-20 low-pass/high-pass filter to the powerful yet smooth KORG Polysix low-pass filter that gives your sound a vintage feel. There are also two or four-pole low-pass, high-pass, band-pass, and band-reject filters with resonance.

There's even a built-in spectrum analyser and oscilloscope that gives you visual feedback via the screen on the music you're making.

Six in One Synthesis

The core of Opsix mk II is nothing short of exponential. Since waveforms can be arranged and modulated in nearly infinite ways, Opsix mk II can easily do the sonic work that is similar to numerous types of synthesis:

Subtractive

Removing parts of the sound to get the sound you want; the most widely-used synthesis. Opsix mk II uses up to six envelopes and multi-modelled filters to achieve many cutting-edge and classical analogue synthesis tones.

Semi-Modular

Rerouting signal paths to change the sound. A spin through the Algorithm section will dramatically reshape the sound by changing how the signal routing between the operators work together, and no patch cables are needed. Analog-style controls and plenty of stackable waveforms take you from digital to analogue-sounding in no time. Enjoy deep basses, crisp leads, thick pad sounds, fuzzy brass tones, and so much more.

Analogue (Modeling)

Analogue-style controls and plenty of stackable waveforms take you from digital to analogue-sounding in no time. Enjoy deep basses, crisp leads, thick pad sounds, fuzzy brass tones, and so much more.

Waveshaping

Adding intentional distortion to the waveforms to achieve aggressive overtones that are either harmonic or inharmonic. This will help you achieve gritty, bitey tones dripping with character.

Additive

Stacking waveforms and blending their harmonics is key to an expansive range of harmonious, dissonant, and tension-driven sounds. With six operators available, the complete FM experience is possible, including the ability to go back in time for classic sounds you have heard throughout recording history.

Classic FM

Last but certainly not least, Opsix's highly flexible and powerful architecture starts with true six-Operator FM. As a result, it easily delivers signature sounds you have surely heard on thousands of hits from the '80s on through today, and with far more polyphony than other standalone FM synths available today.

With all of these ways to realize and explore sounds, Opsix mk II is uniquely suited as a "future-modern-classic" synth!

Altered Reality

What started as a legacy synthesis has evolved into something completely different. Opsix mk II is FM-based, but the similarities to the classic synthesis end there. The Altered FM architecture delivers sounds across a vast spectrum, far wider than any single synthesis has been able to cover before, thanks to new sound components; new waveforms, filters, shaping, effects, LFOs, envelopes, modulations, and more, all translating to its broad assortment of sounds.

Powerful Effects Processing

Opsix mk II provides three blocks of 30 types of high-definition effects that you can use together to enhance your sounds even further. There's everything from a great mix of usable standard effects like chorus, phaser, delay, and compressor to some world-class shimmering reverbs that will elevate your sound to the next level.

Specifications

Keyboard: 37 keys (velocity and release-velocity sensitive)
Sound generating system: Altered FM sound generator
Maximum Polyphony: 64 voices (varies depending on the setting)
Structure: 6 operators, 1 filter, 3 EGs, 3 LFOs, 3 effects, step sequencer, arpeggiator
Algorithm: 40 presets + user algorithm (unique to each program)
Operator: 6 modes (FM, Ring Mod., Filter, Filter FM, Wave Folder, Effect)
Oscillator waveform: 23 waveforms (Sine, Sine 12bit, Sine 8bit, Triangle, Saw, Saw HD, Square, Square HD, Additive Saw3, Additive Sqr3, Additive Tri3, Additive 12345, Additive 1+2, Additive 1+3, Additive 1+4, Additive 1+5, Additive 1+6, Additive 1+7, Additive 1+8, Noise S/H, Noise White, Noise Pink, Noise Blue)
Filter: 11 types (LPF 12, LPF 24, LPF MS-20, LPF POLY6, HPF 12, HPF 24, HPF MS-20, BPF 6, BPF 12, BRF 6, BRF 12)
EG: ADSR
LFO: 23 waveforms (Triangle, Saw Down, Saw Up, Square, Sine, Sample&Hold, Guitar, Exp. Triangle, Exp. Saw Down, Exp. Saw Up, Step4 Triangle, Step6 Triangle, Step4 Saw Down, Step6 Saw Down, StepRnd:Time, StepRnd:Lvl&Time, StepRnd:Level, Random:Time, Random:Lvl&Time, Triangle + , Saw Down + , Saw Up + , Square +)
V.Patch: 12 routings
Effect: 30 types (Chorus, Unison Ensemble, Phaser, Phaser (BPM) , Auto Pan, Auto Pan (BPM), Flanger, Flanger (BPM) , Rotary Speaker, Auto Wah, Exciter, Enhancer, LFO Filter, 3-Band EQ, Distortion, Guitar Amp, Decimator, Grain Shifter, Master Limiter, Compressor, Delay, Delay (BPM) , Autopan Dly, Autopan Dly (BPM), Tape Echo, Tape Echo (BPM) , Early Reflection, Reverb, Shimmer Reverb, Spring Reverb)
Sequencer: Step Sequencer (up to 16 steps, up to 6 notes per step), Motion Sequencer (up to 6 lanes)
Arpeggiator: 7 patterns (MANUAL, UP, DOWN, ALT1, ALT2, RANDOM, TRIGGER)
Number of programs: 500 (350 preset programs and 150 user programs as the factory-set default)
Favourite: 64 (16 Slots × 4 Banks)
Controllers: MODULATION wheel, PITCH wheel, RATIO OP 1-6 knobs, LEVEL OP 1-6 sliders, DATA ENTRY A-F knobs
Inputs/outputs: Headphone (6.3 mm stereo phone jack), OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks), DAMPER (6.3 mm phone jack, half-damper not supported), MIDI IN and OUT connectors, USB B port
Power supply: AC adapter (DC12V)
Power consumption: 5 W
Dimensions (W × D × H): 565 × 338 × 90 mm / 22.24" × 13.31" × 3.54"
Weight: 2.9 kg / 6.93 lbs.
Included items: AC adapter
Accessories (sold separately): DS-1H damper pedal, PS-1 pedal switch, PS-3 pedal switch

Notes: Vintage FM synthesis meets analogue character in the TWISTfm. Eight-voice polyphonic sound engine with superb versatility thanks to 15 filter modes including Heat saturation and adjustable resonance.

Supplier's Notes:
Unleash the full potential of FM synthesis with TWISTfm, a cutting-edge polyphonic synthesiser that blends vintage FM synthesis with advanced analogue filtering and modern control. Designed to offer a rich, dynamic sound palette, TWISTfm is the perfect tool for musicians and sound designers looking to push the boundaries of sonic creativity.

At the core of TWISTfm are two legendary Yamaha OPL-3 YMF262 FM chips paired with dual YAC512 stereo DACs, providing 8 discrete voices. Each voice is equipped with its own analog multimode filter for an unparalleled range of sound design possibilities.

With HEAT and Dual Resonance Modes: Featuring 8 individual analogue filters, inspired by the iconic designs of Mutable Instruments, TWISTfm gives you precise control over sound shaping with 15 filter modes, including low-pass, high-pass, band-pass, phaser, notch, and more. The HEAT parameter adds anything from warm, subtle saturation to harsh analog distortion, allowing you to push the filters to their limit. Additionally, you can switch between two resonance flavors-LIQUID, for smooth and subtle resonance, and MS20, for more aggressive, cutting tones. With digital control over resonance and cutoff, the filters offer flexible modulation and the ability to store settings with presets.

TWISTfm's MPE mode fully supports three dimensions of control-pitch (X), timbre (Y via CC74), and pressure (Z)-offering precise per-note modulation for unparalleled expressiveness and depth in your sound.

Whether you're composing in the studio or performing live, TWISTfm's robust feature set and intuitive design make it a powerful addition to any setup. Its combination of vintage FM tones and modern control capabilities offers a unique, versatile sound engine capable of producing everything from smooth ambient pads to aggressive basses and leads.

Notes: A year ago, Jomox brought out the Mod FM as a eurorack module.

Now, Jomox present almost the same synth, but as a desktop unit, with its own PSU, Midi, standard 1/4" balanced outputs and analogue volume control.

The Mod FM D has an analogue side chain stereo input that gets routed into the Mod FM D effects, and can be mixed to the synth.

The ratio of synth + input/effects can be controlled via an analogue dry/wet potentiometer.

The Mod FM D is a completely self-contained 8 voice FM synth in desktop format, which can create powerful sounds out of the box without lacking the commonly provided CV modulation possibilities.

It provides 4 Operators and 2 LFOs/VCOs per voice. Additionally, it has 2 analogue filters and analogue VCAs per voice which apply analogue warmth and depth to the Mod FM D, although the FM engine is digital of course.

Each voice has its own CV/Gate inputs and an individual output. There is a mix output which separates even and odd voices. Here you can mix internal effects like delay and reverb to the stereo output signal.

Next to the CV/Gate control, the Mod FM D has Midi in and out and a USB C connector which handles Midi too.

Even without diving too much into complicated setups you can create extremely good sounding and metallic FM sounds, snappy bases but also soft and deep sounding analogue style sounds as tons of crazy weird stuff.

Furthermore, the Mod FM D offers a variety of external cv modulations in order to modulate each operator individually or control the FM envelopes.

The Mod FM D is fully multitimbral, i.e. each voice can play an own sound in Multi Mode which gets stored as a complete multi set (not only vectorized). That is, you can copy a single sound to the desired multi, but edits made on that particular multi get stored along with the multi set.

Hence, we have the biggest advantage of the hybrid approach:

Analogue and modular is great but can be very complex, and you might be trapped in a system where you never reach again the pretty sound of the latest session. Storability certainly helps.

The different sections in more detail:

Matrix FM:

4 operators are arranged in a matrix, in which every operator (= sine oscillator) can be modulated by each one of the other three.

The 16 endless potentiometers of the matrix adjust the modulation amount (FM amt) and the base frequency of the operators.

For each operator you can change the base frequency by the diagonal knobs.

There are several overtone modes that determine if one operator is controlled by the keynote (or CV) = base operator, or if it's locked in as overtone (= overtone operator) to the assigned base operator. For the base operator, the number resembles xxx semitones added to the keynote.

For the overtone operator, the adjusted number is the xxx = Nth overtone or harmonics to the base operator frequency.

The locked overtone operator tracks the base operator and is still able to modulate and being modulated.

Each operator has an ADSR envelope. This envelope can also be used to frequency-modulate the operator.

Algorithm:

The algorithms from the known FM synthesis are actually special cases to the whole matrix.

As it gets pretty quickly uncontrollable if you turn all the knobs due to the feedback, Jomox have decided to implement the algorithms. There are 26 algorithms, that are derived from the DX9 with its 4 operators.

At this menu it's even possible to change the frequency mode of each operator to a fixed frequency that is edited in single Hz and which does not follow the keynote, but only modulation. That makes sense for e.g. percussive sounds.

LFO/VCO:

Each voice has 2 LFOs which can modulate either the frequency (FM) or the amplitude (AM) of an operator. Every LFO addresses 64 different wave forms that are displayed in the right OLED display.

There is another feature: each LFO can be switched into a VCO that covers the whole audio range. You can even mix it into the signal chain and it tracks to the keynote. The former LFO rate parameter turns into a detune parameter. That is, you can create classic sounding rectangle/sawtooth analogue basses or string pads - and much more of course.

Filter:

Each voice contains an analogue filter which is build up with the chip SSI2140 from Sound Semiconductor, which is an improved modern version of the old SSM2040, designed by Dave Rossum, and which had been used in Oberheim synths and the early SCI Prophet-5.

The filter has a classic 24dB output and a 12dB state-variable multimode-filter. The three basic characteristic outputs LP/BP/HP can be cross-faded continuously with one parameter called shape.

Both filter outputs 24dB/12dB can be mixed independently.

The ADSR for the filter is fast and cuts in very quick and directly, the resonance is well adjustable.

The filter section contains an own LFO for the cutoff which is independent from the digital sound engine and has also 64 waveforms.

The ADSR for the filter is fast and cuts in very quick and directly, the resonance is well adjustable.

The filter section contains an own LFO for the cutoff which is independent from the digital sound engine and has also 64 waveforms.

The VCA is a fast transistor-vca which is important for snappy sounds. The same transistor-vca is used in all Jomox drum products. Therefore the ModFM can be used as a rich source for technoid drums and percussions of any kind.

On the analogue voice board there is another sound source: Metal Noise. It can be mixed into the filter independently from the digital engine (= FM synth) and offers again an inexhaustible pool of weird sounds.

FX:

The Mod FM D also has an FX section added: reverb and 2x delay. These only work on the stereo mix output. The delay can be beat-synchronized via midi clock and offers a very short delay time in millisecond range. That gives you flanging and oil-can-like effects.

Specifications

8 voices fully multi timbral FM synth
4 operators per voice
Full modulation matrix / 26 algorithms
2 LFO/VCOs per voice
Balanced stereo 1/4" jack outputs
Stereo Hi-Z 1/4" jack inputs
Analog effects mix
Outputs for each voice plus mix out
CV/Gate per voice
CV modulation inputs per operator
True audio FM modulation inputs
True analogue filters per voice
24db low pass
12dB multimode LP/BP/HP cont. shape
True analogue VCAs per voice
Midi in, out
USB C device
Digital reverb, 2x stereo delay
Full storability, also CV amounts
128 presets, 118 multi sets
2x 128x64px OLED displays

Power consumption: 12V=DC 2A max.

Dimensions:

Width: 318mm
Depth: 180mm
Height front: 44mm
Height back: 72mm

Weight: 1,9kg (4.4 lbs)

Notes: Special edition Platinum version of the excellent Opsix SE. Metallic finish, aluminium front panel, stainless steel sides and the same powerful FM synth engine as the standard Opsix SE.

Supplier's Notes:
Special limited edition of opsix SE.

Celebrating the release of the long awaited opsix SE, a stunning Platinum model (*) will be available in very limited quantities. While this model shares the same features as the standard model, it boasts a high-end metallic finish with an aluminum front panel and stainless steel side panels. This magnificent instrument is bound to command attention, whether on stage or in the studio.

(*) Differences are only cosmetic, specifications are exactly the same as the standard model. opsix SE Platinum also includes an exclusive set of stickers.

The Ultimate Union of Power and Performance

opsix SE is a digital synth like no other. With a premium all-metal design, 61-keys, and aftertouch, it unlocks a new world of sonic capabilities. Building on the expansive sound engine in the original opsix, opsix SE enhances it with increased polyphony and voicing, resulting in a synthesizer created for superior performance and precise control.

The opsix Operator Mixer simplified FM synthesis for the first time, making it not just comprehensible but also controllable. With the addition of extra synthesis capabilities and programming, it offered a more efficient workflow and an even richer sound.

The opsix SE takes this even further. It is equipped with Korg's premium 61-key natural-touch keyboard, complete with aftertouch, delivering the exceptional tactile experience expected from Korg's flagship workstations. With a sleek, robust metal body, it's built for both the intensity of live gigs and the precision of studio sessions. The metallic knobs are optimally weighted for effortless adjustments. Underneath its exterior, the opsix SE boasts an incredible capacity of 80 stereo voices of polyphony.

The opsix SE arrives preloaded with hundreds of sounds enhanced for aftertouch control. Moreover, it is fully compatible with the sounds and samples from both the original opsix and the opsix Native software, including numerous high-quality libraries.

Build to play

opsix SE was born out of the desire to play this incredible synth with both hands. Equipped with KORG's premium 61-note natural-touch keyboard, the opsix SE offers the same outstanding tactile response as KORG's top-tier workstations. Aftertouch puts unparalleled control of all the exceptional opsix sounds at your fingertips. Of course, we've modernized the factory Performances for aftertouch and introduced some fresh ones to the mix as well. In fact, most of the opsix SE programs have been revised to make full use of aftertouch, extended keyboard, and polyphony.

Premium metal design

The opsix SE showcases a notable upgrade in aesthetics. A slim body, specifically designed for this instrument, features a striking brown painted aluminium control panel, paying homage to vintage machines. Together with the vivid, illuminating LEDs, it brings a vibrant energy to any stage performance. The side panels, painted in a sleek black metal, amplify the overall aesthetics for a luxurious finish.

Exclusive hard case included

The opsix SE ships in a dedicated hard case, including space for cables and a sustain pedal. Your instrument can travel protected, whether you're carrying it to a rehearsal downtown or packing it up for a tour.

Get Illuminated with the Operator Mixer

At the heart of every sound is opsix SE's Operator Mixer - a simple set of six faders and knobs that invite exploration. Each part lights up red to indicate carriers or blue for modulators. Manipulating them opens up new sound-shaping possibilities to breathe fresh life into your musical ideas. This straightforward, hands-on workflow is part of what makes opsix SE so unique, just like the sounds it offers.

Direct Hands-On Control

Whether you're tweaking a preset or building a patch from the ground up, the six data entry knobs on the right give you quick access to the parameters you need and seamlessly sync with the large OLED display, giving you a clear, focused direction to your workflow. Coupled with the mixer, it makes creating fresh sounds super easy and, most importantly, fun!

Select from a full range of analogue-style filters, from the radical Korg MS-20 low-pass/high-pass filter to the powerful yet smooth KORG Polysix low-pass filter that gives your sound a vintage feel. There are also two or four-pole low-pass, high-pass, band-pass, and band-reject filters with resonance.

There's even a built-in spectrum analyser and oscilloscope that gives you visual feedback via the screen on the music you're making.

Six in One Synthesis

The core of opsix is nothing short of exponential. Since waveforms can be arranged and modulated in nearly infinite ways, opsix can easily do the sonic work that is similar to numerous types of synthesis:

Subtractive

Removing parts of the sound to get the sound you want; the most widely-used synthesis. opsix uses up to six envelopes and multi-modeled filters to achieve many cutting-edge and classical analog synthesis tones.


Semi-Modular
Rerouting signal paths to change the sound. A spin through the Alogorithm section will dramatically reshape the sound by changing how the signal routing between the operators work together, and no patch cables are needed.


Analog (Modelling)
Analog-style controls and plenty of stackable waveforms take you from digital to analogue-sounding in no time. Enjoy deep basses, crisp leads, thick pad sounds, fuzzy brass tones, and so much more.


Waveshaping

Adding intentional distortion to the waveforms to achieve aggressive overtones that are either harmonic or inharmonic. This will help you achieve gritty, bitey tones dripping with character.


Additive

Stacking waveforms and blending their harmonics is key to an expansive range of harmonious, dissonant, and tension-driven sounds. With six operators available, the complete FM experience is possible, including the ability to go back in time for classic sounds you have heard throughout recording history.


Classic FM

Last but certainly not least, opsix's highly flexible and powerful architecture starts with true six-Operator FM. As a result, it easily delivers signature sounds you have surely heard on thousands of hits from the '80s on through today, and with far more polyphony than other standalone FM synths available today.

With all of these ways to realize and explore sounds, opsix SE is uniquely suited as a "future-modern-classic" synth!

Altered Reality

opsix SE is FM-based, but the similarities to the classic synthesis end there. The Altered FM architecture delivers sounds across a vast spectrum, far wider than any single synthesis has been able to cover before, thanks to new sound components; new waveforms, filters, shaping, effects, LFOs, envelopes, modulations, and more, all translating to its broad assortment of sounds.

Powerful Effects Processing

opsix SE provides three blocks of 30 types of high-definition effects that you can use together to enhance your sounds even further. There's everything from a great mix of usable standard effects like chorus, phaser, delay, and compressor to some world-class shimmering reverbs that will elevate your sound to the next level.

Automatable 16-step sequencer

opsix SE features an incredible step sequencer that rivals groove boxes for flexibility and power. Press the PLAY button on any sound and experience the complexity of the sequences! Every Program has its unique sequence stored with it, or create your very own.

You can record up to six notes per step and edit each note's velocity, gate time, and playback timing. Create long phrases or make subtle shifts in timing to emulate strums or drum rolls, something that's not possible on a typical 16-step sequencer. The motion sequencer of the opsix SE also lets you record changes of up to six parameters, creating smooth motion changes in sound within a phrase or building rhythms that change dramatically with each step.
