Notes: MCV4 is a budget-priced MIDI-to-CV-Interface to control vintage monophonic synthesizers via MIDI. MCV4 is provided with 4 analogue control voltage outputs (CV1...4) and one Gate/Trigger output.

These are the most important MCV4 features:
4 analogue control voltages CV1...CV4
Voltage range for CV1...4: 0...+5V, 8 Bit resolution (equivalent to 1/4 semitone resolution)
CV1 for pitch control (normally VCO CV)
CV2...4 for voltage control of other functions (e.g. VCF frequency, loudness, modulation)

MIDI control of CV1..4:
CV1: note on/off with pitch-bend, 1V/octave characteristic
CV2 monophic after-touch
CV3 velocity and/or volumen (controller #7)
CV4 velocity and/or any controller (setting of the controller number via learn button)

Pitch-bend is used for CV1 generation with 1/4 semitone resolution
Gate output type can be selected via jumper inside the device between voltage trigger (+5V or power supply voltage) and S-trigger (switched trigger)
MIDI channel and reference note for CV1=0V adjustable via learn button
Different assign modes for CV1 (highest note, last note, reference note)
Retrigger on/off while playing legato
Gate/trigger polarity normal/inverted
Two 1/4" stereo jack sockets for CV1/2 and CV3/4
1/4" mono jack socket for gate/trigger
Learn button with LED for adjusting MIDI channel, reference note for CV1, controller for CV4
Optical display of gate/trigger via LED
MIDI-In, MIDI-Thru
Non-volatile memory for parameter settings
Stable metal case (about 95x75x35 mm, 1mm sheet steel)

External AC adapter for power supply
AC adapter for 230V AC and European type of mains connector is included within Europe
7...12V/100mA DC required, DC connector with 5.5 mm outer diameter and 2.1 or 2.5 mm inner diameter, polarity: plus = center, minus = ring

*** Adapters for other parts of the world have to be purchased separately. ***

Suitable accessories:

MCV4 special cable (1/4" stereo jack plug -> 2 x 1/4" mono jack plug, length about 90cm, also called "insert cable")

MIDI channel, reference note for CV1 (this is the MIDI note corresponding to 0V of CV1 and thus the lowest possible note of the analogue synthesizer connected to MCV4) and the controller no. for CV4 are adjusted via learn function. For this, the learn button must be pressed and the required MIDI messages sent from the MIDI controlling device (MIDI synthesizer, keyboard, sequencer ...). The other parameters (retrigger, trigger polarity, assign mode ...) are adjusted in learn mode via program-change messages.
The Hz/V mode available in the predecessor model MCV1 is not available with the MCV4 because of the many problems occurring with the non-linear Hz/V characteristic. But some synthesizers normally using Hz/V can be controlled with V/Oct (e.g. Korg MS10/MS20, details you may find in the MCV4 user's guide).

If you want to use all 4 analogue control voltages, you need 2 special cables with a stereo 1/4" jack plug on one end (MCV4 side) and two mono 1/4" jack plugs on the other (synthesizer side). Cables like this can be purchase elsewhere. If you need it, it is recommended to order it together with the MCV4.

Notes: *** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

This compact, portable and lightweight audio interface (only 220 g /0.49 lbs) transfers digital audio data in SPDIF and ADAT format to Windows and Mac computers.

The latest Plug and Play technology guarantees a simple installation, even for the inexperienced user. Numerous unique features as well as RME's robust drivers enable a quick, efficient and comfortable operation of the Digiface USB.

The Digiface USB is an extremely compact & portable digital audio interface with 4 optical ADAT / SPDIF I/Os, and an analog high-quality line/phones output via 6.3 mm TRS jack. Continuing the legacy of RME's famous HDSP Digiface, a triple ADAT I/O interface with phones and PCI interface, Digiface USB simplifies connection with USB 2, does not need an external power supply, and even adds another optical I/O, resulting in 32 channels input and output each when using ADAT optical.

The analog output hosts channels 33/34, and can be used freely thanks to TotalMix FX, RME's routing and monitoring solution that knows nearly no limits in routing and mixing (the Digiface USB does not include FX).

Each single optical port can use either ADAT (up to 8 channels) or SPDIF (stereo). While the inputs adapt automatically to the received signal format, the outputs can be individually switched between ADAT and SPDIF operation. Supported are SMUX and SMUX4. Therefore at 192 kHz either 8 channels via 4 x SPDIF or ADAT are possible on both inputs and outputs.

Its small size, weight and bus-powered operation make the Digiface USB extremely versatile and useful. It could even serve as simple headphone amp for mobile use.

Like all the latest RME interfaces, the Digiface USB also includes the powerful digital real-time mixer TotalMix FX. It allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs. The Digiface USB does not have a DSP, so there are no FX available. Still it includes a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and much more.

Here are some typical applications for TotalMix:

- Setting up delay-free submixes (headphone mixes). The Digiface USB allows for up to 17 fully independent stereo submixes. On an analog mixing desk, this would equal 34 Aux sends.
- Unlimited routing of inputs and outputs (free utilisation, patchbay functionality).
- Distributing signals to several outputs at a time. TotalMix offers state-of-the-art splitter and distributor functions.
- Simultaneous playback of different programs via a single stereo output. The ASIO multiclient driver supports the usage of several programs at the same time. When done on different playback channels TotalMix provides the means to mix and monitor these on a single stereo output.
- Mixing of the input signal to the playback signal (complete ASIO Direct Monitoring). RME not only is the pioneer of ADM, but also offers the most complete implementation of the ADM functions.
- Integration of external devices. Use TotalMix to insert external effects devices, be it in the playback or in the record path. Depending on the current application, the functionality equals insert or effects send and effects return, for example as used during real-time monitoring when adding some reverb to the vocals.
- Every single input channel, playback channel and hardware output features a Peak and RMS level meter, calculated in hardware. These level displays are very useful to determine the presence and routing destinations of the audio signals.

Notes: Great for recording studios, mobile musicians, guitarists, podcasters, and live streaming, the bus-powered Studio 24c 2-in, 2-out audio interface features 2 front-panel combo mic/line/instrument inputs with PreSonus XMAX-L solid-state mic preamps, 2 rear-panel line outputs, MIDI I/O, and onboard direct monitoring control. A complete, all-in-one home recording studio, the Studio 24c comes with PreSonus' award-winning Studio One Artist music production software for macOS and Windows.

World-class recording software included:

Seamlessly integrated with the included PreSonus Studio One Artist music production software, the Studio 24c interface works with virtually all macOS and Windows recording software. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content right from your production environment.

Take the tour:

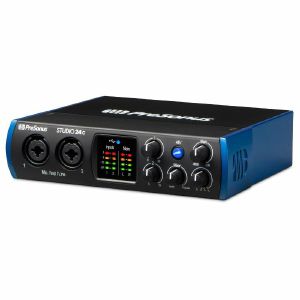

The 2-in, 2-out Studio 24c audio interface features USB-C computer connectivity and includes combo mic/instrument/line inputs with +48V phantom power for condenser mics; balanced, 1/4-inch TRS, line-level main outputs; and an output level control. Its built-in MIDI interface enables connection to a keyboard, sound module, or control surface. A Mixer knob blends analogue input and computer playback for low-latency monitoring.

Superior sound:

The Studio 24c operates at up to 192 kHz for ultra-high-definition recording and mixing. High-quality converters on every input and output and PreSonus' professional-grade XMAX-L mic preamps enable you to capture complex musical harmonics smoothly and naturally, with no audible distortion.

Designed for the home recording studio. Built for the road:

Whether you're just getting into recording or are a veteran producer who wants to go mobile, the Studio 24c will give you clear, clean, ultra-high-def sound in a bus-powered, rugged unit. While it's a perfect companion for any recording software, the Studio 24c and included Studio One Artist provide you with a complete, affordable, home and mobile recording solution.

Includes Studio Magic Plug-in Suite:

This suite of plug-ins adds a wealth of fresh sounds and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavour of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies - these are real-deal workhorses that you'll rely on for countless mixes.

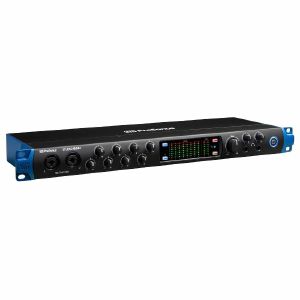

Notes: The Studio 1824c 192 kHz USB-C audio interface is ideal for producers interested in recording full bands, including multi-channel drums. It records up to 18 simultaneous inputs and features 8 XMAX Class A mic preamps, as well as MIDI I/O. Its 20 outputs offer flexible routing with zero-latency DSP-based monitor mixing and control-room integration with included Studio One Artist music production software and UC Surface control software.

World-class recording software included:

Seamlessly integrated with the included PreSonus UC Surface control software for macOS, Windows, iPad, and Android tablet and Studio One Artist music production software, the Studio 1824c audio interface works with virtually all macOS and Windows recording software. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content right from your production environment - including powerful extensions for Studio One like the CTC-1 Console Shaper and Presence XT Editor.

Take the tour:

The Studio 1824c audio interface features USB-C computer connectivity and records up to 18 simultaneous inputs, including two combo mic and switchable line/instrument inputs and six mic/line inputs, all with XMAX mic preamps and +48V phantom power. Digital inputs include eight channels of ADAT Optical I/O (four channels at 96 kHz) and stereo S/PDIF I/O. In addition to the main L/R outputs, you get eight DC-coupled line-level outputs that can send control voltages. You also get two headphone outputs. A built-in MIDI interface enables connection to a keyboard, sound module, or control surface.

Superior sound:

The Studio 1824c audio interface operates at up to 192 kHz for ultra-high-definition mixing and recording. High-quality converters on every input and output and PreSonus' professional-grade XMAX mic preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound.

Designed for producers who need more:

With ample connectivity, onboard monitor mixing, pristine mic preamps, and up to a 192 kHz sample rate, the Studio 1824c audio interface will give you the ultra-high-definition sound and versatile connectivity you need to make state-of-the-art recordings. The perfect companion for any recording software, the Studio 1824c's integration with Studio One and remote control with UC Surface provide a complete and thoroughly professional recording studio.

Includes Studio Magic Plug-in Suite:

This suite of plug-ins adds a wealth of fresh sounds and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavour of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies - these are real-deal workhorses that you'll rely on for countless mixes.

Notes: High-end interface specialists RME deliver another winner. Amazing sound quality in a compact package, with TotalMix control, ADAT expansion and built-in MIDI interface.

*** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

Supplier's notes:
Four years ago the Babyface Pro again demonstrated RME's absolute commitment to superior craftsmanship, not only in audio circuits and driver development, but also in mechanics. Created with the highest precision from a block of aluminium, this high-end portable interface incorporated newly designed analogue and digital circuits. Its innovative energy saving technologies provided supreme fidelity with no compromises in level, noise or distortion.
The two headphone outputs, offering TRS and mini-jack sockets in parallel, have completely separate driver stages to perfectly match low and high impedance headphones, guaranteeing pristine sonic results no matter what type of headphone is used.
For the main I/O RME have designed an XLR socket, which integrates seamlessly into the housing and saves space.
Two digitally controlled preamps provide individually switchable 48V phantom power. These circuits feature a gain range of 76 dB, adjustable in steps of 1 dB, including a relay-driven PAD, resulting in exceptional EIN (Equivalent Input Noise) performance as well as line overload protection, and enough gain for even the lowest level microphones.
Babyface Pro's incredibly efficient design almost never requires an external power supply - it's perfectly stable on USB 3 bus power, and also most USB 2 ports, with no degradation in any technical specification. This makes it perfect for mobile recording, even with a pair of your favourite condenser microphones.
The comprehensive feature set continues with an optical TOSLINK I/O; use as either an ADAT port with SMUX support or SPDIF for sessions up to 192 kHz. In combination with an external ADAT converter, the Babyface Pro fully supports 12 analogue inputs as well as 12 outputs, making it ideal for both live and studio multi-track applications. You can plug any instrument, line or high impedance, into Babyface Pro's jack inputs 3 & 4. Record your guitar on the go, with no additional hardware required. MIDI I/O via an included breakout cable completes the package.
In digital audio, the clock frequency is an essential factor, as it creates the correlation between the audio bits and the time reference. Unfortunately, the clock frequency is not always as stable as desired. The Babyface Pro FS offers the full SteadyClock FS circuit as in the ADI-2 Pro FS for lowest jitter and highest jitter immunity. Excellent performance in all clock modes and High Quality Analog Conversion to hear your mix as it is. Digital format conversion in RME products are done without any loss or degradation, and SteadyClock FS ensures your sonic image will never experience degradation. This helps to optimize recordings and mixes because the soundstage has more depth and clarity.
Like all the latest RME interfaces, the Babyface Pro FS also includes the powerful digital real-time mixer TotalMix FX. It allows fully independent routing and mixing of input and playback channels to all physical outputs. Independent stereo submixes plus a comprehensive Control Room section offer unrivalled monitoring capabilities and unsurpassed routing flexibility.
Babyface Pro FS ships with RME's TotalMix FX, available for Windows and Mac OS X. An iOS version is available as well. This amazingly versatile software allows you to use Babyface Pro in any situation. For example, mixing your guitar and vocals to headphones has never been easier. The FPGA-based DSP mixer adds a flexible, 3-band parametric equalizer to all inputs and outputs. Reverb and delay FX are also available.
The FPGA-based DSP mixer adds a flexible, 3-band parametric equalizer to all inputs and outputs. Reverb and delay FX are also available. Latest generation low latency AD/DA converters, combined with RME's unique SteadyClock FS technology, result in exceptional specifications that will satisfy the most demanding of professionals. Combining a huge feature set with sonic excellence and intuitive control, whether for the studio or on the move, the RME Babyface Pro is the most comprehensive and versatile compact audio interface ever built.
Straight to the core without interference: the reference design of the Babyface Pro leaves nothing to be desired. RME devices are designed to conserve music as it is. Audio signals are passed in their entirety, nothing added, nothing taken. For the new Babyface, the audio circuits have been improved to meet even highest gain levels with best dynamic range. The clever user interface is informative and clearly laid out. It makes access to every feature and configuration mode of the Babyface Pro intuitive and easy to use.

Notes: Compact audio and MIDI interface from one of the longest-running and most trustworthy brands in the business. Simple 2x2 setup with clear sound. A great entry-level option for getting sounds in and out of your computer.

Supplier notes:
Equipped with the same ESS Sabre32 Ultra DAC Technology found in audio interfaces costing thousands, the M2 delivers an astonishing 120 dB Dynamic Range on its main outputs. ESS converters also drive the headphone output, which rivals dedicated headphone amplifiers costing hundreds. Ultra-clean preamp circuits produce a measured -129 dBu EIN on the mic inputs. Capture and monitor your audio with pristine clarity.

The M2 provides best-in-class speed for monitoring live inputs (mic, guitar or keyboard) through your computer, thanks to MOTU's expertly engineered USB drivers, which deliver class-leading, ultra-low 2.5 ms Round Trip Latency (at 96 kHz with a 32 sample buffer).

When recording and mixing, nothing is more critical than achieving optimum levels. The M2 is the only audio interface in its class with a full color LCD featuring clear, detailed level meters for all inputs and outputs. Enjoy professional-level volume control and feedback to get your sound just right.

The M2 driver provides convenient loopback channels to your host computer, so you can easily route computer output back to the computer, where you can mix it with live mics and/or guitar inputs from the M2 in your host software for live streaming or podcasting. Streaming and podcasting has never been easier and better-sounding!

Decades of award-winning product engineering for hit songs, mega tours, primetime shows and blockbuster movies goes into every MOTU audio interface.

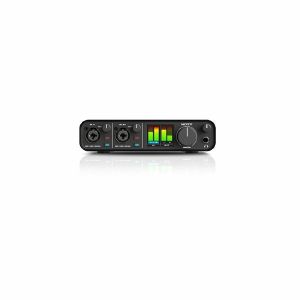

Notes: Equipped with the same ESS Sabre32 Ultra DAC Technology found in audio interfaces costing thousands, the M4 delivers an astonishing 120 dB Dynamic Range on its main outputs. ESS converters also drive the headphone output, which rivals dedicated headphone amplifiers costing hundreds. Ultra-clean preamp circuits produce a measured -129 dBu EIN on the mic inputs. Capture and monitor your audio with pristine clarity.

The M4 provides best-in-class speed for monitoring live inputs (mic, guitar or keyboard) through your computer, thanks to MOTU's expertly engineered USB drivers, which deliver class-leading, ultra-low 2.5 ms Round Trip Latency (at 96 kHz with a 32 sample buffer).

When recording and mixing, nothing is more critical than achieving optimum levels. The M4 is the only audio interface in its class with a full color LCD featuring clear, detailed level meters for all inputs and outputs. Enjoy professional-level volume control and feedback to get your sound just right.

The M4 driver provides convenient loopback channels to your host computer, so you can easily route computer output back to the computer, where you can mix it with live mics and/or guitar inputs from the M4 in your host software for live streaming or podcasting. Streaming and podcasting has never been easier and better-sounding!

Decades of award-winning product engineering for hit songs, mega tours, primetime shows and blockbuster movies goes into every MOTU audio interface.

Notes: Serious mastering-grade kit. Stereo interface with high-end converters and headphone amp circuit for pristine sound quality. Proper clarity for critical listening.

*** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

Supplier's notes:
The RME ADI-2 Pro FS is a two channel 24-bit / 768kHz AD/DA converter and USB 2 Digital Audio Converter, audio interface and high-end headphone amp with new jitter rejection SteadyClock FS technology.

The RME ADI-2 Pro FS is the most flexible converter available with balanced and unbalanced I/O, two headphone outputs, DSP-based signal processing and RME's latest Steady Clock FS jitter rejection technology. It offers Class Compliant USB compatibility, sample rates up to 768kHz as well as DSD record and Direct DSD playback.

It boasts a raft of analogue and digital I/O, including two servo-balanced analogue XLR/TRS Jack inputs, two separate balanced and unbalanced outputs on XLR and TS as well as two headphone outputs. Digital I/O include optical ADAT, Optical and coaxial SPDIF and AES accessible via a breakout cable.

Furthermore, its Class Compliant UAC 2 USB 2.0 port offers iOS compatibility and is necessary for firmware updates. It can also work as a 6-in / 8-out audio on Mac OSX and Windows via WDM and ASIO.

Using the latest in A-to-D technology the ADI-2 Pro FS offers best possible sound with highest signal-to-noise ratio, super low THD and noise. It supports sample rates up to 786kHz PCM and DSD recording in dual mono design, with 3dB improved signal to noise ratio. Two digital-to-analogue converters are used for the separate stereo outputs. The latest Integrated Sample Rate converter takes care of clocking issues between S/PDIF and AES thanks to RME's latest SteadyClock FS technology.

A high-resolution display shows controls for the ADI-2 Pro FS unique features including DSP effects like 5-band parametric EQ, binaural crossfeed, adjustable loudness filter, selectable AD/DA filters and four analogue reference levels. Furthermore, M/S processing is provided with stereo width control as well as phase loop. The display also shows RME's famous Spectral Analyser and 30-band bi-quad filtered analysis tool.

Notes: PreSonus Quantum 2626 is the fastest and best-sounding interface on the planet, thanks to the jaw-dropping speed of Thunderbolt 3, 8 front-mounted premium PreSonus XMAX analog mic preamps, and pristine ADA converters.

The PreSonus Quantum Thunderbolt Audio Interface is a 26x32 thunderbolt 2 ultra-low-latency audio interface. The Quantum Thunderbolt Audio Interface includes two combo mic/line/instrument inputs and six combo mic/line inputs, with each mic input featuring a digital-controlled XMAX preamp. The versatile design allows you to daisy-chain multiple units to expand your I/O up to 96 in and out connections. The PreSonus Quantum features a wide range of analog and digital connectivity making it one of the most comprehensive high-end interfaces on the market. The interface also operates up to 192kHz for ultra-high-definition mixing and recording.

With a barely measurable round-trip latency of less than 1 ms*, it's no wonder Sound on Sound magazine dubbed Quantum-series Thunderbolt audio interfaces the "fastest audio interfaces on the planet". Superb high-definition digital conversion and the ultra-transparent analog XMAX mic preamp design mean that your audio will always sound its bestiwhether you're recording with or without your favorite plug-ins engaged in real-time.

Every design decision during Quantum 2626 audio interface's engineering was made with one goal in mind: blazing-fast speed without any sonic compromise. The Quantum-series proprietary Thunderbolt driver was written from the ground up to deliver ultra-low-latency performance while maximizing efficiency. Cutting-edge 24-bit, 192 kHz converters with 115 dB of dynamic range and superior low-jitter clocking- coupled with our ultra-transparent, pure analog XMAX preamps- result in superb audio quality with the lowest round-trip latency of any audio interface available (< 1 ms).

Audiophile-grade digital converters, low-jitter clocking, and transparent preamps add up to a superior recording and listening experience. The Quantum 2626 audio interface operates at up to 192 kHz for ultra-high-definition mixing and recording. High-quality converters on every input and output provide 115 dB of dynamic range to capture complex musical harmonics smoothly and naturally with no audible distortion. And our lauded XMAX Class A analog microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound so you'll hear every breath, transient, and detail in your recordings.

Impressive speed combined with stunning sound quality means that the Quantum Thunderbolt audio interface is an ideal recording solution for any size of studio. Need more mic preamps? Connect the PreSonus DigiMax DP88 to your Quantum interface's ADAT/dual S/MUX ports. Once synced, the DigiMax DP88 preamps can be remotely controlled via Studio One or UC Surface. Want to insert your favorite gear? The Quantum 2626 features two direct preamp outputs with dedicated returns, so you can insert your favorite analog compressor and your favorite plug-ins with ease.

While compatible with any macOS or Windows recording application, the Quantum 2626 ships as a complete recording studio with Studio One Artist music production software included. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content right from your production environment- including powerful extensions for Studio One like the Presence XT Expansion packs and the PreSonus Channel Strip Collection.

Industry-leading speed and pristine audio quality combined with jaw-dropping expandability are the hallmarks of the Quantum interface design. Record and monitor from your favorite DAW with any plug-in engaged. Insert your favorite outboard analog gear with ease. Regardless of your studio's size, Quantum audio interfaces will streamline your recording process- you'll make better music, faster.

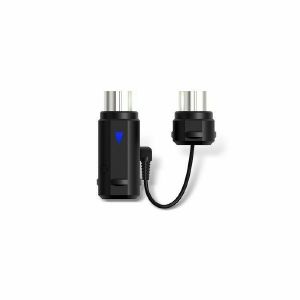

Notes: WIDI Master is your virtual MIDI cable.
Bluetooth MIDI is the new wireless standard as approved by the MMA.
Now you can connect all your MIDI devices - without computers - without cables - with MIDI over Bluetooth!

Smart Connectivity Algorithms
WIDI distinguishes itself from any other Bluetooth MIDI technology available through its unique SCA technology. SCA is a collection of highly effective algorithms that optimise the performance of WIDI in any given situation. SCA stands for Dual Role Automation, Automatic Pairing Mode, Smart Hub Functionality, Latency Reduction Optimisation and Range Performance Optimisation!

Point to point BLE MIDI connectivity
Simply replace your MIDI cables- rearrange your studio and enjoy the freedom of WIDI.

Bluetooth 5: Go Faster, Go Further
Trusted technology for live and on stage- secure connection with twice the speed and four times the range

Ultra low latency
Go pro with ground-breaking latency reduction as low as 3ms- Smart algorithmic transmission optimization

Automatic pairing
Setup instantly. Operate easily.
Automatic master/slave switch and automatic paring.

MIDI Clock and SysEx
Sync your drum machines, step sequencers and arpeggiators- transmit all MIDI messages over Bluetooth

Detachable design
Only connect what you need- separated adapter design for MIDI OUT only

Versatile application
Connect with even the rarest instruments- 45 degree bridge cable design for vertical DIN connector setup

No external power
Enjoy the fully standalone wireless solution- supports both 5V and 3.3V via MIDI OUT DIN

Lifetime updates
Always benefit from the latest developments- new features updatable via using WIDI App (iOS/Android)

Wireless upgrade via Bluetooth
The easiest way to upgrade your firmware- firmware upgradeable by air via WIDI application software for Android & iOS.

What can you do with MIDI over Bluetooth?
Fully Standalone. Completely Wireless. 100% MIDI.

MIDI to MIDI
Connect two standalone MIDI hardware devices with two (2) WIDI Masters.

Bluetooth (BLE) to MIDI
Pair your bluetooth MIDI controller with any standalone MIDI hardware device using one (1) WIDI Master.

MacOS/iOS BLE to MIDI
Play your standalone MIDI hardware and pair it with your iOS device or Mac with one (1) WIDI Master using smart auto switch mode. About Windows/Android.

Specifications

Wireless technology
Bluetooth 4/5, MIDI over Bluetooth Low Energy-Compliant

Connectors
1x MIDI IN (5pin-DIN)
1x MIDI OUT (5pin-DIN)

Switch, indicator
1x switch, 1x Multicolor LED

Compatible devices
WIDI Master, WIDI BUD, Bluetooth MIDI controllers, iPhone/iPad/iPod Touch, Mac with Bluetooth 4.0 or later

Compatible OS
iOS 8 or later, OSX Yosemite or later

Firmware update
By air using WIDI App (iOS/Android)

Power supply
5V/3.3V compatibility MIDI OUT DIN

Power consumption
37 mW

Dimensions
Main: 21mm (W) x 21mm (H) x 49mm (D)
Sub: 18mm (W) x 18mm (H) x 24mm (D)

Notes: Latest version of an interface that's become a modern classic. Up to 18 audio inputs and 22 outputs in total, spread over a mixture of analogue and digital connections. A true all-rounder that's hard to beat.

Supplier's Notes:
The MOTU UltraLite-mk5 is the latest incarnation of the best-selling UltraLite series (replacing the UltraLite-mk4). It takes the winning formula of the half-rack form factor with 18 in x 22 out analog and digital I/O and adds state-of-the-art enhancements at the same great price :

Best-in-class Audio Quality - the UltraLite-mk5 includes renowned ESS Sabre32 DAC technology, featuring the ES9026PRO DAC, to deliver 125dB dynamic range and -114 dB THD+N.

Ultra-low Latency - optimised Drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW the UltraLite-mk5 delivers an astonishing round-trip latency of 2.4ms (at 96kHz with a 32-sample host buffer

New Design - while retaining the same front and back panel layout as its predecessors the UltraLite-mk5 has a sleek new look, incorporating a high-resolution, high-contrast white OLED display providing precision metering for all analog inputs and outputs, along with digital I/O activity indicators and status info

Connectivity and Compatibility- the UltraLite-mk5 has a USB-C connector and is also class-compliant for operation with iOS devices. It is also compatible with MacOS 11 Big Sur and M1 Macs

New Software and Simplified Monitoring - live monitoring of inputs is controlled via the new CueMix 5 software

Rack-mount options - a half-rack mounting kit (sold separately) allows the steel-encased UltraLite-mk5 to be rack-mounted with thick steel brackets to withstand the punishment of touring. Alternatively, two UltraLite-mk5 units can be joined together with a Half-rack Coupler Kit (sold separately)

Technical Specifications:

Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Mic/line/guitar inputs: 2 x XLR/TRS "combo" jacks, 1 MO impedance on the line/instr inputs
Analog inputs: 6 x 1/4" TRS line in (balanced)
Analog outputs: 10 x 1/4" TRS line out (balanced, DC coupled)

Digital I/O:
1 bank (8 ch) of ADAT optical at 1x sample rates
1 bank (4 ch) of SMUX optical at 2x sample rates
Switchable to stereo TOSLink (optical S/PDIF)
1 x stereo S/PDIF on RCA (up to 96 kHz)

Computer I/O:
1 x USB-C 2.0 audio class compliant
Compatible with USB Type A (with adapter or C-to-A cable)

Total audio I/O:
18 in / 22 out (40 total) at 1x sample rates
14 in / 18 out (32 total) at 2x sample rates
8 in / 12 out (20 total) at 4x sample rates

MIDI I/O:
1 x MIDI IN
1 x MIDI OUT
16 MIDI channels to/from computer host

Headphone: 1 x 1/4" TRS stereo phone
Phantom power: 2 x individual +48V

Front panel:
2 x XLR/TRS combo inputs
1 x 1/4" TRS headphone output
1 x potentiometer - phone/monitor vol
2 x potentiometer - mic/instr input gain
4 x switches - (2) 48V and (2) pad
1x high-resolution white OLED display for metering/status
Power: External 12-18V DC power supply - 1.0A max - tip pos or neg

Dimensions and weight: (width x depth x height, enclosure only)
8.6 x 6.9 x 1.75 inches
22 x 17.5 x 4.5 cm
2.875 lbs / 1.31 kg

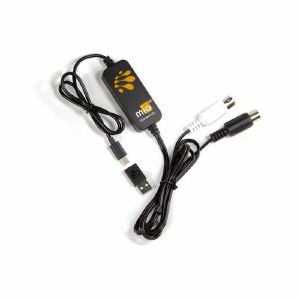

Notes: mioXC - The USB Type-C 1x1 MIDI interface for Mac, PC, iOS, or Android

Tiny in size and price, yet big on connectivity! mioXC is a pocket-sized powerhouse! mioXC is a fuss-free and simple 1x1, 16 channel MIDI interface you can use to connect your MIDI compatible gear. Whether you have a controller keyboard, synthesizer, drum machine or whatever; mioXC lets you connect them to your Mac, PC, iOS, or Android computing device.

What Makes mioXC Unique?

Even the most basic tasks need to be done right; it's surprising how many of iConnectivity's competitors' interfaces get it wrong. mioXC has been engineered, from the ground up to, to be the interface that its manufacturers would want to use themselves.

Modern USB Connectivity - Equipped with both USB Type-C and USB Type-A connectivity, mioXC lets you enjoy easy connectivity with most modern computing devices.

Driver Compatibility - Interfaces that use their own drivers have to be updated all the time, or they stop working properly. Likewise some designs were USB Class-Compliant years ago, but today they aren't anymore. iConnectivity's drivers have been engineered to today's strict guidelines, and keep them updated, to ensure compatibility for years to come.

MIDI Management - iConnectivity interfaces deliver MIDI reliably no matter what. When the MIDI data-stream gets heavy, these interfaces plough on where other interfaces choke.

Rock-Solid Electrical Design

- Some MIDI interfaces introduce noise, or worse, crash your system. You'll never get that from an iConnectivity interface.

Performance Optimized - A MIDI interface that works too slowly is useless. mioXC uses a powerful 32-bit ARM Cortex processor, ensuring dense MIDI and SysEx streams are managed with ease.

The iConnectivity Advantage: iConnectivity's name on your interface means that time was taken to do it right, whether it's the simple 1 x 1 models to iConnectivity's uniquely sophisticated high-end interfaces.

What's in the box
One mioXC MIDI Interface.
One USB Type-C to USB Type-A adapter

Macintosh
Mac OS X
1 free USB port

Windows
Windows 7 or later
1 free USB port

iOS
iOS 8 or greater*
CoreMIDI compatible app
*Apple Lightning to USB Camera adapter required for use with Lightning equipped iOS devices (adapter not included)

Android
Android 8.0 or higher with USB-C connector

Notes: Connect more with the world- The original iRig Stream offered groundbreaking features that made it an overnight must-have for millions of creators. Now iRig Stream Pro takes your podcasting and streaming to an all-new level.

This 24-bit, 96 kHz audio interface for iPhone, iPad, Android and Mac/PC offers an XLR mic preamp, stereo RCA, TRRS and device inputs (loopback) - plus advanced routing, convenient controls and total portability.

It's everything you need for professional quality streaming, right in the palm of your hand.

Mix and stream up to 4 audio sources- iRig Stream Pro makes it easy to connect all your audio sources and route them to a streaming or recording app. Connect your favorite studio microphone or guitar via the XLR / 1/4" combo jack, mix in DJ decks or a keyboard via the stereo RCA inputs, then connect your earbuds to listen back and for a bonus mic/line input. You can even route in the output of your smartphone, tablet or laptop and sing or jam along.

XLR / 1/4" combo input

This input offers a pristine mic preamp with true +48V phantom power to connect studio microphones with stunning sound, switching to Hi-Z for your favorite guitar or bass.

RCA stereo input

Connect a mixer, DJ decks, keyboards and more with this low-noise stereo input.

3.5mm TRRS input/headphone output

A unique headphone/microphone jack is wired just like your smartphone so you can listen and talk over the stereo input simultaneously. It works with most headphones with a built-in mic and also with IK products like iRig Mic Lav, iRig Mic, and iRig Pre 2, giving you a wide range of options for any situation.

Device Loopback

This option routes the audio output of your digital device (iPhone, iPad, Android, Mac or PC) back into iRig Stream Pro to be mixed in with the other audio signals. This is perfect to jam or sing along with backing tracks, or process audio on one app and stream to another, all on a single device.

Each input has its own independent volume control and is then mixed down to your choice of stereo or 4 channels to stream, process or record into all your favourite apps.

Stereo or multichannel? You get both!

iRig Stream Pro offers 2 modes: stereo or multichannel. By default, iRig Stream Pro operates in stereo mode and pre-mixes multiple sources of audio (RCA stereo inputs (+ Loopback), XLR / 1/4" combo input and TRRS microphone) down to a stereo track, which is sent to your choice of streaming apps like Instagram, Facebook, Twitch, etc.

Switching to multichannel mode, the combo and TRRS inputs are routed to channels 3 and 4 respectively giving you 4 channels of audio to send to recording apps such as GarageBand or your favourite DAW.

Specs

Type: 2 in/2out or 4 in/2out
Conversion: 24-bit A/D, 24-bit D/A
Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Power: USB bus powered. 48V operations with iOS devices require battery or DC IN. When connected to an external PSU (iRig PSU 3A, not included), iRig Stream Pro charges the connected iOS lightning device.
Metering: 3x LEDs for overall streaming signal. Peak meter for Mic/Inst input.
Device Connection: mini-DIN
Dimensions: 123 mm/4.84" x 67 mm/2.63" x 40 mm/1.57"
Weight: 146g
Line input
Connector: 2x RCA (unbal.) Left/Right
Nominal Input Level: -10 dBV
Head Room: 10 dB - Level @ max
Input Impedance: 16.5k Ohms
Frequency Response: from 20 Hz to 20 kHz (-1.5 dB)

Microphone Input: balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
Microphone Input Level: from 3.8 mV RMS to 388 mV RMS
Microphone Input Impedance: approx 2 kOhms
Analog Gain Range: 40 dB
Phantom Power: +48 V i 4 V
Frequency Response:
from 20 Hz to 20 kHz (-1 dB) Gain @ min
from 20 Hz to 20 kHz (-3 dB) Gain @ max

Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground
Instrument Input Level: from 70 mV RMS to 1.8 V RMS
Instrument Input Impedance: 1M Ohms
Analog Gain Range: 28 dB
Frequency Response: from 20 Hz to 20 kHz (-1 dB) Gain @ min, from 20 Hz to 20 kHz (-3 dB) Gain @ max

Headset/Phones
Connector: 1/8" TRRS jack (CTIA wiring standard)
Supply voltage: > 2,5 V
Microphone gain: Adjustable with numbered thumbwheel
Frequency Response: 20 Hz - 20 kHz
Headphone Level control: numbered thumbwheel

Battery Life
Phantom power On with iOS device: up to 20 hours (Alkaline batteries), with mic input connected to 3.1 mA phantom powered load
Note: all measurements made with Stream Level knob at 0dB.

Package includes
iRig Stream Pro interface
Lightning to mini-DIN connection cable with charging features (60cm/23.62")
USB C-Type to mini-DIN connection cable (60cm/23.62")
USB A-Type to mini-DIN connection cable (60cm/23.62")
2x 1.5V AA battery
Velcro strip

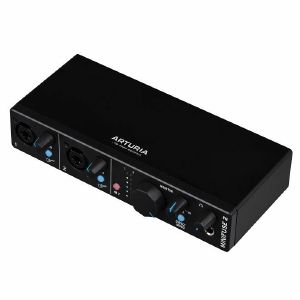

Notes: Excellent quality at an affordable price courtesy of Arturia's MiniFuse range. Two-in, two-out design with front panel volume control and MIDI in/out to help control hardware synths and drum machines.

Supplier's Notes:
Arturia MiniFuse 2 is an easy-to-use audio & MIDI interface that gives you pro-grade sound quality, smart connectivity, and a curated selection of the industry's best creative software. From guitar tracking to podcast recording, this is your solution for every type of audio creation.

MiniFuse comes from the award winning Arturia AudioFuse line of studio audio interfaces. Class-compliant & Bus-powered means you can plug in and go, and you won't need an additional power supply as it's USB powered. Recording has never been easier.

Creativity connected

MiniFuse 2's inputs and outputs bridge the gap between your ideas and the finished product. Record 2 instrument or mic sources simultaneously with dual combo inputs, sync and record your MIDI devices with 5-pin DIN connections, and connect extra devices with the additional USB hub socket - all via universal USB-C computer connectivity.

Simply the best sound

On paper, MiniFuse 2 gives you a 110db dynamic range and a top-tier equivalent input noise of -129dB. Put more simply, that means unbelievably great sound that can compete with even the finest studios. Enjoy responsive dynamics, a clear noise-free signal, and quality that you can really feel. Tough, portable design MiniFuse 2 is designed to accompany you for those last-minute sessions, quick deadlines, and spontaneous musical moments. It's not only compact and lightweight; its rugged aluminium ca-ing can handle the mobile producer's lifestyle. Take your sound with you, wherever you go. Fully operational Whether you're using a laptop or desktop, MiniFuse can work for you. PC or Mac, connect it and enjoy total recording freedom. Better still, with the MiniFuse Control Center app, you can control its inputs, outputs, settings, and firmware updates in one place. Inspiration on the house Keep your creativity fresh and your inspiration flowing with step-by-step music production tutorials, mixing hacks, and Ableton project templates designed by artists, producers, and beatmakers, featuring the software that's included with MiniFuse. Updated frequently, no subscription re-quired, and free with your MiniFuse. MiniFuse comes with an exclusive selection of software titles offering everything you need to give your sound the professional edge. Arturia FX Color your sound with 4 premium FX plugin recreations of studio classics; a lush plate reverb, a gritty analogue preamp, a classic tape echo, and a rich stereo chorus. Ableton Live Lite Compose, record, perform, and produce anything with an introduction to one of the most widely-used musical software titles in the business - yours with MiniFuse. Analog Lab Intro Instantly add inspiring sounds from our award-winning keyboard emulations to your mix with hundreds of presets to explore, from vintage '80s synths to fat modern sounds. Auto-Tune Unlimited 3-months free subscription Refine your vocal parts for perfect harmony or go full trap-style autotune with a 3-month sub-scription to the industry's favourite voice tuning plugin.

GUITAR RIG LE

An inspiring selection of amps, cabs, delays, reverbs, stompboxes and compressors, so you can build your own processing chains and customize your perfect guitar tones. Splice Creator Plan 3-months free subscription Access millions of hi-def royalty-free samples and plugin presets, from lo-fi drum loops to punchy vocal one-shots, and add them to your personal collection for life.

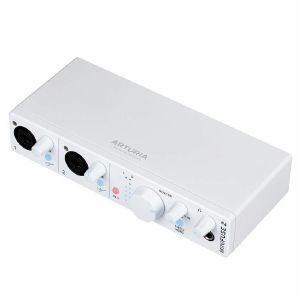

Notes: White version of Arturia's excellent entry-level interface. Standard 2-in/2-out design with built-in MIDI interface and intuitive controls. Excellent quality and value for money.

Supplier's Notes:
MiniFuse 2's inputs and outputs bridge the gap between your ideas and the finished product. Record 2 instrument or mic sources simultaneously with dual combo inputs, sync and record your MIDI devices with 5-pin DIN connections, and connect extra devices with the additional USB hub socket - all via universal USB-C computer connectivity.

Simply the best sound

On paper, MiniFuse 2 gives you a 110db dynamic range and a top-tier equivalent input noise of -129dB. Put more simply, that means unbelievably great sound that can compete with even the finest studios. Enjoy responsive dynamics, a clear noise-free signal, and quality that you can really feel. Tough, portable design MiniFuse 2 is designed to accompany you for those last-minute sessions, quick deadlines, and spontaneous musical moments. It's not only compact and lightweight; its rugged aluminium ca-ing can handle the mobile producer's lifestyle. Take your sound with you, wherever you go. Fully operational Whether you're using a laptop or desktop, MiniFuse can work for you. PC or Mac, connect it and enjoy total recording freedom. Better still, with the MiniFuse Control Center app, you can control its inputs, outputs, settings, and firmware updates in one place. Inspiration on the house Keep your creativity fresh and your inspiration flowing with step-by-step music production tutorials, mixing hacks, and Ableton project templates designed by artists, producers, and beatmakers, featuring the software that's included with MiniFuse. Updated frequently, no subscription re-quired, and free with your MiniFuse. MiniFuse comes with an exclusive selection of software titles offering everything you need to give your sound the professional edge. Arturia FX Color your sound with 4 premium FX plugin recreations of studio classics; a lush plate reverb, a gritty analogue preamp, a classic tape echo, and a rich stereo chorus. Ableton Live Lite Compose, record, perform, and produce anything with an introduction to one of the most widely-used musical software titles in the business - yours with MiniFuse. Analog Lab Intro Instantly add inspiring sounds from Arturia's award-winning keyboard emulations to your mix with hundreds of presets to explore, from vintage '80s synths to fat modern sounds. Auto-Tune Unlimited 3-months free subscription Refine your vocal parts for perfect harmony or go full trap-style autotune with a 3-month sub-scription to the industry's favourite voice tuning plugin.

Guitar rig LE

An inspiring selection of amps, cabs, delays, reverbs, stompboxes and compressors, so you can build your own processing chains and customize your perfect guitar tones. Splice Creator Plan 3-months free subscription Access millions of hi-def royalty-free samples and plugin presets, from lo-fi drum loops to punchy vocal one-shots, and add them to your personal collection for life.

Line Inputs

Input impedance: 16kO
Maximum input level: +22dBu
Gain range: 56dB
Frequency response 20Hz to 20kHz: +/-0.05dB (min gain)
Dynamic range: 110dB typical (A-weighted)
THD+N @ 1kHz: -100dB typical (un-weighted)

Instrument Input
Input impedance: 1MO on Tip
Maximum input level: +11.5dBu
Gain range: 56dB
Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
Dynamic range: 110dB typical (A-weighted)
THD+N @ 1kHz: -91dB typical (un-weighted)

Microphone Preamps
Input impedance: 2.5kO
Maximum input level: +9dBu
Gain range: 56dB
Equivalent Input Noise (EIN): -129dB typical (A-weighted)
Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
Dynamic range: 110dB typical (A-weighted)
THD+N @ 1kHz: -100dB typical (un-weighted)

Speakers
Output impedance: 94O
Maximum output level: +12dBu
Frequency response 20-20kHz: +/-0.09dB
Dynamic range: 107.5dB typical (A-weighted)
THD+N @ 1kHz: -101dB typical (un-weighted)

Phones
Output impedance: 10O
Maximum output level: +11.4dBu
Frequency response 20-20kHz: +/-0.09dB
Dynamic range: 104dB typical (A-weighted)
Power @ 33ohm: 137mW

Supported Sample rates
44.1kHz, 48kHz, 88.2 kHz,
96kHz, 176.4kHz, 192 kHz

Platforms requirements

Windows
Windows 7 (SP1) or later (64-bit)
4 GB RAM (8 GB+ recommended)
64-bit Intelr Core or AMD multi-core processor (i5 processor or faster recommended)

Apple
OS X 10.10 or later (64 bit)
4 GB RAM (8 GB+ recommended)
64-bit Intelr Core or AMD multi-core processor (i5 processor or faster recommended)

Size & weight
Size : 7.9 x 3.9 x 1.65 inches (200 x 100 x 43mm)

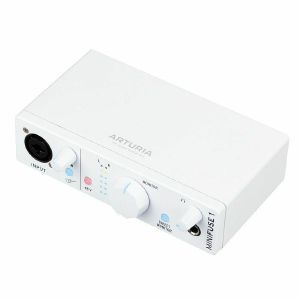

Notes: Arturia MiniFuse 1 is a portable 1 in / 2 out audio interface audio interface designed to work for you, whatever your style. Record your vocals, guitar, podcast, or produce your track at the highest studio quality. A complete software bundle with instruments, recording software, and effects is included - recording and producing has never been easier.

MiniFuse comes from the award winning Arturia AudioFuse line of studio audio interfaces. Class-compliant & Bus-powered means you can plug in and go, and you won't need an additional power supply as it's USB powered. Recording has never been easier.

MiniFuse 1 fits right into your setup with a straightforward set of ins and outs. Its single combo input lets you easily connect either XLR or 1/4" jack cables. Plug into your computer with quick & compact USB-C compatibility. Finally, connect USB devices like your MIDI keyboard with the additional USB hub socket.

For audiophiles, MiniFuse boasts a 110db dynamic range and a class-leading equivalent input noise of -129dB. For everyone else, that means that every recording you make sounds incredible, with rich dynamics, clear noise-free signal, and studio-grade quality - you can't go wrong.

Break the mold and take your studio on the go. MiniFuse is not only compact and lightweight; its rugged aluminium casing can handle the mobile producer's lifestyle. Put it in your bag, get out there, and find the sound you've been looking for.

Whether you're using a laptop or desktop, MiniFuse can work for you. PC or Mac, connect it and enjoy total recording freedom. Better still, with the MiniFuse Control Center app, you can control its inputs, outputs, settings, and firmware updates in one place

Keep your creativity fresh and your inspiration flowing with step-by-step music production tutori-als, mixing hacks, and Ableton project templates designed by artists, producers, and beatmakers, featuring the software that's included with MiniFuse. Updated frequently, no subscription re-quired, and free with your MiniFuse. MiniFuse comes with an exclusive selection of software titles offering everything you need to give your sound the professional edge.

Arturia FX

Colour your sound with 4 premium FX plugin recreations of studio classics; a lush plate reverb, a gritty analogue preamp, a classic tape echo, and a rich stereo chorus.

Ableton Live Lite

Compose, record, perform, and produce anything with an introduction to one of the most widely-used musical software titles in the business - yours with MiniFuse.

Analog Lab Intro

Instantly add inspiring sounds from Arturia's award-winning keyboard emulations to your mix with hundreds of presets to explore, from vintage '80s synths to fat modern sounds.

Auto-Tune Unlimited 3-months free subscription

Refine your vocal parts for perfect harmony or go full trap-style autotune with a 3-month sub-scription to the industry's favorite voice tuning plugin.

GUITAR RIG 6 LE

An inspiring selection of amps, cabs, delays, reverbs, stompboxes and compressors, so you can build your own processing chains and customize your perfect guitar tones.

Splice Creator Plan

3-months free subscription Access millions of hi-def royalty-free samples and plugin presets, from lo-fi drum loops to punchy vocal one-shots, and add them to your personal collection for life.

Huge software bundle includes: Ableton Live Lite, Analog Lag Intro, 4 x Arturia FX, Auto-Tune 3-month subscription, GUITAR RIG 6 LE, Splice 3-month subscription, and more...

Included Software

Ableton Live Lite: For your recording and mixing needs

Analog Lab Intro: Classic and modern synthesizer and keyboard sounds

4 x Arturia FX: A world-class preamp, plate reverb, tape echo and chorus effects

Auto-Tune Unlimited: 3-month subscription to the leading pitch tuning software

GUITAR RIG 6 LE for guitar amplification emulations and guitar

Line Inputs
Input impedance: 16kO
Maximum input level: +22dBu
Gain range: 56dB
Frequency response 20Hz to 20kHz: +/-0.05dB (min gain)
Dynamic range: 110dB typical (A-weighted)
THD+N @ 1kHz: -100dB typical (un-weighted)
Instrument Input
Input impedance: 1MO on Tip
Maximum input level: +11.5dBu
Gain range: 56dB
Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
Dynamic range: 110dB typical (A-weighted)
THD+N @ 1kHz: -91dB typical (un-weighted)
Microphone Preamps
Input impedance: 2.5kO
Maximum input level: +9dBu
Gain range: 56dB
Equivalent Input Noise (EIN): -129dB typical (A-weighted)
Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
Dynamic range: 110dB typical (A-weighted)
THD+N @ 1kHz: -100dB typical (un-weighted)
Speakers
Output impedance: 94O
Maximum output level: +12dBu
Frequency response 20-20kHz: +/-0.09dB
Dynamic range: 107.5dB typical (A-weighted)
THD+N @ 1kHz: -101dB typical (un-weighted)
Phones
Output impedance: 10O
Maximum output level: +11.4dBu
Frequency response 20-20kHz: +/-0.09dB
Dynamic range: 104dB

Notes: For Solo Musicians

AMS-22 | 2-In, 2-Out

Perfect for mobile recording or streaming, the AMS-22 includes an XLR/TRS combo input, plus a stereo line in. It also includes a headphone output and 2 TRS outputs for external monitors.

Quick Control

With onboard hardware switches, the AMS-22 is designed to simplify common streaming challenges without the need for additional software.

Onboard Monitoring

Use the Direct Monitor Switch to directly send the input signal to your headphones while routing the same signal to your DAW or streaming software.

Loop It Back

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

Power Options

All three AMS interfaces can be powered from your PC or Mac via USB-C. Use external power when working from a tablet or mobile phone.

Plug it in...

Use the AMS Series on any device thanks to its support for Mac and PC, along with iOS and Android devices.

...And perform

The AMS Series is designed to integrate seamlessly with commonly used software, apps and platforms.

In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram and Patreon.

In Music mode, record with software like Adobe Audition, Pro Tools, Cubase and GarageBand.

What's in the box

AMS-22 USB Audio Interface
USB-C Cable
Quick Tour

Technical Specifications

Input and Output Channels

Number of input channels - Mono (MIC/GUITAR): 1
Stereo (LINE IN): 1
Number of output channels - Stereo (TRS): 1
Stereo (PHONES): 1

Connectors

MIC/GUITAR - Type: XLR/TRS combo jack
(XLR: 2 HOT, TRS: TIP HOT)
Input Gain: +8 - +54 dB (MIC) / +8 - +54 dB (GUITAR)
Input impedance: XLR: 2 kO (MIC)
TS: 1 MO (GUITAR)
Maximum input level: XLR: +0.6 dBu (MIC)
TS: +11 dBu (GUITAR)
Phantom power: +48 V

OUTPUT (standard phone jacks - Type: TRS phone jacks (impedance balanced)
Maximum output level: -2 dBu (at 0 dBFS)
Output impedance: 100 O
OUTPUT (headphone jack) - Type: 3.5mm stereo mini jack
20 mW + 20 mW (32 O load)
Output impedance: 10 O
USB: USB Type-C (audio interface function)
Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V: USB Type-C (for power supply)
LINE IN Type: 3.5mm stereo mini jack
Input impedance: 20 kO
Maximum input level: +1.5 dBu
Frequency Response: 44.1 kHz: +0/-2 dB (20 Hz - 20 kHz) - 96 kHz: +0/-3 dB (20 Hz - 40 kHz)
Equivalent Input Noise: -120 dBu or less (IHF-A) at +54dB/150O input

Audio Interface

Input and output channels: Recording: 2 channels
Playback: 2 channels
Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
Bit Depth: 24-bit
Interface: USB 2.0
Class: USB Audio Class 2.0

Power: AC adapter (ZOOM AD-17): DC 5 V/1A - USB bus power is supported.
Rated Current: USB bus power / DC 5 V power supply: 170 mA
Power Consumption: 1.8 W maximum
Dimensions: 68.0 mm (W) × 57.7 mm (D) × 46.0 mm (H)
Weight (unit only): 85 g
Note: 0 dBu = 0.775 Vrms

Notes: AMS-24 - For One or More Musicians

Flip the switch

The AMS-24 and AMS-44 feature our innovative Music / Streaming Switch.

When switched to Music mode, you can record into your DAW with expanded input and output routing options.

When switched to Streaming mode, all inputs are combined into a single signal so you can easily stream without needing additional complicated software.

Record & stream with ease

AMS Audio Interfaces are designed for musicians who want to record music with their DAW or easily livestream on platforms like YouTube and Twitch, without all the typical complications.

AMS-24 | 2-In, 4-Out

The AMS-24 is perfect for solo streams and multi-instrument sessions. It features two XLR/TRS combo inputs along with Zoom's low-noise preamps. Also included are two headphone outputs and two TRS outputs for external monitors.

Quick control

With their onboard hardware switches, the AMS-24 and AMS-44 are designed to simplify common streaming challenges without the need for additional software.

Little switch, big streams

Toggle from recording to livestreaming with the Music / Streaming Switch. When in Music mode, each input acts independently with individual gain control. It also sends separate mixes to each headphone output.

When in Streaming mode all inputs are combined into one signal to work seamlessly with your streaming software.

Onboard monitoring

Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.

Loop it back

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

Mic/line guitar

Switch Input 1 from mic or line level to guitar level (Hi-Z).

Stereo link

Links two inputs for stereo recording or streaming and allows you to control both inputs with one gain knob.

Phantom power

Provides +48V phantom power for condenser microphones.

Power options

All three AMS interfaces can be powered from your PC or Mac via USB-C. Use external power when working from a tablet or mobile phone.
Additionally, the AMS-24 can also use two AA batteries.

Plug it in...

Use the AMS Series on any device thanks to its support for Mac and PC, along with iOS and Android devices.

...And perform

The AMS Series is designed to integrate seamlessly with commonly used software, apps and platforms.

In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram and Patreon.

In Music mode, record with software like Adobe Audition, Pro Tools, Cubase and GarageBand.

What's in the box

AMS-24 USB Audio Interface
USB-C Cable
Quick Tour

Technical Specifications

Input and Output Channels

Number of input channels: Mono (MIC/LINE): 2
Number of output channels: Stereo (TRS): 1
Stereo (PHONES): 2

Connectors

Input 1-2 - Type: XLR/TRS combo jacks
(XLR: 2 HOT, TRS: TIP HOT)
Input gain: -8 - +58 dB / -8 - +50 dB (when set to GUITAR)
Input impedance: XLR: 2.7 kO
TRS: 18 kO / 330 kO (when set to GUITAR)
Maximum input level: XLR: +6 dBu
TRS: +22 dBu / +8.5 dBu (when set to GUITAR)
Phantom: +48 V

OUTPUT A (standard phone jacks)
Type: TRS phone jacks (impedance balanced)
Maximum output level: +10 dBu (at 0 dBFS)
Output impedance: 100 O

OUTPUT A-B (headphone jacks) - Type: 3.5mm stereo mini jacks
30 mW + 30 mW (32 O load)
Output impedance: 10 O

USB: USB Type-C (audio interface function)
Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V - USB Type-C (for power supply)

Frequency Response

44.1 kHz: 1 dB (20 Hz - 20 kHz)
96 kHz: 1.5 dB (20 Hz - 40 kHz)
Equivalent Input Noise: -120 dBu or less (IHF-A) at +58dB/150O input

Audio Interface
Input and output channels
Recording: 2 channels
Playback: 4 channels
Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
Bit depth 24-bit
Interface: USB 2.0
Class: USB Audio Class 2.0

Power:
2 AA batteries (alkaline, lithium, or rechargeable NiMH)
AC adapter (ZOOM AD-17): DC 5 V/1A
USB bus power is supported.
Rated Current
USB/AC adapter (5 V): 380 mA
Batteries (2.4 V): 470 mA

Estimated continuous operation time using batteries
44.1 kHz, 48 V off, with 32O headphone load
Alkaline batteries: about 4 hours
NiMH batteries (1900 mAh): about 5.5 hours
Lithium batteries: about 11 hours
The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They could vary greatly according to use conditions.
Power Consumption: 5 W maximum

Dimensions: 94.5 mm (W) × 74.0 mm (D) × 46.0 mm (H)
Weight (unit only): 134 g
Weight (including batteries): 180 g

Notes: Great value little 4-in/4-out interface, designed for portability when making music or streaming. Dual headphone outputs and four XLR/TRS combo inputs with pre-amps give you plenty of versatility.

Supplier's Notes:
AMS-44 For One or More Musicians

AMS-44 | 4-In, 4-Out

Whether you're recording or streaming, the AMS-44 keeps your setup simple. It features four XLR/TRS combo inputs along with Zoom's high-performance, low-noise preamps. The interface also includes two headphone outputs and two TRS outputs for external monitors.

Quick control

With their onboard hardware switches, the AMS-24 and AMS-44 are designed to simplify common streaming challenges without the need for additional software.

Little switch, big Streams

Toggle from recording to livestreaming with the Music / Streaming Switch. When in Music mode, each input acts independently with individual gain control. It also sends separate mixes to each headphone output.

When in Streaming mode all inputs are combined into one signal to work seamlessly with your streaming software.

Onboard monitoring

Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.

Loop it back

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

Mic/line guitar

Switch Input 1 from mic or line level to guitar level (Hi-Z).

Stereo link

Links two inputs for stereo recording or streaming and allows you to control both inputs with one gain knob.

Phantom power

Provides +48V phantom power for condenser microphones.

Power options

All three AMS interfaces can be powered from your PC or Mac via USB-C. Use external power when working from a tablet or mobile phone.

Additionally, the AMS-24 and AMS-44 can also use two AA batteries.

Plug it in...

Use the AMS Series on any device thanks to its support for Mac and PC, along with iOS and Android devices.

...And perform

The AMS Series is designed to integrate seamlessly with commonly used software, apps and platforms.

In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram and Patreon.

In Music mode, record with software like Adobe Audition, Pro Tools, Cubase and GarageBand.

What's in the box

AMS-44 USB Audio Interface
USB-C Cable
Quick Tour

Technical Specification

Input and Output Channels
Number of input channels: Mono (MIC/LINE): 4
Number of output channels: Stereo (TRS): 1
Stereo (PHONES): 2

Connectors

INPUT 1-4 - Type: XLR/TRS combo jacks
(XLR: 2 HOT, TRS: TIP HOT) Input gain: -8 - +58 dB / -8 - +50 dB (when set to GUITAR)
Input impedance: XLR: 2.7 kO
TRS: 18 kO / 330 kO (when set to GUITAR)
Maximum input level: XLR: +6 dBu
TRS: +22 dBu / +8.5 dBu (when set to GUITAR)
Phantom power: +48 V
OUTPUT A (standard phone jacks)
Type: TRS phone jacks (impedance balanced)
Maximum output level: +10 dBu (at 0 dBFS)
Output impedance: 100 O
OUTPUT A-B (headphone jacks): Type: 3.5mm stereo mini jacks - 30 mW + 30 mW (32 O load)
Output impedance: 10 O
USB: USB Type-C (audio interface function)
Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V: USB Type-C (for power supply)
Frequency Response: 44.1 kHz: 1 dB (20 Hz - 20 kHz) - 96 kHz: 1.5 dB (20 Hz - 40 kHz)
Equivalent input noise: -120 dBu or less (IHF-A) at +58 dB/150O input

Audio interface

Input and output channels: Recording: 4 channels
Playback: 4 channels
Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
Bit depth: 24-bit
Interface: USB 2.0
Class: USB Audio Class 2.0

Power

2 AA batteries (alkaline, lithium, or rechargeable NiMH), AC adapter (ZOOM AD-17): DC 5 V/1 A -USB bus power is supported.
Rated Current
USB/AC adapter (5 V): 350 mA
Batteries (2.4 V): 560 mA
Estimated continuous operation time using batteries
44.1 kHz, 48 V off, with 32O headphone load
Alkaline batteries: about 3 hours
NiMH batteries (1900 mAh): about 4.5 hours
Lithium batteries: about 8.5 hours
The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They could vary greatly according to use conditions.
Power Consumption: 5 W maximum

Dimensions: 129.0 mm (W) × 74.0 mm (D) × 46.0 mm (H)
Weight (unit only): 177 g
Weight (including batteries): 223 g

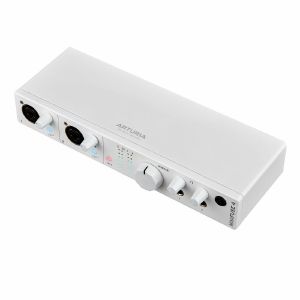

Notes: MiniFuse 4 is a next-gen 4in/4out audio & MIDI interface designed to transform your ideas into your art. Capture crystal-clear recordings, refine with pro-grade creative software, and get your sound out there.

The best software included

MiniFuse 4 comes with an exclusive selection of software titles offering everything you need to give your sound the professional edge. This isn't a bundle of fremium plugins or demos - this is the same exceptional software used by music and audio professionals worldwide.

Ableton Live Lite Compose, record, perform, and produce anything with an introduction to one of the most widely-used musical software titles in the business - yours with MiniFuse.

Analog Lab Intro Instantly add inspiring sounds from our award-winning keyboard emulations to your mix with hundreds of presets to explore, from vintage '80s synths to fat modern sounds.

Arturia FX
Colour your sound with 4 premium FX plugin recreations of studio classics; a lush plate reverb, a gritty analogue preamp, a classic tape echo, and a rich stereo chorus.

Auto-Tune Unlimited™ 3-months free subscription Refine your vocal parts for perfect harmony or go full trap-style autotune with a 3-month subscription to the industry's favourite voice tuning plugin.

Native Instruments GUITAR RIG 6 LE An inspiring selection of amps, cabs, delays, reverbs, stompboxes and compressors, so you can build your own processing chains and customize your perfect guitar tones. Splice Creator Plan 3-months free subscription Access millions of hi-def royalty-free samples, from lo-fi drum loops to punchy vocal one-shots, as well as synth sounds, Splice Skills tutorials, and much more.

MiniFuse 4 is built by audio creators, for audio creators. Expertly engineered to tick every box for whatever sound you want to make, this is one interface you can count on in every situation.

Creativity connected Your MiniFuse 4 is designed to be the hub of your sound setup. Connect up to 4 input sources at once with 2 combo inputs and 2 jack inputs; send, receive, and sync MIDI information with 5-pin DIN connections; connect extra USB devices like controllers or external drives with the USB hub socket; all connected via universal USB-C connectivity.

Simply the best sound For audiophiles, MiniFuse 4 delivers a 110db dynamic range and a class-leading equivalent input noise of -129dB. For everyone else, that means unbelievable sound quality that can compete with leading studios. Get the dynamics, clarity, and impact that your sound deserves.

Tough, portable design MiniFuse 4 is a desktop interface, but we know that inspiration can strike at any time. A compact and lightweight design with a rugged aluminium casing means you can take your sound with you - perfect for those last-minute sessions, quick deadlines, and spontaneous musical moments.

Fully operational

Whether you're using a laptop or desktop, MiniFuse can work for you. PC or Mac, connect it and enjoy total recording freedom. To keep things organized, the free MiniFuse Control Centre app lets you control its inputs, outputs, settings, and firmware updates in one place.

Who is it for?

For the musician Whether you're recording your band, your friends, or yourself, MiniFuse 4 can capture up to 4 instruments simultaneously with beautifully transparent low-latency sound.

For the producer The perfect companion for making beats, tweaking your final mix, or laying down ideas thanks to easy connectivity and a bundle of the finest creative software out there.

For the singer-songwriter Track your vocal ideas, capture your new favorite chord sequence, or nail that single-take intimate vibe with multiple inputs and plug-and-play recording.

For the podcaster MiniFuse pairs with up to 4 inputs of your choosing for ultra-clear voice recordings, captivating storytelling, and in-depth roundtable debates - make yourself heard.

For the content creator Easily capture voiceovers alongside in-app or in-game audio with MiniFuse's Loopback function, tailor-made for tutorials, unboxing videos, and game playthroughs.

Notes: The AI-1 is a professional-grade single-channel audio interface that delivers exceptional audio quality for everything from bedroom music recording to livestreaming and podcasting. Featuring a studio-grade preamp, a high-quality Neutrik™ combo jack for connecting microphones or instruments, and a high-power headphone amplifier for crystal-clear audio monitoring and playback, it's the perfect interface for recording studio-quality audio at home.

Key Features:

Professional-grade single-channel audio interface
Neutrik combo jack for connecting microphones, guitars, synthesisers and other instruments
Studio-grade preamp with level indicator
High-power headphone amplifier

Studio-quality Sound With Ease

With a single input and streamlined controls, the AI-1 is incredibly simple to use - just connect it to your computer, plug in your microphone or instrument, and hit record. Under the hood, the AI-1 packs plenty of punch, including an ultra-low-noise, high-gain studio-grade preamp for recording pristine audio, balanced 14-inch outputs for connecting your favourite speakers, and a high-power headphone amplifier capable of driving professional high-impedance models for flawless monitoring.

Get Connected and Create

The AI-1 features a high-quality Neutrik combo jack for connecting both XLR and 14-inch cables, so you can plug in your microphone, guitar, bass, or synthesiser with ease. Switchable phantom power ensures any microphone is accommodated, while the simple indicator LED allows you to monitor your input level for crystal-clear audio every time. Every AI-1 also comes with a free version of Ableton Lite, so you can get recording right away. Whether you're livestreaming or making multi-layered music, the AI-1 will capture your sonic vision in every detail.

RODE Central

RODE Central is an easy-to-use companion app for the AI-1 (and other RODE devices) that allows you to access device information and update to the latest firmware. The latest firmware version adds an extended gain range for enhanced performance with low-output dynamic microphones. To update, download RODE Central below and follow the prompts.

Note: OS Requirements - MacOS 10.13 or later; Windows 10 Version 1803 or later; iOS 14 or later; Android 9.0 or later.

Specifications

Acoustic & Electrical Specifications
Gain Range: 60dB (with firmware version 1.3.1)
Bit Depth: 24-Bit
Sample Rates: 44.1kHz 48kHz 88.2kHz 96kHz
48V Phantom Power: Yes
Simultaneous I/O: 1 x 2
Number of Preamps: 1
Direct Monitor: Yes
Bus Powered: Yes
OS Requirements: Mac OS10.10 or later Windows 7 or later
Power: USB bus-powered

Mechanical Specifications
Form Factor: Desktop
Analogue Inputs: 1 x Neutrik XLR-1/4" combo
Analogue Outputs
2 x 1/4" speaker outputs (impedance balanced) 1 x 1/4" headphone output
USB Connectors: 1 x USB-C
Depth: 100mm total (with knobs), Chassis: 88mm
Width: 124mm
Height: 38mm
Weight: 1lb/3.7oz/560g
Warranty: 1 year (extending to 2 years after product registration)

Box Contains:

1 x AI-1
1 x USB-C to USB-A Cable

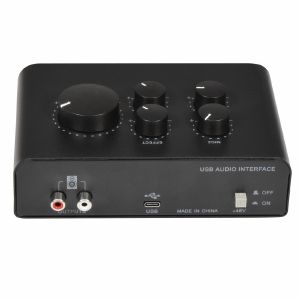

Notes: Desktop USB soundcard for a computer-based recording studio. Featuring 2 independent microphone inputs on XLR/jack sockets and a separate 6.3mm instrument input. Each input has a gain control and there is an optional echo effect with separate control. Monitoring is via a stereo 6.3mm headphone jack or L+R RCA line output on the rear of the unit for connecting monitor speakers. Power to the interface and two-way digital audio is connected via a USB type-C socket at the rear. Simple yet versatile operation for project studios and DAW recording setups.

Power supply: 5Vdc (from USB)
Connection: USB type-C
Controls: Mic1, Mic2, Inst3, Effect, Monitor
Input connections: 2 x mic XLR/Jack, 1 x 6.3mm instrument jack
Phantom power: +48V switchable to XLR inputs
Frequency response: 10Hz - 30kHz (-0.5dB)
Input impedance: instrument1M Ohm
Input impedance: mic3k Ohm
Max. input sound level: Mic or Instrument +2dBu, Line +22dBu
Dynamic range: 100dB (A-weighted)
Sampling format: 48kHz, 16-bit
Monitor outputs: Headphones (stereo 6.3mm jack), Line out (L+R RCA)
Dimensions: 160 x 110 x 57mm
Weight: 529g

In the box

The box for this item contains:

USB2+1 Audio Interface
1.5m USB C to A lead

Notes: Based on the Digiface Dante but with the added benefit of low-latency Ravenna audio-over-IP, the Digiface Ravenna offers 128 Ravenna channels and 64 MADI channels.

*** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

Supplier's Notes:
The Digiface Ravenna is a lightweight, portable audio interface, based on the proven Digiface Dante equipped with a RAVENNA module developed by DirectOut and features with everything that RME is famous for: USB 3, MADI, TotalMix FX and outstanding options in both USB and stand-alone operation.

Mobile RAVENNA Solution via USB

The combination of RME's renowned drivers (Mac/Windows) and DirectOut's RAVENNA implementation offer a reliable and flexible networked computer audio interface. Equipped with the latest TotalMix FX it can not only route, but also mix as many independent submixes as outputs are available. The included high quality phones output offers a quick listen to any audio channel, but can also be used as line output to provide an additional analog stereo mixdown.

RAVENNA & MADI

RME made the two BNC sockets for word clock I/O switchable to MADI I/O, with up to 64 channels. The total sum of Ravenna and MADI, 128 channels, are transferred via USB 3.0 and handled via the included RAVENNA web server or RME's TotalMix FX, for full and struggle-free control of all audio.

On the network side, the interface features a full-fledged RAVENNA stack with AES67 and ST2110-30/31 support and redundant audio-over-IP streaming as per ST2022-7. In addition, the interface can also be used as a mobile 64-channel RAVENNA/MADI converter without a USB connection to a computer. The coaxial MADI I/O connectors may also be configured to work as word clock sync I/O.

TotalMix FX and TotalMix Remote

Like all the latest RME interfaces, the Digiface Series also includes the powerful digital real-time mixer TotalMix FX. It allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs.

The Digiface Series includes a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and much more. The Digiface Series does not support DSP based effects (FX) like EQ or reverb.

Additionally RME's latest software, TotalMix Remote, enhances the power of RME interfaces by enabling remote control via iOS, PC or Mac. With a straightforward set up process - simply enter the IP address of the computer you would like to control with TotalMix Remote and get going - users can quickly adjust any aspect of TotalMix FX on a host system while walking around the studio with their tablet, or from a control room located elsewhere in the facility.

TotalMix FX - Mixing/Routing with superior features for Studio and Live Work

Since 2001 TotalMix added unlimited routing and mixing to RME's audio interfaces. Its unique capability to create as many independent submixes as output channels available turned it into the most flexible and powerful mixer of its kind.

RME USB - Transport audio with lowest latency and industry leading stability

Use your RME audio interface on Mac and PC with reliable, stable, and regularly updated drivers for RME products. RME Audio develops its own interface core, it's not dependent on 3rd parties for upgrades, modifications or bug fixes, so customers can use latest operating systems without interruption or delay."

DigiCheck - The Secret Weapon of High Resolution Audio Measurements

RME Audio interfaces not only provide you with a professional digital audio interface, but also with a free available software tool: DigiCheck, for metering, testing, measuring and analyzing digital audio streams.

Specs

Digiface Ravenna
Gigabit Ethernet Port

RJ45

100 Mbit/s, 1 Gbit/s
Standard port LEDs: yellow connected, green data transmission
Supports straight and crossover cables (Auto MDI-X)
Network-based remote control of the unit (TotalMix Remote)

RAVENNA Modul

Supports RAVENNA, AES67, ST 2110-30 / -31, ST 2022-7
Network Layer 3
Modes: Switched and Redundancy according to ST 2022-7
32 streams
128 channels Single Speed, 64 channels Double Speed, 32 channels Quad Speed
Clock sources: PTP, Internal
Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, +/-12.5 %
Routing: Channel-based routing matrix
Configuration: Browser GUI, globcon control, NMOS IS-04 / IS-05

MADI Input

Coaxial via BNC, 75 Ohm, according to AES10-1991
High-sensitivity input stage (< 0.2 Vpp)
Accepts 56 channel and 64 channel mode, plus 96k Frame
Standard: up to 64 channels 24 bit 48 kHz
S/MUX: up to 32 channels 24 bit 96 kHz
S/MUX4: up to 16 channels 24 bit 192 kHz
Lock range: 25 kHz - 54 kHz

MADI Output

Coaxial via BNC, 75 Ohm, according to AES10-1991
Output voltage 400 mVpp
Cable length: up to 50 m
Generates 56 channel and 64 channel mode, plus 96k Frame
Standard: up to 64 channels 24 bit 48 kHz
S/MUX / 96k Frame: up to 32 channels 24 bit 96 kHz
S/MUX4: up to 16 channels 24 bit 192 kHz

Output Analog Phones 129/130

Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz - 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 0 Hz - 45 kHz
Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
THD @ -1 dBFS: - 96 dB, 0.0016 %
THD+N @ -1 dBFS: -95 dB, 0.0017 %
Channel separation: > 100 dB
Output: 6.3 mm TRS jack, unbalanced
Output impedance: 2 Ohm
Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
Max power @ 0.1% THD: 50 mW

Word Clock In

BNC, not terminated (10 kOhm)
Switchable internal termination 75 Ohm
Automatic Double/Quad Speed detection and conversion to Single Speed

Word Clock Out

BNC
Max level: 5 Vss
Level with termination 75 Ohm: 4.0 Vss
Internal impedance: 10 Ohm
Output Analog Phones 129/130
Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz - 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 0 Hz - 45 kHz
Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
THD@-1dBFS:-96dB,0.0016%
THD+N @ -1 dBFS: -95 dB, 0.0017 %
Channel separation: > 100 dB
Output: 6.3 mm TRS jack, unbalanced
Output impedance: 2 Ohm
Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
Max power @ 0.1% THD: 50 mW

Digital

Clocks: Internal, RAVENNA (PTP), word, MADI
Supported sample rates: 44.1 kHz up to 192 kHz

Notes: PlayAUDIO1U allows every working musician access to an easy, seamless, simple & straightforward failover solution.

PlayAUDIO1U fuses iConnectivity's vast engineering knowledge of the live arena, passion for performance, and decades of experience into one product. PlayAUDIO1U ensures working musicians never suffer the embarrassment of a silent show, ever again.

PlayAUDIO1U's secret in part is integrating two computers connected directly to the interface, forming an incredible redundancy / failover protection system. Should your main computer fail, PlayAUDIO1U switches to the backup computer in a heartbeat; so fast that you and your audience won't even notice. Backing tracks keep playing in time and your MIDI gear stays connected. It does this all in a package that is completely designed from the ground up made-to-tour.

PlayAUDIO1U also ships with iConnectivity's new and improved Auracle 2.0. Auracle 2.0 is fast, flexible and intelligent, allowing performers to create a sophisticated live integration of all audio and MIDI connections, inputs and outputs; Auracle lets you do it in minutes, not hours.
"PlayAUDIO1U builds on everything we learned in creating and then supporting users of our PlayAUDIO12, an interface that quickly became the industry standard," says Al Joelson, VP of Sales and Marketing. "This interface is designed to be an even more ready-to-gig, comprehensive solution. It's a crazy powerhouse of audio and MIDI capability for live performance. "

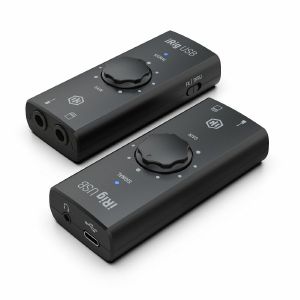

Notes: The bestseller goes digital

iRig USB gives guitar and bass players an affordable and easy way to practice, play and record at home or on the go. This digital version of IK's widely popular iRig 2 features a sleek new enclosure with USB-C connectivity and comes bundled with IK's latest amp and effects modelling technology.
Easily record ideas or jam along to your favourite backing tracks with killer tones and without the need of any other gear. When it's time to play out loud, iRig USB offers a dedicated Amp Out so you can use your device tones with a real rig for playing and performing.

Whether it's through headphones or loudspeakers, iRig USB makes playing fun again and inspiring wherever you go.

Key features

Compact audio interface for guitar or bass
Works with iPad, Mac, PC and iPhone 15*
1/8" headphones out for silent practice
1/4" Amp out connects to your amp or pedalboard
Works with your favourite learning, practice and recording apps
Packed with AmpliTube & TONEX amp modelling apps
Powered by your device, no batteries required
*Lightning devices require Apple's Lightning to USB 3 Camera Adapter

Ultra-compact with big sound

iRig USB is small enough to fit in your pocket, yet features a wide frequency response and dynamic range on the instrument input to work with any guitar or bass, active or passive. Setting your level is quick and easy using the large gain control knob with clipping indicator. And for listening back, both the Headphone Out and Amp Out offer exceptional sound quality for a device this size.

Play more, learn faster

Practicing should be fun and inspiring. Use iRig USB anywhere and connect to the most popular learning apps while playing through the best amp models. Use the included TONEX and AmpliTube apps to load one of your go-to tones then launch your preferred app to study music, tabs or the original song. It's never been easier to make progress on your guitar journey.

Rcording ideas

Next time inspiration hits, launch your favourite app and start recording in seconds. iRig USB is recognized by all desktop and iOS** recording apps. TONEX and AmpliTube for Mac/PC both work standalone or as plug-ins inside your favourite DAW so it's easy to record a DI or a processed guitar part. On mobile devices, you can use iRig USB to record a DI or record a processed guitar part with the included TONEX or AmpliTube CS for iPhone and iPad.

**with iOS lightning device, the iRig USB will require a CCK connector/adapter.

Exclusive software included

iRig USB is ideal for exploring new sounds for guitar and bass. With Mac/PC and iOS versions of both TONEX and AmpliTube included, you'll always have your dream rig with you for practicing and recording.

TONEX SE gives you the power of AI Machine Modelling and comes loaded with 200 Premium Tone Models, which are captures of real amps and pedals, plus you can browse, demo and download unlimited Tone Models from ToneNET. You can even use TONEX software for capturing your own amp and pedals to use at home, on the go and inside AmpliTube 5.

AmpliTube 5 SE for Mac/PC plus AmpliTube for iOS offer the ultimate tone processing and recording studio. Both versions give you essential amps, effects and speaker cabs to create amazing guitar and bass tones. Play, practice and record on your desktop or mobile device with the most authentic and hyper-realistic gear models ever made.

Jamming out with friends

No more lugging a pedalboard to rehearsal spaces or someone's garage. Access to all your favourite tones is right in your pocket. Just show up, connect iRig USB's Amp Out jack to an external amplifier or powered monitor and start playing incredible-sounding AmpliTube presets or TONEX Tone Models from your iOS device (or laptop).

Grow wherever you go

Whatever your level and style of music, iRig USB will keep you connected to the newest and best tools for sounding great, learning new songs, advancing as a player and recording ideas. Sound better, play more and improve faster throughout a lifetime of guitar with iRig USB.

Common

AD and DA resolution: 24-bit
Sampling rate: 44.1 kHz and 48 kHz
Host connection: USB Type-C socket

Instrument Input

Input impedance: 500 kOhms
Maximum input level: +13.5 dBu
Frequency response: From 20 Hz to 20 kHz within 0.5 dB (48 kHz sample rate)
Dynamic range: 90 dB(A)

Amp Output

Configuration: Unbalanced
Output impedance: 3.3 kOhms
Frequency response: From 10 Hz to 20 kHz within 1 dB (48 kHz sample rate)
Dynamic range: 97 dB(A)

Headphone Output

Output impedance: 22 Ohms
Maximum output level: approx 6mW into 50 Ohms load
Frequency response: From 10 Hz to 20kHz within 1 dB (48 kHz sample rate)
Dynamic range: 94 dB(A)

Package includes

iRig USB interface
USB-C to USB-C cable (60 cm/23.62")

Dimensions

Size: 99 mm/3.9" x 42 mm/1.65" x 25 mm/0.98"
Weight: 54 g/1.9 oz.

Compatibility

Computers

Mac: macOS 10.6 or later. One free USB port.

Windows: Windows 10 or later. One free USB port. For low latency, the IK Multimedia's iRig audio driver must be installed.

iOS Devices

Compatible with iPhone and iPad devices with USB-C connector.

Also compatible with iPhone and iPad devices with Lightning connector using Apple's Lightning to USB 3 Camera Adapter.

Android Devices

Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.

Notes: Arturia's flagship audio interface is designed for maximum versatility as well as top quality sound. With 16 analogue inputs, 12 analogue outputs and an array of digital I/O including ADAT, MIDI and clock, your creative process won't be interrupted by reconfiguring your hardware.

Supplier's Notes:
AudioFuse 16Rig

Studio mastermind interface

AudioFuse 16Rig is a high-density audio interface that combines an unmatched array of connections with a creativity-first workflow, built to handle a hardware-focused setup and keep your devices always in sync, always sounding pristine, and always ready to go.

Make your sound count

Introducing an interface that lets you leave everything connected, route anything to anything, and be more creative with your projects.

A workhorse hub of connections and smart features designed to get the job done, no matter the complexity. A powerful, reliable production tool that can be moulded to suit your audio setup, your workflow, and your sound.

A standalone mixer

For DAWless recording, live mixing, and outside-the-box audio configuration, AudioFuse 16Rig just works. Fire up its two low-latency internal mixers for sessions away from the studio, process audio & MIDI without a computer connection, and save your configurations for instant recall and quick setup switching.

Intricate audio routing

Get hands-on with an interface that lets you configure its connections to suit any need, including multiple sends/returns for effects, quick A/B speaker monitoring, and more. The included AudioFuse Control Center even features a matrix for quick 'connect anything and everything' configuration.

Quantity, meet quality

Give every recording the shine, clarity, and projection it deserves with two high-quality digitally-controlled preamps and 24-bit AD/DA converters from ESS and Cirrus Logic. Whether it's red-hot synths, dynamic guitars, delicate vocals, or any combination of inputs, expect top-notch sound across the board.

Choose your workflow

Your interface should adjust to suit your setup, not the other way around. Control AudioFuse 16Rig's settings via the display or the included software, configure it for desktop or 1U rackmount operation, use the DC-coupled outputs to send signals to synth modules, and connect your high-impedance headphones.

It's time your music had an upgrade

x16 ADAT I/O
x8 Analog Line DC coupled Outputs
x16 Analog Line Inputs
x1 MIDI In & 2x MIDI Out/Thru
Wordclock I/O
24-bit AD/DA 192kHz
Creative FX Bundle Included

Smart design

Sometimes it's the little things that matter most. You need your gear to complement and enhance the way you work, and that's the driving force behind AudioFuse 16Rig.

See how every piece of the AudioFuse 16Rig puzzle fits together to deliver a dream interface for audio & music hardware lovers.

Premium FX included

Every AudioFuse interface comes with an ever-evolving suite of creative plugins curated from Arturia's award-winning FX Collection. Refine any incoming audio with vintage studio tools, get experimental with contemporary effects, and embark on a journey through classic & modern sounds with Analog Lab.

AudioFuse Range

The new studio reference

The AudioFuse interface range connects your computer to the world of music. Record with the highest quality, monitor with absolute precision, and bring all of your gear together to create the music you always wanted to.

Analogue signal path

The highest quality components are used in the input and output signal paths of the AudioFuse series, giving you an audiophile-quality experience with no compromise.

Powerful monitoring

Multiple outputs, integrated A/B switching, monitor mix options, and even headphone outputs with both 3.5mm and 6.35mm connectors. The AudioFuse makes monitoring a joy.

Huge versatility

Each AudioFuse interface has its own unique set of features designed to make recording as fun and easy as possible.

Main Features

16 x TRS analogue inputs
Includes 2 x high-quality digitally-controlled preamps
Inputs 3 & 4 also available as 3.5mm stereo input

12 x analogue outputs
Includes 8 x DC-coupled TRS line outputs
Stereo monitor outputs
6.35mm front-panel outputs for reamping, dual-headphones

2 x ADAT in, 2 x ADAT out

Up to 16 channels of I/O at 48kHz, 8 channels at 88.2/96kHz

Wordclock in & out

1 x MIDI in, 2 x MIDI out/thru
5-pin DIN connectors
Route MIDI standalone

Low-latency USB-C connection

Class-compliant MIDI
3 x USB hub connections

Two internal standalone mixers

No computer connection needed
Cue mixer for sub-mixing and added flexibility
Main mixer controllable by MIDI

Color display with rotary control & menu buttons
Desktop or 1U rackmount configuration
Includes AudioFuse Control Center
Includes AudioFuse Creative Suite

Analog Lab Intro
Comp DIODE-609* NEW
Pre 1973
Pre V76
Pre TridA
Filter MINI
Chorus JUN-6
Comp FET-76
Delay TAPE-201
Rev PLATE-140
Phaser BI-TRON

What's in the box

Box content
AudioFuse 16Rig unit
Power supply
2x USB cable

Instrument dimensions
size : 17.3 x 11.6 x 1.7 inches (493 x 294 x 43mm)

Platform requirements

Windows
Win 10+ PC: 4 GB RAM; Intel i5 CPU or faster
1GB free hard disk space
OpenGL 2.0 compatible GPU

Apple
10.13+: 4 GB RAM; Intel i5 CPU or Apple Silicon CPU
1GB free hard disk space
OpenGL 2.0 compatible GPU

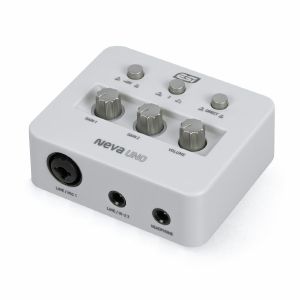

Notes: Whether you're about to become a content streamer or beat maker or anything beyond - with Neva Uno you're ready to go instantly.

Coming at a super affordable price, Neva Uno offers superior audio quality, elegant design and an extensive software package while retaining a compact form. Equipped with professional pre-amplified microphone and guitar inputs as well as two line inputs, it offers everything you need to get started right away. The USB-C port makes it easy to connect to your computer or mobile device. Neva Uno comes with professional ASIO drivers including DirectWIRE loopback function and more, so you can focus on your creativity.

Features

2 input / 2 output 24-bit / 192kHz USB 3.1 audio interface with USB-C connector
XLR combo microphone preamp with +48V phantom power support
Hi-Z instrument input with 1/4" connector
USB bus powered (no additional power adapter needed)
line output with unbalanced RCA connectors
headphone output with 1/4" connector
ADC with 97dB(a) dynamic range
DAC with 107dB(a) dynamic range
Zero latency hardware direct input monitoring activated by switch
Master output volume control
Supports Windows 10, Windows 11 with ASIO 2.0, MME, WDM and DirectSound
Supports macOS via the native CoreAudio USB audio driver from Apple
Stereo hardware loopback channel for internal recording
Includes Bitwig Studio 8-Track DAW
Includes Steinberg WaveLab LE audio editor license
Works with Cubasis LE from Steinberg for iPhone / iPad
Includes 3 month (up to 9000 minute) subscription to JackTrip Virtual Studio
Dimensions: 10.5cm x 9cm x 4cm


Connectors & Functions

+48V PHANTOM POWER SWITCH to provide power for a condenser microphone.

LINE HI-Z SWITCH for input 2 to switch between Line level and Hi-Z guitar signals.

DIRECT MONITORING SWITCH to enable or disable input monitoring to listen to the input signals.

GAIN KNOB 1 to change the input gain / input level for input 1. The LED ring indicates the signal level.

GAIN KNOB 2 to change the gain / input level for input 2. The LED ring indicates the signal level.

VOLUME KNOB to change the main output volume for connected headphones and speakers.

XLR / TRS COMBO INPUT 1 to connect a microphone via XLR cable or a line signal via 1/4" TRS connector.

TRS INPUT 2 to connect a line via 1/4" TS connector.

HEADPHONE OUTPUT to connect headphones.

LINE OUTPUT 1/2 to connect the stereo master line level output signal via RCA cables for left and right channels.

USB-C CONNECTOR to connect the audio interface to a PC, Mac, tablet or mobile phone.

Small, portable and perfect for your podcasting or live streaming applications

This stylish 24-bit / 192 kHz USB-C audio interface is so small, it will instantly become your new companion on the go and in your studio. Neva Uno is USB bus powered and Plug & Play, just plug it in and start working! It works with any modern Mac (Intel or M1 CPU or better), PC (Windows 10 and higher) and with many portable devices (iPhone, iPad, etc.). One XLR/jack combo input will take either your microphone or line signal, while the second 1/4" jack input accepts line or Hi-Z guitar signals. The inputs feature a mic preamp with up to 50dB gain and 48V phantom power support and the analog-to-digital converter provides 97db(a) dynamic range. On the output side, there is an integrated headphone amplifier and stereo line RCA outputs with a digital-to-analog converter with 107dB(a) dynamic range, allowing you to connect a mixer, amplifier or active speakers. You can monitor incoming audio signals with zero latency, just push the direct monitor button.

Neva Uno is compatible with virtually all common audio software thanks to the professional low latency ASIO 2.0 driver for Windows and CoreAudio compatibility on the Mac. There is even a DirectWIRE hardware loopback function that allows you to route and mix different sound sources internally: perfect for podcasting or live streaming applications.

All this turns Neva Uno into an ideal device to get started in the world of digital audio recording, no matter if you create your own music, if you want to mix and edit audio, if you work on your podcast or even for live streaming. And yet there is more: Bitwig Studio 8-Track and Steinberg WaveLab LE are included. On the iPhone and iPad, you can use Cubasis LE from Steinberg.

An alternative to Neva Uno is ESI's larger model Neva Duo with two microphone preamps.

Notes: One of the most trustworthy brands in the industry delivers another winner. Proper high-end business, with 12 analogue inputs and 12 outputs, plus an extensive array of digital connections. Great value at this price point.

Supplier's Notes:
Next-gen 28 x 32 USB3 audio interface - Builds on 22 years of proven success as an industry-leading audio interface brand.

New 3.9-inch TFT display - The bright, 24-bit RGB LCD provides 480 x 128 pixel high-resolution metering for all analogue and digital I/O, plus detailed status info and access to hardware settings from a simple and convenient menu.

Superb analogue audio quality and high-end converters - Renowned ESS Sabre32 DAC technology delivers 125 dB dynamic range. Support for all standard sample rates up to 192 kHz.

Ultra-low latency and proven, high-performance MOTU drivers - Round-trip latency (RTL) performance as low as 2 ms at 96kHz with high-performance DAW hosts.

Universal connectivity - Connects to your computer with 5 Gbps USB3 (compatible with USB2) for up to 60 audio channels. Class-compliant firmware and industry standard drivers work with any audio apps. Connects to an iPad™ with USB-C or a Lightning adapter kit (sold separately).

60 simultaneous audio channels - 28 inputs and 32 outputs, including two combo XLR/TRS mic/line/hi-Z guitar inputs with send/return inserts, 8 TRS analogue (line-level) in/out, separate main outs on XLR jacks, two banks of 8-channel optical I/O, stereo RCA S/PDIF digital I/O, and two front-panel headphone outputs.

Advanced mic channels - Cutting-edge components deliver ultra-transparent sound with -114 dB THD+N, 118 dB dynamic range and -129 dBu EIN. Each mic channel provides individual controls for +74 dB of preamp gain, -20 dB pad, 48V phantom power, and phase invert. All settings can be controlled remotely from a computer or iOS device. Each mic channel includes a dedicated send/return insert for outboard gear processing.

Flexible insert returns - When nothing is connected to the front-panel mic inputs, the two rear-panel returns function as additional line inputs with identical signal path characteristics as the other eight line inputs.

DSP mixing and effects processing - Flexible 24-input digital mixer with 8 stereo busses and DSP effects, including reverb, 4-band EQ, gate and compression.

Wi-Fi control - If the 828 is connected to a computer on your Wi-Fi network, you can control everything wirelessly from the CueMix 5 app running on mobile devices or other computers on the same network - even multiple devices at the same time. Manage access to the 828 with network discovery and password protection.

Precision boost/trim for analogue I/O - Calibrate analogue input and output signals in precise 1 dB increments. Apply phase invert individually to analogue inputs.

Control room features - Control your sessions with front-panel "talk" button and "A/B" speaker select buttons to quickly compare your mixes on two sets of studio monitors.

Two flexible headphone outputs - With independent volume control, each headphone output can mirror each other, the Main Outs, any other analogue output pair, any CueMix bus, or any USB output channels. Or you can create a completely customized mix for each headphone that includes live 828 inputs and built-in reverb.

Two banks of optical I/O - Connect outboard digital processors, digital mixers or other gear with 16 channels of ADAT at 44.1/48 kHz or 8 channels of SMUX at 88.2/96 kHz. Bank A can optionally provide stereo TOSLink (optical S/PDIF) I/O up to 96 kHz.

Foot switch input - Connect a standard foot pedal switch (sold separately) for hands-free punch-in and punch-out while recording. Or map the pedal to any keystroke function in your host software.

MIDI in/out/thru - connect MIDI gear without the need for a separate MIDI interface.

Word clock in/out/thru - Supports all sample rates up to 192 kHz.

DC-coupled TRS outputs - Use the 828 to manipulate and sequence voltage-controlled modular synthesizers from a host DAW.

Loopback for live streaming and podcasting - Easily route computer output back to the computer, where you can mix it with live mics and/or guitar inputs from the 828 in your host software for live streaming or podcasting.

Guitar re-amping - Connect your guitar to the front-panel input, use CueMix's near-zero latency to loop to any output (with a re-amp adapter, if needed), and record both the dry signal and your mic'd up amp simultaneously. Then re-amp the dry signal later with different amps and cabs - or amp modelling plug-ins - to experiment with different tones.

CueMix 5 app - Control mixing and settings from your Mac, PC or iOS device.

Performer Lite - Workstation software with over 100 included instruments, dozens of effects and 6 GB of included loops to make music right away. Also includes Ableton Live Lite.

Next-gen 28 x 32 USB3 audio interface with DSP, mixing and effects
New 3.9-inch 24-bit RGB LCD with precision metering for all I/O
Superb analogue audio performance driven by ESS Sabre32 Ultra™ DAC Technology
Ultra-low latency and proven, high-performance MOTU drivers (~2 ms RTL with a 32 sample buffer @ 96 kHz)
Universal connectivity with 5 Gbps USB

Technical Specifications
Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz

Mic/line/instr inputs
2 x XLR/TRS "combo" jacks
Individual -20 dB pad and 48V phantom power
Preamp gain: +74 dB in 1 dB increments
1 MO impedance on the line/instr inputs
Independent balanced send/return inserts

Analogue inputs
8 x 1/4-inch TRS line in (balanced/unbalanced)
2 x 1/4-inch insert returns function as balanced TRS line inputs (with no mic inputs connected)
Max level: +21 dBu
+20 dB digital gain on each input

Analogue outputs
8 x 1/4-inch TRS line out (balanced, DC coupled)
2 x male XLR out
Max level: +21 dBu
2 x 1/4-inch TRS stereo headphone
2 x 1/4-inch TRS sends (balanced, pre-converter)

Digital I/O
2 banks (16 ch) of ADAT optical I/O at 1x sample rates
2 banks (8 ch) of S/MUX optical I/O at 2x sample rates
Bank A switchable to stereo TOSLink I/O (optical S/PDIF)
1 x stereo S/PDIF I/O on RCA (up to 96 kHz)

Computer I/O
1 x USB-C 3.2 Gen 1 (5 Gbps) Type C - USB2 compatible USB audio class compliant (no driver needed)
1 x IF-certified USB 3.2 Gen 1 Type C-to-C cable included
Compatible with USB Type A (with a C-to-A cable, sold separately)
Total USB audio channels: see "Total Audio I/O" below
Round Trip Latency (RTL): ~2 ms (32 sample buffer at 96K)

Total audio I/O
28 in / 32 out (60 total channels) at 1x sample rates
20 in / 24 out (44 total channels) at 2x sample rates
10 in / 14 out (24 total channels) at 4x sample rates

MIDI I/O
1 x MIDI In
1 x MIDI Out/Thru
16 MIDI channels to/from computer host

Headphone
2 x 1/4-inch TRS stereo headphones
Output impedance: <1O
Max output: 14.4 dBu

Phantom power: 2 x individual +48V

Foot Switch
1 x 1/4-inch foot switch input
Mapping: pedal up/down to any host keystrokes

Sync I/O
1 x BNC Word Clock In
1 x BNC Word Clock Out/Thru
Sample rates: all (from 44.1 to 192 kHz)

Front panel
2 x XLR/TRS combo inputs
2 x 1/4" TRS headphone outputs
2 x potentiometer - headphone volume
2 x potentiometer - mic/instr input gain
1 x potentiometer - menu navigation
1 x large potentiometer - main volume
12 x switches - (2) 48V, (2) pad, (6) control room, (2) nav
1 x 3.9-inch 480 x 128 pixel 24-bit RGB TFT display
1 x latching power button

Power
Internal 100-240V autoswitching supply
50-60 Hz - 0.5A max

Dimensions and weight
(width x depth x height, enclosure only)
19 x 12.25 x 1.75 inches / 48.26 x 31.1 x 4.44 cm
11 lbs / 5 kgs

Notes: Capture your creativity with the Quantum ES 2 - the recording interface for self-made musicians and audio creators.

The culmination of 30 years of innovation

The ES 2 features two newly redesigned high-definition MAX-HD mic preamps with +75 dB of gain, making it ideally suited for today's most popular microphones. Guitarists and bassists will love the instrument input, co-developed with Fender engineers. An Auto Gain button sets the perfect gain level for your microphones and instruments, while an illuminated push encoder provides flexible control over gain level and output volume. And bright and responsive LED metering provides easy visual feedback for your inputs and outputs, making it great for self-produced recording.

High performance signal flow

The custom low-latency driver provides exceptionally low audio latencies when recording, and high-performance converters complete the front end to ensure that you sound your best throughout your entire signal chain.

All-new Max-HD mic preamps

The Quantum ES 2 features two newly designed mic preamps with +75 dB of gain. The culmination of 30 years of innovation, MAX-HD preamps are transparent, low-noise, and digitally-controlled analogue, making them ideally suited to today's most popular microphones.

Co-developed with Fender

Built by the best ears in the business, guitarists and bassists will love the instrument input co-developed with Fender engineers - industry experts who designed them specifically for guitar and bass.

Professional recording software included

Leap into 6 months of Studio One+ with access to Studio One Professional Edition, add-ons, and more.

Auto gain

An Auto Gain button sets the perfect gain level for your microphones and instruments, so you get the perfect take every time.

Universal control app

Quantum works on any mobile or desktop device, so you're ready to record whenever inspiration strikes - whether on your phone, tablet, or in your home studio. Critical preamp functions like preamp gain, phantom power, and more can be controlled with the Quantum ES 2's top panel, or right from Studio One and the Universal Control app, so you can dial in the perfect gain staging without looking away from your recording session

Technical Specifications

Inputs and Outputs

Microphone Inputs: 2
Guitar Inputs: 1
Line Inputs: 2
Line Outputs (DC coupled): 2
Headphone Outputs: 1
USB-C ports: 1
Aux power ports: 1
AD / DA Conversion
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192
Bit Depth: 24

Analogue I/O

Inputs
Microphone (CH 1 - 2)
Connector Type: 2x Combo-style, XLR / TRS
Max Input: +14 dBu (balanced, minimum gain)
Gain Range: 0 dB to +75 dB
Frequency Response: 20 Hz to 20 kHz, +/- 0.2 dB (unity gain, reference 1 kHz)
Dynamic Range: 113 dB (A-weighted, minimum gain)
THD+ N: 0.001% (1 kHz, minimum gain)
EIN: -129 dBu (max gain, 150 Ohms, 22 kHz BW, A-weighted)
Input Impedance: 1600 Ohms
Line In: (CH 1 - 2)
Connector Type: 2x Combo-style, XLR / TRS
Max input level: +15 dBu (balanced, minimum gain)
Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (unity gain, reference 1 kHz)
Dynamic Range: 114 dB (A-weighted, minimum gain)
THD + N: 0.001% (1 kHz, minimum gain)
Input Impedance: 10K Ohms
Digital Trim: -10 to +10 dB

Instrument In (Ch 1)
Connector Type: 1 x 1/4-inch Female
Gain Range: -7 dB to +68 dB
Max input level: +15 dBu (unbalanced, minimum gain)
Frequency Response: 20 Hz to 20 kHz, +/- 0.2 dB (unity gain, reference 1 kHz)
Dynamic Range: 111 dB (A-weighted, minimum gain)
THD + N: 0.002% (1 kHz, minimum gain)
Input Impedance: 1M Ohms

Outputs

Main Out (CH 1 - 2)
Connector Type: 2x 1/4-inch Female, TRS
Max Output Level: +15 dBu (Balanced)
Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (unity gain, reference 1 kHz)
Dynamic Range: 117 dB (A-weighted)
THD + N 0.001% (1 kHz, +4 dBu)
Output Impedance: 51 Ohms
Trim Range: -inf dB to 0 dB

Headphone Out
Connector Type: 1x 14-inch Female, TRS Stereo
Max Output Level: 7.5 dBu (50 Ohms)
Frequency Response 20 Hz to 20 kHz, +/- 0.2 dB (unity gain, reference 1 kHz)
Dynamic Range: 111 dB (A-weighted)
THD + N: 0.02% (1 kHz)
Output Impedance: 22 Ohms
Trim Range: -inf dB to 0 dB

Electrical

Aux Power DC Connector USB-C (USB-C to USB-C cable required, not included)
Aux Power DC Requirements 5VDC, 1.8A

Mechanical

Product Dimensions
Length 6.9'' (175 mm)
Width 6.2'' (157 mm)
Height 1.9'' (48 mm)
Weight 1.5 lb (0.68 kg)

Notes: Capture your creativity with the Quantum ES 4 - the recording interface for self-made musicians and audio creators.

The Culmination Of 30 Years Of Innovation

The ES 4 features four newly redesigned high-definition MAXHD mic preamps with +75 dB of gain - making it ideally suited for today's most popular microphones. Guitarists and bassists will love the instrument inputs, which were co-developed with Fender engineers.

An Auto Gain button sets the perfect gain level for your microphones and instruments, while an illuminated push encoder provides flexible control over gain level and output volume. And bright and responsive LED metering provides easy visual feedback for your inputs and outputs, making it great for self-produced recording.

High Performance Signal Flow

This custom low-latency driver provides exceptionally low audio latencies when recording, and high-performance converters complete the front end to ensure that you sound your best throughout the entire signal chain.

All-New MAX-HD Mic Preamps

The Quantum ES 4 features four newly designed mic preamps with +75 dB of gain. The high-definition MAX-HD preamps are transparent, low-noise, and digitally controlled analogue, making them ideally suited to today's most popular microphones.

Co-Developed With Fender

Built by the best ears in the business, guitarists and bassists will love the instrument input co-developed with Fender engineers - industry experts who designed them specifically for guitar and bass.

Professional Recording Software Included

Leap into 6 months of Studio One+ with access to Studio One Professional Edition, add-ons, and more.

Auto Gain

An Auto Gain button sets the perfect gain level for your microphones and instruments, so you get the perfect take every time.

Universal Control App

Quantum works on any mobile or desktop device, so you're ready to record whenever inspiration strikes - whether on your phone, tablet, or in your home studio. Critical preamp functions like preamp gain, phantom power, and more can be controlled with the Quantum ES 4's top panel, or right from Studio One and the Universal Control app, so you can dial in the perfect gain staging without looking away from your recording session.

Key Features

4 x 4, 24-bit / 192 kHz USB-C Audio Interface
High-performance converters let you hear and capture audio with stunning clarity and fidelity.
Custom low-latency driver provides exceptionally low audio latencies when recording.
All-new, next-generation PreSonus MAX-HD preamp design provides transparency and accuracy across the frequency range with +75 dB of gain to maximize the performance for a wide range of today's most popular microphones for modern recording and broadcast.
Auto Gain button sets the perfect gain level for your microphones and instruments, so you get the perfect take every time.
Control your Quantum ES right from Studio One and the Universal Control app, in addition to hardware, so you can adjust preamp gain, toggle phantom power, adjust channel settings, and more without looking away from your recording session.
Perfect for dialling in optimal gain staging.
Bright and responsive LED metering lets you keep an eye on your input and output meters, perfect when recording alone.
2 balanced 1/4-inch TRS main outputs plus 2 balanced 1/4-inch TRS line outputs and 2 high-power headphone outputs for flexible monitoring. And built-in speaker switching lets you check your mix on multiple sets of studio monitors.
Loopback audio makes creating monitor and streaming mixes quick and easy.

Technical Specifications

Inputs and Outputs

Microphone Inputs: 4
Guitar Inputs: 2
Line Inputs: 4
Line Outputs (DC coupled): 4
Headphone Outputs: 2
USB-C ports: 1
Aux power ports: 1

AD / DA Conversion
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192
Bit Depth: 24

Analogue I/O

Inputs

Microphone (CH 1 - 4)
Connector Type: 4x Combo-style, XLR / TRS
Max Input: +14 dBu (balanced, minimum gain)
Gain Range: 0 dB to +75 dB
Frequency Response: 20 Hz to 20 kHz, +/- 0.2 dB, (unity gain, reference 1 kHz)
Dynamic Range: 113 dB (A-weighted, minimum gain)
THD+ N: 0.001% (1 kHz, minimum gain)
EIN: -129 dBu (max gain, 150 Ohms, 22 kHz BW, A-weighted)
Input Impedance: 1600 Ohms

Line In (CH 1 - 4)
Connector Type: 4x Combo-style, XLR / TRS
Max input level: +15 dBu (balanced, minimum gain)
Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (unity gain, reference 1 kHz)
Dynamic Range: 114 dB (A-weighted, minimum gain)
THD + N: 0.001% (1 kHz, minimum gain)
Input Impedance: 10K Ohms
Digital Trim: -10 to +10 dB

Instrument In (Ch 1-2)
Connector: Type 2 x 1/4-inch Female
Gain Range: -7 dB to +68 dB
Max input level: +15 dBu (unbalanced, minimum gain)
Frequency Response: 20 Hz to 20 kHz, +/- 0.2 dB (unity gain, reference 1 kHz)
Dynamic Range: 111 dB (A-weighted, minimum gain)
THD + N: 0.002% (1 kHz, minimum gain)
Input Impedance: 1M Ohms

Outputs

Main Out (Ch 1 - 2)
Connector Type: 2x 1/4-inch Female, TRS
Max Output Level: +15 dBu (Balanced)
Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (unity gain, reference 1 kHz)
Dynamic Range: 117 dB (A-weighted)
THD + N: 0.001% (1 kHz, +4 dBu)
Output Impedance: 51 Ohms
Trim Range: -inf dB to 0 dB

Line Out (Ch 3-4)
Connector Type: 2x 1/4-inch Female, TRS
Max Output Level: +15 dBu (Balanced)
Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (unity gain, reference 1 kHz)
Dynamic Range: 117 dB (A-weighted)
THD + N: 0.001% (1 kHz, +4 dBu)
Output Impedance: 51 Ohms
Trim Range: -inf dB to 0 dB

Headphone Out (1-2)
Connector Type: 2x 1/4-inch Female, TRS Stereo
Max Output Level: 7.5 dBu (50 Ohms)
Frequency Response: 20 Hz to 20 kHz, +/- 0.2 dB (unity gain, reference 1 kHz)
Dynamic Range: 111 dB (A-weighted) THD + N 0.02% (1 kHz)
Output Impedance: 22 Ohms Trim Range -inf dB to 0 dB

Electrical

Aux Power DC Connector USB-C (USB-C to USB-C cable required, not included)
Aux Power DC Requirements 5VDC, 2.6A

Mechanical

Product Dimensions

Length: 8.4'' (213 mm)
Width: 6.2'' (157 mm)
Height: 1.9'' (48 mm)
Weight: 1.8 lb (0.81 kg)

Notes: ***B-STOCK: Box damaged, product in perfect working order***


Offering the incredible versatility we've come to expect from Keith McMillen, the advanced K-Mix BLUE is a mappable, customisable control surface and integrated audio interface. A serious all-rounder.

Supplier's Notes:
K-Mix BLUE is a performance upgrade of our K-Mix high-quality 8×10 digital mixer, USB audio interface, and advanced touch-sensitive MIDI/DAW control surface.

The New K-Mix BLUE Edition features:

Upgraded, ultra-accurate and low noise uPre preamps

New ultra-durable ABS-Polycarbonate finish

Full Ableton Live 11 control surface integration.

Audio Interface

K-Mix is a pro-quality USB audio interface with transparent uPre preamps for quality recording in the studio or on the stage.

Programmable Mixer

K-Mix is a fully programmable mixer that features flexible routing, per-channel DSP, and can function without a computer.

Control Surface

K-Mix features an unbreakable precision opto-tactile control surface designed from the ground up to command any DAW.

Notes: Based on the Digiface Dante but with the added benefit of low-latency Ravenna audio-over-IP, the Digiface Ravenna offers 128 Ravenna channels and 64 MADI channels.

*** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

Supplier's Notes:
The Digiface Ravenna is a lightweight, portable audio interface, based on the proven Digiface Dante equipped with a RAVENNA module developed by DirectOut and features with everything that RME is famous for: USB 3, MADI, TotalMix FX and outstanding options in both USB and stand-alone operation.

Mobile RAVENNA Solution via USB

The combination of RME's renowned drivers (Mac/Windows) and DirectOut's RAVENNA implementation offer a reliable and flexible networked computer audio interface. Equipped with the latest TotalMix FX it can not only route, but also mix as many independent submixes as outputs are available. The included high quality phones output offers a quick listen to any audio channel, but can also be used as line output to provide an additional analog stereo mixdown.

RAVENNA & MADI

RME made the two BNC sockets for word clock I/O switchable to MADI I/O, with up to 64 channels. The total sum of Ravenna and MADI, 128 channels, are transferred via USB 3.0 and handled via the included RAVENNA web server or RME's TotalMix FX, for full and struggle-free control of all audio.

On the network side, the interface features a full-fledged RAVENNA stack with AES67 and ST2110-30/31 support and redundant audio-over-IP streaming as per ST2022-7. In addition, the interface can also be used as a mobile 64-channel RAVENNA/MADI converter without a USB connection to a computer. The coaxial MADI I/O connectors may also be configured to work as word clock sync I/O.

TotalMix FX and TotalMix Remote

Like all the latest RME interfaces, the Digiface Series also includes the powerful digital real-time mixer TotalMix FX. It allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs.

The Digiface Series includes a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and much more. The Digiface Series does not support DSP based effects (FX) like EQ or reverb.

Additionally RME's latest software, TotalMix Remote, enhances the power of RME interfaces by enabling remote control via iOS, PC or Mac. With a straightforward set up process - simply enter the IP address of the computer you would like to control with TotalMix Remote and get going - users can quickly adjust any aspect of TotalMix FX on a host system while walking around the studio with their tablet, or from a control room located elsewhere in the facility.

TotalMix FX - Mixing/Routing with superior features for Studio and Live Work

Since 2001 TotalMix added unlimited routing and mixing to RME's audio interfaces. Its unique capability to create as many independent submixes as output channels available turned it into the most flexible and powerful mixer of its kind.

RME USB - Transport audio with lowest latency and industry leading stability

Use your RME audio interface on Mac and PC with reliable, stable, and regularly updated drivers for RME products. RME Audio develops its own interface core, it's not dependent on 3rd parties for upgrades, modifications or bug fixes, so customers can use latest operating systems without interruption or delay."

DigiCheck - The Secret Weapon of High Resolution Audio Measurements

RME Audio interfaces not only provide you with a professional digital audio interface, but also with a free available software tool: DigiCheck, for metering, testing, measuring and analyzing digital audio streams.

Specs

Digiface Ravenna
Gigabit Ethernet Port

RJ45

100 Mbit/s, 1 Gbit/s
Standard port LEDs: yellow connected, green data transmission
Supports straight and crossover cables (Auto MDI-X)
Network-based remote control of the unit (TotalMix Remote)

RAVENNA Modul

Supports RAVENNA, AES67, ST 2110-30 / -31, ST 2022-7
Network Layer 3
Modes: Switched and Redundancy according to ST 2022-7
32 streams
128 channels Single Speed, 64 channels Double Speed, 32 channels Quad Speed
Clock sources: PTP, Internal
Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, +/-12.5 %
Routing: Channel-based routing matrix
Configuration: Browser GUI, globcon control, NMOS IS-04 / IS-05

MADI Input

Coaxial via BNC, 75 Ohm, according to AES10-1991
High-sensitivity input stage (< 0.2 Vpp)
Accepts 56 channel and 64 channel mode, plus 96k Frame
Standard: up to 64 channels 24 bit 48 kHz
S/MUX: up to 32 channels 24 bit 96 kHz
S/MUX4: up to 16 channels 24 bit 192 kHz
Lock range: 25 kHz - 54 kHz

MADI Output

Coaxial via BNC, 75 Ohm, according to AES10-1991
Output voltage 400 mVpp
Cable length: up to 50 m
Generates 56 channel and 64 channel mode, plus 96k Frame
Standard: up to 64 channels 24 bit 48 kHz
S/MUX / 96k Frame: up to 32 channels 24 bit 96 kHz
S/MUX4: up to 16 channels 24 bit 192 kHz

Output Analog Phones 129/130

Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz - 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 0 Hz - 45 kHz
Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
THD @ -1 dBFS: - 96 dB, 0.0016 %
THD+N @ -1 dBFS: -95 dB, 0.0017 %
Channel separation: > 100 dB
Output: 6.3 mm TRS jack, unbalanced
Output impedance: 2 Ohm
Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
Max power @ 0.1% THD: 50 mW

Word Clock In

BNC, not terminated (10 kOhm)
Switchable internal termination 75 Ohm
Automatic Double/Quad Speed detection and conversion to Single Speed

Word Clock Out

BNC
Max level: 5 Vss
Level with termination 75 Ohm: 4.0 Vss
Internal impedance: 10 Ohm
Output Analog Phones 129/130
Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz - 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 0 Hz - 45 kHz
Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
THD@-1dBFS:-96dB,0.0016%
THD+N @ -1 dBFS: -95 dB, 0.0017 %
Channel separation: > 100 dB
Output: 6.3 mm TRS jack, unbalanced
Output impedance: 2 Ohm
Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
Max power @ 0.1% THD: 50 mW

Digital

Clocks: Internal, RAVENNA (PTP), word, MADI
Supported sample rates: 44.1 kHz up to 192 kHz

Notes: Everything you need, nothing you don't.

The PreSonus AudioBox 96k Complete Bundle is your one stop shop for self-made audio creators seeking studio-quality sound. Featuring the high fidelity AudioBox 96 USB 2x2 / 24 bit / 96 kHz Audio Interface, pro recording software access with 6 months of Studio One+, a pair of powerful Eris 3.5 Studio Monitors packed with low-end punch, a pair of HD7 ergonomic high-definition headphones, and an M7 MKII professional cardioid condenser microphone, the PreSonus AudioBox 96 USB Complete Bundle gives you everything you need to create like a pro.

PreSonus AudioBox 96k USB Audio Interface

2x2, 24-bit / 96 kHz USB-C Audio Interface
Two combination mic/instrument inputs with high-quality mic preamplifiers
Low-noise, high-headroom design with +35 dBu of adjustable gain and switchable +48V phantom power for professional XLR condenser mics
1/4-inch stereo headphone output
Two balanced TRS 1/4-inch main outputs for studio monitors or other speakers

Pro DAW Recording Software Access Included

6 months of Studio One+ with access to Studio One Pro DAW recording software, add-ons, and more.

PreSonus Eris 3.5 Studio Monitors

5-inch, woven-composite, low-frequency driver
1-inch, ultra-low mass, silk-dome, high-frequency driver
50W, Class AB dual amplification
80 Hz to 20 kHz frequency response
98 dB SPL (Peak, @ 1 meter)
High- and low-frequency Acoustic Tuning controls
Balanced, 1/4-inch TRS inputs; unbalanced, 1/8-inch stereo and RCA inputs; and integrated stereo headphone amplifier with front-panel 1/8-inch output
Protection: RF interference, output-current limiting, over-temperature, turn-on/off transient, subsonic filter
Power Saver mode (engages after 40 minutes)
Comes with speaker wire, 1/8-inch TRS to stereo RCA cable, and stereo 1/8-inch TRS to 1/8-inch TRS cable

PreSonus M7 MKII Microphone

Versatile cardioid condenser microphone with mic stand adapter and windscreen.
Exceptional clarity throughout its frequency-response range, with a warm top end
Cardioid polar pattern
Mic stand adapter, 10' XLR cable, and mic pouch included
1-inch (25 mm) back electret condenser capsule
Rugged construction

PreSonus HD7 Professional Monitoring Headphones

Ergonomic high-definition headphones.
High resolution drivers
Precision-tuned acoustic chamber
Extended bass response
Comfortable and long-lasting ear pads
Lightweight

Notes: Everything you need, nothing you don't.

The PreSonus Quantum ES Ultimate Bundle is your one stop shop for professional studio-quality recording. Featuring the high-performance Quantum ES 2 USB-C Audio Interface with all-new MAX-HD mic preamps, a Studio One Pro software license and 12 months of access to tools, extras, add-ons, and more with Studio One+, a pair of powerful Eris 3.5 Studio Monitors packed with low-end punch, a pair of HD9 dynamic high-definition headphones, and an exceptionally clear M9 cardioid condenser microphone, the PreSonus Quantum ES Ultimate Bundle gives you everything you need to create like a pro.

PreSonus Quantum ES 2 USB-C Audio Interface

2x2, 24-bit / 192 kHz USB-C Audio Interface
High Performance Signal Flow - Custom low-latency drivers and low-noise converters.
All-New MAX-HD Mic Preamps - The culmination of 30 years of innovation, our rigorously redesigned preamps feature digitally-controlled analog with +75 dB of gain range.
Co-Developed with Fenderr - Front-facing instrument input engineered for guitarists by industry-leading experts.
Auto Gain - Dial in recording-ready levels, hassle-free.
Universal Control App - Full control and metering from your mobile device, desktop, or tablet.

Studio One Pro DAW Recording Software License Included

Studio One Pro software license and 12 months of access to tools, extras, add-ons, and more with Studio One+.

PreSonus Eris 3.5 Studio Monitors

3.5-inch, woven-composite, low-frequency driver
1-inch, ultra-low mass, silk-dome, high-frequency driver
50W, Class AB dual amplification
80 Hz to 20 kHz frequency response
98 dB SPL (Peak, @ 1 meter)
High- and low-frequency Acoustic Tuning controls
Balanced, 1/4-inch TRS inputs; unbalanced, 1/8-inch stereo and RCA inputs; and integrated stereo headphone amplifier with front-panel 1/8-inch output
Protection: RF interference, output-current limiting, over-temperature, turn-on/off, transient, subsonic filter
Power Saver mode (engages after 40 minutes)
Comes with speaker wire, 1/8-inch TRS to stereo RCA cable, and stereo 1/8-inch TRS to 1/8-inch TRS cable


PreSonus M9 Microphone

Exceptionally clear cardioid condenser microphone
Vintage-inspired sound
Satin nickel finish
Die cast zinc housing
18mm pure aluminium diaphragm
20Hz-20kHz frequency response
Shock mount

PreSonus HD9 Professional Monitoring Headphones

Dynamic high-definition headphones with high-resolution drivers
Precision-tuned acoustic chamber
Extended bass response
Comfortable and long-lasting ear pads
Lightweight and collapsible

Features

PreSonus Quantum ES 2 USB-C Audio Interface - High-performance 24 bit / 192 kHz USB Recording Interface.
Studio One Pro DAW Recording Software License Included - Studio One Pro software license and 12 months of access to tools, extras, add-ons, and more with Studio One+.
PreSonus Eris 5 Studio Monitors - 3.5-inch media reference monitors packed with low-end punch and studio-quality sound.
PreSonus M9 Microphone - Exceptionally clear cardioid condenser microphone
PreSonus HD9 Professional Monitoring Headphones - Dynamic high-definition headphones with high-resolution drivers.

Notes: ***B-STOCK: Box opened, product in perfect working order***


A multi-platform audio interface with support for high-resolution audio up to 24bit/192 KHz and combination microphone, line-in, and high-impedance value instrument support. Dual-channel outputs are also included as well as one USB-C port for power and one USB-C port for data transfer, that can also be used for power when connected to a PC. Both the Steep I and II include dual LED input level indicators, support for 48v phantom power, a stereo direct monitor button, and knobs to control main output volume, mix, and input gain levels.

Specifications

Frequency Response: 20 Hz to 20kHz: 0.07dB
THD+N: 0.0094%
Minimum gain: -1 dBFS input with 22 Hz/22 kHz bandpass filter
Maximum Input Level (minimum gain level):L +11 dBu
Gain Range: 50dB
Input impedance: 1.5M ohm

Line Outputs

Output Jack: 1/4" TRS jack*2 (support balanced signal)
Dynamic Range: 108dB (A-weighted)
Maximum Input Level (minimum gain level) : +5.746 dBu
THD+N: 0.019% (minimum gain, -1 dBFS input with 22 Hz/22 kHz bandpass filter)
Input impedance 430 ohm

Headphone Outputs

Output Jack: 1/4" TRS jack*1
Dynamic Range: 104.9dB
Maximum Input Level (minimum gain level): +9.738 dBu
THD+N: <0.002% (minimum gain, -1 dBFS input with 22 Hz/22 kHz bandpass filter)
Output impedance: <1 ohm

Notes: This is the world's most versatile MIDI Interface compatible with all major operating systems via USB. Easily configure MIDI split/thru, merge, reassign and filter out any MIDI message via the free UxMIDI Tools software.

Sync all your MIDI devices with extreme accuracy, transmit any MIDI message without data errors and drop-outs. Connect your computer, laptop, mobile device via USB-C with 48 MIDI channels over 3 virtual MIDI ports.

Enjoy ultra-low 3ms latency and smart connectivity for seamless wireless performance. Benefit from WIDI groups for wireless splitting (1-to-4) and merging (4-to-1) with USB-C or DC external power options.

Master your MIDI setup with precision using the UxMIDI Tools software, available for macOS, Windows, Android, and iOS. Customize routing, apply intelligent MIDI filtering, and perform robust message remapping effortlessly.

Stay ahead of the curve with integration and customizable expansions, ensuring your setup evolves with your needs.

Notes: This is the world's most versatile MIDI Interface compatible with all major operating systems via USB. Easily configure MIDI split/thru, merge, reassign and filter out any MIDI message via the free UxMIDI Tools software (Win/Mac).

Notes: What is WIDI Jack?

WIDI Jack is your virtual MIDI interface

Now you can connect all your MIDI devices with standard MIDI I/O wirelessly via Bluetooth MIDI.

Enjoy ultra-low 3ms latency and secure connectivity via Adaptive Frequency Hopping.

Smart Connectivity Algorithms

Latency is not an issue with WIDI.

WIDI distinguishes itself from any other Bluetooth MIDI technology available through its unique SCA technology.

SCA is a collection of highly effective algorithms that optimize performance and minimize interference.

Latency is reduced to an inaudible 3ms as measured between 2 WIDI devices.

MIDI transmits data at a standard rate of 31.25 kbps via cable. WIDI products go up to 400 kbps.

Plug, pair & play- Transmit and receive Bluetooth MIDI via standard TRS/DIN MIDI I/O ports

Wide compatibility- Add the right TRS/DIN MIDI cable to connect all your MIDI devices. Plus TRS type A/B switch.

Bluetooth 5- High performance wireless MIDI with a working range of 20m/65ft without obstacles

Smart Power Solutions- Works fully standalone via powered MIDI OUT. USB power for unpowered MIDI ports.

Ultra low 3ms latency- Breakthrough latency reduction of just 3ms between two WIDI devices

Bluetooth MIDI groups- Connect up to 5 Bluetooth MIDI devices per group via WIDI App or Group Auto-learn mode

Automatic pairing- Setup instantly. Operate easily, with convenient auto-pairing between WIDI devices

Magnetic design- Clever design solution with magnetic sticker to stick on any surface

Transmit any MIDI message- Transmit any MIDI message over Bluetooth including notes, CC, MIDI clock, SysEx and MPE.

WIDI App for iOS/Android- Get lifetime updates and personalise settings with latency or jitter optimisation

What can you do with MIDI over Bluetooth?

Fully Standalone. Completely Wireless. 100% MIDI.

Notes: Experience the perfect balance of power and form with the H2MIDI Pro.

Advanced features, engineered for excellence, designed for your workflow.

Seamlessly connect USB MIDI keyboards, controllers, and devices to traditional MIDI hardware without the need for a computer. Compatible with USB class-compliant MIDI instruments, including digital pianos, drum machines, portable keyboards, guitar pedals, EWIs, synthesizers, and more.

Accommodate up to 8 USB MIDI devices via an optional USB hub, providing flexibility for complex setups.

Enjoy bidirectional MIDI communication via 5-pin DIN MIDI ports, perfect for interfacing with MIDI hardware.

Easily connect to your computer via USB-C, offering 2 inputs and 2 outputs of virtual MIDI ports.

Compatible with leading operating systems, including MacOS, Windows, iOS, Android, Linux, and ChromeOS.

Master your MIDI setup with precision using the HxMIDI Tools software, available for macOS, Windows, Android, and iOS. Customize routing, apply intelligent MIDI filtering, and perform robust message remapping effortlessly.

Notes: WIDI distinguishes itself from any other Bluetooth MIDI technology available through its unique SCA technology. SCA is a collection of highly effective algorithms that optimize performance and minimize interference.

Latency is reduced to an inaudible 3ms as measured between 2 WIDI devices. MIDI transmits data at a standard rate of 31.25 kbps via cable. WIDI products go up to 400 kbps.

Notes: WIDI Bud Pro is your plug-and-play Bluetooth MIDI interface Simply add advanced wireless MIDI to PC, laptop and mobile devices without installing any drivers. Enjoy ultra-low 3ms latency and secure connectivity via Adaptive Frequency Hopping. Compatible with all major operating systems via USB

Notes: This professional 24-bit/192kHz USB-C audio interface boasts 2 inputs and 2 outputs with excellent quality, making it the ideal choice for anyone seeking exceptional audio quality and versatility. Positioned right inbetween the Amber i1 and the larger Amber i4, the Amber i2 offers a balanced blend of performance and affordability without quality compromises.

Flexible Monitoring with ADM (Advanced Direct Monitoring): Tailor your monitoring experience to your needs with various configurations and enjoy real-time, zero-latency monitoring for flawless recording sessions.

Professional Mixer: Easily mix the input sources and playback signals directly on the interface.

Bidirectional MIDI Ports: Connect your MIDI devices seamlessly and use the 2 ports as either inputs or outputs.

Modern, Eye-Catching Design: Featuring a sleek look with a functional LCD display and an amber-colored volume knob that stands out against the green sand main body color.

Ultra Low Latency Drivers: Experience high-performance audio with exceptional stability.

The Amber i2 combines top-notch features with an unbeatable price, delivering above-average quality and performance. Whether you're a seasoned professional or just starting your audio journey, the Amber i2 is your go-to interface for creating stunning audio.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Arturia's flagship audio interface is designed for maximum versatility as well as top quality sound. With 16 analogue inputs, 12 analogue outputs and an array of digital I/O including ADAT, MIDI and clock, your creative process won't be interrupted by reconfiguring your hardware.

Supplier's Notes:
AudioFuse 16Rig

Studio mastermind interface

AudioFuse 16Rig is a high-density audio interface that combines an unmatched array of connections with a creativity-first workflow, built to handle a hardware-focused setup and keep your devices always in sync, always sounding pristine, and always ready to go.

Make your sound count

Introducing an interface that lets you leave everything connected, route anything to anything, and be more creative with your projects.

A workhorse hub of connections and smart features designed to get the job done, no matter the complexity. A powerful, reliable production tool that can be moulded to suit your audio setup, your workflow, and your sound.

A standalone mixer

For DAWless recording, live mixing, and outside-the-box audio configuration, AudioFuse 16Rig just works. Fire up its two low-latency internal mixers for sessions away from the studio, process audio & MIDI without a computer connection, and save your configurations for instant recall and quick setup switching.

Intricate audio routing

Get hands-on with an interface that lets you configure its connections to suit any need, including multiple sends/returns for effects, quick A/B speaker monitoring, and more. The included AudioFuse Control Center even features a matrix for quick 'connect anything and everything' configuration.

Quantity, meet quality

Give every recording the shine, clarity, and projection it deserves with two high-quality digitally-controlled preamps and 24-bit AD/DA converters from ESS and Cirrus Logic. Whether it's red-hot synths, dynamic guitars, delicate vocals, or any combination of inputs, expect top-notch sound across the board.

Choose your workflow

Your interface should adjust to suit your setup, not the other way around. Control AudioFuse 16Rig's settings via the display or the included software, configure it for desktop or 1U rackmount operation, use the DC-coupled outputs to send signals to synth modules, and connect your high-impedance headphones.

It's time your music had an upgrade

x16 ADAT I/O
x8 Analog Line DC coupled Outputs
x16 Analog Line Inputs
x1 MIDI In & 2x MIDI Out/Thru
Wordclock I/O
24-bit AD/DA 192kHz
Creative FX Bundle Included

Smart design

Sometimes it's the little things that matter most. You need your gear to complement and enhance the way you work, and that's the driving force behind AudioFuse 16Rig.

See how every piece of the AudioFuse 16Rig puzzle fits together to deliver a dream interface for audio & music hardware lovers.

Premium FX included

Every AudioFuse interface comes with an ever-evolving suite of creative plugins curated from Arturia's award-winning FX Collection. Refine any incoming audio with vintage studio tools, get experimental with contemporary effects, and embark on a journey through classic & modern sounds with Analog Lab.

AudioFuse Range

The new studio reference

The AudioFuse interface range connects your computer to the world of music. Record with the highest quality, monitor with absolute precision, and bring all of your gear together to create the music you always wanted to.

Analogue signal path

The highest quality components are used in the input and output signal paths of the AudioFuse series, giving you an audiophile-quality experience with no compromise.

Powerful monitoring

Multiple outputs, integrated A/B switching, monitor mix options, and even headphone outputs with both 3.5mm and 6.35mm connectors. The AudioFuse makes monitoring a joy.

Huge versatility

Each AudioFuse interface has its own unique set of features designed to make recording as fun and easy as possible.

Main Features

16 x TRS analogue inputs
Includes 2 x high-quality digitally-controlled preamps
Inputs 3 & 4 also available as 3.5mm stereo input

12 x analogue outputs
Includes 8 x DC-coupled TRS line outputs
Stereo monitor outputs
6.35mm front-panel outputs for reamping, dual-headphones

2 x ADAT in, 2 x ADAT out

Up to 16 channels of I/O at 48kHz, 8 channels at 88.2/96kHz

Wordclock in & out

1 x MIDI in, 2 x MIDI out/thru
5-pin DIN connectors
Route MIDI standalone

Low-latency USB-C connection

Class-compliant MIDI
3 x USB hub connections

Two internal standalone mixers

No computer connection needed
Cue mixer for sub-mixing and added flexibility
Main mixer controllable by MIDI

Color display with rotary control & menu buttons
Desktop or 1U rackmount configuration
Includes AudioFuse Control Center
Includes AudioFuse Creative Suite

Analog Lab Intro
Comp DIODE-609* NEW
Pre 1973
Pre V76
Pre TridA
Filter MINI
Chorus JUN-6
Comp FET-76
Delay TAPE-201
Rev PLATE-140
Phaser BI-TRON

What's in the box

Box content
AudioFuse 16Rig unit
Power supply
2x USB cable

Instrument dimensions
size : 17.3 x 11.6 x 1.7 inches (493 x 294 x 43mm)

Platform requirements

Windows
Win 10+ PC: 4 GB RAM; Intel i5 CPU or faster
1GB free hard disk space
OpenGL 2.0 compatible GPU

Apple
10.13+: 4 GB RAM; Intel i5 CPU or Apple Silicon CPU
1GB free hard disk space
OpenGL 2.0 compatible GPU

Notes: ***B-STOCK: Box opened, product in perfect working order***


Serious mastering-grade kit. Stereo interface with high-end converters and headphone amp circuit for pristine sound quality. Proper clarity for critical listening.

*** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

Supplier's notes:
The RME ADI-2 Pro FS is a two channel 24-bit / 768kHz AD/DA converter and USB 2 Digital Audio Converter, audio interface and high-end headphone amp with new jitter rejection SteadyClock FS technology.

The RME ADI-2 Pro FS is the most flexible converter available with balanced and unbalanced I/O, two headphone outputs, DSP-based signal processing and RME's latest Steady Clock FS jitter rejection technology. It offers Class Compliant USB compatibility, sample rates up to 768kHz as well as DSD record and Direct DSD playback.

It boasts a raft of analogue and digital I/O, including two servo-balanced analogue XLR/TRS Jack inputs, two separate balanced and unbalanced outputs on XLR and TS as well as two headphone outputs. Digital I/O include optical ADAT, Optical and coaxial SPDIF and AES accessible via a breakout cable.

Furthermore, its Class Compliant UAC 2 USB 2.0 port offers iOS compatibility and is necessary for firmware updates. It can also work as a 6-in / 8-out audio on Mac OSX and Windows via WDM and ASIO.

Using the latest in A-to-D technology the ADI-2 Pro FS offers best possible sound with highest signal-to-noise ratio, super low THD and noise. It supports sample rates up to 786kHz PCM and DSD recording in dual mono design, with 3dB improved signal to noise ratio. Two digital-to-analogue converters are used for the separate stereo outputs. The latest Integrated Sample Rate converter takes care of clocking issues between S/PDIF and AES thanks to RME's latest SteadyClock FS technology.

A high-resolution display shows controls for the ADI-2 Pro FS unique features including DSP effects like 5-band parametric EQ, binaural crossfeed, adjustable loudness filter, selectable AD/DA filters and four analogue reference levels. Furthermore, M/S processing is provided with stereo width control as well as phase loop. The display also shows RME's famous Spectral Analyser and 30-band bi-quad filtered analysis tool.

Notes: One of the most trusted names in audio, MOTU deliver as always with the 16A, offering a whopping 32-in/34-out configuration over Thunderbolt or USB, all with pristine audio quality.

Supplier's Notes:
The 16A Thunderbolt audio interface provides industry-leading dynamic range and large console style mixing. With 64 channels of audio I/O (32 ins and 32 outs), the 16A also supports USB 2.0 audio class compliant connectivity that is USB 3.0 compatible.

As an interface, standalone mixer or patchbay, the 16A provides 32 separate inputs and 32 separate outputs, including sixteen balanced TRS analog inputs, sixteen balanced TRS analog outputs, and two 8-channel banks of ADAT optical digital I/O. Powerful DSP delivers large console style mixing with 48 channels, 12 stereo busses, and 32-bit floating point effects processing, including modeled analog EQ, vintage compression and classic reverb. The unit's extensive routing grid patches ins to outs, or splits inputs to multiple destinations.

Use the 16A as a stand-alone mixer and control everything from the 16A's innovative web app running on your iPad, iPhone, tablet, smart phone, and laptop. Connect a second MOTU AVB interface (1248, 8M or 16A) with a simple Ethernet cable. Add more I/O with the MOTU AVB Switch (sold separately). Build an AVB audio network with multiple switches and sub-millisecond latency, even over long cable runs. Stream hundreds of channels among devices and computers on the network. From initial tracking to final mastering, the 16A delivers superb sound quality, state-of-the-art operation, and reliable performance.

This box contains everything you need to turn your computer into a powerful 24-bit/192 kHz digital audio workstation. As a "hybrid" audio interface, the 16A offers flexible connectivity to your computer via ultra-fast Thunderbolt technology or class compliant, hi-speed USB 2.0, with 32 channels of pristine analog I/O, combined with 32 channels of digital I/O, for a total of 64 simultaneous audio channels.

Connect all of your studio gear, including synths, keyboards, drum machines and even effects processors. Record, monitor, route and process all of these live inputs using the professional on-board digital mixer - with no latency and no processor strain on your computer. Apply hardware DSP-driven effects processing to inputs, outputs, and busses independent of your host computer. Add Classic Reverb with lengths up to 60 seconds. Further sculpt your sound with gating, 4-band parametric EQ, and vintage compression modeled after the legendary LA-2A leveling amplifier.

Add more MOTU interfaces as your needs grow, connected to a state-of-the-art audio network using standard AVB Ethernet switches and CAT-5e cabling, with near-zero network latency, even over long cable runs (several hundred meters). Record and monitor up to 128 audio channels in and out, simultaneously, to a host computer through Thunderbolt. Route hundreds of audio channels among multiple devices and computers on the network.

Control all DSP-based mixing and effects, device settings, and network audio routing using your favorite web browser running on your laptop, tablet or smart phone connected wirelessly or locally to the 16A audio network.

From initial tracking to final mastering, the 16A delivers superb sound quality, state-of-the-art operation, and reliable performance.

Notes: ***B-STOCK: Box opened, product in perfect working order***


*** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

This compact, portable and lightweight audio interface (only 220 g /0.49 lbs) transfers digital audio data in SPDIF and ADAT format to Windows and Mac computers.

The latest Plug and Play technology guarantees a simple installation, even for the inexperienced user. Numerous unique features as well as RME's robust drivers enable a quick, efficient and comfortable operation of the Digiface USB.

The Digiface USB is an extremely compact & portable digital audio interface with 4 optical ADAT / SPDIF I/Os, and an analog high-quality line/phones output via 6.3 mm TRS jack. Continuing the legacy of RME's famous HDSP Digiface, a triple ADAT I/O interface with phones and PCI interface, Digiface USB simplifies connection with USB 2, does not need an external power supply, and even adds another optical I/O, resulting in 32 channels input and output each when using ADAT optical.

The analog output hosts channels 33/34, and can be used freely thanks to TotalMix FX, RME's routing and monitoring solution that knows nearly no limits in routing and mixing (the Digiface USB does not include FX).

Each single optical port can use either ADAT (up to 8 channels) or SPDIF (stereo). While the inputs adapt automatically to the received signal format, the outputs can be individually switched between ADAT and SPDIF operation. Supported are SMUX and SMUX4. Therefore at 192 kHz either 8 channels via 4 x SPDIF or ADAT are possible on both inputs and outputs.

Its small size, weight and bus-powered operation make the Digiface USB extremely versatile and useful. It could even serve as simple headphone amp for mobile use.

Like all the latest RME interfaces, the Digiface USB also includes the powerful digital real-time mixer TotalMix FX. It allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs. The Digiface USB does not have a DSP, so there are no FX available. Still it includes a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and much more.

Here are some typical applications for TotalMix:

- Setting up delay-free submixes (headphone mixes). The Digiface USB allows for up to 17 fully independent stereo submixes. On an analog mixing desk, this would equal 34 Aux sends.
- Unlimited routing of inputs and outputs (free utilisation, patchbay functionality).
- Distributing signals to several outputs at a time. TotalMix offers state-of-the-art splitter and distributor functions.
- Simultaneous playback of different programs via a single stereo output. The ASIO multiclient driver supports the usage of several programs at the same time. When done on different playback channels TotalMix provides the means to mix and monitor these on a single stereo output.
- Mixing of the input signal to the playback signal (complete ASIO Direct Monitoring). RME not only is the pioneer of ADM, but also offers the most complete implementation of the ADM functions.
- Integration of external devices. Use TotalMix to insert external effects devices, be it in the playback or in the record path. Depending on the current application, the functionality equals insert or effects send and effects return, for example as used during real-time monitoring when adding some reverb to the vocals.
- Every single input channel, playback channel and hardware output features a Peak and RMS level meter, calculated in hardware. These level displays are very useful to determine the presence and routing destinations of the audio signals.

Notes: Sound Starts Here

The M-Track Duo HD is a versatile new audio interface that provides value and ease of use without sacrificing the pristine quality that M-Audio products are known for worldwide. Whether you're just diving into the world of recorded audio or looking for a new production tool to add to your arsenal, the M-Track Duo HD is the first step in your next sonic journey.

Plug and Play - It's That Simple

The M-Track Duo HD is the path of least resistance between any song idea, podcast concept, or voiceover and a studio-quality finished product. There are no extraneous knobs or parametersionly the essentials for recording your next masterpiece. This simple, reliable, and powerful unit built with USB-C connectivity makes it easy to create and record studio-quality audio instantly with any modern DAW or iOS/Android device.

Grow As You Go

While the M-Track Duo HD and its streamlined controls are perfect for those just getting into recording their own audio, it is also optimized for growth and experimentation. Two inputs and outputs, high-quality audio resolution, and M-Audio's dedication to quality provide users with ample room to try out a vast array of recording setups and techniques to help push and hone their craft.

Professional Sound Quality

At 24-bit/192kHz audio resolution, zero-latency monitoring, and an onboard Crystal preamp that delivers 55dB of clear, chiseled gain, the M-Track Duo HD has the capacity to impress audio professionals and beginners all the same. With powerful, professional sound quality in a single compact and affordable unit, this interface is equally suited for bedroom producers, sessions musicians, podcasters, and everyone in between.

Convenient Connectivity

The M-Track Duo HD is compatible with any modern Mac, PC, iOS, or Android device via USB-C for convenient integration with popular DAWs and recording software.

Comprehensive Software Bundle

Every M-Track Duo HD comes with an extensive bundle of professional music production software to help propel each user's unique creative journey even further. This bounty of top-of-the-line DAWs, sample libraries, and effects are valued at over $1,200 and were designed by some of the industry's leading professionals. Studio staples like Ableton Live Lite are perfect for those just starting to experiment with production and engineering, while Reason+ puts a dizzying array of VSTs at your fingertips. Akai Professional MPC Beats is a benchmark tool for any beatmaker or ambitious songwriter. Plus, a two-month Splice subscription unlocks a vast library of samples and loops - many of which are used by music's best and brightest producers.

Notes: Everything You Need

The M-Audio M-Track Duo HD Producer Pack is the perfect introduction to the world of studio-quality audio for first-time producers, content creators, songwriters, and every kind of artist in between. This powerful and cost-effective bundle combines the M-Track Duo HD audio interface with M-Audio HDH41 over-ear studio monitoring headphones and a professional-grade M-Audio M100 condenser microphone.

At the heart of this bundle is the new M-Track Duo HD, an audio interface that embodies M-Audio's dedication to quality while remaining user friendly and intuitive. In conjunction with the comfortable and precise HDH41 headphones and crystal-clear M100 microphone, this versatile set of tools will level up the practice of anyone in the pursuit of studio-quality sound.

The Complete Package

The M-Track Duo HD Producer Pack includes everything you need to take that song idea, podcast concept, or audiobook from dream into reality.

The M-Track Duo HD audio interface features a set of pared-down controls with just the right amount of added flourish: two combo XLR/TRS inputs, two 1/4 TRS outputs, a headphone jack, ultra-transparent Crystal preamps, pro-quality converters, switchable +48V phantom power, USB-C connector, and access to included software to help enrich your sonic journey.

Experience precise, studio-quality monitoring with the included M-Audio HDH41 headphones and clean audio via the included M100 condenser mic.

From Podcast to Power Ballad-Sound Your Best

Consider the M100 condenser microphone the vocalist's Swiss Army knife-it is the perfect easy-to-use tool for capturing high-quality audio, whether it be a chapter of an audiobook narrated in a soothing tone or a soaring chorus belted at the top of your range. The M100's wide-range frequency response allows for the preservation of even the most delicate harmonic qualities and nuance. Thanks to an included mic stand mount, zipper carrying bag, and XLR cable, the M100 is ready for easy setup and storage right out of the box.

Precise Monitoring Power

Clear, balanced monitoring is an integral part of the recording process, and the M-Track Duo HD Producer Pack has you covered. The M-Audio HDH41 headphones provide premium 40 mm transducer elements enclosed in a comfortable, sleek, and durable design. With an impressive 20 Hz-20 kHz frequency response, the HDH41 can deliver a level of sonic clarity that extends beyond genre and medium, ensuring a premium monitoring experience for users of all different creative and professional backgrounds.

Take Your Rig on the Go

Even with the Producer Pack's tremendous sonic capabilities, each individual component is lightweight and compact enough to take with you to set up wherever and whenever inspiration strikes-perfect for songwriting retreats, offsite recording, and live events.

Professional-Grade Software

In addition to this collection of high-quality M-Audio hardware, the Producer Pack comes with a staggering bundle of software that gives you everything you need to start recording, mixing, and producing like the pros. Included are industry-leading DAWs, soft synths, sample packs, effects, and more from brands like Akai Professional, Splice, Ableton, Reason+, Antares AutoTune, and Splice.

Notes: Introducing SSL 18 - a new era in rackmount production technology from Solid State Logic. Developed from our unmatched expertise in analogue and digital design, SSL 18 offers exceptional audio performance with a studio session-ready feature set, delivered with the signature SSL sound and premium quality that professionals trust. Whether you are recording, producing or mixing, SSL 18 enhances production workflows while elevating the performance of your creative space, it's the ultimate centrepiece for your studio. Welcome to a new era in rack mount interface performance.

Next-generation 32-bit/192 kHz converters provide the platform for SSL 18's analogue design to shine, with unrivalled dynamic range performance of 120 dB across all microphone, line-level and instrument inputs - capture your sources like never before. Experience 125 dB dynamic range on the monitor and line outputs to hear your music with uncompromised fidelity. Need to work on headphones? No problem, with the unbeatable 120 dB dynamic range on offer from the dual-headphone outputs.

SSL 18 features eight high-performance SSL-designed mic pre's, with switchable Mic/Line configuration. Leveraging our renowned engineering expertise, they deliver ultra-low noise recordings and a huge dynamic range, making sure you capture every detail of the performance with stunning accuracy. Their advanced 2-stage circuitry ensures ultra-low distortion while maintaining the natural character of the source - or flip them into Legacy 4K Mode to add real analogue saturation and the iconic 4000 series sound to vocals, drums, and more. What's more, in Line mode the mic preamp stage is completely bypassed - perfect for connecting external outboard gear. Located on the front of the unit, inputs 1 & 2 also offer instrument/Hi-Z inputs to capture DI'd guitars and vintage synths/drum machines.

SSL 18 comes equipped with ten balanced line-level outputs located on the rear of the unit. To ensure optimal signal integrity and maximise headroom, line outputs 1&2 and 3&4 can be configured between +9 and +24 dBu, providing seamless compatibility with a wide range of studio monitors and vintage equipment operating at lower levels. Outputs 3 to 10 operate at +24 dBu, perfect for integrating professional outboard equipment. For producers, all outputs are DC-coupled and capable of sending control voltage to synthesizers and modular rigs.

Custom headphone mixes with two independent headphone outputs, configurable for different types with 'Standard', 'High Sensitivity', and 'High Impedance' settings. SSL 18's headphone outputs can also be repurposed as line-level outputs for added flexibility.

SSL 18 features a full monitor controller section with built-in talkback input. Line outputs 1&2 and 3&4 offer alternative speaker switching with Alt and Cut accessible via the monitor controls located on the front panel. Alternatively, customise the monitor controls via SSL 360 and tailor them to your workflow. SSL 18 also features a dedicated talkback input channel that can operate in MIC or LINE mode. LINE mode is great for re-processing audio through the classic Listen Mic Compressor - crush drums, parallel vocals, and more.

The SSL 4000 series consoles (often referred to as '4K') are renowned for imparting a unique 'mojo' to sounds and instruments that pass through them. This mojo comes from multiple stages of harmonic distortion from compressor VCAs, VCA faders, and other crucial components such as the transistor mix amps. Using modern components, SSL has developed a circuit that distils the two essential characteristics of the 4K sound into a single design. Legacy 4K Analogue Enhancement injects a controlled amount of finely-tuned, sweet-sounding harmonic distortion and a 'forward' yet musical high-frequency EQ boost into the signal path, giving your sound the 4K mojo and presence that artists and engineers have loved for decades.

A host of digital audio connections means that SSL 18 is ready to expand your I/O count whenever you are, with an additional 16 channels via ADAT and a further two via S/PDIF. SSL 18's dedicated Word clock output provides rock-solid clocking for integrating external digital devices into your system.

The SSL 18 mixer offers comprehensive management of all inputs and outputs, as well as detailed, scalable input metering in SSL 360-. In the SSL 18 mixer you can create and manage the control room monitor mix, as well as configure up to four independent mixes for performers. In addition, a flexible Mirror Routing system allows you to route any input or aux master directly to an output - perfect for feeding personal monitoring systems, external metering and outboard FX. Create different templates for tracking, mixing and more, then save them as a profile in the SSL 18 mixer.

Designed by the same engineering teams behind the esteemed range of analogue and digital mixing consoles, SSL's rich heritage can be found throughout the design and feature set. SSL 18 is the only product in its category that is designed to properly integrate with professional outboard gear, thanks to the +24 dBu capable inputs and outputs.

Notes: The original SSL 2 interface raised the bar by delivering a level of performance never seen before in its class. SSL 2 MKII builds upon the success of its predecessor, with a series of significant enhancements and carefully curated feature additions. Designed for musicians, producers and engineers who demand the highest standards in sound quality, SSL 2 MKII provides unmatched audio performance and a user-friendly design that caters for both those starting their creative journey and seasoned professionals. Fuel your creativity with SSL 2 MKII.

The SSL 2 MKII is equipped with two high-performance SSL-design microphone preamps delivering a massive 64 dB gain range, in conjunction with class-leading 116.5 dB dynamic range and -130.5 dBu EIN. The mic pre's can also operate in LINE mode for connecting synths or INSTRUMENT mode for connecting guitars/basses.

Located on the rear of the SSL 2 MKII are balanced Left/Right outputs for connecting your studio monitors. With professional-grade monitor outputs, the SSL 2 MKII delivers a 120 dB dynamic range, allowing you to hear every detail in your productions - from the most subtle riff to the deepest bassline. All outputs are DC-coupled, enabling you to send CV (control voltages) to synthesisers.

The SSL 2 MKII features dual headphone outputs conveniently located on the front panel. These re-engineered outputs (featuring high-current NJM headphone amps) are capable of driving any type of headphones, from small in-ear monitors to large-diaphragm models. Now boasting a jaw-dropping 119.5 dB dynamic range (MK I previously 111 dB), you have all the performance and clarity needed for accurate monitoring in any environment.

The SSL 4000 series consoles (often referred to as '4K') are renowned for imparting a unique 'mojo' to sounds and instruments that pass through them. This mojo comes from multiple stages of harmonic distortion from compressor VCAs, VCA faders, and other crucial components such as the transistor mix amps. Using modern components, SSL has developed a circuit that distils the two essential characteristics of the 4K sound into a single design. Legacy 4K Analogue Enhancement injects a controlled amount of finely-tuned, sweet-sounding harmonic distortion and a 'forward' yet musical high-frequency EQ boost into the signal path, giving your sound the 4K mojo and presence that artists and engineers have loved for decades.

Front-access jack sockets provide convenient access to 2 instrument DI inputs and 2 headphone outputs. On the rear, SSL 2 MKII provides Neutrik XLR Combo sockets for Mic/Line inputs, two balanced outputs and the USB connector.

Whether it's the professional-grade mic preamps, Neutrik XLR and jack connectors and Alps pots, or the exceptional level of performance delivered from next-gen convertors - all SSL products, including SSL 2 MKII, offer pro studio quality, from the front to the back. The MKII range of interfaces feature updated switches on the front panel with status LEDs so you know exactly how your device is configured when recording.

High-quality audio conversion is essential for artists and engineers alike and the SSL 2 MKII is built around Next-Gen 32-bit 192 kHz Converters. The result? Clearer, more detailed recordings, preserving every nuance of your performance. Capture stunning acoustic performances, record drum machines and synths with more punch and texture. Make your live streams sound like professional broadcasts and mix quicker and easier as sounds are more defined.

With dual professional-grade headphone outputs, SSL's next-gen converters and punchy mic/line inputs, you can capture sounds in all their detail and create music which stands out from the crowd. The SSL 2 MKII interface is your production sidekick in the studio, and when combined with the SSL production Pack gives you everything you need to make professional quality music.

SSL 2 MKII provides the essential connectivity for your microphones and instruments to write your next record. Low-latency monitoring to capture your best take and 4K analogue enhancement to make that lead vocal pop. Quickly create great-sounding demos all the way to finished tracks ready for streaming.
