Notes: Based on technology from the award-winning LVX and MercuryX pedals, the Enzo X is a superbly powerful six-voice modular synth, with polyphonic pitch detection and no special pickup needed on your guitar.

Supplier's Notes:
Combining 5 synth modes, Enzo X incorporates each of these into a modular system UI/architecture from both the award-winning LVX and MercuryX pedals.

In addition to being a 6-voice poly synth, Enzo X includes 3 reverbs which are adapted from Mercury X (Prism algorithm), 5 Drives (including Bitcrush), a full stereo 2.5 second Delay and 5 modulation types.

To make this complex system immediately intuitive to navigate, Meris again leveraged the simple and easy to use UI first developed for LVX.

Notes: The DigiTech FreqOut Natural Feedback Creator allows you to get sweet, natural feedback at any volume, with or without distortion. The FreqOut is perfect for situations where volume must be controlled like in the studio, with in ear monitors, or low-volume performance and practice. However, the FreqOut can also be used at gig volume to focus out-of-control feedback on a preferred harmonic at any stage position. The FreqOut uses a 9VDC power supply to easily integrate into your existing pedalboard.

General Specifications
ControlsFeedback, Momentary On/Off, Dry On/Off, Gain, Onset, Type, Effect On/Off
Signal to Noise Ratio> -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A Conversion24-bit
Power Consumption2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements9 VDC External Adapter (sold separately)
Power Adapter (Sold Separately)PS0913DC-04 (US, JA, EU, AU, UK)
Power Adapter Output9 VDC 1.3 A
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.8 lbs.
Audio Output
Output Type1/4" Unbalanced TS (Tip-Sleeve)
Max Output Level+10 dBu
Output Impedance1 kO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input
Input Type1/4" Unbalanced TS (Tip-Sleeve)
Max Input Level+5 dBu
Input Impedance1 MO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)

Notes: ALM's versatile MFX effects module translates to a compact pedal format, suitable for guitar, synth or any other instrument. Understated looks conceal a super versatile combo of 18 stereo programs with assignable parameters and MIDI control.

Supplier's Notes:
Standalone stereo multi effects processor

The 'MFX Pedal' brings all the effects and functionality of ALM's popular Eurorack MFX module to both guitars and synths in standalone form with 18 different fully featured effects programs and additional MIDI, Knob and Expression pedal control, tap tempo, an optional analogue gain stage and true relay (or DSP) based bypass.

Inspired by ALM's favourite classic hardware effects processors, the MFX incorporates DSP effect technologies from the dawn of digital effects in the 70s to the present day. Reshape sounds with the distortion and dynamics engines. Bend time space and pitch with multiple feature rich reverb and delay engines. Modulate signals with the flexible panner, frequency shifter, and range of ensemble effects. Fracture sounds with the one-of-a-kind granular and glitch engines.

The MFX Pedal user interface is designed to be familiar, quick and easy to use. Each program contains a wide range of controllable parameters both directly editable or freely assigned to knobs, MIDI or expression control. Each program includes factory presets as well as the ability to store and recall user presets. All states are preserved across power cycles.

Available for the first time outside of modular, the MFX pedal easily brings the character and uniqueness of ALM effects to your guitar rig, DAW-less setup, mixer effects send or synth collection.

Tech Specs
Power: 9V DC power, center negative
Current Draw: 100mA (200mA+ supply recommended)
Input Impedance: 1MOhm
Output Impedance: 1Kohm
Max Input level: +8 dBu (2 Vrms ~ approx 5Vpp)
Optional Gain Stage: +10 dB
Bypass: True Relay & Buffered DSP based
Expression input: 0-3V
Dimensions: 125x65x70mm
16 Bit / 44.1Khz Stereo processing with 32 bit floating point DSP
ARM CPU based DSP

Notes: When Empress released the original Compressor back in 2011, it quickly became a favourite among guitar and bass players alike who were searching for something more than the typical oversimplified controls found on most compressor pedals. Although our original Compressor sounded great on bass (and still does!) we set out to do even better.

On top of the full range of features and controls normally only seen in high end studio equipment, such as input and gain reduction metering, independent attack and release controls, a mix knob for parallel compression, and an external sidechain insert, we've now added a fully variable sidechain high pass filter, and a two position 'tone + colour' circuit which adds gentle tone sculpting and harmonic distortion, giving your bass some delicious character.

Specifications:
Input Impedance 1M
Output Impedance 2.2k
Frequency Response (-3dB) 10Hz - 20kHz
Distortion less than 0.1%
Noise -101dB
Power Input Voltage 9 - 18 V DC (Negative tip)
Power Input Connector 2.1mm barrel connector (Negative tip)
Power Consumption ~ 100mA
Enclosure Material Die Cast Aluminum
Input connector 1/4" Jack
Output connector 1/4" Jack
Height (Enclosure only) 1.5"
Height (including controls) 2.5"

Notes: Get lush EHX vibrato and chorus in a compact, pedalboard friendly package with unique control options!

No one does bucket-brigade effects like Electro-Harmonix and with the Eddy you get lush EHX vibrato and chorus in a compact, pedalboard friendly package with unique control options.

The Eddy gives you envelope and expression pedal control over modulation rate and depth. That means you can control either with your playing dynamics. Plus, if you plug in an EXP pedal, you can use it to control the rate or depth at the same time.

The Eddy also features LFO shape warping which can transform the shape of the modulation from a standard sine wave to something totally asymmetric. Plus, the pedal's tone control lets you make the sound brighter or darker.

EHX Founder, Mike Matthews, says: EHX's long history in creating bucket-brigade based pedals goes all the way back to the Electric Mistress Flanger, the Memory Man Analog Delay and the Clone Theory Chorus/Vibrato. The new Eddy springboards off that rich heritage and adds modern control to classic sounds.

Specifications

Circuit: Analogue with Digital Control
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 40mA
Year Released: 2021

Notes: Five decades of sound processing expertise distilled into a compact multi-effects pedal. Huge processing power derived from the H9000 Harmonizer, featuring classic algorithms and new effects.

*** New vocal algorithms added- updated April 2025 ***

Harmonizerr+ is Eventide's groundbreaking suite of vocal effects derived from the iconic Harmonizer platform.

Engineered with cutting-edge tech for shaping and transforming vocals in any setting-live or in the studio.

The H90 goes far beyond a standard effects pedal, now expanding its capabilities with two new studio-grade vocal algorithms: VocalTune and VocalShift.

VocalTune

From subtle pitch correction to bold experimental textures, VocalTune is the ultimate tool for vocal enhancement:
Precise scale quantization delivers flawless pitch control
Shape your voice with pitch and formant shifting
Gate and compression controls allow you to sculpt your voice with ease.

VocalShift

Transform your voice into a lush, vibrant choir with VocalShift. Create anything from subtle doublings to expansive vocal ensembles.

Three distinct voices, with pitch and formant per voice
Pitch-perfect harmonies with intelligent scale recognition
Perform features include voice soloing, pitch glides and pitch holds

H90 Control Software Update

The latest H90 Control software for Mac, PC, and iPad, has received some important quality-of-life updates:

Intuitive parameter grouping puts all related settings at your fingertips
Streamlined workflow with a redesigned algorithm and preset selection
Enhanced zooming and resizing


Supplier's Notes:
Beyond the Effect Horizon

The H90 Harmonizer is Eventide's next-generation multi-effects pedal. Whether you want high-quality bread and butter effects or experimental sounds unheard, the H90 has everything you need to inspire your creativity with an intuitive UI designed with players in mind. Discover why top artists and producers have chosen Eventide through the years with 62 effect algorithms and hundreds of Program combinations curated for a variety of instruments and genres. With its comprehensive I/O and flexible routing options, the H90 is designed to be the heart of your rig.

New Technology, New Effects

H90 Harmonizer features modern ARM-based architecture derived from the world's most powerful effects processor, Eventide's flagship H9000 Harmonizer. This paves the way for the ongoing creation of more advanced effects processing techniques. As a result, the pedal not only offers the iconic reverbs, delays, modulation, and pitch shifting effects of the H9 Max but goes far beyond with 10 new powerful algorithms including state-of-the-art, fast-tracking, and warble-free Polyphonic Pitch Shifting. Eventide's proprietary SIFT (Spectral Instantaneous Frequency Tracking) technology clears the road ahead for next-gen effects both long imagined and unimaginable.

Live Performance Machine

The H90 Harmonizer is a live performance powerhouse! The front panel has been reimagined with five push knobs, seven LED buttons, and a hi-res OLED display for greater hands-on control and parameter feedback. Two large push knobs allow you to switch between SELECT, BANK, and PERFORM modes with ease. In PERFORM mode, you get six programmable footswitches. Map functions like tap tempo, preset, insert bypass or momentary states; use them to engage options like reverb freeze, pitch flex, or delay repeat; make multiple instantaneous parameter changes with three Hot Switches .The comprehensive UI allows you to control any parameter with ease. Adjust expression mappings by hand with the PERFORM HotKnob and engage up to six individual assignable parameters with the three push-button Quick Knobs. Get even more control with two inputs for expression pedals or auxiliary switches with up to three buttons. If that wasn't enough, take advantage of the pedal's extensive MIDI control. The H90 comes with hundreds of factory Programs which can be loaded using either SELECT or BANK mode. In SELECT mode, you can navigate your Playlist sequentially without ever missing a detail thanks to the OLED display. In BANK mode, you can quickly load from a bank of 3 Programs, perfect for cueing up a range of sounds for a song. Organizing your favourite sounds has never been easier, simply load a new Playlist and you're ready for the next gig!

Specifications

Inputs 1 - 4: 14 inch TS mono jack
Outputs 1-4: 14 inch TS mono jack
Exp/Ctl 1-2: 14 inch TRS / Expression pedal or Aux Switch
USB Type-C: Use USB 2.0 for control, updates, and MIDI
MIDI In: Five-pin DIN (Female)
MIDI Out/Thru: Five-pin DIN (Female)
DC Input Jack: 5.5/2.5mm plug / Center Positive (+)
Input Impedance (Inst. Level: >600k ohms
Input Impedance (Line Level): >80k ohms
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms
Maximum Input Level (Inst): +4dBu
Maximum Input Level (Line): +14dBu

Power
12V DC @ 1A / Center Positive (+), 5.5/2.5mm jack

Dimensions (Product)
English: 6.5" (W) x 5.25" (D) x 2.5" (H)
Metric: 170 (W) x 136 (D) x 68 (H) mm

Dimensions (Package)
English: 10.5" (W) x 7" (D) x 3" (H)
Metric: 265 (W) x 180 (D) x 75 (H) mm
Weight (Product): 1.85 lbs / 0.84 kg
Weight (Package): 3 lbs / 1.36 kg
Shipping Contents: H90, Eventide Sticker, 4x Rubber feet, Guitar pick, Universal power supply with plugs (US, UK, EU, AUS), USB A to Type-C cable, Quick Reference Guide

Notes: Get the sound that made the Classic 1970 Small Stone famous!

The EHX Small Stone Phase Shifter generates thick sweeping phase shifting with liquid transparency. Feedback colour control adds a tingling swirl. Blues players dig the Stone's rapid rotating speaker effect. Country players add tasty seasoning to their chicken pickin'. Metal-heads dig its jet plane swoosh.

Variable rate control allows slow and smooth to rapid edge frequency sweeps
Colour switch turns up the feedback for a more pronounced phase shifter effects
Tough and compact die-cast chassis
9V battery included

Specifications:

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 10mA
Year Released: 2006

Notes: Legendary fuzz with added features like a Bass Boost, Noise Gate, and adjustable Mids section for the most versatile Muff ever!

Long revered for its sweet singing tone and violin-like sustain, the classic three-knob Big Muff Pi has helped define the sound of rock guitar for over 50 years. Now, we've added some extras for those who crave more sound shaping control. The EHX Deluxe Big Muff Pi delivers all the classic sounds of the original NYC Big Muff Pi, plus more.

Added footswitchable Mids sections boosts or cuts an adjustable mids frequency for added definition or massive scooped tones. Add an optional expression pedal and turn the Deluxe Big Muff into an extreme fuzzed out wah!

The Attack control preserves pick attack with an enhanced version of your dry signal while the Bass Boost adds rumble at higher tone settings. The Gate removes unwanted hiss for a more dynamic performance.

This is the most versatile Big Muff ever!

Specifications:

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 22mA
Year Released: 2014

Notes: Your quest for the perfect reverb pedal is answered!

The EHX Holy Grail Max, an easy to use, stellar sounding reverb pedal. The Holy Grail Max delivers four types of studio quality reverb: SPRING, HALL, PLATE and REVERSE all designed for the discerning guitarist but also great with other instruments on stage or in the studio. Included is an analogue wet/dry control that provides a constant volume curve as you turn the BLEND knob from fully dry to fully wet while also keeping your dry signal analogue through the pedal.

Specifications:

Circuit: Digital
Bypass: True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 80mA
Year Released: 2014

Notes: Transform your electric guitar into a sitar!

Very few instruments offer as much harmonic and dynamic flexibility as a sitar. Electro-Harmonix has streamlined the essence of the sitar into a compact enclosure that offers a polyphonic lead voice and tuneable sympathetic string drones that dynamically react to your playing. With the EHX Ravish Sitar Emulator, you can create your own custom scales for the sympathetic strings while you set the decay time for the lead voice.

Two expression pedal inputs allow you to bend the pitch of the lead voice and control the volume of the sympathetic strings simultaneously. These unique controls offer the player the ability to program the Ravish to become a totally unique and organic instrument unto itself.

The Ravish is a truly new design with the flexibility to be a crossover tonal wonder.

Download free Ravish settings

Transform your electric guitar into a sitar
Lead sitar voice tracks your notes polyphonically with a wide range of tonal possibilities
Selectable decay speed for the Lead voice
Sympathetic string drone simulation with a wide tonal range
Selectable keys and scales including major, minor and exotic provided for the Sympathetic strings
Power adapter included

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 160mA
Year Released: 2011

Notes: Compact multi-effect pedal combining the award-winning Soul Food Overdrive and Holy Grail Max Reverb!

The EHX Turnip Greens is a multi-effect pedal that combines the Soul Food Overdrive and Holy Grail Max Reverb.

The Soul Food delivers transparent sounds starting with clean boost and progressing all the way to intense overdrive. It's equally adept at adding punch to a player's tone, pushing an amp into saturation or in front of other dirt pedals driving them into new worlds of distortion.

The Holy Grail Max provides four carefully crafted reverbs: Spring, Hall, Plate and Reverse. A newly designed analog wet/dry control yields a constant volume curve as the Blend knob is turned from fully dry to fully wet, while also keeping the dry signal analog through the pedal.

A toggle effect-order switch, located in the middle of the Turnip Greens, selects whether the overdrive or reverb is first in the effects chain. Send and Return jacks let the player insert effects into the signal path between the two.

The Turnip Greens features an internal switch that lets the player select between true bypass or buffered bypass for the Soul Food section.

Soul Food goes from clean boost to classic distortion and can easily drive a guitar amp into saturation
Holy Grail Max delivers four studio quality reverbs: Spring, Hall, Plate and Reverse
An Effects Loop lets you put a single pedal or your entire pedalboard in between the Soul Food and Holy Grail Max
An Effect Order toggle switch lets you put either the Soul Food or Holy Grail Max first in the chain
Power supply included

Specifications

Circuit: Analogue / Digital
Bypass: Selectable True Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 125mA
Year Released: 2014

Notes: Introducing a new addition to the DigiTech Whammy Family -- Whammy DT! We've taken the premier pitch shifting effects pedal added drop tuning and true bypass to bring you the ultimate Whammy pedal, the Whammy DT. With the Whammy DT, you can modify your tuning without having to change guitars or pause awkwardly to make adjustments for the next song. Key changes are at the tips of your toes and take just moments, which is crucial when the audience is feeling your vibe. Pitch shifting effects really help your guitar performance stand out and the Whammy pedal has been the core pitch shifting effect for famous artists for over 20 years. Now add full drop and raised tuning in addition to classic Whammy shifting to your effects arsenal and find out why the Whammy DT is the premiere pitch shifting effects pedal for every guitarist.

General Specifications
D/A Conversion24 bit
Pitch Bend Range+2/-3 Octaves
Detune Range-4 to -30 cents
Drop Tune Range1-7 Semitones, Octave, Octave + Dry
Power Consumption2.6 Watts (< 288 mA @ 9 VDC)
Power Adapter9 VDC External Adapter
Sample Rate44.1 kHz
Frequency Response20 Hz to 20 kHz
Signal to Noise Ratio> -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
Dimensions
Height2.36"
Width8.2"
Depth7.73"
Audio Output
Output Type1/4" Unbalanced TS
Max Output Level+10 dBu
Output Impedance1 kO
Audio Input
Instrument Input Type1/4" Unbalanced TS
Max Input Level+5 dBu
Input Impedance1 MO
MIDI Input5-Pin Din
Footswitch Input1/4" TRS - for use with optional FS3X Footpedal

What's in the box?
1 x Whammy DT Pedal
1 x Power Supply

Notes: Flexible bass preamp and DI delivers powerful tone shaping capabilities in a rugged pedalboard-friendly package!

The EHX Battalion Bass Preamp and DI is packed with a four-band equalizer, fully-featured MOSFET distortion section with three signal path options, a compressor, a noise gate and a comprehensive I/O. An all-in-one tone tank for your bass guitar.

Four-band EQ tailored specifically for bass guitar. Includes controls for Bass (below 200Hz), Lo Mid (boost/cut at 280Hz Mid (boost/cut at 750Hz) and Treble (boost/cut above 2kHz)
The Battalion's distortion section delivers an awesome array of distorted bass sounds
Distortion section features Level, Blend, Drive and Tone controls plus a dedicated footswitch
Three signal flow modes yield unique tonal variations. Pre EQ, distortion comes before EQ. Post EQ, distortion comes after EQ and Dry EQ, only the dry signal mixed in with the Blend control is affected by the EQ
Compressor with dedicated pushbutton, amount control and LED adds thump and sustain to your bass sound
Noise Gate with adjustable threshold control eliminates noise and hum while preserving your attack and original tone
Flexible I/O allows the Battalion to fit perfectly in any bass rig or application
14 input jack includes switchable 10dB pad
Power adapter included

Specifications:
Circuit: Analogue
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 100mA
Year Released: 2017

Notes: Raise the bar when it comes to creating synth effects, sound layers, glissandos, infinite sustain and more!

Building on the synthesis platform of the award-winning Superego, the EHX Superego+ Synth Engine raises the bar when it comes to creating synth effects, sound layers, glissandos, infinite sustain and more. Plus, we've added a complete effects section featuring 11 effects types, an EXP input for effect parameter control/preset recall and an EXT jack for a 3-button controller.

The Superego+ is equipped with the following effects:
DETUNE: pitch detune, EXP pedal controls pitch
DELAY: warm, analog sounding delay, feedback is preset, EXP controls delay time up to 2 seconds
ECHO: pristine digital delay, feedback is preset, EXP pedal controls delay time up to 2 seconds
FLANGE: Electric Mistress style w/filter matrix, rate and feedback. EXP pedal controls rate
PHASE: Small Stone style phase shifting with rate and depth control. EXP controls rate
MOD: pitch-based vibrato or chorus. EXP controls rate
ROTARY: rotary speaker style sound. Depth controls tweeter/horn balance. EXP pedal controls rate
TREM 1: sine wave tremolo. EXP controls rate
TREM 2: square wave tremolo. EXP controls rate
PITCH: pitch shifting effect over a +/- one octave range. EXP controls whammy
FILTER: resonant low-pass filter. EXP pedal controls frequency

The pedal provides enough sound shaping control to please the most sonically adventurous player and is equipped with Dry, Effect, Attack, Decay, Threshold, Layer and Gliss knobs, plus Rate and Depth knobs for the Effects Section. Four foot-switchable Freeze modes: Moment, Sustain, Auto and Latch, plus a Live Effects mode where the dry signal is routed thru the built-in effects and the internal synth engine is disabled, are included.

The polyphonic Superego+ works with guitar as well as other instruments including bass, keyboards, vocals, drums, etc. and comes equipped with an EHX 9.6DC-200 AC Adaptor.

Creates synth effects, sound layers, glissandos, infinite sustain and more
Four Freeze modes
Built-in effects section with 11 effect types
EXP input for effect parameter control
EXP Presets sweep between snapshots of 7 knob parameters; create and save one set of snapshots for each FX type
Live Effects mode where the dry signal is routed thru the built-in effects and the internal synth engine is disabled
EXT jack for a 3-button controller
Power adapter included

Specifications
Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 140mA
Year Released: 2017

Notes: With 11 reverb types and a ton of "hidden" functionality, the Electro-Harmonix Oceans 11 reverb pedal could be your new go-to reverb pedal. You can tap into classic tones like hall, plate, and spring reverbs, including a brand-new spring reverb algorithm that sounds gloriously complex and rich - you can even double-tap the footswitch to "crash" the spring reverb. And you'll be able to cover a huge range of modern tones with a variety of modulated reverbs, shimmer reverb, reverse reverb, and more. A mode switch offers access to variations on many of the 11 reverb types. Complete with an infinite reverb mode for freeze-style effects, there is vast creative potential in the Electro-Harmonix Oceans 11 reverb pedal.

Reverb types:

Hall - rich and full sound of a grand concert hall
Spring - brand-new tube spring reverb emulation
Plate - lush and warm plate reverb
Reverse - each note fades in backwards
Echo - recirculates echoes through the plate reverb algorithm
Trem - hall reverb plus tremolo
Mod - modulated reverb
Dyna - swells, gates, and ducks in response to your playing dynamics
Auto-Inf - auto-infinite reverb, triggers a wash of reverb with each new note or strum
Shim - shimmer reverb with an octave-shifted wash that blooms behind your core tone
Poly - polyphonic reverb with two pitch shifts operating on your pre-reverb guitar tone

Notes: The Whammy Ricochet lets you bounce your playing up or down in pitch in controlled or crazy shifts. A momentary switch and customizable independent rise and fall time ballistics, allow you to get the Whammy action you know and love without the use of a treadle. Just hold your foot on the footswitch and let the Ricochet do the rest. Seven pitch selections - 2nd, 4th, 5th, 7th, Octave, Double Octave, and Octave+Dry, as well as a toggle to select up or down for the selected pitch. The Whammy Ricochet also has latching footswitch mode so you can rise or fall to pitch and stay there, and an LED ladder that shows your shift trajectory at all times. All these controls combine to create classic Whammy pitch-shifting as well as new sounds never heard before.

General Specifications
ControlsBallistics Control, Pitch Control, Range Switch, Momentary Switch, Effect On/Off
Sample Rate44.1 kHz in classic mode, 22 kHz in chords mode
Frequency Response20 Hz-16 kHz (classic mode), 20 Hz-11 kHz (chords mode)
Signal to Noise Ratio> -106dB (A weighted); ref = max level, 22 kHz bandwidth
A/D/A Converter24-bit
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
Power Consumption2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements9 VDC External Adapter (sold separately)
Power SupplyPS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
Power Adapter Output9 VDC 1.3 A
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.8 lbs.
Audio Output
Output1/4" Unbalanced (Tip-Sleeve)
Max Output Level+10 dBu
Output Impedance1 kO (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input
Input1/4" Unbalanced (Tip-Sleeve)
Max Input Level+5 dBu
Input Impedance1 MO (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)

Notes: A modern fuzz with old school roots and pays homage to one of the ways that early, distorted guitar and bass sounds were made!

The Ripped Speaker is a modern fuzz with old school roots and pays homage to one of the ways that early, distorted guitar and bass sounds were made. At low fuzz settings the pedal emulates the lo-fi distortion sounds of yesteryear, the kinds of sounds created by a razor blade applied to a speaker cone, a loose tube or a faulty channel on a recording console. When you crank the fuzz up the sound is transformed. It's modern and monumental with a searing, fully saturated, fuzz tone.

The Ripped Speaker's RIP knob is a bias control which sets the amount of clipping at the top and bottom of the signal wave form. It adds a lot of versatility and lets you tailor the character of the fuzz. Noon is neutral, a position where the fuzz is perfectly biased... fat, with a great low end and top end bite without being harsh. As you turn the knob clockwise the pedal produces a hard gating effect and the signal sputters and chokes. It's great for creating a dying battery effect. Turning the knob CCW produces yet a different style of fuzz with a smoother gating effect where the signal fades out quickly.

The Ripped Speaker's TONE control is active and delivers a tilt-shift type EQ. That means at noon the EQ is flat. As you turn the knob counter-clockwise the frequency response gets darker with more pronounced lows and less highs. Going clockwise yields a brighter tone with more highs and rolled back lows.

The Ripped Speaker features true bypass switching, comes equipped with a 9 Volt battery and accepts a standard EHX 9 Volt power supply.

Versatile pedal delivers fuzz that goes from old school to modern
Bias control
Active tone control
True bypass switching
Pedalboard-friendly size
9V battery included

Specifications:
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 10mA
Year Released: 2021

Notes: An ultra-compact workhorse that's perfect as part of a portable guitar rig, or as an emergency backup should your main amp break down.

The 15Watt Howitzer guitar amp/preamp is an ultra-compact workhorse that's perfect as part of a portable guitar rig, or as an emergency backup and gig saver should your main amp break down. It's super flexible, like a musical chameleon, and depending on the gear you use and your style, will fit in the broadest range of genres.

The 15Watt Howitzer's Volume and Gain controls let you go as clean or as crunchy as you want while the Bass, Mid and Treble knobs provide plentiful tone shaping. Its FX Loop gives you the option of putting effects like reverb and delay after the preamp. Of course you can still run your guitar straight into pedals and then right into the 15Watt Howitzer's input jack.

EHX's Founder, Mike Matthews, said: Dig it! The sandwich-sized 15Watt Howitzer is perfect as part of a compact guitar rig or backup. But the thing I dig the most, is the tone that emanates from the Howitzer. It's super versatile and depending on what kind of setup you're running fits into any style that's your bag!

15 watts of power, but small enough to fit on a pedalboard or pack in a gig bag
A full set of sound shaping controls: Volume, Gain, Bass, Mid and Treble
Bright/Norm switch: choose between a subtle top boost with more presence or a slightly darker top end
Solid-state class D amp design for maximum output efficiency and minimal space requirements.
FX loop with Send/Return jacks lets you place effects between the 15Watt Howitzer's preamp section and Volume knob
Power adapter included

Specifications:
Circuit: Analogue
Audio: Mono
Power Supply: 24VDC/1000mA power adapter included
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 100mA
Year Released: 2021

Notes: The Nano Pulsar takes tremolo beyond the ordinary and mundane. Equipped with a collection of tremolo-modulating waveforms and the option of operating in Triangle or Square Wave modes, the Nano Pulsar is a tremolo/panner treasure chest. In mono, it's simply amazing, or, connect it in stereo to create shifting waves of sound that surround you and fill your space with weaving, pulsating energy.

For all its power, the Nano Pulsar's layout is intuitive and using it is easy. There's often a perceived volume drop with tremolo when the effect is engaged so we've included a Volume control. It allows a player to fine-tune their output level when the effect is on, and is a very useful addition.

The Nano Pulsar's Depth knob adjusts the amount of tremolo applied to the signal. Past maximum (around 1 o'clock) the modulation becomes asymmetric and warps the audio signal between positive and negative phase. This creates a unique style of tremolo which sounds great alone or can be used in combination with other effects like the Oceans 11's Shimmer patch to produce compelling synth-like sounds and textures.

The Rate knob provides a full range of speed adjustments for the tremolo or pan effect, and when you start to max out the Rate and Depth controls you enter ring modulation territory for a surreal sonic joyride!

Unlock a world of advanced sound shaping and control. Create tremolo and panning effects that go from sublimely beautiful to downright shocking. The compact Nano Pulsar will be your do-it-all, go to pedal for all things tremolo and panning.

Specifications

Circuit: Analogue
Bypass: Buffered Bypass
Audio: Stereo Out
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 30mA

Notes: Hizumitas was designed for the one and only Wata from the legendary experimental band Boris, one of the heaviest bands ever to come out of Japan. The trio of guitar sorceress Wata, drummer and vocalist Atsuo, and double-neck bassist, guitarist and vocalist Takeshi has almost 100 releases filled with genre and brain-melting music.

In their nearly three decades together, Boris has infused doom, hardcore, thrash, noise-core, ambient, free improv, drone, psychedelia, and more into their extensive discography. Boris is also known for their unique collaborations with mutually adventurous artists, including American Doom mongers Sunn O))), noise legends Merzbow, Keiji Haino, and Ian Astbury of The Cult.

Wata, always seen and heard on stage wielding her black Les Paul Custom, mixes killer riffs with searing, fluid, or jaggedly melodic leads and controlled walls of feedback, often with help from an EBow. It's a connection of chaos and melody that has enchanted Boris fans worldwide and influenced many bands that have followed in their considerable wake. Simply stated, no other band sounds like Boris, and no other guitarist rocks like Wata.

But with EQD's Hizumitas fuzz on your pedalboard, you can carve out your own singular, mega-heavy tone.

Hizumitas is a faithful recreation of Wata's go-to distortion pedal, the Elk BM Sustainar. The Elk is a Japanese variant of the very well-known "Triangle" BMP. The designers at EQD tried several vintage BMP's during development, found that each pedal was wildly different and realized that to truly capture the magic they needed the original. Wata graciously sent her beloved pedal halfway around the world, and EQD discovered that it had something special the others didn't have: heavy saturation with a gritty edge and massive bottom while maintaining a clear and dynamic tone with enough mids and top end to cut through any sludge. The studious wizards at EQD have built all of those characteristics into the Hizumitas.

Notes: A unique take on delay and looping, the Meris LVX is designed for ultimate flexibility when processing guitar, synth or line level sources. Stereo in/out, fully customisable signal path and supreme sound quality.

Supplier's Notes:
Meris LVX Modular Delay System

LVX is a Modular Delay System which breaks the paradigm of pre-set delay types in favor of freedom and flexibility.

A completely new UI and user experience has been designed from the ground up to make LVX immediately intuitive to navigate. The architecture of LVX allows ultimate creative freedom to design a custom delay.

The pedal features discrete processing elements and control signal modifiers that can be connected as desired for nearly infinite flexibility in crafting custom sounds. Make room for new memories.

Specs

Conversion: 24 bit A/D and D/A
DSP: 32 bit floating point
Sample Rate: 48000 Hz
Input Impedance: 1 Meg Ohm
SNR: 115 dB Typical
Frequency Response: 20Hz-20kHz
Max Input Level: +9 dBu (instrument level setting), +12.5 dBu: (line/synth level setting)
Power: 9V DC center-negative, 300mA, 2.1mm jack
Bypass: Selectable True Bypass (Relay) or Analog Buffered Bypass
Dimensions 7.25" wide, 4.5"" long, 2" tall. (Same depth and height as all other pedals.)
Weight: 24 ounces

Notes: The polyphonic STRING9 String Ensemble transforms a guitar into nine different string ensembles and string synthesizers while requiring zero modifications, special pickups, or MIDI implementation. It relies on the same technology powering all EHX 9 Series pedals. In a 9 Series first, the STRING9 includes the signature EHX Freeze effect on 3 of the presets to sample and hold notes and chords with infinite sustain.

A rotary switch on the STRING9 allows the player to select the sound of their choice, as follows:

SYMPHONIC: Re-creates the sound of a large symphony orchestra and features an octave down effect on the lower range of the guitar for a full sound
JUNE-O: Emulates the Junor analogue string synthesizer sound
PCM: Sound of a small string section sampled by a vintage PCM keyboard producing a warm vintage string sound
FLOPPY: Emulates the sound of an Orchestronr optical disc playback sampler, warble included
AARP: Emulates the classic ARP Solinar string synthesizer
CREWMAN: Emulates the Crumar Performerr analogue string and brass synthesizer; Floyd in a box
ORCH FREEZE: Orchestral sound with EHX Freeze effect
SYNTH FREEZE: String synthesizer sound with EHX Freeze effect
VOX FREEZE: Mellotronr choir and strings sound from the EHX MEL9 with EHX Freeze effect
The pedal is equipped with independent Effect and Dry volume controls so players can precisely tune their mix at the Effects output jack, plus a Dry output jack that always outputs the input signal at unity gain.

Controls 1 and 2 have been designed to adjust specific parameters for each of the nine programs adding usability and flexibility to each sound.

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 100mA

Notes: Little box, big reverb. Specially designed for huge, cavernous echo effects and ideal for infinite tails and frozen sounds, the Blackhole is an exceptionally high quality pedal at a very reasonable price.

Supplier's Notes:
Create haunting echoes, ethereal landscapes and otherworldly ambience with Blackhole, a reverb pedal as big and as mysterious as the cosmos. Blackhole takes you there - beyond the ambience of mere earthly Halls, Rooms, Plates or Springs. Blackhole will take you on a journey from cathedral-type spaces to a universe of out-of-this-world soundscapes.

It includes onboard tone controls, modulation, and infinite reverb settings with mono or stereo operation, MIDI control, preset storing, and most importantly a new compact, easy-to-use interface.

Blackhole features two types of infinite reverb. Infinity mode continuously layers new sound on top of a suspended reverb. Freeze mode holds the effect allowing you to play over the reverb tail. The Freeze Footswitch allows instant access to this feature.

Unlike other reverbs which may offer pre or post modulation, Blackhole features modulation built into the reverb structure itself. It's essentially a big multi-voice chorus, with unique tone-shaping ability. You can utilize extreme settings to smooth out the edges.

Like all Eventide pedals, Blackhole allows you to fine tune every aspect of the effect. With a new, user-friendly, intuitive interface, just about anyone can shoot for the moon and land beyond the stars.

Input: 1/4" TRS / Mono = Tip, Stereo = Tip & Ring
Out 1: 1/4" TS Mono / Mono Output
Out 2: 1/4" TS Mono / Stereo Output
EXP: 1/4" TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch: Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch: Optimizes internal gain structure
Mini USB Software updates, MIDI I/O
DC Input Jack: 5.5mm / 2.1mm plug / Center Negative (-)

Input Impedance: 700k ohms Mono, 990k ohms Stereo
Max Input, Guitar: +8dBu
Max Input, Line: +14dBu
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms

Power: 9V DC @ 200mA / Center Negative (-)
Dimensions (product): 4" W x 4.25" D x 1.68" H / 102 mm x 108 mm x 43 mm
Weight (product): 1.06 lb / 0.48 kg
Dimensions (package): 7.7" W x 4.75" D x 2.8" H / 178 mm x 121 mm x 71 mm
Weight (package): 1.68 lb / .77 kg

Notes: The BeatBuddy is a drum machine in a stompbox, or a drummer pedal for short. Use this drum pedal for guitar and many other instruments. Further, we've meticulously recorded professional drummers and paired their samples with an algorithm that results in the best sounding drum machine you've ever heard.

In addition to being the most realistic drum machine on the market, it's also the easiest guitar drum pedal to use. That is to say, there's no fussing around with sequencers, and controlling the beat during a live performance is as easy as stomping on the pedal to add fills, transitions, and outros.

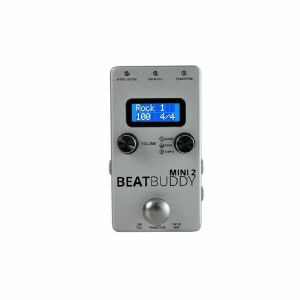

Notes: With the BeatBuddy MINI 2 Drummer Pedal, use your foot to take full control over your drummer including transitions, fills, intros, and more.

The ergonomic button makes this drummer pedal perfect for playing or jamming out when wearing socks (or barefoot)!

Over 200 styles and samples of professional drummers result in a versatile and organic feeling drum machine.

The BeatBuddy MINI 2 drummer pedal is a more compact and affordable version of the award winning BeatBuddy drummer pedal. It's used by School of Rock, Taylor Robinson Guitar, Frost School of Music (University of Miami), and more as a tool for efficient and engaging practice.

The ability to play along with beats sampled from professional drummers and control them with nothing but your feet will help you improve your musical talent faster than ever before. Most importantly, the fun you'll be having along the way will keep you coming back for more.

Notes: When you pair the Footswitch+ with the BeatBuddy or BeatBuddy MINI it gives you even more control over the beat. Right out of the box you get the ability to trigger accent hits, pause/unpause the beat, and navigate songs, genre, and tempo. However, when used with the BeatBuddy, you can do even more with the Footswitch+ like setting it to act as the main pedal.

But, it doesn't stop there! The Footswitch+ is hands down the best multipurpose 2 button footswitch on the market. It's built like a tank, is more comfortable than a footswitch has any right to be, and offers quiet, momentary switches.

Notes: Realistic simulations of spaces, as well as never-before-heard surreal ambiances are represented with stunning sound quality. Sporting stereo ins and outs, a small footprint and all the controls at your finger-tips, it strikes the perfect balance of control and ease of use, avoiding laborious menus. Presets, the versatile control port, and MIDI open up a world of possibilities for live performances. Whether you're looking for a classic spring, realistic room or new sonic flavors to expand your creativity, this pedal delivers. And....it's got a beer mode!

The pedal has 12 algorithm types, some include multiple variations. For example, vintage and studio plate, dark and bright springs. Also, as more algorithms get added you can update your pedal via the SD Card. It's the pedal that keeps on giving.

Pristine sounding classic hall, plate, spring and room sounds that rival or surpass studio units costing many times more.

A complete palette of tweak-able ambient sounds that offer the creative player so much territory to explore and make their own.

All the algorithm controls are sitting on a knob in front of you, no fiddling through laborious menus.

Many algorithms have infinite hold settings or the ability to tap in delay time.

Features a signal to noise ratio of >104dB and maintains an analog dry path.

Settings can be saved to 35 presets. With three stomp switches, accessing the presets is easy.

Bank style or scrolling style preset modes.

It can be configured to run with true bypass or buffered bypass if you want to hear trails.

3 variations to choose from, perfect for recording, practicing or for gigs without an amp.

Get hum-free operation when operating in stereo with two amps. Output 2 is isolated with a transformer to eliminate nasty ground loops.

48kHz sampling, with 24 bit conversion and 32 bit internal processing.

Dry signal is left untouched, and blended with the wet signal using VCA. (no zipper noise, hooray!)

The Universal Control Port allows you to connect an expression pedal, external tap switch, control voltage, external audio input and MIDI - all using a standard 1/4" jack!

The Advanced configuration menu lets you configure how your reverb works. Select from true or buffered bypass, 0-35 presets, MIDI configuration, Control port control(expression pedal, external tap, control voltage and MIDI) as well as which style of preset system to use, input signal pad, output transformer enable and more!

The enclosure measures approximately 5.7" by 3.75" by 1.75", which is delightfully small when considering all the features packed into this unit.

Notes: Multi Delay and Reverb effect pedal with inside routing and secondary reverb effects. One of the best Delay and Reverb algorithms in a metal box. Special select 3 classic Delays & 3 classic Reverbs . . . and we added a bonus "Shimmer" and "Freeze" effects which let you create a dreamy waterfall shimmer~ especially handy for intros, interludes, and endings. And now, because of NUX's latest Core Image Technology, the new Verdugo Series effect pedals offer pro-level sound enhancement.

Notes: The EHX Bass Mono Synth transforms your bass into eleven great sounding synthesizers... from vintage synth emulations to thick, stacked voices to deep pulsing sounds and more.

Its intuitive layout makes it easy to use and easy to dial in good sounds quickly. DRY controls the volume of your dry bass signal at the Synth Output. SYNTH controls the volume of the Synthesizer sound at the Synth Output. Used together they let you create just the right mix. The SENS control, short for sensitivity, adjusts how your playing dynamics trigger the synthesizer and allows you to fine tune the way the pedal responds to your bass rig and playing style.

With the CTRL knob you can adjust a key parameter for each of the eleven synth types. It varies depending on the preset and provides more tweakability for customizing your sound. There’s also an EXP input which lets you control an entirely different parameter in real-time with an expression pedal!

Using the built-in Preset footswitch, a user customizable preset for each of the eleven synth sounds can be created, saved and recalled. The factory presets are also easy to restore should you wish to.

From lush, warm sounds to sharp, percussive stabs, the Bass Mono Synth puts a collection of cool bass synths at your fingertips.

Notes: Produces volume and reverse swells, backward tape sounds, artificially short staccato notes and bowed instrument effects!

The circa-1980 Electro-Harmonix Attack Decay is a sought after prize among vintage pedal aficionados. Originally called a Tape Reverse Simulator, it's known for producing volume and reverse swells, backward tape sounds, artificially short staccato notes and bowed instrument effects. The freshly designed EHX Attack Decay reinterprets the classic and keeps its cool factor, but adds some modern features for convenience and enhanced functionality.

It can produce a single volume envelope like the original, or, with Poly engaged, put separate volume envelopes on each note you play. The built-in Harmonix fuzz is now a fully controllable distortion with gain, tone and volume controls. The effects loop allows the musician or sound designer to place the volume envelope onto whatever signal is present at the Return jack. Expression pedal/CV input and three user presets give the user total control over their Attack Decay!

Volume envelope manipulation with adjustable Attack and Decay times
Mono mode: one volume envelope at a time, the envelope resets when you play a new note
Poly mode: gives each note you play its own envelope
Built-in, fully adjustable, Harmonix fuzz enhances the volume envelope effect and produces bowed instrument sounds
Built-in effects loop allows for your own pedals to be inserted onto the volume envelope
Expression pedal or CV control over every knob on the Attack Decay
Save and recall up to three presets
Power adapter included

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.75 x 4.13 x 2.25
Current Draw: 140mA
Year Released: 2019

Notes: EarthQuaker Devices Special Cranker

An Overdrive you can trust

The Special Cranker is an all-discrete analogue distortion enhancement device designed to give your signal some extra grit and boost without drastically altering your tone and retaining all of the natural nuances and character of your amp. Think of it as sticking an extra preamp tube in your amplifier for more saturation. Single notes will blossom and bloom with rich harmonics and singing sustain with responsive, tube-like sag. Power chords will sound thicker and crunchier, a little more ragged around the edges. Complex chords will remain distinct and complex, as the Special Cranker is designed to preserve your tone's integrity without muddying up the low-end or smearing the midrange.

The Special Cranker picks up where the beloved Speaker Cranker left off. It has the same spongy, dynamic, and touch-sensitive character of the original but with more gain, double the output volume (now with a user-friendly Level control), an added Tone control to shape your signal, and a diode selector switch featuring the original asymmetrical Silicon diodes as well as a hot, new Germanium diode option.

The More control goes from nearly clean to a medium gain overdrive when at maximum. This control adjusts the bias of the transistor, so you may hear a little noise as you turn the control. Don't freak out; it's totally fine. The gain characteristics are dependent on which diodes are chosen. When the Germanium diodes are selected, the Special Cranker delivers a softer, more rounded response with tamed highs and lower output, while the Silicon diodes add a brighter, more modern edge and higher output. Both are exceptionally responsive to playing dynamics and have excellent clarity. The Tone control gives the user full command over treble frequencies, cutting the highs when counter-clockwise and adding a slight high-frequency boost when turned clockwise. The Level control adjusts the output from nothing to nearly double at maximum.

Tech Specs:

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 15 mA
Input Impedance: 5M P
Output Impedance: <25 kO

Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power:

This device should be powered a standard 9-volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise.

The Special Cranker can be safely operated from 9-18 volts.

Notes: The #1 EQ pedal returns - better than ever

Empress Effects have brought back the most sought-after Parametric EQ pedal, with groundbreaking upgrades.

Everything people loved about the original ParaEq was kept, and more fidelity and control have been added.

More Control

Whether you're trying to cut through a mix or fix a feedback issue, you need precision! The ParaEq MKII offers the most control of any pedal EQ on the market.

More Sweetness

Effortlessly sweeten your tone with beautiful sounding, super smooth Baxandall filters for broad high and low frequency shelving adjustments on the Deluxe.

More Power

The ParaEq MKII pedals operates internally at 27V, providing clean headroom without unwanted clipping.

More Purity

This pedal is able to offer the most control without degradation to the tone due to minimal circuit topology00-the opposite of graphic EQs.

Why Choose Parametric EQ over Graphic EQ?
Parametric VS Graphic EQ Graph
Graphic equalizers provide a convenient visual sense of the EQ curve. However, there is a tradeoff in transparency and precision.

The graph here shows the ParaEq MKII Deluxe (cyan) and a 7-band graphic EQ pedal (magenta) both providing a +4dB boost at around 2 kHz. As can be seen, the ParaEq is much more precise in the changes it can make, whereas the graphic EQ affects nearly the entire frequency spectrum. Furthermore, at around 10kHz the ParaEq is providing unity gain, whereas the graphic EQ is attenuating the signal by nearly 6dB. This makes the ParaEq a more transparent circuit than the graphic EQ.

This combination of transparency and precision is why recording studio control rooms are dominated by parametric equalizers, and why they're a great choice for creative and corrective EQ on your pedalboard.

Which ParaEq Do You Need?

The original ParaEq has been loved and trusted by musicians on a variety of instruments for over a decade. Both the ParaEq MKII and the ParaEq MKII Deluxe feature a low-noise, transparent signal path that is extremely versatile.

With three fully parametric bands, you can simultaneously achieve broad tonal shaping and precise fine-tuning to sculpt your perfect sound.

The ParaEQ MKII Deluxe will appeal to players who:

Need high-pass and low-pass filters for precision work at the frequency extremes
Want the glorious sound of Bandaxall filters for sparkling high end or extra weight in the low end
Want to be prepared for any EQ situation

Specifications

Input Impedance: 1MO
Output Impedance: 100O
Frequency Response (-3dB): 22Hz - 25kHz
Total Harmonic Distortion: < 0.05%
Noise: > 107dB
Headroom: +30dBu
Input Voltage: 9VDC Centre-Negative
Required Current: 300mA
Power Input Connector: 2.1mm Barrel Connector
Height (Enclosure Only): 1.5"
Height (Including Controls): 2.5"
Length: 3.5"
Width: 4.5"
Weight: 1lb

Notes: Dual channel analogue overdrive with real tube-like compression featuring 3 clipping options with carefully hand picked germanium diodes, smooth and sensitive to picking strength.

3 different gain levels from clear boost with a touch of dirt to high gain overdrive, full EQ with air control to manipulate the presence of your pickups, a MOSFET boost circuit lets you push your amp into natural breakup.

Order toggle switch to add volume or an extra gain stage.
Side A: BB style circuit with bass, air, treble, drive and volume control
Ge, Si and LED asymm clipping toggle
3 level gain toggle.
Side B: MOSFET boost +20dB with level control
A > B or B > A stack order toggle
Top mounted jacks

Notes: A typically unique take on multi-effects from Soma, designed to induce meditative states. Hybrid analogue-digital delay/reverb/granular processing gives a range of creative approaches.

Supplier's Notes:
COSMOS is a drifting memory station designed to work with meditative states through music. The design of the controls, functions and generated soundscapes are intended to evoke, in both performer and listener, states and experiences inherent in meditation, such as limitless space, fluidity, spontaneous development, presence, the ability to hear, tranquility, the experience of subtle harmony and happiness enveloping the whole world.

From a functional point of view, COSMOS is a large array of sound memory, in which recorded sounds undergo constant recombinations, spontaneously generating an ever-changing soundscape. This is achieved in three ways - by a mathematical shift based on the relationships between large prime numbers (the size of all delay lines are different primes), an asynchronous operation of the LFO, and modulation with a slowly changing chaotic signal. As a result, it allows the endless layering and processing of various sounds, as in a looper, but without an intrusive, repetitive loop.

COSMOS generates rich, fluid and evolving soundscapes perfect for ambient music. Using COSMOS, you can play an entire meditative solo concert while being in a spontaneous flow and without using studio-prepared sequences, backing tracks and other things that can't be a reflection of the "here and now".

Specifications

Minimum input voltage: 0.35 V peak-to-peak
Maximum output voltage at line outputs: 11.3 V peak-to-peak
The maximum output voltage at the headphones output: 10.4 V peak-to-peak
Frequency response: 10-22000 Hz
Sound memory: 44.7 sec
Supply voltage: 12 V *
Power connector polarity: centre plus
Current consumption: 0.25 A
Dimensions: 342 x 153 x 68 mm
Weight: 2.2 kg

* Use only the power supply supplied with the device! In case of failure, it can be replaced with a high-quality modern switched-mode power supply with an output voltage of DC 12 volts, the center is plus and an output current of at least 0.5 amperes (more is fine). The power supply must have a wide AC input voltage range of 100-240 volts. Such power supplies have excellent output voltage stabilization required for the device. It is forbidden to use COSMOS with nonstabilized voltage from transformer power supplies. It can lead to damage to the device, which is not covered by the warranty repair!

Notes: Designed in collaboration with JHS, the Lizard King is an octave fuzz pedal for bass which builds on the success of the guitar-focussed Lizard Queen. Dynamically responsive fixed gain fuzz can be blended from fully wet to dry, while octave tone can be blended separately.

Supplier's Notes:
Octave Fuzz for bass and beyond!

Make way for the new heir to the octave fuzz throne, the Lizard King from Electro-Harmonix. Directly inspired by the EHX x JHS collaboration released in 2023, the Lizard King takes the gnarly and responsive octave fuzz circuit from the Lizard Queen and optimizes it for bass and beyond. With updated tone controls and a new Blend knob, the bass's fundamental tone and low-end is preserved while the top-end of the fuzz tone is shaped to fit or dominate any mix!

The EHX Lizard King is a fixed-gain fuzz that is dynamically responsive. Adjustments to your instruments volume affects the amount of fuzz. Lower instrument volumes create a clear, fuzzy overdrive, while full instrument volume sends the gain over the top for ripping riff and searing solo tones. The familiar VOLUME and OCTAVE knobs control overall output and octave blend volume respectively. New to the Lizard King, the BLEND knob sets the mix between your clean and fuzz tones to create the perfect balance of fuzz while retaining your bass's attack and low-end. The TONE knob is a low pass filter that rolls off the highs, while the SUN/SHADOW switch further enhances the tone of the octave fuzz and clean tones. SUN boosts the octave fuzz with a more driving midrange, and the clean tone accessed by the BLEND knob has more treble and bass frequencies. When the switch is set to SHADOW, the clean tone is unchanged, and fuzz tone is tighter.

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply:9V battery included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 8mA
Year Released: 2024

Notes: In 2025, MOOER has announced that it will be set to release its latest multi-effects pedal, the GS1000 Intelligent Amp Profiling Processor, an augmented intelligent amp profiling processor. Built on MOOER's advanced third-generation digital platform, the GS1000 introduces groundbreaking MNRS 2.0 technology, allowing guitarists around the world to emulate their favorite gear with immense precision -specifically, for distortion pedals, preamps, amplifier heads, and cabinets.

With this innovation, guitarists can fully capture the essence of their favorite guitar gear without owning the physical hardware, enabling them to carry their favorite tones wherever they go. Users are even able to use third-party IRs for cabinets of their choice, further enhancing the flexibility of this feature.

It's unforgettable how much MOOER's multi-effects pedals have impressed audiences so far, primarily thanks to their robust tone libraries. However, even still, the GS1000 continues to build upon this with storage for up to 120 sampling profiles, along with continued integration with the MOOER Cloud app. Essentially, this cloud integration facilitates infinite upload and download possibilities, giving users access to a global community of shared tones, widely expanding the number of accessible tones. More still, the GS1000's previously mentioned third-party IR cabinet simulations support up to 2048 sample points, guaranteeing studio-grade tonal accuracy across the board.

Even more impressive for the price is how the GS1000 inherits the dual-chain effects architecture that made previous MOOER gear so versatile, making it suitable for highly complex usage scenarios. With over 350 factory effects models and a Sub-Patch preset grouping mode, the GS1000 makes it far simpler for users to make seamless transitions between tones, all while maintaining effect tails to guarantee seamless transitions. Additionally, the reintroduction of the innovative AI-driven EQ Master builds upon MOOER devices' previous capabilities, using intelligent adjustments in real-time to match the musical style of players to tones, while still allowing manual tweaks for precise control.

Impressively, the GS1000 also comes packed with a Groove Station module, consisting of a combination of drum machine and looper features - including 56 high-quality drum kits! It offers a 480-second phrase looper with infinite overdubs, automated detection, and synchronization capabilities, resulting in an intuitive platform for solo jamming, composition, and live loop-based performance. Overall, the Groove Station acts as an all-in-one suite for creating full arrangements, without having to depend on additional backing tracks or bandmates.

Visually and functionally, the GS1000 really stands out thanks to its sleek visual design and enhanced user experience. For example, it features a convenient 5-inch high-resolution touch screen, which is also paired with ambient lighting to add a visually stunning element to the pedal. As a result, the GS1000 is not only designed for convenient touch-based control but also as a standout centerpiece in any guitar rig.

In addition to this touchscreen control system, the GS1000 also provides expanded connectivity options, improving upon the already impressive flexibility of past pedals. Most notably, it supports connectivity with the MOOER F4 wireless footswitch, as well as the ability to control presets via external MIDI devices.

As is expected from MOOER these days, the GS1000 also excels when it comes to routing opportunities, going above and beyond the typical stereo 14" inputs and outputs that would be expected from other brands. Yes, it still includes such staples, but it also includes an XLR microphone input, alongside balanced TRS outputs for long-distance signal clarity. The configurable serial/parallel stereo effects loop enables seamless integration of external effects, and the addition of Bluetooth audio input and MIDI compatibility broadens its wide range of use cases for live and practice-based applications.

Furthermore, the pedal also serves as a professional audio solution thanks to its low-latency 2-in/2-out ASIO USB sound card. Supporting up to 192kHz sampling rates, the GS1000 makes recording and live streaming effortless, as it can easily be used with software DAWs, MOOER's editing software, as well as the USB-based MIDI control.

The GS1000 will be available in two versions - the standard white edition, which is powered by mains power, and the GS1000 Li version, which introduces a 7.4V 4750mAh lithium battery, chargeable through its power port. With this upgrade, users can enjoy up to six hours of continuous power-free playtime, making it ideal for practicing, busking, and generally performing on the go.

Overall, for fans of MOOER's previous amp simulation offerings, the GS1000 represents a natural evolution, building on everything that made its predecessors great while introducing cutting-edge features and expanded capabilities. Most importantly, MOOER has promised to continuously update its MOOER 4.0 tonal algorithms on the MOOER Cloud in line with the release, keeping things fresh for the company's dedicated user base.

Notes: The finest analogue chorus!

The EHX Small Clone Chorus is a reissue of the classic analogue chorus pedal popularised by Kurt Cobain. Depth and Rate controls create the finest sounds, from clear, rich and dimensional to warm pulsating warbles.

True bypass
9V battery included

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 5.25 x 3.38 x 2.75
Current Draw: 12mA
Year Released: 2000

Notes: Delivers overdrive and distortion with impact, and the modern player in mind!

The EHX OD Glove provides a rich, overtone laden sound that doesn't get muddy. Responsive controls that take you from sparkling, clean boost through brown crunch and all the way to thick, saturated hi-gain. Advanced features like Tone Shift and selectable 9 or 18V internal voltage for surgical sound sculpting.

Versatile MOSFET overdrive/distortion
Tone Shift switch
Selectable 9V or 18V internal voltage
True bypass
Tough, compact die-cast chassis
9V battery included

SPECIFICATIONS
Circuit
Analog
Bypass
True Bypass
Audio
Mono
Power Supply
9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in)
4.5 x 2.75 x 2.1
Current Draw
12mA
Year Released
2013

Notes: The Pitch Fork transposes an instrument's pitch over a +/- three octave range and features three modes which allow the pitch to be transposed up, down or both, simultaneously. The pitch shift amount can be set to a fixed interval or continuously varied by an expression pedal or control voltage.

The controls are straightforward and intuitive. An 11-position Shift switch selects the maximum transposition interval ranging from D (Detune), a shift of 17 cents, through Minor 2nd, Major 2nd, Major 3rd, Perfect 4th, Perfect 5th, Major 6th, Minor 7th, 1 Octave, 2 Octaves and 3 Octaves. A three position toggle switch controls whether the pitch is transposed up, down or both. In Dual mode, two pitch-shifted signals are output. One follows the shift knob as if in the Up position while the other creates a harmony. Dual Mode settings include M3 up + P5 up, P5 up + 1 Oct down, 1 Oct up + 1 Oct down and many others. A Blend knob controls the mix of the dry signal and the effected signal, and an EXP jack enables the player to control pitch and glissando with an expression pedal.

The Latch button selects Latch or Momentary mode which affects how the footswitch and EXP input behave. In Latch mode, the footswitch toggles between effect on and buffered bypass each time it's pressed and the EXP input continuously varies pitch. In Momentary mode the effect is only on while the footswitch is depressed and when it is released the Pitch Fork goes into bypass.

In Latch mode the EXP input controls pitch shift amount, ranging from unity to the interval set by the Shift knob, and pitch varies continuously throughout the expression pedal's range. In Momentary mode the EXP input controls glissando rate for the Pitch Fork's footswitch. When the bypass footswitch is pressed, the Pitch Fork jumps from bypass to the interval set by the Shift knob. The amount of time it takes to reach that new note is the glissando rate. When the footswitch is released the pitch will return to unity at the same rate. That glissando time can vary between 4 milliseconds to two seconds depending on the heel/toe position of the expression pedal. The default glissando rate is 60 milliseconds when nothing is plugged into the EXP input.

The Pitch Fork comes equipped with an EHX 9.6DC-200mA power supply and also runs on a 9Volt battery.

*UK 230V power adapter included*

Notes: A modern re-creation of the classic fuzz sounds of the 1960s!

Re-create the sounds of a classic fuzztone pedal with the EHX Satisfaction Fuzz, now updated with true bypass circuitry for optimum signal path integrity. The Satisfaction fuzz features an elemental two-knob layout with controls for Volume and Attack (fuzz). True to the genre, this classically-voiced fuzztone creates a sound that is anything but subtle and goes from an aggressive rasp to full-on fuzzed-out mayhem!

Classic fuzztone
True bypass for maximum signal path integrity
Rugged die-cast package
9V battery included

Specifications:
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 2mA
Year Released: 2014

Notes: With three selectable attacks coupled with silky, long sustains, the Soul Preacher is your tool for sonic salvation!

The EHX Soul Preacher Compressor / Sustainer is a compact compressor/sustainer with variable parameters allowing extreme or subtle adjustments of the dynamic qualities of YOUR playing. Two knobs and one 3 way toggle switch control the output volume, the depth of the effect and the attack/decay characteristics of the effect.

True bypass
Sustain control adjusts the amount of sustain
Volume control sets the output level
Attack toggle switch provides 3 switch selectable settings of attack: fast, medium, slow
Fast attack: gives an aggressive hit with about a 20mS rise time. fast and musical
Medium attack presents a slower rise time of about 50ms, smooth and defined
Slow attack brings a musical 100ms rise time for a softer
Tough and compact die-cast chassis
9V battery included

Specifications:
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 40mA
Year Released: 2007

Notes: Not a noise gate, and not a noise suppressor -- but a real hum extractor!

Every musician battles hum in their signal chain. The EHX Hum Debugger turns it into dead silence, courtesy of a little Electro-Harmonix magic.

No matter what type of pickups you use or how loud you play, the Hum Debugger will clean up your signal chain so that hum will no longer overtake your guitar signal. Simply connect the Hum Debugger to your guitar like you would any other effects pedal and you are ready to eliminate hum from your sound forever!

True bypass
Absolutely eliminates hum from any audio source
Tough and compact die-cast chassis
Power adapter included

SPECIFICATIONS
Circuit
Digital
Bypass
True Bypass
Audio
Mono
Power Supply
7.5VAC-400mA power adapter included
Dimensions (in)
4.75 x 4 x 2.25
Current Draw
125mA(AC)
Year Released
2007

Notes: It's a multi-tap delay, it's a looper, it's an echo with reverse... it's got all the Hazarai!

The EHX Stereo Memory Man is a real time performance tour de force. World class echoes with modulation and reverse are just a few of the choices. As a Looper, it has up to a full 30 seconds of loop time. The Stereo Memory Man with Hazarai is destined to be one of the most creative instruments you will ever own. Ethereal tone-scapes to full musical performances are only limited by your imagination. And it's all in stereo.

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Stereo
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 170mA
Year Released: 2007

Notes: Get that late 1960's fuzzed out, octave up sound!

The EHX Octavix Octave Fuzz delivers the definitive late 1960's fuzzed out, octave up sound together with modern enhancements that update the classic concept. Housed in EHX's rugged nano package, the Octavix features Volume, Boost and Octave knobs. Volume regulates the output level of the pedal. Boost controls the amount of fuzztone and Octave adjusts the volume of the octave above. A mini-toggle lets the player select between 9 or 24 volt power rails and determines the power supply voltage for the entire circuit. At 9V the pedals behaves like the classic, saggy fuzz box. At 24V the Octavix delivers a tighter sound and a richer octave tone. True bypass ensures maximum signal path integrity.

A period-evocative, psychedelic design and blue LED contribute to the pedal's vintage vibe.

Classic octave up + fuzztone effect pedal
Switchable 9 and 24 volt power rails give a saggy or tight sound
True bypass
Blue LED
9V battery included

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included (optional 9V battery not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 65mA
Year Released: 2015

Notes: Sophisticated, professional stereo compressor limiter!

The EHX Platform Stereo Compressor/Limiter presents you with a versatile and powerful studio-quality compressor enclosed in a stompbox-sized package. Use the Platform's compressor/limiter on any instrumentisuch as guitar, bass or keyboardsifor precise and powerful control of your signal's volume. Engage the Drive and Swell functions to further tailor and enhance your sound. Whether you're on stage, in the studio, putting together a podcast or creating your next YouTube masterpiece, the Platform will help you get the job done.

Studio-quality compressor/limiter lets the user precisely tune dynamics regardless of the instrument or situation.
The compressor/limiter includes a full complement of controls: Volume, Attack, Release and Sustain, plus pushbuttons for Hard or Soft Knee and the Limiter
Foot-switchable overdrive section adds versatility and includes dedicated controls for Volume, Tone and Drive. Together with the compressor it produces a sound that's saturated, smooth and slippery
Adjustable Swell function creates bowed, fade in and reverse effects
True stereo operation, can be used as Mono In and Out, Mono In and Stereo Out, or Stereo In and Stereo Out
Features a three color, eight LED compression meter that displays the compressor's actual gain reduction in real-time
Stereo buffered bypass that's great for keeping your signal pristine with multiple pedal setups and long cable runs
Power adapter included

Specifications
Circuit: Digital
Bypass: Buffered Bypass
Audio: Stereo
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.75 x 4.13 x 2.25
Current Draw: 125mA
Year Released: 2017

Notes: Natural bass overdrive and clean boost for the tone conscious! Enhance the original sound of your instrument and amp while retaining the essential character.

The EHX Bass Soul Food dives deeper than the original Soul Food, retaining even more low frequecies while adding warmth and growl to your original tone.

Its gain stage, treble control and signal path are optimized for bass guitar and guitarists wanting extended low frequency response. An adjustable clean blend assures an articulate, full tone while boosted power rails deliver extended headroom.

EHX Founder and President, Mike Matthews, stated: "Our Soul Food put 'Klon-like' transparent overdrive into the hands of players at an unprecedented price point. Now we want to bring that to bass guitarists and guitar players who want more low-end definition. The Bass Soul Food delivers a wide range of overdrive and clean boost sounds, and has plenty of volume to assert your place in the mix. It will give your tone a lift in all the right places!"

Selectable true or buffered bypass modes and a switchable -10dB pad for active instruments complete the package.

Specifications

Circuit: Analogue
Bypass: Selectable True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 22mA
Year Released: 2015

Notes: The smallest member of the polyphonic POG clan provides impeccable tracking and sound!

The EHX Nano POG can simultaneously generate multiple octaves from your input signal. Whether you play single notes, arpeggios, or full chords, the Nano POG will precisely track every note or chord that you play.

With the Nano POG, you can mix together your dry signal with two different octaves (one above and one below your original note) to create totally new, inspiring tones.

Separate level controls for dry, sub octave and octave up plus an extra Dry out and silent footswitching provide the perfect formula for this compact jewel.

Super, space saving design
Tracks chords, sweeps or single notes with no hitches or glitches
Great 12-string guitar sound or turn your guitar into a bass
Amazing organ-like sounds
Adjustable original pitch volume, one octave up volume and one octave down volume
Dry output jack in addition to the effect output jack
Silent footswitching and road worthy die-cast package
Power adapter included

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included (optional 9V battery not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 25mA
Year Released: 2015

Notes: Electro-Harmonix has reissued their late-1970's era Op-Amp Big Muff Pi. Sometimes also referred to as the IC or V4 Big Muff, the original circuitry has been faithfully re-created while several practical enhancements have been added including a compact, die-cast chassis and true bypass switching.

According to Electro-Harmonix founder, Mike Matthews, "The Op-Amp Big Muff was popularized by the brilliant Billy Corgan who first used it on the Smashing Pumpkins' epic 1993 album Siamese Dream. After he was videotaped playing and talking about the reissue, Billy stated: "The magic's still in the box, I can still get what I'm looking for!"

The pedal relies on op-amps rather than transistors and three gain stages rather than four, to create its signature sound. It's a sound that's been described by noted Big Muff collector and historian, Kit Rae, as: "a huge, crushing Big Muff sound with more crunch...great for grungy, wall-of-sound distortion, heavy rhythm playing and heavy leads."

The Op-Amp Big Muff Pi features standard controls: Sustain, Tone and Volume, plus a Tone switch for bypassing the tone circuit. It comes equipped with a 9V battery or can be powered by an optional 9-volt AC adapter.

Notes: All of the features of the original Geiger Counter, with so much more. 16 footswitchable presets, MIDI control over presets, bit depth and sample rate blending, dry/wet mix, an end of signal filter - the most powerful pedal WMD have ever created. Designed for the pro to really dial in new, undiscovered sounds, never before heard in a distortion pedal.

Features

256 new wavetables! (512 wavetables in total)
Wavetable Morphing
12 bit signal path
16 foot switchable and MIDI switchable Presets
Easy to save and duplicate presets
Full MIDI control over all parameters
2 assignable CV/Expression inputs
Dry/Wet Mix
End of chain Low Pass Filter
Knob and CV soft take up on preset load
RAND button for a random new immediate setting to aid inspiration

Specifications

Power: BOSS 9VDC 300mA
Reverse & Over Voltage Protection
Dimensions: 5.8" x 4.75" x 2.5"
Input Impedance: 380kO
Output Impedance: 1kO
MIDI standard input, Channel 1
CV Inputs: 0-5V. 50kO Impedance. TS connection
Expression: 10k-100k linear. TRS connection
Relay True Bypass

Notes: Killer wah and cocked wah sounds!

The EHX Wailer Wah features the great sound and tone of the award winning Crying Tone Wah in a rugged, lightweight pedal and with a traditional rack and pinion style operating mechanism. It's also extremely affordable.

Traditional rack and pinion style operating mechanism
Super affordable
Rugged yet lightweight, at just over 1.5 pounds it's lighter than most popular wah pedals and a real weight saver for your pedalboard
9V battery included

SPECIFICATIONS
Circuit
Analog
Bypass
True Bypass
Audio
Mono
Power Supply
9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in)
9.92 x 3.4 x 3.0
Current Draw
6mA
Year Released
2016
