Notes: The One to Four Splitter allows the user to take one input and send it through four buffered outputs for unlimited creative potential. Use it to run out to four amps to play in quadraphonic sound and blow people's minds. Send a clean signal to your DAW and another through your normal signal chain to have a clean back up while recording. Run 2 parallel stereo signal paths! Use the One to Four splitter together with the Four to One Mixer and create wild parallel signal chains! Use the Buffer/Splitter and run 2 x One to Four Splitters to have 8 parallel paths!

This device features a unity gain buffer on each output for maximum punch and clarity. These buffered outputs have a flat frequency response with a high 1 Mohm input impedance and a low 100 ohm output impedance. This means that your signal won't lose any quality and will sound just like you intended. Even long cable runs will be no match for the One to Four Splitter.

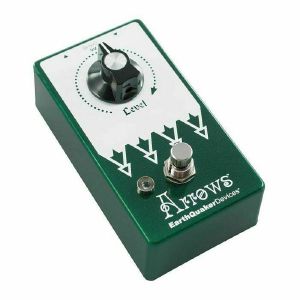

Notes: The Arrows is an all-discrete tone sculpting preamp booster. It was designed with the intention of adding an additional channel of gain to all your dirt pedals as well as brightening up neck pickups. It boosts midrange, tightens up the low end and makes the top end shine while adding some push to drive your dirt into blooming sustain with excellent harmonics. Its simple interface is no nonsense; a single control that will either boost or cut your signal. Use the Arrows to remove the muck from bass heavy fuzz pedals, push light overdrives into higher gains than you thought possible or even on its own to make your signal really pop with more pizazz. All analog, true bypass and handmade one at a time in the weird pit of Akron, Ohio.

Level: Adjusts Arrows output level. Clockwise is loud, counterclockwise is quiet.

This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.

This device can be powered by a 9v battery or a standard 9-volt DC power supply with a 2.1mm negative center barrel. Pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies are generally receommended. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

Current Draw: 8 mA
Input Impedance: 10 MO
Output Impedance: <10 kO

Notes: Plumesr is a unique, all-analog approach to a classic tube-like overdrive circuit offering 3 different clipping voices, loads of headroom and almost three-dimensional clarity that will push your amp over the edge. The reimagined tone control is finely tuned to sculpt low end, clear top end, and focus midrange with blooming sustain.

Controls:
1. Level: This controls the output volume.

2. Gain: This controls the amount of drive.

3. Tone: More bass to the left, more middles in the middle and more treble to the right.

4. Clipping Modes (3-Way Toggle):

1. Symmetrical LED clipping - More Crunch and Compression.

2. No clipping - Wide open OpAmp drive for clean boost.

3. Asymmetrical silicon diode clipping - More transparency with a loose feel.

Tech Specs:
Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. Pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies are always recommended. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 25 mA
Input Impedance: 10 MO
Output Impedance: 100 O

Notes: The Blumes is an overdrive based on the Plumes circuit that is ideal for bass players and all purveyors of low-end. While embodying the key characteristics and features of the Plumes, EQD went ahead and modified this circuit with double the gain and a deeper bass response to retain all the low end.

At lower gain settings, you'll get all of the crunchy tone you love about the original, but once you get above noon on the Gain control, that's where the similarities stop.

This all-analogue tri-mode overdrive with soft clipping carries the torch of the classic screamer circuit but has a voice all its own. And thanks to its +/- power supply it utilizes bipolar power, which gives you more dynamics, clarity, and all the headroom you could ever desire. The end result is a more three-dimensional tone with added clarity that really pushes a nice tube amp over the edge.

And much like the Plumes, this pedal offers three different clipping options for your desired low end face melting needs.

The Blumes features EarthQuaker Devices relay-based "soft touch" Flexi-Switch Technology for both momentary and latching footswitch operation as well as a very low 25mA current draw.

Each and every Blumes is built one-at-a-time by delightful little hands in Akron, Ohio; the charred, black heart in the heart of it all...
