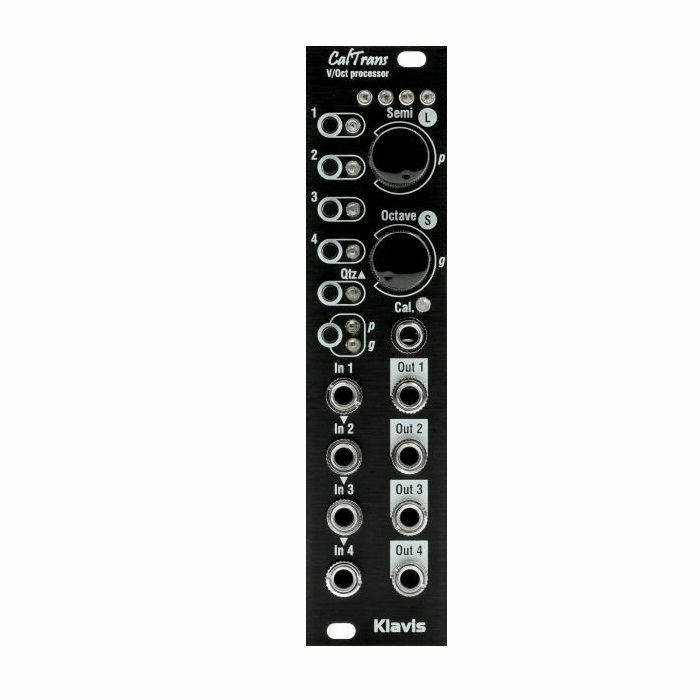

Klavis CalTrans Programmable Voltage / Octave CV Calibrator & Transposer Module (black)
Click for better price or call
+44 20 7424 1960
(quote 951637)
Last one in stock!
Delivery
Features
Specs
Manual/brochure
Returns & refunds
Finance
- Four V/Oct processing channels, each with:
- Curve correction and range expansion for any VCO, VCF or other oscillating circuit with a CV acting on the pitch
- Switchable semitone quantizer
- Adjustable portamento time
- Adjustable glissando time
- Separate semitone and octave transpose encoders
- Inputs cascading with no added load for stable pitch control
- Four user presets storing transpose, portamento, and glissando
- Storage of the calibration profile for each channel
- Maximum voltage range covering 10 octaves
- Presets, calibration and current state retained over power cycle
- Volt/Oct inputs factory-calibrated in flash memory
- Easy firmware update via a simple audio file
- High-quality push-encoders with metal shaft
- Skiff-friendly & compact module
| Dimensions (mm) | 36 x 30 x 128 |
If you decide an product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.
Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth
To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.
Klavis CalTrans Programmable Voltage / Octave CV Calibrator & Transposer Module (black)
Programmable Volt / Octave CV calibrator and transposer
Clever four-channel utility module designed to make it easier to achieve perfect oscillator tracking and transpose CV signals. Also includes some neat quantising and portamento features.
The CalTrans solves issues encountered when playing tonal music with a modular system: tracking problems, curves unrelated to Volt per octave ratio, limited octave range, cumbersome transpose, ...
The CalTrans corrects and expands the range of troublesome VCOs and brings V / Oct tracking to anything that oscillates.
Besides calibration, the CalTrans offers live play features. Each channel can be quantized and any combination of them transposed jointly.
A pair of rotary encoders with detent allow an precise selection of octaves and semitones.
VCOs whose tracking doesn't go high enough to follow the leader will see their pitch repositioned in their highest possible octave so that the global harmony is unaffected.
You can add a pinch of portamento and glissando to each channel and save the whole in user presets.
Firmware 1.17 offers:
* User editable input scaling to match sources that don't generate perfect 1V per octave signals.
* Complete rewrite of the main processing with higher precision.
* ... and the unavoidable fixes and tweaks ;-)
The updated user manual 1.4 is much expanded with operations described in exquisite details :-)
.. and a version 1.5 corrects a mistake in the input calibration description and eases the reading elsewhere.
Dimensions
6 HP
36 mm deep
Current Draw
44 mA +12V
8 mA -12V
0 mA 5V
Clever four-channel utility module designed to make it easier to achieve perfect oscillator tracking and transpose CV signals. Also includes some neat quantising and portamento features.
The CalTrans solves issues encountered when playing tonal music with a modular system: tracking problems, curves unrelated to Volt per octave ratio, limited octave range, cumbersome transpose, ...
The CalTrans corrects and expands the range of troublesome VCOs and brings V / Oct tracking to anything that oscillates.
Besides calibration, the CalTrans offers live play features. Each channel can be quantized and any combination of them transposed jointly.
A pair of rotary encoders with detent allow an precise selection of octaves and semitones.
VCOs whose tracking doesn't go high enough to follow the leader will see their pitch repositioned in their highest possible octave so that the global harmony is unaffected.
You can add a pinch of portamento and glissando to each channel and save the whole in user presets.
Firmware 1.17 offers:
* User editable input scaling to match sources that don't generate perfect 1V per octave signals.
* Complete rewrite of the main processing with higher precision.
* ... and the unavoidable fixes and tweaks ;-)
The updated user manual 1.4 is much expanded with operations described in exquisite details :-)
.. and a version 1.5 corrects a mistake in the input calibration description and eases the reading elsewhere.
Dimensions
6 HP
36 mm deep
Current Draw
44 mA +12V
8 mA -12V
0 mA 5V
Read moreRead less
Specifications
| Dimensions (mm) | 36 x 30 x 128 |
