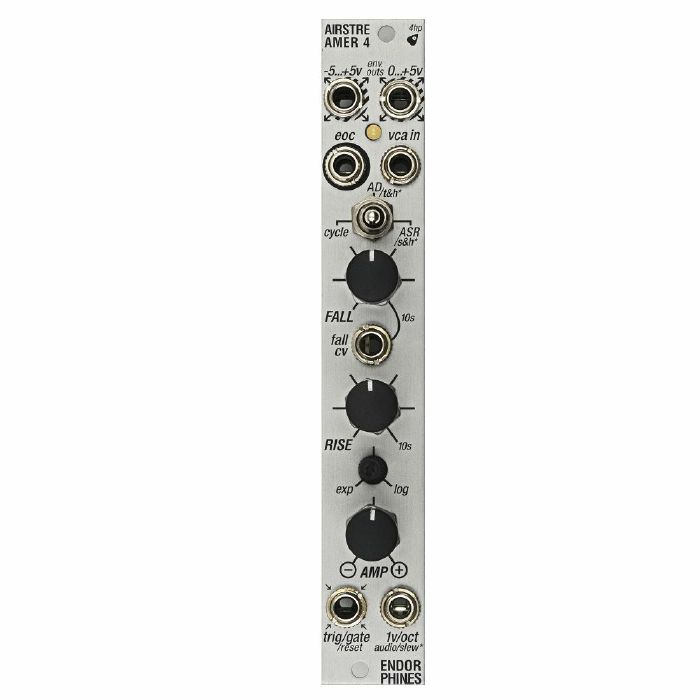

Ultra slim envelope generator with looping, ASR and AD modes

CV control over fall (decay / release)
Continuously variable shape over both slopes without stretching the slope's duration in time.
Low aliasing CV generation, 224 kHz sample rate.
1 v / oct input, bipolar and unipolar outputs, end of cycle output.
Audio rate oscillation in cycle mode allows you to utilize it as an oscillator.
Polarizer knob with additional VCA input scales the envelope and inverts it when CV goes to negative voltages, allowing for compact sidechain envelope solution without the need for external mixers / inverts / offset generators.
Slew limiter, S&H, T&H processing for external CV sources

Power consumption:
60 mA +12V
15 mA -12V
0 mA 5V

Dimensions:
4 HP
26 mm deep with power ribbon cable connected
