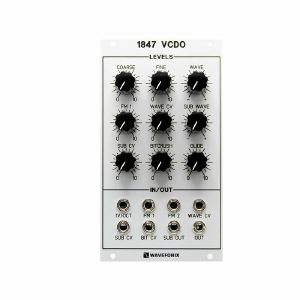

Notes: The 1847 Wavetable Oscillator (VCDO) is a versatile and easy-to-use voltage-controlled 8-bit wavetable oscillator.

The main oscillator has 16 waveforms arranged as a wavetable and a sub-oscillator also provides 8 waveforms; each selectable at one of four octaves (+1, unison, -1 or -2). The main and sub-oscillator wavetables can be cycled through manually using knobs on the front panel, or can each be controlled by a CV source. The main oscillator waveform select CV has its own dedicated attenuator.

Two FM CV inputs are also provided (FM 1 has an attenuator), along with a 1V/octave input (quantized to semitones).

Coarse and fine frequency controls are provided. The overall frequency range of the oscillator is ten octaves i.e. 8.18Hz to 8,372Hz (MIDI note 0 to 120).

Other features include a bitcrush effect; allowing the sample resolution of the output to be varied between 1-bit and 8-bit. This is controllable via a knob on the front panel and a separate CV input.

Controllable glide allows portamento to be introduced when the oscillator is controlled by a keyboard.

Specifications:

Format: Eurorack
Width: 14hp
Depth: approx. 45mm
Power consumption:
+12V: 40mA
-12V: 30mA
+5V: 0mA

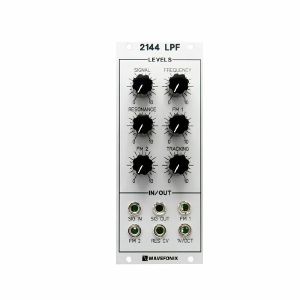

Notes: The 2144 Low-Pass Filter (LPF) features the SSI2144 IC, which is based on the legendary SSM2044 filter architecture used in many classic synthesizers.

With its unmistakably silky-smooth top-end and liquid-like mid-range; it is widely regarded as being one of the best sounding filters ever made.

A wide range of modulation possibilities also adds versatility.

Specifications

Format: Eurorack
Width: 10hp
Depth: approx. 40mm
Power consumption:
+12V: 30mA
-12V: 30mA
+5V: 0mA

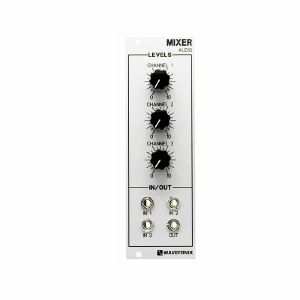

Notes: This mixer has three AC-coupled channels, each with a logarithmic unity-gain attenuator; suitable for mixing audio signals from modules such as VCOs etc.

Specifications

Format: Eurorack
Width: 8hp
Depth: approx. 25mm
+12V: 20mA
-12V: 20mA
+5V: 0mA

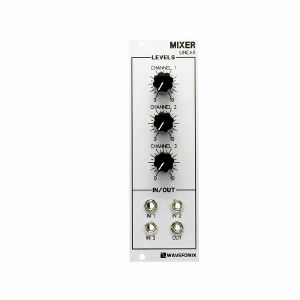

Notes: This mixer has three DC-coupled inputs, making it perfect for mixing both audio or CV signals from sources such as VCOs, LFOs and envelopes etc.

Each channel features a unity-gain, linear attenuator.

Specifications

Format: Eurorack
Width: 8hp
Depth: approx. 25mm
Power consumption:
+12V: 10mA
-12V: 10mA
+5V: 0mA

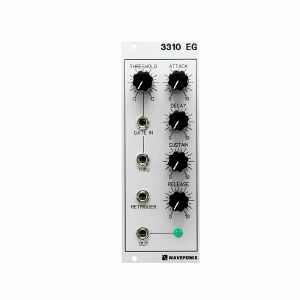

Notes: Featuring the AS3310 IC (based on the classic CEM3310 IC), the 3310 Envelope Generator (EG) offers a simple, but effective four-stage design; ideal for modulating VCAs, filters and other modules.

Specifications

Format: Eurorack
Width: 9hp
Depth: approx. 40mm
+12V: 40mA
-12V: 30mA
+5V: 0mA

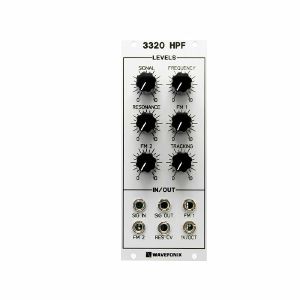

Notes: The 3320 High-Pass Filter (HPF) is a four-pole 24dB/octave design that uses the AS3320 IC (based on the classic CEM3320).

It is the perfect partner to go along side either Wavefonix's 3320 Low-Pass Filter (LPF) or 2144 Low-Pass Filter (LPF), to produce a band-pass filter.

On it's own however, it shines when used on percussion or drums, along with a wide range of other applications.

Specifications

Format: Eurorack
Width: 10hp
Depth: approx. 40mm
Power consumption:
+12V: 30mA
-12V: 60mA
+5V: 0mA

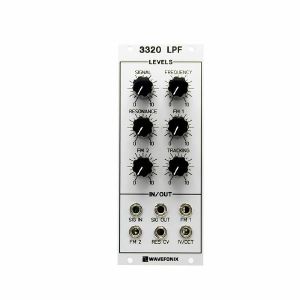

Notes: The 3320 Low-Pass Filter (LPF) is a four-pole, 24dB/octave filter, utilising the AS3320 IC (based on the highly regarded CEM3320) and offers a fully-featured take on a classic design.

Specifications

Format: Eurorack
Width: 10hp
Depth: approx. 40mm
Power consumption:
+12V: 30mA
-12V: 60mA
+5V: 0mA

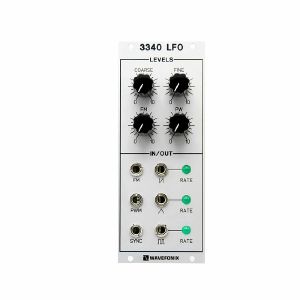

Notes: Wavefonix's 3340 Low-Frequency Oscillator (LFO) utilises the original CEM3340 (Rev. G) architecture, similarly to the 3340 VCO.

It is a voltage-controlled LFO featuring three simultaneous, buffered 10Vpp (i5V) waveforms including DC-coupled ramp, triangle and pulse outputs.

The pulse output has a controllable PW, along with a PWM CV input (i5V range). The PW can be varied manually between 50% and 100% duty cycle with the PW knob on the front panel. When a PWM CV source is input, the PW is normalled to 50% and the CV level is attenuated using the PW knob.

Other features include a controllable FM input that is also calibrated to 1V/octave when the FM knob is fully-clockwise. So the LFO can also be used as a limited VCO. A comparator-based reversing type sync input also allows the LFO to be synced to another LFO or VCO etc.

The overall frequency range of the LFO is approximately 0.03Hz to 4.5kHz. Coarse and fine frequency knobs provide a maximum frequency adjustment range of approximately 0.03Hz to 1kHZ (this range is adjustable using a trimmer on the PCB).

Specifications

Format: Eurorack
Width: 10hp
Depth: approx. 40mm
Power consumption:
+12V: 60mA
-12V: 40mA
+5V: 0mA

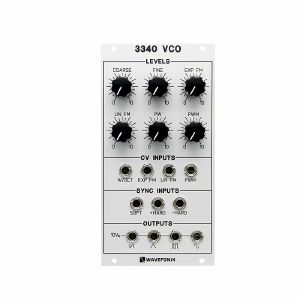

Notes: British newcomers Wavefonix serve up this feature-rich oscillator based on the CEM3340 chip as used in classic VCO designs from the likes of Roland, Oberheim and Sequential Circuits.

Supplier's Notes:
Featuring the legendary CEM3340 IC, the 3340 Voltage-Controlled Oscillator (VCO) module offers that classic, rich analog sound found in many famous synthesizers from the past, along with a wide range of sound shaping and modulation possibilities.

Specifications

Format: Eurorack
Width: 13hp
Depth: approx. 40mm
Power consumption:
+12V: 60mA
-12V: 50mA
+5V: 0mA

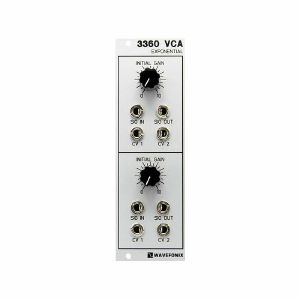

Notes: Featuring the AS3360 IC (based on the classic CEM3360 IC), this module features two exponential response Voltage-Controlled Amplifiers (VCAs); suitable for mainly audio signals. However, it can still be used with CV signals.

It would also be the ideal match with a modulation source such as an linear envelope generator.

Specifications

Format: Eurorack
Width: 8hp
Depth: approx. 40mm
Power consumption:
+12V: 30mA
-12V: 30mA
+5V: 0mA

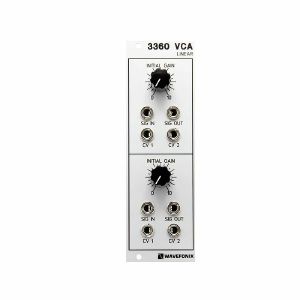

Notes: Featuring the AS3360 IC (based on the classic CEM3360 IC), this module features two linear response Voltage-Controlled Amplifiers (VCAs); suitable for both audio and CV signals.

It would also be the ideal match with a modulation source such as an exponential envelope generator.

Specifications

Format: Eurorack
Width: 8hp
Depth: approx. 40mm
Power consumption:
+12V: 30mA
-12V: 30mA
+5V: 0mA

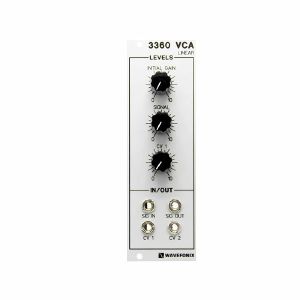

Notes: Featuring the AS3360 IC (based on the classic CEM3360 IC), this linear response VCA (Voltage Controlled Amplifier) is suitable for both audio and CV signals.

It would also be the ideal match with a modulation source such as an exponential envelope generator.

Specifications

Format: Eurorack
Width: 8hp
Depth: approx. 25mm
Power consumption:
+12V: 30mA
-12V: 30mA
+5V: 0mA

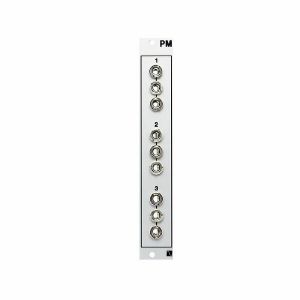

Notes: This module is a triple, three-way passive multiple in a compact but ergonomic design; useful for splitting CV signals from modules such as LFOs or envelopes etc.

Being passive; no power is required for the module to function.

Specifications

Format: Eurorack
Width: 4hp
Depth: approx. 15mm
+12V: 0mA
-12V: 0mA
+5V: 0mA

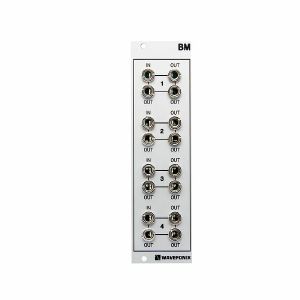

Notes: This module is a premium, buffered version of our passive 4x4 multiple, featuring four groups of buffered multiples; each group having one input and three outputs.

Buffered multiples are useful for multiplying pitch sensitive CV signals, such as 1V/octave CVs from a keyboard or MIDI to CV converter, although they can also be used for multiplying CV signals from other sources, such as LFOs etc.

Passive multiples are not particularly suitable for use with pitch sensitive CVs, as they often result in a loss of tuning. Buffered multiples ensure that any loss in pitch is negligible.

Specifications

Format: Eurorack
Width: 7hp
Depth: approx. 40mm
Power consumption:
+12V: 40mA
-12V: 60mA
+5V: 0mA

Notes: This module is a quad, four-way passive multiple, suitable for splitting CV signals from modules such as LFOs or envelopes etc.

The passive design means that no power is required for the module to function.

Specifications

Format: Eurorack
Width: 7hp
Depth: approx. 15mm
+12V: 0mA
-12V: 0mA
+5V: 0mA

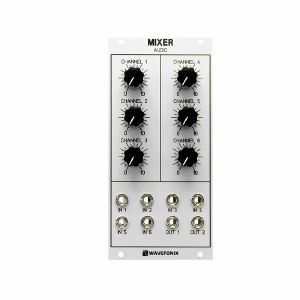

Notes: This mixer has six AC-coupled channels, each with a logarithmic unity-gain attenuator; suitable for mixing audio signals from modules such as VCOs etc.

Specifications

Format: Eurorack
Width: 12hp
Depth: approx. 25mm
Power consumption:
+12V: 20mA
-12V: 20mA
+5V: 0mA

Notes: This mixer has six DC-coupled inputs, making it perfect for mixing both audio or CV signals from sources such as VCOs, LFOs and envelopes etc.

Each channel features a unity-gain, linear attenuator.

Specifications

Format: Eurorack
Width: 12hp
Depth: approx. 25mm
Power consumption:
+12V: 10mA
-12V: 10mA
+5V: 0mA

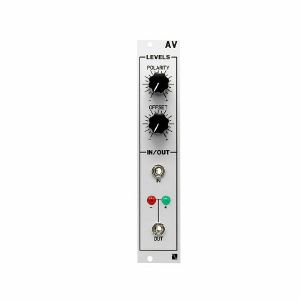

Notes: Attenuverter (AV) is one of Wavefonix's most versatile modules; allowing the polarity of an input source such as an envelope or a ramp wave from an LFO to be inverted.

Additionally, an offset voltage between approximately -10V to +10V can be applied to the input source. The module can also act as an independent CV source when there is no input.

Specifications

Format: Eurorack
Width: 5hp
Depth: approx. 25mm
Power consumption:
+12V: 30mA
-12V: 20mA
+5V: 0mA

Notes: This Clock Divider (CD) module allows an input clock signal to be divided into exact divisions (down to 1/128) of the original frequency. This is especially useful for applications such as creating a sub-oscillator etc.

The module can also act as an audio divider by accepting inputs such as sine, ramp or triangle waveforms and outputting corresponding, divided clock signals.

A reset input allows the divisions to be synchronised.

Specifications

Format: Eurorack
Width: 6hp
Depth: approx. 40mm
Power consumption:
+12V: 70mA
-12V: 20mA
+5V: 0mA

Notes: This module comprises two linear slew limiters, useful as a basic A/R envelope generator, gate delay or low-pass filter.

Specifications

Format: Eurorack
Width: 5hp
Depth: approx. 25mm
Power consumption:
+12V: 40mA
-12V: 50mA
+5V: 0mA

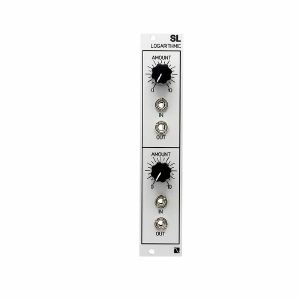

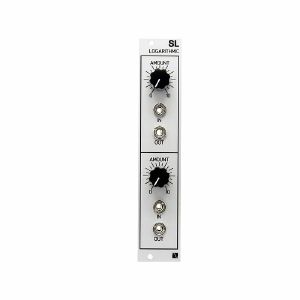

Notes: This module comprises two logarithmic slew limiters, useful for a range of different applications, such as adding portamento to a keyboard, or as a basic A/R envelope generator, gate delay or low-pass filter.

Specifications

Format: Eurorack
Width: 5hp
Depth: approx. 25mm
Power consumption:
+12V: 40mA
-12V: 30mA
+5V: 0mA

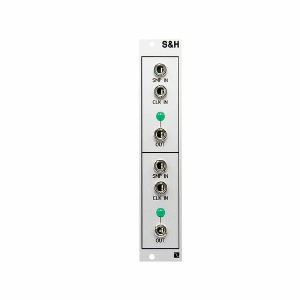

Notes: Featuring two dedicated sample and hold channels, this module is perfect for creating stepped voltages from a random noise source, downsampling waveforms and even creating arpeggios.

Specifications

Format: Eurorack
Width: 5hp
Depth: approx. 40mm
Power consumption:
+12V: 40mA
-12V: 30mA
+5V: 0mA

Notes: Wavefonix's Linear Attenuator (AT) features three linear unity-gain attenuators; suitable for attenuating both audio and CV signals.

It is also a passive module; meaning that no power is required for it to function.

Specifications

Format: Eurorack
Width: 5hp
Depth: approx. 15mm
+12V: 0mA
-12V: 0mA
+5V: 0mA

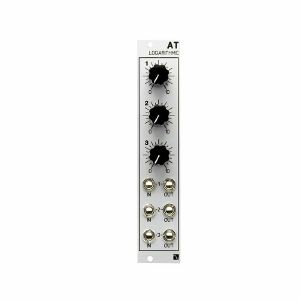

Notes: Wavefonix's Logarithmic Attenuator (AT) features three logarithmic unity-gain attenuators; especially suitable for attenuating audio signals. However, it can also be used to attenuator CV signals.

It is also a passive module; meaning that no power is required for it to function.

Specifications

Format: Eurorack
Width: 5hp
Depth: approx. 15mm
+12V: 0mA
-12V: 0mA
+5V: 0mA

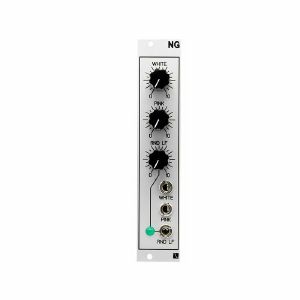

Notes: Wavefonix's Noise Generator (NG) module provides three different noise sources; including white, pink and random LF (Low Frequency) noise.

This allows for a wide range of sonic and modulation possibilities when combined with other modules e.g. white noise can be used to produce hi-hat sounds or the random LF noise can be input into a sample and hold module to produce random, retro-style beeps etc.

Each output features its own dedicated attenuator. The random LF output also has a green LED indicator, providing a visual representation of the output level.

The maximum peak-to-peak amplitude of each noise output is approximately 10V (i5V).

Specifications

Format: Eurorack
Width: 5hp
Depth: approx. 40mm
Power consumption:
+12V: 20mA
-12V: 20mA
+5V: 0mA

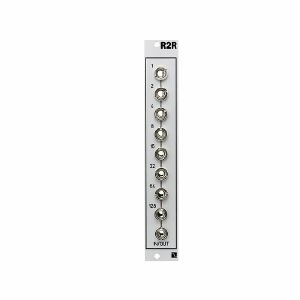

Notes: The R2R DAC is an ingenious design. It consists of a string of resistors connected to another set of resistors. There are no active components in this module and it provides an affordable and easy way of converting digital signals to analog signals with great accuracy.

Digital-to analog conversion with the R2R is straight-forward. Inputting a digital signal into any of the eight data inputs (1 to 128 in binary) will provide an analog output from the In/Out socket.

Waveform's Clock Divider (CD) module complements the R2R DAC very well. For example; inputting various combinations of clock signals from the Clock Divider into the 1 to 128 inputs of the R2R DAC provides some interesting outputs from the In/Out, such as a stepped ramp wave. The number of input signals determines the resolution i.e. there are eight inputs (each corresponding to a bit), so therefore the maximum resolution is 8-bit. The resulting output can be fed into the CV input of a VCO, LFO, quantizer, filter and many other modules. There are many different combinations that can be experimented with.

Other uses for the R2R DAC include as an 8-channel mixer by inputting analog signals into any of the 8 inputs (1 being the quietest and 128 being the loudest) and the resultant mixed signal is given from the In/Out.

Similarly, the module can be used as an attenuator and multiple by inputting a signal into the In/Out and the attenuated signals are output from the eight binary inputs (again with 1 being the most attenuated and 128 being the least attenuated).

Specifications

Format: Eurorack
Width: 4hp
Depth: approx.15mm
Power consumption:
+12V: 0mA
-12V: 0mA
+5V: 0mA

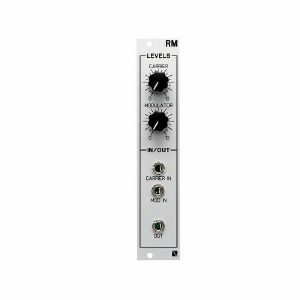

Notes: This module is a four-quadrant multiplier that produces distinct alien and bell type sounds.

It features standard carrier (X) and modulator (Y) inputs; each with their own attenuator.

The balance and offset of the output signal is also adjustable.

Specifications

Format: Eurorack
Width: 5hp
Depth: approx. 40mm
Power consumption:
+12V: 20mA
-12V: 20mA
+5V: 0mA
