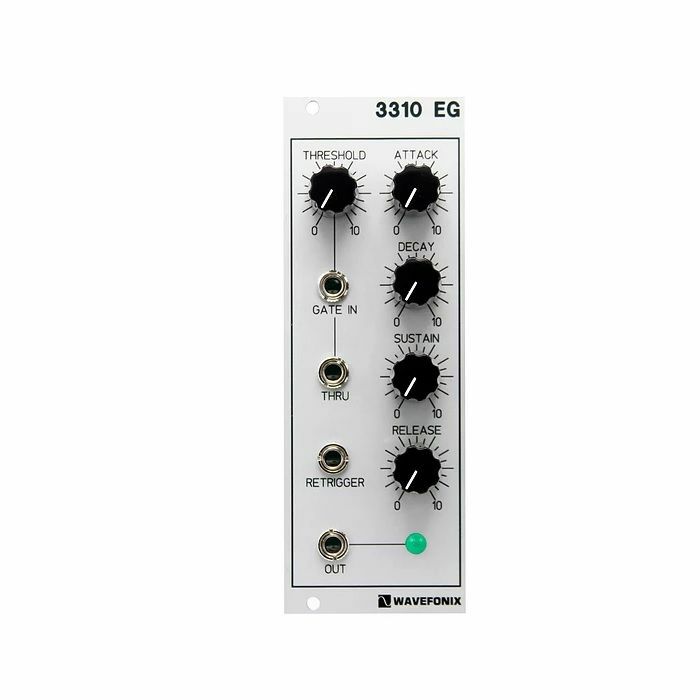

Featuring the AS3310 IC (based on the classic CEM3310 IC), the 3310 Envelope Generator (EG) offers a simple, but effective four-stage design; ideal for modulating VCAs, filters and other modules.

Specifications

Format: Eurorack
Width: 9hp
Depth: approx. 40mm
+12V: 40mA
-12V: 30mA
+5V: 0mA

• Controllable exponential attack (up to 5s), decay and release (both up to 15s).
• Controllable linear sustain (up to 10V).
• Adjustable gate threshold allowing rejection of gate inputs below a set voltage level (controllable between 0.5V to 6V).
• Gate through output, allowing for multiple EGs to be chained together.
• Retrigger input for modulation sources such as LFOs etc.
• Green LED indicator provides a visual representation of the output level.
• Ergonomic design.
• Hand-built and tested in the UK.
