Notes: PM Db25 is a proprietary expand module for the WMD Performance Mixer that allows for direct access to each output, balanced, including channels expand and the main outs. Connect a Db25 snake to your choice of connector on the other end and record each individual out without destruction from the faders or mutes. Reference the stereo recording while making final edits in your DAW or tape machine.

Notes: PM DB25 MKII is an expander output for the MKII versions of the Performance Mixer and Channels.

Pre-fade and Post-fade connections are available for all channels. The DB25 has 16 outputs. All mixer channels are stereo, so one DB25 handles the main PM MKII (either pre or post), and the DB25 can handle 2x Channels (either pre or post).

Simply connect the cable to the Pre or Post headers on the back of the PM MKII or Channels MKII modules to choose pre/post.

The PM MKII has an additional header with both Aux Sends, Master Bus, and Submix Bus.

Connect a DB25 cable of your choice to the front connector and then straight to your DAW or recording interface.

For use with original WMD Performance Mixer, an adapter board can be added on. Please note that width behind panel is increased by 8mm when adapter board is added on. This may require some clever position in your case. The original Performance Mixer still only offers Pre Fader Outputs.

Notes: A companion module to the Arpitecht,Triad sends out three static voltages to be used with three oscillators in order to create chords underneath your Arpeggios. Triad connects to the back of the Arpitecht via included ribbon cable and will adhere to the scale and transpose information set by it's master.

Triad knob and CV input set different combinations so your chord can be completely unique, while still in key with your arpeggio. Inversion switch and CV input allow you to select three different chord voicings easily.

Controls:

- Triad Knob: Selects the 3-note combination sent via CV. Becomes an offset with CV.
- Inversion Switch: Selects which inversion of the chord the Triad will play. Set at 0 for use with CV as it will "take over".

Jacks:

- Note 1,2,3: CV outputs for use with 1V/Oct inputs on 3 oscillators
- New: This output sends a trigger each time a new chord is made/selected
- Inv: CV input for the inversion selection. Accepts 0V to +5V
- Thresholds for 1st and 2nd inversions are 1.25V and 2.5V respectively
- Triad: CV input for Triad selection. Accepts 0V to +5V.

Other:

- Size: 4HP
- Connector: 20 pin ribbon cable

Notes: Voltera is an expander for the Metron trigger and gate sequencer, adding 4 bipolar voltage tracks. Up to 16 Volteras can be connected to a Metron, providing up to 64 CV outputs.

With independent voltage ranges and quantisation settings per track, Voltera allows simultaneous real-time control of 4 different parameters, so you can set the track to the parameter you are sequencing.

When used in conjunction with Voltera, it is possible to easily sequence melodies and parameters with the Metron.

Features

4 bipolar voltage outputs in 4HP
Integrated user interface with Metron
Quantised and unquantised voltages
Up to 16 Voltera modules can be connected simultaneously to a Metron
Independent voltage ranges for each output
Analogue programming
Digital accuracy
Fast haptic operation
Power consumption: 60mA at +12V and 15mA at -12V

Depth: 43mm

HP : 4

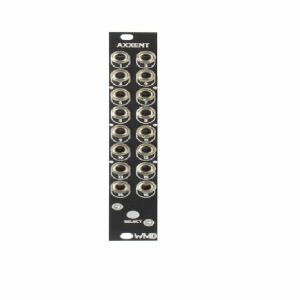

Notes: AXXENT is an expander module for the METRON trigger and gate sequencer and adds 16 "accent" gate outputs. Each track is specifically tied to METRON tracks, making it a very intuitive addition to any METRON sequencing ecosystem.

Use AXXENT to send signals to additional envelopes, slews, drum accents, and other gate triggered functions.

METRON will need its Firmware updated to support AXXENT.

Dimensions:
Width: 4HP (20.32mm)
Height: Eurorack 3U (128.5mm Panel, 112mm PCB behind panel)
Depth Including Cables: 43mm

Do not connect power to expansion headers.
