Befaco

Notes: Quad Attenuator/Inverter, Splitter, and Offset Generator

Scale your audio or CV sources and route them to various destinations with this versatile utility. It consists of four identical unity gain amplifiers. Each amplifier can multiply an incoming signal by values ranging from 0 to 1 (for attenuation) or from 0 to -1 (for inverting attenuation). The input of each channel is normalled to the input of the next channel, allowing for easy signal routing from one input to the subsequent ones.

The first channel is normalled to 10V, enabling the module to function as an offset generator when no input is connected.

Features

Inversion switch per channel.
Precise zero at the left side of the pots.
Four level LEDs indicate output level and polarity.
Cascaded input topology

Specs

Current needs: +12V: 60mA, -12: 50mA, 5v:0
Width: 4 HP
Depth: Assembled version 25 mm
Depth: DIY version 35 mm
Designed, kits prepared and modules assembled in Barcelona.

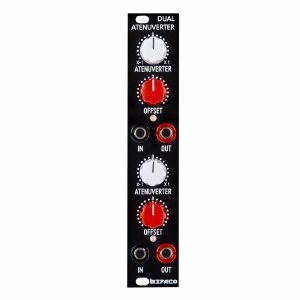

Notes: The Dual Atenuverter is a CV/Audio utility module designed to attenuate, invert and apply offset to an input signal.

The ATENUVERTER pot will multiply your signal by 1 when turned clockwise and -1 when turned anti-clockwise.

The OFFSET control can add +/- 10V DC to the output. Useful as a manually controlled DC source when no input is connected.

Bicolour LED's glow red when the output is positive and green when negative meaning this module works well as a CV monitor.

- Current needs: +12V: 21mA, -12V: 18mA
- Width: 5 HP
- Depth: 24 mm (inc power connector)

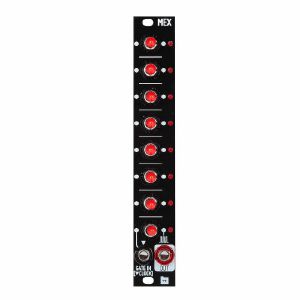

Notes: MEX, is a trigger expander for Muxlicer! It adds a new line of gates to Muxlicer's sequence, where you can choose to turn off the step, output same number of gates as muxlicer, or sending just one. A very simple concept, that provides great flexibilty! And greatest thing: you can daisy chain them so you can add as many as desired.

Dimensions: 4 HP
20 mm deep

Current Draw:
30 mA +12V
10 mA -12V
0 mA 5V

Notes: ***B-STOCK: Box damaged, product unused & in perfect condition***


MEX, is a trigger expander for Muxlicer! It adds a new line of gates to Muxlicer's sequence, where you can choose to turn off the step, output same number of gates as muxlicer, or sending just one. A very simple concept, that provides great flexibilty! And greatest thing: you can daisy chain them so you can add as many as desired.

Dimensions: 4 HP
20 mm deep

Current Draw:
30 mA +12V
10 mA -12V
0 mA 5V

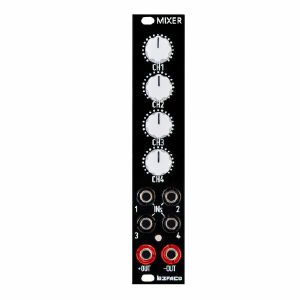

Notes: A four channel mixer, suitable for audio or control signals. It features regular and inverted outputs as well as an LED level meter.

Specifications:
Current needs: +12V: 21mA, -12V: 10mA
Width: 5 HP
Depth: 20mm (including power connector)
Aluminiun, heat-treated front panel.
Designed, kits prepared and completed modules assembled in Barcelona.

Notes: Combine up to four audio and or CV sources into one output, with independent manual level control.

It can be used as a four-channel mixer or as two separate two-channel mixers, depending on the connection.

If a cable is connected to the Master output but not to the 1+2 output, all channels will be summed at the Master output. If both the Master and 1+2 outputs are connected, the Master will output the mix of channels 3 and 4, while the 1+2 output will provide the mix of channels 1 and 2.

Each pair of channels has an LED indicator that shows the presence of a signal.

Notes: Clock Multiple, Conditioner, and Divider in a compact 2HP format

Distribute your clocks throughout your system using minimal rack space.

The first three outputs maintain the same frequency as the input, while outputs 4 to 7 provide time divisions of 1/2, 1/4, 1/8, and 1/16.

The active topology allows you to patch clocks on the fly, avoiding the tempo interruptions that can occur with passive multiples.

To reduce the footprint, the input is a TRS jack, with the clock signal on the tip and the reset on the ring. For standard clock only operation, use a regular mono cable, or use the provided splitter to access the reset function.

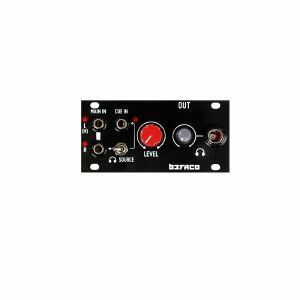

Notes: Out is a 1U stereo output module designed to convert audio signals from your modular to line-levels. The module is designed to be used on cases with onboard Jack connectors or Intellijel 7U and Palette series, as it uses the same pinout. The module also includes a high-quality Headphone amplifier with an auxiliar monitoring CUE input.

Features:

High-quality Headphones amplifier
Monitoring CUE Input with source selector
Fully compatible with Intellijel 7U and Palette cases rear Jack connectors.
1U Intellijel format.

Specs:

Current needs: +12V: 30mA, -12V: 30mA
Width: 16 HP
Depth: 30mm (including power connector)
Aluminium, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

Notes: ST Amp is a 1U stereo amplifier designed to boost your external signals into modular levels. The module is designed under the Intellijel 1U format and uses the same pinout, making it fully compatible with the Intelljel case's rear connectors.

Features

Stereo amplifier and signal booster.
Three selectable gain modes: x1, x5 and x10
Level meter LEDs
Fully compatible with Intellijel's 7U and Palette cases.
1U Intellijel format.

Specs

Current needs: +12V: 30mA, -12V: 30mA
Width: 10 HP
Depth: 37mm (including power connector)
Aluminium, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

Notes: STMix is a four-channel stereo mixer in 28hp and 1U format. It can work independently or as an expansion of Befaco's Hexmix module via the six-pin connector located in the back. The module is designed under the Intellijel 1U format.

Features

Four channels stereo inputs with volume control.
AC Coupled inputs to improve audio performance.
Output clipping LED indicators.
Connector at the back to interface with the Hexmix module.
1U Intellijel format

Specs:

Current needs: +12V: 30mA, -12V: 30mA
Width: 28 HP
Depth: 20mm (including power connector)
Aluminium, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

Notes: 1U TRS

Total flexibility for the Befaco 7U or Intellijel cases rear connectors Jacks.
The channels are reversible and can be used independently for Input or Output.
4 Inputs or Outputs (per module) can be obtained by "AND" cables.
Independent tip and ring attenuators are selectable for each channel to convert the Modular Input Level to Line Output Level.

Features

Selectable attenuator per channel
Fully compatible with Intellijel's 7U and Palette cases.
1U Intellijel format.

Specs

Current needs: Passive
Width: 6 HP
Depth: 20 mm (including power connector)
Designed, kits prepared and completed modules assembled in Barcelona
