Tags: Modulation pedal

Notes: Amazingly versatile phaser business in this brilliantly designed pedal. Watch the demo video to hear the amazing range of sounds this one can do. Best phaser ever? Might just be.

Supplier's Notes:

Jump into spaceship Horizont and begin your trek into star- filled galaxies, all while discovering the incredible vastness of the sounds created by this inter-dimensional multi-spatial stereo analog JFET Phaser. The unexpected is waiting for you behind the far away horizon and it will be a journey you'll never forget!

The Horizont's mission is to push way beyond the classic phasing sounds of yesteryear, and take you to uncharted phaser worlds the second you plug in. By combining lush analog JFET phasing with digitally controlled dynamics, Horizont creates a vivid and expressive modulation experience, all while providing experimental and creative features that'll kick phasing well into the 21st century.

Besides the more common phaser controls, the Horizont offers a plethora of new and exciting options for all the interstellar tone chasers out there. To greatly broaden the range of phasing tones available, KMA implemented a digital LFO with no less than eight different waveforms: Ramp Up/Down, Sine/Triangle/Square wave, a sweeping waveform, Sample & Hold and a random slope waveform going from 20s down to 40ms.

The implemented envelope generator is one of Horizont's absolute key features. It transforms your input signal into a control source to modulate the speed of the digitally controlled LFO or lets you manually phase for a resonant touch wah- like sound, depending on the state of the SWP- and SPURTCONTROL-Switch.

Set the SPURTCONTROL switch to LFO to let the SPURT knob adjust the internal phasing speed. However, by flicking the switch to ENV (Envelope) mode, it allows you to dynamically modulate the speed along the full LFO speed range, based on how loud the input source is (e.g. when you attack the strings hard). You can also combine the SPURT knob and the envelope by flicking the toggle to LFO+ENV where SPURT then sets the minimum speed. For even more control, you can even plug in an external expression pedal/CV-source (0-5V) to alter the minimum speed on-the-fly or you can use the TAP TEMPO switch (tap just twice) to set the speed to fit in with the tempo of your music.

The EXP-Mode switch also lets you choose between a manual phasing mode, controlled by an expression-pedal or an external CV source. Setting the EXP-Mode switch to the middle position will disable any external expression control.
The SWP (Sweep) switch lets you decide to use either the LFO or the envelope of your instrument signal to control the phasing.

The envelope can be set to upwards or downwards operation via the ENV switch, seeing the LFO either slowing down or speeding up, or flipping the orientation when phasing manually from lows to highs and vice versa. In conjunction with the FUEL (Sensitivity) and the DECAY controls, the envelope can be tailored perfectly to your needs.

The EMPH (Emphasis) mode from the original Astrospurt Phaser was kept, but have reworked and refined it extensively for the Horizont. The four toggle-switches determine the stage in which the phase-shifted signal is fed back into itself, while the REG (Regeneration) control sets the feedback amount. We also smoothed out the overall sound of the EMPH mode for a more pronounced, and crisp vocal-like tone. Each of the different switch variations and turn of the REG control will yield different results, seeing you discover new wild, fuzzy and noisy galaxies as you travel deeper down this sonic wormhole.

In order for you to levitate through spacetime, a stereo output has been added to the Horizont. You can switch between a standard stereo output or a panning output, via the STEREOPAN switch. Synchronized with the LFO speed, the upper cycle of the LFO sends the signal to the OUT1 and the bottom cycle to the OUT2. This is without a shadow of a doubt the most liquid and astonishing phasing experience you'll ever embark upon. But wait, there's more! Stop and take a deep breath, set the MIX control to fully clean and the Horizont is transformed into a Tremolo on-the-spot, with all the other aforementioned features.

Last but by no means least, the Horizont was equipped with an FX-Loop right in front of the phase-shifting line. This enables you to add your own secret sonic weapons to this spaceship, seeing you create your very own unique phasing sounds.The pedals' headroom was also increased drastically by boosting the internal circuit voltage to 18V, from the regular 9V input, to give the cleanest phasing possible no matter what instrument or line source you use.

Notes: Multi-tap delays go next-level with Eventide's incredible heritage distilled into this compact pedal format. Line level options allow you to process synths, drums, guitars and just about any other signal.

Supplier's Notes:
A Multiverse of Tone UltraTap is a unique multi-tap effect pedal capable of rhythmic delays, glitchy reverbs, huge pad-like volume swells, and extraordinary modulation.

It's the perfect tool for staccato leads, swelling chords, and other evolving effects - everything from reversed reverbs to the sound of ripping it up in the Grand Canyon!

Think of UltraTap as the mother of all Echoplexes and you won't be too far off.

That's basically how it operates but with the flexibility to add as many 'tape heads' as you want and expressively control their positions and levels.

UltraTap's controls make possible new and unexpected effects. The controls that you would expect in a multi-tap delay pedaliNumber of Taps, Delay and Feedback- are just the basics.

Controls for Spread, Slurm, and Chop open up a new world of possibilities.

Effect Features:

"Slurm" An exclusive and innovative control that smears/slurs taps together to create truly unique reverbs and choruses.

"Chop" and "Spd/Rise/Rel" combine to allow unusual and expressive modulation of the taps based on LFO shapes or the audio's envelope.

"Feedback" unlocks further tone shaping capability.

"Taps" selects up to 64 taps to create simple repeats or morph delays into chorus and reverb.

"Spread" controls the 'distance' between' taps. With the knob centered, the taps are equally spaced, turn clockwise and the later taps are bunched together, counterclockwise and the early taps are bunched together. Use this control to dial in the perfect rhythmic space between taps.

Onboard LFOs and envelopes to chop the sound source into stuttered rhythms.

"Tap Footswitch" allows you to set the tempo of the taps.

Connectors:

Input: 1/4" TRS / Mono = Tip, Stereo = Tip & Ring
Out 1: 1/4" TS Mono / Mono Output
Out 2: 1/4" TS Mono / Stereo Output
EXP: 1/4" TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch: Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch: Optimizes internal gain structure
Mini USB: Software updates, MIDI I/O
DC Input Jack: 5.5mm / 2.1mm plug / Center Negative (-)

Analog I/O:

Input Impedance: 700k ohms Mono, 990k ohms Stereo
Max Input, Guitar: +8dBu
Max Input, Line: +14dBu
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms

Specifications:

Power: 9V DC @ 200mA / Center Negative (-)
Dimensions (product): 4" W x 4.25" D x 1.68" H / 102 mm x 108 mm x 43 mm
Weight (product): 1.06 lb / 0.48 kg
Dimensions (package): 7.7" W x 4.75" D x 2.8" H / 178 mm x 121 mm x 71 mm
Weight (package): 1.68 lb / .77 kg

Notes: The MOD REX is a kinetic tour-de-force that lets you weave compelling, shifting, musical tapestries. Whether you are a guitarist, synthesist or electronic musician you will find it inspires your creativity and stretches your musical boundaries.

Four independent modulation sections:

The heart of the pedal is its four, independent modulation sections synced in time, they are:

MOD features great sounding EHX Vibrato, Flanger, Chorus or Phaser. The Depth knob lets you set the amount of the effect while Feedback controls the resonance of the Flanger and Phaser.

TREM delivers tremolo, an effect that modulates the volume of your signal. The Depth control sets tremolo intensity.

PAN modulates between left and right in stereo operation. In mono operation the PAN section acts as another tremolo section, but with the wave shapes all inverted!

FILTER offers a choice of a modulated LPF, HPF or BPF. In LPF (low pass filter) frequencies above a modulated cut-off point are cut. In HPF (high pass filter) frequencies below a modulated cut-off point are cut, and in BPF (band pass filter) frequencies above and below a modulated centre point are cut.

Each section also features a choice of four LFO shape options: rising sawtooth, triangle, falling sawtooth or square wave. They affect the way the modulation transitions and provide advanced creative control over the specific section as well as the way they interact with each other.

Tempo control that's flexible and powerful:

The MOD REX delivers virtually limitless polyrhythmic possibilities.

Its TEMPO component gives you nine note-length choices for each of the four modulation sections. They are independently selectable in increments starting at a whole note and ranging thru subdivisions that go up to a 16th note. In addition, any of the sections can be bypassed.

The MOD REX's tempo (displayed as beats per minute or BPM) is adjustable with the Tempo knob, Tap Tempo footswitch or by using an expression pedal into its EXP input. It can also be synced to an external device with MIDI Clock or an external pulse clock.

MIDI and the MOD REX:

The pedal's robust MIDI implementation enables you to sync devices quickly and easily as well as automate functions and changes so they occur precisely when and where you want them whether you are working at home, in a studio or live.

The MOD REX accepts MIDI to enable it to tempo sync the modulation rate with an external device, to recall presets via MIDI Program Change messages and to control any parameter on the MOD REX via Control Change messages.

Extras:

The MOD REX lets you save and recall up to 100 presets. It comes from the factory with 20 great programs.

The pedal features full stereo input and output.

An external foot controller input makes banking up and down thru presets quick and easy.

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Stereo
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 100mA
Year Released: 2018

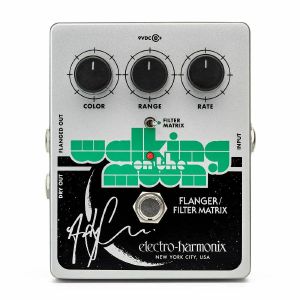

Notes: Celebrating the classic, shimmering flanger sounds of Andy Summers, the EHX Walking on the Moon is a tribute to the tones Andy employed while carving his niche in the early days of playing with the Police. Liquid flange effects that hint toward chorus with extra depth and nuance make Andy's sound one of the most coveted in all of the guitar universe.

"This beautiful shimmering which sort of made the sound more bigger and more glamourous - became a sort of characteristic of my guitar sound - A big part of my guitar sound at that time in The Police was the flange sound which we have here today in this great new pedal." - Andy Summers

The Andy Summers Walking on the Moon is an analogue flanger with a simple but powerful control set of RATE, RANGE, and COLOR. RATE sets the speed of modulation which ranges from slow, smooth filter sweeps to jittering vibrato. RANGE controls how narrow or wide the effect sweeps into the bass frequency range. The COLOR control effects the intensity of the flanger effect from subtle chorusing effects to classic jet woosh sounds. These three controls interact to create a wide breath of modulation effects.

Additionally, the Walking on the Moon includes a FILTER MATRIX which disengages the LFO from the flanger circuit, freezing the flanger giving a fixed filter effect, which can add chime or metallic overtones to your sound without the movement of a traditional modulation pedal. A DRY output allows you to split your dry signal from the effected signal.

Special Artist Edition graphics featuring Andy's signature adorn the chassis and a tribute Walking on the Moon poster with art by Laura Josephson is included with each pedal.

Analogue Flanger / Filter Matrix sounds of Andy Summers
RATE sets modulation speed
RANGE adjusts lower limit of flanger sweep
COLOR controls intensity of flanger effect
Dedicated DRY output
Special Artist Edition Graphics
Includes Walking on the Moon poster design by Laura Josephson
True Bypass
9V Power Supply included (optional 9V battery not included)

Specifications
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included (optional 9V battery not included)
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 40mA
Year Released: 2023

Notes: Fresh-Sliced Inspiration

Envelop your music in vibrant rhythmic energy with the SL-2 Slicer, an inspiring creative tool filled with colourful sonic grooves. This BOSS original chops your sound into unique percussive patterns-including many processed with internal filters and effects-and provides multiple output options that bring grooves to life across the stereo field.

Evolved from the legacy SL-20 Slicer, the SL-2 offers expanded capabilities while shrinking the size to the pedalboard-friendly BOSS compact format. Instantly elevate performances with 88 onboard patterns and tap into more via the BOSS Tone Studio app. Grab the knobs to tweak audio slices on the fly and sync to songs with tap tempo and MIDI. Fun and easy to use, the SL-2 brings fresh musical power to all types of creators, from guitarists and keyboardists to loop performers, DJs, beatmakers, and beyond.

Compact Audio Adrenaline

The SL-2 brings massive sonic groove muscle to the compact pedal format. Modern DSP takes the BOSS Slicer engine further than ever before, delivering rich, animated sounds via single and dual paths chained with multiple internal effects. Eight pattern types-each with 11 variations-will keep you armed with creative firepower for a long time. When you're ready for more, connect to BOSS Tone Studio over USB to audition and load alternate patterns into the pedal and organize memory setups for different songs.


Pre-Loaded Pattern Types:

Single (1 and 2)-Rhythmic patterns that use a single Slicer effect.
Dual (3 and 4)-Rhythmic patterns that use two Slicer effects.
Tremolo (5)-Patterns with a traditional tremolo effect.
Harmonic (6)-Rhythmic patterns with pitch-shifting effects.
SFX (7 and 8)-Rhythmic patterns with different effects applied.

Shape Your Groove

With the SL-2's efficient interface, you can dial in sophisticated textures in seconds. Use the Attack control to shape the edge of the waveform for everything from hard-chopped slices to soft, fluttering movements. Then tweak the waveform's length with the Duty control, going from sharp, percussive transients to longer, fuller audio blocks. Adjust the tempo with the dedicated knob or hold the pedal switch to engage tap tempo mode for hands-free control. And with the Balance knob and +/-12 dB of output level adjustment, you always have complete control of the mix.


Set the Stage

The SL-2 dishes up loads of impressive sounds with a standard mono setup. But things get even better when using the two outputs and seven different output modes. Send direct and effect sounds to different destinations for recording and performance. Or surround yourself and listeners in animated movement using a variety of stereo and 3D processing options. You can also feed the SL-2 with your favourite stereo pedals to bring further magic to your grooves.


Stereo Output Modes:

Fixed (Default)-Sends the same direct/effect mix to both outputs.
EFX/Direct-Sends the effect sound to Output A and the direct sound to Output B.
Random-A stereo effect that randomly outputs the Slicer sound to the left, right, or center.
Ping-Pong-A stereo effect that alternately sends the Slicer sound to Output A or Output B.
Auto-A stereo effect that smoothly pans the Slicer sound between Output A and Output B.
3D Cross-Advanced spatial processing moves the Slicer sound in left/right and forward/back patterns in 3D space.
3D Rotation-Advanced spatial processing rotates the Slicer sound in 3D space.


Expand Your Creative Flow

With its generous external control options, the SL-2 flows with your creative needs. Plug in an external footswitch to instantly tap in the tempo or engage the effect with momentary presses. Or connect an expression pedal to control knob parameters or the overall level as you perform. With the TRS MIDI input, you can sync your SL-2 grooves to a drum machine, DAW, or any other device that sends MIDI clock. It's also possible to control expression, tempo, and bypass functions via MIDI CC messages.


Specifications
Sample Rate: 48 kHz

AD Conversion
24 bits + AF method
AF method (Adaptive Focus method)
This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion: 32 bits
Patterns: 88
Nominal Input Level: INPUT A (MONO), INPUT B: -20 dBu
Maximum Input Level: INPUT A (MONO), INPUT B: +7 dBu
Input Impedance: INPUT A (MONO), INPUT B: 1 MO
Nominal Output Level: OUTPUT A (MONO), OUTPUT B: -20 dBu
Maximum Output Level: OUTPUT A (MONO), OUTPUT B: +7 dBu
Output Impedance: OUTPUT A (MONO), OUTPUT B: 1 kO
Recommended Load Impedance: OUTPUT A (MONO), OUTPUT B: 10 kO or greater
Bypass: Buffered bypass
Controls: TYPE knob, VARIATION knob, ATTACK knob, DUTY knob, TEMPO knob, BALANCE knob, Pedal switch
Indicator: CHECK indicator (Used for indication of Tempo and check battery)

Connectors:
INPUT A (MONO) jack
INPUT B jack
OUTPUT A (MONO) jack
OUTPUT B jack: 1/4-inch phone type
CTL/EXP jack: 1/4-inch TRS phone type
DC IN jack
MIDI IN jack: Stereo miniature phone type
USB port: USB B
Power Supply: Alkaline battery (9 V, 6LR61 or 6LF22, commercially available), AC adaptor (PSA series: sold separately)
Current Draw95 mA

Expected battery life under continuous use: Alkaline: Approx. 2.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Dry battery (9 V, 6LR61 or 6LF22)

Options (sold separately):
AC adaptor: PSA series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 450 g / 1 lb

Notes: Seeking to unapologetically tear apart the definition of a chorus pedal, Old Blood Noise Endeavors have created the BL-82 Chorus. An ode to delay time, this is a device with a variable clock control to shift between recognizable shimmering chorus and chaotic modulated delays.

Two delay lines, modulated by opposite synchronized LFOs, are combined in parallel and the timing of the delay lines, as well as the speed and depth of the LFOs, are all determined by one tactile slider. This allows you to instantly open up the modulated floodgates on the fly and go from well-known waves, to deeply unknown oceans of sound.

BL-82 is a chorus pedal, technically. It creates a swirling shimmery sound somewhere between chorus and flanger from a mono instrument signal. Its two delay lines are stretchable, and that's where the pedal's genre blurs from chorus into modulated delay into trailing pitch bending uncertainty.

The control set for BL-82 is dead simple. A Clock slider sets the timing of the entire system. The sample rate that determines signal fidelity, the centre delay time and the speed of the delay modulation are all affected as the slider slides. The interface is rounded out with feedback, volume, and mix add to an immediate experience that breaks open the boundaries of what it means to be a chorus and allows you to further craft the undulations of this mesmerizing device.

Notes: Dusky drama

Gloamer is an all-analogue, polyphonic amplitude synthesizer that alters the attack and decay time of any sound source without sacrificing the fidelity of the original tone. Its attack function provides a pick-triggered volume swell: a cinematic "slow gear" effect that is smooth and controllable with variable timing from extremely fast to very slow. The volume swell cycle can be reset at any moment by muting, allowing players to craft bowed string-like lines and chords with ease. Gloamer also features a powerful optical compressor that can add subtle punch or extreme sustain, helping to maintain a smooth volume swell effect even with very long attack times. A Volume knob controls loudness at the peak of the attack cycle, while a master Blend control allows players to layer an uncompressed clean sound in with the volume swell effect. Additionally, when activated, the Decay function causes notes to fade out once the attack cycle is complete. When the decay cycle is completed, an auto-reset function causes the attack to begin again immediately, as long as there is audio input. This allows you to create a wide range of undulating, asymmetrical tremolos at slower settings as well as pulsating stutter effects when using faster attack and decay times.

Knob-by-knob

Volume: Sets the master output volume of the effect when engaged.
Compression: Determines the balance of clean and compressed signal.
Blend: Determines the balance of clean signal and effect.
Attack: Determines the duration of time it takes for a note to swell in from silent to full volume.
Decay: Determines the duration of time it takes for a note to fade out from full volume to silence.
Sensitivity: Determines how much input signal is needed to reset the attack and decay cycle.
Ready (LED): Signals when the pedal is armed and ready to begin the attack and/or decay cycle.

A hi-fi attack and decay master
Gloamer was designed to allow players to change the nature of their attack and decay while maintaining pristine, hi-fidelity audio. Easily swell blooming single note lines or full, lush chords and become the string section you've always wanted to hire but can't afford.

Model name: Gloamer
SKU: ATS
Function: Volume Swell with Compressor
Category 1: Modulation
Category 2: Compression

Bypass: True Bypass

Electronics

Voltage: 9VDC
Current draw: 100mA
Input impedance: 470K
Output impedance: 150 ohms

Body:

Length (in): 3.5
Width (in): 4.75
Height (in): 2.5
Weight (lbs): 1

Notes: Bad Comrade Pedal

(Glitch, Pitch, Slice, and Dice)

Is it a distortion pedal? Is it a ring modulator? Delay? Just call it the Bad Comrade, the world's first hand-wired glitch, pitch, slice, and dice pedal. For the adventurous guitarist (or anyone wielding a 1/4" jack) that craves unthinkable tones, the Bad Comrade lets you distort, modulate, glitch, and slice on the fly.

The Bad Comrade is hand-wired in Seattle, Washington. True bypass, chrome plated LED, lead-free solder. It operates on a standard Boss style 9vdc power supply, not included. Includes a limited lifetime warranty, if registered within 30 days of purchase.

Important: power up the Bad Comrade with Glitch and Time wide open.

Enclosure size: 4.67" x 3.654" x 1.547"

Notes: Jackson Audio presents the TWIN TREM, a pedal that features two distinct tremolo effects: a Harmonic Tremolo on the right side and an Optical Tremolo on the left side. Each tremolo is equipped with independent Speed, Depth and Volume controls and can be used separately as stand-alone effects (or combined) to create rich, unique and percussive sounds.

Each tremolo side has different LED indicators (red for Harmonic, blue for Optical and magenta for Combined). These LEDs also visually display each section's speed, making it easy to sync the two tremolos together.

The TWIN TREM boasts four top-mounted jacks, allowing versatile signal routing. You can run it like a standard pedal, routing the signal in through the first jack and out through the last. Alternatively, you can route the signal through the Harmonic side first, pass it through a reverb or another effect, and then into the Optical side, preserving the classic placement of optical tremolo after reverb, just like in many amplifiers.

These routing options opens up endless possibilities for integrating the TWIN TREM with other effects in your signal chain. If you have a stereo setup, the right side can run through the Harmonic tremolo, while the left side passes through the Optical.

In addition, offering comprehensive control over pre- and post-effects tremolo placement all helps to make the TWIN TREM an essential tool for building a complete rig.

Notes: Launched in 1976, the CE-1 Chorus Ensemble was not only the world's first chorus effect pedal, but also the very first BOSS pedal. Three years later, this inventive new sound was squeezed into the blue CE-2 Chorus, and chorus pedals have remained in the compact lineup ever since. Four decades on, the spacious modulated tone of the signature BOSS effect is still loved by musicians everywhere. In 2016, to celebrate the 40th anniversary of BOSS innovation, the original analogue chorus sounds are now reborn with the Waza Craft CE-2W. The CE-2W's Standard mode faithfully recreates the classic CE-2 chorus sound, and adds an expansive new sound field with stereo output, which was unavailable in the mono CE-2. CE-1 mode fully reproduces the stereo chorus and vibrato sounds of the legendary CE-1, with the addition of variable chorus depth not available in the original pedal. To commemorate the birth of BOSS effects, the CE-2W is made exclusively in Japan, just as the original CE-1 and CE-2 were.

Waza Craft: The Art of Superior Tone

Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from old-school analogue circuits to high-tech DSP. This enthusiastic spirit continues on with the Waza Craft series, which brings you exceptional tone and touch response through carefully selected analogue components, refined circuitry, and meticulous attention to detail. In Japan, "Waza" is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship.

Specifications

Modes: 3 modes, Standard, CE-1 Chorus, CE-1 Vibrato
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls: Pedal switch, Standard/CE-1 Mode switch, RATE knob, DEPTH knob
Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors: INPUT jack: 1/4-inch phone type, OUTPUT A (MONO) jack: 1/4-inch phone type, OUTPUT B jack: 1/4-inch phone type, DC IN jack
Power Supply: Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22), AC adapter (sold separately)
Current Draw: 25 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.): Alkaline: Approx. 32 hours, Carbon: Approx. 18 hours
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9V, 6LR61), Alkaline battery (9V, 6LR61)
Options (sold separately) AC adapter: PSA series

Size & weight

Width: 73 mm/ 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm/ 2-3/8 inches
Weight (including battery): 450 g / 1 lb

* 0 dBu = 0.775 Vrms

Notes: ***B-STOCK: Box damaged, product in perfect working order***


Effects masters Eventide serve up a lush bucket brigade chorus inspired by the analogue classics of the 70s and 80s. Three chorus voices plus MicroPitch detuning for stereo width and complexity.

Supplier's Notes:
Short Description: Stereo Bucket Brigade-style Tri-Chorus with Psychedelic Swirl; Eventide's lushest chorus ever! Product copy: Deep Modulation & Dreamy Textures

Inspired by the classic Tri-choruses and stompbox choruses of the 1970s and early 1980s, the TriceraChorus pedal pairs rich Bucket Brigade-style chorusing with Eventide's legendary MicroPitch detuning for a lushness that rivals the jungles of the late Cretaceous Period. TriceraChorus features three chorus voices and three unique chorus effects which can be used to create a wide stereo spread with pulsing waves of modulation. The innovative "Swirl" footswitch adds psychedelic flanging, phasing and Univibe-style tones. It has never been easier to dial in syrupy smooth deep modulation on guitar, bass, synths, strings, vocals and more.

Deep Modulation & Dreamy Textures

TriceraChorus has three chorus voices: Left, Center, and Right, which can be detuned to add even more depth. A three-phase LFO modulates the delay times for these voices, producing a dazzling movement across the stereo field. The combination of the three modulated delays creates a huge wash of chorus reminiscent of that big, dreamy '80s sound.

A Trifecta of Tone

Like the mighty three-horned Dino, TriceraChorus is a powerhouse of chorus offering three effect types complemented by detuning and Swirl. For a quintessential vintage chorus sound, set TriceraChorus to "Chorus" mode. If you need something with more complexity and movement, "Chorale" produces lush, heavenly choruses inspired by classic rackmount Tri-chorus units. For a more warbly, pulsing effect, try "Vibrato." Add detune for subtle pitch shifting sweetness. Engage the "Swirl" footswitch to get lost in a whirlpool of kaleidoscopic sound.

Notes: Mobius gives you twelve legendary, versatile, and inspirational modulation machines, all in an easy-to-use package. Go from lush, mouthwatering, vintage chorus sounds all the way to syrupy psychedelic phasers. Get classic, pulsating tremolos all the way to warbling crushed bits. Mobius opens up the history books of music and provides new sounds and inspiration for all of your musical ideas.

Utilizing an insanely powerful SHARC DSP, every drop of power is harnessed. Top it all off with 200 presets, full MIDI implementation and a unique Pre/Post Mode and you're on your way to modulation ecstasy.

Notes: The JHS Pedals 3 Series is a collection of pedals designed to give you affordability and simplicity without compromising quality. Each 3 Series pedal is made by us JHS using high-quality parts, quality control, and attention to every detail. Each pedal has three simple controls and one toggle that offer a wide range of sounds, perfect for beginners and professionals alike. The JHS Pedals 3 Series will inspire your playing and help you explore new sounds at a totally approachable price point.

The JHS Pedals 3 Series Chorus offers classic chorus and vibrato modulation sounds, with straightforward controls and enough versatility for any style of music. The Rate and Depth knobs work together to deliver anything from subtle doubling to utterly seasick waves of modulation. The Vibe toggle removes the dry signal so that you will have a simple true pitch vibrato sound without the dry signal underneath. The JHS Pedals 3 Series Chorus runs on 9V DC Negative Center power and consumes 70mA

Notes: The JHS Pedals 3 Series is a collection of pedals designed to give you affordability and simplicity without compromising quality. Each 3 Series pedal is made by JHS using high-quality parts, quality control, and attention to every detail. Each pedal has three simple controls and one toggle that offer a wide range of sounds, perfect for beginners and professionals alike. The JHS Pedals 3 Series will inspire your playing and help you explore new sounds at a totally approachable price point.

The 3-Series Phaser is a versatile and easy to use six-stage phaser pedal inspired by the classic phaser circuits of the 1970s. It has all the standard phase tones you would expect, but because of its unique Blend control and Feedback toggle, you can achieve an even wider range of modern and experimental tones. The JHS Pedals 3 Series Phaser runs on 9V DC Negative Center power and consumes 70mA.

Notes: The JHS Pedals 3 Series is a collection of pedals designed to give you affordability and simplicity without compromising quality. Each 3 Series pedal is made byJHSusing high-quality parts, quality control, and attention to every detail. Each pedal has three simple controls and one toggle that offer a wide range of sounds, perfect for beginners and professionals alike. The JHS Pedals 3 Series will inspire your playing and help you explore new sounds at a totally approachable price point.

The rotary effect was one of the earliest modulation effects to hit the music scene. Originally designed for Hammond organs, the Leslie was a rotating speaker that created the recognizable Doppler effect (think church organ). You've heard rotary effects on everything from It's Only Love by the Beatles to Cold Shot by Stevie Ray Vaughan and from City Love by John Mayer to Black Hole Sun by Soundgarden. It's everywhere! The JHS Pedals 3 Series Rotary Chorus brings you this classic, spinning chorus tone in an affordable, easy-to-use pedal format!

Intensity determines the modulation depth. Speed lets you control how fast the simulated speaker spins. When you turn the Room toggle on (up position), it adds a roomy, reverb ambiance to the sound, much like the ambient room microphone sound that happens when recording a real Leslie.

Notes: The JHS Pedals 3 Series is a collection of pedals designed to give you affordability and simplicity without compromising quality. Each 3 Series pedal is made by JHS using high-quality parts, quality control, and attention to every detail. Each pedal has three simple controls and one toggle that offer a wide range of sounds, perfect for beginners and professionals alike. The JHS Pedals 3 Series will inspire your playing and help you explore new sounds at a totally approachable price point.

The 3-Series Flanger is inspired by the classic (and absurdly expensive) analog flangers of the past like the Electro-Harmonix Electric Mistress, the Tycobrahe Pedalflanger and the MXR M117 Flanger. The JHS Pedals 3 Series Flanger runs on 9V DC Negative Center power and consumes 70mA.

Notes: With the Orbit dBucket Flanger, Strymon have painstakingly recreated every aspect of some of the greatest vintage analog flangers. To go beyond that, they have also added features such as through zero flanging to take you where few have ever ventured before. Their high performance DSP is dedicated entirely to doing one thing and one thing only, delivering the ultimate flanger. Add true bypass, extensive expression pedal control, a favorite preset, super high quality analog front end and output sections, low power consumption and you'll never want to let go of your Orbit.

Features

Hand crafted dBucket algorithm for highly accurate reproduction of every stage of an analog bucket brigade chip. Built on the dBucket building blocks developed for our Brigadier delay.

Super low noise, high performance A/D and D/A converters w/ 110dB signal to noise

High performance DSP stuffed into a compact form factor

3 LFO types (log, lin, through zero)

3 Feedback types (positive, negative, pos/neg)

TRUE BYPASS (electromechanical relay switching)

Stereo output

Expression pedal input with selectable control over any knob parameter

Favorite footswitch for saving your favorite setting

Powered with a standard 9V center negative DC supply. Compatible with all major DC supply brands. Current consumption 200mA - (250mA recommended supply)

Premium analog front end and output section

No-nonsense user interface

Strong and lightweight purple anodized aluminum chassis

Crafted with love in the USA
