Notes: Unusual output and mastering module, inspired by studio and radio mastering tools but fitting into just 6hp. Includes multi-band compression, mid/side stereo processing and brickwall limiting.

Supplier's Notes:

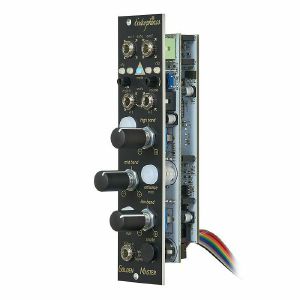

Golden Master is a multiband processor module in Eurorack format. Inspired from the studio mastering and radio loudness units from the 90's, this tool is a game changer for everyone who performs live with a Eurorack synthesizer.

The whole magic of Eurorack lies in its raw sound and simple analog mixes - processing through the Golden Master brings instant punch and sound pressure, as well as controlling the overall volume.

Power consumption: 135mA at +12V and 25mA at -12V
Depth: 30 mm (with ribbon cable connected)
HP : 6

Notes: The Erica Synths Black Low Pass VCF is designed for analogue purists, who take sound design seriously. It's highly stable, 24dB/oct resonant low pass VCF with voltage control over cutoff (two CV inputs, one is with an attenuverter) and resonance. Bonus features are built in post-filter overdrive circuit with user adjustable drive amount and the Black Filter Coupler connector.

When used in combination with the Black High Pass VCF and the Black Filter Coupler, you get a Holy Trinity of VCFs for an ultimate analogue modular system.

Cutoff

This is the main control of the module - manual cutoff frequency adjustment. The incoming CV is added to the cutoff knob position.

Drive

For extreme results, flip the drive switch on! This will apply post-filter drive. You can preset drive level to your taste by adjusting a trimpot close to the switch on the back side of the module.

Reso CV In

This is the resonance CV input.

In Level

Adjust the audio signal level.

Resonance

Adjust the resonance level manually. On settings over 1PM the filter will start to self-oscillate. The incoming CV is added to the resonance knob position.

CV1 Level

This is cutoff CV attenuverter. Adjust the CV level to your taste!

ResoCV Level

Adjust the resonance CV level to your taste.

CV1; CV2
These are the cutoff CV inputs. The CV1 level is adjustable by CV1 LEVEL attenuverter knob, CV2 is applied to the cutoff without attenuation.

Input

Patch your audio signals here.

Out
This is the audio output of the module.

SPECS:
Audio level 10Vptp
CV level -10V - +10V
Filter slope 24dB/oct
Power consumption +25mA, -29mA
Module width 10HP
Module depth 35mm

The Black Low Pass VCF has a hidden feature - the Black Filter Coupler connector. The Erica Synths Black Filter Coupler is a satellite module for the Black High Pass and the Black Low Pass VCFs, and it adds versatile Bandpass and Band Reject filter functionality to your modular system.

Please note, that the Black Filter Coupler works only with Erica Synths modules and you need both Black High Pass and Low Pass VCFs.

Remove the jumper and connect the Erica Synths Black Filter Coupler. 2x5pin ribbon cable is supplied with the Black Filter Coupler module. Use this trimpot to adjust post-filter overdrive to your taste.

Notes: Erica Synths Black VC Clock is the beating heart of your modular system.

The beating heart of your modular system in 10HP.

This module generates several clock signals simultaneously and has some more advanced features like tap tempo, shuffle and divide, both for controlled rhythmic music production and for experiments with high level of uncertainty. You may also find the adjustable and even random duty circle of shuffling and random clock outputs interesting. Bonus feature - the module can be used as a performance time stopwatch.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, design and usability was prioritised over module width. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

Max input level: -10V - +10V
Clock signal level: 0 - +5V
Clock rate: 30 - 400BPM
CV input level (full sweep): -5V - +5V
Power consumption: 40mA@+12V, 5mA@-12V
Module width: 10HP
Module depth: 25mm

Notes: *** Update February 2025- NKS Integration available with this product ***

Native Kontrol Standard (NKS) is a technical standard that connects plugins to hardware controllers with no setup required. The NKS ecosystem includes over 2,000 virtual instruments and plugin effects by over 250 acclaimed developers.

NKS enables users to load instruments and effects, tweak parameters, browse and manage presets with tangible controls, keeping creators' minds and hands on the music. No time is wasted creating, saving, and resetting controller parameter mappings.

Key features include:
Unified Control: NKS maps plugin parameters directly to hardware controls, allowing for hands-on adjustments without navigating computer menus.
Efficient Workflow: It streamlines browsing, loading, and editing presets, enabling producers to stay focused on creativity.
Broad Compatibility: Many third-party developers support NKS, offering a wide range of compatible sounds and effects.
For Our Products: This integration allows Akai and M-Audio compatible devices to fully utilize all NKS workflow features.

Here are some key points to take note of:

Current users will receive the software bundle once they register their device.

Both existing and new owners will receive the software bundle once their hardware is registered.


NKS Software Partnerships

For years, Native Instruments has partnered with world-class software manufacturers, including Arturia, Heavyocity, Korg, Output, Spitfire Audio, and many more, to bring thousands of instruments and effects plugins into the NKS ecosystem. Together with Native Instruments' own instruments and effects, this creates the most extensive database of any auto-mapped hardware controller ecosystem.

Until now, NKS hardware controllers were only available from Native Instruments, such as the Kontrol S-Series and Komplete Kontrol A-Series keyboard controllers.

NKS Hardware Partner Program [New]

At NAMM 2025, NI announced opening up NKS compatibility for third-party, non-NI hardware, allowing millions of performers and producers worldwide to enter the NKS ecosystem.

Supplier's notes:

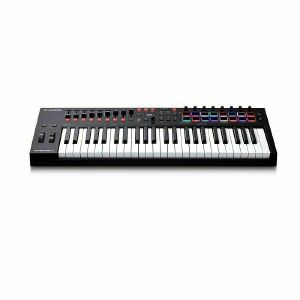

The Oxygen Pro 49 is a powerful, 49-key USB powered MIDI controller that allows you to create the music you want to make even easier! The new Oxygen Pro controllers open up worlds of expression and creativity and make bringing your production ideas to life more seamless than ever. Taking feedback from users and artists alike, these controllers are the ultimate studio and live performance tools, allowing you to keep your focus on creating music-not programming your software. It doesn't matter if you want to create music on the go or in the studio, the M-Audio Oxygen Pro series is perfectly flexible for your workflow.

It's simple to use the Oxygen Pro 49 controller with any DAW with the Oxygen Pro 49's automatically mapped controls such as Transport, Faders, Channel controls (Record Arm, Solo, Mute, and Select), Pan controls and more. Whether you use Ableton, Pro Tools, MPC Beats, Cubase, Logic, Studio One or any other major DAW, just select your DAW in the Oxygen Pro 49 and select the correct configuration in your DAW, and the Oxygen Pro 49's controls will be completely integrated into your DAW! It also instantly maps to all the virtual instruments included with the Oxygen Pro 49 (Velvet, Mini Grand, Vacuum, Boom, DB33, Xpand!2). These world-class Air Music Tech plugins can be fully controlled by the Oxygen Pro 49 and used in real-time as you create and mix your music.

With Smart Chord and Smart Scale technology, creating music and transferring what's in your imagination to what you hear coming out of your computer has never been easier!

With Smart Chord activated, pressing a single key or pad will play a full chord rather than just one note. The key or pad you press will determine the root note in the chord. The rest of the chord's properties (Major, Minor, and Voicing - 1,3,5; 1,3,7; 1,3,5,7, etc.) are determined by the settings you choose. Smart Chord also has a Custom Mode which lets you to determine the chord structure that will be assigned to each key by manually playing it. For example, if you select Custom Mode, and play a 1-b3-5-b7 chord, every key will then be assigned to play this chord structure. The note of the key you press will serve as the root of the chord and all of the parameters can be edited right on the Oxygen Pro 49!

The Oxygen Pro 49 also features intelligent Smart Scale technology. With Smart Scale, you can set the key bed so that only notes in the selected scale are able to be played. This allows you to play within a chosen scale without the risk of playing any "wrong" notes. You can choose from 16 different scale variations when assigning a scale to the keyboard. Smart Scale is easy to activate and deactivate and allows you to set the scale parameters you need to keep you focused on creating.

Built into the Oxygen Pro 49 are features that are essential to creating modern day pop, electronic, hip hop, and dance music. Note Repeat and the built-in Arpeggiator open up a world of precise music production and live sound techniques to make your music sound professional.

Note Repeat allows you to hold down any of the custom-made M-Audio performance pads and you'll hear a repeated rhythmic pattern at a selectable note division. The Note Repeat feature can be activated momentarily or can be used in Latch mode. If you choose Momentary, holding the Note Repeat button will make the note played by the pad automatically repeat. If you choose Latch, pressing any pad will cause its assigned note to repeat without you having to hold down the Note Repeat button.

The built-in Arpeggiator will affect anything you are playing on the keys from any virtual instrument in your DAW. When the Arpeggiator is activated, the keyboard will repeatedly play the pressed keys in sequence. The arpeggiator's timing and rhythm is based on the keyboard's time division setting and either the keyboard's or your DAW's tempo setting. Each note in the arpeggio will be the length you've selected for the time division setting; for example, if you select 1/4, each note in the arpeggio will be a quarter note. This powerful tool can operate in Latch or Momentary mode, making it easy to unleash your creativity.

What's In The Box:

Oxygen Pro 49
USB Cable
Software Download Card
Quickstart Guide
Safety & Warranty Manual

Dimensions: 10.4" x 31.5" x 3.3" 264.2 x 800.1 x 83.8 mm

Weight: 9.3 lbs/4.2 kg

Notes: Loop is a high fidelity looper with four unique recording modes and an intuitive user interface. It can capture up to five minutes of audio with reverse, and half-speed playback accessible. Each recording can use one of four modes: Sound on Sound, Dub, Replace, and Infinite (i.e. Frippertronics). Whether you're looking for minimal part layering, or full blown ambient soundscapes, Loop will take your patch for a ride.

High fidelity audio - 24-bit, 48kHz with five minutes of recording time
Four recording modes: Sound on sound, Dub, Replace, and Frippertronics
Intuitive interface
Half speed and reverse playback

Tech Specs:
Width: 2HP
Depth: 42mm

Notes: Loop is a high fidelity looper with four unique recording modes and an intuitive user interface. It can capture up to five minutes of audio with reverse, and half-speed playback accessible. Each recording can use one of four modes: Sound on Sound, Dub, Replace, and Infinite (i.e. Frippertronics). Whether you're looking for minimal part layering, or full blown ambient soundscapes, Loop will take your patch for a ride.

High fidelity audio - 24-bit, 48kHz with five minutes of recording time
Four recording modes: Sound on sound, Dub, Replace, and Frippertronics
Intuitive interface
Half speed and reverse playback

Tech Specs:
Width: 2HP
Depth: 42mm

Notes: Punch is the ultimate VCA-DECAY module for Eurorack

Specially designed to generate dynamic percussive sounds but also capable of basslines, leads, envelopes and more. The VCA has a built in voltage controlled Decay envelope that can be turned from smooth to more aggressive exponential responses and can be activated with triggers, gates or cv's.

Punch features two modes per channel to play, with a dedicated switch control: "vintage style drum machine mode" and "dynamic cv mode"

Punch is capable of creating AM sounds with control voltage on the "amount"

Each envelope can be inverted via dedicated switches on the front panel.

If you use an inverted envelope alongside the accent input you can create ducking effects like side-chain compression..

INSTALLATION:
* Disconnect your synth from the power source.
* Double check polarity from the ribbon cable, unfortanetly if you damage the module by powering in the wrong direction it will not be covered by the warranty.
* After connecting the module check again you have connected the right way, the red line should be on the -12V.

Notes: Compact, affordable and truly powerful DJ controller from one of our favourite brands. One of the best options for starting out with DJ software. Hook up to a smartphone, tablet or computer and get mixing.

Supplier's Notes:
This compact and powerful 2-channel DJ controller was designed and developed in close partnership with Algoriddim for the tightest integration possible with their award-winning djay app.

The Reloop Buddy offers DJs of any level all the tools they need to perform creatively and efficiently at a high level. Thanks to its powerful features and the brand new Neural Mix controls, the BUDDY is space-saving without compromising any functionality.

Whether you're a complete beginner or an experienced DJ, the Reloop Buddy offers you full control over your mixes thanks to powerful features including the intuitive pad section consisting of 8 performance modes (hot cue, auto loop, touch FX, sampler, slicer, bounce loop, Neural Mix™, looper), dedicated loop controls, a flexible effect section with FX paddles (hold & toggle), and responsive jog wheels for precise mixing and scratching.

Also, the Reloop Buddy includes extensive Neural Mix controls (pad / EQ mode) to isolate beats, instruments, and vocals of any song in real-time for even more creative mixing possibilities.

The Reloop Buddy offers you large FX Paddles with HOLD and ON positions for instant effect mixing.

In terms of outputs, a full headphones cue section and 14 inch jack are conveniently located at the side of the unit, together with an RCA out port for direct connection to active speakers and sound systems.

Thanks to its dedicated integration with Algoriddim's djay software, and built-in USB audio interface, the Reloop Buddy enables instant plug and play compatibility with smartphones, tablets, and computers.

The Reloop Buddy is built from quality, durable materials, and its space-saving, highly-portable design makes it perfect for your home setup, mobile use, and even on-the-go or while traveling. Furthermore, its built-in device slot can hold smartphones and tablets up to 12.9", which keeps the overall footprint of the unit to a minimum.

Not only can tracks be loaded to djay from your crates and libraries, but it's also even possible to mix millions of tracks instantly from popular streaming services such Tidal*, Soundcloud Go+*, Beatport LINK*, and Beatsource LINK*.

*Please note: An internet connection and a TIDAL Premium or HiFi subscription, Soundcloud GO+ subscription is required. Beatport Link and Beatsource Link are accessible with all 3 offered subscriptions.

HIGHLIGHTS:

Compact performance controller for djay across all platforms (iOS/Mac/PC)

Powerful features: FX paddles, sound filters and 8 performance modes

Neural Mix controls for real-time vocal and instrumental separation

Notes: For podcasters, videographers, bloggers, journalists and more, the F2 is the perfect audio solution for creators on the move.

The F2 is incredibly small, but its audio quality will amaze you.

The F2 features 32-bit float recording technology, allowing you to record the loudest audio signals without worrying about clipping. It will also record the quietest signals in beautiful detail. And the best part is you don't have to worry about setting the gain. Just plug in the lav and hit record.

Once you start your recording, use the F2's HOLD switch to ensure you don't accidentally stop recording.

Screw-lock connectors keep your lav plugged-in securely no matter the situation.

With the F2 actors can record and playback their lines to perfect their delivery.

The F2 Editor for PC and Mac allows you to adjust settings, format SD cards and more. Simply connect your F2 or F2-BT via a USB cable and launch the editor. The USB connection also makes it easy to transfer files to your computer. See the F2 Editor features here.

Whether a stroll through your garden, or the whispers and shouts of a dramatic reading, the F2 provides crystal clear recordings.

The F2 can record up to 15 hours (14 hours on the F2-BT) with two AAA batteries.

Record on microSD, microSDHC, and microSDXC cards up to 512GB.

The LMF-2 omnidirectional lavalier microphone has a low-profiled design, captures high-quality audio, and includes a windscreen and lapel mic clip.

The F2 Field Recorder gives you the option to choose the recording format that works best for your projects. Choose from 44.1 kHz/32-bit float or 48 kHz/32-bit float mono WAV files.

The F2 Is Perfect For Recording Interviews Anywhere.

Input
Connector: 3,5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V)
Input impedance: 2 kO or more
Maximum input level: -5,5 dBu
Output
Connector: 3,5 mm stereo mini (with screw lock)
Maximum output level: 20 mW + 20 mW (into 32 ? load)
Recording media
Cards compatible with microSD/microSDHC/microSDXC specifications (Class 4 or higher, 512 GB maximum)
Recording formats
WAV, 44.1kHz/32-bit float, 48kHz/32-bit float Mono, BWF format supported WAV
USB
USB Typ-C
Note: Use a USB cable that supports data transfer. USB bus power is supported.
Mass storage operation: USB 2.0 High Speed
PC app operation: USB 2.0 High Speed
Power
2 AAA batteries (alkaline, lithium or rechargeable NiMH batteries)
AC adaptor
Bluetooth
Bluetooth Ver4.2 (F2-BT only)

External dimensions: 57,5 mm (w) x 46,4 mm (D) x 22,4 mm (H)
Weight (main unit only): 32 g

Notes: TriTone is a three section EQ plus saturator. Inner knobs control frequency and outer knobs control +- gain. All these sections Hi Shelf, Band Pass and Low Shelf are having + 20 db of gain and 30 db of reduction. Each section can work independently or they can be serially connected by the switches. Middle input in each section accepts CV for its frequency, so all three sections can be individually FMed by the external CVs.

If the inputs are fed with the modular level signals (+- 5V), then there is little room for "plus" EQ gains before saturation starts. In this case the input level should be attenuated first, if saturation is not desired and much "plus" gain is needed. Otherwise saturation drastically enriches the tone and the module works like very flexible overdrive FX.

When the switches are set to upper positions, then all three sections work independently. With the maximum gain reduction (CCW position) of the upper section (Hi Shelf) it becomes a useful kind of Low Pass filter. On the contrary - maximum gain reductions of the lower section (Low Shelf) makes it a High Pass filter.

Please note the internal routing done by the switches: the output of the uppers section is added to the input of the subsequent lower section. If nothing is connection to this lower sections' input, then only the upper section's output is processed. This makes it a 3 band EQ with the switches set to lower position. Having separated inputs opens up more possibilities over ordinary EQs.

6 HP, 45 mm deep
55 mA +12V
65 mA -12V

Notes: uBurst

This is a new build of the micro version of Mutable Instruments Clouds. The module retains all the functions of the original Clouds, taking up significantly less rack space.

These modules use tall bushing potentiometers to offer a more stable feel.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.

Notes: The CVx 1U expander module has eight user-configurable outputs and connects to the MIDI 1U module. Using the Intellijel Config app, you can assign each of the eight jacks to generate just about any type of voltage that can be derived from a MIDI signal; pitch, gates, triggers, clocks, velocity ... you name it! You can chain up to four CVx modules to a single MIDI 1U to add a whopping 32 additional channels of midi control to your modular.

Each CVx module can also allow you to generate 2 or 4 voice polyphonic controls with selectable voice allocation modes. The connectivity, feature set, expandability, and compact size make the MIDI 1U + CVx system ideal for integrating your modular gear with the rest of your rig.

Intellijel's MIDI 1U system comprises several elements, which work together to provide flexible, programmable MIDI-to-CV conversion to your Eurorack modules: The system comprises two mandatory components, and one optional component:

MIDI 1U module - This 14HP 1U module receives MIDI from an attached, external MIDI input connector (7U case, Palette case, or MIDI IN Jacks 1U module), and extracts (by default) Pitch, Velocity, Mod, CC, Gate, Trig, Clock and Reset messages - sending the proportional voltages to individual 3.5mm jacks for patching.If desired, the CC and MOD jacks may be configured to respond to either Channel Aftertouch or High Resolution CC, and the Reset jacks can be configured as a Run jack, instead. Additionally, MIDI 1U features an alternate Dual Mode, which maintains the Clock & Reset functionality, but uses the other six jacks to transmit Pitch, Velocity and Gate messages derived from two separate MIDI channels.

MIDI input connector - the MIDI 1U module does not have its own MIDI input jack. This enables you to use the MIDI/USB inputs built-in to your Intellijel 7U Performance Case or Palette Case. If you don't own one of these cases, you can purchase the MIDI IN Jacks 1U module to connect an external MIDI device.

CVx 1U module - This optional 14HP 1U module connects to the MIDI 1U module and adds an additional eight 3.5mm CV outputs. These outputs are fully programmable using the Intellijel Config app, and greatly expand MIDI 1U's ability to control your entire Eurorack system.

Width: 14HP
Depth: 32mm
Power: 55mA @ +12V
6mA @ -12V

Notes: Alan (micro Turing Machine) Shift Register Based Sequencer

The randomness of the Music Thing Modular Turing Machine, shrunk down to 6HP. Alan retains all of the same functionality as the original including the connectors for the expanders.

While this module has little to do with the original Turing Machine (by Alan Turing), it is a shift register based sequencer. You cannot program this sequencer, instead it builds random sequences that can be locked in.

Alan comes tested, calibrated and ready to bring random voltages.

The After Later Audio panel is black and gold and made from FR4. The package will include a power/ribbon cable and a one year warranty.

Notes: nRings

This is a new build of a micro version of Rings from Mutable Instruments. MicroRings, also called NanoRings, retains all the same functionality as a full-size Rings module.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.

These modules use tall bushing potentiometers to offer a more stable feel.

Notes: 8HP Tides version 2

Fully calibrated.

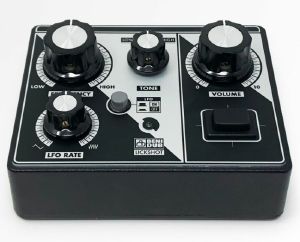

Notes: The classic dub siren, updated and improved. Machine-gun/laser-gun and airhorn sounds with modulation controls and tough build quality for use in live settings.

Supplier's Notes:
Our take on one of the most iconic dub sirens

-Classic machine-gun/laser-gun sound FX

-Brand new airhorn-like sound FX

-Modulation speed and frequency pitch control

-3 Base frequencies for the audio oscillator

Classic laser-gun sound FX machine

SPECIFICATIONS
Audio output: impedance balanced 1/4" TRS Jack

DC Input: 12VDC, 500mA, centre positive, 2.1mm*5,5mm barrel type connector

Dimensions: 120mm*90mm*40mm

12VDC 1A power supply included.

Notes: A warm and deep sound source you can rely on

A flexible and warm Analog Multifunction Oscillator, rich in harmonics. Excellent for performance use!

ONA can work as an Audio Oscillator or as a Low Frequency Modulator and it provides control over all its parameters, making it a versatile, deep and easy-to-use oscillator.

Thanks to its triangle-core oscillator and wave-shapers you can choose between a big palette of output waveforms to give shape to your ideas.

Classic Waveforms. Sine, Triangle, Saw and Square.

2 Complex Waveforms with Pulse Width Modulation.

2 Sub-Waveforms to add some bass sounds easily.

Blend them to give unlimited depth to your sound!

Notes: Keyboard meets sequencing in Arturia's all-round controller. USB, MIDI, CV and analogue clock compatibility make this 64-step polyphonic sequencer a true all-rounder. Great value.

Supplier's Notes:
KeyStep 37 goes beyond an easy-to-use 64-step sequencer, arpeggiator and MIDI keyboard. It's responsive, dynamic, expanded in every direction to encourage musical exploration - the controller that's built to help write music and also includes Ableton Live Lite, making it a complete music production starter kit, as well as appealing to veteran musicians. Like KeyStep and KeyStep Pro before it, KeyStep 37 offers unique features not found in any other product.

The familiar KeyStep formula, expanded. KeyStep 37 features a velocity-sensitive 37-note keybed, complete with aftertouch and RGB LED feedback, while remaining lightweight and compact.

At the center of the control panel, you'll find 4 new knobs with an LED screen, giving you instant access to inspiring new expressive tools and MIDI tweaking - total creative control.

The new controls unlock KeyStep 37's unique & enhanced Chord mode. Choose from 12 chord types, an array of strum effects, and spread the voices out into complex velocity-sensitive parts that respond like a stringed instrument.

Map out KeyStep 37's 3-octave keyboard range with a scale of your choice using Scale mode. Any key you play will automatically quantize to the nearest note in the chosen scale.

Tap into the inner workings of your MIDI hardware and software with assignable 16 MIDI CC pa-rameters across 4 switchable banks. Use the 4 new controls to tweak settings on the fly for dy-namic performances.

The core of your setup:

KeyStep 37 is designed to be put in control. An accessible interface, a compact design and com-prehensive connectivity make it the perfect centerpiece for your rig - whatever your needs.

Hook up your synth hardware with MIDI in/out. Control your favorite VST instruments with MIDI over USB. Use CV pitch, gate and mod connections for modular integration. Analog sync in/out keeps everything in time without hassle. The best bit? Use it all at the same time.

Included is a free copy of Ableton Live Lite, an accessible music-making suite for your Mac or PC. Register KeyStep 37 for your free download and get creative right out the box - let the music flow freely.

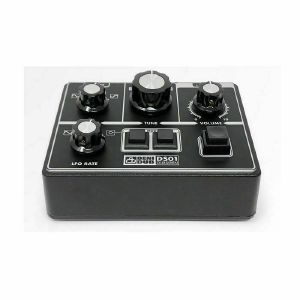

Notes: The DS01 is the second-generation clone of the most classic dub siren in the known universe, old school transistors sound FX machine with unique feel and sound.

Audio output: impedance balanced 1/4" TRS Jack

DC Input: 12VDC, 500mA, centre positive, 2.1mm x 5,5mm barrel type connector

Dimensions: 120mm x 90mm x 40mm

12VDC 1A power supply included.

Notes: Buzz. Beep and bloop. Get high on the lo-fi sounds of "old-school" games, toys and terminals!

The Mainframe provides sample rate reduction ranging from 48kHz to 110Hz. A little background... the sample rate is the number of times per second that a sample or snapshot of an analogue signal is taken. For example, CDs (remember them?) had a sample rate of 44.1kHz which means that the original analogue signal is sampled 44,100 times per second.

The sample rate defines the frequency range that can be reproduced while maintaining good fidelity. When the sample rate is reduced the quality of the audio is degraded and aliasing occurs. Aliasing means audible artifacts created when higher frequencies are sampled at an inadequate rate and the result is distortion. The Mainframe's sample rate range is wide enough to take you from sounds that are quite pristine to sounds that are unrecognizable when compared to the input signal.

It also provides bit crushing ranging from 24-bit to 1-bit. What does that mean? Bit crushing is bit depth reduction. Back to the CD example... CDs used a 16-bit bit depth meaning that each of its samples was represented by 16-bits of information. Higher bit depths can accurately represent a greater dynamic range while bit crushing increases the number of sampling errors and creatively degrades the sound to bring us back to those nasty "old school" sounds we love.

The Mainframe's selectable High/Low/Band-Pass filter lets the user shape the artifacts of the bit crushing and sample rate. Another very cool feature is its Sample Rate Tuning Mode where the pedal analyses your input signal in real-time and sets the sample rate to match the pitch of your signal, or a set interval above your signal. This allows you to set the sample rate to match the key of a song, or it will continually adjust the sample rate based on what you play!"

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 90mA
Year Released: 2020

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long "wav" file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

Please note the reverse CV operation of the Dry/Wet control: positive CV crossfades from Wet to Dry, and negative CV crossfades from Dry to Wet.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 150 Hz or brought up to 48 kHz.

80 mA +12V
30 mA -12V
45 mm deep

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other user selected Happy Nerding effects in any order. Also the possibility to run freely available third party effects will be added too.

Reflashing procedure is quite easy: playing 40 sec long "wav" file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

Please note the reverse CV operation of the Dry/Wet control: positive CV crossfades from Wet to Dry, and negative CV crossfades from Dry to Wet.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 150 Hz or brought up to 48 kHz.

80 mA +12V
30 mA -12V
45 mm deep

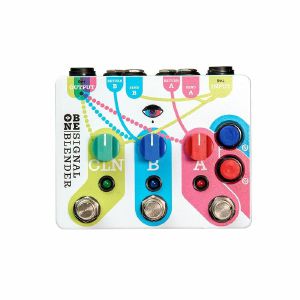

Notes: Open up your signal routing options with this neat and simple pedal. Split one signal into three, run effects in parallel, mix three signals together, set up ABY routing or set levels. Versatile.

Supplier's Notes:
The Signal Blender provides a number of parallel routing solutions through its use of a pair of send/returns, primary input and output, switching, and volume control.

Signal Blender can be used as a:
Parallel effect blender
3-to-1 mixer
1-to-3 splitter
Active ABY in either direction
Volume level setter

and more.

A courtesy 9V power outlet and phase correction switches for both Sends add further versatility to this box. Clever switching allows for latching or momentary on/off action.

The Signal Blender uses standard 9V center negative power, and has a current draw of 31 mA.

Notes: Following the ADDAC103 T-Networks, this new module is also inspired by Twin T-Networks circuits used in many lengendary drum machines. A simple 4 voice module with frequency controls for each of the voices. This new module also features CV inputs with attenuverters for each voice Frequency. Due to the specificities of the circuit, and to keep the module at a low price, these inputs are not callibrated to 1v/octave.

At each voice input there's a gate to trigger converter so any input source is possible.
Audio inputs can also be used as an input, in this case and due to the nature of the gate to trigger converter, each voice can be used as very destructive filters.

The top 2 channels feature a higher frequency range, the bottom 2 channels feature a lower frequency range.

Notes: Inspired by our ADDAC701 VCO waveform mixing section, our new VC Signal Router also updates our legacy X-Fade/Panner to a stereo configuration that also allows 4 quadrant mixing.

Featuring two dedicated X-faders and a stereo VCA that can also be used as a third X-Fader. All controls have their own CV inputs and dedicated Attenuverters for precision control.

4 quadrant mixing is achieved by using the stereo Master as a X-fader between left and right channels, this way you can plug 4 audio sources and sweep/crossfade between each and any of them using the 3 x-faders. Plug any 4 sources (4 waveforms of a VCO, 4 LFOs, 4 envelopes...) and sweep through morph through or have them all mixed together.

For other configuration types Left and Right X-fader channels can be routed through the Master stereo VCA or sent directly to the outputs. A stereo Direct input can also be routed through the Master VCA or sent straight to the outputs.

The Mono Sum output always mix Left and Right outputs together allowing the possibility to use the module as a peculiar 6 channel mono mixer.

It can be used for both Audio or CV Signals.

Tech Specs:
8HP
4.5 cm deep
40mA +12V
40mA -12V

Notes: Really nice stuff here. The filter circuit from ADDAC's 4 Voice Cluster module gets reimagined as a multi-mode stereo or dual mono filter module. A lot of filter action in just 6hp.

Supplier's Notes:

While developing the ADDAC105 4 Voice Cluster module, a new multimode filter to place after the summing mix stage- and the results were so postitive that it was released as a dedicated filter.

To make it more interesting, the circuitry was duplicated, to be able to use it in a stereo signal path.

To make it more versatile, a switch was added to set the working mode from Stereo to Dual Mono where both filters can be used independently.

In Stereo Mode the Left Cutoff is used to control the Right Cutoff.
In this case the Right Cutoff Knob and CV Input are simply bypassed and will have no impact on the Right Channel operation.
This allows immediate sync of both filter frequencies when the Stereo position is engaged.
Optionally there's a jumper in it's back that, when placed, connects the Right Controls back to the Right CV control allowing the possibility to control the offset of the Right Channel Cutoff.

Resonance is independent on both Modes and still has to be set manually to match both channels.

Both the Audio and CV inputs are normalled from the Left into the Right channels.
As standard plugging any input to the Right channels removes this connection.

Tech Specs:
6HP
4 cm deep
70mA +12V
70mA -12V

Notes: Replacement stylus Nagaoka MP-150

JN-P150, Tonar article 6823

Cantilever: hardened tapered aluminum alloy

Stylus: 0.4 x 0.7

Mil naked elliptical block diamond stylus tip

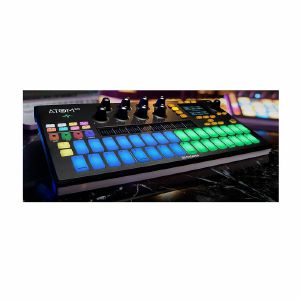

Notes: Forward-thinking controller designed to play nicely with Presonus's own Studio One DAW or Ableton Live. Velocity- and pressure-sensitive RGB pads, context-sensitive screen and eight rotary encoders.

Supplier's Notes:

Modern musicians, performers, and producers need to move quickly from programming drums and samples to playing synth lines and back again. ATOM SQ was designed as a versatile and expressive MIDI pad controller for contemporary music production. Its unique design is optimized for both classic TR-style 16-step beat sequencing and drum pattern editing in Studio One or playing instruments and launching clips in Ableton Liveiyet its staggered and RGB-lit pad configuration is instantly familiar to anyone who's played a controller keyboard. Advanced features let you change the keyboard scale, and a built-in arpeggiator makes the ATOM SQ the most expressive controller you'll ever use. In fact, it's the best PreSonus Studio One MIDI controller available.

A complete production toolkit.
Included with ATOM SQ, Studio One Artist music production software enables you to compose, record, and produce without getting distracted by the tools or hemmed in with track limitations. Easy to learn and intuitive to use, Studio One's unique drag and drop workflow and powerful tools will let you produce faster than ever before. Also included are two carefully-curated loop libraries with custom Impact XT kits. New to version 5: Studio One Artist now lets you use your favorite third-party VST and AU plug-in effects and virtual instruments. You also now have complete support for Studio One Remote to use as a second screen or as remote Studio One control on your iPadr or Android™ tablet. And with ATOM SQ, you have the most flexible PreSonus Studio One MIDI controller available. PreSonus Sphere users now have access to a new exclusive portal loaded with custom-designed tools and curated content by featured PreSonus artists.

Ableton Live integration and more.
ATOM SQ is also unique Ableton Live controller, designed for production and live performance. You can launch clips and scenes during a performance, select devices and edit parameters, navigate tracks and scenes, control each track's volume, panning, and send levelsiplus do all your drum programming in Ableton from the ATOM SQ! Ableton Live Lite is included, so you can get to creating right away. It comes with all of Live's essential workflows, instruments and effectsieverything you need to record songs, create hands-on with your controller, take music made in your apps further and so much more.

Navigation and transport control
ATOM SQ is more than an expressive pad controlleriit also lets you navigate many aspects of Studio One without a mouse and keyboard. You've got transport controls for stop, play, record, and a dedicated Click Track toggle. You can even zoom in and out of your timeline and navigate among your tracks, all without skipping a beat.

Deep control at your fingertips
Deep integration with Studio One's Pattern Editor allows for evolving step sequences that will bring your productions to life. Insert a pattern, change its length, add new variations, and change scalesiright from the ATOM SQ. Need to make changes on the fly? ATOM SQ lets you open the Studio One Pattern Editor, select and edit steps individually, and even copy, paste, duplicate, and delete events, all using tactile controls. You'll build compositions faster than ever before using the built-in step sequencer in Studio One and ATOM SQ. It's fast and easy for anyone who knows how to program a drum machine. And you'll find experimenting to yield particularly rewarding results, because ATOM SQ can constrain your performance to the scale of your choice. No more wrong notes!

However, wherever.
ATOM SQ is highly configurable. You can freely remap instrument parameters to different hardware controls, so your rotary encoders can control everything from filter cutoff to drum tuning, for the ultimate drum programming experience. You can colorize the RGB LEDs as you please to color-code your loops and samples. ATOM SQ's LCD screen is used to display context-sensitive information, and uses a dynamic button system that changes functions depending on the task at hand. Need to add more swing to your arpeggiator or change the CC assignment of a controller? The LCD screen details functions you need, right when you need them for the job at hand.
ATOMSQ

Wherever sound takes you...
With its unique staggered-pad layout, contextual screen design, and customization tools, ATOM SQ lets you stay in the moment of creation. Its small-footprint, USB bus-powered design means you can slip it right into your bag and produce anywhere you and your laptop might happen to go, and the complete suite of integrated software lets you start creating right out of the box. Whether you're in the studio, on stage, or on the road, ATOM SQ gives you the freedom to create, wherever sound takes you.

Notes: Row Power is a clean, regulated, and protected power solution for Eurorack systems. Row Power 45 provides enough power for two to three typical Eurorack rows (typically up to about 312HP):
+12V @ 2.0A maximum, 1.5A recommended
-12V @ 1.4A maximum, 1.2A recommended
+5V @ 1.5A maximum, 1.2A recommended

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying bus cables or the Bus Stick. For custom power systems, the Row Power 45 has a set of easily soldered holes for using large gauge wire or MTA156 connectors to connect to distribution bus boards.

Multiple Row Power modules can be powered from a single power brick by daisy-chaining with an inexpensive barrel cable. The Row Power 45 can also be daisy-chained to 4ms Company's Pod enclosures. Each power supply is independently regulated and protected for ultra-low cross-talk between rows/pods.

The Row Power 45 is compatible with the 4ms Row Power Shield. This device (sold separately) attaches to the back of the Row Power 45 and monitors the amount of current being drawn, as well as the voltages of the power rails. The information is sent over Bluetooth to be displayed on a phone or tablet.

Electrical and Mechanical Specifications

Module Size:
4 HP Eurorack format module

Power Output:
Maximum average load under normal conditions: +12V @ 2.0A, -12V @ 1.4A, +5V @ 1.5A
Maximum average load under any condition: +12V @ 1.5A, -12V @ 1.2A, +5V @ 1.2A
Powered by laptop-style DC power supply: 2.1mm barrel, positive center, 15V-20V.

Included with the Row Power 45:
16-to-16 pin power cable
2 M3 Knurlie screws

Notes: EME (Eloquencer MIDI Expansion) is the perfect companion for the Eloquencer, adding capabilities to sync with MIDI devices, control most of the eloquencer parameters with MIDI interfaces, generating MIDI voices from the eloquencer tracks, and converting MIDI signals to the eurorack world.

Description:
MAIN FEATURES
IN / OUT
DIN-5 MIDI Input, DIN-5 MIDI Output, USB Host.

BUTTONS
4 freely assignable buttons. They can be assigned to:

Next/previous pattern
Next/previous part
Direct access to Pattern mode, Play parts, Duplicate, Project, Gate REC, CV Key REC, MIDI key REC, Free Play...
Save current project
Random 1 to 3 layers of selected track
Reset LFO of selected track
On/Off LFO of selected track
Freeze
Revert
Fill A to H or selected track
Mute A to H or selected track
DJ Nudge FWD/BCK fine/coarse

MIDI CLOCK
Eloquencer can receive 24ppqn sync from MIDI device from its DIN-5 MIDI Input, and can send 24ppqn MIDI clock through its DIN-5 MIDI out.
When working as 'internal' it will send the internal clock to the MIDI output.
When working as 'external' will send the eurorack incoming clock to the MIDI output transformed into 24ppqn.

MIDI OUT
The Eloquencer tracks can be independently assigned to:
- Voice events (note on/off, velocity, ch pressure...) For example Track A can be assigned to Channel 1 Note on/off and Track B can be assigned to Channel 1 Velocity, so track A gates and CV control Channel 1 notes and pitch, and track B controls Channel 1 Velocity.
- Control Change (CC)
- Program Change (PC)

The gate and CV output will work as usual when a MIDI OUTPUT is assigned, so voices can be doubled using the modular and an external synth.

There's a particular execution order for MIDI out events, so the first to be launched is the Program Change, followed by the CC and then the voice events. This way, we can launch program changes before the note on message is received allowing preset changes for each step.

MIDI IN
Both, the DIN-5 MIDI in and the USB can be used to change eloquencer parameters using controllers or to introduce notes in REC MODE using a keyboard.

There are 3 different groups of controls associated to MIDI channels:
- Channel : 8 MIDI channels to control parameters of specific tracks from A to H
- Global : 1 MIDI channel to control Global parameters.
- Focus: 1 MIDI channel to control the parameters of the currently selected track (track in focus). That means that if Track A is selected and we send CC 38, we will be shifting track A, but if we select track B and we send the same CC 38, we will be shifting track B.

When using the USB host input, the EME can send feedback information in case the controller that is being used has LEDs to be updated.

There is a big amount of eloquencer parameters that can be controlled using an external MIDI interface / controller. For example:

Non-destructive track parameters addition/subtraction (CV, CVP, CVR, GL GLP, R...)
Track length
Step mode / Step mode DIV / Step mode REP
Track shift
LFO on/off / Type / Length / amplitude.
Fill
Mute
Random
CV Gate link
Scale group and root
Tempo
DJ Nudge
Shuffle
Clock out
Play / Stop
Direct access to modes (Pattern, Project, Live REC...)
MIDI INTERFACE

A MIDI Channel can be assigned to an Eloquencer Track, so the gate and CV outputs will stop listening to what is sequenced and start listening all note on/off messages coming from the chosen MIDI channel.

Notes: Excellent value upgrade to standard hi-fi turntable styluses. Designed for smooth sound with a balanced tonal presentation. Hand built in Brooklyn by experienced audiophile specialists.

Supplier notes:
The Silver3 uses a four piece OTL cantilever with a Grado specific elliptical diamond stylus mounted on a brass bushing. A machined turned generator is used to achieve a lower distortion and greater transparency.

What's the difference between Gold3 and Silver3?
Approximately 5% of the Silver2 production runs meet higher test specifications. The cartridges that exhibit these specs are hand-selected to become a Gold2.
Grado's OTL, or optimized transmission line, technology provides an ideal transfer of signal from the surface of the LP to the generator of the system.

This technology rejects unwanted resonances and lowers distortion preserving the fundamental and harmonic frequencies of the music. This also helps keep noise generated by the motor system in the cartridge to a minimum.

Grado's OTL stylus/cantilever design makes records sound quieter, improves the height, width, and depth of the soundstage, and present more detail than previously obtainable.

The Silver3 are all hand assembled by our team in Brooklyn, with some builders having over 25 years of experience. With the recent development of the highly received Lineage Series of cartridges, we were able to have a trickle down of technology and bring some new techniques to the Silver3.

This updated series of cartridges offers excellent tonal balance, dynamics, and realism, for a most rewarding reproduction of vocals and instruments. Our coil winding techniques, using ultra high purity copper wire which were honed during the development of the Lineage Series, have let the electrical circuits achieve unison between the four coils in each phono cartridge. This allows for a precise balance between channels and accurate stereo imaging.

As in all Grado phono cartridges the Silver2 is powered by a twin magnet system that optimizes the balance between stereo channels. All internal magnetic circuit parts are held to extremely high tolerances creating the desired stereo imaging. Grado's patented Flux-Bridger design allows the Silver2 to have one of the lowest effective moving mass generating systems while creating an excellent balance throughout the full frequency range.

The development of the Epoch in the Lineage Series gave us an in-depth experience with using an outer housing as a damping device. This led to the creation of a process which de-stresses the chassis and dissipates unwanted energy & resonant frequencies, allowing the desired signal to travel freely.

Notes: One of the most trustworthy names in hi-fi delivers a premium version of the excellent Blue3 cartridge, hand tested and selected in Brooklyn for higher performance and better sound.

Supplier notes:
The Red3 uses a four piece OTL cantilever that has a Grado specific diamond mounted on a brass bushing.

What's the difference between Blue3 and Red3?
Approximately 15% of the Blue2 production run meet higher specifications. These are hand selected from the batch and designated as Red3.

Grado's OTL, or optimized transmission line, technology provides an ideal transfer of signal from the surface of the LP to the generator of the system. This technology rejects unwanted resonances and lowers distortion preserving the fundamental and harmonic frequencies of the music. This also helps keep noise generated by the motor system in the cartridge to a minimum.

Grado's OTL stylus/cantilever design makes records sound quieter, improves the height, width, and depth of the soundstage, and present more detail than previously obtainable.

The Red3 is hand assembled by Grado's team in Brooklyn, with some builders having over 25 years of experience. This updated series of cartridges offers excellent tonal balance, dynamics, and realism, for a most rewarding reproduction of vocals and instruments. The coil winding techniques using ultra high purity copper wire, which were honed during the development of the Lineage Series, have let the electrical circuits achieve unison between the four coils in each phono cartridge. This allows for a precise balance between channels and accurate stereo imaging.

As in all Grado phono cartridges the Red3 is powered by a twin magnet system that optimizes the balance between stereo channels. All internal magnetic circuit parts are held to extremely high tolerances creating the desired stereo imaging. Grado's patented Flux-Bridger design allows the Black2 to have one of the lowest effective moving mass generating systems while creating an excellent balance throughout the full frequency range.

Notes: With the BeatBuddy MINI 2 Drummer Pedal, use your foot to take full control over your drummer including transitions, fills, intros, and more.

The ergonomic button makes this drummer pedal perfect for playing or jamming out when wearing socks (or barefoot)!

Over 200 styles and samples of professional drummers result in a versatile and organic feeling drum machine.

The BeatBuddy MINI 2 drummer pedal is a more compact and affordable version of the award winning BeatBuddy drummer pedal. It's used by School of Rock, Taylor Robinson Guitar, Frost School of Music (University of Miami), and more as a tool for efficient and engaging practice.

The ability to play along with beats sampled from professional drummers and control them with nothing but your feet will help you improve your musical talent faster than ever before. Most importantly, the fun you'll be having along the way will keep you coming back for more.

Notes: Updated version of a truly pioneering Eurorack module that introduced DSP effects to the format. Still sounds great, still versatile, still excellent value.

Supplier's notes:
Back in 2008, the original Z5000 was not only the world's first Eurorack DSP effects module but also the first Tiptop Audio module released. It brought voltage controlled digital effects to Eurorack for the first time and the Z5000 was eventually replaced by the Z-DSP open source platform. Now, years later with over a decade of experience developing audio effects for Eurorack signals we are introducing a totally new version of the Z5000: a compact stereo 8HP multi effect with voltage controlled parameters, VC analogue clock generator driving the DSP chip and 24 of our creme de la creme reverbs, delays, modulation, harmonization and pitch modulated effects. A number of programs in the Z5000 combine more than one effect, in series or parallel, that represent studio techniques from the early days till modern times often leaning toward the more experimental side.

Notes: Clever four-channel utility module designed to make it easier to achieve perfect oscillator tracking and transpose CV signals. Also includes some neat quantising and portamento features.

Supplier notes:
The CalTrans solves issues encountered when playing tonal music with a modular system: tracking problems, curves unrelated to Volt per octave ratio, limited octave range, cumbersome transpose, ...

The CalTrans corrects and expands the range of troublesome VCOs and brings V/Oct tracking to anything that oscillates.

Besides calibration, the CalTrans offers live play features. Each channel can be quantized and any combination of them transposed jointly.

A pair of rotary encoders with detent allow an precise selection of octaves and semitones.

VCOs whose tracking doesn't go high enough to follow the leader will see their pitch repositioned in their highest possible octave so that the global harmony is unaffected.

You can add a pinch of portamento and glissando to each channel and save the whole in user presets.

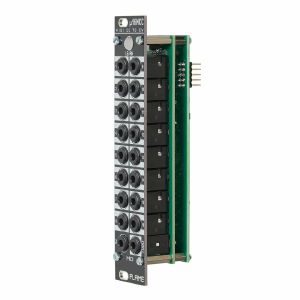

Notes: The Flame u16MCC is a compact MIDI interface, which converts received MIDI control change commands on 16 outputs into CV voltages between 0 and + 5V. The resolution of the data bytes is 7bit. The outputs each have a passive lowpass filter, which smoothes the output voltages.

Each of the outputs can be assigned a separate control change number between 0 and 127 on its own MIDI channel. The module is programmable via the LEARN function with a MIDI keyboard and MIDI controllers, or via SYSEX commands. Some SYSEX files with default settings already exist.

The module has two MIDI sockets (mini jacks in TRS-B standard) INPUT and THRU. The data received at MIDI-IN is forwarded via MIDI-THRU. Additional MIDI modules can then be connected there.

MIDI/USB to CV/Gate/Sync

Features:

16 ControlChange to 16 CV outputs 0..+5v
programmable via MIDI keyboard/DAW/computer
MIDI start/stop trigger outputs
MIDI input and THRU (TRS MIDI B standard)

Power consumption: 50mA at +12 V and 30mA at -12 V
Depth: 40mm
5 HP

Notes: Pigtronix Infinity 2 is a stereo looping pedal with two independent loops and a streamlined user interface that has been designed to provide an intuitive musical workflow, right out of the box.

The Infinity 2 enables musicians to seamlessly switch between parts, even during initial recording or while overdubbing. This Verse / Chorus type of workflow is further expanded by the ability to delete the loop that is not currently playing - freeing up an open slot for a new loop to be created, without interrupting playback.

Nearly all actions taken by the Infinity 2 occur at the loop boundary. This allows the musician to cue an overdub, switch between loops or stop precisely at the end of a loop, without having to worry about hitting the footswitch at precisely the correct time. Simply tell the machine what to do and it will occur at the end of the current loop. This is the general rule of thumb for all commands, with a few exceptions such as instant stop and fade out, which take place immediately when activated.

A small push-button switch, located above the left footswitch, allows the user to change the functionality of this footswitch to perform various Stop, Stutter and Octave Shift effects. A TRS remote jack allows these special features to be triggered by an external switch. Undo / Redo functionality can also be assigned to the left footswitch, allowing the musician to remove previous overdubs and add them back as desired.

In addition to a dedicated knob for loop Volume, the Infinity 2 also features a Decay knob that causes loop audio to fade out progressively during overdub. With the Decay knob set fully clockwise, the layers pile up at full volume. With the Decay knob set fully counter-clockwise, each overdub lasts for only one loop cycle. With the Decay knob set anywhere in-between those extremes, overdubbing on the Infinity 2 creates constantly evolving loop textures that can be instantly snapped back to a previous state using the Undo function.

The Infinity 2's full-range, high-headroom audio inputs will accept mono or stereo instruments as well as line-level signals. The dual outputs of the Infinity 2 can be routed for stereo output with pass-through and loop audio mixed together, or they can be configured for discrete Wet / Dry operationiwhere the loop audio is summed to one output, and pass-through audio is sent to the other.

Infinity 2 combines the high-fidelity audio and ultra-low-latency looping engine of the original award-winning Pigtronix Infinity Looper, with a much smaller form factor and a user interface specifically designed to make looping fun and musical for everyone.

Notes: Latest version of the classic Technics DJ headphones, updating the classic RP-DJ1200 design, which sold more than half a million units in its lifetime. Solid stuff. Popular for a reason.

Supplier notes:
New-Standard EAH-DJ1200 DJ headphones with excellent functionality, furability, and DJ playing performance.

The EAH-DJ1200 is a successor model to the RP-DJ1200, which has sold more than 500,000 units since it was launched in 1996. While inheriting the basic concept of the previous model, the EAH-DJ1200 better meets the needs of today's DJ users, resulting in DJ headphones with more advanced functions, design and sound quality. In addition to ordinary listening, the EAH-DJ1200 provide precise monitoring of the beat even in large-volume sound environments such as those in clubs. The matte finish black colour design also makes it an excellent match for the SL-1200MK7 DJ Turntable.

The newly developed driver uses a 40mm-diameter CCAW voice coil. It achieves clear, detailed sound, and high-durability input (2,500 mW) with no distortion even at high volumes. Also, because the sound is well balanced from low to high ranges, DJ play in high-volume surroundings is not buried in noise and monitoring is comfortable.

The EAH-DJ1200 is a lightweight on-ear type design. The housing is equipped with lockable swiveling mechanisms so the headphones can be used for monitoring with one ear. It adapts to all styles of monitoring by DJs. The headphones can be folded compactly for easy portability and storage.

The detachable cord is easy to clean and maintain. A locking mechanism is provided to prevent accidental detachment of the cord during use. The stretchable coiled cord, coupled with the L-type plug which resists internal wire breakage, enables extra ease of use and high durability. It withstands harsh and intense usage by professional DJs.

Based on the RP-DJ1200, which remained as a long-selling model in the market for more than 20 years, the EAH-DJ1200 sports a contemporary black color scheme for an updated appearance. Armed with high durability and excellent functionality, the EAH-DJ1200 matches perfectly with the SL-1200MK7, which features a matte black finish.

Notes: Simple but effective output module, converts stereo instrument-level signal to balanced XLR outs. Ideal for live use but just as good for avoiding unwanted hum in the studio.

Supplier's notes:
Whether it's in the studio or on a live stage, keeping audio interconnections free from unwanted hum and interference can be a challenge. Balanced lines are the proven solution to this problem.

Conventional balanced output solutions often rely on transformers providing galvanic isolation to mitigate the effects of ground loops. Unfortunately, these components are bulky, expensive and colour the sound (often unfavourably, especially in the low end).

Instead, Transmit 2 (or TX2 for short) takes a fully solid-state approach. Offering a stereo pair of XLR balanced outputs, it ensures that the sonic clarity of your carefully planned modular system is not lost in its interface to the outside world.

Engineered to provide massive headroom while retaining extremely low noise and distortion, Transmit 2's circuitry incorporates low-impedance design practices, radio-frequency (RF) filtering and premium balanced drivers to provide transformer-like interconnect performance in a compact and affordable module. And thanks to the electrostatic (ESD) and phantom power discharge protection, it's rugged enough to survive the rigours of performing on the road.

Adjusting the main output level is a breeze thanks to the dual peak-responding LED meters. A high-end headphone amplifier is included as well, controlled by a separate level knob. It can deliver the voltage and current required to power practically any headphones, regardless of the impedance or driver technology. This 3.5 mm stereo socket can function as an auxiliary stereo line output or even drive small passive speakers, making Transmit 2 an all-round flexible answer to all your output needs.

Notes: For decades, the voltage controlled slew limiter has been a staple of modular synthesisers. With its extreme versatility, it can be used to slew control voltages (CVs), create envelopes, as a low-frequency or audio oscillator and much more.

Today, Contour 1 brings a fresh approach to this classic circuit. It delivers much improved performance and control by incorporating modern design techniques.

At its most basic, a slew limiter slows down the rate of voltage change in a signal. On Contour 1, the rising and falling rates can be individually set using sliders and CV modulation.

The gate and trigger inputs allow the module to be used as a function generator: create snappy attack-release (AR) and attack-decay (AD) envelopes, with slope times ranging from 500 us to 30 seconds. The dedicated gate input makes it easy to generate +10 V envelopes from any signal source. Using the large tactile push button, AD envelopes can be manually triggered. A trigger will also reset the output voltage.

When set to loop mode, Contour 1 will continually re-trigger itself. In this mode, it fulfils the role of a variable-shape low-frequency oscillator (LFO) or temperature-stable voltage controlled oscillator (VCO) in the audio range.

Both the rising and falling slopes can be individually bent, from concave through linear to convex. While doing so, the deviation in slope time, and thus oscillation frequency, is kept to a minimum. Since the bend parameters are separately voltage controllable, boundless modulation possibilities present themselves.

Explore anything from shape-shifting envelopes to rich VCO timbres: Contour 1 will make you re-think what a slew limiter can do.

Dimensions
8 HP
30 mm deep

Current Draw
90 mA +12V
85 mA -12V

Notes: VCO:

- Tune: manual tune control (with an internal jumper the range can be set to ~ +/-1 half an octave or ~ +/-2.5 octaves)
- Oct: range switch -1 / 0 / +1 octave
- Mod: modulation depth (attenuator wired to the Mod. socket)
- Dest: switch that is used to address the modulation to frequency modulation (position FM) or pulsewidth modulation (positon PM), in centre positon no modulation
- PW: manual pulsewidth control for rectangle waveform, PW can be also modulated by the Mod. input as mentioned above
- Wave: waveform switch (sawtooth / off / triangle), the sum of the waveform chosen by this switch and the rectangle is fed into the VCF (to turn the rectangle off the PW control has to be set fully CCW or fully CW)
- 1V/Oct. (socket): external CV input for VCO frequency (1V/octave)
- Access to internal bus CV (via jumper, optional, please remove the bus jumper if this feature is not used to avoid unwanted frequency modulation as then the unused CV line of the bus works as a kind of antenna)
- Triangle core VCO, frequency range about 32Hz ... 8kHz

Balance unit:

- The balance unit is made of two VCAs which are controlled by the sum of manual Balance control and the balance CV input in the opposite direction.
- The audio input of VCA1 is hard-wired to the VCO output, audio input 2 is connected to the socket Ext.In.
- The output of the balance unit is used as audio input for the VCF
- Bal.: manual balance control, fully CCW the internal VCO is used, fully CW the external signal (Ext.In) is used, at centre position both signals have about the same level
- CV Bal.: CV input for balance (range about 0...+5V)
- Ext. In: external audio input for VCA2, about 5 Vpp level required for similar loudness as the internal VCO
- This socket is normalled to the internal VCO suboctave f/2 signal (rectangle with half the frequency), if no external signal is applied the suboctave signal is used as the second signal for the balance unit

VCF:

- 24 dB low pass
- Frq: manual frequency control
- FM1: frequency modulation depth (attenuator wired to the VCF FM1 socket, the socket is normalled to the internal Envelope signal and then FM1 controls the modulation depth of the internal envelope applied to the filter)
- FM2 (socket) : second CV input for VCF without attenuator (about 1V/octave), can be used e.g. for VCF tracking by connecting the same CV which is used also for the VCO frequency
- Res: manual resonance control (up to self oscillation)
- If the VCO is turned off (waveform switch = centre position, pulsewidth control = fully CCW or CW) and the VCF resonance is set to maximum the module can be used as a sine oscillator, the tracking at socket VCF FM2 is about 1V/octave (not as precise as the VCO but much better than most other filters)
- ~ 11 octaves frequency range (~ 10 Hz ... 20kHz)

VCA:

- Gain: manual amplitude control (initial gain), can be used to open the VCA without envelope signal
- VCA (switch): used to switch between gate and envelope as control signal for the VCA, in centre position the VCA is not controlled by envelope or gate
- Note: when gate is used the VCA is controlled directly by the gate signal (i.e. hard on/off), this may lead to clicking noise under certain conditions (especially with low VCO/VCF frequencies)
- Special control scale: exponential scale in the range from about -20dB to -80/90dB, linear scale from about -20dB to 0dB
- Remark: this special control scale results in a loudness behaviour that is a bit different from pure linear or exponential VCAs
- Out: audio output of the module (= VCA output)

Envelope:

- Gate (socket): Gate input (min. +5V), can be normalled to the bus gate signal by means of a jumper
- Att: manual control for Attack
- D/R: manual control for Decay/Release
- Env. (switch): used to switch between A/D, ADSR and A/R mode of the envelope generator, in centre position (ADSR) the sustain level is fixed to about 50%
- Envelope (socket): envelope output (about +10V)
- CVT (socket): CV input for time control, by means of two internal jumpers one can select which time parameters are controlled by the CVT input (e.g. A only or D/R only or A/D/R) and in which direction (i.e. if an increasing CVT shortens or stretches the time parameter in question)
- Envelope LED display
- Attack time range: ~ 1ms ... 5 sec (can be extended by using the CVT input)
- Decay/Release time range: ~ 1ms ... 15 sec (can be extended by using the CVT input)

Notes: Everyone loves bass, so Minirig decided to take the Subwoofer to the next step - rather than the old 30 watts of power, it now has 40 watts of power! This ultimately gives you a cleaner low that matches the new Minirig 3.

Don't just hear the bass - feel the bass:

The Subwoofer works in harmony with your Minirig or Minirig Mini to enhance the low end.

Optimised Airflow Technology:

With Minirig's custom folded horn design you get bone shaking bass, in a small package.

Take the party on the road:

Chuck this little bass bin in your rucksack and complete your Minirig soundsystem set-up.

Notes: Versatile stereo digital filter based on Endorphin's Grand Terminal module. CV-controlled cutoff, resonance and separate high-pass filter. Simple but effective.

Supplier notes:
The Squawk Dirty To Me is a stereo filter with voltage controlled resonance. It features eight filter modes and zero-delay feedback.

- Simple and effective 6hp stereo VCF
- 8 filter modes available with meta CV scanning, famous zero-delay feedback Grand Terminal filters
- Additional hi-pass filter in series quickly cuts the boomy low end

Notes: Milky Way is a multi effects module with stereo signal flow. Its algorithms are already known from the Blck_Noir and the Grand Terminal.

- Simple and effective 6hp stereo* FX module
- Comes with "T.F.D" firmware installed: 16 types of effects are available, sorted in two banks
- Meta CV effects scanning
- Volume control with VCA

*depending on the effect type

Notes: Low-budget flexibility from the German brand. Three channels with three-band EQ, plus streaming from Bluetooth or USB for added connectivity.

Supplier notes:
- 3 input channels with gain control, 3-band equalizer, cue button and channel fader
- DJ microphone channel with level control and 2-band equalizer
- Integrated Bluetooth audio streaming for your smartphones and tablets
- MP3 player with USB port and blue LCD screen
- Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
- Crossfader with adjustable curve and reverse function
- Master channel with level control and 6-digit stereo LED level meter, switchable between master and PFL signal
- 6-digit stereo LED level meter
- 6 line and 2 phono inputs via RCA jacks
- Balanced XLR and RCA outputs
- Record output, independent of the master

Notes: More bang for your buck? Omnitronic's four-channel offering is a competitively priced alternative to entry-level mixers from Pioneer or A&H. Built-in mp3 playback from USBs and audio streaming over Bluetooth.

Supplier notes:
- 4 input channels with gain control, LED level meter, 3-band equalizer, cue button and channel fader
- DJ microphone channel with level control, 2-band equalizer, on/off and talkover switch
- Integrated Bluetooth audio streaming for your smartphones and tablets
- MP3 player with USB port and blue LCD screen
- Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
- Crossfader with assignment switches and adjustable curve
- Master channel with level and balance control
- 10-digit stereo LED level meter
- Adjustable monitor output (DJ booth)
- 10 line and 2 phono inputs via RCA jacks
- Balanced XLR and RCA outputs
- Record output, independent of the master

Notes: Clep Diaz is a handy and small step CV and LFO generator. In step and random modes, use the encoder to control the number of steps in the sequence; in LFO mode, the encoder controls the amplitude of the wave. Toggle the directionality of the sequence: up, down, or up/down to customize the CVs further. CD also gives CV control over the number of steps in the sequence and an end-of-cycle trigger output. Unipolar and bipolar outputs allow maximal control.

Dimensions
4 HP
26 mm deep

Current Draw
44 mA +12V
10 mA -12V
0 mA 5V

Notes: The AT-XP series cartridges provide a high-quality sound for vinyl DJ's. Offering all of the features of a DJ cartridge, but with a Hi-fi sound, the XP series are perfect for the stage and club DJ who prioritises sound quality.

- Audiophile DJ cartridge AT-XP7 pre-mounted on the AT-HS6BK headshell
- VM dual magnet construction
- Durable robust design for high-quality specialist DJ playback
- Tapered aluminium cantilever providing outstanding rigidity
- Compatible with the replacement styli ATN-XP3 and ATN-XP5 as well
- Configuration with single cartridge (AT-XP7). The replacement stylus (ATN-XP7) and a headshell bundle, consisting of the replacement stylus and the headshell AT-HS6BK (AT-XP7/H) are available separately
