Explore modulation beyond the standard ADSR with Verbos's complex polyphonic envelope, opening up the potential of ADAsR and AHDsR slopes. Use the four envelopes independently or trigger sequentially in three separate modes.

Supplier's Notes:

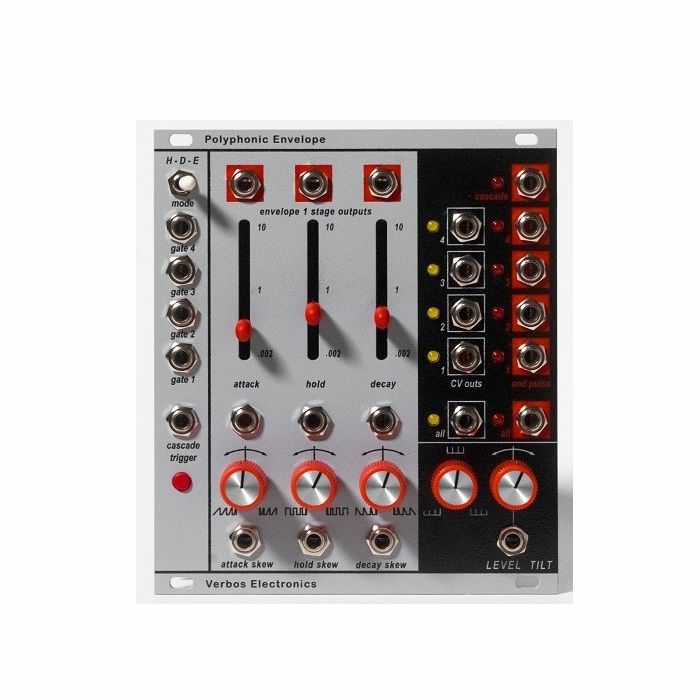

The Verbos Polyphonic Envelope module is a set of four envelope generators which can be used together or independently. Cascade logic allows the four envelopes to trigger sequentially with subsequent envelopes starting at the Hold, Decay or End of the previous envelope.

Each envelope offers its own gate input, CV output and end pulse output, so it can be used in up to four-voice polyphonic patches. The three skew controls allow the times to change as each new envelope is switched on. All parameters can be voltage controlled.

Power consumption: 75mA at +12 V and 30mA at -12 V

HP : 22
