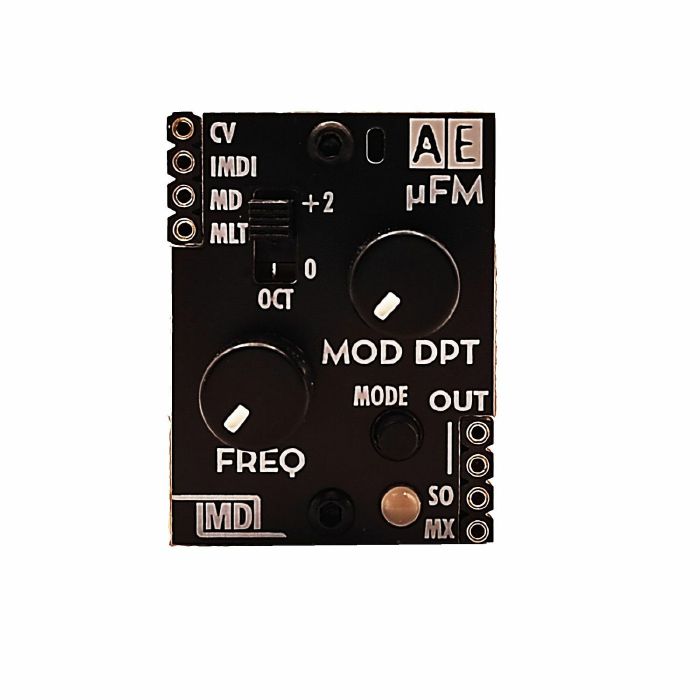

The uFM is an oscillator module, that is focused on FM synthesis.

It's basically a two-operator FM synthesis, but with extended functionality: The operator waveforms can be either sine waves (classic FM), or four other different combinations of non-sinewave waveforms, that produce a much broader palette of sounds beyond the classic sinewave based FM synthesis.

The MOD DPT knob controls the modulation depth; in combination with a button press also the multiplier of the modulating operator can be defined.

Both parameters can be controlled also by CV and also via IMDI by MIDI controllers. The pitch can be controlled via 1V / octave CV or also via IMDI e.g. from a DAW

(For IMDI, see IMDI HEART for more info).

Additional to the normal audio output a suboctave output with a squarewave is provided, and a third output with the mix of the primary oscillator signal and the suboctave.

Quite a lot for such a tiny module, right?

Please note: These micro module needs a carrier, like the uBASE module. The cannot be mounted directly into an AE case.
